Article

Identification of Inhibitors to Trypanosoma cruzi Sirtuins Based on Compounds Developed to Human Enzymes

by
Tanira Matutino Bastos
1,†,
Milena Botelho Pereira Soares
1,†,
Caio Haddad Franco
2,
Laura Alcântara
2,
Lorenzo Antonini
3,4,
Manuela Sabatino
3,4,
Nicola Mautone
3,4,
Lucio Holanda Freitas-Junior
2,
Carolina Borsoi Moraes
2,
Rino Ragno
3,4,
Dante Rotili
4,
Sergio Schenkman
5,
Antonello Mai
4,6,* and
Nilmar Silvio Moretti
5,*
1
Instituto Gonçalo Moniz, FIOCRUZ, Salvador 40296710, BA, Brazil
2
Departamento de Microbiologia, Universidade de São Paulo-USP, São Paulo 05508900, SP, Brazil
3
Rome Center for Molecular Design, Drug Chemistry and Technology Department, Sapienza University of Rome, 00185 Rome, Italy
4
Drug Chemistry and Technology Department, Sapienza University of Rome, 00185 Rome, Italy
5
Departamento de Microbiologia, Imunologia e Parasitologia, Escola Paulista de Medicina, Universidade Federal de São Paulo, São Paulo 04039032, SP, Brazil
6
Pasteur Institute, Cenci-Bolognetti Foundation, Sapienza University of Rome, 00161 Rome, Italy
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Int. J. Mol. Sci. 2020, 21(10), 3659; https://doi.org/10.3390/ijms21103659
Submission received: 18 March 2020 / Revised: 25 April 2020 / Accepted: 26 April 2020 / Published: 22 May 2020
(This article belongs to the Special Issue Biochemistry, Molecular Biology and Druggability of Proteins)
Browse Figures
Review Reports Versions Notes

Abstract

:
Chagas disease is an illness caused by the protozoan parasite Trypanosoma cruzi, affecting more than 7 million people in the world. Benznidazole and nifurtimox are the only drugs available for treatment and in addition to causing several side effects, are only satisfactory in the acute phase of the disease. Sirtuins are NAD+-dependent deacetylases involved in several biological processes, which have become drug target candidates in various disease settings. T. cruzi presents two sirtuins, one cytosolic (TcSir2rp1) and the latter mitochondrial (TcSir2rp3). Here, we characterized the effects of human sirtuin inhibitors against T. cruzi sirtuins as an initial approach to develop specific parasite inhibitors. We found that, of 33 compounds tested, two inhibited TcSir2rp1 (15 and 17), while other five inhibited TcSir2rp3 (8, 12, 13, 30, and 32), indicating that specific inhibitors can be devised for each one of the enzymes. Furthermore, all inhibiting compounds prevented parasite proliferation in cultured mammalian cells. When combining the most effective inhibitors with benznidazole at least two compounds, 17 and 32, demonstrated synergistic effects. Altogether, these results support the importance of exploring T. cruzi sirtuins as drug targets and provide key elements to develop specific inhibitors for these enzymes as potential targets for Chagas disease treatment.

1. Introduction

Trypanosoma cruzi is a flagellate protozoan parasite that causes Chagas disease in humans. In spite of extensive efforts to control its transmission by elimination of the insect vector, there are nearly 7 million people infected with the parasite, of whom 20%–30% may develop serious symptoms of Chagas disease, mainly in Latin American [1,2]. The disease is also spreading to other parts of the world, including the United States, Europe, Asia, and Oceania, as a consequence of blood transfusion, and there is a constant risk of transmission by oral route and by the uncontrolled human occupancy of new habitats [1,2].
Existing treatment for Chagas disease relies primarily on two drugs, nifurtimox (NFX) and benznidazole (BZN), which are more effective against T. cruzi infection during the acute phase, with poor effect during the chronic phase of the disease [3]. Furthermore, the use of these drugs can display different side effects [3,4], indicating the need to seek for new therapeutic alternatives.
T. cruzi migrates from invertebrate to vertebrate hosts, which obligate the parasite to change its morphology, metabolism, and gene expression to adapt and exploit the host environment [1,5]. This occurs by changes in enzymatic activities and differential gene expression regulated by numerous post-translational modifications such as phosphorylation, methylation, and acetylation [5]. Recently, protein acetylation has been demonstrated in several proteins from different cellular compartments mediating diverse molecular processes in T. cruzi and Trypanosoma brucei [6]. Protein acetylation levels are regulated by the counteracting activity of two families of enzymes: Lysine acetyltransferases (KATs) and lysine deacetylases (KDACs). The latter can be classified in two classes, zinc-dependent lysine deacetylases (classical KDACs) and NAD+-dependent lysine deacetylases, or sirtuins [7]. Sirtuins are evolutionarily conserved enzymes present from bacteria to humans, acting in several biological processes, from metabolism to gene expression regulation [8].
Different organisms have distinct Sir2 orthologues: For example, in humans there are seven sirtuins, SIRT1-7, while in bacteria have only one [8,9]. Due to the fact that these proteins are involved in vital cellular processes, they have attracted attention as potential pharmacological targets for the treatment of different diseases, including cancer [10]. T. brucei and Leishmania spp. have three sirtuins [11], while T. cruzi presents only two genes coding for sirtuins, TcSir2rp1 and TcSir2rp3, located in the cytoplasm and mitochondria, respectively [12,13]. Sirtuins have been explored as potential drug targets in different pathogens, including T. brucei and Leishmania spp., demonstrating promising anti-parasitic activity, and indicating that these enzymes may be used as alternative therapeutic targets against parasite infections [14]. In T. cruzi, it was shown that TcSir2 inhibition by nicotinamide can cause parasite morphologic alterations and growth arrest, suggesting a potential use for the development of new drugs against Chagas disease [15]. Recently, it was reported that the overexpression of sirtuins in T. cruzi affects growth and differentiation of the parasite, reinforcing the importance of these enzymes in this context, and that some natural compounds isolated from cashew nut (Anacardium occidentale) inhibited both the T. cruzi sirtuins and are active against the amastigote forms [12,13]. However, it is not clear if both the parasite sirtuins can be inhibited by the same compounds, and if both can be targeted for eventual therapy. Consequently, the structural and biochemical differences between sirtuins found in humans and in T. cruzi parasites have been explored for developing novel anti-parasitic therapeutics, based on selective targeting of the parasitic sirtuins [14,16].
In this context, we decided to evaluate the action of a small library of human sirtuin inhibitors (SIRTi), endowed with great chemical diversity, against the recombinant and purified T. cruzi sirtuins, and whether the most effective inhibitors could also prevent the parasite development in infected mammalian cells. In addition, as BZN acts generating oxidative species to kill the parasite [17], and sirtuins have been shown to modulate anti-oxidant responses [18,19], we investigated if these inhibitors could act synergistically with BZN when used in combination against T. cruzi.

2. Results

2.1. T. cruzi Has Two Distinct Sirtuins

Compared to higher eukaryotes, Trypanosomatids have a limited number of genes encoding for sirtuins. While humans have seven sirtuins (SIRT1-7) [20], T. brucei and Leishmania have three genes, whereas T. cruzi has only two genes (TcSir2rp1 and TcSir2rp3) [12].
Phylogenetic analyses showed that TcSir2rp1 is related to SIRT2 and SIRT3 human proteins, while TcSir2rp3 is similar to SIRT4 and SIRT5 (Figure 1A). TcSir2rp1 is located in the cytoplasm of the parasite [12] similar to the human SIRT2. They share 29% of amino acid identity, while TcSir2pr1 has only 24% identity to the human mitochondrial SIRT3. In contrast, the mitochondrial TcSir2rp3 sirtuin is more similar to the mitochondrial SIRT5 (28% of amino acid identity) and SIRT4 (23% of amino acid identity) (Figure 1B and Table S1). T. cruzi sirtuins share about 24% of amino acid identity.
Comparison between the modeled structures of TcSir2rp1, TcSir2rp3 and related human sirtuins allowed to get insights on structural differences. In the case of TcSir2rp1 and its human homologue SIRT2 the active site is highly conserved but showing some peripherical different residue couples: Val42/Thr89, Ala43/Ser90, Asn66/Pro113, Ser67/Tyr114, Thr69/Glu116, Val185/Ile232, His219/Gln267, Leu239/Lys287, Val242/Ala290, Asp307/Glu323, and Gln309/Asp325 (Figure 1C).
In the case of TcSir2rp3 and its human homologue SIRT5 the binding site residues showed minor conservation with respect to TcSir2rp1/SIRT2. However, the core binding site residues are retained. Non-conserved residues in this region are: Val37/Ala82, Glu38/Gln83, Val97/Ile142, Ile154/Val220, Pro161/Leu227, Gly184/Ser252, Asn185/Val253, Leu208/Val276, Asp209/Glu277, Lys224/Pro292, and Ala225/Cys293 (Figure 1D).

2.2. Effect of Inhibitors on TcSir2rp1 and rp3 Deacetylase Activity

In order to further explore the potential of T. cruzi sirtuins as drug targets, we selected a set of sirtuin inhibitors (SIRTi) (Figure 2), which were previously tested against human SIRTs. These inhibitors were selected based on their chemical diversity, which included benzodeazaoxaflavins [21], salermide analogues [22], cambinol [23], and its analogues, 1,2,4-oxadiazoles [24], lysine-based compounds [25], MC2494 analogues [9,26], thiobarbiturates [27], and pyrroloquinoxalines [28], as well as on their potency against human enzymes, including those with weak potency, making them attractive to be tested against the parasite sirtuins. This was performed with recombinant T. cruzi sirtuins using a well-established deacetylase activity assay [12]. For the initial tests, assays were performed in the absence or presence of 5 µM of each SIRTi. Most of the tested compounds showed poor inhibitory capability at this concentration, including 12 and 27, potent inhibitors of human SIRT2 (IC50 values = 6.3 (12) and 10.5 (27) µM, unpublished results). More interestingly, the compounds displayed different inhibitory potency for the different T. cruzi enzymes. While we found only two compounds that inhibited TcSir2rp1 activity corresponding to cambinol analogues (15 and 17, Figure 3A), for TcSir2rp3 we detected five compounds with inhibitory activity (% of inhibition >30%): 8 (salermide analogue), 12, 13 (both cambinol analogues), 30 and 32 (both thiobarbiturates) (Figure 3B). These results indicate different susceptibility of the two T. cruzi enzymes to sirtuin inhibitors. About their effects in human sirtuins, 8 inhibited better SIRT2 than SIRT1 (IC50 values around 20 (SIRT2) and 40 (SIRT1) µM), while 12, 13, and 15 showed selective SIRT2 inhibition with single-digit micromolar IC50 values, and no activity against SIRT1 up to 150 µM (22 and unpublished results). Compound 17 displayed similar, low potency (IC50 values around 50 µM) against both the two SIRT isoforms (unpublished results), whereas 30 and 32 were equally potent (IC50 values at single-digit micromolar level) against SIRT1, SIRT2, and SIRT5 (27 and unpublished results).
Using the data obtained from the initial screening we determined the IC50 for the most potent inhibitors of TcSir2rp1 (15 and 17) and TcSir2rp3 (8, 12, 13, 30, and 32). The TcSir2rp3 inhibitor 12 exhibited the lowest IC50 value, 14.4 µM, while 17 was the strongest TcSir2rp1 inhibitor with IC50 of 25.5 µM (Table 1).

2.3. Binding Mode of SIRTi with Effect on T. cruzi Sirtuins

To gain insight in the effect of SIRTi in T. cruzi sirtuin deacetylase activity inhibition, molecular docking investigation were performed using the most potent compounds for each parasite enzyme using all the modeled T. cruzi conformations in an ensemble cross-docking experiment (CDE) [29].
Molecular docking assessment indicated the smina/vina scoring function with minimization (smina/vina/min) combination (Table S2) as the best one to perform SB studies in T. cruzi sirtuins homologues. Therefore, the smina/vina/min combination was used to investigate the binding modes of the MC derivatives. On the basis of the vina scoring function, 15 and 17 binding modes were deeply investigate as docked in the TcSir2rp1/NAD+ complex, while 8, 12, 13, 30, and 32 were analyzed in the free TcSir2rp3 (apoprotein).
Comparison of predicted affinities of inhibitors/TcSir2 proteins with experimental IC50 did not shown a perfect correlation (not shown). However, for TcSir2rp1 the vina score indicated a higher affinity for 17 than for 15 in binding TcSir2rp1/NAD+ complex, which agrees with higher inhibitory effect of 17 (Table 1 and Table S3). Also, the scoring function correctly predicted the selective TcSir2rp3 inhibitors (8, 12, 13, 30, and 32) more potent than those capable to interact with TcSir2rp1 (Table S3). Regarding the stereoisomers the Z-17 showed a slightly lower predicted affinity than E-17, while for the four 8 stereoisomers, Z-S-8 was predicted to bind with a better energy profile. Finally, for the three analogues 30-32 the E stereoisomer was always preferred (Table S3).
In general, the CDE experiments predicted SIRTi to dock into a space close or overlapping to that normally occupied by inhibitor in human sirtuins. For TcSir2rp1, the selective inhibitors 15 and 17 were preferentially docked in the proximity of the nicotinamide escape channel (Figure 3C and Figure S1). On the other hand, most of TcSir2rp3 selective inhibitors docked conformation overlaps on a space shared by the substrate acetyl-lysine and NAD+ binding sites (Figure 3D and Figure S1).

2.4. Effect of SIRTi on T. cruzi Infection In Vitro

Next, we evaluated the effects of the SIRTi on the parasite proliferation inside mammalian cells. Thirteen compounds did not present any effect on the parasite. Two compounds displayed trypanocidal activity with EC50 lower than 10 µM; eight compounds had activity with EC50 varying from > 10 to 20 µM and the remaining 11 compounds presented an EC50 higher than 30 µM (Figure 4A). Representative images of infected cells are shown in Figure 4B.
Comparing compounds with inhibitory deacetylation activity with those with trypanocidal activity, we found that both the compounds (15 and 17) that acted against TcSir2rp1 also presented trypanocidal activity, with EC50 values of 8.5 (17) and 19.4 (15) µM. The inhibitory effects observed for the five compounds in TcSir2rp3 deacetylase activity, also inhibited intracellular T. cruzi proliferation. However, in this case the trypanocidal activity was detected only with higher concentrations (Table 2). Interestingly, compound 27 (a MC2494 analogue) that did not show potent inhibitory effect on in vitro deacetylase activity for both T. cruzi enzymes showed the best trypanocidal activity with EC50 = 5.73 µM and selectivity index of 8.18 (Table 2), but we cannot exclude an indirect effect of this compound.

2.5. Combinatory Trypanocidal Effect of SIRTi and Benznidazole

Based on deacetylase inhibitory potency and trypanocidal effect, we selected the best compounds to perform combinatory high content assays (HCA) with the reference drug for treatment of Chagas disease, BZN. It is proposed that sirtuins would be involved in anti-oxidative stress responses in T. cruzi (Moura et al., in preparation), and it is believed that BZN acts on T. cruzi generating oxidative stresses [17]. Three compounds were selected, 17 inhibiting TcSir2rp1, and 12 and 32 that inhibited TcSir2rp3. For combinatory effect assays, the SIRTi were used in association with BZN at constant concentration ratios (1/32; 1/16; 1/8; 1/4/ 1/2; 1/1; and 2/1) based on the pre-determined EC50 values of each drug, and the trypanocidal activity of combined compounds was compared with the activity of the compounds alone. The results of combinatory effect of 12 and BZN demonstrated no difference in the trypanocidal activity compared to BZN alone (Figure 5A). However, no difference was observed comparing BZN alone with BZN+12 (Figure 5A). The analysis of the ratios separately showed a synergistic effect at 1/4 ratio; an additive effect at 1/8, 1/2 and 1/1; and antagonistic effect at ratios lower than 1/8 (Table S4). The same pattern was observed for 17 and BZN, with an increase in the trypanocidal activity of 17+BZN compared to 17 alone, but no increase in trypanocidal activity was observed when compared to BZN alone (Figure 5B). By analyzing the drug combination ratio separately, we observed a tendency towards a synergistic effect at ratios lower than 1/4, while to 1/2, 1, and 2, was observed antagonistic effect (Table S5).
Finally, similar to that observed for the previous two compounds, the combinations of 32 with BZN increased the trypanocidal activity compared to 32 alone but not if compared to BZN alone (Figure 5C). A synergistic effect was detected for all concentration ratios lower than 1/2 (Table S6).

3. Discussion

Only two genes coding for sirtuins are present in T. cruzi, TcSir2rp1 and TcSir2rp3, which are cytosolic and mitochondrial proteins, respectively [12,13]. Both proteins have central roles in the multiplication of parasite replicative stages, in the host cell-parasite interplay, and in differentiation among different lifecycle stages, although each protein differentially affects these processes [12,13,30]. Recently, our group and others have validated T. cruzi sirtuins as potential drug targets [12,30,31], and in this work we extended this validation by exploring the potential of human SIRT inhibitors in affecting parasite sirtuin deacetylase activity and amastigote survival in the host cell.
The structural differences of T. cruzi sirtuins were reflected on the number and chemical identity of the SIRTi that presented deacetylase inhibitory activity against TcSir2rp1 and TcSir2rp3: Cambinol analogues (15 and 17) affected TcSir2rp1, and a more diversity group of SIRTi (salermide, cambinol and thiobarbiturates analogues) influenced the TcSir2rp3 activity. This compound preference was confirmed by the molecular docking analysis, demonstrating that TcSir2rp3 inhibitors presented higher binding affinity for the protein compared to the TcSir2rp1 protein. The same scenario was found for TcSir2rp1 inhibitors, which were less potent against TcSir2rp3 (Table S3).
The SIRTi preferred binding regions in TcSir2rp1 and TcSir2rp3 are also different among the proteins. TcSir2rp1 inhibitors docked mainly at the nicotinamide escape channel, similar to human protein, while TcSir2rp3 inhibitors occupied the region shared by the acetyl-lysine substrate and the NAD+ co-substrate (Figure 3C,D).
In parallel, we observed that from all compounds with deacetylation inhibition activity only one had trypanocidal effects at concentrations below 10 µM against intracellular amastigote stage, indicating that the inhibition of TcSir2rp1 may be the target. Compounds 27 and 17 presented the best inhibitory activity, with EC50 of 5.73 and 8.50 µM, respectively. However, 27 was not effective in the deacetylation assays, suggesting that it may be acting on a different target, especially considering the distinct molecular structure when compared to 17 (Figure 2), which in contrast inhibited TcSir2rp1. We cannot exclude, however, whether it targets other deacetylases in the parasite.
Regarding to TcSir2rp3 inhibitors in deacetylation assays, the most potent against parasites was 12, with an EC50 = 35.4 µM, relatively high to be used as an inhibitory compound. The poor effect against dividing amastigotes could be due to a low penetration in the cell, particularly in the mitochondria, as TcSir2rp3 is a mitochondrial protein [12]. The fact that TcSir2rp3 is relevant as a target is because its overexpression increase amastigote replication [12].
As the two available drugs for Chagas disease treatment are not completely effective and present high toxicity, any alternative treatment or combinatory use with other drugs that could increase the effect and/or reduce toxicity is always needed. In this way, it was selected the SIRTi with higher inhibitory activity in the HCA experiments to evaluate their combinatory effect with BZD. The combinations showed an increase in the trypanocidal activity compared to the activity observed with the SIRTi alone, but not if compared to BZD alone. Both 17 and 32 presented synergistic effects with BZN, although at different ratios. Other SIRTi had shown low or no synergism, such as 12 (Figure 5A). These different properties may suggest that the synergistic action could be not due to direct action on the T. cruzi sirtuins. Alternatively, the inhibitory mechanism could be different in the in vivo environment. We have observed that TcSirRp3-overexpressing parasites are more resistant to benznidazole and nifurtimox, pointing the role of this sirtuin in the regulation of oxidative stress response in T. cruzi (Moura et al., in preparation).
The compounds identified here could be used as a start point for development of new molecules to inhibit sirtuins, through chemical modifications that would increase their inhibitory activity and specificity. Also, there is a vast number of SIRTi available that were already tested in other models, such as cancer, that could be explored for Chagas disease, using the repurposing strategy, saving time and money in the development of new drugs to combat this disease that has still a poor therapeutic arsenal.

4. Materials and Methods

4.1. TcSir2rp1 and TcSir2rp3 Heterologous Expression and Purification

TcSir2rp1 heterologous protein was obtained as described in [31]. Briefly, Escherichia coli BL21 (DE3), bearing the construct pET28a-TcSir2rp1, in LB medium containing 50 μg/mL kanamycin at 0.8 units of absorbance (600 nm) was incubated with 0.1 mM of isopropyl β-d-1-thiogalactopyranoside (IPTG) at 37 °C. After 3 h, bacterial cells were collected by centrifugation and lysed using French Press apparatus (Thermo Electron Corporation, Beverly, MA, USA) in presence of lysis buffer (200 mM NaCl, 5% glycerol, 5 mM 2-mercaptoethanol, and 25 mM HEPES-NaOH, pH 7.5 and protease inhibitor cocktail) (Sigma-Aldrich, St. Louis, MO, USA). The recombinant protein was purified from clarified bacterial protein extracts by incubation with Ni-NTA Superflow beads (Qiagen, Gaithersburg, MD, USA) for 30 min at 4 °C. The resin was washed with lysis buffer containing 20 mM imidazole, and the enzyme was eluted with one volume of the same buffer containing 250 mM imidazole and stored at −80 °C until use. Recombinant TcSir2rp3 was obtained as described previously [12].

4.2. SIRTi Library

The SIRTi library used in this study contains already published compounds [9,14,20,21,22,23,24,26,27,28] as well as new compounds whose synthesis will be reported elsewhere. The structure of each compound is described in Figure 2. The structures were confirmed by 1H-NMR, 13C-NMR and mass spectra. The compounds were stored dissolved in DMSO at 10 mM, at −80 °C and when used diluted at specific concentrations. The inhibitors used were selected according to their chemical diversity, including also compounds showing low potency against human sirtuins.

4.3. Deacetylase Activity Assay

All in vitro deacetylation activity assays were performed based on the previously established protocol [12]. The assays consisted in two steps: 1) deacetylation enzymatic step: A synthetic peptide was used as the substrate (Abz-Gly-Pro-acetyl-Lys-Ser-Gln-EDDnp, where Abz is ortho-aminobenzoic acid and EDDnp is N-(2,4-dinitrophenyl)ethylenediamine), dissolved in 50 µL of 25 mM Tris-HCl, pH 8.0, 137 mM NaCl, 2.7 mM KCl, 1 mM MgCl2 containing 0.6 mM NAD+ (Sigma-Aldrich, St. Louis, MO, USA), and incubated with recombinant and purified TcSir2rp1 or TcSir2rp3; 2) fluorescence detection step: The reactions were stopped by the addition of 50 µL of 12 mM nicotinamide, followed by incubation of the product reaction with 0.6 mg/mL trypsin (Sigma-Aldrich, St. Louis, MO, USA) during 15 min at 37 °C. Finally, fluorescence was detected at 420 nm (excitation, 320 nm) using SpectraMax M3 plate reader instrument (Molecular Devices, Sunnyvale, CA, USA). The percentage of deacetylase activity was determined in comparison with the negative control.
For the inhibitory assay using SIRTi, the enzymes were pre-incubated with the indicated compounds at 5 μM for 30 min at room temperature prior addition of substrate and beginning of the reaction. From this preliminary inhibitory assay, the best compounds (≥ 30% of inhibition) were selected for IC50 determination.

4.4. Molecular Modeling

4.4.1. Homology Modeling of T. cruzi Sirtuins

For modeling the 3D protein structures of T. cruzi sirtuins, the amino acidic sequences of TcSir2RP1 and TcSir2RP3 (Tritryp gene id: TcCLB.507519.60 and TcCLB.506559.80, respectively) were retrieved from Uniprot [32]. Comparative models for TcSir2RP1 and TcSir2RP3 were obtained from the SWISS-MODEL web server [33]. The Leishmania infantum Sir2RP1 (PDB ID: 5OL0) [34] showing a sequence identity of 62% was selected as template for TcSir2RP1. Whereas for TcSir2RP3 the E. coli cobB (PDB ID: 1S5P) [35] was selected as a template showing a sequence identity of 60%.

4.4.2. Conformation Preparation of T cruzi Sirtuins Complexes

Four different T. cruzi sirtuins systems were modeled on the basis of experimental available data from the PDB. In particular the proteins were modeled in the apo-form, in binary complexes with the unreacted NAD+ cofactor or its reaction product 2′-O-acetyl-ADP-d-ribose (AAR) and also in a ternary complex with NAD+ and the acetyl lysine (ALY) containing substrate peptide. The TcSir2RP1 and TcSir2RP3 homology modeled structures were added of the hydrogens and zinc finger cysteines were modeled in anionic forms. Residue protonation states were adjusted in agreement with the pdb2pqr program at pH = 7.0 [36,37]. The structure of the NAD+ cofactor was taken from pdb entries 4I5I [38] and 1ICI [39] for TcSir2RP1 and TcSir2RP3, respectively, AAR was taken from 2H59 [40], ALY containing peptides were directly taken from the used templates. Molecular mechanics parameters for NAD+ and ALY were taken from literature [41], while general amber force field (GAFF) [42] parameters for AAR were calculated by means of antechamber [43] using semiempirical calculations (AM1-BCC) [44]. All the modeled complexes were solvated in an orthorhombic box using the OPC water model and neutralized with NaCl [45] setting to 12 Å the box boundaries distance from the protein. The ff14SB force field was used for protein [46]. The complete parameter and topology files were obtained using the Ambertools18 suite [47]. Each of the systems (apoprotein, sirtuin/NAD+, sirtuin/AAR, and sirtuin/NAD+/peptide) were then subjected to molecular dynamics (MD) runs using in house python code with OpenMM library [48]. Details of all the molecular modeling procedure to prepare and select the subsequent representative systems conformations will be reported elsewhere. From each of the MD simulations 15 different conformations were sampled and directly used for the molecular docking investigation of the titled derivatives.

4.4.3. Molecular Docking Simulations

Docking Assessment

Prior any docking application any program should be assessed for its usability and limits. To this aim, and as no experimental structures for TcSir2RP1 and TcSir2RP3 were available, the docking assessment was carried out on selected experimental available T cruzi sirtuin homologues co-crystallized with an inhibitor (Table S7).
As from a literature survey no efforts is yet reported in justifying the use of a given molecular docking software for structure-based (SB) investigation on sirtuin proteins, it was decided to perform a docking assessment on the Plants [49,50] and smina [51] programs (free for academics). As the two programs require the definition of docking space it was calculated to include both all co-crystallized inhibitors and cofactors in the definition of the docking box. This choice was necessary as the kinetic of the inhibitor mechanism of binding is not clear yet. Moreover, many inhibitors were found complexed either in presence or in absence of the cofactor (Table S7). Briefly, the most suitable docking software was selected using all the program/minimization/scoring function combinations with a total of 9 combinations. The selection of the program was done by means of root mean squared deviation (RMSD) on the basis of ability to reproduce the sirtuins experimental complexes with the least error calculated by the docking accuracy (DA) [52] (Equation (1))
DA = rmsd ≤ 2.0 + 0.5 (rmsd ≤ 3.0 − rmsd < 2.0)
Re-docking simulations with experimental and randomized initial ligand conformations revealed that smina in combination with the Vina scoring function while using the complex minimization feature was able to reproduce the experimental complexes with the least error, displaying DAs% of about 74% and 67%, regardless the presence or the absence of bound cofactor (Table S2).

Molecular Docking of the SIRT Inhibitors

The selected modeled T. cruzi sirtuins conformations were structure-based aligned by means of the matchmaker UCSF Chimera module (mmaker). For the alignments, the pre-superimposed TcSir2RP1 and TcSir2RP3 homology models were used.
Due to their selective inhibitory activity (Table 1), 15 and 17 were only docked into TcSir2RP1s modeled structures, whereas 8, 12, 13, 30, and 32, were docked into TcSir2RP3s. As 8 contains a chiral center and a double bond, and the experimental IC50 was determined for the racemic mixture, all the four 8 stereoisomers were modeled (Table S3). Undefined double bonds are also in 17, 30, 31, and 32, and thus the two E and Z stereoisomers for each molecule were modeled (Table S3). As described above (see molecular dynamics section) TcSir2RP1 and TcSir2RP3 were modeled in different ways: complexed with NAD+, complexed with AAR, complexed with NAD+ and Aly containing substrate and the apoprotein. While the TcSir2RP1 and TcSir2RP3 complexes with NAD+ and substrate can give some hints in the structure or eventually to investigate potential activators, they were not used for the MCs’ docking studies. For each inhibitor three final complexes were modeled (Table S3). In general, in the case of TcSir2RP1 lowest energy docked poses were obtained in the presence of NAD+, while for TcSir2RP3 the apoprotein was energetically preferred.

4.5. Parasites

The experiments were performed with Y strain of T. cruzi. Cell-derived trypomastigotes were obtained from infected LLC-MK2 cells maintained in low-glucose Dulbecco’s modified Eagle’s medium (DMEM), supplemented with 10% fetal bovine serum (FBS), streptomycin (100 mg/mL), and penicillin (100 U/mL) in a humidified 5% CO2 atmosphere at 37 °C, as described previously [12].

4.6. High Content Assays (HCA)

HCA were performed based on [53]. In summary, U2OS cells (ATCC HTB-96), obtained from Prof. Dr. Lucio Holanda Freitas-Junior laboratory, were seeded at 384 wells-plate followed by the infection with trypomastigote forms from T. cruzi Y H10 strain 24 h after cell seeding. After 24 h of infection, SIRTi were added, to the infected-cells plate, which was incubated for 96 hours. The cells were then fixed with paraformaldehyde 4% in PBS and stained with Draq5, a DNA intercalating agent (Biostatus, Leicestershire, UK). Images from plates were obtained using INCell Analyzer (GE Biosciences) to determine the infection ratio, number of host cells. The EC50 and CC50 values, and the selectivity indexes for each compound tested were calculated as described in [54]. The same approach was used for combination assays of SIRTi with BZN. The drug concentrations used for these assays were determined based on the EC50 value of each SIRTi. BZN and SIRTi were used at different concentration ratios of 1/32, 1/16, 1/8, 1/4, 1/2, 1/1, and 2/1. The trypanocidal activity of each SIRTi combined with BZN was compared to the activity of each SIRTi used alone. The data obtained were analyzed using the CompuSyn software to determine the combinatory index (CI) and to characterize the type of interaction of SIRTi and BZN. For this study, we considered: CI < 1 synergistic; CI = 1 additive/indifferent; and CI > 1 antagonistic.

5. Conclusions

In conclusion, our results showed some potential structures to be used to develop T. cruzi sirtuins inhibitors. Also, we demonstrated the differential specificity of the inhibitors against each parasite sirtuin, which open the opportunity to combinatory formulation of inhibitors to be used against the parasite.

Supplementary Materials

Supplementary materials can be found at https://www.mdpi.com/1422-0067/21/10/3659/s1. Table S1. Comparative analysis of amino acid sequence of T. cruzi vs human sirtuins (% identity); Table S2. Comparison of Smina and Plants docking software; Table S3. Molecular docking numerical results for the active MC inhibitors; Table S4. Combinatory index (CI) of 12 and BZN; Table S5. Trypanocidal effect of drug combination 17 and BZN; Table S6. Trypanocidal effect of drug combination 32 and BZN; Table S7. List of complexes used for the docking assessment

Author Contributions

Conceptualization, T.M.B., M.B.P.S., L.A. (Lorenzo Antonini), R.R., A.M., S.S. and N.S.M.; Methodology, N.M., L.A. (Lorenzo Antonini), M.S. and R.R.; Validation, T.M.B., N.M, D.R., L.A. (Lorenzo Antonini), M.S., R.R. and N.S.M.; Investigation, T.M.B., L.A. (Lorenzo Antonini), C.H.F., L.A. (Laura Alcântara), M.S., N.M., R.R., N.S.M.; Resources, M.B.P.S., L.H.F.-J., C.B.M., R.R., D.R., S.S., M.M., A.M., N.S.M.; Writing—Original Draft Preparation, S.S., R.R., A.M., N.S.M; Writing—Review and Editing, T.M.B., L.A. (Lorenzo Antonini), C.H.F., L.A. (Laura Alcântara), L.H.F.-J., C.B.M., R.R., D.R., M.B.P.S., A.M., S.S. and N.S.M.; Visualization, L.A. (Lorenzo Antonini), R.R., S.S., A.M. and N.S.M.; Supervision, S.S., M.B.P.S. and N.S.M.; Project Administration, N.S.M.; Funding Acquisition, R.R., M.B.P.S., S.S., A.M., N.S.M.” All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by Fundação de Amparo à Pesquisa do Estado de São Paulo [grant number 2018/09948-0 to NSM and 2015/22031-0 to SS]; Fundação de Amparo à Pesquisa do Estado da Bahia [grant number PNX0002/2014]; and Conselho Nacional de Desenvolvimento Científico Tecnológico [grant number 424729/2018-0 to NSM and 477143/2011-3, 445655/2014-3, and INCTV, to SS], PRIN 2016 (prot. 20152TE5PK) (to AM), AIRC 2016 (n. 19162) (to AM), and PE-2013-02355271 (to AM), PRIN 2017 (prot. 2017JL8SRX) (to RR).

Acknowledgments

The authors thank and Claudio Rogério de Oliveira for technical assistance and members from Schenckman’s and Moretti’s lab for helpful discussions.

Conflicts of Interest

The authors of this paper declare no conflicts of interest.

References

  1. Bernatchez, J.A.; Chen, E.; Hull, M.V.; McNamara, C.W.; McKerrow, J.H.; Siqueira-Neto, J.L. High-throughput screening of the ReFRAME library identifies potential drug repurposing candidates for Trypanosoma cruzi. Trends Parasitol. 2019. [Google Scholar] [CrossRef] [Green Version]
  2. Zulantay, I.; Apt, W.; Ramos, D.; Godoy, L.; Valencia, C.; Molina, M.; Sepulveda, E.; Thieme, P.; Martinez, G.; Corral, G. The Epidemiological Relevance of Family Study in Chagas Disease. PLoS Negl. Trop. Dis. 2013, 7, e1959. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Bermudez, J.; Davies, C.; Simonazzi, A.; Real, J.P.; Palma, S. Current drug therapy and pharmaceutical challenges for Chagas disease. Acta Trop. 2016, 156, 1–16. [Google Scholar] [CrossRef] [PubMed]
  4. Coura, J.R. Current prospects of specific treatment of Chagas’ disease. Boletín chileno de parasitología 1996, 51, 69–75. [Google Scholar]
  5. Moretti, N.S.; Schenkman, S. Chromatin modifications in trypanosomes due to stress. Cell. Microbiol. 2013, 15, 709–717. [Google Scholar] [CrossRef] [PubMed]
  6. Moretti, N.S.; Cestari, I.; Anupama, A.; Stuart, K.; Schenkman, S. Comparative Proteomic Analysis of Lysine Acetylation in Trypanosomes. J. Proteome Res. 2017, 17, 374–385. [Google Scholar] [CrossRef]
  7. Hyndman, K.A.; Knepper, M.A. Dynamic regulation of lysine acetylation: The balance between acetyltransferase and deacetylase activities. Am. J. Physiol. Physiol. 2017, 313, F842–F846. [Google Scholar] [CrossRef] [Green Version]
  8. Brachmann, C.B.; Pillus, L.; Sherman, J.M.; Devine, S.E.; Cameron, E.E.; Boeke, J.D. The SIR2 gene family, conserved from bacteria to humans, functions in silencing, cell cycle progression, and chromosome stability. Genes Dev. 1995, 9, 2888–2902. [Google Scholar] [CrossRef] [Green Version]
  9. Carafa, V.; Rotili, D.; Forgione, M.; Cuomo, F.; Serretiello, E.; Hailu, G.S.; Jarho, E.; Lahtela-Kakkonen, M.; Mai, A.; Altucci, L. Sirtuin functions and modulation: From chemistry to the clinic. Clin. Epigenetics 2016, 8, 61. [Google Scholar] [CrossRef]
  10. Religa, A.A.; Waters, A.P. Sirtuins of parasitic protozoa: In search of function(s). Mol. Biochem. Parasitol. 2012, 185, 71–88. [Google Scholar] [CrossRef]
  11. Alsford, S.; Kawahara, T.; Isamah, C.; Horn, D. A sirtuin in the African trypanosome is involved in both DNA repair and telomeric gene silencing but is not required for antigenic variation. Mol. Microbiol. 2007, 63, 724–736. [Google Scholar] [CrossRef] [PubMed]
  12. Moretti, N.S.; Augusto, L.D.S.; Clemente, T.M.; Antunes, R.P.P.; Yoshida, N.; Torrecilhas, A.C.; Cano, M.I.N.; Schenkman, S. Characterization of Trypanosoma cruzi Sirtuins as Possible Drug Targets for Chagas Disease. Antimicrob. Agents Chemother. 2015, 59, 4669–4679. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Ritagliati, C.; Alonso, V.L.; Manarin, R.; Cribb, P.; Serra, E.C. Overexpression of Cytoplasmic TcSIR2RP1 and Mitochondrial TcSIR2RP3 Impacts on Trypanosoma cruzi Growth and Cell Invasion. PLOS Neglected Trop. Dis. 2015, 9, e0003725. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Wang, Q.; Rosa, B.A.; Nare, B.; Powell, K.; Valente, S.; Rotili, D.; Mai, A.; Marshall, G.; Mitreva, M. Targeting Lysine Deacetylases (KDACs) in Parasites. PLOS Neglected Trop. Dis. 2015, 9, e0004026. [Google Scholar] [CrossRef] [PubMed]
  15. Soares, M.; Silva, C.V.; Bastos, T.M.; Guimarães, E.T.; Figueira, C.P.; Smirlis, D.; Azevedo, W.F., Jr. Anti-Trypanosoma cruzi activity of nicotinamide. Acta Trop. 2012, 122, 224–229. [Google Scholar] [CrossRef]
  16. Zheng, W. Sirtuins as emerging anti-parasitic targets. Eur. J. Med. Chem. 2013, 59, 132–140. [Google Scholar] [CrossRef]
  17. Wilkinson, S.R.; Taylor, M.C.; Horn, D.; Kelly, J.M.; Cheeseman, I.H. A mechanism for cross-resistance to nifurtimox and benznidazole in trypanosomes. Proc. Natl. Acad. Sci. USA 2008, 105, 5022–5027. [Google Scholar] [CrossRef] [Green Version]
  18. Tao, R.; Vassilopoulos, A.; Parisiadou, L.; Yan, Y.; Gius, D.R. Regulation of MnSOD Enzymatic Activity by Sirt3 Connects the Mitochondrial Acetylome Signaling Networks to Aging and Carcinogenesis. Antioxidants Redox Signal. 2014, 20, 1646–1654. [Google Scholar] [CrossRef] [Green Version]
  19. Lu, J.; Zhang, H.; Chen, X.; Zou, Y.; Li, J.; Wang, L.; Wu, M.; Zang, J.; Yu, Y.; Zhuang, W.; et al. A small molecule activator of SIRT3 promotes deacetylation and activation of manganese superoxide dismutase. Free. Radic. Boil. Med. 2017, 112, 287–297. [Google Scholar] [CrossRef]
  20. Dali-Youcef, N.; Lagouge, M.; Froelich, S.; Koehl, C.; Schoonjans, K.; Auwerx, J. Sirtuins: The ‘magnificent seven’, function, metabolism and longevity. Ann. Med. 2007, 39, 335–345. [Google Scholar] [CrossRef]
  21. Rotili, D.; Tarantino, D.; Carafa, V.; Paolini, C.; Schemies, J.; Jung, M.; Botta, G.; Di Maro, S.; Novellino, E.; Steinkühler, C.; et al. Benzodeazaoxaflavins as Sirtuin Inhibitors with Antiproliferative Properties in Cancer Stem Cells. J. Med. Chem. 2012, 55, 8193–8197. [Google Scholar] [CrossRef] [Green Version]
  22. Rotili, D.; Tarantino, D.; Nebbioso, A.; Paolini, C.; Huidobro, C.; Lara, E.; Mellini, P.; Lenoci, A.; Pezzi, R.; Botta, G.; et al. Discovery of Salermide-Related Sirtuin Inhibitors: Binding Mode Studies and Antiproliferative Effects in Cancer Cells Including Cancer Stem Cells. J. Med. Chem. 2012, 55, 10937–10947. [Google Scholar] [CrossRef]
  23. Heltweg, B. Antitumor Activity of a Small-Molecule Inhibitor of Human Silent Information Regulator 2 Enzymes. Cancer Res. 2006, 66, 4368–4377. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Moniot, S.; Forgione, M.; Lucidi, A.; Hailu, G.S.; Nebbioso, A.; Carafa, V.; Baratta, F.; Altucci, L.; Giacché, N.; Passeri, D.; et al. Development of 1,2,4-Oxadiazoles as Potent and Selective Inhibitors of the Human Deacetylase Sirtuin 2: Structure–Activity Relationship, X-ray Crystal Structure, and Anticancer Activity. J. Med. Chem. 2017, 60, 2344–2360. [Google Scholar] [CrossRef] [PubMed]
  25. Polletta, L.; Vernucci, E.; Carnevale, I.; Arcangeli, T.; Rotili, D.; Palmerio, S.; Steegborn, C.; Nowak, T.; Schutkowski, M.; Pellegrini, L.; et al. SIRT5 regulation of ammonia-induced autophagy and mitophagy. Autophagy 2015, 11, 253–270. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Carafa, V.; Nebbioso, A.; Cuomo, F.; Rotili, D.; Cobellis, G.; Bontempo, P.; Baldi, A.; Spugnini, E.P.; Citro, G.; Chambery, A.; et al. RIP1–HAT1–SIRT Complex Identification and Targeting in Treatment and Prevention of Cancer. Clin. Cancer Res. 2018, 24, 2886–2900. [Google Scholar] [CrossRef] [Green Version]
  27. Maurer, B.; Rumpf, T.; Scharfe, M.; Stolfa, D.A.; Schmitt, M.L.; He, W.; Verdin, E.; Sippl, W.; Jung, M. Inhibitors of the NAD+-Dependent Protein Desuccinylase and Demalonylase Sirt5. ACS Med. Chem. Lett. 2012, 3, 1050–1053. [Google Scholar] [CrossRef] [Green Version]
  28. You, W.; Rotili, D.; Li, T.-M.; Kambach, C.; Meleshin, M.; Schutkowski, M.; Chua, K.F.; Mai, A.; Steegborn, C. Structural Basis of Sirtuin 6 Activation by Synthetic Small Molecules. Angew. Chem. Int. Ed. 2016, 56, 1007–1011. [Google Scholar] [CrossRef]
  29. Ragno, R.; Frasca, S.; Manetti, F.; Brizzi, A.; Massa, S. HIV-Reverse Transcriptase Inhibition: Inclusion of Ligand-Induced Fit by Cross-Docking Studies. J. Med. Chem. 2005, 48, 200–212. [Google Scholar] [CrossRef]
  30. Gaspar, L.; Coron, R.P.; Kong-Thoo-Lin, P.; Costa, D.; Pérez-Cabezas, B.; Tavares, J.; Roura-Ferrer, M.; Ramos, I.; Ronin, C.; Major, L.; et al. Inhibitors of Trypanosoma cruzi Sir2 related protein 1 as potential drugs against Chagas disease. PLOS Neglected Trop. Dis. 2018, 12, e0006180. [Google Scholar] [CrossRef] [Green Version]
  31. Bastos, T.M.; Russo, H.M.; Moretti, N.S.; Schenkman, S.; Marcourt, L.; Gupta, M.P.; Wolfender, J.-L.; Queiroz, E.F.; Soares, M. Chemical Constituents of Anacardium occidentale as Inhibitors of Trypanosoma cruzi Sirtuins. Mol. 2019, 24, 1299. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. The UniProt Consortium UniProt: The universal protein knowledgebase. Nucleic Acids Res. 2018, 46, 2699. [CrossRef] [PubMed] [Green Version]
  33. Waterhouse, A.; Bertoni, M.; Bienert, S.; Studer, G.; Tauriello, G.; Gumienny, R.; Heer, F.T.; Beer, T.A.P.D.; Rempfer, C.; Bordoli, L.; et al. SWISS-MODEL: Homology modelling of protein structures and complexes. Nucleic Acids Res. 2018, 46, W296–W303. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Ronin, C.; Costa, D.; Tavares, J.; Faria, J.; Ciesielski, F.; Ciapetti, P.; Smith, T.K.; MacDougall, J.; Da Silva, A.C.; Pemberton, I. The crystal structure of the Leishmania infantum Silent Information Regulator 2 related protein 1: Implications to protein function and drug design. PLoS ONE 2018, 13, e0193602. [Google Scholar] [CrossRef] [Green Version]
  35. Zhao, K.; Chai, X.; Marmorstein, R. Structure and Substrate Binding Properties of cobB, a Sir2 Homolog Protein Deacetylase from Escherichia coli. J. Mol. Boil. 2004, 337, 731–741. [Google Scholar] [CrossRef]
  36. Bas, D.C.; Rogers, D.; Jensen, J.H. Very fast prediction and rationalization of pKa values for protein-ligand complexes. Proteins: Struct. Funct. Bioinform. 2008, 73, 765–783. [Google Scholar] [CrossRef]
  37. Dolinsky, T.J.; Czodrowski, P.; Li, H.; Nielsen, J.E.; Jensen, J.H.; Klebe, G.; Baker, N.A. PDB2PQR: Expanding and upgrading automated preparation of biomolecular structures for molecular simulations. Nucleic Acids Res. 2007, 35, W522–W525. [Google Scholar] [CrossRef]
  38. Zhao, X.; Allison, D.; Condon, B.; Zhang, F.; Gheyi, T.; Zhang, A.; Ashok, S.; Russell, M.; MacEwan, I.; Qian, Y.; et al. The 2.5 Å Crystal Structure of the SIRT1 Catalytic Domain Bound to Nicotinamide Adenine Dinucleotide (NAD+) and an Indole (EX527 Analogue) Reveals a Novel Mechanism of Histone Deacetylase Inhibition. J. Med. Chem. 2013, 56, 963–969. [Google Scholar] [CrossRef]
  39. Min, J.; Landry, J.; Sternglanz, R.; Xu, R.-M. Crystal Structure of a SIR2 Homolog–NAD Complex. Cell 2001, 105, 269–279. [Google Scholar] [CrossRef] [Green Version]
  40. Hoff, K.G.; Avalos, J.L.; Sens, K.; Wolberger, C. Insights into the Sirtuin Mechanism from Ternary Complexes Containing NAD+ and Acetylated Peptide. Struct. 2006, 14, 1231–1240. [Google Scholar] [CrossRef] [Green Version]
  41. Papamokos, G.; Tziatzos, G.; Papageorgiou, D.G.; Georgatos, S.; Politou, A.S.; Kaxiras, E. Structural Role of RKS Motifs in Chromatin Interactions: A Molecular Dynamics Study of HP1 Bound to a Variably Modified Histone Tail. Biophys. J. 2012, 102, 1926–1933. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. Wang, J.; Wolf, R.M.; Caldwell, J.W.; Kollman, P.A.; Case, D.A. Development and testing of a general amber force field. J. Comput. Chem. 2004, 25, 1157–1174. [Google Scholar] [CrossRef] [PubMed]
  43. Wang, J.; Wang, W.; Kollman, P.A.; Case, D.A. Automatic atom type and bond type perception in molecular mechanical calculations. J. Mol. Graph. Model. 2006, 25, 247–260. [Google Scholar] [CrossRef] [PubMed]
  44. Jakalian, A.; Jack, D.B.; Bayly, C.I. Fast, efficient generation of high-quality atomic charges. AM1-BCC model: II. Parameterization and validation. J. Comput. Chem. 2002, 23, 1623–1641. [Google Scholar] [CrossRef]
  45. Izadi, S.; Anandakrishnan, R.; Onufriev, A.V. Building Water Models: A Different Approach. J. Phys. Chem. Lett. 2014, 5, 3863–3871. [Google Scholar] [CrossRef] [Green Version]
  46. Maier, J.A.; Martinez, C.; Kasavajhala, K.; Wickstrom, L.; Hauser, K.; Simmerling, C.L. ff14SB: Improving the Accuracy of Protein Side Chain and Backbone Parameters from ff99SB. J. Chem. Theory Comput. 2015, 11, 3696–3713. [Google Scholar] [CrossRef] [Green Version]
  47. David, A.; Case, R.C.; Walker, T.E.; Cheatham, C., III; Simmerling, A.; Roitberg, K.M.; Merz, R.; Luo, T.; Darden, J.; Wang, R.E.; et al. AMBER 2018 Reference Manual Covers Amber18 and AmberTools18. 2018. Available online: https://ambermd.org/doc12/Amber18.pdf (accessed on 28 April 2020).
  48. Eastman, P.; Swails, J.; Chodera, J.D.; McGibbon, R.T.; Zhao, Y.; Beauchamp, K.A.; Wang, L.-P.; Simmonett, A.; Harrigan, M.; Stern, C.D.; et al. OpenMM 7: Rapid development of high performance algorithms for molecular dynamics. PLoS Comput. Boil. 2017, 13, e1005659. [Google Scholar] [CrossRef]
  49. Korb, O.; Monecke, P.; Hessler, G.; Stutzle, T.; Exner, T.E. pharmACOphore: Multiple flexible ligand alignment based on ant colony optimization. J. Chem. Inf. Model. 2010, 50, 1669–1681. [Google Scholar] [CrossRef] [Green Version]
  50. Korb, O.; Möller, H.M.; Exner, T.E. NMR-Guided Molecular Docking of a Protein-Peptide Complex Based on Ant Colony Optimization. ChemMedChem 2010, 5, 1001–1006. [Google Scholar] [CrossRef] [Green Version]
  51. Koes, D.R.; Baumgartner, M.; Camacho, C.J. Lessons Learned in Empirical Scoring with smina from the CSAR 2011 Benchmarking Exercise. J. Chem. Inf. Model. 2013, 53, 1893–1904. [Google Scholar] [CrossRef]
  52. Ragno, R.; Ballante, F.; Pirolli, A.; Wickersham, R.B.; Patsilinakos, A.; Hesse, S.; Perspicace, E.; Kirsch, G. Vascular endothelial growth factor receptor-2 (VEGFR-2) inhibitors: Development and validation of predictive 3-D QSAR models through extensive ligand- and structure-based approaches. J. Comput. Mol. Des. 2015, 29, 757–776. [Google Scholar] [CrossRef] [PubMed]
  53. Siqueira-Neto, J.; Moon, S.; Jang, J.; Yang, G.; Lee, C.; Moon, H.K.; Chatelain, E.; Genovesio, A.; Cechetto, J.; Freitas-Junior, L.H. An Image-Based High-Content Screening Assay for Compounds Targeting Intracellular Leishmania donovani Amastigotes in Human Macrophages. PLoS Negl. Trop. Dis. 2012, 6, e1671. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Franco, C.H.; Alcântara, L.M.; Chatelain, E.; Freitas-Junior, L.; Moraes, C.B. Drug Discovery for Chagas Disease: Impact of Different Host Cell Lines on Assay Performance and Hit Compound Selection. Trop. Med. Infect. Dis. 2019, 4, 82. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Ijms 21 03659 g001 550

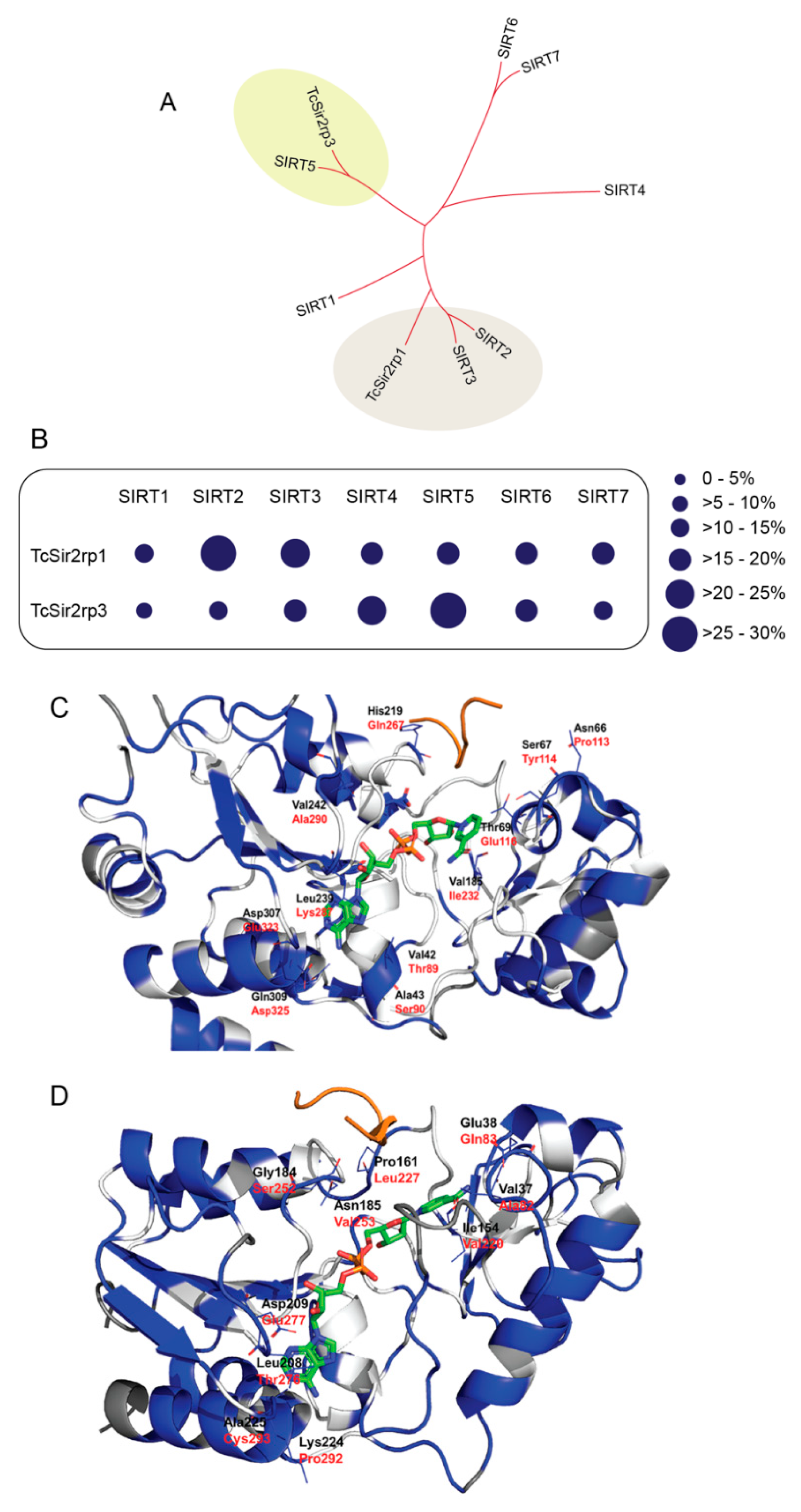

Figure 1. Trypanosoma cruzi has divergent sirtuins. (A) Comparative phylogenetic analysis of T. cruzi and human sirtuins. (B) Schematic representation of amino acid identity of T. cruzi sirtuins compared to human sirtuins. (C) TcSir2rp1 homology model. Residues are colored by conservation with respect to human SIRT2 based on BLOSUM90 sequence alignment: white indicates conserved regions, blue indicates “mutated” regions and dark grey indicates not aligned regions. Residue names are indicated in black for TcSir2rp1 and red for SIRT2. NAD+ (green carbon atoms) and ALY (orange) were taken from 5Ol0 and 1ICI crystal structures respectively. (D) TcSir2rp3 homology model. Residues are colored by conservation with respect to human SIRT5 based on BLOSUM90 sequence alignment: White indicates conserved regions, blue indicates “mutated” regions and dark grey indicates not aligned regions. Residue names are indicated in black for TcSir2rp3 and red for SIRT5. NAD+ (green carbon atoms) and ALY (orange) were taken from 4I5I and 1S5P crystal structures respectively. HsSIRT1 (AAD40849.2); HsSIRT2 (AAD40850.2); HsSIRT3 (AAD40851.1); HsSIRT4 (AAD40852.1); HsSIRT5 (AAD40853.1); HsSIRT6 (NP_057623.2); and HsSIRT7 (NP_057622.1).
Figure 1. Trypanosoma cruzi has divergent sirtuins. (A) Comparative phylogenetic analysis of T. cruzi and human sirtuins. (B) Schematic representation of amino acid identity of T. cruzi sirtuins compared to human sirtuins. (C) TcSir2rp1 homology model. Residues are colored by conservation with respect to human SIRT2 based on BLOSUM90 sequence alignment: white indicates conserved regions, blue indicates “mutated” regions and dark grey indicates not aligned regions. Residue names are indicated in black for TcSir2rp1 and red for SIRT2. NAD+ (green carbon atoms) and ALY (orange) were taken from 5Ol0 and 1ICI crystal structures respectively. (D) TcSir2rp3 homology model. Residues are colored by conservation with respect to human SIRT5 based on BLOSUM90 sequence alignment: White indicates conserved regions, blue indicates “mutated” regions and dark grey indicates not aligned regions. Residue names are indicated in black for TcSir2rp3 and red for SIRT5. NAD+ (green carbon atoms) and ALY (orange) were taken from 4I5I and 1S5P crystal structures respectively. HsSIRT1 (AAD40849.2); HsSIRT2 (AAD40850.2); HsSIRT3 (AAD40851.1); HsSIRT4 (AAD40852.1); HsSIRT5 (AAD40853.1); HsSIRT6 (NP_057623.2); and HsSIRT7 (NP_057622.1).
Ijms 21 03659 g001
Ijms 21 03659 g002 550

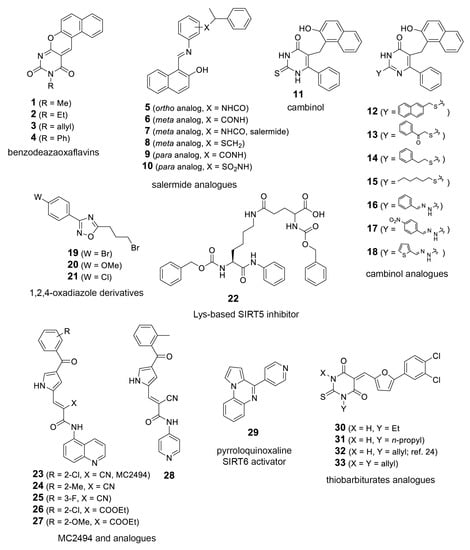

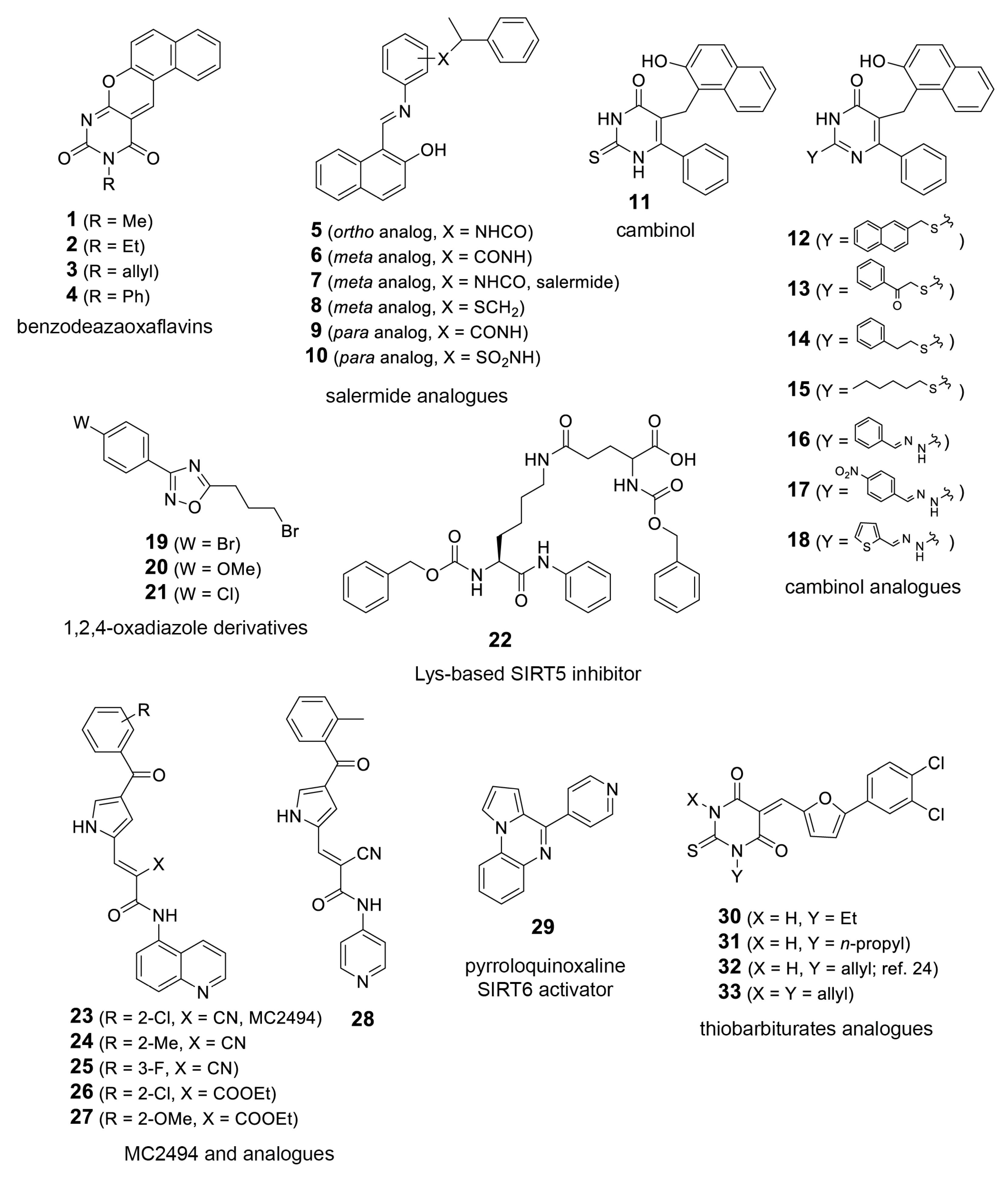

Figure 2. Sirtuin inhibitors (SIRTi) inhibitors used in this study. The 33 SIRTi tested against T. cruzi sirtuins, TcSir2rp1 and TcSir2rp3, classified based on its chemical structure.
Figure 2. Sirtuin inhibitors (SIRTi) inhibitors used in this study. The 33 SIRTi tested against T. cruzi sirtuins, TcSir2rp1 and TcSir2rp3, classified based on its chemical structure.
Ijms 21 03659 g002
Ijms 21 03659 g003 550

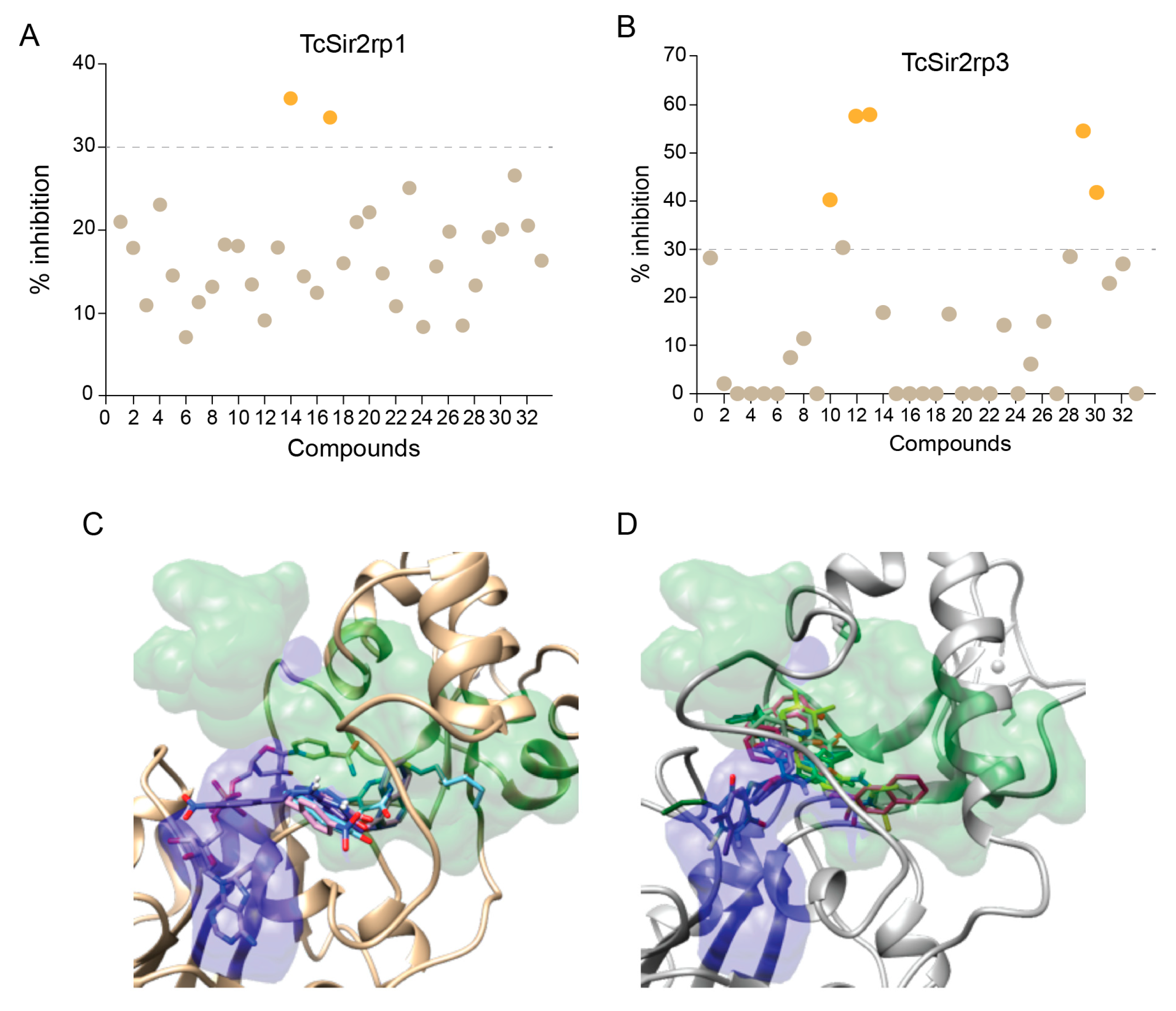

Figure 3. Effect of SIRTi in T. cruzi sirtuin deacetylation activity. Inhibitory effect of SIRTi in the deacetylation activity of TcSir2rp1 (A) and TcSir2rp3 (B). Compounds with inhibitory effect higher than 30% are highlighted in orange. Binding pose of 15 and 17 into TcSir2rp1 modeled structures (C); poses of 8, 12, 13, 30, and 32 docked into TcSir2rp3 (D). In gold and gray are also reported the protein alpha carbon atom traces. In blue the area normally occupied by NAD+ or ADP-ribose structures. In green is depicted the area where were found the experimental bound inhibitors/activators used in the docking assessments.
Figure 3. Effect of SIRTi in T. cruzi sirtuin deacetylation activity. Inhibitory effect of SIRTi in the deacetylation activity of TcSir2rp1 (A) and TcSir2rp3 (B). Compounds with inhibitory effect higher than 30% are highlighted in orange. Binding pose of 15 and 17 into TcSir2rp1 modeled structures (C); poses of 8, 12, 13, 30, and 32 docked into TcSir2rp3 (D). In gold and gray are also reported the protein alpha carbon atom traces. In blue the area normally occupied by NAD+ or ADP-ribose structures. In green is depicted the area where were found the experimental bound inhibitors/activators used in the docking assessments.
Ijms 21 03659 g003
Ijms 21 03659 g004 550

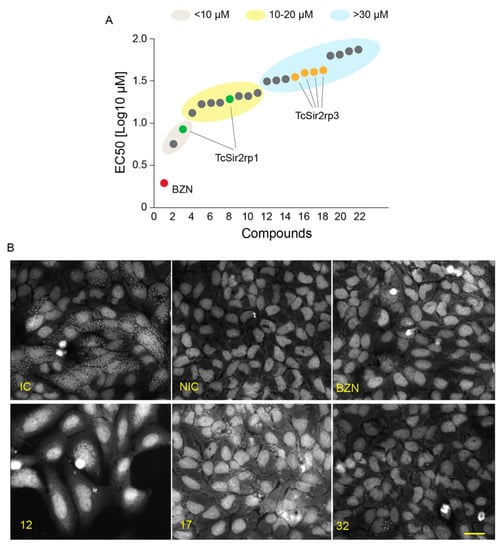

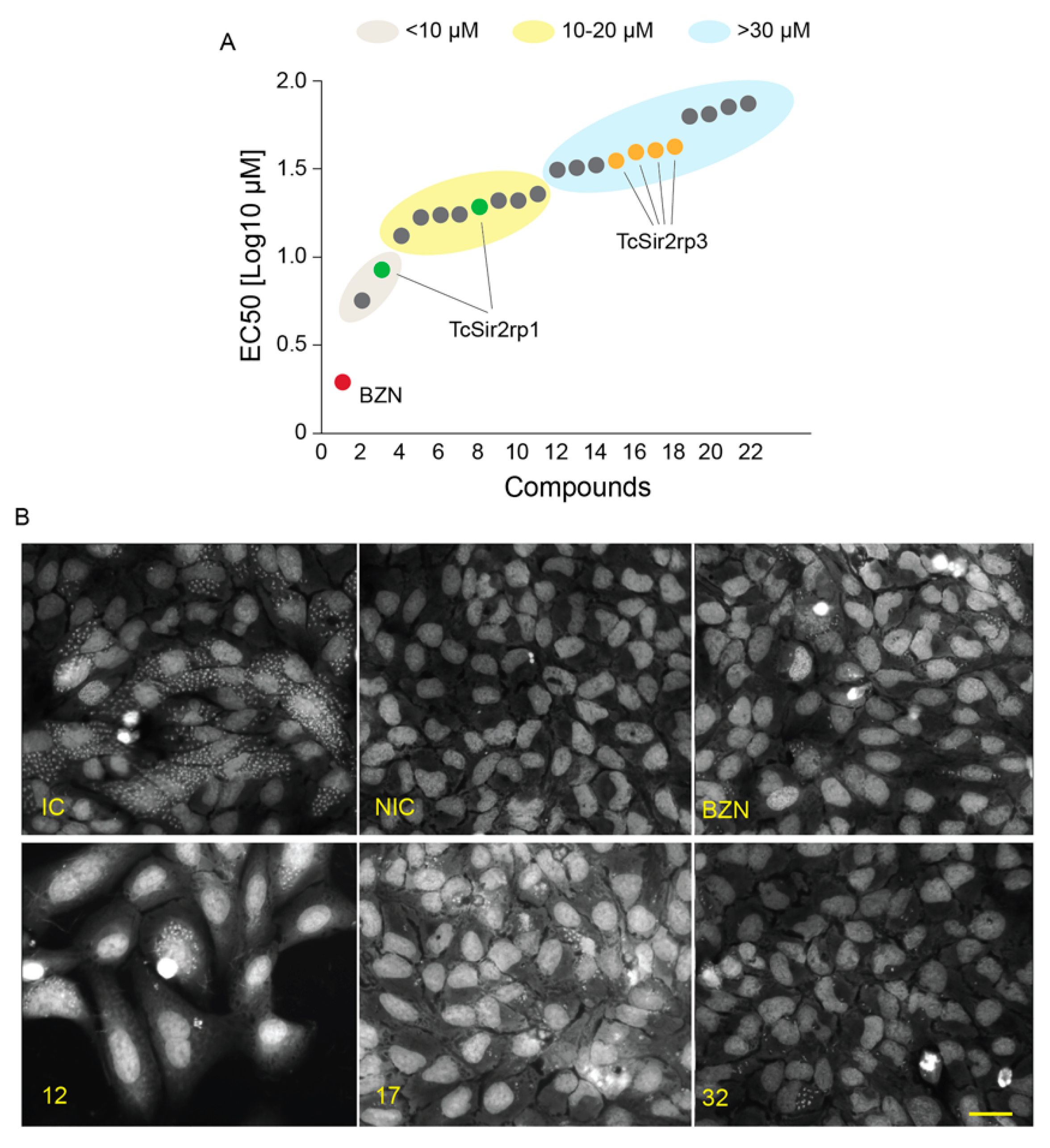

Figure 4. Trypanocidal effect of SIRTi during in vitro infection assays. (A) Effect of SIRTi during T. cruzi in vitro infection using high content assays (HCA). (B) Representative image of high content screening assays used to test the effect of SIRTi during T. cruzi in vitro infection. Infection control (IC); non-infected cells (NIC); benznidazole treatment (BZN). Scale bar: 50 µm.
Figure 4. Trypanocidal effect of SIRTi during in vitro infection assays. (A) Effect of SIRTi during T. cruzi in vitro infection using high content assays (HCA). (B) Representative image of high content screening assays used to test the effect of SIRTi during T. cruzi in vitro infection. Infection control (IC); non-infected cells (NIC); benznidazole treatment (BZN). Scale bar: 50 µm.
Ijms 21 03659 g004
Ijms 21 03659 g005 550
Figure 5. Combinatory effect of SIRTi and BZN during T. cruzi in vitro infection. Trypanocidal activity of 17 and BZN (A); 12 and BZN (B); and 32 and BZN (C).
Figure 5. Combinatory effect of SIRTi and BZN during T. cruzi in vitro infection. Trypanocidal activity of 17 and BZN (A); 12 and BZN (B); and 32 and BZN (C).
Ijms 21 03659 g005
Table
Table 1. IC50 values of SIRTi with best deacetylation inhibitory activity against T. cruzi sirtuins.
Table 1. IC50 values of SIRTi with best deacetylation inhibitory activity against T. cruzi sirtuins.
CompoundsTcSir2rp1TcSir2rp3
IC50 ± SD (µM) aIC50 ± SD (µM) a
8ND18.8 ± 5.34
12ND14.3 ± 6.06
13ND18.5 ± 1.97
1532.4 ± 7.88ND
1725.5 ± 4.73ND
31ND16.3 ± 9.54
32ND16.4 ± 6.70
a Sirtuin activity was determined 4 h after incubation.
Table
Table 2. EC50 values from high-content assays of compounds with anti-deacetylation activity against TcSir2rp1 and TcSir2rp3.
Table 2. EC50 values from high-content assays of compounds with anti-deacetylation activity against TcSir2rp1 and TcSir2rp3.
CompoundEC50 Value (µM)CC50 (µM)SI
BZN1.96>200102
27a5.7346.878.18
17b8.519.62.31
15b19.3536.41.89
12c35.448.81.38
32c39.8771.93
8c40.676.81.89
30c42.7>1001.93
13c45.1>1002.2
a Compound with no inhibitory activity against TcSir2rp1 or TcSir2rp3 in deacetylation in vitro assays; b Compounds with inhibitory activity against TcSir2rp1 in deacetylation in vitro assays; c Compounds with inhibitory activity against TcSir2rp3 in deacetylation in vitro assays. EC50 value: concentration of compound which reduces 50% of infected cells number, compared to the non-treated control. CC50: concentration of compound which reduces 50% of U2OS cell number, compared to the non-treated control. CC50 values indicate a prediction of a compound cytotoxicity. SI: selectivity index is calculated as the ratio between compound values of CC50 and EC50 [SI’ = CC50/EC50].

Share and Cite

MDPI and ACS Style

Matutino Bastos, T.; Botelho Pereira Soares, M.; Haddad Franco, C.; Alcântara, L.; Antonini, L.; Sabatino, M.; Mautone, N.; Holanda Freitas-Junior, L.; Moraes, C.B.; Ragno, R.; et al. Identification of Inhibitors to Trypanosoma cruzi Sirtuins Based on Compounds Developed to Human Enzymes. Int. J. Mol. Sci. 2020, 21, 3659. https://doi.org/10.3390/ijms21103659

AMA Style

Matutino Bastos T, Botelho Pereira Soares M, Haddad Franco C, Alcântara L, Antonini L, Sabatino M, Mautone N, Holanda Freitas-Junior L, Moraes CB, Ragno R, et al. Identification of Inhibitors to Trypanosoma cruzi Sirtuins Based on Compounds Developed to Human Enzymes. International Journal of Molecular Sciences. 2020; 21(10):3659. https://doi.org/10.3390/ijms21103659

Chicago/Turabian Style

Matutino Bastos, Tanira, Milena Botelho Pereira Soares, Caio Haddad Franco, Laura Alcântara, Lorenzo Antonini, Manuela Sabatino, Nicola Mautone, Lucio Holanda Freitas-Junior, Carolina Borsoi Moraes, Rino Ragno, and et al. 2020. "Identification of Inhibitors to Trypanosoma cruzi Sirtuins Based on Compounds Developed to Human Enzymes" International Journal of Molecular Sciences 21, no. 10: 3659. https://doi.org/10.3390/ijms21103659

APA Style

Matutino Bastos, T., Botelho Pereira Soares, M., Haddad Franco, C., Alcântara, L., Antonini, L., Sabatino, M., Mautone, N., Holanda Freitas-Junior, L., Moraes, C. B., Ragno, R., Rotili, D., Schenkman, S., Mai, A., & Silvio Moretti, N. (2020). Identification of Inhibitors to Trypanosoma cruzi Sirtuins Based on Compounds Developed to Human Enzymes. International Journal of Molecular Sciences, 21(10), 3659. https://doi.org/10.3390/ijms21103659

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
