Clinicopathologic Analysis of Cathepsin B as a Prognostic Marker of Thyroid Cancer

by
Eun-Kyung Kim
1,†,
Min-Jeong Song
1,†,
Ho Hee Jang
1,* and
Yoo Seung Chung
2,*
1
Department of Biochemistry, College of Medicine, Gachon University, Incheon 21999, Korea
2
Department of Surgery, Gil Medical Center, College of Medicine, Gachon University, Incheon 21999, Korea
*
Authors to whom correspondence should be addressed.
†
Both authors contributed equally to this study.
Int. J. Mol. Sci. 2020, 21(24), 9537; https://doi.org/10.3390/ijms21249537
Submission received: 10 November 2020 / Revised: 3 December 2020 / Accepted: 10 December 2020 / Published: 15 December 2020
(This article belongs to the Special Issue Thyroid Cell)
Browse Figures
Versions Notes

Abstract

:
Thyroid cancer incidence has increased worldwide; however, investigations of thyroid cancer-related factors as potential prognosis markers remain insufficient. Secreted proteins from the cancer secretome are regulators of several molecular mechanisms and are, thereby, ideal candidates for potential markers. We aimed to identify a specific factor for thyroid cancer by analyzing the secretome from normal thyroid cells, papillary thyroid cancer (PTC) cells, and anaplastic thyroid cancer cells using mass spectrometry (MS). Cathepsin B (CTSB) showed highest expression in PTC cells compared to other cell lines, and CTSB levels in tumor samples were higher than that seen in normal tissue. Further, among thyroid cancer patients, increased CTSB expression was related to higher risk of lymph node metastasis (LNM) and advanced N stage. Overexpression of CTSB in thyroid cancer cell lines activated cell migration by increasing the expression of vimentin and Snail, while its siRNA-mediated silencing inhibited cell migration by decreasing vimentin and Snail expression. Mechanistically, CTSB-associated enhanced cell migration and upregulation of vimentin and Snail occurred via increased phosphorylation of p38. As our results suggest that elevated CTSB in thyroid cancer induces the expression of metastatic proteins and thereby leads to LNM, CTSB may be a good and clinically relevant prognostic marker.

1. Introduction

Thyroid cancer is the most common endocrine-related cancer worldwide, and Surveillance, Epidemiology, and End Results Program data for the last 10 years (2009–2018) reveal that the incidence of thyroid cancer has been stable by about 3% of the new cancer cases. However, associated death rates have also been rising by 0.6%, on average, each year [1]. Thyroid cancer in Korea is the second most common in women and fourth most common cancer in general. Even though prognosis in thyroid cancer is excellent and the 5-year survival rate is 98%, the 5-year survival rate drops to 54.9–62.0% in advanced cases [2,3]. Thus, as thyroid cancer is rather common and the prognosis is unfavorable in advanced-stage cancer, identification of a useful molecular marker related to thyroid cancer is essential. BRAF, RAS, TP53, and PIK3CA mutations have been used for diagnosis or prognosis of follicular cell-driven thyroid neoplasm [4,5]. Recently, TERT mutation or apolipoprotein E have reported as a prognostic factor of papillary thyroid cancer (PTC) [6,7]. However, we thought that the searching for more diverse molecular markers and research methods were needed.
Proteomic analysis is routinely used to identify differentially expressed proteins (DEPs) as potential prognostic cancer markers [8,9,10]. iTRAQ-MS, which is a quantitative mass spectrometric method, has been previously used to reveal that, compared to normal thyroid tissue, papillary thyroid carcinomas exhibit loss of E-cadherin and differentiation markers [11]. Additionally, liquid chromatography–tandem mass spectrometry (LC–MS/MS) analysis of PTC cells has demonstrated alterations in the actin cytoskeleton [12]. Despite this, thyroid cancer-related markers are scarce and investigations of their mechanism(s) of action in thyroid cancer progression are currently poorly understood.
Many cancers generate secretome for the regulation of microenvironments through matrix remodeling, alternation of the cell to cell interaction, and angiogenesis, and because these secreted molecules act as either autocrine or paracrine factors, the secretome has an important function in cancer progression [13,14,15]. The secretome consists of metabolites and several proteins such as cytokines, hormones, and growth factors [13,16]. Therefore, it is useful to investigate secreted proteins and their mechanisms of action in cancer progression and metastasis because they are potential cancer regulators.
Cathepsin B (CTSB), a lysosomal cysteine protease, is a member of the cysteine protease family, and experimental models have shown that it has a central role in multiple pathologic processes, including initiation, tumor cell proliferation, growth, angiogenesis, and metastasis [17,18]. CTSB is also associated with metalloproteinase regulation, intracellular communication, autophagy induction, immune resistance, and cell survival [19]. High expression levels of CTSB have been observed in various cancers such as breast, esophageal, gastric, colon, and pancreatic cancers, and hepatocellular carcinoma, and both advanced stage and poor survival in multiple cancers are known to be associated with greater expression of CTSB [20,21,22,23].
The relationship between CTSB and thyroid cancer is not known, and this study investigated differential CTSB expression, if any, in the secretome of a PTC cell line and compared it with that seen in a normal thyroid cell line. Changes in CTSB expression were validated using PTC surgical specimens, which also revealed a CTSB-dependent mechanism of metastasis.

2. Results

2.1. CTSB Is Highly Expressed in Papillary Cancer

We hypothesized that the thyroid cancer secretome contains cancer-related factors and, therefore, collected conditioned media from epithelial (N), papillary (P), and anaplastic (A) thyroid cancer cell types to identify potentially useful prognostic factors. We used the Nthy-ori-3-1 cell line for normal thyroid epithelial cells, the SNU 790 cell line for PTC cells, and 8505C cell line for anaplastic thyroid cancer cells. Conditioned media were subjected to two-dimensional polyacrylamide gel electrophoresis (2D-PAGE) to identify DEPs and spots with differential intensities were compared to normalized spot intensity of the secretome of epithelial thyroid cell. Proteins were subsequently identified by mass spectrometry (MS). Analysis of differences in relative expression of the DEPs between papillary and epithelial or anaplastic types (Figure 1A and Figure S1) showed that cathepsin B (CTSB) expression was about 161-times higher in PTC cells compared to epithelial thyroid cells.
CTSB is produced in the form of a precursor (pro-CTSB) of about 44 kDa and undergoes proteolytic processing and glycosylation to become a mature form containing a heavy chain (running at 27 and 24 kDa) and a light chain (5 kDa). It is known that intracellular CTSB is mainly found in mature form, and extracellular CTSB is mainly found in precursor form [24,25]. We quantified secreted CTSB levels in conditioned media using Western blotting. TPC-1 cells are a PTC cell line. Secreted CTSB was higher in SNU790 and TPC-1 cells; however, it was absent or seen in low levels in conditioned media from Nthy-ori-3-1 cells (Figure 1B). Therefore, we identified CTSB as a potential key regulator of PTC and hypothesized that changes in CTSB expression affect thyroid cancer progression.
The cancer secretome may originate from cancer cells themselves [14], and to evaluate if the observed high expression of CTSB originated in the cells themselves, we measured CTSB levels in Nthy-ori-3-1, SNU790, TPC-1, and 8505C cell lines using immunoblotting (Figure 1C). CTSB was not detected in normal Nthy-ori-3-1 cells, and this coincided with low expression seen in the secretome of Nthy-ori-3-1 cells. In contrast, SNU790 and TPC-1 cell lines showed higher expression of CTSB, and 8505C cells showed lower expression of cellular basal CTSB compared to SUN790 and TPC-1 cells. Expression intensity analysis using ImageJ showed a similar pattern of CTSB expression in the cells and in the secretome (Figure 1D). These results suggest that overexpression of CTSB in the secretome originates in the cells and that its higher expression is specific to PTC cells.

2.2. Elevated CTSB Is Linked to Lymph Node Metastasis in Clinical Samples

To explore the relationship between the CTSB expression level and clinicopathologic features in thyroid cancer, we analyzed the expression levels of CTSB in 158 pairs of Korean PTC patients (tumor tissue vs. adjacent nontumor tissue) using Western blotting. Clinicopathological characteristics of the cohort, such as gender, age, tumor size, extrathyroidal extension, lymphovascular invasion, lymph node metastasis (LNM), and TNM stage, are listed in Table 1. Table 1 shows the relationship of CTSB expression and prognostic factors of PTC. Tumor size was larger in High 3 group than low group. Multiplicity was significantly higher in accordance with increasing of expression of CTSB. High expression of CTSB affected LNM and N stage. Immunoblotting of patient samples showed higher CTSB levels in tumor tissue compared to normal tissue (Figure 2A,B), and patients with higher CTSB expression were at increased risk of LNM and advanced N stage (Figure 2C,D). These results indicate that elevated CTSB expression in thyroid cancer is probably related to metastasis in clinical settings.

2.3. Changes in CTSB Expression Regulate Metastasis in Thyroid Cancer Cells

Analysis of patient samples showed that upregulation of CTSB was associated with LNM (Figure 2C,D); therefore, we hypothesized that changes in CTSB expression can affect metastasis in thyroid cancer. To investigate this, we designed cloning of the human CTSB gene into plasmid pCS4-3xMyc and obtained pCS4-3xMyc-CTSB (Myc-CTSB). We transfected a plasmid carrying Myc-CTSB to cell lines that show low levels of basal CTSB. Snail and vimentin were used as representative markers of mesenchymal transition [26]. CTSB overexpression induced an increase in Snail and vimentin levels in Nthy-ori-3-1 and 8505C cells (Figure 3A), apart from enhancing the number of migrating cells, compared to the vector group, in the scratch assay (Figure 3B). Analysis of wounding area (%) showed overexpression of CTSB filled faster the scratch area compared to the vector group (Figure 3C).
Next, to determine whether loss of basal CTSB reduced metastasis, SNU790, and TPC-1 cells, which constitutively express high levels of CTSB, were treated with siRNA against CTSB. Inhibited expression of CTSB led to reduced levels of Snail and vimentin in SNU-790 and TPC-1 cells (Figure 4A,B), apart from lowering migrating cell numbers in the scratch assay (Figure 4C). Analysis of wounding area (%) showed that knock down of CTSB levels remained more in the wound area compared to the siCON group (Figure 4D).
Taken together, these results indicate that altering cellular levels of CTSB can affect epithelial–mesenchymal transition (EMT) activation in thyroid cancer cell lines.

2.4. Secreted CTSB Induces Activation of EMT via Intercellular Signaling in Thyroid Cancer Cells

To assess whether secreted CTSB affects EMT progression, we evaluated changes in EMT markers after recombinant CTSB treatment of cell lines that express low levels of CTSB. Recombinant human CTSB was expressed and purified from an Escherichia coli (E. coli) system (Figure 5A). Nthy-ori-3-1 and 8505C cells were treated with recombinant CTBS at different concentrations, followed by cell migration assay to select an appropriate concentration. Nthy-ori-3-1 cells were treated with recombinant CTSB (400 ng/mL) for 24 h. 8505C cells were treated with recombinant CTSB (200 ng/mL) for 24 h. Immunoblotting showed that the treatment with recombinant CTSB increased Snail and vimentin levels in Nthy-ori-3-1 and 8505C cells (Figure 5B,C). To explore the physiological effect of secreted CTSB, we used the wound healing assay in Nthy-ori-3-1 and 8505C cell lines treated with recombinant CTSB and found greater numbers of migrating cells in treated cells compared to those that were not treated (Figure 5D). Analysis of wounding area (%) showed treatment of recombinant CTSB induced more closure of the wound area than nontreatment in Nthy-ori-3-1 and 8505C for 24 h (Figure 5E). These results indicate that secreted CTSB can accelerate cell migration in thyroid cancer cell lines.
To explore the mechanism underlying the effects of secreted CTSB during EMT progression, we analyzed changes in cellular signaling pathways in CTSB-treated thyroid cancer cell lines. Nthy-ori-3-1 or 8505C cells were treated with recombinant CTSB at a concentration of 400 or 200 ng/mL, respectively, for 1 h, and then the cells were harvested. Cell lyastes were subjected to immunoblotting to detect the signaling molecules. The results showed enhanced p38 phosphorylation upon exposure to CTSB in these cell lines (Figure 6), suggesting that secreted CTSB can affect intercellular signaling to promote cell migration.

3. Discussion

The most common endocrine cancer is thyroid cancer, and even as the thyroid cancer patients have steadily occurred, their survival rate has also reduced in the last 10 years [1,2]. Thyroid cancer is the first most common cancer among men and women of the 15–34 age group in Korea and there is an urgent need for an effective diagnostic and prognostic biological marker [3].
Thus far, there is scant research on CTSB and thyroid cancer. CTSB functions include contributions to thyroglobulin process and secretion of thyroxine from thyroid cells [27,28,29]. In contrast, CTSB in PTC is localized to the basement membrane, where it induces EMT by changing the properties of the extracellular matrix [30]. Even though previous studies have reported on the level and localization of CTSB in thyroid cancer, the underlying mechanisms of action remain unknown. Here we reveal this mechanism to be a metastasis process via p38 activation and also show that it is regulated by CTSB secreted from thyroid cancer cells.
Overexpression or abnormal activity of CTSB has been previously reported in breast, pancreatic, liver, colorectal, oral, and lung cancer, and among others [22,23,25,30,31,32]. Higher levels of CTSB have been demonstrated in neoplastic thyroid disease compared to non-neoplastic disease [33]. Our data show that real-world patient samples of PTC also express higher levels of CTSB and that the enhanced levels were related to LNM. These observations offer a new strategy for determining clinical prognosis after LNM in PTC. Cathepsin S, another protein of cysteine protease family, was reported to be related with more frequent LNM and advanced tumor-node-metastasis stages compared with the low-expression group. The authors suggested that Cathepsin S might be used as a predictive marker for the prognosis of PTC [34].
The mechanisms of CTSB action in thyroid cancer are unknown and our investigation of the same revealed that CTSB overexpression induces cell migration by enhancing the expression of vimentin and Snail in thyroid cancer cell lines. Previous studies have reported that siRNA-induced downregulation of CTSB inhibited EMT in other cancer cell lines [25,35]. We similarly demonstrate that low levels of CTSB inhibit cell migration through decreased expression of vimentin or Snail in thyroid cancer cell lines. Thus, it appears that CTSB exerts its effects during metastasis by regulating Snail and vimentin.
While it is known that secreted CTSB significantly alters the tumor microenvironment during invasion, its mechanism of action and associated intracellular signaling pathway(s) have not yet been determined [30]. Our investigations on the role of secreted CTSB during thyroid cancer metastasis show activation of the p38 pathways without any involvement of the ERK and JNK pathways (data not shown) or cell cycle-related factors (data not shown). Thus, even though secreted CTSB is located on the extracellular membrane, the identity of cognate receptors for signal transduction remains unknown.

4. Materials and Methods

4.1. Reagents and Antibodies

All chemicals used in this investigation were purchased from Sigma (Sigma, St. Louis, MO, USA) and were of electrophoresis or analytical grade. Chemicals used were 4-Sulfophenyl isothiocyanate, urea, thiourea, iodoacetamide, α-cyano-4-hydroxycinnamic acid (CHCA), acetonitrile, Bradford solution, SDS, benzamidine, bis-acrylamide, ammonium bicarbonate, trifluoroacetic acid, dithiothreitol (DTT), acrylamide, 3-((3-cholamidopropyl) dimethyammonio)-1-propanesulfonate (CHAPS), and sodium bicarbonate. The solution of pharmalyte (pH 3.5–10) was purchased from Amersham Biosciences (Amersham Biosciences, Piscataway, NJ, USA). Sequencing-grade modified porcine trypsin was obtained from Promega (Madison, WI, USA). Antibodies for CTSB (#31718), Snail (#3879), Vimentin (#5741), phospho-p38 (#4511), p38 (#8690), β-actin (#4970), and horseradish peroxidase conjugated secondary antibodies (#7074 and #7076) were purchased from Cell Signaling Technology (CST, Danvers, MA, USA).

4.2. Cell Culture

The following cell lines were used. Human PTC cell lines were SNU790, TPC-1, 8505C, while normal thyroid epithelial cell line was Nthy-ori-3-1. SNU790 cell line was purchased from the Korean Cell Line Bank (KCLB, Seoul, Korea). TPC-1, 8505C, and Nthy-ori-3-1 cell lines were purchased from Sigma-Aldrich (Sigma, St. Louis, MO, USA). These cell lines were cultured in RPMI 1640 supplemented with 10% fetal bovine serum (FBS), 100 μg/mL streptomycin, and 100 U/mL penicillin (CAPRICORN, Germany). Cells were cultured in an incubator at 37 °C with 5% CO2.

4.3. Protein Preparation for MS Analysis

Cells were grown for 48 h under serum free conditions, 20 mL of culture medium was collected and centrifuged at 1000× g for 10 min to remove cell debris. The supernatants were harvested, filtered using a syringe membrane filter with a 0.22 um pore (Millipore, Billerica, MA, USA), and then secreted proteins were concentrated using centrifugal filter units with a 3-kDA cutoff at 4  °C (Amicon Ultra Centrifugal filters, Millipore, St. Louis, Mo, USA). 2DE-lysis solution (2 M thiourea containing 4% (w/v) 3-((3-cholamidopropy) dimethyammonio)-1-propanesulfonate (CHAPS), 7 M urea, 1 mM benzamidine, 1% (w/v) dithiothreitol (DTT), and 2% (v/v) pharmalyte) was added to 150 µL of concentrated supernatant by incubating it for 30 min at room temperature with vortexing. After centrifugation at 15,000× g for 1 h at 4 °C, the insoluble pellet was discarded, and the soluble sample was performed for 2D-PAGE. Protein quantification was estimated using 2D Quantitative kit (Amersham Biosciences, Piscataway, NJ, USA).

4.4. Two-Dimensional PAGE and Image Analysis

To equilibrate IPG strips, dry strips (4–10 NL IPG, 24 cm, Genomine, Pohang, Korea) were soaked for 12–16 h in the pre-equilibration solution (2 M thiourea with 2% 3-((3-cholamidopropy) dimethyammonio)-1-propanesulfonate (CHAPS), 7 M urea, 1% (w/v) pharmalyte, and 1% (w/v) DTT), and loaded with 200 µg (150 µL) of protein per strip. Isoelectric focusing (IEF) was conducted at 20 °C using a Multiphor II electrophoresis unit with EPS 3500 XL power supply (Amersham Biosciences, Piscataway, NJ, USA) according to manufacturer’s instructions. IEF voltage was linearly raised from 150 to 3500 V for 3 h to enable sample entry and maintained at 3500 V. Focusing was considered complete by 96 kVh. Before electrophoresis in the second dimension, the strip was sequentially incubated for 10 min each in two equilibration buffers (50 mM Tris-Cl (pH 6.8) with 6 M urea, 2% (w/v) SDS, and 30% (w/v) glycerol) such that the first buffer contained 1% (w/v) DTT and the second had 2.5% (w/v) iodoacetamide. Equilibrated strips were embedded onto SDS–PAGE gels (20 × 24 cm, 10–16%) and run on a Hoefer DALT 2D system (Amersham Biosciences, Piscataway, NJ, USA) according to manufacturer’s instructions. SDS–PAGE was performed at 20 °C for 1700 Vh and then silver stained.
Digitized images were quantitatively analyzed using PDQuest (version 7.0, BioRad, Hercules, CA, USA) software and the unit of peptide spots was normalized based on the intensity of the total number of effective spots. To obtain physiologically meaningful results, peptide spots were chosen such that the variation in protein staining intensity was at least more than two-fold compared to normal samples.

4.5. MS

To identify protein spots by peptide mass fingerprinting, protein spots were digested using trypsin, mixed with α-cyano-4-hydroxycinnamic acid (CHCA) in 50% (v/v) 1% acetonitrile/0.1% TFA, and loaded on to a Microflex LRF 20 MALDI-TOF machine for analysis (Bruker Daltonics, Billerica, USA)
Spectra were obtained at 300 shots per spectrum over a m/z range of 600–3000 and were related to two-point internal calibration by trypsin auto-digestion peaks (m/z 842.5099, 2211.1046). A list of peaks was compiled using Flex Analysis, ver. 3.0 (Bruker Daltonics, Billerica, USA). The thresholds used for peak identification were minimum resolution of a monoisotopic mass of 500 and a S/N value of 5. MASCOT, which is a search program and developed by Matrixscience (http://www.matrixscience.com/), was utilized to identify proteins based on peptide mass fingerprinting profiles and the following criteria were used in the database search: (i) the digestion by trypsin, (ii) up to one lost cleavage, (iii) full modification by 2-iodoacetamide (Cys), (iv) oxidation (Met) as partial modification, (v) monoisotopic masses, and (vi) a mass tolerance of ±0.1 Da. PMF acceptance criteria were also used in probability score calculation.

4.6. TCA Precipitation and SDS–PAGE Staining

Cells were cultured in 10 mL of medium with 100 μg/mL streptomycin, and 100 U/mL penicillin (Capricorn Scientific, GmbH, Ebsdorfergrund, Germany) without FBS for 48 h at 37 °C with 5% CO2. To remove suspended debris, harvested cultured medium was centrifuged at 4000 rpm for 5 min at 4 °C. TCA solution was added to the harvested medium to a final concentration of 12% TCA, vortexed, and centrifuged at 12,000 rpm for 15 min at 4 °C. Supernatants were discarded. The precipitated pellets were suspended by adding 1 mL of 100% acetone and centrifuged at 12,000 rpm for 7 min at 4 °C. This process was repeated three times and air dried at room temperature for 5 min. Dried pellets were dissolved in a solution containing 1% SDS, 100 mM Tris-HCl (pH 8.0), and 1 mM EDTA at 25 °C for 15 min, samples mixed with loading buffer, boiled at 100 °C for 5 min, and subjected to SDS–PAGE. Separated proteins were transferred onto nitrocellulose membranes (NC membrane; GE Healthcare) and subjected to Western blotting, while the PAGE gel was stained with Coomassie Blue R-250 dye after electrotransfer.

4.7. Western Blotting Analysis

Collected cells were lysed in RIPA buffer (0.5% sodium deoxycholate, 0.1% SDS, 150 mM NaCl, 50 mM Tris (pH 8.0), and 1% NP-40) containing a protease inhibitor cocktail (GenDEPOT, Barker, TX, USA). About 30 μg of cell lysate was mixed with reducing loading buffer, boiled at 100 °C for 5 min, separated by SDS–PAGE, and electrotransferred onto nitrocellulose membranes (NC membrane; GE Healthcare). Transferred NC membranes were soaked in TBST (Tris-buffered saline with 0.1% Tween 20) containing 8% non-fat milk for 30 min at room temperature to block nonspecific binding sites. Blots were incubated with primary antibodies (CTSB at 1:1000, GAPDH at 1:1000, Myc at 1:1000, Snail at 1:1000, Vimentin at 1:1000, and β-actin at 1:1000) either overnight at 4 °C, washed three times with TBST, incubated with horseradish peroxidase (HRP)-conjugated secondary antibodies (1:3000) for 2 h at room temperature, washed thrice with TBST, and developed using ECL reagents (Amersham, Piscataway, NJ, USA).

4.8. Biopsy Samples

Biopsy samples of patients with PTC were retrospectively collected and analyzed. A total of 158 patients were diagnosed and underwent surgery at the Gachon University Gil Medical Center in Korea between September and December 2017. Written informed consent was obtained from all participants. Patients with recurrence of PTC were excluded. Clinicopathologic prognostic factors related to PTC were analyzed based on data collected from medical, pathologic, and surgical records. Thyroid cancers were staged according to criteria issued by the American Joint Committee on Cancer classification (AJCC, 8th edition). This study was approved by the Institutional Ethical Committee and Review Board of the Gachon University Gil Medical Center (12 May 2015, IRB No. GAIRB2015-122).

4.9. Analysis of CTSB Level Using Patient Sample

The tissue of normal or tumor was lysed in RIPA buffer with metal bead. About 30 μg of tissue lysate was mixed with loading buffer, separated by 10% SDS–PAGE and followed Western blotting procedure. The band intensities of CTSB expression were quantified by densitometric analysis using ImageJ software (National Institutes of Health) and normalized with the intensity of the GAPDH band in the same patient. The relative intensity of CTSB in normal tissue was set to 1. The band intensity of CTSB level in tumor tissue was calculated as fold-change compared to normal tissue. The expression levels of CTSB of tumor compared to normal tissue were classified into four groups according to band intensity. Low expression group was <1.5, High 1 group was ≥1.5 and <2, High 2 group ≥2 and <5, and High 3 group was ≥5. PTC patients’ clinicopathologic characteristics associated with prognosis were analyzed according to the degree of expression of CTSB.

4.10. Cell Transfection

CTSB was overexpressed in Nthy-ori-3-1 and 8505C cells cultured in 3 mL media of 6-well plates at a density of 4 × 105 cells per well. After 16 h, 2 μg of pCS4-3xMyc-CTSB plasmid was transfected using Lipofectamine2000 (Invitrogen, CA) according to manufacturer’s guidelines. CTSB expression was knocked down using siRNA in SNU790 and TPC-1 cells. Both siCTSB (sc-29238) and a scrambled control siRNA (sc-37007) were obtained from Santa Cruz Biotechnology Inc (Santa Cruz, CA, USA). Cells were seeded in 6-well plates at a density of 4 × 105 cells per well. After 16 h, transfection was performed using the TransIT-X2® Transfection kit (Mirus, MIR6000, Madison, WI, USA), according to manufacturer’s instructions. After 48 h, transfected cells of plasmid or siRNA were harvested.

4.11. Wound Healing and Cell Counting

Cells were seeded at a density of 4 × 105 cells/well in 6-well plates. At 80% confluence and at around 48 h post-transfection, wounds were created on the cell layers using the migration chamber (Cat.201903, SPL, Gyeonggi-do, Korea). Cells were gently washed with 1 mL of PBS to remove debris and suspended cells and the wound was monitored using a camera attached to an inverted optical microscope (×40) (Nikon, Tokyo, Japan). Relative migrated cell numbers in wound healing experiments were calculated using ImageJ software (NIH) [36]. Analysis of the area in wound healing experiments was calculated using MRI wound healing tool macro for ImageJ software (NIH)), (http://dev.mri.cnrs.fr/projects/imagejmacros/wiki/Wound_Healing_Tool). Relative wound closure was calculated by the method of calculation of percent wound confluence, as described previously [37,38].

4.12. Expression and Purification of CTSB

Recombinant human CTSB was expressed in E. coli Origami B (DE3) by transforming the plasmid pET21a-cDsbC-CTSB using standard protocols. Transformed E. coli were grown in Terrific broth (TB) at 37 °C and 200 rpm, along with antibiotics (50 μg/mL ampicillin, and 50 μg/mL kanamycin), till an optical density (OD600) of 0.7. Protein expression was induced by treatment with 0.1 mM IPTG at 20 °C for 18 h. Harvested E. coli were resuspended in PBS (pH 7.4), disrupted with sonication (5 s on/5 s off, total 7 min), centrifuged at 8000 rpm for 10 min at 4 °C, the soluble sample loaded onto a Ni-NTA column for separation, and washed with PBS. The recombinant CTSB protein was eluted with 200 mM imidazole and dialyzed in PBS, and the concentration of the purified recombinant CTSB was measured using the Nanodrop ND-1000 Spectrophotometer (Thermo Fisher, Waltham, MA, USA). Purity of recombinant CTSB was confirmed by subjecting 3 µg of protein to SDS–PAGE and staining with Coomassie Blue R-250 dye.

4.13. Statistical Analysis

All experiments were conducted in triplicate, and data are provided as mean ± standard deviation (SD). Comparisons between groups were made using the Pearson’s χ2 test, Fisher’s exact test, linear by linear associations, Student’s t-test, and ANOVA test to evaluate the significance of CTSB expression. Differences were deemed statistically significant at p < 0.05.

5. Conclusions

In summary, we show that changes in the expression or secretion of CTSB during PTC regulates metastasis via activation of p38-mediated EMT processes. Further studies are needed to identify receptors related to secreted CTSB signaling. Our results reveal that CTSB may not only be a potential prognostic marker of metastasis but also function as a new target for antimetastatic cancer drugs in thyroid cancer.

Supplementary Materials

The following are available online at https://www.mdpi.com/1422-0067/21/24/9537/s1.

Author Contributions

Conceptualization, E.-K.K., H.H.J. and Y.S.C.; methodology, M.-J.S.; software, E.-K.K.; validation, E.-K.K., M.-J.S. and Y.S.C.; formal analysis, E.-K.K.; investigation, E.-K.K. and Y.S.C.; resources, Y.S.C.; data curation, E.-K.K. and H.H.J.; writing—original draft preparation, E.-K.K. and H.H.J.; writing—review and editing, E.-K.K., H.H.J., and Y.S.C.; visualization, E.-K.K.; supervision, H.H.J. and Y.S.C.; project administration, H.H.J. and Y.S.C.; funding acquisition, H.H.J. and Y.S.C. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Research Foundation of Korea grant funded by the Korea government (NRF-2019R1H1A1101204 and NRF2018R1A2B6009042).

Acknowledgments

The bio-specimen and data used in this study was provided by Gachon University Gil Medical Center Bio Bank. (Provided No.:GBB2016-01).

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

Abbreviations

CTSBCathepsin B
DEPDifferentially expressed proteins
EMTEpithelial–mesenchymal transition
LNMLymph node metastasis
MSMass spectrometry
PTCPapillary thyroid cancer

References

  1. National Cancer Institute SEER Program. Cancer Stat Facts: Thyroid Cancer. Available online: https://seer.cancer.gov/statfacts/html/thyro.html (accessed on 30 October 2020).
  2. Hong, S.; Won, Y.J.; Park, Y.R.; Jung, K.W.; Kong, H.J.; Lee, E.S. Community of Population-Based Regional Cancer, R. Cancer Statistics in Korea: Incidence, Mortality, Survival, and Prevalence in 2017. Cancer Res. Treat. 2020, 52, 335–350. [Google Scholar] [CrossRef] [PubMed]
  3. Jung, K.W.; Won, Y.J.; Kong, H.J.; Lee, E.S. Prediction of Cancer Incidence and Mortality in Korea, 2019. Cancer Res. Treat. 2019, 51, 431–437. [Google Scholar] [CrossRef] [PubMed]
  4. Lai, W.A.; Liu, C.Y.; Lin, S.Y.; Chen, C.C.; Hang, J.F. Characterization of Driver Mutations in Anaplastic Thyroid Carcinoma Identifies RAS and PIK3CA Mutations as Negative Survival Predictors. Cancers 2020, 12, 1973. [Google Scholar] [CrossRef]
  5. Romei, C.; Tacito, A.; Molinaro, E.; Piaggi, P.; Cappagli, V.; Pieruzzi, L.; Matrone, A.; Viola, D.; Agate, L.; Torregrossa, L.; et al. Clinical, pathological and genetic features of anaplastic and poorly differentiated thyroid cancer: A single institute experience. Oncol. Lett. 2018, 15, 9174–9182. [Google Scholar] [CrossRef] [PubMed]
  6. Jiang, Q.; Feng, W.; Xiong, C.; Lv, Y. Integrated bioinformatics analysis of the association between apolipoprotein E expression and patient prognosis in papillary thyroid carcinoma. Oncol. Lett. 2020, 19, 2295–2305. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Papathomas, T.G.; Nose, V. New and Emerging Biomarkers in Endocrine Pathology. Adv. Anat. Pathol. 2019, 26, 198–209. [Google Scholar] [CrossRef]
  8. Kim, E.K.; Song, M.J.; Jung, Y.; Lee, W.S.; Jang, H.H. Proteomic Analysis of Primary Colon Cancer and Synchronous Solitary Liver Metastasis. Cancer Genom. Proteom. 2019, 16, 583–592. [Google Scholar] [CrossRef]
  9. Corbo, C.; Cevenini, A.; Salvatore, F. Biomarker discovery by proteomics-based approaches for early detection and personalized medicine in colorectal cancer. Proteom. Clin. Appl. 2017, 11. [Google Scholar] [CrossRef]
  10. Huang, Z.; Ma, L.; Huang, C.; Li, Q.; Nice, E.C. Proteomic profiling of human plasma for cancer biomarker discovery. Proteomics 2017, 17. [Google Scholar] [CrossRef]
  11. Martinez-Aguilar, J.; Clifton-Bligh, R.; Molloy, M.P. Proteomics of thyroid tumours provides new insights into their molecular composition and changes associated with malignancy. Sci. Rep. 2016, 6, 23660. [Google Scholar] [CrossRef] [Green Version]
  12. Ucal, Y.; Eravci, M.; Tokat, F.; Duren, M.; Ince, U.; Ozpinar, A. Proteomic analysis reveals differential protein expression in variants of papillary thyroid carcinoma. EuPA Open Proteom. 2017, 17, 1–6. [Google Scholar] [CrossRef] [PubMed]
  13. da Cunha, B.R.; Domingos, C.; Stefanini, A.C.B.; Henrique, T.; Polachini, G.M.; Castelo-Branco, P.; Tajara, E.H. Cellular Interactions in the Tumor Microenvironment: The Role of Secretome. J. Cancer 2019, 10, 4574–4587. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Karagiannis, G.S.; Pavlou, M.P.; Diamandis, E.P. Cancer secretomics reveal pathophysiological pathways in cancer molecular oncology. Mol. Oncol. 2010, 4, 496–510. [Google Scholar] [CrossRef] [Green Version]
  15. Zeng, X.; Yang, P.; Chen, B.; Jin, X.; Liu, Y.; Zhao, X.; Liang, S. Quantitative secretome analysis reveals the interactions between epithelia and tumor cells by in vitro modulating colon cancer microenvironment. J. Proteom. 2013, 89, 51–70. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Rehman, A.U.; Olof Olsson, P.; Khan, N.; Khan, K. Identification of Human Secretome and Membrane Proteome-Based Cancer Biomarkers Utilizing Bioinformatics. J. Membr. Biol. 2020, 253, 257–270. [Google Scholar] [CrossRef] [PubMed]
  17. Aggarwal, N.; Sloane, B.F. Cathepsin B: Multiple roles in cancer. Proteom. Clin. Appl. 2014, 8, 427–437. [Google Scholar] [CrossRef] [Green Version]
  18. Gondi, C.S.; Rao, J.S. Cathepsin B as a cancer target. Expert Opin. Ther. Targets 2013, 17, 281–291. [Google Scholar] [CrossRef] [Green Version]
  19. Bodemar, G.; Walan, A. Cimetidine and active duodenal and prepyloric ulcers. Scand. J. Gastroenterol. Suppl. 1976, 42, 155–158. [Google Scholar] [CrossRef]
  20. Abdulla, M.H.; Valli-Mohammed, M.A.; Al-Khayal, K.; Al Shkieh, A.; Zubaidi, A.; Ahmad, R.; Al-Saleh, K.; Al-Obeed, O.; McKerrow, J. Cathepsin B expression in colorectal cancer in a Middle East population: Potential value as a tumor biomarker for late disease stages. Oncol. Rep. 2017, 37, 3175–3180. [Google Scholar] [CrossRef] [Green Version]
  21. Ruan, J.; Zheng, H.; Rong, X.; Rong, X.; Zhang, J.; Fang, W.; Zhao, P.; Luo, R. Over-expression of cathepsin B in hepatocellular carcinomas predicts poor prognosis of HCC patients. Mol. Cancer 2016, 15, 17. [Google Scholar] [CrossRef] [Green Version]
  22. Gong, F.; Peng, X.; Luo, C.; Shen, G.; Zhao, C.; Zou, L.; Li, L.; Sang, Y.; Zhao, Y.; Zhao, X. Cathepsin B as a potential prognostic and therapeutic marker for human lung squamous cell carcinoma. Mol. Cancer 2013, 12, 125. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Gopinathan, A.; Denicola, G.M.; Frese, K.K.; Cook, N.; Karreth, F.A.; Mayerle, J.; Lerch, M.M.; Reinheckel, T.; Tuveson, D.A. Cathepsin B promotes the progression of pancreatic ductal adenocarcinoma in mice. Gut 2012, 61, 877–884. [Google Scholar] [CrossRef] [PubMed]
  24. Chen, C.H.; Bhasin, S.; Khanna, P.; Joshi, M.; Joslin, P.M.; Saxena, R.; Amin, S.; Liu, S.; Sindhu, S.; Walker, S.R.; et al. Study of Cathepsin B inhibition in VEGFR TKI treated human renal cell carcinoma xenografts. Oncogenesis 2019, 8, 15. [Google Scholar] [CrossRef]
  25. Bian, B.; Mongrain, S.; Cagnol, S.; Langlois, M.J.; Boulanger, J.; Bernatchez, G.; Carrier, J.C.; Boudreau, F.; Rivard, N. Cathepsin B promotes colorectal tumorigenesis, cell invasion, and metastasis. Mol. Carcinog. 2016, 55, 671–687. [Google Scholar] [CrossRef] [PubMed]
  26. Kalluri, R.; Weinberg, R.A. The basics of epithelial-mesenchymal transition. J. Clin. Investig. 2009, 119, 1420–1428. [Google Scholar] [CrossRef] [Green Version]
  27. Tedelind, S.; Jordans, S.; Resemann, H.; Blum, G.; Bogyo, M.; Fuhrer, D.; Brix, K. Cathepsin B trafficking in thyroid carcinoma cells. Thyroid Res. 2011, 4 (Suppl. S1), 2. [Google Scholar] [CrossRef] [Green Version]
  28. Jordans, S.; Jenko-Kokalj, S.; Kuhl, N.M.; Tedelind, S.; Sendt, W.; Bromme, D.; Turk, D.; Brix, K. Monitoring compartment-specific substrate cleavage by cathepsins B, K, L, and S at physiological pH and redox conditions. BMC Biochem. 2009, 10, 23. [Google Scholar] [CrossRef] [Green Version]
  29. Shuja, S.; Murnane, M.J. Marked increases in cathepsin B and L activities distinguish papillary carcinoma of the thyroid from normal thyroid or thyroid with non-neoplastic disease. Int. J. Cancer 1996, 66, 420–426. [Google Scholar] [CrossRef]
  30. Chen, B.J.; Tang, Y.J.; Tang, Y.L.; Liang, X.H. What makes cells move: Requirements and obstacles for leader cells in collective invasion. Exp. Cell Res. 2019, 382, 111481. [Google Scholar] [CrossRef]
  31. Yang, W.E.; Ho, C.C.; Yang, S.F.; Lin, S.H.; Yeh, K.T.; Lin, C.W.; Chen, M.K. Cathepsin B Expression and the Correlation with Clinical Aspects of Oral Squamous Cell Carcinoma. PLoS ONE 2016, 11, e0152165. [Google Scholar] [CrossRef] [Green Version]
  32. Poole, A.R.; Tiltman, K.J.; Recklies, A.D.; Stoker, T.A. Differences in secretion of the proteinase cathepsin B at the edges of human breast carcinomas and fibroadenomas. Nature 1978, 273, 545–547. [Google Scholar] [CrossRef] [PubMed]
  33. Srisomsap, C.; Subhasitanont, P.; Otto, A.; Mueller, E.C.; Punyarit, P.; Wittmann-Liebold, B.; Svasti, J. Detection of cathepsin B up-regulation in neoplastic thyroid tissues by proteomic analysis. Proteomics 2002, 2, 706–712. [Google Scholar] [CrossRef]
  34. Tan, J.; Qian, X.; Song, B.; An, X.; Cai, T.; Zuo, Z.; Ding, D.; Lu, Y.; Li, H. Integrated bioinformatics analysis reveals that the expression of cathepsin S is associated with lymph node metastasis and poor prognosis in papillary thyroid cancer. Oncol. Rep. 2018, 40, 111–122. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Bao, W.; Fan, Q.; Luo, X.; Cheng, W.W.; Wang, Y.D.; Li, Z.N.; Chen, X.L.; Wu, D. Silencing of Cathepsin B suppresses the proliferation and invasion of endometrial cancer. Oncol. Rep. 2013, 30, 723–730. [Google Scholar] [CrossRef] [Green Version]
  36. Nunes, J.P.S.; Dias, A.A.M. ImageJ macros for the user-friendly analysis of soft-agar and wound-healing assays. Biotechniques 2017, 62, 175–179. [Google Scholar] [CrossRef] [Green Version]
  37. Grada, A.; Otero-Vinas, M.; Prieto-Castrillo, F.; Obagi, Z.; Falanga, V. Research Techniques Made Simple: Analysis of Collective Cell Migration Using the Wound Healing Assay. J. Investig. Dermatol. 2017, 137, e11–e16. [Google Scholar] [CrossRef] [Green Version]
  38. Valster, A.; Tran, N.L.; Nakada, M.; Berens, M.E.; Chan, A.Y.; Symons, M. Cell migration and invasion assays. Methods 2005, 37, 208–215. [Google Scholar] [CrossRef]
Ijms 21 09537 g001 550

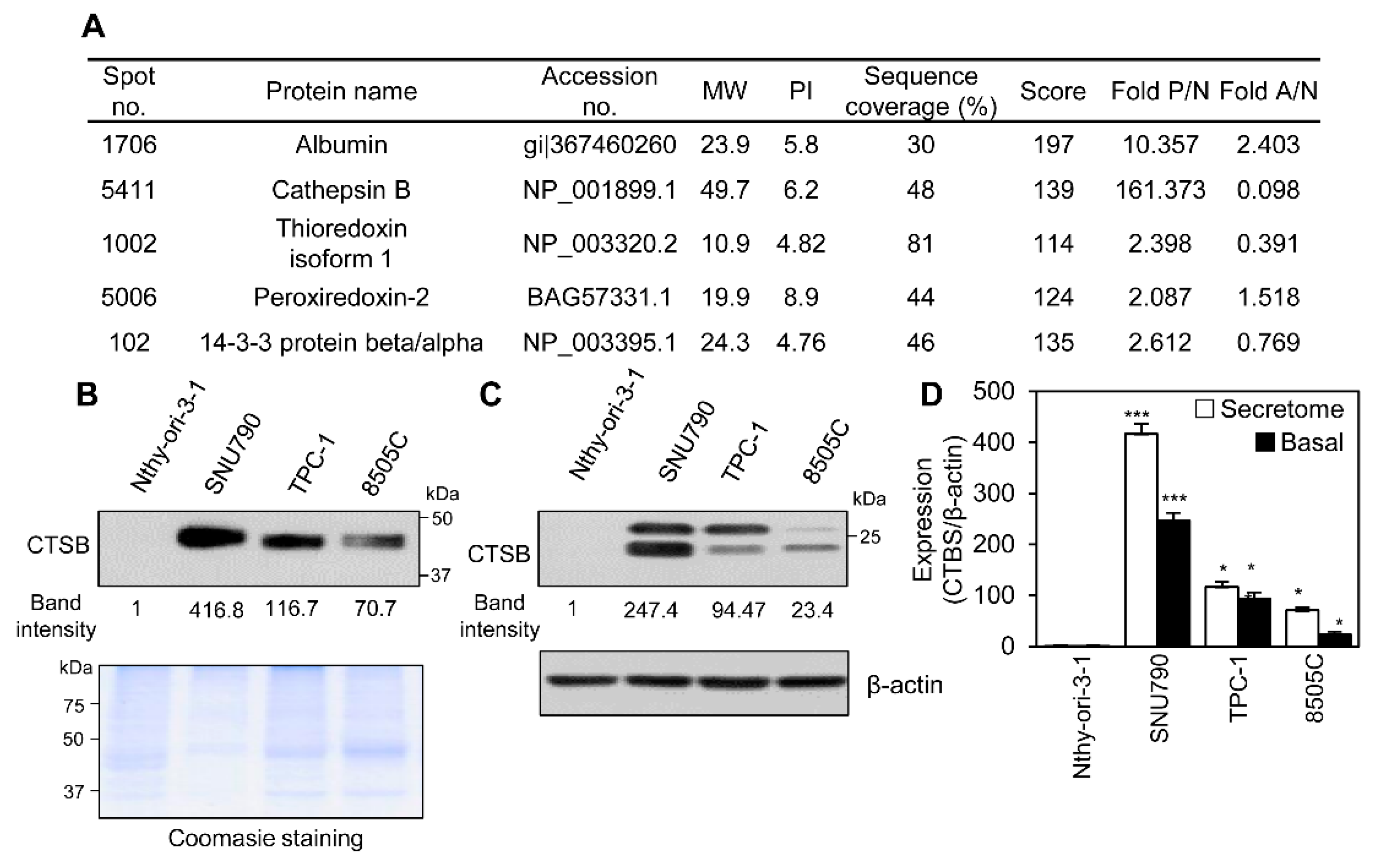

Figure 1. Higher expression of cathepsin B (CTSB) in PTC cell lines. (A) The identified list of DEPs in the secretome of thyroid epithelial cell (N), PTC cell (P), and anaplastic thyroid cancer cell (A) using proteomic analysis. (B) Western blot of secreted CTSB levels in conditioned media of cultured thyroid cancer cell lines (top). Proteins of the secretome were stained with CBB-R250 on the SDS–PAGE gel (bottom). (C) Analysis of basal CTSB levels in Nthy-ori-3-1, SNU790, TPC-1, and 8505C cells using Western blotting. (D) Analysis of relative CTSB expression in the secretome and its basal levels in thyroid cancer cell lines. The band intensity of CTSB expression was measured with ImageJ software and was normalized to β-actin or Coomassie staining. The relative intensity of CTSB in the Nthy-ori-3-1 was set to 1. Band intensity of CTSB level in SNU790, TPC-1, and 8505C was reported as fold-change compared to Nthy-ori-3-1. * p < 0.05, *** p < 0.001.
Figure 1. Higher expression of cathepsin B (CTSB) in PTC cell lines. (A) The identified list of DEPs in the secretome of thyroid epithelial cell (N), PTC cell (P), and anaplastic thyroid cancer cell (A) using proteomic analysis. (B) Western blot of secreted CTSB levels in conditioned media of cultured thyroid cancer cell lines (top). Proteins of the secretome were stained with CBB-R250 on the SDS–PAGE gel (bottom). (C) Analysis of basal CTSB levels in Nthy-ori-3-1, SNU790, TPC-1, and 8505C cells using Western blotting. (D) Analysis of relative CTSB expression in the secretome and its basal levels in thyroid cancer cell lines. The band intensity of CTSB expression was measured with ImageJ software and was normalized to β-actin or Coomassie staining. The relative intensity of CTSB in the Nthy-ori-3-1 was set to 1. Band intensity of CTSB level in SNU790, TPC-1, and 8505C was reported as fold-change compared to Nthy-ori-3-1. * p < 0.05, *** p < 0.001.
Ijms 21 09537 g001
Ijms 21 09537 g002 550

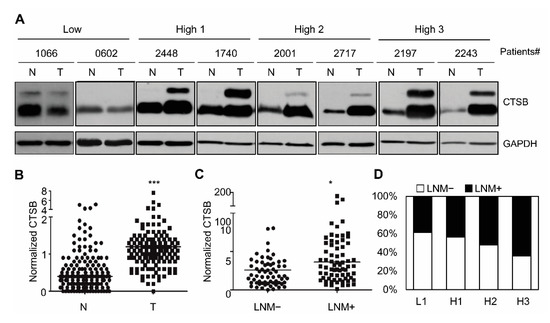

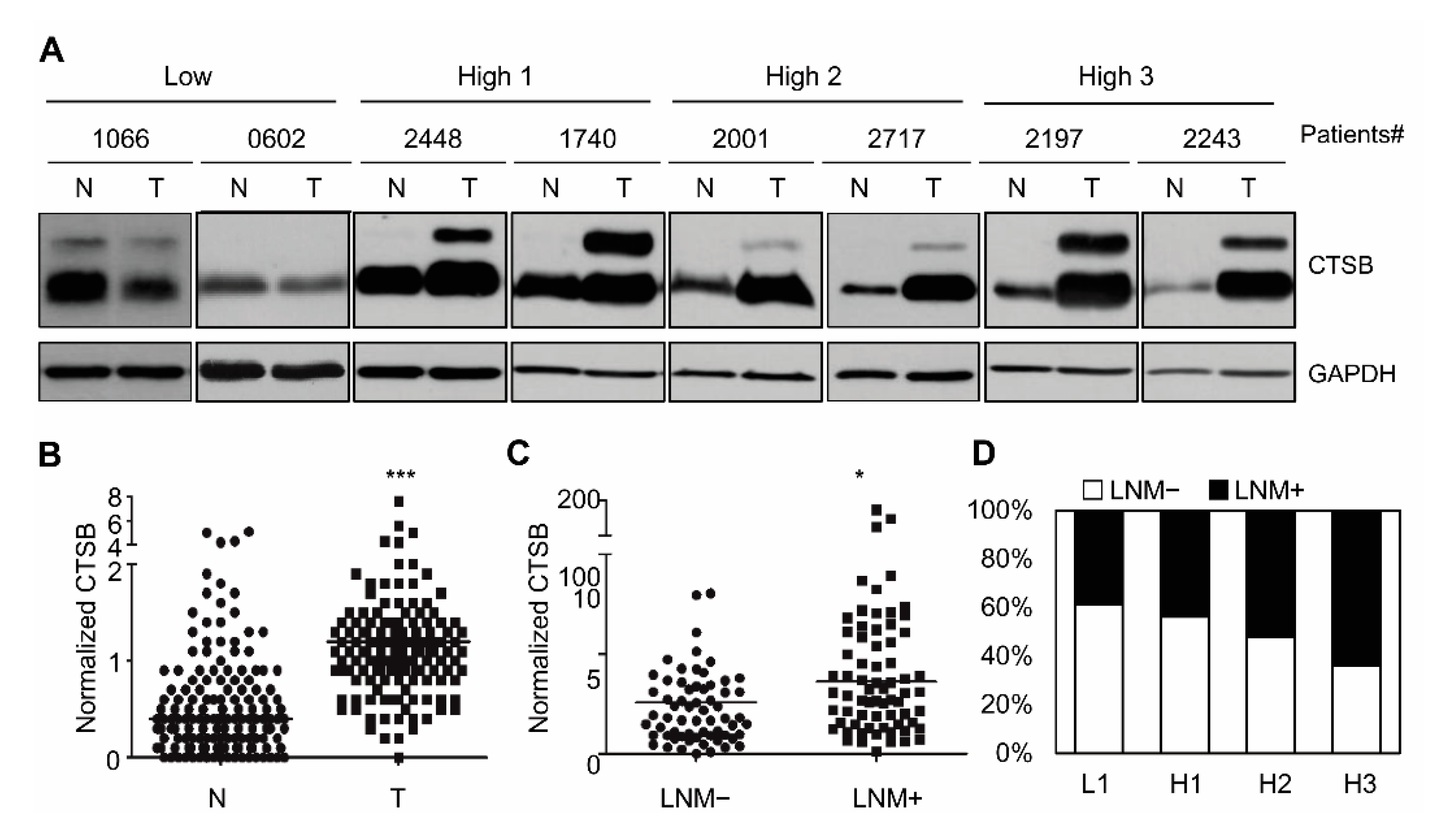

Figure 2. Higher expression of CTSB in PTC in clinical samples. (A) Expression of CTSB in normal (N) and tumor (T) samples from thyroid cancer patients. The band intensity of CTSB expression was measured with ImageJ and was normalized to GAPDH. The relative intensity of CTSB in normal tissue was set to 1. The band intensity of CTSB level in tumor tissue was calculated as fold-change compared to normal tissue. (B) Analysis of CTSB level between normal (N) and tumor (T) tissues in the patient samples of thyroid cancer. CTSB band intensity was normalized to GAPDH and was quantified using ImageJ. *** p < 0.001 (C) Analysis of CTSB expression in clinical samples with or without LNM. * p < 0.05 (D) Analysis of the relationship between occurrence (%) of LNM and CTSB expression levels.
Figure 2. Higher expression of CTSB in PTC in clinical samples. (A) Expression of CTSB in normal (N) and tumor (T) samples from thyroid cancer patients. The band intensity of CTSB expression was measured with ImageJ and was normalized to GAPDH. The relative intensity of CTSB in normal tissue was set to 1. The band intensity of CTSB level in tumor tissue was calculated as fold-change compared to normal tissue. (B) Analysis of CTSB level between normal (N) and tumor (T) tissues in the patient samples of thyroid cancer. CTSB band intensity was normalized to GAPDH and was quantified using ImageJ. *** p < 0.001 (C) Analysis of CTSB expression in clinical samples with or without LNM. * p < 0.05 (D) Analysis of the relationship between occurrence (%) of LNM and CTSB expression levels.
Ijms 21 09537 g002
Ijms 21 09537 g003 550

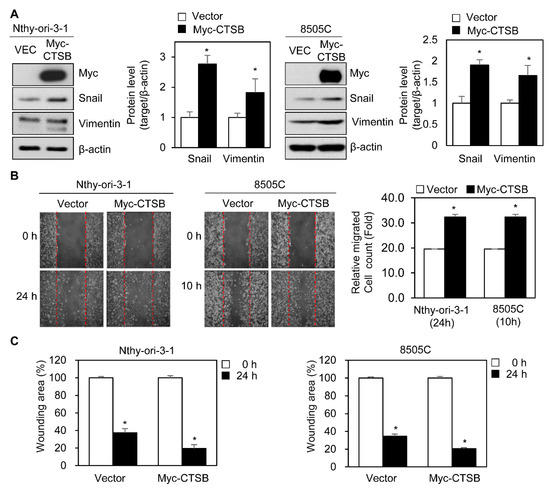

Figure 3. Overexpression of CTSB expression induces activation of cell migration in normal thyroid epithelial and thyroid cancer cell lines. (A) Immunoblotting for expression levels of Snail and vimentin in Nthy-ori-3-1 and 8505C cells transfected with plasmids for myc-CTSB or vector for 24 h. The table for the relative levels of Snail or vimentin with overexpression of CTSB. The band intensity of Snail or vimentin was determined using ImageJ program and normalized to that of the band intensity of ꞵ-actin. The relative level of Snail or vimentin was calculated and statistically analyzed. (B) Scratch wound healing assay in Nthy-ori-3-1 and 8505C cells transfected with myc-tagged CTSB or vector for 24 h. (C) The wounding area (%) of Nthy-ori-3-1 or 8505C cells with the overexpressed CTSB for 24 h. Changes in relative migrating cell numbers and wounding area were captured by microscopy and counted using ImageJ. Data are representative of three independent experiments. * p < 0.05.
Figure 3. Overexpression of CTSB expression induces activation of cell migration in normal thyroid epithelial and thyroid cancer cell lines. (A) Immunoblotting for expression levels of Snail and vimentin in Nthy-ori-3-1 and 8505C cells transfected with plasmids for myc-CTSB or vector for 24 h. The table for the relative levels of Snail or vimentin with overexpression of CTSB. The band intensity of Snail or vimentin was determined using ImageJ program and normalized to that of the band intensity of ꞵ-actin. The relative level of Snail or vimentin was calculated and statistically analyzed. (B) Scratch wound healing assay in Nthy-ori-3-1 and 8505C cells transfected with myc-tagged CTSB or vector for 24 h. (C) The wounding area (%) of Nthy-ori-3-1 or 8505C cells with the overexpressed CTSB for 24 h. Changes in relative migrating cell numbers and wounding area were captured by microscopy and counted using ImageJ. Data are representative of three independent experiments. * p < 0.05.
Ijms 21 09537 g003
Ijms 21 09537 g004 550

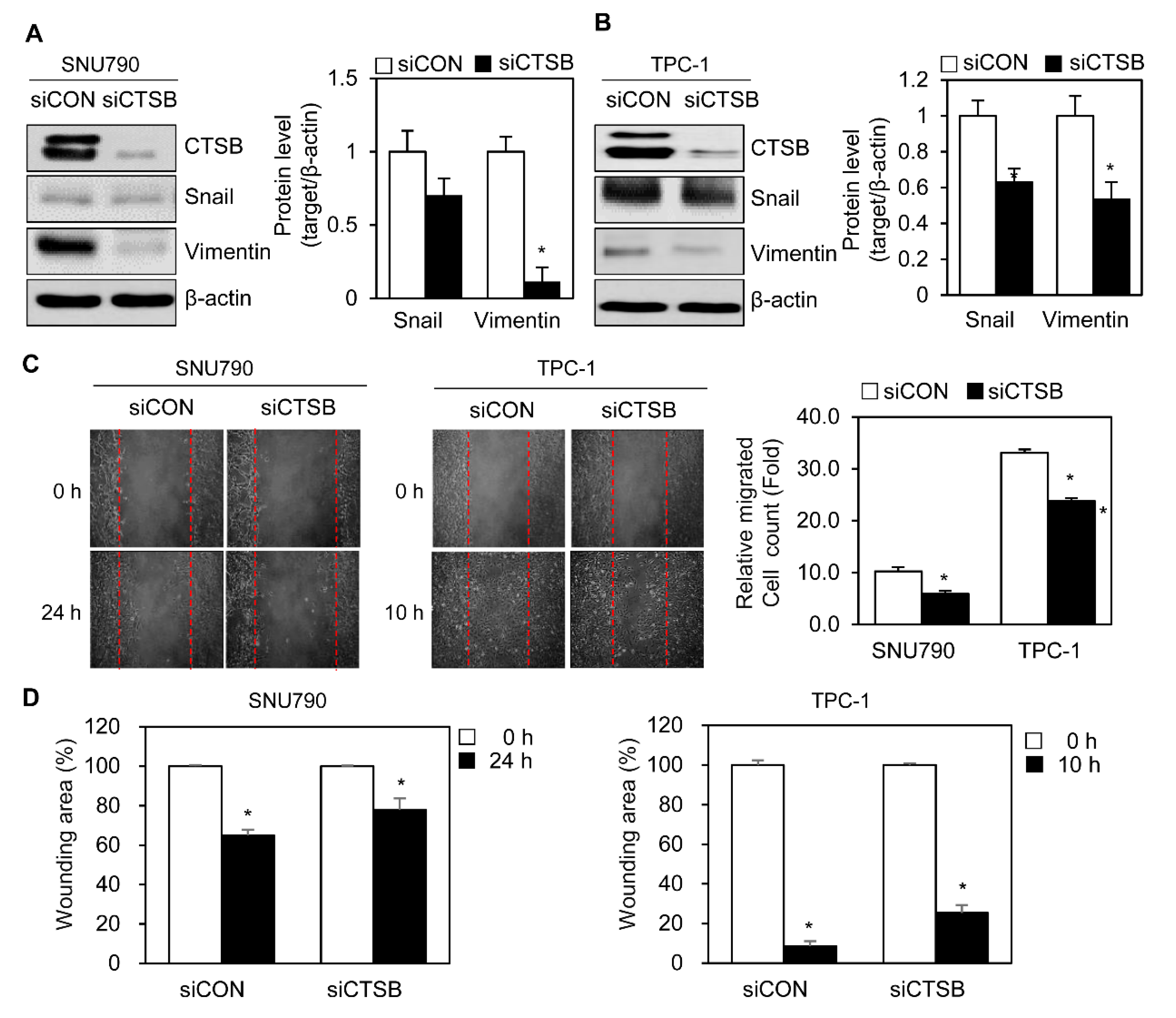

Figure 4. Knock down of CTSB expression inhibits activation of cell migration in PTC cell lines. (A,B) Immunoblotting for CTSB, Snail, and vimentin after transfection with siCON or siCTSB in SNU790 and TPC-1 cells for 24 h. Table for the relative levels of Snail or vimentin in the knock down of CTSB. The band intensity of Snail or vimentin was calculated using ImageJ program and normalized to that of the band intensity of β-actin. The relative level of Snail or vimentin was calculated and statistically analyzed. (C) Wound healing assay in SNU790 and TPC-1 after transfection with siCON or siCTSB. (D) The wounding area (%) of SNU790 (24 h) or TPC-1 (10 h) cells with the treatment of siCON or siCTSB. The number of the relative migrating cells or wounding area was analyzed using ImageJ in SUN790 cells at 24 h and in TPC-1 cells at 10 h. Band intensity was normalized to β-actin expression and quantified using ImageJ. Data are representative of three independent experiments. * p < 0.05.
Figure 4. Knock down of CTSB expression inhibits activation of cell migration in PTC cell lines. (A,B) Immunoblotting for CTSB, Snail, and vimentin after transfection with siCON or siCTSB in SNU790 and TPC-1 cells for 24 h. Table for the relative levels of Snail or vimentin in the knock down of CTSB. The band intensity of Snail or vimentin was calculated using ImageJ program and normalized to that of the band intensity of β-actin. The relative level of Snail or vimentin was calculated and statistically analyzed. (C) Wound healing assay in SNU790 and TPC-1 after transfection with siCON or siCTSB. (D) The wounding area (%) of SNU790 (24 h) or TPC-1 (10 h) cells with the treatment of siCON or siCTSB. The number of the relative migrating cells or wounding area was analyzed using ImageJ in SUN790 cells at 24 h and in TPC-1 cells at 10 h. Band intensity was normalized to β-actin expression and quantified using ImageJ. Data are representative of three independent experiments. * p < 0.05.
Ijms 21 09537 g004
Ijms 21 09537 g005 550

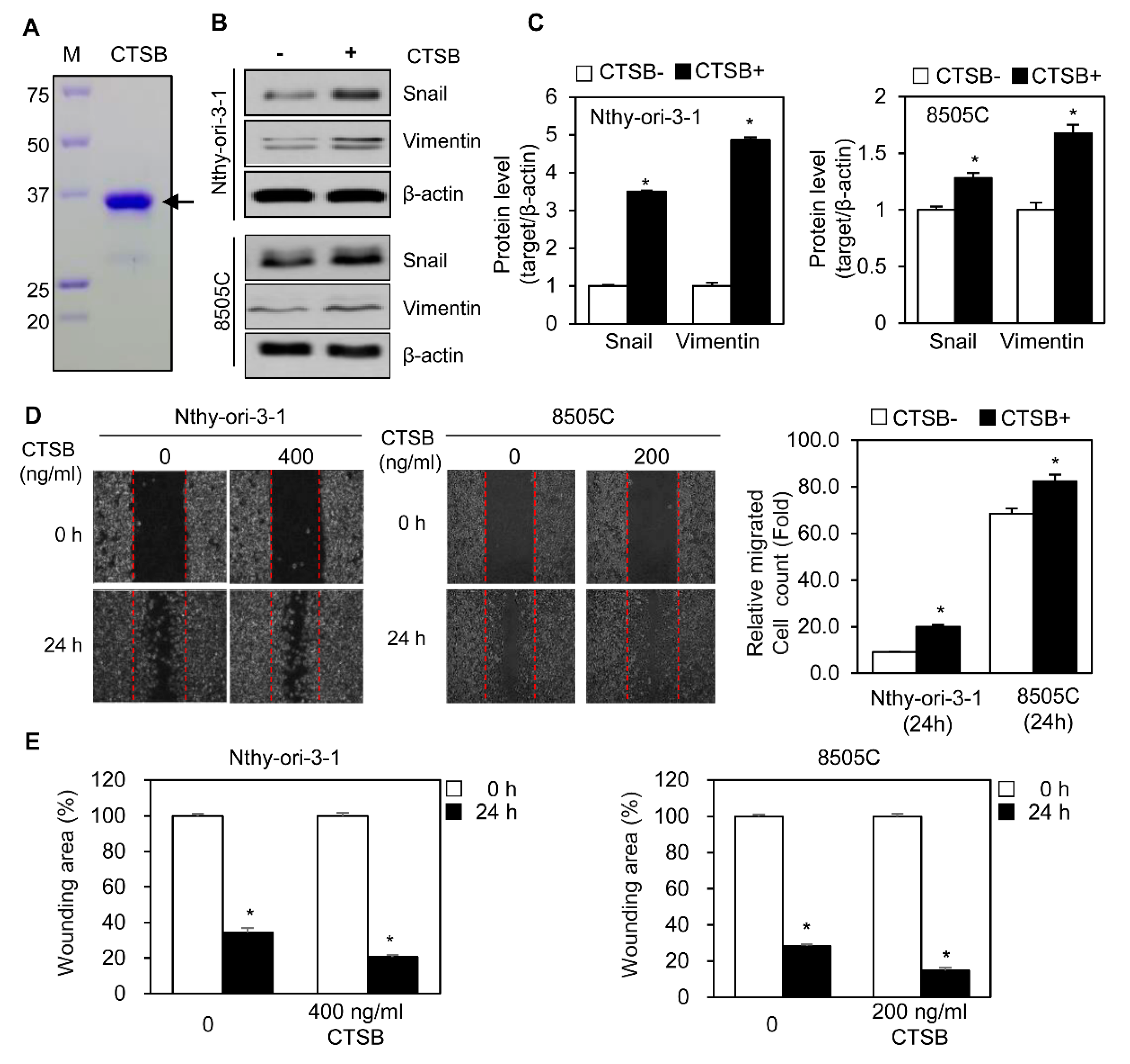

Figure 5. Treatment with recombinant CTSB induces cell migration in normal thyroid epithelial and thyroid cancer cell line. (A) Recombinant CTSB was produced in an Escherichia coli (E. coli) system. Purified CTSB was subjected to SDS–PAGE and stained by Coomassie blue to confirm the purity of CTSB. Arrow indicates purified CTSB protein band. (B) Western blotting for Snail and vimentin in Nthy-ori-3-1 and 8505C cells after treatment with recombinant CTSB. Nthy-ori-3-1 cells were treated with 400 ng/mL CTSB for 24 h while 8505C cells were treated with 200 ng/mL CTSB for 24 h. (C) Tables for the relative levels of Snail or vimentin exposure to recombinant human CTSB. The band intensity of Snail or vimentin was determined using ImageJ program and normalized to that of the band intensity of β-actin. The relative level of Snail or vimentin was calculated and statistically analyzed. (D) Scratch wound healing assay in Nthy-ori-3-1 and 8505C cells after treatment with recombinant CTSB for 24 h. Pictures were captured on an inverted microscope. Cells were treated with 400 or 200 ng/mL recombinant CTSB for 24 h. (E) The wounding area (%) of Nthy-ori-3-1 (400 ng/mL) or 8505C (200 ng/mL) cells with the treatment of siCON or siCTSB. The calculation of migrating cells or wounding area was counted by ImageJ. Data are representative of three independent experiments. * p < 0.05.
Figure 5. Treatment with recombinant CTSB induces cell migration in normal thyroid epithelial and thyroid cancer cell line. (A) Recombinant CTSB was produced in an Escherichia coli (E. coli) system. Purified CTSB was subjected to SDS–PAGE and stained by Coomassie blue to confirm the purity of CTSB. Arrow indicates purified CTSB protein band. (B) Western blotting for Snail and vimentin in Nthy-ori-3-1 and 8505C cells after treatment with recombinant CTSB. Nthy-ori-3-1 cells were treated with 400 ng/mL CTSB for 24 h while 8505C cells were treated with 200 ng/mL CTSB for 24 h. (C) Tables for the relative levels of Snail or vimentin exposure to recombinant human CTSB. The band intensity of Snail or vimentin was determined using ImageJ program and normalized to that of the band intensity of β-actin. The relative level of Snail or vimentin was calculated and statistically analyzed. (D) Scratch wound healing assay in Nthy-ori-3-1 and 8505C cells after treatment with recombinant CTSB for 24 h. Pictures were captured on an inverted microscope. Cells were treated with 400 or 200 ng/mL recombinant CTSB for 24 h. (E) The wounding area (%) of Nthy-ori-3-1 (400 ng/mL) or 8505C (200 ng/mL) cells with the treatment of siCON or siCTSB. The calculation of migrating cells or wounding area was counted by ImageJ. Data are representative of three independent experiments. * p < 0.05.
Ijms 21 09537 g005
Ijms 21 09537 g006 550

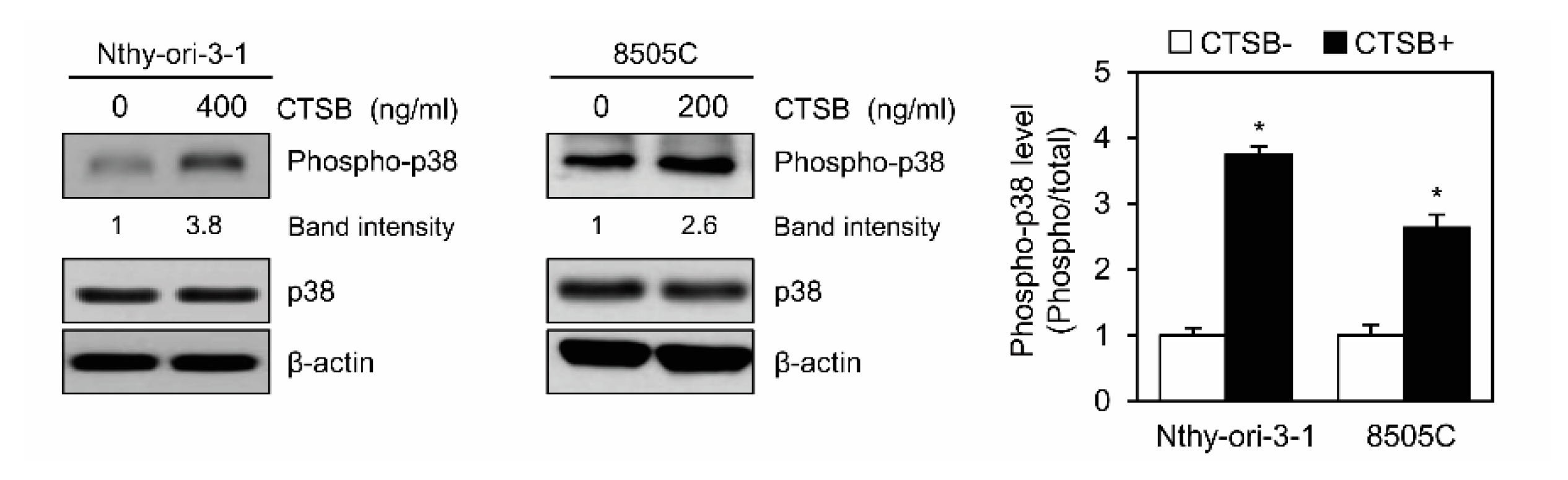

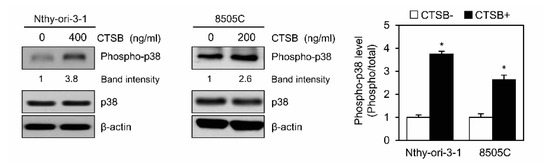

Figure 6. Treatment with recombinant CTSB induces p38 activation in normal thyroid epithelial and thyroid cancer cell lines. Phosphorylation of p38 was ascertained by immunoblotting. Nthy-ori-3-1 cells were treated with 400 ng/mL CTSB for 1 h while 8505C cells were treated with 200 ng/mL CTSB for 1 h. Intensity of phosphor-p38 bands were normalized to total p38 levels and were quantified using ImageJ software. The relative intensity of phosphor-p38 without CTSB was set to 1. Band intensity of phospho-p38 with the treatment of CTSB was analyzed as fold-change compared to no treatment of CTSB. Table for the relative levels of phosphor-p38 exposure to recombinant human CTSB. The relative level of phosphor-p38 was calculated and statistically analyzed. Data are representative of three experiments. * p < 0.05.
Figure 6. Treatment with recombinant CTSB induces p38 activation in normal thyroid epithelial and thyroid cancer cell lines. Phosphorylation of p38 was ascertained by immunoblotting. Nthy-ori-3-1 cells were treated with 400 ng/mL CTSB for 1 h while 8505C cells were treated with 200 ng/mL CTSB for 1 h. Intensity of phosphor-p38 bands were normalized to total p38 levels and were quantified using ImageJ software. The relative intensity of phosphor-p38 without CTSB was set to 1. Band intensity of phospho-p38 with the treatment of CTSB was analyzed as fold-change compared to no treatment of CTSB. Table for the relative levels of phosphor-p38 exposure to recombinant human CTSB. The relative level of phosphor-p38 was calculated and statistically analyzed. Data are representative of three experiments. * p < 0.05.
Ijms 21 09537 g006
Table
Table 1. Clinicopathologic features of thyroid cancer patients.
Table 1. Clinicopathologic features of thyroid cancer patients.
VariablesCathepsin B Expressionp Value* p Value
Low (n = 44)High 1 (n = 16)High 2 (n = 48)High 3 (n = 50)
Gender
Female35 (79.5%)12 (75.0%)37 (77.1%)38 (76.0%)0.978n.s
Male9 (20.5%)4 (25.0%)11 (22.9%)12 (24.0%)
Age50.25 ± 12.7750.94 ± 8.9149.13 ± 11.1044.74 ± 13.370.099
Size1.25 ± 0.801.77 ± 1.301.35 ± 0.891.80 ± 1.20# 0.031
ETE
No15 (34.1%)3 (18.8%)16 (33.3%)16 (32.0%)0.719n.s
Yes29 (65.9%)13 (81.3%)32 (66.7%)34 (68.0%)
LVI
No34 (77.3%)10 (62.5%)32 (66.7%)35 (70.0%)0.621n.s
Yes10 (22.7%)6 (37.5%)16 (33.3%)15 (30.0%)
LNM
No27 (61.4%)9 (56.3%)23 (47.9%)18 (36.0%)0.0580.007
Yes17 (38.6%)7 (43.8%)25 (52.1%)32 (64.0%)
T stage
133 (75.0%)9 (56.3%)36 (75.0%)29 (58.0%)0.297n.s
26 (13.6%)1 (6.3%)4 (8.3%)9 (18.0%)
33 (6.8%)4 (25.0%)6 (12.5%)10 (20.0%)
42 (4.5%)2 (12.5%)2 (4.2%)2 (4.0%)
N stage
027 (61.4%)9 (56.3%)23 (47.9%)18 (36.0%)0.0530.049
1a12 (27.3%)6 (37.5%)24 (50.0%)25 (50.0%)
1b5 (11.4%)1 (6.3%)1 (2.1%)7 (14.0%)
M stage
043 (97.7%)16 (100.0%)48 (100.0%)50 (100.0%)0.380n.s
11 (2.3%)0 (0.0%)0 (0.0%)0 (0.0%)
Stage
139 (88.6%)14 (87.5%)37 (77.1%)42 (84.0%)0.625n.s
23 (6.8%)2 (12.5%)10 (20.8%)7 (14.0%)
31 (2.3%)0 (0.0%)1 (2.1%)1 (2.0%)
41 (2.3%)0 (0.0%)0 (0.0%)0 (0.0%)
ETE: extrathyroidal extension; LVI: lymphovascular invasion; LNM: lymph node metastasis. * p value: linear by linear association # significant between Low and High 3 in post-hoc Turkey’s HDS.
