Article

Enhanced Resistance of atbzip62 against Pseudomonas syringae pv. tomato Suggests Negative Regulation of Plant Basal Defense and Systemic Acquired Resistance by AtbZIP62 Transcription Factor

by
Rizwana Begum Syed Nabi
1,2,†,
Nkulu Kabange Rolly
1,2,3,†,
Rupesh Tayade
4,†,
Murtaza Khan
1,
Muhammad Shahid
1,5 and
Byung-Wook Yun
1,*
1
Laboratory of Plant Functional Genomics, School of Applied Biosciences, Kyungpook National University, Daegu 41566, Korea
2
Department of Southern Area Crop Science, National Institute of Crop Science, RDA, Miryang 50424, Korea
3
National Laboratory of Seed Testing, National Seed Service, SENASEM, Ministry of Agriculture, Kinshasa 904KIN1, Democratic Republic of the Congo
4
Laboratory of Plant Breeding, School of Applied Biosciences, Kyungpook National University, Daegu 41566, Korea
5
Agriculture Research Institute Mingora, Swat 19130, Khyber Pakhtunkhwa, Pakistan
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work as the first authors.
Int. J. Mol. Sci. 2021, 22(21), 11541; https://doi.org/10.3390/ijms222111541
Submission received: 6 September 2021 / Revised: 22 October 2021 / Accepted: 22 October 2021 / Published: 26 October 2021
(This article belongs to the Section Molecular Plant Sciences)
Browse Figures
Review Reports Versions Notes

Abstract

:
The intrinsic defense mechanisms of plants toward pathogenic bacteria have been widely investigated for years and are still at the center of interest in plant biosciences research. This study investigated the role of the AtbZIP62 gene encoding a transcription factor (TF) in the basal defense and systemic acquired resistance in Arabidopsis using the reverse genetics approach. To achieve that, the atbzip62 mutant line (lacking the AtbZIP62 gene) was challenged with Pseudomonas syringae pv. tomato (Pst DC3000) inoculated by infiltration into Arabidopsis leaves at the rosette stage. The results indicated that atbzip62 plants showed an enhanced resistance phenotype toward Pst DC3000 vir over time compared to Col-0 and the susceptible disease controls, atgsnor1-3 and atsid2. In addition, the transcript accumulation of pathogenesis-related genes, AtPR1 and AtPR2, increased significantly in atbzip62 over time (0–72 h post-inoculation, hpi) compared to that of atgsnor1-3 and atsid2 (susceptible lines), with AtPR1 prevailing over AtPR2. When coupled with the recorded pathogen growth (expressed as a colony-forming unit, CFU mL−1), the induction of PR genes, associated with the salicylic acid (SA) defense signaling, in part explained the observed enhanced resistance of atbzip62 mutant plants in response to Pst DC3000 vir. Furthermore, when Pst DC3000 avrB was inoculated, the expression of AtPR1 was upregulated in the systemic leaves of Col-0, while that of AtPR2 remained at a basal level in Col-0. Moreover, the expression of AtAZI (a systemic acquired resistance -related) gene was significantly upregulated at all time points (0–24 h post-inoculation, hpi) in atbzip62 compared to Col-0 and atgsnor1-3 and atsid2. Under the same conditions, AtG3DPH exhibited a high transcript accumulation level 48 hpi in the atbzip62 background. Therefore, all data put together suggest that AtPR1 and AtPR2 coupled with AtAZI and AtG3DPH, with AtAZI prevailing over AtG3DPH, would contribute to the recorded enhanced resistance phenotype of the atbzip62 mutant line against Pst DC3000. Thus, the AtbZIP62 TF is proposed as a negative regulator of basal defense and systemic acquired resistance in plants under Pst DC3000 infection.

1. Introduction

Plants are sessile organisms, and because of this nature, they are always subjected to various stresses caused by environmental factors (abiotic stress) or living organisms (biotic stress), including bacterial pathogens’ attacks, among others, which can cause plant growth failure [1].
Unlike mammals or vertebrates, plants lack mobile defender cells and a somatic adaptive immune system to counterattack pathogens infection. Rather, plants rely on the innate immune system to sense and transduce the signals and respond to pathogen infections. The dynamics of plants’ defense against pathogens include the basal defense, R gene (or effector)-triggered immunity (ETI) [1,2], and the pathogen- or microbe-associated molecular patterns (PAMPs/MAMPs-triggered immunity, PTI). One of the earliest responses to attempted pathogen attack is the generation of oxidative burst, which may trigger a hypersensitive response (HR) and induce programmed cell death (PCD) at the infection site [3]. A HR is commonly associated with a resistance response and is regulated by direct or indirect interactions between avirulence proteins from pathogen and resistance proteins from the plant, and it may be the result of multiple signaling pathways. In addition to the basal defense, plants employ another defense strategy by involving pattern recognition receptors (PRR, transmembrane proteins) that recognize PAMPs/MAMPs, and induce a downstream signaling cascade, which activates the basal resistance mechanism [4]. It is said that PTI can be suppressed by a category of pathogen-encoded effector proteins widely recognized as avirulence (avr) factors [5,6], which are, in turn, recognized by host-encoded resistance (R) proteins that confer a durable and robust resistance called R gene- or effector-triggered immunity (ETI) [7,8,9].
As with other biotic stresses, the main impact of pathogen attacks is the generation of reactive oxygen species (ROS) and nitrogen species (RNS). When they accumulate at low concentrations, ROS and RNS serve as signaling molecules during abiotic or biotic stress. However, the over accumulation of ROS or RNS causes oxidative stress, nitro-oxidative stress, which may result in oxidative damage and cell membrane degradation, and the induction of programmed cell death (PCD) that may culminate in cell death.
As part of the various defense signaling cascades, plants respond to pathogens using the systemic acquired resistance (SAR), a salicylic acid (SA)-dependent response, also known as a long-distance signaling mechanism that provides broad-spectrum and long-lasting resistance to secondary infections across the plant [10]. The interplay between the innate immune system and antioxidant (enzymatic and nonenzymatic) systems, coupled with a transcriptional reprogramming within the cell, determine the degree of resistance and alleviate the detrimental effects of ROS and RNS and their derivative compounds [2].
Transcription factors (TFs) are regulators of gene expression in biological systems. TFs interact with other proteins or DNA in the promoter region of their target genes to regulate their expression under specific conditions [11]. TFs are said to operate either alone or in complex with other molecules to induce or suppress the recruitment of the basal transcriptional machinery to specific genes [12,13,14,15]. TFs such as basic leucine zipper (bZIP) are involved in seed germination, seed development, plant developmental processes, carbohydrate metabolism, and hormonal signaling events during abiotic and biotic stresses [16,17,18,19]. Reports have shown that, of the 75 members of the bZIP family identified in the Arabidopsis thaliana genome (herein referred to Arabidopsis) [13,20], about 50 TFs remain totally or partially functionally uncharacterized [21,22]. However, a few genes have been functionally characterized, including the AtbZIP62 TF. The role of AtbZIP62 in the adaptive response mechanism toward abiotic stress such as drought [12,23] and salinity stress [24] has been previously investigated, and a possible transcriptional interaction with other bZIP TF-encoding genes has been suggested.
Generally, abiotic and biotic stress response mechanisms evolve a contrasting cellular metabolism and differential physiological processes, molecular functions, signaling pathways, and biochemical reactions [20,25]. Therefore, this study investigated the role of the AtbZIP62 TF in the defense mechanisms against the bacterium Pseudomonas syringae pv. tomato (Pst). To achieve that, we challenged the Arabidopsis mutant lines atbzip62 (lacking the AtbZIP62 gene) and Col-0 wild type (WT) with the Pst DC3000 virulent strain over time to assess the basal defense. Additionally, we explored the possibility for the AtbZIP62 to be associated with SAR and R-gene-mediated resistance toward the avirulent Pst DC3000 avrB strain. The Arabidopsis mutant line, atgsnor1-3 and atsid2, were included in the study as disease-susceptible controls.

2. Results

2.1. Enhanced Phenotypic Resistance of atbzip62 toward Pst DC3000 vir

The AtbZIP62 was previously reported as a positive regulator of drought stress response [12], while being suggested as a negative regulator of salt overly sensitive signaling pathway genes under salt stress [24]. In addition, AtbZIP62 was earlier proposed to have a transcriptional interplay with some of the key hormonal signaling pathway genes under drought stress conditions [12,26]. In this study, the results of the pathogenicity test (Figure 1A) revealed that no Pst typical symptoms could be detected in atbizip62-inoculated plants 4 days post-inoculation (dpi), and slight chlorotic-like symptoms were apparent at the final count (9 dpi). By contrast, Col-0 (WT) and the disease-susceptible controls, atgsnor1-3 (lacking the S-nitrosoglutathione reductase 1 (GNSOR1), which regulates the cellular S-nitrosothiols (SNO) levels) [27] and atsid2 (SA-deficient mutant), showed chlorotic symptoms as early as 72 h after inoculation. From the recorded resistance phenotype of atbizip62 plants, we expected to see a reduced pathogen growth in this mutant in response to Pst DC3000 vir. Our data in panel B of Figure 1 indicated that the bacterial growth (expressed as logarithm (log) of the colony-forming unit, CFU mL−1) was weak in atbzip62 compared with that of Col-0 WT at 1 dpi while showing a similar growth pattern with that of atsid2. However, with the passage of time (48–72 hpi), Col-0 and atbzip62 plants showed similar pathogen growth patterns, while atgsnor1-3 and atsid2 (susceptible mutant lines) exhibited a rapid proliferation of the pathogen under the same conditions.
Based on the resistance phenotype exhibited by atbzip62 in response to Pst DC3000 vir, we were interested to see the transcriptional level of a set of pathogenesis-related genes in all tested genotypes (WT and mutant lines), including AtPR1 and AtPR2, widely known for their important roles in the innate immune system of plants during pathogens attack. Results in panel C of Figure 1 indicate that the expression of AtPR1 was upregulated over time in Col-0, and reached its peak at 72 hpi. When measured in atbzip62 plants, AtPR1 showed a similar increasing transcript accumulation pattern to that observed in Col-0, but was much lower in the mutant line. The expression of AtPR1 in atgsnor1-3 was significantly upregulated at 48–72 hpi, while in atsid2, a basal expression level was observed soon after inoculation (0–48 hpi), but the transcript accumulation of AtPR1 increased significantly at 72 hpi. In the same way, the transcript accumulation of AtPR2 gradually increased in Col-0 and atbzip62 with the exposure time, with atzip62 showing a significant upregulation soon after inoculation (24 h) compared to Col-0. Under the same conditions, the expression of AtPR2 in the atbzip62 mutant line was the highest among all tested genotypes over time and reached its peak 48–72 h after inoculation with Pst DC3000 vir (Figure 1D).

2.2. AtbZIP62 TF Negatively Regulates Systemic Acquired Resistance in Arabidopsis

Although plants lack an immune system comparable to animals, they have developed a stunning array of structural, chemical, and protein-based defenses designed to detect invading organisms and restrict them right before they can cause extensive damage. The ability of the plant to intercept and localize an invading pathogen is crucial for the plant to activate the appropriate defense mechanism to combat the pathogen [28]. Unlike the basal defense, SAR (also known as an SA-dependent response) is a long-distance signaling mechanism that provides a broad-spectrum and long-lasting resistance to secondary infections at the whole plant level [10,29]. Here, to examine the possibility for the AtbZIP62 TF to be involved in the signaling network upon bacterial pathogen infection, as well as in R gene-mediated resistance, we inoculated plants with Pst DC3000 avrB. The results indicate that the transcript accumulation of AtPR1 and AtPR2 reached the highest level at 24–48 h after inoculation in Col-0 and atbzip62, while in atgsnor1-3, an increase was observed soon after bacterial infection 3 hpi and 24 hpi. However, atsid2 recorded a low transcript accumulation of AtPR1 over time (Figure 2A). From panel B of Figure 2, we could see that the pattern of AtPR2 had a similar expression pattern with that of AtPR1 in Col-0. Under the same conditions, AtPR2 recorded the highest transcript accumulation level 12 h after inoculation in atbzip62, and gradually increased over time in a similar manner as atgsnor1-3, atsid2, and Col-0 (Figure 2B).
To further understand the observed mechanism underlying the enhanced resistance phenotype of atbzip62 against Pst DC3000 vir, we analyzed the integrity of the cell membrane by measuring the electrolyte leakage in the target mutant compared to the WT and susceptible control lines. As indicated in panel C of Figure 2, the high NO-producing mutant line, atgsnor1-3, had the highest enhanced electrolyte leakage over time, followed by the SA-deficient mutant atsid2, atbzip62, and Col-0.

2.3. atbzip62 Shows Differential Response to Systemic Acquired Resistance

The systemic acquired resistance (SAR) is an SA-dependent response, also known as a long-distance signaling mechanism that provides a broad-spectrum and long-lasting resistance to secondary infections across the plant [10,30]. Therefore, we analyzed whether the AtbZIP62 TF could have contributed to SAR in response to Pst DC3000 avrB. Therefore, we measured the expressions of pathogenesis-related genes (AtPR1 and AtPR2), glyceraldehyde 3-phosphate dehydrogenase (AtG3PDH), and azelaic acid inducer (AtAZI) in systemic or distal leaves (unwounded leaves located away from the inoculated leaf but on the same plant). In the previous paragraphs, we observed that the transcriptional level of AtPR1 reached its highest level at 48 h in the local leaves (treated or inoculated leaves) of Col-0 (Figure 2A). However, when measured in the systemic leaves (or distal leaves) of atbzip62, AtPR1 recorded its highest expression level soon after bacterial infection (12–24 h) (Figure 3A). Furthermore, AtPR1 transcript accumulation in the systemic leaves of atgsnor1-3 showed an odd expression pattern but remained at a relatively low level in the systemic leaves of atsid2 under the same conditions. In the same way, the expression of AtPR2 was significantly upregulated soon after bacterial inoculation (0–24 hpi) in systemic leaves of atbzip62 compared to Col-0 (Figure 3B). However, no significant difference was found in atsid2 and atgsnor1-3 (except at 12 h). From another perspective, we were also interested to see the expression of some of the key genes associated with SAR during pathogens attack. Our data indicate that the expression of the AtG3DPH, one of the key marker genes regulating SAR-response in the plants, was higher at 48 hpi in the systemic leaves of atbzip62 compared to other genotypes (Figure 3D). Similarly, the transcript accumulation of AtAZI, another important SAR-related gene, was higher in atbzip62 over time compared with those in Col-0, atgsnor1-3, and atsid2 (Figure 3C).

2.4. In Silico Transcription Factor Binding Sites Analysis Identified Cis-Regulatory Elements for bZIP TFs in AtPR2 and AtAZI SAR-Related Gene

In previous paragraphs, we showed that the atbzip62 mutant exhibited an enhanced resistance phenotype against Pst DC3000 vir over time. Thus, in addition to the transcript accumulation levels of the selected pathogenesis-related genes and SAR-marker genes, we were interested in exploring the possible interactions that AtbZIP62 may have with the target genes. The results of the transcription factor binding sites analysis detected the presence of cis-regulatory elements specific to two bZIP TFs, AtbZIP18 and AtbZIP69, in the promoter of the target PR and SAR-related genes. As indicated in Table 1, two binding sites for AtbZIP69 were detected in the promoter of AtPR2. Similarly, two binding sites for AtbZIP69 and one for AtbZIP18 were found in the promoter of AtAZI. The breakthrough is that AtbZIP18 and AtbZIP69 were shown to have a common binding site (with the same motif) at one of the two binding sites detected for AtbZIP69. However, no binding sites for AtbZIP18 or AtbZIP69 could be identified in the promoter of AtPR1 or AtG3PDH.
Furthermore, panels A and B of Figure 4 proposed a possible protein–protein interaction between AtPR1 and AtPR2 among other PR genes. No protein–protein interaction was proposed between AtbZIP62 and both AtPR1 or AtPR2 (also known as beta-1, 3-glucanase 2 or BGL2); whereas, panels A and B of Figure 4 propose that AtPR1 would have a protein-protein interaction with AtPR2, or vice versa, among other PR proteins.

3. Discussion

3.1. Differential Phenotypic Response between atbzip62 and Col-0 Plants in Response to Pst DC3000 vir

Many pathways involved in the plant immune system are activated upon bacterial pathogens infection, including the induction of various pathogenesis-related genes and signaling cascades [31,32,33]. In the process, negative or positive plant defense regulators against pathogens are activated or suppressed. Their crosstalk determines the degree of resistance required for the plant to trigger the innate immune system [34,35,36]. Here, we inoculated the Pst DC3000 vir strain into Arabidopsis atbzip62 plants lacking the AtbZIP62 TF-encoding gene over time to assess the phenotypic response of mutant toward this bacterial pathogen, along with the Col-0 WT and two disease-susceptible mutant lines, atgsnor1-3 and atsid2. Previously, in our studies, atbzip62 plants recorded earlier susceptible phenotypic responses to abiotic stress (salinity [24] and drought stress [12]), whereas the AtbZIP62 TF was suggested to be a positive regulator of abiotic stress response in Arabidopsis. Generally, genotypes that show a sensitive phenotypic response toward abiotic stress are expected to show an opposite (resistance) phenotype under biotic stress occurrence [9]. This study showed that when atbzip62 plants were subjected to bacterial pathogen infection, this mutant exhibited a high-resistance phenotype compared to Col-0 WT, with minor Pst typical symptoms observed on the inoculated leaves (Figure 1A) Additionally, the bacterial CFU counts also displayed a reduced pathogen growth pattern soon after inoculation (24 h) (Figure 1B).

3.2. Expression Patterns of PR Genes in atbzip62 under Pst DC3000Infection Suggest Negative Regulation of Plant Basal Defense by AtbZIP62 TF

When plants are challenged with pathogenic bacteria, they activate their defense mechanisms, which include the induction of pathogenesis-related genes, such as PR1 and PR2, along with various signaling cascades. Under these conditions, negative or positive regulators of plant defense against pathogens attack are suppressed or induced, and their crosstalk determines the level of resistance needed for the PTI system [1,8]. Thus, the recorded significant upregulation of AtPR1 (24–72 hpi, Figure 1C) and AtPR2 (24–72 hpi), with AtPR1 prevailing over AtPR2, coupled with the pathogen growth pattern (Figure 1B) in atbizp62 soon after Pst DC3000 vir inoculation would partly explain the observed enhanced degree of resistance of atbzip62 mutant plants.
A previous study reported specific genes belonging to the bZIP TF family as being involved in regulating plant defense against biotic stress [37]. Similarly, a bZIP member OsTGA2.1 was suggested to be involved in the basal defense against bacterial pathogens in rice [18]. Similarly, another study suggested that the OsbZIP1 TF is a positive regulator of basal defense against Magnaporthe grisea in rice [38].
To investigate the role of AtbZIP62 in R gene-mediated resistance, we inoculated plants with Pst DC3000 avrB. The results showed that soon after inoculation (12–48 hpi), AtPR1 showed a high transcript accumulation level in atbzip62 compared with the susceptible mutant lines, atgsnor1-3 and atsid2, and much less in Col-0 (Figure 3B). The expression pattern of AtPR2 was showed a the nonsignificant difference in atbzip62 and Col-0 WT at 0, 6, and 48 hpi (Figure 3B). Additionally, the electrolyte leakage results indicated that atbzip62 mutant plants exhibited a lower electrolyte leakage over time compared with the examined genotypes except for Col-0 WT (Figure 3C). Therefore, owing to the observed transcript accumulation patterns of pathogenesis genes in atbzip62 compared with Col-0 and disease-susceptible mutant lines, associated with the observed resistance phenotype over time of atbzip62 against Pst DC3000 vir, AtbZIP62 TF, earlier identified as a positive regulator of drought stress response in Arabidopsis and a negative regulator of SOS signaling pathway genes. So here, we proposed AtbZIP62 TF as a negative regulator of basal defense against Pst DC3000 vir in Arabidopsis.

3.3. AtbZIP62 TF Negatively Regulates Systemic Acquired Resistance

Multicellular organisms, including plants, have developed a mechanism to systemically communicate the occurrence of a wound or an external stimulus to help them escape or defend themselves [28]. Signaling in plants during pathogens attack plays a crucial role in providing an alert to activate the necessary defense mechanism to combat the stress. However, one reaction of the plant to pathogen infection is said to be the induction of a long-lasting involvement of constitutive barriers known as SAR [22,39], characterized by an activation of a broad spectrum of host defense mechanisms, both locally at the site of earlier pathogen attack and systemically in tissues untouched by the pathogen [40]. Here, we observed that soon after Pst DC3000 avrB was inoculated, the transcript accumulation pattern of AtPR1 and AtPR2 significantly increased over time in distal leaves in atbzip62 knockout plants compared with WT (Col-0) and in susceptible atgsnor1-3 and atsid2 plants (Figure 3A,B). Similarly, the SAR marker genes AtAZI and AtG3DPH were significantly upregulated in atbzip62 under the same conditions. Previous studies reported that some members of the bZIP TF family are involved in the regulation of SA-mediated signaling of SA during the biotic stress response [41,42]. For instance, the Arabidopsis tga7 mutant showed increased susceptibility to Pseudomonas syringae pv. maculicola, which suggested AtTGA7 as being involved in the regulation of PR gene expression [43]. Therefore, our data suggested the AtZIP62 TF as a negative regulator of basal defense and SAR in Arabidopsis in response to Pst DC3000.

4. Materials and Methods

4.1. Plant Materials and Growth Conditions

The seeds of the WT Arabidopsis Col-0 and those of the knockout line atbzip62 (AT1G19490: SALK_053908C) were obtained from the Arabidopsis Biological Resources Center (https://abrc.osu.edu accessed on 20 March 2019). Another set of knockout lines, atgsnor1-3, lacking the S-nitrosoglutathione (GSNO) reductase 1 (GSNOR1), which regulates cellular S-nitrosothiols (SNO) levels [27], and atsid2, known as an (SA-deficient mutant) [44], were included in the study as disease-susceptible control lines [27,45]. All genotypes used in the study were from the Col-0 genetic background. The atbzip62 knockout was genotyped to identify homozygous transfer DNA (T-DNA) insertion lines, which was confirmed, as described earlier [12]. Before germination, seeds were surface-sterilized in 50% commercial bleach (1 mL) solution containing 0.1% Triton X-100 (Sigma Aldrich, USA) in a 1.5 mL Eppendorf tube (e-tube) for about 1–2 min by pipetting up and down, followed by rinsing with sterile distilled water up to five times, and incubated at 4 °C overnight, as described earlier [9]. Then, seeds were sown and grown on peat moss soil mixture at 22 °C, with 16 h light and 8 h dark cycles.

4.2. Pathogen Growth, Inoculation, and Pathogenicity Test

Before inoculating Arabidopsis plants, the biotrophic bacterial pathogen Pst strain DC3000 vir and avrB was grown (single colony) and maintained as described earlier [46]. The bacterial pathogen was grown on Luria–Bertani (LB) agar plates modified with rifampicin (50 μL/50 mL), followed by incubation at 28 °C in a shaking incubator. The overnight bacterial culture (1 mL) was centrifuged for three minutes at 8000 rpm to pellet down the cells, and the bacterial cells were resuspended in 1 mL of 10 mM of magnesium chloride (MgCl2), followed by reading the absorbance of the culture at a OD600 nm wavelength with MgCl2 used as blank [29].
Plants were inoculated by infiltrating the bacterial inoculum of 5 × 105 CFU mL−1 (obtained after serial dilutions, OD600 = 0.002) in triplicate [9,47] using a 1 mL syringe (without the needle) into the abaxial side of the leaf (the lower leaf surface). Control plants (mock) were infiltrated with 10 mM of MgCl2. Leaf samples were collected at 0, 1, 2, and 3 dpi for gene expression analysis of Arabidopsis plants inoculated with Pst DC3000 vir. The phenotypic response of Arabidopsis genotypes was observed over time, up to 9 dpi, and photos were taken using a DSLR camera (EOS 700D, Canon).
For analyzing the pathogen growth, leaf discs collected from both Pst DC3000 vir-inoculated leaves using a cork borer (1 cm diameter) were homogenized (by crushing with a plastic pestle in a 1.5 mL e-tube) in 10 mM of MgCl2, and the supernatant was diluted 10 times. A hundred microliters (100 μL) was spread on LB agar plates containing antibiotics, followed by incubation at 28 °C for 72 h. The pathogen growth was determined by counting the bacterial CFU mL−1 as previously described [48].

4.3. Total RNA Extraction, cDNA Synthesis, and Real-Time qRT-PCR Analysis

Total RNA was isolated from leaf samples using the TRI-SolutionTM Reagent (Cat. No: TS200-001, Virginia Tech Biotechnology, Lot: 337871401001), as recommended by the manufacturer’s protocol. Thereafter, the complementary DNA (cDNA) was synthesized as described earlier [49]. Briefly, 1 µg of RNA was used to synthesize cDNA using BioFACTTM RT-Kit (BioFACTTM, Daejeon, Korea) according to the manufacturer’s standard protocol. The cDNA was then used as a template in qRT PCR to study the transcript accumulation of selected genes (Table S1) using a real-time PCR master mix including SYBR green (BioFact, Korea) along with 100 ng of template DNA and 10 nM of each forward and reverse primer in a final reaction volume of 20 µL. A no-template control was used as a control. A 2-step reaction, including polymerase activation at 95 °C for 15 min, followed by denaturation at 95 °C for 5 s, and annealing and extension at 65 °C for 30 s, was performed in a real-time PCR machine (Eco™ Illumina, San Diego, CA, USA). Total reaction cycles were 40 and the data were normalized with a relative expression of Arabidopsis Actin2.

4.4. In Silico Promoter Analysis and Prediction of Protein–Protein Interaction

Based on the transcript accumulation pattern of pathogenesis-related genes (AtPR1 and AtPR2) and that of the SAR-marker genes (AtAZI and AtG3PDH) recorded in the atbzip62 background, we were interested to investigate the mechanism underlying their transcriptional interplay with the AtbZIP62 TF. To achieve that, we performed an in silico promoter analysis and a protein association network analysis using the STRING database (https://string-db.org/ (accessed on 9 October 2021)). In addition, the transcription regulation prediction was performed using the PlantRegMap feature within the Plant Transcription Regulatory Map (http://plantregmap.gao-lab.org/binding_site_prediction_result.php (accessed on 9 October 2021)). The DNA sequences (coding sequence, CDS, FASTA format: “>ATxGxxxxx” proceeds the sequence) of target genes used for the prediction of binding sites specific to bZIP TFs were downloaded from the Arabidopsis Information Resource database (TAIR, https://www.arabidopsis.org/index.jsp (accessed on 9 October 2021)).

4.5. Assessment of Systemic Acquired Resistance

The SAR was analyzed, using the method as previously described [10]. Plants were grown under the same conditions described in Section 4.1, and the avrB inoculum was prepared as shown in Section 4.2. Briefly, the bacterial inoculum was infiltrated with a syringe (1 mL) without the needle on the abaxial side of leaves (local leaves). However, leaf samples were obtained at 0, 3, 6, 12, 24, and 48 hpi from distal leaves in triplicate for gene expression analysis of SAR marker genes (AtAZI and AtG3DPH), as well as well-known pathogenesis-related genes, AtPR1 and AtPR2 [50].

4.6. Electrolyte Leakage Assay

To quantify the Pst DC3000-induced cell death or membrane injury, electrolyte leakage was conducted after pathogen infection as described earlier [9]. Briefly, 10 uniform local leaf discs (1 cm in diameter) harvested with a cork borer from different plants of each Arabidopsis genotype inoculated with Pst DC3000 avrB were taken, rinsed three times with deionized water, and floated in 5 mL of deionized water in a 6-well culture plate (SPL life sciences, Pocheon-si, Korea) for 30 min. The electrolyte leakage of each sample was recorded over time using a portable conductivity meter (HURIBA Twin Cond B-173, Kyoto, Japan).

4.7. Statistical Analysis

Experimental data were collected in triplicate and statistically analyzed using GraphPad Prism software (version 7.00, 1999–2016 GraphPad Software, Inc., San Diego, CA, USA). Analysis of variance was performed, and the least significant difference was calculated at the significance level of 0.05. To assess the statistical significance level of the observed changes in the expression of target genes between Arabidopsis genotypes, we compared the relative expression in the mutant lines with those observed in Col-0 WT.

5. Conclusions

The response mechanisms of plants toward bacterial pathogens infection involve the activation of different signaling components and metabolic pathways, tending to provide the plant with the needed level of resistance for its survival and fitness. In the process, positive and negative regulators of plant defense are induced or suppressed, and their interplay is of paramount importance to guarantee balanced cellular functioning. This study examined the role of AtbZIP62, a gene encoding the bZIP TF in the adaptive response mechanisms toward Pst DC3000 infection. Results showed that when Pst DC3000 vir was inoculated (by infiltration), the transcript accumulation of AtPR1 and AtPR2 genes were increased significantly in atbzip62 soon after inoculation compared to Col-0 and atgsnor1-3 and atsid2, with AtPR1 prevailing over AtPR2. However, upon inoculation with Pst DC3000 avrB in the local leaves of Arabidopsis genotypes, the transcript accumulation of AtAZI and AtG3DPH, two well-established SAR marker genes, was significantly upregulated in the systemic leaves of atbzip62 mutant plants soon after inoculation compared to Col-0 WT, atgsnor1-3, and atsid2. Therefore, regarding the enhanced resistance phenotypic phenotype of the atzbip62 line, coupled with the pathogen growth pattern and the increased transcript accumulation of analyzed PR related genes upon Pst DC3000 vir infection, associated with the upregulation of SAR marker genes in systemic leaves (under avrB inoculation). Hence, this study proposes the AtbZIP62 TF as a negative regulator of basal defense and SAR in Arabidopsis.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/ijms222111541/s1.

Author Contributions

Conceptualization, methodology, and validation, B.-W.Y.; formal analysis and investigation, R.B.S.N., M.S. and M.K.; resources, B.-W.Y.; data curation, R.B.S.N., M.S., M.K., N.K.R. and R.T.; writing—original draft preparation, R.B.S.N., R.T. and N.K.R.; writing—review and editing, R.T. and N.K.R.; visualization, B.-W.Y.; supervision, B.-W.Y.; project administration, B.-W.Y.; funding acquisition, B.-W.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by the Basic Science Research Program through the National Research Foundation of Korea (NRF) funded by the Ministry of Education (Grant number 2020R1I1A3073247).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

References

  1. Alves, M.S.; Dadalto, S.P.; Gonçalves, A.B.; De Souza, G.B.; Barros, V.A.; Fietto, L.G. Plant bZIP transcription factors responsive to pathogens: A review. Int. J. Mol. Sci. 2013, 14, 7815–7828. [Google Scholar] [CrossRef] [Green Version]
  2. Narusaka, M.; Shirasu, K.; Noutoshi, Y.; Kubo, Y.; Shiraishi, T.; Iwabuchi, M.; Narusaka, Y. RRS1 and RPS4 provide a dual Resistance-gene system against fungal and bacterial pathogens. Plant J. 2009, 60, 218–226. [Google Scholar] [CrossRef]
  3. Morel, J.B.; Dangl, J.L. The hypersensitive response and the induction of cell death in plants. Cell Death Differ. 1997, 4, 671–683. [Google Scholar] [CrossRef] [Green Version]
  4. Schwessinger, B.; Ronald, P.C. Plant innate immunity: Perception of conserved microbial signatures. Annu. Rev. Plant Biol. 2012, 63, 451–482. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Gao, Z.; Wang, Y.; Chen, G.; Zhang, A.; Yang, S.; Shang, L.; Wang, D.; Ruan, B.; Liu, C.; Jiang, H. The indica nitrate reductase gene OsNR2 allele enhances rice yield potential and nitrogen use efficiency. Nat. Commun. 2019, 10, 1–10. [Google Scholar] [CrossRef] [PubMed]
  6. Cunnac, S.; Lindeberg, M.; Collmer, A. Pseudomonas syringae type III secretion system effectors: Repertoires in search of functions. Curr. Opin. Microbiol. 2009, 12, 53–60. [Google Scholar] [CrossRef] [PubMed]
  7. Bogdanove, A.J.; Martin, G.B. AvrPto-dependent Pto-interacting proteins and AvrPto-interacting proteins in tomato. Proc. Natl. Acad. Sci. USA 2000, 97, 8836–8840. [Google Scholar] [CrossRef] [Green Version]
  8. Jones, J.D.G.; Dangl, J.L. The plant immune system. Nature 2006, 444, 323–329. [Google Scholar] [CrossRef] [Green Version]
  9. Nabi, R.B.S.; Tayade, R.; Imran, Q.M.; Hussain, A.; Shahid, M.; Yun, B.W. Functional Insight of Nitric-Oxide Induced DUF Genes in Arabidopsis thaliana. Front. Plant Sci. 2020, 11, 1041. [Google Scholar] [CrossRef]
  10. Gao, Q.M.; Zhu, S.; Kachroo, P.; Kachroo, A. Signal regulators of systemic acquired resistance. Front. Plant Sci. 2015, 6, 1–12. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  11. Vincentz, M.; Schlögl, P.S.; Corrêa, L.G.G.; Kühne, F.; Leite, A. Phylogenetic relationships between Arabidopsis and sugarcane bZIP transcriptional regulatory factors. Genet. Mol. Biol. 2001, 24, 55–60. [Google Scholar] [CrossRef] [Green Version]
  12. Rolly, N.K.; Imran, Q.M.; Shahid, M.; Imran, M.; Khan, M.; Lee, S.U.; Hussain, A.; Lee, I.J.; Yun, B.W. Drought-induced AtbZIP62 transcription factor regulates drought stress response in Arabidopsis. Plant Physiol. Biochem. 2020, 156, 384–395. [Google Scholar] [CrossRef]
  13. Rolly, N.K.; Mun, B.; Yun, B. Insights into the Transcriptional Regulation of Branching Hormonal Signaling Pathways Genes under Drought Stress in Arabidopsis. Plants 2021, 9, 127. [Google Scholar]
  14. He, M.; Van Dam, R.M.; Rimm, E.; Hu, F.B.; Qi, L. Whole-grain, cereal fiber, bran, and germ intake and the risks of all-cause and cardiovascular disease-specific mortality among women with type 2 diabetes mellitus. Circulation 2010, 121, 2162–2168. [Google Scholar] [CrossRef] [Green Version]
  15. Alexandersson, E.; Mulugeta, T.; Lankinen, Å.; Liljeroth, E.; Andreasson, E. Plant resistance inducers against pathogens in Solanaceae species-from molecular mechanisms to field application. Int. J. Mol. Sci. 2016, 17, 1673. [Google Scholar] [CrossRef] [PubMed]
  16. Lindemose, S.; O’Shea, C.; Jensen, M.K.; Skriver, K. Structure, function and networks of transcription factors involved in abiotic stress responses. Int. J. Mol. Sci. 2013, 14, 5842–5878. [Google Scholar] [CrossRef] [Green Version]
  17. Muszynski, M.G.; Dam, T.; Li, B.; Shirbroun, D.M.; Hou, Z.; Bruggemann, E.; Archibald, R.; Ananiev, E.V.; Danilevskaya, O.N. Delayed Flowering1 Encodes a Basic Leucine Zipper Protein That Mediates Floral Inductive Signals At the Shoot Apex in Maize. Plant Physiol. 2006, 142, 1523–1536. [Google Scholar] [CrossRef] [Green Version]
  18. Thurow, C.; Schiermeyer, A.; Krawczyk, S.; Butterbrodt, T.; Nickolov, K.; Gatz, C. Tobacco bZIP transcription factor TGA2.2 and related factor TGA2.1 have distinct roles in plant defense responses and plant development. Plant J. 2005, 44, 100–113. [Google Scholar] [CrossRef]
  19. Tayade, R.; Kulkarni, K.P.; Jo, H.; Lee, J.; Gram, B. Increasing resistant starch content in legumes for higher nutritional prospect. Front. Plant Sci. 2019, 10, 1213. [Google Scholar] [CrossRef] [PubMed]
  20. Nabi, R.B.S.; Tayade, R.; Hussain, A.; Kulkarni, K.P.; Imran, Q.M.; Mun, B.G.; Yun, B.W. Nitric oxide regulates plant responses to drought, salinity, and heavy metal stress. Environ. Exp. Bot. 2019, 161, 120–133. [Google Scholar] [CrossRef]
  21. Schneider, M.; Schweizer, P.; Meuwly, P.; Smith, J.P.M. Systemic acquired resistance in potato. Acta Hortic. 1996, 618, 177–181. [Google Scholar]
  22. Ryals, J.A.; Neuenschwander, U.H.; Willits, M.G.; Molina, A.; Steiner, H.Y.; Hunt, M.D. Systemic acquired resistance. Plant Cell. 1996, 8, 1809–1819. [Google Scholar] [CrossRef] [Green Version]
  23. Nabi, R.B.S.; Tayade, R.; Hussain, A.; Adhikari, A.; Lee, I.; Loake, G.J.; Yun, B. A Novel DUF569 Gene Is a Positive Regulator of the Drought Stress Response in Arabidopsis. Int. J. Mol. Sci. 2021, 22, 5316. [Google Scholar] [CrossRef] [PubMed]
  24. Rolly, N.K.; Imran, Q.M.; Lee, I.J.; Yun, B.W. Salinity stress-mediated suppression of expression of salt overly sensitive signaling pathway genes suggests negative regulation by AtbZIP62 transcription factor in Arabidopsis thaliana. Int. J. Mol. Sci. 2020, 21, 1726. [Google Scholar] [CrossRef] [Green Version]
  25. Sonah, H.; Zhang, X.; Deshmukh, R.K.; Hossein Borhan, M.; Dilantha Fernando, W.G.; Bélanger, R.R. Comparative transcriptomic analysis of virulence factors in leptosphaeria maculans during compatible and incompatible interactions with canola. Front. Plant Sci. 2016, 7. [Google Scholar] [CrossRef] [Green Version]
  26. Deshmukh, R.; Sonah, H.; Patil, G.; Chen, W.; Prince, S.; Mutava, R.; Vuong, T.; Valliyodan, B.; Nguyen, H.T. Integrating omic approaches for abiotic stress tolerance in soybean. Front. Plant Sci. 2014, 5, 1–12. [Google Scholar] [CrossRef] [PubMed]
  27. Feechan, A.; Kwon, E.; Yun, B.-W.; Wang, Y.; Pallas, J.A.; Loake, G.J. A central role for S-nitrosothiols in plant disease resistance. Proc. Natl. Acad. Sci. USA 2005, 102, 8054–8059. [Google Scholar] [CrossRef] [Green Version]
  28. Muday, G.K.; Brown-Harding, H. Nervous system-like signaling in plant defense. Science 2018, 361, 1068–1069. [Google Scholar] [CrossRef]
  29. Yun, B.-W.; Feechan, A.; Yin, M.; Saidi, N.B.B.; Le Bihan, T.; Yu, M.; Moore, J.W.; Kang, J.-G.; Kwon, E.; Spoel, S.H. S-nitrosylation of NADPH oxidase regulates cell death in plant immunity. Nature 2011, 478, 264–268. [Google Scholar] [CrossRef] [PubMed]
  30. Nabi, S.; Begum, R.; Shahzad, R.; Tayade, R.; Shahid, M.; Hussain, A.; Ali, M.W.; Yun, B.-W. Evaluation potential of PGPR to protect tomato against Fusarium wilt and promote plant growth. PeerJ 2021, 9, e11194. [Google Scholar] [CrossRef]
  31. Rolly, N.K.; Lee, S.-U.; Imran, Q.M.; Hussain, A.; Mun, B.-G.; Kim, K.-M.; Yun, B.-W. Nitrosative stress-mediated inhibition of OsDHODH1 gene expression suggests roots growth reduction in rice (Oryza sativa L.). 3 Biotech 2019, 9, 273. [Google Scholar] [CrossRef]
  32. Hussain, A.; Mun, B.-G.; Imran, Q.M.; Lee, S.-U.; Adamu, T.A.; Shahid, M.; Kim, K.-M.; Yun, B.-W. Nitric Oxide Mediated Transcriptome Profiling Reveals Activation of Multiple Regulatory Pathways in Arabidopsis thaliana. Front. Plant Sci. 2016, 7, 975. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Tayade, R.; Kulkarni, K.P.; Jo, H.; Song, J.T.; Lee, J.D. Insight Into the Prospects for the Improvement of Seed Starch in Legume—A Review. Front. Plant Sci. 2019, 10, 1–17. [Google Scholar] [CrossRef]
  34. Bari, R.; Jones, J.D.G. Role of plant hormones in plant defence responses. Plant Mol. Biol. 2009, 69, 473–488. [Google Scholar] [CrossRef] [PubMed]
  35. Pieterse, C.M.J.; Zamioudis, C.; Berendsen, R.L.; Weller, D.M.; Van Wees, S.C.M.; Bakker, P.A.H.M. Induced Systemic Resistance by Beneficial Microbes. Annu. Rev. Phytopathol. 2014, 52, 347–375. [Google Scholar] [CrossRef] [Green Version]
  36. Ali, M.W.; Kim, I.D.; Bilal, S.; Shahzad, R.; Saeed, M.T.; Adhikari, B.; Nabi, R.B.S.; Kyo, J.R.; Shin, D.H. Effects of bacterial fermentation on the biochemical constituents and antioxidant potential of fermented and unfermented soybeans using probiotic bacillus subtilis (KCTC 13241). Molecules 2017, 22, 2200. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Orellana, S.; Yañez, M.; Espinoza, A.; Verdugo, I.; González, E.; Ruiz-Lara, S.; Casaretto, J.A. The transcription factor SlAREB1 confers drought, salt stress tolerance and regulates biotic and abiotic stress-related genes in tomato. Plant Cell Environ. 2010, 33, 2191–2208. [Google Scholar] [CrossRef]
  38. Meng, X.B.; Zhao, W.S.; Lin, R.M.; Wang, M.; Peng, Y.L. Identification of a novel rice bZIP-type transcription factor gene, OsbZIP1, involved in response to infection of Magnaporthe grisea. Plant Mol. Biol. Report. 2005, 23. [Google Scholar] [CrossRef]
  39. Hussain, A.; Yun, B.-W.; Kim, J.H.; Gupta, K.J.; Hyung, H.-I.; Loake, G.J. Novel and conserved functions of S-nitrosoglutathione reductase in tomato. J. Exp. Bot. 2019, 70, 4877–4886. [Google Scholar] [CrossRef] [PubMed]
  40. Yun, B.; Skelly, M.J.; Yin, M.; Yu, M.; Mun, B.; Lee, S.; Hussain, A.; Spoel, S.H.; Loake, G.J. Nitric oxide and S-nitrosoglutathione function additively during plant immunity. New Phytol. 2016, 211, 516–526. [Google Scholar] [CrossRef] [Green Version]
  41. Beneduzi, A.; Ambrosini, A.; Passaglia, L.M.P. Plant growth-promoting rhizobacteria (PGPR): Their potential as antagonists and biocontrol agents. Genet. Mol. Biol. 2012, 35, 1044–1051. [Google Scholar] [CrossRef] [Green Version]
  42. Pereira, A. Plant Abiotic Stress Challenges from the Changing Environment. Front. Plant Sci. 2016, 7, 1123. [Google Scholar] [CrossRef] [Green Version]
  43. Shearer, H.L.; Cheng, Y.T.; Wang, L.; Liu, J.; Boyle, P.; Després, C.; Zhang, Y.; Li, X.; Fobert, P.R. Arabidopsis clade I TGA Transcription factors regulate plant defenses in an NPR1-independent fashion. Mol. Plant Microbe Interact. 2012, 25, 1459–1468. [Google Scholar] [CrossRef] [Green Version]
  44. Hu, Y.Q.; Liu, S.; Yuan, H.M.; Li, J.; Yan, D.W.; Zhang, J.F.; Lu, Y.T. Functional comparison of catalase genes in the elimination of photorespiratory H2O2 using promoter- and 3’-untranslated region exchange experiments in the Arabidopsis cat2 photorespiratory mutant. Plant Cell Environ. 2010, 33, 1656–1670. [Google Scholar] [CrossRef]
  45. Vandenabeele, S.; Vanderauwera, S.; Vuylsteke, M.; Rombauts, S.; Langebartels, C.; Seidlitz, H.K.; Zabeau, M.; Van Montagu, M.; Inzé, D.; Van Breusegem, F. Catalase deficiency drastically affects gene expression induced by high light in Arabidopsis thaliana. Plant J. 2004, 39, 45–58. [Google Scholar] [CrossRef] [PubMed]
  46. Whalen, M.C.; Innes, R.W.; Bent, A.F.; Staskawicz, B.J. Identification of Pseudomonas syringae pathogens of Arabidopsis and a bacterial locus determining avirulence on both Arabidopsis and soybean. Plant Cell 1991, 3, 49–59. [Google Scholar]
  47. Shahid, M.; Imran, Q.M.; Hussain, A.; Khan, M.; Lee, S.U.; Mun, B.G.; Yun, B.W. Comprehensive analyses of nitric oxide-induced plant stem cell-related genes in Arabidopsis thaliana. Genes 2019, 10, 190. [Google Scholar] [CrossRef] [Green Version]
  48. Flors, V.; Ton, J.; Van Doorn, R.; Jakab, G.; García-Agustín, P.; Mauch-Mani, B. Interplay between JA, SA and ABA signalling during basal and induced resistance against Pseudomonas syringae and Alternaria brassicicola. Plant J. 2008, 54, 81–92. [Google Scholar] [CrossRef] [PubMed]
  49. Mun, B.G.; Lee, S.U.; Hussain, A.; Kim, H.H.; Rolly, N.K.; Jung, K.H.; Yun, B.W. S-nitrosocysteine-responsive genes modulate diverse regulatory pathways in Oryza sativa: A transcriptome profiling study. Funct. Plant Biol. 2018, 45, 630–644. [Google Scholar] [CrossRef]
  50. Kesarwani, M.; Yoo, J.; Dong, X. Genetic interactions of TGA transcription factors in the regulation of pathogenesis-related genes and disease resistance in Arabidopsis. Plant Physiol. 2007, 144, 336–346. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Ijms 22 11541 g001 550

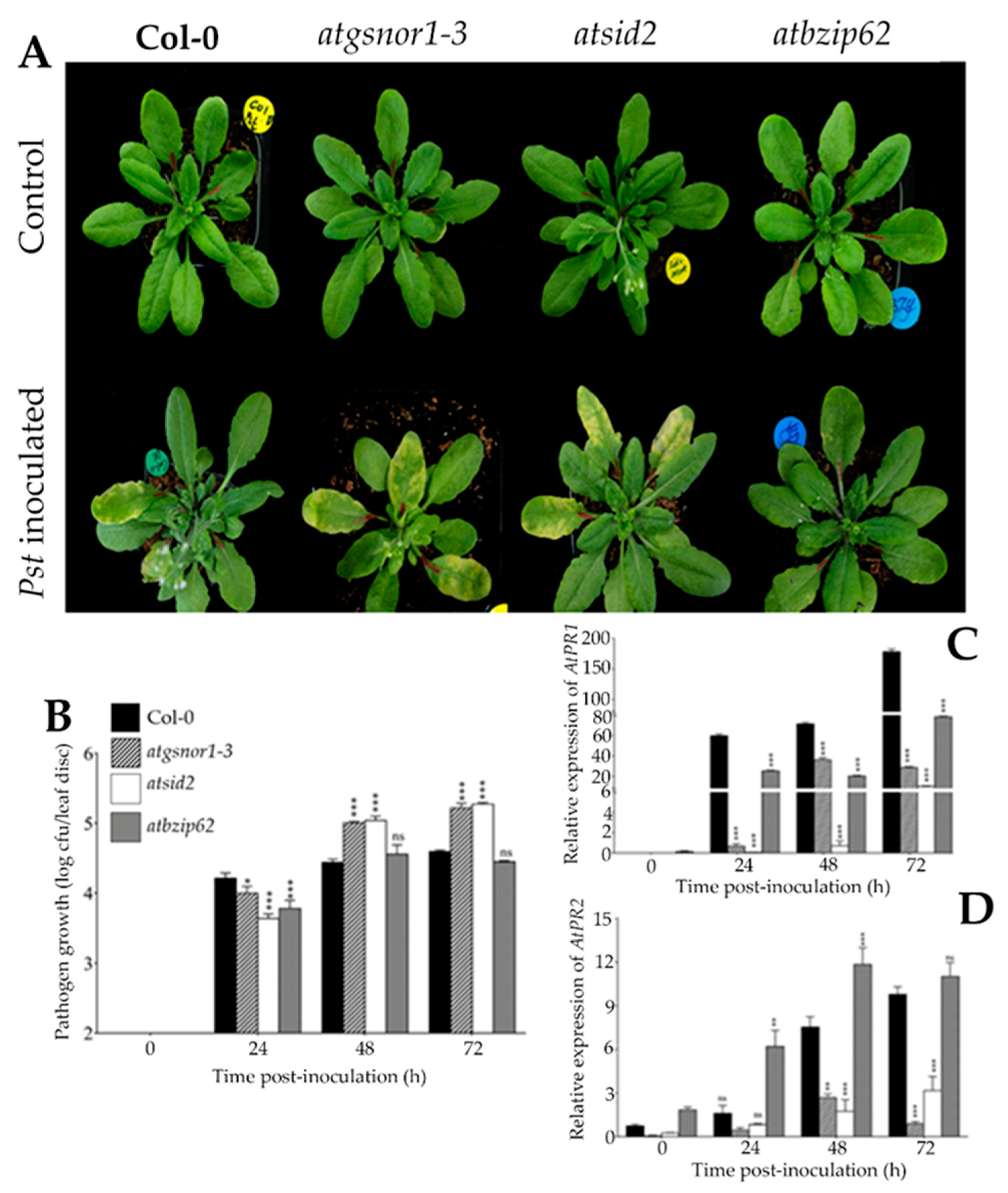

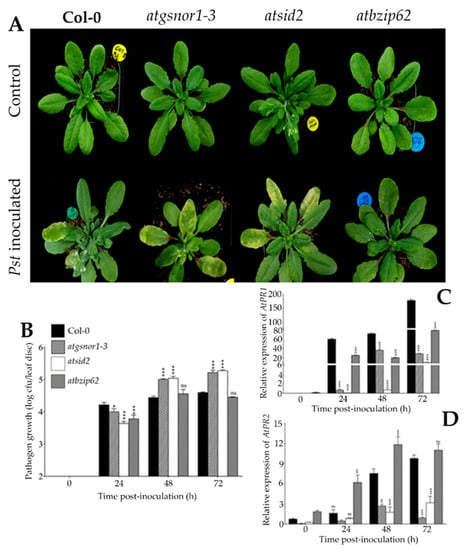

Figure 1. AtbZIP62 negatively regulates basal defense. (A) Phenotypic response of Arabidopsis genotypes (Col-0 WT, atgsnor1-3, atsid2, and atbzip62) challenged with Pseudomonas syringae pv. tomato (Pst) DC3000 infection; (B) growth pattern over time of Pst DC3000 vir in tested genotypes; (C) expression level over time of AtPR1; (D) expression level over time of AtPR2 in response to Pst DC3000 vir. The phenotypes were recorded at 9 dpi, and leaf samples for gene expression analysis were collected over time (0, 24, 48, and 72 hpi) in triplicate. To confirm the phenotype, the experiments were repeated four times. * p < 0.05; ** p < 0.01; *** p < 0.001; ns, nonsignificant.
Figure 1. AtbZIP62 negatively regulates basal defense. (A) Phenotypic response of Arabidopsis genotypes (Col-0 WT, atgsnor1-3, atsid2, and atbzip62) challenged with Pseudomonas syringae pv. tomato (Pst) DC3000 infection; (B) growth pattern over time of Pst DC3000 vir in tested genotypes; (C) expression level over time of AtPR1; (D) expression level over time of AtPR2 in response to Pst DC3000 vir. The phenotypes were recorded at 9 dpi, and leaf samples for gene expression analysis were collected over time (0, 24, 48, and 72 hpi) in triplicate. To confirm the phenotype, the experiments were repeated four times. * p < 0.05; ** p < 0.01; *** p < 0.001; ns, nonsignificant.
Ijms 22 11541 g001
Ijms 22 11541 g002 550

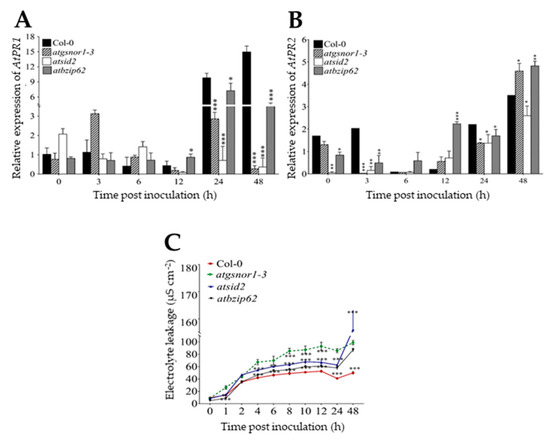

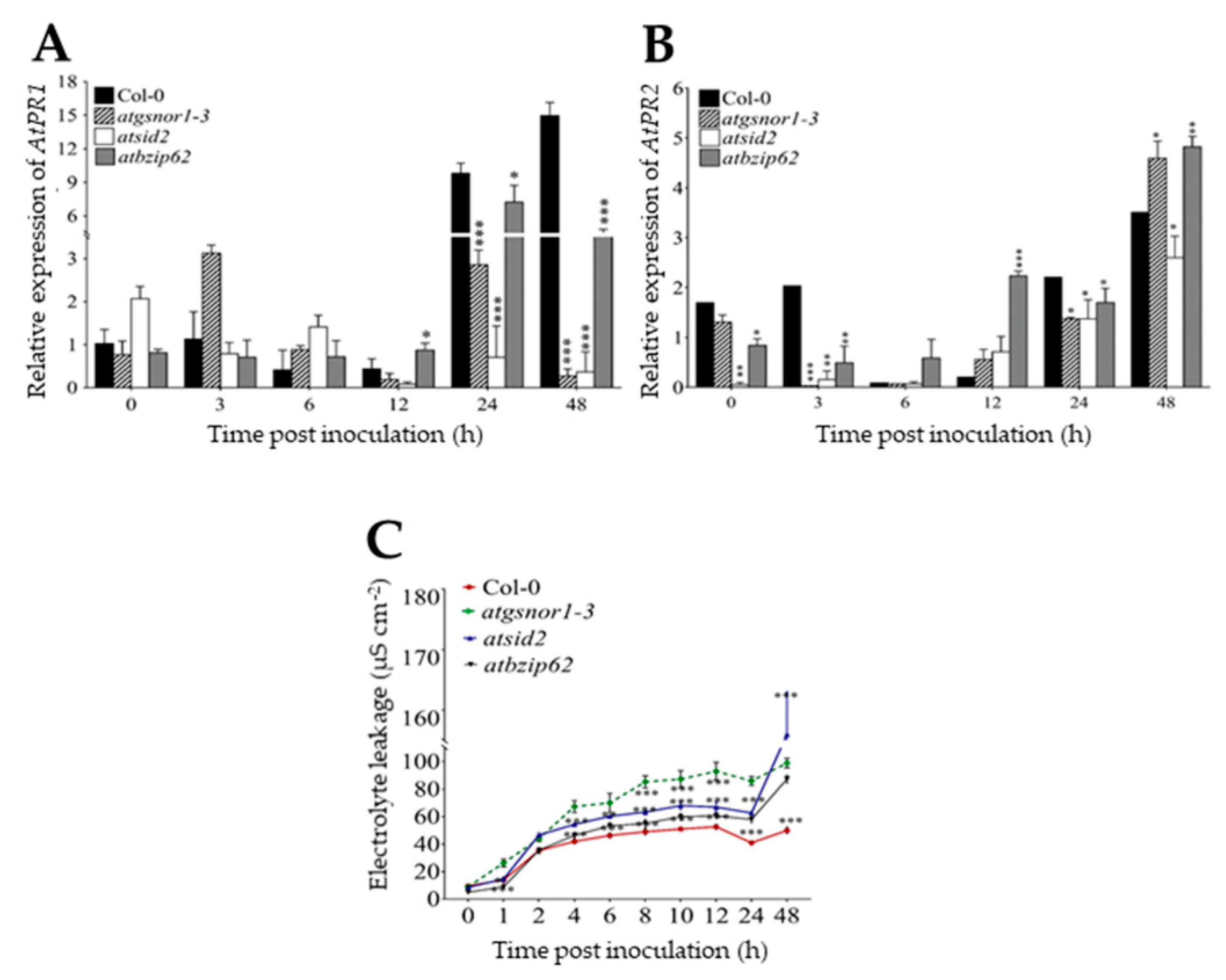

Figure 2. Transcript accumulation patterns of pathogenesis-related genes and electrolyte leakage results. Expression level over time of (A) AtPR1 and (B) AtPR2 in local leaf samples of Col-0 (WT), and atgsnor1-3, atsid2, and atbzip62 mutant lines in response to Pst DC3000 vir for R genes-mediated resistance soon after bacterial inoculation. (C) Electrolyte leakage measured over time. Data are the mean expression values in triplicate normalized to the relative expression of AtActin1. * p < 0.05; ** p < 0.01; *** p < 0.001; empty are nonsignificant.
Figure 2. Transcript accumulation patterns of pathogenesis-related genes and electrolyte leakage results. Expression level over time of (A) AtPR1 and (B) AtPR2 in local leaf samples of Col-0 (WT), and atgsnor1-3, atsid2, and atbzip62 mutant lines in response to Pst DC3000 vir for R genes-mediated resistance soon after bacterial inoculation. (C) Electrolyte leakage measured over time. Data are the mean expression values in triplicate normalized to the relative expression of AtActin1. * p < 0.05; ** p < 0.01; *** p < 0.001; empty are nonsignificant.
Ijms 22 11541 g002
Ijms 22 11541 g003 550

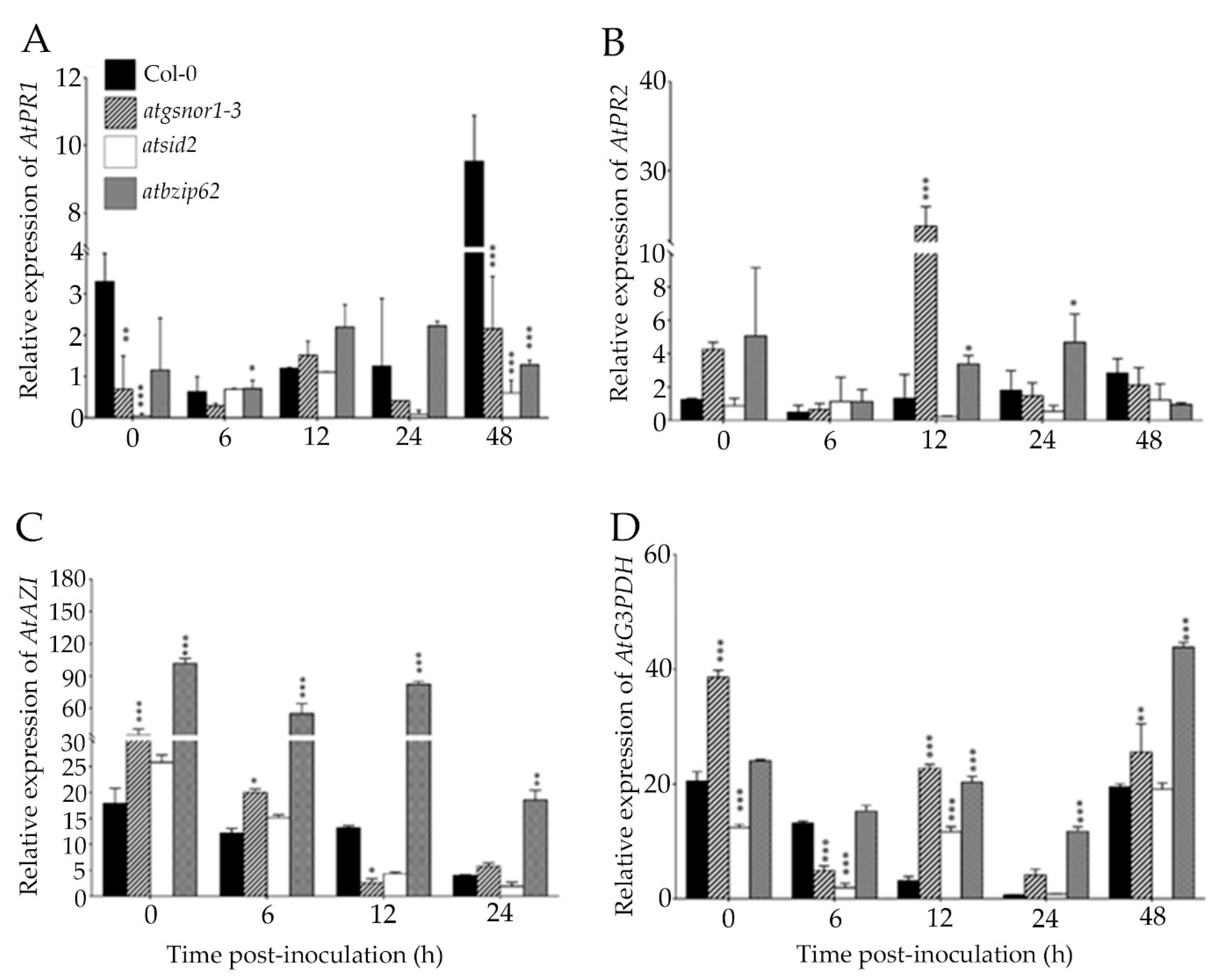

Figure 3. AtbZIP62 negatively regulates SAR. Transcript accumulation of (A) AtPR1, (B) AtPR2, (C) AtAZI, and (D) AtG3DPH genes in the systemic leaves of Col-0 (WT), atgsnor1-3, atsid2, and atbzip62 mutant lines under Pst DC3000 avrB inoculation. Data are the mean expression values in triplicate normalized to the relative expression of AtActin1. * p < 0.05; ** p < 0.01; *** p < 0.001; empty are non-significant.
Figure 3. AtbZIP62 negatively regulates SAR. Transcript accumulation of (A) AtPR1, (B) AtPR2, (C) AtAZI, and (D) AtG3DPH genes in the systemic leaves of Col-0 (WT), atgsnor1-3, atsid2, and atbzip62 mutant lines under Pst DC3000 avrB inoculation. Data are the mean expression values in triplicate normalized to the relative expression of AtActin1. * p < 0.05; ** p < 0.01; *** p < 0.001; empty are non-significant.
Ijms 22 11541 g003
Ijms 22 11541 g004 550

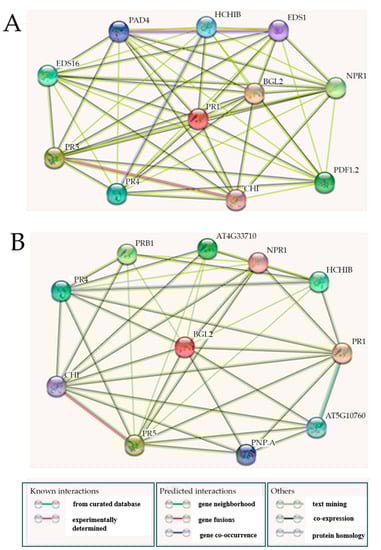

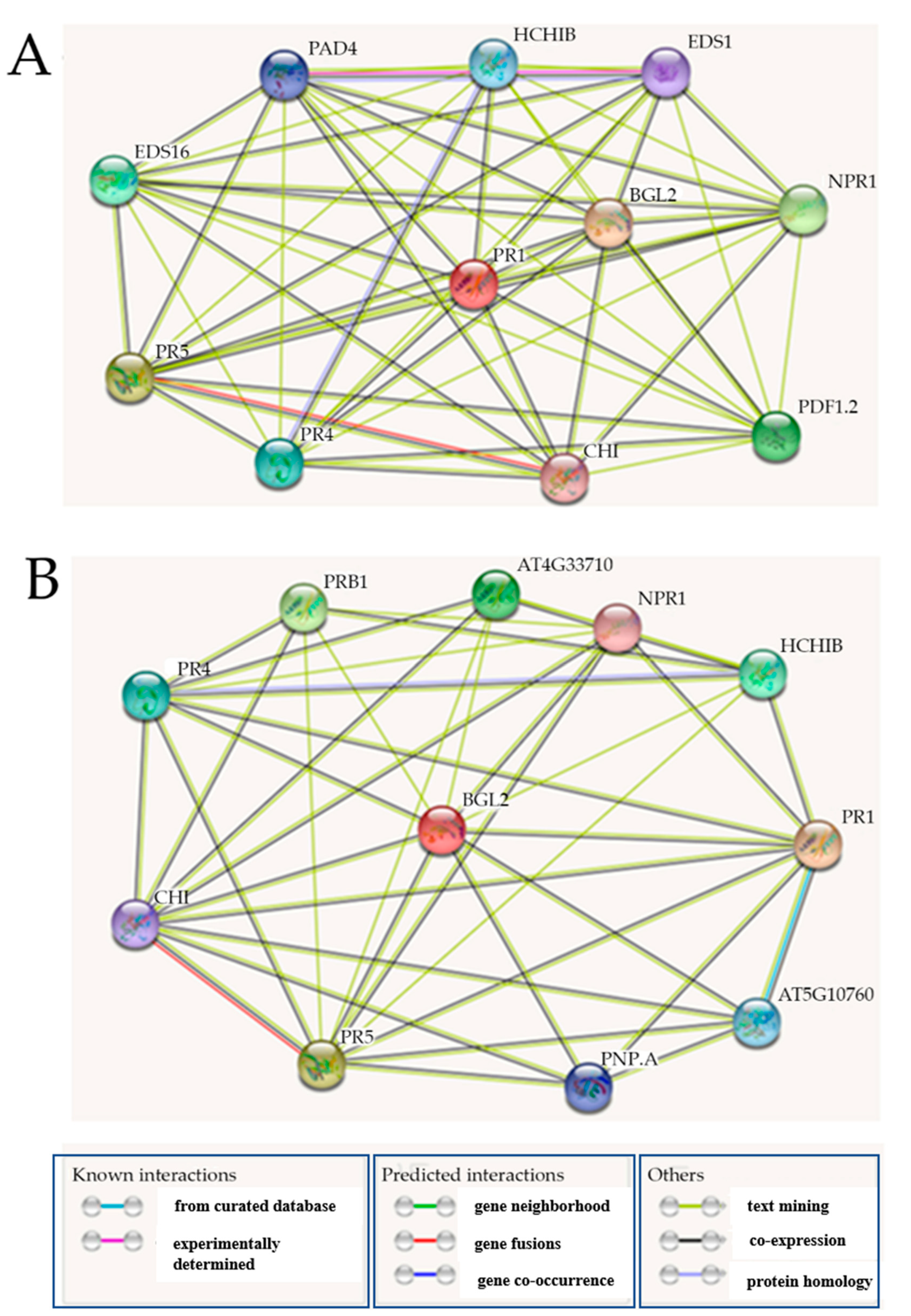

Figure 4. Prediction of the functional protein–protein interactome of selected pathogenesis-related genes. Predicted protein–protein interaction network involving the Arabidopsis (A) AtPR1 and (B) AtPR2 or BGL2 (proteins) with other pathogenesis-related protein-coding genes. The prediction was performed using the protein sequence of each target gene obtained from the Arabidopsis Information Resource (TAIR, www.arabidopsis.org (accessed on 9 October 2021)) and uploaded to STRING protein database version 11.5 (https://string-db-org/ (accessed on 9 October 2021)). Red nodes indicate the gene of interest, while other nodes represent the interactome of a different nature indicated by connecting lines. The nature of the interaction is indicated by specific line colors and the source of information (from curated databases, experimentally determined, predicted interactions, and others), as explained in the figure legend below the panel (B).
Figure 4. Prediction of the functional protein–protein interactome of selected pathogenesis-related genes. Predicted protein–protein interaction network involving the Arabidopsis (A) AtPR1 and (B) AtPR2 or BGL2 (proteins) with other pathogenesis-related protein-coding genes. The prediction was performed using the protein sequence of each target gene obtained from the Arabidopsis Information Resource (TAIR, www.arabidopsis.org (accessed on 9 October 2021)) and uploaded to STRING protein database version 11.5 (https://string-db-org/ (accessed on 9 October 2021)). Red nodes indicate the gene of interest, while other nodes represent the interactome of a different nature indicated by connecting lines. The nature of the interaction is indicated by specific line colors and the source of information (from curated databases, experimentally determined, predicted interactions, and others), as explained in the figure legend below the panel (B).
Ijms 22 11541 g004
Table
Table 1. Identified transcription factor binding sites in the promoter of target genes.
Table 1. Identified transcription factor binding sites in the promoter of target genes.
Gene Locus IDTF NameTarget GenesPositionStrandp-Valueq-ValueMatched Sequence
AtPR1
**AT2G14610*****
**AT2G14610*****
AtPR2
AT1G06070AtbZIP69AT3G5726081–91+2.8 × 10−50.0242CACAGCTGGAC
AT1G06070AtbZIP69AT3G5726080–90−2.9 × 10−50.0242TCCAGCTGTGT
AtAZI1
AT1G06070AtbZIP69AT4G12470 226–236 + 6.05 × 10−6 0.00491 AACAGCTGTCC
AT1G06070AtbZIP69AT4G12470 225–235 − 2.73 × 10−5 0.0111 GACAGCTGTTT
AT2G40620AtbZIP18AT4G12470 226–236 +1.37 × 10−5 0.0112 AACAGCTGTCC
AtG3PDH
**AT2G41540*****
**AT2G41540*****
(*) the asterisk indicates that the binding sites for the AtbZIP18 and/or AtbZIP69 associated with the AtbZIP62 TF were not detected (http://plantregmap.gao-lab.org/binding_site_prediction.php (accessed on 9 October 2021)). The positive (+) and negative (−) signs indicate positive and negative orientation of DNA strands, respectively.
