Genomic Marks Associated with Chromatin Compartments in the CTCF, RNAPII Loop and Genomic Windows
Abstract
:1. Introduction
2. Results

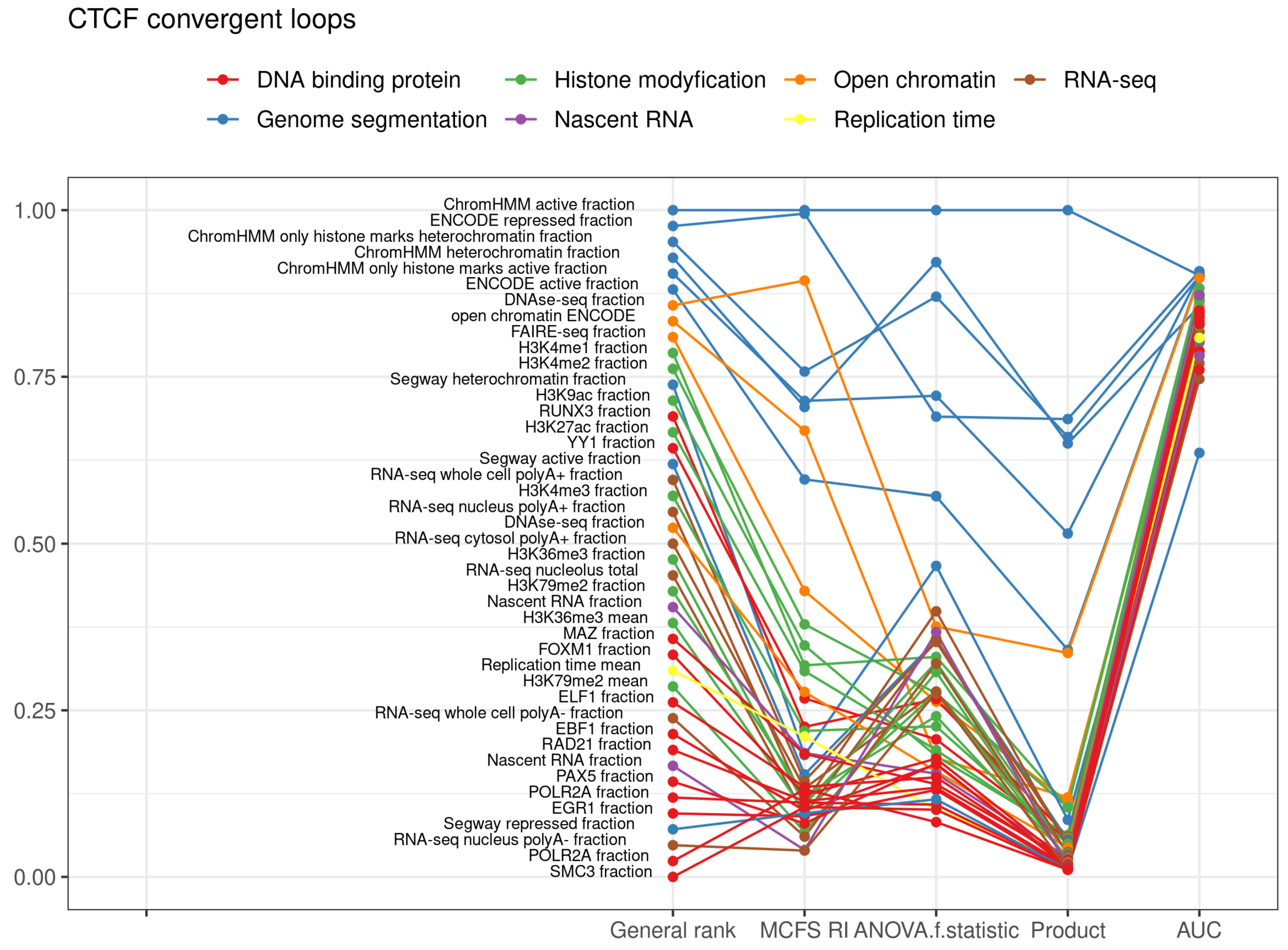

2.1. CTCF Convergent Loops

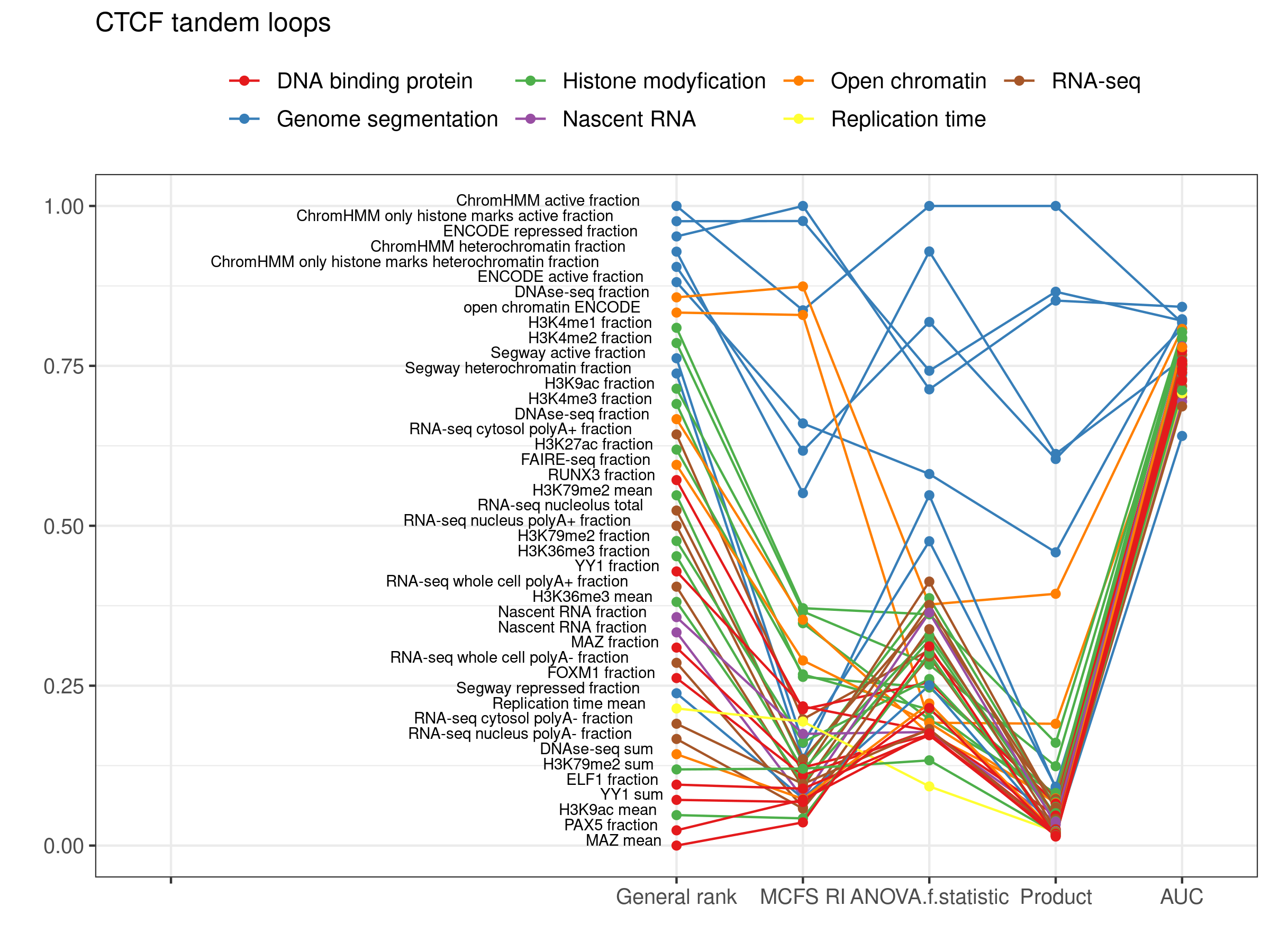

2.2. CTCF Tandem Loops

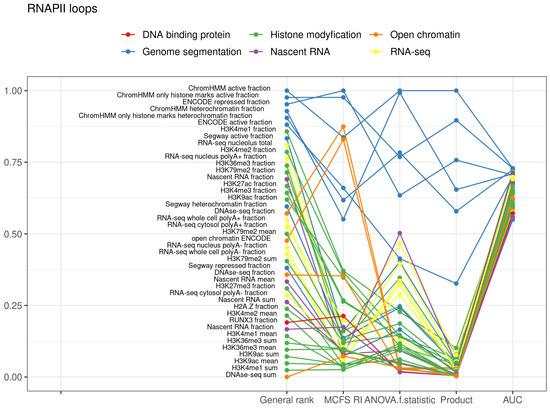

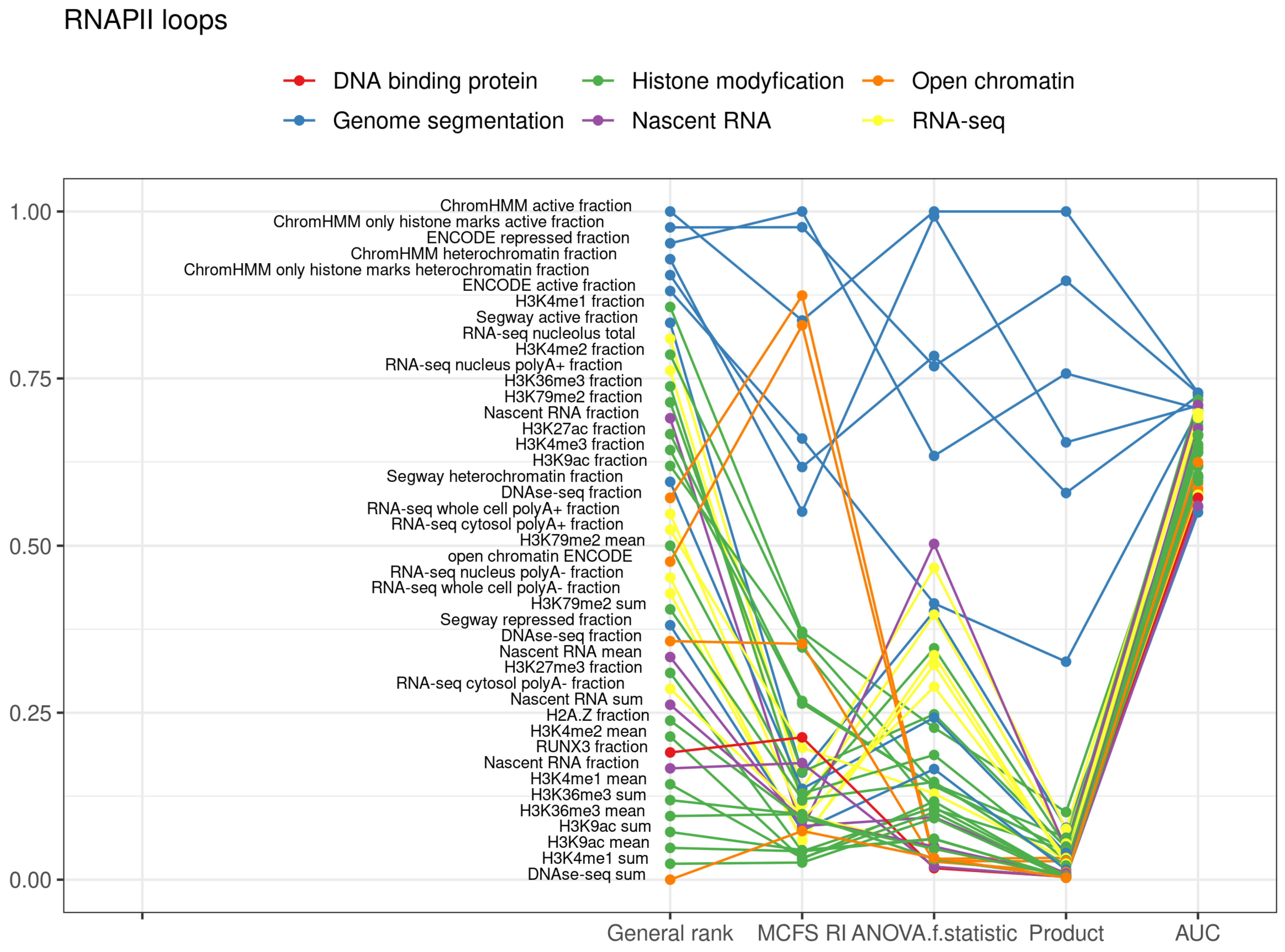

2.3. RNAPII Loops

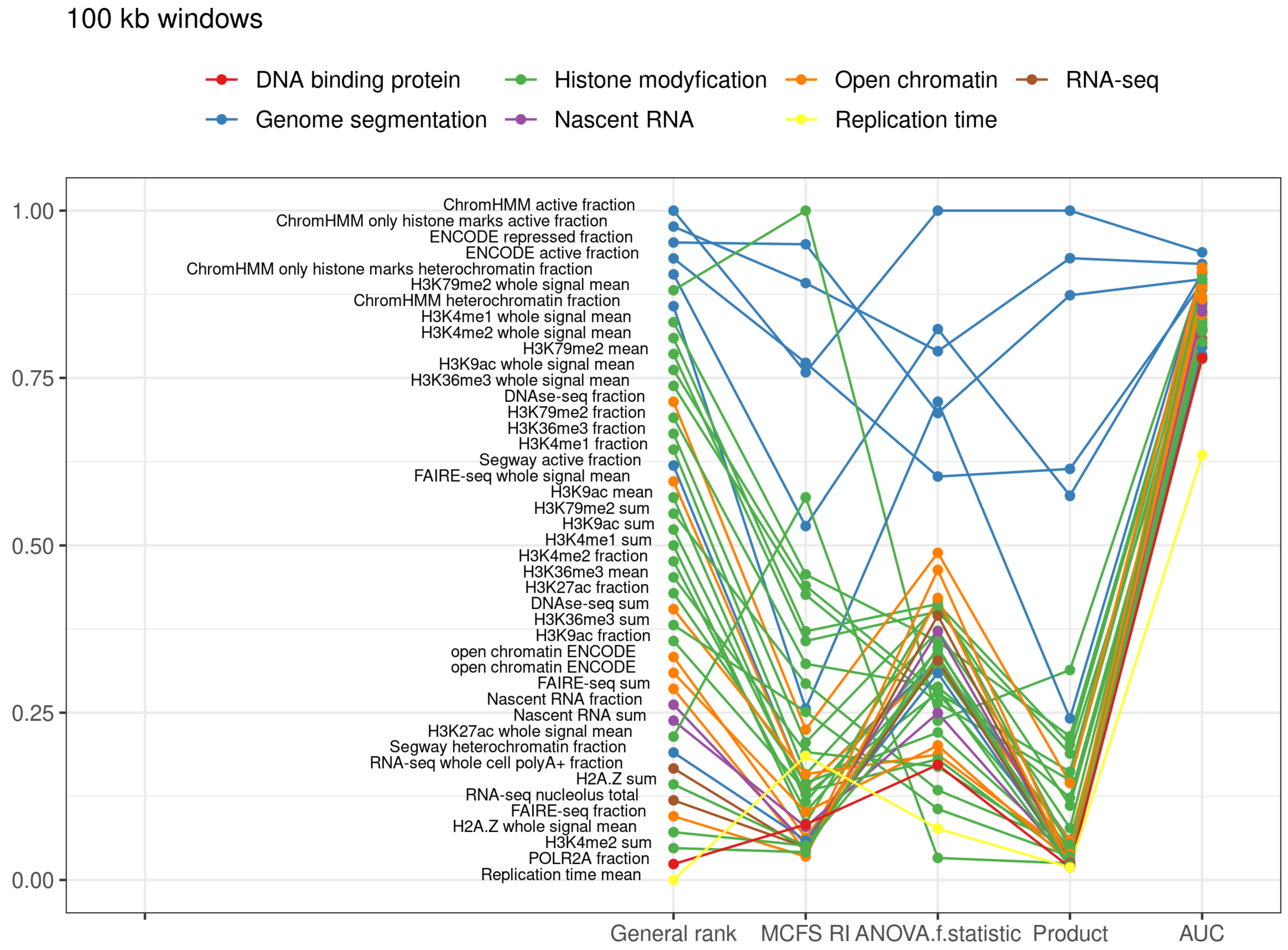

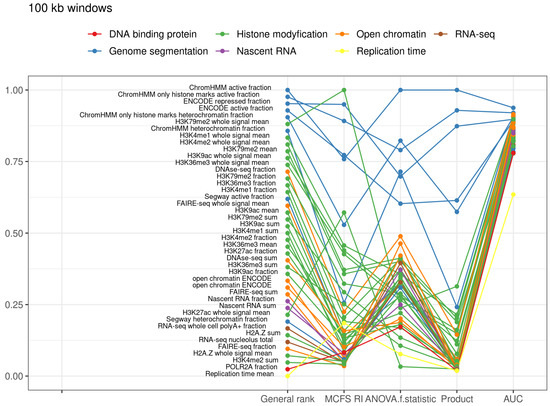

2.4. Genomic Windows
3. Discussion

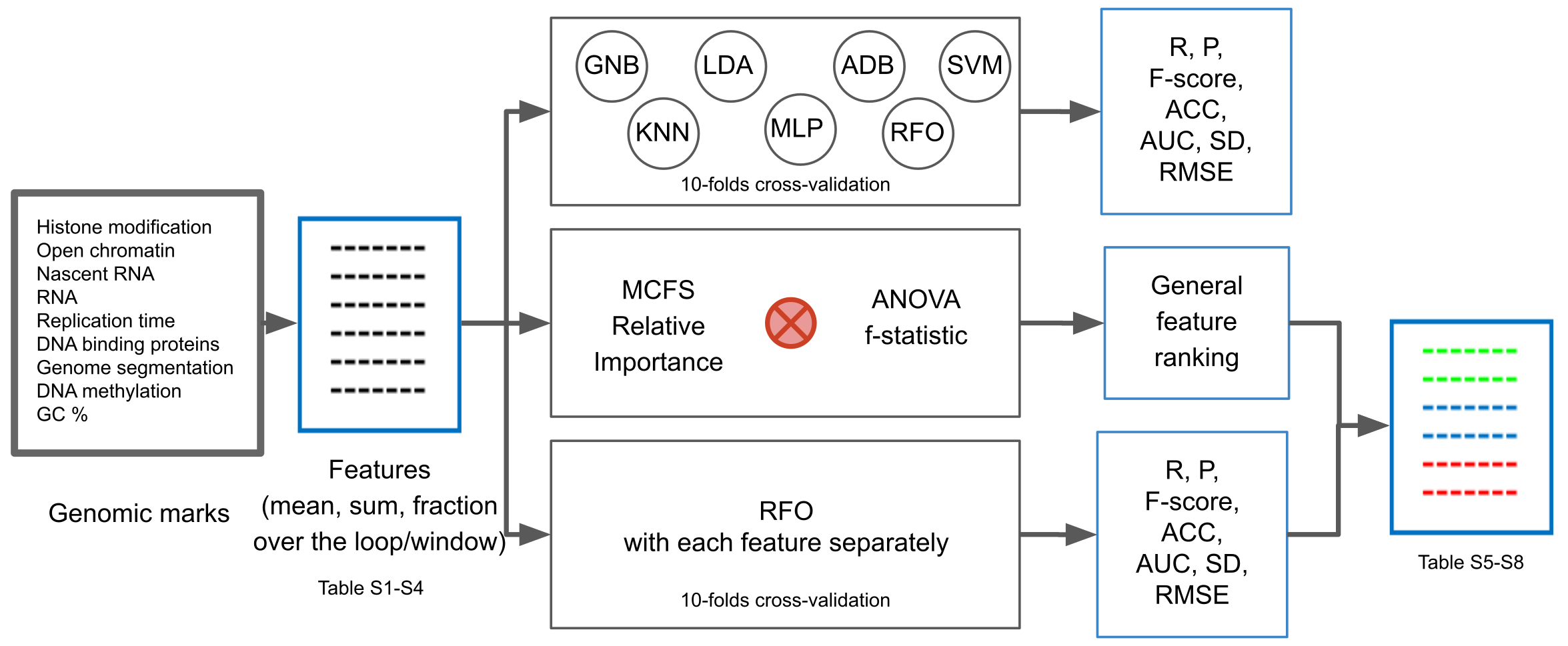

4. Materials and Methods
- DNA methylation at CpG sites Methyl Array data (GEO Accession: GSM999376), Methyl Reduced Representation Bisulfite Sequencing (RRBS) (GSM683906, GSM683927);
- ChIP-seq data for chemical modifications (methylation, acetylation) to the histone proteins, particularly: H3K4me3, H3K27ac, H3K9ac, H4K20me1, H3K4me1, H3K4me2, H3K79me2, H3K36me3, H3K27me3, H3K9me3 and H2AZ (histone alternative variant);
- ChIP-seq data for 87 DNA binding proteins;
- Open chromatin data: DNase-seq, FAIRE-seq, ENCODE synthesis. This is ENCODE synthesis of evidence from different assays: DNase I hypersensitivity (HS), Formaldehyde-Assisted Isolation of Regulatory Elements (FAIRE), and chromatin immunoprecipitation (ChIP) for select regulatory factors (PolII, CTCF, c-Myc). This indicates the regions of the DNA available for direct interaction with non-histone proteins and RNA;
- Genome segmentation: ChromHMM [28], Segway [29], ENCODE synthesis [30], the old ChromHMM method based only on histone modifications [31]. Using two different unsupervised machine learning techniques (ChromHMM and Segway), the genome was automatically segmented into disjoint segments. Each segment belongs to one of a few specific genomic “states” which is assigned an intuitive label (“active” for promoters (also inactive promoters), enhancers, transcription-associated, insulators, “repressed” for Polycomb repressed, “heterochromatin” for heterochromatin, repetitive, copy number variation regions). These methods used ENCODE ChIP-seq, DNase-seq, and FAIRE-seq data. Regions that were not assigned to “heterochromatin” not “repressed” classes by the segmentation methods went to the “active” class;
- RNA-seq transcription data.
5. Conclusions
Supplementary Materials
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Bolzer, A.; Kreth, G.; Solovei, I.; Koehler, D.; Saracoglu, K.; Fauth, C.; Müller, S.; Eils, R.; Cremer, C.; Speicher, M.; et al. Three-dimensional maps of all chromosomes in human male fibroblast nuclei and prometaphase rosettes. PLoS Biol. 2005, 3, e157. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Dixon, J.R.; Selvaraj, S.; Yue, F.; Kim, A.; Li, Y.; Shen, Y.; Hu, M.; Liu, J.S.; Ren, B. Topological domains in mammalian genomes identified by analysis of chromatin interactions. Nature 2012, 485, 376–380. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Nora, E.; Lajoie, B.R.; Schulz, E.G.; Giorgetti, L.; Okamoto, I.; Servant, N.; Piolot, T.; Van Berkum, N.L.; Meisig, J.; Sedat, J.; et al. Spatial partitioning of the regulatory landscape of the X-inactivation centre. Nature 2012, 485, 381–385. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Cremer, T.; Cremer, M.; Hübner, B.; Strickfaden, H.; Smeets, D.; Popken, J.; Sterr, M.; Markaki, Y.; Rippe, K.; Cremer, C. The 4D nucleome: Evidence for a dynamic nuclear landscape based on co-aligned active and inactive nuclear compartments. FEBS Lett. 2015, 589, 2931–2943. [Google Scholar] [CrossRef] [Green Version]
- Rao, S.S.P.; Huntley, M.H.; Durand, N.C.; Stamenova, E.K.; Bochkov, I.D.; Robinson, J.T.; Sanborn, A.L.; Machol, I.; Omer, A.D.; Lander, E.S.; et al. A 3D map of the human genome at kilobase resolution reveals principles of chromatin looping. Cell 2014, 159, 1665–1680. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Tang, Z.; Luo, O.J.; Li, X.; Zheng, M.; Zhu, J.J.; Szalaj, P.; Trzaskoma, P.; Magalska, A.; Wlodarczyk, J.; Ruszczycki, B.; et al. CTCF-Mediated Human 3D Genome Architecture Reveals Chromatin Topology for Transcription. Cell 2015, 163, 1611–1627. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Lieberman-Aiden, E.; Van Berkum, N.L.; Williams, L.; Imakaev, M.; Ragoczy, T.; Telling, A.; Amit, I.; Lajoie, B.R.; Sabo, P.J.; Dorschner, M.O.; et al. Comprehensive mapping of long-range interactions reveals folding principles of the human genome. Science 2009, 326, 289–293. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Falk, M.; Feodorova, Y.; Naumova, N.; Imakaev, M.; Lajoie, B.R.; Leonhardt, H.; Joffe, B.; Dekker, J.; Fudenberg, G.; Solovei, I.; et al. Heterochromatin drives compartmentalization of inverted and conventional nuclei. Nature 2019, 570, 395–399. [Google Scholar] [CrossRef] [PubMed]
- Draminski, M.; Rada-Iglesias, A.; Enroth, S.; Wadelius, C.; Koronacki, J.; Komorowski, J. Monte Carlo feature selection for supervised classification. Bioinformatics 2008, 24, 110–117. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- ENCODE Project Consortium. An integrated encyclopedia of DNA elements in the human genome. Nature 2012, 489, 57–74. [Google Scholar] [CrossRef] [PubMed]
- Dramiński, M.; Koronacki, J. rmcfs: An R Package for Monte Carlo Feature Selection and Interdependency Discovery. J. Stat. Softw. 2018, 85, 1–28. [Google Scholar] [CrossRef] [Green Version]
- Ernst, J.; Kellis, M. Discovery and characterization of chromatin states for systematic annotation of the human genome. Nat. Biotechnol. 2010, 28, 817–825. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Koch, C.; Andrews, R.M.; Flicek, P.; Dillon, S.C.; Karaöz, U.; Clelland, G.K.; Wilcox, S.; Beare, D.M.; Fowler, J.C.; Couttet, P.; et al. The landscape of histone modifications across 1% of the human genome in five human cell lines. Genome Res. 2007, 17, 691–707. [Google Scholar] [CrossRef] [Green Version]
- Zhou, J.; Wang, X.; He, K.; Charron, J.-B.F.; Elling, A.A.; Deng, X.W. Genome-wide profiling of histone H3 lysine 9 acetylation and dimethylation in Arabidopsis reveals correlation between multiple histone marks and gene expression. Plant Mol. Biol. 2010, 72, 585–595. [Google Scholar] [CrossRef] [PubMed]
- Peters, A.H.F.M.; Kubicek, S.; Mechtler, K.; O’Sullivan, R.J.; Derijck, A.A.H.A.; Perez-Burgos, L.; Kohlmaier, A.; Opravil, S.; Tachibana, M.; Shinkai, Y.; et al. Partitioning and plasticity of repressive histone methylation states in mammalian chromatin. Mol. Cell. 2003, 12, 1577–1589. [Google Scholar] [CrossRef]
- Nishioka, K.; Rice, J.C.; Sarma, K.; Erdjument-Bromage, H.; Werner, J.; Wang, Y.; Chuikov, S.; Valenzuela, P.; Tempst, P.; Steward, R.; et al. PR-Set7 is a nucleosome-specific methyltransferase that modifies lysine 20 of histone H4 and is associated with silent chromatin. Mol. Cell. 2002, 9, 1201–1213. [Google Scholar] [CrossRef]
- Puig-Kröger, A.; Corbí, A. RUNX3: A new player in myeloid gene expression and immune response. J. Cell Biochem. 2006, 98, 744–756. [Google Scholar] [CrossRef]
- Yokomizo-Nakano, T.; Sashida, G. Two faces of RUNX3 in myeloid transformation. Exp. Hematol. 2021, 97, 14–20. [Google Scholar] [CrossRef]
- Weintraub, A.S.; Li, C.; Zamudio, A.V.; Sigova, A.A.; Hannett, N.M.; Day, D.S.; Abraham, B.J.; Cohen, M.A.; Nabet, B.; Buckley, D.L.; et al. YY1 Is a Structural Regulator of Enhancer-Promoter Loops. Cell 2017, 171, 1573–1588.e28. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Farooq, Z.; Banday, S.; Pandita, T.K.; Altaf, M. The many faces of histone H3K79 methylation. Mutat. Res. Rev. Mutat. Res. 2016, 768, 46–52. [Google Scholar] [CrossRef] [Green Version]
- Yan, J.; Chen, S.-A.; Local, A.; Liu, T.; Qiu, Y.; Dorighi, K.M.; Preissl, S.; Rivera, C.M.; Wang, C.; Ye, Z.; et al. Histone H3 lysine 4 monomethylation modulates long-range chromatin interactions at enhancers. Cell Res. 2018, 28, 387. [Google Scholar] [CrossRef] [Green Version]
- Wang, Y.; Li, X.; Hu, H. H3K4me2 reliably defines transcription factor binding regions in different cells. Genomics 2014, 103, 222–228. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Heinz, S.; Romanoski, C.E.; Benner, C.; Glass, C.K. The selection and function of cell type-specific enhancers. Nat. Rev. Mol. Cell Biol. 2015, 16, 144–154. [Google Scholar] [CrossRef] [Green Version]
- Pekowska, A.; Benoukraf, T.; Ferrier, P.; Spicuglia, S. A unique H3K4me2 profile marks tissue-specific gene regulation. Genome Res. 2010, 20, 1493–1502. [Google Scholar] [CrossRef] [Green Version]
- Fu, S.; Wang, Q.; Moore, J.E.; Purcaro, M.; Pratt, H.E.; Fan, K.; Gu, C.; Jiang, C.; Zhu, R.; Kundaje, A.; et al. Differential analysis of chromatin accessibility and histone modifications for predicting mouse developmental enhancers. Nucleic Acids Res. 2018, 46, 11184–11201. [Google Scholar] [CrossRef] [PubMed]
- Kouzarides, T. Chromatin modifications and their function. Cell 2007, 128, 693–705. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- The ENCODE Project Consortium. A User’s Guide to the Encyclopedia of DNA Elements (ENCODE). PLoS Biol. 2011, 9, e1001046. [Google Scholar] [CrossRef]
- Ernst, J.; Kellis, M. Interplay between chromatin state, regulator binding, and regulatory motifs in six human cell types. Genome Res. 2013, 23, 1142–1154. [Google Scholar] [CrossRef] [Green Version]
- Hoffman, M.M.; Buske, O.J.; Wang, J.; Weng, Z.; Bilmes, J.A.; Noble, W.S. Unsupervised pattern discovery in human chromatin structure through genomic segmentation. Nat. Methods 2012, 9, 473–476. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Hoffman, M.; Ernst, J.; Wilder, S.; Kundaje, A.; Harris, R.S.; Libbrecht, M.; Giardine, B.; Ellenbogen, P.M.; Bilmes, J.A.; Birney, E.; et al. Integrative annotation of chromatin elements from ENCODE data. Nucleic Acids Res. 2013, 41, 827–841. [Google Scholar] [CrossRef] [Green Version]
- Ernst, J.; Kheradpour, P.; Mikkelsen, T.S.; Shoresh, N.; Ward, L.; Epstein, C.B.; Zhang, X.; Wang, L.; Issner, R.; Coyne, M.; et al. Mapping and analysis of chromatin state dynamics in nine human cell types. Nature 2011, 473, 43–49. [Google Scholar] [CrossRef] [PubMed]
- Buenrostro, J.D.; Giresi, P.G.; Zaba, L.C.; Chang, H.Y.; Greenleaf, W.J. Transposition of native chromatin for fast and sensitive epigenomic profiling of open chromatin, DNA-binding proteins and nucleosome position. Nat. Methods 2013, 10, 1213–1218. [Google Scholar] [CrossRef]
- Core, L.J.; Martins, A.L.; Danko, C.G.; Waters, C.T.; Siepel, A.; Lis, J.T. Analysis of nascent RNA identifies a unified architecture of initiation regions at mammalian promoters and enhancers. Nat. Genet. 2014, 46, 1311–1320. [Google Scholar] [CrossRef] [PubMed]
- Wilson, T.E.; Arlt, M.F.; Park, S.H.; Rajendran, S.; Paulsen, M.; Ljungman, M.; Glover, T.W. Large transcription units unify copy number variants and common fragile sites arising under replication stress. Genome Res. 2015, 25, 189–200. [Google Scholar] [CrossRef] [Green Version]
- Pope, B.; Ryba, T.; Dileep, V.; Yue, F.; Wu, W.; Denas, O.; Vera, D.; Wang, Y.; Hansen, R.S.; Canfield, T.K.; et al. Topologically associating domains are stable units of replication-timing regulation. Nature 2014, 515, 402–405. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Classifier | R | P | F-Score | ACC | AUC | SD | RMSE |
---|---|---|---|---|---|---|---|
GNB | 0.8139 | 0.8510 | 0.8179 | 0.8139 | 0.9138 | 0.0301 | 0.4296 |
KNN | 0.8876 | 0.8912 | 0.8881 | 0.8876 | 0.9357 | 0.0234 | 0.2924 |
LDA | 0.9175 | 0.9185 | 0.9166 | 0.9175 | 0.9677 | 0.0172 | 0.2509 |
ADB | 0.9142 | 0.9158 | 0.9134 | 0.9142 | 0.9703 | 0.0123 | 0.4697 |
SVM | 0.9264 | 0.9276 | 0.9253 | 0.9264 | 0.9689 | 0.0218 | 0.2353 |
MLP | 0.9253 | 0.9262 | 0.9249 | 0.9253 | 0.9728 | 0.0167 | 0.2515 |
RFO | 0.9209 | 0.9231 | 0.9195 | 0.9209 | 0.9732 | 0.0147 | 0.2419 |
Mean | 0.9008 | 0.9076 | 0.9008 | 0.9008 | 0.9575 | 0.0195 | 0.3102 |
The Highest Place in the Ranking | ||||
---|---|---|---|---|
Assay Type | CTCF Convergent | CTCF Tandem | RNAPII | 100 kb Windows |
Genome segmentation | 1 | 1 | 1 | 1 |
Open chromatin | 7 | 7 | 19 | 13 |
H3K4me1 | 10 | 9 | 7 | 8 |
H3K4me2 | 11 | 10 | 10 | 9 |
H3K9ac | 13 | 13 | 17 | 11 |
DNA binding protein | 14 | 19 | 35 | 42 |
H3K27ac | 15 | 17 | 14 | 25 |
RNA-seq | 18 | 16 | 9 | 36 |
H3K4me3 | 19 | 14 | 16 | 45 |
H3K36me3 | 23 | 24 | 12 | 12 |
H3K79me2 | 25 | 20 | 13 | 6 |
Nascent RNA | 26 | 28 | 14 | 32 |
Replication time | 30 | 34 | 120 | 43 |
H2A.Z | 54 | 55 | 33 | 37 |
DNA methylation at CpG sites | 60 | 53 | 70 | 151 |
H3K27me3 | 104 | 56 | 30 | 345 |
H4K20me1 | 119 | 102 | 45 | 194 |
H3K9me3 | 336 | 327 | 203 | 270 |
GC% | 409 | 384 | 51 | 84 |
Classifier | R | P | F-Score | ACC | AUC | SD | RMSE |
---|---|---|---|---|---|---|---|
GNB | 0.7122 | 0.8259 | 0.7318 | 0.7122 | 0.8665 | 0.0331 | 0.5354 |
KNN | 0.8613 | 0.8648 | 0.8622 | 0.8613 | 0.8942 | 0.0292 | 0.3226 |
LDA | 0.8912 | 0.8897 | 0.8887 | 0.8912 | 0.9365 | 0.0246 | 0.2846 |
ADB | 0.8946 | 0.8942 | 0.8927 | 0.8946 | 0.9409 | 0.0201 | 0.4778 |
SVM | 0.8976 | 0.8962 | 0.8938 | 0.8976 | 0.9287 | 0.036 | 0.2736 |
MLP | 0.8930 | 0.8928 | 0.8919 | 0.893 | 0.9379 | 0.0216 | 0.3038 |
RFO | 0.9004 | 0.8997 | 0.8962 | 0.9004 | 0.9411 | 0.0235 | 0.2736 |
Mean | 0.8643 | 0.8805 | 0.8653 | 0.8643 | 0.9208 | 0.0269 | 0.3531 |
Classifier | R | P | F-Score | ACC | AUC | SD | RMSE |
---|---|---|---|---|---|---|---|
GNB | 0.4544 | 0.7952 | 0.4963 | 0.4544 | 0.7736 | 0.0692 | 0.7372 |
KNN | 0.8744 | 0.8639 | 0.8629 | 0.8744 | 0.7944 | 0.0648 | 0.3253 |
LDA | 0.8801 | 0.8735 | 0.8713 | 0.8801 | 0.8657 | 0.0567 | 0.3108 |
ADB | 0.8824 | 0.8754 | 0.8719 | 0.8824 | 0.8665 | 0.0563 | 0.4890 |
SVM | 0.8785 | 0.7861 | 0.8243 | 0.8785 | 0.8737 | 0.0514 | 0.2730 |
MLP | 0.8642 | 0.8606 | 0.8596 | 0.8642 | 0.8206 | 0.0607 | 0.3370 |
RFO | 0.8910 | 0.8855 | 0.8771 | 0.8910 | 0.8676 | 0.0587 | 0.2930 |
Mean | 0.8179 | 0.8486 | 0.8091 | 0.8179 | 0.8374 | 0.0597 | 0.3950 |
Classifier | R | P | F-Score | ACC | AUC | SD | RMSE |
---|---|---|---|---|---|---|---|
GNB | 0.8450 | 0.8476 | 0.8424 | 0.8450 | 0.9189 | 0.0180 | 0.3930 |
KNN | 0.8693 | 0.8720 | 0.8672 | 0.8693 | 0.9255 | 0.0094 | 0.3141 |
LDA | 0.8983 | 0.9011 | 0.8980 | 0.8983 | 0.9655 | 0.0116 | 0.2796 |
ADB | 0.8970 | 0.9009 | 0.8973 | 0.8970 | 0.9654 | 0.0107 | 0.4779 |
SVM | 0.8991 | 0.9036 | 0.8992 | 0.8991 | 0.9633 | 0.0167 | 0.2703 |
MLP | 0.8907 | 0.8943 | 0.8908 | 0.8907 | 0.9566 | 0.0114 | 0.3116 |
RFO | 0.8960 | 0.8999 | 0.8961 | 0.8960 | 0.9645 | 0.0108 | 0.2738 |
Mean | 0.8851 | 0.8885 | 0.8844 | 0.8851 | 0.9514 | 0.0127 | 0.3315 |
