Natural vs. Synthetic Phosphate as Efficient Heterogeneous Compounds for Synthesis of Quinoxalines

by
Abbas Amini
1,2,*,
Azadeh Fallah
3,
Ahmad Sedaghat
2,
Ahmad Gholami
4,5,
Chun Cheng
6 and
Anju R. Gupta
7
1
Centre for Infrastructure of Engineering, Bld Z, Locked Bag 1797, Kingswood Campus, Western Sydney University, Penrith, NSW 2751, Australia
2
Department of Mechanical Engineering, Australian College of Kuwait, Mishref, Safat 13015, Kuwait
3
Department of Chemistry, Payame Noor University, Tehran 19395-4697, Iran
4
Pharmaceutical Sciences Research Center, Shiraz University of Medical Sciences, Shiraz 71348-14336, Iran
5
Department of Pharmaceutical Biotechnology, School of Pharmacy, Shiraz University of Medical Sciences, Shiraz 71348-14336, Iran
6
Department of Materials Science and Engineering, Southern University of Science and Technology (SUSTech), Shenzhen 518055, China
7
Department of Mechanical Engineering, Industrial and Manufacturing Engineering, The University of Toledo, Toledo, OH 43606, USA
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2021, 22(24), 13665; https://doi.org/10.3390/ijms222413665
Submission received: 21 October 2021 / Revised: 17 December 2021 / Accepted: 17 December 2021 / Published: 20 December 2021
(This article belongs to the Special Issue Nanobiomaterials for Precision Medicinal Systems)
Browse Figures
Versions Notes

Abstract

:
Natural phosphate (NP) and synthetic fluorapatite phosphate (SFAP) were proposed as stable, inexpensive, readily available and recyclable catalysts for the condensation of 1,2-diamines with 1,2-dicarbonyls in methanol to afford quinoxaline at room temperature. NP provided as high as 92–99% yield for quinoxalines in short reaction times (i.e., 1–45 min), while SFAP created quinoxalines with 87–97% yield in 60–120 min. From the chemical analyses, X-ray fluoresecency, X-ray diffraction, energy dispersive X-ray and Fourier-transform infrared spectroscopy methods, two main phases (CaO, P2O5) appeared in NP together with other low content phases (SiO2, Fe2O3). Compared to other phases, apatite (CaO and P2O5 as Ca10(PO4)6) played a major role in the catalytic activity of NP. SFAP with similar Ca/P atomic ratio showed a relatively lower catalytic activity than NP for the condensation of 1,2-diamine with 1,2-dicarbonyl in methanol at ambient temperature. To investigate the recyclability of catalysts, the surface properties of NP and 6-recycled NP were investigated using scanning electron microscopy, energy dispersive X-ray and Brunauer–Emmett–Teller and Barrett–Joyner–Halenda methods. Some differences were observed in NP and 6-recycled NP’s particle size, surface area, the volume and size of pores, and the content of elements; nevertheless, the use–reuse process did not noticeably change the catalytic property of NP.

1. Introduction

Nature-based benign procedures require mild reaction conditions, easy purification, waste management and kinetic enhancement [1]. It becomes clear that the association of heterogeneous catalysis presents an open window of opportunities to advance chemical reactions because of the potential for enhancing the efficiency, selectivity and reusability of catalysts. Natural agents and biodegradable heterogeneous catalysts, i.e., inorganic solids (zeolite [2], silica [3], alumina [4], clay [5], etc.), can play a key role in the field of sustainable chemistry by reducing cost and waste disposal through mild catalytic processes [6]. In parallel, mineralogical classes of natural phosphate (NP), which generally belong to the family of phosphocalcic apatites (Ca10(PO4)6X2, X=OH and F), can be exploited to acquire hydroxyl and fluorapatite in their pure state [7,8,9]. Natural phosphate (apatite) and synthetic fluorapatite phosphate have been used [8,10] as the catalysts for Claisen–Schmidt condensation [11], the hydration of nitriles [12] and the oxidation of cyclic ketones to keto acids [13], tetraketones [14], xanthenes [14,15] and 1,4-disubstituted-1,2,3-triazoles [15]. In the present study, the main components of the newly used NP are investigated and its catalytic effects for the synthesis of quinoxaline are assayed.
Quinoxalines have attracted significant attention due to their various applications as base materials for dyes [16], optoelectronic and luminescent materials [17], semiconductors [18] and inhibitors [19]. Quinoxaline moiety has been used for the synthesis of biologically active compounds with antitumor [20,21], antiviral [22], anti-inflammatory [23], anti-HIV [24] and anticancer [25] properties. Various strategies for the synthesis of quinoxalines have been proposed by using different catalysts, such as aqueous hydrofluoric acid and gadolinium chloride [26], magnetic clayzic [27], alkyl sulfonate functionalized metal organic framework (MOF), MIL-101-Cr–NH–RSO3H [28], thiamine hydrochloride (VB1) [29], Zr-CAP-SG [30], Cu (BDC) [31], sulfonated nanoclay [32], arabic gum [1], sulphated polyborate [33], nano-particles ZrO2 [34], nanostructured pyrophosphate [21] and magnetic material separated from coal fly ash [35] through the condensation of 1,2-diketones with 1,2-diamines. These methods need a higher quantity of catalyst and suffer from a long reaction time, harsh conditions, multi-step processes for the preparation of the catalyst and high costs.
Here, NP and SFAP were used as the catalysts (see Scheme 1) for the synthesis of quinoxaline with excellent yield under mild conditions. As the structure of NP was similar to that of fluorapatite (Ca10(PO4)6F2), we prepared SFAP through the co-precipitation method [36] and compared its structure and catalytic activity with NP. In short, NP was found as a perfect natural catalyst and performed better than SFAP in the condensation reaction of a series of 1,2-diketones with 1,2-diamines in methanol to successfully afford quinoxalines with excellent yields at room temperature (rt).

2. Results and Discussion

2.1. Characterization of NP and SFAP

The structures of NP and SFAP were characterized using Fourier-transform infrared spectroscopy (FT-IR), scanning electron microscopy (SEM), energy dispersive X-ray analysis (EDX), Brunauer–Emmett–Teller and Barrett–Joyner–Halenda (BET and BJH) methods, X-ray fluorescence (XRF) and X-ray diffraction (XRD). The NP structure was similar to the reported synthetic fluorapatite in the literature [36] and Morocco’s natural phosphate [37,38]. The structure of SFAP was found to be similar to the reported synthetic fluorapatite in the literature [36]. These analyses could help us to assess the properties of these inorganic compounds and determine the rationale for their catalytic activities and their differences.

2.1.1. FT-IR Spectroscopy

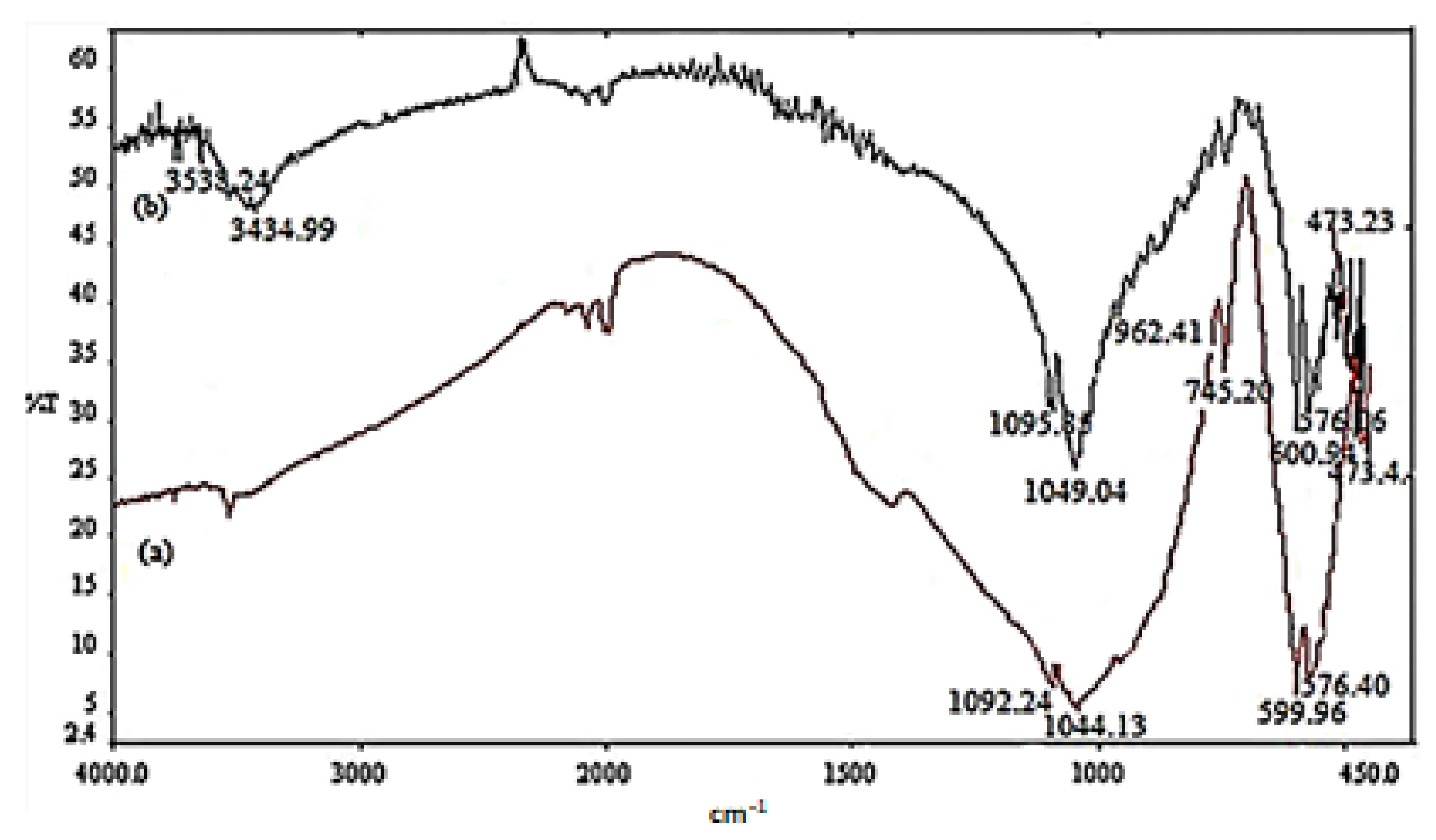

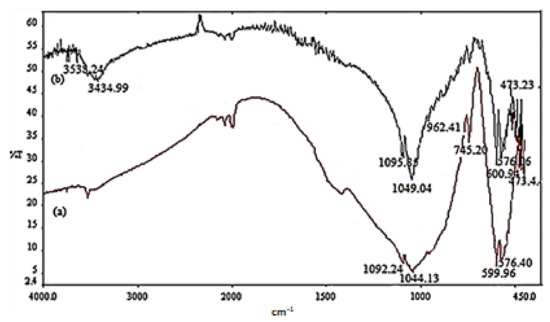

The FT-IR spectra of NP and SFAP are presented in Figure 1. A number of bands in the spectra were located between 1000–1100 cm−1, including those at 1092-5 and 1044-9 cm−1. These bands were assigned to triply degenerate asymmetric stretching modes of P―O (ν3) vibrations of the phosphate group. The peak at 962 cm−1 was assigned to a non-degenerated symmetric stretching mode (ν1) of P―O bond of the phosphate group. The bands at 600 and 576 cm−1 were from triply degenerate asymmetric bending modes (ν4) of phosphate O―P―O bonds, while the weak peaks at 473 cm−1 were ascribed to doubly degenerate bending mode (ν2) of the phosphate group (O―P―O bond) [39,40,41,42].

2.1.2. XRF Analysis

The chemical compositions of NP were determined as P2O5 (37.61 %), CaO (48.53 %), MgO (1.16 %),SiO2 (4.26 %), Fe2O3 (5.26 %), F (2.86 %), Cl (0.13 %), TiO2 (0.25 %), Ce2O3 (0.86 %), La2O3 (0.4 %) Nd2O3 (0.42 %), Y2O3 (0.26 %), Al2O3 (0.19 %), MnO (0.08 %), Na2O (0.28 %), K2O (0.06 %) SO3 (0.32 %) [14], and for SFAP, they were: P2O5 (40.71 %) and CaO (57.69 %) and F (2.16 %). The chemical components of NP were similar to SFAP; this is also supported by the data found in the literature on fluorapatite (Ca10(PO4)6F2) in Morocco natural phosphate [43]. According to previous reports, the Ca/P atomic ratio of apatites is approximately 1.67, based on their chemical formula for standard apatite; the calcium deficiency can lower the Ca/P atomic ratio to 1.5 [42,44,45]. The Ca/P atomic ratios of NP (48.5/37.6) and SFAP (57.69/40.71) were reported with the values of 1.61 and 1.58, respectively, which are within the acceptable range for apatite (1.5–1.67).

2.1.3. XRD Analysis

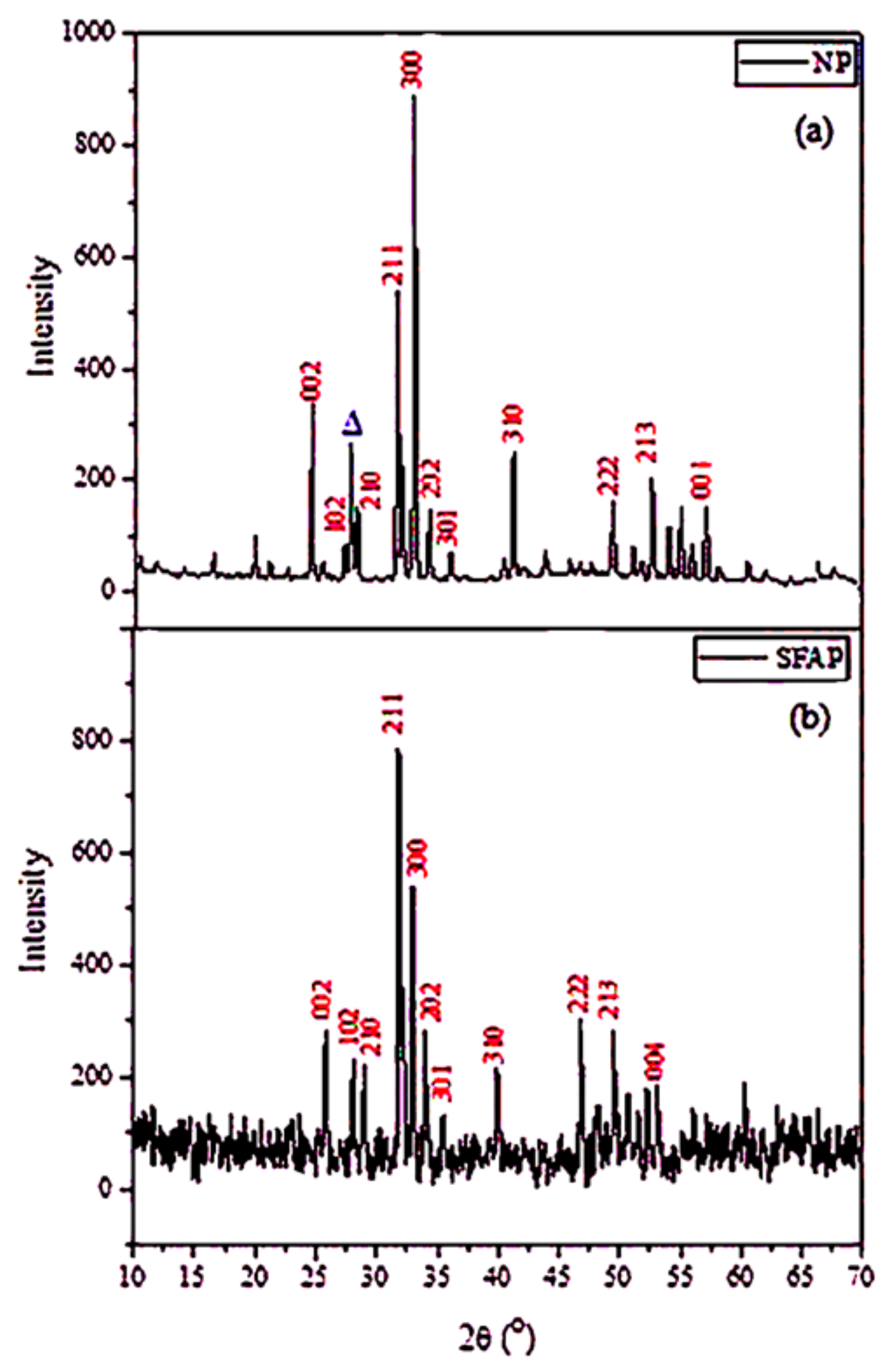

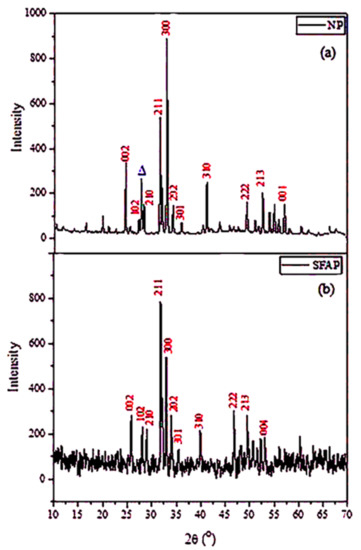

XRD patterns of NP [14] and SFAP (Figure 2) show that they are well-crystalline with fluorapatite-type structures and the peaks fitted with PDF#01-015-876 [46] (Figure 1b, Supplementary Information, SI); the sharp and distinct peaks demonstrate a high degree of crystallinity. Based on the available crystallographic data for NP and SFAP, NP belongs to the same space group as SFAP; the hexagonal system of crystallite with the space group of P63/m. The lattice parameters of NP and SFAP are in excellent agreement with the standard data [36]; for NP, a = 9.381 Å and c = 6.900 Å and V = 526.86 Å3, and for SFAP, a = 9.3684 Å and c = 6.8841 Å and V = 523.25 Å3. The crystallite sizes of NP and SFAP were calculated through the Debye–Scherrer equation (Equation (1)) using XRD data of NP and SFAP and X’Pert High Score Plus program:
D = 0.9λ(β0.5)−1(cos θ)−1
where D is the average crystallite size (156 nm for NP and 76 nm for SFAP); λ, the wavelength of X-ray used (0.154 nm for Cu); β0.5, the line broadening at the half maximum intensity after subtracting the instrumental line broadening in radians; and θ, Bragg angle in degree [47]. The average values of crystallite size determined for both NP and SFAP particles show that, for (0 0 2), (2 1 1), (3 0 0), (3 1 0) Miller’s planes (except (2 2 2)), they have higher intensity than others (see Figure 2). Despite the larger average crystallite size of NP than SFAP (Table 1), NP possesses higher catalytic activity in the synthesis of quinoxaline.

2.1.4. pH Value of Surface

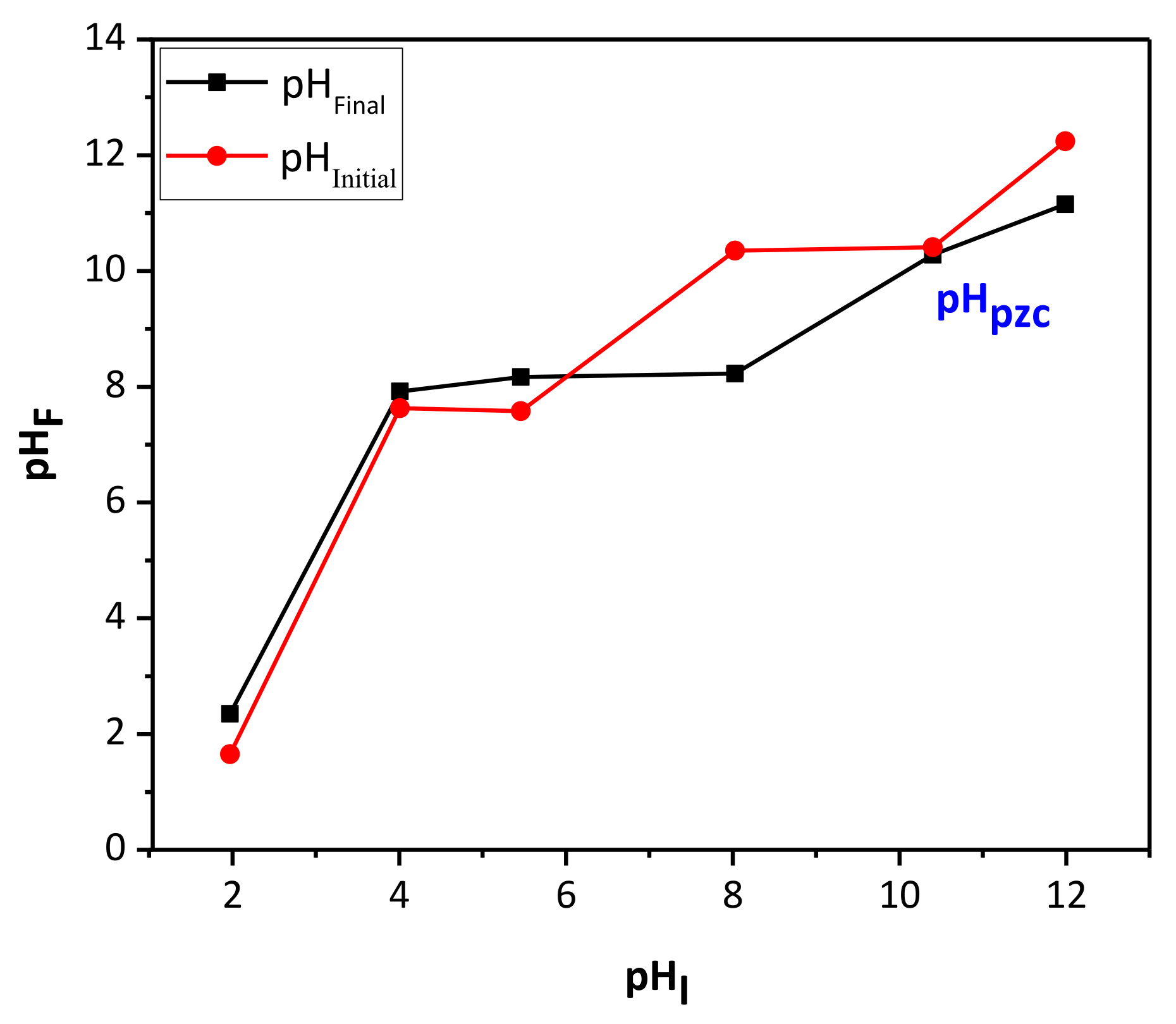

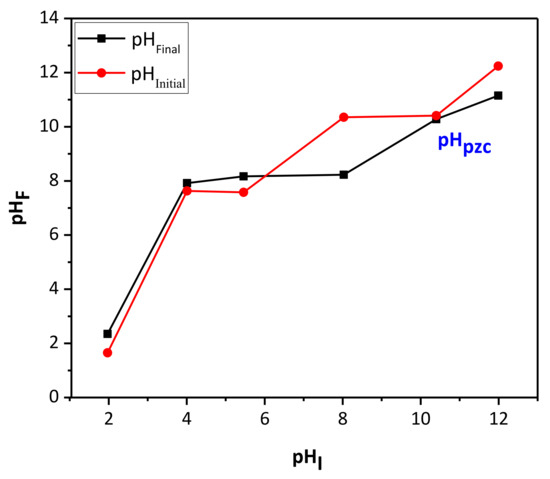

To obtain the basicity of the surface of NP, the pH of the surface was determined as 10.34 at the point of zero charge (pHpzc) (Figure 3) [49]. Thus, the presence of basic sites on the surface of NP induced the co-adsorption of substrate molecules. This alteration plays a key role in devising a more effective approach on the collision of the catalyst with the organic substrate. The pHpzc for a mineral is the value at which the surface has a negative charge, so, when pH < pHpzc, the surface possesses positive charge in a solution, whereas the negative charge occurs when pH > pHpzc. These effects can be explained by the deprotonation or protonation of phosphate P–O(H) [50] and calcium oxide Ca–O(H) [51] groups in the framework of NP. So, it is reasonable to choose the external surface of NP as the basic surface.

2.2. Reusability of Catalyst

2.2.1. BET and BJH Methods

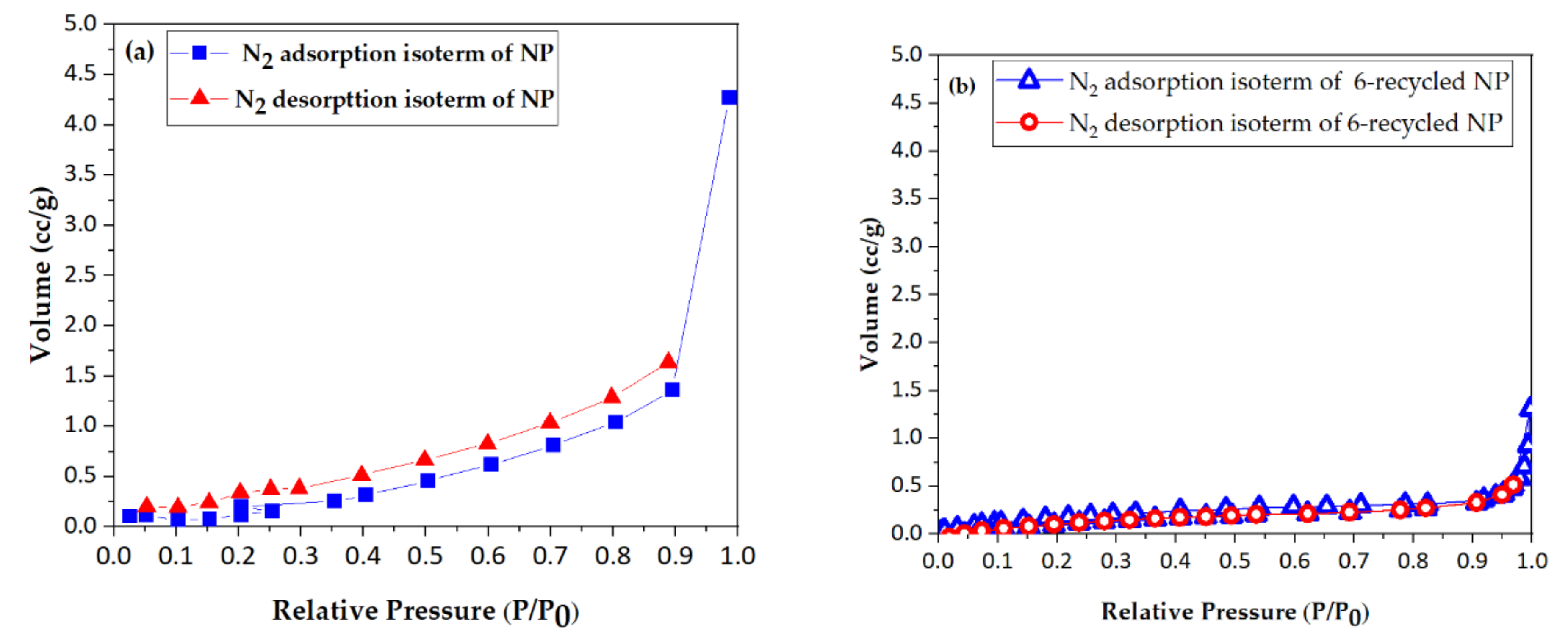

Recent studies suggest that finding the specific surface area is often a prerequisite for quantizing and interpreting adsorption properties [15]. To determine the role of NP catalytic activity in the model reaction, we characterized the specific surface areas of NP after six recycling runs (6-recycled NP) for the model reaction. The specific surface areas and pore size distributions of NP and 6-recycled NP were measured through the nitrogen adsorption–desorption isotherms using BET and BJH methods. According to BET results, the adsorption isotherms of NP and 6-recycled NP were classified as type IV with a H3 hysteresis loop at P/P0 ∼ 0.98; then, according to Brunauer–Deming–Deming–Teller (BDDT) classification [52], they were categorized as mesoporous solids [53] (Figure 4).

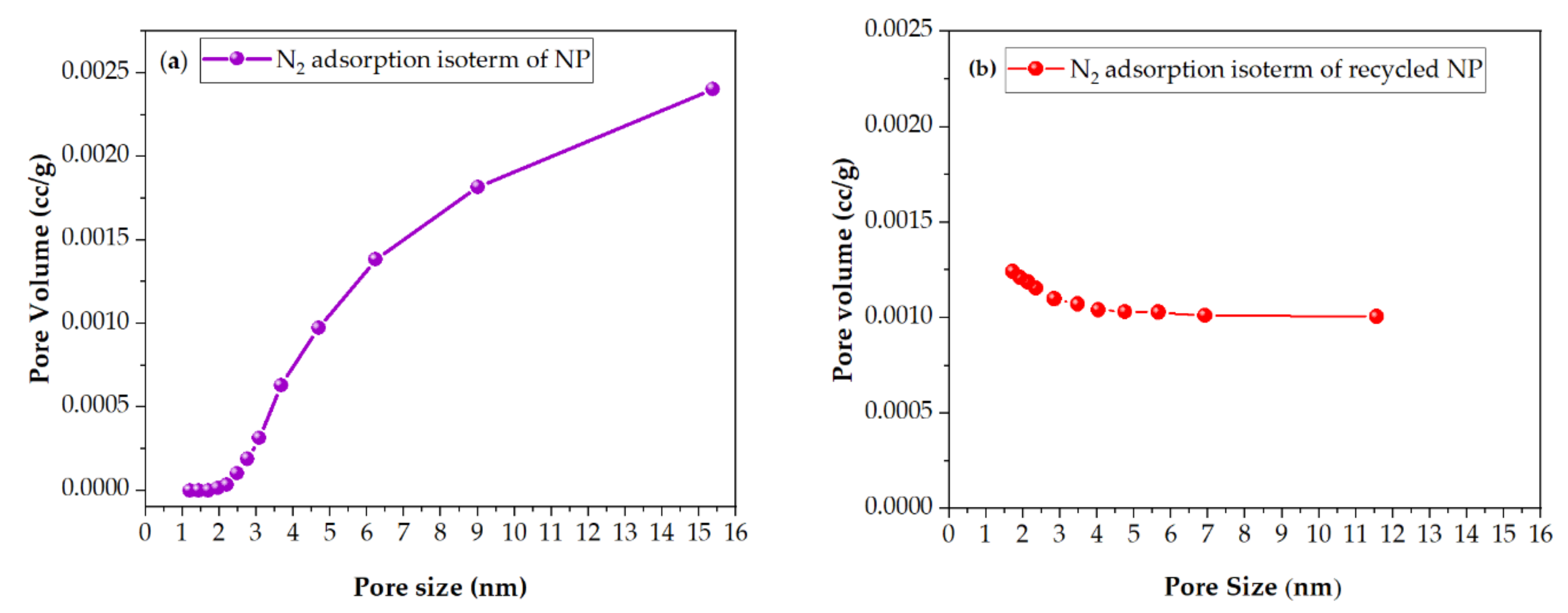

Pore volume and size distributions of NP and 6-recycled NP were analyzed by using the BJH method for the N2 adsorption branch isotherms (Figure 5, Table 2). The surface areas of these particles are considered low [54] as per SBET = 2.081 and SBJH = 1.948 m2g−1 for NP, and SBJH = 0.761 and SBJH = 0.426 m2g−1 for recycled NP. There is no noticeable porosity as per the pore volume of 0.007 cm3g−1 for NP with the average size of 3.675 nm, and 0.001 cm3g−1 for 6-recycled NP with the average pore size of 5.784 nm. These results are in good agreement with the reported data for Morocco natural phosphate [12,55]. By comparing the specific surface area and average pore volume of NP and 6-recycled NP, it is concluded that the recycled NP has lower porosity and specific surface area, which can be responsible for its lower catalytic activity [56]. The very low surface area of 6-recycled NP may facilitate the strong adsorption of a small amount of either quinoxaline or other unknown by-products [54]. The reduction in surface area in recycled NP may also occur during the calcination, attributing to the coalescence of NP particles [57].

2.2.2. SEM Analysis

The surface morphology of NP and 6-recycled NP was investigated using the SEM method (Figure 6). As depicted in Figure 6b, the 6-recycled NP is shown at different magnifications to visualize the detailed surface change which indicates insignificant differences. It contains particles with an average diameter of 282–591.8 nm and a uniform distribution without significant aggregation [53]. The small particles in Figure 6b may be hematite (Fe2O3) which are replaced with hydroxyl ions from phosphate and have catalytic activity [58].

2.2.3. EDX Analysis

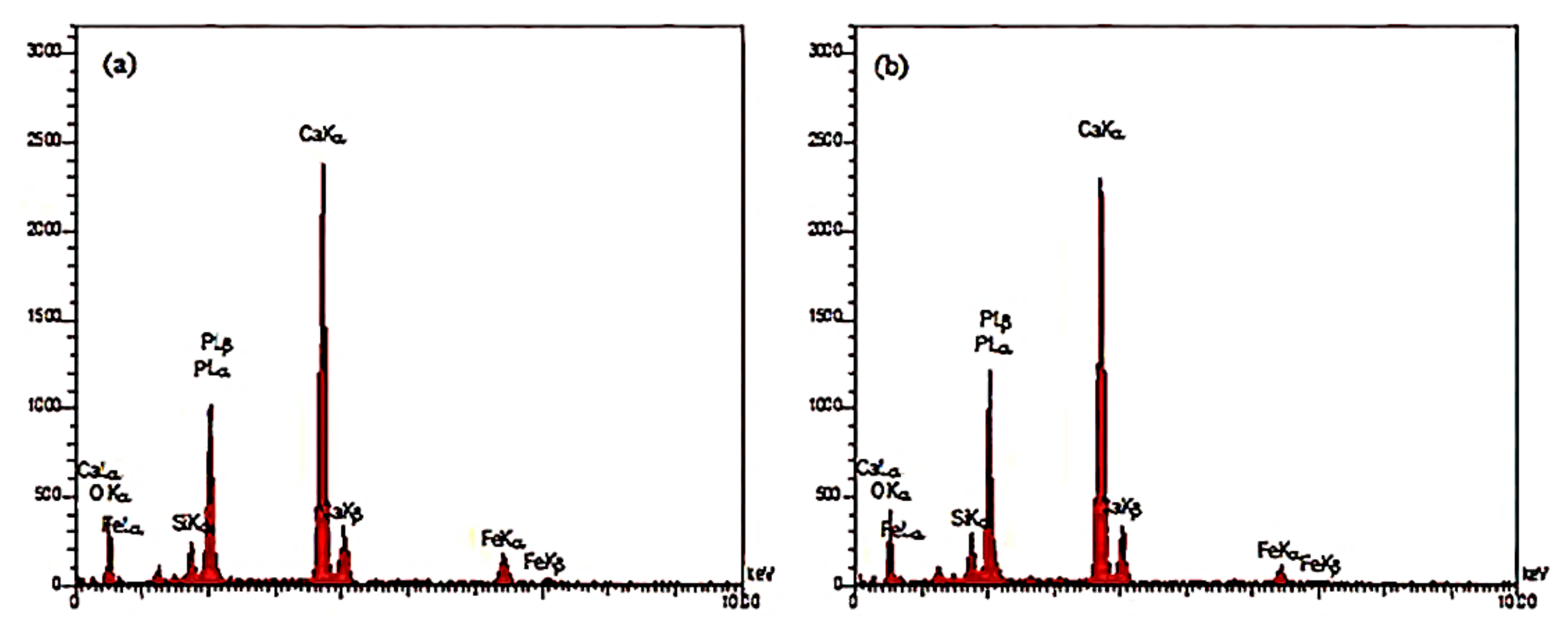

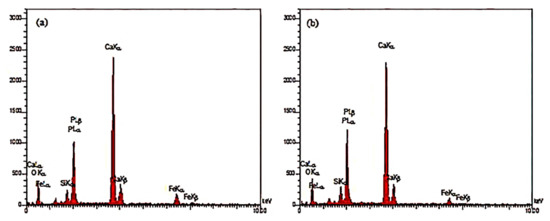

EDX spectra in Figure 7 show that both NP and 6-recycled NP consist of constituent elements of Ca, P, Si, Fe and O [47,59]. As seen in Figure 7b, there is a marginal loss for Fe atoms during the reaction and recycling process. Two oxygen atoms in phosphate ion (PO43-, P2O5) are coordinated, each one to a Fe3+ ion, creating a binuclear surface complex of Fe-O-P(O2)-O-Fe. The phenomenon of phosphate adsorption in Scheme 2 presents the creation route of this coordination structure on the surface of NP. Two surface oxygen groups of NP exist in intermediate I and II (shown in Scheme 3), by which the aminic hydrogen (NH) of diamine can form a doubly H-bonded composition to give hydroxyl (see structures 1 and 2, Scheme 2 and Scheme 3); subsequently, they are replaced with one oxygen of phosphate group (P2O5) of NP [60,61,62]. It is confirmed that gray-to-black-colored particles that appeared on the recycled NP is hematite (Fe2O3), which is released from NP during the reaction [63,64]. This can be the cause of the decreasing catalytic activity of recycled NP in the model reaction [65].

2.3. Synthesis of Quinoxaline

The reaction conditions were optimized for the condensation of 1,2-phenylenediamine 1a (1 mmol) and benzil 2a (1 mmol) in the model reaction. First, the reaction was carried out by using different protic and aprotic solvents (Table 3). The protic solvents showed better results than aprotic ones (Table 3, entries 1–4). Regarding the mechanism, the formation of a hydrogen bond between protic solvents (B-H) and the oxygen atom of the carbonyl groups of diketone compound increased the electrophilic character of carbonyl groups. Intramolecular nucleophilic attack at the carbon atom of carbonyl compound by the nitrogen atom of the amine group (via the intermediate I) was followed by intramolecular proton transfer in NP (see Scheme 3). Thus, the simultaneous activation of the carbonyl compound and protic solvents took place through the hydrogen bond formation with protic solvents. The time of the model reaction in H2O extended to a longer span than the other protic solvents, but their yields remained relatively unchanged because the reagents were not dissolved well in H2O (Table 3, entries 1 and 4) [58,66,67]. The best result was obtained from methanol, with the desired product 3a collected with the yield of 98% (Table 3, entry 3). This observation supported the involvement of hydrogen bond formation, where the solvation of the compounds increased with an increase in the polarity of the solvent. As the polarity of methanol was higher than ethanol, it acted as a better proton (H+) donor [68], being more effective in hydrogen bond formation with both solving reagent and activating carbonyl groups (intermediate I and II, shown in Scheme 3).
By varying the weight of NP (Table 4, entries 1–6), the model reaction progressed with a good yield of product 3a in the absence of a catalyst, so methanol could act as the co-catalyst (Table 4, entry 1). In terms of both reaction time and yield of product 3a, the best result was obtained by using 0.003 g of NP (Table 4, entry 4). The major constituent of NP is fluorapatite, so, experiments were carried out to verify the catalytic activity of fluorapatite. SFAP was prepared as explained in the experimental Section 3.2 [36] and used in the model reaction as the catalyst (Table 4, entries 7 and 8). SFAP was not as effective as NP under the same reaction conditions, as it required a higher quantity of catalyst and a longer reaction time (Table 4, entries 7 and 8). From the XRD analysis (Figure 2), the comparable catalytic activity of NP and SFAP was independent of lattice parameters and the average crystallite size of NP. The higher catalytic activity of NP was originated from fluorapatite in addition to the low content of some phases, such as coesite, SiO2 [48] and hematite, Fe2O3 [69]. So, we performed the model reaction in the presence of the prepared Fe2O3 and SiO2 in order to examine their catalytic effects (Table 4, entries 9 and 10). The obtained results confirmed the fingerprint of SiO2 and Fe2O3 in the catalytic activity. It is likely that the moderate incorporation of SiO2 and Fe2O3 resulted in the higher catalytic activity of NP than SFAP [65] (Table 4, entry 10). The oxygen atoms of CaO and P2O5 (fluorapatite) [70], SiO2 [71] and Fe2O3 [60] in NP acted as the bases to attract the hydrogen of primary amine through hydrogen bonding [14]. In addition to these, the active Lewis acidic sites of Fe2O3 [72] would play a key role in increasing the electrophilic properties of carbonyl groups.

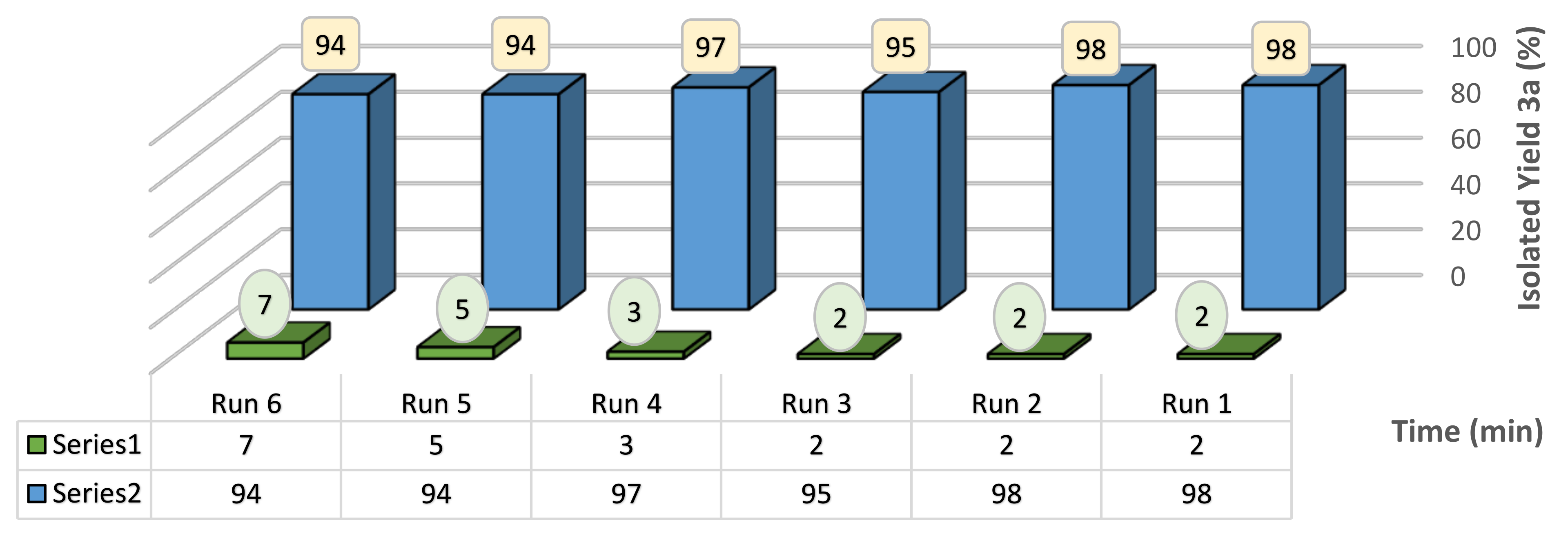

After the first cycle with a 98% yield of quinoxaline 3a, the catalyst was recovered by filtration, washing with acetone, drying and calcination at 900 °C in air for 30 min. Then, the reusability of NP was studied by examining the model reaction under optimized conditions (Figure 8). The results show that the catalyst could be recycled for at least six runs without significant loss of catalytic activity; as shown in Table 2, this could be due to decreasing the surface area and pore volume of recycled NP, which may facilitate the strong adsorption of a small amount of either quinoxaline 3a or other unknown by-products. As mentioned earlier in Figure 7, decreasing the amount of Fe in the recycled NP could cause low yields of 3a at the longer reaction times, in which Fe3+ acted as Lewis acid and catalyzed the reaction.
To assess the generality and scope of the proposed method, the optimized reaction conditions were applied to various 1,2-diamines and 1,2-dicarbonyl compounds (Table 5). The reactions proceeded efficiently at room temperature. The corresponding quinoxalines were obtained with high to excellent yields at short reaction times without any side reactions.
Here, the activity and efficiency of catalysts for the synthesis of quinoxaline are compared with those previously reported (Table 6). Solid phase synthesis of quinoxaline using solid materials, such as K10 [73], alumina [74], silica [71] and graphite [75], needs longer reaction times or harsh reaction conditions (Table 6, entries 1–4). With a polymer as support, in addition to the multi-step preparation process (Table 6, entry 15), no data were found regarding the reusability of the catalyst (Table 6, entries 5–7). Other catalysts suffer from cost inefficiency and/or longer reaction times (Table 6, entry 8–13). NH4Cl results in high yield but it requires a larger quantity of catalyst for the reaction (Table 6, entry 14). Using MIL-101-Cr-NH-RSO3H and nanostructured pyrophosphate Na2PdP2O7 suffers from its difficult, multi-step and costly routes as well as extra material preparation (Table 6, entries 15 and 16). NP is a low-cost, readily available and natural solid catalyst which can be stored at ambient temperature without losing its catalytic potential after recycling by simple filtration (Table 6, entry 17), while SFAP needs more reaction time and catalyst (Table 6, entry 18).

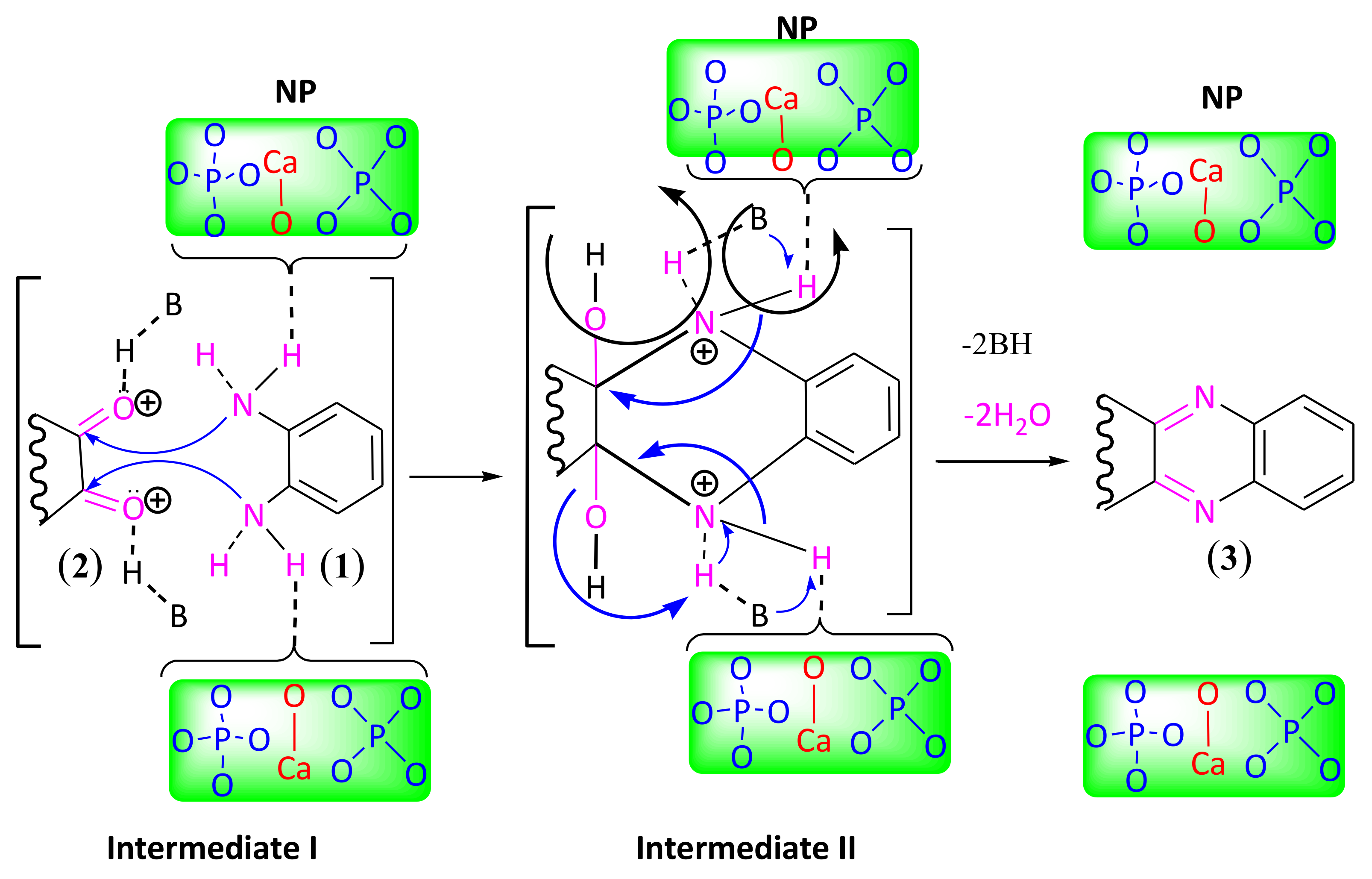

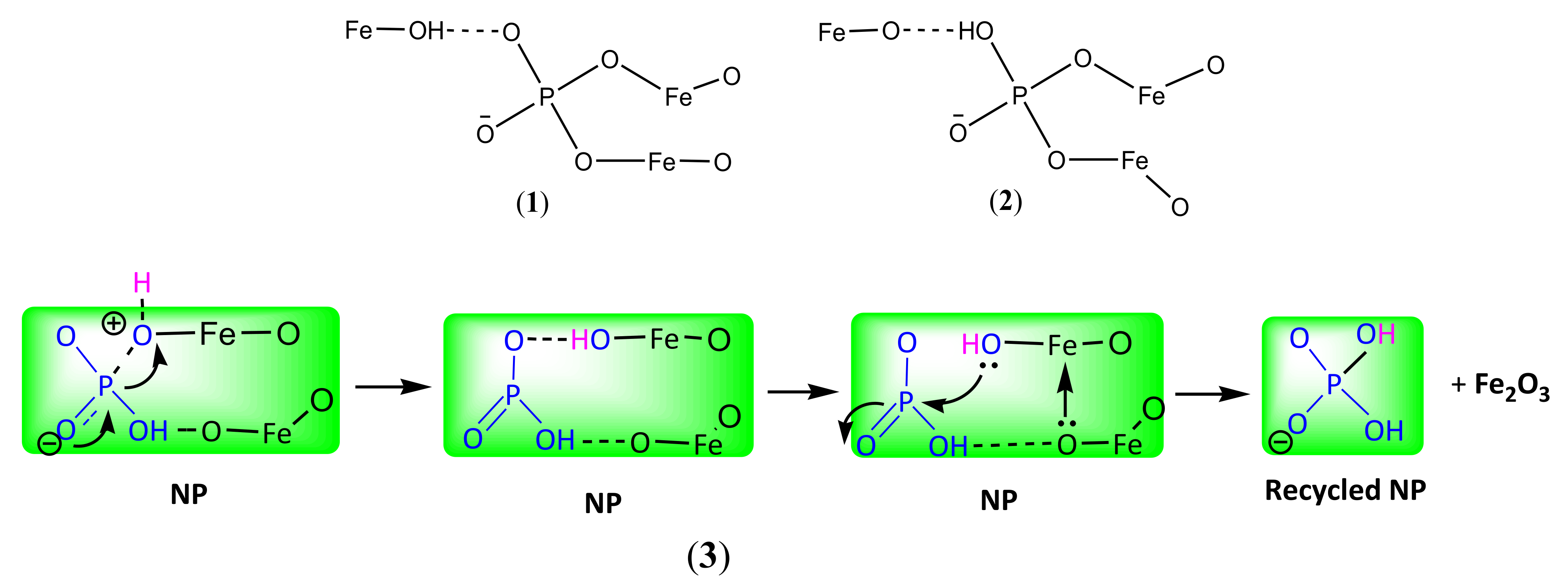

After clarifying the role of NP, a mechanism is proposed in Scheme 3 for the facile formation of quinoxalines. The surface of NP presents multi-catalytic active sites (oxygen atoms of P2O5 or PO4 group and CaO) [85,86,87] where the aminic hydrogen (NH) of diamine (1) with the oxygens on the surface of NP and also protic solvent (B_H) can form doubly H-bonded motifs with the oxygen atoms of carbonyl group of diketone (Intermediate I). Enhancing the nitrogen electrophilicity of the aminic group of 1,2-diamine followed by the nucleophilic attack of amine on the carbonyl carbon (Intermediate I) [75,88], along with the protonation and subsequent dehydration (Intermediate II), ended with the production of quinoxaline 3 and regenerating NP. Thus, NP accelerated the cyclocondensation process beside the HB-assisted activation [89].

3. Materials and Methods

All chemicals were purchased from Merck, Germany, and Sigma Aldrich, USA. The structural data of all synthesized products were compared with the authentic data from the literature. The chemical composition of NP was determined using a PANalytical XRF spectrometer Venus 200 (Malvern PANalytical Ltd, Malvern, UK). The surface imaging was obtained by using an SEM, EM-3200 (KYKY Technology Development Ltd. Zhongguancun, Beijing, China). XRD were performed at room temperature on a Philips 1710 diffractometric goniometer (Philips Technology Inc., Amsterdam, The Netherlands), mounted with a Bragg–Brentano configuration (θ, 2θ) and using Ni-filtered Cu–Kα radiation (λ = 1.54 Å) along with PANalytical XPert HighScore Plus software (Malvern PANalytical Ltd., Malvern, UK). Surface areas were determined at 77 K using a Coulter SA 31000 instrument with an automated gas volumetric method by employing nitrogen as the adsorbate through the BET and BJH methods (Beckman Coulter Inc., Brea, CA, USA). The EDX pattern was attained by using a stdLess Rontec analyzer (TScan company, Waltham, MA, USA). The pH measurements were performed using a microprocessor pH meter (Metrohm, 827 pH Lab) (Metrohm AG, Herisau, Switzerland). Melting points were recorded by utilizing a Buchi B540 melting point apparatus. Fourier-transform infrared (FT-IR) spectra were recorded on a Bruker Perkin-Elmer spectrometer with KBr pellets for solids (Bruker company, Billerica, MA, USA). The 1H and 13C NMR spectra were recorded on a 400 MHz machine, Bruker Advance DRX spectrometer in CDCl3, using tetramethylsilane as an internal reference.

3.1. Preparation of NP

NP was collected from a known ore extract site, the Bafgh region, in Yazd province, Iran. This kind of NP is used by various local industries to prepare phosphate fertilizer and phosphoric acid [7]. The extracted NP was pre-treated by refluxing in water, calcinating at 900 °C in air for 2 h, washing with water and finally re-calcinating at 900 °C in air for half an hour prior to usage as the catalyst [12].

3.2. Synthesis of SFAP

SFAP was prepared according to the method introduced by Sebti et al. [36]. A solution of di-ammonium hydrogen phosphate ((NH4)2HPO4, 7.92 g), ammonium fluoride (NH4F, 1 g), and double distilled water (250 mL) was prepared for further usage. The pH of the solution was adjusted to pH > 12 by using ammonium hydroxide (NH4OH); subsequently, calcium nitrate solution (Ca(NO3)2·4H2O, 23.6 g) in double distilled water (150 mL) was slowly added to the mixture. The resultant suspension was refluxed for 4 h. The reaction mixture was cooled down to room temperature, and the solid particles were collected, washed with water and dried overnight at 80 °C. Finally, the dried sample was calcined at 800 °C in air for 1 h to obtain SFAP.

3.3. Measuring the Point of Zero Charge (pHpzc)

To show the basicity of the surface of NP, pHpzc was measured. pHs of a series of 50 mL 0.01 M NaCl solutions were adjusted to values between 2 and 12 by adding HCl (0.1 M) or NaOH (0.1 M) solutions in a closed Erlenmeyer flask. The pH values of these solutions were recorded as initial pH (pHI). Then, 0.2 g of NP was added to them to reach the final pH (pHF) measured after 48 h. The values of pHF vs. pHI and pHI vs. pHI were plotted to obtain pHpzc at their intersections [49].

3.4. Synthesis of Quinoxalines

In a typical reaction, a mixture of substituted cyclic 1,2-diamine 1 (1 mmol) and diketone 2 (1 mmol) was dissolved in methanol (5 mL). To this solution, NP (0.003 g) or SFAP (0.01 g) was added and stirred vigorously for 1–45 min for NP and 60–120 min for SFAP at room temperature. After completing the reaction, the mixture was filtered and washed with methanol (5 mL) in order to separate the catalyst. After the filtration, the methanolic filtrate was evaporated under vacuum to afford a crude product. Spectral data of obtained quinoxaline are presented in the Supplementary Information (SI).

4. Conclusions

The new use of natural phosphate was found as an efficient, inexpensive, recyclable and heterogeneous basic catalyst. This kind of NP could be stored at ambient temperature without majorly losing its catalytic potential after recycling by simple restoration filtering. NP catalyzed the condensation of 1,2-diamines with 1,2-diketones compounds in methanol at room temperature as an efficient way for the synthesis of quinoxaline derivatives with excellent yields in very short reaction time. The catalytic activity of the main component of natural phosphate was individually investigated. NP was characterized to be rich in fluorapatite as the major phase and minor phases of coesite (SiO2) and hematite (Fe2O3). So, the synthetic fluorapatite (SFAP), SiO2 and Fe2O3 were prepared, and their catalytic activities were compared with natural phosphate in the reaction. NP catalysed the quinoxaline reaction with the high yield and much shorter reaction time (0.003 g, 98% yield in 2 min (for 3a product)) when compared to SFAP (0.01 g, 95% yield in 60 min), SiO2 (0.01 g, 98% yield in 120 min) and Fe2O3 (0.01 g, 98% yield in 150 min). NP had a low cost, a simple procedure, ready availability and good reusability for at least six runs without a major loss for the synthesis of quinoxalines at room temperature.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/ijms222413665/s1.

Author Contributions

A.A. Conceptualization, visualization, formal analysis, investigation, resources, supervision, project administration, funding acquisition, and writing—review; A.F., Conceptualization, visualization, formal analysis, investigation, validation, software, methodology, data curation, and writing; A.S., A.G., C.C., A.R.G., formal analysis, methodology, suggestions, resources, editing. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

No applicable.

Acknowledgments

The Australian College of ACK is highly acknowledged for the Research Grants No: IRC-2020/2021-SOE-ME-PR05 and PR06. Special thanks go to Mahmoud Tajbakhsh from the Department of Organic Chemistry, University of Mazandaran, Babolsar, Iran, for his valuable comments and humble support. We are grateful to Mazandaran University of Medical Sciences for providing laboratory facilities to carry out this research.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Fazeli-Attar, S.A.; Mirjalili, B.B.F. Synthesis of quinoxalines using Gum Arabic as a nontoxic metal-free biocatalyst at room temperature in aqueous media. Environ. Chem. Lett. 2018, 16, 671–676. [Google Scholar] [CrossRef]
  2. Chassaing, S.; Beneteau, V.; Louis, B.; Pale, P. Zeolites as green catalysts for organic synthesis: The cases of H-, Cu-& Sc-zeolites. Curr. Org. Chem. 2017, 21, 779–793. [Google Scholar]
  3. Stokes, T.N.; Bromiley, G.D.; Potts, N.J.; Saunders, K.E.; Miles, A.J. The effect of melt composition and oxygen fugacity on manganese partitioning between apatite and silicate melt. Chem. Geol. 2019, 506, 162–174. [Google Scholar] [CrossRef]
  4. Kruanak, K.; Jarusutthirak, C. Degradation of 2,4,6-trichlorophenol in synthetic wastewater by catalytic ozonation using alumina supported nickel oxides. J. Environ. Chem. Eng. 2019, 7, 102825. [Google Scholar] [CrossRef]
  5. Wu, J.; Wang, B.; Blaney, L.; Peng, G.; Chen, P.; Cui, Y.; Deng, S.; Wang, Y.; Huang, J.; Yu, G. Degradation of sulfamethazine by persulfate activated with organo-montmorillonite supported nano-zero valent iron. Chem. Eng. J. 2019, 361, 99–108. [Google Scholar] [CrossRef]
  6. Tahir, R.; Banert, K.; Sebti, S. Natural and synthetic phosphates: New and clean heterogeneous catalysts for the synthesis of 5-arylhydantoins. Appl. Catal. A Gen. 2006, 298, 261–264. [Google Scholar] [CrossRef]
  7. El Bamiki, R.; Raji, O.; Ouabid, M.; Elghali, A.; Khadiri Yazami, O.; Bodinier, J.-L. Phosphate Rocks: A Review of Sedimentary and Igneous Occurrences in Morocco. Minerals 2021, 11, 1137. [Google Scholar] [CrossRef]
  8. Tan, Y. Process Simulation of the Influence of Phosphate Rock Impurities on the Production Index of Superphosphate. IOP Conf. Ser. Earth Environ. Sci. 2021, 772, 012047–101254. [Google Scholar] [CrossRef]
  9. Glaser, B.; Lehr, V.-I. Biochar effects on phosphorus availability in agricultural soils: A meta-analysis. Sci. Rep. 2019, 9, 9338. [Google Scholar] [CrossRef] [Green Version]
  10. Anawati, J.; Azimi, G. Recovery and separation of phosphorus as dicalcium phosphate dihydrate for fertilizer and livestock feed additive production from a low-grade phosphate ore. RSC Adv. 2020, 10, 38640–38653. [Google Scholar] [CrossRef]
  11. Sebti, S.D.; Saber, A.; Rhihil, A.; Nazih, R.; Tahir, R. Claisen–Schmidt condensation catalysis by natural phosphate. Appl. Catal. A Gen. 2001, 206, 217–220. [Google Scholar] [CrossRef]
  12. Bazi, F.; El Badaoui, H.; Tamani, S.; Sokori, S.; Solhy, A.; Macquarrie, D.; Sebti, S. A facile synthesis of amides by selective hydration of nitriles using modified natural phosphate and hydroxyapatite as new catalysts. Appl. Catal. A Gen. 2006, 301, 211–214. [Google Scholar] [CrossRef]
  13. Dakkach, M.; Atlamsani, A.; Sebti, S. Natural phosphate as heterogeneous catalyst for oxidation of cyclic ketones to keto acids in environmentally friendly media. Mater. Environ. Sci. 2014, 5, 2122–2128. [Google Scholar]
  14. Fallah, A.; Tajbakhsh, M.; Vahedi, H.; Bekhradnia, A. Natural phosphate as an efficient and green catalyst for synthesis of tetraketone and xanthene derivatives. Res. Chem. Intermed. 2017, 43, 29–43. [Google Scholar] [CrossRef]
  15. Amini, A.; Fallah, A.; Cheng, C.; Tajbakhsh, M. Natural phosphate-supported Cu (II), an efficient and recyclable catalyst for the synthesis of xanthene and 1, 4-disubstituted-1, 2, 3-triazole derivatives. RSC Adv. 2018, 8, 41536–41547. [Google Scholar] [CrossRef] [Green Version]
  16. Ji, H.-X.; Huang, Z.-S.; Wang, L.; Cao, D. Quinoxaline-based organic dyes for efficient dye-sensitized solar cells: Effect of different electron-withdrawing auxiliary acceptors on the solar cell performance. Dyes Pigm. 2018, 159, 8–17. [Google Scholar] [CrossRef]
  17. Xing, Z.; Wu, W.; Miao, Y.; Tang, Y.; Zhou, Y.; Zheng, L.; Fu, Y.; Song, Z.; Peng, Y. Recent advances in quinazolinones as an emerging molecular platform for luminescent materials and bioimaging. Org. Chem. Front. 2021, 8, 1867–1889. [Google Scholar] [CrossRef]
  18. Li, Y.; Wang, Z.; Zhang, C.; Gu, P.; Chen, W.; Li, H.; Lu, J.; Zhang, Q. Thiadizoloquinoxaline-Based N-Heteroacenes as Active Elements for High-Density Data-Storage Device. ACS Appl. Mater. Interfaces 2018, 10, 15971–15979. [Google Scholar] [CrossRef]
  19. Ma, C.; Taghour, M.S.; Belal, A.; Mehany, A.B.; Mostafa, N.; Nabeeh, A.; Eissa, I.H.; Al-Karmalawy, A.A. Design and Synthesis of New Quinoxaline Derivatives as Potential Histone Deacetylase Inhibitors Targeting Hepatocellular Carcinoma: In Silico, In Vitro, and SAR Studies. Front. Chem. 2021, 9, 725135. [Google Scholar] [CrossRef]
  20. Khatoon, H.; Abdulmalek, E. Novel Synthetic Routes to Prepare Biologically Active Quinoxalines and Their Derivatives: A Synthetic Review for the Last Two Decades. Molecules 2021, 26, 1055. [Google Scholar] [CrossRef]
  21. Dânoun, K.; Essamlali, Y.; Amadine, O.; Mahi, H.; Zahouily, M. Eco-friendly approach to access of quinoxaline derivatives using nanostructured pyrophosphate Na 2 PdP 2 O 7 as a new, efficient and reusable heterogeneous catalyst. BMC Chem. 2020, 14, 6. [Google Scholar] [CrossRef]
  22. Rong, F.; Chow, S.; Yan, S.; Larson, G.; Hong, Z.; Wu, J. Structure–activity relationship (SAR) studies of quinoxalines as novel HCV NS5B RNA-dependent RNA polymerase inhibitors. Bioorg. Med. Chem. Lett. 2007, 17, 1663–1666. [Google Scholar] [CrossRef]
  23. Smits, R.A.; Lim, H.D.; Hanzer, A.; Zuiderveld, O.P.; Guaita, E.; Adami, M.; Coruzzi, G.; Leurs, R.; de Esch, I.J. Fragment Based Design of New H4 Receptor− Ligands with Anti-inflammatory Properties in Vivo. J. Med. Chem. 2008, 51, 2457–2467. [Google Scholar] [CrossRef]
  24. Hui, X.; Desrivot, J.; Bories, C.; Loiseau, P.M.; Franck, X.; Hocquemiller, R.; Figadère, B. Synthesis and antiprotozoal activity of some new synthetic substituted quinoxalines. Bioorg. Med. Chem. Lett. 2006, 16, 815–820. [Google Scholar] [CrossRef]
  25. Irfan, A.; Ahmad, S.; Hussain, S.; Batool, F.; Riaz, H.; Zafar, R.; Kotwica-Mojzych, K.; Mojzych, M. Recent Updates on the Synthesis of Bioactive Quinoxaline-Containing Sulfonamides. Appl. Sci. 2021, 11, 5702. [Google Scholar] [CrossRef]
  26. Maikhuri, V.K.; Prasad, A.K.; Jha, A.; Srivastava, S. Recent advances in the transition metal catalyzed synthesis of quinoxalines: A review. New J. Chem. 2021, 45, 13214–13246. [Google Scholar] [CrossRef]
  27. Dhakshinamoorthy, A.; Kanagaraj, K.; Pitchumani, K. Zn2+-K10-clay (clayzic) as an efficient water-tolerant, solid acid catalyst for the synthesis of benzimidazoles and quinoxalines at room temperature. Tetrahedron Lett. 2011, 52, 69–73. [Google Scholar] [CrossRef]
  28. Andriamitantsoa, R.S.; Wang, J.; Dong, W.; Gao, H.; Wang, G. SO3H-functionalized metal organic frameworks: An efficient heterogeneous catalyst for the synthesis of quinoxaline and derivatives. RSC Adv. 2016, 6, 35135–35143. [Google Scholar] [CrossRef]
  29. Pawar, O.B.; Chavan, F.R.; Suryawanshi, V.S.; Shinde, V.S.; Shinde, N.D. Thiamine hydrochloride: An efficient catalyst for one-pot synthesis of quinoxaline derivatives at ambient temperature. J. Chem. Sci. 2013, 125, 159–163. [Google Scholar] [CrossRef]
  30. Sharma, R.; Sharma, C. Zirconium (IV)-modified silica gel: Preparation, characterization and catalytic activity in the synthesis of some biologically important molecules. Catal. Commun. 2011, 12, 327–331. [Google Scholar] [CrossRef]
  31. Dang, G.H.; Vu, Y.T.H.; Dong, Q.A.; Le, D.T.; Truong, T.; Phan, N.T.S. Quinoxaline synthesis via oxidative cyclization reaction using metal–organic framework Cu(BDC) as an efficient heterogeneous catalyst. Appl. Catal. A Gen. 2015, 491, 189–195. [Google Scholar] [CrossRef]
  32. Tajbakhsh, M.; Bazzar, M.; Ramzanian, S.F.; Tajbakhsh, M. Sulfonated nanoClay minerals as a recyclable eco-friendly catalyst for the synthesis of quinoxaline derivatives in green media. Appl. Clay Sci. 2014, 88, 178–185. [Google Scholar] [CrossRef]
  33. Indalkar, K.S.; Khatri, C.K.; Chaturbhuj, G.U. Rapid, efficient and eco-friendly procedure for the synthesis of quinoxalines under solvent-free conditions using sulfated polyborate as a recyclable catalyst. J. Chem. Sci. 2017, 129, 141–148. [Google Scholar] [CrossRef] [Green Version]
  34. Jafarpour, M.; Rezapour, E.; Ghahramaninezhad, M.; Rezaeifard, A. A novel protocol for selective synthesis of monoclinic zirconia nanoparticles as a heterogeneous catalyst for condensation of 1,2-diamines with 1,2-dicarbonyl compounds. New J. Chem. 2014, 38, 676–682. [Google Scholar] [CrossRef]
  35. Aashish, O.; Mahadeo, A.; Machhindra, K.; Balasaheb, R. Synthesis of Quinoxaline Derivatives at Room Temperature Using Magnetic Material Separated from Coal Fly Ash. J. Korean Chem. Soc. 2013, 57, 73–80. [Google Scholar]
  36. Sebti, S.; Nazih, R.; Tahir, R.; Saber, A. Fluorapatite/sodium nitrate as a solid support for the Knoenenagel reaction. Synth. Commun. 2001, 31, 993–999. [Google Scholar] [CrossRef]
  37. Hassine, A.; Sebti, S.; Solhy, A.; Zahouily, M.; Len, C.; Hedhili, M.N.; Fihri, A. Palladium supported on natural phosphate: Catalyst for Suzuki coupling reactions in water. Appl. Catal. A Gen. 2013, 450, 13–18. [Google Scholar] [CrossRef]
  38. Bazi, F.; El Badaoui, H.; Tamani, S.; Sokori, S.; Oubella, L.; Hamza, M.; Boulaajaj, S.; Sebti, S. Catalysis by phosphates: A simple and efficient procedure for transesterification reaction. J. Mol. Catal. A Chem. 2006, 256, 43–47. [Google Scholar] [CrossRef]
  39. Moshaverinia, A.; Ansari, S.; Movasaghi, Z.; Billington, R.W.; Darr, J.A.; Rehman, I.U. Modification of conventional glass-ionomer cements with N-vinylpyrrolidone containing polyacids, nano-hydroxy and fluoroapatite to improve mechanical properties. Dent. Mater. 2008, 24, 1381–1390. [Google Scholar] [CrossRef]
  40. Elliott, J.C. Structure and Chemistry of the Apatites and Other Calcium Orthophosphates; Elsevier: Amsterdam, The Netherlands, 2013. [Google Scholar]
  41. Othmani, M.; Aissa, A.; Bac, C.G.; Rachdi, F.; Debbabi, M. Surface modification of calcium hydroxyapatite by grafting of etidronic acid. Appl. Surf. Sci. 2013, 274, 151–157. [Google Scholar] [CrossRef]
  42. Wang, H.; Sun, K.; Li, A.; Wang, W.; Chui, P. Size-controlled synthesis and characterization of fluorapatite nanocrystals in the presence of gelatin. Powder Technol. 2011, 209, 9–14. [Google Scholar] [CrossRef]
  43. Sebti, S.D.; Solhy, A.; Tahir, R.; Abdelatif, S.; Boulaajaj, S.D.; Mayoral, J.A.; Garcia, J.I.; Fraile, J.M.; Kossir, A.; Oumimoun, H. Application of natural phosphate modified with sodium nitrate in the synthesis of chalcones: A soft and clean method. J. Catal. 2003, 213, 1–6. [Google Scholar] [CrossRef]
  44. Dorozhkin, S.V.; Epple, M. Biological and medical significance of calcium phosphates. Angew. Chem. Int. Ed. 2002, 41, 3130–3146. [Google Scholar] [CrossRef]
  45. Saoiabi, S.; Laghzizil, A.; Lahlil, K.; Zrineh, A. Interaction of metal (II)-tetra (4-sulfonatophenyl) porphyrins with porous hydroxyapatite surfaces. J. Taiwan Inst. Chem. Eng. 2012, 43, 996–1001. [Google Scholar] [CrossRef]
  46. Ramananarivo, H.R.; Solhy, A.; Sebti, J.; Smahi, A.; Zahouily, M.; Clark, J.; Sebti, S. An Eco-Friendly Paradigm for the Synthesis of α-Hydroxyphosphonates Using Sodium-Modified Fluorapatite under Solventless Conditions. ACS Sustain. Chem. Eng. 2013, 1, 403–409. [Google Scholar] [CrossRef]
  47. Bachouâ, H.; Othmani, M.; Coppel, Y.; Fatteh, N.; Debbabi, M.; Badraoui, B. Structural and thermal investigations of a Tunisian natural phosphate rock. J. Mater. Environ. Sci. 2014, 5, 1152–1159. [Google Scholar]
  48. Musić, S.; Filipović-Vinceković, N.; Sekovanić, L. Precipitation of amorphous SiO2 particles and their properties. Braz. J. Chem. Eng. 2011, 28, 89–94. [Google Scholar] [CrossRef]
  49. Nezamzadeh-Ejhieh, A.; Zabihi-Mobarakeh, H. Heterogeneous photodecolorization of mixture of methylene blue and bromophenol blue using CuO-nano-clinoptilolite. J. Ind. Eng. Chem. 2014, 20, 1421–1431. [Google Scholar] [CrossRef]
  50. Chaïrat, C.; Oelkers, E.H.; Schott, J.; Lartigue, J.-E. Fluorapatite surface composition in aqueous solution deduced from potentiometric, electrokinetic, and solubility measurements, and spectroscopic observations. Geochim. Cosmochim. Acta 2007, 71, 5888–5900. [Google Scholar] [CrossRef] [Green Version]
  51. Chaïrat, C.; Schott, J.; Oelkers, E.H.; Lartigue, J.-E.; Harouiya, N. Kinetics and mechanism of natural fluorapatite dissolution at 25 C and pH from 3 to 12. Geochim. Cosmochim. Acta 2007, 71, 5901–5912. [Google Scholar] [CrossRef]
  52. Brunauer, S.; Deming, L.S.; Deming, W.E.; Teller, E. On a Theory of the van der Waals Adsorption of Gases. J. Am. Chem. Soc. 1940, 62, 1723–1732. [Google Scholar] [CrossRef]
  53. Nathanael, A.J.; Mangalaraj, D.; Hong, S.; Masuda, Y.; Rhee, Y.; Kim, H. Influence of fluorine substitution on the morphology and structure of hydroxyapatite nanocrystals prepared by hydrothermal method. Mater. Chem. Phys. 2013, 137, 967–976. [Google Scholar] [CrossRef]
  54. Smahi, A.; Solhy, A.; Tahir, R.; Sebti, S.; Mayoral, J.A.; García, J.I.; Fraile, J.M.; Zahouily, M. Preparation of α-hydroxyphosphonates over phosphate catalysts. Catal. Commun. 2008, 9, 2503–2508. [Google Scholar] [CrossRef]
  55. Ait Hmeid, H.; Akodad, M.; Baghour, M.; Moumen, A.; Skalli, A.; Azizi, G.; Gueddari, H.; Maach, M.; Aalaoul, M.; Anjjar, A.; et al. Valorization of Moroccan Bentonite Deposits: “Purification and Treatment of Margin by the Adsorption Process”. Molecules 2021, 26, 5528. [Google Scholar] [CrossRef]
  56. Elaheh Mosaddegh, A.H. Application and characterization of eggshell as a new biodegradable and heterogeneous catalyst in green synthesis of 7,8-dihydro-4H-chromen-5(6H)-ones. Catal. Commun. 2013, 33, 70–75. [Google Scholar] [CrossRef]
  57. Senamaud, N.; Bernache-Assollant, D.; Champion, E.; Heughebaert, M.; Rey, C. Calcination and sintering of hydroxyfluorapatite powders. Solid State Ion. 1997, 101, 1357–1362. [Google Scholar] [CrossRef]
  58. Huang, J.; Jiao, L.; Yang, Y.; Dong, Y.; Zhang, Y.; Chang, L.; Gong, M.; Li, J.; He, A.; Wang, X. Fe-6.5 wt% Si Powder Cores with Low Core Loss by Optimizing Particle Size Distribution. Metals 2020, 10, 1699. [Google Scholar] [CrossRef]
  59. Kale, S.R.; Kahandal, S.S.; Gawande, M.B.; Jayaram, R.V. Magnetically recyclable γ-Fe2O3–HAP nanoparticles for the cycloaddition reaction of alkynes, halides and azides in aqueous media. RSC Adv. 2013, 3, 8184–8192. [Google Scholar] [CrossRef]
  60. Parfitt, R.L.; Atkinson, R.J.; Smart, R.S.C. The Mechanism of Phosphate Fixation by Iron Oxides. Soil Sci. Am. J. 1975, 39, 837–841. [Google Scholar] [CrossRef]
  61. Ouda, K.; Danninger, H.; Gierl-Mayer, C.; Hellein, R.; Müller, A. Ferrothermal reduction of iron (III) phosphate insulating layers in soft magnetic composites. Powder Metall. 2021, 64, 351–359. [Google Scholar] [CrossRef]
  62. Siwek, H.; Bartkowiak, A.; Włodarczyk, M.; Sobecka, K. Removal of phosphate from aqueous solution using alginate/iron (III) chloride capsules: A laboratory study. Water Air Soil Pollut. 2016, 227, 427. [Google Scholar] [CrossRef] [Green Version]
  63. Gypser, S. Identification of Phosphate Adsorption Mechanisms on Fe- and Al-Hydroxides and the Influence of Inorganic and Organic Compounds to Reduce Long-Term Phosphorus Fixation on Mineral Surfaces; BTU Cottbus-Senftenberg: Cottbus, Germany, 2019. [Google Scholar]
  64. Kraushofer, F.; Jakub, Z.; Bichler, M.; Hulva, J.; Drmota, P.; Weinold, M.; Schmid, M.; Setvin, M.; Diebold, U.; Blaha, P.; et al. Atomic-Scale Structure of the Hematite α-Fe2O3(1102) “R-Cut” Surface. J. Phys. Chem. C 2018, 122, 1657–1669. [Google Scholar] [CrossRef] [Green Version]
  65. Borhade, A.V.; Tope, D.R.; Patil, D.R. Nanocrystalline 5% Fe/ZnO as an efficient catalyst for quinoxaline synthesis. Res. Chem. Intermed. 2013, 39, 1373–1383. [Google Scholar] [CrossRef]
  66. Elumalai, V.; Hansen, J.H. A Green, Scalable, and Catalyst-Free One-Minute Synthesis of Quinoxalines. SynOpen 2021, 5, 43–48. [Google Scholar]
  67. Robertson, R.; Heppolette, R.; Scott, J. A survey of thermodynamic parameters for solvolysis in water. Can. J. Chem. 1959, 37, 803–824. [Google Scholar] [CrossRef]
  68. Pysanenko, A.; Gámez, F.; Fárníková, K.; Pluhařová, E.; Fárník, M. Proton Transfer Reactions between Methanol and Formic Acid Deposited on Free Ar N Nanoparticles. J. Phys. Chem. A 2019, 123, 7201–7209. [Google Scholar] [CrossRef]
  69. Karasyova, O.N.; Ivanova, L.I.; Lakshtanov, L.Z.; Lövgren, L.; Sjöberg, S. Complexation of gold (III)-chloride at the surface of hematite. Aquat. Geochem. 1998, 4, 215–231. [Google Scholar] [CrossRef]
  70. Wu, Y.-J.; Tsai, T.W.; Huang, S.-J.; Mou, Y.; Lin, C.-J.; Chan, J.C. Hydrogen bond formation between citrate and phosphate ions in spherulites of fluorapatite. Langmuir 2013, 29, 11681–11686. [Google Scholar] [CrossRef]
  71. Nandi, G.C.; Samai, S.; Kumar, R.; Singh, M. Silica-Gel–Catalyzed Efficient Synthesis of Quinoxaline Derivatives Under Solvent-Free Conditions. Synth. Commun. 2011, 41, 417–425. [Google Scholar] [CrossRef]
  72. Kataria, M.; Pramanik, S.; Kaur, N.; Kumar, M.; Bhalla, V. Ferromagnetic α-Fe2O3 NPs: A potential catalyst in Sonogashira–Hagihara cross coupling and hetero-Diels–Alder reactions. Green Chem. 2016, 18, 1495–1505. [Google Scholar] [CrossRef]
  73. Huang, T.-k.; Wang, R.; Shi, L.; Lu, X.-x. Montmorillonite K-10: An efficient and reusable catalyst for the synthesis of quinoxaline derivatives in water. Catal. Commun. 2008, 9, 1143–1147. [Google Scholar] [CrossRef]
  74. Jafarpour, M.; Rezaeifard, A.; Danehchin, M. Easy access to quinoxaline derivatives using alumina as an effective and reusable catalyst under solvent-free conditions. Appl. Catal. A Gen. 2011, 394, 48–51. [Google Scholar] [CrossRef]
  75. Kadam, H.K.; Khan, S.; Kunkalkar, R.A.; Tilve, S.G. Graphite catalyzed green synthesis of quinoxalines. Tetrahedron Lett. 2013, 54, 1003–1007. [Google Scholar] [CrossRef]
  76. Ziarani, G.M.; Badiei, A.; Haddadpour, M. Application of sulfonic acid functionalized nanoporous silica (SBA-Pr-SO3H) for one-pot synthesis of quinoxaline derivatives. Int. J. Chem. 2011, 3, 87–94. [Google Scholar]
  77. Khaksar, S.; Tajbakhsh, M.; Gholami, M.; Rostamnezhad, F. A highly efficient procedure for the synthesis of quinoxaline derivatives using polyvinylpolypyrrolidone supported triflic acid catalyst (PVPP· OTf). Chin. Chem. Lett. 2014, 25, 1287–1290. [Google Scholar] [CrossRef]
  78. Kolvari, E.; Zolfigol, M.A.; Koukabi, N.; Gilandust, M.; Kordi, A.-V. Zirconium triflate: An efficient catalyst for the synthesis of quinolines and quinoxalines. J. Iran. Chem. Soc. 2013, 10, 1183–1191. [Google Scholar] [CrossRef]
  79. Brahmachari, G.; Laskar, S.; Barik, P. Magnetically separable MnFe2O4 nano-material: An efficient and reusable heterogeneous catalyst for the synthesis of 2-substituted benzimidazoles and the extended synthesis of quinoxalines at room temperature under aerobic conditions. RSC Adv. 2013, 3, 14245–14253. [Google Scholar] [CrossRef]
  80. Rekha, M.; Kathyayini, H.; Nagaraju, N. Catalytic activity of manganese oxide supported on alumina in the synthesis of quinoxalines. Front. Chem. Sci. Eng. 2013, 7, 415–421. [Google Scholar] [CrossRef]
  81. Darabi, H.R.; Aghapoor, K.; Mohsenzadeh, F.; Taala, F.; Asadollahnejad, N.; Badiei, A. Silica-supported antimony (III) chloride as highly effective and reusable heterogeneous catalyst for the synthesis of quinoxalines. Catal. Lett. 2009, 133, 84–89. [Google Scholar] [CrossRef]
  82. Aghapoor, K.; Darabi, H.R.; Mohsenzadeh, F.; Balavar, Y.; Daneshyar, H. Zirconium (IV) chloride as versatile catalyst for the expeditious synthesis of quinoxalines and pyrido [2, 3-b] pyrazines under ambient conditions. Transit. Met. Chem. 2010, 35, 49–53. [Google Scholar] [CrossRef]
  83. Darabi, H.R.; Aghapoor, K.; Mohsenzadeh, F.; Jalali, M.R.; Talebian, S.; Ebadi-Nia, L.; Khatamifar, E.; Aghaee, A. Heterogeneous SnCl2/SiO2 versus homogeneous SnCl2 acid catalysis in the benzo [N, N]-heterocyclic condensation. Bull. Korean Chem. Soc. 2011, 32, 213–218. [Google Scholar] [CrossRef] [Green Version]
  84. Darabi, H.R.; Tahoori, F.; Aghapoor, K.; Taala, F.; Mohsenzadeh, F. NH4Cl-CH3OH: An efficient, acid-and metal-free catalyst system for the synthesis of quinoxalines. J. Braz. Chem. Soc. 2008, 19, 1646–1652. [Google Scholar] [CrossRef]
  85. Bennazha, J.; Zahouilly, M.; Boukhari, A.; Holt, E.M. Investigation of the basis of catalytic activity of solid state phosphate complexes in the Knoevenagel condensation. J. Mol. Catal. A Chem. 2003, 202, 247–252. [Google Scholar] [CrossRef]
  86. Bennazha, J.; Zahouily, M.; Sebti, S.; Boukhari, A.; Holt, E. Na2CaP2O7, a new catalyst for Knoevenagel reaction. Catal. Commun. 2001, 2, 101–104. [Google Scholar] [CrossRef]
  87. Wu, L.; Forsling, W.; Schindler, P.W. Surface complexation of calcium minerals in aqueous solution: 1. Surface protonation at fluorapatite—water interfaces. J. Colloid Interface Sci. 1991, 147, 178–185. [Google Scholar] [CrossRef]
  88. Baghbanian, S.M.; Farhang, M. Protic [TBD][TFA] ionic liquid as a reusable and highly efficient catalyst for N-formylation of amines using formic acid under solvent-free condition. J. Mol. Liq. 2013, 183, 45–49. [Google Scholar] [CrossRef]
  89. Manna, C.; Samanta, S.K.; Ghosh, S.K.; Pathak, T. Synthesis of 1, 8-dioxo-octahydroxanthene C-nucleosides. Tetrahedron Lett. 2013, 54, 3971–3973. [Google Scholar] [CrossRef]
Ijms 22 13665 sch001 550

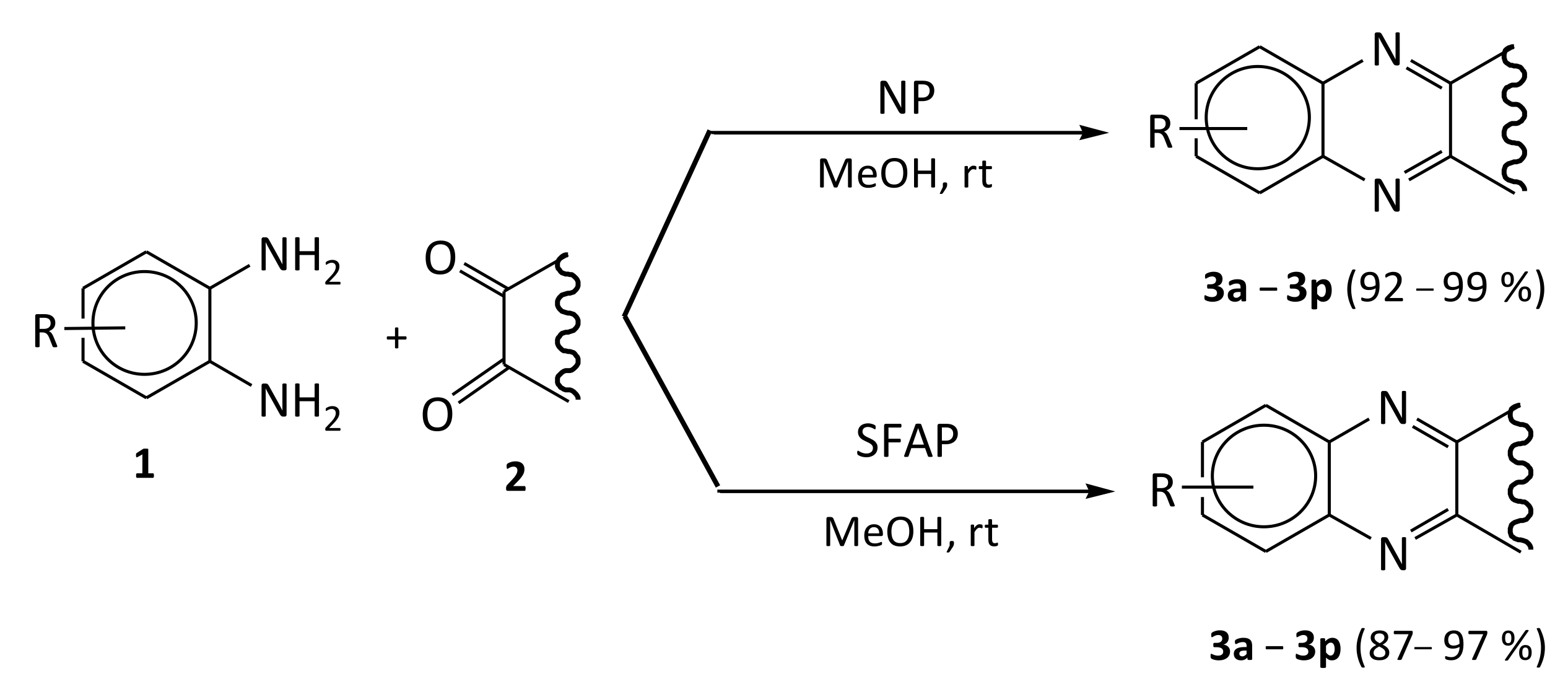

Scheme 1. NP and SFAP as heterogeneous catalysts for the synthesis of quinoxalines.
Scheme 1. NP and SFAP as heterogeneous catalysts for the synthesis of quinoxalines.
Ijms 22 13665 sch001
Ijms 22 13665 g001 550
Figure 1. FT-IR spectra of: (a) NP, and (b) SFAP.
Figure 1. FT-IR spectra of: (a) NP, and (b) SFAP.
Ijms 22 13665 g001
Ijms 22 13665 g002 550
Figure 2. XRD patterns of: (a) NP; the blue triangle is showing the diffraction peak of coesite, SiO2 (JCPDS 72-1601) [48], and (b) SFAP. (Red numbers represent the crystalline planes).
Figure 2. XRD patterns of: (a) NP; the blue triangle is showing the diffraction peak of coesite, SiO2 (JCPDS 72-1601) [48], and (b) SFAP. (Red numbers represent the crystalline planes).
Ijms 22 13665 g002
Ijms 22 13665 g003 550
Figure 3. Determining pHpzc of NP.
Figure 3. Determining pHpzc of NP.
Ijms 22 13665 g003
Ijms 22 13665 g004 550
Figure 4. N2 adsorption–desorption isotherm (BET) of: (a) NP, and (b) 6-recycled NP.
Figure 4. N2 adsorption–desorption isotherm (BET) of: (a) NP, and (b) 6-recycled NP.
Ijms 22 13665 g004
Ijms 22 13665 g005 550
Figure 5. Pore size distributions curve (BJH) of: (a) NP, and (b) 6-recycled NP.
Figure 5. Pore size distributions curve (BJH) of: (a) NP, and (b) 6-recycled NP.
Ijms 22 13665 g005
Ijms 22 13665 g006 550
Figure 6. SEM images of: (a) NP, and (b) 6-recycled NP.
Figure 6. SEM images of: (a) NP, and (b) 6-recycled NP.
Ijms 22 13665 g006
Ijms 22 13665 sch002 550
Scheme 2. NP is composed of different oxides (P2O5, CaO, Fe2O3 and SiO2) that are placed together in its crystalline structure. In the proposed mechanism for the reaction by NP as the catalyst (Scheme 3), surface oxygens of NP adsorbed hydrogens of amino group (N_H) through hydrogen bonding to form hydroxyl group on these oxides like hematite (Fe2O3). Through hydrogen bonding, this protonated hematite is adsorbed on phosphate to form binuclear complex of hematite (Fe2O3) and phosphate (P2O5, PO43-), or HFe3PO7 (1 and 2). Hydrogen atom in hydrogen bonding could be closer either to oxygen atoms of (1) hematite or (2) phosphate. (3) Proposed mechanism for the Fe2O3 losses from NP during the reactions [63].
Scheme 2. NP is composed of different oxides (P2O5, CaO, Fe2O3 and SiO2) that are placed together in its crystalline structure. In the proposed mechanism for the reaction by NP as the catalyst (Scheme 3), surface oxygens of NP adsorbed hydrogens of amino group (N_H) through hydrogen bonding to form hydroxyl group on these oxides like hematite (Fe2O3). Through hydrogen bonding, this protonated hematite is adsorbed on phosphate to form binuclear complex of hematite (Fe2O3) and phosphate (P2O5, PO43-), or HFe3PO7 (1 and 2). Hydrogen atom in hydrogen bonding could be closer either to oxygen atoms of (1) hematite or (2) phosphate. (3) Proposed mechanism for the Fe2O3 losses from NP during the reactions [63].
Ijms 22 13665 sch002
Ijms 22 13665 sch003 550
Scheme 3. Proposed mechanism for the synthesis of quinoxaline using NP as the catalyst.
Scheme 3. Proposed mechanism for the synthesis of quinoxaline using NP as the catalyst.
Ijms 22 13665 sch003
Ijms 22 13665 g007 550
Figure 7. EDX spectra of: (a) NP and (b) 6-recycled NP.
Figure 7. EDX spectra of: (a) NP and (b) 6-recycled NP.
Ijms 22 13665 g007
Ijms 22 13665 g008 550
Figure 8. Recyclability of NP for the synthesis of quinoxaline 3a. Reaction conditions: with 1,2-Penylen-diamine (1 mmol), benzil (1 mmol) and NP (0.003 g) in MeOH (5 mL) at room temperature.
Figure 8. Recyclability of NP for the synthesis of quinoxaline 3a. Reaction conditions: with 1,2-Penylen-diamine (1 mmol), benzil (1 mmol) and NP (0.003 g) in MeOH (5 mL) at room temperature.
Ijms 22 13665 g008
Table
Table 1. Average crystallite size of the samples.
Table 1. Average crystallite size of the samples.
Entry SampleAverage Crystallite Size
D (nm)
1NP155.76
2SFAP75.98
Table
Table 2. Surface area, pore volume and average pore size of NP and 6-recycled NP.
Table 2. Surface area, pore volume and average pore size of NP and 6-recycled NP.
CatalystSurface Area (m2/g)Pore Volume (cm3/g)Average Pore Size (nm)
NP2.081 (BET) 1.948 (BJH)0.0073.675
6-recycled NP0.761 (BET) 0.426 (BJH)0.0015.784
Table
Table 3. Effect of various solvents on the synthesis of 3a by using NP as the catalyst.
Table 3. Effect of various solvents on the synthesis of 3a by using NP as the catalyst.
Ijms 22 13665 i001
EntrySolventTime (min)Isolated Yield 3a (%)
1H2O12098
2EtOH3095
3MeOH1098
4EtOH:H2O (1:1)12096
5EtOAc12070
6CH3CN9093
7Et2O3091
81,4-dioxane2093
9DMSO3091
Table
Table 4. Effect of various amounts of catalyst on the synthesis of 3a.
Table 4. Effect of various amounts of catalyst on the synthesis of 3a.
Ijms 22 13665 i002
EntryCatalystQuantity of Catalyst (g)Time (min)Isolated Yield 3a (%)
1--12070
2NP0.001387
3NP0.002290
4NP0.003298
5NP0.004298
6NP0.005298
7SFAP0.0059095
8SFAP0.016095
9Fe2O30.0115098
10SiO20.0112098
Table
Table 5. Synthesis of quinoxalines 3 by using NP and SFAP as catalysts.
Table 5. Synthesis of quinoxalines 3 by using NP and SFAP as catalysts.
EntryDiketoneProduct 3Time/Isolated Yield 3 (min/%)
NPSFAP
1 Ijms 22 13665 i003 Ijms 22 13665 i0042/98 60/95
2 Ijms 22 13665 i005 Ijms 22 13665 i0061/9960/97
3 Ijms 22 13665 i007 Ijms 22 13665 i0082/9955/95
4 Ijms 22 13665 i009 Ijms 22 13665 i0101/9960/97
5 Ijms 22 13665 i011 Ijms 22 13665 i01230/9590/92
6 Ijms 22 13665 i013 Ijms 22 13665 i01440/96100/88
7 Ijms 22 13665 i015 Ijms 22 13665 i01615/9370/90
8 Ijms 22 13665 i017 Ijms 22 13665 i01810/9570/92
9 Ijms 22 13665 i019 Ijms 22 13665 i02012/9780/95
10 Ijms 22 13665 i021 Ijms 22 13665 i02212/9570/88
11 Ijms 22 13665 i023 Ijms 22 13665 i02410/9770/95
12 Ijms 22 13665 i025 Ijms 22 13665 i02645/90120/87
13 Ijms 22 13665 i027 Ijms 22 13665 i02810/9380/92
14 Ijms 22 13665 i029 Ijms 22 13665 i0305/9470/91
15 Ijms 22 13665 i031 Ijms 22 13665 i03220/96110/92
16 Ijms 22 13665 i033 Ijms 22 13665 i03430/92120/89
Reaction condition: 1,2-diamine (1 mmol), 1,2-diketone (1 mmol), methanol (5 mL), NP (0.003 g) or SFAP (0.01 g) at room temperature.
Table
Table 6. Synthesis of quinoxaline using different catalysts.
Table 6. Synthesis of quinoxaline using different catalysts.
EntryCatalystTemperature/Solvent/Time
(°C/-/min) 		Yield 3a (%)Reference
1Mont K-10 (10 mol %)25/H2O/150100[73]
2Alumin a (0.2 g)80/Solvent-free/296[74]
3Silica gel (1.0 g)Grind,100/Solvent-free/4594[71]
4Graphite (2 mmol)rt/EtOH/6092[75]
5Zr-CAP-SGart/EtOH/9092[30]
6SBA-Pr-SO3H b (0.02 g)rt/CH2Cl2/1095[76]
7PVPP.OTf c (30 mg)rt/H2O/6090[77]
8Nano ZrO2 (0.004 g)60/EtOH/295[78]
9MnFe2O4 NP d (10 mol%)rt/EtOH/15091[79]
10Mn/Al2O350/EtOH:H2O/4595[80]
11SbCl3/SiO2 (2.5 mol %)rt/MeOH/6098[81]
12ZrCl4 (5 mol%)rt/ MeOH/24098[82]
13SnCl2/SiO2 (5 mol%)rt/ MeOH/4100[83]
14NH4Cl (200 mol%)rt/ MeOH/5100[84]
15MIL-101-Cr-NH-RSO3H e (3.9 mol% -SO3H)45/MeOH/591[28]
16Nanostructured pyrophosphate Na2PdP2O7rt/ EtOH/3098[21]
17NP (0.003 g)rt/MeOH/298This study
18SFAP (0.01 g)rt/MeOH/6095This study
Reaction conditions: 1,2-Penylen-diamine (1 mmol), benzil (1 mmol) and catalyst. a Zr (IV) modified on silica gel. b Sulfonic Acid Functionalized Nanoporous Silica (SBA-Pr- SO3H). c Polyvinylpolypyrrolidone supported triflic acid (PVPP.OTf). d MnFe2O4 nanoparticles. e Alkyl sulfonate functionalized metal organic frameworks (MOFs).
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Amini, A.; Fallah, A.; Sedaghat, A.; Gholami, A.; Cheng, C.; Gupta, A.R. Natural vs. Synthetic Phosphate as Efficient Heterogeneous Compounds for Synthesis of Quinoxalines. Int. J. Mol. Sci. 2021, 22, 13665. https://doi.org/10.3390/ijms222413665

AMA Style

Amini A, Fallah A, Sedaghat A, Gholami A, Cheng C, Gupta AR. Natural vs. Synthetic Phosphate as Efficient Heterogeneous Compounds for Synthesis of Quinoxalines. International Journal of Molecular Sciences. 2021; 22(24):13665. https://doi.org/10.3390/ijms222413665

Chicago/Turabian Style

Amini, Abbas, Azadeh Fallah, Ahmad Sedaghat, Ahmad Gholami, Chun Cheng, and Anju R. Gupta. 2021. "Natural vs. Synthetic Phosphate as Efficient Heterogeneous Compounds for Synthesis of Quinoxalines" International Journal of Molecular Sciences 22, no. 24: 13665. https://doi.org/10.3390/ijms222413665

APA Style

Amini, A., Fallah, A., Sedaghat, A., Gholami, A., Cheng, C., & Gupta, A. R. (2021). Natural vs. Synthetic Phosphate as Efficient Heterogeneous Compounds for Synthesis of Quinoxalines. International Journal of Molecular Sciences, 22(24), 13665. https://doi.org/10.3390/ijms222413665

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
