Article

Development of Injectable Calcium Sulfate and Self-Setting Calcium Phosphate Composite Bone Graft Materials for Minimally Invasive Surgery

by
Yu-Hsun Chiu
1,2,†,
I-Cheng Chen
3,4,†,
Chen-Ying Su
4,
Hsin-Hua Tsai
4,
Tai-Horng Young
1,* and
Hsu-Wei Fang
3,4,5,*
1
Institute of Biomedical Engineering, College of Medicine and College of Engineering, National Taiwan University, Taipei 10617, Taiwan
2
Shin Kong Wu Ho-Su Memorial Hospital, Taipei 11101, Taiwan
3
Accelerator for Happiness and Health Industry, National Taipei University of Technology, No. 1, Sec. 3, Zhongxiao E. Rd., Taipei 10608, Taiwan
4
Department of Chemical Engineering and Biotechnology, National Taipei University of Technology, No. 1, Sec. 3, Zhongxiao E. Rd., Taipei 10608, Taiwan
5
Institute of Biomedical Engineering and Nanomedicine, National Health Research Institutes, Miaoli City 35053, Taiwan
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Int. J. Mol. Sci. 2022, 23(14), 7590; https://doi.org/10.3390/ijms23147590
Submission received: 9 June 2022 / Revised: 2 July 2022 / Accepted: 6 July 2022 / Published: 8 July 2022
(This article belongs to the Special Issue Biomaterials and Antimicrobial Materials for Orthopaedic Application)
Browse Figures
Versions Notes

Abstract

:
The demand of bone grafting is increasing as the population ages worldwide. Although bone graft materials have been extensively developed over the decades, only a few injectable bone grafts are clinically available and none of them can be extruded from 18G needles. To overcome the existing treatment limitations, the aim of this study is to develop ideal injectable implants from biomaterials for minimally invasive surgery. An injectable composite bone graft containing calcium sulfate hemihydrate, tetracalcium phosphate, and anhydrous calcium hydrogen phosphate (CSH/CaP paste) was prepared with different CSH/CaP ratios and different concentrations of additives. The setting time, injectability, mechanical properties, and biocompatibility were evaluated. The developed injectable CSH/CaP paste (CSH/CaP 1:1 supplemented with 6% citric acid and 2% HPMC) presented good handling properties, great biocompatibility, and adequate mechanical strength. Furthermore, the paste was demonstrated to be extruded from a syringe equipped with 18G needles and exerted a great potential for minimally invasive surgery. The developed injectable implants with tissue repairing potentials will provide an ideal therapeutic strategy for minimally invasive surgery to apply in the treatment of maxillofacial defects, certain indications in the spine, inferior turbinate for empty nose syndrome (ENS), or reconstructive rhinoplasty.

1. Introduction

Bone grafting is one of the most commonly used surgical methods for bone regeneration since bone defects resulting from diseases, trauma, or surgery have become a significant health issue globally. Over two million bone grafting procedures are performed annually worldwide, and the demand is dramatically increasing as population ageing is a serious problem in many countries [1,2]. Although an autologous bone graft is still considered as the gold standard in terms of better biocompatibility, high bioactivity, and non-immunogenicity, limited availability and donor site morbidity are the major concerns.
Since the risks of disease transmission and an immunogenic response are downsides of allografts and xenografts, there has been great interest in the use of synthetic biomaterials as bone graft implants [3]. Degradable materials such as bioceramics are alternatives to avoid donor site injury and superior for bone repairs due to their improved biocompatibility, osteoconductivity, consistent material properties, and low cost. Among them, calcium sulfate (CS) and calcium phosphate (CaP) have demonstrated the ability to partially integrate into bone tissue and stimulate osteoblast growth and have been widely used in the place of allografts or autografts for several decades [4,5,6,7,8,9]. CS possesses several desirable properties including a low curing temperature, rapid setting, biocompatibility, biodegradability, and promotion of bone healing. Nevertheless, the fast resorption of CS before new bone formation may result in gaps and negatively affect its clinical outcome. CaPs are biocompatible, biodegradable, and highly porous materials that possess similarity in structure to the inorganic composition of bone minerals, and under in vivo conditions it can transform to hydroxyapatite (HA), which is the dominant mineral phase of vertebral tooth and bone tissue. Although CaP exerts osteoconductivity to achieve bone regeneration, it typically lacks mechanical stability, which limits its clinical applications [10].
Although bone graft materials have been extensively developed over the decades, only a few injectable bone grafts are clinically available and none of them can be extruded from 18G needles [11,12]. An ideal bone graft for minimally invasive surgery should have a good injectability, a controlled working time/setting time, and an ease of handling and delivery. In this study, we prepared a novel bone graft substitute by combining the properties of CS and CaP as a composite bone graft with great injectability, adequate handling, and mechanical properties that can be used for further development for performing minimally invasive surgery.

2. Results

2.1. The Synthesis of Calcium Sulfate Hemihydrate (CSH, CaSO4·0.5H2O)

CS has been approved by the U.S. Food and Drug Administration (FDA) as a bone graft material due to its non-toxicity, superb workability, good biocompatibility, and osteoconductivity, and the hemihydrate form of CS (calcium sulfate hemihydrate, CSH, CaSO4·0.5H2O) is known to be suitable for clinical applications such as a bone void filler and is widely used in orthopedics and dentistry [5,9,13,14,15,16]. In our previous studies, we have developed a hydrothermal method to produce self-prepared CSH by high vapor pressure of water [17,18]. Figure 1a shows the rod-like morphology of CSH observed by scanning electronic microscopy (SEM) and the size of the CSH specimen is smaller than 40 μm. CSH underwent Fourier transform infrared spectroscopy (FTIR) analysis to determine the functional groups and the results of the FTIR spectra are displayed in Figure 1b, indicating typical profiles corresponding to the CSH structure. X-ray diffraction (XRD) analysis was conducted to evaluate the conversion of the calcium sulphate dihydrate (CSD) phase to the CSH phase after heating in CaCl2 solution, and all of the corresponding XRD peaks were analyzed according to the Joint Committee on Powder Diffraction Standards (JCPDS). Figure 1c presents the typical CSH XRD peaks, revealing the presence and the synthesis of CSH from the CSD phase [19]. The homemade CSH was further used to produce composite bone materials.

2.2. Altering the Handling Property of CSH/CaP Composite Bone Materials by Citric Acid

The fast resorption of CSH before new bone formation is the main limitation of this material and it may result in gaps and negatively affect its clinical outcome for the regeneration of bone. CaPs are biocompatible, biodegradable, and highly porous material that possess a similarity in structure to the inorganic composition of bone minerals, exerting osteoconductivity to achieve bone regeneration, but typically lack mechanical stability [10]. Basic CaP cement is relatively stable chemically under physiological conditions and may still be present even after years in vivo. In this study, we prepared a novel injectable bone graft substitute by combining the properties of CSH and CaP (tetracalcium phosphate and dicalcium phosphate anhydrous; TTCP and DCPA) as a composite bone graft for minimally invasive surgery. TTCP (Ca4(PO4)2O) was selected because it contains a higher Ca/P ratio and forms HA under physiological conditions when combined with an acidic calcium phosphate such as DCPA (CaHPO4) [20].
To prepare injectable bone graft materials, CSH and CaP (equal amount of TTCP and DCPA) were firstly combined in a 1:3 ratio as powder components and then mixed with liquid to form a paste, which can be delivered into defects by injection. Although this paste could be fully injected from the syringe equipped with 18G needles, the setting time was longer than 120 min (Table 1, Figure 2). Additives such as citric acid are known to change the setting reaction and improve the injectability of CaP cements [21,22], thus, various concentrations (2~20%) of citric acid were added into the powder component to prepare bone graft materials. As Table 1 shows, the setting time decreased greatly with an increased concentration of citric acid. When the bone materials were supplemented with 4% to 20% of citric acid, the setting time was reduced, ranging from 68 min to 31 min. Figure 2 presents the influence of the content of citric acid on the injectability of the CSH/CaP pastes and the results indicated that the materials lost injectability when concentrations of citric acid were 10%, 15%, and 20% (Figure 2).

2.3. Effects of CSH/CaP Ratio on Mechanical Properties

Next, bone materials with combining equimolar amounts of CSH and CaP (1:1) were prepared as presented in Table 2, and the setting and mechanical properties were examined and compared with the CSH/CaP (1:3) composite. Four groups were classified based on the percent of citric acid (0, 2, 4, and 6%) and all groups were injectable from 18G needles (Figure 3). The setting time was greatly reduced with the addition of citric acid (4% and 6%, 39 min and 31 min, Table 2). Interestingly, the setting time of the CSH/CaP (1:1) group (Figure 4a, black bar) was significantly shorter than the CSH/CaP (1:3) group (Figure 4a, white bar) when the concentration of citric acid was 4% (39 min vs. 68 min, p = 0.044). The mechanical properties of CSH/CaP paste were tested by a universal mechanical testing machine. As shown in Figure 4b, the compressive strength was also significantly higher when the CSH/CaP ratio was 1:1 supplemented with 4% or 6% of citric acid (4% citric acid, CSH/CaP 1:3 vs. 1:1, 0.16 vs. 0.49 MPa, p = 0.024; 6% citric acid, CSH/CaP 1:3 vs. 1:1, 0.55 vs. 2.11 MPa, p = 0.001). Altogether, CSH/CaP at a ratio of 1:1 was selected for further optimization of the bone materials.

2.4. Effects of Hydroxyl Propyl methyl Cellulose (HPMC) on the Properties CSH/CaP Composite Bone Graft Materials

The CaP cement is vulnerable to wash out before hardening occurs. The presence of additives such as hydroxyl propyl methyl cellulose (HPMC) was previously shown to affect handling properties, washout resistance, cement hardening behavior, and mechanical properties of calcium phosphate cements [18,23]; thus, 2% of HPMC was added to the powder phase of CSH/CaP (1:1) bone materials and examined (Table 3). The setting time was 54 min or 36 min when CSH/CaP (1:1) bone materials were supplemented with 2% HPMC contained 4% citric acid or 6% citric acid, respectively (Table 3). As shown in Figure 5, both HPMC added groups showed injectability with either 4% or 6% citric acid. In terms of HPMC content, the setting time was not changed when it was increased from 0 to 2% (Figure 6a). By contrast, the addition of 2% HPMC significantly enhanced the compressive strength of the CSH/CaP bone materials (Figure 6b; 4% citric acid, 0% HPMC vs. 2% HPMC, 0.49 vs. 2.86 MPa, p < 0.001; 6% citric acid, 0% HPMC vs. 2% HPMC, 2.11 vs. 5.85 MPa, p < 0.001).
To further investigate the washout resistant property from HPMC addition, cement specimens were disintegrated in PBS with agitation for 12 weeks. Surprisingly, from the degradation results in Figure 7a, it can be seen that the addition of HPMC did not statistically alter the weight loss of specimens. The pH values of specimens were dropped from 7.4 (week 0) to around 6.6–7.1 (week 12) and showed no significant difference with or without HPMC (Figure 7b,c).
In general, CaP cement sets in situ with an intimate adaptation to the defect surfaces and forms an implant similar to hydroxyapatite. Therefore, the samples fabricated with equimolar amounts of CSH and CaP (1:1), 6% citric acid and 2% of HPMC were tested by the XRD method to determine the extent of chemical conversion. Figure 8 presented that the HAp peaks appeared in the XRD profiles through incubation for 12 weeks, indicating the transformation of TTCP and DCPD to HAp.

2.5. In Vitro Cytotoxicity of CSH/CaP Paste

To evaluate the cell toxicity of CSH/CaP composite paste (CSH/CaP 1:1, 6% citric acid, 2% HPMC), the specimen was immersed in culture medium and the extract from the bone material was used for culturing with L929 cells for the MTT test. As Figure 9 shows, the average cell viability from the extract group was 95.73% (>70%), indicating the CSH/CaP composite paste shall be considered non-cytotoxic for future applications.

3. Discussion

One initial objective of this study was to create an injectable and moldable bone graft from synthetic materials in place of an autograft to avoid invasive surgical procedures and eliminate donor site morbidity caused by harvesting autografts, especially for minimally invasive surgeries to treat maxillofacial defects or empty nose syndrome (ENS). We utilized CSH and CaP as biomaterials to obtain an ideal composite product with biocompatible, degradable, and osteoconductive properties. The advantage of this material is that it can be adjusted to the target place with different shapes by a minimally invasive procedure.

3.1. Effects of Citric Acid on Setting Time and Injectability

To control the setting process of CaP cements, several parameters including the particle size, the composition of the cement reactants, and the additives could be adjusted to alter their handling and mechanical properties. As Table 1 and Figure 4 and Figure 6 show, supplementing with citric acid reduced the working/setting time and improved the compressive strength of CSH/CaP composite materials. However, the bone graft materials lost their injectability when the concentration of citric acid was higher than 10%. Citric acid was proposed to act as a water-reducing agent [21]. Our results match those mentioned in earlier studies that adding sodium salts of the oligocarboxylic acids (malic, tartaric, and citric acids) with optimal concentrations to CaP cement caused a liquefying effect combined with an enhancement of the mechanical strength. It was also hypothesized that citric acid could improve the injectability and strength of apatite cements because of the reduced porosity or homogeneous and denser microstructure of CaP cement that worked as the base of growth and entanglement of apatite crystals [21,24,25]. It is worth mentioning that the paste developed in this study possesses a great injectability such that it could be extruded through 18G needles, differing from other published injectable pastes [11,25,26,27].

3.2. Effects of the Ratio of CSH and CaP

In addition to citric acid, the trends noted in Figure 4b presented that the mixture ratio of CSH/CaP also influenced the mechanical capacity of the materials. There was a significant positive correlation between the compressive strength and the ratio of CSH in the mixture. This finding suggested that while the lack of mechanical strength is a drawback of CaP, CSH could be a good compatible material to offer further improvements to their mechanical properties and wider applications [28,29,30].

3.3. Effects of HPMC on Anti-Washout Ability and Mechanical Property

Numerous biopolymers, such as sodium alginate, HPMC, hyaluronic acid, chitosan, and modified starch have been reported to increase the viscosity of bone grafts to improve the cohesion and anti-washout ability [31,32,33,34,35,36]. As mentioned in the reports above, small amounts of these biopolymers could notably improve the cohesion and anti-washout of CaP cements. Evidence showed that that the handling properties were greatly improved by the addition of gelling agents such as HPMC, carboxyl methylcellulose (CMC), and chitosan in TTCP and DCPA [33]. The addition of 1% HPMC notably increased the paste injectability of dicalcium phosphate dihydrate [11]. HPMC is one of the most commonly occurring polysaccharides derived from alkali-treated cellulose and is often used as a gelling agent. In terms of HPMC content, our previous study showed that an increased proportion of HPMC exerted an anti-washout property of calcium sulfate/calcium phosphate premixed putty, leading to less decay and larger disintegrating particles [18]. In this study, 2% of HPMC as a polymer carrier was expected to function as a matrix, increase the viscosity of the paste, and improve the washout resistance of bone cement. Surprisingly, the addition of 2% HPMC was found to have no significant effect on the degradation of CSH/CaP paste. Despite the obscure effect of the anti-washout property in this study, HPMC indeed enhanced the mechanical strength (Figure 6b), which might be determined by its microstructure. The relationship between microstructure and mechanical property in this study is worth further investigation. In addition, an increase in the compressive strength of the CaP cements could be due to the transformation of TTCP and DCPD to Hap, or partial CSD to Hap [25]. Figure 8 provided the evidence that TTCP and DCPD partially transformed to Hap. Animal tests with the injectable paste (CSH/CaP 1:1 supplemented with 6% citric acid and 2% HPMC) will be performed in the near future to further confirm the bone repair effects in vivo.

3.4. Possible Clinical Applications

The compressive strength of the injectable paste (CSH/CaP 1:1 supplemented with 6% citric acid and 2% HPMC) in this study was around 5.85 MPa, which is similar to that of human cancellous bone (between 4 and 12 MPa) and is suitable for low load bearing applications such as the treatment of maxillofacial defects, certain indications in the spine, reconstructive rhinoplasty, or inferior turbinate for ENS.
ENS is recognized as an iatrogenic condition, most frequently following aggressive inferior turbinate resection [37,38,39]. The symptoms are most often referred as the presence of paradoxical nasal obstruction despite an objectively patent nasal cavity, a lack of airflow sensation, a feeling of suffocation, nasal dryness, and neuropathic pain [40]. The first line of management includes nasal moisturization and humidification, supportive therapies of concomitant medical conditions (e.g., panic, anxiety, and depression) [41,42], and surgery. Surgical treatment to augment the loss of turbinate volume with temporary fillers, synthetic implants, and autologous materials has been reported to be an effective method [38,40,43]. Nevertheless, the injectable paste developed in this study exerts a better therapeutic potential than the current temporary fillers (e.g., hyaluronic acid), not only in strength but also persistence [25]. Patients could receive submucosal injection of the injectable paste into the remnant inferior turbinate by a 18G spinal needle to increase tissue bulk via endoscopy under local anesthesia. The non-surgical and minimally invasive turbinate augmentation will be a great option for patients diagnosed with ENS who are not suitable for an autologous bone graft, and more patients suffering from ENS can be treated with a very low risk of side effects. The future works will focus on the osteogenic effects by testing the materials with osteogenic cell lines such as human primary osteoblast cells, human osteosarcoma, derived SaOS-2 cells, or the osteoblast cell line MG63. Moreover, a New Zealand rabbit animal model with bone defects will be established for further investigation.

4. Materials and Methods

4.1. Calcium Sulfate Hemihydrate (CSH) Preparation

The α-form of CSH (CaSO4·0.5H2O) was prepared by a wet method as described [17]. Briefly, CSD (CaSO4·2H2O; J.T. Baker, Phillipsburg, NJ, USA) was heated at 132 °C for 30 min, followed by mixing with 30% CaCl2 (SHOWA Corporation, Osaka, Japan) solution and the mixture was heated at 132 °C for 30 min again. CaCl2 was washed and removed by water, and the rest was incubated at 132 °C for 30 min. After the reaction finished, the resultant product was dried in oven at 50 °C then milled by a high-efficiency ball mill for 4 min (8000 M Mixer, SPEX, Metuchen, NJ, USA).

4.2. Scanning Electron Microscope (SEM)

The morphology of synthetic CSH powder were assessed by SEM using an S-3000H microscope (Hitachi, Tokyo, Japan) under low vacuum conditions with an accelerating voltage of 15 kV. Each specimen was covered with gold by a sputter coater (Ion Sputter E101, Hitachi).

4.3. Fourier Transform Infrared Spectroscopy (FTIR)

The CSH powder was mixed with KBr salt at a 1:100 ratio and prepared as pellets. The IR spectra of sample pellet were acquired in transmittance mode between the range of 4000 and 500 cm−1 and recorded using a FTIR spectrophotometer (Spotlight 200i Sp2, PerkinElmer, MA, USA).

4.4. X-ray Diffraction (XRD)

The X-ray diffraction profiles of specimens were recorded by X-ray powder diffraction analysis (x’pert3 powder, PANalytical B.V., Almelo, the Netherlands) to investigate the crystalline phases of synthetic CSH. Cu Kα X-rays were used generated at 45 kV and 40 mA at a diffraction angle (2θ) varied from 10° to 60° with a step size of 0.1°/step and an interval of 0.2 s/step. The phase composition was checked by means of JCPDS reference patterns.

4.5. CSH/CaP Composite Bone Graft Formulation and Paste Preparation

The composite bone graft materials contained a powder and liquid phase. The basic powder component was a mixture of CSH and CaP. CaP component consisted of TTCP (Ca4(PO4)2O) and DCPA (CaHPO4) (Alfa Aesar, Lancashire, UK) in a 1:1 molar ratio. Homemade CSH powder was then mixed with CaP component (in the ratios of 1:1 or 1:3) and different concentrations of citric acid and HPMC (both from Sigma, St. Louis, MO, USA). Distilled water was added as liquid phase and mixed with powder phase described above to produce paste for further experiments.

4.6. Setting Time Measurement

The self-setting time of prepared CSH/CaP composite bone graft materials was tested according to the ASTM 266 standard and measured using a Gilmore needle test and evaluated every 30 s at room temperature (22 ± 1 °C). Working time (initial setting time) was defined when 0.3 MPa was loaded onto the specimen using a needle with no visible marks on the surface, while 5 MPa was used for evaluating setting time (final setting time).

4.7. Injectability

The injectability of each prepared sample was monitored by whether the paste could be gently extruded from a 5 mL disposable syringe equipped with an 18G needle.

4.8. Mechanical Compression Testing

To prepare the samples for the compressive strength test, the powder component and liquid component were mixed under atmospheric conditions at room temperature and spatulated into stainless steel molds to make cylindrical shapes with a diameter of 6 mm and a height of 12 mm for the mechanical test. The compressive strength of each sample was examined in accordance with ASTM F1633 standards measured at a loading rate of 1 mm/min with a universal mechanical testing machine (Transcell Technology Inc., New Taipei City, Taiwan). The measurements were performed three times for each group.

4.9. Degradation Test and pH Value Measurement

The prepared CSH/CaP pastes were molded into columns measuring 6 mm in diameter and 3 mm in height and transferred into phosphate-buffer saline (PBS pH 7.4, Gibco, Thermo Fisher Scientific Inc., Waltham, MA, USA) in an incubator at 37 °C for different time period. The weight loss ratio (washout) was calculated from the formula of the weight loss of the specimen divided by the weight of initial sample. The pH value for each sample was obtained at week 1, 2, and 12 from PBS. Each test was repeated for three times and the average value was calculated.

4.10. Cell Viability

To conduct cell viability assay for medical device, L929 cells (mouse fibroblasts, strain number BCRC 60091) were suggested by ISO10993-5 standard [44]. L929 cell line was purchased from the Food Industry Research and Development Institute, Hsinchu, Taiwan. Cells were routinely maintained in Modified Eagle Medium (MEM, Gibco, Thermo Fisher Scientific Inc., Waltham, MA, USA) supplemented with 10% fetal bovine serum (FBS, Invitrogen, Waltham, MA, USA) at 37 °C under 5% CO2 and 95% relative humidity.
To evaluate biocompatibility of bone materials, test samples (CSH/CaP 1:1, 6% citric acid, 2% HPMC) were firstly extracted following ISO10993-12 standard [45]. Two grams of test sample was extracted in 10 mL of MEM/10% FBS (extraction ratio 0.2 g/mL) at 37 °C for 24 h and the medium was collected for the treatment of cell viability test. Cell viability was performed according to ISO10993-5 standard [44]. L929 cells were plated in a density of 1 × 104 cells/well onto a 96-well culture plate in MEM/10% FBS at 37 °C overnight. On the next day, culture medium was removed, cells were washed with phosphate-buffer saline (PBS) and cultured in (1) bone material extract described above; (2) MEM/10% FBS (blank); or (3) MEM/10% FBS containing 10% DMSO (negative control, Sigma, St. Louis, MO, USA) for 24 h (n = 3 for each treatment). In vitro cell viability test was performed by 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide method (MTT). MTT solution (Sigma, St. Louis, MO, USA) was added into the medium and cells were incubated at 37 °C for 2 h. The samples were read by an enzyme-linked immunosorbent assay (ELISA) reader (Tecan, Männedorf, Switzerland) with a wavelength of 570 nm to obtain OD values. The viability of L929 cells cultured in MEM/10% FBS without bone material extract (blank) was set as 100% for the assay. Cell viability higher than 70% was considered non-cytotoxic.

4.11. Statistics

All the data are represented as mean ± SD of three independent experiments. Statistical difference was evaluated by two-tailed Student’s t-test. A value of p < 0.05 was considered to be statistically significant.

5. Conclusions

In this study, we developed an injectable and moldable bone graft from CSH/CaP composite materials with good handling properties, great biocompatibility, and adequate mechanical strength. Moreover, we demonstrated that the paste could be extruded from a syringe equipped with 18G needles and exerted a great potential for minimally invasive surgery. We strongly believe that this study offers useful information for developing and manufacturing injectable bone graft materials for treating maxillofacial defects, certain indications in the spine, inferior turbinate for ENS, or reconstructive rhinoplasty.

Author Contributions

Conceptualization, Y.-H.C. and H.-W.F.; methodology, C.-Y.S.; software, H.-H.T.; validation, I.-C.C. and C.-Y.S.; formal analysis, H.-H.T.; investigation, I.-C.C., C.-Y.S. and H.-H.T.; resources, H.-W.F.; data curation, I.-C.C.; writing—original draft preparation, I.-C.C.; writing—review and editing, Y.-H.C. and I.-C.C.; visualization, I.-C.C.; supervision, T.-H.Y.; project administration, H.-W.F.; funding acquisition, Y.-H.C. All authors have read and agreed to the published version of the manuscript.

Funding

This study was sponsored by the Shin Kong Wu Ho-Su Memorial Hospital, grant number 2019SKHADR026.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

The authors are thankful for the technical supports from the Core Facility of National Taipei University of Technology.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Campana, V.; Milano, G.I.U.S.E.P.P.E.; Pagano, E.; Barba, M.; Cicione, C.; Salonna, G.; Logroscino, G. Bone substitutes in orthopaedic surgery: From basic science to clinical practice. J. Mater. Sci. Mater. Med. 2014, 25, 2445–2461. [Google Scholar] [CrossRef]
  2. Wang, W.; Yeung, K.W.K. Bone grafts and biomaterials substitutes for bone defect repair: A review. Bioact. Mater. 2017, 2, 224–247. [Google Scholar] [CrossRef] [PubMed]
  3. Haugen, H.J.; Lyngstadaas, S.P.; Rossi, F.; Perale, G. Bone grafts: Which is the ideal biomaterial? J. Clin. Periodontol. 2019, 46 (Suppl. 21), 92–102. [Google Scholar] [CrossRef]
  4. Barone, A.W.; Andreana, S.; Dziak, R. Current Use of Calcium Sulfate Bone Grafts. Med. Res. Arch. 2020, 8. [Google Scholar] [CrossRef]
  5. Evaniew, N.; Tan, V.; Parasu, N.; Jurriaans, E.; Finlay, K.; Deheshi, B.; Ghert, M. Use of a calcium sulfate-calcium phosphate synthetic bone graft composite in the surgical management of primary bone tumors. Orthopedics 2013, 36, e216–e222. [Google Scholar] [CrossRef] [Green Version]
  6. Guan, Q.; Sui, Y.; Zhang, F.; Yu, W.; Bo, Y.; Wang, P.; Jin, J. Preparation of α-calcium sulfate hemihydrate from industrial by-product gypsum: A review. Physicochem. Probl. Miner. Processing 2021, 57, 168–181. [Google Scholar] [CrossRef]
  7. Laurencin, C.; Khan, Y.; El-Amin, S.F. Bone graft substitutes. Expert Rev. Med. Devices 2006, 3, 49–57. [Google Scholar] [CrossRef] [PubMed]
  8. Roberts, T.T.; Rosenbaum, A.J. Bone grafts, bone substitutes and orthobiologics. Organogenesis 2012, 8, 114–124. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  9. Thomas, M.V.; Puleo, D.A. Calcium sulfate: Properties and clinical applications. J. Biomed. Mater. Res. Part B Appl. Biomater. 2009, 88B, 597–610. [Google Scholar] [CrossRef]
  10. Jeong, J.; Kim, J.H.; Shim, J.H.; Hwang, N.S.; Heo, C.Y. Bioactive calcium phosphate materials and applications in bone regeneration. Biomater. Res. 2019, 23, 4. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  11. Burguera, E.F.; Xu, H.H.; Weir, M.D. Injectable and rapid-setting calcium phosphate bone cement with dicalcium phosphate dihydrate. J. Biomed. Mater. Res. Part B Appl. Biomater. 2006, 77, 126–134. [Google Scholar] [CrossRef] [PubMed]
  12. Larsson, S.; Hannink, G. Injectable bone-graft substitutes: Current products, their characteristics and indications, and new developments. Injury 2011, 42, S30–S34. [Google Scholar] [CrossRef]
  13. Chen, Z.; Liu, H.; Liu, X.; Lian, X.; Guo, Z.; Jiang, H.J.; Cui, F.Z. Improved workability of injectable calcium sulfate bone cement by regulation of self-setting properties. Mater. Sci. Eng. C Mater. Biol. Appl. 2013, 33, 1048–1053. [Google Scholar] [CrossRef]
  14. Coetzee, A.S. Regeneration of bone in the presence of calcium sulfate. Arch. Otolaryngol. 1980, 106, 405–409. [Google Scholar] [CrossRef] [PubMed]
  15. Hsu, H.-J.; Waris, R.A.; Ruslin, M.; Lin, Y.-H.; Chen, C.-S.; Ou, K.-L. An innovative α-calcium sulfate hemihydrate bioceramic as a potential bone graft substitute. J. Am. Ceram. Soc. 2018, 101, 419–427. [Google Scholar] [CrossRef]
  16. Lewis, K.N.; Thomas, M.V.; Puleo, D.A. Mechanical and degradation behavior of polymer-calcium sulfate composites. J. Mater. Sci. Mater. Med. 2006, 17, 531–537. [Google Scholar] [CrossRef] [PubMed]
  17. Chen, I.C.; Su, C.Y.; Lai, C.C.; Tsou, Y.S.; Zheng, Y.; Fang, H.W. Preparation and Characterization of Moldable Demineralized Bone Matrix/Calcium Sulfate Composite Bone Graft Materials. J. Funct. Biomater. 2021, 12, 56. [Google Scholar] [CrossRef] [PubMed]
  18. Chiang, H.-H.; Su, C.-Y.; Hsu, L.-H.; Yang, M.-H.; Fang, H.-W. Improved Anti-Washout Property of Calcium Sulfate/Tri-Calcium Phosphate Premixed Bone Substitute with Glycerin and Hydroxypropyl Methylcellulose. Appl. Sci. 2021, 11, 8136. [Google Scholar] [CrossRef]
  19. Wang, Y.-W.; Meldrum, F.C. Additives stabilize calcium sulfate hemihydrate (bassanite) in solution. J. Mater. Chem. 2012, 22, 22055–22062. [Google Scholar] [CrossRef]
  20. Moseke, C.; Gbureck, U. Tetracalcium phosphate: Synthesis, properties and biomedical applications. Acta Biomater. 2010, 6, 3815–3823. [Google Scholar] [CrossRef]
  21. Sarda, S.; Fernández, E.; Nilsson, M.; Balcells, M.; Planell, J.A. Kinetic study of citric acid influence on calcium phosphate bone cements as water-reducing agent. J. Biomed. Mater. Res. 2002, 61, 653–659. [Google Scholar] [CrossRef] [PubMed]
  22. Zhang, J.; Liu, W.; Schnitzler, V.; Tancret, F.; Bouler, J.M. Calcium phosphate cements for bone substitution: Chemistry, handling and mechanical properties. Acta Biomater. 2014, 10, 1035–1049. [Google Scholar] [CrossRef] [PubMed]
  23. Blouin, S.; Moreau, M.F.; Weiss, P.; Daculsi, G.; Baslé, M.F.; Chappard, D. Evaluation of an injectable bone substitute (betaTCP/hydroxyapatite/hydroxy-propyl-methyl-cellulose) in severely osteopenic and aged rats. J. Biomed. Mater. Res. Part A 2006, 78, 570–580. [Google Scholar] [CrossRef] [PubMed]
  24. Barralet, J.E.; Hofmann, M.; Grover, L.M.; Gbureck, U.J.A.M. High-strength apatitic cement by modification with α-hydroxy acid salts. Adv. Mater. 2003, 15, 2091–2094. [Google Scholar] [CrossRef]
  25. Thai, V.V.; Lee, B.T. Fabrication of calcium phosphate-calcium sulfate injectable bone substitute using hydroxy-propyl-methyl-cellulose and citric acid. J. Mater. Sci. Mater. Med. 2010, 21, 1867–1874. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Liu, W.; Zhang, J.; Rethore, G.; Khairoun, K.; Pilet, P.; Tancret, F.; Weiss, P. A novel injectable, cohesive and toughened Si-HPMC (silanized-hydroxypropyl methylcellulose) composite calcium phosphate cement for bone substitution. Acta Biomater. 2014, 10, 3335–3345. [Google Scholar] [CrossRef] [PubMed]
  27. Schlickewei, C.W.; Laaff, G.; Andresen, A.; Klatte, T.O.; Rueger, J.M.; Ruesing, J.; Lehmann, W. Bone augmentation using a new injectable bone graft substitute by combining calcium phosphate and bisphosphonate as composite—An animal model. J. Orthop. Surg. Res. 2015, 10, 116. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  28. Boyle, K.K.; Sosa, B.; Osagie, L.; Turajane, K.; Bostrom, M.P.G.; Yang, X. Vancomycin-laden calcium phosphate-calcium sulfate composite allows bone formation in a rat infection model. PLoS ONE 2019, 14, e0222034. [Google Scholar] [CrossRef] [PubMed]
  29. Cai, Z.; Wu, Z.; Wan, Y.; Yu, T.; Zhou, C. Manipulation of the degradation behavior of calcium phosphate and calcium sulfate bone cement system by the addition of micro-nano calcium phosphate. Ceram. Int. 2021, 47, 29213–29224. [Google Scholar] [CrossRef]
  30. Smirnov, V.V.; Antonova, O.S.; Goldberg, M.A.; Smirnov, S.V.; Shvorneva, L.I.; Egorov, A.A.; Barinov, S.M. Bone cements in the calcium phosphate–calcium sulfate system. Dokl. Chem. 2016, 467, 136–139. [Google Scholar] [CrossRef]
  31. Ishikawa, K.; Miyamoto, Y.; Kon, M.; Nagayama, M.; Asaoka, K. Non-decay type fast-setting calcium phosphate cement: Composite with sodium alginate. Biomaterials 1995, 16, 527–532. [Google Scholar] [CrossRef]
  32. Alkhraisat, M.H.; Rueda, C.; Marino, F.T.; Torres, J.; Jerez, L.B.; Gbureck, U.; Cabarcos, E.L. The effect of hyaluronic acid on brushite cement cohesion. Acta Biomater. 2009, 5, 3150–3156. [Google Scholar] [CrossRef] [PubMed]
  33. Cherng, A.; Takagi, S.; Chow, L.C. Effects of hydroxypropyl methylcellulose and other gelling agents on the handling properties of calcium phosphate cement. J. Biomed. Mater. Res. 1997, 35, 273–277. [Google Scholar] [CrossRef]
  34. Liu, H.; Li, H.; Cheng, W.; Yang, Y.; Zhu, M.; Zhou, C. Novel injectable calcium phosphate/chitosan composites for bone substitute materials. Acta Biomater. 2006, 2, 557–565. [Google Scholar] [CrossRef] [PubMed]
  35. Liu, W.; Zhang, J.; Weiss, P.; Tancret, F.; Bouler, J.-M. The influence of different cellulose ethers on both the handling and mechanical properties of calcium phosphate cements for bone substitution. Acta Biomater. 2013, 9, 5740–5750. [Google Scholar] [CrossRef]
  36. Wang, X.; Chen, L.; Xiang, H.; Ye, J. Influence of anti-washout agents on the rheological properties and injectability of a calcium phosphate cement. J. Biomed. Mater. Res. Part B Appl. Biomater. 2007, 81B, 410–418. [Google Scholar] [CrossRef]
  37. Hong, H.R.; Jang, Y.J. Correlation between remnant inferior turbinate volume and symptom severity of empty nose syndrome. Laryngoscope 2016, 126, 1290–1295. [Google Scholar] [CrossRef]
  38. Bergmark, R.W.; Gray, S.T. Surgical Management of Turbinate Hypertrophy. Otolaryngol. Clin. N. Am. 2018, 51, 919–928. [Google Scholar] [CrossRef]
  39. Passali, D.; La Rosa, R.; Passali, G.C.; Ciprandi, G. The Empty Nose Syndrome: A pragmatic classification in clinical practice. Acta Bio-Med. Atenei Parm. 2021, 92, e2021288. [Google Scholar]
  40. Leong, S.C. The clinical efficacy of surgical interventions for empty nose syndrome: A systematic review. Laryngoscope 2015, 125, 1557–1562. [Google Scholar] [CrossRef]
  41. Lamb, M.; Bacon, D.R.; Zeatoun, A.; Onourah, P.; Thorp, B.D.; Abramowitz, J.; Senior, B.A. Mental health burden of empty nose syndrome compared to chronic rhinosinusitis and chronic rhinitis. Int. Forum Allergy Rhinol. 2022. [Google Scholar] [CrossRef] [PubMed]
  42. Lee, T.J.; Fu, C.H.; Wu, C.L.; Tam, Y.Y.; Huang, C.C.; Chang, P.H.; Wu, M.H. Evaluation of depression and anxiety in empty nose syndrome after surgical treatment. Laryngoscope 2016, 126, 1284–1289. [Google Scholar] [CrossRef] [PubMed]
  43. Kuan, E.C.; Suh, J.D.; Wang, M.B. Empty nose syndrome. Curr. Allergy Asthma Rep. 2015, 15, 493. [Google Scholar] [CrossRef] [PubMed]
  44. ISO 10993-5:2009; Biological Evaluation of Medical Devices—Part 5: Tests for In Vitro Cytotoxicity. International Organization for Standardization: Geneva, Switzerland, 2009.
  45. ISO 10993-12:2021; Biological Evaluation of Medical Devices—Part 12: Sample Preparation and Reference Materials. International Organization for Standardization: Geneva, Switzerland, 2021.
Ijms 23 07590 g001 550

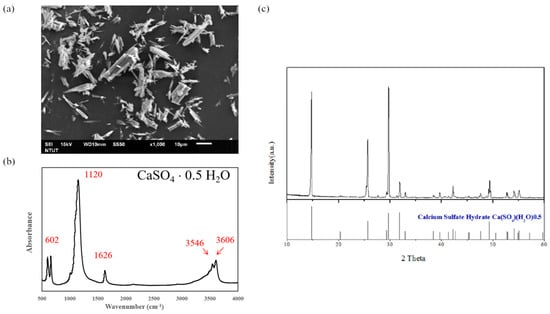

Figure 1. Characterization of synthesized CSH: (a) SEM image of CSH shows the rod-like morphology of CSH; (b) The FTIR spectra presents the typical profiles corresponding to the CSH structure; and (c) XRD analysis reveals the synthesis of CSH from CSD phase.
Figure 1. Characterization of synthesized CSH: (a) SEM image of CSH shows the rod-like morphology of CSH; (b) The FTIR spectra presents the typical profiles corresponding to the CSH structure; and (c) XRD analysis reveals the synthesis of CSH from CSD phase.
Ijms 23 07590 g001
Ijms 23 07590 g002 550
Figure 2. The images show injectability of CSH/CaP (1:3) bone graft materials containing different concentrations of citric acid tested by 18G syringe injection. The materials lost injectability when concentrations of citric acid were 10%, 15% and 20%.
Figure 2. The images show injectability of CSH/CaP (1:3) bone graft materials containing different concentrations of citric acid tested by 18G syringe injection. The materials lost injectability when concentrations of citric acid were 10%, 15% and 20%.
Ijms 23 07590 g002
Ijms 23 07590 g003 550
Figure 3. Injectability tests of CSH/CaP (1:1) bone graft materials containing different concentrations of citric acid show that all test samples can be extruded by 18G syringe injection.
Figure 3. Injectability tests of CSH/CaP (1:1) bone graft materials containing different concentrations of citric acid show that all test samples can be extruded by 18G syringe injection.
Ijms 23 07590 g003
Ijms 23 07590 g004 550

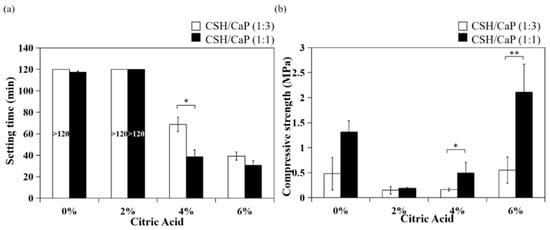

Figure 4. Effects of CSH/CaP ratios (1:3 white bars; 1:1 black bars) on the properties of CSH/CaP composite graft materials: (a) comparison of handling property–setting time of test samples; (b) comparison of mechanical property–compressive strength of test samples. * p < 0.05 and ** p < 0.01 when compared with CSH/CaP (1:3) samples.
Figure 4. Effects of CSH/CaP ratios (1:3 white bars; 1:1 black bars) on the properties of CSH/CaP composite graft materials: (a) comparison of handling property–setting time of test samples; (b) comparison of mechanical property–compressive strength of test samples. * p < 0.05 and ** p < 0.01 when compared with CSH/CaP (1:3) samples.
Ijms 23 07590 g004
Ijms 23 07590 g005 550
Figure 5. Injectability tests of CSH/CaP (1:1) bone graft materials containing different concentrations of citric acid and 2% HPMC show that all test samples can be extruded by 18G syringe injection.
Figure 5. Injectability tests of CSH/CaP (1:1) bone graft materials containing different concentrations of citric acid and 2% HPMC show that all test samples can be extruded by 18G syringe injection.
Ijms 23 07590 g005
Ijms 23 07590 g006 550

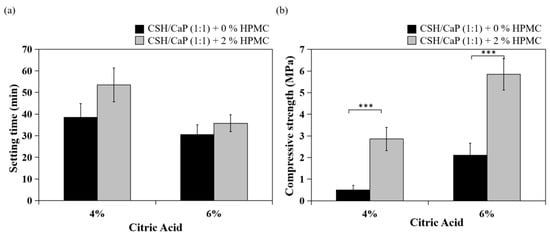

Figure 6. Effects of HPMC (0% black bars; 2% gray bars) on the properties of CSH/CaP (1:1) composite graft materials: (a) comparison of handling property–setting time of test samples; (b) comparison of mechanical property–compressive strength of test samples. *** p < 0.001 when compared with CSH/CaP (1:1) + 0% HPMC samples.
Figure 6. Effects of HPMC (0% black bars; 2% gray bars) on the properties of CSH/CaP (1:1) composite graft materials: (a) comparison of handling property–setting time of test samples; (b) comparison of mechanical property–compressive strength of test samples. *** p < 0.001 when compared with CSH/CaP (1:1) + 0% HPMC samples.
Ijms 23 07590 g006
Ijms 23 07590 g007 550

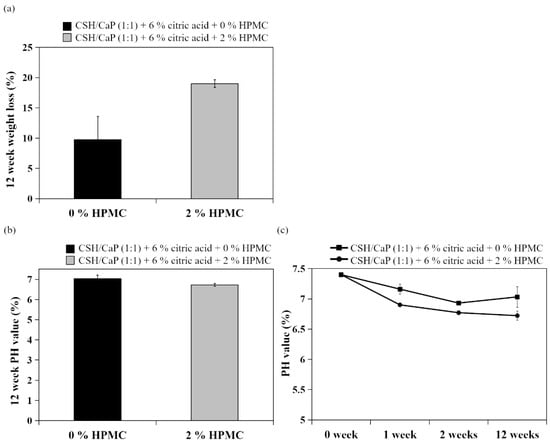

Figure 7. Comparison of CSH/CaP (1:1) composite graft materials without (black bars) or with 2% HPMC (gray bars): (a) degradation test of test samples; (b,c) pH value measurement of test samples at weeks 0, 1, 2, and 12.
Figure 7. Comparison of CSH/CaP (1:1) composite graft materials without (black bars) or with 2% HPMC (gray bars): (a) degradation test of test samples; (b,c) pH value measurement of test samples at weeks 0, 1, 2, and 12.
Ijms 23 07590 g007
Ijms 23 07590 g008 550

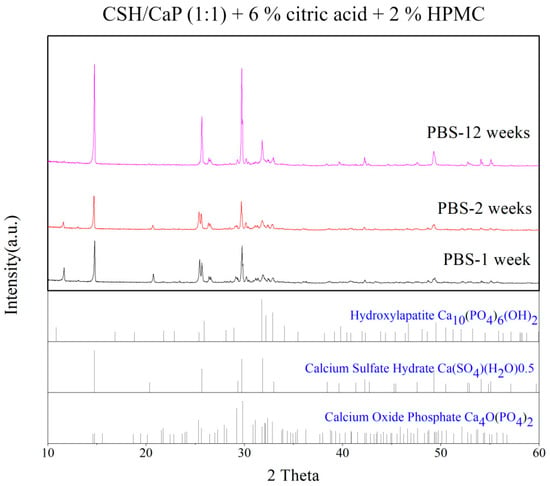

Figure 8. XRD profiles of CSH/CaP paste (CSH/CaP 1:1, 6% citric acid, 2% HPMC) immersed in PBS for 1, 2, and 12 weeks presented that the HAp peaks appeared at week 12.
Figure 8. XRD profiles of CSH/CaP paste (CSH/CaP 1:1, 6% citric acid, 2% HPMC) immersed in PBS for 1, 2, and 12 weeks presented that the HAp peaks appeared at week 12.
Ijms 23 07590 g008
Ijms 23 07590 g009 550

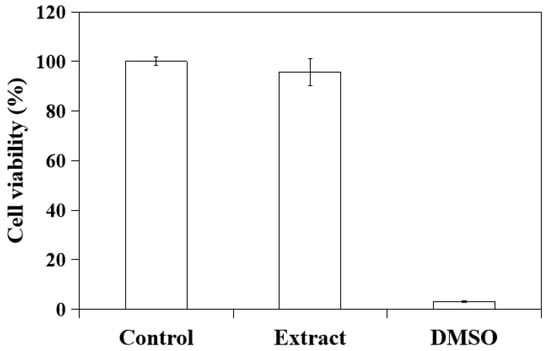

Figure 9. Cell viability of L929 cells measured by MTT assay for evaluating the cytotoxicity of CSH/CaP paste (CSH/CaP 1:1, 6% citric acid, 2% HPMC). Control: viability of L929 cells cultured in regular medium, set as 100% (blank); Extract: viability of L929 cells cultured in medium containing bone material extract; DMSO: viability of L929 cells cultured in medium containing 10% DMSO (negative control).
Figure 9. Cell viability of L929 cells measured by MTT assay for evaluating the cytotoxicity of CSH/CaP paste (CSH/CaP 1:1, 6% citric acid, 2% HPMC). Control: viability of L929 cells cultured in regular medium, set as 100% (blank); Extract: viability of L929 cells cultured in medium containing bone material extract; DMSO: viability of L929 cells cultured in medium containing 10% DMSO (negative control).
Ijms 23 07590 g009
Table
Table 1. Chemical compositions and handling properties of CSH/CaP (1:3) bone graft materials.
Table 1. Chemical compositions and handling properties of CSH/CaP (1:3) bone graft materials.
CSH/CaP (1:3) Composite Bone Graft Materials
Powder
component		CSH/CaP
+ 0%
Citric Acid		CSH/CaP
+ 2%
Citric Acid		CSH/CaP
+ 4%
Citric Acid		CSH/CaP
+ 6%
Citric Acid		CSH/CaP
+ 10%
Citric Acid		CSH/CaP
+ 15%
Citric Acid		CSH/CaP
+ 20%
Citric acid
L/P0.20.20.20.250.250.30.4
Working time97 min64 min16 min15 min15 min10 min8 min
Setting time>120 min>120 min68 min39 min>60 min31 min40 min
InjectabilityYesYesYesYesNoNoNo
CSH: Calcium sulfate hemihydrate; CaP: calcium phosphate; L/P: Liquid/Powder ratio.
Table
Table 2. Chemical compositions and handling properties of CSH/CaP (1:1) bone graft materials.
Table 2. Chemical compositions and handling properties of CSH/CaP (1:1) bone graft materials.
CSH/CaP (1:1) Composite Bone Graft Materials
Powder
component		CSH/CaP + 0%
Citric Acid		CSH/CaP + 2%
Citric Acid		CSH/CaP + 4%
Citric Acid		CSH/CaP + 6%
Citric Acid
L/P0.20.20.20.2
Working time61 min50 min23 min15 min
Setting time117 min>120 min39 min31 min
InjectabilityYesYesYesYes
Table
Table 3. Chemical compositions and handling properties of CSH/CaP (1:1) bone graft materials.
Table 3. Chemical compositions and handling properties of CSH/CaP (1:1) bone graft materials.
CSH/CaP (1:1) Composite Bone Graft Materials
Powder
component		CSH/CaP (1:1) +
4% Citric Acid +
2% HPMC		CSH/CaP (1:1) +
6% Citric Acid +
2% HPMC
L/P0.20.25
Working time11 min10 min
Setting time54 min36 min
InjectabilityYesYes
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Chiu, Y.-H.; Chen, I.-C.; Su, C.-Y.; Tsai, H.-H.; Young, T.-H.; Fang, H.-W. Development of Injectable Calcium Sulfate and Self-Setting Calcium Phosphate Composite Bone Graft Materials for Minimally Invasive Surgery. Int. J. Mol. Sci. 2022, 23, 7590. https://doi.org/10.3390/ijms23147590

AMA Style

Chiu Y-H, Chen I-C, Su C-Y, Tsai H-H, Young T-H, Fang H-W. Development of Injectable Calcium Sulfate and Self-Setting Calcium Phosphate Composite Bone Graft Materials for Minimally Invasive Surgery. International Journal of Molecular Sciences. 2022; 23(14):7590. https://doi.org/10.3390/ijms23147590

Chicago/Turabian Style

Chiu, Yu-Hsun, I-Cheng Chen, Chen-Ying Su, Hsin-Hua Tsai, Tai-Horng Young, and Hsu-Wei Fang. 2022. "Development of Injectable Calcium Sulfate and Self-Setting Calcium Phosphate Composite Bone Graft Materials for Minimally Invasive Surgery" International Journal of Molecular Sciences 23, no. 14: 7590. https://doi.org/10.3390/ijms23147590

APA Style

Chiu, Y.-H., Chen, I.-C., Su, C.-Y., Tsai, H.-H., Young, T.-H., & Fang, H.-W. (2022). Development of Injectable Calcium Sulfate and Self-Setting Calcium Phosphate Composite Bone Graft Materials for Minimally Invasive Surgery. International Journal of Molecular Sciences, 23(14), 7590. https://doi.org/10.3390/ijms23147590

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
