Characterization and Comparative Genomics Analysis of a New Bacteriophage BUCT610 against Klebsiella pneumoniae and Efficacy Assessment in Galleria mellonella Larvae

by
Mingfang Pu
1,†,
Pengjun Han
1,†,
Guangye Zhang
1,
Yucong Liu
1,
Yahao Li
2,
Fei Li
1,
Mengzhe Li
1,
Xiaoping An
1,
Lihua Song
1,
Yiming Chen
1,
Huahao Fan
1,* and
Yigang Tong
1,2,*
1
College of Life Science and Technology, Beijing University of Chemical Technology, Beijing 100029, China
2
Beijing Advanced Innovation Center for Soft Matter Science and Engineering (BAIC-SM), Beijing University of Chemical Technology, Beijing 100029, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Int. J. Mol. Sci. 2022, 23(14), 8040; https://doi.org/10.3390/ijms23148040
Submission received: 13 June 2022 / Revised: 13 July 2022 / Accepted: 18 July 2022 / Published: 21 July 2022
(This article belongs to the Special Issue Bacteriophage Biology: From Genomics to Therapy)
Browse Figures
Review Reports Versions Notes

Abstract

:
The spread of multidrug-resistant Klebsiella pneumoniae (MDR-KP) has become an emerging threat as a result of the overuse of antibiotics. Bacteriophage (phage) therapy is considered to be a promising alternative treatment for MDR-KP infection compared with antibiotic therapy. In this research, a lytic phage BUCT610 was isolated from hospital sewage. The assembled genome of BUCT610 was 46,774 bp in length, with a GC content of 48%. A total of 83 open reading frames (ORFs) and no virulence or antimicrobial resistance genes were annotated in the BUCT610 genome. Comparative genomics and phylogenetic analyses showed that BUCT610 was most closely linked with the Vibrio phage pYD38-A and shared 69% homology. In addition, bacteriophage BUCT610 exhibited excellent thermal stability (4–75 °C) and broad pH tolerance (pH 3–12) in the stability test. In vivo investigation results showed that BUCT610 significantly increased the survival rate of Klebsiella pneumonia-infected Galleria mellonella larvae from 13.33% to 83.33% within 72 h. In conclusion, these findings indicate that phage BUCT610 holds great promise as an alternative agent with excellent stability for the treatment of MDR-KP infection.

1. Introduction

Klebsiella pneumoniae (K. pneumoniae) is a Gram-negative opportunistic pathogen belonging to Enterobacteriaceae and is widely distributed in the environment, specifically in soil, surface water, domestic water, industrial wastewater, and vegetation [1]. As the one of the most common pathogens of hospital-acquired infection and community-acquired infection in the world, K. pneumoniae often causes pneumonia, bloodstream infection, abdominal infection, urinary system infection, and surgical wound infection [2,3,4]. Antibiotics such as ciprofloxacin, amikacin, ertapenem, imipenem, meropenem, and tigecycline are commonly used to treat infections caused by K. pneumoniae in clinical practice [5,6,7]. However, the spread of MDR-KP has become an emerging threat as a result of the overuse of antibiotics [8]. Bacteriophages (phages) have been known for their exclusive and strong bactericidal characteristics. Therefore, phages are also considered to be promising candidates that could replace or supplement traditional antibiotics treatment and have applications in treating infections caused by multi-resistant bacteria [9,10]. Indeed, the use of phages as antimicrobial drugs to treat severe infections caused by drug-resistant bacteria has been reported in several works. For example, in 2019, Wu Nannan et al. reported the combination of a phage and antibiotics against K. pneumoniae to cure a recurrent urinary tract infection caused by extensively drug-resistant K. pneumoniae [11]. A 62-year-old patient with a prosthetic joint infection caused by K. pneumoniae KpJH46 was successfully treated with phage KpJH46Φ2 combined with antibiotics at the Mayo Clinic Infectious Disease Unit in Rochester, MN, USA [12]. In addition, a 30-year-old bombing victim with a fracture-related pandrug-resistant K. pneumoniae infection after long-term (>700 days) antibiotic therapy was treated with a pre-adapted bacteriophage along with meropenem and colistin, followed by ceftazidime/avibactam. After three months of this combined phage–antibiotic treatment, this patient’s overall condition improved and the wound began to heal with no signs of bacterial infection [13]. These above clinical experiences with phage therapy suggest that phages combined with antibiotics may be a better treatment option for multidrug-resistant bacterial infections. In this study, the phage BUCT610 was isolated, which was capable of lysing highly virulent K. pneumoniae K1119. The comparative genomics of BUCT610 was analyzed using bioinformatic tools. The physiological characteristics of phage BUCT610 were investigated and the potential of BUCT610 against K1119 was evaluated in vitro and in the Galleria mellonella (G. mellonella) larvae model.

2. Results

2.1. Morphological Characteristics and Lytic Rang of Phage BUCT610

BUCT610 formed transparent, clear, regular plaques on the lawn of K. pneumoniae K1119 after overnight cultivation at 37 °C (Figure 1A). Transmission electron microscopy results showed that the icosahedral head diameter of BUCT610 is about 51.05 ± 2.58 nm and the tail diameter is about 145.22 ± 4.95 nm (Figure 1B). Based on the microscopic morphology of the phage virion and the classification standard of ICTV, phage BUCT610 belongs to the Siphoviridae family. Twenty strains of K. pneumoniae were collected from different hospitals, only one of which was lysed by BUCT610.

2.2. Multilocus Sequence Typing and Capsule Type Identification of K. pneumoniae

Seven alleles (rpoB, gapA, mdh, pgi, phoE, infB, tonB) were arranged (in that order) and analyzed using the multilocus sequence typing scheme that was developed for K. pneumoniae. According to the analysis of MLST Database, the multi-locus sequence type of host bacteria K1119 belongs to sequence type 893 (ST893), which belongs to the group of highly virulent K. pneumoniae (hvKp) and has been reported to spread in hospital settings centered on the Intensive Care Unit (ICU) [14,15]. No matching capsule type of K1119 was identified in the MLST database based on wzi allele sequencing. The multi-locus sequence type and capsule type of other K. pneumoniae are shown in Table 1.

2.3. Lifestyle of BUCT610

The qPCR results showed that none of the three genes of phage BUCT610 were detected in the genome of R-K1119, indicating that the genome of phage BUCT610 cannot be integrated into the host K1119 genome. The genome of a temperate phage can be integrated into the host genome [16]. Therefore, phage BUCT610 is a lytic phage rather than a temperate phage. The results of qPCR are shown in the Supplementary Materials.

2.4. Physiological Characterization of Phage BUCT610

The virion production of phages BUCT610 is significantly higher than other groups when the MOI is 0.01, indicating that 0.01 is the most suitable MOI for the growth of BUCT610 (Figure 2A). The latent period and lytic period of phage BUCT610 were approximately 30 min and 60 min, respectively (Figure 2B). Thermal stability tests showed that the titer of phage BUCT610 was essentially constant from 4 °C to 65 °C during the same incubation time, while the titer of phage decreased significantly at 75 °C (Figure 2C). The titer of phage BUCT610 was essentially constant in different pH (3–12) environments during the same incubation time, expect at pH = 2, where the phage titer decreased sharply (Figure 2D).

2.5. Annotations and Characteristics of the Complete Genome of BUCT610

The full length of linear double-stranded DNA of phage BUCT610 is 46,774 bp, with a GC content of 48%, and its accession number is MZ318367 in the NCBI database. According to RAST and BLASTp analysis results, a total of 83 open reading frames (ORFs) were predicted in the BUCT610 complete genome; 13 of them encode proteins with functions associated with phage lysis, packaging, structure, and replication (Figure 3, Table 2). The other ORFs were annotated as encoding hypothetical proteins. In addition, no virulence, antimicrobial resistance, or tRNA genes are annotated in the BUCT610 genome. The complete genome sequence alignment of phage BUCT610 with the complete genome sequences of other phages in the NCBI data showed that BUCT610 shared the highest homology (cover: 69%, identity: 92.9%) with the Vibrio phage pYD38-A (GenBank: JF974312.1) (Figure 4A), followed by the Aeromonas phage pIS4-A (GenBank: NC_042037.1) (Figure 4B), the Klebsiella virus KpV2811 (GenBank: NC_054653.1) (Figure 4C), and Flyfo siphovirus Tbat1_6 (GenBank: OL617041.1) (Figure 4D), which shared 69%, 65%, and 65% cover and 93.02%, 91.82%, and 91.76% identity, respectively. The average nucleotide identity (ANI) value reflects the relationship between the two species. The average nucleotide identity (ANI) values were calculated using the reciprocal best hits (two-way ANI) between two genomic datasets. The ANI values between the phage BUCT610 and the Vibrio phage pYD38-A (GenBank: JF974312.1), Aeromonas phage pIS4-A (GenBank: NC_042037.1), and the Klebsiella virus KpV2811 were 92.29%, 92.38%, and 90.81%, respectively. This result indicates that phage BUCT610 is a member of a new species according to the introduction of phage classification [17]. In addition, the complete genome phylogenetic tree of BUCT610 and twenty-five other phages showed that BUCT610 shared a close evolutionary relationship with Flyfo siphovirus Tbat1_6 (GenBank: OL617041.1) and the Klebsiella phage vB_KpnS_MK54 (GenBank: NC_054652.1) (Figure 5A).

2.6. Replication-, Transcription-, and Structure-Related Genes of Phage BUCT610

The annotations of the BUCT610 genome sequence showed that a total of 13 ORFs encoded proteins functionally related to the replication, translation, and structure of the phage BUCT610. ORF64, ORF65, and ORF68 of the BUT610 were predicted as recombinases, exonucleases, and DNA helicases, respectively. Recombinase is adjacent to exonuclease and DNA helicases, which are three enzymes associated with the replication of phage genomes [18]. The recombinant enzyme was responsible for recognizing and cutting specific recombination sites and connecting the two molecules involved in the recombination. Recombinase has a close connection with the mechanism of phage DNA replication [19]. The homologous recombination systems of linear double-stranded (ds) DNA bacteriophages were required for the generation of genetic diversity, the repair of dsDNA breaks, and the formation of concatemeric chromosomes [20]. DNA exonuclease is a multifunctional hydrolase. Such as Exonuclease 1 (EXO1) plays a role in DNA replication, DNA mismatch repair, and DNA double-strand break repair (DSBR) and has been associated with increased susceptibility to certain cancers [21]. ORF16 and ORF59 are predicted to be lysozyme and C40 family peptidase, and these two proteins are classified as lytic proteins based on their functions. Lysozyme is an alkaline enzyme that can hydrolyze mucopolysaccharides in bacteria, mainly destroys the β-1,4 glycoside bond between N-acetylmuramic acid and N-acetylglucosamine in the cell wall, and decomposes the insoluble mucopolysaccharide into soluble glycopeptide, resulting in cell wall rupture and bacterial dissolution. Peptidase is a type of enzyme that hydrolyzes peptide chains; it mainly exists in microbial cells and can be divided into two categories: endopeptidase and exopeptidase.
ORF30 of phage BUCT610 is predicted to encode a coat protein. As a carrier tool, coat protein is widely used by phage display technology [22,23]. In addition, portal protein coded by ORF10 and tail length tape measure protein coded by ORF56 were also found in the BUCT610 genome annotation. Whether the virus can successfully infect the cell depends on whether the virus genome was successfully transmitted to the host cell. The portal protein is one of the key proteins involved in virus replication. During the packaging of the phage P22 genome, portal proteins are involved in the maturation of virions through conformational changes. The tail length tape measure protein is so named since the length of the corresponding gene is proportional to the length of the bacteriophage tail [24,25].
ORF83 of BUCT610 was annotated as terminase large subunit whose main function is to package bacteriophage genomic DNA into empty capsid proteins and confer most of the enzymatic activities required in the process of DNA packaging [26], including ATP enzyme, endonuclease, and DNA helicase activity [27,28,29]. The terminase subunit was widely found in double-stranded DNA phages; as one of the conserved proteins of phages, it has often been used to investigate phage evolutionary relationships. A phylogenetic tree constructed based on the terminase sequence of the phage BUCT610 and thirty-two other phage terminase sequences in the NCBI data showed that the BUCT610 terminase protein is closely related to the terminase proteins of the Klebsiella phage ZCKP8 and Klebsiella phage vB_KpnS_MK54 (Figure 5B).

2.7. Assessment the Efficacy of BUCT610 against K1119 In Vitro and In Vivo

Phage BUCT610 with titers of 5 × 109 PFU/mL and 5 × 108 PFU/mL significantly inhibited the growth of K1119 compared to the positive control (Figure 6A). Survival rates of K. pneumoniae K1119-infected G. mellonella larvae were 73.33%, 80%, 83.33%, and 50% within 72 h when the titers of BUCT610 were 3 × 107 (PFU/each, MOI = 100), 3 × 106 (PFU/each, MOI = 10), 3 × 105 (PFU/each, MOI = 1), and 3 × 104 (PFU/each, MOI = 0.1), respectively (Figure 6B,C). The survival rate of G. mellonella larvae in the positive control group was only 13.33%, while all the larvae in the negative control group were alive.

3. Discussion

We obtained a K. pneumoniae from hospital ward environments and named it K1119. K1119 belongs to K. pneumoniae ST893 according to the MLST of K. pneumoniae. Notably, no capsule type matched with K1119 in the MLST database based on the wzi allele sequencing identification, indicating that K1119 is a K. pneumoniae ST893 with a unique capsule type. Therefore, it is beneficial to find alternative agents that can replace antibiotics to deter the spread of K1119. Here, we isolated a lytic phage BUCT610, which can form clear, regular plaques on the bacterial lawns containing K1119. The phage BUCT610 is not a temperate phage, its genome cannot integrate into the K1119 genome, although it can only lyse K. pneumoniae K1119. According to reports related to the recognition mechanism of phages and hosts, the lipopolysaccharides (LPS) and capsular polysaccharide (CPS) of bacteria play an important role in phage adsorption, which is an important factor in determining the host range of phages [30,31]. Therefore, we speculate that the specific capsule type of K1119 is one of the main reasons for the phage BUCT610 to specifically lyse K. pneumoniae K1119. Although phage BUCT610 only lyses K1119 at present, there is no barrier against the combination of phage BUCT610 and antibiotics or BUCT610 and other phages as a cocktail against MDR-KP [32,33].
The genome characteristics and safety of phages can be analyzed through bioinformatic tools. The BUCT610 genome length is 46,774 bp, with 48% GC. A total of 13 functional proteins are encoded throughout the genome, and these functional proteins are involved in the replication of the phage BUCT610 genome as well as in the stabilization of the structure. However, a large number of hypothetical proteins were annotated in the complete genome of BUCT610 and further studies are needed. It is notable that no virulence or antimicrobial resistance genes are annotated in the genome of phage BUCT610, which indicates that phage BUCT610 is theoretically safe as an antimicrobial agent. A phylogenetic tree was constructed based on the complete genome sequence of phage BUCT610 and other phage complete genome sequences in the NCBI database, showing that BUCT610 has a close evolutionary relationship not only with the Klebsiella phage vB_KpnS_MK54 (GeneBank: MW119258.1), but also with Flyfo siphovirus Tbat1_6 (GeneBank: OL617041.1). In response to host selection pressure, phage BUCT610 and Flyfo siphovirus Tbat1_6 may undergo multiple gene exchange events which drive their diversity [34,35].
The activity and stability of phages are closely related to the preparation and application of phages. BUCT610 has a broad range of pH tolerance and good thermal stability. The titer of phage BUCT610 remained essentially the same as the titer at pH = 7 in both extreme acidic (pH = 3) and alkaline (pH = 12) environments compared to K. pneumoniae phage VTCCBPA43, which was completely inactive at pH = 3 [36]. Furthermore, phage BUCT610 has excellent thermal stability. The titer of phage BUCT610 remained essentially unchanged at 4 °C compared to 65 °C, while most phages can only maintain good stability from 4 °C to 60 °C [37]. The favorable stability of phage BUCT610 facilitates the storage of the phage and gives it potential as an antimicrobial agent [38].
Phage therapy is attracting attention as an alternative therapy compared to traditional antibiotic therapy. BUCT610 has outstanding stability and has been demonstrated as an efficient anti-K1119 agent in vitro. G. mellonella larvae have been widely used as a model because they are cheap and pose few ethical problems compared with other models. We further evaluated the efficacy of phage BUCT610 in treating the G. mellonella larvae infected with K. pneumoniae K1119. A titer of 3 × 106 (PFU/each, MOI = 10) of BUCT610 increased the survival rate of G. mellonella larvae from 13.33% to 83.33% within 72 h compared to the positive control group. BUCT610 with a titer of 3 × 105 (PFU/each, MOI = 1) showed the best treatment efficacy for G. mellonella larvae within 14–44 h, but the treatment efficacy within 44–72 h was slightly lower than that when MOI = 10. Interestingly, the survival rate of G. mellonella larvae was only 73.33% for the highest titer (3 × 107 PFU/each, MOI = 100) of phage BUCT610-treated larvae infected with K1119, which was lower than the survival rate of G. mellonella larvae when MOI = 10 and MOI = 1. The survival rate of the G. mellonella larvae does not increase with higher titers of phage BUCT610. We speculate that the high-titer phage BUCT610 removed K1119 from G. mellonella larvae, K1119 may have produced a large amount of endotoxin, and these endotoxins caused the death of some larvae [39,40,41]. This result strongly suggests the flexibility of phage titers during phage treatment, especially for infections caused by Gram-negative bacteria.
In conclusion, we characterized BUCT610 as a lytic phage against K. pneumoniae ST893. The bioinformatic analysis results and evaluation of therapeutic efficacy in G. mellonella larvae show that phage BUCT610 has the potential to effectively constrain the spread of novel K. pneumoniae.

4. Materials and Methods

4.1. Bacterial Strain Cultures

K. pneumoniae K1119 was obtained from environmental samples of the 307 hospital, Beijing. The strains used in this study were stored at −80 °C in 50% glycerol (v/v) and cultured in the lysogeny broth (LB) at 37 °C [42]. The viable bacterial count was determined by finite gradient dilution method using LB agar (1.5% w/v) plates.

4.2. Bacteriophage Isolation

Sewage samples from hospitals were enriched with K. pneumoniae. Briefly, centrifuged sewage samples were filtered with a sterile 0.22 μm filter and co-cultured with K. pneumoniae at 37 °C for 6 h. The supernatant containing the phages was collected, filtered using a sterile 0.22 μm filter, and finally spotted on a double-layer agar plate of K. pneumoniae strain K1119. The phage plaques were amplified in plates as described previously, with slight modifications [43]. Single plaque was picked up and co-cultured with K. pneumoniae K1119 in LB medium for 8 h. After centrifugation, the supernatant was filtered, and the filtrate was diluted properly and separated by a double-layer plate. The above steps were repeated three times, and the isolated bacteriophages were amplified using LB liquid medium at 37 °C and 220 rpm and stored at 4 °C.

4.3. Purification of Phage BUCT610

The isolated phage BUCT610 and host K1119 were co-cultured at 37 °C for 8 h and centrifuged at 4 °C for 12,000× g for 15 min to remove cells and cell debris. Crude phage was obtained after the supernatant was filtered by the sterile 0.22 μm filter. The crude phage was further purified and concentrated with 30% sterile sucrose solution by centrifugation at 30,000 rpm and 4 °C for 2 h [44,45]. The supernatant after centrifugation was discarded and the bottom phage precipitate was resuspended with phosphate buffer saline (PBS) to obtain pure phage BUCT610, which was then stored at 4 °C.

4.4. Electron Microscopy

To visualize the phages, a carbon-coated copper grid was incubated with 30 µL phage particle for 10 min and stained with 2% uranyl acetate for 90 s [46]. The morphology of the phages was examined with a transmission electron microscope (JEM-1200EX, JEOL, Tokyo, Japan) at 80 kV.

4.5. Identified Lytic Range of Phage BUCT610

Twenty strains of K. pneumoniae were collected from different hospital ward environments and were cultured to the exponential phase. The lytic range of phage BUCT610 was determined by the double layer plate method and spotting method [47].

4.6. Multilocus Sequence Typing (MLST) and Capsule Type of K. pneumoniae

We aimed to identify the subtypes of the twenty strains of K. pneumoniae which were used for lytic-range testing. The MLST and capsule type of K. pneumoniae were identified. The determination methods of MLST and capsule type for K. pneumoniae were similar to that described by Yannan Liu et al., with slight modifications [48]. In brief, seven housekeeping genes (rpoB, gapA, mdh, pgi, phoE, infB, and tonB) and wzi allele gene of the twenty K. pneumoniae were subjected to PCR amplification (PCR procedure for MLST identification: step 1: 94 °C for 2 min; step 2: 94 °C for 20 s; step 3: 50 °C for 30 s; step 4: 72 °C for 30 s; step 5: 72 °C for 5 min; step 4 to step 2: 35 cycles; PCR procedure for capsule type identification: step 1: 94 °C for 2 min; step 2: 94 °C for 30 s; step 3: 55 °C for 40 s; step 4: 72 °C for 30 s; step 5: 72 °C for 5 min; step 4 to step 2: 35 cycles). The amplified products were sent to Beijing Ruibo Xingke Biotechnology Co., Ltd. for bidirectional sequencing. The sequencing results were analyzed by the MLST database (https://bigsdb.pasteur.fr/cgi-bin/bigsdb/bigsdb.pl?db=pubmlst_klebsiella_seqdef&l=1 accessed on 22 May 2022) for analysis. Primer sequences are shown in Table 3.

4.7. Lifestyle Identification of BUCT610

We aimed to investigate whether the phage BUCT610 genome could be integrated into the host K1119 genome. Four strains of K. pneumoniae resistant to phage BUCT610 (R-K1119) were obtained from the co-cultures of phage BUCT610 and host K1119. The R-K1119 were validated and further purified by the spot plate method and plate streaking. Three ORFs of the phage BUCT610 were detected by real time PCR (qPCR) using the R-K1119 as the template. The positive and negative groups used phage BUCT610 and K1119 as templates, respectively. The three tested ORFs of BUCT610 were ORF64 (recombinase), ORF70 (conserved hypothetical protein), and ORF83 (large terminase subunit), respectively. The information for primers is shown in Table 3.

4.8. Optimal Multiplicity of Infection and One-Step Growth Curve of BUCT610

To determine the optimal multiplicity of infection (MOI), serial dilutions of K. pneumoniae K1119 were added to aliquots of BUCT610 (106 PFU/mL). A volume of 100 μL of the mixture with different MOI (0.001, 0.01, 0.1, 1, 10, 100) was added into 10 mL LB medium for overnight culture at 37 °C with shaking (220 rpm). Then, the mixture was centrifuged at 12,000× g for 2 min at room temperature to remove residual bacterial cells. The supernatant was filtered through a 0.22 µm filter. The titer of the phage was determined by the double-layer plate method, and the experiments were repeated three times. To determine the One-step growth curve of phage BUCT610, the mixture of BUCT610 and host K1119 was incubated for 10 min at room temperature with optimal MOI. The supernatant was discarded after centrifugation at 4 °C for 3 min at 12,000× g. The precipitate was resuspended with LB and then centrifuged for 3 min at 4 °C and 12,000× g, and repeat the above steps again. Mixture after resuspension was added to 25 mL of LB liquid medium and cultured at 37 °C for 150 min with shaking 200 rpm. The titer of phage BUCT610 was detected at different time points. The above experiments were performed on ice. Titer of BUCT610 at different time points were detected by double-layer plate method.

4.9. Stability Assessment of Phage BUCT610

The stability of phage BUCT610 was performed as described previously with slight modifications [49]. BUCT610 was incubated at different temperatures (4 °C, 37 °C, 45 °C, 55 °C, 65 °C, 75 °C) for 1 h. The titer of phage BUCT610 was detected after incubation 1 h. In order to ascertain the stability of the bacteriophage in different pH environments, the phage BUCT610 was incubated at different pH levels ranging from 2 to 12 for 1 h. As mentioned above, the phage titers were detected after incubation under the different pH buffers. The different pH buffers were adjusted by hydrochloric acid and sodium hydroxide.

4.10. Phage Sequencing and Bioinformatics Analysis

The genomic DNA of the bacteriophage BUCT610 was extracted by the classical proteinase K/SDS method and the concentration was measured by Quantum Bit Fluorometer (Qubit™ Fluorometer) [47,50]. According to the instructions, 150 ng of genomic DNA was invested in the NEBNext Ultra II FS DNA Library Prep Kit (NEB). The genomic DNA was fragmented, indexed by PCR, and purified using AMPure XP beads. Then, the Agilent 2100 BioAnalyzer system was used to evaluate the size distribution of the constructed library and the library was quantified by KAPA Library Quantification Kits. Finally, the assembled DNA library was sequenced by Illumina Novaseq, and 2 × 150 bp paired-end reads were generated.
Quality control software FastQC V0.11.5 was used to analyze the quality of the original sequence data, and Trimmomatic 0.36, the default parameter, was used to remove the low-quality reads and adapter regions [51,52]. High-quality reads were assembled using SPAdes v3.13.0 [53]. Potential protein-coding genes were predicted using RAST, and the protein functions were annotated using the protein basic local alignment search tool (BLASTp) against the non-redundant protein sequences (nr) database [54]. Genome functional maps were produced by a lab-built script and modified using Inkscape 0.92.3.0. The molecular weight of proteins encoded by the open reading frames (ORFs) was determined using the ExPASY ProtParam tool [55]. The recognized tRNA coding genes were searched by tRNAscan-SE v.2.0 [56,57]. Antimicrobial resistance genes and virulence factors in the phage genome were predicted using an online prediction platform ResFinder and VirulenceFinder, respectively [58,59,60]. The phylogenetic tree based on the large terminase was constructed by the neighbor joining method (NJ method) and detected by the bootstrap method with 1000 test repetitions. Average nucleotide identity (ANI) values were calculated using an ANI calculator. Complete genome sequence similarity BUCT610 and other phages was visualized by Circoletto program (Version number: 07.09.16) [49].

4.11. Assessment the Efficacy of BUCT610 against K. pneumoniae K1119 In Vitro

The 25 mL K1119 was cultured to OD600 of about 0.2 at 37 °C and 120 rpm. The 5 mL of phage BUCT610 with titers 5 × 109 PFU/mL and 5 × 108 PFU/mL were mixed with 25 mL K1119, respectively. The mixture continued to incubate at 37 °C and 120 rpm. The variations of OD600 of the mixture were detected during cultivation.

4.12. Therapeutic Effect of Phage BUCT610 in the G. mellonella Larvae

G. mellonella larvae (Huiyude Biotech Company, Tianjin, China) were selected with length 25 ± 5 mm, weight 300 ± 50 mg, strong activity, and no black patches on the body surface. Thirty larvae were used as a sample population for each group. K. pneumoniae K1119 were grown in LB and harvested in the exponential phase. After being washed with PBS, 6 μL K1119 (5 × 107 CFU/mL) was injected into the last right proleg of larvae by a microsample syringe, and half an hour after infection, phage BUCT610 was injected into the last left proleg of larvae for treatment. The number of surviving G. mellonella larvae at different MOIs groups was observed and recorded every 2 h for 72 h. The positive control group was treated with PBS (6 μL/each), and only PBS or phage BUCT610 was injected as the negative group. Results were considered valid when all larvae of the PBS-injected samples survived during the experiment. The above experiment was repeated three times.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms23148040/s1.

Author Contributions

M.P.: resources, data curation, writing—original draft, investigation; P.H.: resources, data curation, investigation; G.Z.: isolation and purification of phage BUCT610; Y.L. (Yucong Liu): isolation and purification of phage BUCT610; M.P., P.H., G.Z., Y.L. (Yucong Liu), Y.L. (Yahao Li), F.L., M.L., X.A., L.S., Y.C.: resources, data curation, investigation; H.F.: supervision, writing—review and editing. Y.T.: conceptualization, supervision. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by Funds for First-class Discipline Construction (No. XK1805, No. XK1803-06), National Key Research and Development Program of China (No. 2018YFA0903000, 2020YFC2005405, 2020YFA0712100, 2020YFC0840805, 19SWAQ06, 20SWAQK22), Inner Mongolia Key Research and Development Program (No. 2019ZD006), NSFC-MFST project (China-Mongolia) (No. 31961143024), and Fundamental Research Funds for Central Universities (No. BUCTRC201917, BUCTZY2022).

Data Availability Statement

All data generated for this study are included in the article and Supplementary Materials. All data were analyzed using the GraphPad Prism 8.0.1 and are expressed as means and standard deviation values. Student’s test (t test) analysis was used (Figure 2A,C,D). The complete genome sequence of bacteriophage BUCT610 has been deposited in GenBank under the accession number MZ318367.1.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Gaiarsa, S.; Comandatore, F.; Gaibani, P.; Corbella, M.; Dalla Valle, C.; Epis, S.; Scaltriti, E.; Carretto, E.; Farina, C.; Labonia, M.; et al. Genomic epidemiology of Klebsiella pneumoniae in Italy and novel insights into the origin and global evolution of its resistance to carbapenem antibiotics. Antimicrob. Agents Chemother. 2015, 59, 389–396. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Bengoechea, J.A.; Sa Pessoa, J. Klebsiella pneumoniae infection biology: Living to counteract host defences. FEMS Microbiol. Rev. 2019, 43, 123–144. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Choby, J.E.; Howard-Anderson, J.; Weiss, D.S. Hypervirulent Klebsiella pneumoniae—Clinical and molecular perspectives. J. Intern. Med. 2020, 287, 283–300. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Lee, C.R.; Lee, J.H.; Park, K.S.; Jeon, J.H.; Kim, Y.B.; Cha, C.J.; Jeong, B.C.; Lee, S.H. Antimicrobial Resistance of Hypervirulent Klebsiella pneumoniae: Epidemiology, Hypervirulence-Associated Determinants, and Resistance Mechanisms. Front. Cell Infect. Microbiol. 2017, 7, 483. [Google Scholar] [CrossRef] [Green Version]
  5. Grillon, A.; Schramm, F.; Kleinberg, M.; Jehl, F. Comparative Activity of Ciprofloxacin, Levofloxacin and Moxifloxacin against Klebsiella pneumoniae, Pseudomonas aeruginosa and Stenotrophomonas maltophilia Assessed by Minimum Inhibitory Concentrations and Time-Kill Studies. PLoS ONE 2016, 11, e0156690. [Google Scholar] [CrossRef]
  6. Mikhail, S.; Singh, N.B.; Kebriaei, R.; Rice, S.A.; Stamper, K.C.; Castanheira, M.; Rybak, M.J. Evaluation of the Synergy of Ceftazidime-Avibactam in Combination with Meropenem, Amikacin, Aztreonam, Colistin, or Fosfomycin against Well-Characterized Multidrug-Resistant Klebsiella pneumoniae and Pseudomonas aeruginosa. Antimicrob. Agents Chemother. 2019, 63, e00779-19. [Google Scholar] [CrossRef] [Green Version]
  7. Motsch, J.; Murta de Oliveira, C.; Stus, V.; Köksal, I.; Lyulko, O.; Boucher, H.W.; Kaye, K.S.; File, T.M.; Brown, M.L.; Khan, I.; et al. RESTORE-IMI 1: A Multicenter, Randomized, Double-blind Trial Comparing Efficacy and Safety of Imipenem/Relebactam vs Colistin Plus Imipenem in Patients with Imipenem-nonsusceptible Bacterial Infections. Clin. Infect. Dis. 2020, 70, 1799–1808. [Google Scholar] [CrossRef] [Green Version]
  8. Zhen, X.; Stålsby Lundborg, C.; Sun, X.; Hu, X.; Dong, H. Clinical and Economic Impact of Third-Generation Cephalosporin-Resistant Infection or Colonization Caused by Escherichia coli and Klebsiella pneumoniae: A Multicenter Study in China. Int. J. Environ. Res. Public Health 2020, 17, 9285. [Google Scholar] [CrossRef]
  9. Kortright, K.E.; Chan, B.K.; Koff, J.L.; Turner, P.E. Phage Therapy: A Renewed Approach to Combat Antibiotic-Resistant Bacteria. Cell Host Microbe 2019, 25, 219–232. [Google Scholar] [CrossRef] [Green Version]
  10. Górski, A.; Międzybrodzki, R.; Łobocka, M.; Głowacka-Rutkowska, A.; Bednarek, A.; Borysowski, J.; Jończyk-Matysiak, E.; Łusiak-Szelachowska, M.; Weber-Dąbrowska, B.; Bagińska, N.; et al. Phage Therapy: What Have We Learned. Viruses 2018, 10, 288. [Google Scholar] [CrossRef] [Green Version]
  11. Bao, J.; Wu, N.; Zeng, Y.; Chen, L.; Li, L.; Yang, L.; Zhang, Y.; Guo, M.; Li, L.; Li, J.; et al. Non-active antibiotic and bacteriophage synergism to successfully treat recurrent urinary tract infection caused by extensively drug-resistant Klebsiella pneumoniae. Emerg. Microbes. Infect. 2020, 9, 771–774. [Google Scholar] [CrossRef] [Green Version]
  12. Cano, E.J.; Caflisch, K.M.; Bollyky, P.L.; Van Belleghem, J.D.; Patel, R.; Fackler, J.; Brownstein, M.J.; Horne, B.; Biswas, B.; Henry, M.; et al. Phage Therapy for Limb-threatening Prosthetic Knee Klebsiella pneumoniae Infection: Case Report and In Vitro Characterization of Anti-biofilm Activity. Clin. Infect. Dis. 2021, 73, e144–e151. [Google Scholar] [CrossRef]
  13. Eskenazi, A.; Lood, C.; Wubbolts, J.; Hites, M.; Balarjishvili, N.; Leshkasheli, L.; Askilashvili, L.; Kvachadze, L.; van Noort, V.; Wagemans, J.; et al. Combination of pre-adapted bacteriophage therapy and antibiotics for treatment of fracture-related infection due to pandrug-resistant Klebsiella pneumoniae. Nat. Commun. 2022, 13, 302. [Google Scholar] [CrossRef]
  14. Talebzadeh, H.; Mellali, H.; Solgi, H. Association of fluoroquinolone resistance and ESBL production in hypervirulent Klebsiella pneumoniae ST11 and ST893 in Iran. Acta Microbiol. Immunol. Hung. 2022, 135–143, online ahead of print. [Google Scholar] [CrossRef]
  15. Solgi, H.; Badmasti, F.; Giske, C.G.; Aghamohammad, S.; Shahcheraghi, F. Molecular epidemiology of NDM-1- and OXA-48-producing Klebsiella pneumoniae in an Iranian hospital: Clonal dissemination of ST11 and ST893. J. Antimicrob. Chemother. 2018, 73, 1517–1524. [Google Scholar] [CrossRef]
  16. Al-Anany, A.M.; Fatima, R.; Hynes, A.P. Temperate phage-antibiotic synergy eradicates bacteria through depletion of lysogens. Cell Rep. 2021, 35, 109172. [Google Scholar] [CrossRef]
  17. Goris, J.; Konstantinidis, K.T.; Klappenbach, J.A.; Coenye, T.; Vandamme, P.; Tiedje, J.M. DNA-DNA hybridization values and their relationship to whole-genome sequence similarities. Int. J. Syst. Evol. Microbiol. 2007, 57, 81–91. [Google Scholar] [CrossRef] [Green Version]
  18. Smith, M. Phage-encoded Serine Integrases and Other Large Serine Recombinases. Microbiol. Spectr. 2015, 3, 253–272. [Google Scholar] [CrossRef] [Green Version]
  19. Murphy, K.C. Phage recombinases and their applications. Adv. Virus Res. 2012, 83, 367–414. [Google Scholar]
  20. Murphy, K.C. λ Recombination and Recombineering. EcoSal Plus 2016, 7. [Google Scholar] [CrossRef] [Green Version]
  21. Keijzers, G.; Liu, D.; Rasmussen, L.J. Exonuclease 1 and its versatile roles in DNA repair. Crit. Rev. Biochem. Mol. Biol. 2016, 51, 440–451. [Google Scholar] [CrossRef]
  22. Chongchai, A.; Waramit, S.; Wongwichai, T.; Kampangtip, J.; Phitak, T.; Kongtawelert, P.; Hajitou, A.; Suwan, K.; Pothacharoen, P. Targeting Human Osteoarthritic Chondrocytes with Ligand Directed Bacteriophage-Based Particles. Viruses 2021, 13, 2343. [Google Scholar] [CrossRef]
  23. Kumagai, I. Display of foreign protein on a coat protein of filamentous phage–phage antibody. Seikagaku J. Jpn. Biochem. Soc. 1993, 65, 1509–1512. [Google Scholar]
  24. Belcaid, M.; Bergeron, A.; Poisson, G. The evolution of the tape measure protein: Units, duplications and losses. BMC Bioinform. 2011, 12 (Suppl. S9), S10. [Google Scholar] [CrossRef] [Green Version]
  25. Mahony, J.; Alqarni, M.; Stockdale, S.; Spinelli, S.; Feyereisen, M.; Cambillau, C.; Sinderen, D.V. Functional and structural dissection of the tape measure protein of lactococcal phage TP901-1. Sci. Rep. 2016, 6, 36667. [Google Scholar] [CrossRef] [Green Version]
  26. Feiss, M.; Rao, V.B. The bacteriophage DNA packaging machine. Adv. Exp. Med. Biol. 2012, 726, 489–509. [Google Scholar]
  27. Hwang, Y.; Feiss, M. Mutations affecting the high affinity ATPase center of gpA, the large subunit of bacteriophage lambda terminase, inactivate the endonuclease activity of terminase. J. Mol. Biol. 1996, 261, 524–535. [Google Scholar] [CrossRef]
  28. Tomka, M.A.; Catalano, C.E. Kinetic characterization of the ATPase activity of the DNA packaging enzyme from bacteriophage lambda. Biochemistry 1993, 32, 11992–11997. [Google Scholar] [CrossRef]
  29. Nemecek, D.; Gilcrease, E.B.; Kang, S.; Prevelige, P.E., Jr.; Casjens, S.; Thomas, G.J., Jr. Subunit conformations and assembly states of a DNA-translocating motor: The terminase of bacteriophage P22. J. Mol. Biol. 2007, 374, 817–836. [Google Scholar] [CrossRef] [Green Version]
  30. Gong, Q.; Wang, X.; Huang, H.; Sun, Y.; Qian, X.; Xue, F.; Ren, J.; Dai, J.; Tang, F. Novel Host Recognition Mechanism of the K1 Capsule-Specific Phage of Escherichia coli: Capsular Polysaccharide as the First Receptor and Lipopolysaccharide as the Secondary Receptor. J. Virol. 2021, 95, e0092021. [Google Scholar] [CrossRef]
  31. Chen, P.; Sun, H.; Ren, H.; Liu, W.; Li, G.; Zhang, C. LamB, OmpC, and the Core Lipopolysaccharide of Escherichia coli K-12 Function as Receptors of Bacteriophage Bp7. J. Virol. 2020, 94, e00325-20. [Google Scholar] [CrossRef] [PubMed]
  32. Abedon, S.T.; Danis-Wlodarczyk, K.M.; Wozniak, D.J. Phage Cocktail Development for Bacteriophage Therapy: Toward Improving Spectrum of Activity Breadth and Depth. Pharmaceuticals 2021, 14, 1019. [Google Scholar] [CrossRef] [PubMed]
  33. Mijbel Ali, B.; Gatea Kaabi, S.A.; Al-Bayati, M.A.; Musafer, H.K. A Novel Phage Cocktail Therapy of the Urinary Tract Infection in a Mouse Model. Arch. Razi Inst. 2021, 76, 1229–1236. [Google Scholar] [PubMed]
  34. Dion, M.B.; Oechslin, F.; Moineau, S. Phage diversity, genomics and phylogeny. Nat. Rev. Microbiol. 2020, 18, 125–138. [Google Scholar] [CrossRef]
  35. Jonge, P.A.; Meijenfeldt, F.; Rooijen, L.; Brouns, S.; Dutilh, B.E. Evolution of BACON Domain Tandem Repeats in crAssphage and Novel Gut Bacteriophage Lineages. Viruses 2019, 11, 1085. [Google Scholar] [CrossRef] [Green Version]
  36. Anand, T.; Virmani, N.; Kumar, S.; Mohanty, A.K.; Pavulraj, S.; Bera, B.C.; Vaid, R.K.; Ahlawat, U.; Tripathi, B.N. Phage therapy for treatment of virulent Klebsiella pneumoniae infection in a mouse model. J. Glob. Antimicrob. Resist. 2020, 21, 34–41. [Google Scholar] [CrossRef]
  37. Han, K.; He, X.; Fan, H.; Song, L.; An, X.; Li, M.; Tong, Y. Characterization and genome analysis of a novel Stenotrophomonas maltophilia bacteriophage BUCT598 with extreme pH resistance. Virus Res. 2022, 314, 198751. [Google Scholar] [CrossRef]
  38. Jończyk-Matysiak, E.; Łodej, N.; Kula, D.; Owczarek, B.; Orwat, F.; Międzybrodzki, R.; Neuberg, J.; Bagińska, N.; Weber-Dąbrowska, B.; Górski, A. Factors determining phage stability/activity: Challenges in practical phage application. Expert. Rev. Anti Infect. Ther. 2019, 17, 583–606. [Google Scholar] [CrossRef]
  39. Kawahara, K. Variation, Modification and Engineering of Lipid A in Endotoxin of Gram-Negative Bacteria. Int. J. Mol. Sci. 2021, 22, 2281. [Google Scholar] [CrossRef]
  40. Wu, G.; Yi, Y.; Sun, J.; Li, M.; Qiu, L. No evidence for priming response in Galleria mellonella larvae exposed to toxin protein PirA2B2 from Photorhabdus luminescens TT01: An association with the inhibition of the host cellular immunity. Vaccine 2015, 33, 6307–6313. [Google Scholar] [CrossRef]
  41. Wu, G.; Yi, Y.; Lv, Y.; Li, M.; Wang, J.; Qiu, L. The lipopolysaccharide (LPS) of Photorhabdus luminescens TT01 can elicit dose- and time-dependent immune priming in Galleria mellonella larvae. J. Invertebr. Pathol. 2015, 127, 63–72. [Google Scholar] [CrossRef]
  42. Wu, Y.; Wang, R.; Xu, M.; Liu, Y.; Zhu, X.; Qiu, J.; Liu, Q.; He, P.; Li, Q. A Novel Polysaccharide Depolymerase Encoded by the Phage SH-KP152226 Confers Specific Activity Against Multidrug-Resistant Klebsiella pneumoniae via Biofilm Degradation. Front. Microbiol. 2019, 10, 2768. [Google Scholar] [CrossRef] [Green Version]
  43. Taha, O.A.; Connerton, P.L.; Connerton, I.F.; El-Shibiny, A. Bacteriophage ZCKP1: A Potential Treatment for Klebsiella pneumoniae Isolated from Diabetic Foot Patients. Front. Microbiol. 2018, 9, 2127. [Google Scholar] [CrossRef]
  44. Fangman, W.L. Separation of very large DNA molecules by gel electrophoresis. Nucleic Acids Res. 1978, 5, 653–665. [Google Scholar] [CrossRef] [Green Version]
  45. Serwer, P.; Wright, E.T. In-Gel Isolation and Characterization of Large (and Other) Phages. Viruses 2020, 12, 410. [Google Scholar] [CrossRef] [Green Version]
  46. Serwer, P.; Hunter, B.; Wright, E.T. Electron Microscopy of In-Plaque Phage T3 Assembly: Proposed Analogs of Neurodegenerative Disease Triggers. Pharmaceuticals 2020, 13, 18. [Google Scholar] [CrossRef] [Green Version]
  47. Zhang, W.; Zhang, R.; Hu, Y.; Liu, Y.; Wang, L.; An, X.; Song, L.; Shi, T.; Fan, H.; Tong, Y.; et al. Biological characteristics and genomic analysis of a Stenotrophomonas maltophilia phage vB_SmaS_BUCT548. Virus Genes. 2021, 57, 205–216. [Google Scholar] [CrossRef]
  48. Liu, Y.; Leung, S.; Huang, Y.; Guo, Y.; Jiang, N.; Li, P.; Chen, J.; Wang, R.; Bai, C.; Mi, Z.; et al. Identification of Two Depolymerases from Phage IME205 and Their Antivirulent Functions on K47 Capsule of Klebsiella pneumoniae. Front. Microbiol. 2020, 11, 218. [Google Scholar] [CrossRef]
  49. Sofy, A.R.; El-Dougdoug, N.K.; Refaey, E.E.; Dawoud, R.A.; Hmed, A.A. Characterization and Full Genome Sequence of Novel KPP-5 Lytic Phage against Klebsiella pneumoniae Responsible for Recalcitrant Infection. Biomedicines 2021, 9, 342. [Google Scholar] [CrossRef]
  50. Xing, S.; Zhang, X.; Sun, Q.; Wang, J.; Mi, Z.; Pei, G.; Huang, Y.; An, X.; Fu, K.; Zhou, L.; et al. Complete genome sequence of a novel, virulent Ahjdlikevirus bacteriophage that infects Enterococcus faecium. Arch. Virol. 2017, 162, 3843–3847. [Google Scholar] [CrossRef]
  51. Madaha, E.L.; Mienie, C.; Gonsu, H.K.; Bughe, R.N.; Fonkoua, M.C.; Mbacham, W.F.; Alayande, K.A.; Bezuidenhout, C.C.; Ateba, C.N. Whole-genome sequence of multi-drug resistant Pseudomonas aeruginosa strains UY1PSABAL and UY1PSABAL2 isolated from human broncho-alveolar lavage, Yaoundé, Cameroon. PLoS ONE 2020, 15, e0238390. [Google Scholar] [CrossRef]
  52. Xie, X.T.; Kropinski, A.M.; Tapscott, B.; Weese, J.S.; Turner, P.V. Prevalence of fecal viruses and bacteriophage in Canadian farmed mink (Neovison vison). Microbiologyopen 2019, 8, e00622. [Google Scholar] [CrossRef]
  53. Zoledowska, S.; Motyka-Pomagruk, A.; Sledz, W.; Mengoni, A.; Lojkowska, E. High genomic variability in the plant pathogenic bacterium Pectobacterium parmentieri deciphered from de novo assembled complete genomes. BMC Genom. 2018, 19, 751. [Google Scholar] [CrossRef] [Green Version]
  54. Marques-Bastos, S.; Coelho, M.; de Sousa Santos, I.N.; Farias, F.M.; Silva Francisco, M.; Albano, R.M.; Sales Alviano, C.; de Freire Bastos, M. Draft genome sequence of the producer strain of aureocin 4181, an antimicrobial peptide with antagonistic activity against multidrug-resistant staphylococci. J. Glob. Antimicrob. Resist. 2020, 23, 331–333. [Google Scholar] [CrossRef]
  55. Karunarathna, K.; Senathilake, N.; Mewan, K.M.; Weerasena, O.; Perera, S. In silico structural homology modelling of EST073 motif coding protein of tea Camellia sinensis (L.). J. Genet. Eng. Biotechnol. 2020, 18, 32. [Google Scholar] [CrossRef]
  56. Alam, T.I.; Rao, V.B. The ATPase domain of the large terminase protein, gp17, from bacteriophage T4 binds DNA: Implications to the DNA packaging mechanism. J. Mol. Biol. 2008, 376, 1272–1281. [Google Scholar] [CrossRef]
  57. Chan, P.P.; Lowe, T.M. tRNAscan-SE: Searching for tRNA Genes in Genomic Sequences. Methods Mol. Biol. 2019, 1962, 1–14. [Google Scholar]
  58. Bortolaia, V.; Kaas, R.S.; Ruppe, E.; Roberts, M.C.; Schwarz, S.; Cattoir, V.; Philippon, A.; Allesoe, R.L.; Rebelo, A.R.; Florensa, A.F.; et al. ResFinder 4.0 for predictions of phenotypes from genotypes. J. Antimicrob. Chemother. 2020, 75, 3491–3500. [Google Scholar] [CrossRef]
  59. Gupta, S.K.; Rolain, J.M. Reply to “Comparison of the web tools ARG-ANNOT and ResFinder for detection of resistance genes in bacteria”. Antimicrob. Agents Chemother. 2014, 58, 4987. [Google Scholar] [CrossRef] [Green Version]
  60. Joensen, K.G.; Scheutz, F.; Lund, O.; Hasman, H.; Kaas, R.S.; Nielsen, E.M.; Aarestrup, F.M. Real-time whole-genome sequencing for routine typing, surveillance, and outbreak detection of verotoxigenic Escherichia coli. J. Clin. Microbiol. 2014, 52, 1501–1510. [Google Scholar] [CrossRef] [Green Version]
Ijms 23 08040 g001a 550Ijms 23 08040 g001b 550
Figure 1. Plaque morphology of bacteriophage BUCT610. (A) Phage plaques formed of BUCT610 on the lawn with K. pneumoniae K1119. (B) Transmission electron micrograph image of BUCT610.
Figure 1. Plaque morphology of bacteriophage BUCT610. (A) Phage plaques formed of BUCT610 on the lawn with K. pneumoniae K1119. (B) Transmission electron micrograph image of BUCT610.
Ijms 23 08040 g001aIjms 23 08040 g001b
Ijms 23 08040 g002a 550Ijms 23 08040 g002b 550

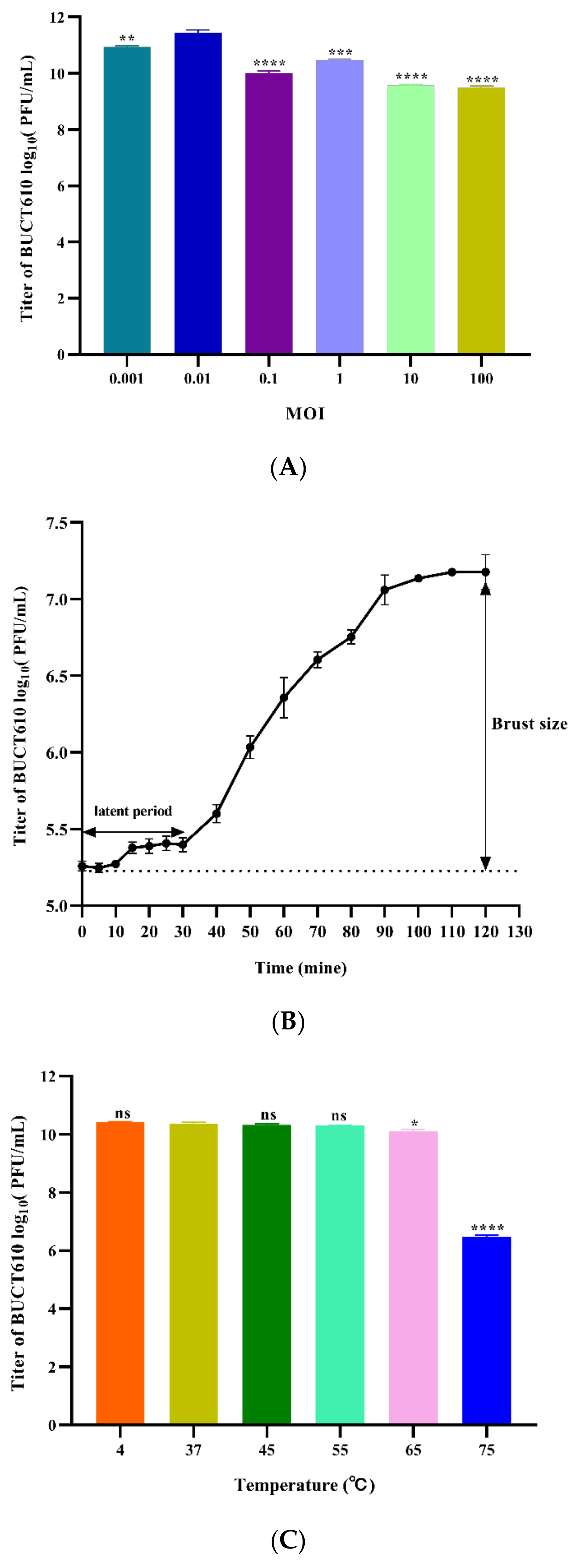

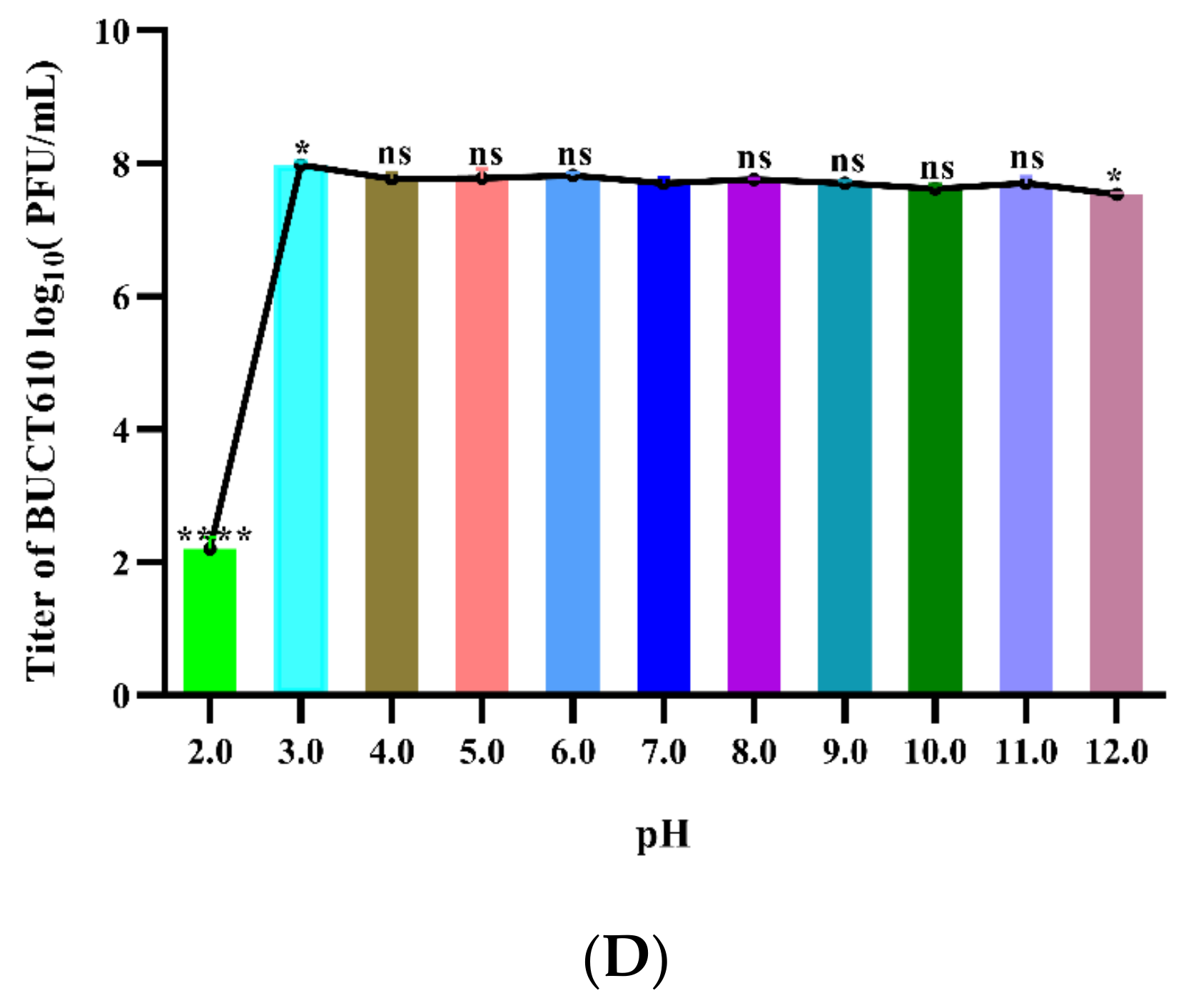

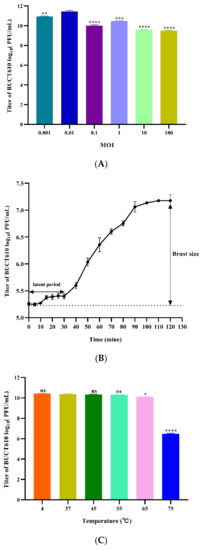

Figure 2. Physiological characterization of phage BUCT610. (A) Optimal MOI assays of bacteriophage BUCT610. (B) One-step growth curve of bacteriophage BUCT610. (C) Thermal stability of BUCT610. (D) pH stability of bacteriophage BUCT610. Data are shown as the mean ± SD; **** p < 0.0001, *** p < 0.001, ** p < 0.01, or * p < 0.05 indicates a significant difference between this group and the control (this experiment was repeated in biological triplicate).
Figure 2. Physiological characterization of phage BUCT610. (A) Optimal MOI assays of bacteriophage BUCT610. (B) One-step growth curve of bacteriophage BUCT610. (C) Thermal stability of BUCT610. (D) pH stability of bacteriophage BUCT610. Data are shown as the mean ± SD; **** p < 0.0001, *** p < 0.001, ** p < 0.01, or * p < 0.05 indicates a significant difference between this group and the control (this experiment was repeated in biological triplicate).
Ijms 23 08040 g002aIjms 23 08040 g002b
Ijms 23 08040 g003 550

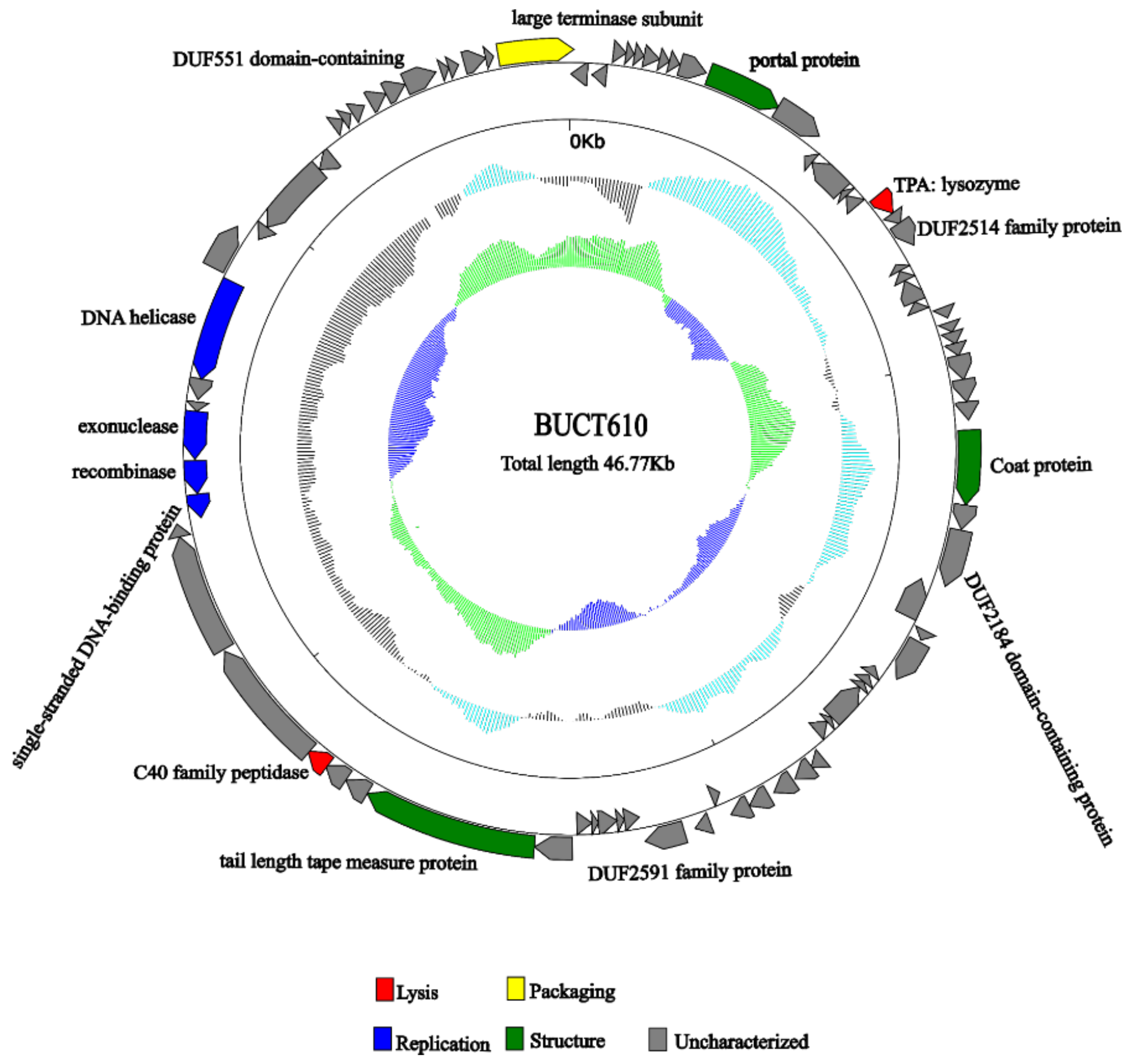

Figure 3. Genomic map of bacteriophage BUCT610 and its genetic characteristics. Open reading frames (ORF) are represented in different colors according to their functional categories. Red: lysis-related genes; blue: replication-related genes; green: structure-related genes; yellow: packaging-related genes; gray: uncharacterized genes.
Figure 3. Genomic map of bacteriophage BUCT610 and its genetic characteristics. Open reading frames (ORF) are represented in different colors according to their functional categories. Red: lysis-related genes; blue: replication-related genes; green: structure-related genes; yellow: packaging-related genes; gray: uncharacterized genes.
Ijms 23 08040 g003
Ijms 23 08040 g004a 550Ijms 23 08040 g004b 550Ijms 23 08040 g004c 550

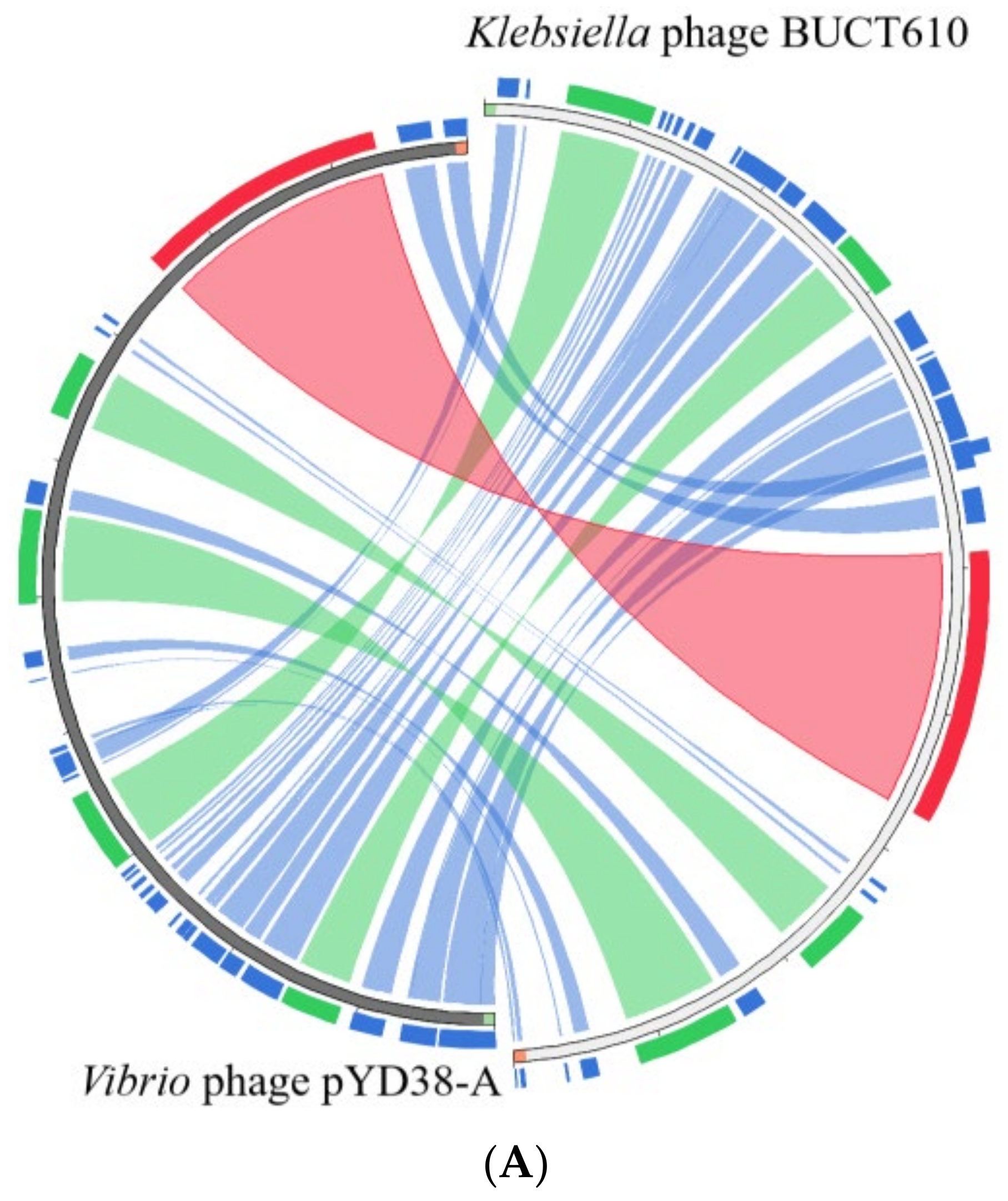

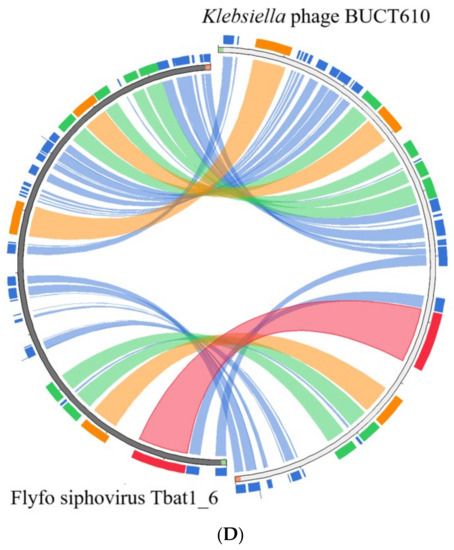

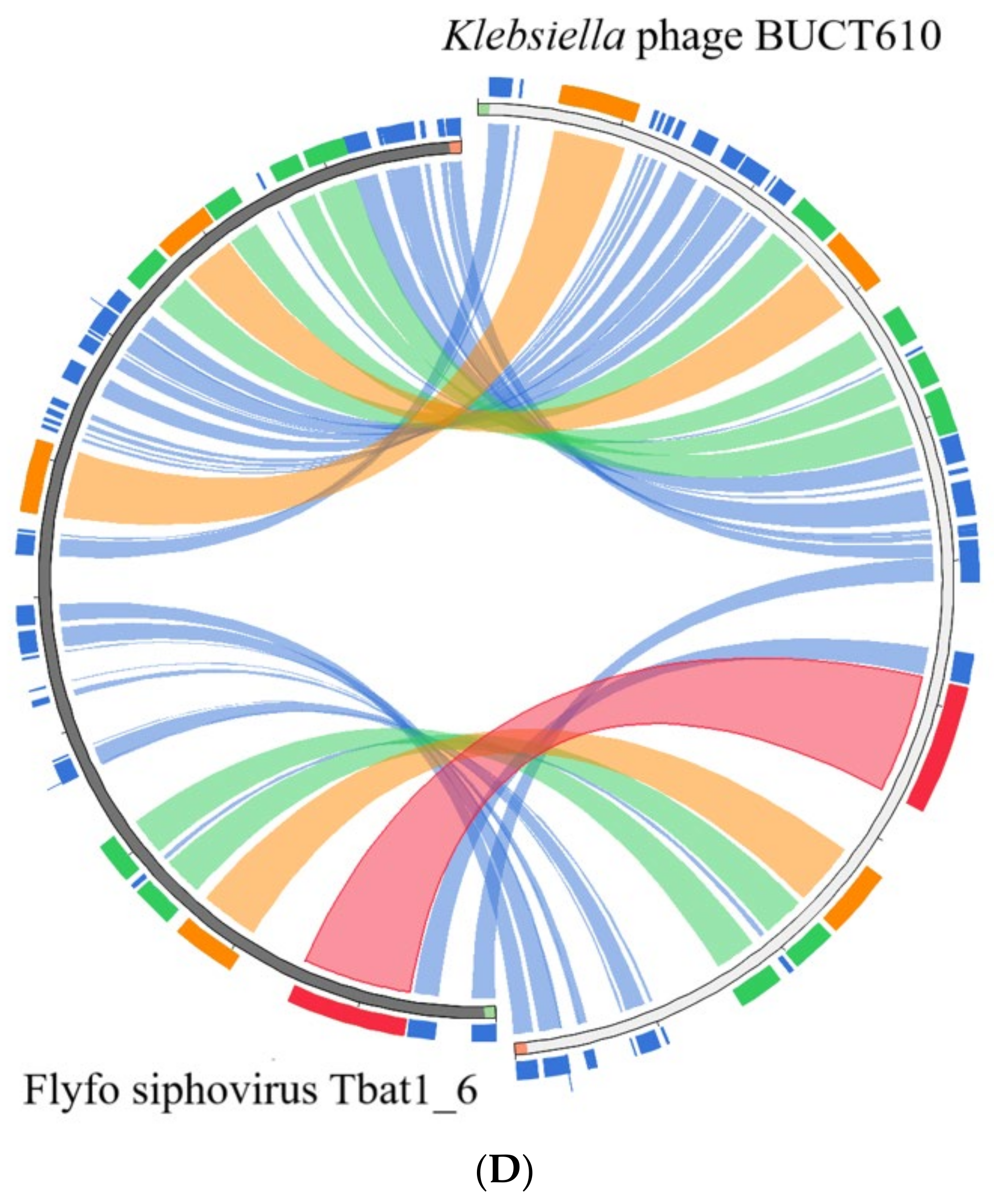

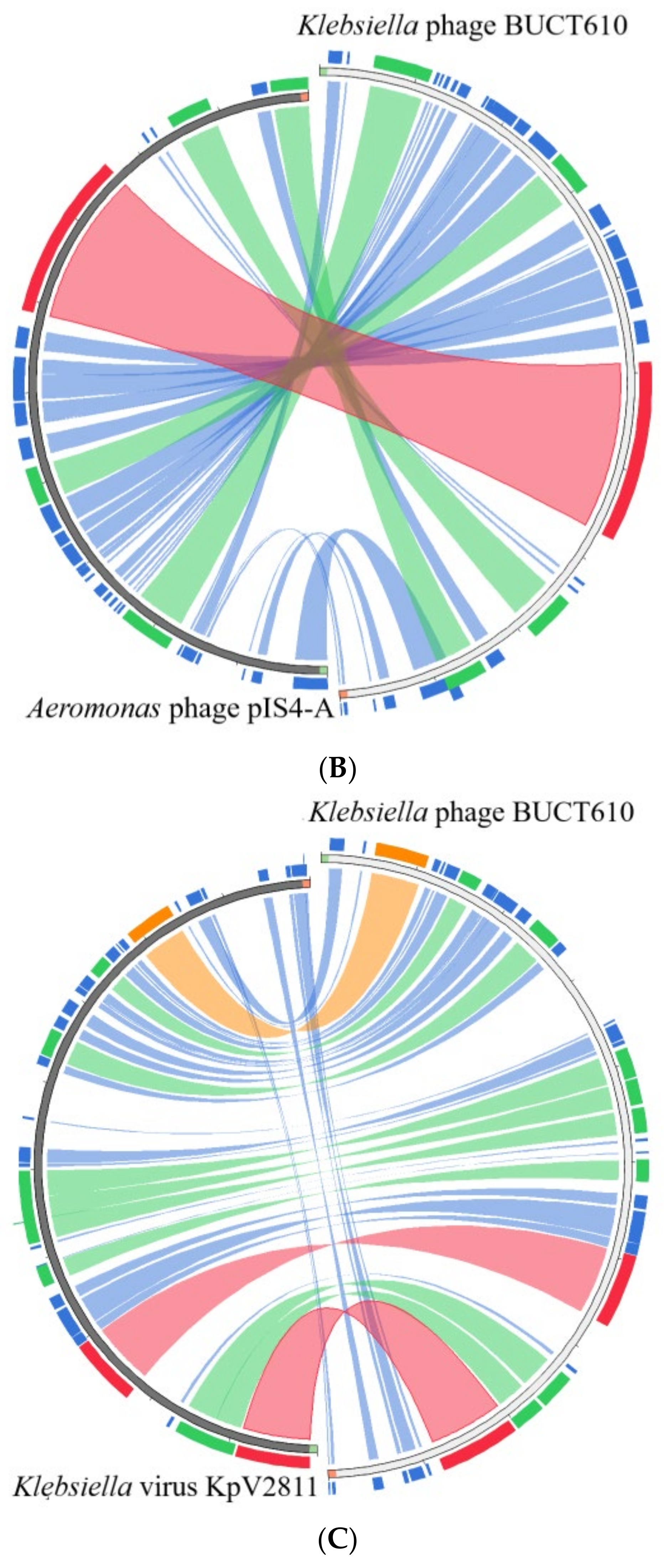

Figure 4. Circos plot depicting sequence similarities of Klebsiella phage BUCT610 with (A) Vibrio phage pYD38-A, (B) Aeromonas phage pIS4-A, (C) Klebsiella virus KpV2811, and (D) Flyfo siphovirus Tbat1_6. The red color signifies a high sequence similarity, followed by orange, green, and blue. Ratio coloring: blue, ≤0.25; green, ≤0.50; orange, ≤0.75; red, >0.75.
Figure 4. Circos plot depicting sequence similarities of Klebsiella phage BUCT610 with (A) Vibrio phage pYD38-A, (B) Aeromonas phage pIS4-A, (C) Klebsiella virus KpV2811, and (D) Flyfo siphovirus Tbat1_6. The red color signifies a high sequence similarity, followed by orange, green, and blue. Ratio coloring: blue, ≤0.25; green, ≤0.50; orange, ≤0.75; red, >0.75.
Ijms 23 08040 g004aIjms 23 08040 g004bIjms 23 08040 g004c
Ijms 23 08040 g005a 550Ijms 23 08040 g005b 550

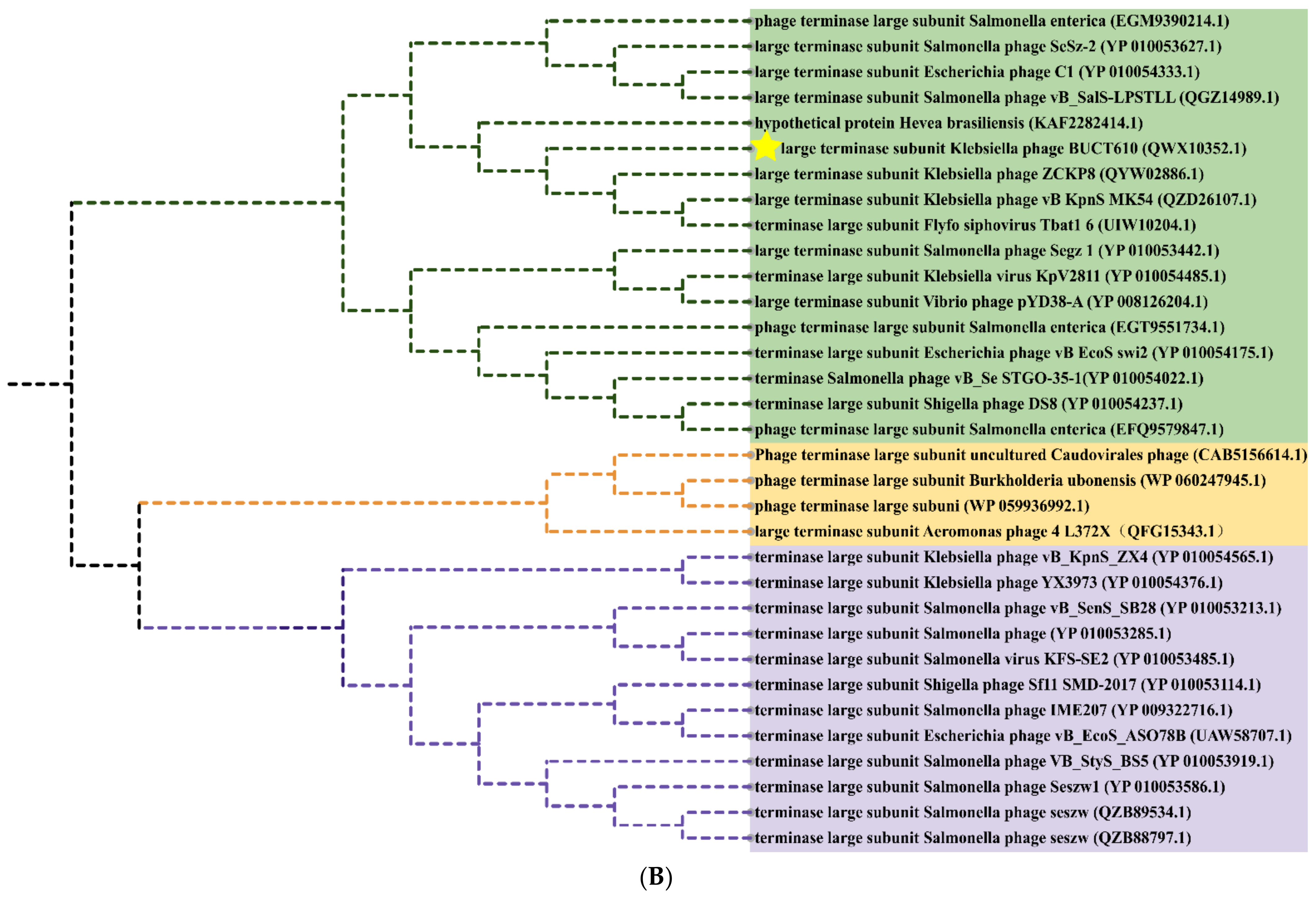

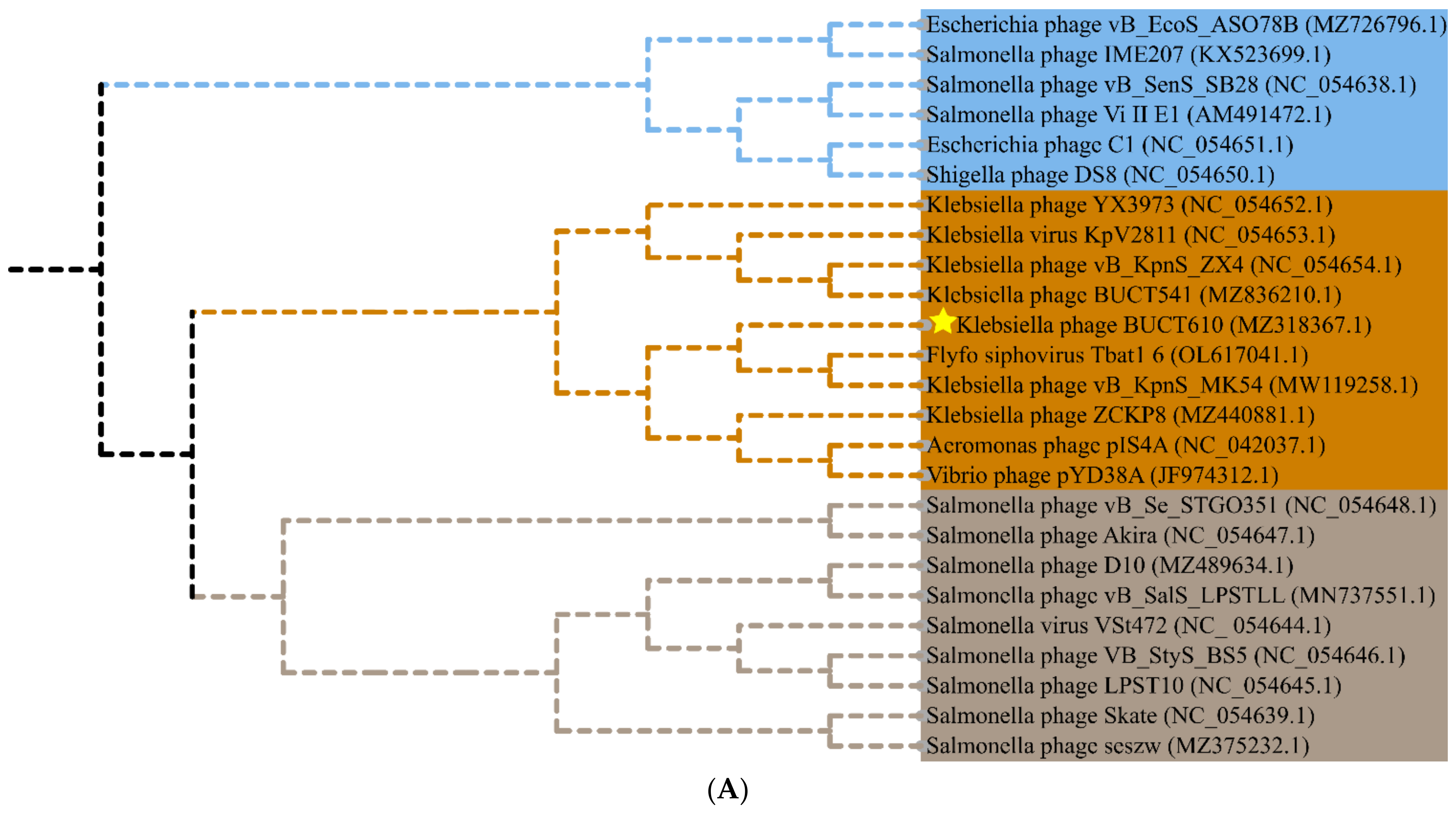

Figure 5. Phylogenetics tree of bacteriophage BUCT610. (A) Phylogenetic trees of Klebsiella phage BUCT610 based on the complete genome sequence generated by VICTOR. (B) Phylogenetic trees were constructed based on the terminase large subunit of BUCT610. The amino acid sequences of the related phages were downloaded from NCBI.
Figure 5. Phylogenetics tree of bacteriophage BUCT610. (A) Phylogenetic trees of Klebsiella phage BUCT610 based on the complete genome sequence generated by VICTOR. (B) Phylogenetic trees were constructed based on the terminase large subunit of BUCT610. The amino acid sequences of the related phages were downloaded from NCBI.
Ijms 23 08040 g005aIjms 23 08040 g005b
Ijms 23 08040 g006a 550Ijms 23 08040 g006b 550

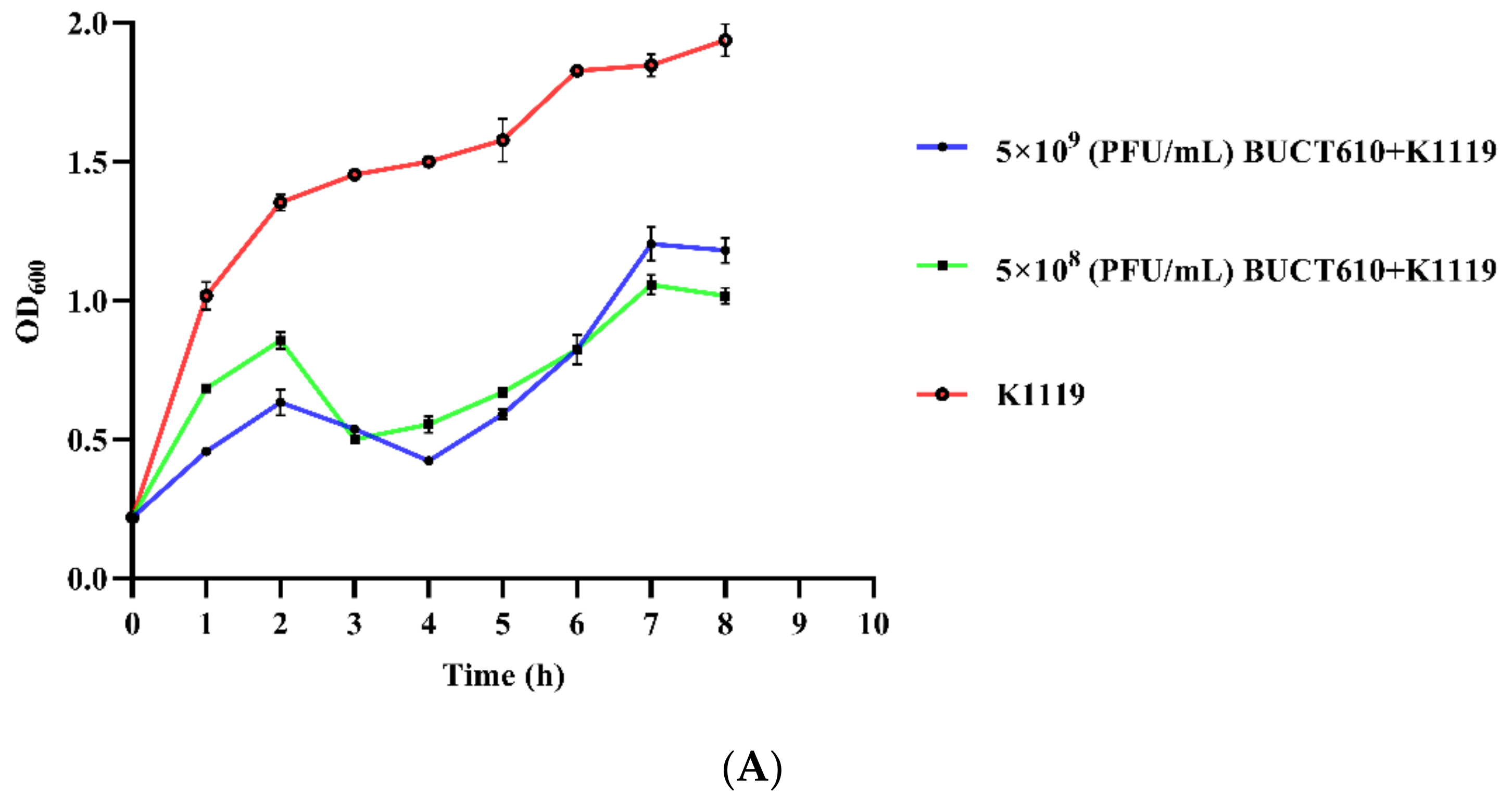

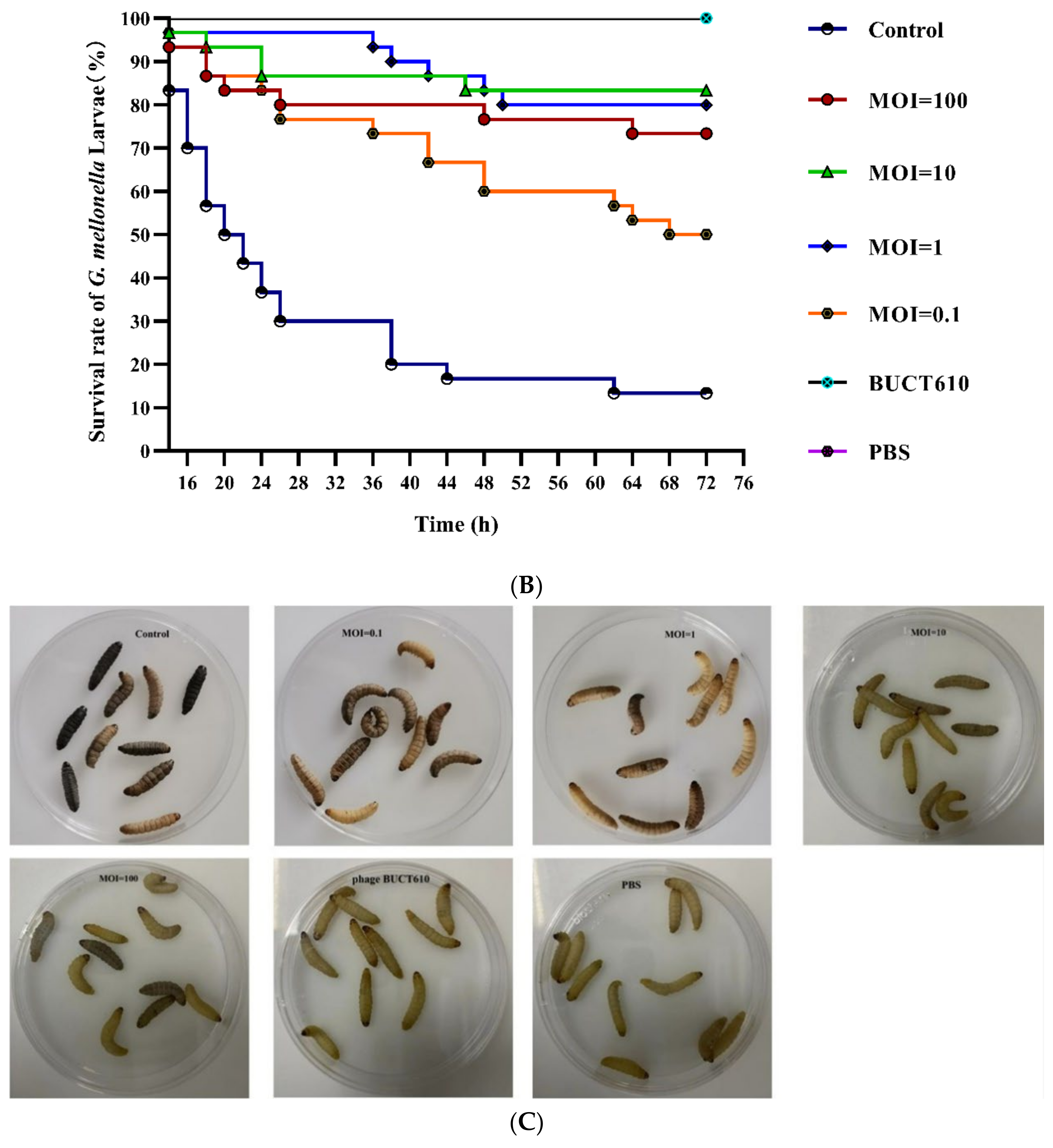

Figure 6. Assessment the efficacy of BUCT610 against K1119 in vitro and in vivo. (A) The variation of OD600 when different titers of BUCT610 were co-cultured with K1119. (B) Survival rate of G. mellonella larvae. Treatment of the K. pneumoniae K1119 (3 × 105 CFU/each)-infected larvae at different titers of BUCT610 (this experiment was repeated in biological triplicate). (C) Different titers of phage BUCT610 therapy for G. mellonella larvae infected with K1119.
Figure 6. Assessment the efficacy of BUCT610 against K1119 in vitro and in vivo. (A) The variation of OD600 when different titers of BUCT610 were co-cultured with K1119. (B) Survival rate of G. mellonella larvae. Treatment of the K. pneumoniae K1119 (3 × 105 CFU/each)-infected larvae at different titers of BUCT610 (this experiment was repeated in biological triplicate). (C) Different titers of phage BUCT610 therapy for G. mellonella larvae infected with K1119.
Ijms 23 08040 g006aIjms 23 08040 g006b
Table
Table 1. Detailed information for bacteria of host range tested.
Table 1. Detailed information for bacteria of host range tested.
SpeciesStrainST TypeCapsule TypeOriginSensitivity
K. pneumoniaeK1119ST893No match307 hospital+
K. pneumoniaeK7ST23K1Aviation General Hospital-
K. pneumoniae064ST23K1Aviation General Hospital-
K. pneumoniae081ST23K1Aviation General Hospital-
K. pneumoniae1241ST11K15307 hospital-
K. pneumoniae1291ST11K27307 hospital-
K. pneumoniae1299ST723N/A307 hospital-
K. pneumoniae1300ST11K16307 hospital-
K. pneumoniae1301ST65K2307 hospital-
K. pneumoniae1307ST65K2307 hospital-
K. pneumoniae2012ST11K25Aviation General Hospital-
K. pneumoniae2013ST15K19Aviation General Hospital-
K. pneumoniae2015ST11K47Aviation General Hospital-
K. pneumoniae2017ST15K19Aviation General Hospital-
K. pneumoniae2019N/AK47Aviation General Hospital-
K. pneumoniae2021N/AK64Aviation General Hospital-
K. pneumoniae2068ST15K19Aviation General Hospital-
K. pneumoniae2086ST11K64Aviation General Hospital-
K. pneumoniae2752ST23K1Aviation General Hospital-
K. pneumoniae2755ST23K1Aviation General Hospital-
“+” susceptible; “-” resistance; “N/A” mutation.
Table
Table 2. Predicted ORFs in the genome of phage BUCT610.
Table 2. Predicted ORFs in the genome of phage BUCT610.
ORFStrandStartStopLength
(AA)		Putative FunctionBest-Match BLASTp ResultQuery Cover (%)E-ValuesIdentity (%)AccessionMW (kDa)
ORF1-35220110hypothetical protein Klebsiella phage KMI798%7.00E-4162.04%QEG10317.113.14
ORF2-72943996hypothetical protein Klebsiella phage YX3973100%2.00E-6298.96%YP_010054377.110.70
ORF3+818105779hypothetical protein Klebsiella phage ZX4100%3.00E-4897.47%YP_010054495.19.32
ORF4+1054120650hypothetical protein Trabulsiella odontotermitis96%1.00E-0650.00%WP_158674504.15.67
ORF5+1215139459hypothetical protein Salmonella phage SeSz-2100%1.00E-1461.02%YP_010053632.16.84
ORF6+1394169098hypothetical protein Pectinobacterium phage PEAT295%1.00E-3763.83%YP_009702196.111.68
ORF7+1687187562hypothetical protein Escherichia coli100%4.00E-2470.97%MBB0589830.16.70
ORF8+1875207566hypothetical protein Salmonella enterica subsp100%4.00E-0734.85%HAZ2983796.17.66
ORF9+20852597170hypothetical protein Salmonella enterica97%6.00E-6457.74%EGT9551729.119.34
ORF10+26464094482portal proteinKlebsiella phage ZX4100%097.30%YP_010054497.154.12
ORF11+40755019314hypothetical protein Klebsiella virus KpV2811100%097.13%YP_010054477.135.56
ORF12-5226503264hypothetical protein Klebsiella phage YX3973100%5.00E-3182.81%YP_010054385.17.53
ORF13-60495228273hypothetical protein Klebsiella phage YX3973100%5.00E-9156.12%YP_010054386.130.50
ORF14-6177604643hypothetical protein Klebsiella phage ZX4100%3.00E-2193.02%YP_010054501.15.12
ORF15-6467617796hypothetical protein Klebsiella virus KpV2811100%1.00E-5794.79%YP_010054472.19.95
ORF16+65667003145TPA: lysozymeSalmonella enterica subsp100%3E-10397.93%HAZ2983869.115.70
ORF17+7000724581hypothetical protein K. pneumoniae100%3.00E-51100.00%WP_142483241.19.06
ORF18+72207717165DUF2514 family protein Klebsiella virus KpV281196%3.00E-9193.71%YP_010054469.118.13
ORF19-8013786449hypothetical protein K. pneumoniae100%5.00E-2595.92%WP_185939371.15.64
ORF20-8233802170hypothetical protein Klebsiella phage YX3973100%1.00E-4091.43%YP_010054391.18.20
ORF21-87008233155hypothetical protein Vibrio phage pYD38-A100%7.00E-9186.16%YP_008126189.117.50
ORF22-8900870066hypothetical protein K. pneumoniae100%2.00E-40100.00%WP_142483236.18.02
ORF23+8997921271hypothetical protein Klebsiella phage YX3973100%2.00E-44100.00%YP_010054394.18.26
ORF24+9296948763hypothetical protein K. pneumoniae100%1.00E-3596.83%WP_142483234.17.70
ORF25+9484972379hypothetical protein Vibrio phage pYD38-A100%6.00E-3589.87%YP_008126184.19.62
ORF26+9704994680hypothetical protein Salmonella phage SeSz-297%8.00E-2866.67%YP_010053654.18.97
ORF27+993610,406156hypothetical protein Klebsiella phage YX3973100%8E-113100.00%YP_010054398.117.67
ORF28+10,39410,819141hypothetical protein Shigella phage Sf11 SMD-201755%1.00E-3980.77%YP_010053088.116.52
ORF29+10,81611,160167hypothetical protein Klebsiella phage YX397368%8.00E-7493.86%YP_010054400.113.05
ORF30+11,34312,746467hypothetical protein Klebsiella phage YX3973100%096.15%YP_010054401.151.39
ORF31+12,74613,210207hypothetical protein Vibrio phage pYD38-A74%7E-10397.40%YP_008126178.115.64
ORF32+13,22214,310362DUF2184 domain
containing protein 		K. pneumoniae100%099.45%WP_142483227.140.05
ORF33-15,12314,326265hypothetical protein Salmonella enterica 100%5E-11660.97%ECD2278621.131.84
ORF34+15,21515,40964hypothetical protein Vibrio phage pYD38-A100%6.00E-3798.44%YP_008126175.17.11
ORF35+15,45316,271272hypothetical protein K. pneumoniae94%1E-18097.66%WP_142483225.128.65
ORF36-16,48316,30160hypothetical protein Salmonella phage IME207100%2.00E-2883.33%YP_009322759.16.76
ORF37-16,68216,50957hypothetical protein K. pneumoniae100%4.00E-3396.49%WP_185939376.16.71
ORF38-16,81916,68245hypothetical protein Bacteriophage sp.97%3.00E-1568.18%QHJ81118.15.27
ORF39-17,63416,819271hypothetical protein K. pneumoniae100%098.52%WP_142483222.129.94
ORF40-17,75817,64238hypothetical protein Klebsiella phage ZX4100%5.00E-1492.11%YP_010054525.14.42
ORF41-18,04817,75597hypothetical protein Vibrio phage pYD38-A100%6.00E-2253.61%YP_008126169.110.02
ORF42+18,27918,56695hypothetical protein Klebsiella phage YX3973100%5.00E-62100.00%YP_010054411.110.16
ORF43+18,54418,936130hypothetical protein Klebsiella phage YX3973100%9.00E-8997.69%YP_010054412.113.88
ORF44+18,97419,399141hypothetical protein Vibrio phage pYD38-A80%8.00E-79100.00%YP_008126166.115.18
ORF45+19,50419,920138hypothetical protein Klebsiella virus KpV2811100%5.00E-9498.55%YP_010054440.114.99
ORF46+19,91720,300127hypothetical protein Vibrio phage pYD38-A100%6.00E-89100.00%YP_008126240.114.47
ORF47-20,50920,32461hypothetical protein Klebsiella virus KpV2811100%1.00E-3595.08%YP_010054438.17.06
ORF48+20,71321,015100hypothetical protein Pectobacterium polonicum39%9.00E-0982.05%WP_137741933.111.10
ORF49+21,21921,974251hypothetical protein K. pneumoniae99%2e-17899.60%WP_142483279.126.54
ORF50-22,29821,996100hypothetical protein Salmonella enterica100%5.00E-5581.00%EAQ4012616.112.12
ORF51-22,45022,29850hypothetical protein Klebsiella phage ZX4100%1.00E-2594.00%YP_010054538.15.74
ORF52-22,81722,440125DUF2591 family proteinK. pneumoniae96%2.00E-4463.11%WP_116961239.113.94
ORF53-22,94822,81444hypothetical protein Klebsiella phage ZX495%3.00E-1788.10%YP_010054539.15.15
ORF54-23,24422,94599hypothetical protein Vibrio phage pYD38-A100%4.00E-6092.93%YP_008126235.110.99
ORF55+23,33824,045235hypothetical protein Klebsiella phage ZX4100%7E-17197.45%YP_010054540.126.55
ORF56+24,04527,3381097tail length tape measure proteinVibrio phage pYD38-A100%096.08%YP_008126233.1114.54
ORF57+27,33827,808156hypothetical protein K. pneumoniae100%3E-112100.00%WP_142483272.117.99
ORF58+27,80828,278156hypothetical protein Klebsiella phage YX3973100%1E-10998.72%YP_010054357.117.93
ORF59+28,24128,699152C40 family peptidase K. pneumoniae100%2E-10798.03%WP_142483270.117.40
ORF60+28,67131,127818hypothetical protein Vibrio phage pYD38-A100%099.02%YP_008126229.189.86
ORF61+31,16633,430754hypothetical protein K. pneumoniae95%066.02%WP_191974704.180.67
ORF62+33,42733,67281hypothetical protein K. pneumoniae96%8.00E-1947.06%WP_211775938.19.06
ORF63-34,17533,702157single-strandedDNA-binding proteinVibrio phage pYD38-A100%9.00E-4852.10%YP_008126226.117.65
ORF64-34,84434,185219recombinaseKlebsiella phage ZX4100%1E-15498.17%YP_010054548.123.76
ORF65-35,82434,868318exonucleaseKlebsiella virus KpV2811100%097.80%YP_010054422.136.00
ORF66-36,01235,82462hypothetical protein Vibrio phage pYD38-A100%4.00E-3798.39%YP_008126223.17.13
ORF67-36,47536,059138hypothetical protein Vibrio phage pYD38-A100%5.00E-9594.93%YP_008126222.115.74
ORF68-38,50436,462680DNA helicase Klebsiella virus KpV2811100%095.15%YP_010054420.176.95
ORF69+38,57939,472297hypothetical protein K. pneumoniae100%093.94%WP_142483294.133.36
ORF70-39,78339,48798hypothetical protein Klebsiella virus KpV2811100%7.00E-6290.82%YP_010054418.111.46
ORF71-41,33639,783517hypothetical protein Klebsiella phage ZX4100%099.81%YP_010054556.157.52
ORF72-41,70741,333124hypothetical protein Aeromonas phage pIS4-A87%6.00E-5987.04%YP_009614674.113.87
ORF73+42,06442,28573hypothetical protein Vibrio phage pYD38-A100%4.00E-4090.41%YP_008126215.18.05
ORF74+42,28242,46761hypothetical protein Vibrio phage pYD38-A100%3.00E-3696.72%YP_008126214.16.76
ORF75+42,49542,76188hypothetical protein Klebsiella virus KpV2811100%4.00E-5598.86%YP_010054492.110.03
ORF76+42,87343,220115hypothetical protein Klebsiella99%9.00E-5074.56%WP_004151294.112.92
ORF77+43,21743,615132hypothetical protein K. pneumoniae100%2.00E-9499.24%WP_117033037.115.28
ORF78+43,61844,235205DUF551 domain-containingEscherichia coli59%2.00E-6081.60%EFM1806727.122.84
ORF79+44,32844,48652hypothetical protein Klebsiella phage YX3973100%9.00E-2992.31%YP_010054372.16.06
ORF80+44,48644,68064hypothetical protein Klebsiella phage YX3973100%4.00E-3895.31%YP_010054373.17.10
ORF81+44,78445,203139hypothetical protein K. pneumoniae99%5.00E-9299.28%WP_142483254.115.55
ORF82+45,19645,35151hypothetical proteinNO hit----5.58
ORF83+45,34146,762473large terminase subunitSalmonella phage SeSz-2100%089.64%YP_010053627.154.99
Table
Table 3. Primer information.
Table 3. Primer information.
PCR Primers Information
Gene NameSequence
rpoBF: Vic3oF: GTTTTCCCAGTCACGACGTTGTAGGCGAAATGGCWGAGAACCA
R: Vic2oR: TTGTGAGCGGATAACAATTTCGAGTCTTCGAAGTTGTAACC
gapAF: gapA173oF: GTTTTCCCAGTCACGACGTTGTATGAAATATGACTCCACTCACGG
R: gapA181oR: TTGTGAGCGGATAACAATTTCCTTCAGAAGCGGCTTTGATGGCTT
mdhF: mdh130oF: GTTTTCCCAGTCACGACGTTGTA CCCAACTCGCTTCAGGTTCAG
R: mdh867oR: TTGTGAGCGGATAACAATTTCCCGTTTTTCCCCAGCAGCAG
pgiF: pgi1FoF: GTTTTCCCAGTCACGACGTTGTAGAGAAAAACCTGCCTGTACTGCTGGC
R: pgi1RoR: TTGTGAGCGGATAACAATTTCCGCGCCACGCTTTATAGCGGTTAAT
phoEF: phoE604.1oF: GTTTTCCCAGTCACGACGTTGTAACCTACCGCAACACCGACTTCTTCGG
R: phoE604.2oR: TTGTGAGCGGATAACAATTTCTGATCAGAACTGGTAGGTGAT
infBF: infB1FoF: GTTTTCCCAGTCACGACGTTGTACTCGCTGCTGGACTATATTCG
R: infB1RoR: TTGTGAGCGGATAACAATTTC CGCTTTCAGCTCAAGAACTTC
tonBF: tonB1FoF: GTTTTCCCAGTCACGACGTTGTACTTTATACCTCGGTACATCAGGTT
R: tonB2RoR: TTGTGAGCGGATAACAATTTCATTCGCCGGCTGRGCRGAGAG
universal sequencing primersF: GTTTTCCCAGTCACGACGTTGTA
R: TTGTGAGCGGATAACAATTTC
WziF: GTG CCGCGAGCGCTT TCTATCTTGGTATTCC
R: GAGAGCCACTGGTTCCAGAATTACCGC
qPCR primers information
recombinaseF: CCGCTACTCTATTGCGTCTATG
R: GTTTGCTGCTGAACGAATGAG
conserved hypothetical proteinF: CCCGGTAATGCGTCAGAATA
R: TGCCGGATGGTCTGTAATTT
large terminase subunitF: GTCGCAATGGTTGAGGTTTATG
R: TGCCGGATGGTCTGTAATTT
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Pu, M.; Han, P.; Zhang, G.; Liu, Y.; Li, Y.; Li, F.; Li, M.; An, X.; Song, L.; Chen, Y.; et al. Characterization and Comparative Genomics Analysis of a New Bacteriophage BUCT610 against Klebsiella pneumoniae and Efficacy Assessment in Galleria mellonella Larvae. Int. J. Mol. Sci. 2022, 23, 8040. https://doi.org/10.3390/ijms23148040

AMA Style

Pu M, Han P, Zhang G, Liu Y, Li Y, Li F, Li M, An X, Song L, Chen Y, et al. Characterization and Comparative Genomics Analysis of a New Bacteriophage BUCT610 against Klebsiella pneumoniae and Efficacy Assessment in Galleria mellonella Larvae. International Journal of Molecular Sciences. 2022; 23(14):8040. https://doi.org/10.3390/ijms23148040

Chicago/Turabian Style

Pu, Mingfang, Pengjun Han, Guangye Zhang, Yucong Liu, Yahao Li, Fei Li, Mengzhe Li, Xiaoping An, Lihua Song, Yiming Chen, and et al. 2022. "Characterization and Comparative Genomics Analysis of a New Bacteriophage BUCT610 against Klebsiella pneumoniae and Efficacy Assessment in Galleria mellonella Larvae" International Journal of Molecular Sciences 23, no. 14: 8040. https://doi.org/10.3390/ijms23148040

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
