General Construction of Amine via Reduction of N=X (X = C, O, H) Bonds Mediated by Supported Nickel Boride Nanoclusters

by
Da Ke
1,2 and
Shaodong Zhou
1,2,*
1
Zhejiang Provincial Key Laboratory of Advanced Chemical Engineering Manufacture Technology, College of Chemical and Biological Engineering, Zhejiang University, Hangzhou 310027, China
2
Institute of Zhejiang University—Quzhou, Zheda Rd. #99, Quzhou 324000, China
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2022, 23(16), 9337; https://doi.org/10.3390/ijms23169337
Submission received: 18 July 2022 / Revised: 8 August 2022 / Accepted: 16 August 2022 / Published: 19 August 2022
(This article belongs to the Special Issue Nanoparticle for Catalysis)
Browse Figures
Review Reports Versions Notes

Abstract

:
Amines play an important role in synthesizing drugs, pesticides, dyes, etc. Herein, we report on an efficient catalyst for the general construction of amine mediated by nickel boride nanoclusters supported by a TS-1 molecular sieve. Efficient production of amines was achieved via catalytic hydrogenation of N=X (X = C, O, H) bonds. In addition, the catalyst maintains excellent performance upon recycling. Compared with the previous reports, the high activity, simple preparation and reusability of the Ni-B catalyst in this work make it promising for industrial application in the production of amines.

1. Introduction

Amine constitutes a vital class of chemicals abundantly existing in nature, and are widely used in industry to produce pharmaceutical drugs, agrochemicals, fine chemicals, polymers, dyes, perfumes, pigments, etc. [1,2,3,4,5,6]. In recent years, great efforts have been conducted on the synthesis of primary amines. At present, primary amines can be prepared via direct amination of alcohols [7,8], reductive amination of aldehydes or ketone compounds [9,10,11], amination of carboxylic acids [12,13], and reduction of nitriles [14,15,16,17,18], nitro compounds [19,20,21], or amides [22]. Among these methods, the reduction of N=X (X = C, O, H) bonds plays a key role. Generally, nitriles, nitro compounds and amides can be reduced to primary amines using borane [21,23,24], silane [25], hydrides [26], formats [20,27], alcohols [28], or molecular hydrogen [29]. Since Raney Ni was first prepared in 1905, it has become one of the most important catalysts for reduction. Though Raney Ni is indeed active, it suffers from high inflammability [30]. To improve this, researchers have developed a variety of homogeneous or heterogeneous catalysts. For example, non-precious metals, such as iron [31,32,33,34,35,36], cobalt [37,38,39,40,41,42,43,44,45,46,47], copper [48,49], nickel [10,11,21,24,50,51,52,53], manganese [6,54,55], and noble metals, such as palladium [19,56,57,58], platinum [59], ruthenium [8,60,61,62], rhodium [28,63,64,65], samarium [66], and iridium [67], have been employed to construct hydrogenation catalysts.
Efficient, stable, and economical hydrogenation catalysts to synthesize primary amines continue to be demanding in both academia and industry. Amorphous nickel boride is well known for its short-range ordered and long-range disordered structures, as well as their activity in liquid phase hydrogenation [68]. Li et al. [69] used Ni-B/SiO2 as a catalyst to reduce adiponitrile with good selectivity and a low TOF of 1.2 (Scheme 1). At present, there exists only a few reports on the reduction of unsaturated bonds mediated by nickel boride [70,71]. Additionally, the unique pore structure, large specific surface area and excellent hydrothermal stability of titanium silicalite molecular sieves make them widely used in the chemical industry, environmental protection and energy conversion [72,73,74]. The diffusion path length and the aforementioned characteristics enable titanium silicalite (TS-1) molecular sieves to perform strongly as catalysts. Herein, we report on a nickel boride catalyst with TS-1 as support, for the reduction of N=X (X = C, O, H) bonds to amines with high efficiency and universality (Scheme 1).

2. Results and Discussion

2.1. Catalyst Evaluation

We first examined the performances of the catalysts prepared under different conditions, including temperature, pressure, additive and solvent. More details are listed in Table S1. Three reactions were selected to evaluate the catalysts, i.e., the hydrogenation of benzonitrile, nitrobenzene, and the reductive amination of benzaldehyde. The detailed results are shown in Table 1, Table 2 and Table 3.
During the reduction of benzonitrile, the imine intermediate would react with primary amine to generate N-benzylidenebenzylamine (B) and further hydrogenated to dibenzylamine (C). Generally, excessive ammonia can inhibit the side reaction with the primary amine [75]. Moreover, acetylation reactions, using highly acidic or basic additives, can also promote the selectivity of primary amines [76,77,78]. In the model reaction, ammonia was not added to the reaction system in order to evaluate the intrinsic performance of the catalysts. Surprisingly, highly selective generation of primary amines was facilitated. It turned out that both the preparation temperature and the Ni content affect the performance of the catalyst: lower temperature favors a high activity of the catalyst, while a Ni content ~12% is optimal for the catalytic efficiency.
Methanol, ethanol, isopropanol and toluene were tested as the solvent (Figure S1), and isopropanol outperformed the others.
The reaction temperature and hydrogen pressure were simply screened (Figures S2 and S3), and 120 °C and 4.0 MPa were shown to be optimal.
Next, as shown in Table 2, a longer time was required to convert nitrobenzene completely, indicative for a slightly lower activity of the catalyst toward nitro reduction. Though a higher Ni content (18.6%) affords a higher TOF, the yield may not be favored.
Further, reductive amination of benzaldehyde was carried out using the nickel boride catalysts. To promote the selectivity of the target product, the critical point is to avoid further conversion of the product. To this end, it is necessary to use excessive ammonia to suppress the side reaction. As shown in Table 3, when the same amount of nickel was added, the TOF values did not change much.
Considering both the TOF value and the selectivity of the target product, the Ni12.4-30 catalyst was selected for further investigation.

2.2. Characterization of Ni12.4-30

In order to clarify the actual content of metallic Ni in the catalyst, the accurate mass content of Ni was obtained through the ICP-OES test. The theoretical nickel content in the catalyst was 12.4%, and the experimental data was 12.1%, which was the normal error range (Table S2). Thus, there was no loss of Ni during the preparation process.
The XRD pattern of Ni12.4-30, shown in Figure 1, indicates that there was no obvious change on the TS-1 support after loading, implying that the loaded nickel boride component possesses an amorphous structure, in line with previous findings [70]. The rest moiety of the catalyst did not exhibit other diffraction peaks, regardless of the reduction temperature and Ni loading (Figure S4). It is worth noting that nickel boride may react with ethanol at high temperatures to form metallic nickel [79]. The characteristic diffraction peaks for metallic nickel were not found in the used catalyst, therefore, the stability of the nickel boride structure was thus justified, ruling out the possibility that metallic nickel generated in-situ serves as the active species.
In order to further identify the chemical state of the catalyst, Ni12.4-30 (both the fresh and the recycled ones) were subjected to XPS analysis, and the results are shown in Figure 2. The signals of high-resolution XPS spectra that emerged at around 860 and 190 eV correspond to Ni and B, respectively [80]. The peaks at 853 and 856 eV in Ni 2p3/2 are ascribed to the metallic nickel and oxidized nickel. The XPS spectrum of pure nickel boride alloy has only one peak of Ni(0), while the peak of Ni(II) appears when nickel boride is supported, in line with previous reports [69,70,71,81]. The peaks at 188 and 192 eV in B 1s are assigned to elemental and oxidized boron, respectively. The peaks of pure boron in B 1s at 187 eV (< 188 eV) may result from Ni-B interaction. No significant difference in chemical states of Ni and B appears in the used catalyst, indicative of the catalyst’s high stability.
The morphologies of the Ni12.4-30 catalyst was investigated using TEM. As shown in Figure 3a, the nickel boride species correspond to nanoparticles ranging 10~40 nm diameter with a mean size of 17 nm. A smaller particle size indicates a higher surface energy, and the diameter 17 nm is much smaller than that of pure nickel boride alloy (60 nm) [82], which benefits from the porous structure of TS-1. Most likely, the high activity of this catalyst generates these results. The SAED was employed to determine the crystal structure of nickel boride. There are halo diffraction rings rather than distinct dots in the SAED image, confirming the amorphous structure of nickel boride, in good agreement with XRD patterns. The EDS revealed that the nickel boride comprised of Ni (60%) and B (40%), similar to Ni2B.
According to the characteristic results, the high activity of the Ni12.4-30 catalyst may result from three aspects. First, the amorphous nickel boride possesses a large number of coordinatively unsaturated active centers on the surface, and a higher surface energy is conducive to the adsorption and conversion of reactants. Second, the electron-transfer from Ni to B causes polarization of the active center and is thus beneficial for Lewis interactions with the reactants. Third, suitable Ni loading dispersed on TS-1 promotes a proper particle size and prevents aggregation, crystallization, and deactivation.

2.3. The Reduction of Nitrile

In order to test the universality of the selected catalyst (Ni12.4-30), the reduction of various nitriles were carried out under optimal conditions. Ammonia was added into the reaction system to avoid side reactions. Consequently, for most aromatic nitriles, ideal conversion (100%) and primary amines yield (>90%) were obtained (Table 4, entries 1–14). However, when picolinonitrile or 2-aminobenzonitrile were the substrate, a much lower rate of conversion occurred. By contrast, when aliphatic nitriles were subjected to the same conditions, the reaction proceeded very inefficiently (Table 4, entries 15–16, 18–20). It was interesting to note that although the performance of adiponitrile, cyclohexanecarbonitrile and butyronitrile were poor, the performance of dodeconitrile was exceptionally good. This abnormal phenomenon might be ascribed the long carbon chain of dodeconitrile.

2.4. The Reduction of Nitro Compounds

Further, the catalyst was tested with the hydrogenation of aromatic nitro compounds to primary amines. Under the same conditions to nitrile reduction, more time was needed to convert nitro to amino (see Table 5). In spite of the relatively lower activity toward nitro reduction, the catalyst mediates selective generation of primary amines. The substitution groups on the phenyl ring do not have much effect on the reduction process.

2.5. The Reduction for Aldehyde and Ammonia

Further, the catalytic performance of Ni12.4-30 toward reductive amination of aldehyde was examined. Various aldehydes were employed, and the amination results are shown in Table 6. In general, all selected carbonyl compounds were converted to the corresponding amines with excellent yields upon reductive amination. As compared to aromatic aldehydes, aliphatic substrates are relatively less reactive, thus a slightly longer time is required for them to be completely converted.
In order to test the reusability of the catalyst, the Ni12.4-30 species was used fifteen times consecutively with 10 mmol scale. The conversion of benzonitrile, nitrobenzene, and benzaldehyde to amines were all tested. Surprisingly, no obvious loss of activity was observed (Figure 4). Furthermore, the catalytic performance of Ni12.4-30 was compared with the commercial Raney Ni (Table 7, see more details in Table S3). For the reduction of benzonitrile, Ni12.4-30 catalyst exhibits higher selectivity of benzylamine under ammonia-free conditions. For the other two reactions, there was no obvious difference between Ni12.4-30 and Raney Ni.

3. Experimental

3.1. Catalyst Preparation

A typical process for catalyst preparation was followed. NiCl·6H2O was dissolve in 50 mL deionized water, the TS-1 molecular sieve was added, and this was stirred for 0.5 h at 30 °C. After that, 1 M NaBH4 solution was added to the suspension while stirring, and stirring continued for 2 h. Finally, the suspension was filtered and washed to obtain a solid catalyst, which was then subjected to vacuum drying at 50 °C for 2 h. The catalyst is named Niw-T, in which “w” and “T” represent the mass content of nickel (compared to TS-1) and the temperature for catalyst preparation, respectively (see more details in the Support Information).

3.2. Catalyst Characterization

ICP data was obtained from Agilent-ICPOES730 (Santa Clara, CA, USA). The X-ray diffraction (XRD) patterns were measured at room temperature using D/max-rA with Cu-Kα radiation generated at 10 mA and 40 kV. The X-ray photoelectron spectroscopy (XPS) analysis was carried out by using Thermo Scientific K-Alpha (Waltham, MA, USA) with Al-Kα radiation. The morphological information was measured by a transmission electron microscope (TEM) conducted using a Thermo Scientific Talos F200S coupled with X-ray spectroscopy (EDS).

3.3. Catalyst Activity Measurement

Nitrile, catalyst and solvent were mixed in a 100 mL volume autoclave equipped with PTFE and magnetic pellet. The kettle was filled with 0.5 MPa ammonia gas and heated to 120 °C; at this temperature, 4.0 MPa H2 was pressed in, and then reaction was started. During the process, the system pressure was controlled between 4.0 ± 0.1 MPa. After reaction (under constant pressure), the autoclave was cooled and degassed, the reaction solution was filtered to recover the catalyst, and the filtrate was concentrated to determine the conversion by GC. 1H NMR and 13C NMR spectrum data were recorded by a Bruker DRX-400 spectrometer (Billerica, MA, USA) using CDCl3 or DMSO-d6 as solvent at 298 K. Gas chromatography (GC) was performed on Agilent chromatography with a SE54 column. More details in support information (for spectra, see Figures S4–S72).

4. Conclusions

In conclusion, we have presented a nanostructured nickel boride catalyst than can be used for the efficient reduction of nitrile, nitro compounds, and imine groups. This catalyst was prepared via chemical reduction at room temperature with an average particle size of 17 nm and homogeneous distribution. XRD and SAED justified the amorphous structure of nickel boride. The Ni12.4-30 catalyst has been proven to be highly active towards all three reactions, with high TOF values. Furthermore, recycling tests proved that the catalysts are robust for consecutive use. In addition, the performance of the Ni12.4-30 catalyst is comparable to commercial Raney Ni, but it is safer for storage. The promising prospect of the nickel boride catalyst for industrial application has thus been proven.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms23169337/s1.

Author Contributions

Conceptualization, D.K. and S.Z.; methodology, D.K. and S.Z.; writing—original draft preparation, D.K.; writing—review and editing, S.Z. All authors have read and agreed to the published version of the manuscript.

Funding

Generous financial support by the National Natural Science Foundation of China (21878265).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Additional figures are available in the Supplementary Materials.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Ezelarab, H.A.A.; Abbas, S.H.; Hassan, H.A.; Abuo-Rahma, G.E.A. Recent updates of fluoroquinolones as antibacterial agents. Arch. Pharm. 2018, 351, e1800141. [Google Scholar] [CrossRef] [PubMed]
  2. Ahmadi, T.; Mohammadi Ziarani, G.; Bahar, S.; Badiei, A. Domino synthesis of quinoxaline derivatives using SBA-Pr-NH2 as a nanoreactor and their spectrophotometric complexation studies with some metals ions. J. Iran. Chem. Soc. 2018, 15, 1153–1161. [Google Scholar] [CrossRef]
  3. Vo, N.B.; Nguyen, L.A.; Pham, T.L.; Doan, D.T.; Nguyen, T.B.; Ngo, Q.A. Straightforward access to new vinca-alkaloids via selective reduction of a nitrile containing anhydrovinblastine derivative. Tetrahedron Lett. 2017, 58, 2503–2506. [Google Scholar] [CrossRef]
  4. Wang, P.; Zhao, X.H.; Wang, Z.Y.; Meng, M.; Li, X.; Ning, Q. Generation 4 polyamidoamine dendrimers is a novel candidate of nano-carrier for gene delivery agents in breast cancer treatment. Cancer Lett. 2010, 298, 34–49. [Google Scholar] [CrossRef]
  5. Yemul, O.; Imae, T. Synthesis and characterization of poly(ethyleneimine) dendrimers. Colloid Polym. Sci. 2008, 286, 747–752. [Google Scholar] [CrossRef]
  6. Garduño, J.A.; García, J.J. Non-Pincer Mn(I) Organometallics for the Selective Catalytic Hydrogenation of Nitriles to Primary Amines. ACS Catal. 2018, 9, 392–401. [Google Scholar] [CrossRef]
  7. Mastalir, M.; Stöger, B.; Pittenauer, E.; Puchberger, M.; Allmaier, G.; Kirchner, K. Air Stable Iron(II) PNP Pincer Complexes as Efficient Catalysts for the Selective Alkylation of Amines with Alcohols. Adv. Synth. Catal. 2016, 358, 3824–3831. [Google Scholar] [CrossRef]
  8. Baumann, W.; Spannenberg, A.; Pfeffer, J.; Haas, T.; Kockritz, A.; Martin, A.; Deutsch, J. Utilization of common ligands for the ruthenium-catalyzed amination of alcohols. Chem. Eur. J. 2013, 19, 17702–17706. [Google Scholar] [CrossRef]
  9. Zhuang, X.; Liu, J.; Zhong, S.; Ma, L. Selective catalysis for the reductive amination of furfural toward furfurylamine by graphene-co-shelled cobalt nanoparticles. Green Chem. 2022, 24, 271–284. [Google Scholar] [CrossRef]
  10. Zhang, Y.; Yang, H.; Chi, Q.; Zhang, Z. Nitrogen-Doped Carbon-Supported Nickel Nanoparticles: A Robust Catalyst to Bridge the Hydrogenation of Nitriles and the Reductive Amination of Carbonyl Compounds for the Synthesis of Primary Amines. ChemSusChem 2019, 12, 1246–1255. [Google Scholar] [CrossRef]
  11. Hahn, G.; Kunnas, P.; de Jonge, N.; Kempe, R. General synthesis of primary amines via reductive amination employing a reusable nickel catalyst. Nat. Catal. 2018, 2, 71–77. [Google Scholar] [CrossRef]
  12. Coeck, R.; De Vos, D.E. One-pot reductive amination of carboxylic acids: A sustainable method for primary amine synthesis. Green Chem. 2020, 22, 5105–5114. [Google Scholar] [CrossRef]
  13. Citoler, J.; Derrington, S.R.; Galman, J.L.; Bevinakatti, H.; Turner, N.J. A biocatalytic cascade for the conversion of fatty acids to fatty amines. Green Chem. 2019, 21, 4932–4935. [Google Scholar] [CrossRef]
  14. Antil, N.; Kumar, A.; Akhtar, N.; Newar, R.; Begum, W.; Dwivedi, A.; Manna, K. Aluminum Metal–Organic Framework-Ligated Single-Site Nickel(II)-Hydride for Heterogeneous Chemoselective Catalysis. ACS Catal. 2021, 11, 3943–3957. [Google Scholar] [CrossRef]
  15. Wang, C.; Jia, Z.; Zhen, B.; Han, M. Supported Ni Catalyst for Liquid Phase Hydrogenation of Adiponitrile to 6-Aminocapronitrile and Hexamethyenediamine. Molecules 2018, 23, 92. [Google Scholar] [CrossRef] [PubMed]
  16. Konnerth, H.; Prechtl, M.H.G. Nitrile hydrogenation using nickel nanocatalysts in ionic liquids. New J. Chem. 2017, 41, 9594–9597. [Google Scholar] [CrossRef]
  17. Cheng, H.; Meng, X.; Wu, C.; Shan, X.; Yu, Y.; Zhao, F. Selective hydrogenation of benzonitrile in multiphase reaction systems including compressed carbon dioxide over Ni/Al2O3 catalyst. J. Mol. Catal. A Chem. 2013, 379, 72–79. [Google Scholar] [CrossRef]
  18. Segobia, D.J.; Trasarti, A.F.; Apesteguía, C.R. Hydrogenation of nitriles to primary amines on metal-supported catalysts: Highly selective conversion of butyronitrile to n-butylamine. Appl. Catal. A Gen. 2012, 445–446, 69–75. [Google Scholar] [CrossRef]
  19. Liu, Y.; He, S.; Quan, Z.; Cai, H.; Zhao, Y.; Wang, B. Mild palladium-catalysed highly efficient hydrogenation of C–N, C–NO2, and C–O bonds using H2 of 1 atm in H2O. Green Chem. 2019, 21, 830–838. [Google Scholar] [CrossRef]
  20. Martina, K.; Baricco, F.; Tagliapietra, S.; Moran, M.J.; Cravotto, G.; Cintas, P. Highly efficient nitrobenzene and alkyl/aryl azide reduction in stainless steel jars without catalyst addition. New J. Chem. 2018, 42, 18881–18888. [Google Scholar] [CrossRef]
  21. Göksu, H.; Ho, S.F.; Metin, Ö.; Korkmaz, K.; Mendoza Garcia, A.; Gültekin, M.S.; Sun, S. Tandem Dehydrogenation of Ammonia Borane and Hydrogenation of Nitro/Nitrile Compounds Catalyzed by Graphene-Supported NiPd Alloy Nanoparticles. ACS Catal. 2014, 4, 1777–1782. [Google Scholar] [CrossRef]
  22. Zhang, T.; Zhang, Y.; Zhang, W.; Luo, M. A Convenient and General Reduction of Amides to Amines with Low-Valent Titanium. Adv. Synth. Catal. 2013, 355, 2775–2780. [Google Scholar] [CrossRef]
  23. Amberchan, G.; Snelling, R.A.; Moya, E.; Landi, M.; Lutz, K.; Gatihi, R.; Singaram, B. Reaction of Diisobutylaluminum Borohydride, a Binary Hydride, with Selected Organic Compounds Containing Representative Functional Groups. J. Org. Chem. 2021, 86, 6207–6227. [Google Scholar] [CrossRef] [PubMed]
  24. Zen, Y.-F.; Fu, Z.-C.; Liang, F.; Xu, Y.; Yang, D.-D.; Yang, Z.; Gan, X.; Lin, Z.-S.; Chen, Y.; Fu, W.-F. Robust Hydrogenation of Nitrile and Nitro Groups to Primary Amines Using Ni2P as a Catalyst and Ammonia Borane under Ambient Conditions. Asian J. Org. Chem. 2017, 6, 1589–1593. [Google Scholar] [CrossRef]
  25. Maddani, M.R.; Moorthy, S.K.; Prabhu, K.R. Chemoselective reduction of azides catalyzed by molybdenum xanthate by using phenylsilane as the hydride source. Tetrahedron 2010, 66, 329–333. [Google Scholar] [CrossRef]
  26. Zeynizadeh, B.; Mousavi, H.; Mohammad Aminzadeh, F. A hassle-free and cost-effective transfer hydrogenation strategy for the chemoselective reduction of arylnitriles to primary amines through in situ-generated nickelII dihydride intermediate in water. J. Mol. Struct. 2022, 1255. [Google Scholar] [CrossRef]
  27. Liu, L.; Li, J.; Ai, Y.; Liu, Y.; Xiong, J.; Wang, H.; Qiao, Y.; Liu, W.; Tan, S.; Feng, S.; et al. A ppm level Rh-based composite as an ecofriendly catalyst for transfer hydrogenation of nitriles: Triple guarantee of selectivity for primary amines. Green Chem. 2019, 21, 1390–1395. [Google Scholar] [CrossRef]
  28. Podyacheva, E.; Afanasyev, O.I.; Vasilyev, D.V.; Chusov, D. Borrowing Hydrogen Amination Reactions: A Complex Analysis of Trends and Correlations of the Various Reaction Parameters. ACS Catal. 2022, 12, 7142–7198. [Google Scholar] [CrossRef]
  29. Lévay, K.; Hegedűs, L. Recent Achievements in the Hydrogenation of Nitriles Catalyzed by Transitional Metals. Curr. Org. Chem. 2019, 23, 1881–1900. [Google Scholar] [CrossRef]
  30. Debellefon, C.; Fouilloux, P. Homogeneous and heterogeneous hydrogenation of nitriles in a liquid-phase—Chemical, mechanistic, and catalytic aspects. Catal. Rev. 1994, 36, 459–506. [Google Scholar] [CrossRef]
  31. Chandrashekhar, V.G.; Senthamarai, T.; Kadam, R.G.; Malina, O.; Kašlík, J.; Zbořil, R.; Gawande, M.B.; Jagadeesh, R.V.; Beller, M. Silica-supported Fe/Fe–O nanoparticles for the catalytic hydrogenation of nitriles to amines in the presence of aluminium additives. Nat. Catal. 2021, 5, 20–29. [Google Scholar] [CrossRef]
  32. Chakraborty, S.; Milstein, D. Selective Hydrogenation of Nitriles to Secondary Imines Catalyzed by an Iron Pincer Complex. ACS Catal. 2017, 7, 3968–3972. [Google Scholar] [CrossRef]
  33. Lange, S.; Elangovan, S.; Cordes, C.; Spannenberg, A.; Jiao, H.; Junge, H.; Bachmann, S.; Scalone, M.; Topf, C.; Junge, K.; et al. Selective catalytic hydrogenation of nitriles to primary amines using iron pincer complexes. Catal. Sci. Technol. 2016, 6, 4768–4772. [Google Scholar] [CrossRef]
  34. Chakraborty, S.; Leitus, G.; Milstein, D. Selective hydrogenation of nitriles to primary amines catalyzed by a novel iron complex. Chem. Commun. 2016, 52, 1812–1815. [Google Scholar] [CrossRef]
  35. Mérel, D.S.; Do, M.L.T.; Gaillard, S.; Dupau, P.; Renaud, J.-L. Iron-catalyzed reduction of carboxylic and carbonic acid derivatives. Coordin. Chem. Rev. 2015, 288, 50–68. [Google Scholar] [CrossRef]
  36. Bornschein, C.; Werkmeister, S.; Wendt, B.; Jiao, H.; Alberico, E.; Baumann, W.; Junge, H.; Junge, K.; Beller, M. Mild and selective hydrogenation of aromatic and aliphatic (di)nitriles with a well-defined iron pincer complex. Nat. Commun. 2014, 5, 4111. [Google Scholar] [CrossRef] [PubMed]
  37. Sheng, M.; Yamaguchi, S.; Nakata, A.; Yamazoe, S.; Nakajima, K.; Yamasaki, J.; Mizugaki, T.; Mitsudome, T. Hydrotalcite-Supported Cobalt Phosphide Nanorods as a Highly Active and Reusable Heterogeneous Catalyst for Ammonia-Free Selective Hydrogenation of Nitriles to Primary Amines. ACS Sustain. Chem. Eng. 2021, 9, 11238–11246. [Google Scholar] [CrossRef]
  38. Mitsudome, T.; Sheng, M.; Nakata, A.; Yamasaki, J.; Mizugaki, T.; Jitsukawa, K. A cobalt phosphide catalyst for the hydrogenation of nitriles. Chem. Sci. 2020, 11, 6682–6689. [Google Scholar] [CrossRef]
  39. Formenti, D.; Mocci, R.; Atia, H.; Dastgir, S.; Anwar, M.; Bachmann, S.; Scalone, M.; Junge, K.; Beller, M. A State-of-the-Art Heterogeneous Catalyst for Efficient and General Nitrile Hydrogenation. Chem. Eur. J. 2020, 26, 15589–15595. [Google Scholar] [CrossRef]
  40. Murugesan, K.; Senthamarai, T.; Sohail, M.; Alshammari, A.S.; Pohl, M.M.; Beller, M.; Jagadeesh, R.V. Cobalt-based nanoparticles prepared from MOF-carbon templates as efficient hydrogenation catalysts. Chem. Sci. 2018, 9, 8553–8560. [Google Scholar] [CrossRef]
  41. Ferraccioli, R.; Borovika, D.; Surkus, A.-E.; Kreyenschulte, C.; Topf, C.; Beller, M. Synthesis of cobalt nanoparticles by pyrolysis of vitamin B12: A non-noble-metal catalyst for efficient hydrogenation of nitriles. Catal. Sci. Technol. 2018, 8, 499–507. [Google Scholar] [CrossRef]
  42. Dai, H.; Guan, H. Switching the Selectivity of Cobalt-Catalyzed Hydrogenation of Nitriles. ACS Catal. 2018, 8, 9125–9130. [Google Scholar] [CrossRef]
  43. Tokmic, K.; Jackson, B.J.; Salazar, A.; Woods, T.J.; Fout, A.R. Cobalt-Catalyzed and Lewis Acid-Assisted Nitrile Hydrogenation to Primary Amines: A Combined Effort. J. Am. Chem. Soc. 2017, 139, 13554–13561. [Google Scholar] [CrossRef] [PubMed]
  44. Adam, R.; Bheeter, C.B.; Cabrero-Antonino, J.R.; Junge, K.; Jackstell, R.; Beller, M. Selective Hydrogenation of Nitriles to Primary Amines by using a Cobalt Phosphine Catalyst. ChemSusChem 2017, 10, 842–846. [Google Scholar] [CrossRef] [PubMed]
  45. Shao, Z.; Fu, S.; Wei, M.; Zhou, S.; Liu, Q. Mild and Selective Cobalt-Catalyzed Chemodivergent Transfer Hydrogenation of Nitriles. Angew. Chem. Int. Ed. 2016, 55, 14653–14657. [Google Scholar] [CrossRef] [PubMed]
  46. Chen, F.; Topf, C.; Radnik, J.; Kreyenschulte, C.; Lund, H.; Schneider, M.; Surkus, A.E.; He, L.; Junge, K.; Beller, M. Stable and Inert Cobalt Catalysts for Highly Selective and Practical Hydrogenation of C≡N and C=O Bonds. J. Am. Chem. Soc. 2016, 138, 8781–8788. [Google Scholar] [CrossRef]
  47. Mukherjee, A.; Srimani, D.; Chakraborty, S.; Ben-David, Y.; Milstein, D. Selective Hydrogenation of Nitriles to Primary Amines Catalyzed by a Cobalt Pincer Complex. J. Am. Chem. Soc. 2015, 137, 8888–8891. [Google Scholar] [CrossRef]
  48. Segobia, D.J.; Trasarti, A.F.; Apesteguía, C.R. Chemoselective hydrogenation of unsaturated nitriles to unsaturated primary amines: Conversion of cinnamonitrile on metal-supported catalysts. Appl. Catal. A-Gen. 2015, 494, 41–47. [Google Scholar] [CrossRef]
  49. van der Waals, D.; Pettman, A.; Williams, J.M.J. Copper-catalysed reductive amination of nitriles and organic-group reductions using dimethylamine borane. RSC Adv. 2014, 4, 51845–51849. [Google Scholar] [CrossRef]
  50. Lv, Y.; Hao, F.; Liu, P.; Xiong, S.; Luo, H. Liquid phase hydrogenation of adiponitrile over acid-activated sepiolite supported K–La–Ni trimetallic catalysts. React. Kinet. Mech. Cat. 2016, 119, 555–568. [Google Scholar] [CrossRef]
  51. Konnerth, H.; Prechtl, M.H. Selective partial hydrogenation of alkynes to (Z)-alkenes with ionic liquid-doped nickel nanocatalysts at near ambient conditions. Chem. Commun. 2016, 52, 9129–9132. [Google Scholar] [CrossRef] [PubMed]
  52. Jia, Z.; Zhen, B.; Han, M.; Wang, C. Liquid phase hydrogenation of adiponitrile over directly reduced Ni/SiO2 catalyst. Catal. Commun. 2016, 73, 80–83. [Google Scholar] [CrossRef]
  53. Cao, Y.; Niu, L.; Wen, X.; Feng, W.; Huo, L.; Bai, G. Novel layered double hydroxide/oxide-coated nickel-based core–shell nanocomposites for benzonitrile selective hydrogenation: An interesting water switch. J. Catal. 2016, 339, 9–13. [Google Scholar] [CrossRef]
  54. Weber, S.; Stoger, B.; Kirchner, K. Hydrogenation of Nitriles and Ketones Catalyzed by an Air-Stable Bisphosphine Mn(I) Complex. Org. Lett. 2018, 20, 7212–7215. [Google Scholar] [CrossRef] [PubMed]
  55. Elangovan, S.; Topf, C.; Fischer, S.; Jiao, H.; Spannenberg, A.; Baumann, W.; Ludwig, R.; Junge, K.; Beller, M. Selective Catalytic Hydrogenations of Nitriles, Ketones, and Aldehydes by Well-Defined Manganese Pincer Complexes. J. Am. Chem. Soc. 2016, 138, 8809–8814. [Google Scholar] [CrossRef]
  56. Ma, K.; Liao, W.; Shi, W.; Xu, F.; Zhou, Y.; Tang, C.; Lu, J.; Shen, W.; Zhang, Z. Ceria-supported Pd catalysts with different size regimes ranging from single atoms to nanoparticles for the oxidation of CO. J. Catal. 2022, 407, 104–114. [Google Scholar] [CrossRef]
  57. Yoshimura, M.; Komatsu, A.; Niimura, M.; Takagi, Y.; Takahashi, T.; Ueda, S.; Ichikawa, T.; Kobayashi, Y.; Okami, H.; Hattori, T.; et al. Selective Synthesis of Primary Amines from Nitriles under Hydrogenation Conditions. Adv. Synth. Catal. 2018, 360, 1726–1732. [Google Scholar] [CrossRef]
  58. Saito, Y.; Ishitani, H.; Ueno, M.; Kobayashi, S. Selective Hydrogenation of Nitriles to Primary Amines Catalyzed by a Polysilane/SiO2-Supported Palladium Catalyst under Continuous-Flow Conditions. ChemistryOpen 2017, 6, 211–215. [Google Scholar] [CrossRef]
  59. Lu, S.; Wang, J.; Cao, X.; Li, X.; Gu, H. Selective synthesis of secondary amines from nitriles using Pt nanowires as a catalyst. Chem. Commun. 2014, 50, 3512–3515. [Google Scholar] [CrossRef]
  60. Muratsugu, S.; Kityakarn, S.; Wang, F.; Ishiguro, N.; Kamachi, T.; Yoshizawa, K.; Sekizawa, O.; Uruga, T.; Tada, M. Formation and nitrile hydrogenation performance of Ru nanoparticles on a K-doped Al2O3 surface. Phys. Chem. Chem. Phys. 2015, 17, 24791–24802. [Google Scholar] [CrossRef] [PubMed]
  61. Segobia, D.J.; Trasarti, A.F.; Apesteguia, C.R. Conversion of butyronitrile to butylamines on noble metals: Effect of the solvent on catalyst activity and selectivity. Catal. Sci. Technol. 2014, 4, 4075–4083. [Google Scholar] [CrossRef]
  62. Xie, X.F.; Liotta, C.L.; Eckert, C.A. CO2-protected amine formation from nitrile and imine hydrogenation in gas-expanded liquids. Ind. Eng. Chem. Res. 2004, 43, 7907–7911. [Google Scholar] [CrossRef]
  63. Rajesh, K.; Dudle, B.; Blacque, O.; Berke, H. Homogeneous Hydrogenations of Nitriles Catalyzed by Rhenium Complexes. Adv. Synth. Catal. 2011, 353, 1479–1484. [Google Scholar] [CrossRef]
  64. Chatterjee, M.; Sato, M.; Kawanami, H.; Yokoyama, T.; Suzuki, T.; Ishizaka, T. An Efficient Hydrogenation of Dinitrile to Aminonitrile in Supercritical Carbon Dioxide. Adv. Synth. Catal. 2010, 352, 2394–2398. [Google Scholar] [CrossRef]
  65. Monguchi, Y.; Mizuno, M.; Ichikawa, T.; Fujita, Y.; Murakami, E.; Hattori, T.; Maegawa, T.; Sawama, Y.; Sajiki, H. Catalyst-Dependent Selective Hydrogenation of Nitriles: Selective Synthesis of Tertiary and Secondary Amines. J. Org. Chem. 2017, 82, 10939–10944. [Google Scholar] [CrossRef] [PubMed]
  66. Szostak, M.; Sautier, B.; Spain, M.; Procter, D.J. Electron transfer reduction of nitriles using SmI2-Et3N-H2O: Synthetic utility and mechanism. Org. Lett. 2014, 16, 1092–1095. [Google Scholar] [CrossRef] [PubMed]
  67. Lopez-De Jesus, Y.M.; Johnson, C.E.; Monnier, J.R.; Williams, C.T. Selective Hydrogenation of Benzonitrile by Alumina-Supported Ir-Pd Catalysts. Top. Catal. 2010, 53, 1132–1137. [Google Scholar] [CrossRef]
  68. Molnar, A.; Smith, G.V.; Bartok, M. New catalytic materials from amorphous metal-alloys. Adv. Catal. 1989, 36, 329–383. [Google Scholar]
  69. Li, H.; Xu, Y.; Li, H.; Deng, J.F. Gas-phase hydrogenation of adiponitrile with high selectivity to primary amine over supported Ni-B amorphous catalysts. Appl. Catal. A-Gen. 2001, 216, 51–58. [Google Scholar] [CrossRef]
  70. Wang, W.-J.; Qiao, M.-H.; Li, H.-X.; Deng, J.-F. Partial Hydrogenation of Cyclopentadiene over Amorphous NiB Alloy on a-Alumina and Titania-Modifiedd a-Alumina. J. Chem. Technol. Biotechnol. 1998, 72, 280–284. [Google Scholar] [CrossRef]
  71. Chiang, S.-J.; Yang, C.-H.; Chen, Y.-Z.; Liaw, B.-J. High-active nickel catalyst of NiB/SiO2 for citral hydrogenation at low temperature. Appl. Catal. A-Gen. 2007, 326, 180–188. [Google Scholar] [CrossRef]
  72. Li, Y.; Zhu, G.; Wang, Y.; Chai, Y.; Liu, C. Preparation, mechanism and applications of oriented MFI zeolite membranes: A review. Microporous Mesoporous Mater. 2021, 312, 110790. [Google Scholar] [CrossRef]
  73. Huybrechts, D.R.C.; Debruycker, L.; Jacobs, P.A. Oxyfunctionalization of alkanes with hydrogen-peroxide on titanium silicalite. Nature 1990, 345, 240–242. [Google Scholar] [CrossRef]
  74. Lu, J.-Q.; Li, N.; Pan, X.-R.; Zhang, C.; Luo, M.-F. Direct propylene epoxidation with H2 and O2 over in modified Au/TS-1 catalysts. Catal. Commun. 2012, 28, 179–182. [Google Scholar] [CrossRef]
  75. Nishimura, S. Handbook of Heterogeneous Catalytic Hydrogenation for Organic Synthesis; J. Wiley: New York, NY, USA, 2001. [Google Scholar]
  76. Liu, Y.; Zhou, K.; Lu, M.; Wang, L.; Wei, Z.; Li, X. Acidic/Basic Oxides-Supported Cobalt Catalysts for One-Pot Synthesis of Isophorone Diamine from Hydroamination of Isophorone Nitrile. Ind. Eng. Chem. Res. 2015, 54, 9124–9132. [Google Scholar] [CrossRef]
  77. Chojecki, A.; Veprek-Heijman, M.; Müller, T.E.; Schärringer, P.; Veprek, S.; Lercher, J.A. Tailoring Raney-catalysts for the selective hydrogenation of butyronitrile to n-butylamine. J. Catal. 2007, 245, 237–248. [Google Scholar] [CrossRef]
  78. Gluhoi, A.C.; Mărginean, P.; Stănescu, U. Effect of supports on the activity of nickel catalysts in acetonitrile hydrogenation. Appl. Catal. A-Gen. 2005, 294, 208–214. [Google Scholar] [CrossRef]
  79. Huang, J.; Han, J.; Wang, R.; Zhang, Y.; Wang, X.; Zhang, X.; Zhang, Z.; Zhang, Y.; Song, B.; Jin, S. Improving Electrocatalysts for Oxygen Evolution Using NixFe3−xO4/Ni Hybrid Nanostructures Formed by Solvothermal Synthesis. ACS Energy Lett. 2018, 3, 1698–1707. [Google Scholar] [CrossRef]
  80. Li, H.; Li, H.X.; Dai, W.L.; Wang, W.J.; Fang, Z.G.; Deng, J.F. XPS studies on surface electronic characteristics of Ni-B and Ni-P amorphous alloy and its correlation to their catalytic properties. Appl. Surf. Sci. 1999, 152, 25–34. [Google Scholar] [CrossRef]
  81. Jiang, W.J.; Niu, S.; Tang, T.; Zhang, Q.H.; Liu, X.Z.; Zhang, Y.; Chen, Y.Y.; Li, J.H.; Gu, L.; Wan, L.J.; et al. Crystallinity-Modulated Electrocatalytic Activity of a Nickel(II) Borate Thin Layer on Ni3 B for Efficient Water Oxidation. Angew. Chem. Int. Ed. 2017, 56, 6572–6577. [Google Scholar] [CrossRef] [PubMed]
  82. Wang, L.; Li, W.; Zhang, M.; Tao, K. The interactions between the NiB amorphous alloy and TiO2 support in the NiB/TiO2 amorphous catalysts. Appl. Catal. A-Gen. 2004, 259, 185–190. [Google Scholar] [CrossRef]
Ijms 23 09337 sch001 550
Scheme 1. The formation of primary amines.
Scheme 1. The formation of primary amines.
Ijms 23 09337 sch001
Ijms 23 09337 g001 550
Figure 1. XRD pattern of heterogeneous catalyst Ni12.4-30.
Figure 1. XRD pattern of heterogeneous catalyst Ni12.4-30.
Ijms 23 09337 g001
Ijms 23 09337 g002 550
Figure 2. (a) Ni 2p, (b) B 1s XPS spectra of fresh catalyst. (c) Ni 2p, (d) B 1s XPS spectra of used catalyst.
Figure 2. (a) Ni 2p, (b) B 1s XPS spectra of fresh catalyst. (c) Ni 2p, (d) B 1s XPS spectra of used catalyst.
Ijms 23 09337 g002
Ijms 23 09337 g003 550

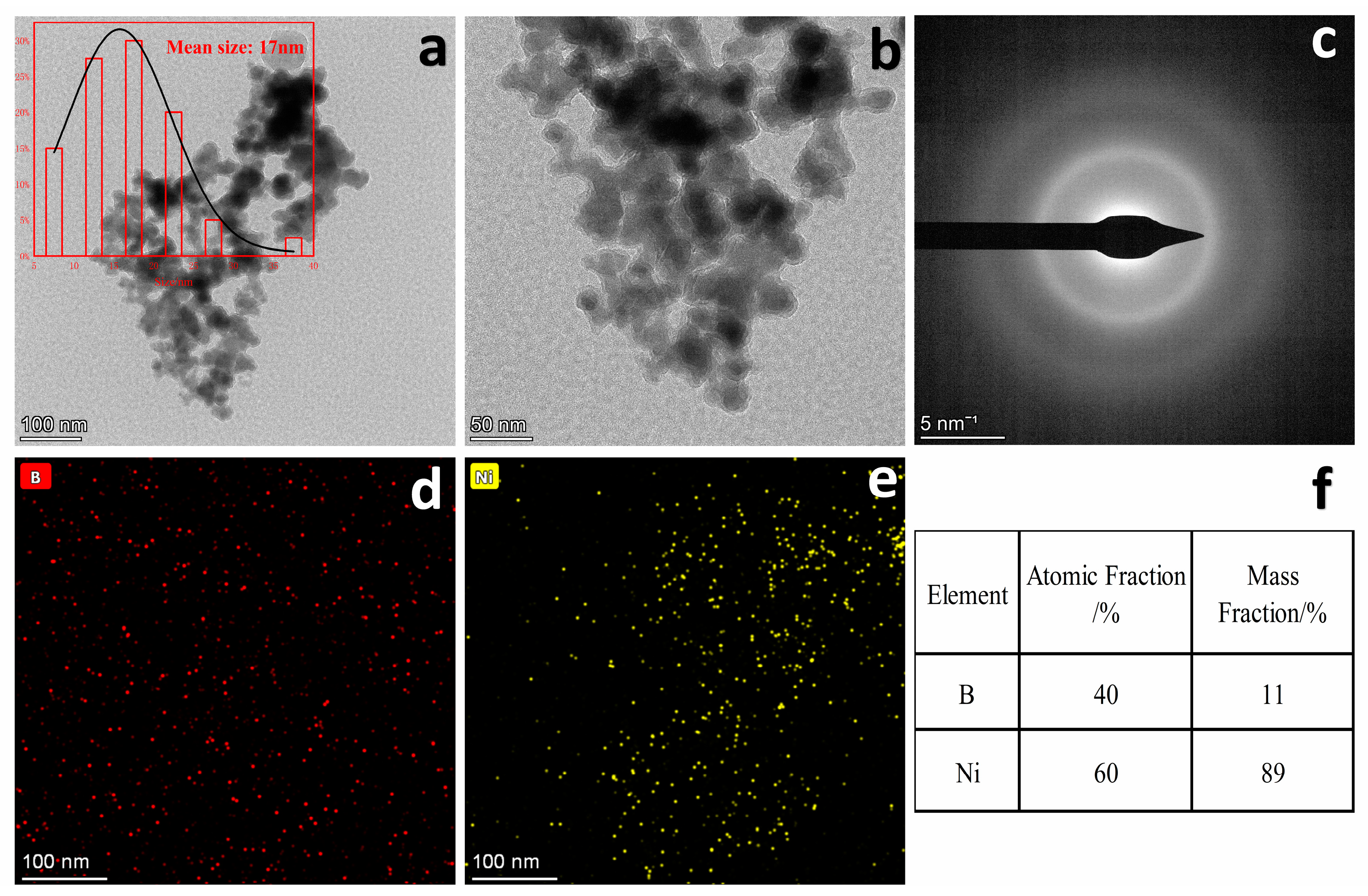

Figure 3. TEM images of Ni12.4-30 catalyst: (a) 100 nm. (b) 50 nm. (c) SAED pattern. (d) Elemental mapping of B. (e) Elemental mapping of Ni. (f) Elemental composition.
Figure 3. TEM images of Ni12.4-30 catalyst: (a) 100 nm. (b) 50 nm. (c) SAED pattern. (d) Elemental mapping of B. (e) Elemental mapping of Ni. (f) Elemental composition.
Ijms 23 09337 g003
Ijms 23 09337 g004 550
Figure 4. Black: benzonitrile. Red: nitrobenzene. Blue: benzaldehyde. The reaction condition: 10 mmol reagent, 100 mg catalyst, 120 °C 4.0 MPa H2. When the loss of catalyst reached 20%, the catalyst was replenished, and replenishment was carried out at the 7th and 12th recycles.
Figure 4. Black: benzonitrile. Red: nitrobenzene. Blue: benzaldehyde. The reaction condition: 10 mmol reagent, 100 mg catalyst, 120 °C 4.0 MPa H2. When the loss of catalyst reached 20%, the catalyst was replenished, and replenishment was carried out at the 7th and 12th recycles.
Ijms 23 09337 g004
Table
Table 1. Catalyst screening for benzonitrile a.
Table 1. Catalyst screening for benzonitrile a.
Ijms 23 09337 i001
Catalyst (mg)Conversion (%) bYield (%) cTOF (h−1) d
1Ni6.2-30 (100)997423.4
2Ni6.2-50 (100)1007121.9
3Ni6.2-70 (100)996618.8
4Ni6.2-100 (100)1006017.2
5Ni2.5-30 (250)1006819.0
6Ni12.4-30 (50)1007728.4
7Ni18.6-30 (33)775122.2
8Ni24.8-30 (25)714712.7
a Reaction condition: 5.0 mmol benzonitrile, 4.0 MPa H2, 20 mL of isopropanol, 120 °C. b Conversion was calculated by GC. c Isolated yield. d TOF was the amount of benzonitrile converted by per mol Ni in an hour.
Table
Table 2. Reduction of nitrobenzene by different catalysts a.
Table 2. Reduction of nitrobenzene by different catalysts a.
Ijms 23 09337 i002
Catalyst (mg)Conversion (%) bYield (%) cTOF (h−1) d
1Ni6.2-30 (100)100965.9
2Ni6.2-50 (100)100955.6
3Ni6.2-70 (100)100955.1
4Ni6.2-100 (100)100944.3
5Ni2.5-30 (250)85812.9
6Ni12.4-30 (50)100979.5
7Ni18.6-30 (33)1009511.7
8Ni24.8-30 (25)1009410.5
a Reaction condition: 5.0 mmol nitrobenzene, 4.0 MPa H2, 20 mL of isopropanol, 120 °C. b Conversion was calculated by GC. c Isolated yield. d TOF was the amount of nitrobenzene converted by per mol Ni in an hour.
Table
Table 3. Reduction of aldehyde-ammonia by different catalysts a.
Table 3. Reduction of aldehyde-ammonia by different catalysts a.
Ijms 23 09337 i003
Catalyst (mg)Conversion (%) bYield (%) cTOF (h−1) d
1Ni6.2-30 (100)1009221.5
2Ni6.2-50 (100)1009719.0
3Ni6.2-70 (100)1009615.8
4Ni6.2-100 (100)1009514.8
5Ni2.5-30 (250)1009319.0
6Ni12.4-30 (50)1009623.7
7Ni18.6-30 (33)1009626.3
8Ni24.8-30 (25)1009522.6
a Reaction condition: 5.0 mmol benzaldehyde, 0.5 MPa NH3 and 4.0 MPa H2, 20 mL of isopropanol, 120 °C. b Conversion was calculated by GC. c Isolated yield. d TOF was the amount of benzaldehyde converted by per mol Ni in an hour.
Table
Table 4. Hydrogenation of nitriles catalyzed by Ni12.4-30.
Table 4. Hydrogenation of nitriles catalyzed by Ni12.4-30.
Ijms 23 09337 i004
ProductTime (h)Conversion (%) aYield (%) b
1Ph-CH2NH23.510097
24-CH3-Ph-CH2NH24.010094
34-CH3O-Ph-CH2NH22.510095
44-Cl-Ph-CH2NH23.510095
54-NH2-Ph-CH2NH24.510097
63-CH3-Ph-CH2NH24.510096
73-CH3O-Ph-CH2NH22.510093
83-Cl-Ph-CH2NH21.510095
93-NH2-Ph-CH2NH23.010095
102-CH3-Ph-CH2NH24.010096
112-CH3O-Ph-CH2NH24.510092
122-Cl-Ph-CH2NH25.010096
132-NH2-Ph-CH2NH23.010095
14 Ijms 23 09337 i0055.074.969
15 c Ijms 23 09337 i0068.022.117
16 d Ijms 23 09337 i0074.063.955
17 Ijms 23 09337 i0088.010097
18 Ijms 23 09337 i0099.068.363
19 e Ijms 23 09337 i0106.040.335
20 Ijms 23 09337 i0115.0<5-
Reaction conditions: 5.0 mmol nitrile, 50 mg Ni12.4-30 catalyst (about 2.0 mol% Ni), 0.5 MPa NH3 and 4.0 MPa H2, 20 mL of isopropanol, 120 °C. a Calculated by GC. b Isolated yield. c 100 mg catalyst. d 110 °C. e 20.0 mmol nitrile, 100 mg catalyst, GC yield.
Table
Table 5. Reduction of nitro-aromatic substrates by Ni12.4-30.
Table 5. Reduction of nitro-aromatic substrates by Ni12.4-30.
Ijms 23 09337 i012
Product (R)Time (h)Conversion (%) aYield (%) b
1H5.010097
24-CH36.010095
34-F6.510093
43-F6.010095
54-Cl6.510094
64-Br7.010093
7 c4-OH5.510094
84-NH27.510096
Reaction conditions: 5.0 mmol nitro compound, 50 mg Ni12.4-30 catalyst (about 2.0 mol% Ni), 4.0 MPa H2, 20 mL of isopropanol, 120 °C. a Calculated by GC. b Isolated yield. c 1.0 mmol reactant, 10 mg catalyst.
Table
Table 6. Reduction of imines generated by aldehyde and ammonia.
Table 6. Reduction of imines generated by aldehyde and ammonia.
Ijms 23 09337 i013
ProductTime (h)Conversion (%) aYield (%) b
1Ph-CH2NH22.010096
24-CH3-Ph-CH2NH23.010095
34-Cl-Ph-CH2NH23.510095
44-Br-Ph-CH2NH21.510095
54-OH-Ph-CH2NH22.510092
63-CH3-Ph-CH2NH22.010098
73-Cl-Ph-CH2NH23.510092
83-Br-Ph-CH2NH22.010096
93-OH-Ph-CH2NH21.510092
102-CH3-Ph-CH2NH22.510098
112-Cl-Ph-CH2NH22.010097
122-Br-Ph-CH2NH21.010097
132-OH-Ph-CH2NH22.010091
14 Ijms 23 09337 i0144.0100>99 c
Reaction conditions: 5.0 mmol aldehyde, 50 mg Ni12.4-30 catalyst (about 2.0 mol% Ni), 0.5 MPa NH3 and 4.0 MPa H2, 20 mL of isopropanol, 120 °C. a Calculated by GC. b Isolated yield. c GC yield.
Table
Table 7. The comparison between two catalysts.
Table 7. The comparison between two catalysts.
CatalystTime (h)Conversion (%)Yield (%)
BenzonitrileNi12.4-303.510077
Raney Ni410026
NitrobenzeneNi12.4-30510097
Raney Ni210097
BenzaldehydeNi12.4-30210096
Raney Ni3.510092
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Ke, D.; Zhou, S. General Construction of Amine via Reduction of N=X (X = C, O, H) Bonds Mediated by Supported Nickel Boride Nanoclusters. Int. J. Mol. Sci. 2022, 23, 9337. https://doi.org/10.3390/ijms23169337

AMA Style

Ke D, Zhou S. General Construction of Amine via Reduction of N=X (X = C, O, H) Bonds Mediated by Supported Nickel Boride Nanoclusters. International Journal of Molecular Sciences. 2022; 23(16):9337. https://doi.org/10.3390/ijms23169337

Chicago/Turabian Style

Ke, Da, and Shaodong Zhou. 2022. "General Construction of Amine via Reduction of N=X (X = C, O, H) Bonds Mediated by Supported Nickel Boride Nanoclusters" International Journal of Molecular Sciences 23, no. 16: 9337. https://doi.org/10.3390/ijms23169337

APA Style

Ke, D., & Zhou, S. (2022). General Construction of Amine via Reduction of N=X (X = C, O, H) Bonds Mediated by Supported Nickel Boride Nanoclusters. International Journal of Molecular Sciences, 23(16), 9337. https://doi.org/10.3390/ijms23169337

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
