Synthesis of 4-Hydroxyquinolines as Potential Cytotoxic Agents †

by
Oszkár Csuvik
1,
Nikoletta Szemerédi
2,
Gabriella Spengler
2 and
István Szatmári
1,3,*
1
Institute of Pharmaceutical Chemistry, University of Szeged, Eötvös u. 6, H-6720 Szeged, Hungary
2
Department of Medical Microbiology, Albert Szent-Györgyi Health Center and Albert Szent-Györgyi Medical School, University of Szeged, Semmelweis u. 6, H-6725 Szeged, Hungary
3
Stereochemistry Research Group, Eötvös Loránd Research Network, University of Szeged, Eötvös u. 6, H-6720 Szeged, Hungary
*
Author to whom correspondence should be addressed.
†
This article is dedicated to the memory of Prof. Dr. Ferenc Fülöp, former research group leader and head of the institute.
Int. J. Mol. Sci. 2022, 23(17), 9688; https://doi.org/10.3390/ijms23179688
Submission received: 28 July 2022 / Revised: 18 August 2022 / Accepted: 23 August 2022 / Published: 26 August 2022
(This article belongs to the Special Issue Synthesis and Transformations of Bioactive Hydroxyquinolines 2022)
Browse Figures
Versions Notes

Abstract

:
The synthesis of alkyl 2-(4-hydroxyquinolin-2-yl) acetates and 1-phenyl-4-(phenylamino)pyridine-2,6(1H,3H)-dione was optimised. Starting from 4-hydroxyquinolines (4HQs), aminomethylation was carried out via the modified Mannich reaction (mMr) applying formaldehyde and piperidine, but a second paraformaldehyde molecule was incorporated into the Mannich product. The reaction also afforded the formation of bisquinoline derivatives. A new 1H-azeto [1,2-a]quinoline derivative was synthesised in two different ways; namely starting from the aminomethylated product or from the ester-hydrolysed 4HQ. When the aldehyde component was replaced with aromatic aldehydes, Knoevenagel condensation took place affording the formation of the corresponding benzylidene derivatives, with the concomitant generation of bisquinolines. The reactivity of salicylaldehyde and hydroxynaphthaldehydes was tested; under these conditions, partially saturated lactones were formed through spontaneous ring closure. The activity of the derivatives was assessed using doxorubicin-sensitive and -resistant colon adenocarcinoma cell lines and normal human fibroblasts. Some derivatives possessed selective toxicity towards resistant cancer cells compared to doxorubicin-sensitive cancer cells and normal fibroblasts. Cytotoxic activity of the benzylidene derivatives and the corresponding Hammett–Brown substituent were correlated.

Graphical Abstract

1. Introduction

4-Hydroxyquinolines or 4-quinolones possess a variety of pharmacological activities. Some of the substituted 2-(4-hydroxyquinolin-2-yl) acetates are rather active compounds. The 7-methoxy derivative attached to a propranolamine chain proved to be a more potent β-adrenergic receptor blocker in vivo in a rat preparation than propranolol [1]. The ethyl ester of the 6-trifluoromethoxy derivative was reacted with hydroxylamine affording an N-hydroxyacetamide derivative, which was tested as a matrix metalloproteinase inhibitor [2]. The first 3-carboxyl-substituted 4-hydroxyquinoline with antibacterial effect was discovered serendipitously. It was an intermediate by-product in chloroquine synthesis, leading to the development of fluoroquinolone antibiotics [3]. The 2-carboxylic acid derivative of 4-hydroxyquinoline is kynurenic acid (KYNA), which is an endogenous metabolite produced in both humans and rodents; moreover, it is a potential neuroprotective agent [4].
Aminoalkylation is usually referred as Mannich aminoalkylation, which involves ammonia or amine, an aldehyde, and a substrate with an active hydrogen. The procedure was described by Carl Mannich by reacting ammonia, formaldehyde, and antipyrine [5]. However, Mannich’s study is subsequent to Mario Betti’s research [6,7], who reported the reaction of ammonia, benzaldehyde, and 2-naphthol yielding the aminoalkylated derivative of 2-naphtol (1-α-aminobenzyl-2-naphthol). The reaction mechanism of Mannich and Betti procedure is identical; though, the procedure has become known as Mannich reaction [8]. In recent years, the process has received increasing attention due to the variability of the components involved, the use of mild reaction conditions, and the potential biological activity of the end products [9,10]. Among the versatile pharmacological possibility of their application, a prominent field is anticancer therapy; specifically, using them as cytotoxic agents [11,12]. In the modified Mannich reaction (mMr), the aminoalkylation of hydroxyquinolines can be achieved [13], since this moiety can be considered as an N-containing 1-naphthol analogue. The aminomethylation of rather similar scaffold, including 2-methyl-4-hydroxyquinoline and KYNA, has been performed [14,15,16,17]. The aim of this study was to test the reactivity of 2-(4-hydroxyquinolin-2-yl) acetates in mMr, using piperidine as amine with formaldehyde or aromatic aldehydes. Further aim of our study was to develop tumour selective anticancer drugs that are potent against cancer cells and exert low toxicity towards normal cells. The compounds with selective toxicity may have less side effects because they target only cancer cells.

2. Results and Discussion

2.1. Synthesis

2.1.1. Syntheses of 4-Hydroxyquinolines

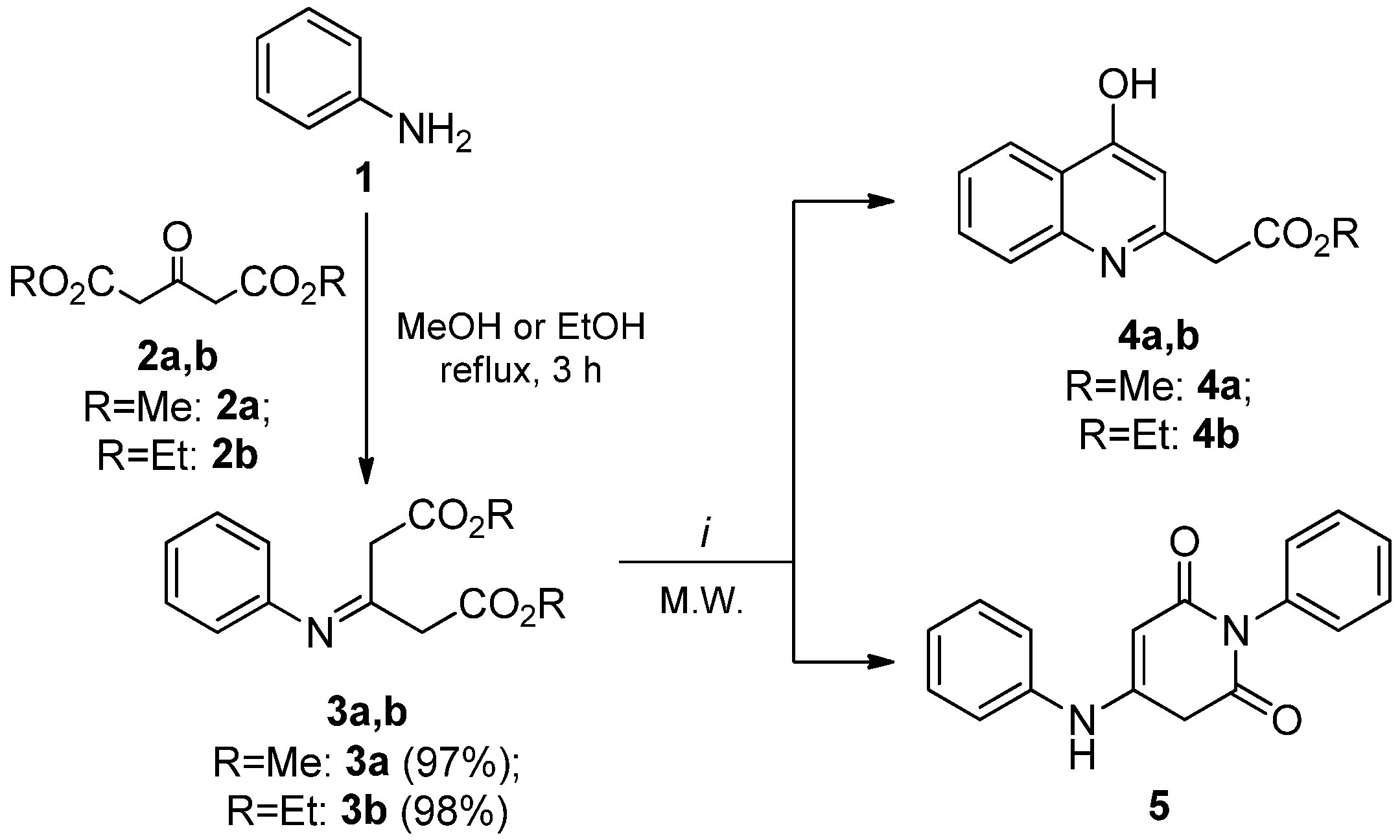

The synthesis of ethyl 2-(4-hydroxyquinolin-2-yl) acetate is known as the Conrad–Limpach reaction [18,19,20]. However, Rahn et al. revealed an alternative synthetic method [21], when 1-methoxy-1,3-bis(trimethylsilyloxy)-1,3-butadiene was reacted with 2-nitrobenzoyl chlorides followed by the hydrogenation of the condensation products resulting in substituted 2-(4-hydroxyquinolin-2-yl) acetates. In our study, the Conrad–Limpach reaction was used with some fine-tuned modifications (Scheme 1).
Aniline and dimethyl- or diethyl-1,3-acetonedicarboxylate were dissolved in methanol or ethanol, respectively. The mixture was treated under reflux conditions for 6 h, affording intermediate enamines 3a or 3b. The alcohol was evaporated by vacuum distillation, and the residue was dissolved in 1,2-dichlorobenzene.
According to the literature, ring closure requires high temperature for a short period of time. The boiling point of 1,2-dichlorobenzene is 180 °C, but the required temperature was higher. Therefore, the reaction was performed in closed, pressurised vials and heating in a microwave reactor, enabling a temperature higher than that of the boiling point of the solvent. Several conditions (i) were tested that are included in Table 1. After microwave irradiation (M.W.), the mixture was cooled in iced water and crystals formed were filtered out.
At lower temperatures, the presence of by-product 5 was observed, but its formation could be lowered by increasing the temperature. The critical reaction temperature was 245 °C, until then the side product could be perceived. However, according to the literature [22], 4 h at 120 °C, followed by a 2-h heating at 180 °C are the optimum conditions for the formation of 5. In contrast to some earlier studies [23], our observation was that an additional acid catalyst (e.g., para-toluenesulphonic acid) did not afford the formation of the quinoline skeleton and only pyridinedione derivative 5 was detected.

2.1.2. Reaction of 2-(4-Hydroxyquinolin-2-yl) Acetates with Paraformaldehyde and Piperidine

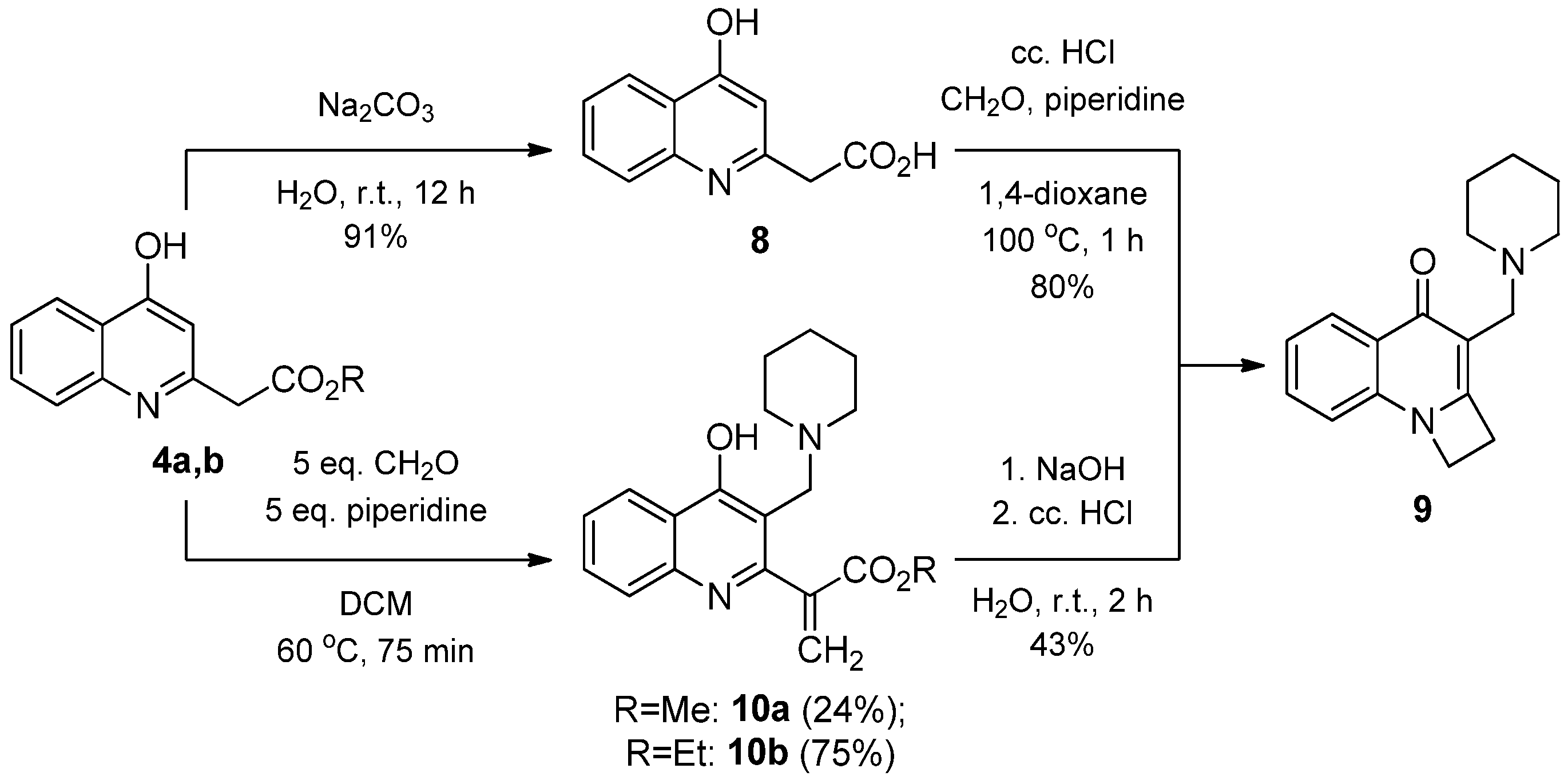

Our first attempt was the aminoalkylation of 4a via mMr reacting piperidine and paraformaldehyde in dichloromethane under reflux (Scheme 2). After a 1-h reaction, formed crystals were filtered out. The crude 1H NMR spectrum showed that the product was not the desired 3-aminometylquinolinol. The spectrum was remarkably similar to that found by Tatemitsu et al. studying meso- and (±)-diphenylglutaric acid [24]. Valdéz-Camacho et al. also isolated the mixture of erythro and threo dimethyl 2,4-diphenylpentanedioate side products [25]. According to these observations, we assumed that the reaction afforded the mixture of meso compound 6A and racemic compound (±)6B (Scheme 2). Our attempts to separate these compounds were unsuccessful, but in order to confirm the structures synthetically, decarboxylation was tested. The saponification of 4b furnishes the 2-methyl derivative, i.e., quinaldine [18]. Note that similar bisquinolines have been synthesised and transformed via decarboxylation by Ayad et al. [26] applying NaOH. Accordingly, NaOH treatment was followed by neutralisation. In the 1H NMR spectrum of the isolated product, a quintet with 2 integrals at 2.12 ppm and a triplet with 4 integrals at 2.70 ppm were present. These multiplicities appear when a –(CH2)3– chain is located between aromatic rings [27], which is consistent with the structure of 7.

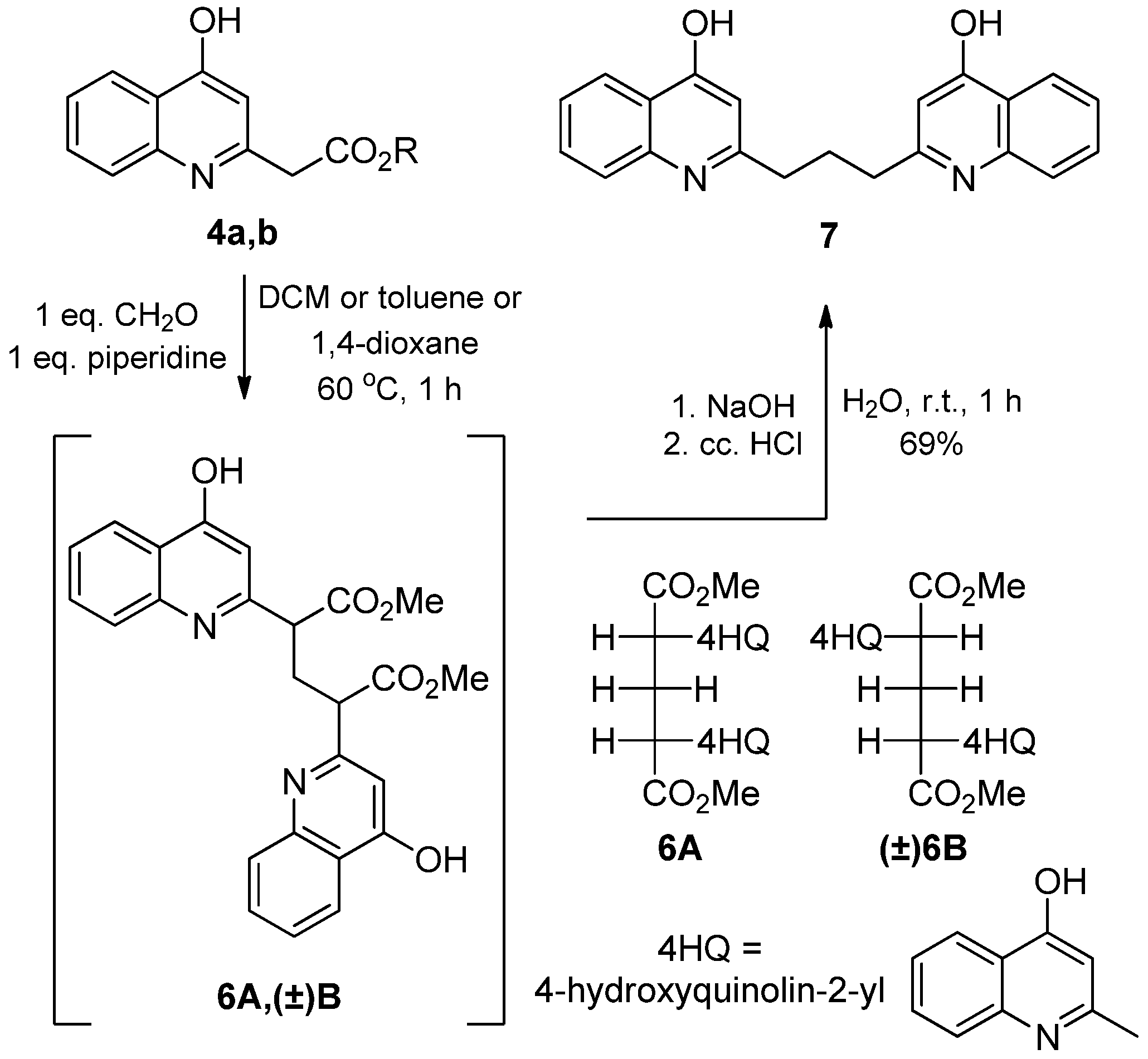

The reaction in toluene and 1,4-dioxane afforded the bisquinoline derivatives as well. In order to gain an aminomethyl product, it was necessary to synthesise the carboxylic acid derivatives of the 4HQ acetates (4a,b) and then to transform them via mMr. As mentioned, the saponification of 4a,b with NaOH affords quinaldine; consequently, alternative reagents were tested. Acidic ester hydrolysis by cc. HCl furnished 8, but after a few hours, spontaneous decarboxylation took place resulting in quinaldine. Immediately after isolation of 8, without waiting for undesired decarboxylation, paraformaldehyde and piperidine were added, and the mixture was stirred in 1,4-dioxane for 1 h. The formed white solid was isolated and analysed. In the 1H NMR spectrum, two triplets were observed with 2-2 integrals, which requires two –CH2– neighbouring groups, and the signs of piperidine and the methylene bridge were also present. These were not consistent with the structure hypothesised previously, but the formation of 9 was assumed (Scheme 3).
In order to gain the stable 2-(4-hydroxyquinolin-2-yl)acetic acid (8), 4a was treated with Na2CO3. The hydrolysis required a longer reaction, but a stable compound was formed. It was reacted with paraformaldehyde and piperidine in 1,4-dioxane, but no reaction occurred. The reaction was modified by first using cc. HCl followed by adding the other reagents (paraformaldehyde and piperidine). A new spot appeared on the TLC, and the isolated product was identical to that synthesised previously (compound 9).
The aminomethylation presumably took place on 8; therefore, mMr of 4a was repeated with an increased amount of paraformaldehyde and piperidine using 5 equivalents each. The reaction was carried out in dichloromethane stirring for 75 min. After isolation, the corresponding spectra were studied. The 1H NMR spectrum seemingly indicated the 3-(piperidin-1-ylmethyl) derivative of 4a, since the signs of piperidine and the methylene bridge could be observed. However, the MS spectrum showed a higher molecular weight; therefore, structure 10a was presumed. The synthesis of 10b was carried out in a similar manner providing a higher yield compared to that of the methyl ester. The saponification of the two esters was tested, and in both cases, the reactions afforded the same spot observed by TLC and the same 1H NMR spectrum. The spectra were also identical to the spectrum of 9, which confirmed its structure, that is a new 1H-azeto [1,2-a]quinoline derivative was isolated. This reaction also undoubtedly proves that 10a and 10b are acrylate derivatives with 3-(piperidin-1-ylmethyl) substitution.

2.1.3. Reaction of 4-Hydroxyquinolines with Aromatic Aldehydes and Piperidine

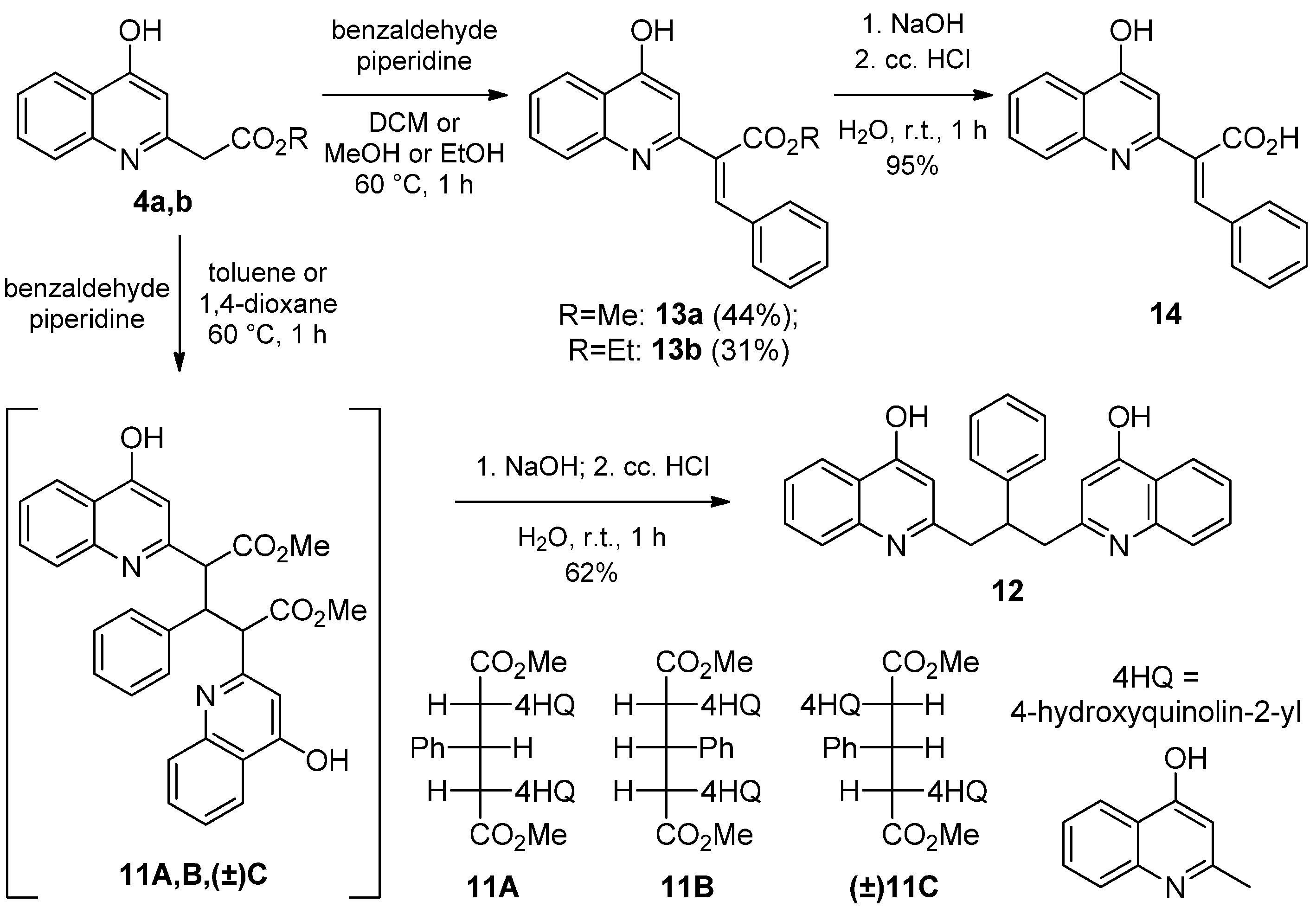

Our next goal was to change paraformaldehyde to aromatic aldehydes to explore the reactivity. First, benzaldehyde, piperidine, and 4a were reacted (Scheme 4). Toluene and 1,4-dioxane were tested as solvents, but in both cases, the experiments led to the formation of bisquinolines (11A,B, (±)C). Synthetic verification was also desired performed by hydrolysis with NaOH, followed by neutralisation delivering 12 in good yields.
Thereafter, the solvent was changed to dichloromethane. The expected compound was a Mannich product. However, after isolation of the main product, its 1H NMR spectrum showed that the methylene group of the starting compound (4a) disappeared and the piperidine moiety was not incorporated. In the spectrum, the presence of 10 aromatic protons could be observed. According to these findings, the formation of methyl 4-hydroxyquinoline-3-phenyl acrylate (13a) was assumed, rather than that of the desired Mannich product (Scheme 4). The process can be explained by the Knoevenagel condensation [28], a reaction between the activated methylene group and benzaldehyde. A solvent change was carried out, testing MeOH instead of DCM, and a higher yield was observed. 13b was furnished in a similar manner, starting from 4b and applying EtOH as a solvent.
Furthermore, decarboxylation experienced previously was also tested, hypothesising that a styrilquinoline derivative would form. Styrilquinolines possess a rather wide range of biological activities [29], including antiproliferative [30,31,32,33], antiviral, and antibacterial [29] activities. Therefore, 13a was stirred with NaOH in water at room temperature, then it was neutralised with cc. HCl. According to the 1H NMR spectrum, there was no additional proton sign, which would have indicated decarboxylation. Mass spectrometry also supported that only ester hydrolysis took place. The reaction was repeated at a higher temperature but again, only the carboxylic acid derivative was isolated (14).

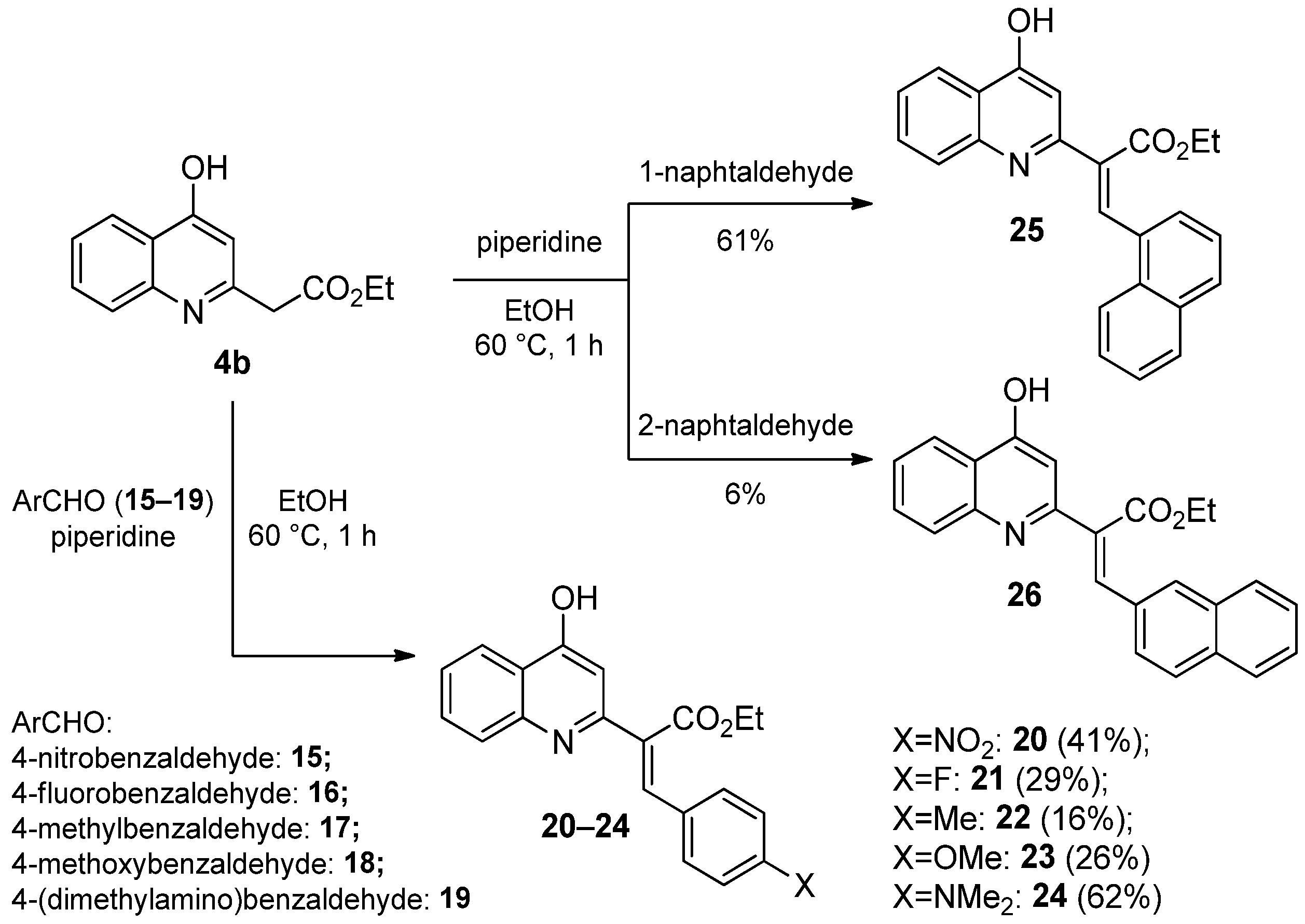

In order to investigate the extensibility of the reaction, the aldehyde component was modified. Since the yield of starting compound 4b was higher than that of 4a, we continued our work with only the ethyl ester (Scheme 5). Five para-substituted benzaldehyde (15–19) were tested. 4HQ acetate 4b, the corresponding benzaldehyde and piperidine were dissolved in EtOH and the mixture was treated at reflux temperature for 1–10 h. The solubility of products in EtOH was lower than that of the starting compounds and consequently, the formed substances were crystallised from EtOH. In all cases, NMR confirmed the structure of the new para-substituted benzylidene derivatives (20–24). 1- and 2-naphthaldehyde were also tested with 25 isolated in a good yield, but 26 was formed in a much lower yield. A possible explanation is that 1-naphthyl promotes condensation, whereas the 2-naphthyl ring sterically repulses it.

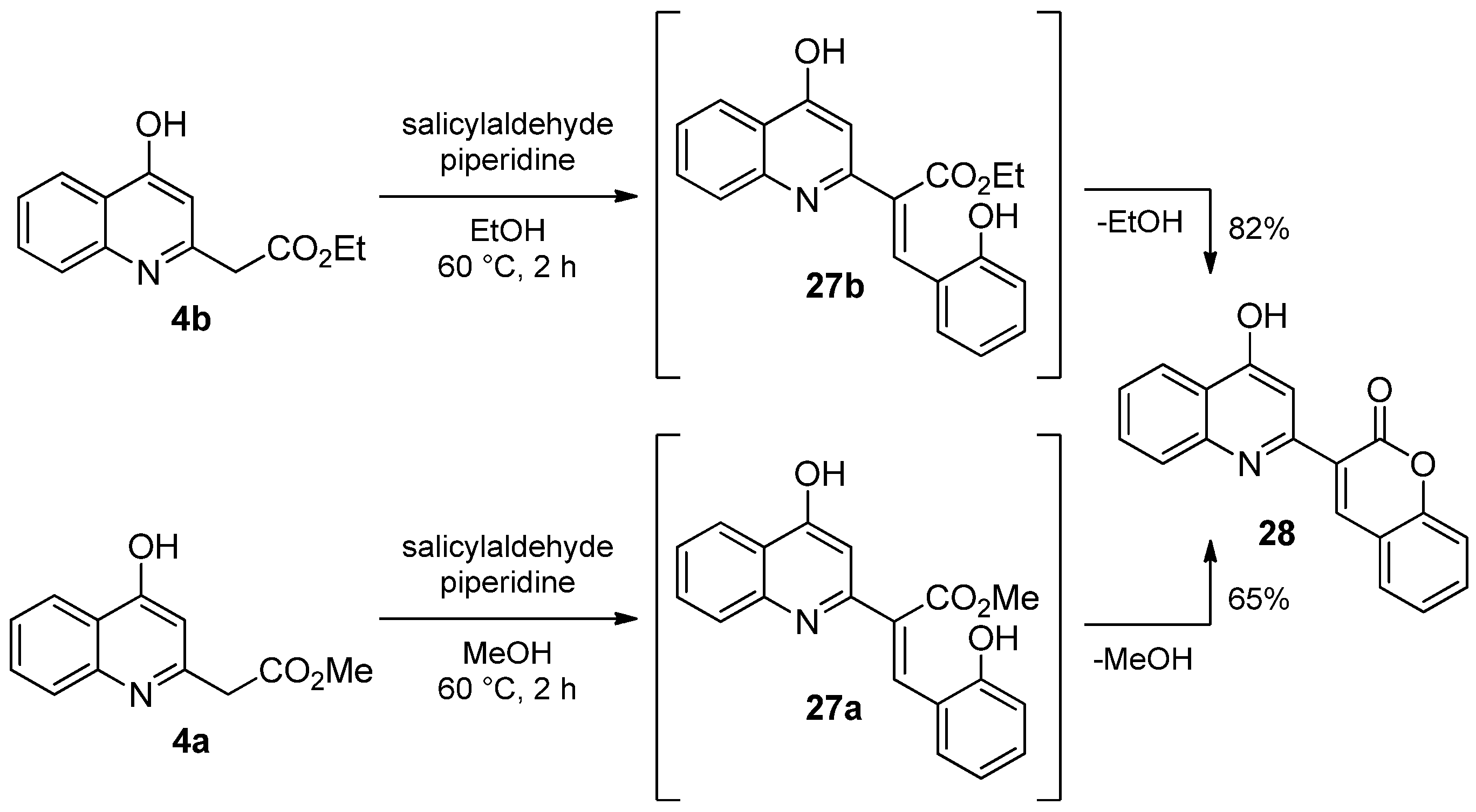

In further investigation, an ortho-substituted benzaldehyde, namely salicylaldehyde, was tested. It was treated at reflux temperature with 4b in presence of piperidine in EtOH, which led to the formation of a single product after a short reaction of 2 h. The 1H NMR spectrum of the isolated solid showed the absence of the ethyl ester group. It clearly indicates that compound 27b is an intermediate product (Scheme 6), and an intramolecular ring closure takes place via ethanol loss; thus, a new 2H-chromen-2-one derivative (28) was isolated. Our hypothesis, i.e., spontaneous ring closure via alcohol loss, was confirmed by repeating the reaction from 4a. As expected, the synthesis led to the formation of the same chromanone derivative (28).
The Z/E isomerism of benzylidene derivatives (13ab, 14, 20–26) synthesised previously was not described. Nevertheless, the ring closure of 28 can only take place if the intermediate products (27a,b) are Z-isomers, because the functional groups, which are involved in ring closure, are located in a sterically appropriate arrangement. This indirectly proves that all isolated compounds are Z-isomers.
There are known synthesis pathways for 2-quinolyl coumarins [34,35,36,37], but our reaction (Scheme 5) provides a more convenient alternative synthetic route. The reaction was further tested for functionalised aromatic aldehydes such as 2-hydroxy-1-naphthaldehyde and 1-hydroxy-2-naphthaldehyde. In these cases, the expected intramolecular ring closure took place and compounds 29 and 30 were isolated (Scheme 7). The ring closure can only happen when the intermediates are Z isomers, which is a further support to our hypothesis about Z/E isomerism of the synthesised benzylidene derivatives.

2.2. Biological Evaluations

The cytotoxic activity of the derivatives was evaluated using doxorubicin-sensitive and -resistant colon adenocarcinoma cell lines (Colo 205 and Colo 320, respectively) and normal human embryonic MRC-5 fibroblasts (Table 2). The IC50 values below 20 µM were considered as cytotoxic. In this regard, the following compounds were cytotoxic on the resistant cancer cell line Colo 320 (IC50 values are expressed in µM): 20 (IC50: 4.61), 13b (IC50: 4.58), 13a (IC50: 8.19), 29 (IC50: 9.86), 26 (IC50: 11), 22 (IC50: 12.29), 28 (IC50: 14.08). Compounds 20 (IC50: 2.34), 13b (IC50: 8.1), 22 (IC50: 11.79), 13a (IC50: 11.86), 26 (IC50: 12.63), 21 (IC50: 16.54) exerted cytotoxic activity on the chemosensitive tumour cell line Colo 205.
The selectivity of the compounds towards cancer cells compared to normal cells was calculated using the non-tumoural MRC-5 human embryonic lung fibroblast cell line, as reported previously [38]. The different selectivity indexes (SI) were evaluated as the quotient of the IC50 value in the non-tumoural cells divided by the IC50 in the cancer cell line. The compounds’ activity towards cancer cells is considered to be strongly selective if the selectivity index (SI) value is higher than 6, moderately selective if 3 < SI < 6, slightly selective if 1 < SI < 3 and non-selective if SI is lower than 1. The most selective derivative towards the resistant Colo 320 cell line was 29 showing an SI higher than 6 (Table 3). Moderate selectivity towards MDR cancer cells was obtained in the presence of compounds 13b and 13a, with the selectivity indices 4.14 and 4.23, respectively. In addition, moderate selectivity was observed towards the sensitive cancer cell line Colo 205 with compound 20 (SI: 4.23).
Overseeing the results, mainly para-substituted benzylidene derivatives proved to be active compounds as cytotoxic agents. It was realised that the activity might correlate with some kind of effect of the functional groups. A well-known descriptor is the Hammett–Brown substituent σ+ (σp+ for para-substituted derivatives), which sums up the electronic effect of a substituted group on a benzene ring [39]. Table 4 includes the constant σp+ and the pIC50 obtained from IC50.

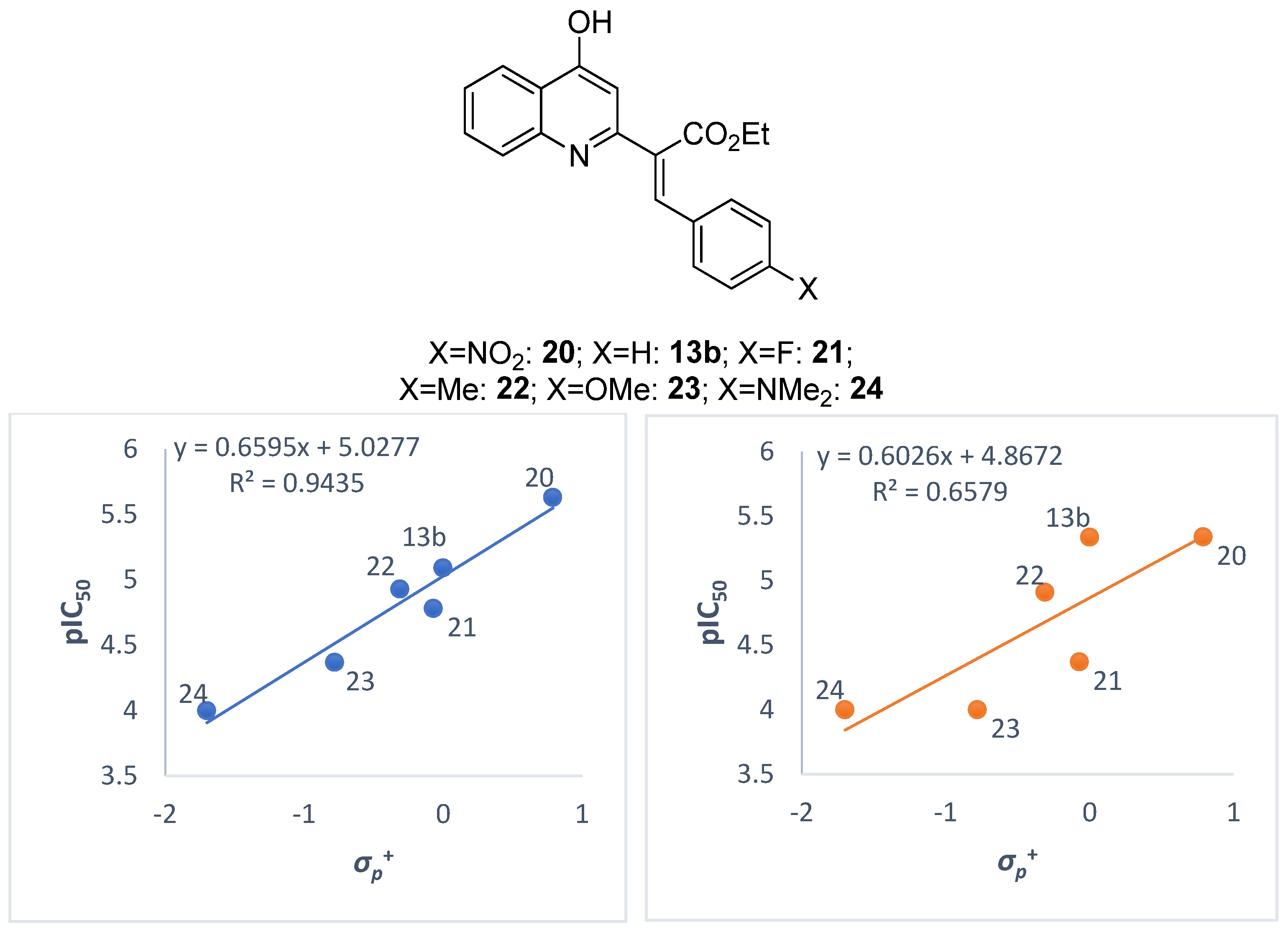

The Hammett–Brown substituent was correlated to the pIC50 values. The correlations are depicted in Figure 1. In the case of Colo 205, the R2 is 0.94, while Colo 320 showed a lower R2 (0.66).

3. Materials and Methods

3.1. Preparation Protocols for the Synthesis of the New Derivatives

Melting points were determined on a Hinotek X-4 melting point apparatus. Merck Kieselgel 60F254 plates were applied for TLC. Microwave reactions were carried out with a CEM Discover SP microwave reactor.
1H and 13C NMR spectra were recorded in DMSO-d6 solutions in 5 mm tubes at room temperature (RT), on a Bruker DRX-500 spectrometer (Bruker Biospin, Karlsruhe, Baden Wurttemberg, Germany) at 500 (1H) and 125 (13C) MHz, with the deuterium signal of the solvent as the lock and TMS as internal standard (1H, 13C). All spectra (1H, 13C) were acquired and processed with the standard BRUKER software.
The HRMS flow injection analysis was performed with Thermo Scientific Q Exactive Plus hybrid quadrupole-Orbitrap (Thermo Fisher Scientific, Waltham, MA, USA) mass spectrometer coupled to a Waters Acquity I-Class UPLC™ (Waters, Manchester, UK).
The intermediate enamines dimethyl and diethyl 3-(phenylimino)pentanedioate (3a and 3b) were synthesised according to literature methods [18,19,23,40,41,42,43].

3.1.1. General Procedure for the Synthesis of 4a,b and 5

Dimethyl or diethyl 3-(phenylimino)pentanedioate (2.71 mmol; 0.75 g 3a or 0.674 g 3b) dissolved in 1,2-dichlorobenzene (15 mL) was placed into a 35-mL pressurised reaction vial. The reaction mixture was heated in a CEM SP microwave reactor according to conditions given in Table 1 and then cooled down in iced water. The formed crystals were filtered out and washed with EtOAc/Et2O (30 mL).
Methyl 2-(4-hydroxyquinolin-2-yl) acetate (4a)
Pale beige solid; yield: 31% (203 mg); m.p.: 211–214 °C (lit [21]: 179 °C); 1H NMR ([D6] DMSO): δ = 3.68 (3H, s); 3.79 (2H, s); 6.01 (1H, s); 7.30 (1H, t, J = 7.5 Hz); 7.51 (1H, d, J = 7.7 Hz); 7.64 (1H, t, J = 8.1 Hz); 8.05 (1H, d, J = 7.8 Hz); 11.69 (1H, s); 13C NMR ([D6]DMSO): δ = 39.0; 52.7; 110.3; 118.5; 123.5; 125.1; 125.3; 132.2; 140.6; 146.1; 169.8; 177.4. HRMS calcd for [M + H+] m/z = 218.0812, found m/z = 218.0808 (Figures S1–S3).
Ethyl 2-(4-hydroxyquinolin-2-yl) acetate (4b)
Pale beige solid; yield: 41% (256 mg); m.p.: 208–210 °C (lit [18]: 202–204 °C); 1H NMR ([D6] DMSO): δ = 1.22 (3H, t, J = 7.0 Hz); 3.76 (2H, s); 4.14 (2H, q, J = 7.2 Hz); 6.00 (1H, s); 7.30 (1H, t, J = 7.4 Hz); 7.51 (1H, d, J = 8.2 Hz); 7.63 (1H, t, J = 7.5 Hz); 8.05 (1H, d, J = 8.1 Hz); 11.68 (1H, s); 13C NMR ([D6]DMSO): δ = 14.5; 39.2; 61.4; 110.3; 118.5; 123.5; 125.1; 125.3; 132.2; 140.6; 146.2; 169.3; 177.4. HRMS calcd for [M + H+] m/z = 232.0968, found m/z = 232.0964 (Figures S4–S6).
1-Phenyl-4-(phenylamino)pyridine-2,6(1H,3H)-dione (5)
Pale beige solid; yield: 53% (444 mg); m.p.: 294–297 °C (lit [22]: 281–283); 1H NMR ([D6] DMSO): δ = 5.41 (1H, s); 7.13 (2H, d, J = 7.2 Hz); 7.19 (1H, t, J = 7.4 Hz); 7.26 (2H, d, J = 7.7 Hz); 7.33–7.46 (5H, m); 9.07 (1H, s); 13C NMR ([D6]DMSO): δ = 37.0; 87.6; 123.0; 125.1; 128.0; 129.0; 129.6; 129.9; 136.4; 139.3; 153.5; 166.8; 168.9. HRMS calcd for [M + H+] m/z = 279.1128, found m/z = 279.1126 (Figures S7–S9).

3.1.2. General Procedure for the Synthesis of Bisquinoline Derivatives (7, 12)

4-Hydroxyquinoline derivative 4a (0.43 mmol, 94 mg), aldehyde (0.43 mmol; 13 mg paraformaldehyde or 46 mg benzaldehyde) and piperidine (0.43 mmol, 37 mg) were placed in a 50-mL round bottom flask, and dissolved in 25 mL of toluene. It was heated at 60 °C for 1 h, then evaporated. Then NaOH (0.86 mmol, 34 mg) and 20 mL distilled water were added to the residue and stirred for 1 h at room temperature. 4 drops of cc. HCl were added, when white crystals precipitated and were filtered out.
2,2′-(Propane-1,3-diyl)bis(quinolin-4-ol) (7)
White solid; yield: 69% (98 mg); m.p.: >350 °C; 1H NMR ([D6] DMSO): δ = 2.12 (2H, quint, J = 7.6 Hz); 2.70 (4H, t, J = 7.6 Hz); 6.01 (2H, s); 7.29 (2H, t, J = 7.5 Hz); 7.54 (2H, d, J = 8.4 Hz); 7.62 (2H, t, J = 7.6 Hz); 8.05 (2H, d, J = 7.9); 11.63 (2H, s); 13C NMR ([D6]DMSO): δ = 27.5; 33.0; 108.2; 118.5; 123.4; 125.0; 125.2; 132.0; 140.6; 153.3; 177.1. HRMS calcd for [M + H+] m/z = 331.1441, found m/z = 331.1441 (Figures S10–S12).
2,2′-(2-Phenylpropane-1,3-diyl)bis(quinolin-4-ol) (12)
White solid, yield: 62% (109 mg); m.p.: 199–202 °C; 1H NMR ([D6] DMSO): δ = 3.08–3.15 (2H, m); 3.17–3.22 (2H, m); 3.90 (1H, quint, J = 7.6 Hz); 6.12 (2H, s); 7.11 (1H, t, J = 7.2 Hz); 7.21 (1H, t, J = 7.5 Hz); 7.30 (2H, d, J = 7.6 Hz); 7.34 (2H, t, J = 7.5 Hz); 7.67 (2H, t, J = 7.7 Hz); 7.71 (2H, d, J = 8.2 Hz); 8.01 (2H, d, J = 8.0 Hz); 12.54 (2H, s); 13C NMR ([D6]DMSO): δ = 44.1; 108.8; 118.8; 123.8; 124.2; 124.8; 127.2; 128.0; 128.8; 132.4; 140.4; 142.3; 153.0; 175.3. HRMS calcd for [M + H+] m/z = 407.1754, found m/z = 407.1756 (Figures S13–S15).

3.1.3. Synthesis of 2-(4-Hydroxyquinolin-2-yl) Acetic Acid (8)

4-Hydroxyquinoline derivative 4a (0.46 mmol, 100 mg), Na2CO3 (0.94 mmol, 100 mg), and 20 mL distilled water were placed into a 50-mL round bottom flask. It was stirred for 12 h at room temperature. Then 3 drops of cc. HCl were added, and the precipitation of white crystals was observed, which were filtered out. Yield: 91% (85 mg); mp.: 221–224 °C; 1H NMR ([D6] DMSO): δ = 3.26 (2H, s); 5.81 (1H, s); 7.23 (1H, d, J = 7.1 Hz); 7.52–7.59 (2H, m); 8.03 (1H, d, J = 7.9 Hz); 13C NMR ([D6]DMSO): δ = 42.7; 108.5; 118.7; 122.8; 125.2; 125.2; 131.5; 140.3; 151.8; 171.4; 177.1. HRMS calcd for [M + H+] m/z = 204.0655, found m/z = 204.0659 (Figures S16–S18).

3.1.4. Synthesis of 3-(Piperidin-1-Ylmethyl)-1H-Azeto [1,2-a] Quinolin-4(2H)-One (9)

Procedure A: 100 mg Acetic acid derivative 8 yielded via Na2CO3 hydrolysis (0.49 mmol) and 20 mL 1,4-dioxane were placed into a 50-mL round bottom flask and stirred at 100 °C. Then 3 drops of cc. HCl were added, paraformaldehyde (1.00 mmol, 30 mg), and piperidine (1.00 mmol, 85 mg) were added. The mixture was stirred for 1 h at 100 °C when the product was precipitated. It was purified by neutral column chromatography (DCM:MeOH, 4:1). Yield: 80% (105 mg).
Procedure B: 30 mg of 10b (0.10 mmol), 30 mg of NaOH (0.75 mmol), and 5 mL distilled water were placed into a 25-mL round bottom flask. The mixture was stirred for 2 h at room temperature and then neutralised with cc. HCl. The mixture was evaporated, and the residue was crystallised from Et2O (5 mL), and recrystallised from MeOH/Et2O. Yield: 43% (11 mg).
White solid; mp.: >350 °C; 1H NMR ([D6] DMSO): δ = 1.57–1.70 (2H, m); 1.75–1.84 (2H, m); 1.85–1.94 (2H, m); 3.21 (2H, t, J = 6.7 Hz); 3.49–3.55 (4H, m); 3.85 (2H, t, J = 6.8 Hz); 4.43 (2H, s); 7.31–7.36 (1H, m); 7.67–7.70 (2H, m); 8.10 (1H, d, J = 8.3 Hz); 12.65 (1H, s); 13C NMR ([D6]DMSO): δ = 19.7; 21.6; 22.2; 52.9; 56.5; 59.1; 106.4; 118.5; 123.7; 123.7; 125.1; 132.5; 140.0; 143.3; 174.8. HRMS calcd for [M + H+] m/z = 269.1648, found m/z = 269.1651 (Figures S19–S21).

3.1.5. General Procedure for the Synthesis of Mannich Bases (10a,b)

4-Hydroxyquinoline derivative (0.43 mmol; 94 mg 4a or 100 mg 4b), paraformaldehyde (2.16 mmol, 65 mg), and piperidine (2.16 mmol, 184 mg) were placed in a 50-mL round bottom flask, and dissolved in 30 mL of DCM. After 75 min reflux, the mixture was evaporated and then purified by column chromatography.
Methyl 2-(4-hydroxy-3-(piperidin-1-ylmethyl)quinolin-2-yl) acetate (10a)
The residue was purified by column chromatography (DCM:MeOH, 9:1), and was crystallised from Et2O (10 mL). It was a pale beige solid; yield: 24% (32 mg); m.p.: 166–169 °C; 1H NMR ([D6] DMSO): δ = 1.57–1.67 (2H, m); 1.69–1.79 (4H, m); 3.25–3.29 (4H, m); 3.56 (3H, s); 4.20 (2H, s); 4.33 (2H, s); 7.05 (1H, t, J = 7.5 Hz); 7.23 (1H, d, J = 7.7 Hz); 7.38 (1H, t, J = 7.7 Hz); 7.89 (1H, d, J = 7.7 Hz); 12.13 (1H, s); 13C NMR ([D6]DMSO): δ = 20.1; 21.8; 49.8; 57.5; 57.7; 58.1; 63.1; 63.5; 92.8; 116.4; 121.0; 123.4; 124.7; 130.4; 139.1; 148.9; 166.8; 170.3. HRMS calcd for [M + H+] m/z = 327.1703, found m/z = 327.1702 (Figures S22–S24).
Ethyl 2-(4-hydroxy-3-(piperidin-1-ylmethyl)quinolin-2-yl) acetate (10b)
The residue was purified by column chromatography (DCM:EtOH, 4:1), and was crystallised from Et2O (12 mL). It was a pale beige solid; yield: 75% (53 mg); m.p.: 152–155 °C; 1H NMR ([D6] DMSO): δ = 1.21 (3H, t, J = 7.1 Hz); 1.58–1.68 (2H, m); 1.69–1.80 (4H, m); 3.26–3.30 (4H, m); 4.06 (2H, q, J = 6.9 Hz); 4.20 (2H, s); 4.33 (2H, s); 7.05 (1H, t, J = 7.3 Hz); 7.23 (1H, d, J = 8.1 Hz); 7.39 (1H, t, J = 7.9 Hz); 7.90 (1H, d, J = 7.9 Hz); 12.17 (1H, s); 13C NMR ([D6]DMSO): δ = 15.6; 20.2; 21.8; 57.5; 57.6; 57.7; 58.0; 58.2; 63.2; 63.5; 92.7; 116.4; 121.0; 123.4; 124.7; 130.4; 139.1; 149.0; 166.6; 170.3. HRMS calcd for [M + H+] m/z = 341.1860, found m/z = 341.1854 (Figures S25–S27).

3.1.6. General Procedure for the Synthesis of the Knoevenagel Derivatives 13a,b; 20–26; 28–30

4-Hydroxyquinoline derivative (0.43 mmol; 94 mg 4a or 100 mg 4b), aromatic aldehyde (0.43 mmol; 55 mg benzaldehyde or 78 mg 4-nitrobenzaldehyde or 64 mg 4-fluorobenzaldehyde or 62 mg 4-methylbenzaldehyde or 71 mg 4-methoxybenzaldehyde or 77 mg 4-(dimethylamino)benzaldehyde or 81 mg 1-naphthaldehyde or 81 mg 2-naphthaldehyde or 63 mg salicylaldehyde or 89 mg 2-hydroxy-1-naphthaldehyde or 89 mg 1-hydroxy-2-naphthaldehyde), and piperidine (0.21 mmol, 18 mg) were placed in a 50-mL round bottom flask, and dissolved in 25 mL of MeOH or EtOH, respectively. The mixture was heated by an oil bath at reflux temperature or stirred at room temperature for 1–10 h. After evaporation, the products were purified by column chromatography and then crystallised.
(Z)-methyl 2-(4-hydroxyquinolin-2-yl)-3-phenylacrylate (13a)
The reaction mixture was treated under reflux conditions for 6 h. The mixture was evaporated, then purified by column chromatography (DCM:MeOH, 9:1). The desired product was isolated by crystallisation from DCM (10 mL); yellow solid; yield: 44% (58 mg); m.p.: 247–251 °C; 1H NMR ([D6] DMSO): δ = 3.77 (3H, s); 5.92 (1H, s); 7.29–7.40 (6H, m); 7.53 (1H, d, J = 7.6 Hz); 7.66 (1H, t, J = 7.3 Hz); 7.99 (1H, s); 8.11 (1H, d, J = 7.8 Hz); 11.92 (1H, s); 13C NMR ([D6]DMSO): δ = 53.1; 110.3; 118.9; 123.9; 125.4; 125.6; 126.4; 129.3; 130.6; 131.0; 132.4; 133.4; 140.9; 143.9; 146.3; 166.0; 177.4. HRMS calcd for [M + H+] m/z = 306.1125, found m/z = 306.1119 (Figures S28–S30).
(Z)-ethyl 2-(4-hydroxyquinolin-2-yl)-3-phenylacrylate (13b)
The reaction was treated at reflux temperature for 10 h. The eluent was evaporated, and the residue was purified by column chromatography (CHCl3:EtOH, 19:1). The product was isolated by crystallisation from ET2O (8 mL); yellow solid; yield: 31% (43 mg); m.p.: 222–225 °C; 1H NMR ([D6] DMSO): δ = 1.23 (3H, t, J = 7.1 Hz); 4.25 (2H, q, J = 7.2 Hz); 5.91 (1H, s); 7.28–7.38 (6H, m); 7.53 (1H, d, J = 8.3 Hz); 7.67 (1H, t, J = 7.5 Hz); 7.99 (1H, s); 8.10 (1H, d, J = 8.2 Hz); 11.97 (1H, s); 13C NMR ([D6]DMSO): δ = 14.6; 61.8; 110.2; 118.9; 123.9; 125.4; 125.5; 126.6; 129.3; 130.6; 131.0; 132.4; 133.4; 140.8; 143.7; 146.4; 165.5; 177.3. HRMS calcd for [M + H+] m/z = 320.1281, found m/z = 320.1277 (Figures S31–S33).
(Z)-ethyl 2-(4-hydroxyquinolin-2-yl)-3-(4-nitrophenyl)acrylate (20)
Reflux time: 4 h. The mixture was evaporated, and the purification was carried out by column chromatography (DCM:n-hexane:EtOH, 7:2.5:0.5). The final product was isolated by crystallisation from DCM/EtOAc (10 mL); yellow solid; yield: 41% (64 mg); m.p.: 257–260 °C; 1H NMR ([D6] DMSO): δ = 1.24 (3H, t, J = 7.3 Hz); 4.28 (2H, q, J = 7.2 Hz); 5.89 (1H, s); 7.35 (1H, t, J = 7.4 Hz); 7.52 (1H, d, J = 8.4 Hz); 7.60 (2H, d, J = 8.8 Hz); 7.67 (1H, t, J = 7.6 Hz); 8.08 (1H, d, J = 7.8 Hz); 8.10 (1H, s); 8.15 (2H, d, J = 7.2 Hz); 11.96 (1H, s); 13C NMR ([D6]DMSO): δ = 14.5; 62.1; 110.5; 118.9; 123.9; 124.2; 125.4; 125.6; 130.1; 131.4; 132.5; 140.1; 140.8; 141.5; 145.4; 148.3; 165.0; 177.3. HRMS calcd for [M + H+] m/z = 365.1132, found m/z = 365.1129 (Figures S34–S36).
(Z)-ethyl 3-(4-fluorophenyl)-2-(4-hydroxyquinolin-2-yl)acrylate (21)
The mixture was stirred under reflux conditions for 6 h, then evaporated, and purified by column chromatography (DCM:EtOH, 19:1). The isolation was carried out by crystallisation from DCM/EtOAc (9 mL); yellow solid; yield: 29% (43 mg); m.p.: 233–236 °C; 1H NMR ([D6] DMSO): δ = 1.23 (3H, t, J = 7.2 Hz); 4.25 (2H, q, J = 7.1 Hz); 5.91 (1H, s); 7.17 (2H, t, J = 7.9 Hz); 7.35 (1H, t, J = 7.5 Hz); 7.39–7.44 (2H, m); 7.53 (1H, d, J = 8.4 Hz); 7.66 (1H, t, J = 7.8 Hz); 7.98 (1H, s); 8.11 (1H, d, J = 8.1 Hz); 11.90 (1H, s); 13C NMR ([D6]DMSO): δ = 14.6; 61.8; 110.2; 116.5 (2JC-F = 21.8 Hz); 118.9; 123.9; 125.4; 125.6; 126.4; 130.1; 132.4; 133.1 (3JC-F = 9.2 Hz); 140.9; 142.5; 146.2; 162.5; 165.0 (1JC-F = 118.4 Hz); 177.4. HRMS calcd for [M + H+] m/z = 338.1187, found m/z = 338.1182 (Figures S37–S39).
(Z)-ethyl 2-(4-hydroxyquinolin-2-yl)-3-(p-tolyl)acrylate (22)
Reflux time: 8 h. The mixture was evaporated, and the residue was purified by column chromatography (DCM:EtOH, 9:1). The desired product was crystallised from DCM/EtOAc (12 mL); yellow solid; yield: 16% (23 mg); m.p.: 224–227 °C; 1H NMR ([D6] DMSO): δ = 1.22 (3H, t, J = 6.9 Hz); 2.24 (3H, s); 4.24 (2H, q, J = 6.8 Hz); 5.90 (1H, s); 7.13 (2H, d, J = 7.5 Hz); 7.24 (2H, d, J = 7.5 Hz); 7.36 (1H, t, J = 7.4 Hz); 7.53 (1H, d, J = 8.3 Hz); 7.67 (1H, t, J = 7.8 Hz); 7.94 (1H, s); 8.11 (1H, d, J = 7.9 Hz); 11.96 (1H, s); 13C NMR ([D6]DMSO): δ = 14.6; 21.4; 61.7; 110.2; 118.8; 123.9; 125.4; 125.5; 125.6; 130.0; 130.6; 130.7; 132.4; 140.9; 141.3; 143.7; 146.6; 165.6; 177.4. HRMS calcd for [M + H+] m/z = 334.1438, found m/z = 334.1434 (Figures S40–S42).
(Z)-ethyl 2-(4-hydroxyquinolin-2-yl)-3-(4-methoxyphenyl)acrylate (23)
The reaction was treated at reflux temperature for 9 h, then it was evaporated. The purification was carried out by column chromatography (DCM:EtOH, 19:1). The desired product was isolated by crystallisation from EtOH (5 mL). It was a yellow solid; yield: 26% (39 mg); m.p.: 215–218 °C; 1H NMR ([D6] DMSO): δ = 1.22 (3H, t, J = 7.2 Hz); 3.72 (3H, s); 4.23 (2H, q, J = 7.0 Hz); 5.92 (1H, s); 6.89 (2H, d, J = 7.4 Hz); 7.31 (2H, d, J = 8.7 Hz); 7.36 (1H, t, J = 7.5 Hz); 7.53 (1H, d, J = 7.3 Hz); 7.66 (1H, t, J = 7.2 Hz); 7.92 (1H, s); 8.11 (1H, d, J = 7.4 Hz); 11.92 (1H, s); 13C NMR ([D6]DMSO): δ = 14.6; 55.8; 61.5; 110.1; 115.0; 118.9; 123.7; 123.9; 125.4; 125.5; 125.7; 132.4; 132.8; 140.9; 143.4; 146.9; 161.7; 165.7; and 177.4. HRMS calcd for [M + H+] m/z = 350.1387, found m/z = 350.1384 (Figures S43–S45).
(Z)-ethyl 3-(4-(dimethylamino)phenyl)-2-(4-hydroxyquinolin-2-yl)acrylate (24)
The reaction was stirred under reflux conditions for 3 h, then it was evaporated. The residue was purified by column chromatography (DCM:EtOH, 4:1). The crystallisation was carried out from DCM/EtOAc (19 mL); pale brown solid; yield: 62% (98 mg); m.p.: 256–259 °C; 1H NMR ([D6] DMSO): δ = 1.20 (3H, t, J = 7.1 Hz); 2.90 (6H, s); 4.20 (2H, q, J = 7.3 Hz); 5.92 (1H, s); 6.58 (2H, d, J = 9.1 Hz); 7.16 (2H, d, J = 9.1 Hz); 7.35 (1H, t, J = 7.5); 7.54 (1H, d, J = 8.4 Hz); 7.65 (1H, t, J = 7.7 Hz); 7.81 (1H, s); 8.12 (1H, d, J = 7.7 Hz); 11.83 (1H, s); 13C NMR ([D6]DMSO): δ = 14.7; 61.1; 110.3; 112.1; 118.8; 119.8; 120.2; 123.7; 125.4; 125.6; 132.2; 132.9; 141.1; 144.1; 147.7; 152.2; 166.1; 177.5.HRMS calcd for [M + H+] m/z = 363.1703, found m/z = 363.1700 (Figures S46–S48).
(Z)-ethyl 2-(4-hydroxyquinolin-2-yl)-3-(naphthalen-1-yl)acrylate (25)
Reflux time: 3 h. The mixture was evaporated, then purified by column chromatography (DCM:EtOH, 9:1). The final product was isolated by crystallisation from EtOH (12 mL); yellow solid; yield: 61% (97 mg); m.p.: 262–265 °C; 1H NMR ([D6] DMSO): δ = 1.29 (3H, t, J = 7.0 Hz); 4.33 (2H, q, J = 7.3 Hz); 5.68 (1H, s); 7.26–7.36 (3H, m); 7.52 (1H, d, J = 8.2 Hz); 7.58–7.68 (3H, m); 7.90 (1H, d, J = 7.5 Hz); 7.94–8.00 (2H, m); 8.09 (1H, d, J = 8.2 Hz); 8.61 (1H, s); 11.95 (1H, s); 13C NMR ([D6]DMSO): δ = 14.6; 61.9; 110.6; 118.7; 123.7; 124.4; 125.3; 125.3; 125.8; 127.0; 127.0; 127.6; 129.1; 130.0; 130.5; 131.3; 131.5; 132.3; 133.5; 140.6; 142.5; 146.1; 165.2; 177.1. HRMS calcd for [M + H+] m/z = 370.1438, found m/z = 370.1435 (Figures S49–S51).
(Z)-ethyl 2-(4-hydroxyquinolin-2-yl)-3-(naphthalen-2-yl)acrylate (26)
The mixture was stirred at room temperature for 2 h. The eluent was evaporated, and the residue was purified by column chromatography (CHCl3:EtOH, 19:1). The desired product was crystallised from Et2O (8 mL); brick-red solid; yield: 6% (9 mg); 177–180 °C; 1H NMR ([D6] DMSO): δ = 1.26 (3H, t, J = 6.9 Hz); 4.28 (2H, q, J = 6.8 Hz); 5.95 (1H, s); 7.25 (1H, d, J = 8.9 Hz); 7.37 (1H, t, J = 7.8 Hz); 7.50–7.58 (3H, m); 7.67 (1H, t, J = 7.8 Hz); 7.75 (1H, d, J = 8.62 Hz); 7.77–7.84 (2H, m); 8.06–8.15 (3H, m); 11.97 (1H, s); 13C NMR ([D6]DMSO): δ = 14.6; 61.8; 110.5; 118.9; 123.9; 125.5; 125.6; 125.6; 126.8; 127.4; 128.0; 128.4; 128.7; 129.0; 131.1; 132.4; 132.8; 133.1; 133.9; 140.9; 143.8; 146.4; 165.6; 177.3. HRMS calcd for [M + H+] m/z = 370.1438, found m/z = 370.1434 (Figures S52–S54).
3-(4-Hydroxyquinolin-2-yl)-2H-chromen-2-one (28)
Starting compound: 4a; reflux time: 2 h. The purification of the evaporated mixture was carried out by column chromatography (DCM:MeOH, 19:1). The final product was isolated by crystallisation from EtOH (18 mL); yellow solid; yield: 82% (103 mg); m.p.: 315–319 °C; 1H NMR ([D6] DMSO): δ = 6.40 (1H, s); 7.36 (1H, t, J = 7.2 Hz); 7.46 (1H, t, J = 7.6 Hz); 7.53 (1H, d, J = 7.3 Hz); 7.63–7.72 (2H, m); 7.75 (1H, t, J = 7.3 Hz); 7.87 (1H, d, J = 7.5 Hz); 8.11 (1H, d, J = 7.8 Hz); 8.58 (1H, s); 11.78 (1H, s); 13C NMR ([D6]DMSO): δ = 110.0; 116.7; 119.0; 119.0; 122.0; 123.9; 125.3; 125.4; 125.6; 130.0; 132.6; 133.8; 140.6; 144.7; 145.2; 154.0; 158.9; 177.4. HRMS calcd for [M + H+] m/z = 290.0812, found m/z = 290.0808 (Figures S55–S57).
2-(4-Hydroxyquinolin-2-yl)-3H-benzo[f]chromen-3-one (29)
Starting compound: 4a. The mixture was stirred at room temperature for 3 h. It was evaporated, then the residue was purified by column chromatography (DCM:n-hexane:MeOH, 7:2.5:0.5). The isolation was carried out by crystallisation from Et2O (8 mL); yellow solid; yield: 8% (12 mg); m.p.: 295–298 °C; 1H NMR ([D6] DMSO): δ = 6.58 (s, 1H); 7.37 (1H, s, brs); 7.65–7.72 (4H, m); 7.80 (1H, t, J = 7.2 Hz); 8.13 (2H, t, J = 7.5 Hz); 8.33 (1H, d, J = 7.4 Hz); 8.77 (1H, d, J = 7.2 Hz); 9.37 (1H, s); 11,84 (1H, s); 13C NMR ([D6]DMSO): δ = 110.4; 113.4; 117.0; 119.1; 120.9; 123.4; 123.8; 125.3; 125.4; 127.0; 129.2; 129.5; 129.5; 130.5; 132.5; 135.3; 140.7; 140.8; 145.1; 154.1; 159.0; 177.4. HRMS calcd for [M + H+] m/z = 340.0968, found m/z = 340.0966 (Figures S58–S60).
3-(4-Hydroxyquinolin-2-yl)-2H-benzo[h]chromen-2-one (30)
Starting compound: 4a; reflux time: 1 h. The mixture was evaporated, then the residue was purified by column chromatography (DCM:EtOH, 9:1). The final product was crystallised from EtOH (11 mL); yellow solid; yield: 17% (25 mg); m.p.: >350 °C; 1H NMR ([D6] DMSO): δ = 6.49 (1H, s); 7.34–7.39 (1H, m); 7.67–7.72 (2H, m); 7.77–7.82 (2H, m); 7.85 (1H, d, J = 8.5 Hz); 7.95 (1H, d, J = 8.5 Hz); 8.09–8.15 (2H, m); 8.44–8.48 (1H, m); 8.73 (1H, s); 11.79 (1H, s); 13C NMR ([D6]DMSO): δ = 109.9; 114.8; 119.0; 121.4; 122.1; 122.4; 123.3; 123.8; 125.1; 125.3; 125.5; 128.3; 128.8; 129.9; 132.5; 135.5; 140.6; 145.1; 145.3; 158.9; 177.4. HRMS calcd for [M + H+] m/z = 340.0968, found m/z = 340.0966 (Figures S61–S63).

3.1.7. Synthesis of (Z)-2-(4-hydroxyquinolin-2-yl)-3-phenylacrylic Acid (14)

Phenylacrilate derivative 13a (0.33 mmol, 100 mg) and NaOH (0.33 mmol, 13 mg) in distilled water (25 mL) were stirred at room temperature for 8 h. 2 drops of cc. HCl were added, when white crystals precipitated, which were filtered out. White solid; yield: 95% (91 mg); m.p.: 230–233 °C; 1H NMR ([D6] DMSO): δ = 5.88 (1H, s); 7.28–7.38 (6H, m); 7.55 (1H, d, J = 8.2 Hz); 7.66 (1H, t, J = 7.8 Hz); 7.94 (1H, s); 8.10 (1H, d, J = 8.0 Hz); 11.97 (1H, s); 13.19 (1H, brs); 13C NMR ([D6]DMSO): δ = 110.0; 118.8; 123.8; 125.4; 125.5; 127.5; 129.3; 130.5; 130.8; 132.3; 133.6; 140.9; 143.1; 147.1; 167.0; 177.3. HRMS calcd for [M + H+] m/z = 292.0968, found m/z = 292.0966 (Figures S64–S66).
Physical-chemical properties of the synthesised 4-hydroxyquinolines are listed in Table S1.

3.2. Biological Assays

3.2.1. Cell Lines

Human colonic adenocarcinoma cell lines Colo 205 doxorubicin-sensitive (ATCC-CCL-222) and Colo 320/MDR-LRP multidrug resistant overexpressing ABCB1 (MDR1)-LRP (ATCC-CCL-220.1) were purchased from LGC Promochem, Teddington, UK. The cells were cultured in RPMI 1640 medium supplemented with 10% heat-inactivated fetal bovine serum, 2 mM L-glutamine, 1 mM Na-pyruvate and 100 mM Hepes. The cell lines were incubated at 37 °C, in a 5% CO2, 95% air atmosphere. The semi-adherent human colon cancer cells were detached with Trypsin-Versene (EDTA) solution for 5 min at 37 °C.
MRC-5 human embryonal lung fibroblast cell lines (ATCC CCL-171) were purchased from LGC Promochem, Teddington, UK. The cell line was cultured in Eagle’s Minimal Essential Medium (EMEM, containing 4.5g/L glucose) supplemented with a non-essential amino acid mixture, a selection of vitamins and 10% heat-inactivated fetal bovine serum. The cell lines were incubated at 37 °C, in a 5% CO2, 95% air atmosphere.

3.2.2. Cytotoxicity Assay

In the study, MRC-5 non-cancerous human embryonic lung fibroblast and human colonic adenocarcinoma cell lines (doxorubicin-sensitive Colo 205 and multidrug resistant Colo 320 colonic adenocarcinoma cells) were used to determine further the effect of compounds on cell growth. The effects of increasing concentrations of compounds on cell growth were tested in 96-well flat-bottomed microtiter plates. The compounds were diluted in a volume of 100 μL of medium.
The adherent human embryonal lung fibroblast cells were cultured in 96-well flat-bottomed microtiter plates, using EMEM supplemented with 10% heat-inactivated fetal bovine serum. The density of the cells was adjusted to 1 × 104 cells in 100 μL per well, the cells were seeded for 24 h at 37 °C, 5% CO2, then the medium was removed from the plates containing the cells, and the dilutions of compounds previously made in a separate plate were added to the cells in 200 μL.
In regards to the colonic adenocarcinoma cells, the two-fold serial dilutions of compounds were prepared in 100 μL of RPMI 1640, horizontally. The semi-adherent colonic adenocarcinoma cells were treated with Trypsin-Versene (EDTA) solution. They were adjusted to a density of 1 × 104 cells in 100 μL of RPMI 1640 medium, and were added to each well, with the exception of the medium control wells. The final volume of the wells containing compounds and cells was 200 μL.
The culture plates were incubated at 37 °C for 24 h; at the end of the incubation period, 20 μL of MTT (thiazolyl blue tetrazolium bromide, Merck KGaA, Darmstadt, Germany) solution (from a stock solution of 5 mg/mL) were added to each well. After incubation at 37 °C for 4 h, 100 μL of sodium dodecyl sulfate (SDS) (Merck KGaA, Darmstadt, Germany) solution (10% in 0.01 M HCI) were added to each well and the plates were further incubated at 37 °C overnight. Cell growth was determined by measuring the optical density (OD) at 540 nm (ref. 630 nm) with Multiscan EX ELISA reader (Thermo Labsystems, Cheshire, WA, USA). Inhibition of cell growth was expressed as IC50 values, defined as the inhibitory dose that reduces the growth of the cells exposed to the tested compounds by 50%. IC50 values and the SD of triplicate experiments were calculated by using GraphPad Prism software version 5.00 for Windows with nonlinear regression curve fit (GraphPad Software, San Diego, CA, USA; www.graphpad.com).

4. Conclusions

The Conrad–Limpach reaction for methyl and ethyl 2-(4-hydroxyquinolin-2-yl) acetates was optimised under microwave irradiation. The formation of the by-product 1-phenyl-4-(phenylamino)pyridine-2,6(1H,3H)-dione could be reduced, but it was also synthesised as the main product. Depending on the solvent and on the used equivalents of formaldehyde and piperidine, Mannich bases or bisquinolines were furnished. In the former case, 3-piperidine-1-yl-methyl acrylate derivatives of 4-hydroxyquinolines were isolated. In the latter case, bisquinolines were transformed to 2,2′-(propane-1,3-diyl)bis(quinolin-4-ol) via decarboxylation. The hydrolysis of 3-piperidine-1-yl-methyl acrylate led to a novel 1H-azeto [1,2-a]quinoline, which was also synthesised starting from 2-(4-hydroxyquinolin-2-yl)acetic acid. When formaldehyde was changed to benzaldehyde, the formation of bisquinolines was observed again, but altering the reaction conditions did not lead to a Mannich reaction, but a Knoevenagel condensation took place. To investigate the scope and limitation of the condensation, a series of para-substituted (nitro-, fluoro-, methyl-, methoxy-, dimethylamino-) and ortho-(hydroxy)-substituted benzaldehydes as well as 1- and 2-naphthaldehyde were applied. When the reaction was carried out with salicylaldehyde, an intramolecular ring closure took place affording a lactone-containing skeleton, which is a 4-hydroxyquinoline–coumarin hybrid. Benzocoumarin derivatives were also synthesised using the appropriate hydroxynaphthaldehydes.
Regarding the biological results, it can be concluded that some derivatives possess selectivity towards cancer cells and these scaffolds may be interesting to develop further MDR tumour selective compounds. The pIC50 values and the Hammett–Brown substituent showed a good correlation; therefore the results might be used to predict the activity of further compounds.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms23179688/s1.

Author Contributions

Conceptualization, I.S.; investigation, O.C., N.S., G.S.; writing—original draft preparation, O.C., N.S., G.S.; writing—review and editing, I.S., G.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Acknowledgments

The authors’ thanks are due to the Hungarian Research Foundation (OTKA No. K-138871), the Ministry of Human Capacities, Hungary grant, TKP-2021-EGA-32, and the Gedeon Richter Plc. Centenarial Foundation. N.S. was supported by the ÚNKP-21-3 SZTE-103 New National Excellence Program of the Ministry for Innovation and Technology from the source of the National Research, Development and Innovation Fund. G.S. was supported by the János Bolyai Research Scholarship (BO/00158/22/5) of the Hungarian Academy of Sciences.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Large, M.S.; Smith, L.H. β-Adrenergic Blocking Agents. 24. Heterocyclic Substituted 1-(Aryloxy)-3-[[(amido)alkyl]amino]propan-2-ols. J. Med. Chem. 1982, 25, 1417–1422. [Google Scholar] [CrossRef]
  2. Baxter, A.D.; Owen, D.A.; Watson, R.J.; Hannah, D.; Batty, D. Preparation of Hydroxamic and Carboxylic Acid Derivatives for Treating Condition Associated with Matrix Metalloproteinase, ADAM or ADAM-TS Enzymes. WIPO (PCT) No. WO2000069827, 23 November 2000. [Google Scholar]
  3. Bisacchi, G.S. Origins of the Quinolone Class of Antibacterials: An Expanded “Discovery Story”. J. Med. Chem. 2015, 58, 4874–4882. [Google Scholar] [CrossRef]
  4. Giles, G.I.; Collins, C.A.; Stone, T.W.; Jacob, C. Electrochemical and in vitro evaluation of the redox-properties of kynurenine species. Biochem. Biophys. Res. Commun. 2003, 300, 719–724. [Google Scholar] [CrossRef]
  5. Mannich, C.; Krösche, W. About a condensation product of formaldehyde, ammonia and antipyrine. Archiv der Pharmazie 1912, 250, 647–667. [Google Scholar] [CrossRef]
  6. Betti, M. On the addition of benzyl amine to naphthol. Gazz. Chim. Ital. 1900, 30, 301–309. [Google Scholar]
  7. Betti, M. General condensation reaction between β-naphthol, aldehydes and amines. Gazz. Chim. Ital. 1900, 30, 310–316. [Google Scholar]
  8. Cardellicchio, C.; Capozzi, M.A.M.; Naso, F. The Betti base: The awakening of a sleeping beauty. Tetrahedron Asymmetry 2010, 21, 507–517. [Google Scholar] [CrossRef]
  9. Filho, J.F.A.; Lemos, B.C.; de Souza, A.S.; Pinheiro, S.; Greco, S.J. Multicomponent Mannich reactions: General aspects, methodologies and applications. Tetrahedron 2017, 73, 6977–7004. [Google Scholar] [CrossRef]
  10. Biersack, B.; Ahmed, K.; Padhye, S.; Schobert, R. Recent developments concerning the application of the Mannich reaction for drug design. Expert Opin. Drug. Discov. 2018, 13, 39–49. [Google Scholar] [CrossRef]
  11. Roman, G. Anticancer Activity of Mannich Bases: A Review of Recent Literature. ChemMedChem 2022, 17, e202200258. [Google Scholar] [CrossRef]
  12. Bhilare, N.V.; Marulkar, V.S.; Shirote, P.J.; Dombe, S.A.; Pise, V.J.; Salve, P.L.; Biradar, S.M.; Yadav, V.D.; Jadhav, P.D.; Bodhe, A.A.; et al. Mannich Bases: Centrality in Cytotoxic Drug Design. Med. Chem. 2022, 18, 735–756. [Google Scholar] [CrossRef]
  13. Szatmári, I.; Fülöp, F. Syntheses, transformations and applications of aminonaphthol derivatives prepared via modified Mannich reactions. Tetrahedron 2013, 69, 1255–1278. [Google Scholar] [CrossRef] [Green Version]
  14. Ghosh, T.N.; Kundu, A.K.; Chaudhuri, A.R. Search for New Antispasmodics. Part IV. J. Indian Chem. Soc. 1952, 29, 368–370. [Google Scholar]
  15. Zubkov, V.O.; Benzugly, P.O.; Taran, K.A.; Kamenetskaya, O.L.; Silayeva, L.F. Synthesis and antimicrobial activity of 3-aminomethyl substituted quinolones. Visnik Farmatsii 2003, 1, 1–4. [Google Scholar]
  16. Lőrinczi, B.; Csámpai, A.; Fülöp, F.; Szatmári, I. Synthesis of New C-3 Substituted Kynurenic Acid Derivatives. Molecules 2020, 25, 937. [Google Scholar] [CrossRef]
  17. Lőrinczi, B.; Csámpai, A.; Fülöp, F.; Szatmári, I. Synthetic- and DFT modelling studies on regioselective modified Mannich reactions of hydroxy-KYNA derivatives. RSC Adv. 2021, 11, 543–554. [Google Scholar] [CrossRef]
  18. Kaslow, C.E.; Nix, S.J. Substituted Quinolineacetic Acids. J. Org. Chem. 1951, 16, 895–898. [Google Scholar] [CrossRef]
  19. Munavalli, S.N.; Kulkarni, S.N.; Nargund, K.S. Use of ethyl acetonedicarboxylate in the Conrad–Limpach reaction. Preparation of substituted ethyl 4-hydroxyquinoline-2-acetates. J. Karnatak Univ. 1956, 1, 23–28. [Google Scholar]
  20. Shilabin, A.G.; Dzhekieva, L.; Misra, P.; Jayaram, B.; Pratt, R.F. 4-Quinolones as Noncovalent Inhibitors of High Molecular Mass Penicillin-Binding Proteins. ACS Med. Chem. Lett. 2012, 9, 592–595. [Google Scholar] [CrossRef]
  21. Rahn, T.; Appel, B.; Baumann, W.; Jiao, H.; Börner, A.; Fischer, C.; Langer, P. Synthesis of chromones and 4-hydroxyquinolines based on uncatalyzed condensations of 1-methoxy-1,3-bis(trimethylsilyloxy)-1,3-butadiene with 2-alkoxy- and 2-nitrobenzoyl chlorides and related reactions. Org. Biomol. Chem. 2009, 7, 1931–1938. [Google Scholar] [CrossRef]
  22. Mee, J.D. 1-Phenylpiperidine-2,4,6-Trione. J. Org. Chem. 1975, 40, 2135–2136. [Google Scholar] [CrossRef]
  23. Nadaraj, V.; Selvi, S.T. Synthesis of quinoline derivatives by acid catalyzed microwave-assisted approach. Org. Chem. Indian J. 2010, 6, 108–111. [Google Scholar]
  24. Tatemitsu, H.; Ogura, F.; Nakagawa, Y.; Nakagawa, M.; Naemura, K.; Nakazaki, M. Optical Activity and Absolute Configuration of 2,3:6,7-Dibenzobicyclo [3.3.1]nona-2,6-diene Derivatives. Bull. Chem. Soc. Jpn. 1975, 48, 2473–2483. [Google Scholar] [CrossRef]
  25. Valdéz-Camacho, J.R.; Rivera-Ramírez, J.D.; Escalante, J. Studies and Mechanism of Olefination Reaction in Aryl-Enolates with Paraformaldehyde. Int. J. Org. Chem. 2019, 9, 10–22. [Google Scholar] [CrossRef]
  26. Ayad, F.; Tilley, L.; Deady, L.W. Synthesis, Antimalarial Activity and Inhibition of Haem Detoxification of Novel Bisquinolines. Bioorg. Med. Chem. Lett. 2001, 11, 2075–2077. [Google Scholar] [CrossRef]
  27. Obora, Y.; Anno, Y.; Okamoto, R.; Matsu-ura, T.; Ishii, Y. Iridium-Catalyzed Reactions of ω-Arylalkanols to α,ω-Diarylalkanes. Angew. Chem. Int. Ed. 2011, 50, 8618–8622. [Google Scholar] [CrossRef]
  28. Chen, J.; Deady, L.W. Synthesis of Some Quinolizine Derivatives. Tetrahedron 1998, 54, 2785–2794. [Google Scholar] [CrossRef]
  29. Musiol, R. Styrylquinoline—A Versatile Scaffold in Medicinal Chemistry. Med. Chem. 2020, 16, 141–154. [Google Scholar] [CrossRef]
  30. Bahner, C.T. Effect of compounds related to 4-(p-dimethylaminostyryl) quinolone methiodide on lymphoma 8. Cancer Res. 1955, 15, 588–592. [Google Scholar]
  31. Bahner, C.T.; Pace, E.S.; Prevost, R. Quaternary Salts of Styryl Pyridines and Quinolines. J. Am. Chem. Soc. 1951, 73, 3407–3408. [Google Scholar] [CrossRef]
  32. Mrozek-Wilczkiewicz, A.; Kuczak, M.; Malarz, K.; Cieślik, W.; Spaczyńska, E.; Musiol, R. The synthesis and anticancer activity of 2-styrylquinoline derivatives. A P53 independent mechanism of action. Eur. J. Med. Chem. 2019, 177, 338–349. [Google Scholar] [CrossRef]
  33. Podeszwa, B.; Niedbala, H.; Polanski, J.; Musiol, R.; Tabak, D.; Finster, J.; Serafin, K.; Milczarek, M.; Wietrzyk, J.; Boryczka, S.; et al. Investigating the antiproliferative activity of quinoline-5,8-diones and styrylquinolinecarboxylic acids on tumor cell lines. Bioorg. Med. Chem. Lett. 2007, 17, 6138–6141. [Google Scholar] [CrossRef]
  34. Shablykina, O.V.; Khilya, O.V.; Ishchenko, V.V.; Khilya, V.P. 3-(2-Quinolyl)- and 3-(5-carbethoxyfuryl-2)coumarins. Chem. Nat. Compd. 2005, 41, 529–532. [Google Scholar] [CrossRef]
  35. Sankaran, M.; Chandraprakash, K.; Uvarani, C.; Vennila, K.N.; Velmurugan, D.; Mohan, P.S. A Convenient Method of Facilitating Aryl–Aryl Bond-Formation Reactions in the Synthesis of Biquinoline- and Quinoline-Bearing Chromene Derivatives. Synlett 2012, 23, 2858–2864. [Google Scholar] [CrossRef]
  36. Chen, Y.; Wei, X.-R.; Sun, R.; Xu, Y.-J.; Ge, J.-F. The fluorescent biomarkers for lipid droplets with quinolone-coumarin unit. Org. Biomol. Chem. 2018, 16, 7619–7625. [Google Scholar] [CrossRef]
  37. Hande, P.E.; Mishra, M.; Ali, F.; Kapoor, S.; Datta, A.; Gharpure, S.J. Design and Expeditious Synthesis of Quinoline-Pyrene-Based Ratiometric Fluorescent Probes for Targeting Lysosomal pH. ChemBioChem 2020, 21, 1492–1498. [Google Scholar] [CrossRef]
  38. Gajdács, M.; Spengler, G.; Sanmartín, C.; Marć, M.A.; Handzlik, J.; Domínguez-Álvarez, E. Selenoesters and selenoanhydrides as novel multidrug resistance reversing agents: A confirmation study in a colon cancer MDR cell line. Bioorg. Med. Chem. Lett. 2017, 27, 797–802. [Google Scholar] [CrossRef] [Green Version]
  39. Hansch, C.; Leo, A.; Taft, R.W. A Survey of Hammett Substituent Constants and Resonance and Field Parameters. Chem. Rev. 1991, 91, 165–195. [Google Scholar] [CrossRef]
  40. Ackroyd, J.; Scheinmann, F. A New Route to 1H-1,5-Benzodiazepinones. J. Chem. Soc. Chem. Commun. 1981, 339–340. [Google Scholar] [CrossRef]
  41. Balkenhohl, F.; Bohnenpoll, M.; Winterfeldt, E. Cyclopentenone Derivatives, XIV. Stereoselective Formation of Prostacyclin Intermediates. Chemische Berichte 1989, 122, 797–800. [Google Scholar] [CrossRef]
  42. Troin, Y.; Sinibaldi, M.E.; Gramain, J.C.; Rubiralta, M.; Diez, A. Preparation of Spiroindolines as Potential Intermediates in Aspidosperma Alkaloid Synthesis. Tetrahedron Lett. 1991, 32, 6129–6132. [Google Scholar] [CrossRef]
  43. Charvát, T.; Potáček, M.; Humpa, O.; Marek, J. Isomerization of N-Aryl Substituted Diethyl 3-Aminoglutaconates. Part I. J. Mol. Struct. 1996, 377, 271–276. [Google Scholar]
Ijms 23 09688 sch001 550
Scheme 1. The synthesis of 4-hydroxyquinolines.
Scheme 1. The synthesis of 4-hydroxyquinolines.
Ijms 23 09688 sch001
Ijms 23 09688 sch002 550
Scheme 2. The reaction of 2-(4-hydroxyquinolin-2-yl) acetates with paraformaldehyde in the presence of piperidine.
Scheme 2. The reaction of 2-(4-hydroxyquinolin-2-yl) acetates with paraformaldehyde in the presence of piperidine.
Ijms 23 09688 sch002
Ijms 23 09688 sch003 550
Scheme 3. Synthetic routes to 1H-azeto [1,2-a]quinolin 9.
Scheme 3. Synthetic routes to 1H-azeto [1,2-a]quinolin 9.
Ijms 23 09688 sch003
Ijms 23 09688 sch004 550
Scheme 4. The reaction of 4-hydroxyquinolines with benzaldehyde in the presence of piperidine.
Scheme 4. The reaction of 4-hydroxyquinolines with benzaldehyde in the presence of piperidine.
Ijms 23 09688 sch004
Ijms 23 09688 sch005 550
Scheme 5. The reaction of 4-hydroxyquinolines with aromatic aldehydes in the presence of piperidine.
Scheme 5. The reaction of 4-hydroxyquinolines with aromatic aldehydes in the presence of piperidine.
Ijms 23 09688 sch005
Ijms 23 09688 sch006 550
Scheme 6. The reaction of 4-hydroxyquinolines with salicylaldehyde in the presence of piperidine.
Scheme 6. The reaction of 4-hydroxyquinolines with salicylaldehyde in the presence of piperidine.
Ijms 23 09688 sch006
Ijms 23 09688 sch007 550
Scheme 7. The reaction of 4-hydroxyquinolines with hydroxynaphthaldehydes in the presence of piperidine.
Scheme 7. The reaction of 4-hydroxyquinolines with hydroxynaphthaldehydes in the presence of piperidine.
Ijms 23 09688 sch007
Ijms 23 09688 g001 550
Figure 1. A correlation of the Hammet–Brown constant (σp+) and pIC50 for compounds 13b, 20–24; regression lines and regression coefficients are given.
Figure 1. A correlation of the Hammet–Brown constant (σp+) and pIC50 for compounds 13b, 20–24; regression lines and regression coefficients are given.
Ijms 23 09688 g001
Table
Table 1. Reaction conditions (i) for the synthesis of 4a,b and 5.
Table 1. Reaction conditions (i) for the synthesis of 4a,b and 5.
ProductTime (min)Temperature (°C)Yield of 4a/4b (%)Yield of 5 (%)
4a20240280
20245310
20250270
20245053 1
4b2022070.5
20230160.6
20235280.3
20240350.1
20245410
20250350
15245370
30245360
1 With added p-TSA.
Table
Table 2. Cytotoxic activity of the synthesised compounds on Colo 205 and Colo 320 cell lines, and normal human embryonic MRC-5 fibroblasts.
Table 2. Cytotoxic activity of the synthesised compounds on Colo 205 and Colo 320 cell lines, and normal human embryonic MRC-5 fibroblasts.
CompoundColo 205 IC50 (µM)Colo 320 IC50 (µM)MRC-5 IC50 (µM)
MeanSD (+/−)MeanSD (+/−)MeanSD (+/−)
4a>100−92.781.68>100−
4b>100−>100−>100−
5>100−>100−>100−
7>100−>100−>100−
8>100−>100−>100−
9>100−>100−>100−
10a>100−>100−>100−
10b>100−>100−>100−
12>100−>100−>100−
13a11.861.078.191.3528.561.11
13b8.100.114.580.1818.941.83
14>100−>100−>100−
202.340.244.610.249.890.00
2116.541.9742.652.2621.940.82
2211.790.2712.290.5530.640.64
2342.762.35>100−65.181.13
24>100−>100−>100−
25>100−32.403.3736.541.01
2612.630.4911.000.3717.580.27
28>100−14.080.356.520.46
29>100−9.860.90>100−
30>100−>100−>100−
DOXO2.300.123.610.34>10−
DOXO: doxorubicin.
Table
Table 3. The selectivity index of the synthesised compounds based on their IC50.
Table 3. The selectivity index of the synthesised compounds based on their IC50.
CompoundSI (Selectivity Index)
MRC-5/Colo 205MRC-5/Colo 320
4a--
4b--
5--
7--
8--
9--
10a--
10b--
12--
13a2.413.49
13b2.344.14
14--
204.232.15
211.330.51
222.602.49
231.52-
24--
25-1.13
261.391.60
28-0.46
29->6
30--
Selectivity index = IC50 (MRC-5)/IC50 (Colo205) or IC50 (MRC-5)/IC50 (Colo320).
Table
Table 4. The Hammett–Brown constant (σp+) for substituents (X) at the para position and the corresponding negative logarithm of IC50 (pIC50).
Table 4. The Hammett–Brown constant (σp+) for substituents (X) at the para position and the corresponding negative logarithm of IC50 (pIC50).
CompoundXσp+Colo 205
pIC50		Colo 320
pIC50
20NO20.795.635.34
13bH0.005.095.34
21F–0.074.784.37
22Me–0.314.934.91
23OMe–0.784.37<4.00
24NMe2–1.70<4.00<4.00
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Csuvik, O.; Szemerédi, N.; Spengler, G.; Szatmári, I. Synthesis of 4-Hydroxyquinolines as Potential Cytotoxic Agents. Int. J. Mol. Sci. 2022, 23, 9688. https://doi.org/10.3390/ijms23179688

AMA Style

Csuvik O, Szemerédi N, Spengler G, Szatmári I. Synthesis of 4-Hydroxyquinolines as Potential Cytotoxic Agents. International Journal of Molecular Sciences. 2022; 23(17):9688. https://doi.org/10.3390/ijms23179688

Chicago/Turabian Style

Csuvik, Oszkár, Nikoletta Szemerédi, Gabriella Spengler, and István Szatmári. 2022. "Synthesis of 4-Hydroxyquinolines as Potential Cytotoxic Agents" International Journal of Molecular Sciences 23, no. 17: 9688. https://doi.org/10.3390/ijms23179688

APA Style

Csuvik, O., Szemerédi, N., Spengler, G., & Szatmári, I. (2022). Synthesis of 4-Hydroxyquinolines as Potential Cytotoxic Agents. International Journal of Molecular Sciences, 23(17), 9688. https://doi.org/10.3390/ijms23179688

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
