Circulating EGFR Mutations in Patients with Lung Adenocarcinoma by Circulating Tumor Cell Isolation Systems: A Concordance Study

by
Shih-Hong Li
1,2,3,
Min-Hsien Wu
4,5,
Hung-Ming Wang
3,5,
Ping-Chih Hsu
2,3,
Yueh-Fu Fang
2,3,
Chih-Liang Wang
2,3,
Hui-Chun Chu
5,
Hung-Chih Lin
5,
Li-Yu Lee
3,6,
Ching-Yang Wu
3,7,
Cheng-Ta Yang
2,3,
Jen-Shi Chen
3,5 and
Jason Chia-Hsun Hsieh
3,5,8,*
1
Division of Thoracic Medicine, Department of Internal Medicine, Saint Paul’s Hospital, Taoyuan 33069, Taiwan
2
Division of Thoracic Medicine, Department of Internal Medicine, Chang Gung Memorial Hospital at Linkou, Taoyuan City 33305, Taiwan
3
College of Medicine, Chang Gung University, Taoyuan City 33302, Taiwan
4
Tissue Engineering and Microfluidic Biochip Lab, Graduate Institute of Biomedical Engineering, Chang Gung University, Taoyuan City 33302, Taiwan
5
Circulating Tumor Cell Lab, Division of Hematology-Oncology, Department of Internal Medicine, Chang Gung Memorial Hospital at Linkou, Taoyuan City 33305, Taiwan
6
Department of Pathology, Chang Gung, Memorial Hospital at Linkou, Taoyuan City 33305, Taiwan
7
Thoracic and Cardiovascular Surgery Division, Department of Surgery, Chang Gung Memorial Hospital, Chang Gung University, Taoyuan City 33305, Taiwan
8
Division of Hematology-Oncology, Department of Internal Medicine, New Taipei City Municipal Tucheng Hospital, New Taipei 23652, Taiwan
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2022, 23(18), 10661; https://doi.org/10.3390/ijms231810661
Submission received: 28 July 2022 / Revised: 28 August 2022 / Accepted: 9 September 2022 / Published: 13 September 2022
(This article belongs to the Section Molecular Oncology)
Browse Figures
Versions Notes

Abstract

:
Background: We developed a hybrid platform using a negative combined with a positive selection strategy to capture circulating tumor cells (CTCs) and detect epidermal growth factor receptor (EGFR) mutations in patients with metastatic lung adenocarcinoma. Methods: Blood samples were collected from patients with pathology-proven treatment-naïve stage IV lung adenocarcinoma. Genomic DNA was extracted from CTCs collected for EGFR mutational tests. The second set of CTC-EGFR mutational tests were performed after three months of anti-cancer therapy. Results: A total of 80 samples collected from 28 patients enrolled between July 2016 and August 2018. Seventeen patients had EGFR mutations, including Exon 19 deletion (n = 11), L858R (n = 5), and de-novo T790 and L858R (n = 1). Concordance between tissue and CTCs before treatment was 88.2% in EGFR- mutant patients and 90.9% in non-mutant patients. The accuracy, sensitivity, specificity, positive predictive value, and negative predictive value of EGFR mutation tests for CTCs were 89.3%, 88.2%, 90.9%, 93.8%, and 83.3%, respectively. Conclusions: CTCs captured by a hybrid platform using a negative and positive selection strategy may serve as a suitable and reliable source of lung cancer tumor DNA for detecting EGFR mutations, including T790M.

1. Introduction

Lung cancer is one of the most lethal malignancies among all cancer types worldwide [1], with non-small cell lung cancers (NSCLC) accounting for ~85% of lung cancers, including adenocarcinoma, squamous cell carcinoma, large cell carcinoma, and the other histological types. With the increasing improvement in molecular science, many NSCLC driver genes, including epidermal growth factor receptor (EGFR), EML4-ALK fusion, ROS1, RET, and MET, have been recognized and have responded to new target therapies in this decade [2].
The most common driver gene mutation in NSCLC is EGFR, which has been reported to have a high incidence in the East Asian population [3,4]. In 2010, the first EGFR tyrosine kinase inhibitor (TKI), Gefitinib, had an excellent response rate and progression-free survival (PFS) compared to chemotherapy for patients with mutant EGFR advanced-stage NSCLC [5]. Since more EGFR TKIs, including Erlotinib, Afatinib, Dacomitinib, and Osimertinib, have been developed in this decade, the survival rate of NSCLC patients has greatly improved in recent years worldwide [6,7].
However, most patients with NSCLC have progressive disease after 9–13 months of first-line EGFR TKI treatment due to new resistant driver genes (T790M) or other resistant mechanisms [8,9]. To evaluate resistance mechanisms, repeated biopsies are performed as the disease progresses. Obtaining molecular information is an important aspect in clinical practice. However, owing to increased disease severity and poor performance, some patients have contraindications or intolerance to the invasive procedures required for biopsy [10], and a safe and convenient method needs to be developed to overcome it. Thus, the capture of tumoral genomic content in the blood, called a “liquid biopsy”, has been developed as an alternative to tissue biopsy [11,12].
The liquid biopsy is a less-invasive tool for detecting resistant genes during targeted therapy or monitoring tumor-related DNA alterations [13,14,15,16]. Among the kinds of liquid biopsies, circulating tumor DNA (ctDNA) and circulating tumor cells (CTCs) are the most widely discussed [12]. The ctDNA are short fragments of double-stranded DNA that are shed from tumors during necrosis or apoptosis either actively or passively [17]. However, ctDNA only exists in a very small portion of total circulating DNA, resulting in an extremely high cost to detect a low proportion of tumor mutations in peripheral blood samples [18]. CTCs have detached from the primary tumor and metastatic sites and are shed in the bloodstream. Several different methods have been developed to enrich and capture CTCs [19,20]. There are two main methods to isolate CTCs: (1) a label-dependent method, based on the antibody to detect specific surface markers of the CTCs or WBCs, and (2) a label-independent method, based on the physical or biological properties of the CTCs, such as size [21]. The label-dependent method has two selection methods: (1) positive selection, targeting tumor-specific antigens expressed by CTCs, such as epithelial cell adhesion molecules (Ep-CAM), mucin1 (MUC1), or human epidermal growth factor receptor 2 (HER2); and (2) negative selection, targeting antigens expressed by background cells but not by CTCs to remove them, such as CD45 [22]. Some evidence has suggested that high-purity CTC could guide and monitor the results of cancer therapy, including lung cancer [21,23,24,25,26]. To obtain DNA signals from CTCs (not from plasma), processes or devices to obtain high-purity, non-damaged, living CTCs, are required. To achieve the high-quality cell requirements, using a microfluidic chip-based CTC isolation protocol to achieve cell-friendly and high-purity CTC isolation for standard real-time polymerase chain reaction (RT-PCR) is reasonable [14,27]. Clinicians can quickly obtain EGFR mutation results using this method when dealing with a patient newly diagnosed with lung cancer.
In this study, we aimed to (i) propose an efficient CTC isolation protocol for precise EGFR mutation testing; and then (ii) compare the mutational analysis between cancer tissues and CTCs. We hypothesized that CTC-EGFR mutation detection can provide a quicker method of identification so that clinicians can promptly use anti-EGFR inhibitors.

2. Results

2.1. Patient Enrollment and Study Flow

We prospectively enrolled 28 patients diagnosed with metastatic lung adenocarcinoma between August 2016 and August 2018. Table 1 briefly demonstrates the basic characteristics of the enrolled patients. Among the enrolled patients, 12 (42.9%) had stage Iva disease and 16 (57.1%) had stage IVb disease (AJCC 8th edition). The most common metastatic sites were the contralateral lung (lung-to-lung metastasis, M1a, n = 14, 50.0%) and bone metastasis (n = 13, 46.4%). The EGFR mutation from the tissue showed 11 non-mutant (39.3%) and exon 19 deletion (n = 11, 39.3%), L858R (n = 5, 17.9%) and synchronous de novo T790 and L858R (n = 1, 3.6%).
Figure 1 demonstrates the study flow of this prospective trial. We collected 80 CTC samples during the study period, including 28 before first-line therapy (baseline) and 52 CTC samples after 3 months of systemic treatments. Four CTC specimens were missed (dropped out rate: 4/80 = 5%) because of two cases with failure to follow-up and two withdrawals. Representative CTC isolation before EGFR mutational testing is shown with flow gating strategies in Figure 2A–F. Microscopic fluorescence confirmation for CTCs expressing EpCAM and TTF-1, captured from an actual lung cancer patient, is shown in Figure 3A–C.

2.2. Concordance of EGFR Mutational Status between CTCs and Tissues

To evaluate the concordance between EGFR mutations in cancer tissue and CTC samples, we separately analyzed the samples (n = 28) before systemic therapy from those during therapy (n = 52, 3rd month after treatment initiation). Table 2 displays the results of EGFR testing of cancer tissue and CTC samples. In the group before therapy (n = 28), the concordance rates were 88.2% and 90.9% in mutant EGFR and non-mutant EGFR groups, respectively. In the group under treatment (n = 52), the concordance rate between CTC and tissue was 95.5% for non-mutant EGFR. (Table 2A). Overall, the accuracy, sensitivity, specificity, positive predictive value, and negative predictive value of EGFR mutation tests for CTCs were 89.3%, 88.2%, 90.9%, 93.8%, and 83.3%, respectively.
To improve the efficiency and accuracy, 12 peripheral CTC samples were subjected to ARMS-PCR together with the original protocol for comparison during the trial. The results are presented in Table 2B. For the seven samples before anti-cancer treatment, the concordance rates were 33.3% and 75% in mutant EGFR and non-mutant EGFR groups, respectively. After three months of anti-cancer treatment, we did not detect any EGFR mutations in the CTC samples due to no CTC detected.
One incidental finding in this study was that there was one patient (1/80, 1.25%, patient #14) who had a de novo T790M mutation, which was compatible with the tissue findings. Another patient (1/80, 1.25%, patient #28) had an acquired T790M mutation after treatment with EGFR TKI, which was detected by the CTC EGFR test. Supplementary Figure S3A displays representative electrophoresis agarose gel after WGA. All the samples were sent for Sanger sequencing. One patient harboring both L858R and T790M (both cancer and PS-CTCs) is shown in Supplementary Figure S3B. The theoretical low limit of detection was one cell with approximately only 5–10 pg DNA.

2.3. The Lowest Detection Limit for EGFR Mutation and Quality Controls

We tested the lowest detection limits of the CTC EGFR mutational testing platform. The lowest detection limits are listed in Supplementary Table S2. The mutant DNA linear detection range in a total of 10 ng background non-mutant DNA ranged from 50 pg to 1 ng mutant DNA. The results showed that the detection limit of exons 18 and 20 was 50 pg in ARMS PCR, which was a better performance than 500 pg in the TaqMan® platform.
Although challenging, the detection limit of 19 deletions in liquid biopsy using a non- next-generation sequencing (NGS) platform (only tested in TaqMan® platform) in this study was 200 pg ctDNA (Supplementary Table S3). Meanwhile, DNA quality and linear amplification for rare cell PCR were qualified simultaneously.
To ensure the purity and efficiency of CTC isolation using the platform proposed in this study, we collected 4 mL of whole blood samples from healthy enrolled individuals (n = 5) in cell-line spiking experiments. The efficiency showed a mean ± SD of 97.4 ± 4.6% (ranging from 89.3% to 100.0%, with target cells ranging from 7 to 115 cells).

3. Discussion

We investigated whether high-purity CTCs can be captured from patients with NSCLC for EGFR mutational testing by combining negative and positive selection methods followed by On-Chip Sort (Figure 2 and Figure 3). The obtained CTCs showed high concordance (88.2%, Table 2) with tissue EGFR mutation detection in a highly efficient manner (Supplementary Table S4). In this exploratory study (28 NSCLC patients with 80 CTC samples, Table 1 and Table 2, and Figure 1), these novel methods yielded high specificity (90.9%), sensitivity (88.2%), and positive (93.8%) and negative (83.3%) predictive values (Table 2). Our results are comparable to findings in the literature. A study used CellSearch to capture CTCs and detected mutation type by NGS and revealed 94% concordance with tumor tissue [28]. In a meta-analysis that included 25 studies, circulating free DNA (cfDNA) for EGFR detection showed overall specificity (0.90), sensitivity (0.61), and concordance rates (0.79) [29]. In clinical practice, NGS and cfDNA detection are expensive and time-consuming. In our study design, CTCs on-chip sorting and ARMS and TagMan PCR to detect EGFR mutation could decrease the cost and save time, thereby increasing the clinical application.
In this prospective study, we defined CTCs as cells enriched from patients’ peripheral blood with expressions status of EpCAM+TTF-1+CD45−Hoechst+. Among all the markers, EpCAM has been referred to as a universal molecular marker for the detection of circulating tumor cells (CTCs) by the CellSearch system (Veridex, Warren, NJ, USA) [30]. The positive definition of a single CTC varies in the literature [31]. The most commonly used surface markers included EpCAM, E-cadherin, cytokeratins (Cks), Zonula occludens (ZO), and epithelial splicing regulator1 (ESPR1), or Vimentin [31,32]. Our study applied a similar panel to previously published studies [33,34,35]. Specifically, in some studies, cancer cells harboring EGFR mutations seemed to have a higher level of EpCAM expression, supporting the strategy of using the current panel to isolate CTC for EGFR mutational testing in our study [36].
Our study provided 87% sensitivity, 100% specificity, 100% positive predictive values (PPV), and 71% negative predictive value (NPV) for CTC EGFR mutation detection (Table 2). The main reason for this may be that we used a combination of negative and positive selection strategies. The reasons included: (i) a negative-only selection protocol can cause a low purity of EGFR-mutant cells in the sample, resulting in a false-negative finding; (ii) a positive-only selection protocol can cause a low recovery rate of CTCs at the beginning of CTC enrichment, resulting in false-negative findings in the following steps; (iii) CTCs with epithelial-mesenchymal transition (EMT) characteristics might have no or weak expression of EpCAM, causing difficulty in capturing CTCs to perform EGFR testing [37,38]. Given the complex biology of CTCs in a patient with advanced cancer, combining a negative and a positive selection strategy can maintain the recovery rate and purity of isolated CTCs before EGFR testing.
Our data showed that detection of EGFR mutations failed in CTCs of many patients when they were receiving anti-cancer therapy (at the third-month timepoint, Table 2). This phenomenon is consistent with earlier findings [39,40]. As early as 2008, Maheswaran S, et al. noticed that 4 of 27 patients with NSCLC after 3 months of EGFR TKI therapy had significantly lower numbers of CTCs captured by a microfluidic device than that in the samples before therapy [39]. Moreover, Iwama E et al. reported that the detection of EGFR mutation after 4 and 24 weeks of EGFR TKI therapy was 13.3% and 0%, respectively, from 19 patients with mutant NSCLC [40]. These results support our finding that the EGFR detection sensitivity in patients after three months of EGFR TKI therapy is relatively low. In our study, the low detection rate of EGFR mutation in CTCs might be secondary to the reduced number of CTCs isolated. After anti-cancer therapy, patients had low CTC detection, indicating a successful suppression of CTC release from primary lung cancer to foresee an upcoming disease control by standard imaging evaluation [41,42,43,44].
The present study has several limitations. First, this prospective study enrolled only a limited number of patients. Although the case number is relatively small, a sensitivity of 87%, a specificity of 100%, PPV of 100%, and NPV of 71% for CTC EGFR mutation detection (Table 2) are acceptable compared with that of ctDNA (a pooled sensitivity for cfDNA to detect EGFR mutations of 61% and 67.4% with a specificity of 90% and 93.5%) [29,45,46]. Second, the optimal timing of CTC testing after therapy remains unclear in this study. This might be related to a reasonable disease control rate and a long PFS when treated with EGFR TKI. More tests to monitor the EGFR mutational status using CTCs until disease progression may be a good design in the future.
In conclusion, we report that CTCs captured by negative and positive selection followed by the on-chip sort platform represent a suitable and reliable source of lung cancer tumor DNA for detecting EGFR mutations, including T790M. This novel diagnostic method could be helpful in obtaining an EGFR mutation status in cases with inadequate tissue or intolerance to the invasive re-biopsy procedure. This approach could also be beneficial for monitoring treatment response and real-time tumor genotyping.

4. Materials and Methods

4.1. Patient Enrollment

We invited patients who visited the Chang Gung Memorial Hospital between July 2016 and September 2018 to participate in the study. Patients were considered eligible if they fulfilled the followings criteria: (1) 20 years of age or older, (2) newly diagnosed and treatment naïve stage IV lung adenocarcinoma based on the 8th edition of the American Joint Committee on Cancer, (3) unknown EGFR mutation status but under evaluation, and (4) recurrent lung cancer that received standard treatment. The exclusion criteria were (1) synchronous cancer or previous cancers within the last five years; (2) refusal of blood drawing, (3) no final tissue EGFR mutation result, and (4) less than three months of survival time. The study received institutional review board approval (approval IDs: 104-9796B, 201509796B0C601, and 201702296B0). Informed consent was obtained from each patient before enrollment, in accordance with the Declaration of Helsinki. The National Ministry of Health and Welfare’s guidelines for the care and use of cancer cell lines and human samples were strictly followed. After blood sampling, the patient received anti-cancer therapy according to the EGFR mutation results and Taiwan’s standard lung cancer treatment guidelines.

4.2. Specimen Collection, Delivery, and Processing

When pathology confirmed lung adenocarcinoma, we checked for EGFR mutation from tissue specimens and concurrently performed EGFR mutation tests in CTCs from the blood at diagnosis. Pathologists analyzed EGFR mutation from tissue specimens using amplification-refractory mutation system (ARMS) analysis or TaqMan™ system at Linkou Chang Gung Memorial Hospital. After three months of systemic anti-cancer treatment, a second CTCs test was performed for longitudinal follow-up purposes, as designed.

4.3. CTC Isolation and Quality Controls

The blood of the patients was collected and sent to the laboratory within 48 h for CTC extraction. Target cells were extracted from a fresh blood sample using a negative selection method. We then sent the negatively selected CTCs (NS-CTCs) to the On-Chip Sort machine (On-Chip Biotechnologies, Tokyo, Japan) and isolated the positively-selected CTCs (PS-CTCs). We used the On-Chip Flow Ver1.8.12 software for all the cell analyses. PS-CTCs are defined as cells expressing both EpCAM and Hoechst. The details of the CTC isolation protocols are detailed in the Supplementary Materials and methods, including thyroid transcription factor-1 (TTF-1) and EpCAM expression.
To determine the purity of the PS-CTCs, H1975 cells (#CRL-5908, ATCC, VA, USA) were pre-stained with CellTrace™ Calcein Red-Orange (C34851, Thermo Scientific, MA, USA) at room temperature (RT) for 30 min. After washing twice, the cells were serially diluted and counted for the subsequent spiked tests. The recovered positively selected cells were estimated under a phase-contrast fluorescence inverted microscope (Axiovert 200 M, Carl Zeiss, Jena Deutschland). The purity was defined as the target/(target cell + non-target cell) ratio. Representative IF images of TTF-1-expressing CTCs were obtained using a phase-contrast fluorescence inverted microscope (Axiovert 200 M, Carl Zeiss, Jena Deutschland, Supplementary Figure S1).

4.4. DNA Extraction from CTCs and Analysis

Two protocols were used to evaluate the EGFR mutations in CTCs. Genomic DNA was extracted from PS-CTCs using the QIAamp DNA Micro Kit (#56304, Qiagen, Hilden, Germany) and then processed by whole-genome amplification (WGA) using the REPLI-g Single Cell kit (#150345, Qiagen, Hilden, Germany). For exploratory purposes, ARMS PCR was added to the procedure. We analyzed EGFR mutations (exon 18 G719S/G719C, exon 20 T790M, and exon 21 L858R) by ARMS PCR using the GoTaq qPCR Master Mix (#A6001, Promega, WI, USA). For the positive control of EGFR mutations, SW48 cells (#CCL-231, mutant EGFR at exon 18 G719S, ATCC, VA, USA) and H1975 cells (#CRL-5908, harboring both exon 20 T790M and exon 21 L858R mutations in EGFR, ATCC, VA, USA) were used. WBCs from healthy donors were used as the negative control. Details of the PCR sequences are presented in Supplementary Table S1. The brief mechanism of detection is displayed in Supplementary Figure S2. All PCR data were analyzed using an ABI 3730xl DNA Analyzer (Applied Biosystems, CA, USA) and ChromasPro 2.1.8 software (Technelysium Pty Ltd., QLD, Australia). Mutated EGFR was confirmed by the Sanger sequencing.
In addition to ARMS PCR, we attempted to develop parallel testing using the TaqMan® Mutation Detection Assays to improve the turnaround time of CTC EGFR testing.

4.5. Statistical Analysis

The patients’ demographic data were summarized as the number (%) for categorical variables and the median, 95% confidence interval (CI), and range for continuous variables. Descriptive statistics were used for the basic characteristics. SPSS software (version 24.0; SPSS Inc., Chicago, IL, USA) was used for all the statistical analyses.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms231810661/s1.

Author Contributions

Conceptualization, M.-H.W., H.-M.W., Y.-F.F., L.-Y.L., C.-T.Y. and J.C.-H.H.; investigation, H.-C.C., H.-C.L. and J.-S.C.; methodology, S.-H.L., M.-H.W. and J.C.-H.H.; resources, S.-H.L., H.-M.W., Y.-F.F., C.-L.W., P.-C.H. and C.-Y.W.; supervision, C.-T.Y. and J.C.-H.H.; writing—original draft, S.-H.L.; writing—review and editing, J.C.-H.H. All authors have read and agreed to the published version of the manuscript.

Funding

This study was partially funded by a grant from Chang Gung Memorial Hospital (CMRPVVK0092, CMRPVVL0021, CMRPG3H0873) and a Ministry of Science and Technology grant (MOST-108-2314-B-182-024). The funding agencies had no role in the preparation of the manuscript. We are grateful to the Circulating Tumor Cells Lab for the sample collection and data analyses.

Institutional Review Board Statement

The study received institutional review board approval (approval IDs: 104-9796B, 201509796B0C601, and 201702296B0).

Informed Consent Statement

Informed consent was obtained from each patient before enrollment, in accordance with the Declaration of Helsinki. The National Ministry of Health and Welfare’s guidelines for the care and use of cancer cell lines and human samples were strictly followed.

Data Availability Statement

Not applicable.

Acknowledgments

We are grateful to the Circulating Tumor Cells Lab for the sample collection and data analyses.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Sung, H.; Ferlay, J.; Siegel, R.L.; Laversanne, M.; Soerjomataram, I.; Jemal, A.; Bray, F. Global Cancer Statistics 2020: GLOBOCAN Estimates of Incidence and Mortality Worldwide for 36 Cancers in 185 Countries. CA Cancer J. Clin. 2021, 71, 209–249. [Google Scholar] [CrossRef] [PubMed]
  2. Tan, A.C.; Tan, D.S.W. Targeted Therapies for Lung Cancer Patients with Oncogenic Driver Molecular Alterations. J. Clin. Oncol. 2022, 40, 611–625. [Google Scholar] [CrossRef] [PubMed]
  3. Midha, A.; Dearden, S.; McCormack, R. EGFR mutation incidence in non-small-cell lung cancer of adenocarcinoma histology: A systematic review and global map by ethnicity (mutMapII). Am. J. Cancer Res. 2015, 5, 2892–2911. [Google Scholar] [PubMed]
  4. Shi, Y.; Au, J.S.-K.; Thongprasert, S.; Srinivasan, S.; Tsai, C.-M.; Khoa, M.T.; Heeroma, K.; Itoh, Y.; Cornelio, G.; Yang, P.-C. A Prospective, Molecular Epidemiology Study of EGFR Mutations in Asian Patients with Advanced Non–Small-Cell Lung Cancer of Adenocarcinoma Histology (PIONEER). J. Thorac. Oncol. 2014, 9, 154–162. [Google Scholar] [CrossRef] [PubMed]
  5. Maemondo, M.; Inoue, A.; Kobayashi, K.; Sugawara, S.; Oizumi, S.; Isobe, H.; Gemma, A.; Harada, M.; Yoshizawa, H.; Kinoshita, I.; et al. Gefitinib or Chemotherapy for Non–Small-Cell Lung Cancer with Mutated EGFR. N. Engl. J. Med. 2010, 362, 2380–2388. [Google Scholar] [CrossRef]
  6. Hsu, J.C.; Wei, C.-F.; Yang, S.-C.; Lin, P.-C.; Lee, Y.-C.; Lu, C.Y. Lung cancer survival and mortality in Taiwan following the initial launch of targeted therapies: An interrupted time series study. BMJ Open 2020, 10, e033427. [Google Scholar] [CrossRef]
  7. Howlader, N.; Forjaz, G.; Mooradian, M.J.; Meza, R.; Kong, C.Y.; Cronin, K.A.; Mariotto, A.B.; Lowy, D.R.; Feuer, E.J. The Effect of Advances in Lung-Cancer Treatment on Population Mortality. N. Engl. J. Med. 2020, 383, 640–649. [Google Scholar] [CrossRef]
  8. Oxnard, G.R.; Arcila, M.E.; Sima, C.S.; Riely, G.J.; Chmielecki, J.; Kris, M.G.; Pao, W.; Ladanyi, M.; Miller, V.A. Acquired Resistance to EGFR Tyrosine Kinase Inhibitors in EGFR-Mutant Lung Cancer: Distinct Natural History of Patients with Tumors Harboring the T790M Mutation. Clin. Cancer Res. 2011, 17, 1616–1622. [Google Scholar] [CrossRef]
  9. Mok, T.S.; Wu, Y.L.; Ahn, M.J.; Garassino, M.C.; Kim, H.R.; Ramalingam, S.S.; Shepherd, F.A.; He, Y.; Akamatsu, H.; Theelen, W.S.; et al. Osimertinib or Platinum-Pemetrexed in EGFR T790M-Positive Lung Cancer. N. Engl. J. Med. 2017, 376, 629–640. [Google Scholar] [CrossRef]
  10. Houaid, C.; Dujon, C.; Do, P.; Monnet, I.; Madroszyk, A.; Le Caer, H.; Auliac, J.B.; Berard, H.; Thomas, P.; Lena, H.; et al. Feasibility and clinical impact of re-biopsy in advanced non small-cell lung cancer: A prospective multicenter study in a real-world setting (GFPC study 12-01). Lung Cancer 2014, 86, 170–173. [Google Scholar]
  11. Murtaza, M.; Dawson, S.-J.; Tsui, D.W.Y.; Gale, D.; Forshew, T.; Piskorz, A.M.; Parkinson, C.; Chin, S.-F.; Kingsbury, Z.; Wong, A.S.C.; et al. Non-invasive analysis of acquired resistance to cancer therapy by sequencing of plasma DNA. Nature 2013, 497, 108–112. [Google Scholar] [CrossRef]
  12. Arneth, B. Update on the types and usage of liquid biopsies in the clinical setting: A systematic review. BMC Cancer 2018, 18, 527. [Google Scholar] [CrossRef]
  13. Garcia, J.; Wozny, A.-S.; Geiguer, F.; Delherme, A.; Barthelemy, D.; Merle, P.; Tissot, C.; Jones, F.S.; Johnson, C.; Xing, X.; et al. Profiling of circulating tumor DNA in plasma of non-small cell lung cancer patients, monitoring of epidermal growth factor receptor p.T790M mutated allelic fraction using beads, emulsion, amplification, and magnetics companion assay and evaluation in future application in mimicking circulating tumor cells. Cancer Med. 2019, 8, 3685–3697. [Google Scholar]
  14. Singh, A.P.; Li, S.; Cheng, H. Circulating DNA in EGFR-mutated lung cancer. Ann. Transl. Med. 2017, 5, 379. [Google Scholar] [CrossRef]
  15. Zhang, Q.; Nong, J.; Wang, J.; Yan, Z.; Yi, L.; Gao, X.; Liu, Z.; Zhang, H.; Zhang, S. Isolation of circulating tumor cells and detection of EGFR mutations in patients with non-small-cell lung cancer. Oncol. Lett. 2019, 17, 3799–3807. [Google Scholar] [CrossRef]
  16. Su, P.-L.; Yang, S.; Chen, Y.; Wu, Y.; Lin, C.; Chang, W.; Tseng, Y.; Lai, W.; Ho, C.; Lin, C.; et al. Real-world outcomes of NSCLC patients receiving tissue or circulating tumor DNA-guided osimertinib treatment. Cancer Med. 2019, 8, 5939–5947. [Google Scholar] [CrossRef]
  17. Diaz, L.A., Jr.; Bardelli, A. Liquid biopsies: Genotyping circulating tumor DNA. J. Clin. Oncol. 2014, 32, 579–586. [Google Scholar] [CrossRef]
  18. Zhang, S.; Zhu, L.; Chen, X.; Zhang, X.; Chen, E.; Fang, H.; Feng, Y.; Li, Y.; Wang, X.; Jiang, Z.; et al. ctDNA assessment of EGFR mutation status in Chinese patients with advanced non-small cell lung cancer in real-world setting. J. Thorac. Dis. 2018, 10, 4169–4177. [Google Scholar] [CrossRef]
  19. Becker, T.M.; Caixeiro, N.J.; Lim, S.H.; Tognela, A.; Kienzle, N.; Scott, K.; Spring, K.J.; De Souza, P. New frontiers in circulating tumor cell analysis: A reference guide for biomolecular profiling toward translational clinical use. Int. J. Cancer 2013, 134, 2523–2533. [Google Scholar] [CrossRef]
  20. Alix-Panabières, C.; Pantel, K. Circulating Tumor Cells: Liquid Biopsy of Cancer. Clin. Chem. 2013, 59, 110–118. [Google Scholar] [CrossRef]
  21. Maly, V.; Maly, O.; Kolostova, K.; Bobek, V. Circulating Tumor Cells in Diagnosis and Treatment of Lung Cancer. Vivo 2019, 33, 1027–1037. [Google Scholar] [CrossRef]
  22. Costa, C.; Dávila-Ibáñez, A.B. Methodology for the Isolation and Analysis of CTCs. Circ. Tumor Cells Breast Cancer Metastatic Dis. 2020, 1220, 45–59. [Google Scholar]
  23. Kulasinghe, A.; Kapeleris, J.; Kimberley, R.; Mattarollo, S.R.; Thompson, E.W.; Thiery, J.-P.; Kenny, L.; O’Byrne, K.; Punyadeera, C. The prognostic significance of circulating tumor cells in head and neck and non-small-cell lung cancer. Cancer Med. 2018, 7, 5910–5919. [Google Scholar] [CrossRef] [Green Version]
  24. Jiang, T.; Zhao, J.; Zhao, C.; Li, X.; Shen, J.; Zhou, J.; Ren, S.; Su, C.; Zhou, C.; O’Brien, M. Dynamic Monitoring and Predictive Value of Circulating Tumor Cells in EGFR-Mutated Advanced Non–Small-Cell Lung Cancer Patients Treated With First-Line EGFR Tyrosine Kinase Inhibitors. Clin. Lung Cancer 2018, 20, 124–133.e122. [Google Scholar] [CrossRef]
  25. Hench, I.B.; Hench, J.; Tolnay, M. Liquid Biopsy in Clinical Management of Breast, Lung, and Colorectal Cancer. Front. Med. 2018, 5, 9. [Google Scholar] [CrossRef]
  26. Chang, Y.; Wang, Y.; Li, B.; Lu, X.; Wang, R.; Li, H.; Yan, B.; Gu, A.; Wang, W.; Huang, A.; et al. Whole-Exome Sequencing on Circulating Tumor Cells Explores Platinum-Drug Resistance Mutations in Advanced Non-small Cell Lung Cancer. Front. Genet. 2021, 12, 722078. [Google Scholar] [CrossRef]
  27. Sawada, T.; Watanabe, M.; Fujimura, Y.; Yagishita, S.; Shimoyama, T.; Maeda, Y.; Kanda, S.; Yunokawa, M.; Tamura, K.; Tamura, T.; et al. Sensitive cytometry based system for enumeration, capture and analysis of gene mutations of circulating tumor cells. Cancer Sci. 2016, 107, 307–314. [Google Scholar] [CrossRef]
  28. Marchetti, A.; Del Grammastro, M.; Felicioni, L.; Malatesta, S.; Filice, G.; Centi, I.; De Pas, T.; Santoro, A.; Chella, A.; Brandes, A.A.; et al. Assessment of EGFR Mutations in Circulating Tumor Cell Preparations from NSCLC Patients by Next Generation Sequencing: Toward a Real-Time Liquid Biopsy for Treatment. PLoS ONE 2014, 9, e103883. [Google Scholar]
  29. Mao, C.; Yuan, J.Q.; Yang, Z.Y.; Fu, X.H.; Wu, X.Y.; Tang, J.L. Blood as a Substitute for Tumor Tissue in Detecting EGFR Mutations for Guiding EGFR TKIs Treatment of Nonsmall Cell Lung Cancer: A Systematic Review and Meta-Analysis. Medicine 2015, 94, e775. [Google Scholar] [CrossRef]
  30. Sieuwerts, A.M.; Kraan, J.; Bolt, J.; Van Der Spoel, P.; Elstrodt, F.; Schutte, M.; Martens, J.W.M.; Gratama, J.-W.; Sleijfer, S.; Foekens, J.A. Anti-Epithelial Cell Adhesion Molecule Antibodies and the Detection of Circulating Normal-Like Breast Tumor Cells. JNCI J. Natl. Cancer Inst. 2009, 101, 61–66. [Google Scholar] [CrossRef]
  31. Barriere, G.; Fici, P.; Gallerani, G.; Fabbri, F.; Zoli, W.; Rigaud, M. Circulating tumor cells and epithelial, mesenchymal and stemness markers: Characterization of cell subpopulations. Ann. Transl. Med. 2014, 2, 109. [Google Scholar] [PubMed]
  32. Lee, Y.-A.; Kim, J.-J.; Lee, J.; Lee, J.H.J.; Sahu, S.; Kwon, H.-Y.; Park, S.-J.; Jang, S.-Y.; Lee, J.-S.; Wang, Z.; et al. Identification of Tumor Initiating Cells with a Small-Molecule Fluorescent Probe by Using Vimentin as a Biomarker. Angew. Chem. Int. Ed. 2018, 57, 2851–2854. [Google Scholar] [CrossRef] [PubMed]
  33. Dorsey, J.F.; Kao, G.D.; MacArthur, K.M.; Ju, M.; Steinmetz, D.; Wileyto, E.P.; Simone, C.B., 2nd; Hahn, S.M. Tracking viable circulating tumor cells (CTCs) in the peripheral blood of non-small cell lung cancer (NSCLC) patients undergoing definitive radiation therapy: Pilot study results. Cancer 2015, 121, 139–149. [Google Scholar] [CrossRef] [PubMed]
  34. Yoon, S.O.; Kim, Y.T.; Jung, K.C.; Jeon, Y.K.; Kim, B.H.; Kim, C.W. TTF-1 mRNA-positive circulating tumor cells in the peripheral blood predict poor prognosis in surgically resected non-small cell lung cancer patients. Lung Cancer 2011, 71, 209–216. [Google Scholar] [CrossRef]
  35. Wang, J.; Wang, K.; Xu, J.; Huang, J.; Zhang, T. Prognostic significance of circulating tumor cells in non-small-cell lung cancer patients: A meta-analysis. PLoS ONE 2013, 8, e78070. [Google Scholar]
  36. Hase, T.; Sato, M.; Yoshida, K.; Girard, L.; Takeyama, Y.; Horio, M.; Elshazley, M.; Oguri, T.; Sekido, Y.; Shames, D.S.; et al. Pivotal role of epithelial cell adhesion molecule in the survival of lung cancer cells. Cancer Sci. 2011, 102, 1493–1500. [Google Scholar] [CrossRef]
  37. Zhang, Y.; Men, Y.; Wang, J.; Xing, P.; Zhao, J.; Li, J.; Xu, D.; Hui, Z.; Cui, W. Epithelial circulating tumor cells with a heterogeneous phenotype are associated with metastasis in NSCLC. J. Cancer Res. Clin. Oncol. 2022, 148, 1137–1146. [Google Scholar] [CrossRef]
  38. Visal, T.H.; Hollander, P.D.; Cristofanilli, M.; Mani, S.A. Circulating tumour cells in the -omics era: How far are we from achieving the ‘singularity’? Br. J. Cancer 2022, 127, 173–184. [Google Scholar] [CrossRef]
  39. Maheswaran, S.; Sequist, L.V.; Nagrath, S.; Ulkus, L.; Brannigan, B.; Collura, C.V.; Inserra, E.; Diederichs, S.; Iafrate, A.J.; Bell, D.W.; et al. Detection of mutations in EGFR in circulating lung-cancer cells. N. Engl. J. Med. 2008, 359, 366–377. [Google Scholar] [CrossRef]
  40. Iwama, E.; Sakai, K.; Azuma, K.; Harada, T.; Harada, D.; Nosaki, K.; Hotta, K.; Ohyanagi, F.; Kurata, T.; Fukuhara, T.; et al. Monitoring of somatic mutations in circulating cell-free DNA by digital PCR and next-generation sequencing during afatinib treatment in patients with lung adenocarcinoma positive for EGFR activating mutations. Ann. Oncol. 2016, 28, 136–141. [Google Scholar] [CrossRef]
  41. Shishido, S.N.; Carlsson, A.; Nieva, J.; Bethel, K.; Hicks, J.B.; Bazhenova, L.; Kuhn, P. Circulating tumor cells as a response monitor in stage IV non-small cell lung cancer. J. Transl. Med. 2019, 17, 294. [Google Scholar] [CrossRef]
  42. Cheng, Y.; Liu, X.-Q.; Fan, Y.; Liu, Y.-P.; Liu, Y.; Liu, Y.; Ma, L.-X.; Liu, X.-H.; Li, H.; Bao, H.-Z.; et al. Circulating tumor cell counts/change for outcome prediction in patients with extensive-stage small-cell lung cancer. Futur. Oncol. 2016, 12, 789–799. [Google Scholar] [CrossRef]
  43. Krebs, M.G.; Sloane, R.; Priest, L.; Lancashire, L.; Hou, J.-M.; Greystoke, A.; Ward, T.H.; Ferraldeschi, R.; Hughes, A.; Clack, G.; et al. Evaluation and Prognostic Significance of Circulating Tumor Cells in Patients With Non–Small-Cell Lung Cancer. J. Clin. Oncol. 2011, 29, 1556–1563. [Google Scholar] [CrossRef]
  44. Ding, P.; Becker, T.; Bray, V.; Chua, W.; Ma, Y.; Lynch, D.; Po, J.; Luk, A.; Caixeiro, N.; De Souza, P.; et al. The predictive and prognostic significance of liquid biopsy in advanced epidermal growth factor receptor-mutated non-small cell lung cancer: A prospective study. Lung Cancer 2019, 134, 187–193. [Google Scholar] [CrossRef]
  45. Singh, A.P.; Cheng, H.; Guo, X.; Levy, B.; Halmos, B. Circulating Tumor DNA in Non–Small-Cell Lung Cancer: A Primer for the Clinician. JCO Precis. Oncol. 2017, 1–13. [Google Scholar] [CrossRef]
  46. Douillard, J.-Y.; Ostoros, G.; Cobo, M.; Ciuleanu, T.; Cole, R.; McWalter, G.; Walker, J.; Dearden, S.; Webster, A.; Milenkova, T.; et al. Gefitinib Treatment in EGFR Mutated Caucasian NSCLC: Circulating-Free Tumor DNA as a Surrogate for Determination of EGFR Status. J. Thorac. Oncol. 2014, 9, 1345–1353. [Google Scholar] [CrossRef] [Green Version]
Ijms 23 10661 g001 550
Figure 1. Study flow (Abbreviations: EGFR, epidermal growth factor receptor; CTC, circulating tumor cells; PS-CTC, positively selected circulating tumor cells; WGA, whole-genome amplification; ARMS, amplification refractory mutation system, Seq., sequencing). * The results of cancer tissue EGFR mutational analysis were EGFRmutant (n = 17) and EGFRnon-mutant type (n = 11), which were unknown before CTC isolation.
Figure 1. Study flow (Abbreviations: EGFR, epidermal growth factor receptor; CTC, circulating tumor cells; PS-CTC, positively selected circulating tumor cells; WGA, whole-genome amplification; ARMS, amplification refractory mutation system, Seq., sequencing). * The results of cancer tissue EGFR mutational analysis were EGFRmutant (n = 17) and EGFRnon-mutant type (n = 11), which were unknown before CTC isolation.
Ijms 23 10661 g001
Ijms 23 10661 g002 550

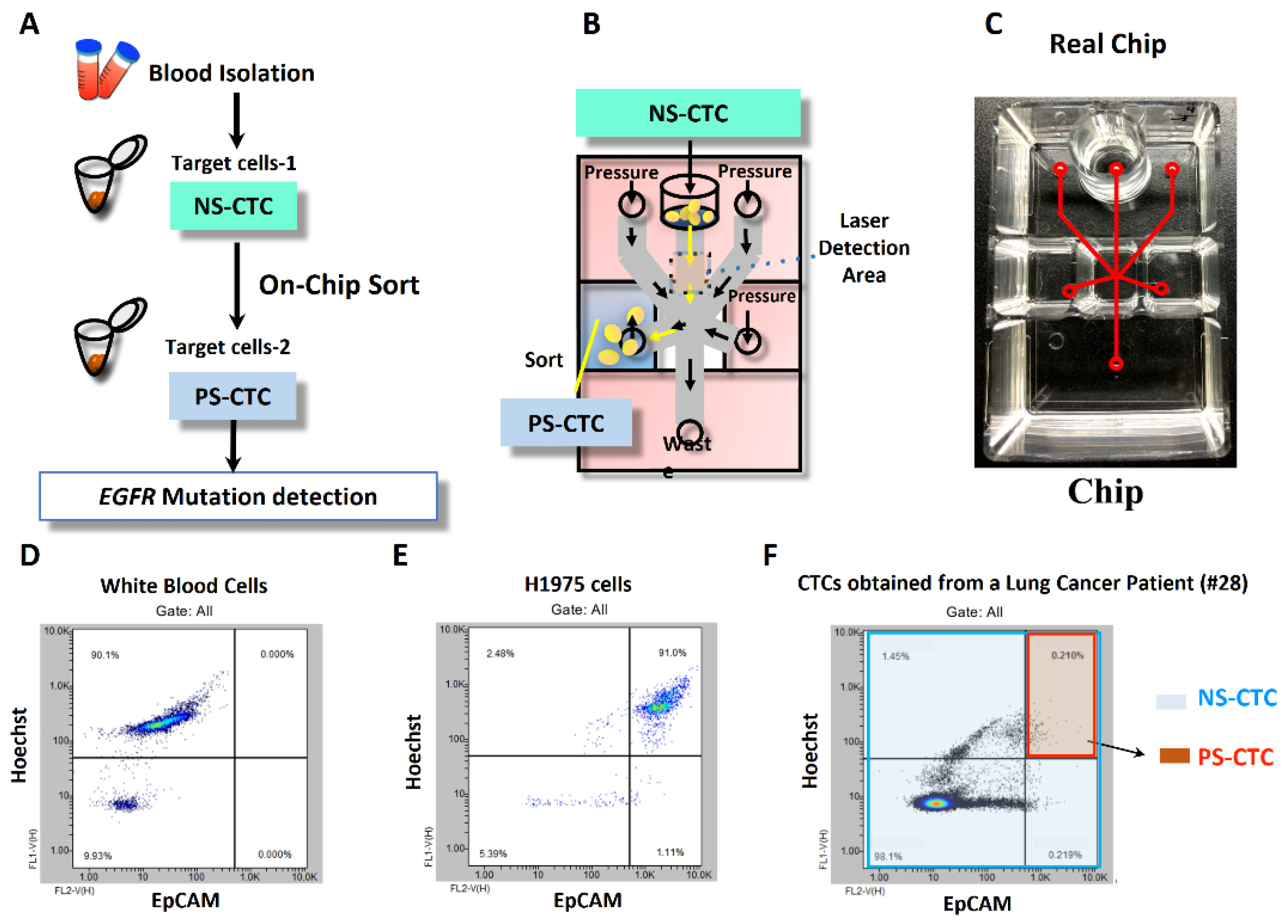

Figure 2. Common protocol for isolating circulating tumor cells and the confirmatory analysis by flow cytometry. (A) The workflow of negatively selected circulating tumor cells (NS-CTCs) systems and positively selected circulating tumor cells (PS-CTCs) systems for gene mutation identification. (B,C) The illustration of the On-Chip Sort sorting mechanism followed the intra-chamber pressure guidance for sorting the EpCAM+ Hoechst+ cells for positive selection-based enrichment. Flow-based analysis of the population of EpCAM+ cells in three different types of nucleated cells by On-Chip Sort, such as (D) human white blood cells (WBCs), EpCAM-lower expression. (E) Human lung adenocarcinoma cell line (H1975 cells), EpCAM-higher expression. (F) CTCs of a representative patient with lung adenocarcinoma (#28), the sub-population of negative selection (blue box) and positive selection (red box)-based CTCs for following each separating system.
Figure 2. Common protocol for isolating circulating tumor cells and the confirmatory analysis by flow cytometry. (A) The workflow of negatively selected circulating tumor cells (NS-CTCs) systems and positively selected circulating tumor cells (PS-CTCs) systems for gene mutation identification. (B,C) The illustration of the On-Chip Sort sorting mechanism followed the intra-chamber pressure guidance for sorting the EpCAM+ Hoechst+ cells for positive selection-based enrichment. Flow-based analysis of the population of EpCAM+ cells in three different types of nucleated cells by On-Chip Sort, such as (D) human white blood cells (WBCs), EpCAM-lower expression. (E) Human lung adenocarcinoma cell line (H1975 cells), EpCAM-higher expression. (F) CTCs of a representative patient with lung adenocarcinoma (#28), the sub-population of negative selection (blue box) and positive selection (red box)-based CTCs for following each separating system.
Ijms 23 10661 g002
Ijms 23 10661 g003 550
Figure 3. Demonstration of lung circulating tumor cells (CTCs) identified from a sample with lung cancer by thyroid transcription factor-1 (TTF-1). (A) Flow cytometer analysis of CTCs of a sample with lung cancer for the EpCAM+ and TTF-1+ in the Hoechst+ population. (B) The EpCAM+/TTF-1+/Hoechst+ cells collected from On-Chip Sort were confirmed by confocal microscopy (scale bar = 10 μm). TTF-1, Thyroid transcription factor-1. (C) Immunofluorescence stainings demonstrate two typical CTCs expressing EpCAM, TTF-1, and Hoechst from a lung cancer patient.
Figure 3. Demonstration of lung circulating tumor cells (CTCs) identified from a sample with lung cancer by thyroid transcription factor-1 (TTF-1). (A) Flow cytometer analysis of CTCs of a sample with lung cancer for the EpCAM+ and TTF-1+ in the Hoechst+ population. (B) The EpCAM+/TTF-1+/Hoechst+ cells collected from On-Chip Sort were confirmed by confocal microscopy (scale bar = 10 μm). TTF-1, Thyroid transcription factor-1. (C) Immunofluorescence stainings demonstrate two typical CTCs expressing EpCAM, TTF-1, and Hoechst from a lung cancer patient.
Ijms 23 10661 g003
Table
Table 1. Basic characteristics of enrolled patients and samples (n = 28).
Table 1. Basic characteristics of enrolled patients and samples (n = 28).
Characteristicsn%
Age, years Mean (median, range) = 57.4 (56, 36–79)
EthnicityAsian100.0%
Sex
 Male1242.9%
 Female1657.1%
Adenocarcinoma28100.0%
T category
 1–21139.3%
 3–41760.7%
N category
 0–11035.7%
 2–31864.3%
M category
 1a27.1%
 1b1242.9%
 1c1450.0%
Overall Staging (AJCC 8th edition)
 Stage IVa1242.9%
 Stage IVb1657.1%
Sites of distant metastasis
 Contralateral lung (M1a)1450.0%
 Bone1346.4%
 Brain1035.7%
 Distant lymph node 725.0%
 Liver725.0%
 Pleura 414.3%
 Adrenal gland310.7%
Tissue EGFR mutations
 E19 Deletion1139.3%
 L858R mutation517.9%
 Synchronous T790M and L858R mutations13.6%
 Non-mutant1139.3%
Abbreviations: EGFR, Epidermal growth factor receptor; AJCC, American Joint Committee on Cancer.
Table
Table 2. The concordance of EGFR mutations between circulating tumor cells and cancer tissues.
Table 2. The concordance of EGFR mutations between circulating tumor cells and cancer tissues.
NCTC-DNA for EGFRConcordance of
EGFR Mutations
of CTCs
EGFRmutantEGFRnon-mutant
A. EGFR testing (n = 80)
Before treatment *281612
 Tissue EGFRmutant1715288.2%
 Tissue EGFRnon-mutant type1111090.9%
Under treatment at 3 M after treatment52151
 Tissue EGFRmutant #300300.0%
 Tissue EGFRnon-mutant type2212195.5%
B. EGFR testing using ARMS-PCR (n = 12)
Before treatment (n = 7)743
 Tissue EGFRmutant31233.3%
 Tissue EGFRnon-mutant43175.0%
Under treatment (n = 5) at 3 M after treatment505
 Tissue EGFRmutant5050.0%
 Tissue EGFRnon-mutant000NA
* Among patients before treatment, the accuracy, sensitivity, specificity, positive predictive value, and negative predictive values of the EGFR mutation tests on CTCs are 89.3%, 88.2%, 90.9%, 93.8%, and 83.3%, respectively. # These patients all received standard EGFR tyrosine kinase inhibitors, including afatinib, gefitinib, or erlotinib.
