ERF Transcription Factor OsBIERF3 Positively Contributes to Immunity against Fungal and Bacterial Diseases but Negatively Regulates Cold Tolerance in Rice

by
Yongbo Hong
1,2,
Hui Wang
1,
Yizhou Gao
1,
Yan Bi
1,
Xiaohui Xiong
1,
Yuqing Yan
1,
Jiajing Wang
1,
Dayong Li
1 and
Fengming Song
1,*
1
State Key Laboratory of Rice Biology, Institute of Biotechnology, College of Agriculture and Biotechnology, Zhejiang University, Hangzhou 310058, China
2
State Key Laboratory of Rice Biology, China National Rice Research Institute, Hangzhou 310006, China
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2022, 23(2), 606; https://doi.org/10.3390/ijms23020606
Submission received: 22 November 2021 / Revised: 31 December 2021 / Accepted: 3 January 2022 / Published: 6 January 2022
(This article belongs to the Section Molecular Plant Sciences)
Browse Figures
Versions Notes

Abstract

:
We previously showed that overexpression of the rice ERF transcription factor gene OsBIERF3 in tobacco increased resistance against different pathogens. Here, we report the function of OsBIERF3 in rice immunity and abiotic stress tolerance. Expression of OsBIERF3 was induced by Xanthomonas oryzae pv. oryzae, hormones (e.g., salicylic acid, methyl jasmonate, 1-aminocyclopropane-1-carboxylic acid, and abscisic acid), and abiotic stress (e.g., drought, salt and cold stress). OsBIERF3 has transcriptional activation activity that depends on its C-terminal region. The OsBIERF3-overexpressing (OsBIERF3-OE) plants exhibited increased resistance while OsBIERF3-suppressed (OsBIERF3-Ri) plants displayed decreased resistance to Magnaporthe oryzae and X. oryzae pv. oryzae. A set of genes including those for PRs and MAPK kinases were up-regulated in OsBIERF3-OE plants. Cell wall biosynthetic enzyme genes were up-regulated in OsBIERF3-OE plants but down-regulated in OsBIERF3-Ri plants; accordingly, cell walls became thicker in OsBIERF3-OE plants but thinner in OsBIERF3-Ri plants than WT plants. The OsBIERF3-OE plants attenuated while OsBIERF3-Ri plants enhanced cold tolerance, accompanied by altered expression of cold-responsive genes and proline accumulation. Exogenous abscisic acid and 1-aminocyclopropane-1-carboxylic acid, a precursor of ethylene biosynthesis, restored the attenuated cold tolerance in OsBIERF3-OE plants while exogenous AgNO3, an inhibitor of ethylene action, significantly suppressed the enhanced cold tolerance in OsBIERF3-Ri plants. These data demonstrate that OsBIERF3 positively contributes to immunity against M. oryzae and X. oryzae pv. oryzae but negatively regulates cold stress tolerance in rice.

1. Introduction

As sessile organisms, plants are unable to escape from unfavorable environments and thus often suffer from numerous abiotic (drought, salt, extreme temperature, etc.) and biotic (pathogens, herbivore insects, etc.) stresses. To cope with external stresses and survive, plants have developed multi-layered and fine-toned mechanisms at molecular, biochemical, physiological, metabolic, and developmental levels [1,2,3,4,5,6]. Upon perception of external stress signals, complicated hormone-mediated signaling networks are often activated in effective and timely manners [7,8,9,10,11], which ultimately lead to transcriptional reprogramming that coordinately regulates the expression of a large set of genes to initiate stress responses [12,13,14,15]. This large-scale transcriptional reprogramming of gene expression in a specific stress response requires the concerted action of chromatin dynamics and different types of transcription factors (TFs) in both temporal and spatial manners [15,16,17,18,19,20].
Genetic studies have demonstrated that dozens of TFs from the families of WRKY, AP2/ERF (Apetala2/Ethylene Responsive Factor), NAC (NAM, ATAF and CUC), bZIP (basic leucine zipper domain), bHLH (basic helix-loop-helix), and Myb play crucial roles in modulating biotic and abiotic stress responses in higher plants [16,21,22,23,24,25,26,27,28,29]. The AP2/ERF superfamily is a large plant-specific TF family and the rice AP2/ERF superfamily consists of 163 members, among which 134 belong to the ERF subfamily [30,31]. ERF proteins typically possess at least one AP2/ERF domain consisting of 58 or 59 conserved amino acid residues and can bind specifically to DNA sequences containing GCC and/or DRE/CRT boxes [32,33,34]. ERFs act as either transcription activators or repressors that can activate or repress the transcription of stress-responsive genes, whose promoters harbor at least one core GCC box [32,35,36]. For example, Arabidopsis AtERF1, AtERF2 and AtERF5 are activators, while AtERF3, AtERF4 and AtERF7 are repressors [37]. ERFs have been shown to participate in diverse biological processes including plant growth and development, immunity, and abiotic stress tolerance [22,27,28,38,39,40,41,42] and therefore provide promising potential in the improvement of biotic and abiotic stress tolerance in crop plants [43,44,45].
The importance of ERFs in plant immunity has been extensively explored through overexpression and knockout/knockdown approaches in Arabidopsis, rice, and other plants [22,43]. In rice, infection of Magnaporthe oryzae, the causal agent of blast disease, or elicitor treatment induced the expression of OsEREBP1, OsBIERF1, OsBIERF3, OsBIERF4, OsERF83, OsERF922, and OsEBP2 [46,47,48,49,50]. Overexpression of the M. oryzae-induced OsBIERF3 in tobacco or the cell-wall-degrading enzyme-induced OsAP2/ERF152 in Arabidopsis conferred increased resistance against fungal, bacterial, or viral pathogens [51,52]. Transgenic rice plants overexpressing OsERF83 exhibited a significant enhancement of resistance against M. oryzae, accompanied by the up-regulated expression of defense genes [50]. Knockdown of OsERF922 activated the expression of defense genes and enhanced resistance against M. oryzae, while the OsERF922-overexpressing plants showed reduced expression of defense genes and enhanced susceptibility to M. oryzae, indicating that OsERF922 is a negative regulator of rice immunity against M. oryzae [48,53]. Differential dynamics of the regulatory network topology showed that ERFs (e.g., ERF104, ERF83, ERF91, ERF118, and ERF47) play a crucial role during signal crosstalk in rice plants responding to Xanthomonas oryzae pv. oryzae, the causal agent of bacterial leaf blight disease, under high or low temperature [54]. OsEREBP1, phosphorylated by OsMPK12, exhibited enhanced binding to the GCC box element of defense gene promoters [55], and overexpression of OsEREBP1 enhanced resistance against X. oryzae pv. oryzae [56,57]. Functional analysis of African X. oryzae pv. oryzae TALomes revealed that OsERF123 is a new bacterial blight susceptibility gene in rice [58]. Furthermore, feeding by rice striped stem borer (Chilo suppressalis) significantly and rapidly up-regulated the expression of OsERF3, and functional studies revealed that OsERF3 regulates rice resistance to this insect pest through affecting early components of herbivore-induced defense responses [59].
ERFs have also been reported to play critical roles in plant response to different abiotic stresses, such as drought, submergence, high salinity, and extreme temperature [27,28,38,39,40]. In rice, Sub1A and SNORKEL1/2 modulate flooding tolerance via two different physiological mechanisms [60,61,62,63]. Overexpression of OsDREB1s, OsDREB2A, OsEREBP1, OsERF48, OsERF71, OsLG3, OsERF83, OsERF101, OsERF115, and OsERF4a (OsERF3) improved drought tolerance in rice, through activating the jasmonate and abscisic acid (ABA) signaling pathways or modulating root architecture [57,64,65,66,67,68,69,70,71,72,73,74,75,76,77,78]. By contrast, OsEBP89, OsERF109, OsDERF1, OsERF3, and OsAP2-39 negatively regulated rice drought tolerance [70,79,80,81,82]. Overexpression of OsDREB1F, OsDREB2A, OsDRAP1, OsERF19, or OsSTAP1 improved salt tolerance in transgenic rice, and the amino acid and carbohydrate metabolism pathways play crucial roles in OsDRAP1-mediated salt tolerance [66,68,83,84,85,86]. OsERF922 and OsERF106 are negative regulators of rice salt tolerance [48,87], probably through modulation of ABA level [48]. OsEREBP1 and OsEREBP2 negatively regulate the expression of OsRMC, encoding a receptor-like kinase that is a negative regulator of salt stress responses in rice [88]. Some rice OsERF genes, such as OsDREB1s, OsEREBP1, OsSTAP1 and OsAP25, were reported to be induced under low temperature or cold stress conditions [46,54,64,86,88,89,90,91], and overexpression of OsDREB1A, OsDREB1F or OsDREB1G in transgenic rice increased tolerance to cold or low-temperature stress [66,90,92]. Recently, it was found that the overexpression of OsERF115 conferred enhanced heat tolerance in transgenic rice plants [78].
In our previous studies, we found that OsBIERF3 was induced by M. oryzae and ectopic overexpression of OsBIERF3 in tobacco increased resistance to bacterial and viral diseases [46,51]. However, the function of OsBIERF3 in rice immunity is yet unknown. In the present study, we generated OsBIERF3-OE and OsBIERF3-Ri transgenic rice lines with overexpression or RNAi-mediated suppression of the endogenous OsBIERF3 gene and evaluated their resistance against fungal and bacterial pathogens, as well as their abiotic stress tolerance. Our phenotyping, molecular and biochemical analyses demonstrate that OsBIERF3 positively contributes to immunity against M. oryzae and X. oryzae pv. oryzae through affecting the MAPK cascade and cell wall biosynthesis pathways, but negatively regulates cold tolerance in rice.

2. Results

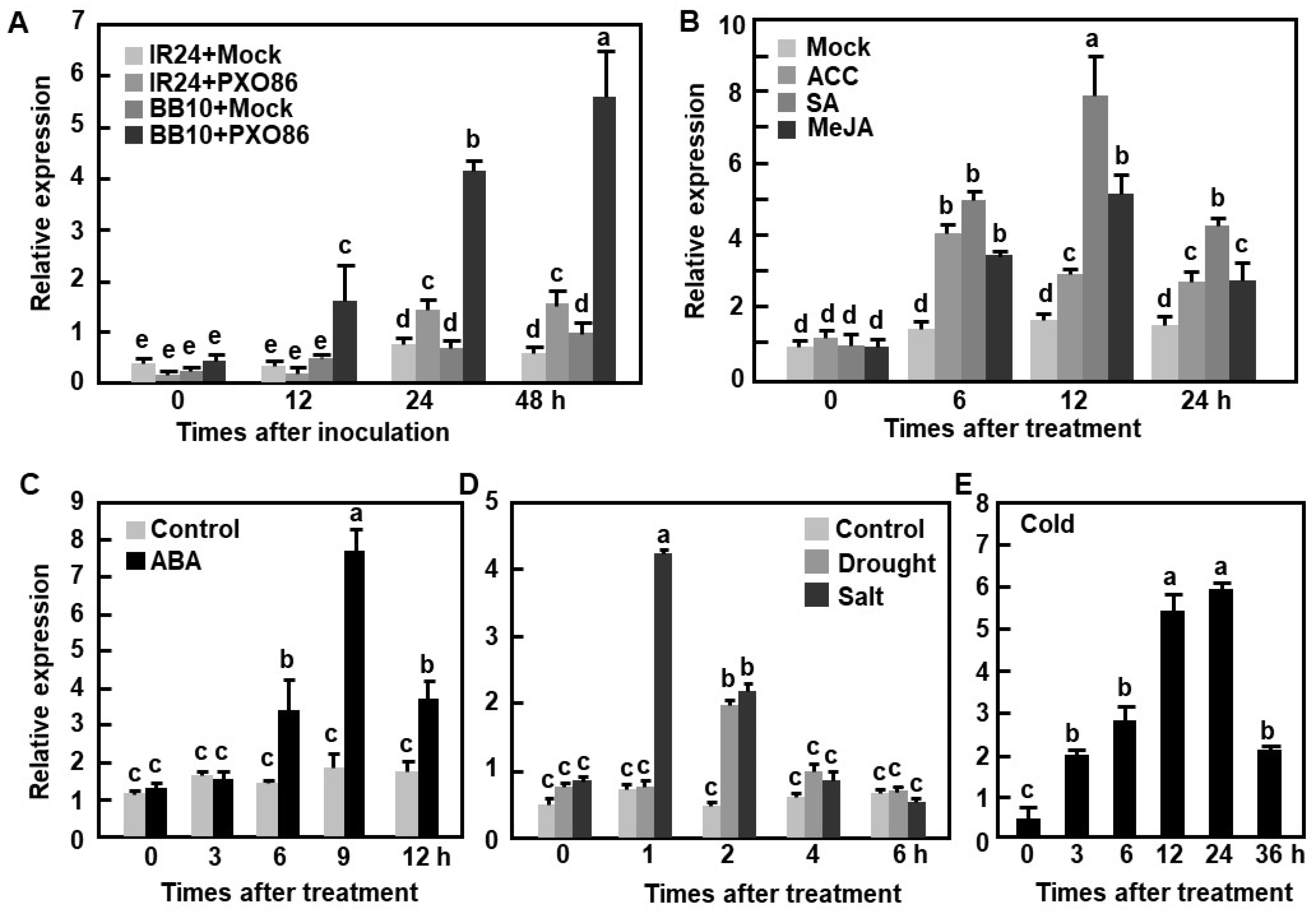

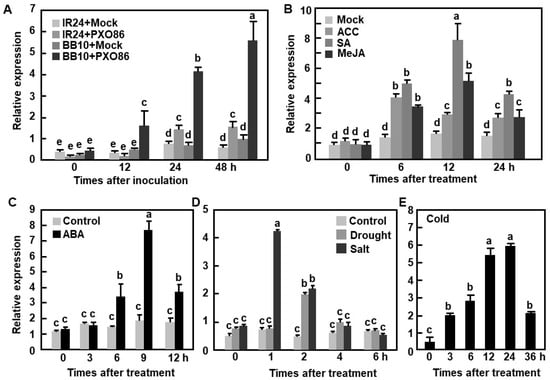

2.1. Responsiveness of OsBIERF3 to a Bacterial Pathogen, Abiotic Stress, and Hormones

We previously observed that OsBIERF3 was induced by benzothiadiazole, an analog of salicylic acid (SA), and by M. oryzae [46]. We further examined the responsiveness of OsBIERF3 in response to X. oryzae pv. oryzae by analyzing the transcript levels in the incompatible and compatible interactions between a pair of rice near-isogenic lines IR24 and BB10 and X. oryzae pv. oryzae. Rice variety IR24 lacks the Xa10 gene and gives a compatible response to X. oryzae pv. oryzae strain PXO86, carrying the corresponding avrXa10 gene, while its near-isogenic line BB10 harbors the Xa10 gene and confers an incompatible response to the same strain [93,94]. In an incompatible interaction between rice BB10 and X. oryzae pv. oryzae PXO86, the transcript level of OsBIERF3 in inoculated plants started to increase at 12 h post inoculation (hpi) and gradually increased over a period of 48 h, leading to increases of 3.8-, 5.4-, and 5.8-fold, over those in mock-inoculated plants (Figure 1A). By contrast, in a compatible interaction between rice IR24 and X. oryzae pv. oryzae PXO86, the transcript level of OsBIERF3 increased at 24 hpi and displayed 1.3- and 2.1-fold increases at 24 and 48 hpi over those in mock-inoculated plants (Figure 1A). These results indicate that OsBIERF3 responds to X. oryzae pv. oryzae infection and the X. oryzae pv. oryzae-induced expression of OsBIERF3 is much greater during earlier stages of the incompatible interaction than that in the compatible interaction.
The responsiveness of OsBIERF3 in rice plants of cv. Yuanfengzao to stress hormones, such as ET, SA, jasmonic acid (JA), and ABA, was also examined. Generally, the transcript level of OsBIERF3 started to increase at 6 h post treatment (hpt) and was maintained at relatively higher levels in rice plants after treatment with 1-aminocyclopropane-1-carboxylic acid (ACC, a precursor of ET biosynthesis), SA, methyl jasmonate (MeJA) or ABA (Figure 1B,C). Particularly, the highest level of OsBIERF3 transcript in ACC-treated plants was seen at 6 hpt, giving 2.45-fold higher over that in control plants, while the highest levels in SA- and MeJA-treated plants were observed at 12 hpt, showing 4.35- and 2.52-fold higher than that in control plants (Figure 1B). In ABA-treated plants, the OsBIERF3 transcript peaked, being 3.42-fold higher than that in control plants at 9 hpt (Figure 1C). These data indicate that OsBIERF3 responds to multiple stress hormones.
The responsiveness of OsBIERF3 in rice plants of cv. Yuanfengzao to abiotic stress such as drought, salt and cold treatment was further examined. The transcript level of OsBIERF3 in detached leaves was significantly and rapidly up-regulated within 2 h by fast dehydration, giving a 3.12-fold increase over that in control plants at 2 hpt (Figure 1D). An increase of 4.55-fold in OsBIERF3 transcript was observed at 1 hpt in NaCl-treated plants but the transcript level decreased to basal level at 4 hpt (Figure 1D). Similarly, OsBIERF3 transcript level in cold (4 °C)-stressed plants gradually increased and peaked at 24 hpt, showing an 11.42-fold increase over that in control plants (Figure 1E). These results suggest that OsBIERF3 is an abiotic stress-responsive rice ERF gene.

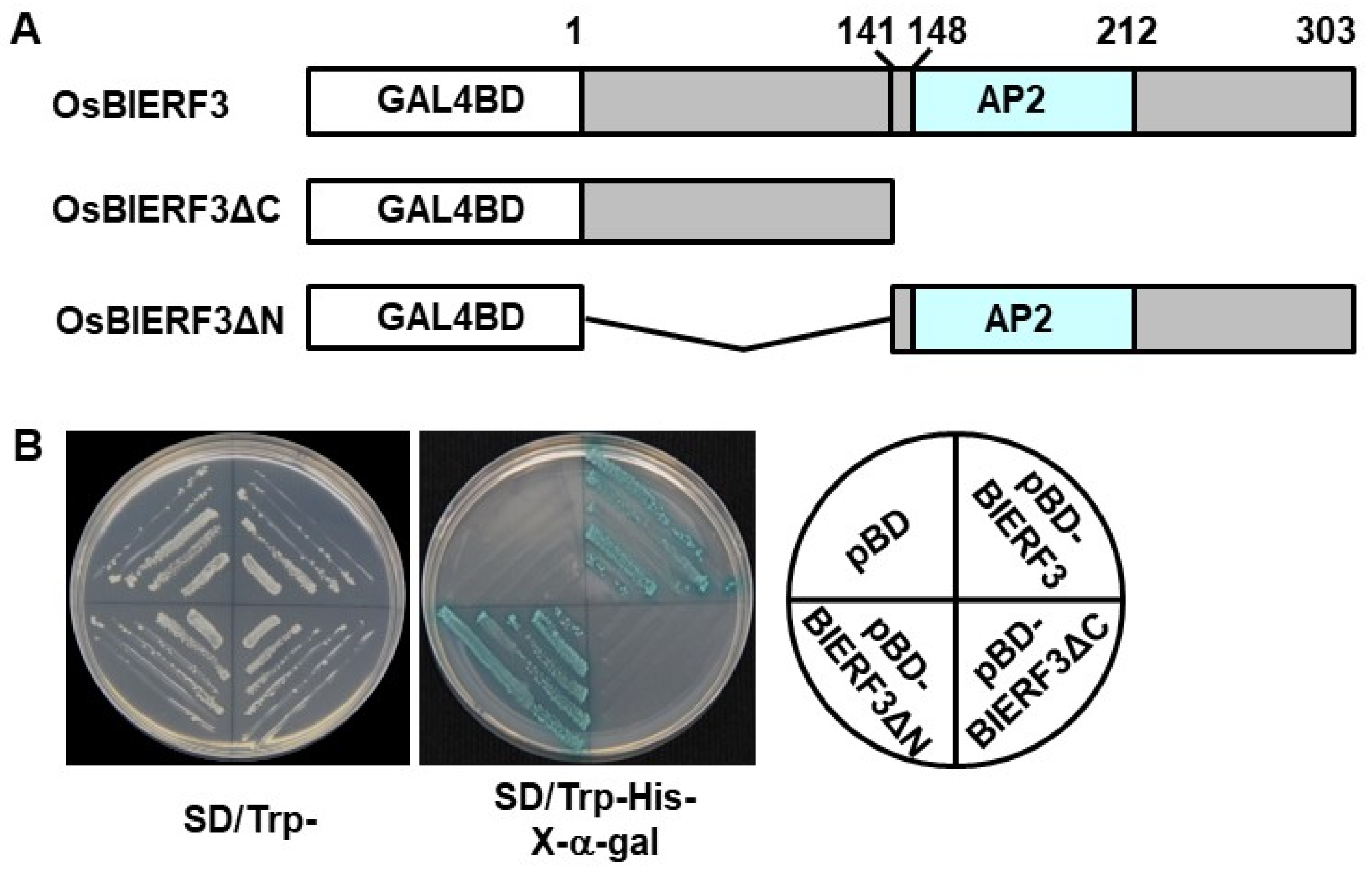

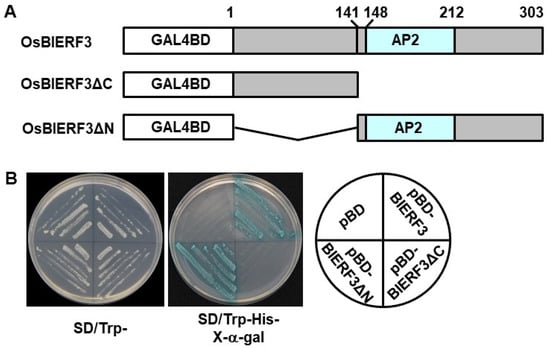

2.2. OsBIERF3 Is a Transcriptional Activator

We previously showed that OsBIERF3 is a nucleus-localized protein and can bind to a synthetic sequence containing the core GCC box element in vitro [46]. To verify whether OsBIERF3 had transcriptional activation activity, the entire OsBIERF3, and its two deletion mutants, OsBIERF3ΔC (an N-terminal fragment lacking the AP2 domain-containing C-terminal 142–303 aa) and OsBIERF3ΔN (an AP2 domain-containing C-terminal fragment lacking the N-terminal 1–141 aa), were examined in yeast for their transcriptional activity (Figure 2A). Yeast transformants harboring OsBIERF3 and its deletion mutant constructs grew well on SD/Trp- medium (Figure 2B). On SD/Trp-His-medium, only transformants carrying pBD-OsBIERF3 or pBD-OsBIERF3ΔN grew and showed β-galactosidase activity, whereas yeast transformants carrying pBD-OsBIERF3ΔC and empty vector did not (Figure 2B). These data indicate that OsBIERF3 is a transcriptional activator and its C-terminal region is required for transcription activator activity.

2.3. Generation of OsBIERF3-OE and OsBIERF3-Ri Transgenic Lines

To better understand the biological function of OsBIERF3 in rice, we generated OsBIERF3-OE and OsBIERF3-Ri transgenic lines. After screening 27 and 20 independent OsBIERF3-OE and OsBIERF3-Ri lines by hygromycin resistance phenotype on 1/2 MS medium, three independent OsBIERF3-OE (OE-2, OE-4, and OE-6) and three independent OsBIERF3-Ri (Ri-1, Ri-3, and Ri-29) lines were identified as single-copy lines, as confirmed by Southern blotting with a fragment of HgrII gene as a probe (Figure S1A). The transcript levels of OsBIERF3 in plants of T3 generations of stable OsBIERF3-OE lines OE-2, OE-4, and OE-6 were 60.7-, 93.9-, and 28.7-fold higher than that in WT plants, respectively (Figure S1B). By contrast, the transcript levels of OsBIERF3 in plants of T3 generations of stable OsBIERF3-Ri lines Ri-1, Ri-3, and Ri-29 were approximately 19%, 2%, and 5% of that in WT plants, respectively (Figure S1C). During our studies, we observed growth retardation in OsBIERF3-OE plants at the seedling stage (Figure S2A,C) and this growth retardation phenotype recovered at the adult stage (Figure S2B,E). By contrast, OsBIERF3-Ri plants showed normal growth, as compared with WT plants, at the seedling and adult stages (Figure S2A,B,D,F). Manipulation of OsBIERF3 in OsBIERF3-OE and OsBIER3-Ri plants had no deleterious impacts on major agronomic traits such as grain yield, the weight of a single panicle and grain numbers per panicle, and even improved some agronomic traits (Figure S3A–F).

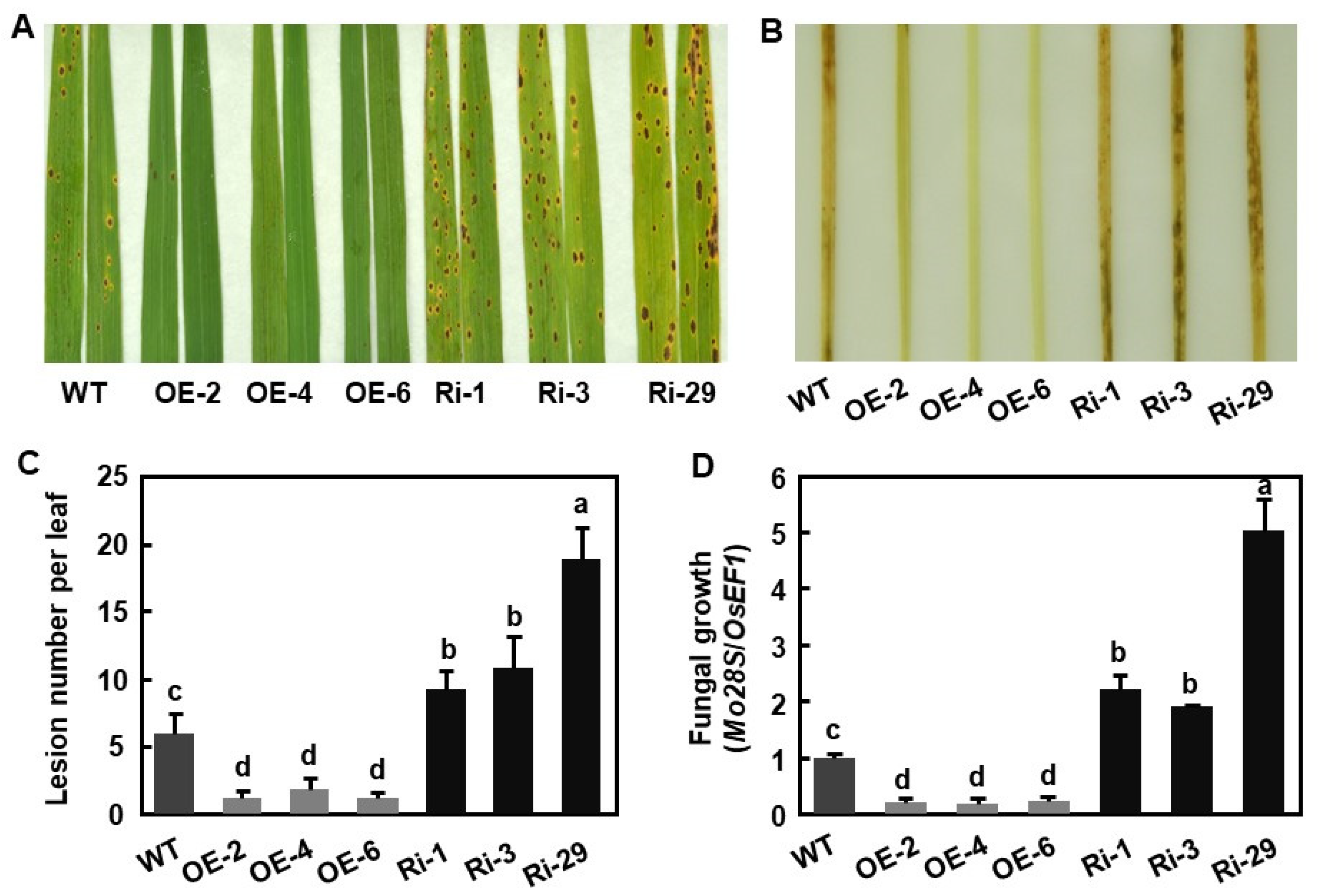

2.4. OsBIERF3 Positively Regulates Resistance to M. oryzae

We first evaluated the resistance of OsBIERF3-OE and OsBIERF3-Ri plants against M. oryzae by foliar inoculating 3-week-old seedlings with a race ZE3 strain 97-220 of the fungus [95]. Typical M. oryzae-caused blast lesions were seen on the inoculated leaves of OsBIERF3-OE, OsBIERF3-Ri, and WT plants; however, the overall blast disease severity on OsBIERF3-OE plants was less severe while the disease severity on OsBIERF3-Ri plants was much more severe, as compared with those in WT plants (Figure 3A). Accordingly, cell death, as revealed by trypan blue staining, in inoculated leaves of OsBIERF3-Ri plants was much heavier, while cell death in inoculated leaves of OsBIERF3-OE plants was less severe, as compared with that in inoculated leaves of WT plants (Figure 3B). At 6 days post inoculation (dpi), the average numbers of the blast lesions on the inoculated leaves of OsBIERF3-Ri plants were increased by 89%, 93%, and 204%, while the numbers of the disease lesions on the inoculated leaves of OsBIERF3-OE plants were decreased by 78%, 69%, and 77%, respectively, as compared with that in WT plants (Figure 3C). Further measurement of in planta fungal growth, as revealed by analyzing the genomic DNA level of the 28S rDNA gene of M. oryzae, indicated that OsBIERF3-Ri plants supported more growth of M. oryzae in inoculated leaves, leading to increases of 105%, 98%, and 387%, whereas OsBIERF3-OE plants supported less fungal growth, resulting in reductions of 92%, 93%, and 93%, respectively, as compared with that in WT plants (Figure 3D). Together, these results indicate that OsBIERF3-OE plants exhibited an increased resistance while OsBIERF3-Ri displayed an attenuated resistance to M. oryzae, and thus OsBIERF3 is a positive regulator of resistance against M. oryzae.

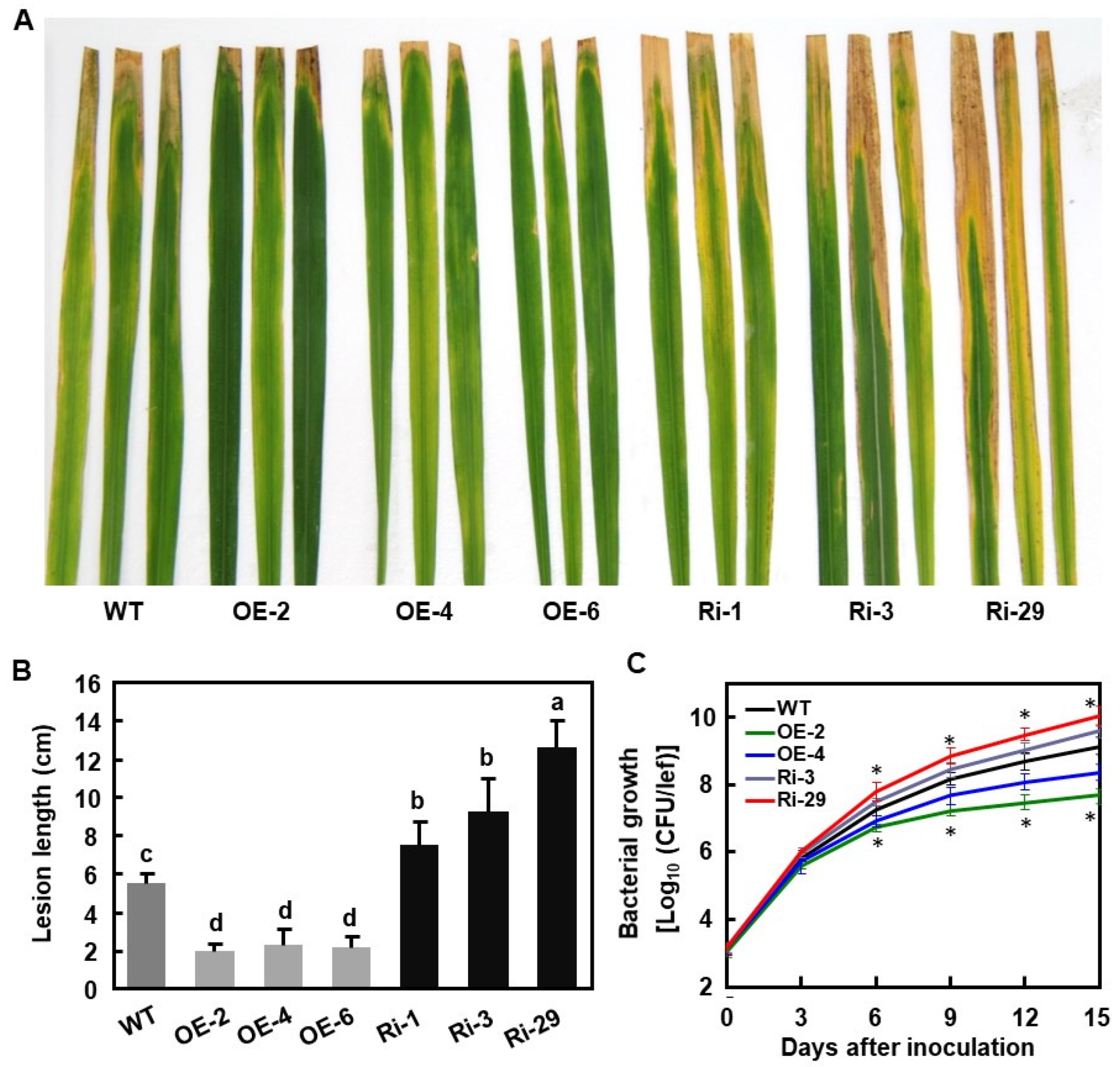

2.5. OsBIERF3 Positively Regulates Resistance to X. oryzae pv. oryzae

We next evaluated the resistance of OsBIERF3-OE and OsBIERF3-Ri lines against X. oryzae pv. oryzae by leaf-clipping inoculation of adult plants at booting stage with X. oryzae pv. oryzae strain PXO86 [94]. The overall X. oryzae pv. oryzae-caused blight disease on OsBIERF3-OE plants was less severe, while the disease severity on OsBIERF3-Ri plants was more severe, as compared with those in WT plants (Figure 4A). At 15 dpi, the average length of the blight lesions on the inoculated leaves of OsBIERF3-Ri plants were 7.7, 9.2, and 12.7 cm, leading to increases of 40%, 67%, and 131%, while the length of the blight lesions on the inoculated leaves of OsBIERF3-OE plants was 2.0, 2.3, and 2.1 cm, resulting in reductions of 64%, 58%, and 62%, respectively, as compared with that (5.5 cm) in WT plants (Figure 4B). Similarly, the bacterial titers in the inoculated leaves of OsBIERF3-Ri-3 and -29 plants were 3.2- and 7.7-fold higher while the bacterial titers in inoculated leaves of OsBIERF3-OE-2 and -4 plants were 3.6- to 29.2-fold lower than that in WT plants (Figure 4C). These results indicate that OsBIERF3-OE plants exhibited an increased resistance while OsBIERF3-Ri displayed an attenuated resistance to X. oryzae pv. oryzae, and thus OsBIERF3 is a positive regulator of resistance against X. oryzae pv. oryzae.

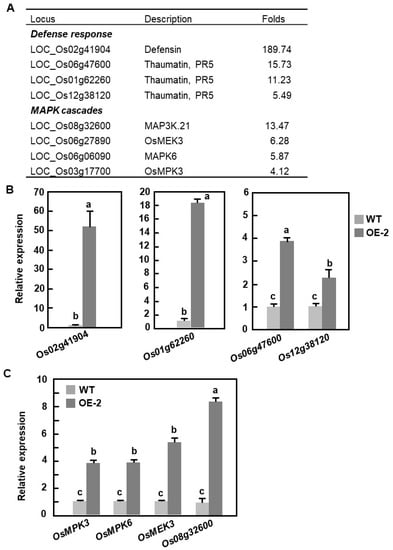

2.6. Identification of Differentially Expressed Genes in OsBIERF3-OE Plants

To gain further insights into the mechanism of OsBIERF3-regulated immunity against M. oryzae and X. oryzae pv. oryzae, gene expression profiles between 3-week-old OsBIERF3-OE and WT plants grown under normal conditions were determined and compared using the Affymetrix rice gene chip. A total of 3637 genes (2149 up-regulated and 1488 down-regulated) exhibited 2-fold (p < 0.05) changes in the transcript levels in OsBIERF3-OE-2 plants, compared with those in WT plants, and were identified as differentially expressed genes (Table S1). These up-regulated genes included 9 genes for PRs such as defensin, thaumatin, osmotin, and Bet VI family protein PR10, 7 genes encoding for components in MAPK cascades, 18 for LRR R-like proteins, 46 for receptor-like kinases and protein kinases, 31 for zinc finger proteins, 39 for transcription factors belonging to ERF, WRKY, bHLH, and MYB families, 7 for cytochrome P450, and 11 for cell wall synthetic enzymes (Table S1). qRT-PCR analyses verified the up-regulated expression of some of the selected differentially expressed genes in OsBIERF3-OE plants (Figure 5A,B,C). Notably, genes for OsMPK3, OsMPK6, and OsMEK3, well-known MAPK cascade components that play critical roles in rice immunity [96,97,98,99,100], were markedly up-regulated in OsBIERF3-OE plants, giving 2.95-, 3.11-, and 4.32-fold increases over those in WT plants (Figure 5C), implying the involvement of OsBIERF3 in the transcriptional regulation of the MAPK cascade. Collectively, these data suggest that overexpression of OsBIERF3 in OsBIERF3-OE plants confers enhanced immunity against M. oryzae and X. oryzae pv. oryzae through the transcriptional regulation of MAPK cascades.

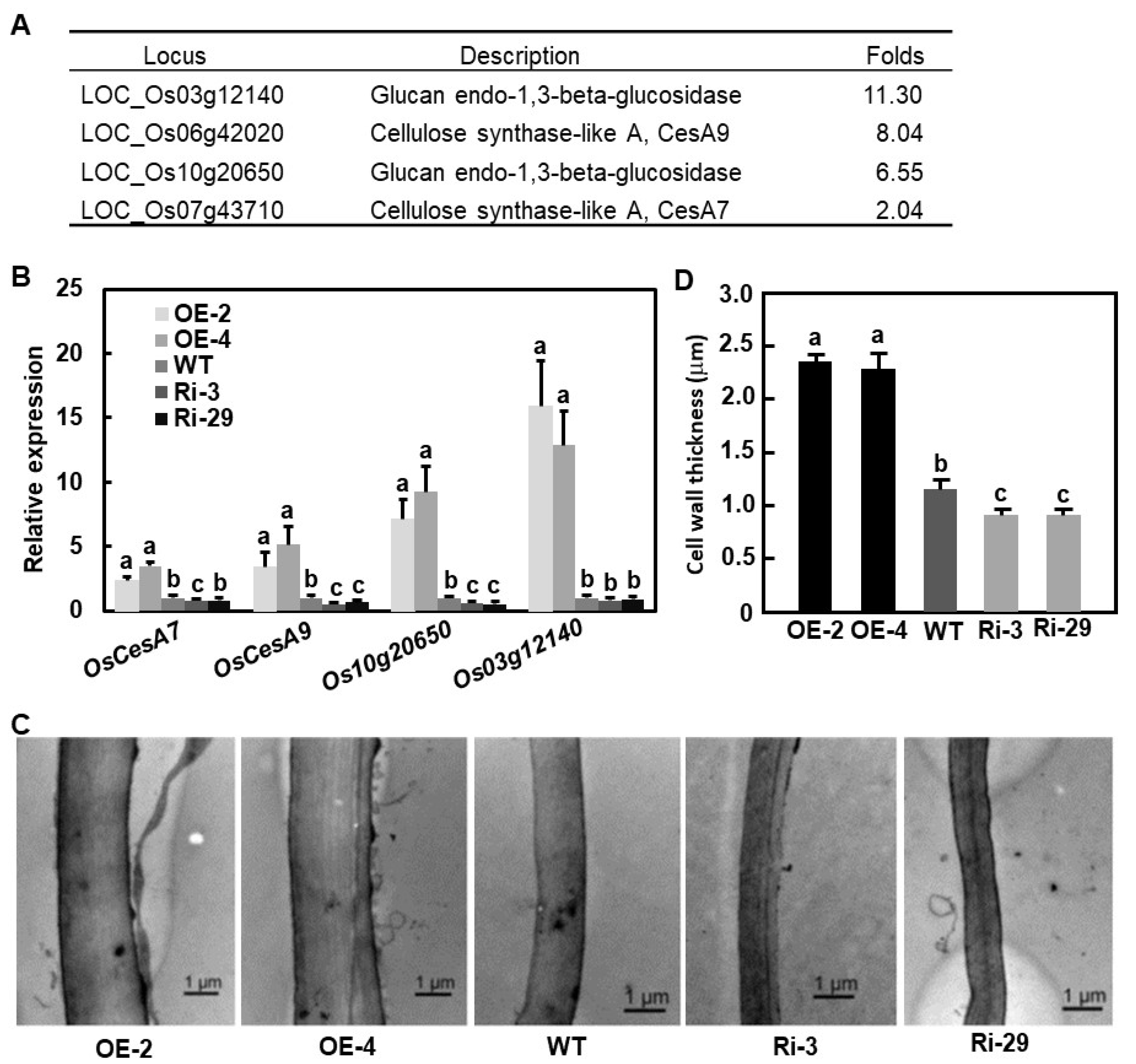

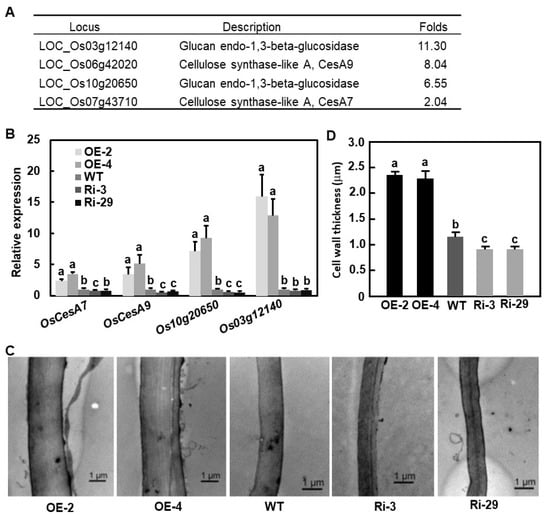

2.7. Altered Expression of OsBIERF3 Affected Cell Wall Thickness

In the gene expression profiling data, a set of 11 genes encoding cell wall synthetic enzymes such as cellulose synthases and glucan endo-1,3-beta-glucosidases were significantly up-regulated in OsBIERF3-OE plants (Table S1). qRT-PCR analyses verified that the expression levels of two cellulose synthase genes, OsCes7 and OsCesA9, and two glucan endo-1,3-beta-glucosidase genes, Os10g20650 and Os03g12140, in OsBIERF3-OE plants were significantly up-regulated, as compared with those in WT plants (Figure 6A,B). By contrast, the expression levels of OsCes9 and Os10g20650 were down-regulated in OsBIERF3-Ri plants, in comparison to those in WT plants (Figure 6B). These results raised the possibility that OsBIERF3 is involved in cell wall formation. To test this hypothesis, we examined and measured the cell wall thickness in sheath tissues of OsBIERF3-OE, OsBIERF3-Ri, and WT plants under transmission electron microscopy (TEM). The cell walls in sheath tissues of OsBIERF3-OE plants became much thicker, leading to an increase of 1.1-fold, while the cell walls in sheath tissues of OsBIERF3-Ri plants were much thinner, resulting in a decrease of 21–24%, as compared with that in WT plants (Figure 6C,D). These data indicate that OsBIERF3 plays a role in modulating cell wall biosynthesis in rice.

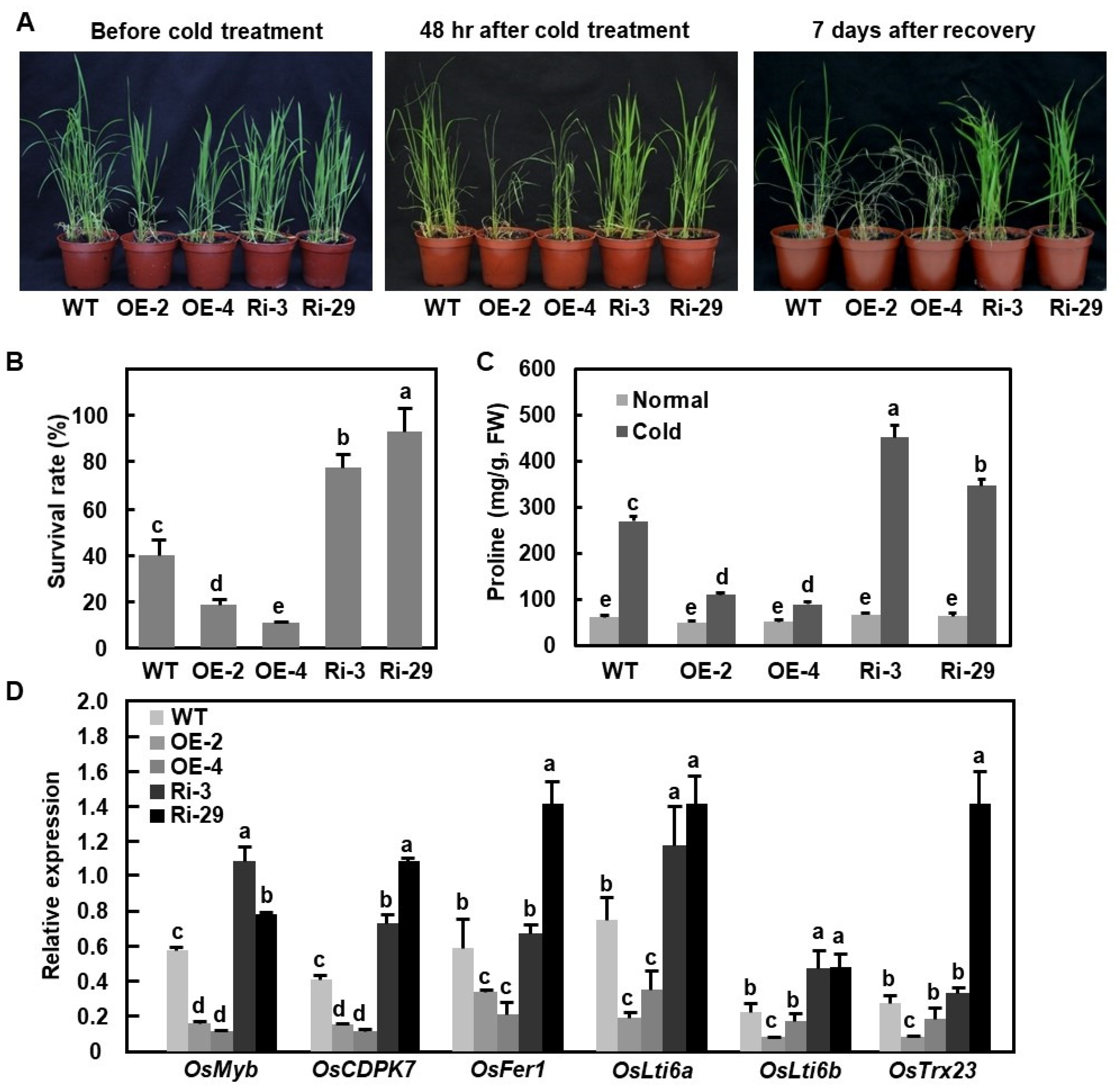

2.8. OsBIERF3 Negatively Regulates Cold Tolerance but Does Not Affect Drought and Salt Tolerance

The fact that the expression of OsBIERF3 was up-regulated by drought, salt, and cold stress led us to examine whether OsBIERF3 plays role in abiotic stress tolerance by phenotyping OsBIERF3-OE and OsBIERF3-Ri plants under drought, salt, and cold stress conditions. In repeated drought stress experiments, drought symptoms, represented by rolled leaves and wilted plants, in OsBIERF3-OE and OsBIERF3-Ri plants at 10 days after drought treatment and at 7 days after re-watering was indistinguishable from WT plants (Figure S4A,B). Similarly, growth performance, root length, and shoot length of OsBIERF3-OE and OsBIERF3-Ri plants on 1/2 MS medium without NaCl supplement or with 150 mM NaCl were comparable to WT plants (Figure S4C–E). By contrast, OsBIERF3-OE plants displayed more severe while OsBIERF3-Ri plants exhibited milder cold damage symptoms, such as rolled leaves and wilted plants, as compared with WT plants, at 48 h after cold (4 °C) treatment and at 7 days after recovery (Figure 7A). At 7 days after recovery from cold stress, OsBIERF3-OE plants showed a lower survival rate (<20%) while OsBIERF3-Ri plants had a higher survival rate (>78%), as compared with that of WT plants (~40%) (Figure 6B). Free proline is an important compatible osmolyte that protects subcellular structures and macromolecules of plants under abiotic stress. To obtain further insights into the possible mechanism responsible for the involvement of OsBIERF3 in cold tolerance, the changes in proline content and the expression of several selected cold-responsive genes in OsBIERF3-OE and OsBIERF3-Ri plants were analyzed and compared with those in WT plants. Under normal conditions, proline contents in OsBIERF3-OE and OsBIERF3-Ri plants were comparable to that in WT plants (Figure 6C). Under cold stress, proline contents in OsBIERF3-OE plants significantly decreased, leading to a reduction of >61%, while the contents in OsBIERF3-Ri plants markedly increased, resulting in an increase of >23%, as compared with that in WT plants (Figure 6C). Similarly, the expression levels of cold-responsive genes OsMyb, OsCDPK7, OsFer1, OsLti6a, OsLti6b, and OsTrx23 [101,102,103,104,105] in OsBIERF3-OE plants were markedly down-regulated, while the expression levels of these genes in OsBIERF3-Ri plants were significantly up-regulated, as compared with those in WT plants (Figure 6D). Together, these results indicate that OsBIERF3 negatively regulates cold tolerance but is not involved in drought and salt tolerance in rice.

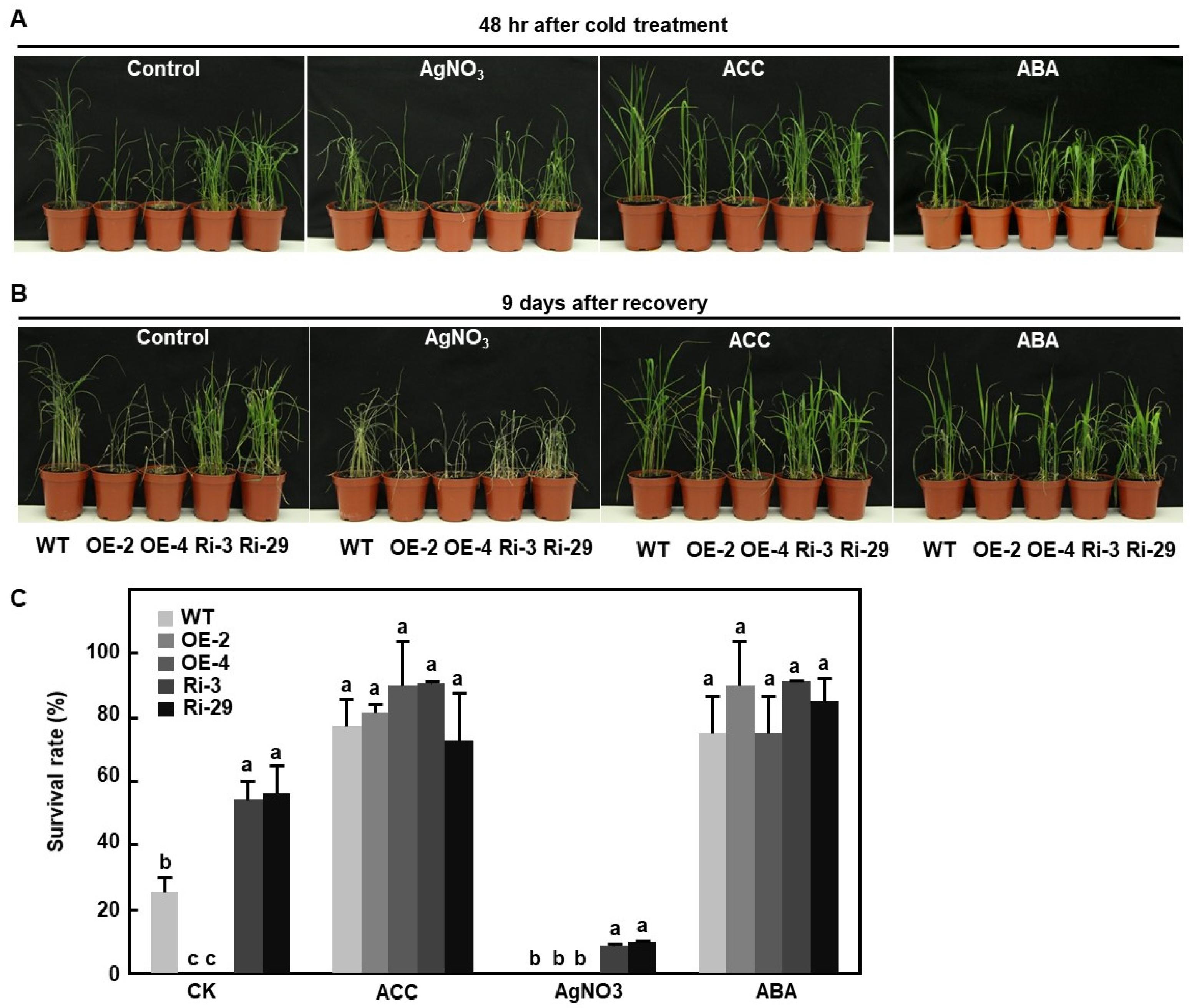

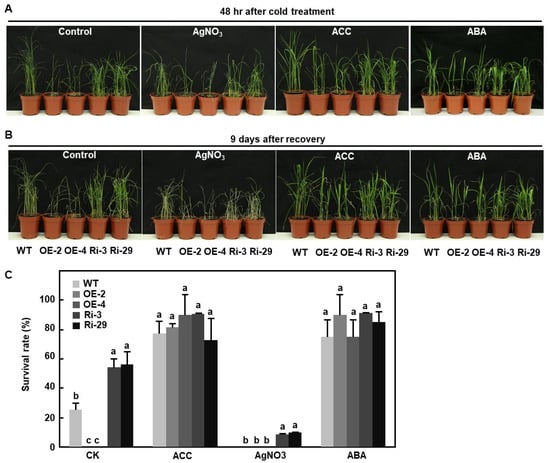

2.9. Involvement of ET and ABA in OsBIERF3-Mediated Cold Response in Rice

ABA and ET are key regulators of signaling pathways during the plant response to abiotic stress, including cold [28,106,107,108]. The responsiveness of OsBIERF3 to ET and ABA (Figure 1B,C) led us to examine whether ET and ABA are involved in OsBIERF3-mediated cold response in rice. To test this possibility, we analyzed the effect of pretreatment with ACC, AgNO3 (an inhibitor of ET action) [109], and ABA on cold tolerance in OsBIERF3-OE and OsBIERF3-Ri plants. At 48 h after cold stress, the ACC- or ABA-treated rice plants of all tested genotypes showed milder damage, while the pretreated AgNO3-rice plants displayed more severe cold damage phenotype, e.g., rolled leaves and wilted plants, as compared with those of rice plants without pretreatment (Figure 8A), especially for the ACC- or ABA-treated OsBIERF3-OE plants. At 9 days after recovery from cold stress, the ACC- or ABA-treated rice plants grew better (Figure 8B) and the survival rates for all tested genotypes were significantly higher than those of rice plants without pretreatment (Figure 8C). OsBIERF3-OE plants showed a particularly similar survival rate to those of OsBIERF3-Ri and WT plants (Figure 8C). By contrast, the AgNO3-treated rice plants exhibited more severe cold damage than rice plants without pretreatment (Figure 8B). None of the AgNO3-treated OsBIERF3-OE and WT plants survived, and the survival rate of the AgNO3-treated OsBIERF3-Ri plants was also significantly decreased, as compared with the rice plants without pretreatment, at 9 days after recovery from cold treatment (Figure 8C). These results indicate that ET and ABA are not only essential for cold stress response but also required for OsBIERF3-mediated cold response in rice.

3. Discussion

OsBIERF3 (OsERF#091) belongs to group IX of the ERF subfamily [30]. Arabidopsis ERFs from group IX of the ERF subfamily play critical roles in immunity [110,111] and abiotic stress response [28]. There are 19 members in group IX of the rice ERF subfamily [30,31], and four of them, OsBIERF3, OsERF083, OsERF123, and OsERF922 (OsERF092), have been shown to be involved in immunity [48,50,51,58]. OsBIERF3 and OsERF083 positively regulate immunity [50,51], while OsERF092 and OsERF123 act as a negative regulator of immunity against M. oryzae or as a susceptibility gene for X. oryzae pv. oryzae [48,58]. We previously showed that the overexpression of OsBIERF3 in tobacco conferred an increased resistance against viral and bacterial pathogens [51]. The present study further demonstrated using OsBIERF3-OE and OsBIERF3-Ri transgenic rice lines that OsBIERF3 positively regulates immunity against M. oryzae and X. oryzae pv. oryzae, but negatively regulates cold tolerance in rice.
Expression of OsBIERF3, OsERF083, and OsERF092 was induced by M. oryzae [46,48,50]. The present study revealed that the expression of OsBIERF3 was induced by X. oryzae pv. oryzae and the induction was much stronger and earlier in the incompatible interaction between rice and X. oryzae pv. oryzae, but was weaker and slower during the compatible interaction (Figure 1A). This is similar to the expression induction of OsBIERF3 and OsERF092 in the incompatible and compatible interactions between rice and M. oryzae [46,48]. Furthermore, the expression of OsBIERF3 was induced by an SA analog benzothiadiazole [46], and by SA, MeJA, and ACC (Figure 1B), which is similar to OsERF083 and OsERF087, which were induced by SA, JA, and ethephon [50,112]. Phytohormones such as SA, JA, and ET play critical roles in fine-tuning immunity in rice [113,114,115]. The induction of OsBIERF3 expression by pathogens and defense signaling hormones implies the involvement of OsBIERF3 in rice immunity.
Biochemically, OsBIERF3, OsERF083, OsERF087, and OsERF092, were previously shown to bind to a canonical GCC box-containing sequence [46,48,50,112]. The present study further revealed that OsBIERF3 had transcriptional activation activity in yeast and this activity depended on the C-terminal region (Figure 2), demonstrating that OsBIERF3 is a transcriptional activator. This is similar to OsERF092, OsERF87, and OsERF136, which showed transcriptional activator activity in rice cells through binding to GCC box elements [48,112]. It is therefore reasonable to speculate that OsBIERF3 plays its role in immunity through activating downstream target genes that are involved in defense response and immune signaling. In fact, microarray-based expression profiling analyses revealed that more than 2100 genes were up-regulated in OsBIERF3-OE plants (Supplementary Table S1), and a set of genes encoding defensive proteins such as defensin, thaumatin, osmotin, and Bet VI family protein was identified (Figure 5A, Supplementary Table S1). Importantly, the expression levels of OsMPK3, OsMPK6, and OsMEK3, which are involved in rice immunity against M. oryzae, X. oryzae pv. oryzae, and chewing herbivore insects [96,97,98,99,100], were up-regulated in OsBIERF3-OE plants (Figure 6B,C), implying the involvement of OsBIERF3 in the transcriptional regulation of these well-known immunity-related MAPK cascade components. This is similar to OsERF3, an EAR-motif-containing ERF that is involved in resistance to herbivore insects, which positively affected the transcript levels of two MAPK genes [59]. Further bioinformatics analyses revealed the presence of GCC box elements in the promoter regions of some of the genes, including OsMPK3 and OsPR10 (LOC_Os04g39150), that were up-regulated in OsBIERF3-OE plants. Recently, it was found that OsERF87 and OsERF136, which belong to a different clade of group IX ERFs, directly bind to the promoter region of RSOsPR10, a root-specific OsPR10 gene, and activate its expression [112]. It is thus likely that some of the up-regulated genes in OsBIERF3-OE plants may be putative OsBIERF3 targets, which need to be further examined.
Studies have demonstrated that plant cell walls act as structural barriers to prevent pathogen penetration and colonization and thus play important roles in immune responses against diverse pathogens [116,117,118]. In rice, it has been shown that cell wall structure and integrity are critical to immunity against M. oryzae and X. oryzae pv. oryzae [119,120,121]. In the present study, we observed that OsBIERF3-OE plants develop thicker cell walls while OsBIERF3-Ri plants generate thinner walls compared with corresponding WT plants (Figure 6C,D), accompanied by the up-regulated expression of cell wall biosynthetic genes, as revealed by microarray and qRT-PCR analyses (Figure 6A,B). Bioinformatics analyses indicated that the promoter of OsCesA9, encoding a catalytic subunit of the cellulose synthase complex that is responsible for cellulose synthesis on the secondary cell wall [122,123], contains typical GCC box elements, implying that OsBIERF3 may directly regulate the expression of OsCesA9 and thus affect the formation of the cell wall in rice. Collectively, these observations suggest that OsBIERF3 functions in rice immunity against M. oryzae and X. oryzae pv. oryzae, probably through regulating the cell wall synthesis pathway.
The expression of OsBIERF3 was induced by drought, salt, and cold stress [46], as well as by stress hormones ABA and ET (Figure 1B–E), implying the involvement of OsBIERF3 in the abiotic stress response in rice. Surprisingly, OsBIERF3-OE and OsBIERF3-Ri plants did not show any alteration in drought and salt tolerance (Figure S4), indicating that OsBIERF3 is not involved in drought and salt stress response. By contrast, OsBIERF3-OE plants attenuated while OsBIERF3-Ri plants increased cold tolerance (Figure 7A,B), accompanied by the altered accumulation of proline and the expression of cold-responsive genes (Figure 7C,D), revealing that OsBIERF3 is a negative regulator of rice cold tolerance. Because OsBIERF3 is a transcriptional activator (Figure 2), it is thus likely that OsBIERF3 activates some unknown negative regulators that repress the cold stress response, instead of directly suppressing cold-stress-responsive genes. This is similar to OsERF092, which is a transcriptional activator and negatively regulates salt tolerance in rice [48]. ABA and ET play critical roles in signaling pathways of plant response to diverse abiotic stresses [28,106,107,108]. Blocking ABA biosynthesis through knockout of 9-cis-epoxycarotenoid dioxygenase genes significantly decreased abiotic stress tolerance in rice [124,125]. Exogenous ABA restored the attenuated cold tolerance in OsBIERF3-OE plants (Figure 8), implying the involvement of ABA involved in OsBIERF3-mediated cold stress response. On the other hand, exogenous ACC, a precursor of ET, restored the attenuated cold tolerance in OsBIERF3-OE plants, while pretreatment of OsBIERF3-Ri plants with AgNO3, an inhibitor of ET action [109], significantly suppressed the enhanced cold tolerance in OsBIERF3-Ri plants (Figure 8), indicating that ET is involved in the OsBIERF3-mediated rice cold stress response. This is similar to the previous observations that OsERF109 and OsERF3 function in abiotic stress response via affecting ET biosynthesis [70,80,81]. Taken together, it is likely that ABA and ET are required for the function of OsBIERF3 in the rice cold stress response.
In summary, our functional analyses using overexpression and RNAi-mediated suppression transgenic rice lines demonstrate that OsBIERF3, as a transcriptional activator, positively contributes to resistance against M. oryzae and X. oryzae pv. oryzae but negatively regulates cold tolerance in rice. Manipulation of OsBIERF3 in rice had no deleterious impact on agronomic traits such as plant growth/development and grain yield as well as drought and salt stress tolerance. OsBIERF3 may offer promising potential for application of OsBIERF3 to develop novel disease-resistant rice materials/varieties that can be used in temperate regions where cold stress is not the case. Further global mapping of the genome-wide DNA-binding sites and characterization of the direct target genes of OsBIERF3 will provide deeper insights into the molecular basis of OsBIERF3-mediated broad-spectrum immunity and cold stress response in rice.

4. Materials and Methods

4.1. Plant Growth and Treatments

Rice cv. Yuanfengzao was used for the analysis of gene expression by hormone and abiotic stress treatments while a pair of near-isogenic lines, IR24 and BB10 [93,94], was used for analysis of gene expression in rice–X. oryzae pv. oryzae interactions. Rice plants were grown in a growth room under 28 °C 14 h light/26 °C 10 h dark cycle, and 80–85% relative humidity. For bacterial inoculation, rice plants of varieties IR24 and BB10 at the booting stage were inoculated with X. oryzae pv. oryzae strain PXO86 using the leaf-clipping method [126]. For hormone treatment, 2-week-old plants were sprayed with 100 μM MeJA, 100 μM ACC, 150 μM SA, and 100 μM ABA (Sigma-Aldrich, St. Louis, MO, USA) in a solution containing 0.1% ethanol and 0.02% Tween-20 or with the same volume of the solution as a mock control. For drought treatment, plants were placed on lab benches without water supply or on water-saturated filter papers as controls in Petri dishes [127]. For salt treatment, plants were irrigated with 150 mM NaCl or a similar volume of sterilized distilled water as controls [127]. For cold treatment, plants were transferred to a growth chamber with temperature set at 4 °C [128]. Leaf samples were collected at indicated time points, frozen in liquid nitrogen, and stored at −80 °C until use. Each treatment in each of the experiments included three biological replicates with at least three plants, and the experiments were independently repeated three times.

4.2. Generation and Characterization of OsBIERF3-OE and OsBIERF3-Ri Lines

For the construction of overexpression vector, the 912 bp coding sequence of OsBIERF3 was inserted into the pCoUm vector under the control of a maize Ubi promoter to generate pCoU-Ubi::OsBIERF3. For the construction of Ri vector, a 400 bp 5′-end fragment was used to construct a self-complementary hairpin vector pCoU-Ubi::OsBIERF3-Ri [129]. The resulting constructs were introduced into calli of rice cv. Xiushui 11 by the Agrobacterium-mediated transformation method. T2 generation of the obtained OsBIERF3-OE and OsBIERF3-Ri lines was screened by planting seeds on 1/2 MS medium supplemented with 50 μg/mL hygromycin (Hgr) and lines showing 3:1 (Hgr-resistant:Hgr-susceptible) segregation were selected as putative transgenic lines with a single copy of the transgene. Screening for homozygous lines and analysis of copy number of the transgene by Southern blotting assays was carried out as described previously [130]. Assessment of agronomic traits of OsBIERF3-OE and OsBIERF3-Ri lines was carried out as previously described [130].

4.3. Transcriptional Activation Assays

For transactivation assay, the coding sequence of OsBIERF3 was fused in-frame to the yeast GAL4 DNA binding domain in the vector pBD-GAL4Cam (Clontech, Mountain View, CA, USA) to produce pBD-OsBIERF3. The pBD-OsBIERF3 and pBD empty vector (negative control) were transformed into yeast strain AH109. The transformed yeasts were plated on SD/Trp- medium or SD/Trp-His- medium and incubated for 3 days at 30 °C, followed by the addition of X-α-gal. The transactivation activities of the fusion proteins were evaluated according to the growth situation and production of blue pigments after the addition of X-α-gal on the SD/Trp-His-medium. The experiments were independently repeated three times.

4.4. Disease Assays

For evaluation of blast resistance, 4-week-old seedlings were inoculated by foliar spraying with spore suspension (1 × 105 spores/mL) of M. oryzae race ZE3 strain 97-220 [131]. The inoculated plants were kept in the dark for 24 h at 25 °C with 100% relative humidity and then moved to a normal growth environment. Disease phenotype was examined and numbers of lesions were counted from at least 30 leaves of 15 individual inoculated plants at 6 dpi. Dead cells in inoculated leaves were detected using the trypan blue staining method as previously described [130]. Relative fungal growth in inoculated rice leaves was measured using qRT-PCR [132] by analyzing and comparing the genomic level of M. oryzae 28S rDNA gene with that of the rice eEF-1α gene as an internal control. Dead cell staining and fungal growth were performed with 6 inoculated leaves of three individual plants. For evaluation of bacterial blight resistance, greenhouse-grown rice plants at the booting stage were inoculated with X. oryzae pv. oryzae strain PXO86 using the leaf-clipping method [126] and inoculated plants were kept in a greenhouse under environmental conditions at 30 °C in day/25 °C in night with natural sunlight. Disease phenotype was photographed and lesion length was measured from at least 30 leaves of 15 individual inoculated plants at 15 dpi. X. oryzae pv. oryzae growth in inoculated leaves was measured from six leaves of three individual plants by counting colony-forming units (CFU) on NA plates [133]. Each treatment in each of the experiments included three biological replicates with at least 10 plants, and the experiments were independently repeated three times.

4.5. Abiotic Stress Tolerance Assays

Abiotic stress tolerance assays were performed as described previously [127,128]. For drought tolerance assay, 4-week-old OsBIERF3-OE or OsBIERF3-Ri plants were grown with WT plants in the same barrels and were subjected to drought stress by stopping watering for 15 days, followed by re-watering for another 12 days. Plants with green leaves and healthy young leaves after re-watering were considered as survivals, and surviving plants were evaluated at 12 days after re-watering. For salt tolerance assay, 100 seeds were germinated on 1/2 MS medium supplemented with or without 150 mM NaCl under 28 °C/25 °C (day/night) with a 12 h photoperiod. At 6 days after germination, root length and shoot height of at least 30 plants were measured. For cold stress tolerance assay, 4-week-old OsBIERF3-OE or OsBIERF3-Ri plants were grown with WT plants in the same barrel and then transferred into a growth chamber with the temperature set at 4 °C with a cycle of 16 h light/8 h dark for 2 days, followed by transferring to the growth room with the normal condition for recovery. Plants with green leaves and healthy young leaves after transferring to the normal growth condition were considered as survivals, and surviving plants were evaluated at 7 days after recovery from cold treatment. Survival rate was calculated as the ratio of the number of survived plants over the total number of treated plants. Free proline content was determined using the colorimetric method [134] with a 0.5 g leaf sample. Each treatment in each of the experiments included three biological replicates with at least 10 plants, and the experiments were independently repeated three times.

4.6. Observation and Measurement of Cell Wall Thickness by TEM

Microscopic examination of cell wall thickness was carried out as described previously [135]. Briefly, sheath segments were collected from eight-week-old rice plants and fixed in 3% glutaraldehyde in phosphate buffer (100 mM, pH7.0) for at least 4 h, washed three times with the same phosphate buffer for 15 min each, and then post fixed in 1% osmium tetroxide in the phosphate buffer for 2 h. After washing three times, the sheath segments were embedded in Epon 812, and ultra-thin sections were stained by uranyl acetate and alkaline lead citrate for 20 min, respectively. Observation of the cell walls was performed under TEM of Model H-7650 (Hitachi, Tokyo, Japan). At least 10 ultra-thin sections were examined for each of the segment samples and the experiments were independently repeated three times with a minimum of 15 individual plants.

4.7. Microarray Analyses of Differentially Expressed Genes in OsBIERF3-OE Plants

Leaf samples were collected from 3-week-old OsBIERF3-OE and WT plants and total RNA was extracted using TRIzol reagent (Invitrogen, Shanghai, China). Two micrograms of total RNA were used for the synthesis of double-stranded cDNA, and biotin-tagged cRNA was prepared using a MessageAmp II cRNA Amplification Kit (Ambion, Foster City, CA, USA) according to the manufacturer’s instructions. The resulting biotin-tagged cRNA was fragmented to strands of 35–200 bases in length according to Affymetrix’s protocols. The fragmented cRNA was hybridized to Affymetrix Rice Genome Array containing 51,279 transcripts representing rice subspecies japonica and indica by standard Affymetrix protocol (CapitalBio Technology Company, Beijing, China). All procedures for probe preparation, hybridization, scanning, data collection, and bioinformatics analyses were carried out at the Beijing CapitalBio Technology Company (Beijing, China). Normalization was performed according to the standard Affymetrix protocols to allow the comparison of the samples and genes with a 2-fold change in the transcript level between OsBIERF3-OE and WT plants were defined as differentially expressed genes. Two independent biological samples for OsBIERF3-OE and WT plant were performed for microarray analyses and the differentially expressed genes with p < 0.05 were chosen.

4.8. qRT-PCR Analyses of Gene Expression

Total RNA was extracted from frozen leaf tissues using TRIzol (Invitrogen, Shanghai, China) and then treated with RNase-free DNase (TaKaRa, Dalian, China). First-strand cDNA was synthesized from 1 μg total RNA using AMV reverse transcriptase (TaKaRa, Dalian, China) according to the manufacturer’s recommendations. Each qPCR reaction contained 12.5 μL 2 × Fast essential (Roche Diagnostics, Shanghai, China), 1 μg cDNA and 10 μmol of each gene-specific primer in a final volume of 25 μL. The qPCR was performed on a CFX96 real-time PCR detection system (BioRad, Hercules, CA, USA). Data obtained were normalized using rice OsActin as an internal control and relative expression level was calculated using the 2-ΔΔCT method. Primer information is provided in Table S2. Each treatment in each of the experiments included three biological replicates with at least three plants, and the experiments were independently repeated three times.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/ijms23020606/s1.

Author Contributions

Conceptualization, Y.H., D.L. and F.S.; methodology, Y.H. and D.L.; software, D.L.; validation, Y.H., D.L. and F.S.; formal analysis, Y.H. and F.S.; investigation, Y.H., H.W., Y.G., Y.B., X.X., Y.Y. and J.W.; resources, Y.H. and F.S.; data curation, Y.H.; writing—original draft preparation, Y.H. and F.S.; writing—review and editing, F.S.; supervision, F.S.; project administration, F.S.; funding acquisition, F.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by National Natural Science Foundation of China (Grant No. 31871945, 32072403 and 31272028).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All data generated by this study are available upon request.

Acknowledgments

We are grateful to Z.J. Guo, China Agricultural University, for providing the pCoUm vectors.

Conflicts of Interest

The authors declare no conflict of interest.
