1. Introduction
The uterus, especially endometrium, plays a key role in normal reproductive cycles as well as in placentation, embryo implantation and maintenance of pregnancy. Unfortunately, uterine bacterial infections are common diseases in both humans and animals and reproductive complications contribute to infertility and abortion. Bacterial infections in pigs caused, i.a. by
Escherichia coli (
E. coli),
Streptococcus sp. and
Staphylococcus sp., are the main cause of uterine inflammatory lesions [
1].
It is well known that disorders in immune response and/or contractions can contribute to uterine inflammation. In addition, labor complications, e.g., fetal membrane retention contribute to the development of inflammatory changes [
2]. Repeatedly, impaired contractility of the uterus with inflammation contributes to the presence of inflammatory exudate in the uterine cavity. During uterine inflammation, there is a significant increase in the synthesis of pro- and anti-inflammatory cytokines [
3,
4,
5] as well as prostaglandins (PG)F2α, PGE2 and PGI2 [
6,
7]. It should be noted that PGF2α, PGE2, PGI2 [
7,
8] and leukotrienes (C4, D4) [
9] have been shown to be involved in contractility of porcine uterus with inflammation.
It is established that the physiological activity of the uterus is regulated by sympathetic, parasympathetic and sensory neurons [
10]. Although both cholinergic and adrenergic components are primarily involved in controlling uterine function, other neurotransmitters have also been shown to be responsible for modulating uterine contractility. To date, the role of noradrenaline, acetylcholine (ACh), somatostatin, neuropeptide Y and galanin in the contractile regulation of the porcine uterus with the bacterially induced inflammation has been described [
11,
12,
13,
14].
In the literature, there are many data concerning the role of tachykinins (TKs) in the regulation of uterine function [
15]. TKs are a family of peptides that include, among others, substance P (SP) and neurokinin A (NKA). Peptides exert their effects through G protein-coupled receptors [
16]. To date, three different TK receptors have been described, namely the NK1 receptor (NK1R), the NK2 receptor (NK2R) and the NK3 receptor. It has been found that endogenous TKs have a different affinity for each of the TK receptors. Accordingly, NK1R is activated preferentially by SP and NK2R by NKA [
17]. It is worth noting that in the peripheral nervous system, only the SP and NKA play a role as neurotransmitters and/or neuromodulators [
18]. TKs are responsible for the modulation of reproductive functions in the central and peripheral levels. The expression of SP and NKA in the hypothalamus and pituitary has been described where they affect the level of gonadotropins and, consequently, gonadal steroids. The TKs have been also found in non-neuronal cells of the ovary, uterus and placenta, as well as in the sensory nerves supplying the reproductive organs [
19]. It should be mentioned that TK receptor-selective agonists are involved in the regulation of uterine smooth muscle contractility [
15]. Additionally, it has been shown that TKs level in the uterus undergoes changes during pregnancy and estrous cycle [
20]. Accordingly, it is likely that SP and NKA and their receptors may modulate uterine contractility during inflammation, especially considering the fact that TKs stimulate inflammatory cells [
18].
For many years, pigs have been used as a research model due to similar anatomy and physiological processes to humans [
21]. In relation to the present study, it was hypothesized that endometritis affects the myometrial expression of NK1R and NK2R and the participation NK1R/SP and NK2R/NKA systems in the contractile function of an inflamed uterus. Therefore, the impact of endometritis on (1) NK1R and NK2R protein expression in myometrium and (2) the role of these receptors in SP- and NKA-influenced contractile amplitude and frequency of inflamed porcine uterus was investigated.
3. Discussion
The presented research describes the effect of bacterial endometritis on the expression of NK1R and NK2R proteins in the myometrium as well as the participation of SP, NKA, NK1R and NK2R in the contractile activity of porcine inflammatory uterus. The macroscopic and histopathological changes of the uteri have been previously reported [
22]. It has been disclosed that application of
E. coli to the inside of the uterine horns caused an inflammatory exudate. As expected, the endometrium was swollen and red, and the blood vessels were clearly visible. The histopathological examination revealed the development of severe acute endometritis as determined by an increase in neutrophil counts and damage to the luminal epithelium and/or glands.
It is well known that NKRs are commonly found in peripheral tissues. They play a role in smooth muscle contraction and epithelial secretion [
23]. The NK2R has been disclosed to mediate the contractility in rat uterus, while the NK1R may be involved in the contractile activity in mouse uterus [
24]. In addition, the myometrium preparations obtained from pregnant women during cesarean section also revealed the effect of TKs on the uterine contractions. The order of contractile potency (NKA > SP) shown in this study suggests a stronger involvement of NK2R in human uterine contractility [
24].
On the other hand, in pigs, NK1R was expressed at the RNA level not only in the uterus, but also in all parts of the female reproductive system [

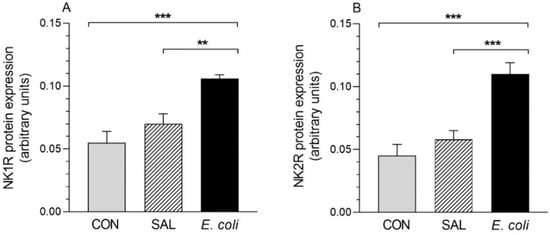

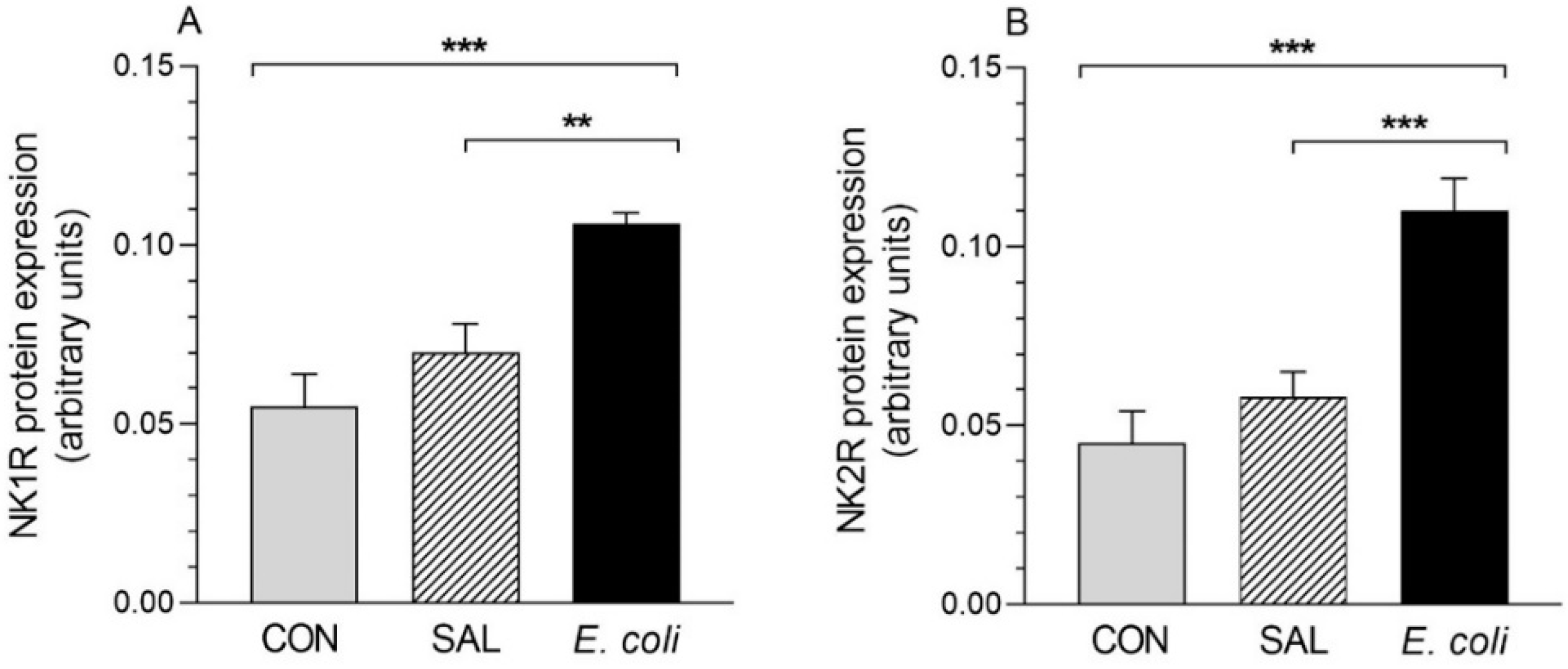

25]. The presented study showed the expression of NK1R and NK2R in the myometrium in the physiological state and as a result of inflammation. It was proved that the expression of proteins did not differ significantly in the CON and SAL groups, which indicates that the injection of physiological saline had no effect on the expression of these proteins. The bacteria intrauterine administration induced a significant increase in the content of NK1R and NK2R proteins in the myometrium in relation to the CON and SAL groups. This closely corresponds to the fact that TKs and their receptors are involved in the development of pathology. The nuclear factor kappa B (NF-κB) has been shown to be responsible for the regulation of NK1R expression during inflammation. Receptor transcription is induced, i.a. by interleukin (IL)-1β, IL-12 and IL-8 via NF-κB mediation [
26,
27]. It is therefore highly probable that the intrauterine injections of
E. coli could also activate this mechanism. This is also suggested by a study by Li et al. [
28] who revealed that activation of the extracellular signal-regulated kinase/NF-κB pathway contributes to the inflammatory changes induced by
E. coli infection in the bovine endometrial tissue.
The present study showed that inflammation did not alter the distribution of the immunoreactivity of TK receptors in the myometrium. Expression of NK1R and NK2R in blood vessels and muscle cells of myometrium in all test animals may suggest that these cells are targets for TKs in both inflammatory and healthy tissues.
The expression of NK1R and NK2R in the myometrium obtained by Western Blot analysis as well as the presence of NK1R and NK2R in muscle myometrial cells found by immunohistochemistry suggest the participation of these receptors in the contractility of healthy and inflamed uteri. On the other hand, the expression of NK1R and NK2R in the blood vessels of all experimental groups indicates the role of SP and NKA in the vascular activity of myometrium. SP has a vasodilator effect on the vascularization of the uterus and ovaries. Additionally, TK-immunoreactive nerve fibers are present in tunica adventitia of large blood vessels in the female reproductive tract [
29]. Published studies conducted on transversally cut strips of pig coronary artery confirmed the vasodilator effect of SP, NKA and NKB [
30].
The present report described the role of SP, NKA and their receptors in uterine contractility. This is particularly important due to the fact that disturbances in uterine contractile activity contribute to the development of inflammation and its subsequent consequences [
31]. Our previous studies have shown that the contractile amplitude and frequency in pigs are partly different between the myometrium and the endometrium/myometrium in response to active substances, e.g., galanin, ACh, somatostatin, neuropeptide Y and PGs [
7,
8,
11,
12,
13,
14,
32]. Accordingly, the role of SP, NKA and their receptors was determined using two types of uterine strips. The viability and suitability of the material for research were checked in all the harvested uteri by incubation with ACh, which increased (CON, SAL groups) or decreased (
E. coli group) the amplitude and enhanced the frequency (all groups) [
11].
The presented study for the first time determined the participation of SP and NKA in the contractility of the porcine uterus, both in the physiological state and as a result of inflammation. The role of NK1R and NK2R in porcine uterine contractility has also not been studied. In both the CON and SAL groups, SP and NKA application caused a decrease in uterine amplitude and an increase in frequency compared to the time before these TKs administration. Only in one case was a statistically significant difference found between the two groups, and it concerned a higher frequency of endometrium/myometrium in the SAL group, than in the CON group after SP administration. Under physiological conditions, SP stimulates the contractility of the rat uterus [
33] and causes strong contractions of fundus, corpus and antrum of canine stomach [
34]. Additionally, the increase in contractility of the longitudinal muscle of the isolated guinea pig ileum in response to the SP was proven [
35,
36,
37]. In turn, NKA induces contractions of isolated preparations of the uterine muscle of non-pregnant rats and mice [
24].

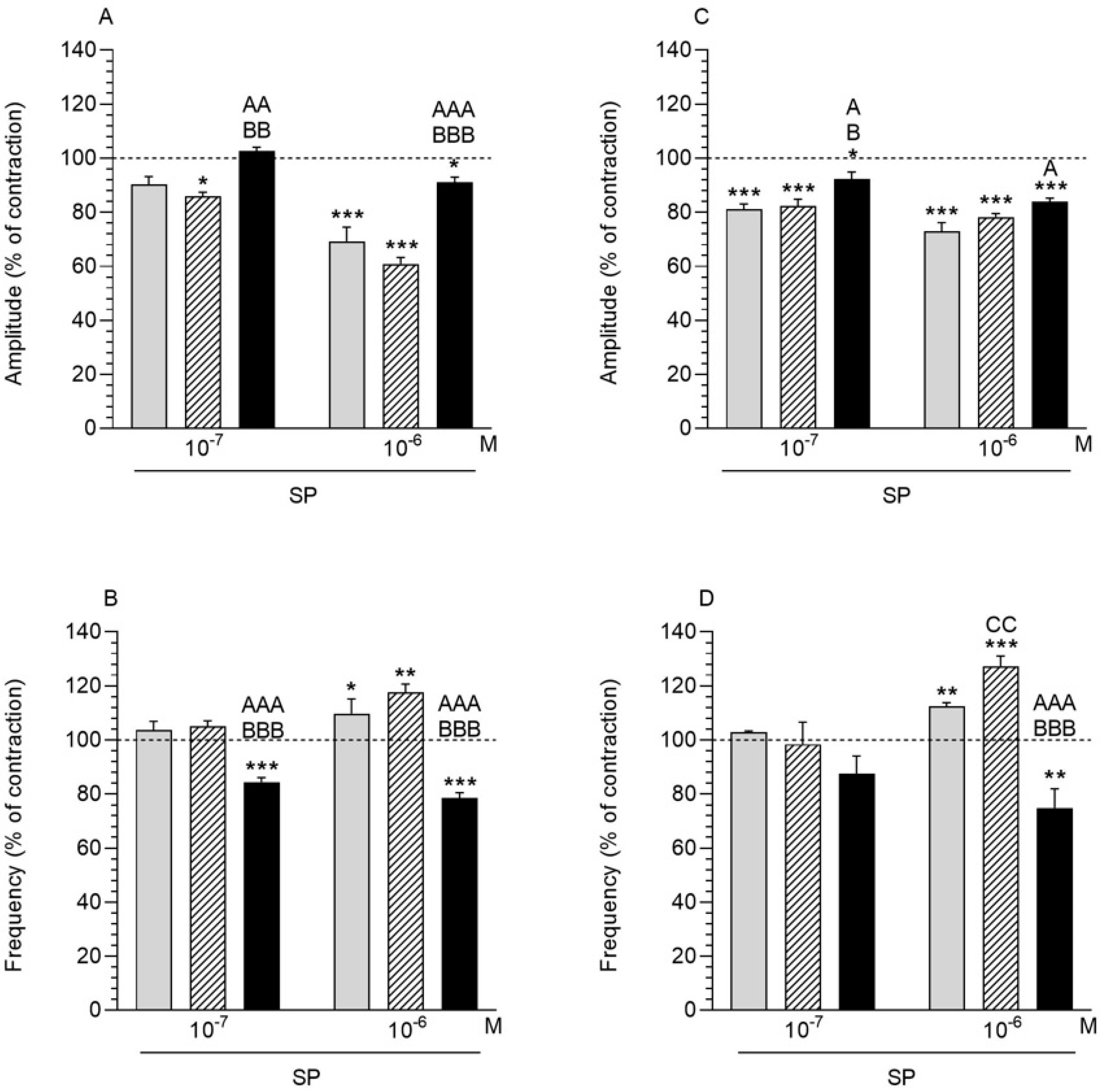

Comparing the period before SP administration, in the
E. coli group, the peptide decreased the amplitude as well as the frequency in both uterine strips. However, in this group, the amplitude was higher and the frequency was lower than in the CON and SAL groups. In turn, NKA in the

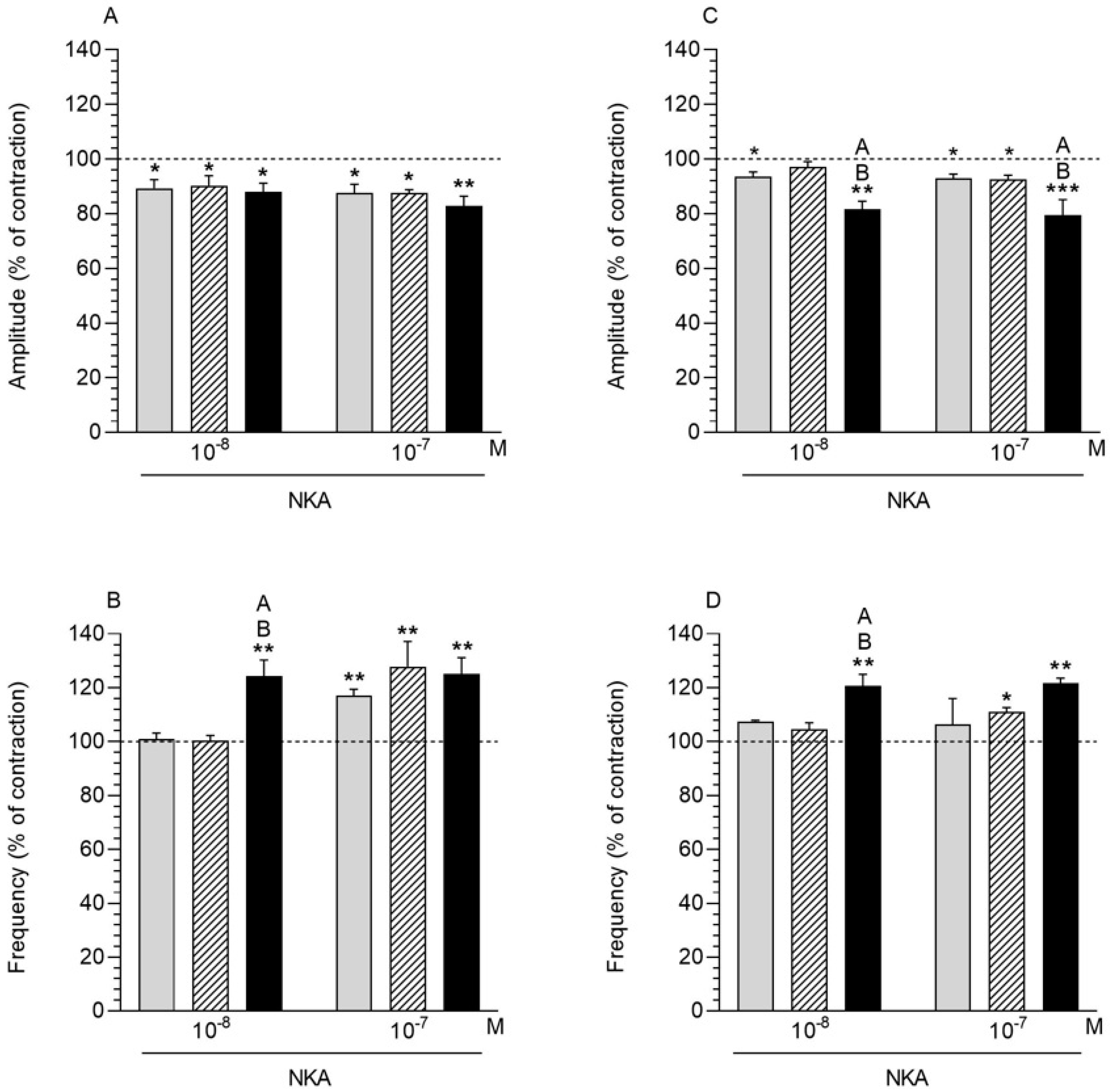

E. coli group lowered the amplitude, but increased the frequency of both uterine strips compared to the period before NKA treatment. After using NKA the amplitude dropped, and the frequency enhanced in the
E. coli groups versus other groups. It can be explained by the increase in uterine contractility-reducing substances accompanying the inflammation. It is well known that inflammatory cytokines such as tumor necrosis factor-α (TNF-α), IL-1β, IL-6 and IL-8 are common in the inflammatory uterus [
38]. Bachar et al. [
39] found that the TNF-α attenuated SP- and NKA-induced relaxation in a time- and concentration-dependent manner. The effect of pro-inflammatory substances on the reduction in SP-dependent uterine contractility may be confirmed by reports indicating the peptide expression reduction in pathological conditions. For example, it has been shown that the level of SP expression in duodenal nerves correlates with intestinal ulceration [
40].

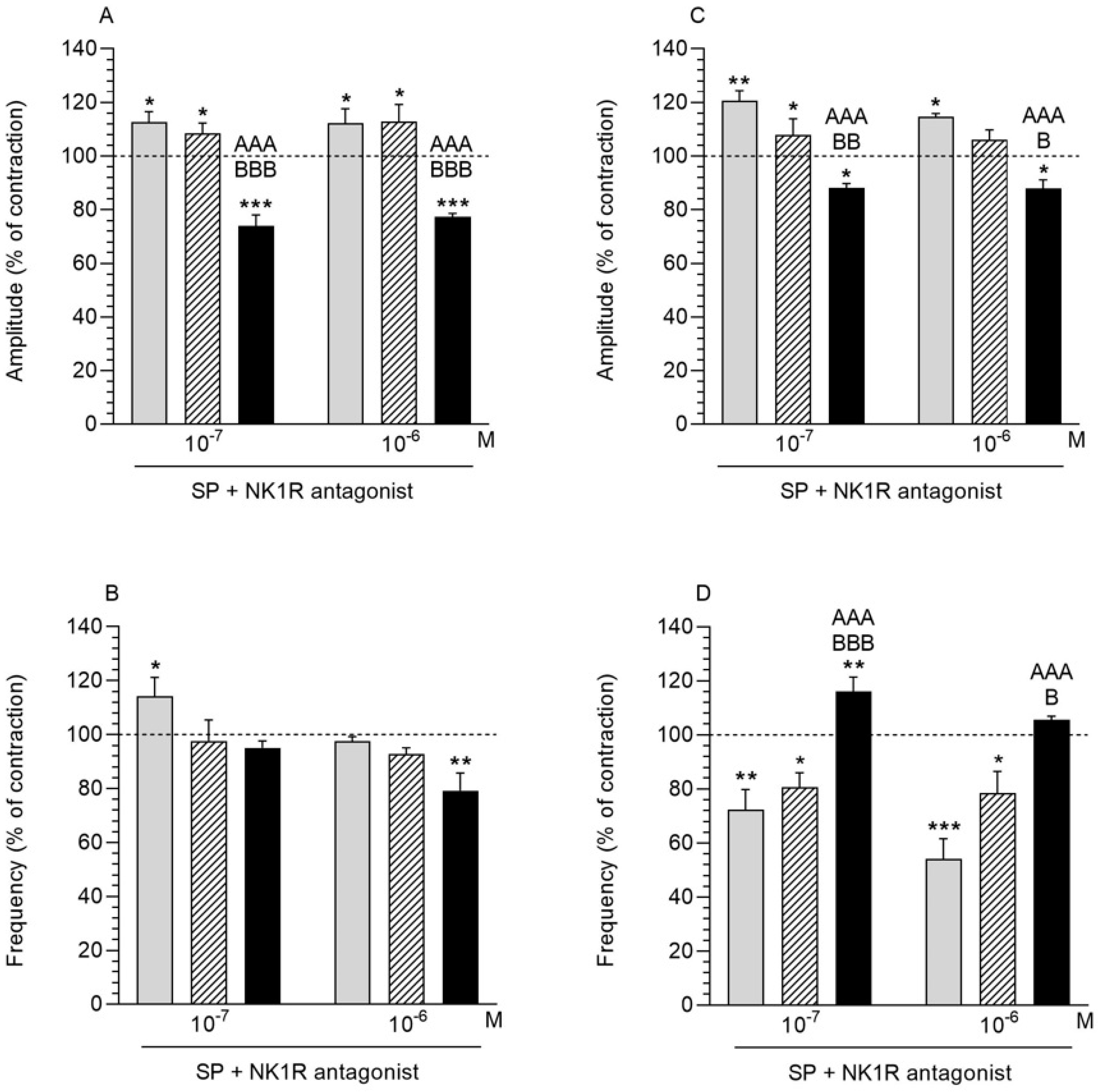

The published literature data indicate the involvement of SP and NKA on myometrial contractility via specific receptors. Analyzing the direction and level of significance of changes in response to NK1R and NK2R antagonists, we indicated that these receptors also participate in the uterine contractile activity in gilts from the CON, SAL and

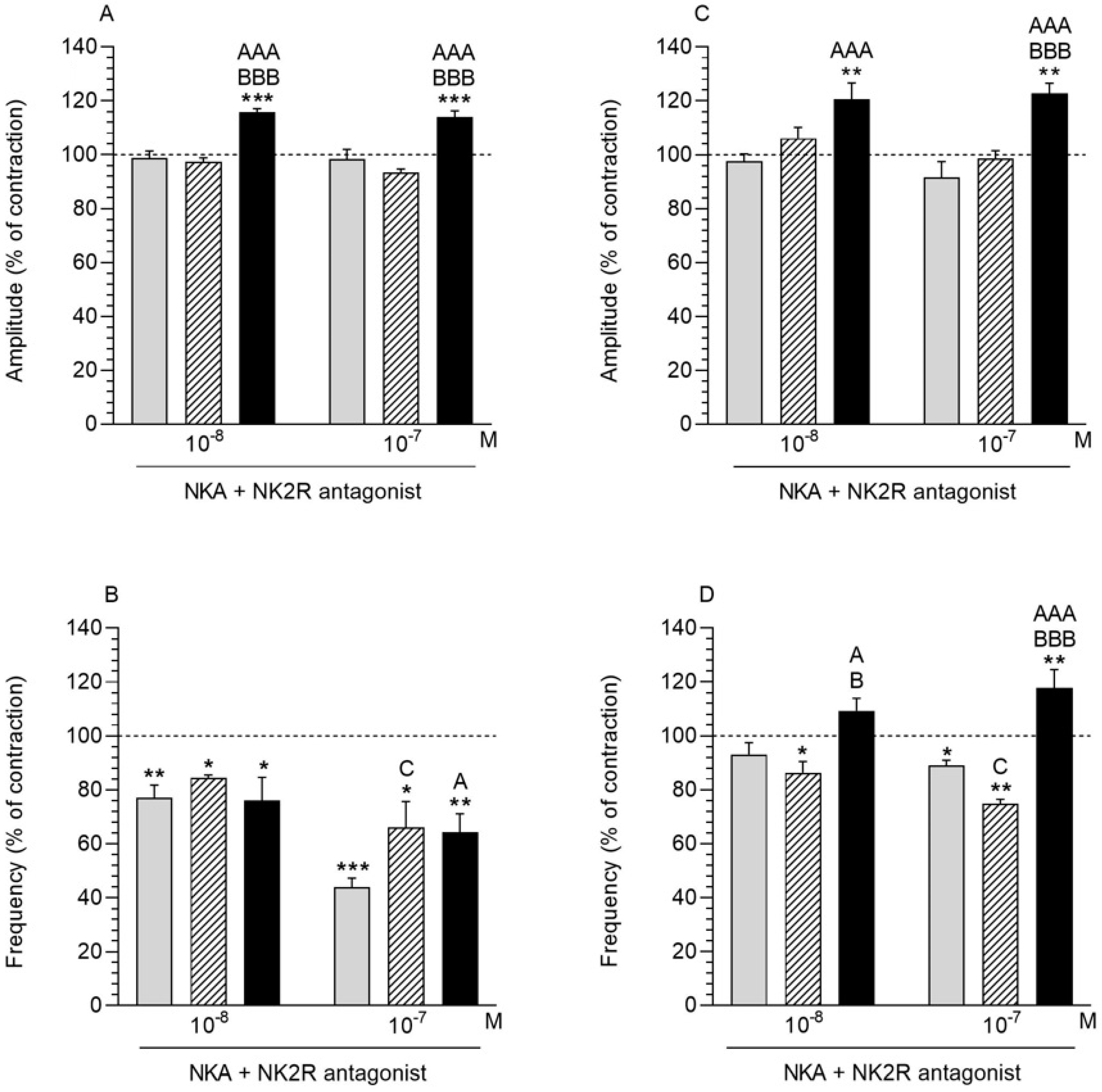

E. coli groups. In a healthy and inflamed uterus, NKA decreased the amplitude and increased the frequency, while the use of an elective NK2R antagonist had the opposite effect. This suggests that the peptide acts through this receptor. In the case of SP, in the CON and SAL groups there was a decrease in amplitude and an increase in frequency, while the use of a selective NK1R antagonist led to the assumption that the peptide exerts its effects through NK1R. In the
E. coli group, the antagonist application did not change the amplitude and frequency. It is likely that in this case the inflammatory components were involved in regulating uterine contractility, which led to an increase in its reduction. An indirect effect of TKs on uterine contractility related to its action on the synthesis of compounds involved in modulating contractility cannot be excluded. Our previous reports indicate that ACh reduces contractility of the porcine uterus in inflammation [
11]. SP and ACh are expressed in the motor neurons of the gut, and both are involved in smooth muscle contractility. SP has been shown to be a neurotransmitter involved in maintaining the muscle response to ACh [
41]. It is therefore likely that SP mediates an ACh-modulated contractile response.
Analyzing the clinical aspect of the results revealed in the present study, it can be speculated that by the reduction in the inflammatory amplitude of the pig uterus, SP and NKA contributes to the accumulation of exudate inside the organ. Moreover, SP decreased, while NKA increased the frequency of inflamed uterus. Additionally, taking into account the fact that the NK2R antagonist abolished the inhibitory effect of NKA on uterine amplitude, it suggests the possibility of therapeutic use of the antagonist, as a drug increasing uterine contractility in inflammation. This can lead to an improvement in the effectiveness of reproductive disorders treatment as well as a reduction in economic losses on farms.
4. Materials and Methods
4.1. Animals and Experimental Procedures
All procedures were conducted according to Polish and EU regulations in the field of Animal Protection and Welfare guidelines and were approved by the Local Ethics Committee (Consent no. 65/2015). The methods of animal experimentation have been described in detail in our previous study [
11]. Briefly, the experiment involved fifteen Large White/Landrace crossbred gilts (age 7–8 months, body weight/BW/90–120 kg). Gilts with no disruptions in reproduction such as discharges from vagina were admitted to the experiment. The second estrous cycle occurred regularly in all selected animals. The pigs obtained from a commercial fattening farm were kept at animal house (Faculty of Veterinary Medicine, University of Warmia and Mazury, Olsztyn, Poland) three days before the beginning of the study. All animals were housed in a standardized environment suitable to their species. The pigs were fed twice daily with a complete feed mix adapted to their needs and had access to water ad libitum.
Immediately after the assimilation period, the pigs were randomized on day 3 of the second estrous cycle (day 0 of the research) into three group: E. coli-(n = 5), saline-(SAL, n = 5) treated, or control (CON, n = 5) groups. In the E. coli group, the animals were intrauterine injected with E. coli, while in the gilts of SAL group, saline was administered also by intrauterine injections. The control gilts (CON group) were sham operated only.
The premedication was performed with atropine (0.05 mg/kg BW; Atropinum sulf. WZF, Warszawskie Zakłady Farmaceutyczne Polfa S.A., Poland), azaperone (2 mg/kg BW; Stresnil, Janssen Pharmaceutica, Beerse, Belgium) and ketamine hydrochloride (10 mg/kg BW; Ketamina, Biowet, Puławy, Poland). Ketamine hydrochloride was used for induction and maintenance of general anesthesia (supplementary doses—1 mg/kg BW every 5 min). In the next stage, a mid-line laparotomy was performed on pigs from the E. coli group for administration into each uterine horn 50 mL of E. coli suspension (strain O25:K23/a/:H1; Department of Microbiology, National Veterinary Research Institute, Puławy, Poland), containing 109 colony-forming units/mL. In the SAL group, 50 mL of saline solution was administered. The bacterial suspension as well as saline solution were applied in 5 places (10 mL per each injection) at an identical distance from each other. After the injections, the uterine horns were massaged to distribute the solutions evenly. In the CON group, only a median laparotomy was carried out. In the period from surgery to euthanasia, all of the tested gilts were left untreated. Animals were euthanized by an overdose with the sodium pentobarbital on day 8 of the study, i.e., the expected day 11 of the estrous cycle. After confirming the cessation of biological functions, uterine tissues were collected for further analysis. For Western blotting, the fragments were collected from paraoviductal, middle and paracervical part of the uterine horn. With the aid of a scalpel blade and a dissecting microscope the endometrial and myometrial layers were separated. Next, the myometrium fragments (thickness of the entire layer) were immediately frozen in liquid nitrogen and then stored at −80 °C. To perform immunofluorescence staining, smaller pieces of uterine horn taken from three parts were placed in 4% paraformaldehyde solution (pH 7.4) for 24 h. After fixation, the tissues were rinsed in 0.1 M phosphate-buffered saline (PBS, pH 7.4). Subsequently, the uterine horn fragments were cryoprotected in an 18% buffered solution of sucrose (pH 7.4) until sectioning. To measure uterine contractility, the retrieved middle parts of the uterine horn fragments were placed on ice and immediately transported to the laboratory.
4.2. Western Blot Analysis
Following isolation, the myometrial tissues were homogenized on ice with a cold buffer composed of 50 mmol/L Tris-HCl, pH 8.0; 150 mmol/L NaCl; 1% Triton X-100, 10 mg/mL aprotinin, 52 mmol/L leupeptin, 1 mmol/L pepstatin A, 1 mmol/L EDTA, 1 mol/L PMSF and then centrifuged (2500×
g, 4 °C, for 10 min). After centrifugation of the supernatants (17500×
g, 4 °C, for 1 h), the collected material was stored at −80 °C. The Bradford method was followed to estimate the protein content [
14]. Equal amount of protein (20 μg) was mixed with a sodium dodecyl sulfate (SDS) gel-loading buffer (50 mmol/L Tris-HCl, pH 6.8; 4% SDS, 20% glycerol and 2% β-mercaptoethanol), heated (95 °C, for 4 min), loaded and separated in 10% SDS-polyacrylamide gel electrophoresis. The separated proteins were then electro-blotted onto nitrocellulose membrane (0.22 μm) in transfer buffer. The composition of the transfer solution was 20 mmol/L Tris-HCl buffer, pH 8.2; 150 mmol/L glycine, 20% methanol and 0.05% SDS. Membranes were blocked with 5% nonfat dry milk in Tris-buffered saline containing 0.05% Tween-20 (0.05% TBS-T) (21 °C, for 1.5 h). Afterwards, membranes were incubated with rabbit polyclonal antibodies against NK1R (Novus Biologicals, Littleton, CO, USA, cat. no. NB 300-119, working dilution 1:500) and NK2R (LifeSpan BioSciences, Inc., Seattle, 161 WA, USA, cat. no. LS-C177106, working dilution 1:500) at 4 °C, for 18 h. In the next step, the membranes were washed in TBS-T buffer and then incubated (at 21 °C, for 1 h) with biotinylated goat anti-rabbit IgG (Vectastain Elite ABC-HRP Kit, Vector Labs, Burlingame, CA, USA, cat. no. PK-6101, working dilution 1:3000). To determine the visualization of antibody binding, incubation (for 3–4 min) with a mixture of 3,3′-diaminobenzidine tetrachloride (DAB, Sigma Aldrich, St. Louis, MO, USA, cat. no. D5637) and H
2O
2 in Tris-buffered saline (pH 7.2) was performed. In order to illustrate the specificity of the primary antibodies utilized, these were excluded from the analysis (negative control). A positive control was made with the mouse and porcine duodenal proteins. The glyceraldehyde-3-phosphate dehydrogenase was used to control for sample loading and protein transfer and to normalize the content of target protein. Signals were detected with a Quantity-One system (VersaDoc 4000 M imaging system, Bio-Rad Laboratories, Hercules, CA, USA).
4.3. Immunofluorescence
Fragments of uterine horns were embedded in OCT Tissue-Tek and cut at −22 °C into 10 μm thick sections using a cryostat (Reichert-Jung, Nußloch, Germany). The frozen sections were subjected to labeling using routine immunohistochemical staining according to method described previously [
14]. In the next stage, the prepared sections were dried (at 21 °C, for 30 min) and then were washed in three changes of 0.1 M phosphate-buffered saline (PBS) for 15 min. Subsequently, preparations were incubated (at 21 °C, for 1 h) with buffered blocking mixture consisting of 0.1 M PBS, 10% normal goat serum (MP Biomedicals, Solon, OH, USA), 0.1% bovine serum albumin (Sigma-Aldrich, St. Louis, MO, USA), 0.05% Thimerosal (Sigma-Aldrich, St. Louis, MO, USA), 1% Triton X-100 (Sigma-Aldrich, St. Louis, MO, USA) and 0.01% sodium azide. After triple-rinsing in PBS (15 min), all sections were immunolabeled in humid chambers with primary antibodies (at 21 °C, for 18 h). At this stage of research, the same antibodies were used as in the Western blot method: NK1R (working dilution 1:200) and NK2R (working dilution 1:200). On the following day, sections were washed again in a PBS solution (3 × 15 min) and incubated with biotinylated anti-rabbit IgG (Chemicon International, Temecula, CA, USA, cat. no. AP132B, working dilution 1:1000) (at 21 °C, for 1 h), and next with carbocyanine 3 (CY3)-conjugated streptavidin (Jackson ImmunoResearch Labs, West Grove, PA, USA, cat. no. 016160084, working dilution 1:9000) (at 21 °C, for 1 h). Rabbit normal IgG was used to perform a negative control (instead of the primary antibodies). Positive control for NK1R and NK2R was obtained following the use the same antibodies as in the immunohistochemical staining. The porcine duodenal tissue was used to carry out the positive control. Stained sections were examined under a microscope with epi-fluorescence and appropriate filter sets for Cy3 fluorochrome (U-M41007) (Olympus BX51, Olympus Consilio sp. z o.o., Warsaw, Poland).
4.4. Preparation of the Strips from the Uteri and Measurement of Isometric Contractile Function
In the present study, two types of strips (3 × 5 mm) consisting of isolated myometrium and myometrium with associated endometrium obtained from fragments of the uterine wall were used to determine the contractile activity of uteri. The strips were then rinsed in saline and fixed between two stainless steel hooks in a 10 mL organ bath (Radnoti Unit Tissue Organ Bath System type 159920, Radnoti LTD, Dublin, Ireland) under 5 mN tension. Tissues were immersed in a Krebs-Ringer solution (pH 7.4) composed of (mM/L) NaCl, 120.3; KCl, 5.9; CaCl2, 2.5; MCl2, 1.2; NaHCO3, 15.5; glucose, 11.5. During the experiment, the solution was at a temperature of 37 °C and was constantly saturated with a mixture of 95% O2 and 5% CO2.
4.5. Contractility Study Schedule

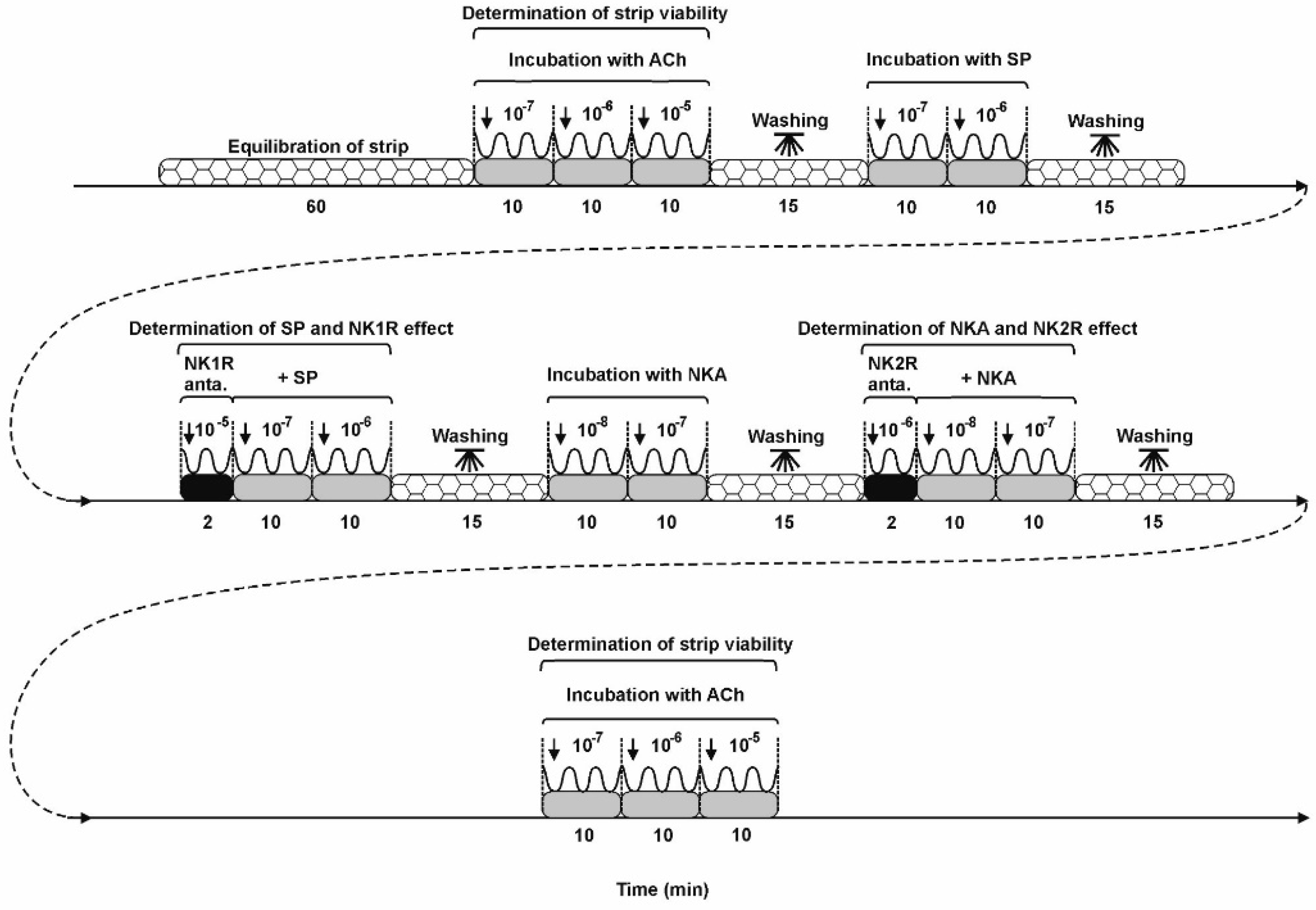

The exact procedure for handling uterine strips is illustrated in the diagram (
Figure 7). Tissues were equilibrated and then spontaneous contractility of uterine strips was recorded for 1 h. Both amplitude (the difference between minimum and maximum values for a single contraction in mN) and frequency (the number of peaks) of the uterine contractions were determined using a force-displacement transducer and analyzed in a computer with PowerChart software (Chart v5, scope v5, ADInstruments, NSW, New South Wales, Australia). Initially, the strips were treated with ACh (Sigma, St. Louis, MO, USA, cat. no. A6625) at three dose strengths (10
−7, 10
−6, 10
−5 M) to determine the viability of the uterine tissues and their suitability for the further steps of the experiment. In the next stage, the influence of SP (doses: 10
−7, 10
−6 M, Bachem, cat. no. H-1890) on the uterine contractility was noted. The action of each dose of SP was recorded for 10 min. It should be mentioned that uterine contractility was also determined in response to SP in the presence of NK1R antagonist (L-733,060 hydrochloride, TOCRIS, cat. no. 1145). For this purpose, uterine tissues were treated with the antagonist of NK1R (dose: 10
−5 M, for 2 min) and then SP (doses: 10
−7, 10
−6 M) was applied. The antagonist and SP effects were evaluated for 10 min, then the sections were rinsed after each measurement (three times in PBS). In the next stage of the experiment, the effect of NKA on contractility of uterine strips was examined. After washing for 15 min, the tissues were exposed to NKA (TOCRIS, cat. no. 1152) at doses of 10
−8 and 10
−7 M recorded for 10 min. Then, as in the case of SP, the effect of NKA on uterine contractions in the presence of the antagonist of NK2R (TOCRIS, cat. no. 1274) was determined. First, the effect of the NKA2R antagonist (dose: 10
−6 M, for 2 min) on uterine sections was determined and then NKA was added (doses: 10
−8, 10
−7 M, for 10 min). Similarly, the tissues were rinsed three times in PBS after each measurement. At the end of the experiment, tissue viability was re-checked using ACh according to the procedure described above. In the presented study, the results obtained from tissues in which the discrepancy in the response to ACh at the beginning and the end of the study did not exceed 20% were taken into account. The ACh concentrations used in this study have already been described in the available literature [
8,
32], while the concentrations of SP, NKA and receptor antagonists have been established in the preliminary studies. Using healthy porcine uteri and SP (doses: 10
−8, 10
−7, 10
−6 M) alone and together with the NK1R antagonist (doses: 10
−6, 10
−5 M) as well as NKA (doses: 10
−9, 10
−8, 10
−7 M) alone and together with the NK2R antagonist (doses: 10
−7, 10
−6 M) it was revealed that SP at doses of 10
−7 and 10
−6 M and NKA at doses of 10
−8 and 10
−7 M more effectively decreased the contractile amplitude. In turn, the antagonist of NK1R at a dose of 10
−5 M and the antagonist of NK2R at a dose of 10
−6 M statistically significantly the changed SP- or NKA-influenced, respectively, contractile amplitude.
4.6. Statistical Analyses
For each experimental group, the mean (±SEM) expression of NK1R and NK2R proteins was defined, and then the statistical significance was assessed using analysis of variance (ANOVA) with Bonferroni’s Multiple Comparison post hoc test (InStat Graph Pad, San Diego, CA, USA). The mean (±SEM) of amplitude and frequency were estimated for each group before administration of the substances and were taken as 100%. The effects of the peptides considered in this test are expressed as percentages (mean ± SEM) of these parameters determined prior to use. Statistical analysis was performed using the Bonferroni test to perform a contractility analysis between the results obtained before and after each administration of the active substances in each group as well as the mean values between the groups in response to the same added peptides. Differences were recognized significant at p < 0.05 (*), p ≤ 0.01 (**) and p ≤ 0.001 (***).
