Article

Structural Basis of Cysteine Ligase MshC Inhibition by Cysteinyl-Sulfonamides

by
Luping Pang
1,2,†,
Stijn Lenders
2,3,†,
Evgenii M. Osipov
2,
Stephen D. Weeks
2,4,
Jef Rozenski
3,
Tatiana Piller
5,
Davie Cappoen
5,
Sergei V. Strelkov
2 and
Arthur Van Aerschot
3,*
1
Research Center of Basic Medicine, Academy of Medical Sciences, College of Medicine, Zhengzhou University, Zhengzhou 450001, China
2
Biocrystallography, Department of Pharmaceutical and Pharmacological Sciences, KU Leuven, Herestraat 49, P.O. Box 822, 3000 Leuven, Belgium
3
Medicinal Chemistry, Rega Institute for Medical Research, Department of Pharmaceutical and Pharmacological Sciences, KU Leuven, Herestraat 49, P.O. Box 1030, 3000 Leuven, Belgium
4
Pledge Therapeutics, Gaston Geenslaan 1, 3001 Leuven, Belgium
5
Laboratory of Microbiology, Parasitology and Hygiene, Department of Pharmaceutical Sciences, University of Antwerp, Universiteitsplein 1, 2610 Wilrijk, Belgium
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Int. J. Mol. Sci. 2022, 23(23), 15095; https://doi.org/10.3390/ijms232315095
Submission received: 11 November 2022 / Revised: 25 November 2022 / Accepted: 26 November 2022 / Published: 1 December 2022
(This article belongs to the Special Issue Developments in Drug Discovery: Computational and Experimental Aspects)
Browse Figures
Versions Notes

Abstract

:
Mycothiol (MSH), the major cellular thiol in Mycobacterium tuberculosis (Mtb), plays an essential role in the resistance of Mtb to various antibiotics and oxidative stresses. MshC catalyzes the ATP-dependent ligation of 1-O-(2-amino-2-deoxy-α-d-glucopyranosyl)-d-myo-inositol (GlcN-Ins) with l-cysteine (l-Cys) to form l-Cys-GlcN-Ins, the penultimate step in MSH biosynthesis. The inhibition of MshC is lethal to Mtb. In the present study, five new cysteinyl-sulfonamides were synthesized, and their binding affinity with MshC was evaluated using a thermal shift assay. Two of them bind the target with EC50 values of 219 and 231 µM. Crystal structures of full-length MshC in complex with these two compounds showed that they were bound in the catalytic site of MshC, inducing dramatic conformational changes of the catalytic site compared to the apo form. In particular, the observed closure of the KMSKS loop was not detected in the published cysteinyl-sulfamoyl adenosine-bound structure, the latter likely due to trypsin treatment. Despite the confirmed binding to MshC, the compounds did not suppress Mtb culture growth, which might be explained by the lack of adequate cellular uptake. Taken together, these novel cysteinyl-sulfonamide MshC inhibitors and newly reported full-length apo and ligand-bound MshC structures provide a promising starting point for the further development of novel anti-tubercular drugs targeting MshC.

1. Introduction

Tuberculosis (TB), caused by the Gram-positive pathogen Mycobacterium tuberculosis (Mtb), has existed for centuries and remains a major global public health threat. In 2018, 1.5 million TB deaths and 7 million new TB cases were identified by the World Health Organization (WHO) [1]. With the emergence and spread of multidrug-resistant (MDR) and extensively drug-resistant (XDR) Mtb strains, the efficiency of current anti-TB chemotherapeutics is consistently undermined, and there is an urgent and continuous demand for discovering new drugs [2,3]. Therefore, inhibiting enzymes involved in the important cellular processes of Mtb, in particular protein synthesis and antibiotic detoxification processes, is crucial to avert further complications from TB.
Like many actinomycetes, Mtb produces mycothiol (MSH), the functional equivalent of glutathione (GSH) in eukaryotes and most eubacteria, as the predominant low-molecular-weight thiol to protect against oxidative stress, electrophilic toxins and antibiotics [4,5,6]. This suggests that enzymes involved in the MSH biosynthesis and metabolism pathway may be potential targets for the development of selective antimycobacterial agents. MSH is synthesized through a series of complex enzyme-catalyzed reactions (Figure 1), in which the cysteine ligase MshC is the penultimate enzyme catalyzing the ATP-dependent condensation of cysteine and the GlcN-Ins intermediate. MshC has been proven to be essential for the maintenance of redox balance and metabolic homeostasis of Mtb [7,8]. Disruption or high-density mutagenesis in the mshC gene has been shown to be lethal for the in vitro growth of Mtb [9,10]. MshC, therefore, is considered as a potential and promising target for developing drugs to treat TB.
Being essential and specific to the lifecycle of Mtb, compounds targeting MshC, in theory, would have a limited chance of hitting off-targets within the host or host microbiome, reducing the possibility of undesired toxicity. One exception could be the host cysteinyl-tRNA synthetase (Hs-CysRS)—and, to our advantage, Mtb-CysRS—as the overall fold of the MshC catalytic domain strongly resembles the one for CysRSs [11,12]. This is the result of both enzymes catalyzing the same cysteinyl-adenosine (Cys-AMP) intermediate formation before transferring the activated cysteine to different substrates (GlcN-Ins and tRNACys for MshC and CysRS, respectively). Thus far, there is no specific drug available for the inhibition of MshC. Screening of chemical libraries afforded NTF1836 [13] and dequalinium [14] chloride, both exhibiting moderate in vitro MshC inhibitory activity and Mtb growth inhibition. However, both of them were proved to be cytotoxic to mammalian cells and hence were not pursued further. Attempts to exploit these small molecule scaffolds or identify new chemical entities have also been hampered by the lack of the full-length molecular structure of MshC.
Structurally, MshC is similar to class I aminoacyl-tRNA synthetases (aaRSs), especially to CysRS, as mentioned above. AaRSs catalyze the ligation of amino acids with their cognate tRNA in an ATP-dependent manner. These enzymes are divided into two classes based on two different folds of the catalytic core [15,16]. Class I aaRSs share a similar Rossmann fold (belonging to the HUP superfamily) and have two conserved HIGH and KMSKS signature sequence motifs, while the catalytic domain of class II aaRSs adopts a six-stranded β sheet [15,16]. The aaRSs families have been pursued as viable targets for the discovery and design of new antibiotics for a number of decades [17,18,19,20,21,22,23]. Herein, aminoacyl-sulfamoyl adenosines (aaSAs) are well-known, high-affinity ligands of aaRS, effectively mimicking the natural aminoacyl-adenosine (aa-AMP) intermediate in which the non-hydrolysable sulfamoyl-moiety mimics the binding and function of the phosphoryl group of aa-AMP. However, these compounds lack species selectivity and are devoid of antibacterial properties due to their highly polar nature. Recently, “Trius pharmaceuticals” discovered ThrRS-targeting m-substituted aromatic sulfonamides (Figure 2) [24]. These substituted aryl sulfonamides mirror the sulfamoyl adenosine part of the threonyl-SA [24]. Analogous success was achieved by Oxford Drug Design targeting LeuRS [25]. Both series of compounds showed very potent enzymatic inhibitory and antibacterial activity as well as species selectivity.
Given these advances, we designed and synthesized a small series of cysteinyl-sulfonamide compounds which were based on the same scaffold and, therefore, potentially capable of simultaneously targeting CysRS and MshC. Using the thermal shift assay, two compounds were confirmed to bind to MshC. Subsequently, the co-crystal structures of these compounds bound to full-length MshC were determined. This work elucidates how this sulfonamide scaffold works with the class I aaRS-like enzyme and provides a starting point for the further design and optimization of anti-tubercular drugs targeting these enzymes.

2. Results and Discussion

2.1. Design and Synthesis of Cysteinyl-Sulfonamides

Based on the previously published heterocyclic sulfonamide congeners targeting ThrRS or LeuRS (Figure 2), we designed and synthesized a small series of cysteinyl-sulfonamide compounds for the potential simultaneous targeting of CysRS and MshC (Figure 3). Starting from 3-bromophenylsulfonamide (3), a Suzuki reaction with arylboronic acids 4a–e afforded the sulfonamides 5a–e in moderate yields. The latter were acylated with protected l-cysteine, followed by deprotection to afford the target cysteinyl sulfonamides 7a–e.

2.2. Binding Affinity of Compounds against M. smegmatis MshC

The binding affinity of these compounds with M. smegmatis MshC (Ms-MshC), a homologue to MshC from M. tuberculosis (Mtb-MshC), was determined by a thermal shift assay (TSA). We here opted for Ms-MshC to carry out affinity determination as the enzyme highly resembles Mtb-MshC with an overall sequence identity and similarity of 79% and 88%, respectively. Further examination of the active site of these two proteins, which are, in their first step, responsible for the cysteinyl-adenosine formation, showed 93% identity and 97% similarity. Therefore, the binding affinity of the synthesized compounds evaluated against Ms-MshC appears to likewise reflect their potential binding with Mtb-MshC. In addition, the availability of Ms-MshC is beneficial for the following structural studies.
In principle, compound binding usually improves the thermal stability of the protein, which then leads to an increase in the melting temperature (Tm) during the denaturation process. Furthermore, when a specific compound induces a bigger increase in Tm, this compound usually possesses a higher binding affinity compared to other ligands sharing a similar scaffold [26]. To eliminate the effect of the solvent in this experiment, ∆Tm was calculated as the difference between Tm of Ms-MshC with and without 10% (v/v) either dimethyl sulfoxide (DMSO) or ethylene glycol (EDO). DMSO clearly lowers the thermal stability of the protein by decreasing the Tm of Ms-MshC by 3.38 °C, while EDO decreases the Tm by only 0.48 °C (Table 1). Therefore, EDO was selected as the solvent to assist in dissolving the respective compounds in the subsequent experiments.
The natural substrate l-Cys and ATP solely increased the Tm of Ms-MshC by 3.09 and 1.35 °C at 10 mM concentration, respectively, but almost did not change Tm at 1 mM (Table 1). In contrast, when l-Cys and ATP were simultaneously added both at 100 μM or 1 mM concentration in the presence of 5 mM MgCl2, significant increases of ∆Tm of 3.76 and 8.08 °C, respectively, were observed. This suggests that the formation of the Cys-AMP reaction intermediate is catalyzed by the enzyme in this case, in line with its higher binding affinity compared to single substrates. Subsequently, 100 μM and 1 mM concentrations of each synthesized compound were applied to measure their effects on the Tm of Ms-MshC in the presence of EDO. However, only compound 7d showed a 0.99 °C increase in Tm, while the others had no effect (Table 1).
The synthesized compounds contain a cysteinyl moiety which can be easily oxidized to yield the disulfide form, and these dimerized compounds may not fit into the active center of MshC. This may explain their surprisingly weak stabilization effects on protein. Therefore, to eliminate the effect of oxidation, a 1 mM reducing agent, tris-(2-carboxyethyl)phosphine (TCEP), was added to the evaluation system, and then the effects of the various compounds on the Tm of the protein were reassessed. In the absence of Ms-MshC ligands, TCEP had no effect on the thermal stability of the protein. In the following experiments, ∆Tm was calculated as the difference between Tm of Ms-MshC in the presence and absence of 100 µM and 1 mM, respectively, of each compound. The results demonstrated that compounds 7b and 7d cause an increase in the ∆Tm (1.24 and 1.10 °C at 100 μM; 3.08 and 3.75 °C at 1 mM), suggesting that the TCEP-reduced compounds are potential binders of Ms-MshC. Measurements of dilution series for these two compounds showed Kiapp of 219 and 231 µM respectively, which is only 2-fold weaker binding compared with the natural intermediate Cys-AMP (Kiapp of 107 µM) in this evaluation system (Table 1 and Figure 4).
A comparison of these five synthesized compounds showed that the heterocycle instead of a phenyl ring at C3 of the phenyl sulfonamide (compounds 7b, 7c and 7d) is beneficial for binding. Despite both compounds 7b and 7c containing a pyridine moiety, the ortho-methoxy substituent on the pyridine further improved the binding affinity compared with the non-modified compound 7c, suggesting the modification on the ortho-position of the pyridine ring seems more suitable for binding. Combined, these cysteinyl-sulfonamide-based compounds are potential new binders for Ms-MshC.

2.3. Structural Study on the Inhibitory Mechanism of Compounds 7b and 7d

In the past, the first partial crystal structure of MshC from M. smegmatis complexed with cysteinyl adenylate analogue, 5′-O-[N-(l-cysteinyl)-sulfamonyl] adenosine (CSA), was determined. Here, the formed MshC-CSA was treated with trypsin prior to crystallization [27]. It has been reported that the overall tertiary structure of MshC is similar to that of CysRS, which catalyzed the formation of cysteine-charged tRNA. However, as a result of trypsin proteolysis, this structure lacks the KMSKS loop, which is normally situated near the substrate binding site. In CysRS, the KMSKS motif is responsible for the binding and positioning of the L-shaped tRNA molecule as well as amino acid activation. It was proposed that the homologous loop in MshC is involved in the formation of the adenylate intermediate in the first-half reaction and possibly also important for the binding of the GlcN-Ins substrate in the second-half reaction [27]. Therefore, a crystal structure of full-length MshC is required for a better understanding of the function of this enzyme and elucidation of the binding mechanism of MshC inhibitors.
Here, we determined the crystal structure of the full-length Ms-MshC at 2.4 Å resolution (Figure 5A and Table 2). While the published MshC structure in complex with CSA contains two macromolecules in the asymmetric unit (ASU), all structures solved in this work only possess one macromolecule per ASU despite crystalizing in two different space groups (Table 2).
In contrast to the published MshC-CSA complex (PDB ID: 3C8Z) that had been truncated through trypsin proteolysis, the newly obtained structure reveals the intact KMSKS loop. At the same time, the α-helix containing residues P88–R95 is disordered in our apo structure, while it is fully structured in the CSA-bound structure (Figure 5B,C). Detailed analysis of these two structures showed that CSA binding induces a shift of the T46-H52 loop region towards the active site, whereby the side chain of Y48 is flipped inwards into the binding pocket. This concerted conformational change avoids the steric clash between the side chain of Y48 in the apo structure and the ordered positioning of the P88–R95 containing α-helix upon CSA binding (Figure 5C,D).
To clarify the binding mechanism of the newly synthesized sulfonamide-based compounds, we also have co-crystallized Ms-MshC with compounds 7b and 7d and determined the structures of these complexes at 2 and 2.8 Å resolution, respectively (Table 2). The electron density map unambiguously showed both compounds binding in the active site in a very similar manner (Figure 6A,B). The superposition of both complexes reveals little change in the protein backbone (RMSD of 0.33 Å using coordinates of 370 Cα atoms). Therefore, detailed structural analysis was carried out only for the higher resolution complex involving the better binder 7b.
In comparison with the structure of Ms-MshC in complex with CSA, the cysteinyl moiety of compound 7b is fully superposed with the same chemical group of CSA (Figure 6C). The thiol group of the ligand and the side chains of C43, C231 and H256 coordinate the co-factor Zn2+ ion. The presence of Zn2+ is considered the major recognition mechanism of substrate l-Cys from the amino acids pool, as reported for MshC-homolog CysRS [12]. The α-amino group of the cysteinyl moiety forms three hydrogen bonds with the hydroxyl oxygen of side chains of T46 and T83 and the main-chain oxygen of G44, which is likely important for the correct chirality selection of this amino acid (Figure 6D). In addition, the binding of CSA or the cysteinyl-containing analog induces the same inward movement of the 44GITPY48 loop surrounding the back pocket of MshC. This results in the inward flipping of the side chain of Y48, which may prevent the hydrolysis of the cysteinyl-adenylate reaction intermediate. The presence of the sulfonamide group in compound 7b, similar to the sulfamoyl group in CSA, induces the inward movement of the 289KMSKS293 loop with the largest Cα shift of 4 Å. This leads to the formation of one salt bridge between the sulfonamide oxygen and the amine group of the K289 residue of the 289KMSKS293 motif, and one H-bond between the sulfonamide oxygen and Nε of H55 from the HIGH motif, respectively. Since the sulfonamide and sulfamoyl groups in both structures (Figure 6D) are fully overlaid, it seems rational to hypothesize that the sulfamoyl group in CSA likely induces a similar conformational change of the KMSKS loop. However, due to the limited trypsinolysis treatment of the protein before crystallization with the CSA ligand, the KMSKS loop was likely cleaved. This may explain why the KMSKS loop could not be observed in the previously published CSA-bound structure of MshC.
The phenyl group of compound 7b occupies the ribose binding pocket of MshC but only forms hydrophobic interactions with surrounding protein residues (Figure 6C,D). The substituted pyridine moiety is superposed with the adenine base of CSA located in the ATP binding cavity. Positioning of the pyridine plane is sterically clashing with the position of M282 in the CSA-bound structure, which forms hydrophobic interactions with the side chain of the adenine base. Therefore, in compound 7b’s bound structure, the backbone peptide planes of G281-M282 and M282-I283 are flipped. On the one hand, this avoids the steric clash and accommodates the binding of pyridine, and on the other hand, it generates one H-bond between the nitrogen atom of the pyridine ring and the backbone NH of M282, thus increasing the binding affinity for this ligand (Figure 6D). The lack of an H-bond between the thiophene ring of 7d and active site residues would suggest that a lower binding potency should be expected relative to compound 7b. This is in good agreement with the TSA results (Table 1). Taken together, the sulfonamide-based compounds can probably replace the non-selective sulfamoyl-containing analog CSA, acting as a new class of Ms-MshC inhibitors.

2.4. Anti-Mycobacterium Activity of the Compounds

The synthesized compounds were subsequently profiled for antimycobacterial activity in a whole-cell screening assay. The panel of test organisms included the Mycobacterium tuberculosis H37Ra lab strain, the Δmtr::Hyg derivative strain and Mycobacterium abscessus containing PSMT-1. The Mtb H37Ra Δmtr::Hyg strain carries a deletion in the Rv2855 gene encoding mycothiol reductase (Mtr) (Table 3). Mtr itself is the key enzyme to reduce oxidized mycothione to mycothiol, thereby maintaining the reductive intracellular environment within the bacillus. In addition, the compounds have been evaluated against M. abscessus, the causative agent of opportunistic nontuberculous infections in immune-compromised persons. However, based on luminescence, no activity could be observed for the test compounds for concentrations up to 100 µM (Table 3). One possible explanation for the failure of target engagement of the compounds in the whole-cell evaluation is to attribute the lack of potency to poor cellular pharmacodynamics or pharmacokinetics of the compounds. Moreover, since compounds 7b and 7d are Cys-AMP competitive inhibitors, but as their EC50 values are two-fold lower than the reaction intermediate, it would be challenging for the synthesized compounds to efficiently block the catalytic activity of MshC inside the cell. This could be another explanation for their weak antimycobacterial activities. Therefore, further work should look for higher affinity binders based on the 7b-bound MshC structure. Using docking and molecular dynamics simulations, various heterocycles substituting for the pyridine ring hereto could be evaluated in an effort to rationally optimize these scaffold compounds. This should pave the way for the development of new MshC antimycobacterial drug candidates.

3. Materials and Methods

3.1. Reagents and Analytical Procedures

Reagents and solvents were purchased from commercial suppliers and used as provided and previously described [29]. 1H and 13C NMR spectra of the compounds were recorded on a Bruker UltraShield Avance 300 MHz (Brüker, Fällanden, Switzerland) or, when needed, on a 500 MHz and 600 MHz spectrometer. High-resolution mass spectra were recorded on a quadrupole time-of-flight mass spectrometer (SYNAPT G2 HDMS, Waters, Milford, MA, USA) equipped with a standard ESI interface; all these analytical techniques were used as described previously [29]. All the 1H NMR, 13C NMR and MS spectra data were summarized in Supplementary File S1.

3.2. Chemical Synthesis and Analysis

3.2.1. Synthesis of Compounds 5a–e: General Procedure A

3-Bromobenzenesulfonamide (3) (300 mg, 1.26 mmoL, 1 eq) and the respective boronic acids 4a–e (1.4 mmoL, 1.1 eq) and K2CO3 (538 mg, 3.9 mmoL, 3.1 eq) were dissolved in 15 mL of a 4:1 mixture of 1,4-dioxane:water. Pd(dppf)(Cl)2 (175 mg, 0.25 mmoL, 0.2 eq) was added, and the reaction mixture was stirred overnight at 110 °C. After consumption of the starting material, the reaction was cooled down to room temperature and diluted with 30 mL of MeOH. The mixture was filtered over a celite plug and dried using anhydrous Na2SO4. The mixture was filtered again, and the solvents were evaporated to dryness. The resulting crude was purified using silica gel chromatography to obtain 5a–e.

3.2.2. Synthesis of Compounds 6a–e: General Procedure B

The respective sulfonamide 5a–e (1 eq), N-(tert-butoxycarbonyl)-S-trityl-l-cysteine (1.2 eq), O-Benzotriazole-N,N,N′,N′-tetramethyluronium-hexafluoro-phosphate (HBTU, 1.5 eq) and triethylamine (3 eq) were dissolved in 4 mL of N,N-dimethylformamide (DMF) and stirred overnight. After thin layer chromatography (TLC) showed full consumption of the starting material, the reaction mixture was diluted with 25 mL of ethyl acetate (EtOAc) and washed with 3 × 25 mL of brine. The organic phase was dried using anhydrous Na2SO4, filtered and evaporated to dryness. The resulting crude was purified using silica gel chromatography affording 6a–e.

3.2.3. Synthesis of Compounds 7a–e: General Procedure C

An aliquot of 1 mL of trifluoroacetic acid (TFA) was added to a solution of the respective starting material (6a–e) in 4 mL of dichloromethane (DCM). Triethylsilane (2.5 eq) was added, and the solution was stirred for 1 h. The reaction was quenched with saturated NaHCO3 and extracted using DCM. The organic phases were collected, dried using anhydrous Na2SO4 and filtered. The organic phase was evaporated to dryness, and the resulting crude was purified using silica gel chromatography, affording the final sulfonamides 7a–e.
N-([1,1′-biphenyl]-3-ylsulfonyl)-2(R)-amino-3-mercaptopropanamide (7a). 1H NMR (300 MHz, (MeOD): δ (ppm) = 8.12 (s, 1H), 7.99 (bs, 2H, NH), 7.85 (d, J = 7.53 Hz, 2H), 7.68 (s, 1H), 7.66 (s, 1H), 7.60 (t, J = 7.06 Hz, 1H), 7.51 (t, J = 7.29 Hz, 2H), 7.43 (d, J = 7.53 Hz, 1H), 3.83 (s, 1H), 2.91 (s, 2H); 13C NMR (75 MHz, (MeOD): δ (ppm) = 129.23, 129.16, 129.10, 128.42, 128.13, 126.85, 126.32, 126.19, 125.53, 55.64, 25.21; HRMS (ESI): calcd. for C15H17N2O3S2 [M+H]+: 337.0675, found: 337.0678.
2(R)-Amino-3-mercapto-N-((3-(6-methoxypyridin-3-yl)phenyl)sulfonyl)propenamide (7b). 1H NMR (300 MHz, (MeOD): δ (ppm) = 8.50 (d, J = 2.22 Hz, 1H), 8.11–7.98 (m, 4H), 7.92–7.83 (m, 2H), 7.63 (t, J = 8.32 Hz, 1H), 6.95 (d, J = 7.21, 1H), 3.91 (s, 3H), 3.79 (s, 1H), 2.93–2.84 (m, 2H); 13C NMR (75 MHz, (MeOD): δ (ppm) = 163,.53, 145.02, 137.73, 137.40, 129.37, 126.14, 124.96, 110.91, 53.47, 40.13, 30.40; HRMS (ESI): calcd. for C15H18N3O4S2 [M+H]+: 368.0733, found: 368.0730.
2(R)-Amino-3-mercapto-N-((3-(pyridin-3-yl)phenyl)sulfonyl)propanamide (7c). 1H NMR (300 MHz, (DMSO): δ (ppm) = 8.97 (s, 1H), 8.70 (d, J = 4.54 Hz, 1H), 8.25 (d, J = 8.17 Hz, 1H, 8.18 (s, 1H), 8.05 (bs, 2H, NH), 7.97 (t, J = 8.17 Hz, 2H), 7.74–7.62 (m, 2H), 2.93 (s, 2H); 13C NMR (75 MHz, (DMSO): δ (ppm) = 168.62, 140.56, 135.82, 130.43, 129.60, 129.00, 128.23, 126.69, 126.19, 125.04, 122.54, 55.90, 25.30.
2(R)-Amino-3-mercapto-N-((3-(thiophen-2-yl)phenyl)sulfonyl)propanamide (7d). 1H NMR (300 MHz, (DMSO): δ (ppm) = 8.13 (s, 1H), 8.05 (bs, 2H, NH), 7.98–7.89 (m, 2H), 7.80 (d, J = 8.26 Hz), 7.72–7.68 (m, 1H), 7.61–7.52 (m, 2H), 3.89 (s, 1H), 2.92 (d, J = 3.88 Hz, 2H); 13C NMR (75 MHz, (DMSO): δ (ppm) = 130.19, 129.65, 128.17, 126.47, 126.26, 125.09, 122.68, 55.84, 25.42; MS (ESI): calcd. for C13H14N2O3S3 [M+H]+: 343.0, found: 342.8.
2(R)-Amino-3-mercapto-N-((4′-(trifluoromethyl)-[1,1′-biphenyl]-3-yl)sulfonyl)propanamide (7e). 1H NMR (300 MHz, (DMSO): δ (ppm) = 8.17 (s, 1H), 8.00–7.83 (m, 8H), 7.64 (t, J = 7.30 Hz, 1H), 3.80 (s, 1H) 2.91 (s, 2H); 13C NMR (150 MHz, (DMSO): δ (ppm) = 143.86, 19.11, 128.43, 127.70, 126.32, 126.07, 126.04, 125.80, 55.83, 29.05; MS (ESI): calcd. for C16H16F3N2O3S2 [M+H]+: 405.1, found: 404.9.

3.3. Cloning, Expression and Protein Purification

The DNA sequence encoding full-length M. smegmatis MshC (Ms-MshC, UniProt accession ID: A0QZY0) was amplified by polymerase chain reaction (PCR) from genomic DNA isolated from Mycobacterium smegmatis. The amplified gene was separated by agarose gel electrophoresis and purified by a gel extraction kit (Qiagen, Hilden, Germany). The purified gene was subsequently cloned into the pETRUK vector, an in-house derivative of pETHSUL [30] that yields a fusion protein with a SUMO tag at the N-terminus for expression in E. coli Rosetta 2 (DE3) pLysS cells. Initial trials showed that the SUMO tag of SUMO-fused Ms-MshC was not able to be cleaved efficiently by SUMO hydrolase. Therefore, a glycine spacer was added between the C-terminal SUMO tag residue and the first methionine residue of Ms-MshC. Isolation of the protein was similar to that previously reported for LeuRS [29,31,32]. Briefly, following culture of transformed Rosetta 2 (DE3) pLysS ZYP-5052 auto-induction medium [33], cells were harvested by centrifuge and lysed by sonication in cation exchange buffer A (25 mM HEPES-NaOH pH 7, 150 mM NaCl and 5 mM β-mercaptoethanol) supplemented with 1 mM MgCl2 and 100 U cold-active Cryonase (Takara, Shiga, Japan). The lysis was clarified by centrifugation at 18,000× g for 45 min, and the resulting supernatant was applied onto a 5 mL Hitrap HP SP column (Cytiva, Marlborough, MA, USA). The protein was eluted by a linear gradient with Cation exchange buffer B (25 mM HEPES-NaOH pH 7, 1 M NaCl and 5 mM β-mercaptoethanol). Fractions corresponding to the SUMO-fused Ms-MshC were combined, followed by SUMO hydrolase treatment to remove the SUMO tag. This combined mixture was dialyzed in buffer containing 20 mM Tris-HCl pH 7, glycerol 10% (w/v) overnight at 4 °C to remove the salt and was then filtered by a 0.45 μm syringe filter (Millipore, Burlington, MA, USA) and loaded onto a Hitrap HP SP column (Cytiva, Marlborough, MA, USA) to remove the SUMO tag and SUMO hydrolase. The flow through containing Ms-MshC was further purified by anion exchange chromatography and size exclusion chromatography. Purified Ms-MshC was concentrated to 20 mg/mL in the final buffer (10 mM Tris-HCl pH 7, 100 mM NaCl and 2.5 mM β-mercaptoethanol) and stored at −80 °C.

3.4. Crystallization

The crystals of the apo form of Ms-MshC were obtained by the hanging drop vapor diffusion method at 20 °C. Briefly, 10 mg/mL protein in 10 mM Tris-HCl pH 7, 100 mM NaCl and 2.5 mM β-mercaptoethanol was mixed with the reservoir solution containing 25 mM CaCl2, 25 mM MgCl2, PEG8000 5–8% (w/v), Morpheus buffer system 2 pH 7.1, and ethylene glycol 20% (v/v) in a 1:1 ratio, which was then equilibrated over 1 mL of the same solution. Suitable crystals were harvested using a nylon cryo-loop. The crystals were briefly immersed in the reservoir solution supplemented with 22% (v/v) ethylene glycol as a cryoprotectant and then flash-frozen in liquid nitrogen for subsequent data collection.
For the MshC-ligand complex, the protein at a concentration of 10 mg/mL in 10 mM Tris-HCl pH 7, 100 mM NaCl and 2.5 mM β-mercaptoethanol was mixed with a final concentration of 1 mM compound and 1 mM tris(2-carboxyethyl)phosphine (TCEP), which was then incubated on ice for 1 h. Before crystallization experiments, the protein mixture was centrifuged at 12,000× g for 10 min at 4 °C. This cleared mixture was subjected to extensive crystallization screening against a broad series of commercially available screens utilizing the sitting drop vapor diffusion method at 20 °C. Crystals of MshC in complex with either compound 7b or 7d were found in conditions from the Morpheus screen in dispensed droplets comprised of 300 nL protein mixture and 150 nL reservoir solution containing PEG550MME 20% (v/v), PEG20000 10% (w/v), Morpheus divalent 60 mM and Morpheus buffer system 3 pH 8.5. The crystals were cryoprotected by passage through paraffin oil and flash-frozen in liquid nitrogen prior to data collection.

3.5. Data Collection and Structure Determination

X-ray diffraction data were collected at 100 K on a Beamline ID23-1 (ESRF, Grenoble, France) and Proxima I (Soleil, Paris, France) using a standard data collection setup. Data were processed using the autoPROC package [34]. The initial structure solution was determined by molecular replacement using Phaser [35] employing a modified model of Ms-MshC (PDB code: 3C8Z), whereby the bound ligand was removed as a starting search model. The structures were refined by alternating the steps of the manual building method in COOT [36] and refinement with Phenix.refine [28]. The final structures were qualified using the validation tools available on the Protein Data Bank server [37]. The corresponding data collection and refinement statistics are summarized in Table 2. Structural figures were prepared with Pymol (version 2.0.4).

3.6. Thermal Shift Assay

The binding affinity of the synthesized compounds to M. smegmatis MshC (Ms-MshC) was evaluated by applying a fluorescence-based thermal shift assay (TSA). A 20 μL reaction system containing 0.2 mg/mL protein, 1× thermal shift dye (ThermoFisher Scientific, Waltham, MA, USA), 50 mM HEPES pH 7.0, 150 mM KCl, 10% (v/v) ethylene glycol and various concentrations of each compound was prepared in 96-well PCR plates (ThermoFisher Scientific, Waltham, MA, USA) on ice. The plates were centrifuged to remove air bubbles and then measured by using the Applied Biosystems real-time PCR system (ThermoFisher Scientific, Waltham, MA, USA) with an excitation filter of 580 ± 10 nm and an emission filter of 623 ± 14 nm. The plates were gradually heated from 4 °C to 95 °C at a rate of 0.05 °C/s. The melting curves were fitted with a Boltzmann model using the Protein Thermal Shift software to calculate the protein melting temperature (Tm). Due to the compounds containing a cysteine group, which is easily oxidized, forming a disulfide, the reducing agent TCEP (1 mM) was added to eliminate the effects of oxidation. The compared results are shown in Table 1. Triplicate assays were applied to controls, and all compounds and the averaged Tm were used.

3.7. Antibacterial Activity Measurements

Mycobacterium tuberculosis H37Ra ATCC 25177 (Mtb), a Mtb Δmtr::Hyg derivative strain and Mycobacterium abscessus ATCC 19977 (Mab) containing an episomal plasmid with PSMT-1 were routinely cultured in 7H9 supplemented with 10% (v/v) albumin-dextrose-saline (ADS), 0.2% (v/v) glycerol and 0.5% (v/v) tyloxapol at 37 °C. First, the test compounds were dissolved in 100% DMSO to reach a final concentration of 20 mM DMSO. After confirmation of the compounds’ solubility, the test compounds were spotted in a 96-well plate in one-over-three dilution series by complementing with 7H9 supplemented with 10% (v/v) ADS, 0.2% (v/v) glycerol and 0.5% (v/v) tyloxapol to reach the final concentration starting from 100 µM with a maximum of 1% (v/v) DMSO. As a positive control, moxifloxacin was added. Solubility in aqueous conditions was confirmed visually. Next, the plates containing the Mtb strains were inoculated at an OD600 of 0.05, and the Mab strain was inoculated at an RLU of 1 × 104; they were subsequently incubated for 7 days (Mtb) or 3 days (Mab) at 37 °C. The viability of both Mtb and Mab was measured as a reduction in luminescence compared to the untreated reference culture by using a Promega discover multi-well plate reader (Promega, Madison, WI, USA). For the Mtb strains, the BacTiter-GloTM Microbial Cell Viability Assay (Promega, Madison, WI, USA) was used to provide a luminescent signal corresponding to the amount of ATP present.

4. Conclusions

Aminoacyl-sulfonamide-based compounds have been reported for class I LeuRS and class II ThrRS possessing potent antibacterial activity and species selectivity. Since MshC shares a similar catalytic pocket to class I CysRS, it stimulated us to generate similar compounds targeting the former protein, being essential in the regulation of oxidative stress in Mycobacterium. Based on this rational design, we reported a new series of cysteinyl-sulfonamide-based compounds that can effectively target Mycobacterium MshC. Two positive hits (compound 7b and 7d) were identified and suggested that heterocyclic substitutions at the meta position of the phenyl moiety are favorable for binding with MshC compared with a phenyl moiety. Additionally, the full-length crystal structures of ligand-free and compound-bound MshC provide the first glimpse of how this sulfonamide scaffold induces a number of conformational changes in the protein upon binding in the catalytic site. This result likely also reflects the binding mode of N-leucyl sulfonamide inhibitors targeting class I LeuRS [25]. Although the anti-mycobacterium activities of these compounds still need to be improved, the general synthetic route described can provide the basis for the production of a broad range of meta-substituted MshC inhibitors based on this cysteinyl phenylsulfonamide scaffold. In parallel, the current ligand-bound MshC structure provides good visual insights for further optimization.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms232315095/s1.

Author Contributions

Conceptualization, L.P. and A.V.A.; methodology, L.P., S.L., S.D.W., T.P. and D.C.; validation, L.P., D.C. and A.V.A.; Structural data analysis, L.P. and E.M.O.; NMR and MS data analysis, S.L., J.R. and A.V.A.; writing—original draft preparation, L.P.; writing—review and editing, L.P., D.C., E.M.O., S.V.S. and A.V.A.; supervision, S.D.W., D.C. and A.V.A.; project administration, S.D.W., D.C. and A.V.A.; funding acquisition, D.C. and A.V.A. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Research Fund Flanders (Fonds voor Wetenschappelijk Onderzoek, G0A4616N to A.V.A. and G066619N to D.C. and A.V.A. and by a scholarship (1S68722N) to T.P.); the KU Leuven Research Fund (3M14022 to A.V.A.); and Zhengzhou University Research Fund (32213231 to L.P.). Mass spectrometry was made possible by the support of the Hercules Foundation of the Flemish Government (20100225-7).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All structural datasets generated in this work are available in the PDB repository (https://www.rcsb.org/ (accessed on 10 November 2022)) under accession codes 8HFM, 8HFN and 8HFO.

Acknowledgments

The authors thank the beamline scientists in Proxima 1 of synchrotron Soleil and ID23-1 in ESRF for helping with X-ray data collection.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. WHO|Global Tuberculosis Report 2019. Available online: http://www.who.int/tb/publications/global_report/en/ (accessed on 25 February 2020).
  2. Pontali, E.; Raviglione, M.C.; Migliori, G.B.; The Writing Group Members of the Global TB Network Clinical Trials Committee. Regimens to Treat Multidrug-Resistant Tuberculosis: Past, Present and Future Perspectives. Eur. Respir. Rev. 2019, 28, 190035. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Lange, C.; Dheda, K.; Chesov, D.; Mandalakas, A.M.; Udwadia, Z.; Horsburgh, C.R. Management of Drug-Resistant Tuberculosis. Lancet 2019, 394, 953–966. [Google Scholar] [CrossRef] [PubMed]
  4. Ruecker, N.; Jansen, R.; Trujillo, C.; Puckett, S.; Jayachandran, P.; Piroli, G.G.; Frizzell, N.; Molina, H.; Rhee, K.Y.; Ehrt, S. Fumarase Deficiency Causes Protein and Metabolite Succination and Intoxicates Mycobacterium Tuberculosis. Cell Chem. Biol. 2017, 24, 306–315. [Google Scholar] [CrossRef] [Green Version]
  5. Hillion, M.; Bernhardt, J.; Busche, T.; Rossius, M.; Maaß, S.; Becher, D.; Rawat, M.; Wirtz, M.; Hell, R.; Rückert, C.; et al. Monitoring Global Protein Thiol-Oxidation and Protein S-Mycothiolation in Mycobacterium Smegmatis under Hypochlorite Stress. Sci. Rep. 2017, 7, 1195. [Google Scholar] [CrossRef] [Green Version]
  6. Buchmeier, N.A.; Newton, G.L.; Koledin, T.; Fahey, R.C. Association of Mycothiol with Protection of Mycobacterium Tuberculosis from Toxic Oxidants and Antibiotics. Mol. Microbiol. 2003, 47, 1723–1732. [Google Scholar] [CrossRef]
  7. Nambi, S.; Long, J.E.; Mishra, B.B.; Baker, R.; Murphy, K.C.; Olive, A.J.; Nguyen, H.P.; Shaffer, S.A.; Sassetti, C.M. The Oxidative Stress Network of Mycobacterium Tuberculosis Reveals Coordination between Radical Detoxification Systems. Cell Host Microbe 2015, 17, 829–837. [Google Scholar] [CrossRef] [Green Version]
  8. Lu, J.; Holmgren, A. The Thioredoxin Antioxidant System. Free. Radic. Biol. Med. 2014, 66, 75–87. [Google Scholar] [CrossRef] [PubMed]
  9. Sareen, D.; Newton, G.L.; Fahey, R.C.; Buchmeier, N.A. Mycothiol Is Essential for Growth of Mycobacterium Tuberculosis Erdman. J. Bacteriol. 2003, 185, 6736–6740. [Google Scholar] [CrossRef]
  10. Sassetti, C.M.; Boyd, D.H.; Rubin, E.J. Genes Required for Mycobacterial Growth Defined by High Density Mutagenesis. Mol. Microbiol. 2003, 48, 77–84. [Google Scholar] [CrossRef]
  11. Sareen, D.; Steffek, M.; Newton, G.L.; Fahey, R.C. ATP-Dependent L-Cysteine:1D-Myo-Inosityl 2-Amino-2-Deoxy-Alpha-D-Glucopyranoside Ligase, Mycothiol Biosynthesis Enzyme MshC, Is Related to Class I Cysteinyl-tRNA Synthetases. Biochemistry 2002, 41, 6885–6890. [Google Scholar] [CrossRef]
  12. Newberry, K.J. Structural Origins of Amino Acid Selection without Editing by Cysteinyl-tRNA Synthetase. EMBO J. 2002, 21, 2778–2787. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Newton, G.L.; Buchmeier, N.; La Clair, J.J.; Fahey, R.C. Evaluation of NTF1836 as an Inhibitor of the Mycothiol Biosynthetic Enzyme MshC in Growing and Non-Replicating Mycobacterium Tuberculosis. Bioorg. Med. Chem. 2011, 19, 3956–3964. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Gutierrez-Lugo, M.-T.; Baker, H.; Shiloach, J.; Boshoff, H.; Bewley, C.A. Dequalinium, a New Inhibitor of Mycobacterium Tuberculosis Mycothiol Ligase Identified by High-Throughput Screening. J. Biomol. Screen. 2009, 14, 643–652. [Google Scholar] [CrossRef] [Green Version]
  15. Ibba, M.; Soll, D. Aminoacyl-tRNA Synthesis. Annu. Rev. Biochem. 2000, 69, 617–650. [Google Scholar] [CrossRef]
  16. Perona, J.J.; Hadd, A. Structural Diversity and Protein Engineering of the Aminoacyl-tRNA Synthetases. Biochemistry 2012, 51, 8705–8729. [Google Scholar] [CrossRef] [PubMed]
  17. Vondenhoff, G.H.M.; Van Aerschot, A. Aminoacyl-tRNA Synthetase Inhibitors as Potential Antibiotics. Eur. J. Med. Chem. 2011, 46, 5227–5236. [Google Scholar] [CrossRef]
  18. Francklyn, C.S.; Mullen, P. Progress and Challenges in Aminoacyl-tRNA Synthetase-Based Therapeutics. J. Biol. Chem. 2019, 294, 5365–5385. [Google Scholar] [CrossRef] [Green Version]
  19. Cochrane, R.V.K.; Norquay, A.K.; Vederas, J.C. Natural Products and Their Derivatives as tRNA Synthetase Inhibitors and Antimicrobial Agents. Med. Chem. Commun. 2016, 7, 1535–1545. [Google Scholar] [CrossRef]
  20. Zhang, P.; Ma, S. Recent Development of Leucyl-tRNA Synthetase Inhibitors as Antimicrobial Agents. Medchemcomm 2019, 10, 1329–1341. [Google Scholar] [CrossRef]
  21. Lee, E.-Y.; Kim, S.; Kim, M.H. Aminoacyl-tRNA Synthetases, Therapeutic Targets for Infectious Diseases. Biochem. Pharmacol. 2018, 154, 424–434. [Google Scholar] [CrossRef]
  22. Pang, L.; Weeks, S.D.; Van Aerschot, A. Aminoacyl-tRNA Synthetases as Valuable Targets for Antimicrobial Drug Discovery. Int. J. Mol. Sci. 2021, 22, 1750. [Google Scholar] [CrossRef] [PubMed]
  23. Bouz, G.; Zitko, J. Inhibitors of Aminoacyl-tRNA Synthetases as Antimycobacterial Compounds: An up-to-Date Review. Bioorg. Chem. 2021, 110, 104806. [Google Scholar] [CrossRef] [PubMed]
  24. Teng, M.; Hilgers, M.T.; Cunningham, M.L.; Borchardt, A.; Locke, J.B.; Abraham, S.; Haley, G.; Kwan, B.P.; Hall, C.; Hough, G.W.; et al. Identification of Bacteria-Selective Threonyl-tRNA Synthetase Substrate Inhibitors by Structure-Based Design. J. Med. Chem. 2013, 56, 1748–1760. [Google Scholar] [CrossRef]
  25. Charlton, M.H.; Aleksis, R.; Saint-Leger, A.; Gupta, A.; Loza, E.; Ribas de Pouplana, L.; Kaula, I.; Gustina, D.; Madre, M.; Lola, D.; et al. N-Leucinyl Benzenesulfonamides as Structurally Simplified Leucyl-tRNA Synthetase Inhibitors. ACS Med. Chem. Lett. 2018, 9, 84–88. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Malik, K.; Matejtschuk, P.; Thelwell, C.; Burns, C.J. Differential Scanning Fluorimetry: Rapid Screening of Formulations That Promote the Stability of Reference Preparations. J. Pharm. Biomed. Anal. 2013, 77, 163–166. [Google Scholar] [CrossRef] [PubMed]
  27. Tremblay, L.W.; Fan, F.; Vetting, M.W.; Blanchard, J.S. The 1.6 Å Crystal Structure of Mycobacterium Smegmatis MshC: The Penultimate Enzyme in the Mycothiol Biosynthetic Pathway. Biochemistry 2008, 47, 13326–13335. [Google Scholar] [CrossRef] [Green Version]
  28. Adams, P.D.; Afonine, P.V.; Bunkóczi, G.; Chen, V.B.; Davis, I.W.; Echols, N.; Headd, J.J.; Hung, L.-W.; Kapral, G.J.; Grosse-Kunstleve, R.W.; et al. PHENIX: A Comprehensive Python-Based System for Macromolecular Structure Solution. Acta Crystallogr. D 2010, 66, 213–221. [Google Scholar] [CrossRef] [Green Version]
  29. De Ruysscher, D.; Pang, L.; Lenders, S.M.G.; Cappoen, D.; Cos, P.; Rozenski, J.; Strelkov, S.V.; Weeks, S.D.; Van Aerschot, A. Synthesis and Structure-Activity Studies of Novel Anhydrohexitol-Based Leucyl-tRNA Synthetase Inhibitors. Eur. J. Med. Chem. 2021, 211, 113021. [Google Scholar] [CrossRef]
  30. Weeks, S.D.; Drinker, M.; Loll, P.J. Ligation Independent Cloning Vectors for Expression of SUMO Fusions. Protein Expr. Purif. 2007, 53, 40–50. [Google Scholar] [CrossRef] [Green Version]
  31. Zhang, B.; De Graef, S.; Nautiyal, M.; Pang, L.; Gadakh, B.; Froeyen, M.; Van Mellaert, L.; Strelkov, S.V.; Weeks, S.D.; Van Aerschot, A. Family-Wide Analysis of Aminoacyl-Sulfamoyl-3-Deazaadenosine Analogues as Inhibitors of Aminoacyl-tRNA Synthetases. Eur. J. Med. Chem. 2018, 148, 384–396. [Google Scholar] [CrossRef]
  32. Pang, L.; Zanki, V.; Strelkov, S.V.; Van Aerschot, A.; Gruic-Sovulj, I.; Weeks, S.D. Partitioning of the Initial Catalytic Steps of Leucyl-tRNA Synthetase Is Driven by an Active Site Peptide-Plane Flip. Commun. Biol. 2022, 5, 883. [Google Scholar] [CrossRef] [PubMed]
  33. Studier, F.W. Stable Expression Clones and Auto-Induction for Protein Production in E. Coli. Methods Mol. Biol. 2014, 1091, 17–32. [Google Scholar] [CrossRef] [PubMed]
  34. Vonrhein, C.; Flensburg, C.; Keller, P.; Sharff, A.; Smart, O.; Paciorek, W.; Womack, T.; Bricogne, G. Data Processing and Analysis with the AutoPROC Toolbox. Acta Crystallogr. D Biol. Crystallogr. 2011, 67, 293–302. [Google Scholar] [CrossRef] [Green Version]
  35. McCoy, A.J.; Grosse-Kunstleve, R.W.; Adams, P.D.; Winn, M.D.; Storoni, L.C.; Read, R.J. Phaser Crystallographic Software. J. Appl. Crystallogr. 2007, 40, 658–674. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Emsley, P.; Lohkamp, B.; Scott, W.G.; Cowtan, K. Features and Development of Coot. Acta Crystallogr. D Biol. Crystallogr. 2010, 66, 486–501. [Google Scholar] [CrossRef] [Green Version]
  37. Gore, S.; Sanz García, E.; Hendrickx, P.M.S.; Gutmanas, A.; Westbrook, J.D.; Yang, H.; Feng, Z.; Baskaran, K.; Berrisford, J.M.; Hudson, B.P.; et al. Validation of Structures in the Protein Data Bank. Structure 2017, 25, 1916–1927. [Google Scholar] [CrossRef]
Ijms 23 15095 g001 550

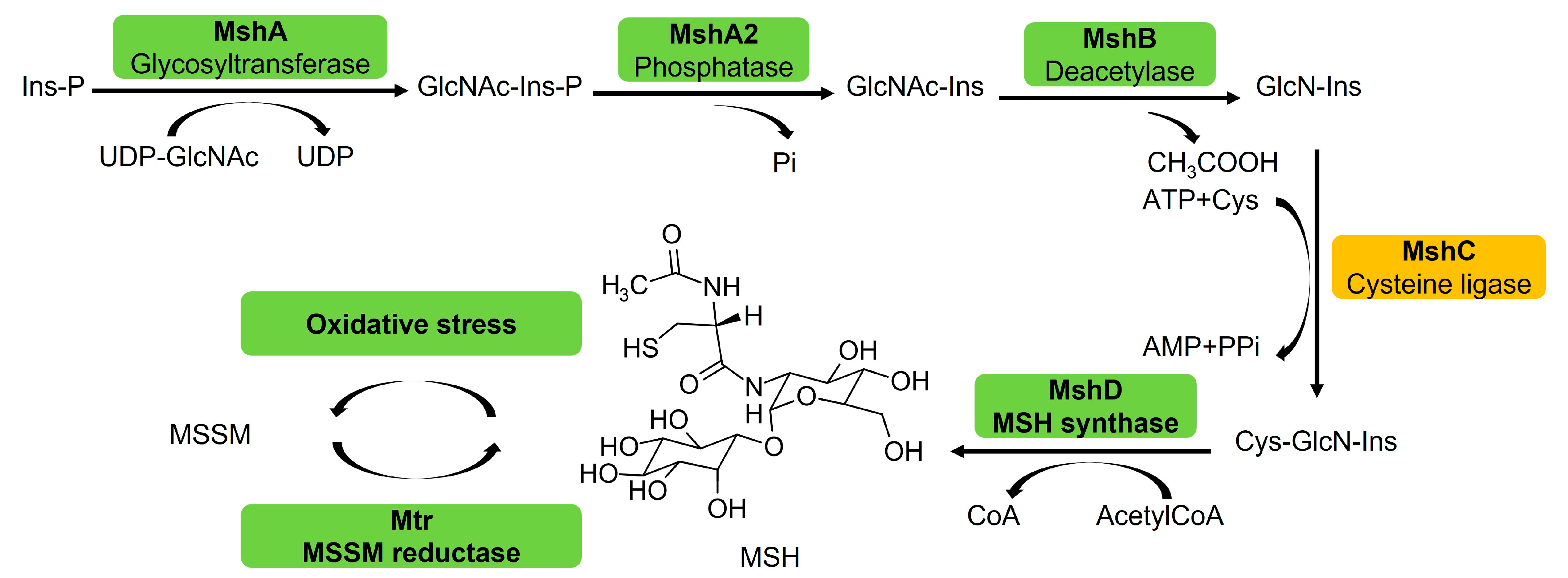

Figure 1. Biosynthetic and recycling pathway of MSH. MSH glycosyltransferase (MshA) links 1L-myo-inositol-1-phosphate (Ins-P) to N-acetylglucosamine (GlcNAc). MSH phosphatase (MshA2) produces GlcNAc-Ins. MSH deacetylase (MshB) generates 1-O-(2-amino-2-deoxy-α-d-glucopyranosyl)-d-myo-inositol (GlcN-Ins). MshC then links l-Cys with GlcN-Ins, and MSH synthase (MshD) acetylates l-Cys-GlcN-Ins to produce the final product, MSH. MSH autoxidation forms MSSM, which is reduced by MSH disulfide reductase (Mtr).
Figure 1. Biosynthetic and recycling pathway of MSH. MSH glycosyltransferase (MshA) links 1L-myo-inositol-1-phosphate (Ins-P) to N-acetylglucosamine (GlcNAc). MSH phosphatase (MshA2) produces GlcNAc-Ins. MSH deacetylase (MshB) generates 1-O-(2-amino-2-deoxy-α-d-glucopyranosyl)-d-myo-inositol (GlcN-Ins). MshC then links l-Cys with GlcN-Ins, and MSH synthase (MshD) acetylates l-Cys-GlcN-Ins to produce the final product, MSH. MSH autoxidation forms MSSM, which is reduced by MSH disulfide reductase (Mtr).
Ijms 23 15095 g001
Ijms 23 15095 g002 550

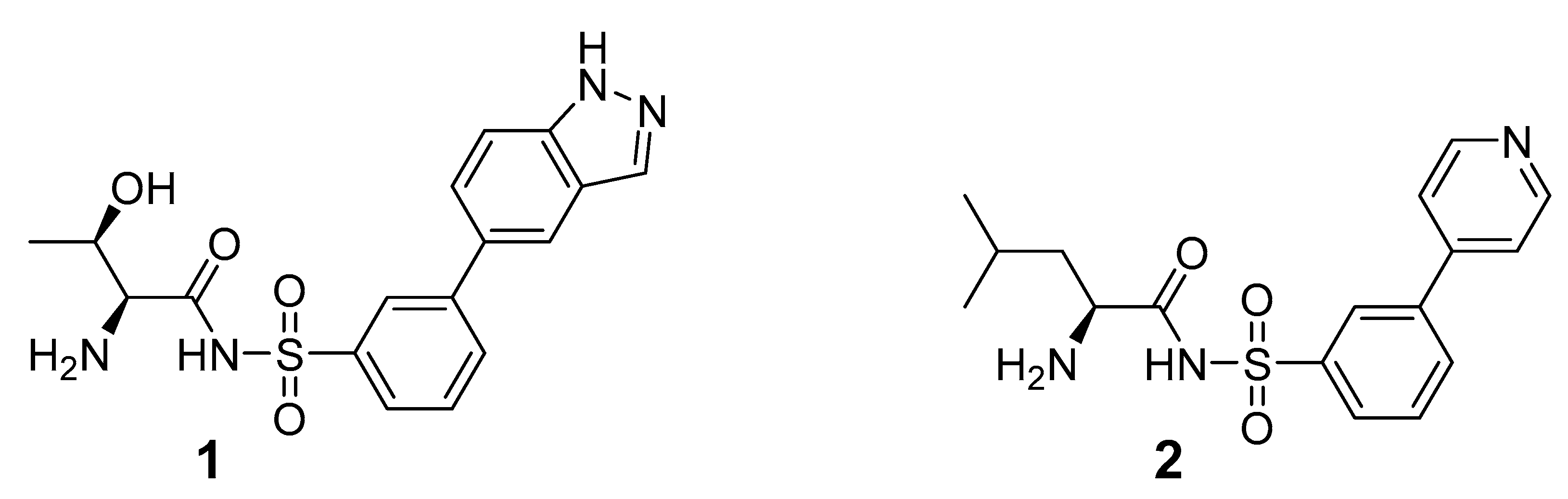

Figure 2. Respective lead compounds described for inhibition of bacterial ThrRS (developed by Trius Pharmaceuticals) and LeuRS (developed by Oxford Drug Design), respectively.
Figure 2. Respective lead compounds described for inhibition of bacterial ThrRS (developed by Trius Pharmaceuticals) and LeuRS (developed by Oxford Drug Design), respectively.
Ijms 23 15095 g002
Ijms 23 15095 g003 550

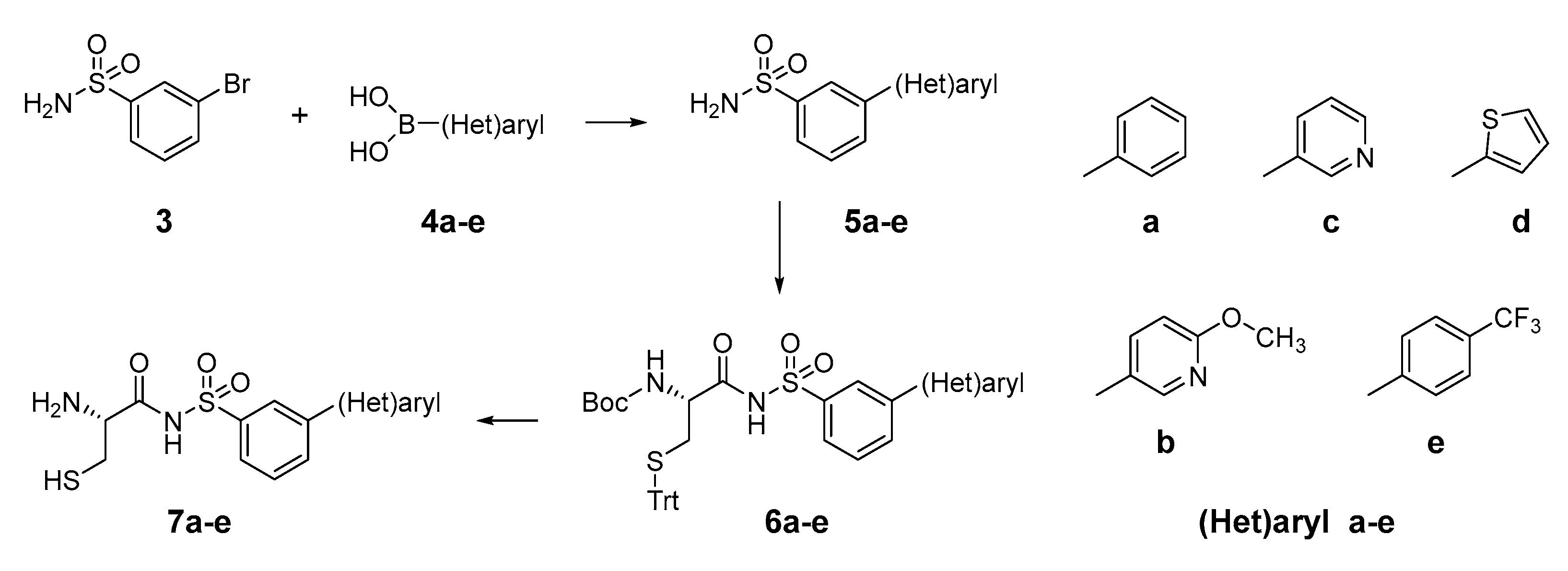

Figure 3. Synthetic scheme for the cysteinyl sulfonamide congeners 7a–e.
Figure 3. Synthetic scheme for the cysteinyl sulfonamide congeners 7a–e.
Ijms 23 15095 g003
Ijms 23 15095 g004 550

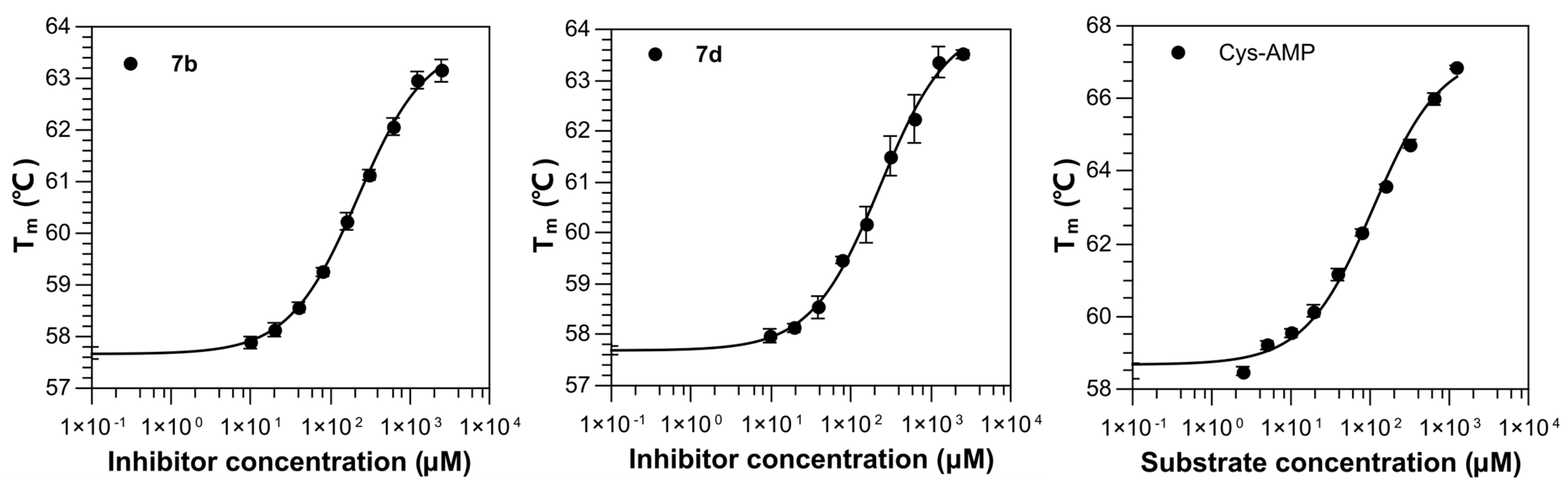

Figure 4. Titration curves of compounds measured by thermal shift assay. The experiments were performed in triplicate with error bars shown.
Figure 4. Titration curves of compounds measured by thermal shift assay. The experiments were performed in triplicate with error bars shown.
Ijms 23 15095 g004
Ijms 23 15095 g005 550

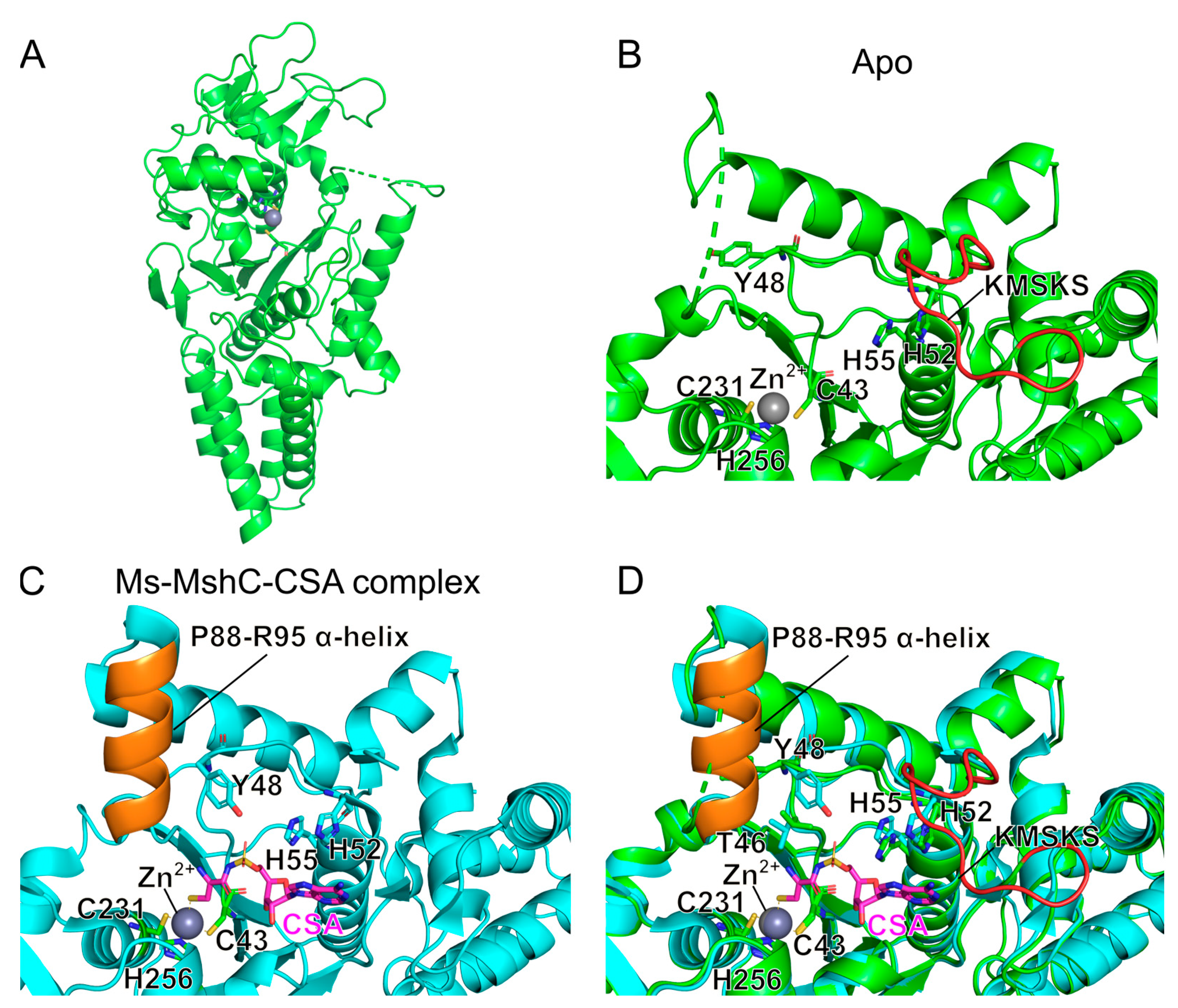

Figure 5. Comparison of the crystal structures of full-length and proteolyzed MshC from M. smegmatis. (A) Ligand-free structure of full-length MshC. (B) Zoom in of the catalytic domain of apo form MshC; (C) Zoom in of the catalytic domain of MshC in complex with CSA [27] (PDB ID: 3C8Z); (D) Structural superposition of apo form (green) and CSA-bound MshC (cyan). Protein backbones of both structures are shown as cartoon representations, while ligand and crucial protein residues are shown as sticks, and the co-factor Zn2+ ion is shown as a grey ball. The red- and orange-colored regions represent the KMSKS loop in the apo structure and the P88–R95 helix in the published CSA-bound structure, respectively.
Figure 5. Comparison of the crystal structures of full-length and proteolyzed MshC from M. smegmatis. (A) Ligand-free structure of full-length MshC. (B) Zoom in of the catalytic domain of apo form MshC; (C) Zoom in of the catalytic domain of MshC in complex with CSA [27] (PDB ID: 3C8Z); (D) Structural superposition of apo form (green) and CSA-bound MshC (cyan). Protein backbones of both structures are shown as cartoon representations, while ligand and crucial protein residues are shown as sticks, and the co-factor Zn2+ ion is shown as a grey ball. The red- and orange-colored regions represent the KMSKS loop in the apo structure and the P88–R95 helix in the published CSA-bound structure, respectively.
Ijms 23 15095 g005
Ijms 23 15095 g006 550

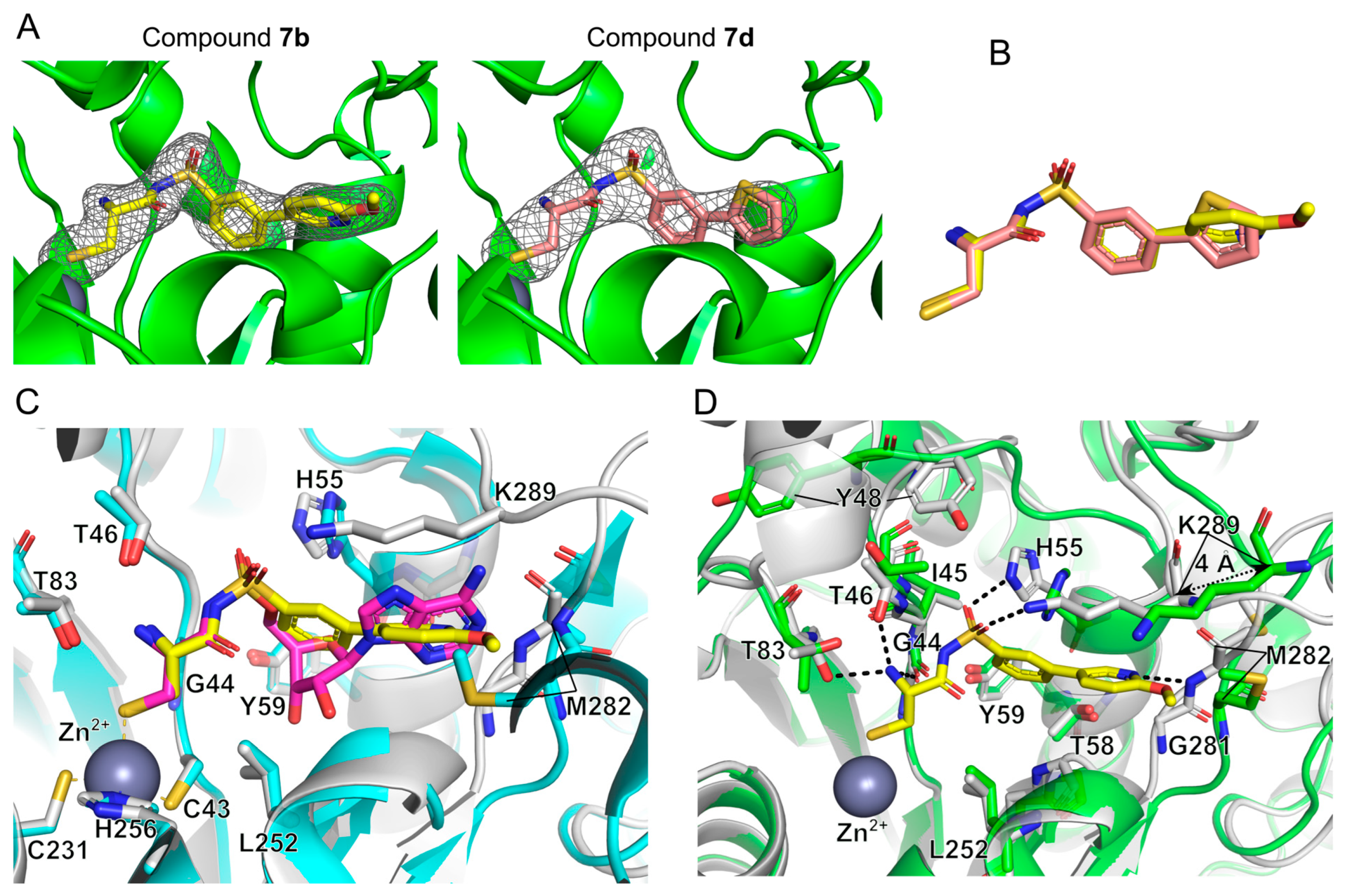

Figure 6. The binding mode of the sulfonamide-based compound with Ms-MshC. (A) The calculated electron density map (omit map) of compounds 7b and 7d in the catalytic site of Ms-MshC. Maps were determined in Phenix.Polder map [28] and countered at 3.5 σ. (B) Superposition of compounds 7b and 7d based on the alignment of protein backbones. (C) Structural superposition of CSA-bound (cyan) and compound 7b-bound (grey) Ms-MshC. (D) Structural superposition of the apo form of MshC (green) and MshC in complex with compound 7b (grey). Protein backbones were shown as cartoon representations, while ligands and essential protein residues were shown as sticks, with the co-factor Zn2+ ion shown as a grey sphere. H-bonds were shown as black dashed lines. The movement of 289KMSKS293 loop (~4 Å) induced by compound binding in Figure 6D was measured based on the different positioning of K289 Cα atom between these two structures.
Figure 6. The binding mode of the sulfonamide-based compound with Ms-MshC. (A) The calculated electron density map (omit map) of compounds 7b and 7d in the catalytic site of Ms-MshC. Maps were determined in Phenix.Polder map [28] and countered at 3.5 σ. (B) Superposition of compounds 7b and 7d based on the alignment of protein backbones. (C) Structural superposition of CSA-bound (cyan) and compound 7b-bound (grey) Ms-MshC. (D) Structural superposition of the apo form of MshC (green) and MshC in complex with compound 7b (grey). Protein backbones were shown as cartoon representations, while ligands and essential protein residues were shown as sticks, with the co-factor Zn2+ ion shown as a grey sphere. H-bonds were shown as black dashed lines. The movement of 289KMSKS293 loop (~4 Å) induced by compound binding in Figure 6D was measured based on the different positioning of K289 Cα atom between these two structures.
Ijms 23 15095 g006
Table
Table 1. Thermal stabilization capability of the synthesized compounds against Ms-MshC.
Table 1. Thermal stabilization capability of the synthesized compounds against Ms-MshC.
CompoundsConc. (µM)Tm (°C) 1∆Tm (°C) Tm (°C; + 1mM TCEP) 5∆Tm (°C) 6EC50
Control/58.47 ± 0.07////
DMSO 10% (v/v)55.09 ± 0.98−3.38 2///
EDO 10% (v/v)57.99 ± 0.04−0.48 357.91 ± 0.05//
Ijms 23 15095 i001
7a		100057.56 ± 0.16−0.43 457.46 ± 0.26−0.45/
10058.05 ± 0.12+0.06 458.00 ± 0.09+0.09
Ijms 23 15095 i002
7b		100058.08 ± 0.23+0.09 460.99 ± 0.23+3.08219.29 ± 1.27
10057.98 ± 0.08−0.01 459.15 ± 0.05 +1.24
Ijms 23 15095 i003
7c		100058.20 ± 0.14+0.21 458.50 ± 0.15+0.59/
10058.01 ± 0.07+0.02 457.90 ± 0.01−0.01
Ijms 23 15095 i004
7d		100058.98 ± 0.22+0.99 461.66 ± 0.29+3.75230.60 ± 2.16
10057.94 ± 0.09−0.05 459.01 ± 0.22+1.10
Ijms 23 15095 i005
7e		100058.13 ± 0.14+0.14 458.67 ± 0.17+0.76/
10057.76 ± 0.08−0.23 457.76 ± 0.03−0.15
L-Cys10,00061.56 ± 0.06+3.09 4///
100059.20 ± 0.07+0.73 4//
ATP10,00059.82 ± 0.18+1.35 4///
100058.20 ± 0.03−0.27 4//
Cys-AMP100066.55 ± 0.13+8.08 4//106.64 ± 1.34
10062.23 ± 0.13+3.76 4//
1 All thermal shift assays were performed in triplicates. The Tm values are shown as average number ± standard deviations for triplicate measurements. 2 ∆Tm was measured by the difference of Ms-MshC in buffer and in buffer supplemented with 10% (v/v) DMSO. 3 ∆Tm was measured by the difference of Ms-MshC in buffer and in buffer supplemented with 10% (v/v) EDO. 4 ∆Tm was measured by the difference of Ms-MshC with and without ligand in buffer containing 10% (v/v) EDO. 5 Tm values of Ms-MshC were measured without or with ligand in buffer containing 10% (v/v) EDO and 1 mM TCEP. The presence of TCEP ensures the compounds in the reduced form to eliminate the effect of the compound auto-oxidation. 6 ∆Tm was measured by the difference of Ms-MshC with and without ligand in buffer containing 10% (v/v) EDO and 1mM TCEP.
Table
Table 2. X-ray diffraction data collection and refinement statistics of Ms-MshC and Ms-MshC-ligand complexes.
Table 2. X-ray diffraction data collection and refinement statistics of Ms-MshC and Ms-MshC-ligand complexes.
MshC (apo)MshC-Compound 7bMshC-Compound 7d
PDB Code8HFM8HFN8HFO
Data collection
Resolution range (Å)48.32–2.41 (2.50–2.41)43.68–1.98 (2.05–1.98)55.03–2.773 (2.87–2.77)
Space groupP 41 2 2P 61P 61
Unit cell
a, b, c (Å)69.81 69.81 236.01166.02 166.02 51.36 168.11 168.11 52.30
α, β, γ (°)90 90 9090 90 12090 90 120
Unique reflections23,525 (2275)56,710 (5394)21,800 (2176)
Multiplicity26.2 (26.6)10.2 (10.6)20.1 (20.7)
Completeness (%)99.9 (100.0)99.9 (99.9)99.9 (99.9)
Mean I/σ (I)15.3 (1.6)14.1 (2.6)19.0 (2.3)
Wilson B-factor (Å2)56.441.292.4
Rmerge0.167 (1.995)0.086 (1.160)0.098 (1.438)
Rmeas0.171 (2.034)0.090 (1.219)0.100 (1.474)
Rpim0.033 (0.393)0.029 (0.373)0.023 (0.323)
CC1/20.998 (0.760)0.998 (0.886)0.993 (0.889)
Refinement
Reflections used for refinement23,514 (2276)53,801 (5391)21,784 (2174)
Rwork0.207 (0.298)0.199 (0.490)0.213 (0.409)
Rfree0.238 (0.359)0.223 (0.460)0.258 (0.356)
Number of non-H atoms319734733214
Macromolecules313032003181
Inhibitor/2723
Solvent6524610
RMS bonds (Å)0.0040.0040.005
RMS angles (°)0.660.770.89
Ramachandran favoured (%)98.2599.2795.38
Ramachandran allowed (%)1.750.734.38
Average B-factor (Å2)65.953.64109.07
Protein66.0653.55109.27
Inhibitor/46.8582.91
Solvent57.9855.63105.87
Statistics were generated using Phenix [28]; values in parenthesis correspond to the highest resolution shell.
Table
Table 3. Activity of the test compounds (7a–e) against Mycobacterium tuberculosis and Mycobacterium abscessus.
Table 3. Activity of the test compounds (7a–e) against Mycobacterium tuberculosis and Mycobacterium abscessus.
CompoundpIC50 a
Mtb bMab c
WT dΔmtr::Hyg eWT
7a<3.9<3.9<3.9
7b<3.9<3.9<3.9
7c<3.9<3.9<3.9
7d<3.9<3.9<3.9
7e<3.9<3.9<3.9
f MXF8.16.35.5
a pIC50: calculated as the negative log of the IC50 value when converted to molar. b Mtb: Mycobacterium tuberculosis H37Ra ATCCTM 25177. c Mab: Mycobacterium abscessus ATCCTM 19977 containing an episomal plasmid with PSMT-1. d WT: wild type. e Δmtr::Hyg, Mtb H37Ra derivative strain carrying a mycothiol reductase gene replaced with a hygromycin resistance cassette. f MXF: moxifloxacin, a second line of care injectable antibiotic with activity against Mtb and Mab used as a positive control.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Pang, L.; Lenders, S.; Osipov, E.M.; Weeks, S.D.; Rozenski, J.; Piller, T.; Cappoen, D.; Strelkov, S.V.; Van Aerschot, A. Structural Basis of Cysteine Ligase MshC Inhibition by Cysteinyl-Sulfonamides. Int. J. Mol. Sci. 2022, 23, 15095. https://doi.org/10.3390/ijms232315095

AMA Style

Pang L, Lenders S, Osipov EM, Weeks SD, Rozenski J, Piller T, Cappoen D, Strelkov SV, Van Aerschot A. Structural Basis of Cysteine Ligase MshC Inhibition by Cysteinyl-Sulfonamides. International Journal of Molecular Sciences. 2022; 23(23):15095. https://doi.org/10.3390/ijms232315095

Chicago/Turabian Style

Pang, Luping, Stijn Lenders, Evgenii M. Osipov, Stephen D. Weeks, Jef Rozenski, Tatiana Piller, Davie Cappoen, Sergei V. Strelkov, and Arthur Van Aerschot. 2022. "Structural Basis of Cysteine Ligase MshC Inhibition by Cysteinyl-Sulfonamides" International Journal of Molecular Sciences 23, no. 23: 15095. https://doi.org/10.3390/ijms232315095

APA Style

Pang, L., Lenders, S., Osipov, E. M., Weeks, S. D., Rozenski, J., Piller, T., Cappoen, D., Strelkov, S. V., & Van Aerschot, A. (2022). Structural Basis of Cysteine Ligase MshC Inhibition by Cysteinyl-Sulfonamides. International Journal of Molecular Sciences, 23(23), 15095. https://doi.org/10.3390/ijms232315095

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
