Article

The Pathogen-Induced MATE Gene TaPIMA1 Is Required for Defense Responses to Rhizoctonia cerealis in Wheat

by
Qiang Su
,
Wei Rong
and
Zengyan Zhang
*
The National Key Facility for Crop Gene Resources and Genetic Improvement, Institute of Crop Sciences, Chinese Academy of Agricultural Sciences, Beijing 100081, China
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2022, 23(6), 3377; https://doi.org/10.3390/ijms23063377
Submission received: 13 February 2022 / Revised: 17 March 2022 / Accepted: 18 March 2022 / Published: 21 March 2022
(This article belongs to the Special Issue Mechanisms of Action of Antifungal Compounds/Agents in Food and Food Matrices)
Browse Figures
Review Reports Versions Notes

Abstract

:
The sharp eyespot, mainly caused by the soil-borne fungus Rhizoctonia cerealis, is a devastating disease endangering production of wheat (Triticum aestivum). Multi-Antimicrobial Extrusion (MATE) family genes are widely distributed in plant species, but little is known about MATE functions in wheat disease resistance. In this study, we identified TaPIMA1, a pathogen-induced MATE gene in wheat, from RNA-seq data. TaPIMA1 expression was induced by Rhizoctonia cerealis and was higher in sharp eyespot-resistant wheat genotypes than in susceptible wheat genotypes. Molecular biology assays showed that TaPIMA1 belonged to the MATE family, and the expressed protein could distribute in the cytoplasm and plasma membrane. Virus-Induced Gene Silencing plus disease assessment indicated that knock-down of TaPIMA1 impaired resistance of wheat to sharp eyespot and down-regulated the expression of defense genes (Defensin, PR10, PR1.2, and Chitinase3). Furthermore, TaPIMA1 was rapidly induced by exogenous H2O2 and jasmonate (JA) treatments, which also promoted the expression of pathogenesis-related genes. These results suggested that TaPIMA1 might positively regulate the defense against R. cerealis by up-regulating the expression of defense-associated genes in H2O2 and JA signal pathways. This study sheds light on the role of MATE transporter in wheat defense to Rhizoctonia cerealis and provides a potential gene for improving wheat resistance against sharp eyespot.

1. Introduction

Common wheat (Triticum aestivum) is an important staple crop for global human consumption [1]. Various diseases cause great yield losses of wheat worldwide [2]. Sharp eyespot is a damaging soil-borne disease of wheat in many regions of world [3]. This disease is caused by the necrotrophic fungal pathogen Rhizoctonia cerealis, which mainly infects plant stems and sheaths [3,4]. China is the largest epidemic region, where at least 6.67 million hectares of wheat plants have been infected with R. cerealis every year since 2005 [5,6]. R. cerealis also infects other cereal crops (such as barley, oats, and rye), and sugar beet, cotton, and potato [3,7,8]. To date, no completely resistant wheat germplasm to R. cerealis has been identified, and chemical control is still limited [9]. Various studies have shown that using important resistance-associated genes would generate wheat with better resistance to sharp eyespot [5,6,9,10,11,12,13,14]. Therefore, exploration of effective resistance genes is a viable strategy to breeding wheat with resistance to sharp eyespot.
To ward off invading pathogens, plants have evolved a two-tiered innate immune system: pathogen-associated molecular pattern (PAMP)-triggered immunity (PTI), and effector-triggered immunity (ETI) [15]. By using an Arabidopsis–Pseudomonas syringeae pathosystem, studies revealed that PTI and ETI are initiated by distinct activation mechanisms and involve different early signaling cascades [16,17]. Both produce reactive oxygen species (ROS, such as H2O2 and O2−) and induce expression of distinct or certain common defense-associated genes in the late response signals [18]. In Arabidopsis thaliana, previous studies showed that the up-regulated transcripts of some defense-associated genes by pathogen infection are consistent with their defensive function [19,20,21]. In wheat, several pathogen-induced defense-associated genes, such as TaAGC1, TaRCR1, TaCRK3, TaMKK5, TaGATA1, and TaSTT3b-2B, positively regulate the defense responses against R. cerealis [6,10,11,22,23,24]. These overexpressed genes can up-regulate the expression of downstream pathogenesis-related genes, such as PR-1.2, PR2, chitinase3, and defensin [10,11,22,23,24,25,26,27,28], resulting in the enhanced resistance to sharp eyespot in wheat [10,11,22,23,24].
Plants produce hormones, such as the salicylic acid (SA), jasmonates (JA), ethylene (ET), and abscisic acid (ABA), to amplify immune signaling and mediate defense responses against invasion of pathogens [29,30,31]. SA plays a positive role in resisting biotrophic and hemi-biotrophic pathogens [30,32]. JA and ET are responsible for defenses against necrotrophic pathogens and insects, while ABA is mainly involved in resisting abiotic stresses and hemi-biotrophic pathogens [30,33]. Interestingly, these hormones affect the expression of resistance/defense-associated genes to function [31,32,33,34]. For example, in wheat, TaGATA1 responds to JA and cytokinin, and it subsequently up-regulates resistance responses to the infection of R. cerealis [10]. Similarly, TaPIMP1 positively regulates defense responses to Bipolaris sorokiniana and drought stress through the ABA–SA signaling pathway in wheat [35]. TaMYB29 overexpression enhances resistance to stripe rust by boosting H2O2 accumulation, PR genes expression, and SA signaling in wheat [36]. Therefore, various defense-associated genes perform their functions in a highly coordinated manner through complex phytohormone signaling networks in plants.
Multi-Antimicrobial Extrusion (MATE) transporters are present in bacteria, archaea, and all eukaryotic kingdoms and are membrane efflux transporters [37]. MATE genes are widely distributed in plant genomes, and their proteins are generally comprised of 400–550 amino acid residues that encompass a 12-transmembrane segment (TMS) and MatE domain [37]. In the model plant Arabidopsis thaliana, MATE transporters have been shown to function in disease resistance [38,39,40], aluminum toxicity tolerance [41,42], detoxification of heavy metals [43,44], and the transport of secondary metabolites, e.g., anthocyanidins [45,46], flavonoids [47], and hormones [48,49]. Interestingly, MATE transporter, ENHANCED DISEASE SUSCEPTIBILITY 5 (EDS5), is involved in SA synthesis and is required for defense against the yellow strain of Cucumber mosaic virus [CMV(Y)] and Pseudomonas syringae pathogens in Arabidopsis [38,49,50,51]. Moreover, ectopic expression of AtDTX18, a MATE transporter controlling the extracellular accumulation of coumaroylagmatine, improves resistance of transgenic potato to Phytophthora infestans and Botrytis cinerea [40]. Conversely, ADS1 negatively regulates Arabidopsis against P. syringeae (PstDC3000) by down-regulating the accumulation of SA and the expression of PR1 homolog genes [39]. Similarly, ectopic expression of OsMATE1 and OsMATE2 in Arabidopsis negatively regulates resistance to PstDC3000 and affects plant growth and development [52]. In a previous study, RNA-seq data showed that in wheat, a MATE gene with sequence number TraesCS2B01G296000 was upregulated and might be associated with defense to Fusarium graminearum [53]. However, the functional roles of MATEs in defense of R. cerealis remain unknown in wheat.
In this study, we identified a pathogen-induced MATE transporter named TaPIMA1 from a set of wheat RNA-seq transcriptome data and revealed that TaPIMA1 participated in resistance responses to R. cerealis in wheat. The expression of TaPIMA1 was induced by R. cerealis, H2O2, and JA. Virus-Induced Gene Silencing (VIGS) and disease assessment results showed that TaPIMA1 was required for wheat resistance to sharp eyespot. TaPIMA1 positively regulated the expression profiles of at least 4 PR genes.

2. Results

2.1. Identification of TaPIMA1 by Transcriptomic Analysis

To identify resistance-related genes to R. cerealis in wheat, we analyzed RNA-seq data of the sharp eyespot resistant and susceptible recombinant inbred lines (RILs, derived from Shanhongmai×Wenmai6) [11]. In previous studies, some MATE transporters, e.g., AtEDS5, AtADS1, OsMATE1, OsMATE2, were shown to play important roles in disease resistance responses in Arabidopsis and rice [38,39]. Herein, we focused on mining wheat MATE transporters that were up-regulated in the resistant RILs than in the susceptible RILs. As a result, a MATE gene with sequence number TraesCS3B02G563500.1, named TaPIMA1, showed much higher expression levels in resistant RILs (RIL-R) compared with susceptible RILs (RIL-S) (Figure 1A). Furthermore, qRT-PCR analysis showed that TaPIMA1 expression was significantly induced by R. cerealis in the resistant wheat cultivars Shanhongmai and CI12633 from 1 to 10 days post-inoculation (dpi) (Figure 1B). Subsequently, we investigated the expression profiles of TaPIMA1 in different wheat cultivars at 10 dpi with R. cerealis. As expected, the transcript level of TaPIMA1 was significantly higher in the resistant cultivars (Shanhongmai and CI12633) than in susceptible cultivars (Yangmai16 and Wenmai6), and the highest expression level was detected in Shanhongmai (Figure 1B,C). Moreover, at the filling stage of CI12633 plants, TaPIMA1 was highly expressed in roots and stems, where sharp eyespot mainly occurred (Figure 1D). Taken together, the above results suggested that TaPIMA1 might function in defense responses to R. cerealis in wheat.

2.2. Sequence and Phylogenetic Analyses of TaPIMA1

The cDNA and genomic sequences of TaPIMA1 were cloned from wheat cultivar CI12633 and determined by Sanger sequencing. Sequence alignment showed that the cDNA sequence of TaPIMA1 displayed 100% identity with the reference sequence TraesCS3B02G563500.1. In addition, the genomic sequence of TaPIMA1 contained six introns and seven exons, which was transcribed into a 1500 bp-length coding (CD) sequence (Figure 2A). The TaPIMA1 protein has 499 amino acid (aa) residues, and its molecular weight is predicted to be 53.50 kDa. Moreover, the TaPIMA1 protein includes two MatE domains (no. 50–210 aa and no. 271–434 aa, respectively) and 12 transmembrane helices (TMHs, no. 445–464 aa) (Figure 2B).
The MATE family genes are functionally diverse. To determine the structural similarity of TaPIMA1 to other MATE transporters in plants, we performed phylogenetic analysis of TaPIMA1 and 24 other MATE proteins from wheat, rice, Hordeum vulgare, Triticum urartu, Setaria viridis, Brachypodium distachyon, Sorghum bicolor, Arabidopsis, Arachis hypogaea, Gossypium hirsutum, Medicago truncatula, and Vitis vinifera (Figure 2C, Table S1). These 24 known-function MATE proteins encompass all the reported functions of the MATE transporters, such as disease resistance [38,39,40,49,50,51,52,53,54], aluminum tolerance [41,42,55,56,57,58,59,60], iron translocation [56,61,62,63], anthocyanidin transport [47,64,65], and heavy metals detoxification [43,44,66]. As a result, the dendrogram showed that these 25 MATE proteins were mainly clustered into two clades. TaPIMA1 and most of the defense-related MATEs, including OsMATE1, OsMATE2, AtADS1, and TraesCS2B01G296000, were clustered into the group I (Figure 2C). TaPIMA1 was closely related to the anthocyanidins transporters Arabidopsis AtTT12 and G. hirsutum GhTT12 (Figure 2C). The full-length of TaPIMA1 shared 47.35% and 46.47% identities with GhTT12 and AtTT12, respectively (Figure S1). These preliminary analyses suggest that the MATE protein TaPIMA1 might be involved in defense and/or anthocyanidin transport.

2.3. Subcellular Localization of TaPIMA1 Protein

To investigate the subcellular location of TaPIMA1 in wheat, we performed the protein transient expression assay in wheat protoplasts. The TaPIMA1 was introduced into the PH16318 construct that was driven by the 35S CaMV promoter. Then, the PH16318-TaPIMA1-GFP and PH16318-GFP (control) construct DNAs were introduced into wheat mesophyll protoplasts and expressed, respectively. Confocal microscopic observation showed that the TaPIMA1-GFP fusion protein distributed in the cytoplasm and in plasma membrane, while the control GFP was expressed throughout the cell (Figure 3). Therefore, the results suggested that TaPIMA1 localized in wheat cytoplasm and plasma membrane.

2.4. Knock-Down of TaPIMA1 Reduced Resistance to Sharp Eyespot in Wheat

To specifically knock-down TaPIMA1, a 216 bp cDNA fragment specific to TaPIMA1 was sub-cloned in an antisense orientation into the multi-clone site of the γ chain of Barley stripe mosaic virus (BSMV), generating the recombinant γ-TaPIMA1 (Figure S2A,B). The BSMV α, β, γ-TaPIMA1 and γ-GFP construct DNA was individually transcribed into RNA in vitro (Figure S2C). Subsequently, these virus RNAs (BSMV α, β, and γ-TaPIMA1 or α, β, and γ-GFP) were mixed and inoculated into the emerged third leaves of the resistant wheat cultivar CI12633 plants to execute the BSMV-mediated VIGS (BSMV-VIGS). At 10 dpi with BSMV:TaPIMA1 and BSMV:GFP, the BSMV symptom was exhibited on the new leaves of both BSMV:GFP-infected and BSMV:TaPIMA1-infected plants (Figure 4A). Additionally, the BSMV coat protein (CP) gene was detected in BSMV-infected plants by RT-PCR (Figure 4B). Moreover, the qRT-PCR showed that the mRNA levels of TaPIMA1 were significantly decreased in BSMV:TaPIMA1-infected CI12633 plants compared with the BSMV:GFP-infected CI12633 plants (Figure 4C). These results indicated, TaPIMA1 was successfully knocked-down in BSMV:TaPIMA1-infected CI12633 plants.
Next, we assessed disease severity of BSMV-infected wheat plants after inoculation with R. cerealis. At 10 dpi with R. cerealis, the sharp eyespot symptoms exhibited on the leaf sheaths and stems of BSMV-infected CI12633 plants, while the lesions of BSMV:TaPIMA1-infected plants were larger than those of control plants (Figure 4D). Furthermore, the fungal biomass, measured by the transcriptional level of R. cerealis Actin, was significantly higher in BSMV:TaPIMA1-infected plants (more than 29.8-fold) than that in control plants (Figure 4E). At ~30 dpi with R. cerealis, there were more serious lesions on the stems of BSMV-infected CI12633 plants, where the lesions were significantly larger in BSMV:TaPIMA1-infected plants compared with BSMV:GFP-infected plants (Figure 4F,G). The average necrotic length and width of BSMV:TaPIMA1-infected plants were 1.70 and 0.55 cm, whereas the BSMV:GFP-infected plants were 0.98 and 0.28 cm, respectively (Figure 4G). Two batches in functional assessments indicated that the average infection types (ITs) and disease index (DIs) of TaPIMA1-silenced CI12633 plants were 2.29 /2.67 and 45.88/53.33, while those of BSMV:GFP-infected CI12633 plants were 1.25/1.27 and 25.00/25.41, respectively (Figure 4H, Table S2). These results indicated that silencing of TaPIMA1 significantly reduced the wheat resistance to sharp eyespot, and suggested that TaPIMA1 is required for wheat resistance to R. cerealis.

2.5. Knock-Down of TaPIMA1 Decreased the Expression of PR Genes

Previously studies have shown that the defense-associated even PR genes (including PR1.2, PR10, Chitinase3, and defensin) are involved in resistance responses to R. cerealis infection in wheat [5,22,25,26,27]. To investigate the regulatory pathway of TaPIMA1 in response to R. cerealis infection, we examined the expression profiles of several PR genes in TaPIMA1-silenced CI12633 plants. As shown in Figure 5, the transcriptional levels of PR1.2, PR10, Chitinase3, and defensin were significantly downregulated in TaPIMA1-silenced plants compared with the control (BSMV:GFP) plants (Figure 5A–D). These results indicated that the TaPIMA1 positively regulated the expression of PR genes, resulting in enhanced resistance to R. cerealis.

2.6. TaPIMA1 and Its Regulated PR Genes Were Induced by Exogenous H2O2 and JA Stimuli

The ROS, JA and SA, play important roles in plant defense responses to pathogens [17,33,34]. Thus, we analyzed the expression profiles of TaPIMA1 in wheat CI12633 plants treated by exogenous H2O2, JA, or SA. After H2O2 treatment, the expression level of TaPIMA1 was dramatically elevated from 0.5 h to 12 h and peaked at 3 h (~25.64-fold over non-treatment) (Figure 6A). Upon MeJA stimulus, the transcript level of TaPIMA1 was induced from 0.5 h to 6 h and reached a peak at 0.5 h (~2.19-fold) (Figure 6B). However, TaPIMA1 was barely responsive to exogenous SA stimulus (Figure S3).
Further, the expression profiles of PRgenes that are regulated by TaPIMA1 were examined in CI12633 plants treated by H2O2 or JA. Compared with mock-treatment, the transcription levels of PR1.2, PR10, and Chitinase3 were significantly increased after treatment with H2O2 for 0.5 h and 3 h (Figure 6C–E). Similarly, PR1.2, PR10, and Chitinase3 were significantly up-regulated by MeJA (Figure 6F–H). These data indicated that TaPIMA1 and its regulated PR genes were significantly induced by H2O2 and JA.

3. Discussion

Wheat provides 20% of the total daily calorie expenditure of human beings in the world, but its production is threatened by sharp eyespot [5]. Developing a resistant wheat variety with disease-resistance genes is one optimal strategy to control this disease. In this study, we provided evidence that a novel MATE gene, TaPIMA1, was required for resistance responses to R. cerealis in wheat. Here, based on the RNA-seq data and qRT-PCR analysis, we identified TaPIMA1 that was in response to R. cerealis, while the expression of TaPIMA1 was significantly higher in R. cerealis-resistant wheat genotypes compared with the susceptible wheat genotypes (Figure 1). Sequence analysis showed that the TaPIMA1 deduced protein includes two MatE domains and 12 TMHs, similar to those of two rice disease-resistant transporters, OsMATE1 and OsMATE2 [52]. A phylogenetic analysis further indicated that TaPIMA1 was classified into group I, including MATE disease-resistant transporters OsMATE1, OsMATE2 [52], AtADS1 [39], and TraesCS2B01G296000 [53], and anthocyanidins transporters Arabidopsis AtTT12 and G. hirsutum GhTT12 [46,47]. TaPIMA1 was closely related to the anthocyanidins transporters Arabidopsis AtTT12 and G. hirsutum GhTT12. Thus, the MATE protein TaPIMA1 might participate in the wheat defense and/or anthocyanidins transport. Generally, the MATE transporters are localized in the cytoplasm and plasma membrane to perform their transporting functions [67]. For instance, the pleiotropic anti-disease transporter EDS5 is localized in cytoplasm and exports the innate immune signal SA from chloroplast [49]. Herein, TaPIMA1 was confirmed to localize in the wheat cytoplasm and plasma membrane (Figure 3).
In Arabidopsis, there are 56 MATE transporters that play important roles in plant growth, development, and resistance to biotic and abiotic stresses [37,67]. However, only a few MATE transporters with disease resistance, including resistance transporter EDS5 to viral and bacterial pathogens [38,68], P. infestans and B. cinerea resistance transporter AtDTX18 [40,69], and P. syringeae susceptibility transporter ADS1 [39], have been characterized. The studies on functions of MATE transporters in plant immunity/defense are limited in crops, particularly in wheat. In this study, we reported that knock-down of TaPIMA1 significantly reduced the resistance of wheat to sharp eyespot (Figure 4). Furthermore, the TaPIMA1 transcript level was induced by R. cerealis and higher in root and stem tissues where sharp eyespot initially appeared; importantly, the gene transcript is higher in resistance wheat genotypes than in susceptible wheat genotypes. These data indicated that TaPIMA1 was involved in wheat innate immunity responses to R. cerealis.
Some upstream immune genes substantially induce the expression of defense-related genes [23,24]. For example, heightened expression of the defense-associated genes, such as TaSTT3b-2B, TaRCR1, and TaPIE1, confer enhanced resistance to R. cerealis in transgenic wheat [6,11,23,24]. Conversely, silencing of these genes down-regulated the expression of defense genes and weakened resistance of wheat to sharp eyespot disease [10,24,36]. Herein, the transcriptional levels of PR1.2, PR10, Defensin, and Chitinase3 were significantly decreased in TaPIMA1-silenced wheat plants, which is consistent with the performance of wheat to sharp eyespot (Figure 5). In response to ROS, plants will up-regulate defense genes, induce callose deposition, and perform hypersensitive cell death to resist pathogens [22,70]. JA and SA, acting as immune signal amplifiers, play important roles in plant responses to necrotrophic pathogens and biotrophic pathogens, respectively [29,30,31]. In this study, TaPIMA1 responded rapidly to exogenous H2O2 and MeJA stimuli (Figure 6A,B). Further, the expression of TaPIMA1-activated defense genes (PR10, PR1.2, and Chitinase3) was significantly up-regulated after H2O2 and MeJA treatments (Figure 6C–H). In Arabidopsis, EDS5 contributes to the transport and accumulation of SA, while exogenous SA stimulation induces the expression of EDS5 and enhances the resistance to biotrophic pathogens P. syringae [51]. Unlike EDS5, involved in the SA-mediated resistance pathway [38,49,51], TaPIMA1 did not response to SA but exhibited a strong inductive response to JA, similar to the MATE transporter AtDTX18 [69]. Taken together, these results suggested that H2O2 and JA might participate in the TaPIMA1-mediated resistance to R. cerealis in wheat.

4. Materials and Methods

4.1. Plant and Fungus Materials, Vectors, and Primers

The resistant wheat cultivars (CI12633 and Shanhongmai) and highly susceptible wheat cultivars (Wenmai6 and Yangmai16) were used in this study. The expression profile of TaPIMA1 was studied in CI12633, Shanhongmai, Wenmai6, and Yangmai16. The CI12633 and Yangmai16 plants were used for BSMV-VIGS experiments. All above wheat varieties were planted in a greenhouse (14 h light/10 h dark, 15–23 °C, 90% relative humidity). The sharp eyespot pathogenic fungus R. cerealis strain WK207 (dominant in North China) and R0301 were used in this study.
The PH16318-GFP vector was used to express fusion protein in wheat protoplast. All BSMV vectors (α, β, γ and γ-GFP) were stored in our laboratory.
The sequences of primers are listed in Table S3.

4.2. Pathogen Infection and Plant Treatments

R. cerealis WK207 was cultured at PDA medium for 14 d. Then the R. cerealis WK207 was cultured with sterilized toothpicks and were covered with R. cerealis WK207 for 7 d at 25 °C. The leaf sheaths of wheat plants were inoculated with toothpick fragments that were covered with well-developed mycelia. The R. cerealis R0301 was cultured at PDA medium for 14 d and then inoculated to sterilized wheat seeds for 7 d at 25 °C. The wheat seeds carrying R. cerealis R0301 were inoculated into wheat roots and watered.
The CI12633 plants were grown in a greenhouse (14 h light/10 h dark, 15–23 °C, 90% relative humidity) and sprayed with 10 mM H2O2 or 0.1 mM MeJA at the 4-leaf stage. At the same time, CI12633 plants were sprayed with 0.1% Tween-20 as control for all treatments. Then, the leaves were harvested at 0 h (mock), 0.5 h, 1 h, 3 h, 6 h, and 12 h after treatment.

4.3. RIL Population Construction and RNA-Seq Analysis

F10 RILs, derived from a cross between the sharp eyespot resistant cultivar Shanhongmai and the highly susceptible cultivar Wenmai6, were created using the single seed descent method, which were kindly provided by Professor Jizeng Jia (ICS, CAAS, China). The F11–13 RILs were planted in Beijing (116°33′ E, 39°96′ N; 7 October–10 June) and Nanjing (118°88′ E, 32°03′ N; 7 November–31 May) to assess disease resistance against R. cerealis R0301 in 2013, 2014, and 2015. According to the assessment results, we selected three resistant RILs with DIs of 27.3, 28.69, and 30.42, and three highly susceptible RILs with DIs of 56.77, 67.19, and 64.19, in F13 generation plants for RNA-seq analysis as previously described [11]. At the tillering stage, all resistant/susceptible RILs were inoculated with R. cerealis WK207. Leaf sheath samples of the inoculated parts were sampled at 0 d (mock), 4 d, and 10 d after inoculation with R. cerealis, while three biological replicates were analyzed.
Then, the RNAs of samples were used to deep RNA-Seq based on the HiSeq 2000/2500 platform (Illumina, CA, USA) supported by Biomarker Technologies (Beijing, China). All raw data in FASTQ format (raw reads) were processed using in-house Perl scripts. Clean data (clean reads) were obtained by discarding low-quality reads, reads containing adapters and ploy-N (N > 10%). Screening for differentially expressed genes between resistant and susceptible RILs that have a log2 ratio greater than 1.0 (false discovery rate p < 0.05), and the expression differences between different biological replicates were consistent [11]. The number of transcript fragments per kilobase per million mapped reads for each gene was calculated based on the length of each gene and the number of fragments mapped to that gene.

4.4. Cloning and Bioinformatics Analysis of TaPIMA1

The full-length open reading frame (ORF) of TaPIMA1 was amplified by nested PCR using primers pairs (TaPIMA1-FQ-F1/R1 and TaPIMA1-FQ-F2/R2) from CI12633 plants. Then, all PCR products were cloned into T vector (Takara, Tokyo, Japan) and confirmed by sequencing. The sequence of TaPIMA1 and its homologues were referred to NCBI (https://www.ncbi.nlm.nih.gov/ (accessed on 25 December 2021)) and Ensemble Plants database (http://plants. ensembl.org (accessed on 25 December 2021)). The Clustal Omega (https://www.ebi.ac.uk/Tools/msa/clustalo/(accessed on 25 December 2021)) web program was used to perform the multiple sequence alignment. Additionally, MEGA 11 software was used to construct the phylogenetic tree by the maximum likelihood method.

4.5. DNA and RNA Extraction, and qRT-PCR

Genomic DNA was extracted with CTAB. The leaves of wheat plants were harvested at 10 dpi and stored at −80 °C. Total RNA was extracted using TRIzol (Invitrogen, Carlsbad, CA, USA) according to the manufacturers operating manual. Then, ~1 μg total RNA was reverse transcribed to cDNA using FastQuant RT Kit (Tiangen, Beijing, China). qRT-PCR reactions were performed on 7500 Fast Real-Time PCR Systems (Applied Biosystems, Foster City, MA, USA) using a SYBR Premix ExTaq kit (Takara, Tokyo, Japan). Additionally, each qPCR sample was run with three biological replicates and three technical replicates. The relative genes transcription levels were calculated by the 2−ΔΔCT method [71]. All primers in this study for qRT-PCR are listed in Table S3.

4.6. Subcellular Localization of TaPIMA1

The coding region of TaPIMA1 without termination codon was amplified using primers TaPIMA1-sub-F/R and sub-cloned to the PH16318-GFP vector, named PH16318-GFP-TaPIMA1. The TaPIMA1-GFP was driven by a CaMV 35S promoter. Wheat plants were grown in pots grown in a plant growth chamber after emergence for 7 days. The seedlings were collected to produce the wheat protoplasts referring to the protocol of Liu et al. [10]. Then, ~10 μg plasmid DNA of PH16318-GFP (control) and PH16318-GFP-TaPIMA1 were introduced into wheat protoplasts and cultured for 20 h, respectively. Finally, the incubated protoplasts were imaged by confocal laser scanning microscope LSM 700 (Zeiss, Jena, Germany).

4.7. BSMV-VIGS in Wheat

The function of TaPIMA1 was investigated using a BSMV-VIGS in wheat as described by Holzberg [72]. Briefly, a 216 bp fragment (no. 756–955) of TaPIMA1 ORF was cloned from CI12633 plants and then subcloned into γ vector in an antisense orientation that constructed the γ-TaPIMA1 vector. The RNA of α, β, γ-TaPIMA1 and γ-GFP were transcribed in vitro by RiboMA Large Scale RNA Production System-T7 kit (Promega, Madison, WI, USA) according to the method described by Zhu [6]. All transcripts were mixed with and inoculated into the wheat plants at three-leaf stage. After 10 d, the fourth leaves of inoculated seedlings were harvested to extract the total RNA.

4.8. Assessment of Response in BSMV-VIGS Plants to R. cerealis

After 20 d infection with BSMV, the leaf sheaths of infected wheat plants were inoculated with toothpick fragments carrying R. cerealis WK207. To promote the infection of R. cerealis, the inoculated site was tied up with wet absorbent cotton that was sprayed with ddH2O every day. At 30 dpi with WK207, the infection types (ITs) and disease indexes (DIs) of CI12633 plants were evaluated as described previously [5,6]. The DI = ∑(di × li) × 100/(L × dimax). The di, li, and L represent infection type, the number of plants, and the total numbers of plants for disease assessment, respectively.

5. Conclusions

We identified the MATE gene TaPIMA1 participating in wheat defense responses to R. cerealis. The TaPIMA1 transcript was induced by infection of R. cerealis and was higher in sharp eyespot-resistant wheat genotypes than in susceptible wheat genotypes. Functional dissection revealed that TaPIMA1, acting as a positive regulator, is required for resistance to sharp eyespot and for the expression of PR genes including PR1.2, PR10, Defensin, and Chitinase3 in wheat. TaPIMA1 and its regulated PR genes are in response to exogenous H2O2 and JA stimuli, suggesting that H2O2 and JA might participate in the TaPIMA1-mediated resistance to R. cerealis in wheat. This study provides insights into role of the wheat MATE in plant innate immunity to necrotrophic fungal pathogens. TaPIMA1 is a potential gene for improving resistance to sharp eyespot in wheat.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/ijms23063377/s1.

Author Contributions

Z.Z. designed the experiments, supervised the work, and revised and edited the manuscript as well the project funding acquisition. Q.S. performed the main experiments, analyzed the data, and wrote the draft manuscript. W.R. analyzed the RNA-seq data and mined the gene. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National “Key Sci-Tech” program of China (2016ZX08002-001-004).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All generated and analyzed in this study can be found in the paper and its Supplementary Materials.

Acknowledgments

We are grateful to Jizeng Jia (ICS, CAAS, China) for providing the F10 recombinant inbred line population. We thank Huigu Chen and Shibin Cai (Jiangsu Academy of Agricultural Science) and Jinfeng Yu (Shandong Agricultural University) for providing R. cerealis isolates.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Han, Z.; Liu, Y.; Deng, X.; Liu, D.; Liu, Y.; Hu, Y.; Yan, Y. Genome-wide identification and expression analysis of expansin gene family in common wheat (Triticum aestivum L.). BMC Genom. 2019, 20, 101. [Google Scholar] [CrossRef] [PubMed]
  2. Yang, H.; Luo, P. Changes in photosynthesis could provide important insight into the interaction between wheat and fungal pathogens. Int. J. Mol. Sci. 2021, 22, 8865. [Google Scholar] [CrossRef] [PubMed]
  3. Hoeven, E.; Bollen, G.J. Effect of benomyl on soil fungi associated with rye. 1. Effect on the incidence of sharp eyespot caused by Rhizoctonia cerealis. Neth. J. Plant Pathol. 1980, 86, 163–180. [Google Scholar] [CrossRef]
  4. Murray, D.; Burpee, L.L. Ceratobasidium cereale sp.nov., the teleomorph of Rhizoctonia cerealis. Trans. Brit. Mycol. Soc. 1984, 82, 170–172. [Google Scholar] [CrossRef]
  5. Chen, L.; Zhang, Z.Y.; Liang, H.X.; Liu, H.X.; Du, L.P.; Xu, H.J.; Xin, Z.Y. Overexpression of TiERF1 enhances resistance to sharp eyespot in transgenic wheat. J. Exp. Bot. 2008, 59, 4195–4204. [Google Scholar] [CrossRef] [Green Version]
  6. Zhu, X.L.; Yang, K.; Wei, X.N.; Zhang, Q.F.; Rong, W.; Du, L.P.; Ye, X.G.; Qi, L.; Zhang, Z.Y. The wheat AGC kinase TaAGC1 is a positive contributor to host resistance to the necrotrophic pathogen Rhizoctonia cerealis. J. Exp. Bot. 2015, 66, 6591–6603. [Google Scholar] [CrossRef] [Green Version]
  7. Hamada, M.S.; Yin, Y.N.; Chen, H.G.; Ma, Z.H. The escalating threat of Rhizoctonia cerealis, the causal agent of sharp eyespot in wheat. Pest Manag. Sci. 2011, 67, 1411–1419. [Google Scholar] [CrossRef]
  8. Tomaso-Peterson, M.; Trevathan, L.E. Characterization of Rhizoctonia-like fungi isolated from agronomic crops and turfgrasses in Mississippi. Plant Dis. 2007, 91, 260–265. [Google Scholar] [CrossRef]
  9. Wu, X.J.; Cheng, K.; Zhao, R.H.; Zang, S.J.; Bie, T.D.; Jiang, Z.N.; Wu, R.L.; Gao, D.R.; Zhang, B.Q. Quantitative trait loci responsible for sharp eyespot resistance in common wheat CI12633. Sci. Rep. 2017, 7, 11799. [Google Scholar] [CrossRef] [Green Version]
  10. Liu, X.; Zhu, X.L.; Wei, X.N.; Lu, C.G.; Shen, F.D.; Zhang, X.W.; Zhang, Z.Y. The wheat LLM-domain-containing transcription factor TaGATA1 positively modulates host immune response to Rhizoctonia cerealis. J. Exp. Bot. 2020, 71, 344–355. [Google Scholar] [CrossRef]
  11. Guo, F.L.; Wu, T.C.; Shen, F.D.; Xu, G.B.A.; Qi, H.J.; Zhang, Z.Y. The cysteine-rich receptor-like kinase TaCRK3 contributes to defense against Rhizoctonia cerealis in wheat. J. Exp. Bot. 2021, 72, 6904–6919. [Google Scholar] [CrossRef] [PubMed]
  12. Guo, F.; Wu, T.; Xu, G.; Qi, H.; Zhu, X.; Zhang, Z. TaWAK2A-800, a wall-associated kinase, participates positively in resistance to fusarium head blight and sharp eyespot in wheat. Int. J. Mol. Sci. 2021, 22, 11493. [Google Scholar] [CrossRef] [PubMed]
  13. Qi, H.; Zhu, X.; Guo, F.; Lv, L.; Zhang, Z. The wall-associated receptor-like kinase TaWAK7D is required for defense responses to Rhizoctonia cerealis in wheat. Int. J. Mol. Sci. 2021, 22, 5629. [Google Scholar] [CrossRef] [PubMed]
  14. Guo, F.; Shan, Z.; Yu, J.; Xu, G.; Zhang, Z. The cysteine-rich repeat protein TaCRR1 participates in defense against both Rhizoctonia cerealis and Bipolaris sorokiniana in wheat. Int. J. Mol. Sci. 2020, 21, 5698. [Google Scholar] [CrossRef]
  15. Jones, J.D.G.; Dangl, J.L. The plant immune system. Nature 2006, 444, 323–329. [Google Scholar] [CrossRef] [Green Version]
  16. Dangl, J.L.; Jones, J.D.G. Plant pathogens and integrated defence responses to infection. Nature 2001, 411, 826–833. [Google Scholar] [CrossRef]
  17. Barna, B.; Fodor, J.; Pogany, M.; Kiraly, Z. Role of reactive oxygen species and antioxidants in plant disease resistance. Pest Manag. Sci. 2003, 59, 459–464. [Google Scholar] [CrossRef]
  18. Yuan, M.H.; Jiang, Z.Y.; Bi, G.Z.; Nomura, K.; Liu, M.H.; Wang, Y.P.; Cai, B.Y.; Zhou, J.M.; He, S.Y.; Xin, X.F. Pattern-recognition receptors are required for NLR-mediated plant immunity. Nature 2021, 592, 105–109. [Google Scholar] [CrossRef]
  19. Onate-Sanchez, L.; Singh, K.B. Identification of Arabidopsis ethylene-responsive element binding factors with distinct induction kinetics after pathogen infection. Plant Physiol. 2002, 128, 1313–1322. [Google Scholar] [CrossRef] [Green Version]
  20. Lorenzo, O.; Piqueras, R.; Sanchez-Serrano, J.J.; Solano, R. Ethylene response factor1 integrates signals from ethylene and jasmonate pathways in plant defense. Plant Cell 2003, 15, 165–178. [Google Scholar] [CrossRef] [Green Version]
  21. McGrath, K.C.; Dombrecht, D.; Manners, J.M.; Schenk, P.M.; Edgar, C.I.; Maclean, D.J.; Scheible, W.-R.; Udvardi, M.K.; Kazan, K. Repressor- and Activator-type ethylene response factors functioning in jasmonate signaling and disease resistance identified via a genome-wide screen of Arabidopsis transcription factor gene expression. Plant Physiol. 2005, 139, 949–959. [Google Scholar]
  22. Zhu, X.L.; Lu, C.G.; Du, L.P.; Ye, X.G.; Liu, X.; Coules, A.; Zhang, Z.Y. The wheat NB-LRR gene TaRCR1 is required for host defence response to the necrotrophic fungal pathogen Rhizoctonia cerealis. Plant Biotechnol. J. 2017, 15, 674–687. [Google Scholar] [CrossRef] [Green Version]
  23. Wang, K.; Shao, Z.; Guo, F.; Wang, K.; Zhang, Z. The mitogen-activated protein kinase kinase TaMKK5 mediates immunity via the TaMKK5-TaMPK3-TaERF3 module. Plant Physiol. 2021, 187, 2323–2337. [Google Scholar]
  24. Zhu, X.; Rong, W.; Wang, K.; Guo, W.; Zhou, M.; Wu, J.; Ye, X.; Wei, X.; Zhang, Z. Overexpression of TaSTT3b-2B improves resistance to sharp eyespot and increases grain weight in wheat. Plant Biotechnol. J. 2021. [Google Scholar] [CrossRef]
  25. Molina, A.; Görlach, J.; Volrath, S.; Ryals, J. Wheat genes encoding two types of PR-1 proteins are pathogen inducible, but do not respond to activators of systemic acquired resistance. Mol. Plant-Microbe Interact. 1999, 12, 53–58. [Google Scholar] [CrossRef] [Green Version]
  26. Wehling, P.; Linz, A.; Hackauf, B.; Roux, S.R.; Ruge, B.; Klocke, B. Leaf-rust resistance in rye (Secale cereale L.). 1. Genetic analysis and mapping of resistance genes Pr1 and Pr2. Theor. Appl. Genet. 2003, 107, 432–438. [Google Scholar] [CrossRef]
  27. MunchGarthoff, S.; Neuhaus, J.M.; Boller, T.; Kemmerling, B.; Kogel, K.H. Expression of beta-1,3-glucanase and chitinase in healthy, stem-rust-affected and elicitor-treated near-isogenic wheat lines showing Sr5- or Sr24-specified race-specific rust resistance. Planta 1997, 201, 235–244. [Google Scholar] [CrossRef]
  28. Zhu, X.L.; Qi, L.; Liu, X.; Cai, S.B.; Xu, H.J.; Huang, R.F.; Li, J.R.; Wei, X.N.; Zhang, Z.Y. The wheat ethylene response factor transcription factor pathogen- induced ERF1 mediates host responses to both the necrotrophic pathogen Rhizoctonia cerealis and freezing stresses. Plant Physiol. 2014, 164, 1499–1514. [Google Scholar] [CrossRef] [Green Version]
  29. Verma, V.; Ravindran, P.; Kumar, P.P. Plant hormone-mediated regulation of stress responses. BMC Plant Biol. 2016, 16, 86. [Google Scholar]
  30. Zhou, J.M.; Zhang, Y.L. Plant immunity: Danger perception and signaling. Cell 2020, 181, 978–989. [Google Scholar] [CrossRef]
  31. Zhong, Q.; Hu, H.; Fan, B.; Zhu, C.; Chen, Z. Biosynthesis and roles of salicylic acid in balancing stress response and growth in plants. Int. J. Mol. Sci. 2021, 22, 11672. [Google Scholar] [CrossRef]
  32. Loake, G.; Grant, M. Salicylic acid in plant defence-the players and protagonists. Curr. Opin. Plant Biol. 2007, 10, 466–472. [Google Scholar] [CrossRef]
  33. Uji, Y.; Kashihara, K.; Kiyama, H.; Mochizuki, S.; Akimitsu, K.; Gomi, K. Jasmonic acid-induced VQ-Motif-Containing protein OsVQ13 influences the OsWRKY45 signaling pathway and grain size by associating with OsMPK6 in Rice. Int. J. Mol. Sci. 2019, 20, 2917. [Google Scholar] [CrossRef] [Green Version]
  34. Zhang, Y.L.; Li, X. Salicylic acid: Biosynthesis, perception, and contributions to plant immunity. Curr. Opin. Plant Biol. 2019, 50, 29–36. [Google Scholar] [CrossRef]
  35. Zhang, Z.; Liu, X.; Wang, X.; Zhou, M.; Zhou, X.; Ye, X.; Wei, X. An R2R3 MYB transcription factor in wheat, TaPIMP1, mediates host resistance to Bipolaris sorokiniana and drought stresses through regulation of defense- and stress-related genes. New Phytol. 2012, 196, 1155–1170. [Google Scholar] [CrossRef]
  36. Zhu, X.; Li, X.; He, Q.; Guo, D.; Liu, C.; Cao, J.; Wu, Z.; Kang, Z.; Wang, X. TaMYB29: A novel R2R3-MYB transcription factor involved in wheat defense against stripe rust. Front. Plant Sci. 2021, 12, 783388. [Google Scholar] [CrossRef]
  37. Kuroda, T.; Tsuchiya, T. Multidrug efflux transporters in the MATE family. BBA-Proteins Proteom. 2009, 1794, 763–768. [Google Scholar] [CrossRef]
  38. Ishihara, T.; Sekine, K.T.; Hase, S.; Kanayama, Y.; Seo, S.; Ohashi, Y.; Kusano, T.; Shibata, D.; Shah, J.; Takahashi, H. Overexpression of the Arabidopsis thaliana EDS5 gene enhances resistance to viruses. Plant Biol. 2008, 10, 451–461. [Google Scholar] [CrossRef]
  39. Sun, X.L.; Gilroy, E.M.; Chini, A.; Nurmberg, P.L.; Hein, I.; Lacomme, C.; Birch, P.R.J.; Hussain, A.; Yun, B.W.; Loake, G.J. ADS1 encodes a MATE-transporter that negatively regulates plant disease resistance. New Phytol. 2011, 192, 471–482. [Google Scholar] [CrossRef] [Green Version]
  40. Dobritzsch, M.; Lübken, T.; Eschen-Lippold, L.; Gorzolka, K.; Blum, E.; Matern, A.; Marillonnet, S.; Böttcher, C.; Dräger, B.; Rosahl, S. MATE transporter-dependent export of hydroxycinnamic acid amides. Plant Cell 2016, 28, 583–596. [Google Scholar] [CrossRef] [Green Version]
  41. Liu, J.P.; Magalhaes, J.V.; Shaff, J.; Kochian, L.V. Aluminum-activated citrate and malate transporters from the MATE and ALMT families function independently to confer Arabidopsis aluminum tolerance. Plant J. 2009, 57, 389–399. [Google Scholar] [CrossRef] [Green Version]
  42. Magalhaes, J.V.; Liu, J.; Guimaraes, C.T.; Lana, U.G.P.; Alves, V.M.C.; Wang, Y.H.; Schaffert, R.E.; Hoekenga, O.A.; Pineros, M.A.; Shaff, J.E.; et al. A gene in the multidrug and toxic compound extrusion (MATE) family confers aluminum tolerance in sorghum. Nat. Genet. 2007, 39, 1156–1161. [Google Scholar] [CrossRef]
  43. Li, L.G.; He, Z.Y.; Pandey, G.K.; Tsuchiya, T.; Luan, S. Functional cloning and characterization of a plant efflux carrier for multidrug and heavy metal detoxification. J. Biol. Chem. 2002, 277, 5360–5368. [Google Scholar] [CrossRef] [Green Version]
  44. Wang, J.J.; Hou, Q.Q.; Li, P.H.; Yang, L.; Sun, X.C.; Benedito, V.A.; Wen, J.Q.; Chen, B.B.; Mysore, K.S.; Zhao, J. Diverse functions of multidrug and toxin extrusion (MATE) transporters in citric acid efflux and metal homeostasis in Medicago truncatula. Plant J. 2017, 90, 79–95. [Google Scholar] [CrossRef] [Green Version]
  45. Mathews, H.; Clendennen, S.K.; Caldwell, C.G.; Liu, X.L.; Connors, K.; Matheis, N.; Schuster, D.K.; Menasco, D.J.; Wagoner, W.; Lightner, J.; et al. Activation tagging in tomato identifies a transcriptional regulator of anthocyanin biosynthesis, modification, and transport. Plant Cell 2003, 15, 1689–1703. [Google Scholar] [CrossRef] [Green Version]
  46. Gao, J.S.; Wu, N.; Shen, Z.L.; Lv, K.; Qian, S.H.; Guo, N.; Sun, X.; Cai, Y.P.; Lin, Y. Molecular cloning, expression analysis and subcellular localization of a Transparent Testa 12 ortholog in brown cotton (Gossypium hirsutum L.). Gene 2016, 576, 763–769. [Google Scholar] [CrossRef]
  47. Debeaujon, I.; Peeters, A.J.M.; Leon-Kloosterziel, K.M.; Koornneef, M. The TRANSPARENT TESTA12 gene of Arabidopsis encodes a multidrug secondary transporter-like protein required for flavonoid sequestration in vacuoles of the seed coat endothelium. Plant Cell 2001, 13, 853–871. [Google Scholar] [CrossRef] [Green Version]
  48. Zhang, H.; Zhu, H.; Pan, Y.; Yu, Y.; Luan, S.; Li, L. A DTX/MATE-type transporter facilitates abscisic acid efflux and modulates ABA sensitivity and drought tolerance in Arabidopsis. Mol. Plant 2014, 7, 1522–1532. [Google Scholar] [CrossRef] [Green Version]
  49. Serrano, M.; Wang, B.; Aryal, B.; Garcion, C.; Abou-Mansour, E.; Heck, S.; Geisler, M.; Mauch, F.; Nawrath, C.; Métraux, J.P. Export of salicylic acid from the chloroplast requires the multidrug and toxin extrusion-like transporter EDS5. Plant Physiol. 2013, 162, 1815–1821. [Google Scholar] [CrossRef] [Green Version]
  50. Yamasaki, K.; Motomura, Y.; Yagi, Y.; Nomura, H.; Kikuchi, S.; Nakai, M.; Shiina, T. Chloroplast envelope localization of EDS5, an essential factor for salicylic acid biosynthesis in Arabidopsis thaliana. Plant Signal Behav. 2013, 8, e23603. [Google Scholar] [CrossRef] [Green Version]
  51. Nawrath, C.; Heck, S.; Parinthawong, N.; Metraux, J.P. EDS5, an essential component of salicylic acid-dependent signaling for disease resistance in Arabidopsis, is a member of the MATE transporter family. Plant Cell 2002, 14, 275–286. [Google Scholar] [CrossRef] [Green Version]
  52. Tiwari, M.; Sharma, D.; Singh, M.; Tripathi, R.D.; Trivedi, P.K. Expression of OsMATE1 and OsMATE2 alters development, stress responses and pathogen susceptibility in Arabidopsis. Sci. Rep. 2014, 4, 3964. [Google Scholar] [CrossRef] [Green Version]
  53. Pan, Y.; Liu, Z.; Rocheleau, H.; Fauteux, F.; Wang, Y.; Mccartney, C.; Ouellet, T. Transcriptome dynamics associated with resistance and susceptibility against fusarium head blight in four wheat genotypes. BMC Genom. 2018, 19, 642. [Google Scholar] [CrossRef]
  54. Parinthawong, N.; Cottier, S.; Buchala, A.; Nawrath, C.; Métraux, J.P. Localization and expression of EDS5H a homologue of the SA transporter EDS5. BMC Plant Biol. 2015, 15, 135. [Google Scholar] [CrossRef] [Green Version]
  55. Ribeiro, A.P.; de Souza, W.R.; Martins, P.K.; Vinecky, F.; Duarte, K.E.; Basso, M.F.; da Cunha, B.A.D.B.; Campanha, R.B.; de Oliveira, P.A.; Centeno, D.C.; et al. Overexpression of BdMATE gene improves aluminum tolerance in Setaria viridis. Front. Plant Sci. 2017, 8, 865. [Google Scholar] [CrossRef] [Green Version]
  56. Qiu, W.; Wang, N.; Dai, J.; Wang, T.; Kochian, L.V.; Liu, J.; Zuo, Y. AhFRDL1-mediated citrate secretion contributes to adaptation to iron deficiency and aluminum stress in peanuts. J. Exp. Bot. 2019, 70, 2873–2886. [Google Scholar] [CrossRef]
  57. Liu, J.; Luo, X.; Shaff, J.; Liang, C.; Jia, X.; Li, Z.; Magalhaes, J.; Kochian, L.V. A promoter-swap strategy between the AtALMT and AtMATE genes increased Arabidopsis aluminum resistance and improved carbon-use efficiency for aluminum resistance. Plant J. 2012, 71, 327–337. [Google Scholar] [CrossRef]
  58. Garcia-Oliveira, A.L.; Benito, C.; Guedes-Pinto, H.; Martins-Lopes, P. Molecular cloning of TaMATE2 homoeologues potentially related to aluminium tolerance in bread wheat (Triticum aestivum L.). Plant Biol. 2018, 20, 817–824. [Google Scholar] [CrossRef]
  59. Melo, J.O.; Martins, L.G.C.; Barros, B.A.; Pimenta, M.R.; Lana, U.G.P.; Duarte, C.E.M.; Pastina, M.M.; Guimaraes, C.T.; Schaffert, R.E.; Kochian, L.V.; et al. Repeat variants for the SbMATE transporter protect sorghum roots from aluminum toxicity by transcriptional interplay in cis and trans. Proc. Natl. Acad. Sci. USA 2019, 116, 313–318. [Google Scholar] [CrossRef] [Green Version]
  60. Han, C.; Zhang, P.; Ryan, P.R.; Rathjen, T.M.; Yan, Z.H.; Delhaize, E. Introgression of genes from bread wheat enhances the aluminium tolerance of durum wheat. Theor. Appl. Genet. 2016, 129, 729–739. [Google Scholar] [CrossRef]
  61. Yokosho, K.; Yamaji, N.; Ueno, D.; Mitani, N.; Ma, J.F. OsFRDL1 is a citrate transporter required for efficient translocation of iron in rice. Plant Physiol. 2009, 149, 297–305. [Google Scholar] [CrossRef] [Green Version]
  62. Pineau, C.; Loubet, S.; Lefoulon, C.; Chalies, C.; Fizames, C.; Lacombe, B.; Ferrand, M.; Loudet, O.; Berthomieu, P.; Richard, O. Natural variation at the FRD3 MATE transporter locus reveals cross-talk between Fe homeostasis and Zn tolerance in Arabidopsis thaliana. PLoS Genet. 2012, 8, e1003120. [Google Scholar] [CrossRef] [Green Version]
  63. Tovkach, A.; Ryan, P.R.; Richardson, A.E.; Lewis, D.C.; Rathjen, T.M.; Ramesh, S.; Tyerman, S.D.; Delhaize, E. Transposon-mediated alteration of TaMATE1B expression in wheat confers constitutive citrate efflux from root apices. Plant Physiol. 2013, 161, 880–892. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  64. Zhao, J.; Huhman, D.; Shadle, G.; He, X.Z.; Sumner, L.W.; Tang, Y.; Dixon, R.A. MATE2 mediates vacuolar sequestration of flavonoid glycosides and glycoside malonates in Medicago truncatula. Plant Cell 2011, 23, 1536–1555. [Google Scholar] [CrossRef] [Green Version]
  65. Gomez, C.; Terrier, N.; Torregrosa, L.; Vialet, S.; Fournier-Level, A.; Verries, C.; Souquet, J.M.; Mazauric, J.P.; Klein, M.; Cheynier, V.; et al. Grapevine MATE-type proteins act as vacuolar H+-dependent acylated anthocyanin transporters. Plant Physiol. 2009, 150, 402–415. [Google Scholar] [CrossRef] [Green Version]
  66. Ferreira, J.R.; Faria, B.F.; Comar, M.; Delatorre, C.A.; Minella, E.; Pereira, J.F. Is a non-synonymous SNP in the HvAACT1 coding region associated with acidic soil tolerance in barley? Genet. Mol. Biol. 2017, 40, 480–490. [Google Scholar] [CrossRef] [PubMed]
  67. Devanna, B.N.; Jaswal, R.; Singh, P.K.; Kapoor, R.; Jain, P.; Kumar, G.; Sharma, Y.; Samantaray, S.; Sharma, T.R. Role of transporters in plant disease resistance. Physiol. Plant. 2021, 171, 849–867. [Google Scholar] [CrossRef] [PubMed]
  68. Carviel, J.L.; Wilson, D.C.; Isaacs, M.; Carella, P.; Catana, V.; Golding, B.; Weretilnyk, E.A.; Cameron, R.K. Investigation of intercellular salicylic acid accumulation during compatible and incompatible Arabidopsis-Pseudomonas syringae interactions using a fast neutron-generated mutant allele of EDS5 identified by genetic mapping and whole-genome sequencing. PLoS ONE 2014, 9, e88608. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  69. Li, J.; Meng, Y.; Zhang, K.; Li, Q.; Li, S.; Xu, B.; Georgiev, M.I.; Zhou, M. Jasmonic acid-responsive RRTF1 transcription factor controls DTX18 gene expression in hydroxycinnamic acid amide secretion. Plant Physiol. 2021, 185, 369–384. [Google Scholar] [CrossRef] [PubMed]
  70. Lehmann, S.; Serrano, M.; L’Haridon, F.; Tjamos, S.E.; Metraux, J.P. Reactive oxygen species and plant resistance to fungal pathogens. Phytochemistry 2015, 112, 54–62. [Google Scholar] [CrossRef] [Green Version]
  71. Livak, K.J.; Schmittgen, T.D. Analysis of relative gene expression data using real-time quantitative PCR and the 2−ΔΔCT method. Methods 2001, 25, 402–408. [Google Scholar] [CrossRef]
  72. Holzberg, S.; Brosio, P.; Gross, C.; Pogue, G.P. Barley stripe mosaic virus-induced gene silencing in a monocot plant. Plant J. 2002, 30, 315–327. [Google Scholar] [CrossRef]
Ijms 23 03377 g001 550

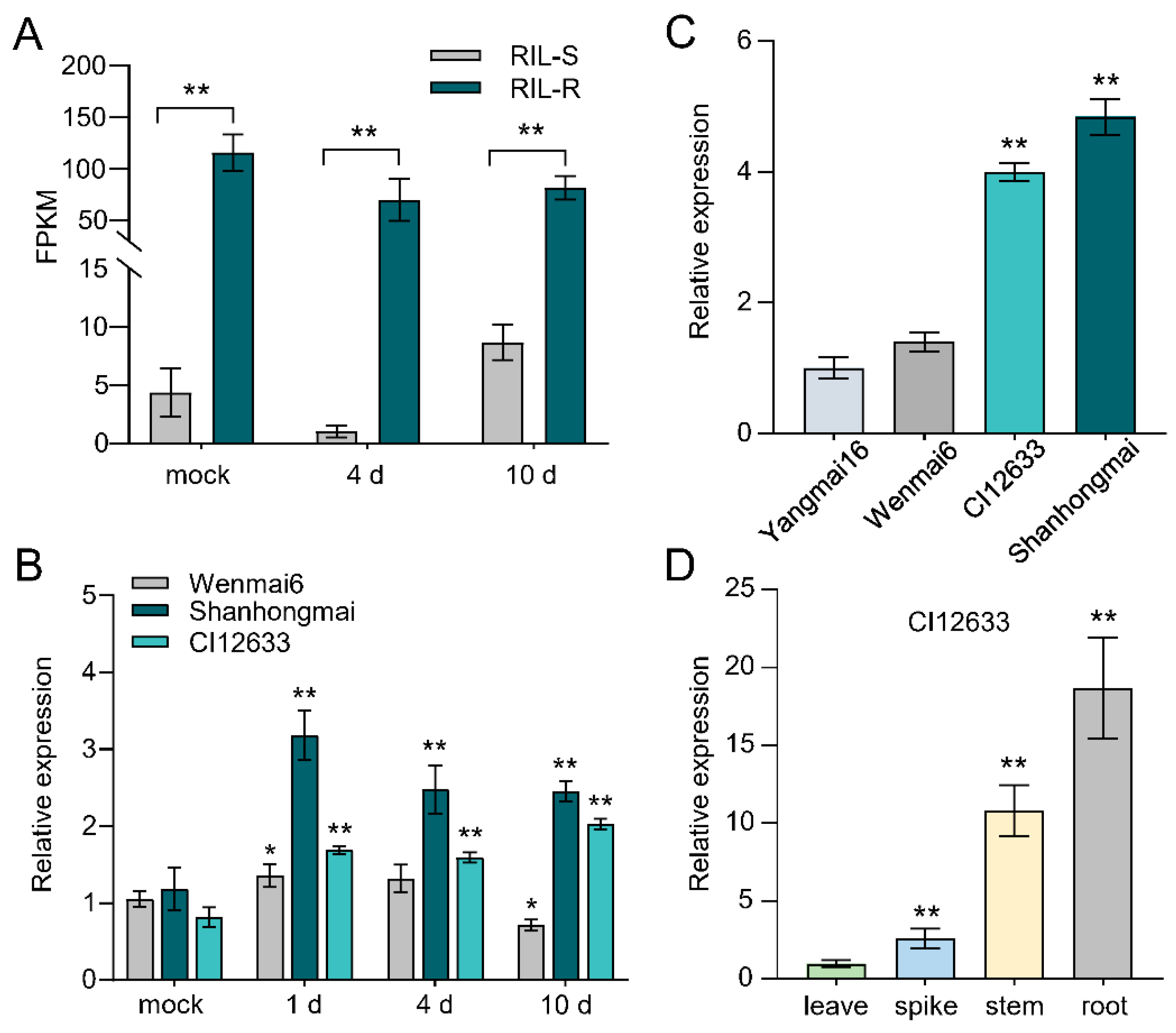

Figure 1. The expression profiles of TaPIMA1 in wheat with R. cerealis infection. (A) The expression pattern of TaPIMA1 in RNA-seq data of RILs. The sharp eyespot resistant/susceptible RILs were infected with R. cerealis and sampled at 4 and 10 dpi. (B) Transcript profiles of TaPIMA1 in sharp eyespot-resistant cultivar CI12633 and the susceptible wheat cultivar Wenmai6 at 1, 4, and 10 dpi with R. cerealis. (C) The expression patterns of TaPIMA1 in four wheat cultivars. All transcript data of TaPIMA1 were compared with those in Yangmai16. (D) Transcriptional analyzes of TaPIMA1 in different organs of CI12633 plants. The significant differences determined by one-way ANOVA (* p < 0.05, ** p < 0.01). Error bars indicates standard deviation.
Figure 1. The expression profiles of TaPIMA1 in wheat with R. cerealis infection. (A) The expression pattern of TaPIMA1 in RNA-seq data of RILs. The sharp eyespot resistant/susceptible RILs were infected with R. cerealis and sampled at 4 and 10 dpi. (B) Transcript profiles of TaPIMA1 in sharp eyespot-resistant cultivar CI12633 and the susceptible wheat cultivar Wenmai6 at 1, 4, and 10 dpi with R. cerealis. (C) The expression patterns of TaPIMA1 in four wheat cultivars. All transcript data of TaPIMA1 were compared with those in Yangmai16. (D) Transcriptional analyzes of TaPIMA1 in different organs of CI12633 plants. The significant differences determined by one-way ANOVA (* p < 0.05, ** p < 0.01). Error bars indicates standard deviation.
Ijms 23 03377 g001
Ijms 23 03377 g002 550

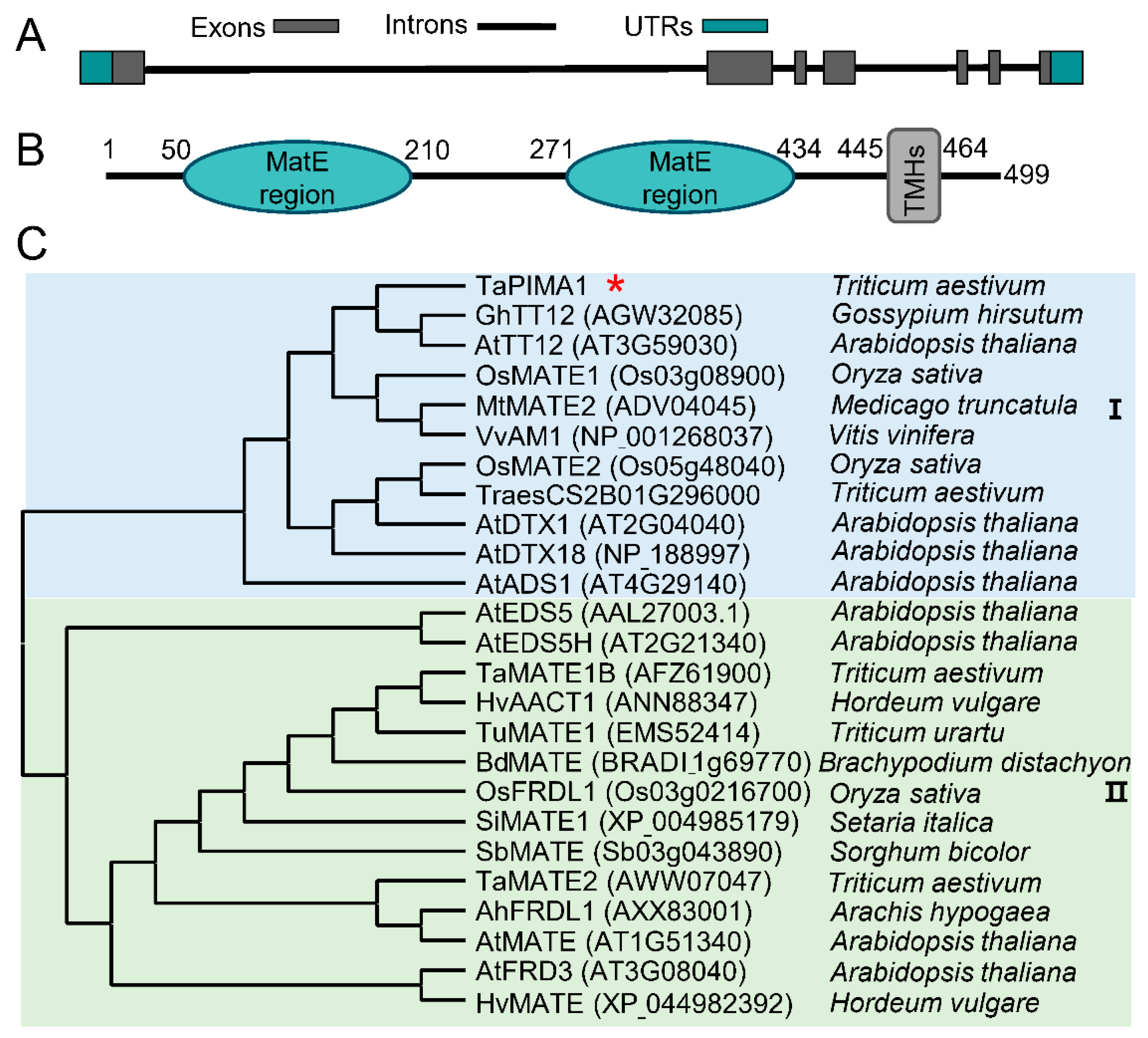

Figure 2. Sequence and phylogenetic analyses of TaPIMA1. (A) The genomic structure of TaPIMA1 in wheat CI12633 plant. The grey frames, green frames, and lines represent exons, UTRs, and introns regions, respectively. (B) Schematic of TaPIMA1 protein. There are two MatE domains (no. 50–210 aa and no. 271–434 aa, respectively) and a transmembrane region (12 TMHs, no. 445–464 aa) in TaPIMA1 protein. (C) Phylogenetic analysis of the TaPIMA1 and other MATE proteins by the maximum likelihood method. Asterisk indicates this TaPIMA1 protein. The phylogenetic tree was constructed using MEGA 11 software. The sequences were referred to EnsemblPlants, GenBank, and Phytozome database.
Figure 2. Sequence and phylogenetic analyses of TaPIMA1. (A) The genomic structure of TaPIMA1 in wheat CI12633 plant. The grey frames, green frames, and lines represent exons, UTRs, and introns regions, respectively. (B) Schematic of TaPIMA1 protein. There are two MatE domains (no. 50–210 aa and no. 271–434 aa, respectively) and a transmembrane region (12 TMHs, no. 445–464 aa) in TaPIMA1 protein. (C) Phylogenetic analysis of the TaPIMA1 and other MATE proteins by the maximum likelihood method. Asterisk indicates this TaPIMA1 protein. The phylogenetic tree was constructed using MEGA 11 software. The sequences were referred to EnsemblPlants, GenBank, and Phytozome database.
Ijms 23 03377 g002
Ijms 23 03377 g003 550
Figure 3. Subcellular localization of TaPIMA1 in wheat protoplasts. The GFP (control) and fused TaPIMA1-GFP were transiently expressed in wheat chloroplasts, respectively. The confocal images were taken using 488 nm wavelengths. Scale bars are each 5 μm.
Figure 3. Subcellular localization of TaPIMA1 in wheat protoplasts. The GFP (control) and fused TaPIMA1-GFP were transiently expressed in wheat chloroplasts, respectively. The confocal images were taken using 488 nm wavelengths. Scale bars are each 5 μm.
Ijms 23 03377 g003
Ijms 23 03377 g004 550
Figure 4. Silencing of TaPIMA1 by BSMV-VIGS reduced resistance to R. cerealis in CI12633 plants. (A) The mild chlorotic mosaic symptoms were displayed on the leaves of BSMV-infected CI12633 plants at 10 dpi. (B) RT-PCR analysis of BSMV CP in the CI12633 wheat plants. The TaActin (TraesCS5B02G124100.1) was set as an internal control. (C) Analysis of the expression of TaPIMA1 in BSMV-infected CI12633 plants by qRT-PCR at 10 dpi. The sharp eyespot symptoms on stems of BSMV-infected CI12633 plants at 10 (D) and 30 (F) dpi with R. cerealis. Disease severity was indicated by infection types (ITs). (E) qRT-PCR analysis of the biomass of R. cerealis in BSMV-infected CI12633 plants. (G) Disease lesion size of R. cerealis in TaPIMA1-silencing and control CI12633 plants at 30 dpi. The lesion length and width represent the lesion size of sharp eyespot. (H) The ITs of the BSMV-infected CI12633 plants in two batches. dpi, days post inoculation. The significant differences determined by one-way ANOVA (** p < 0.01). Error bars indicates standard deviation.
Figure 4. Silencing of TaPIMA1 by BSMV-VIGS reduced resistance to R. cerealis in CI12633 plants. (A) The mild chlorotic mosaic symptoms were displayed on the leaves of BSMV-infected CI12633 plants at 10 dpi. (B) RT-PCR analysis of BSMV CP in the CI12633 wheat plants. The TaActin (TraesCS5B02G124100.1) was set as an internal control. (C) Analysis of the expression of TaPIMA1 in BSMV-infected CI12633 plants by qRT-PCR at 10 dpi. The sharp eyespot symptoms on stems of BSMV-infected CI12633 plants at 10 (D) and 30 (F) dpi with R. cerealis. Disease severity was indicated by infection types (ITs). (E) qRT-PCR analysis of the biomass of R. cerealis in BSMV-infected CI12633 plants. (G) Disease lesion size of R. cerealis in TaPIMA1-silencing and control CI12633 plants at 30 dpi. The lesion length and width represent the lesion size of sharp eyespot. (H) The ITs of the BSMV-infected CI12633 plants in two batches. dpi, days post inoculation. The significant differences determined by one-way ANOVA (** p < 0.01). Error bars indicates standard deviation.
Ijms 23 03377 g004
Ijms 23 03377 g005 550

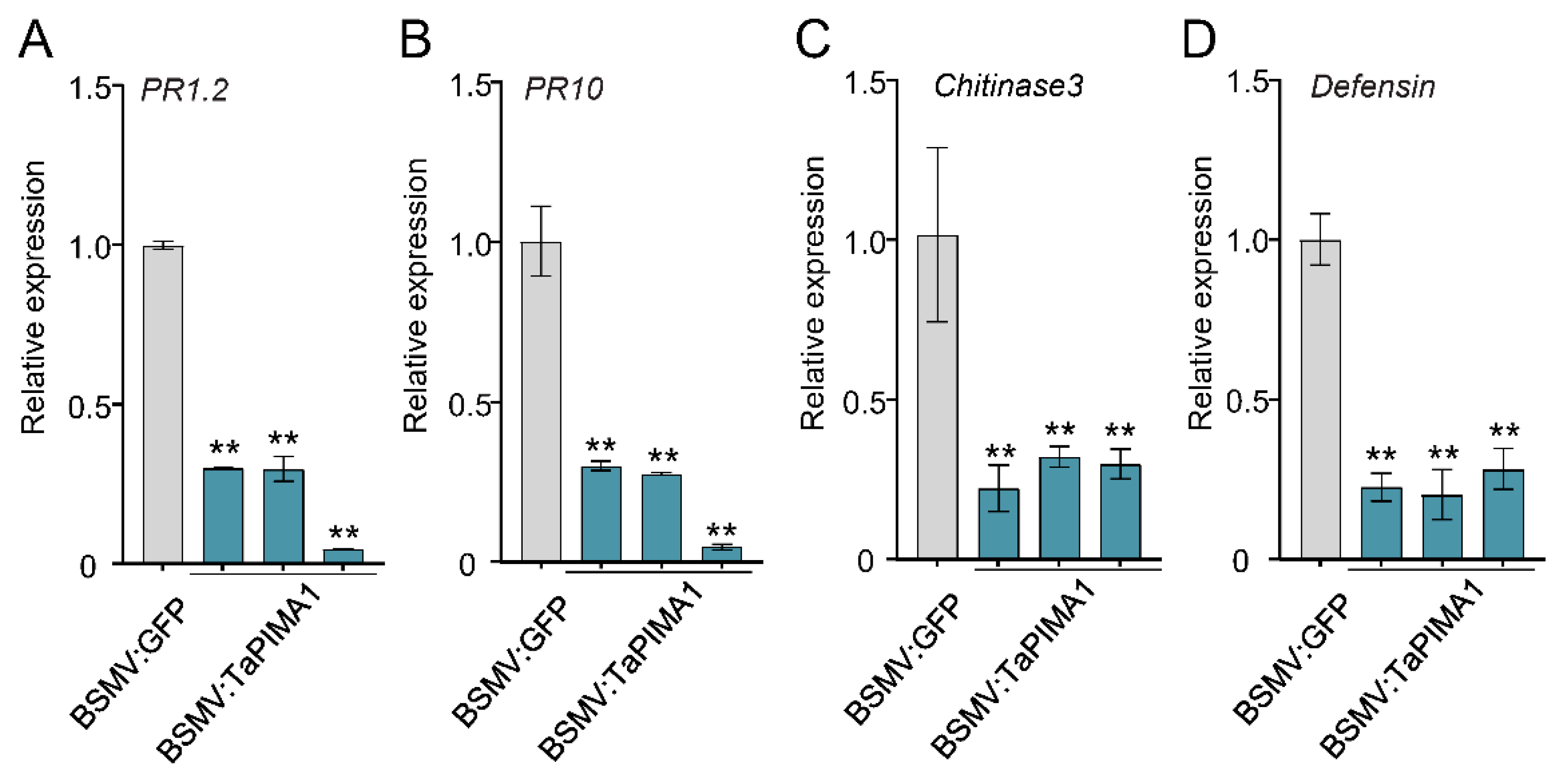

Figure 5. The expression levels of PR genes in TaPIMA1-silenced CI12633 plants at 10 dpi with R. cerealis. The PR-1.2 (A, GenBank accession no. AJ007349), PR10 (B, GenBank accession no. CA613496), chitinase3 (C, GenBank accession no. LOC542780), and defensin (D, GenBank accession no. CA630387), were regulated by TaPIMA1. The significant differences determined by one-way ANOVA (** p < 0.01). TaActin was used as internal control. Error bars indicates standard deviation.
Figure 5. The expression levels of PR genes in TaPIMA1-silenced CI12633 plants at 10 dpi with R. cerealis. The PR-1.2 (A, GenBank accession no. AJ007349), PR10 (B, GenBank accession no. CA613496), chitinase3 (C, GenBank accession no. LOC542780), and defensin (D, GenBank accession no. CA630387), were regulated by TaPIMA1. The significant differences determined by one-way ANOVA (** p < 0.01). TaActin was used as internal control. Error bars indicates standard deviation.
Ijms 23 03377 g005
Ijms 23 03377 g006 550

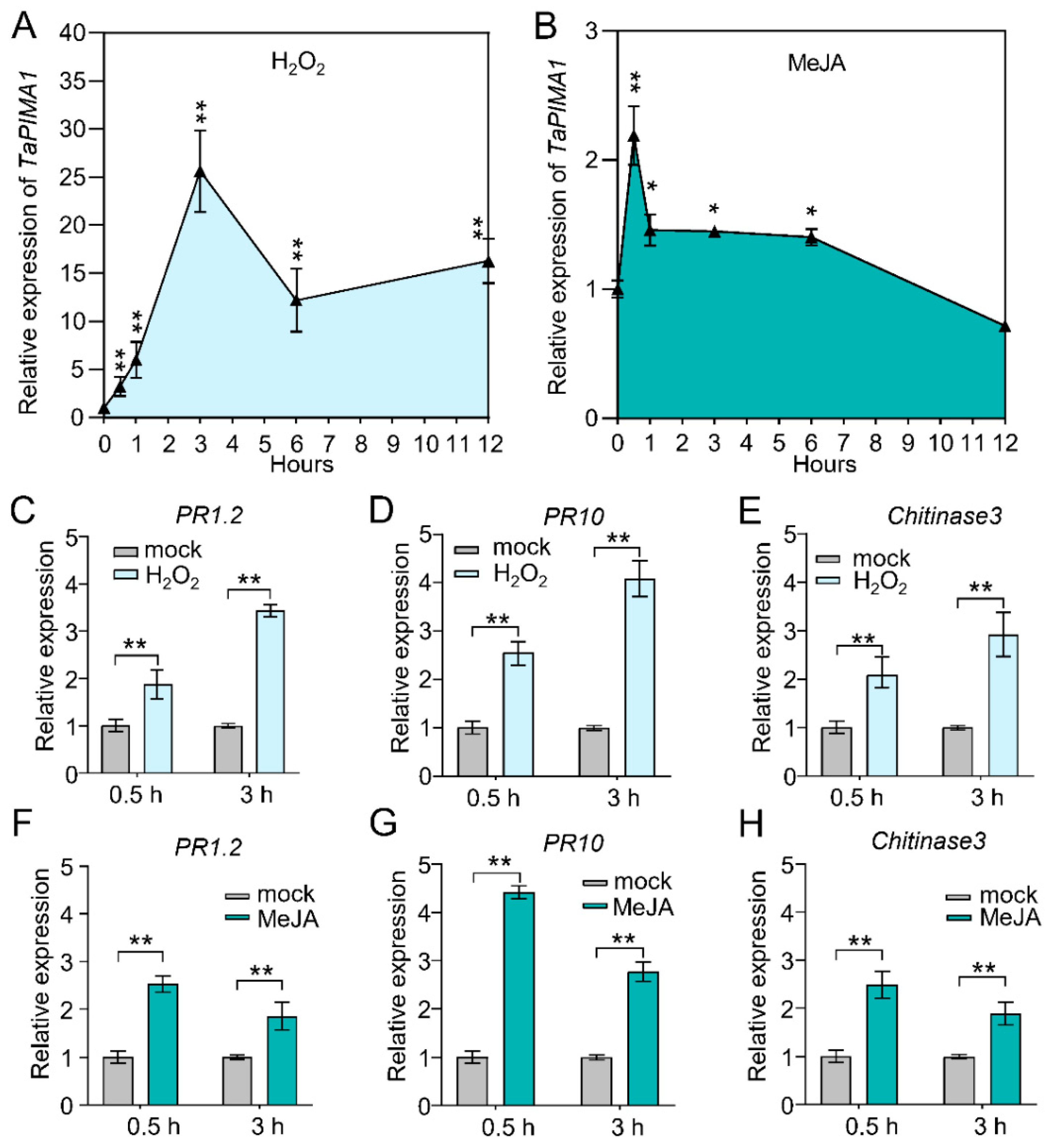

Figure 6. The expression profiles of TaPIMA1 and PR genes in H2O2/MeJA-treated CI12633 plants. The expression profiles of TaPIMA1 in CI12633 plants after exogenous application of H2O2 (A) and MeJA (B). Expression of PR1.2, PR10, and Chitinase3 in H2O2 (C–E)- and MeJA (F–H)-treated CI12633 wheat plants. The CI12633 plants were sprayed with 10 mM H2O2/0.1 mM MeJA and 0.1% Tween-20 (mock) at the four-leaf stage, respectively. The significant differences were determined by Student’s t-test (* p < 0.05, ** p < 0.01). Error bars indicate standard deviation. TaActin was used as internal control.
Figure 6. The expression profiles of TaPIMA1 and PR genes in H2O2/MeJA-treated CI12633 plants. The expression profiles of TaPIMA1 in CI12633 plants after exogenous application of H2O2 (A) and MeJA (B). Expression of PR1.2, PR10, and Chitinase3 in H2O2 (C–E)- and MeJA (F–H)-treated CI12633 wheat plants. The CI12633 plants were sprayed with 10 mM H2O2/0.1 mM MeJA and 0.1% Tween-20 (mock) at the four-leaf stage, respectively. The significant differences were determined by Student’s t-test (* p < 0.05, ** p < 0.01). Error bars indicate standard deviation. TaActin was used as internal control.
Ijms 23 03377 g006
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Su, Q.; Rong, W.; Zhang, Z. The Pathogen-Induced MATE Gene TaPIMA1 Is Required for Defense Responses to Rhizoctonia cerealis in Wheat. Int. J. Mol. Sci. 2022, 23, 3377. https://doi.org/10.3390/ijms23063377

AMA Style

Su Q, Rong W, Zhang Z. The Pathogen-Induced MATE Gene TaPIMA1 Is Required for Defense Responses to Rhizoctonia cerealis in Wheat. International Journal of Molecular Sciences. 2022; 23(6):3377. https://doi.org/10.3390/ijms23063377

Chicago/Turabian Style

Su, Qiang, Wei Rong, and Zengyan Zhang. 2022. "The Pathogen-Induced MATE Gene TaPIMA1 Is Required for Defense Responses to Rhizoctonia cerealis in Wheat" International Journal of Molecular Sciences 23, no. 6: 3377. https://doi.org/10.3390/ijms23063377

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
