RNA and Protein Determinants Mediate Differential Binding of miRNAs by a Viral Suppressor of RNA Silencing Thus Modulating Antiviral Immune Responses in Plants

Abstract

Many plant viruses express suppressor proteins (VSRs) that can inhibit RNA silencing, a central component of antiviral plant immunity. The most common activity of VSRs is the high-affinity binding of virus-derived siRNAs and thus their sequestration from the silencing process. Since siRNAs share large homologies with miRNAs, VSRs like the Tombusvirus p19 may also bind miRNAs and in this way modulate cellular gene expression at the post-transcriptional level. Interestingly, the binding affinity of p19 varies considerably between different miRNAs, and the molecular determinants affecting this property have not yet been adequately characterized. Addressing this, we analyzed the binding of p19 to the miRNAs 162 and 168, which regulate the expression of the important RNA silencing constituents Dicer-like 1 (DCL1) and Argonaute 1 (AGO1), respectively. p19 binds miRNA162 with similar high affinity as siRNA, whereas the affinity for miRNA168 is significantly lower. We show that specific molecular features, such as mismatches and ‘G–U wobbles’ on the RNA side and defined amino acid residues on the VSR side, mediate this property. Our observations highlight the remarkable adaptation of VSR binding affinities to achieve differential effects on host miRNA activities. Moreover, they show that even minimal changes, i.e., a single base pair in a miRNA duplex, can have significant effects on the efficiency of the plant antiviral immune response.

1. Introduction

In plants, the RNA silencing process is a crucial component of the immune response against pathogens such as viruses. Silencing is induced by double stranded (ds) elements of viral RNA genomes and/or mRNAs, dsRNA viral replication intermediates or dsRNAs that are generated from viral RNA templates by host RNA-dependent RNA polymerases (RDRs) [1,2]. The dsRNA elements are mainly detected by the Dicer-like proteins DCL4 or DCL2, which process them into 21 and 22 nt viral small interfering RNA (vsiRNA) duplexes, respectively [3,4]. Accordingly, during an infection, vsiRNAs accumulate and may be further amplified by the activity of RDRs [1,2,5,6,7,8,9,10]. Argonaute (AGO) endonucleases [11], which are the active components of RNA-induced silencing complexes (RISC), incorporate the ‘guide strand’ of an siRNA duplex while the other, ‘passenger strand’ is removed [12]. Mainly via base-pairing, the guide strand directs the RISC to the target RNA, which commonly is the cognate viral RNA [13,14]. The well-characterized antiviral AGO1 and AGO2 proteins then target these RNAs predominantly by endonucleolytic cleavage (‘slicing’) in a vsiRNA-directed, sequence-specific manner [15,16,17,18,19]. Thus, the spread of primary and secondary (RDR-generated) vsiRNAs can lead to a reduction in viral titer and induction of local and systemic plant immunity, respectively [8,14].

Most plant viruses encode one or more proteins that function as viral suppressors of RNA silencing, VSRs, and can block antiviral RNA silencing during different stages [20]. One of the best-characterized VSRs is the p19 protein of Tombusviruses (family Tombusviridae). p19 binds siRNA duplexes with high affinity, and siRNA binding was found to depend on the size but not on the sequence of the RNA molecule [20,21,22,23,24,25]. The p19-mediated sequestration of siRNAs prevents RISC assembly [21] and interferes with the systemic spread of silencing [22,23,24,25].

The other important function of RNA silencing is the regulation of plant gene expression at the post-transcriptional level. During this process, RISCs form with endogenous microRNAs (miRNAs, miRs) and silence cellular mRNA targets. The Dicer-like protein DCL1 processes miRNA duplexes from cellular pri-miRNA transcripts [26], and AGO1 is the main catalytic component of miRNA-containing RISC. After removal of the miRNA passenger strand (also referred to as the ‘star strand’), AGO1/RISC associate with the target RNA through base pairing of the incorporated guide strand, and silence the RNA either by slicing or by inhibiting translation [26,27,28,29].

In dicots, two miRNAs play a central role in regulating RNA silencing: miR162 targets the DCL1 mRNA [30] and miR168 targets the AGO1 mRNA [31,32,33,34]. We, and others, have shown that the p19 VSR binds miR162 considerably more effectively than miR168 [35,36]. Moreover, we could recently demonstrate that the differential binding of the miRNAs modulates the expression of DCL1 and AGO1 in the early stage of a viral infection [36].

Here, we characterized the molecular determinants of the differential binding of miR162 and miR168 by p19. We show that mismatches and G–U wobbles determine the protein–RNA interactions on the side of the miRNA, while a defined stretch of amino acids regulates the RNA affinity of p19 on the protein’s side. Accordingly, our data suggest that even small changes in both the cellular miRNA and/or viral protein can have significant effects on the regulation of the plant antiviral immune response.

2. Results

Nucleotide mismatches and ‘G–U wobbles’ determine the affinities of miRNAs to p19. In the following experiments, we mainly used the purified p19 of Carnation Italian ringspot virus, CIRV, unless otherwise described. Following a previously established procedure, we expressed the protein in E. coli and purified it in two chromatographic steps [36] (see also Section 4). The resulting p19 was free of nucleic acids contaminants and confirmed to form protein dimers [36] (data not shown). To measure RNA binding, we applied an electrophoretic mobility shift assay (EMSA) with synthetic miRNAs according to the protocol of Vargason et al. [22]; a summary of all measured binding data is given in

Table 1. Binding constants of all tested miR162 variants and miR168 variants in binding to CIRV p19.

sRNA Name	Property	KD (nM)	aKrel
gf698 (siRNA)	siRNA control	0.06 ± 0.04	-
AtmiR162	Wild-type of AtmiR162	0.06 ± 0.02	1.00 ± 0.31
miR162-0	miR162 variant with Watson–Crick base pairing terminus	0.15 ± 0.06	2.31 ± 0.92
miR162-19gC/1*C	miR162 variant with C/C mismatch at 1*/19g	0.34 ± 0.15	5.24 ± 2.31
miR162-18gC/2*C	miR162 variant with C/C mismatch at 2*/18g	0.12 ± 0.08	1.85 ± 1.23
miR162-17gU/3*C	miR162 variant with C/U mismatch at 3*/17g	0.30 ± 0.17	4.62 ± 2.62
miR162-16gA/4*G	miR162 variant with G/A mismatch at 4*/16g	0.38 ± 0.13	5.86 ± 2.00
miR162-15gC/5*C	miR162 variant with C/C mismatch at 5*/15g	0.23 ± 0.08	3.55 ± 1.23
miR162-14gG/6*A	miR162 variant with A/G mismatch at 6*/14g	0.86 ± 0.49	13.26 ± 7.55
miR162-13gU/7*C	miR162 variant with C/U mismatch at 7*/13g	1.01 ± 0.10	15.57 ± 1.54
miR162-12gC/8*C	miR162 variant with C/C mismatch at 8*/12g	0.28 ± 0.24	4.32 ± 3.70
miR162-11gU/9*C	miR162 variant with C/U mismatch at 9*/11g	0.22 ± 0.03	3.39 ± 0.46
miR162-10gC/10*C	miR162 variant with C/C mismatch at 10*/10g	1.73 ± 0.57	26.67 ± 8.79
miR162-19gU/1*G	miR162 variant with G•U wobble at 1*/19g	0.15 ± 0.12	2.31 ± 1.85
miR162-18gU/2*G	miR162 variant with G•U wobble at 2*/18g	0.13 ± 0.03	2.00 ± 0.31
miR162-17gU/3*G	miR162 variant with G•U wobble at 3*/17g	0.09 ± 0.04	1.39 ± 0.62
miR162-16gU/4*G	miR162 variant with G•U wobble at 4*/16g	0.17 ± 0.05	2.62 ± 0.77
miR162-15gU/5*G	miR162 variant with G•U wobble at 5*/15g	0.10 ± 0.01	1.54 ± 0.15
miR162-14gU/6*G	miR162 variant with G•U wobble at 6*/14g	0.45 ± 0.08	6.94 ± 1.23
miR162-13gU/7*G	miR162 variant with G•U wobble at 7*/13g	1.82 ± 0.38	28.05 ± 5.86
miR162-12gU/8*G	miR162 variant with G•U wobble at 8*/12g	1.93 ± 0.13	29.75 ± 2.00
miR162-11gU/9*G	miR162 variant with G•U wobble at 9*/11g	0.14 ± 0.12	2.16 ± 1.85
miR162-10gU/10*G	miR162 variant with G•U wobble at 10*/10g	0.63 ± 0.21	9.71 ± 3.24
miR162-14gG/6*U	miR162 variant with U•G wobble at 6*/14g	0.15 ± 0.09	2.31 ± 1.39
miR162-13gG/7*U	miR162 variant with U•G wobble at 7*/13g	1.53 ± 0.49	23.58 ± 7.55
miR162-12gG/8*U	miR162 variant with U•G wobble at 8*/12g	0.31 ± 0.08	4.78 ± 1.23
miR162-12gC/8*A	miR162 variant with A/C mismatch at 8*/12g	0.16 ± 0.03	2.47 ± 0.46
miR162-12gG/8*G	miR162 variant with G/G mismatch at 8*/12g	0.07 ± 0.04	1.08 ± 0.62
miR162-10gC/10*A	miR162 variant with A/C mismatch at 10*/10g	0.35 ± 0.24	5.39 ± 3.70
AtmiR168a	Wild-type of AtmiR168a	2.49 ± 0.88	1.00 ± 2.22
AtmiR168a variant 1	AtmiR168a variant without G•U wobble at 7*/13g	3.13 ± 1.67	1.26 ± 2.84
AtmiR168a variant 2	AtmiR168a variant without G•U wobble at 8g/12*	0.71 ± 0.28	0.29 ± 0.64
AtmiR168a variant 3	AtmiR168a variant without wobbles at 8g/12* and 17g/3*	1.00 ± 0.24	0.40 ± 0.89
AtmiR168a variant 4	AtmiR168a variant without G•U wobble at 7*/13g and mismatches	2.65 ± 0.49	1.07 ± 2.34
AtmiR168a variant 5	AtmiR168a variant without G•U wobble at 8g/12* and mismatches	0.48 ± 0.17	0.19 ± 0.43
AtmiR168a variant 6	siRNA variant of AtmiR168a	0.34 ± 0.16	0.14 ± 0.31

^aK_rel denotes the ratio of K_D of the respective RNA (variant) to the K_D of the wild-type RNA.

. First, we confirmed earlier data [32,36,37,38] by showing that p19 has a dissimilar binding behavior with different miRNAs: miR162 (miR162a from Arabidopsis thaliana, At, was used) exhibits high siRNA-like affinity, whereas miR168 (miR168a from At, was used), in contrast, shows much weaker binding to p19 (Figure 1).

To define the molecular features that determine the strongly divergent substrate preferences of p19 for the miRNAs 162 and 168, we modified the ‘high-affinity binder’ AtmiR162 sequentially. For this, we took advantage of the fact that p19 exists and functions as a dimer: the p19 dimer binds an siRNA such that the monomer-subunits symmetrically associate with the respective termini of the sRNA duplex, with each covering roughly 10 nucleotides/one turn of the dsRNA A helix [22,23] (see also the following text). To evaluate the role of individual nucleotides for binding, we modified only one terminus of the AtmiR162. Note that in the text and figures, the positions of the introduced mutations were counted from the 5′-ends of the star and guide strands, respectively: mutations affecting the miRNA’s star strand were denoted with a *, mutations affecting a miRNA’s guide strand with a ^g.

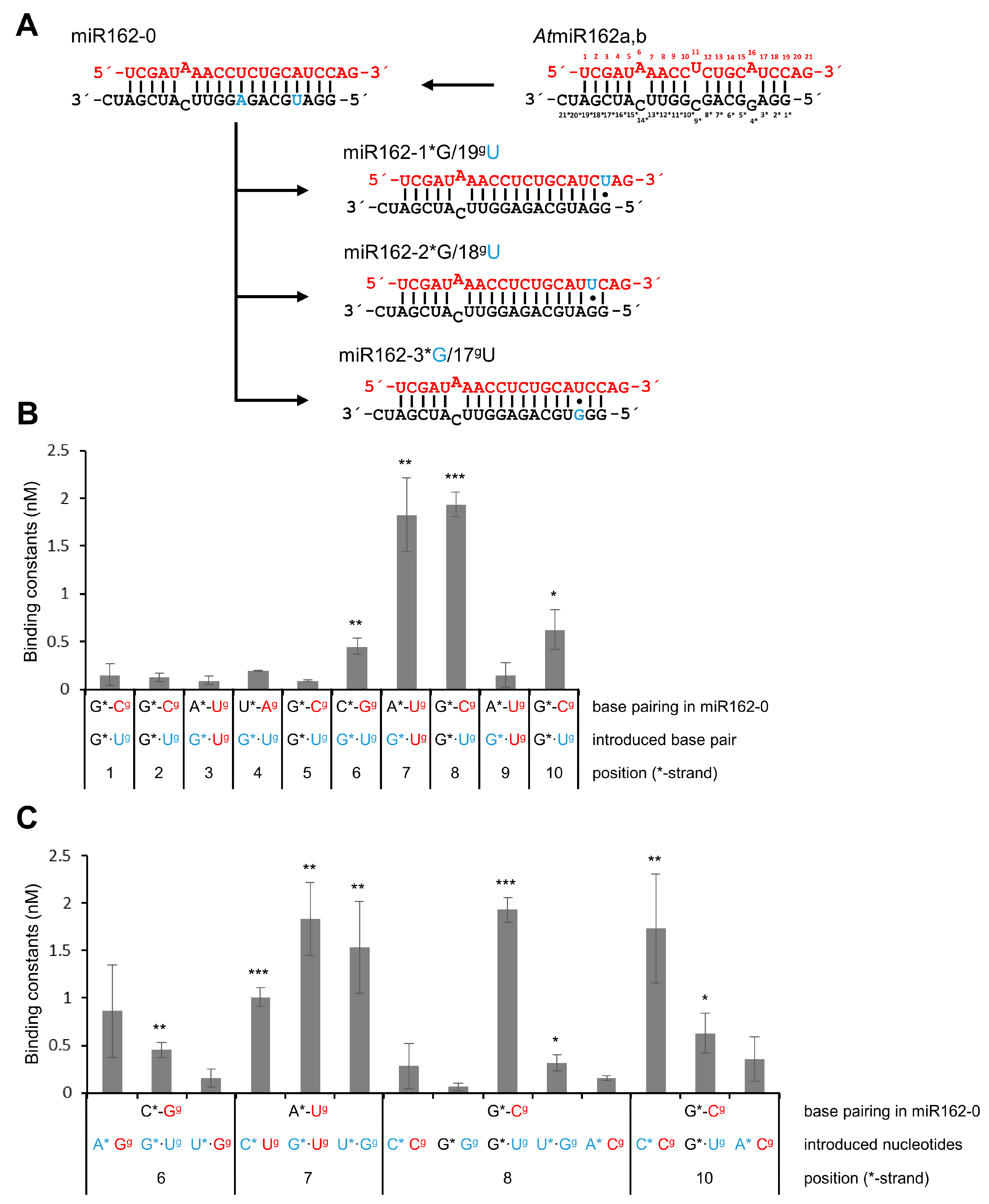

Unlike siRNAs, miRNAs usually contain mismatched nucleotides at different positions. Considering previous findings [39], we assumed these mismatches to be potential discriminators of the binding to p19. To test this systematically, we first generated an AtmiR162 variant, AtmiR162-0, which, in comparison with the wt AtmiR162, contains two nucleotide changes at positions 4 and 9 in the RNA’s star strand. In this way, a miRNA became available as starting material in which 13 nt of the star and guide strands were fully complementary and capable of forming Watson–Crick base pairs at one terminus (Figure 2A). Binding experiments with p19 determined a similar dissociation constant (K_D) of AtmiR162-0 as the wt AtmiR162 (i.e., in the range of 0.1–0.2 nM; Figure 2B; Table 1), indicating that AtmiR162-0 was suitable for the planned mutagenesis experiments. Based on AtmiR162-0, we generated 10 further variants by nucleotide exchanges of each of the 5′-terminal 10 positions of the star strand, leaving the guide strand unchanged (see three examples in Figure 2A). The chosen mutagenesis strategy followed a reported strategy [40]; i.e., when a pyrimidine base was present in the guide strand, the complementary nucleotide in the star strand was changed to cytosine; when a purine was in the guide strand, the star strand was changed to the respective other purine (such that A was opposed by G and vice versa). As shown in Figure 2B, binding assays with AtmiR162-0 and each of the mutants revealed that mismatches involving positions 6*, 7* and 10* had evident negative effects on the binding of these RNAs by p19 (see also summary of K_D and K_rel values in Table 1). Conversely, mismatches at positions 4* and 9* that are also found in the wt AtmiR162 (see also Figure 1) had no effect (Figure 2B). This was congruent with the earlier observation (Figure 2A) that AtmiR162-0 and wt AtmiR162 had similar affinities to p19.

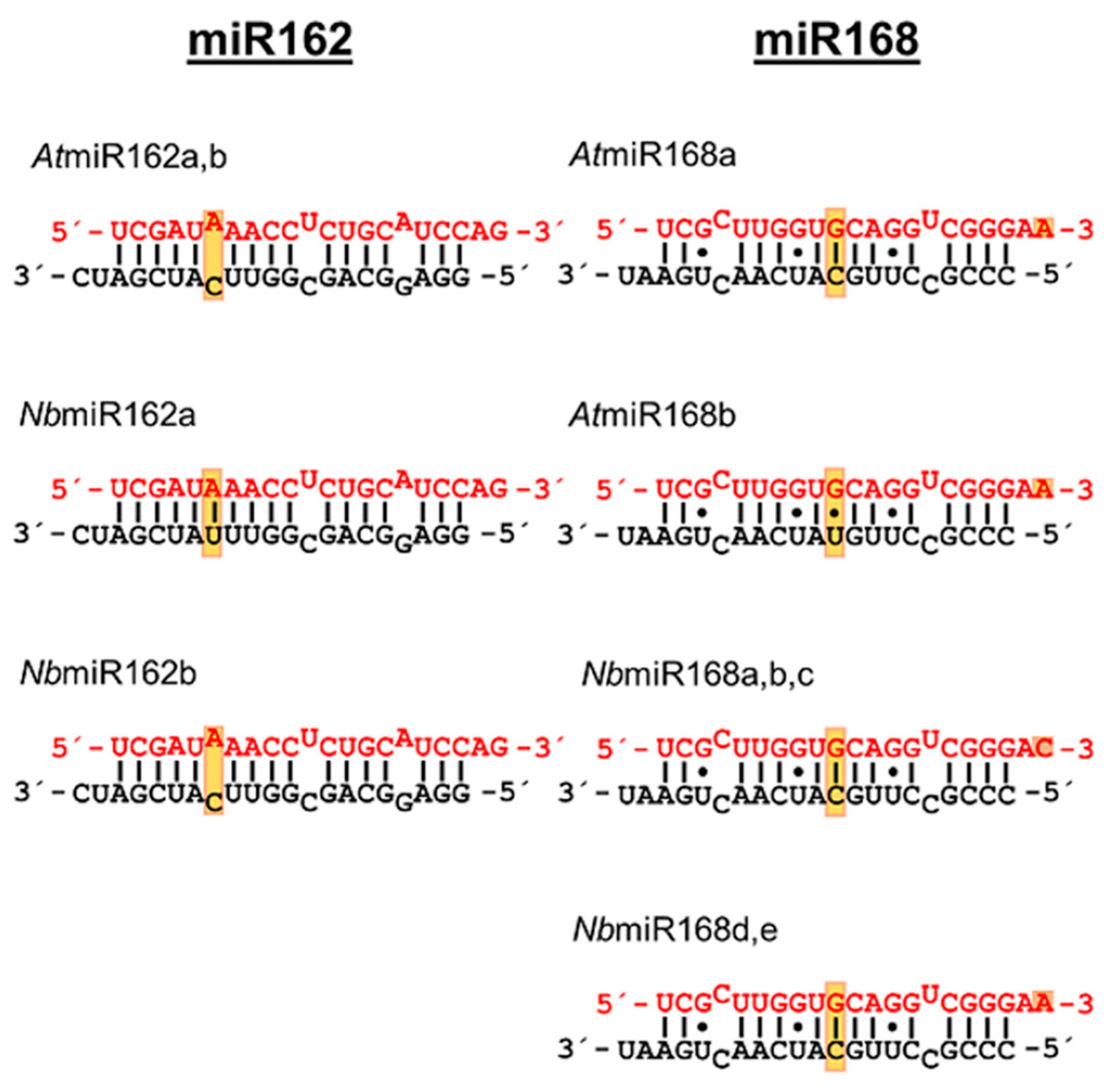

A prominent feature that distinguishes miR168 (binding at low affinity to p19) from miR162 (binding at high affinity to p19) is the presence of G–U base pairs in miR168 (indicated by dots; see, for example, Figure 1). A G–U base pair only involves two hydrogen bonds formed between the nucleobases and shows distinctive structural, chemical and thermodynamic properties in comparison to Watson–Crick base pairs [41]. To determine whether these ‘G–U wobbles’ affect the binding affinity of a miRNA to p19, we next generated variants of AtmiR162-0 in which each of the ten base pairs in the double-stranded region was progressively replaced by G–U. This was performed such that the corresponding nucleotides in the star strand were in each case modified to guanosine, while the nucleotides in the guide strand were modified to uracil (see examples in Figure 3A). Interestingly, in binding assays we observed substantial negative effects on p19-binding with AtmiR162-0 variants that contained G–U-base pairs at positions 6*/14^g, 7*/13^g, 8*/12^g and 10*/10^g. The G–U wobbles at positions 7*/13^g and 8*/12^g inhibited p19 binding most effectively (Figure 3B, Table 1). Given that mispairing at position 8* had no effect (Figure 2B), we took these data as the first indication that a base pair G–U in a terminus of the miRNA specifically attenuated binding of the p19 dimer.

To evaluate this further, we tested other AtmiR162-0 variants with introduced U–G base pairs (inverse G–U) at positions 6*/14^g, 7*/13^g and 8*/12^g and additional mismatch mutations at positions 8*/12^g and 10*/10^g (Figure 3C). Binding assays revealed that G–U or inverse U–G base pairs at position 6*/14^g only had a minor effect on the binding of p19. This was clearly different with 7*/13^g (Figure 3C, Table 1) where we observed a significant drop in binding, suggesting that at this position all types of changes that affect a perfect complementarity of the RNA strands have a negative effect on binding of p19. Most strikingly, with 8*/12^g, the binding of p19 to AtmiR162-0 was weakened exclusively by a G–U base pair but not by a U–G base pair introduced at this position (Figure 3C, Table 1). At position 10*/10^g, where a C–C mismatch had the most negative impact on the binding constant with p19 (see above), an introduced G–U base pair only had a minor impact. Notably, when we compared the isoforms of miR168 of A. thaliana and of N. benthamiana, it was obvious that all miR-isoforms contain a G–U at 7*/13^g and 8^g/12*, i.e., at similar positions in both the termini of the RNA duplex (Figure 4; see also Section 4 and Supplementary Material). Accordingly, we considered these observations to be a strong indication that non-canonical base pairing at these positions strongly affects the binding affinity of a miRNA to p19.

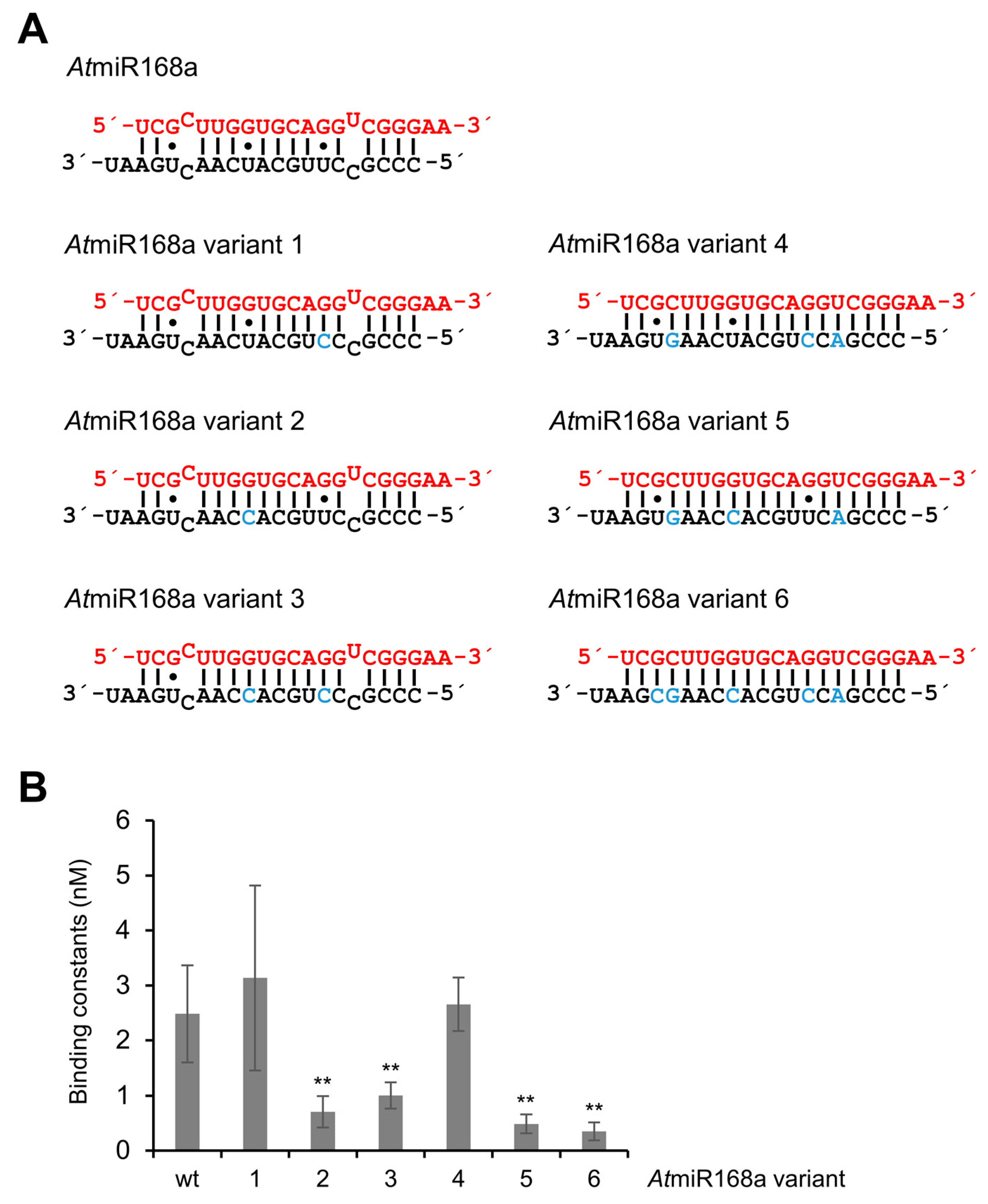

Next, we took the reverse approach to AtmiR168a, attempting to modify this miRNA into a stronger p19 binder. Six miR168 variants were tested. Variants 1–3 contained point mutations, which changed U to C at positions 7* and 12* in the star strand and thus converted the G–U pairs of miR168 individually or in combination into G–C base pairs (Figure 5A). In variants 4 and 5, we exchanged additional nucleotides in the star strand that replaced the natural mismatches and one G–U base pair with canonical base pairs. In variant 6, all three G–U base pairs were substituted by canonical base pairs (Figure 5A). Accordingly, variants 4–6 represented siRNA-like variants of miR168 that either contained G–U wobbles (variants 4 and 5) or did not (variant 6). In the binding assay summarized in Figure 5B, solely the AtmiR168 variants 2, 3, 5 and 6 showed a significant increase in the binding affinity to p19 (decrease in the measured K_D; see also Table 1). Most interestingly, the major common feature of these variants is the modification of the G–U base pair at position 8 of one terminus of the duplex, which is most obvious with miR168 variant 2 (Figure 5).

Thus, together with the earlier observations for the miR162 variants, these data suggested that a G–U base pair located at position 8 in one terminus of a miRNA (position 12 in the complementary strand) represents a specific molecular feature that determines a less stringent binding of the RNA duplex to p19.

Defined amino acid residues control the interaction of p19 with miR162 and miR168. The earlier reported structural analyses of a CIRV p19/siRNA complex [22] revealed that two amino acid residues of the protein, K67 and Q107, directly interact with the phosphate backbone of the bound RNA: K67 was indicated to contact bp 8/12, Q107 to contact bp 7/13 (see Figure 6 and Section 3). In addition, we hypothesized that mainly polar contacts of amino acids with the nucleobases were responsible for the differential binding of miRNAs by p19. Thus, we substituted Q6, N8, K67 as well as N106, Q107, V108 and G109 individually by alanine. Furthermore, we performed a T111A exchange, because T111 was earlier suggested to be an important determinant of miRNA binding [39,42]. As a first approach, the mutant CIRV p19 proteins were generated by in vitro translation (Figure S1) and tested by EMSA for the binding of AtmiR162 and AtmiR168a, respectively (Figure 7A; see Section 4 for details). Interestingly, five of the nine tested amino acid variants, namely K67A, Q107A, V108A, G109A and T111A, showed apparent defects. While K67A resulted in a general drop in the RNA binding affinity of p19, the variants Q107A, V108A, G109A and T111A showed a significant reduction in binding to miR168 (Figure 7A,B). Since Q107A, V108A and G109A showed the most significant effect on miR168 binding, we next repeated these experiments with the heterologously (E. coli) expressed and purified mutant proteins. CD spectroscopy revealed that the respective amino acid exchanges did not cause considerable perturbations to the overall structures of the protein variants (Figure S2). Moreover, we confirmed and extended our earlier findings when we performed EMSA: i.e., in comparison with the wt p19, the Q107A, V108A and G109A variants showed a measurable reduction in the affinity to the applied control-siRNA and to miR162 (Figure 7C). However, with miR168, the affinities of the mutant proteins were so low that K_D values could not be assessed by EMSA but only estimated to be in the µM range. Hence, considering the ratios of the binding constants of miR162 or gf698 versus miR168, these were considerably lower in the mutant proteins.

In conclusion, these data suggested that a defined constellation of amino acids of p19, involving particularly amino acid residues 107–109, determines the binding behavior of the VSR to the miRNAs, in particular to miR168.

An unrelated VSR shows similar binding behavior to miR168 variants as p19. In our previous study [36], we also investigated the functional interplay of the VSR 2b of Tomato Aspermy virus (TAV, genus Cucumovirus, family Bromoviridae) with different sRNAs, including miRs 162 and 168. Interestingly, we found that despite the fact that both VSRs are unrelated (they consist of completely different primary amino acid sequences) and also have completely different RNA binding modes, p19 and 2b show a very similar miRNA binding profile [36]. Following this idea, we performed here also a binding experiment with TAV 2b. As shown in

Table 2. RNA binding behavior of TAV 2b.

Competitor RNA	KC (nM)	aKrel
gf698 (siRNA)	0.53 ± 0.08	1.00 ± 0.16
AtmiR162	0.67 ± 0.09	1.26 ± 0.18
AtmiR168a	12.10 ± 0.70	22.83 ± 1.64
AtmiR168a variant 2	1.10 ± 0.20	2.08 ± 0.39
AtmiR168a variant 3	2.20 ± 0.40	4.15 ± 0.77
AtmiR168a variant 5	1.40 ± 0.20	2.64 ± 0.39
AtmiR168a variant 6	0.38 ± 0.05	0.72 ± 0.10

^aK_rel denotes the ratio of K_C of the respective RNA (variant) to the K_C of gf698 (siRNA). The K_D of gf698 to TAV 2b was determined to 0.68 ± 0.15. The binding behavior of TAV 2b to the listed RNAs (examples) was determined by competitive binding assays as described earlier [36] and in Section 4.

, similar to p19, the binding affinity of TAV 2b and miR168 is low. However, it is significantly increased when the G–U wobble at position 8/12 is modified to a G–C base pair (variant 2 in Figure 5).

These data suggest that different VSRs appear to follow similar rules in binding certain miRNAs.

3. Discussion

Virus-encoded VSRs effectively interfere with RNA silencing, for example, by the sequestration of virus-derived and antivirally acting vsiRNAs. Experimental hints by others and ourselves indicated that an additional feature of these proteins involves the inhibition of miRNA function. This can occur in a similar way as with siRNAs, namely by binding with high-affinity (‘highjacking’) and thus removing the RNAs from their cellular activities, in particular the RNA silencing process [36,44,45,46,47,48,49].

A well-known example in this context is miR162, which is efficiently sequestered by p19 and other VSRs (Figure 1). VSR-mediated lowering of the miR162 level is thought to have several effects that support viral infection. On the one hand, it increases mRNA stability and with this the expression level of DCL1, the general pri- and pre-miRNA processor in plant cells [26]. This, in turn, should lead to an increase in the delivery of all types of miRNAs, including those that counteract antiviral silencing, such as miR168 (see below). On the other hand, it has been shown [50] that low miR162/high DCL1 levels, as part of a tight homeostatic DCL interaction network, correlate with lower expression levels of antivirally active DCL4 and thus may represent an additional measure to counteract RNA silencing in the early stages of infection.

Another intensively studied process in virus-modulated RNA silencing is the homeostasis of AGO1 [33]. During viral infection, p19 and other VSRs induce transcriptional accumulation of miR168 via mechanisms that are not yet fully elucidated. miR168, in turn, promotes post-transcriptional repression of the synthesis of the antiviral AGO1 protein [32,51]. In this context, it makes biological sense that the affinity of p19 for miR168 is low (Figure 1) and that miR168 bypasses the sequestration of p19. This is also achieved through additional mechanisms such as the presence of isomiR168 variants that differ in length and structure. Interestingly, the generation of these isomiRs is promoted by a conserved motif containing the G–U wobble 7*/13^g that allows flexible internal base-pairing [35].

Consistent with these notions, we previously demonstrated in in vitro silencing and in planta experiments that p19 indeed affects miRNA-mediated silencing of the mRNAs DCL1 and AGO1 very differently and strictly according to the miRNA binding profile of the protein. Importantly, these p19–miR interactions are observable early in infection, i.e., when vsiRNA levels are still low and viral genomes unpackaged and thus susceptible to silencing [36].

The aim of this study was to define the basic molecular determinants of p19–miRNA interactions. Using mainly highly purified p19 wt and variant proteins, we showed that the quality of VSR protein–miRNA interactions correlates surprisingly stringently with defined aa/nucleotide contacts. As shown in Figure 2, Figure 3, Figure 4 and Figure 5, the effective binding of a miRNA by p19 is determined to a large extent by the interactions between the base pair 8^g/12* of the RNA duplex and amino acids 107–109 of the protein. Fittingly, amino acids 107–109 are highly conserved in the p19 proteins of nearly all Tombusviruses [52].

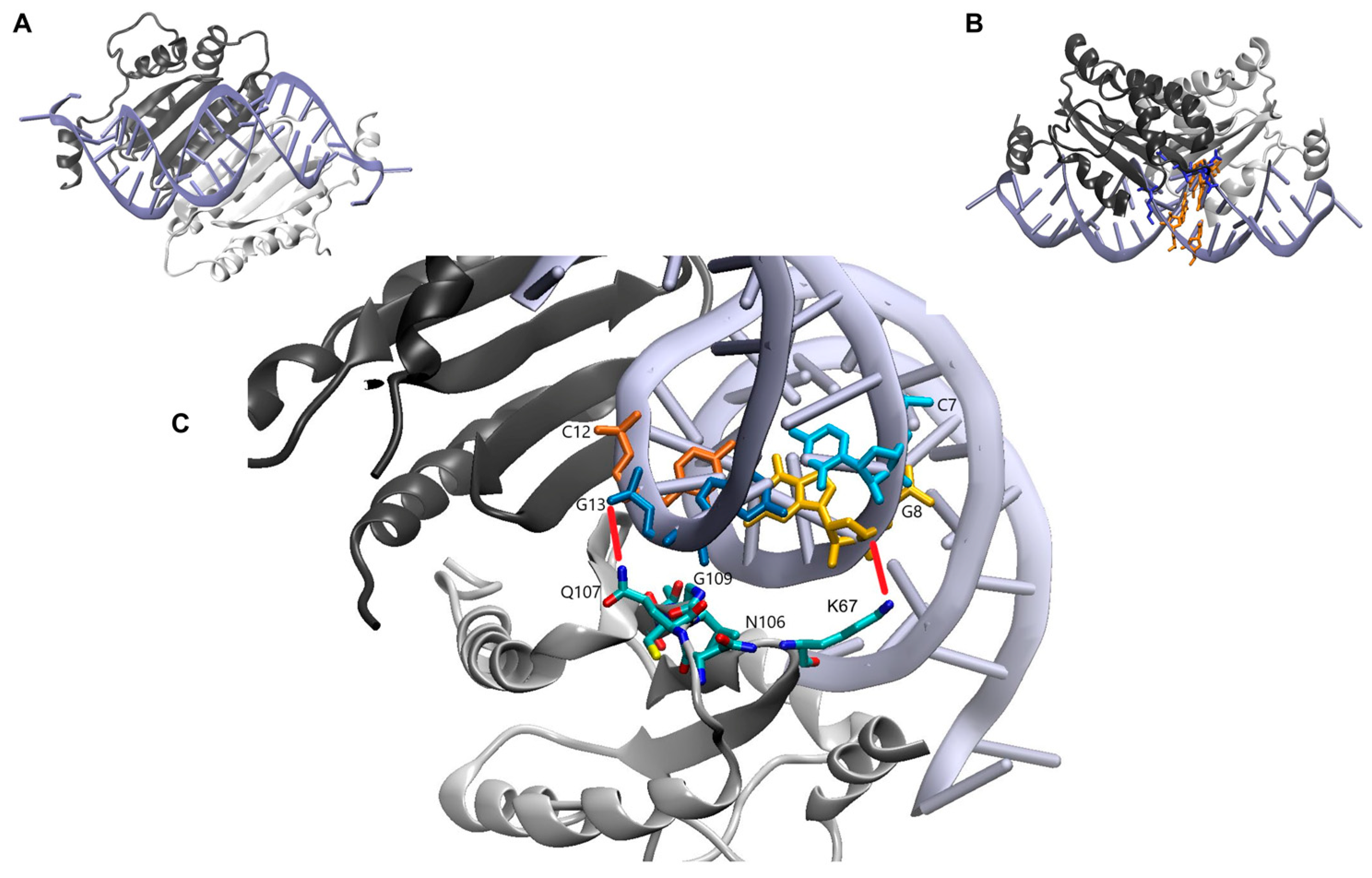

In the available crystal structures, which, however, were obtained with p19/siRNA complexes, the peptide main chain amide of p19 G109 was suggested to be in water-mediated contact with the 2-amine of a guanine at position 8 of the bound siRNA (Figure 6). That this contact is critical for high or low affinity of miRNA binding was most evident when we modified miR162 to a ‘higher K_D binder’ and miR168 into a ‘lower K_D binder’. That is, single site mutations that converted a classic G–C Watson–Crick base pair at position 8^g/12* to a G–U wobble (with miR162, Figure 3) or vice versa (with miR168, Figure 5), sufficed to largely disturb or improve the miRNA–p19 interactions, respectively (see also Table 1).

To our knowledge, the G–U wobble is described here for the first time as a prominent determinant of miRNA–protein interactions. G–U wobbles are known to lead to sequence-dependent distortions of an RNA double helix [41]. Specifically in the case of miR168, this appears to be a major reason for the attenuation of the interaction with p19. While in the case of p19 binding to an siRNA G109 can interact with a nucleobase at position 8 (Figure 6), this is apparently not possible for a miRNA containing a G–U base pair that is specifically aligned as 8^g/12*. Interestingly, all At and Nb isoforms of miR168 contain a G–U at 7*/13^g and 8^g/12*, i.e., at similar positions in both the termini of the miRNA duplex (see Figure 4 and Table S4). The G–U wobble at position 8^g/12* of miR168 is highly conserved in all plant organisms that have been recorded so far [53]. This supports the view that this very position represents a crucial hub of adaptation of the plant to different environmental conditions such as viral infections.

A very interesting observation was that two completely different VSRs, namely Tombusvirus p19 and Cucumovirus 2b, which exhibit entirely different RNA binding modes, nevertheless show the same binding pattern with different miRNAs and also with different mutants of miR168 (Table 2). Thus, adaptation of VSR binding affinities to achieve differential effects on host miRNA activities appears to be a conserved viral mechanism that coordinately modulates cellular gene expression and the antiviral immune response. On the other hand, plants could counteract this property of VSRs by a modified set of miRNAs: single mutations at specific miRNA positions, such as 7/13 or 8/12 of miR168, could provide a higher level of resistance to viral infection through the higher levels of AGO1 produced.

Thus, our study supports the view that the evolution of miRNAs and viral suppressors of RNA silencing is a critical component of the coevolution of plants and plant viruses.

4. Materials and Methods

4.1. Plasmid Constructs

Cloning of the CIRV p19-ORF into the pGEX-6P-1 vector (GE Healthcare, Chalfont St. Giles, UK) and of the TAV 2b ORF into the pET SUMO vector (Life Technologies, Carlsbad, CA, USA) for protein synthesis in E. coli was described previously [36]. To generate the CIRV p19 alanine variants, site directed mutagenesis was performed using a standard protocol (see Table S1 for primers). Successful cloning was verified via sequencing (Seqlab, Goettingen, Germany).

4.2. Protein Expression and Purification

GST fusion proteins of the wild-type (wt) and mutant p19 proteins (see text) were expressed in E. coli BL21 (DE3) RIPL cells after induction with 1 mM isopropyl-1-thio-β-D-galactopyranoside (IPTG, Roth). For cell lysis, bacterial pellets were re-suspended in lysis buffer 1 (50 mM Tris/Cl pH 7.5, 100 mM NaCl, 1 mM DTT), pre-treated at 4 °C with lysozyme (1.5 mg/g cells, Sigma-Aldrich, Taufkirchen, Germany) and lysed via French press. For purification of fusion proteins, the soluble fraction was loaded onto a GSTrap-column (5 mL, GE Healthcare). After washing with phosphate-buffered saline, the column was equilibrated with cleavage buffer (50 mM Tris/Cl pH 7.5, 100 mM NaCl, 1 mM DTT) and cleavage performed with 100 U of PreScission protease (GE Healthcare) at 4 °C overnight. Following elution with cleavage buffer, the p19 variants were further purified via a Resource Q anion exchange column (GE Healthcare), concentrated to ~40 µM, transferred to storage buffer (10 mM Tris/Cl pH 7.5, 150 mM NaCl, 1 mM EDTA, 1 mM DTT, 50% (v/v) glycerol) using ultrafiltration, and stored at −20 °C. Protein purity and folding were determined by UV and CD spectroscopy as described previously [36,54]. Dimer formation was confirmed by analytical ultracentrifugation at protein concentrations of 1.2–13 µM (CIRV p19) as also described previously [36].

His-SUMO-TAV2b fusion protein was expressed in E. coli BL21 (DE3) RIPL cells that were grown at 37 °C and induced by 0.4 mM IPTG. After induction, the cells were grown at 25 °C overnight. For lysis, the cells were re-suspended in lysis buffer 2 (50 mM potassium phosphate pH 7.6, 500 mM NaCl, 1 mM DTT containing 1 mM PMSF and protease inhibitor, Roche Diagnostics, Mannheim, Germany), pre-treated at 4 °C with lysozyme (1.5 mg/g cells, Sigma-Aldrich) and lysed via French press. The lysate was centrifuged at 12,500× g and 10 °C and the soluble fraction containing the TAV 2b fusion protein directly loaded onto a HisTrap^TM FF column (5 mL, GE Healthcare). After washing with buffer 2, the protein was eluted with buffer 3 (50 mM sodium phosphate pH 7.6, 500 mM NaCl, 500 mM imidazole, 1 mM DTT) and dialyzed against buffer 4 (10 mM Tris/Cl pH 7.6, 25 mM NaCl, 1 mM DTT). The solution containing the fusion protein was applied to an anion exchange chromatography (Hi Prep™Q HP 16/10, GE Healthcare). Elution of the target protein was performed using a linear gradient of buffer 5 (10 mM Tris/Cl pH 7.6, 250 mM NaCl, 1 mM DTT). The His-SUMO tag was then removed by SUMO protease cleavage. Afterwards, the protein was directly subjected to heparin affinity chromatography (2 × 5 mL HiTrap Heparin HP, GE Healthcare), washed with buffer 6 (50 mM Tris/Cl pH 7.6, 100 mM NaCl, 1 mM TCEP) and eluted with a linear gradient of buffer 7 (50 mM Tris/Cl pH 7.6, 1 M NaCl, 1 mM TCEP). Fractions containing the target protein were collected and concentrated using ultrafiltration (Vivaspin^® 20, Sartorius, Goettingen, Germany) with molecular weight cut-off 5000 Da. The concentrated protein solution was supplied to a final size exclusion chromatography on a G25 column for removal of impurities, and re-buffering with buffer 6. Final concentration was determined as 2.67 mg/mL. Samples were quickly frozen and stored at −80 °C.

4.3. Origin, Generation and Modification of Examined Small RNAs (sRNAs)

The gf698 siRNA used as a control in this study was earlier described by Iki et al., 2010 [55]. The sequences of the applied miRNAs from Arabidopsis thaliana (At) were derived from the miRBase database (www.mirbase.org (accessed on 2 November 2015)). RNA oligonucleotides (Table S2) were purchased from biomers (Ulm, Germany). Since phosphorylation was earlier shown to increase the binding affinity of sRNAs by CIRV p19 [22], all oligonucleotides were 5′-phosphorylated using T4 polynucleotide kinase (Thermo Fisher Scientific, Waltham, MA) and standard procedures. For radiolabeling, 25 µCi of [γ-³²P] ATP (3000 Ci/mmol, Hartmann Analytic, Braunschweig, Germany) was added to the phosphorylation reaction. For sRNA annealing, the phosphorylation reactions were stopped by the addition of 25 mM EDTA and reactions of two complementary oligonucleotides combined. After heating at 94 °C for 3 min, the mixture was cooled in steps of 3 °C (for 3 min each) to 25 °C. Hybridized RNA duplexes were then purified with illustra^TM microSpin^TM G-25 columns (GE Healthcare) as suggested by the manufacturer. The non-mutated miR^g/miR* At and Nicotiana benthamiana (Nb) duplexes are listed in Table S3. The mutated miR^g/miR* At duplex variants are listed in Tables S4 and S5.

4.4. Determination of Binding Affinities

For direct measurement of the binding affinities, radiolabeled siRNA (≤3 pM) was incubated with different concentrations of the purified CIRV p19 in binding buffer (20 mM Tris/Cl pH 7.5, 100 mM NaCl, 1 mM EDTA, 1 mM DTT, 0.02% Tween-20) at 24 °C for 1–2 h. For competition experiments with CIRV p19, the unlabeled but phosphorylated miRNAs were titrated against radiolabeled gf698 siRNA (≤3 pM) that had been bound to a fixed concentration of protein (0.5 nM CIRV p19 dimer) in binding buffer overnight. The samples were mixed at 0.25 v/v with loading dye (50 mM Tris/Cl pH 7.5, 10 mM EDTA, 0.002% bromophenol blue, 0.002% xylene cyanol, 50% v/v glycerol), analyzed by PAGE on a native 6% Tris-Borate EDTA (TBE) gel. The protein-bound and free RNAs were detected by phosphorimaging (Storm 860, Molecular Dynamics, Caesarea, Israel) and quantified by ImageQuant software (GE Healthcare). Since CIRV p19 always forms a dimer (see Figure 6), the fractions of p19-bound radiolabeled gf698 were plotted versus the free protein dimer concentrations and fitted to a rectangular hyperbola for binding constant determination in direct binding reactions.

$${\mathrm{S}}_{\mathrm{n}}=\frac{{\mathrm{D}}_{\mathrm{t}}{}^{\mathrm{n}}}{{\mathrm{K}}_{\mathrm{d}}{+\mathrm{D}}_{\mathrm{t}}{}^{\mathrm{n}}}$$

(1)

${\mathrm{S}}_{\mathrm{n}}$ is the bound sRNA fraction, D_t is the total protein dimer concentration, K_d is the binding constant, n is the cooperativity.

For competition reactions that were performed as earlier described [36] with purified TAV 2b, the gf698 siRNA and the respective miRs, the fractions of bound radiolabeled gf698 were plotted versus free competitor RNA concentrations and fitted to the following equation:

$${\mathrm{S}}_{\mathrm{n}}=\frac{1}{2·{\mathrm{R}}_{\mathrm{t}}}·\left[{\mathrm{K}}_{\mathrm{d}}+\frac{{\mathrm{K}}_{\mathrm{d}}}{{\mathrm{K}}_{\mathrm{c}}}·{\mathrm{C}}_{\mathrm{t}}{+\mathrm{P}}_{\mathrm{t}}{+\mathrm{R}}_{\mathrm{t}}-\sqrt{{\left({\mathrm{K}}_{\mathrm{d}}+\frac{{\mathrm{K}}_{\mathrm{d}}}{{\mathrm{K}}_{\mathrm{c}}}·{\mathrm{C}}_{\mathrm{t}}{+\mathrm{P}}_{\mathrm{t}}{+\mathrm{R}}_{\mathrm{t}}\right)}^2-4·{\mathrm{R}}_{\mathrm{t}}·{\mathrm{P}}_{\mathrm{t}}}\right]$$

(2)

R_t is the total concentration of radiolabeled gf698, C_t is the total competitor RNA concentration, P_t is the total protein concentration, K_c is the apparent dissociation constant of the competitor RNA. All measurements were done at least in triplicate (see indications in the text and figure legends). Data were expressed as the mean and standard deviations. Student’s t-test was performed with mean values.

4.5. Cell Culture and Preparation of BYL

Nicotiana tabacum BY2 cells were cultured at 23 °C in Murashige–Skoog liquid medium. Evacuolated BY2 protoplasts were obtained by percoll gradient centrifugation and cytoplasmic extract (BYL) prepared as described earlier [56,57].

4.6. In Vitro Translation of p19 Variants

The in vitro translation of p19 variants was performed in 50% (v/v) BYL at the previously described conditions [57]. Briefly, 0.5 µg of in vitro transcribed p19 RNA was translated in a 20 µL reaction in BYL for 60 min at 25 °C. For the detection of the translation products, 10 µCi of L-[³⁵S]-methionine (1000 Ci/mmol, Hartmann Analytic) was added to the reaction. The samples were separated by 15% (w/v) SDS-PAGE and the labeled proteins visualized by phosphorimaging (Storm 860, Molecular Dynamics). For initial screening of miRNA interactions, ca. 30 pmol of radiolabeled AtmiR162 or AtmiR168a was added to the translation reaction and incubated for 60 min at 25 °C. The samples were mixed with 0.25 v/v of loading dye and analyzed by PAGE on a 6% TBE gel under non-denaturing conditions. Bands corresponding to bound and free radiolabeled RNA were detected by phosphorimaging (Storm 860, Molecular Dynamics) and quantified by ImageQuant software (GE Healthcare). All measurements were done at least in triplicate. Data were expressed as the mean and standard deviation, and the results were statistically analyzed using Student’s t-test.
