Article

Molecular Pincers Using a Combination of N-H and C-H Donors for Anion Binding

by
Jaehyeon Kim
1,†,
Seung Hyeon Kim
1,†,
Nam Jung Heo
1,
Benjamin P. Hay
2 and
Sung Kuk Kim
1,*
1
Department of Chemistry and Research Institute of Natural Science, Gyeongsang National University, Jinju 52828, Republic of Korea
2
Supramolecular Design Institute, Oak Ridge, TN 37830, USA
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Int. J. Mol. Sci. 2023, 24(1), 163; https://doi.org/10.3390/ijms24010163
Submission received: 2 December 2022 / Revised: 18 December 2022 / Accepted: 19 December 2022 / Published: 22 December 2022
(This article belongs to the Special Issue Recent Advances in Hydrogen Bonding)
Browse Figures
Review Reports Versions Notes

Abstract

:
A naphthalene imide (1) and a naphthalene (2) bearing two pyrrole units have been synthesized, respectively, as anion receptors. It was revealed by 1H NMR spectral studies carried out in CD3CN that receptors 1 and 2 bind various anions via hydrogen bonds using both C-H and N-H donors. Compared with receptor 2, receptor 1 shows higher affinity for the test anions because of the enhanced acidity of its pyrrole NH and naphthalene CH hydrogens by the electron-withdrawing imide substituent. Molecular mechanics computations demonstrate that the receptors contact the halide anions via only one of the two respective available N-H and C-H donors whereas they use all four donors for binding of the oxyanions such as dihydrogen phosphate and hydrogen pyrophosphate. Receptor 1, a push-pull conjugated system, displays a strong fluorescence centered at 625 nm, while receptor 2 exhibits an emission with a maximum peak at 408 nm. In contrast, upon exposure of receptors 1 and 2 to the anions in question, their fluorescence was noticeably quenched particularly with relatively basic anions including F−, H2PO4−, HP2O73−, and HCO3−.

Graphical Abstract

1. Introduction

Nature uses a hydrogen bond as one of the major driving forces for inter- or intramolecular interactions as well as anion recognition [1,2,3,4,5,6,7,8,9,10,11]. For instance, the helix structures of nucleic acids are constructed based on hydrogen bonding interactions between the base pairs of the respective nucleotide subunits [12,13,14,15]. Protein folding and protein–protein interactions are also mainly attributable to inter- or intra-molecular hydrogen bonds formed between the amide NH and CO groups within proteins [16,17,18,19,20]. In general, a hydrogen bond is a noncovalent interaction via electrostatic attraction between a hydrogen atom covalently bonded to a relatively large electronegative atom and another electronegative atom possessing a lone pair electron [1,2,3,4,5,6]. In supramolecular chemistry, hydrogen bonds have been widely utilized for anion recognition of a synthetic receptor [6,7,8,9]. This is because most anions are electron-rich and have lone pair electrons, in turn, acting as a hydrogen bond acceptor [7,8,9,10]. Anions play crucial roles in various areas associated with biology, chemistry, and the environment [21,22,23,24,25,26]. Therefore, numerous efforts have been devoted to the development of an artificial anion receptor capable of binding a certain anion selectively [27,28,29,30]. For anion recognition, O-H groups of carboxylic acids or alcohols and N-H groups belonging to amide, urea, squaramide, pyrrole, or indole units have been most commonly used as hydrogen bond donors [31,32,33,34,35]. For instance, a calix [4] pyrrole, a tetrapyrrolic macrocyclic compound having pure hydrogen bond donors, recognizes anions using suitably preorganized four pyrrolic NHs [36,37,38,39,40,41]. By contrast, squaramide and urea having both hydrogen bond donors and acceptors form a self-assembled structure via inter-molecular hydrogen bonds while they bind oxyanions as well as the halide anions in the presence of such anions [42,43,44,45]. More recently, it was reported that relatively less acidic C-H hydrogens of a neutral molecule could function as a hydrogen bond donor for anion binding [46,47,48,49]. For instance, in 2013, Flood and coworkers reported that a cyanostar macrocycle bearing five cyanostilbene subunits had an ability to complex large anions, including BF4−, ClO4−, and PF6− via pure C-H•••anion hydrogen bonds [50]. Later, the Stępień group showed that a hyperbolic molecular belt bound the chloride anion selectively based on aromatic C-H•••Cl− hydrogen bonds [51]. In 2019, the Flood group also reported that a cage molecule consisting of six triazole groups and three benzene units formed a strong complex with the chloride anion using nine C-H hydrogens as hydrogen bond donors [52]. By contrast, Maeda and coworkers reported in 2007 that aryl-functionalized dipyrrolyldiketone BF2 complexes were able to bind various anions via a combination of C-H•••anion and N-H•••anion hydrogen bonding interactions [53]. As an extension of the study on such anion receptors, we synthesized anion receptors 1 and 2 in which two pyrrole groups are directly linked to the naphthalene imide and naphthalene group, respectively. It was found via 1H NMR spectroscopic analyses that this new family of anion receptors (1 and 2) recognize anions via hydrogen bonds utilizing the naphthalene CHs as well as the pyrrole NHs. Receptors 1 and 2 are highly fluorescent and can therefore act as fluorescence sensors for anions. As inferred from the molecular structure, a pull-push type of the conjugated system (1) consisting of electron-donating and electron-accepting groups exhibits an emission peak of a significantly long wavelength at 625 nm relative to receptor 2 displaying its emission at 408 nm [54,55,56,57]. Here, we report the synthesis of receptors 1 and 2 and their anion binding features in solution (Figure 1).

2. Results and Discussion

The synthetic procedures for receptors 1 and 2 are shown in Scheme 1. Briefly, N-protected pyrrole-2-boronic acid (3), dibromonaphthalene imide (4), and naphthalene ditriflate (5) were prepared following the previously reported procedures, respectively [58,59,60,61]. The Suzuki coupling reactions of compound 3 with dibromo compound 4 and ditriflate compound 5 carried out in THF/H2O in the presence of Pd(PPh3)4 as a catalyst and K2CO3 as a base produced naphthalene analogues 6 and 7 bearing two N-protected pyrroles in 54% and 75% yields, respectively. Finally, the tert-butoxycarbonyl groups of the pyrrole subunits were removed by heating ethylene glycol solutions containing compounds 6 or 7 to 180 °C for 1 h to give receptors 1 and 2 in 75% and 35% yields, respectively. Receptors 1 and 2 were structurally characterized via general spectroscopic analyses including 1H and 13C NMR spectroscopy and high-resolution mass spectrometry (HRMS).
Initial evidence for receptors 1 and 2 being capable of binding anions was gleaned from molecular mechanics computations performed utilizing the Merk Force Field 94 model (MMFF94) in vacuo [62,63]. The energies for the lowest energy forms of each of the anions and the receptors were used to calculate the binding energies (ΔE) defined as E(host-guest complex) − E(host) − E(guest). The energies of the most stable ion-free forms of the receptors were calculated to be 74.57 kcal/mol and 33.76 kcal/mol for 1 and 2, respectively, whereas the intrinsic energies of the respective isolated anions were computed to be 0 kcal/mol for the fluoride and chloride anion, −235.00 kcal/mol for the dihydrogen phosphate anion, and −95.53 kcal/mol for the hydrogen pyrophosphate anion. For the lowest energy structure of receptor 1 obtained from gas phase global minimum, the two pyrrolic NHs were oriented to the imide carbonyl oxygen atoms, possibly to gain favorable electrostatics from C=O•••H-N orientations (Figure 2). By contrast, in the case of receptor 2, its two pyrrole NHs were directed to the same orientation as the two naphthalene CHs located between the two pyrrole subunits. The respective pyrroles were also found to face below and above the naphthalene plane (Figure 2). These receptor architectures can form a cavity with two N-H and two C-H hydrogen bond donors oriented in the same direction.
The binding energies (ΔE) for the fluoride and the chloride complex of receptor 1 were computed to be −28.08 kcal/mol and −23.58 kcal/mol, respectively, while receptor 2 was found to bind the fluoride and the chloride anion with −22.61 kcal/mol and −18.46 kcal/mol of binding energies, respectively (Figure 3). These values reflect that receptor 1 binds the fluoride and the chloride anion more strongly by 5.47 kcal/mol and 5.12 kcal/mol, respectively, than receptor 2. This finding is attributable to the high acidity of the pyrrolic NHs and naphthalene CHs of receptor 1 bearing the electron-withdrawing imide group relative to receptor 2. This suggestion was further supported by the higher affinity of receptor 1 for anions than that of receptor 2 as inferred from 1H NMR spectroscopic studies (vide infra). The optimized structures of the fluoride and the chloride complexes of receptors 1 and 2 showed that both receptors bind the fluoride and the chloride anion with 1:1 stoichiometry and that both halide anions can only contact one of the N-H + C-H chelate rings of the receptors via hydrogen bonds (Figure 3). Thus, although receptors 1 and 2 have four hydrogen bond donors, the receptor architecture prevents all four of these donor groups from simultaneously contacting these mono-atomic halide anions. That is, the fluoride and chloride anions are too small to bind all four of these donors simultaneously. Due to such structural constraints, these halide anions can only interact with 1/2 of the available binding sites in the receptor cavity. By contrast, receptors 1 and 2 complex the dihydrogen phosphate anion via a different binding mode from the chloride anion. For instance, the computed lowest energy conformations of the dihydrogen phosphate complexes of receptors 1 and 2 reveal that this oxyanion is able to contact both N-H + C-H chelate rings. Structurally, the geometry of receptors 1 and 2 is better organized for binding two adjacent O atoms in the dihydrogen phosphate than for binding a halide anion (Figure 3). The binding energies of the receptors for the dihydrogen phosphate anion were computed to be −37.96 kcal/mol and −31.54 kcal/mol for 1 and 2, respectively, a finding mirroring that receptor 1 forms a more stable complex with the dihydrogen phosphate anion by 6.42 kcal/mol than receptor 2. We also computed the lowest energy structures and the binding energies for the hydrogen pyrophosphate complexes of receptors 1 and 2. In analogy to what was seen with dihydrogen phosphate, mono-hydrogen pyrophosphate (HP2O73−) formed hydrogen bonds to both pyrrole N-H and naphthalene C-H hydrogens of the receptors. In these cases, one P-O group from each phosphate serves as the hydrogen bond acceptor (Figure 3). The resulting binding energies were calculated to be −71.69 kcal/mol and −55.76 kcal/mol for receptors 1 and 2, respectively, which suggests that receptor 1 also forms a stronger complex with the hydrogen pyrophosphate anion by 15.93 kcal/mol than 2. Taken together, it could be concluded from the computations that receptor 1 binds the anions in question more favorably than receptor 2 and that both receptors form stronger complexes with the dihydrogen phosphate and hydrogen pyrophosphate anions than with the halide anions. This conclusion is consistent with the results obtained from 1H NMR spectral studies carried out in CD3CN (vide infra).
Receptors 1 and 2 were evaluated via 1H NMR spectroscopic analyses in terms of their ability to bind anions in CD3CN solutions. For instance, when receptor 1 was treated with representative anions including F−, Cl−, Br−, I−, HSO4−, H2PO4−, and HP2O73− (as their tetrabutylammonium (TBA+) salts) as well as HCO3− (as its tetraethylammonium (TEA+) salt) in CD3CN, most anions gave rise to chemical shift changes for the proton signals of receptor 1 consistent with anion binding by the receptor. Specifically, upon exposure of receptor 1 to those anions, the proton signals corresponding to the pyrrolic NHs and the naphthalene aromatic CHs (Hd) experienced noticeable shifts to downfield while the pyrrole CH proton resonances were slightly upfield-shifted in 1H NMR spectra (Figure 4). In particular, in the presence of fluoride, dihydrogen phosphate, hydrogen pyrophosphate, and bicarbonate, both proton signals of the NHs and the aromatic CHs (Hd) underwent large downfield shifts. Specifically, upon addition of the dihydrogen phosphate anion to receptor 1 in CD3CN, the receptor NH and CH (Hd) proton signals originally appearing at δ = 10.02 ppm and 8.44 ppm, respectively, were downfield shifted to δ = 13.47 ppm (Δδ = 3.45 ppm) and 9.13 ppm (Δδ = 0.69 ppm), respectively (Figure 4). In agreement with what was inferred from the molecular mechanics computations, these 1H NMR spectral changes were taken as critical evidence that the naphthalene CH hydrogens as well as the pyrrole NH hydrogens participate in anion binding via hydrogen bonds (Figure 3). In analogy to what was seen with receptor 1, receptor 2 was also found to undergo noticeable chemical shift movements in its proton signals when exposed to the test anions in CD3CN. This finding also suggests that receptor 2 recognizes the anions via a combination of C-H•••anion and N-H•••anion hydrogen bonds (Figure 5).
Detailed 1H NMR spectroscopic titrations of receptors 1 and 2 with the test anions were carried out in CD3CN to quantify their binding affinity for the anions under study. For instance, upon the subjection of receptor 1 to titration with the fluoride anion, the proton signals corresponding to the pyrrole NHs and the naphthalene imide CHs (Hd) were dramatically downfield-shifted with increasing quantities of the fluoride anion (Figure 6). These chemical shift changes were attributable to the hydrogen bonds formed between the fluoride anion and both pyrrole NH and aromatic CH protons of receptor 1. These interactions also served to increase the electron density of the naphthalene ring leading to an appreciable upfield shift of the other proton signal corresponding to the naphthalene CHs (Hc). The resulting binding isotherm was best fitted to a standard 1:1 binding profile leading to the association constant (Ka) of 1653 M−1 [64]. The presumed 1:1 binding stoichiometry of receptor 1 for fluoride was further confirmed by Job’s plot experiment (Figure 7). We also carried out titration experiments with poly atomic oxyanions (including HSO4−, H2PO4−, HP2O73−, and HCO3−) bearing multi-hydrogen bond-accepting oxygen atoms. Specifically, when receptor 1 was titrated with the dihydrogen phosphate anion in CD3CN, gradual downfield shifts of both singlet proton signals corresponding to the pyrrole NHs and the naphthalene CHs, respectively, took place before saturation was reached upon addition of 5.34 anion equiv (Figure 8). From this titration and a Job’s plot experiment, receptor 1 was found to bind the dihydrogen phosphate anion with an association constant of Ka = 1326 M−1 and with 1:1 stoichiometry (Figure 7 and Figure 8). Analogous chemical shift changes in the receptor proton signals but with different extents were observed upon exposure of receptor 1 to incremental amounts of other anions such as Cl−, Br−, I−, HSO4−, HP2O73−, and HCO3− (Figures S1–S7). These titration experiments allowed us to estimate the association constants (Ka) of receptor 1 for the anions to be 157 M−1 for chloride, 25 M−1 for bromide, 3 M−1 for iodide, 28 M−1 for hydrogen sulfate, 1531 M−1 for hydrogen pyrophosphate, and 2269 M−1 for bicarbonate, respectively (Table 1) [64]. Receptor 2 showed similar chemical shift changes of the singlet proton signals associated with the pyrrole NH and the naphthalene CH (Ha) when titrated with the anions in CD3CN. From these titration experiments, the association constants of receptor 2 for the anions were calculated to be 196 M−1 for fluoride, 43 M−1 for chloride, 13 M−1 for bromide, 2 M−1 for iodide, 1234 M−1 for hydrogen sulfate, 771 M−1 for hydrogen pyrophosphate, and 946 M−1 for bicarbonate, respectively (Table 1; Figures S8–S16). As shown in Table 1, the association constants of receptor 2 for the anions in question were considerably small as compared with those of receptor 1. Again, this finding is attributable to relatively enhanced acidity of the pyrrole NH and naphthalene CH of receptor 1 presumably because of the electron-withdrawing imide group.
Because receptors 1 and 2 exhibited strong fluorescence, we examined their optical properties using fluorescence in the absence and presence of the anions. As expected from the molecular structure, receptor 1, an electron pull-push conjugated system consisting of two electron-donating pyrrole groups directly linked to an electron-accepting the naphthalene imide unit, displays an absorption peak and an emission peak at significantly longer wavelengths than receptor 2 [54,55,56,57]. For instance, receptor 1 exhibits its absorption peak at 448 nm and its emission peak at 625 nm upon excitation at 448 nm, respectively, while receptor 2 displays its maximum absorption and emission peak at 307 nm and 408 nm, respectively (Figure 9). When receptor 1 was treated with excess amounts of the respective anions, its fluorescence was quenched by most test anions. Especially, basic anions such as F−, H2PO4−, HP2O73−, and HCO3− were found to give rise to significant fluorescence quenching (Figure 10a). In contrast, relatively small levels of fluorescence quenching were observed upon exposure of receptor 2 to most test anions (Figure 10b). By contrast, the fluoride anion led receptor 2 to emit red-shifted fluorescence at 498 nm with weakened intensity accompanying a color change from sky blue to cyan (Figure 10b). This fluorescence wavelength change is presumably attributed to partial deprotonation of the pyrrole NH protons of receptor 2 in the presence of an excess quantity of the fluoride anion. We also carried out quantitative titration experiments of receptors 1 and 2 with the anions using fluorescence spectroscopy to evaluate their anion binding affinity at a low concentration relative to the 1H NMR spectral titration condition. For instance, when receptor 1 was subjected to titrations with fluoride, dihydrogen phosphate, hydrogen pyrophosphate, and bicarbonate, respectively, its fluorescence displayed at 625 nm was gradually quenched with slight hypsochromic shifts at high concentrations of those anions (Figure 11). By contrast, other anions gave rise to relatively small fluorescence quenching with no wavelength changes. From these fluorescence titrations, the association constants of receptor 1 were estimated to be 8493 M−1 for fluoride, 484 M−1 for chloride, 674 M−1 for bromide, 1996 M−1 for iodide, 1976 M−1 for hydrogen sulfate, 101,360 M−1 for dihydrogen phosphate, 306,690 M−1 for hydrogen pyrophosphate, and 11,911 M−1 for bicarbonate (Figure 11, Figures S17–S20) [64]. Receptor 2 was also found to exhibit steadily decreasing fluorescence at 448 nm but without wavelength changes over the course of its titrations with the anions in question (Figures S21–S28). Unfortunately, we failed to obtain reliable association constants of receptor 2 for the anions from these fluorescence spectral titrations because error ranges are too large for most anions.

3. Materials and Methods

3.1. General Experimental

Solvents and reagents used for the synthetic work were purchased from Aldrich, TCI, Acros Organics or Alfa Aesar and used without further purification. Compounds 3–5 were prepared as reported previously [58,59,60,61]. NMR spectra were recorded on a Bruker Advance-300 MHz instrument. The NMR spectra were referenced to residual solvent peaks and the spectroscopic solvents were purchased from either Cambridge Isotope Laboratories or Deutero GmbH Laboratories. The Q-TOF HRMS data was recorded on a Waters (Xevo G2-XS Tof) instrument. UV/Vis spectra were measured on a Mega-800 (SCINCO) spectrometer. Fluorescence spectra were measured on a RF-6000 (SHIMADZU) spectrometer. TLC analyses were carried out using Sorbent Technologies silica gel (200 mm) sheets. Column chromatography was performed on Sorbent silica gel 60 (40–63 mm). For computations, PCModel was used to locate the lowest energy conformation for the free ligand and various ligand anion complexes [62]. This was done by sampling structures taken from 50 ps molecular dynamics runs using the Merck Force Field 94 model in vacuo [63]. The energies for the lowest energy forms of each species were used to compute interaction energies:
∆E = E(complex) − E(host) − E(guest)

3.2. Synthesis of Compound 6

A mixture of THF (100 mL) and water (20 mL) was stirred and degassed by bubbling with nitrogen gas for 1 h. Compound 5 (1.00 g, 2.00 mmol), N-Boc-pyrole-2-boronic acid 3 (1.23 g, 6.00 mmol), Pd(PPh3)4 (0.23 g, 0.20 mmol), and K2CO3 (2.68 g, 20 mmol) were added to the degassed solvent mixture. The reaction mixture was stirred and heated to reflux for 18 h. The relatively volatile THF solvent was removed under vacuum. The resulting aqueous solution containing the product was extracted with CH2Cl2 (2 × 50 mL). The combined organic layers were washed twice with distilled water and dried over magnesium sulfate. The solvent was evaporated under reduced pressure. Purification of the crude product by column chromatography over silica gel (ethyl acetate/hexanes = 1/5) afforded the product 6 (0.72 g, 54% yield) as a yellowish solid. 1H NMR (300 MHz, Chloroform-d): δ 8.62 (d, J = 1.6 Hz, 2H), 8.26 (d, J = 1.6 Hz, 2H), 7.53–7.42 (m, 3H), 7.33 (d, J = 7.7 Hz, 2H), 6.43 (dd, J = 3.4, 1.8 Hz, 2H), 6.32 (t, J = 3.3 Hz, 2H), 2.74 (p, J = 6.8 Hz, 2H) 1.36 (s, 18H), 1.15 (d, J = 6.8 Hz, 12H). 13C NMR (126 MHz, Chloroform-d): δ 164.2, 149.2, 145.5, 133.7, 133.5, 132.8, 132.3, 131.6, 130.7, 129.6, 126.4, 124.1, 124.0, 121.5, 116.2, 111.1, 84.6, 29.2, 27.6, 24.0. HR FAB-MS m/z 688.3387 [M+H]+ calcd for C42H46N3O6, found 688.3362.

3.3. Synthesis of Compound 7

A mixture of THF (100 mL) and water (20 mL) was degassed by bubbling with nitrogen gas for 1 h. Compound 6 (1.00 g, 2.40 mmol), N-Boc-pyrole-2-boronic acid (1.23 g, 7.10 mmol), Pd(PPh3)4 (0.27 g, 0.24 mmol), and K2CO3 (2.68 g, 24 mmol) were added to the mixed solvents. The mixture was stirred at reflux for 18 h. The organic solvents were evaporated in vacuo. The resulting aqueous solution was extracted with CH2Cl2 (2 × 50 mL). The organic layers were collected and washed twice with brine and then with water. The combined organic layer was dried over MgSO4, and the solvents were removed under reduced pressure. Purification of the crude product by column chromatography (CH2Cl2/hexanes = 1/4 to 1/1) over silica gel gave compound 7 (0.70 g, 65% yield) as sticky colorless liquid. 1H NMR (300 MHz, Chloroform-d): δ 7.84–7.74 (m, 4H), 7.45 (dd, J = 8.4 and 1.3 Hz, 2H), 7.40 (dd, J = 3.2 and 1.9 Hz, 2H), 6.35–6.22 (m, 4H), 1.32 (s, 18H). 13C NMR (126 MHz, DMSO-d6): δ 149.4, 134.7, 132.1, 128.1, 127.2, 127.0, 123.4, 115.4, 111.6, 84.3, 55.2, 27.7, 27.5. HR FAB-MS m/z 458.2206 [M]+ calcd for C28H30N2O4, found 458.2200.

3.4. Synthesis of Compound 1

A solution of compound 6 (0.60 g, 0.90 mmol) in ethylene glycol (5 mL) was heated to 180 oC and stirred for 1 h at this temperature. After cooling the reaction mixture, water (100 mL) and methylene chloride (100 mL) were added to the mixture. The organic layer was separated and washed twice with water and then dried over MgSO4. After filtration, the organic solvent was evaporated under reduced pressure. The resulting crude product was purified by column chromatography (ethyl acetate/hexanes = 1/4 to 1/2) to afford receptor 1 (0.32 g, 75% yield) as a red powder solid. 1H NMR (300 MHz, DMSO-d6): δ 11.84 (s, 2H), 8.70 (d, J = 1.7 Hz, 2H), 8.58 (d, J = 1.7 Hz, 2H), 7.47 (dd, J = 8.5 and 6.9 Hz, 1H), 7.36 (d, J = 7.3 Hz, 2H), 7.01 (td, J = 2.7 and 1.5 Hz, 2H), 6.86 (dq, J = 3.7 and 1.6 Hz, 2H), 6.24 (dt, J = 3.6 and 2.3 Hz, 2H), 2.73 (p, J = 6.8 Hz, 2H), 1.08 (d, J = 6.8 Hz, 12H). 13C NMR (126 MHz, DMSO-d6): δ 164.2, 146.0, 133.7, 132.9, 131.6, 130.0, 129.6, 126.8, 126.6, 124.7, 124.2, 122.8, 121.7, 110.4, 108.3, 29.0, 24.1. HR FAB-MS m/z 488.2338 [M+H]+ calcd for C32H29N3O2, found 488.2333.

3.5. Synthesis of Compound 2

An ethylene glycol solution of compound 7 (0.70 g, 0.90 mmol) was heated and stirred at 180 oC for 1 h. The organic solvents were removed under vacuum. After cooling the reaction mixture, water (100 mL) and methylene chloride (100 mL) were added to the mixture. The organic layer was separated and washed twice with water and then dried over MgSO4. After filtration, the organic solvent was evaporated under reduced pressure. The resulting crude mixture was purified by column chromatography over silica gel (eluent: ethyl acetate/hexanes = 1/4 to 1/1) to give receptor 2 (0.14 g, 35% yield) as a gray solid. 1H NMR (300 MHz, DMSO-d6): δ 11.47 (s, 2H), 8.01 (d, J = 1.7 Hz, 2H), 7.81 (d, J = 8.6 Hz, 2H), 7.72 (dd, J = 8.5 and 1.6 Hz, 2H), 6.91 (q, J = 2.3 Hz, 2H), 6.65 (m, 2H), 6.17 (q, J = 2.7 Hz, 2H). 13C NMR (126 MHz, DMSO-d6): δ 134.4, 131.6, 131.4, 130.1, 128.4, 122.7, 120.4, 120.3, 109.8, 106.8. HR FAB-MS m/z 259.1235 [M+H]+ calcd for C18H14N2, found 259.1212.

4. Conclusions

In conclusion, molecular pincers 1 and 2, consisting of two pyrroles directly linked to a naphthalene imide and the plain naphthalene, respectively, were synthesized as anion receptors. These compounds have architectures capable of forming a cavity with two N-H and two C-H hydrogen bond donors facing in the same general direction. 1H NMR spectroscopic analyses demonstrate that both receptors (1 and 2) bind the test anions using both the pyrrole N-H and naphthalene C-H hydrogen bond donors. It was proposed via molecular mechanics computations that the receptors complex the anions via different binding modes depending on the size and shape of the anions. For instance, due to structural constraints, the receptors bind the halide anions such as fluoride (F–) and chloride (Cl–) using only one of two available N-H and C-H hydrogen bond donors. In contrast, the dihydrogen phosphate (H2PO4–) and the hydrogen pyrophosphate (HP2O73–) anion are bound to all four donors simultaneously but with a different motif. As proved by the association constants (Ka) estimated from 1H NMR spectral titrations carried out in CD3CN, receptor 1 binds most anions with high affinity as compared with receptor 2. This is attributable to the inherently high acidity of the pyrrole NHs and the naphthalene CHs of receptor 1 relative to 2 because of the electron-withdrawing imide group in 1. An electron push-pull conjugated system, receptor 1 exhibits strong fluorescence at 625 nm, which is a much longer wavelength than the fluorescence emitted by receptor 2. When receptors 1 and 2 were exposed to the anions in question, they displayed noticeably quenched fluorescence. In particular, fluoride, bicarbonate, dihydrogen phosphate, and hydrogen pyrophosphate gave rise to a large level of fluorescence changes for receptor 1.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms24010163/s1, synthetic details, 1H and 13C NMR and HRMS spectroscopic data, UV/Vis and fluorescence spectroscopic data, and molecular mechanics computation data for the lowest energy structures of compounds 1 and 2 and their anion complexes.

Author Contributions

S.K.K. conceived and supervised the project. J.K. and N.J.H. synthesized the compounds. J.K. and S.H.K. performed 1H NMR, UV/Vis, and fluorescence spectroscopic studies. B.P.H. carried out molecular mechanics computations. S.K.K. wrote the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Research Foundation of Korea (NRF) funded by the Korea government (MIST) NRF-2021R1A2C1012140.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

The following abbreviations are used in this manuscript.
MMFF94Merk Force Field 94 model
HRMSHigh-Resolution Mass Spectrometry
THFTetrahydrofuran
TBATetrabutylammonium
TEATetraethylammonium
DMFN,N-Dimethylformamide

References

  1. Kollman, P.A.; Allen, L.C. The theory of the hydrogen bond. Chem. Rev. 1972, 72, 283–303. [Google Scholar] [CrossRef]
  2. Buckingham, A.D.; Del Bene, J.E.; McDowell, S.A.C. The hydrogen bond. Chem. Phys. Lett. 2008, 463, 1–10. [Google Scholar] [CrossRef]
  3. Steiner, T. The hydrogen bond in the solid state. Angew. Chem. Int. Ed. 2002, 41, 48–76. [Google Scholar] [CrossRef]
  4. Etter, M.C. Encoding and decoding hydrogen-bond patterns of organic compounds. Acc. Chem. Res. 1990, 23, 120–126. [Google Scholar] [CrossRef]
  5. Stahl, N.; Jencks, W.P. Hydrogen bonding between solutes in aqueous solution. J. Am. Chem. Soc. 1986, 108, 4196–4205. [Google Scholar] [CrossRef]
  6. Scheiner, S. The Hydrogen Bond: A Hundred Years and Counting. J. Indian Inst. Sci. 2020, 100, 61–76. [Google Scholar] [CrossRef]
  7. Kubik, S. Anion recognition in water. Chem. Soc. Rev. 2010, 39, 3648–3663. [Google Scholar] [CrossRef]
  8. Busschaert, N.; Caltagirone, C.; Rossom, W.V.; Gale, P.A. Applications of supramolecular anion recognition. Chem. Rev. 2015, 115, 8038–8155. [Google Scholar] [CrossRef]
  9. Beer, P.D.; Gale, P.A. Anion recognition and sensing the state of the art and future perspectives. Angew. Chem. Int. Ed. 2001, 40, 486–516. [Google Scholar] [CrossRef]
  10. Wu, X.; Gilchrist, A.M.; Gale, P.A. Prospects and challenges in anion recognition and transport. Chem 2022, 6, 1296–1309. [Google Scholar] [CrossRef]
  11. Jiang, L.H.; Caseley, E.A.; Muench, S.P.; Roger, S. Structural basis for the functional properties of the P2X7 receptor for extracellular ATP. Purinergic Signal. 2021, 17, 331–344. [Google Scholar] [CrossRef] [PubMed]
  12. Lane, A.N.; Jenkins, T.C. Structures and properties of multi-stranded nucleic acids. Curr. Org. Chem. 2001, 5, 845–869. [Google Scholar] [CrossRef]
  13. Watson, J.D.; Crick, F.H.C. Molecular structure of nucleic acids: A structure for deoxyribose nucleic acid. Nature 1953, 171, 737. [Google Scholar] [CrossRef] [PubMed]
  14. Wang, J.C. Helical repeat of DNA in solution. Proc. Natl. Acad. Sci. USA 1979, 76, 200–203. [Google Scholar] [CrossRef] [Green Version]
  15. Pauling, L.; Corey, R.B. A Proposed structure for the nucleic acids. Proc. Natl. Acad. Sci. USA 1953, 39, 84–97. [Google Scholar] [CrossRef] [Green Version]
  16. Dobson, C.M. Protein folding and misfolding. Nature 2003, 426, 884–890. [Google Scholar] [CrossRef]
  17. Sun, T.; Zhou, B.; Lai, L.; Pei, J. Sequence-based prediction of protein interaction using a deep-learning algorithm. BMC Bioinform. 2017, 18, 277. [Google Scholar] [CrossRef] [Green Version]
  18. Hubbard, R.E.; Haider, M.K. Hydrogen bonds in proteins role and strength. In Encyclopedia of Life Sciences (ELS); John Wiley & Sons, Ltd.: Chichester, UK, 2010. [Google Scholar]
  19. Jones, S.; Thornton, J.M. Principles of protein-protein interactions. Proc. Natl. Acad. Sci. USA 1996, 93, 13–20. [Google Scholar] [CrossRef] [Green Version]
  20. Nooren, I.M.A.; Thoronton, J.M. Diversity of potein-protein interactions. EMBO J. 2003, 22, 3486–3492. [Google Scholar] [CrossRef] [Green Version]
  21. Sessler, J.L.; Gale, P.A.; Cho, W.S. Anion Receptor Chemistry; Stoddart, J.F., Ed.; Royal Society of Chemistry: Cambridge, UK, 2006; ISBN 978-0-85404-974-5. [Google Scholar]
  22. Lehn, J.M. Supramolecular Chemistry; VCH Press: Weinheim, Germany, 1995; ISBN 9783527607433. [Google Scholar]
  23. Desvergne, J.P.; Czarnik, A.W. Chemosensors of Ion and Molecular Recognition; NATO ASI Series C. Kluwer: Dordrecht, The Netherlands, 1997; ISBN 978-94-011-3973-1. [Google Scholar]
  24. Bianchi, A.; Bowman-James, K.; García-España, E. Supramolecular Chemistry of Anions; Willey: New York, NY, USA, 1997; ISBN 0-471-18622-8. [Google Scholar]
  25. Schmidtchen, F.P. Molekulare Wirte für Anionen. Nachr. Chem. Tech. Lab. 1988, 36, 8–17. [Google Scholar]
  26. Bowman-James, K.; Bianchi, A.; García-España, E. (Eds.) Anion Coordination Chemistry; Wiley-VCH: Weinheim, Germany, 2011; ISBN 9783527639502. [Google Scholar]
  27. Chen, L.; Berry, S.N.; Wu, X.; Howe, E.N.W.; Gale, P.A. Advances in anion receptor chemistry. Chem 2020, 6, 61–141. [Google Scholar] [CrossRef]
  28. Allison, S.J.; Bryk, J.; Clemett, C.J.; Faulkner, R.A.; Ginger, M.; Griffiths, H.B.S.; Harmer, J.; Owen-Lynch, P.J.; Pinder, E.; Wurdak, H.; et al. Self-assembly of an anion receptor with metal-dependent kinase inhibition and potent in vitro anti-cancer properties. Nat. Commun. 2021, 12, 3898. [Google Scholar] [CrossRef] [PubMed]
  29. Dietrich, B.; Hosseini, M.W.; Lehn, J.M.; Sessions, R.B. Anion Receptor Molecules. Synthesis and anion-Binding properties of polyammonium macrocycles. J. Am. Chem. Soc. 1981, 103, 1282–1283. [Google Scholar] [CrossRef]
  30. Richard, D. Computational Chemistry of Solid State Materials a Guide for Materials Scientists, Chemists, Physicists and Others; Wiley-VCH: Weinheim, Germany, 2006; ISBN 9783527314102. [Google Scholar]
  31. Dydio, P.; Lichosyt, D.; Jurczak, J. Amide- and urea-functionalized pyrroles and benzopyrroles as synthetic, neutral anion receptors. Chem. Soc. Rev. 2011, 40, 2971–2985. [Google Scholar] [CrossRef] [PubMed]
  32. Gale, P.A.; Howe, E.N.W.; Wu, X. Anion receptor chemistry. Chem 2016, 1, 351–422. [Google Scholar] [CrossRef] [Green Version]
  33. Chang, K.J.; Kang, B.N.; Lee, M.H.; Jeong, K.S. Oligoindole-based foldamers with a helical conformation induced by chloride. J. Am. Chem. Soc. 2005, 127, 12214–12215. [Google Scholar] [CrossRef] [PubMed]
  34. Amendola, V.; Fabbrizzi, L.; Mosca, L. Anion recognition by hydrogen bonding: Urea-based receptors. Chem. Soc. Rev. 2010, 39, 3889–3915. [Google Scholar] [CrossRef]
  35. Bondy, C.R.; Loeb, S.J. Amide based receptors for anions. Coord. Chem. Rev. 2003, 240, 77–99. [Google Scholar] [CrossRef]
  36. Gale, P.A.; Sessler, J.L.; Král, V.; Lynch, V. Calix[4]pyrroles: Old yet new anion-binding agents. J. Am. Chem. Soc. 1996, 118, 5140–5141. [Google Scholar] [CrossRef]
  37. Gale, P.A.; Sessler, J.L.; Kral, V. Calixpyrroles. Chem. Commun. 1998, 1–8. [Google Scholar] [CrossRef]
  38. Lee, C.H.; Miyaji, H.; Yoon, D.W.; Sessler, J.L. Strapped and other topographically nonplanar calixpyrrole analogues. Improved anion receptors. Chem. Commun. 2008, 24–34. [Google Scholar] [CrossRef] [PubMed]
  39. Gale, P.A.; Lee, C.-H. Calix[n]pyrroles as Anion and Ion-Pair Complexants. Top. Heterocycl. Chem. 2010, 24, 39–73. [Google Scholar]
  40. Peng, S.; He, Q.; Vargas-Zúñiga, G.I.; Qin, L.; Hwang, I.; Kim, S.K.; Heo, N.J.; Lee, C.H.; Dutta, R.; Sessler, J.L. Strapped calix[4]pyrroles: From syntheses to applications. Chem. Soc. Rev. 2020, 49, 865–907. [Google Scholar] [CrossRef] [PubMed]
  41. Kim, S.K.; Lee, J.; Williams, N.J.; Lynch, V.M.; Hay, B.P.; Moyer, B.A.; Sessler, J.L. Bipyrrole-Strapped Calix[4]pyrroles: Strong anion receptors that extract the sulfate anion. J. Am. Chem. Soc. 2014, 136, 15079–15085. [Google Scholar] [CrossRef]
  42. Busschaert, N.; Kirby, I.L.; Young, S.; Coles, S.J.; Horton, P.N.; Light, M.E.; Gale, P.A. Squaramides as potent transmembrane anion transporters. Angew. Chem. Int. Ed. 2012, 51, 4426–4430. [Google Scholar] [CrossRef]
  43. Storer, R.I.; Aciro, C.; Jones, L.H. Squaramides: Physical properties, synthesis and applications. Chem. Soc. Rev. 2011, 40, 2330–2346. [Google Scholar] [CrossRef]
  44. Chauhan, P.; Mahajan, S.; Kaya, U.; Hack, D.; Enders, D. Bifunctional amine-squaramides: Powerful hydrogen-bonding organocatalysts for asymmetric domino/cascade reactions. Adv. Synth. Catal. 2015, 357, 253–281. [Google Scholar]
  45. Marchetti, L.A.; Kumawat, L.K.; Mao, N.; Stephens, J.C.; Elmes, R.B.P. The versatility of squaramides: From supramolecular chemistry to chemical biology. Chem 2019, 5, 1398–1485. [Google Scholar] [CrossRef]
  46. Lee, S.; Flood, A.H. Binding Anions in Rigid and Reconfigurable Triazole Receptors; Springer Berlin Heidelberg: Berlin/Heidelberg, Germeny, 2012; pp. 85–107. ISBN 978-3-642-29428-0. [Google Scholar]
  47. Ramabhadran, R.O.; Hua, Y.; Flood, A.H.; Raghavachari, K. From atomic to molecular anions: A neutral receptor captures cyanide using strong C–H hydrogen bonds. Chem. Eur. J. 2011, 17, 9123–9129. [Google Scholar]
  48. Zahran, E.M.; Hua, Y.; Lee, S.; Flood, A.H.; Bachas, L.G. Ion-selective electrodes based on a pyridyl-containing triazolophane: Altering halide selectivity by Combining dipole-promoted cooperativity with hydrogen bonding. Anal. Chem. 2011, 83, 3455–3461. [Google Scholar] [CrossRef]
  49. Hua, Y.; Ramabhadran, R.O.; Uduehi, E.O.; Karty, J.A.; Raghavachari, K.; Flood, A.H. Aromatic and aliphatic CH hydrogen bonds fight for chloride while competing alongside ion pairing within triazolophanes. Chem. Eur. J. 2011, 17, 312–321. [Google Scholar] [CrossRef] [PubMed]
  50. Lee, S.; Chen, C.H.; Flood, A.H. A pentagonal cyanostar macrocycle with cyanostilbene CH donors binds anions and forms dialkylphosphate [3]rotaxanes. Nat. Chem. 2013, 5, 704–710. [Google Scholar] [CrossRef] [PubMed]
  51. Majewski, M.A.; Hong, Y.; Lis, T.; Gregoliński, J.; Chmielewski, P.J.; Cybińska, J.; Kim, D.; Stępień, M. Octulene: A hyperbolic molecular belt that binds chloride anions. Angew. Chem. Int. Ed. 2016, 55, 14072–14076. [Google Scholar] [CrossRef]
  52. Liu, Y.; Zhao, W.; Chen, C.H.; Flood, A.H. Chloride capture using a C–H hydrogen bonding cage. Science 2019, 365, 159–161. [Google Scholar]
  53. Maeda, H.; Haketa, Y.; Nakanishi, T. Aryl-Substituted C3-bridged oligopyrroles as anion receptors for formation of supramolecular organogels. J. Am. Chem. Soc. 2007, 129, 13661–13674. [Google Scholar] [CrossRef]
  54. Ishi-i, T.; Ikeda, K.; Ogawa, M.; Kusakaki, Y. Light-emitting properties of donor–acceptor and donor–acceptor–donor dyes in solution, solid, and aggregated states: Structure–property relationship of emission behavior. RSC Adv. 2015, 5, 89171–89187. [Google Scholar] [CrossRef]
  55. Pal, A.; Karmakar, M.; Bhatta, S.R.; Thakur, A. A detailed insight into anion sensing based on intramolecular charge transfer (ICT) mechanism: A comprehensive review of the years 2016 to 2021. Coord. Chem. Rev. 2021, 448, 214167. [Google Scholar] [CrossRef]
  56. Meier, H. Conjugated oligomers with terminal donor–acceptor substitution. Angew. Chem. Int. Ed. 2005, 44, 2482–2506. [Google Scholar] [CrossRef]
  57. Panja, S.K.; Dwivedi, N.; Saha, S. Tuning the intramolecular charge transfer (ICT) process in push-pull systems: Effect of Nitro group. RSC Adv. 2016, 6, 105786–105794. [Google Scholar] [CrossRef]
  58. Xue, J.Y.; Nakanishi, W.; Tanimoto, D.; Hara, D.; Nakamura, Y.; Isobe, H. Convergent synthesis of hexameric naphthylene macrocycles with dicarboxylic imide appendages. Tetrahedron Lett. 2013, 54, 4963–4965. [Google Scholar] [CrossRef]
  59. Frigoli, M.; Moustrou, C.; Samat, A.; Guglielmetti, R. Synthesis of New thiophene-substituted 3,3-diphenyl-3H-naphtho[2,1-b]pyrans by cross-coupling reactions, precursors of photomodulated materials. Eur. J. Org. Chem. 2003, 15, 2799–2812. [Google Scholar] [CrossRef]
  60. Salman, H.; Abraham, Y.; Tal, S.; Meltzman, S.; Kapon, M.; Tessler, N.; Speiser, S.; Eichen, Y. 1,3-Di(2-pyrrolyl)azulene: An efficient luminescent probe for fluoride. Eur. J. Org. Chem. 2005, 2005, 2207–2212. [Google Scholar] [CrossRef]
  61. Weidauer, M.; Irran, E.; Enthaler, S. Synthesis and structural characterization of a trispyrrole iron(II) complex K(dme)4[tpaMesFe] and application in nitrous oxide dependent coupling reactions. Inorg. Chem. Commun. 2015, 54, 1–4. [Google Scholar] [CrossRef]
  62. Conformational Searches Performed with PCModel, Version 9.3; Serena Software: Bloomington, IN, USA, 2012.
  63. Halgren, T.A. Merck molecular force field. I. Basis, form, scope, parameterization, and performance of MMFF94. J. Comp. Chem. 1996, 17, 490–519. [Google Scholar] [CrossRef]
  64. Association Constants (Ka) Were Evaluated Using BindFit v5.0. Available online: http://app.supramolecular.org/bindfit/ (accessed on 28 October 2022).
Ijms 24 00163 g001 550

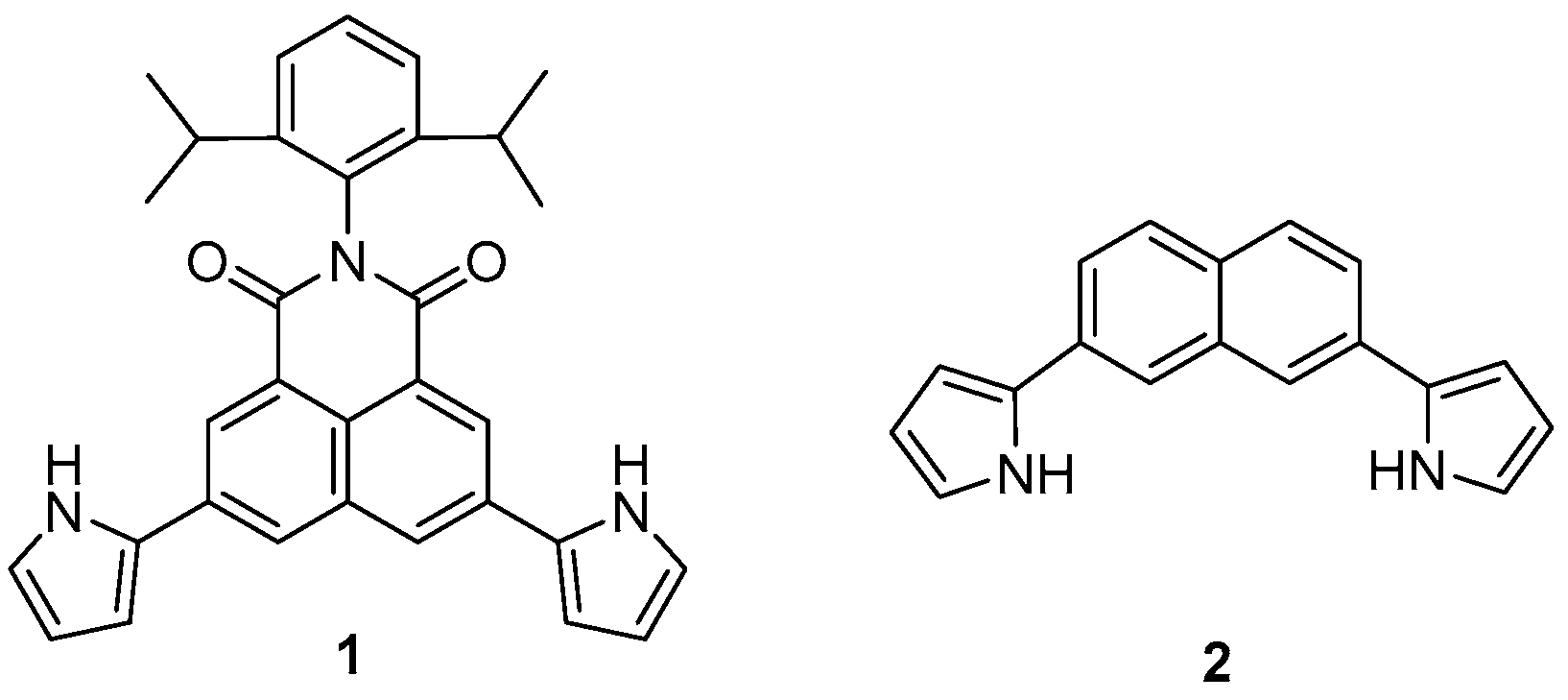

Figure 1. Molecular structures of receptors 1 and 2.
Figure 1. Molecular structures of receptors 1 and 2.
Ijms 24 00163 g001
Ijms 24 00163 sch001 550

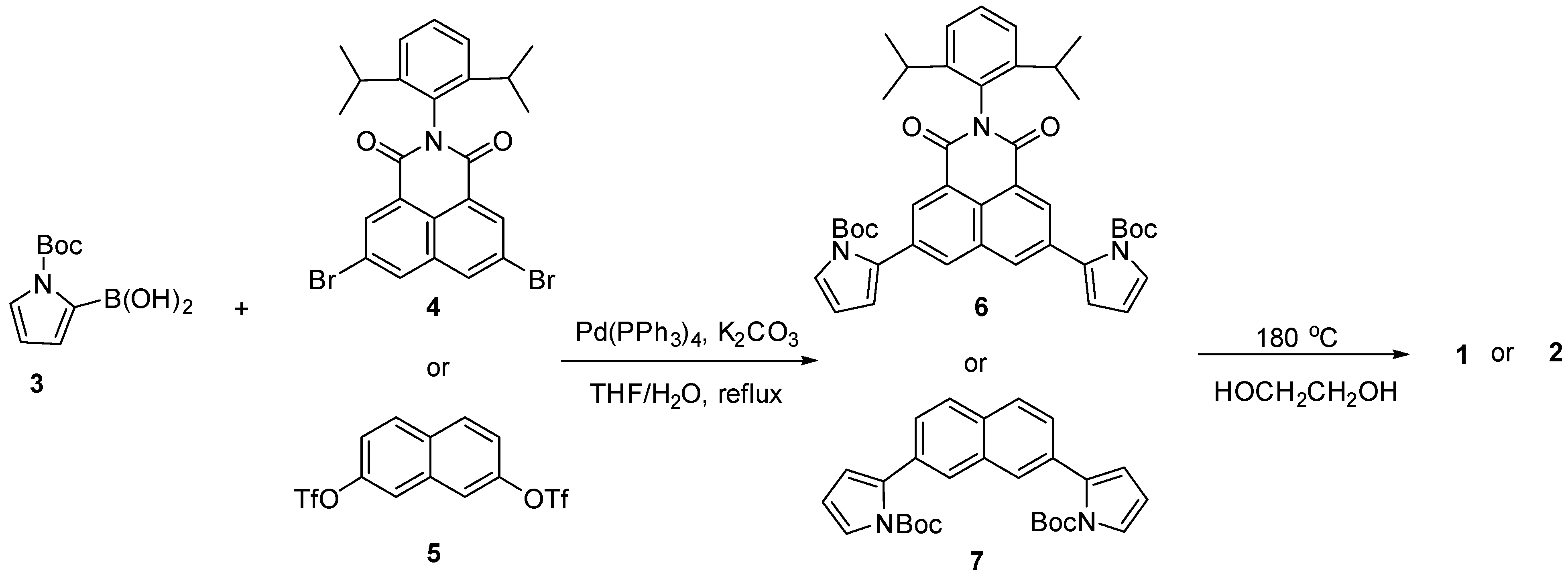

Scheme 1. Synthesis of receptors 1 and 2.
Scheme 1. Synthesis of receptors 1 and 2.
Ijms 24 00163 sch001
Ijms 24 00163 g002 550

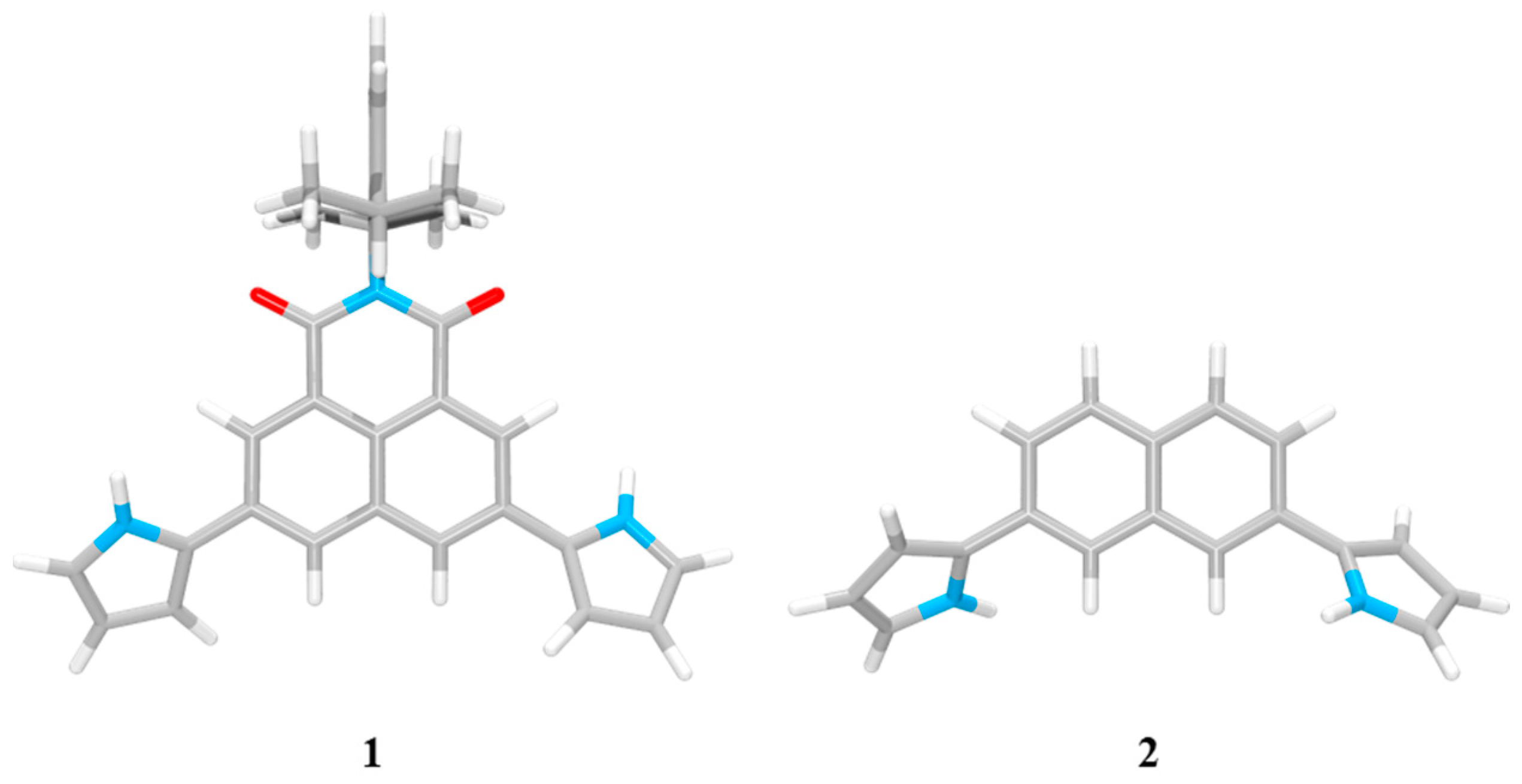

Figure 2. The lowest energy structures of receptors 1 and 2.
Figure 2. The lowest energy structures of receptors 1 and 2.
Ijms 24 00163 g002
Ijms 24 00163 g003 550

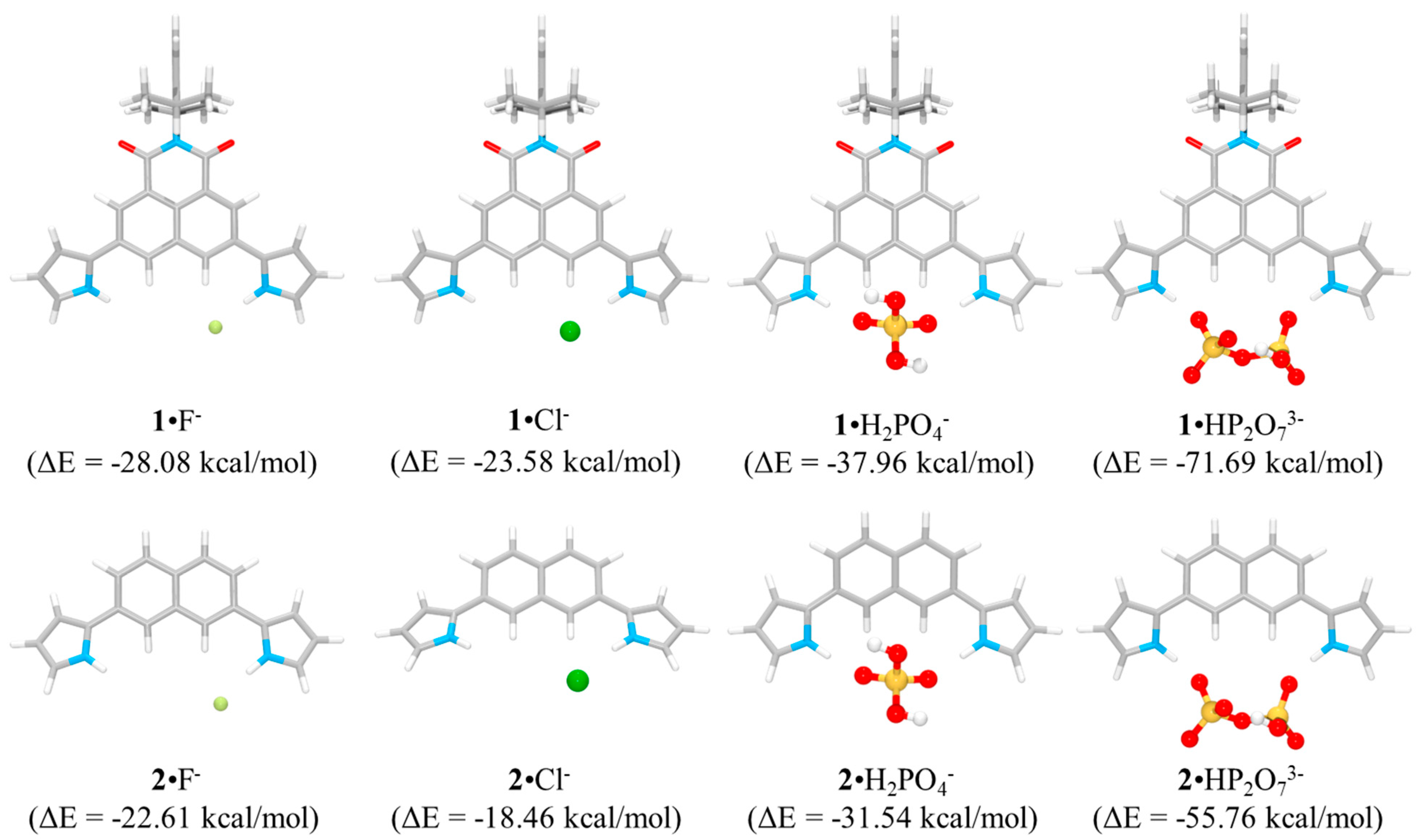

Figure 3. Optimized geometries of the complexes of receptors 1 and 2 with fluoride, chloride, dihydrogen phosphate, and hydrogen pyrophosphate as computed in the gas phase and the corresponding calculated binding energies (ΔE) for the interactions of receptors 1 and 2 with the anions.
Figure 3. Optimized geometries of the complexes of receptors 1 and 2 with fluoride, chloride, dihydrogen phosphate, and hydrogen pyrophosphate as computed in the gas phase and the corresponding calculated binding energies (ΔE) for the interactions of receptors 1 and 2 with the anions.
Ijms 24 00163 g003
Ijms 24 00163 g004 550

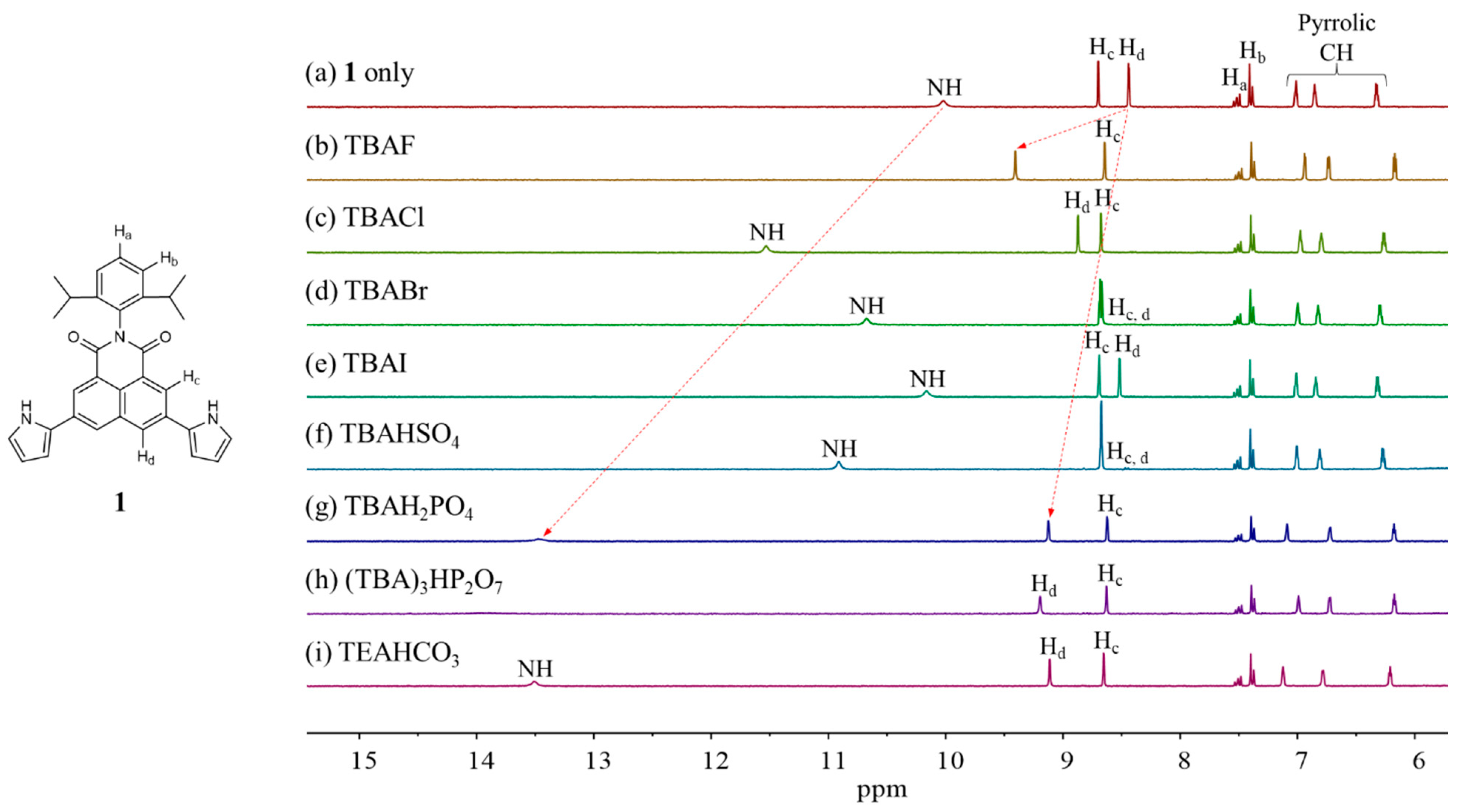

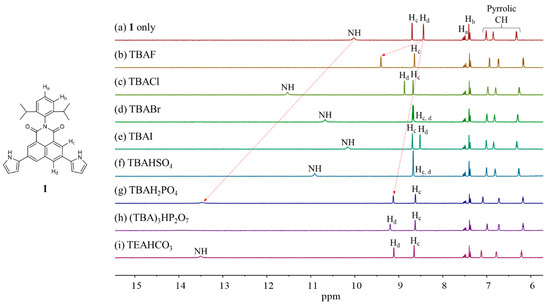

Figure 4. Partial 1H NMR spectra of (a) 1 (3 mM) only, (b) 1 + excess TBAF, (c) 1 + excess TBACl, (d) 1 + excess TBABr, (e) 1 + excess TBAI, (f) 1 + excess TBAHSO4, (g) 1 + excess TBAH2PO4, (h) 1 + excess (TBA)3HP2O7, and (i) 1 + excess TEAHCO3 in CD3CN.
Figure 4. Partial 1H NMR spectra of (a) 1 (3 mM) only, (b) 1 + excess TBAF, (c) 1 + excess TBACl, (d) 1 + excess TBABr, (e) 1 + excess TBAI, (f) 1 + excess TBAHSO4, (g) 1 + excess TBAH2PO4, (h) 1 + excess (TBA)3HP2O7, and (i) 1 + excess TEAHCO3 in CD3CN.
Ijms 24 00163 g004
Ijms 24 00163 g005 550

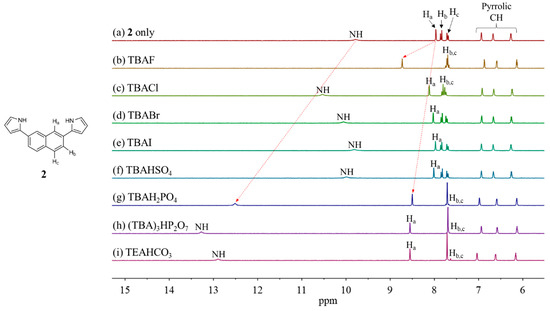

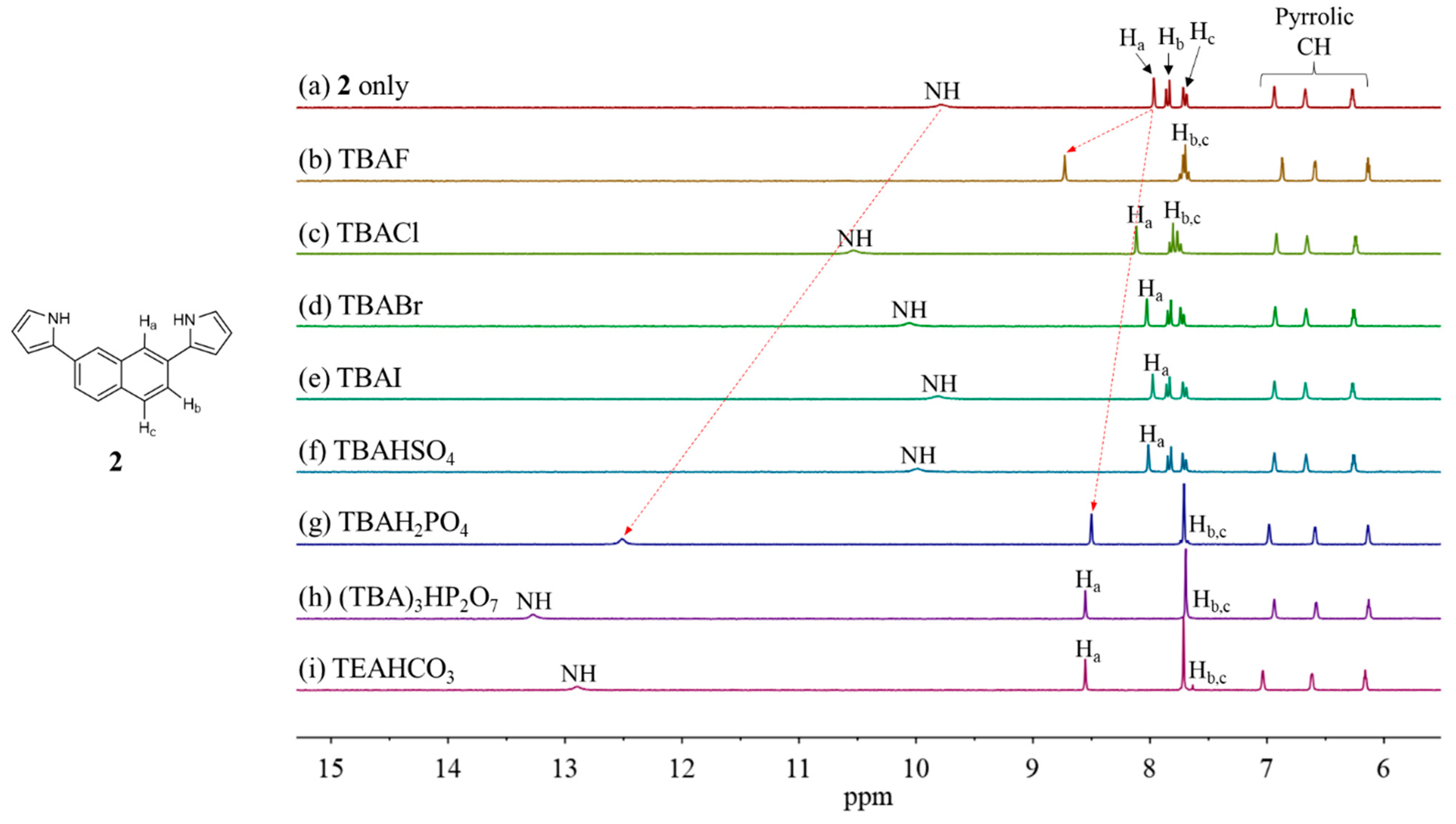

Figure 5. Partial 1H NMR spectra of (a) 2 (3 mM) only, (b) 2 + excess TBAF, (c) 2 + excess TBACl, (d) 2 + excess TBABr, (e) 2 + excess TBAI, (f) 2 + excess TBAHSO4, (g) 2 + excess TBAH2PO4, (h) 2 + excess (TBA)3HP2O7, and (i) 2 + excess TEAHCO3 in CD3CN.
Figure 5. Partial 1H NMR spectra of (a) 2 (3 mM) only, (b) 2 + excess TBAF, (c) 2 + excess TBACl, (d) 2 + excess TBABr, (e) 2 + excess TBAI, (f) 2 + excess TBAHSO4, (g) 2 + excess TBAH2PO4, (h) 2 + excess (TBA)3HP2O7, and (i) 2 + excess TEAHCO3 in CD3CN.
Ijms 24 00163 g005
Ijms 24 00163 g006 550

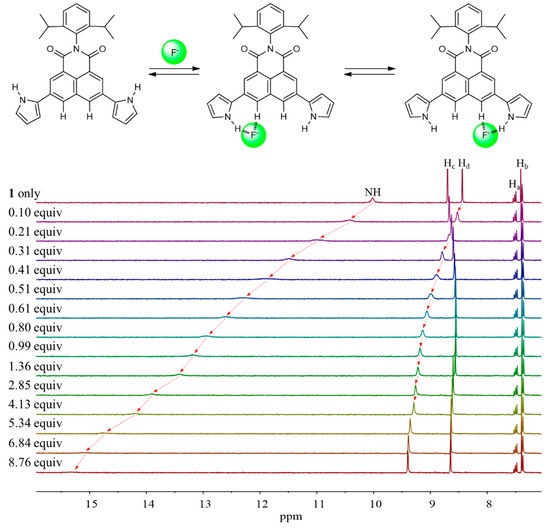

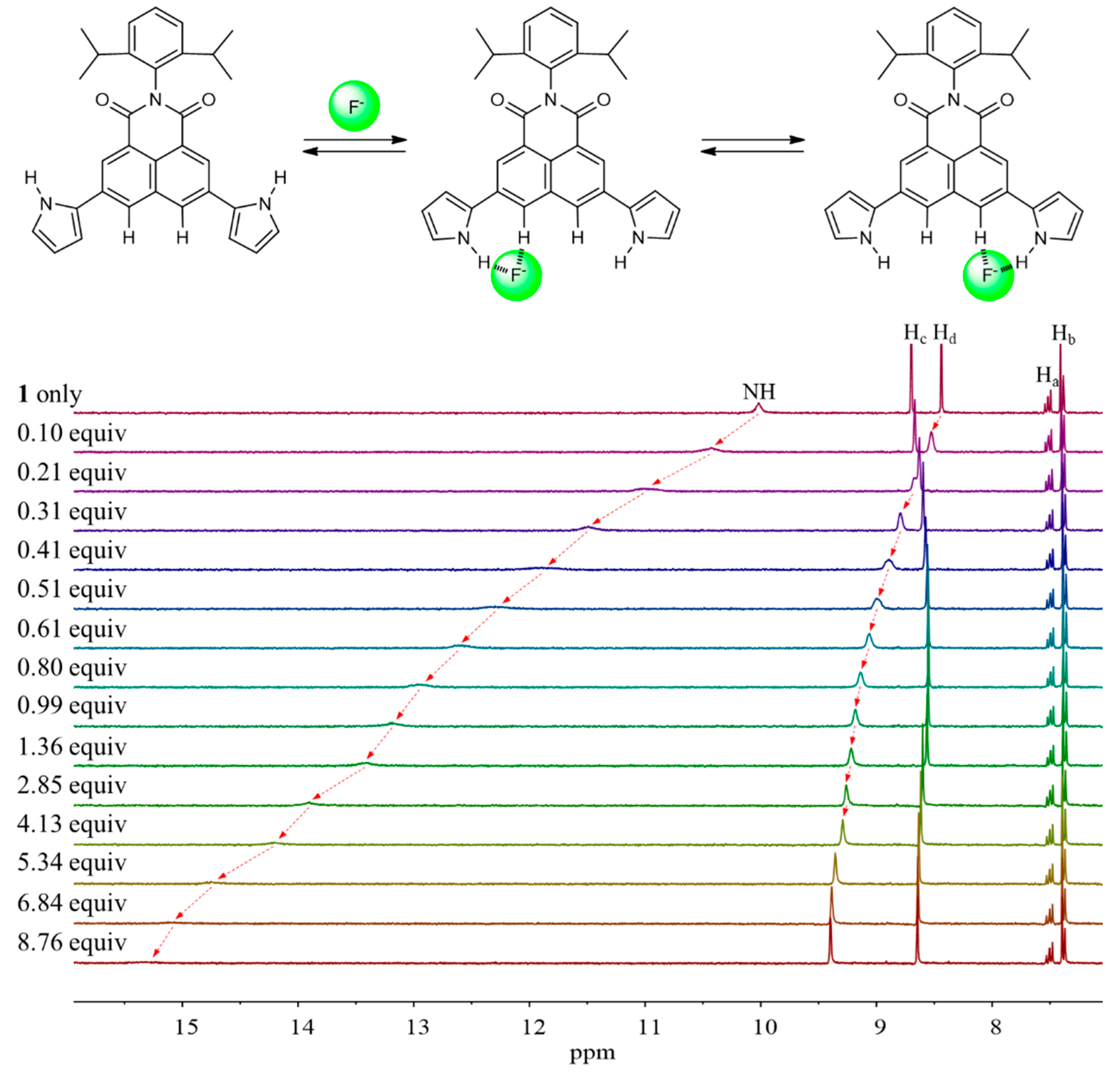

Figure 6. Top: Proposed binding mode of receptor 1 for the fluoride anion. Bottom: Partial 1H NMR spectra recorded during the titration of receptor 1 (3 mM) with TBAF in CD3CN.
Figure 6. Top: Proposed binding mode of receptor 1 for the fluoride anion. Bottom: Partial 1H NMR spectra recorded during the titration of receptor 1 (3 mM) with TBAF in CD3CN.
Ijms 24 00163 g006
Ijms 24 00163 g007 550

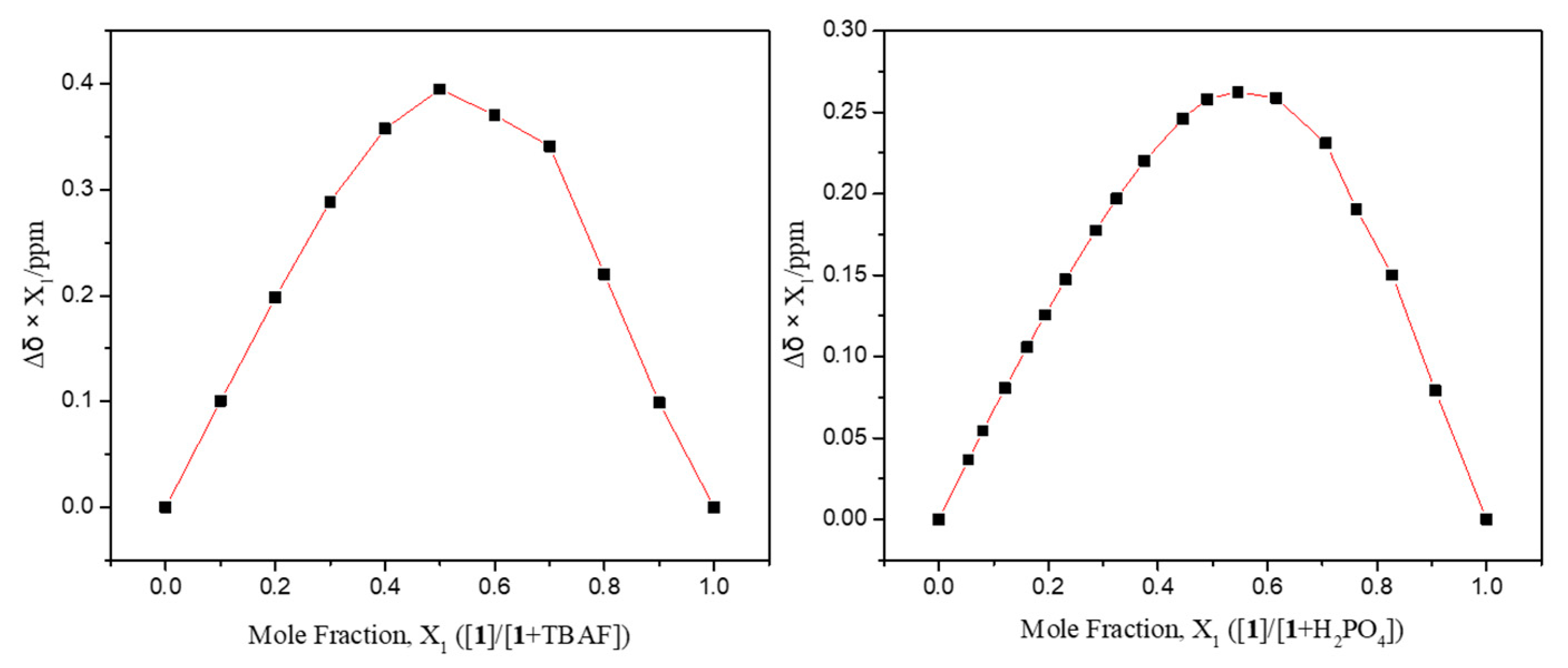

Figure 7. Job’s plots for the interaction of receptor 1 with TBAF (left) and TBAH2PO4 (right), respectively, in CD3CN.
Figure 7. Job’s plots for the interaction of receptor 1 with TBAF (left) and TBAH2PO4 (right), respectively, in CD3CN.
Ijms 24 00163 g007
Ijms 24 00163 g008 550

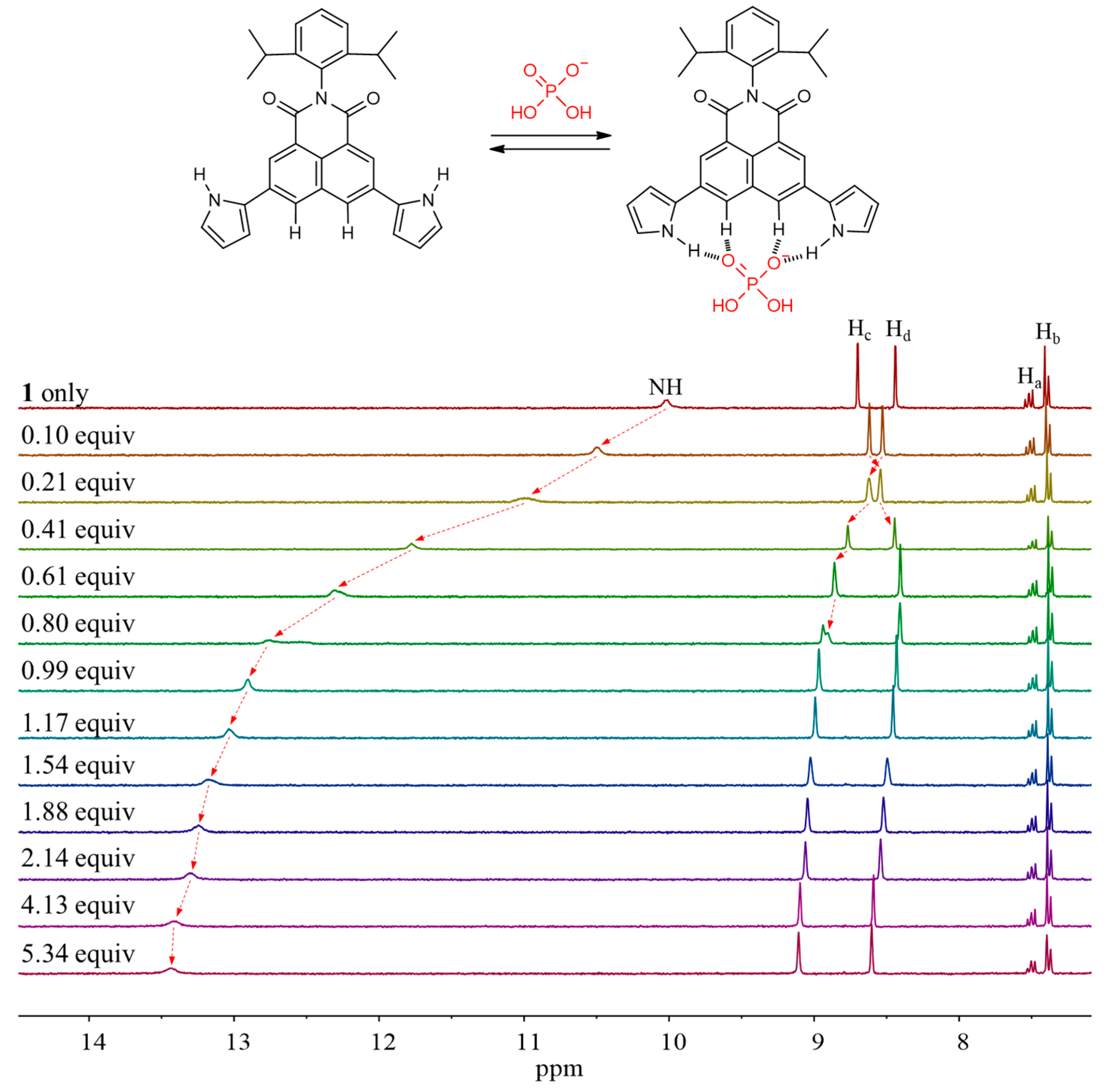

Figure 8. Top: Putative binding modes of receptor 1 for the dihydrogen phosphate anion. Bottom: Partial 1H NMR spectra measured during the titration of receptor 1 (3 mM) with tetrabutylammonium dihydrogen phosphate (TBAH2PO4) in CD3CN.
Figure 8. Top: Putative binding modes of receptor 1 for the dihydrogen phosphate anion. Bottom: Partial 1H NMR spectra measured during the titration of receptor 1 (3 mM) with tetrabutylammonium dihydrogen phosphate (TBAH2PO4) in CD3CN.
Ijms 24 00163 g008
Ijms 24 00163 g009 550

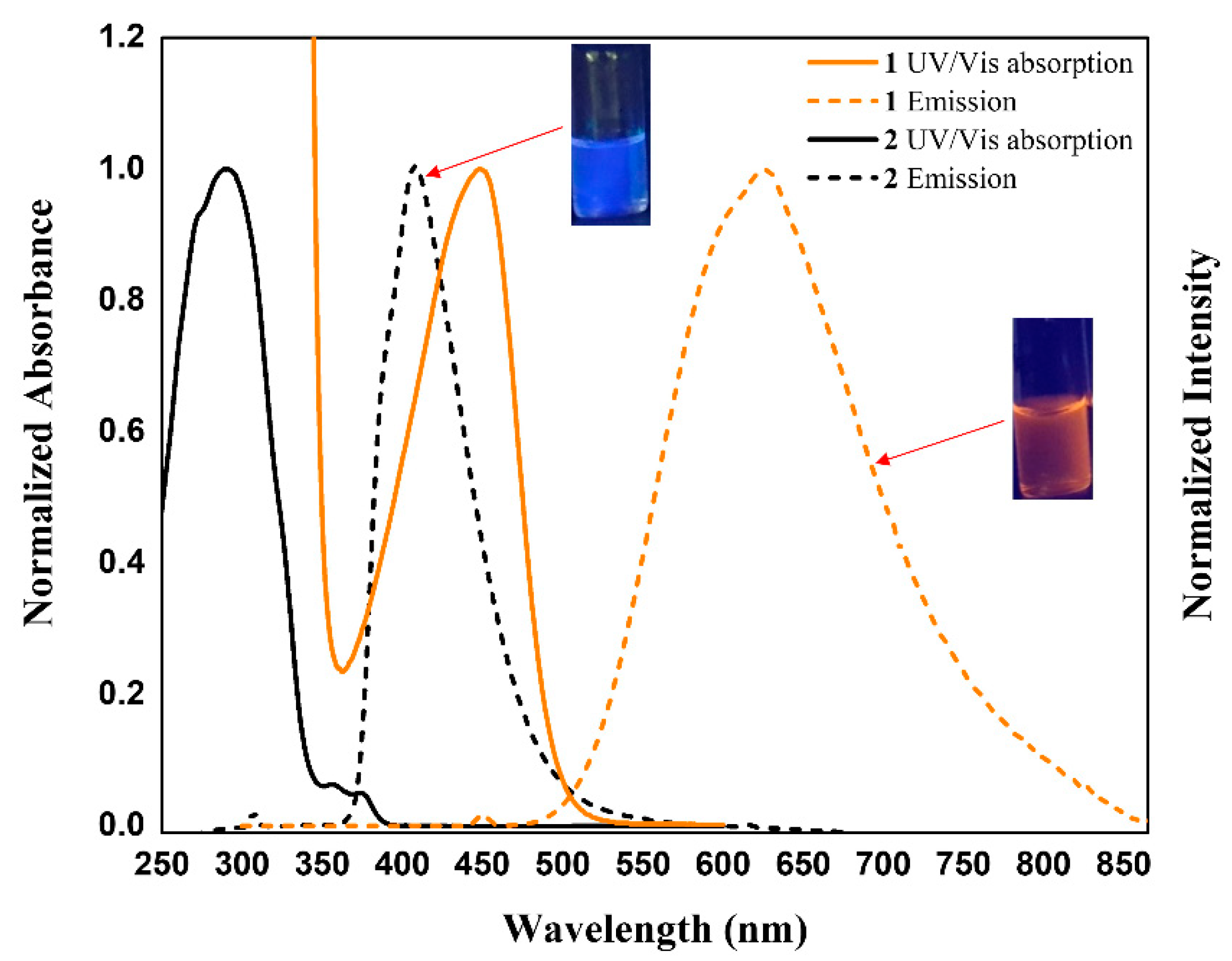

Figure 9. UV/Vis absorption and fluorescence spectra of 1 and 2 recorded in CH3CN.
Figure 9. UV/Vis absorption and fluorescence spectra of 1 and 2 recorded in CH3CN.
Ijms 24 00163 g009
Ijms 24 00163 g010 550

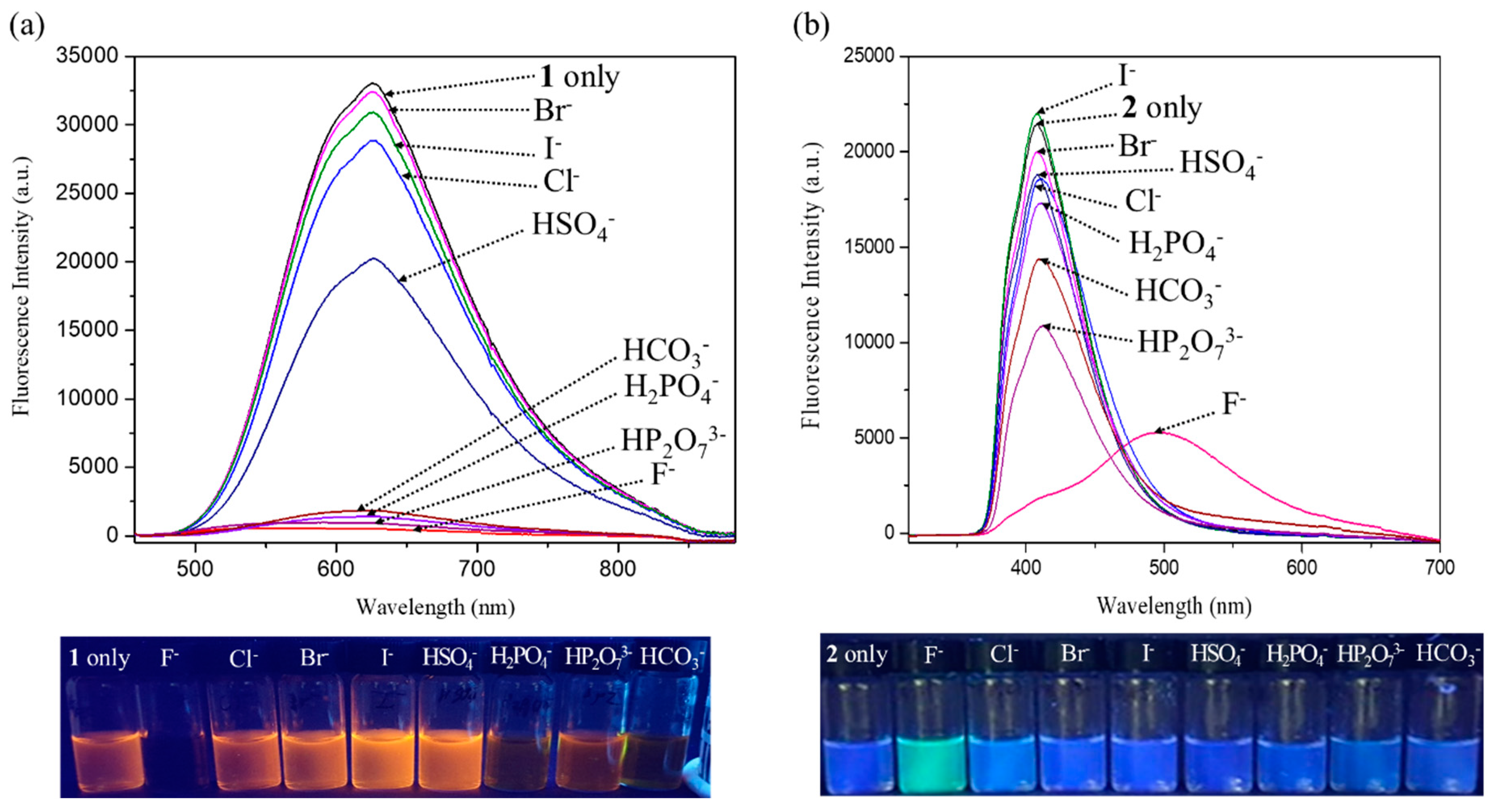

Figure 10. Top: Fluorescence spectra of receptors 1 (a) and 2 (b) in the absence and the presence of the indicated anions (as their respective TBA+ salts for all anions but the bicarbonate anion which was used in its TEA+ salt form) in CH3CN. Bottom: Photographs showing the corresponding fluorescence changes of the CH3CN solutions of receptors 1 (a) and 2 (b). Receptors 1 and 2 were excited at 448 nm and 307 nm, respectively.
Figure 10. Top: Fluorescence spectra of receptors 1 (a) and 2 (b) in the absence and the presence of the indicated anions (as their respective TBA+ salts for all anions but the bicarbonate anion which was used in its TEA+ salt form) in CH3CN. Bottom: Photographs showing the corresponding fluorescence changes of the CH3CN solutions of receptors 1 (a) and 2 (b). Receptors 1 and 2 were excited at 448 nm and 307 nm, respectively.
Ijms 24 00163 g010
Ijms 24 00163 g011 550

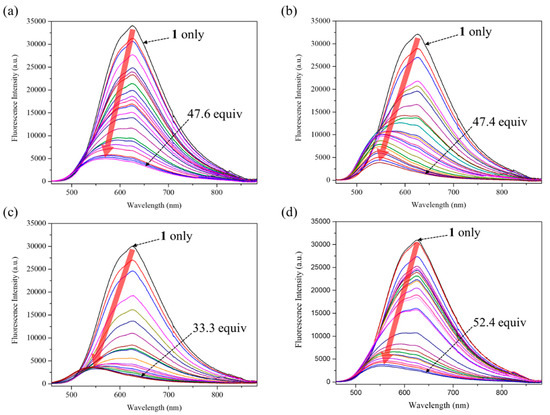

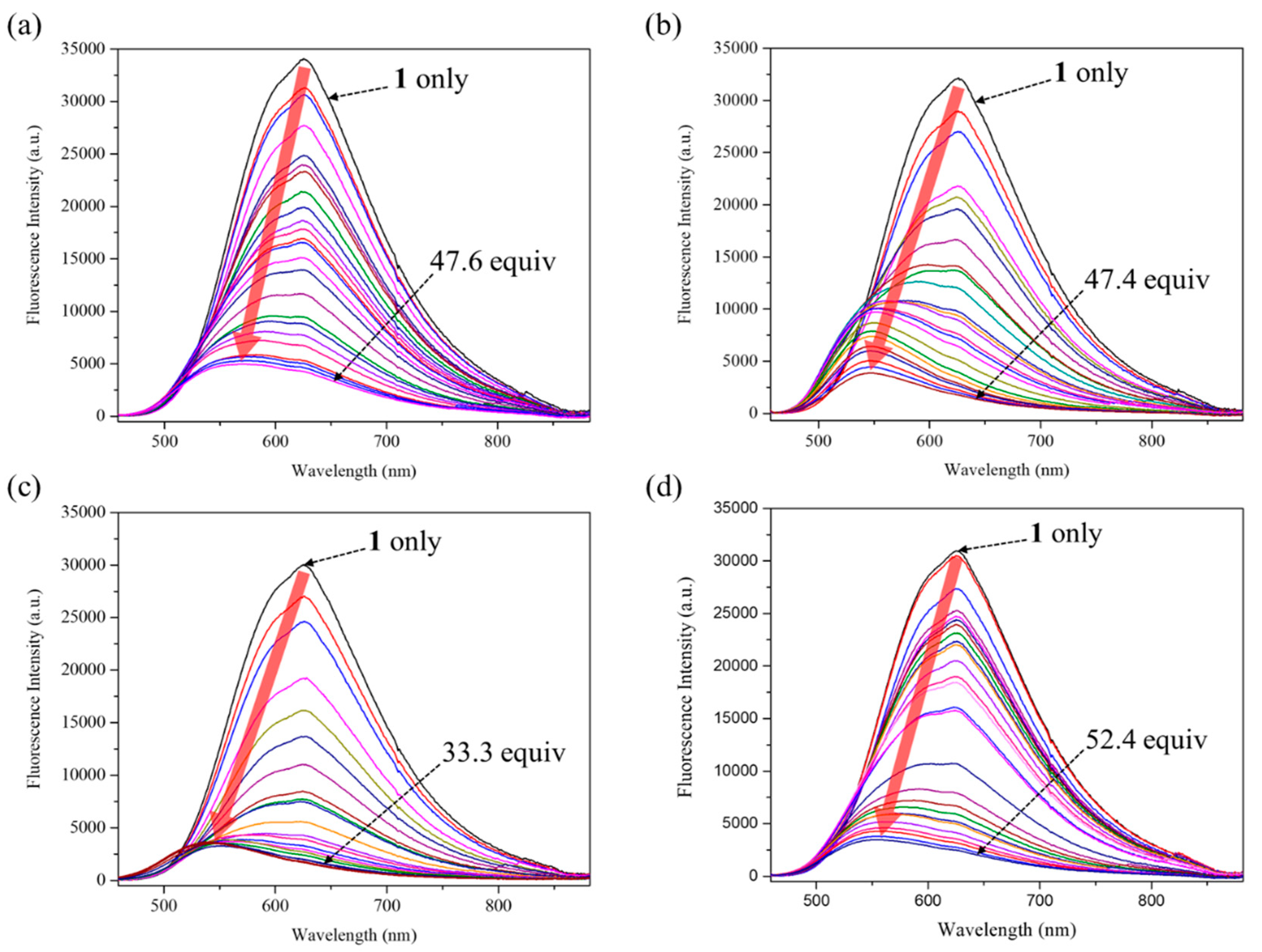

Figure 11. Fluorescence spectral changes of receptor 1 (100 μM) observed during the titrations with (a) TBAF, (b) TBAH2PO4, (c) (TBA)3HP2O7, and (d) TEAHCO3 in CH3CN. The excitation wavelength (λex) was 448 nm. The black dotted arrows indicate the fluorescence spectra of receptor 1 in the presence of the indicated anion equivalents. The red T arrows indicate fluorescence spectral changes over the courses of titrations.
Figure 11. Fluorescence spectral changes of receptor 1 (100 μM) observed during the titrations with (a) TBAF, (b) TBAH2PO4, (c) (TBA)3HP2O7, and (d) TEAHCO3 in CH3CN. The excitation wavelength (λex) was 448 nm. The black dotted arrows indicate the fluorescence spectra of receptor 1 in the presence of the indicated anion equivalents. The red T arrows indicate fluorescence spectral changes over the courses of titrations.
Ijms 24 00163 g011
Table
Table 1. Association constants (Ka, M−1) of receptors 1 and 2 for the test anions as determined by 1H NMR spectroscopic titrations in CD3CN at room temperature.
Table 1. Association constants (Ka, M−1) of receptors 1 and 2 for the test anions as determined by 1H NMR spectroscopic titrations in CD3CN at room temperature.
AnionsReceptor 1 cReceptor 2 c
F− a
Cl− a
Br− a		(1.65 ± 0.53) × 103(1.96 ± 0.20) × 102
(1.57 ± 0.04) × 102(4.33 ± 0.06) × 10
(2.54 ± 0.02) × 10(1.26 ± 0.01) × 10
I− a
HSO4− a		3.13 ± 0.031.72 ± 0.03
(2.81 ± 0.04) × 105.72 ± 0.13
H2PO4− a
HP2O73− a
HCO3− b		(1.33 ± 0.08) × 103(1.23 ± 0.17) × 103
(1.53 ± 0.59) × 103-d
(2.27 ± 0.20) × 103(9.46 ± 0.99) × 102
a The anion was used in the form of the tetrabutylammonium (TBA+) salt. b The anion was used as its tetraethylammonium (TEA+) salt form. c The association constant values were estimated using BindFit v5.0 available from URL: http://app.supramolecular.org/bindfit (accessed on 28 October 2022) [64]. d No reliable Ka value was obtained due to a large error range.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Kim, J.; Kim, S.H.; Heo, N.J.; Hay, B.P.; Kim, S.K. Molecular Pincers Using a Combination of N-H and C-H Donors for Anion Binding. Int. J. Mol. Sci. 2023, 24, 163. https://doi.org/10.3390/ijms24010163

AMA Style

Kim J, Kim SH, Heo NJ, Hay BP, Kim SK. Molecular Pincers Using a Combination of N-H and C-H Donors for Anion Binding. International Journal of Molecular Sciences. 2023; 24(1):163. https://doi.org/10.3390/ijms24010163

Chicago/Turabian Style

Kim, Jaehyeon, Seung Hyeon Kim, Nam Jung Heo, Benjamin P. Hay, and Sung Kuk Kim. 2023. "Molecular Pincers Using a Combination of N-H and C-H Donors for Anion Binding" International Journal of Molecular Sciences 24, no. 1: 163. https://doi.org/10.3390/ijms24010163

APA Style

Kim, J., Kim, S. H., Heo, N. J., Hay, B. P., & Kim, S. K. (2023). Molecular Pincers Using a Combination of N-H and C-H Donors for Anion Binding. International Journal of Molecular Sciences, 24(1), 163. https://doi.org/10.3390/ijms24010163

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
