Article

BcMYB111 Responds to BcCBF2 and Induces Flavonol Biosynthesis to Enhance Tolerance under Cold Stress in Non-Heading Chinese Cabbage

by
Xiaoshan Chen
1,†,
Ying Wu
1,†,
Zhanghong Yu
1,
Zhanyuan Gao
1,2,
Qiang Ding
1,
Sayyed Hamad Ahmad Shah
1,
Wenyuan Lin
1,
Ying Li
1,2 and
Xilin Hou
1,2,*
1
State Key Laboratory of Crop Genetics & Germplasm Enhancement and Utilization, Key Laboratory of Biology and Genetic Improvement of Horticultural Crops (East China), Engineering Research Center of Germplasm Enhancement and Utilization of Horticultural Crops, Nanjing Agricultural University, Nanjing 210095, China
2
Nanjing Suman Plasma Engineering Research Institute Co., Ltd., Nanjing 211162, China
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Int. J. Mol. Sci. 2023, 24(10), 8670; https://doi.org/10.3390/ijms24108670
Submission received: 19 April 2023 / Revised: 8 May 2023 / Accepted: 10 May 2023 / Published: 12 May 2023
(This article belongs to the Special Issue Impact of Biotic/Abiotic Stress Factors on Plant Specialized Metabolites)
Browse Figures
Review Reports Versions Notes

Abstract

:
Flavonols have been shown to respond to a variety of abiotic stresses in plants, including cold stress. Higher total flavonoid content was found in non-heading Chinese cabbage (NHCC, Brassica campestris (syn. Brassica rapa) ssp. chinensis) after cold stress. A non-targeted metabolome analysis showed a significant increase in flavonol content, including that of quercetin and kaempferol. Here, we found that an R2R3–MYB transcription factor, BcMYB111, may play a role in this process. BcMYB111 was up-regulated in response to cold treatment, with an accompanying accumulation of flavonols. Then, it was found that BcMYB111 could regulate the synthesis of flavonols by directly binding to the promoters of BcF3H and BcFLS1. In the transgenic hairy roots of NHCC or stable transgenic Arabidopsis, overexpression of BcMYB111 increased flavonol synthesis and accumulation, while these were reduced in virus-induced gene silencing lines in NHCC. After cold stress, the higher proline content and lower malondialdehyde (MDA) content showed that there was less damage in transgenic Arabidopsis than in the wild-type (WT). The BcMYB111 transgenic lines performed better in terms of antioxidant capacity because of their lower H2O2 content and higher superoxide dismutase (SOD) and peroxidase (POD) enzyme activities. In addition, a key cold signaling gene, BcCBF2, could specifically bind to the DRE element and activate the expression of BcMYB111 in vitro and in vivo. The results suggested that BcMYB111 played a positive role in enhancing the flavonol synthesis and cold tolerance of NHCC. Taken together, these findings reveal that cold stress induces the accumulation of flavonols to increase tolerance via the pathway of BcCBF2–BcMYB111–BcF3H/BcFLS1 in NHCC.

1. Introduction

Flavonoids are a group of essential secondary metabolites in plants, and they play an important role in plant physiology. As one of the pigments of plants, flavonoids can affect their coloration [1]. As signaling molecules, flavonoids can also attract insects for pollination and participate in auxin metabolism [2]. Because of their ability to scavenge reactive oxygen, flavonoids can be used as plant antitoxins or antioxidants [3,4]. The biosynthesis of flavonoids in plants could induce the accumulation of flavonoids [5], including during pathogen infection [6], drought stress [7], UV [8], cold stress [9], etc. In addition, flavonoids can delay the aging of the nervous system, improve human immunity, and prevent cancer [10,11].
Flavonoids are C6–C3–C6 polyphenols composed of 15 carbons [3]; they can be divided into flavonols, anthocyanins, flavanones, flavones, isoflavones, and flavonols [12]. A large number of plant flavonoids have been identified [13]. The biosynthesis of flavonoids is mainly controlled by structural and regulatory genes. In recent years, the main structural genes (CHI, CHS, F3H, FLS, DFR) and regulatory genes (MYBs, bHLH, WD40) related to flavonoid biosynthesis have been widely studied [14,15]. It is known that the MYB family genes are important transcriptional regulators of flavonoid biosynthesis, and they can be divided into 1R–MYB/MYB-related, R2R3–MYB-related, 3R–MYB-related, and 4R–MYB4-related genes [16]. R2R3–MYBs participate in the process of flavonoid synthesis by regulating related genes [17]. CsMYB60 promoted the accumulation of flavonols and proanthocyanidins by binding to the promoters of CsFLS and CsLAR in cucumbers [18]. In plants of the genus Epimedium, the ectopic expression of EsMYBF1 led to an increase in flavonols and a decrease in anthocyanin, while EsMYBF1 acted independently of EsTT8 [19]. MdMYB22 [20], MdMYB8 [15], and MdMYB111 [21] were also proven to regulate the biosynthesis of flavonols in apples. In addition, AtMYB4 could inhibit the expression of AtMYB7 to down-regulate the content of flavonols [22]. In Arabidopsis thaliana, it was shown that AtMYB11, AtMYB12, and AtMYB111 had the potential to activate four flavonol biosynthesis genes (CHS, CHI, F3H, and FLS1). There were fewer flavonols in the triple-mutant myb11myb12myb111, but the accumulation of anthocyanins was unaffected [23]. When influenced by AtMYB11, AtMYB12, and AtMYB111, the spatial accumulation of flavonol derivatives was discrepant in different plant organs. Otherwise, the accumulation of kaempferol derivatives in leaves depended on AtMYB111 [24].
Cold stress is a common abiotic stress. Plants change their soluble resistant proteins, carbohydrates, and secondary metabolites to cope with cold stress [25,26]. Most flavonols and anthocyanins accumulate when plants face cold stress [27]. As was reported, the expression of flavonoid synthesis genes, including PAL, CHS, F3H, and FLS1, could be significantly up-regulated [28,29]. Then, the biosynthesis of flavonoids was promoted [27]. At present, it has been found that low temperatures can significantly induce the accumulation of flavonoids in ginkgo leaves [30], kale [31], Arabidopsis [32], and apples [33]. In particular, quercetin and kaempferol increase significantly under cold stress.
Non-heading Chinese cabbage (NHCC) is one of the most popular vegetables in Asia [34]. There is extensive research on the qualities of NHCC, such as its contents of ascorbic acid [35], anthocyanin [36], and aromatic substances [37]. MYB111 is involved in flavonoid metabolism, and it has been reported to respond to some abiotic stress pathways. However, there are few studies on the regulation of flavonoids in NHCC under cold stress. Therefore, we explored the response mode of BcMYB111 during cold stress and identified the types of flavonoids by using non-targeted metabolomics. Furthermore, we verified the function of BcMYB111 and found the upstream regulation of the gene that responded to cold stress. Finally, a regulatory model is proposed, showing that BcMYB111 responded to cold stress and enhanced the accumulation of flavonols in NHCC.

2. Results

2.1. Metabolomic Analysis of NHCC in Response to Cold Stress

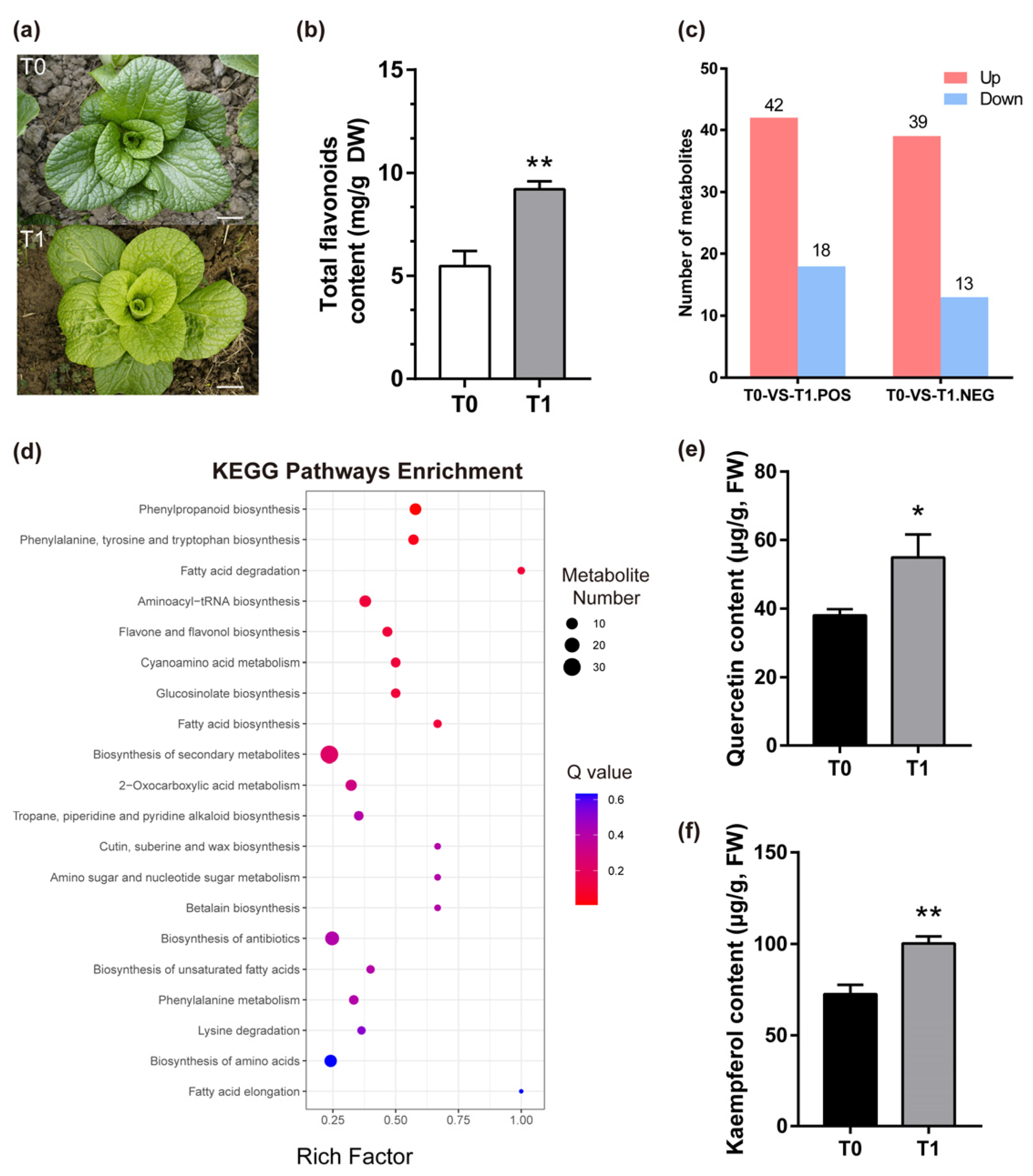

As secondary metabolites in plants, flavonoids are generally classified as flavonols, flavonoids, or anthocyanins [13]. After cold stress, there was a significant accumulation of total flavonoids in NHCC (Figure 1a,b). To better understand this biological process, we performed a non-targeted metabolomic analysis. A total of 708 metabolites (327 in the positive ion mode and 381 in the negative ion mode) were identified, and Orthogonal Partial Least Squares–Discriminant Analysis (OPLS–DA) was used to analyze and identify 112 differentially expressed metabolites (DEMs) (Figure S1, Table S1). After exposure to a low temperature, the accumulation of 81 metabolites increased and that of 31 metabolites decreased (Figure 1c). Kyoto Encyclopedia of Genes and Genomes (KEGG) pathway analysis showed that most DEMs were enriched in the pathways of ‘biosynthesis of secondary metabolites’ and ‘biosynthesis of antibiotics’ (Figure 1d). Interestingly, the pathways of ‘phenylpropanoid biosynthesis’, ‘phenylalanine, tyrosine, and tryptophan biosynthesis’, and ‘phenylalanine metabolism’ were also significantly enriched. The results suggested that low-temperature stress had obvious effects on the synthesis and metabolism of phenylalanine-related substances in NHCC. The synthesis of flavonoids begins with phenylalanine, so flavonoids received more attention. Flavonols were highlighted because of their significant accumulation in the process. The contents of quercetin and kaempferol significantly increased after the cold treatment (Figure 1e,f). In a word, these findings showed that the accumulation of flavonols in NHCC was significantly increased after exposure to cold temperatures.

2.2. Characterization and Expression Profile of BcMYB111

Flavonols accumulated during overwintering cultivation, so the synthesis genes were analyzed. The increased expression of BcCHS, BcF3H, and BcFLS1 indicated that the synthesis of flavonols was enhanced (Figure 2a–c). The genes of the transcription factor MYB family were always involved in flavonol synthesis. So, we also analyzed the expression of the MYB genes in this process (unpublished data, Figure S2). BcMYB111, an R2R3-MYB transcription factor, was significantly increased after cold stress (Figure 2d). Notably, MYB111 was reported to be involved in the positive regulation of flavonol biosynthesis and the response to cold in Arabidopsis thaliana leaves [38,39]. As a result, it was very likely that BcMYB111 could play an important role in the regulation of flavonol synthesis at low temperatures in NHCC.
In order to explore the function of BcMYB111, we performed a character analysis. BcMYB111, a protein with 434 amino acids, was used for the phylogenetic relationship analysis (Figure 2e and Figure S3). The results indicated that Brassica campestris had the closest relationships with Brassica napus and Brassica rapa. According to the subcellular localization analysis, it was shown that BcMYB111 functions in the nucleus (Figure 2f). The gene pattern analysis showed that the highest expression levels were in the leaves (Figure 2g). These findings showed that BcMYB111 mainly functions in the leaves, which may directly respond to cold stress.

2.3. Cold Stress Induces the Up-Regulated Expression of BcMYB111 and the Accumulation of Flavonols

MYB111 was up-regulated when Arabidopsis thaliana responded to cold [39]. So, we next analyzed the corresponding model of the response of BcMYB111 to cold stress. We found that the signal from the BcMYB111 promoter-driven LUC reporter was significantly enhanced after cold in tobacco (Figure 3a,b). A short-term cold treatment (16 h/8 h, 8 °C) was performed in NHCC, showing that the expression of BcMYB111 reached its peak after 1 h and became stable at a high level (Figure 3c).

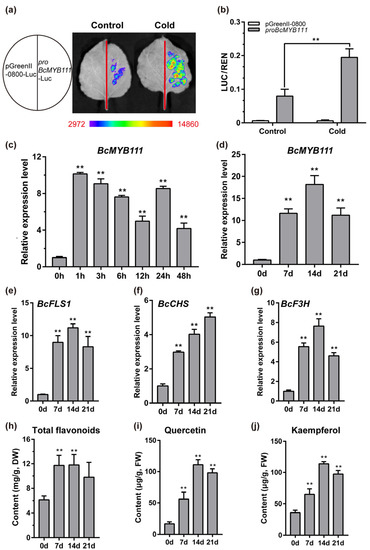

To further explore the response of BcMYB111 and flavonoid accumulation to cold stress, a 21-day cold treatment was performed with NHCC. As before, BcMYB111 maintained high expression for a long time and reached the highest level on the 14th day (Figure 3d). At the same time, the expression trends of BcFLS1, BcCHS, and BcF3H were consistent with those of BcMYB111 (Figure 3e–g). Correspondingly, the total flavonoids and flavonols significantly increased (Figure 3h). The contents of quercetin and kaempferol reached their highest levels on the 14th day (Figure 3i,j). Together, these findings indicated that cold stress induced the up-regulation of BcMYB111 and the accumulation of flavonols.

2.4. BcMYB111 Is a Transcriptional Activator of BcF3H and BcFLS1

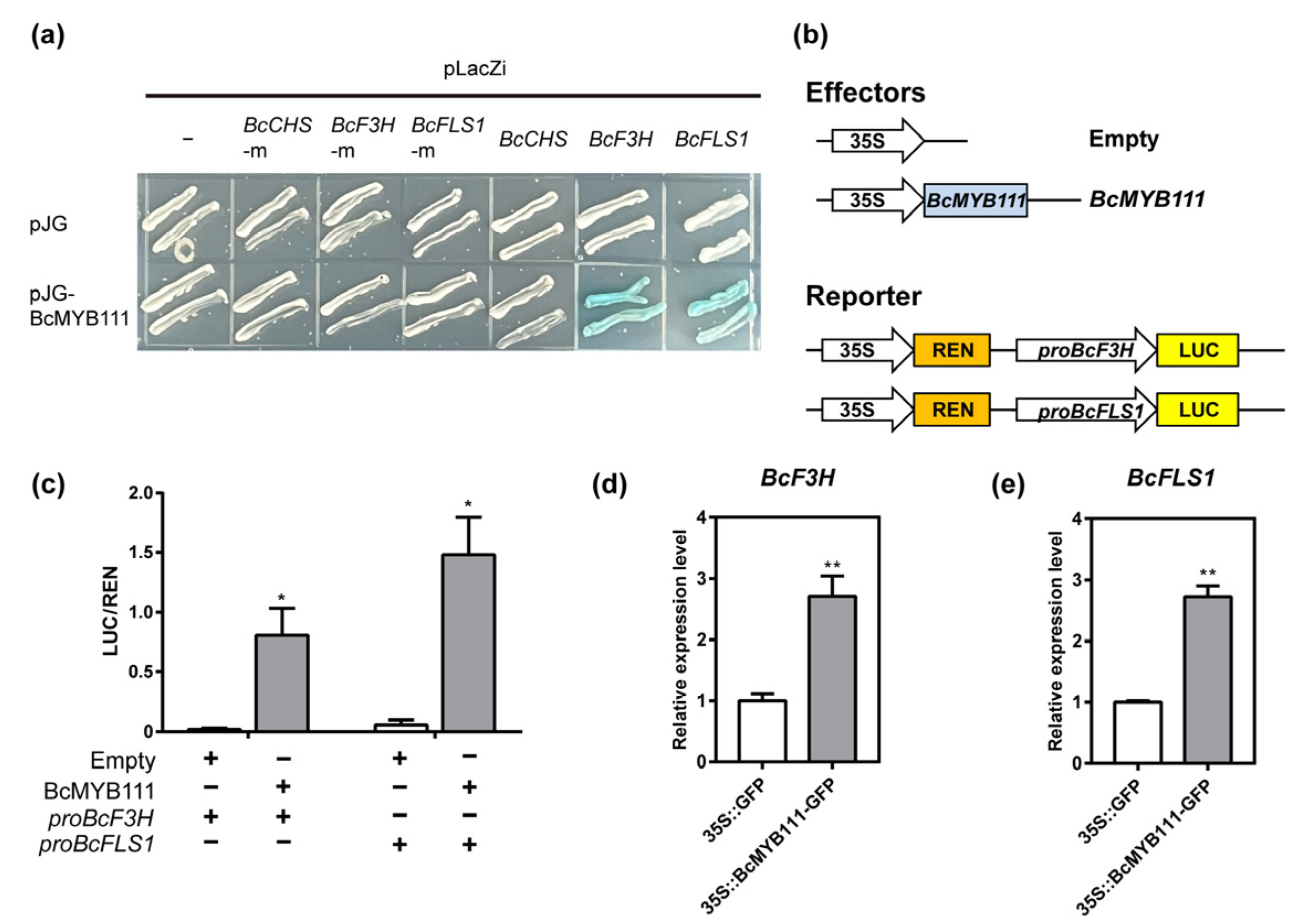

In Arabidopsis thaliana, AtMYB111 has been proven to promote flavonol biosynthesis by interacting with the promoters of CHS, F3H, and FLS1 [38]. We speculated that BcMYB111 may also be a regulatory gene for flavonol synthesis in the cold response of NHCC. After we analyzed the promoter region, the specific DNA-binding elements of BcMYB111 were found in BcCHS (CTTAGTTGTTGCGA), BcF3H (GGTCCCAGGTAGCT), and BcFLS1 (TGTGGTAGTTACTT). Then, the mutated sequences were sequenced; these included BcCHS-m (CTTAAAAAAAGCGA), BcF3H-m (GGAAAAAAATAGCT), and BcFLS1-m (TGTAAAAAAACTT). The results of the yeast one-hybrid (Y1H) assay indicated that BcMYB111 is bound to the promoters of BcF3H and BcFLS1 (Figure 4a). There was no interaction between BcMYB111 and the mutated cis-element. A dual luciferase assay was performed on tobacco leaves. The ratio of firefly luciferase to renilla luciferase (LUC/REN) showed a significant increase when 35S::BcMYB111–GFP was added (Figure 4b,c). In addition, a transient expression assay was performed in the cotyledon of NHCC. After overexpression of BcMYB111, the expression of BcF3H and BcFLS1 was significantly up-regulated compared with the control (Figure 4d,e and Figure S4). These results indicated that BcMYB111 could positively regulate BcF3H and BcFLS1 in NHCC.

2.5. BcMYB111 Promotes the Accumulation of Flavonols

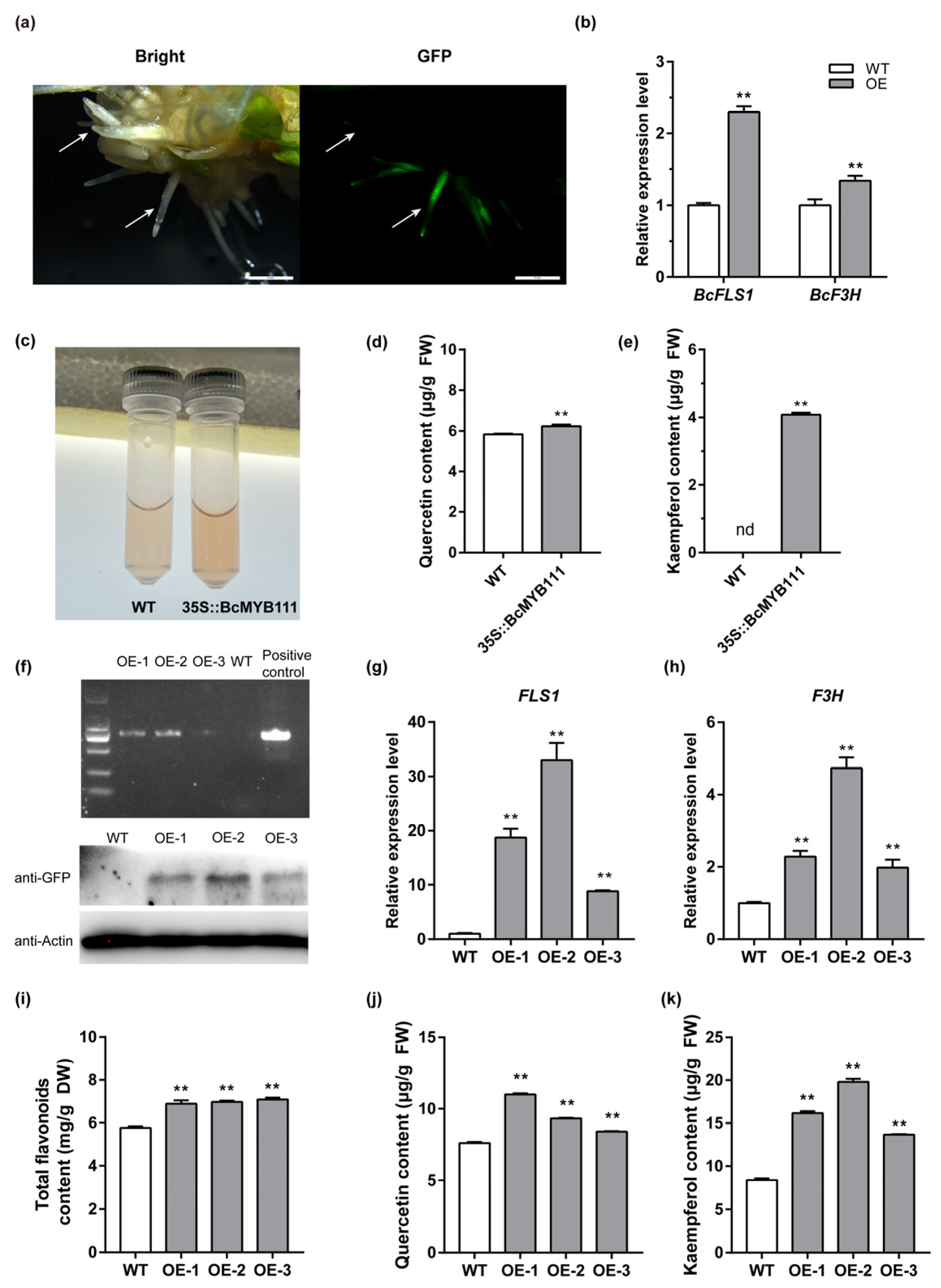

In order to characterize the function of BcMYB111 in NHCC, it was constitutively overexpressed in the roots of the ‘Suzhouqing’ variety. Overexpressed roots were generated by using Agrobacterium rhizogenes MSU440 and identified via GFP (Figure 5a). The transgenic roots showed no obvious physical abnormalities, but we found that FLS1 and BcF3H were up-regulated in the transgenic roots compared with the wild-type roots (Figure 5b). When we quantified the flavonol content, we found that there was a darker color in the overexpressed root extracts after hydrolysis (Figure 5c) and an increased content of quercetin and kaempferol (Figure 5d,e).
Next, the BcMYB111 gene was ectopically expressed in Arabidopsis thaliana to establish the gene function of BcMYB111 in the leaves (Figure S4). Three lines (OE-1, OE-2, and OE-3) were verified by using PCR and Western blotting (Figure 5f). The transcription levels of the BcMYB111-downstream genes, FLS and F3H, were also up-regulated in the BcMYB111 overexpressors (Figure 5g,h). There were significant increases in the contents of total flavonoids, quercetin, and kaempferol (Figure 5i–k). Overall, these results showed that BcMYB111 could positively regulate the accumulation of flavonols.

2.6. The Silencing of BcMYB111 Decreases the Synthesis of Flavonols

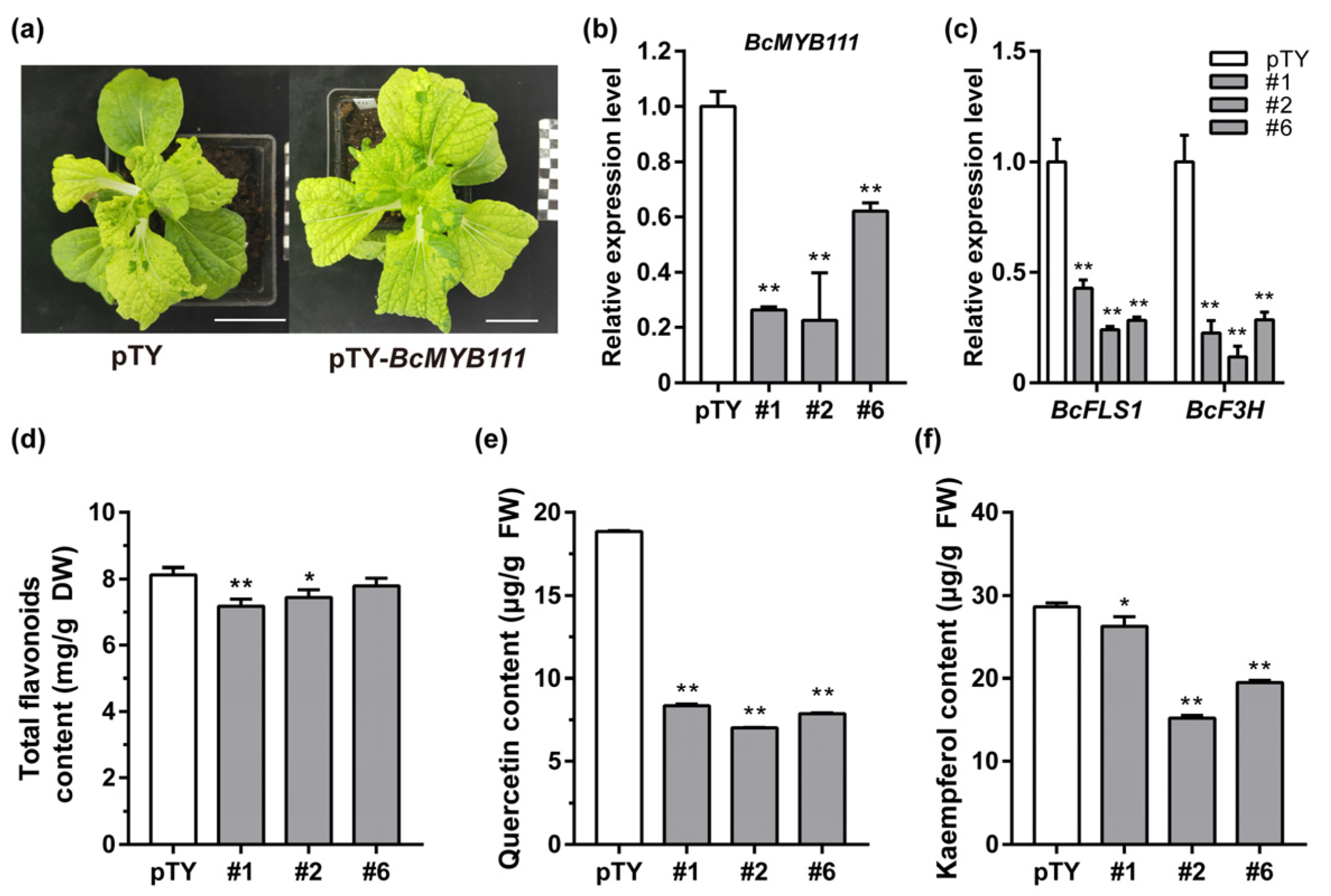

To further explore whether BcMYB111 was needed in flavonol synthesis, silenced lines (pTY–BcMYB111) were created by using virus-induced gene silencing (VIGS) in NHCC (Figure 6a,b). The plants injected with an empty pTY vector were used as a control (pTY). The transcription data showed a significant decrease in the expression of BcFLS1 and BcF3H (Figure 6c). The total flavonoid content also slightly decreased (Figure 6d). The accumulation of quercetin and kaempferol was substantially reduced (Figure 6e,f). These observations indicated that BcMYB111 is critical for the synthesis of flavonols in NHCC.

2.7. BcMYB111 Improves Cold Tolerance

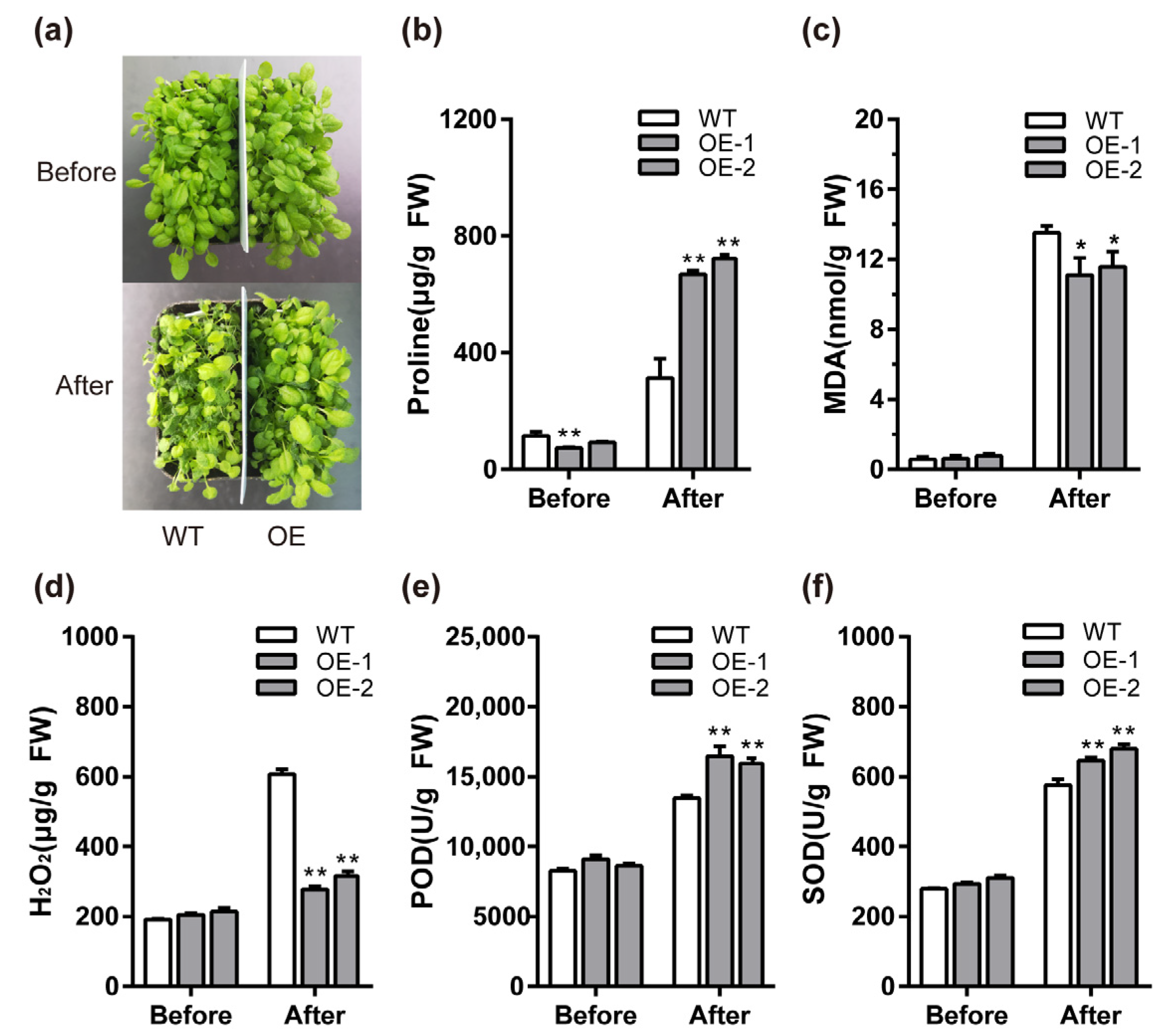

As antioxidants, flavonols often exhibit positive performance in plants’ adaptation to stress. It is worth studying whether the overexpression lines of BcMYB111 perform better because of the higher flavonol content under cold stress. BcMYB111 transgenic Arabidopsis (OE) and the wild type (WT) were exposed to cold. The WT plants were more sensitive to cold than the overexpressing lines (Figure 7a). Compared with the WT, the overexpressing lines contained more proline, suggesting that the transgenic lines had better resistance to cold (Figure 7b). In terms of plant peroxidation damage, there were lower MDA and H2O2 contents in the overexpressing lines than in the WT (Figure 7c,d). In the meantime, the increase in POD and SOD enzyme activities in the overexpressing lines suggested that the transformed plants suffered less damage during the cold treatment (Figure 7e,f). Taken together, these data demonstrate that the overexpression of BcMYB111 could increase the tolerance to cold stress.

2.8. BcMYB111 Is a Direct Target Gene of BcCBF2

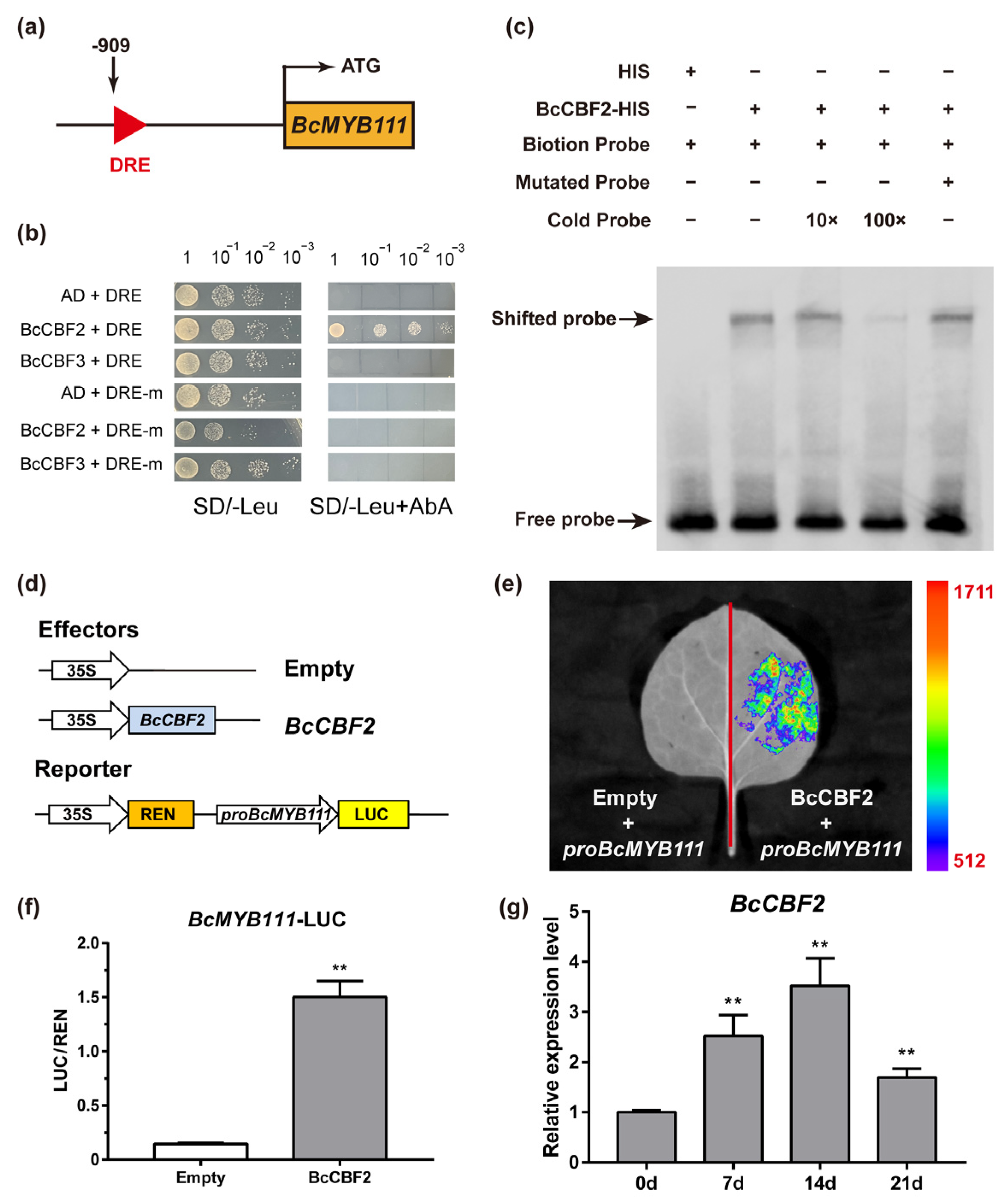

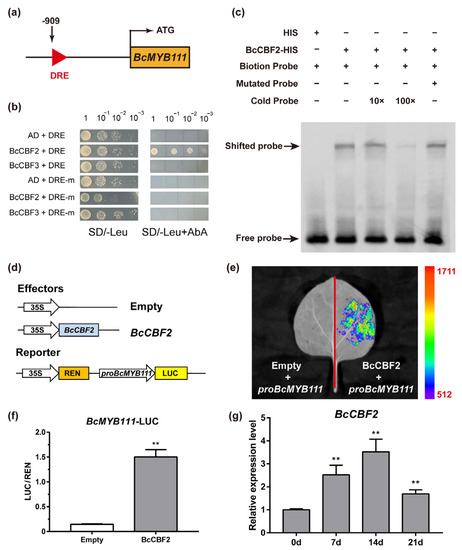

The induced expression of CBFs at low temperatures triggers the cold-response transcriptional cascade, and the CRT/DRE element in the promoter of the target genes is an important activation binding site for CBF proteins [40,41]. After scanning, we found the DRE element in the promoter sequence of BcMYB111 (Figure 8a). In the Y1H assays, BcCBF2 could bind the promoter of BcMYB111, while BcCBF3 could not (Figure 8b). There were also no interactions between BcCBF2 and the mutation promoter of BcMYB111. After the BcMYB111–His fusion protein was extracted, the EMSA demonstrated that BcCBF2 could bind to the probe with the DRE element of BcMYB111 and cause a mobility shift (Figure 8c). Moreover, BcCBF2 could not bind to the mutated element (AAAAAA), suggesting that BcCBF2 could specifically bind to the DRE element (GCCGAC) of BcMYB111’s promoter. In the dual luciferase assay, the ratio of LUC/REN significantly increased after BcCBF2–GFP was added (Figure 8d–f). In addition, we checked the expression levels of BcCBF2 during the 21-day cold treatment in NHCC. Our conjecture was further proven because the expression trend was the same between BcCBF2 and BcMYB111 (Figure 8g). These results demonstrate that the BcCBF2 protein directly binds and promotes the expression of BcMYB111 to enhance flavonol synthesis under cold stress.

3. Discussion

The MYB transcription factor family is one of the largest gene families in plants. It plays an important role in many biological processes, such as plant growth and development, primary and secondary metabolic responses, and responses to environmental stress [42]. It was proven that MYB111 could regulate flavonol metabolism in Arabidopsis thaliana [23,43]. However, there have been few studies on the regulation of flavonoid metabolism by MYB111 under cold stress. The central gene, BcMYB111, was found to respond to cold stress. AtMYB111 and the homologous gene AtMYB12 were proven to be positive regulators of salt stress by regulating the key enzyme genes for flavonoid synthesis [38,44]. Our findings showed that BcMYB111 could participate in the response to cold stress in NHCC (Figure 3a–d).
There are many kinds of flavonoids [45]. As an important class of flavonoid compounds, the biosynthesis of flavonols is located downstream from the flavonoid pathway, which usually exists in the form of glycosylation in plants [46]. Flavonol synthase (FLS) is a key rate-limiting enzyme in flavonol biosynthesis, and it can convert dihydroflavonols into kaempferol, quercetin, and myricetin in a Freesia hybrid [47]. MYB111 was proven to promote flavonol biosynthesis in many species, but the structural genes regulating flavonoid metabolism were different in different species. MYB111 could activate the expression of CHI and F3′5′H in the pomegranate pericarp [48]. However, MYB111 could interact with the promoters of CHS (GAGTTGTTGG), F3H (TGGTAGGTA), and FLS1 (TGGTAGTTG) in Arabidopsis [38]. In NHCC, BcMYB111 could bind the promoters of BcF3H (GGTCCCAGGTAGCT) and BcFLS1 (TGTGGTAGTTACTTC) to regulate flavonol biosynthesis (Figure 4a,c). With regard to the MYB family, more and more studies have shown that MYBs are the main regulators of flavonoid biosynthesis in different species [49,50]. With the exception of that of flavonols, the synthesis pathways of anthocyanin and proanthocyanidins were also regulated by the regulation of AtMYB114, AtMYB113, AtMYB90, and AtMYB75 [42,51]. In NHCC, we identified a large number of flavonol metabolites that were up-regulated during cold stress through a non-targeted metabolic analysis (Figure 1c,d). These flavonols were affected by low temperatures and were promoted by BcMYB111 (Figure 3i,j).
Cold stress can affect plant growth, development, and yield [52]. After a long evolution, plants have developed complex biochemical and physiological mechanisms to adapt to cold stress, and these are regulated by a series of transcription factors [53]. There are three main cold-response genes in plants: the inducer of CBF expression (ICE), the C-repeat binding factor (CBF), and the cold-regulated protein (COR). So far, the ICE–CBF–COR signaling pathways have been found in many plants to regulate their adaptation to cold stress [54,55]. CBF, which is also known as the DREB1 gene, usually induces expression by binding to the cold and dehydration regulatory elements (CRT/DRE) in the promoter of the COR genes [56,57]. As a negative regulator of CBF1 and CBF3, CBF2 is more important in improving plant cold tolerance [58]. In this study, we found that there was a core DRE element (GCCGAC) in the promoter of BcMYB111. It was determined that the transcriptional activity of the BcMYB111 promoter could be activated by cold stress. BcCBF2 was found to be upstream from BcMYB111 and able to bind the promoter in vivo and in vitro (Figure 8b,c,e,f). Then, BcCBF2 activated the expression of BcMYB111 to increase the accumulation of flavonols in NHCC.
In plants, the genes of the MYB family are widely involved in the response to environmental factors and play an important regulatory role in the response to stress [59]. In response to drought, AtMYB60 improved the drought tolerance of Arabidopsis thaliana by regulating the constitution of the stomatal opening [60]. By controlling cell expansion and cuticle deposition, AtMYB41 was used to cope with abiotic stresses such as ABA, drought, and salt stress [61]. In terms of improving the tolerance of tall plants to drought and salt stress, GmMYB118 could adjust the osmotic and oxidizing substances in soybean, while ZmMYB3R could improve the accumulation of ABA in maize [62,63]. In addition to activating the biosynthesis of the secondary cell wall, MdMYB46 could also activate the stress response signal, thereby enhancing the tolerance of apples to salt and penetration [64]. MYBs were also involved in the regulation of plant tolerance to cold stress in different modes. By integrating ABA-dependent and ABA-independent signals, the MYB96–HHP module activated the CBF pathway and enhanced plants’ adaptability to environmental fluctuations [65]. However, AtMYB14 and AtMYB15 participated in the cold response by negatively regulating the expression of the CBFs [66,67]. In this study, the expression of BcF3H and BcFLS1 in the hairy roots and Arabidopsis leaves of the BcMYB111 lines was significantly higher than that in the wild-type lines (Figure 5b,g,h). As a result, the total amount of flavonoids and the contents of quercetin and kaempferol were significantly higher than those of the wild type (Figure 5d,e,j,k); thus, they may play a positive role in improving the tolerance of plants to cold temperatures. The relevant indicator of reactive oxygen species (ROS) reflected the sensitivity of plants to abiotic stress [68,69]. The antioxidant capacity of flavonoids can reduce oxidative damage to plants caused by ROS. The phenotype of BcMYB111-overexpressing lines under cold stress confirmed our hypothesis. Higher antioxidant capacity was found in the overexpressing lines compared with the WT in Arabidopsis thaliana (Figure 7b–f). Research has shown that quercetin and kaempferol can achieve protective effects by clearing reactive oxygen species when exposed to ultraviolet radiation [70]. Cold stress could lead to a significant accumulation of ROS, which is harmful to plants. The stronger cold resistance of BcMYB111 overexpressing lines was likely caused by the increase in quercetin and kaempferol. These flavonols largely inhibit the accumulation of ROS, which is consistent with other reports [71]. In addition, flavonoids could also enhance plants’ stress resistance by regulating the response and transportation of plant hormones [1,72]. It remains to be explored in more detail whether BcMYB111 could enhance cold resistance by regulating the synthesis, metabolism, and transportation of different kinds of hormones. In summary, BcMYB111 played a positive role in the cold resistance of NHCC; this is significant and can be used as a reference for revealing the metabolic network pathway of the MYB family when regulating plants that are under stress. This study revealed one of the functional modes of flavonols in response to low temperatures and showed an improvement in the cold tolerance of NHCC, which provides an important perspective for improving the selection of quality and variety of horticultural plants. Unfortunately, except for the up-regulation of flavonol biosynthesis, we still do not know whether BcMYB111 improves cold tolerance via a hormonal pathway, the protection of cell membranes and proteins, or other pathways. Further research is needed in this area.

4. Materials and Methods

4.1. Plant Materials, Growth Conditions, and Treatments

The seedlings of inbred lines (Brassica rapa ssp. Chinensis cv. NHCC-084-2) were grown in pots containing a soil mix (1:1, vermiculite: humus) in a growth chamber (Ningbo Southeast Instrument Co., Ltd., Ningbo, China), which was set for a daily cycle of 16 h of light (μmol·m−2·s−1) and 8 h of dark, with 65% humidity and at 22 °C. After the four-leaf stage, the seedlings were moved to 8 °C for the cold-stress treatment. Then, their leaves were sampled at various points for treatments that lasted 48 h and 21 days. In addition, the plants used for the untargeted metabolomic analysis were grown in natural field conditions in the autumn.
Nicotiana benthamiana seeds were grown in a 22 °C/19 °C, 75% humidity, and 16 h/8 h light/dark cycle climate chamber. After the disinfection process, Arabidopsis thaliana and transgenic seedlings were placed in the same chamber. The State Key Laboratory of Crop Genetics and Germplasm Enhancement of Nanjing Agricultural University provided all of the plant materials.

4.2. Untargeted Metabolomic Analysis

The NHCC for the untargeted metabolomic analysis was grown in the city of Jurong. The samples were collected on 23 November 2019, and they were referred to as T0 (18–22 °C), while T1 (8–12 °C) was used to refer to the samples collected on 3 December 2019. The third fully expanded leaf was sampled from the center. Six duplicate samples of independent plants were immediately frozen in liquid nitrogen and stored at −80 °C. Then, 300 μL of methanol and an internal standard were added to the 100 μL samples. After being vortexed and homogenized, the mixture was sonicated for 5 min in an ice-water bath. This was followed by incubation at −20 °C for 2 h and centrifugation for 15 min. The 200 μL samples of the supernatants were transferred to liquid chromatograph–mass spectrometer (LC−MS) vials for an LC−MS analysis. The identification and quantification of the metabolites were performed with the assistance of Genedenovo Biotechnology Co., Ltd. (Guangzhou, China). In particular, the online Kyoto Encyclopedia of Genes and Genomes (KEGG) database was used for annotation. The metabolomic variability between the groups of samples was distinguished by using partial least squares discriminant analysis (PLS–DA). The p-value of the Student’s t-test and the variable importance in the projection (VIP) were used to screen the differential metabolites (p < 0.5 and VIP ≥ 0.8).

4.3. Subcellular Localization and the Assay of Transient Expression in the Cotyledon of NHCC

The coding region of BcMYB111 was amplified and inserted into a pCAMBIA1302–GFP vector by using a ClonExpress II One-Step Cloning Kit (C112-01, Vazyme, Nanjing, China) to generate BcMYB111–GFP. The recombinant plasmid was introduced into Agrobacterium tumefaciens strain GV3101. Then, the positive agrobacteria of BcMYB111–GFP and pCAMBIA1302–GFP were resuspended in an infiltration buffer (10 mM MES, 10 mM MgCl2, 150 μM acetosyringone) to inject the leaves of 30-day-old tobacco and the cotyledons of 7-day-old NHCC (Figure S4). About 48 h after the injection, the tobacco leaves were observed to identify the subcellular localization by using confocal laser scanning microscopy (LSM780, Zeiss, Oberkochen, Germany). The cotyledons were collected for quantitative real-time PCR analysis.

4.4. Quantitative Real-Time PCR Analysis

The total RNA of NHCC was extracted using the RNAsimple Total RNA Kit (TIANGEN, Beijing, China) and reverse-transcribed using the Hifair® III 1st stand cDNA synthesis superMIX for qPCR (11141ES60, Yeasen, Shanghai, China). Real-time quantification PCR was performed by using the Hieff® qPCR SYBR Green Master Mix (11202ES03, Yeasen, Shanghai, China) from QuantStudio 5 (ABI, San Francisco, CA, USA). The PCR conditions were as follows: predenaturation, 95 °C for 5 min, 1 cycle; for two-step PCR, the conditions were as follows: 95 °C for 10 s, 60 °C for 30 s, 40 cycles. BcGAPC and AtActin were chosen as the internal standards. The data were analyzed using the 2−ΔΔCt method. There were three biologically independent repetitions in the experiments. All of the primer information is provided in Table S2.

4.5. Measurement of the Total Flavonoid, Quercetin, and Kaempferol Contents

After being dried, pulverized, and passed through a 40-mesh sieve, the 0.02 g dry samples were mixed with 2 mL of 60% alcohol (v:v) and shocked for 2 h at 60 °C. Then, the mixtures were centrifuged at 10,000× g for 10 min. After the treatment (Suzhou Comin Biotechnology Co., Ltd., Suzhou, China), the absorbance value of the supernatant at 510 nm was determined by using a Microplate Reader (CYTATION3, Bio Tek, VT, USA). The standard curve was the following: y (mg/g, DW) = 5.02 × ΔA510 + 0.0007, R2 = 0.9996.
The flavonols in NHCC were determined according to the following method [39]: 0.5 g of leaves were taken; the samples were ground into a powder with liquid nitrogen and mixed with 1 mL of 80% methanol (v:v) and left overnight at 4 °C; then, centrifugation was performed for 20 min at 4 °C with 12,000 r·min−1, and the centrifuged supernatant was filtered with a 0.22 µm organic filter. The filtrate was hydrolyzed by an equivalent of 6 mol/L hydrochloric acid for 40 min at 70 °C. Then, the contents of quercetin and kaempferol were determined with ultra-high-performance liquid chromatography (HPLC, Waters, MA, USA). The injection was 2 μL and the detection wavelength was 360 nm. The standard substances of the flavonoids included quercetin and kaempferol (Yuanye, Shanghai, China).

4.6. Dual Luciferase Assay

The promoters of BcMYB111, BcF3H, and BcFLS1 were cloned and inserted into the pGreenII–0800–LUC vector. The ORFs of BcCBF2 and BcMYB111 were inserted into the pRI101 vector to generate 35S::BcBcCBF2 and 35S::BcMYB111. The constructed vector and empty vector (control) were transformed into GV3101 (including pSoup-19). After injecting different combinations of agrobacterium solution (agrobacteria resuspended with 10 mM MES, 10 mM MgCl2, and 150 μM acetosyringone) into tobacco for 48 h at 22 °C, the fluorescence signal was observed with a living plant imaging system (Berthold, Stuttgart, Germany). The enzyme activities of LUC and REN were determined by using the Dual-Luciferase Reporter Gene Assay Kit (11402ES60, Yeasen, Shanghai, China). In particular, 36 h after injection, the plants used for the cold-response analysis were moved to 8 °C for 3 h and then back to 22 °C for 9 h. The following detection methods were the same as those above.

4.7. Yeast One-Hybrid Assay

After the promoters of BcFLS1, BcF3H, and BcCHS were cloned, the predicted combination sequences were replicated three times in series and inserted into the pLacZi vector. At the same time, the ORF of BcMYB111 was constructed to create the pJG4-5 vector. According to the Yeastmaker™ Yeast Transformation System (TaKaRa, Osaka, Japan), different combinations were co-transferred into yeast cells (EGY48). After culturing in SD/-Trp/-Ura medium at 30 °C, a binding test was performed in Ura-/Trp-deficient SD medium with x-gal.
In the same way, the DRE element of BcMYB111 was replicated three times in series, inserted into the pABAi vector, and transferred into Y1H Gold yeast. The yeast was screened to determine the lowest concentration of aureobasidin A (AbA) on the SD/-Ura plate. BcCBF2 and BcCBF3 were inserted into the pGADT7 vector and transferred into Y1H Gold cells that contained a bait vector. A binding test was performed at 30 °C on SD/-Leu plates containing the corresponding AbA.

4.8. Electrophoretic Mobility Shift Assay (EMSA)

The ORF of BcCBF2 was cloned into the pCold–HIS vector and transformed into Escherichia coli Rosetta (DE3). After isopropy-β-D-thiogalactoside (IPTG) was added, the 6× His–BcCBF2 fusion protein was generated. Then, the fusion protein was extracted and enriched using the His-tag Protein Purification Kit (Beyotime, Shanghai, China). The EMSA probe primers were labeled with biotin. Then, the EMSA was performed with the LightShift Chemiluminescent EMSA Kit (Thermo Fisher, MA, USA).

4.9. Silencing of BcMYB111 in NHCC by Virus-Induced Gene Silencing (VIGS)

According to the description [73], an 80-bp specific palindromic DNA sequence (5′-ATGAGATCCTCACTAACTATATCCAAACCAATGGGGAAGGCCTTCCCCATTGGTTTGGATATAGTTAGTGAGGATCTCAT-3′) was synthesized by the GeneScript company (Nanjing, China) and recombined into a pTY vector. After being wrapped in gold particles, 4 μg plasmids of PTY and pTY–BcMYB111 were used to bombard the 2-week-old seedings with a gene gun (Biolistic PDS-1000/He, Bio-rad, Hercules, Waltham, CA, USA). After two weeks of growth, both the pTY and pTY–BcMYB111 lines were obtained for subsequent research.

4.10. Generation of Transgenic Arabidopsis thaliana

The fusion constructs of 35S::BcMYB111–GFP were transformed into GV3101. To generate BcMYB111-overexpressing Arabidopsis thaliana, the floral dip method [74] was used. Transgenic plants were selected on 1/2 MS medium containing 25 mg/L of hygromycin and 16 mg/L of timentin. After the homozygous progeny of the transgenic plants were identified via PCR (the primer sequence is shown in Table S2) and Western blotting with the GFP antibody, phenotypic characterizations were performed.

4.11. Measurement of MDA, H2O2, and Enzyme Activity of POD and SOD

First, 0.1 g of fresh plant leaves were cut, ground with liquid nitrogen, and added to 1 mL of the corresponding extraction solution. After an adequate vortex in an ice-water bath, the supernatant was obtained via centrifugation at 8000× g. Then, the contents of MDA and H2O2 and the enzyme activities of POD and SOD were determined (BC0020; BC3595; BC0090; BC0170, Solarbio, Beijing, China).

4.12. Agrobacterium Rhizogenes-Mediated Transformation of Hairy Roots

‘Suzhouqing’ seeds were soaked in 75% ethanol for 2 min and 10% sodium hypochlorite for 18 min, washed with ddH2O five times, placed in a germination medium (1/2 MS, pH 5.8), and kept in the culture room (23 ± 2 °C, light cycle with 16 h of light and 8 h of dark for 7 days; the light was 2000–3000 lx). BcMYB111 over-expression vectors were introduced into the Agrobacterium rhizogenes strain MSU440, and the bacteria were cultured overnight. After the medium was centrifuged at 5000 rpm for 10 min and the supernatant was discarded, a co-culture liquid medium (MS diluted tenfold (pH5.2) + acetosyringone (100 μM)) was added to make OD600 = 0.8 and placed at 28 °C and 250 rpm for 3 h to form the infection medium. We cut the original main roots of the seedling. Then, the rootless seedlings were soaked in the infection medium for 10 min, washed with ddH2O three times, and placed in an MS medium containing timentin (160 mg/L). After 25–35 days, the hairy roots were grown out and used for subsequent experiments after identification.

4.13. Statistical Analysis

All of the data are presented as the means and standard deviation (SD) of at least three independent replicates for each experiment. The Student’s two-tailed t-test was conducted using GraphPad Prism version 7.0 (GraphPad Software, San Diego, CA, USA).

5. Conclusions

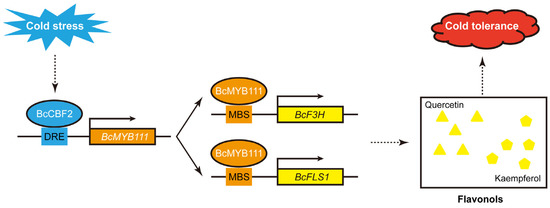

In this study, we showed that BcMYB111 acts as a positive regulator of flavonol synthesis by directly binding BcF3H and BcFLS1 in NHCC (Figure 9). BcMYB111 actively regulates the synthesis of flavonols. BcMYB111 is directly induced by BcCBF2 to regulate flavonol synthesis under cold stress. Furthermore, BcMYB111 also plays a positive role in promoting tolerance to cold stress. As a result, a model for BcMYB111’s regulation of flavonoid metabolism in response to cold stress was proposed.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms24108670/s1.

Author Contributions

Conceptualization, X.H.; formal analysis, X.C.; investigation, X.C. and Q.D.; data curation, X.H.; writing—original draft preparation, X.C. and Y.W.; writing—review and editing, X.H.; visualization, Z.Y., Z.G., S.H.A.S., and W.L.; funding acquisition, Y.L. and X.H. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Jiangsu Seed Industry Revitalization Project [JBGS (2021)015], the China Agriculture Research System (CARS-23-A-16), the Key Projects of the National Key Research and Development Plan (2017YFD0101803), and the Nanjing Science and Technology project (202109022).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data will be made available on request.

Conflicts of Interest

The authors declare no conflict of interest.
