Article

Nanoarchitectonics of Three-Dimensional Carbon Nanofiber-Supported Hollow Copper Sulfide Spheres for Asymmetric Supercapacitor Applications

by
Miyeon Shin
1,†,
Ganesh Prasad Awasthi
2,†,
Krishna Prasad Sharma
2,
Puran Pandey
3,
Mira Park
4,
Gunendra Prasad Ojha
4,* and
Changho Yu
1,2,*
1
Department of Energy Storage, Conversion Engineering of Graduate School, Jeonbuk National University, Jeonju 54896, Republic of Korea
2
Division of Convergence Technology Engineering, Jeonbuk National University, Jeonju 54896, Republic of Korea
3
Division of Physics and Semiconductor Science, Dongguk University, Seoul 04620, Republic of Korea
4
Carbon Composite Energy Nanomaterials Research Center, Woosuk University, Wanju 55338, Republic of Korea
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Int. J. Mol. Sci. 2023, 24(11), 9685; https://doi.org/10.3390/ijms24119685
Submission received: 9 May 2023 / Revised: 29 May 2023 / Accepted: 30 May 2023 / Published: 2 June 2023
(This article belongs to the Special Issue Nanomaterials Based Electrodes for Supercapacitor Applications)
Browse Figures
Review Reports Versions Notes

Abstract

:
Three-dimensional carbon nanofiber (3D-CNF)-supported hollow copper sulfide (HCuS) spheres were synthesized by the facile hydrothermal method. The morphology of the as-synthesized HCuS@3D-CNF composite clearly revealed that the 3D-CNFs act as a basement for HCuS spheres. The electrochemical performance of as-synthesized HCuS@3D-CNFs was evaluated by cyclic voltammetry (CV) tests, gravimetric charge–discharge (GCD) tests, and Nyquist plots. The obtained results revealed that the HCuS@3D-CNFs exhibited greater areal capacitance (4.6 F/cm2) compared to bare HCuS (0.64 F/cm2) at a current density of 2 mA/cm2. Furthermore, HCuS@3D-CNFs retained excellent cyclic stability of 83.2% after 5000 cycles. The assembled asymmetric device (HCuS@3D-CNFs//BAC) exhibits an energy density of 0.15 mWh/cm2 with a working potential window of 1.5 V in KOH electrolyte. The obtained results demonstrate that HZnS@3D-CNF nanoarchitectonics is a potential electrode material for supercapacitor applications.

1. Introduction

Recent research has been focused on next-generation energy storage devices to meet the demands of portable electronics and digital communications [1,2]. Supercapacitors (SCs), also known as ultracapacitors, are considered promising candidates for energy storage by virtue of their advantages such as high power density, thousands of charge–discharge cycles, and operational durability [3,4,5]. However, maintaining the energy density, power density, and lifecycle of SCs is challenging in practical applications [6,7]. Therefore, hybrid supercapacitors must be designed to have higher specific capacitance without losing their essential characteristics.
In the past few years, various pseudo-capacitive materials such as transition metal oxides/or hydroxides [8,9,10,11,12,13,14,15], transitional metal sulfides (TMSs) [16,17,18,19,20,21], and conductive polymers [22,23] have been extensively studied as auspicious electrodes for supercapacitor applications. TMSs have received growing attention for supercapacitor electrode applications due to their controlled shapes, low electronegativity, suitable potential window, better electrical conductivity compared to their corresponding oxides, ample electrochemical redox sites, low cost, and environmental geniality, and because of the complex valence of sulfur [24,25,26,27]. Among various TMSs, copper sulfides [28] are considered p-type semiconductors and have become a predominant SC electrode material due to their abundant availability, easy approachability, and large theoretical capacity. However, they have more resistance to electron and/or ion transfer, low rate capability, and low cyclic durability, factors that limit their potential to be applied in electrode materials for supercapacitors [29,30]. In order to overcome these limitations, the rational design of CuS with suitable nanoarchitectures can expand opportunities to optimize their electrochemical performance.
Well-known carbonaceous materials such as graphene, activated carbon, carbon nanotubes, and carbon nanofibers have a large surface area, high conductivity, flexibility, and chemical and thermal stability, and can act as surface stabilizers for nanomaterials and improve the electron transfer among nanoparticles [31,32]. Very few reports have been published that combine carbon-based materials with different morphologies of CuS for supercapacitor applications. Recently, Niu et al. synthesized MOF-derived copper sulfide polyhedrons in carbon nanotube networks for hybrid supercapacitors [33], Hout S.E. et al. synthesized reduced graphene oxide-anchored hexagonal copper sulfide nanospheres [34], and Sabeeh H. et al. synthesized CuS nanochips with carbon nanotubes [35]. Huang K.J. et al. synthesized acetylene black-incorporated layered CuS nanosheets for high-performance supercapacitors [36]. Zhao et al. synthesized a 3D CuS@CD-CNT composite as a supercapacitor electrode material [37]. Similarly, Wang et al. synthesized a CuS nanoflower-decorated activated carbon layer for asymmetric supercapacitors [38]. In recent years, 3D-structured CNFs have gained much attention in supercapacitor applications due to their noteworthy characteristics such as easy synthesis, light weight, numerous conductive paths, and high electrolyte ion accessibility and diffusion during electrochemical tests. Recently, Tiwari et al. demonstrated that the Co@3D-CNF composite provides improved electrochemical performance compared to the Co@2D-CNF composite for supercapacitor applications [39]. Similarly, Dahal et al. fabricated MOF-assimilated B/N co-doped 3D-CNFs for binder-free electrodes for supercapacitors [40].
Considering the above studies, the HCuS@3D-CNF composite was synthesized by converting two-dimensional (2D) PAN electrospun nanofibers into 3D-CNFs, followed by the hydrothermal method. In HCuS@3D-CNF nanoarchitectonics, the loosely packed 3D-CNFs provide a conductive basement with a large surface area and free space to accommodate possible volumetric changes during charging and discharging processes. As a result, composite materials allow efficient electron transfer for enhanced specific capacitance, conductivity, and cyclic stability compared to bare HCuS. Moreover, an asymmetric supercapacitor [41] device employing HCuS@3D-CNF as a cathode and biomass-derived activated carbon [42] as a negative electrode was assembled to analyze the energy density and power density for practical applications. This kind of 3D fibrous structured carbon-based composite can be new avenue for possible energy storage applications.

2. Results and Discussion

2.1. Physicochemical Studies

Figure 1 shows the surface and structural morphology of the as-synthesized HCuS spheres and the HCuS@3D-CNF composite. Figure 1a,b show the polycrystalline hollow CuS nanospheres at low and high magnification, respectively. The surface of the HCuS spheres was created with numerous nanoflakes. When the as-prepared 3D-CNFs were added to the CuS precursors by the hydrothermal method, HCuS spheres were scattered throughout the surface of the 3D-CNFs (Figure 1c,d). Figure 1c,d are low- and high-magnification images of the HCuS@3D-CNF composite, respectively. Additionally, the surface diameter of HCuS spheres was considerably decreased compared to pristine HCuS spheres due to the increasing active edge sites present on the surface of 3D-CNFs. The active edge sites of the 3D-CNFs provide an easy way for the growth and nucleation of HCuS crystal [43]. The elements existing in the HCuS@3D-CNF composite were confirmed by EDS and elemental mapping (Figure 1e–j). The results clearly show the presence of Cu, S, and C throughout the scanned area.
Corresponding TEM images of the as-synthesized composite are displayed in Figure 2. Figure 2a shows that the hollow spheres of CuS were well attached to the surface of 3D-CNFs under the hydrothermal process, which is appropriate with FESEM morphology. Moreover, Figure 2b displays the HRTEM image of HCuS@3D-CNFs with the lattice fringes of the interplanar spacing of hexagonal CuS of 0.32 nm corresponding to the crystal plane (100) with amorphous 3D-CNFs, which suggests the intimate contact of CuS and the carbon nanofibers [44]. The result of the SAED pattern reveals that the polycrystalline nature of the CuS@3D-CNF composite was formed.
Figure 3 shows the XRD patterns and Raman spectra of HCuS, 3D-CNFs, and the HCuS@3D-CNF composite. In Figure 3a, the diffraction peaks at different phase angles of 2θ = 10.7°, 27.7°, 29.43°, 31.8°, 32.9°, 38.9°, 43.1°, 44.3°, 48.01°, 52.7°, 56.2°, 57.3°, 59.3°, 63.5°, 67.4°, 69.6°, 74.1°, 77.8°, and 79.2° with their corresponding planes (002), (101), (102), (103), (006), (105), (106), (008), (110), (108), (201), (202), (116), (1010), (118), (1011), (208), (212), and (213), respectively, indicate the hexagonal phase of CuS. The characteristic peaks of CuS are in good agreement with JCPDS No. 06-0464 [45,46]. The XRD pattern of pristine 3D-CNFs shows a broad diffraction peak at around 24°, corresponding to the crystal plane (002), which represents hexagonal graphitic carbon with an amorphous nature. Furthermore, the XRD patterns of the HCuS@3D-CNF composite match well with pristine HCuS along with 3D-CNFs, attributed to the composite formation. In addition, lower peak intensities compared to pristine HCuS demonstrate the efficacious incorporation of HCuS@3D-CNFs. The Raman spectra of different samples are shown in Figure 3b. The Raman spectra of HCuS exhibited two district peaks at about 270 cm−1 and 474 cm−1, belonging to Cu-S bond vibration and S-S covalent bond of stretching mode [47]. The Raman shift of 3D-CNFs showed characteristic broad bands at around 1343 cm−1, indicating the D band (C=C disordered and crystal defect of A1g symmetry), and the broad band around 1577 cm−1 represents the D band (Sp2 graphitic lattice vibration mode with E2g symmetry) [48,49,50]. Furthermore, the lower-intensity peaks of Cu-S and S-S bands along with D and G bands of 3D-CNFs represent the HCuS crystal growth on the surface of 3D-CNFs in the HCuS@3D-CNF composite. The obtained results of Raman spectra are in good agreement with XRD patterns.
The elemental composition and electronic structure of the individual elements in the HCuS@3D-CNFs were evaluated by XPS, as shown in Figure 4. Figure 4a shows the binding energy of Cu (932.9 eV), S (164.11eV), and C (285.5 eV) in the wide-range XPS survey spectrum. Furthermore, the core levels of XPS spectra of Cu 2p, S 2p, and C 1s are presented in Figure 4b–d, respectively. In the case of Cu 2p, two binding energies at 933.1 eV and 953.2 eV conform to Cu 2p3/2 and Cu 2p1/2, respectively. In the high-resolution S 2p spectrum, peaks of binding energies at about 162.9 eV and 164.08 eV correspond to S 2p3/2 and S 2p1/2, respectively. In addition, a lower-intensity broad peak at 168.5 eV represents the sulfate molecules (SO42−) due to the adventitious surface oxidation of the heterostructure. The peaks of 2p3/2 and 2 p1/2 of Cu 2p and S 2p are attributed to Cu2+ and S2− states, revealing the CuS formation. The high-resolution spectra of C 1s exhibit an intense peak at about 285 eV, corresponding to a C-C bond, and a weak peak at about 289 eV, corresponding to a C-O-C bond. The oxygen atom contained with carbon in C 1s might be triggered by the atmosphere [51].

2.2. Electrochemical Studies

In order to evaluate the electrochemical performances of HCuS and the HCuS@3D-CNF composite for supercapacitors, cyclic voltammetry (CV), galvanostatic charge–discharge (GCD), electrochemical impedance spectroscopy, and cyclic stability tests were performed with aqueous 2 M KOH electrolyte in a three-electrode system (Figure 5). The CV tests of HCuS and the HCuS@3D-CNF composite were carried out at various scan rates (10 to 100 mV) with a potential window of 0–0.5 V, as shown in Figure 5a,b. The CV curves of the HCuS@3D-CNF composite have a larger enclosed area under CV curves along with a higher current response compared to HCuS. The larger enclosed area of the heterostructure is due to the synergistic effect between HCuS and 3D-CNFs. The synergistic effect could be responsible for the shorter diffusion path for electrolyte ion transport onto the HCuS@3D-CNF electrode surface. The CV curves of both samples (HCuS and HCuS@3D-CNF) exhibited pseudo-capacitive behavior due to the Cu/Cu2+ redox in the KOH electrolyte [52,53]. The gravimetric charge–discharge behavior of the samples was analyzed from the GCD curve at various current densities (1 to 10 mA/cm2), as shown in Figure 5c,d. The HCuS@3D-CNFs showed noteworthy discharge times compared to HCuS. Based on discharge time, the areal capacitances of the HCuS@3D-CNF electrodes are 4.65 F/cm2, 4.47 F/cm2, 4.36 F/cm2, 4.0 F/cm2, and 3.93 F/cm2 at the current densities of 2, 4, 6, 8, and 10 mA/cm2, respectively; the HCuS electrode had areal capacitances of 0.64 F/cm2, 0.64 F/cm2, 0.63 F/cm2, 0.63 F/cm2, and 0.62 F/cm2 at these same current densities. The areal capacitance of electrodes gradually decreased with increasing current densities. The inverse relation between capacitance and current density depends on the diffusion and migration of electrolyte ions. It is noticeable that the rate of ion diffusion and migration is lower at a higher current density, leading to a decrease in capacitance value. The higher capacitance of HCuS@3D-CNFs is due to the enhanced surface area provided by the loosely packed surface of the three-dimensional carbon nanofibrous morphology. In addition, the open pores and surface roughness of 3D-CNFs with HCuS provide better exposure for active electrolyte ions’ accessibility [54,55]. Regarding the electrochemical activity in the CuS and CuS/C composite electrodes, the following reactions take place during the oxidation/reduction processes [56].
Reduction process:
CuS + OH− → CuSOH + e−
CuSOH + OH− → CuSO + H2O + e−
Oxidation process:
CuSO + H2O + e− → CuSOH + OH−
CuSOH + e− → CuS + OH−
The areal capacitances vs. current densities of HCuS and the HCuS@3D-CNF composite were evaluated (Figure 6a). During the GCD test, the gradual decrease in discharge time with an increase in the current density (2–10 mA/cm2) was due to the internal resistances and kinetically slow redox reactions [53]. The EIS Nyquist plot of HCuS and the HCuS@3D-CNF composite at a circuit potential of 10 mV in the frequency range of 0.01 Hz to 100 KHz is shown in Figure 6b. The negligible semicircle in the higher-frequency region followed by the more inclined line in the lower-frequency region of HCuS@3D-CNFs compared to HCuS indicates fast electron transport and a shortened diffusion path for electrolyte ions. The equivalent circuit model of the Nyquist plot represents the charge transfer resistance (Rct) and Warburg resistance (W) at the working electrode’s surface due to faradic and ELDC behavior at the electrode surface and the slope of the straight line in the lower-frequency region, respectively. Rs represents the bulk resistance in the high-frequency region. The cyclic stability test of the HCuS@3D-CNF composite was performed at 10 A/g current density (Figure 6c). The results suggest that the capacitance retention of ~95% was maintained after 5000 cycles. The GCD curves before and after the cyclic test are depicted in the inset of the figure.

Asymmetric Supercapacitor

For the fabrication of an asymmetric supercapacitor, biomass-derived activated carbon [42] was selected for the negative electrode due to its large surface area, porosity, and low cost. Figure 7a shows the schematic illustration of the assembled electrochemical cell for the asymmetric supercapacitor (HCuS@3D-CNFs//BAC). As the first stage in the asymmetric electrochemical studies, the individual cyclic voltammograms were operated for positive and negative electrodes under a three-electrode system. For the negative electrode, the CV, GCD, and EIS curves are given in Figure S1. The CV curves of BAC reveal the EDLC behaviors at various scan rates of 10–100 mV/s, which occur due to the electrostatic adsorption of electrolyte ions on the surface of the electrode. The symmetrical-shaped GCD curves exhibit areal capacitances of 0.255, 0.218, 0.19, 0.16, 0.15, and 0.08 F/cm2 at 2, 4, 6, 8, 10, and 20 mA/cm2 current densities, respectively. For the EIS measurement, the semicircle in the high-frequency region and the linear steep slope in the medium- and low-frequency regions establish its conductive nature [57]. For the estimation of the potential window, the optimal CV curve of the positive electrode (HCuS@3D-CNFs) was analyzed over the potential window of 0–0.5 V, and for the negative electrode, the window of −1 to 0 V was used [42] at the same scan rate (50 mV/s) (Figure 7b). After assembling both materials, the maximum working potential window of the CV was expanded to 0–1.5 V due to the synergistic effect of cathode and anode materials [58]. The CV curve of the assembled cell was analyzed at various scan rates (10–100 mV/s) (Figure 7c). The synergistic effect can be observed in the shape of the CV curve, as shown in Figure 7d. The EDLC behavior is revealed until the potential of 1.2 V, whereas the redox peaks are demonstrated above the potential of 1.2 V at 50 mV/s. The faradic and non-faradic behaviors revealed in the voltammogram suggest that the assembled asymmetric supercapacitor using BAC as the negative electrode and the HCuS@3D-CNF composite as the positive electrode can be operated up to 1.5 V in KOH electrolyte [59]. Moreover, there was a mild shift in the peak position at a higher scan rate owing to the polarization behavior of the electrode [60]. The GCD curves of the asymmetric device measured over the potential window of 0–1.5 V at various current densities are shown in Figure 7e. The symmetrical GCD curves of HCuS@3D-CNFs//AC demonstrate pseudo-capacitive behaviors with remarkable areal capacitances of 0.49 F/cm2, 0.43 F/cm2, 0.37 F/cm2, 0.33 F/cm2, and 0.30 F/cm2 at various current densities of 2 mA/cm2, 4 mA/cm2, 6 mA/cm2, 8 mA/cm2, and 10 mA/cm2, respectively. To evaluate the applicability of the synthesized material, the energy density (E) and power density (P) of asymmetric supercapacitors are the key parameters in a wide potential range. Therefore, energy density and power density were evaluated using Equations (3) and (4), respectively. Based on the different current densities (2–10 mA/cm2), we obtained energy densities of 0.15 mWh/cm2, 0.13 mWh/cm2, 0.11 mWh/cm2, and 0.10 mWh/cm2 corresponding to power densities of 2.92 mW/cm2, 5.74 mW/cm2, 8.50 mW/cm2, 11.45 mW/cm2, and 14.09 mW/cm2, respectively. The obtained values are superior to the previous reports (Table 1). Moreover, the charge–discharge curves of the asymmetric device were measured over different potential windows at a current density of 2 mA/cm2 (Figure 7f). The symmetrical shape of all GCD curves reveals the remarkable capacitive performance.
Cyclic stability is one another important parameter to estimate the durability of a supercapacitor electrode. The cyclic stability of the device (HCuS@3D-CNFs//BAC) was evaluated by the cyclic stability test (5000 cycles @ 10 mA/cm2) (Figure 8). The cyclic stability results showed that the device maintained 83.2% capacitance retention after 5000 cycles (Figure 8a). The Nyquist plot of EIS of the asymmetric device before and after the cyclic stability test is given in Figure 8b. The obtained results reveal a negligible semicircle in the high-frequency region and a comparatively lower vertical line in the lower-frequency region after 5000 cycles, which indicates a slight decrease in the conductivity of the device.

3. Methods and Materials

3.1. Materials

Polyacrylonitrile (PAN, Mw 150000, Sigma Aldrich, St. Louis, MO, USA), copper sulfate pentahydrate (CuSO4.5H2O; DaeJung chemicals and materials Co., Ltd., Busan, Korea), thiourea (Junsei chemical Co., Ltd., Tokyo, Japan), N-N dimethylformamide (DMF, 99.5% Sigma-Aldrich), and sodium borohydride (NaBH4, Sigma-Aldrich) were used in this experiment. All chemicals were of analytical grade and used without any further purification.

3.2. Sample Preparation

3.2.1. Preparation of 3D-CNFs

The 3D-CNFs were synthesized according to our previous protocol [69,70,71]. Firstly, 10 wt % PAN-DMF solution was electrospun to obtain a PAN nanofibrous mat. The nanofibrous mat was dried under vacuum at 60 °C for 24 h. During the preparation of the 3D structure, the as-fabricated nanofibrous mat was placed into 20 mL of NaBH4 (0.1 M) solution. After 24 h, the 3D spongy mat was washed several times with deionized water and vacuum dried at 60 °C for 24 h, followed by carbonization at 950 °C for 2 h under N2 atmosphere after stabilization in air at 250 °C for 2 h.

3.2.2. Preparation of HCuS@CNF nanoararchitectonics

A schematic representation of the fabrication process of HCuS@3D-CNF composites is given in Figure 9. First, copper sulfate pentahydrate (1 mM) and thiourea (2.5 mM) were each dissolved in 20 mL distilled water separately. After sufficient dispersion, thiourea solution was transferred into the copper sulfate pentahydrate solution and magnetically stirred again for 30 min. A piece of as-synthesized 3D-CNF (0.02 g) was soaked in the mixed solution and transferred to a 100 mL Teflon vessel autoclave for the hydrothermal process. The oven temperature was maintained at 180 °C for 24 h. The obtained HCuS@CNF composite was washed successively with deionized water and ethanol and dried at 50 °C for 12 h. For comparison, bare HCuS spheres were prepared without 3D-CNFs.

3.3. Characterizations

The structural morphologies of the as-synthesized samples were analyzed by field emission scanning electron microscopy (FESEM, Hitachi, Tokyo, Japan). Furthermore, the internal morphology of the samples was evaluated by a high-resolution transmission electron microscope (HRTEM, JEOL Ltd., Tokyo, Japan) operated at 200 kV. The phase composition and crystal orientation of the samples were analyzed using high-resolution X-ray diffraction (HR-XRD, Rigaku Co., Tokyo, Japan). The degree of graphitization in carbon with CuS was studied with a high-resolution dispersive Raman microscope (RFS-100S, Bruker, Mannheim, Germany) with a laser source wavelength of 514 nm. The bonding configurations were determined by Fourier transform infrared spectroscopy (FTIR; Perkin Elmer, Waltham, MA, USA) and X-ray photoelectron spectroscopy (XPS; Thermo Fisher Scientific, Waltham, MA, USA).

3.4. Electrochemical Measurements

Cyclic voltammetry (CV), galvanostatic charge–discharge (GCD), and electrochemical impedance spectroscopy [72] measurements of the samples were analyzed using an electrochemical Zive SP2 instrument. The electrochemical measurements were performed in a three-electrode system with the active material, deposited Ni foam (or current collector), used as a working electrode, Ag/AgCl (3 M KCl saturated) used as a reference electrode, and a platinum coil used as a counter electrode with 2 M KOH aqueous electrolyte. The working electrodes of the materials were prepared by mixing 80% of the active material with 10% carbon black and 10% PVDF with NMP solvent to make a slurry. After grinding the slurry in a mortar and pestle, the homogeneous slurry was drop-casted on well-washed Ni foam with an area of 1 × 1 cm2 and dried at 60 °C for 12 h. The Ni foams had an active mass of 2 mg/cm2 and were used as a working electrode for the electrochemical tests. The CV and GCD measurements of the samples were recorded in the potential windows of 0 to 0.5 V at different scan rates and with current densities varying from 0 to 0.45 V. Moreover, EIS measurements were carried out on Nyquist plots with a range of 100 kHz to 0.01 Hz. The areal capacitance values were calculated from the GCD curve by using the following equation:
C = 2 I × Δ t A × Δ v
where I is the charge discharge current (A), Δt is the discharge time (s), A is the area of the electrode, and Δv is the difference in the potential window (V).

3.5. Fabrication of Asymmetric Supercapacitors Device

To demonstrate the practical electrochemical performance of HCuS@3D-CNFs, the asymmetric supercapacitor [41] was assembled using HCuS@3D-CNFs as a positive electrode and biomass-derived activated carbon [42] as a negative electrode. The physicochemical properties of the BAC were characterized in our previous report [48]. Prior to the device assembly, the electrochemical performances of the negative electrode were also evaluated under a three-electrode system. The optimum mass ratio for the positive and negative electrodes can be calculated by the equation of charge balance theory based on their specific capacitance by the formula given below:
m + m − = C s − × Δ V − C s + × Δ V +
where m, Cs, and ΔV are the active mass values on the surface of the current collector, the specific capacitance, and the working potential window of positive and negative electrodes, respectively. The electrochemical performance of the assembled cell (HCuS@3D-CNFs//BAC) was carried out using CV, GCD, and EIS under a wide potential window range (0 V–1.5 V) in a two-electrode system using 2 M KOH electrolyte-shocked Whatmann filter paper as a separator. The areal energy density (E) and powder density (P) of the cell were calculated according to the equations given below:
E = C × Δ V 2 7.2
P   = E   × 3600 Δ t
where C is the areal capacitance (F/cm2) of the asymmetric cell, ΔV is the voltage difference, Δt is the discharge time (s), E is the energy density (mWh/cm2), and P is the power density (mW/cm2).

4. Conclusions

In summary, we have successfully synthesized hollow CuS (HCuS) spheres integrated with 3D-CNF nanoarchitectonics via electrospinning, NaBH4 treatment, and the hydrothermal method. The 3D-CNF networks provided conductive support for the growth of HCuS and prevented the agglomeration of spheres. Compared to HCuS, the as-synthesized HCuS@3D-CNF nanoarchitectonics delivered outstanding specific capacitance and rate capability. Moreover, an asymmetric device was assembled using HCuS@3D-CNFs and BAC as positive and negative electrode materials, respectively. The as-assembled HCuS@3D-CNFs//BAC asymmetric device delivered outstanding areal energy density of 0.15 mWh/cm2 at the power density of 2.92 mW/cm2 and admirable cyclic durability after 5000 GCD cycles. The presented work provides a promising route for the synthesis of HCuS@3D-CNF nanoarchitectonics for high-performance supercapacitor applications.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms24119685/s1.

Author Contributions

M.S.; G.P.A.: designed the experiments, performed the experiments and writing original manuscript. K.P.S., P.P. and M.P.: data analysis, data curation, software. G.P.O. and C.Y.: Supervision, Funding, Writing, reviewing and editing. All authors have read and agreed to the published version of the manuscript.

Funding

National Research Foundatiojn of Korea Project Number: 2022R1A2C1093320 and 2020R1I1A1A01068856.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

This work was supported by a National Research Foundation of Korea (NRF) grant funded by the Korean government (MSIT) (project no 2022R1A2C1093320 and 2020R1I1A1A01068856). We are grateful to the Center for University-Wide Research Facilities (CURF) at Jeonbuk National University for the instrumental assistance.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Lee, J.-H.; Yang, G.; Kim, C.-H.; Mahajan, R.L.; Lee, S.-Y.; Park, S.-J. Flexible solid-state hybrid supercapacitors for the internet of everything (IoE). Energy Environ. Sci. 2022, 15, 2233–2258. [Google Scholar] [CrossRef]
  2. Pandey, P.; Thapa, K.; Ojha, G.P.; Seo, M.-K.; Shin, K.H.; Kim, S.-W.; Sohn, J.I. Metal-organic frameworks-based triboelectric nanogenerator powered visible light communication system for wireless human-machine interactions. Chem. Eng. J. 2023, 452, 139209. [Google Scholar] [CrossRef]
  3. Ran, F.; Yang, X.; Xu, X.; Li, S.; Liu, Y.; Shao, L. Green activation of sustainable resources to synthesize nitrogen-doped oxygen-riched porous carbon nanosheets towards high-performance supercapacitor. Chem. Eng. J. 2021, 412, 128673. [Google Scholar] [CrossRef]
  4. Acharya, J.; Ojha, G.P.; Kim, B.-S.; Pant, B.; Park, M. Modish Designation of Hollow-Tubular rGO–NiMoO4@Ni–Co–S Hybrid Core–shell Electrodes with Multichannel Superconductive Pathways for High-Performance Asymmetric Supercapacitors. ACS Appl. Mater. Interfaces 2021, 13, 17487–17500. [Google Scholar] [CrossRef]
  5. Pant, B.; Ojha, G.P.; Acharya, J.; Pant, H.R.; Park, M. Lokta paper-derived free-standing carbon as a binder-free electrode material for high-performance supercapacitors. Sustain. Mater. Technol. 2022, 33, e00450. [Google Scholar] [CrossRef]
  6. Liu, Y.; Li, Z.; Yao, L.; Chen, S.; Zhang, P.; Deng, L. Confined growth of NiCo2S4 nanosheets on carbon flakes derived from eggplant with enhanced performance for asymmetric supercapacitors. Chem. Eng. J. 2019, 366, 550–559. [Google Scholar] [CrossRef]
  7. Pant, B.; Park, M.; Ojha, G.P.; Park, J.; Kuk, Y.-S.; Lee, E.-J.; Kim, H.-Y.; Park, S.-J. Carbon nanofibers wrapped with zinc oxide nano-flakes as promising electrode material for supercapacitors. J. Colloid Interface Sci. 2018, 522, 40–47. [Google Scholar] [CrossRef]
  8. An, C.; Zhang, Y.; Guo, H.; Wang, Y. Metal oxide-based supercapacitors: Progress and prospectives. Nanoscale Adv. 2019, 1, 4644–4658. [Google Scholar] [CrossRef] [Green Version]
  9. Bounor, B.; Asbani, B.; Douard, C.; Favier, F.; Brousse, T.; Lethien, C. On chip MnO2-based 3D micro-supercapacitors with ultra-high areal energy density. Energy Storage Mater. 2021, 38, 520–527. [Google Scholar] [CrossRef]
  10. Wu, X.; Chen, Y.; Liang, K.; Yu, X.; Zhuang, Q.; Yang, Q.; Liu, S.; Liao, S.; Li, N.; Zhang, H. Fe2O3 nanowire arrays on Ni-coated yarns as excellent electrodes for high performance wearable yarn-supercapacitor. J. Alloys Compd. 2021, 866, 158156. [Google Scholar] [CrossRef]
  11. Karade, S.S.; Lalwani, S.; Eum, J.-H.; Kim, H. Coin cell fabricated symmetric supercapacitor device of two-steps synthesized V2O5 Nanorods. J. Electroanal. Chem. 2020, 864, 114080. [Google Scholar] [CrossRef]
  12. Majumdar, D.; Maiyalagan, T.; Jiang, Z. Recent Progress in Ruthenium Oxide-Based Composites for Supercapacitor Applications. ChemElectroChem 2019, 6, 4343–4372. [Google Scholar] [CrossRef]
  13. Zhang, Z.; Gao, Q.; Gao, H.; Shi, Z.; Wu, J.; Zhi, M.; Hong, Z. Nickel oxide aerogel for high performance supercapacitor electrodes. RSC Adv. 2016, 6, 112620–112624. [Google Scholar] [CrossRef]
  14. Shi, F.; Li, L.; Wang, X.-L.; Gu, C.-D.; Tu, J.-P. Metal oxide/hydroxide-based materials for supercapacitors. RSC Adv. 2014, 4, 41910–41921. [Google Scholar] [CrossRef]
  15. Sharma, P.; Minakshi Sundaram, M.; Watcharatharapong, T.; Laird, D.; Euchner, H.; Ahuja, R. Zn Metal Atom Doping on the Surface Plane of One-Dimesional NiMoO4 Nanorods with Improved Redox Chemistry. ACS Appl. Mater. Interfaces 2020, 12, 44815–44829. [Google Scholar] [CrossRef]
  16. Liu, Q.; Hong, X.; You, X.; Zhang, X.; Zhao, X.; Chen, X.; Ye, M.; Liu, X. Designing heterostructured metal sulfide core-shell nanoneedle films as battery-type electrodes for hybrid supercapacitors. Energy Storage Mater. 2020, 24, 541–549. [Google Scholar] [CrossRef]
  17. Zhang, Y.; Xu, J.; Zheng, Y.; Hu, X.; Shang, Y.; Zhang, Y. Interconnected CuS nanowalls with rough surfaces grown on nickel foam as high-performance electrodes for supercapacitors. RSC Adv. 2016, 6, 59976–59983. [Google Scholar] [CrossRef]
  18. Yan, H.; Zhu, K.; Liu, X.; Wang, Y.; Wang, Y.; Zhang, D.; Lu, Y.; Peng, T.; Liu, Y.; Luo, Y. Ultra-thin NiS nanosheets as advanced electrode for high energy density supercapacitors. RSC Adv. 2020, 10, 8760–8765. [Google Scholar] [CrossRef]
  19. Zhao, Y.; Shi, Z.; Li, H.; Wang, C.-A. Designing pinecone-like and hierarchical manganese cobalt sulfides for advanced supercapacitor electrodes. J. Mater. Chem. A 2018, 6, 12782–12793. [Google Scholar] [CrossRef]
  20. Poudel, M.B.; Ojha, G.P.; Kim, A.A.; Kim, H.J. Manganese-doped tungsten disulfide microcones as binder-free electrode for high performance asymmetric supercapacitor. J. Energy Storage 2022, 47, 103674. [Google Scholar] [CrossRef]
  21. Ganesan, A.; Alhowity, S.; Alsaleh, A.Z.; Guragain, M.; Omolere, O.; Cundari, T.R.; Kelber, J.; D’Souza, F. Electro- and Photocatalytic Conversion of N2 to NH3 by Chemically Modified Transition Metal Dichalcogenides, MoS2, and WS2. J. Electrochem. Soc. 2023, 170, 056501. [Google Scholar] [CrossRef]
  22. Poudel, M.B.; Shin, M.; Kim, H.J. Polyaniline-silver-manganese dioxide nanorod ternary composite for asymmetric supercapacitor with remarkable electrochemical performance. Int. J. Hydrog. Energy 2021, 46, 474–485. [Google Scholar] [CrossRef]
  23. Chhetri, K.; Tiwari, A.P.; Dahal, B.; Ojha, G.P.; Mukhiya, T.; Lee, M.; Kim, T.; Chae, S.-H.; Muthurasu, A.; Kim, H.Y. A ZIF-8-derived nanoporous carbon nanocomposite wrapped with Co3O4-polyaniline as an efficient electrode material for an asymmetric supercapacitor. J. Electroanal. Chem. 2020, 856, 113670. [Google Scholar] [CrossRef]
  24. Liu, Y.; Guo, S.; Zhang, W.; Kong, W.; Wang, Z.; Yan, W.; Fan, H.; Hao, X.; Guan, G. Three-dimensional interconnected cobalt sulfide foam: Controllable synthesis and application in supercapacitor. Electrochim. Acta 2019, 317, 551–561. [Google Scholar] [CrossRef]
  25. Li, J.-J.; Hu, Y.-X.; Liu, M.-C.; Kong, L.-B.; Hu, Y.-M.; Han, W.; Luo, Y.-C.; Kang, L. Mechanical alloying synthesis of Ni3S2 nanoparticles as electrode material for pseudocapacitor with excellent performances. J. Alloys Compd. 2016, 656, 138–145. [Google Scholar] [CrossRef]
  26. Hung, T.-F.; Yin, Z.-W.; Betzler, S.B.; Zheng, W.; Yang, J.; Zheng, H. Nickel sulfide nanostructures prepared by laser irradiation for efficient electrocatalytic hydrogen evolution reaction and supercapacitors. Chem. Eng. J. 2019, 367, 115–122. [Google Scholar] [CrossRef] [Green Version]
  27. Shaikh, S.; Rabinal, M.K. Rapid ambient growth of copper sulfide microstructures: Binder free electrodes for supercapacitor. J. Energy Storage 2020, 28, 101288. [Google Scholar] [CrossRef]
  28. Verreck, G.; Chun, I.; Rosenblatt, J.; Peeters, J.; Dijck, A.V.; Mensch, J.; Noppe, M.; Brewster, M.E. Incorporation of drugs in an amorphous state into electrospun nanofibers composed of a water-insoluble, nonbiodegradable polymer. J. Control. Release 2003, 92, 349–360. [Google Scholar] [CrossRef]
  29. Liu, H.; Hu, R.; Qi, J.; Sui, Y.; He, Y.; Meng, Q.; Wei, F.; Ren, Y.; Zhao, Y.; Wei, W. One-Step Synthesis of Nanostructured CoS2 Grown on Titanium Carbide MXene for High-Performance Asymmetrical Supercapacitors. Adv. Mater. Interfaces 2020, 7, 1901659. [Google Scholar] [CrossRef]
  30. Tomboc, G.M.; Tesfaye Gadisa, B.; Jun, M.; Chaudhari, N.K.; Kim, H.; Lee, K. Carbon Transition-metal Oxide Electrodes: Understanding the Role of Surface Engineering for High Energy Density Supercapacitors. Chem.–Asian J. 2020, 15, 1628–1647. [Google Scholar] [CrossRef]
  31. BoopathiRaja, R.; Parthibavarman, M.; Prabhu, S.; Ramesh, R. A facile one step hydrothermal induced hexagonal shaped CuS/rGO nanocomposites for asymmetric supercapacitors. Mater. Today Proc. 2020, 26, 3507–3513. [Google Scholar] [CrossRef]
  32. Ariga, K. Nanoarchitectonics: What’s coming next after nanotechnology? Nanoscale Horiz. 2021, 6, 364–378. [Google Scholar] [CrossRef] [PubMed]
  33. Niu, H.; Liu, Y.; Mao, B.; Xin, N.; Jia, H.; Shi, W. In-situ embedding MOFs-derived copper sulfide polyhedrons in carbon nanotube networks for hybrid supercapacitor with superior energy density. Electrochim. Acta 2020, 329, 135130. [Google Scholar] [CrossRef]
  34. El-Hout, S.I.; Mohamed, S.G.; Gaber, A.; Attia, S.Y.; Shawky, A.; El-Sheikh, S.M. High electrochemical performance of rGO anchored CuS nanospheres for supercapacitor applications. J. Energy Storage 2021, 34, 102001. [Google Scholar] [CrossRef]
  35. Sabeeh, H.; Aadil, M.; Zulfiqar, S.; Rasheed, A.; Al-Khalli, N.F.; Agboola, P.O.; Haider, S.; Warsi, M.F.; Shakir, I. Hydrothermal synthesis of CuS nanochips and their nanohybrids with CNTs for electrochemical energy storage applications. Ceram. Int. 2021, 47, 13613–13621. [Google Scholar] [CrossRef]
  36. Huang, K.-J.; Zhang, J.-Z.; Jia, Y.-L.; Xing, K.; Liu, Y.-M. Acetylene black incorporated layered copper sulfide nanosheets for high-performance supercapacitor. J. Alloys Compd. 2015, 641, 119–126. [Google Scholar] [CrossRef]
  37. Zhao, T.; Peng, X.; Zhao, X.; Hu, J.; Jiang, T.; Lu, X.; Zhang, H.; Li, T.; Ahmad, I. Preparation and performance of carbon dot decorated copper sulphide/carbon nanotubes hybrid composite as supercapacitor electrode materials. J. Alloys Compd. 2020, 817, 153057. [Google Scholar] [CrossRef]
  38. Wang, G.; Zhang, M.; Lu, L.; Xu, H.; Xiao, Z.; Liu, S.; Gao, S.; Yu, Z. One-Pot Synthesis of CuS Nanoflower-Decorated Active Carbon Layer for High-Performance Asymmetric Supercapacitors. ChemNanoMat 2018, 4, 964–971. [Google Scholar] [CrossRef]
  39. Tiwari, A.P.; Chae, S.-H.; Ojha, G.P.; Dahal, B.; Mukhiya, T.; Lee, M.; Chhetri, K.; Kim, T.; Kim, H.-Y. Three-dimensional porous carbonaceous network with in-situ entrapped metallic cobalt for supercapacitor application. J. Colloid Interface Sci. 2019, 553, 622–630. [Google Scholar] [CrossRef]
  40. Dahal, B.; Mukhiya, T.; Ojha, G.P.; Muthurasu, A.; Chae, S.-H.; Kim, T.; Kang, D.; Kim, H.Y. In-built fabrication of MOF assimilated B/N co-doped 3D porous carbon nanofiber network as a binder-free electrode for supercapacitors. Electrochim. Acta 2019, 301, 209–219. [Google Scholar] [CrossRef]
  41. Frascina, F. Revision, Revisionism and Rehabilitation, 1959/1999: The American Century, ModernStarts and Cultural Memory. J. Contemp. Hist. 2004, 39, 93–116. [Google Scholar] [CrossRef]
  42. Viet, N.M.; Trung, D.Q.; Giang, B.L.; Tri, N.L.M.; Thao, P.; Pham, T.H.; Kamand, F.Z.; Al Tahtamouni, T.M. Noble metal -doped graphitic carbon nitride photocatalyst for enhancement photocatalytic decomposition of antibiotic pollutant in wastewater under visible light. J. Water Process Eng. 2019, 32, 100954. [Google Scholar] [CrossRef]
  43. Awasthi, G.P.; Adhikari, S.P.; Ko, S.; Kim, H.J.; Park, C.H.; Kim, C.S. Facile synthesis of ZnO flowers modified graphene like MoS2 sheets for enhanced visible-light-driven photocatalytic activity and antibacterial properties. J. Alloys Compd. 2016, 682, 208–215. [Google Scholar] [CrossRef]
  44. Auyoong, Y.L.; Yap, P.L.; Huang, X.; Abd Hamid, S.B. Optimization of reaction parameters in hydrothermal synthesis: A strategy towards the formation of CuS hexagonal plates. Chem. Cent. J. 2013, 7, 67. [Google Scholar] [CrossRef] [Green Version]
  45. Qin, N.; Wei, W.; Huang, C.; Mi, L. An Efficient Strategy for the Fabrication of CuS as a Highly Excellent and Recyclable Photocatalyst for the Degradation of Organic Dyes. Catalysts 2020, 10, 40. [Google Scholar] [CrossRef] [Green Version]
  46. Yang, X.; Lu, G.; Wang, B.; Wang, T.; Wang, Y. Synthesis, growth mechanism and photocatalytic H2 evolution of CdS/CuS composite via hydrothermal method. RSC Adv. 2019, 9, 25142–25150. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Feng, C.; Zhang, L.; Yang, M.; Song, X.; Zhao, H.; Jia, Z.; Sun, K.; Liu, G. One-Pot Synthesis of Copper Sulfide Nanowires/Reduced Graphene Oxide Nanocomposites with Excellent Lithium-Storage Properties as Anode Materials for Lithium-Ion Batteries. ACS Appl. Mater. Interfaces 2015, 7, 15726–15734. [Google Scholar] [CrossRef] [Green Version]
  48. Awasthi, G.P.; Bhattarai, D.P.; Maharjan, B.; Kim, K.-S.; Park, C.H.; Kim, C.S. Synthesis and characterizations of activated carbon from Wisteria sinensis seeds biomass for energy storage applications. J. Ind. Eng. Chem. 2019, 72, 265–272. [Google Scholar] [CrossRef]
  49. Pant, B.; Ojha, G.P.; Acharya, J.; Park, M. Eggshell membrane templated synthesis of Ni/MoC decorated carbon fibers with good electrochemical behavior. Int. J. Hydrog. Energy 2021, 46, 2774–2782. [Google Scholar] [CrossRef]
  50. Ojha, G.P.; Pant, B.; Park, S.-J.; Park, M.; Kim, H.-Y. Synthesis and characterization of reduced graphene oxide decorated with CeO2-doped MnO2 nanorods for supercapacitor applications. J. Colloid Interface Sci. 2017, 494, 338–344. [Google Scholar] [CrossRef] [PubMed]
  51. Keerthi, M.; Mutharani, B.; Chen, S.-M.; Ranganathan, P. Carbon fibers coated with urchin-like copper sulfide for nonenzymatic voltammetric sensing of glucose. Microchim. Acta 2019, 186, 807. [Google Scholar] [CrossRef] [PubMed]
  52. Lu, Y.; Liu, X.; Wang, W.; Cheng, J.; Yan, H.; Tang, C.; Kim, J.-K.; Luo, Y. Hierarchical, porous CuS microspheres integrated with carbon nanotubes for high-performance supercapacitors. Sci. Rep. 2015, 5, 16584. [Google Scholar] [CrossRef] [Green Version]
  53. Ghosh, K.; Srivastava, S.K. Enhanced Supercapacitor Performance and Electromagnetic Interference Shielding Effectiveness of CuS Quantum Dots Grown on Reduced Graphene Oxide Sheets. ACS Omega 2021, 6, 4582–4596. [Google Scholar] [CrossRef]
  54. Pant, B.; Ojha, G.P.; Park, M. One-pot synthesis, characterization, and electrochemical studies of tin-nickel sulfide hybrid structures on nickel foam for supercapacitor applications. J. Energy Storage 2020, 32, 101954. [Google Scholar] [CrossRef]
  55. Abouelamaiem, D.I.; He, G.; Parkin, I.; Neville, T.P.; Jorge, A.B.; Ji, S.; Wang, R.; Titirici, M.-M.; Shearing, P.R.; Brett, D.J.L. Synergistic relationship between the three-dimensional nanostructure and electrochemical performance in biocarbon supercapacitor electrode materials. Sustain. Energy Fuels 2018, 2, 772–785. [Google Scholar] [CrossRef] [Green Version]
  56. Samdhyan, K.; Chand, P.; Anand, H.; Saini, S. Development of carbon-based copper sulfide nanocomposites for high energy supercapacitor applications: A comprehensive review. J. Energy Storage 2022, 46, 103886. [Google Scholar] [CrossRef]
  57. Sivachidambaram, M.; Vijaya, J.J.; Kennedy, L.J.; Jothiramalingam, R.; Al-Lohedan, H.A.; Munusamy, M.A.; Elanthamilan, E.; Merlin, J.P. Preparation and characterization of activated carbon derived from the Borassus flabellifer flower as an electrode material for supercapacitor applications. New J. Chem. 2017, 41, 3939–3949. [Google Scholar] [CrossRef]
  58. Agudosi, E.S.; Abdullah, E.C.; Numan, A.; Mubarak, N.M.; Aid, S.R.; Benages-Vilau, R.; Gómez-Romero, P.; Khalid, M.; Omar, N. Fabrication of 3D binder-free graphene NiO electrode for highly stable supercapattery. Sci. Rep. 2020, 10, 11214. [Google Scholar] [CrossRef]
  59. Yang, C.; Zhou, M.; Xu, Q. Three-dimensional ordered macroporous MnO2/carbon nanocomposites as high-performance electrodes for asymmetric supercapacitors. Phys. Chem. Chem. Phys. 2013, 15, 19730–19740. [Google Scholar] [CrossRef]
  60. Zhang, Y.; Xu, J.; Zheng, Y.; Zhang, Y.; Hu, X.; Xu, T. NiCo2S4@NiMoO4 Core-Shell Heterostructure Nanotube Arrays Grown on Ni Foam as a Binder-Free Electrode Displayed High Electrochemical Performance with High Capacity. Nanoscale Res. Lett. 2017, 12, 412. [Google Scholar] [CrossRef] [Green Version]
  61. Noymak, S.; Poochai, C.; Tuantranont, A.; Ming Tang, I.; Pon-On, W. Metal sulfide (Cu-Mn-S) loaded-gel like carbon matrix as the electrode material for coin cell supercapacitors. Mater. Today Proc. 2022, 65, 2369–2375. [Google Scholar] [CrossRef]
  62. Sakthivel, P.; Karuppiah, M.; Asaithambi, S.; Balaji, V.; Pandian, M.S.; Ramasamy, P.; Mohammed, M.K.A.; Navaneethan, N.; Ravi, G. Electrochemical energy storage applications of carbon nanotube supported heterogeneous metal sulfide electrodes. Ceram. Int. 2022, 48, 6157–6165. [Google Scholar] [CrossRef]
  63. Li, L.; Liu, Y.; Han, Y.; Qi, X.; Li, X.; Fan, H.; Meng, L. Metal-organic framework-derived carbon coated copper sulfide nanocomposites as a battery-type electrode for electrochemical capacitors. Mater. Lett. 2019, 236, 131–134. [Google Scholar] [CrossRef]
  64. Wang, F.; Ma, J.; Zhou, K.; Li, X. MoS2/corncob-derived activated carbon for supercapacitor application. Mater. Chem. Phys. 2020, 244, 122215. [Google Scholar] [CrossRef]
  65. Ramachandran, R.; Saranya, M.; Kollu, P.; Raghupathy, B.P.C.; Jeong, S.K.; Grace, A.N. Solvothermal synthesis of Zinc sulfide decorated Graphene (ZnS/G) nanocomposites for novel Supercapacitor electrodes. Electrochim. Acta 2015, 178, 647–657. [Google Scholar] [CrossRef]
  66. Quan, T.; Goubard-Bretesché, N.; Härk, E.; Kochovski, Z.; Mei, S.; Pinna, N.; Ballauff, M.; Lu, Y. Highly Dispersible Hexagonal Carbon–MoS2–Carbon Nanoplates with Hollow Sandwich Structures for Supercapacitors. Chem.–A Eur. J. 2019, 25, 4757–4766. [Google Scholar] [CrossRef]
  67. Wang, S.; Zhu, J.; Shao, Y.; Li, W.; Wu, Y.; Zhang, L.; Hao, X. Three-Dimensional MoS2@CNT/RGO Network Composites for High-Performance Flexible Supercapacitors. Chem.–A Eur. J. 2017, 23, 3438–3446. [Google Scholar] [CrossRef] [PubMed]
  68. Tiwari, P.; Jaiswal, J.; Chandra, R. Hierarchal growth of MoS2@CNT heterostructure for all solid state symmetric supercapacitor: Insights into the surface science and storage mechanism. Electrochim. Acta 2019, 324, 134767. [Google Scholar] [CrossRef]
  69. Poudel, M.B.; Awasthi, G.P.; Kim, H.J. Novel insight into the adsorption of Cr(VI) and Pb(II) ions by MOF derived Co-Al layered double hydroxide @hematite nanorods on 3D porous carbon nanofiber network. Chem. Eng. J. 2021, 417, 129312. [Google Scholar] [CrossRef]
  70. Ojha, G.P.; Pant, B.; Acharya, J.; Park, M. Prussian Red Anions Immobilized Freestanding Three-Dimensional Porous Carbonaceous Networks: A New Avenue to Attain Capacitor- and Faradic-Type Electrodes in a Single Frame for 2.0 V Hybrid Supercapacitors. ACS Sustain. Chem. Eng. 2022, 10, 2994–3006. [Google Scholar] [CrossRef]
  71. Ojha, G.P.; Pant, B.; Acharya, J.; Park, M. An electrochemically reduced ultra-high mass loading three-dimensional carbon nanofiber network: A high energy density symmetric supercapacitor with a reproducible and stable cell voltage of 2.0 V. Nanoscale 2021, 13, 19537–19548. [Google Scholar] [CrossRef] [PubMed]
  72. Jones, V.R.; Marion, B.K.; Zeiss, R.L. The Theory of Foraging, 2nd ed.; Smith and Barnes: New York, NY, USA, 1976; p. 534. [Google Scholar]
Ijms 24 09685 g001 550

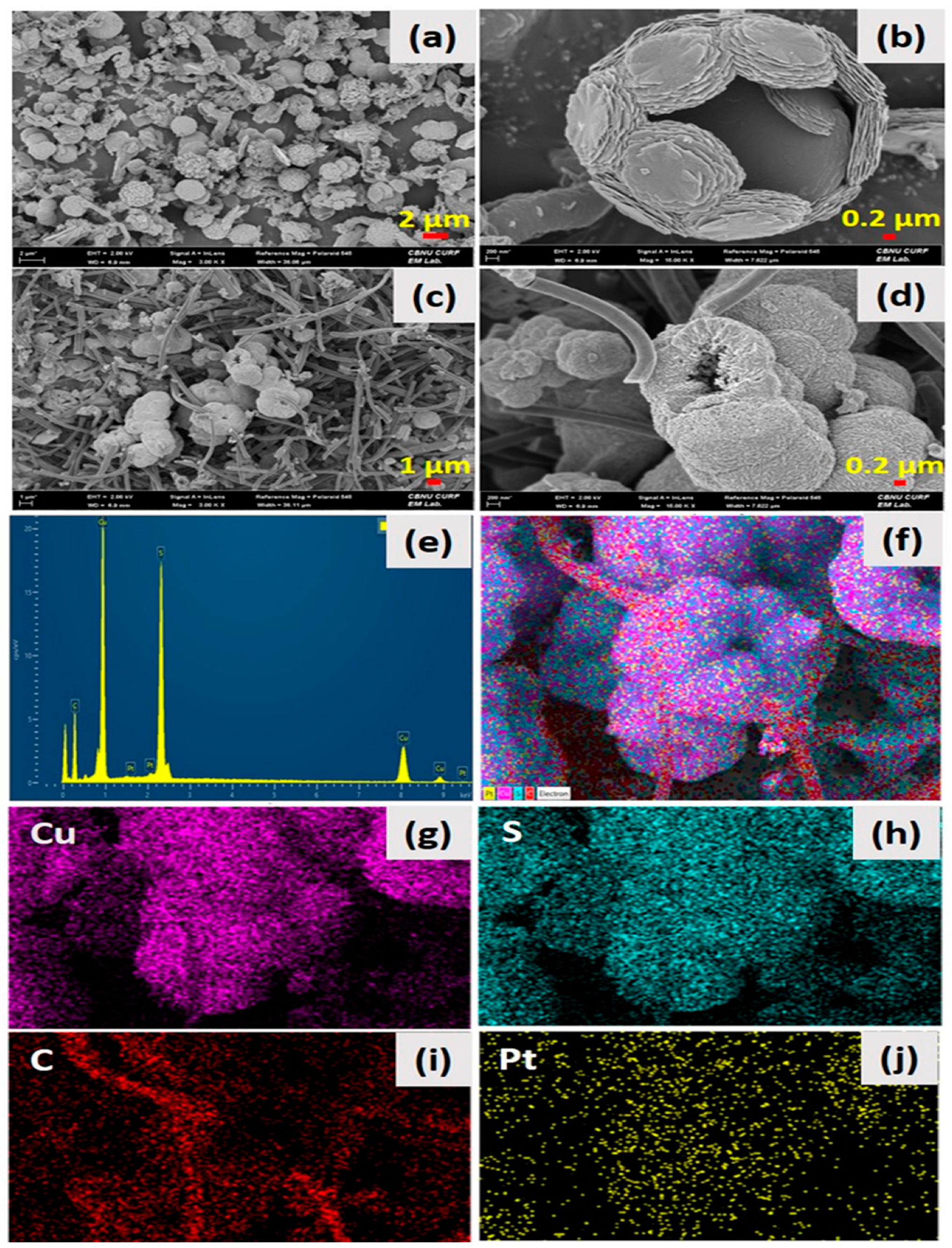

Figure 1. Low abd high magnification FE-SEM images: of pristine HCuS spheres (a,b) HCuS@3D-CNF nanoararchitectonics (c,d) EDS spectra (e) and color mapping of HCuS@3D-CNF nanoararchitectonics (f–j), respectively.
Figure 1. Low abd high magnification FE-SEM images: of pristine HCuS spheres (a,b) HCuS@3D-CNF nanoararchitectonics (c,d) EDS spectra (e) and color mapping of HCuS@3D-CNF nanoararchitectonics (f–j), respectively.
Ijms 24 09685 g001
Ijms 24 09685 g002 550

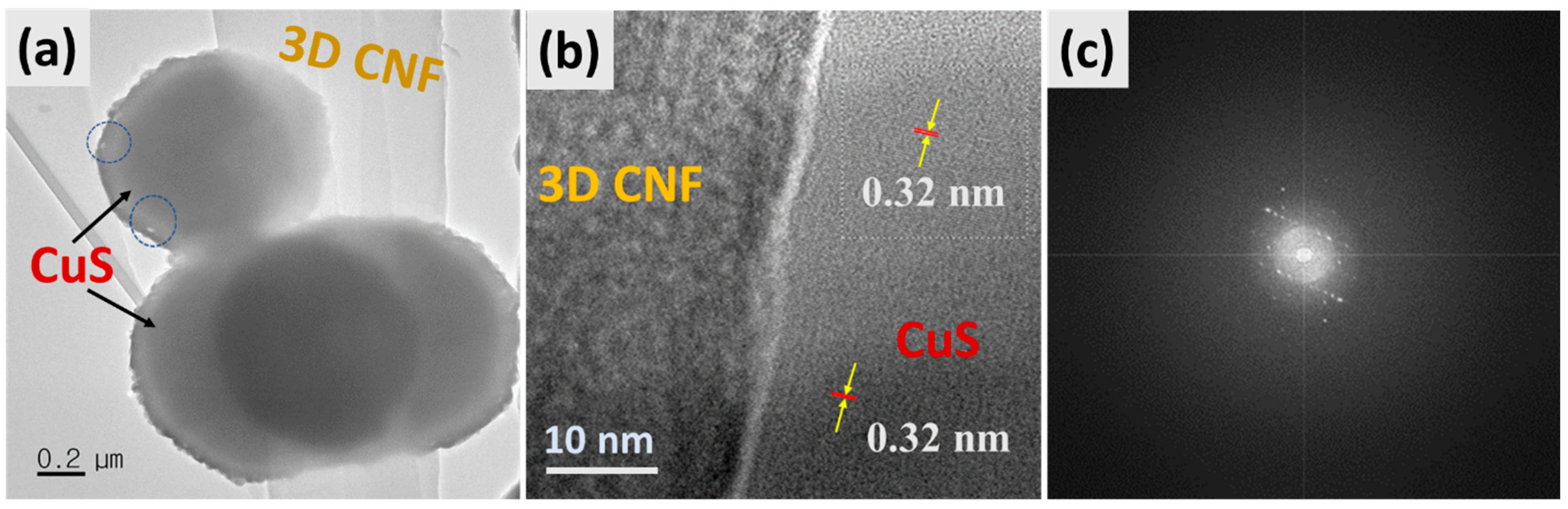

Figure 2. TEM images of HCuS@3D-CNF nanoararchitectonics (a), HR-TEM (b), and SAED pattern (c).
Figure 2. TEM images of HCuS@3D-CNF nanoararchitectonics (a), HR-TEM (b), and SAED pattern (c).
Ijms 24 09685 g002
Ijms 24 09685 g003 550

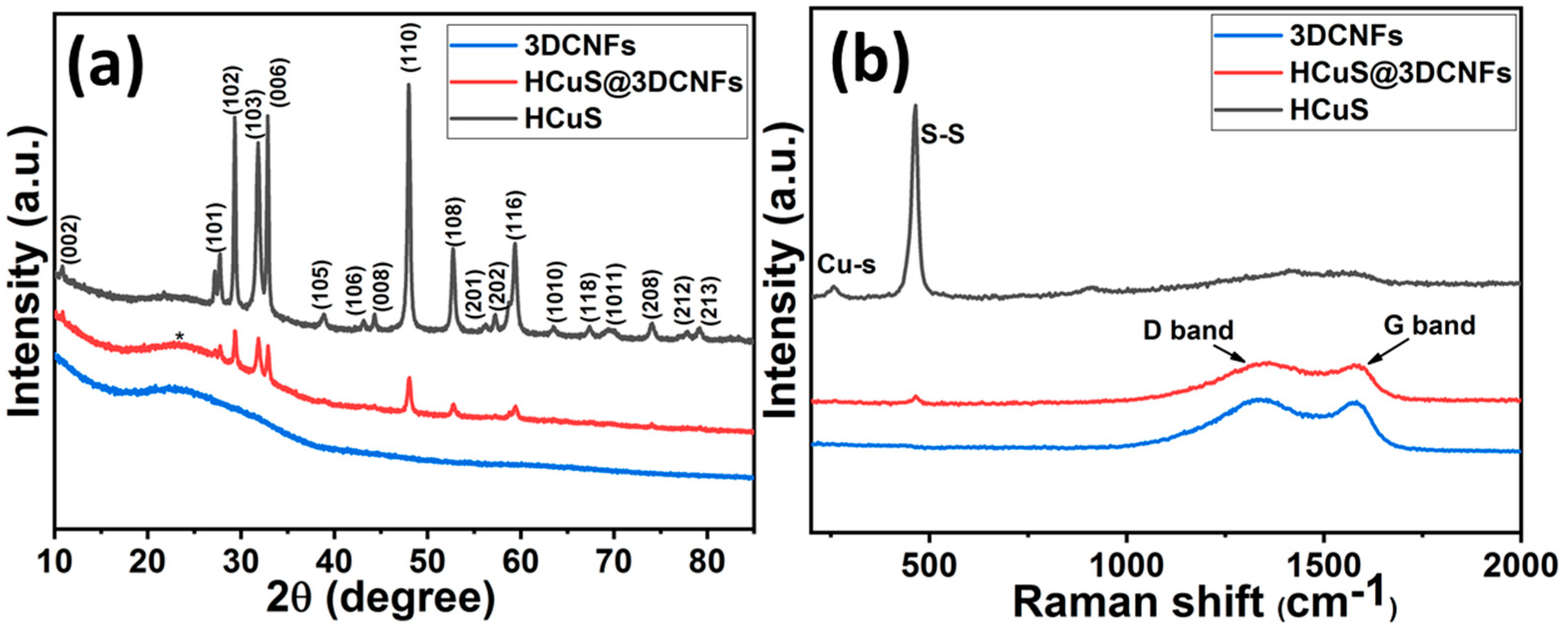

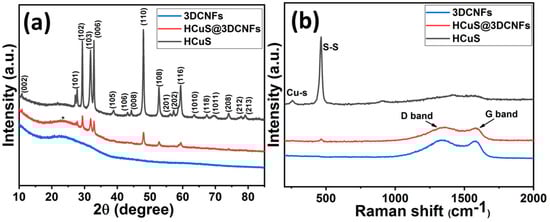

Figure 3. XRD patterns (a) and Raman spectra (b) of individual materials.
Figure 3. XRD patterns (a) and Raman spectra (b) of individual materials.
Ijms 24 09685 g003
Ijms 24 09685 g004 550

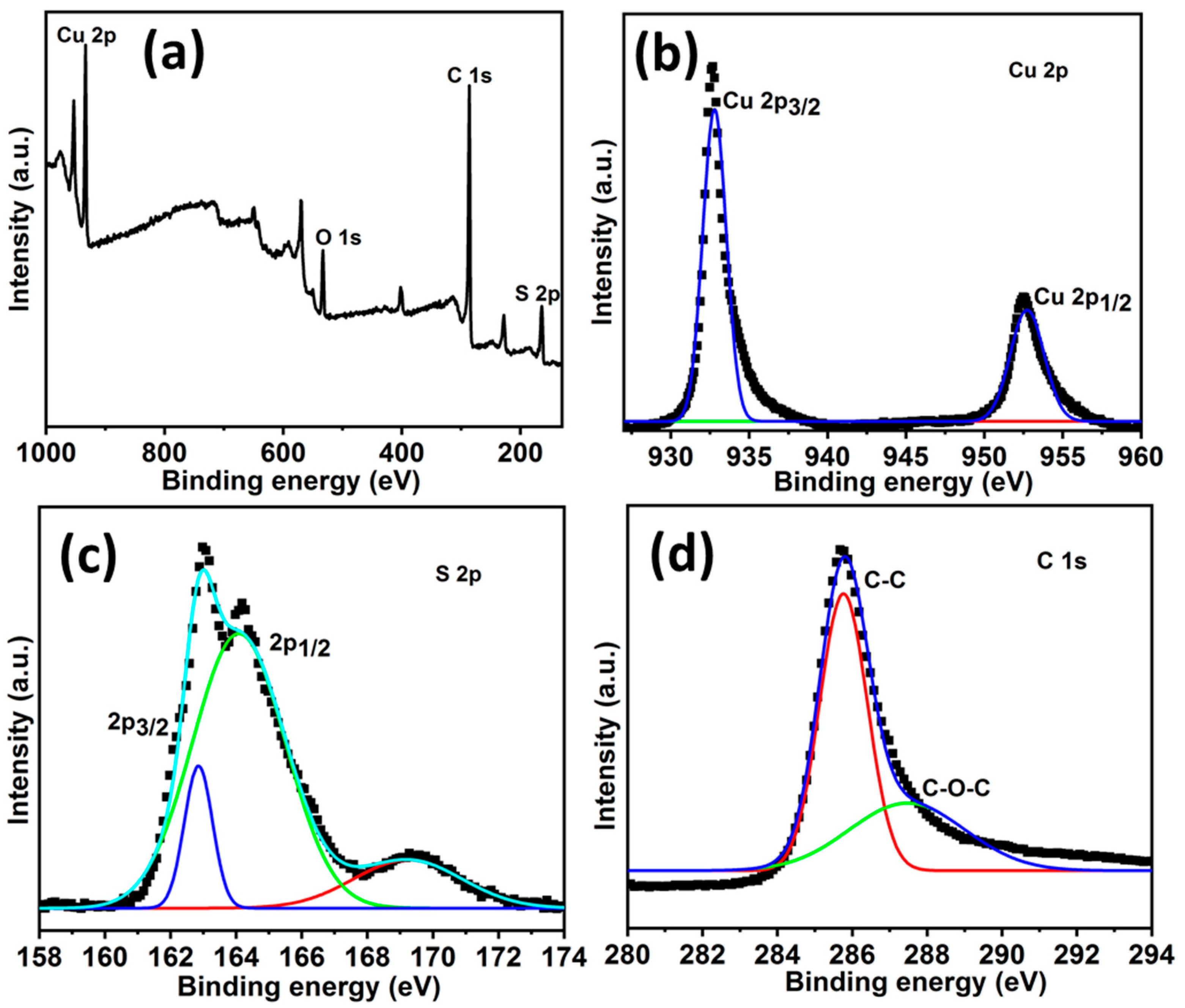

Figure 4. XPS spectra of HCuS@3D-CNF nanoararchitectonics: wide-range survey (a), the Cu 2p region of HCuS@3D-CNFs (b), the S 2p region of HCuS@3D-CNFs (c), and the C 1s region of HCuS@3D-CNFs (d).
Figure 4. XPS spectra of HCuS@3D-CNF nanoararchitectonics: wide-range survey (a), the Cu 2p region of HCuS@3D-CNFs (b), the S 2p region of HCuS@3D-CNFs (c), and the C 1s region of HCuS@3D-CNFs (d).
Ijms 24 09685 g004
Ijms 24 09685 g005 550

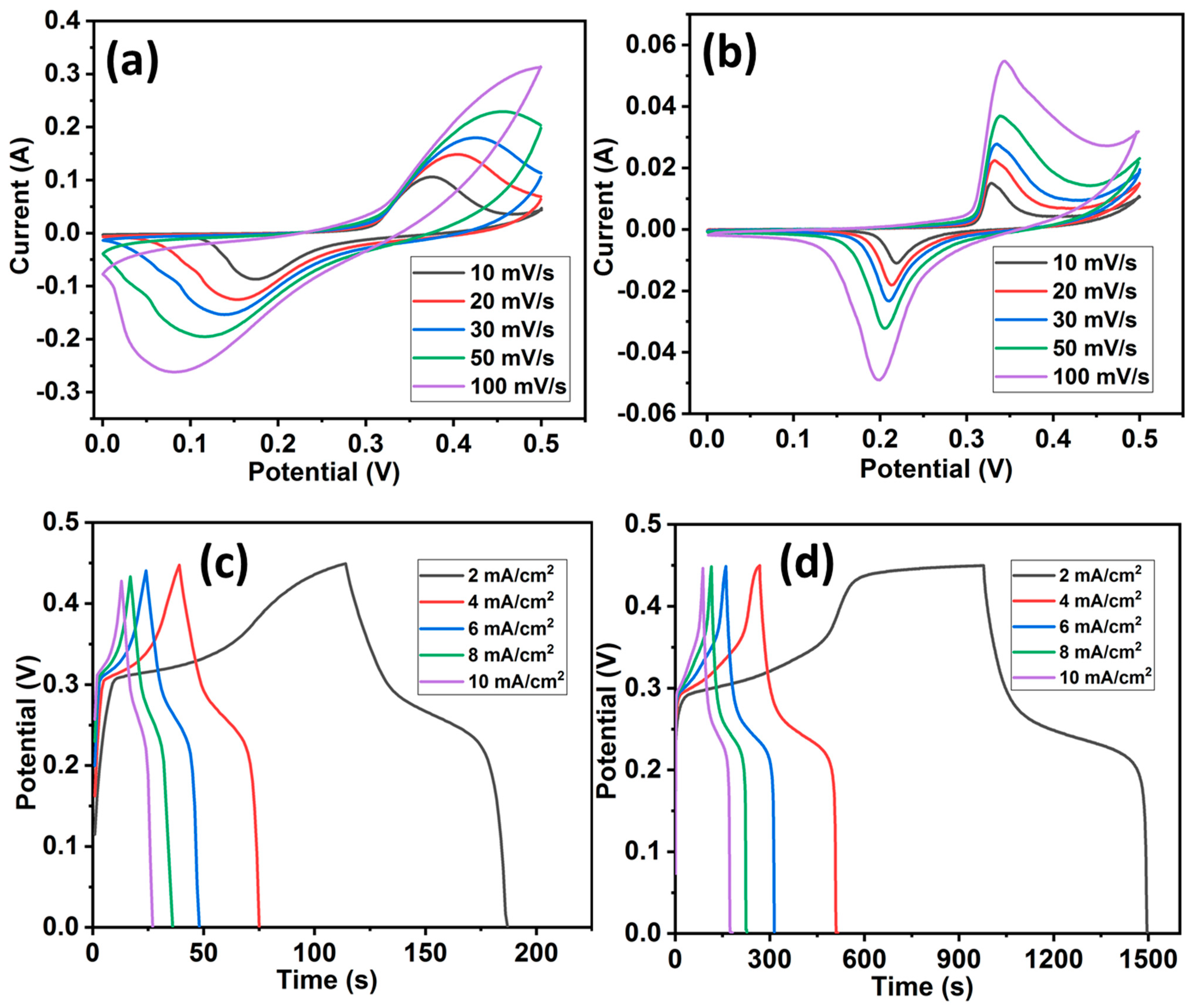

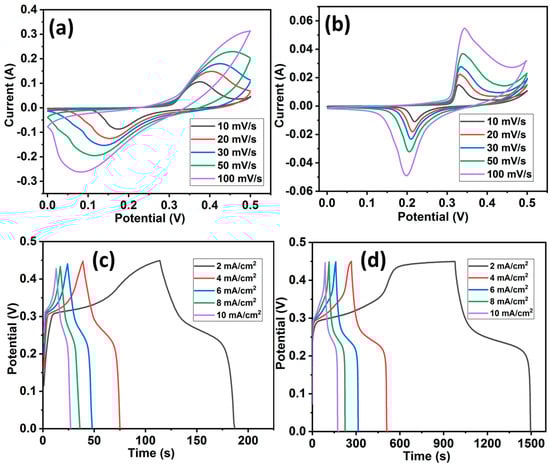

Figure 5. Cyclic voltammetry curves of HCuS (a) and HCuS@3D-CNFs (b); and GCD curves of HCuS (c) and HCuS@3D-CNFs (d).
Figure 5. Cyclic voltammetry curves of HCuS (a) and HCuS@3D-CNFs (b); and GCD curves of HCuS (c) and HCuS@3D-CNFs (d).
Ijms 24 09685 g005
Ijms 24 09685 g006 550

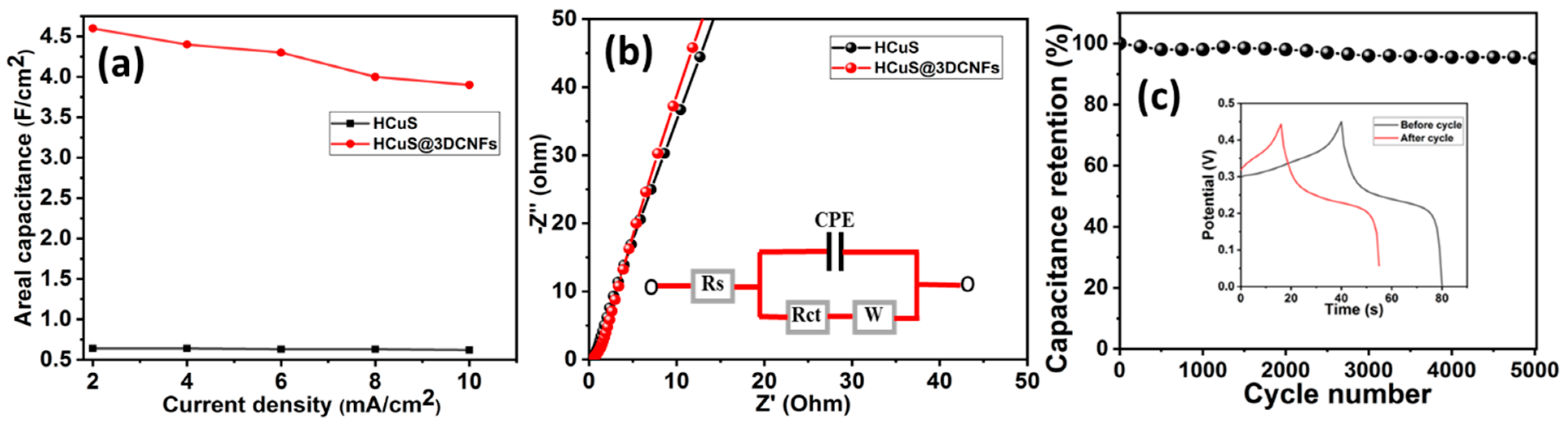

Figure 6. Areal capacitance vs. current density (a); EIS Nyquist plots with equivalent circuit model (inset) (b); cyclic stability test of HCuS@3D-CNFs (c).
Figure 6. Areal capacitance vs. current density (a); EIS Nyquist plots with equivalent circuit model (inset) (b); cyclic stability test of HCuS@3D-CNFs (c).
Ijms 24 09685 g006
Ijms 24 09685 g007 550

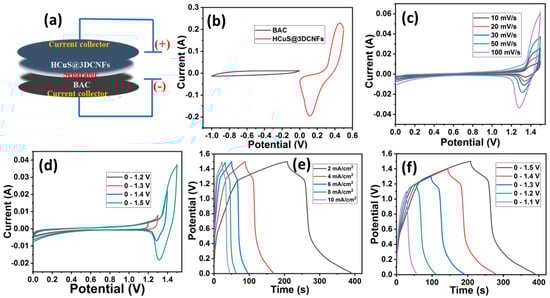

Figure 7. Schematic illustration of assembled electrochemical cell HCuS@3D-CNFs//BAC (a), comparative CV curves of HCuS@3D-CNFs (positive electrode) and BAC (negative electrode) at 50 mV/s in 2M KOH electrolyte (b), CV curves of HCuS@3D-CNFs//BAC measured at various scan rates (c), CV curves of HCuS@3D-CNFs//BAC measured over different potential windows at a scan rate of 50 mV/s (d), GCD curve of HCuS@3D-CNFs//BAC measured at different current densities and potential windows (e,f).
Figure 7. Schematic illustration of assembled electrochemical cell HCuS@3D-CNFs//BAC (a), comparative CV curves of HCuS@3D-CNFs (positive electrode) and BAC (negative electrode) at 50 mV/s in 2M KOH electrolyte (b), CV curves of HCuS@3D-CNFs//BAC measured at various scan rates (c), CV curves of HCuS@3D-CNFs//BAC measured over different potential windows at a scan rate of 50 mV/s (d), GCD curve of HCuS@3D-CNFs//BAC measured at different current densities and potential windows (e,f).
Ijms 24 09685 g007
Ijms 24 09685 g008 550

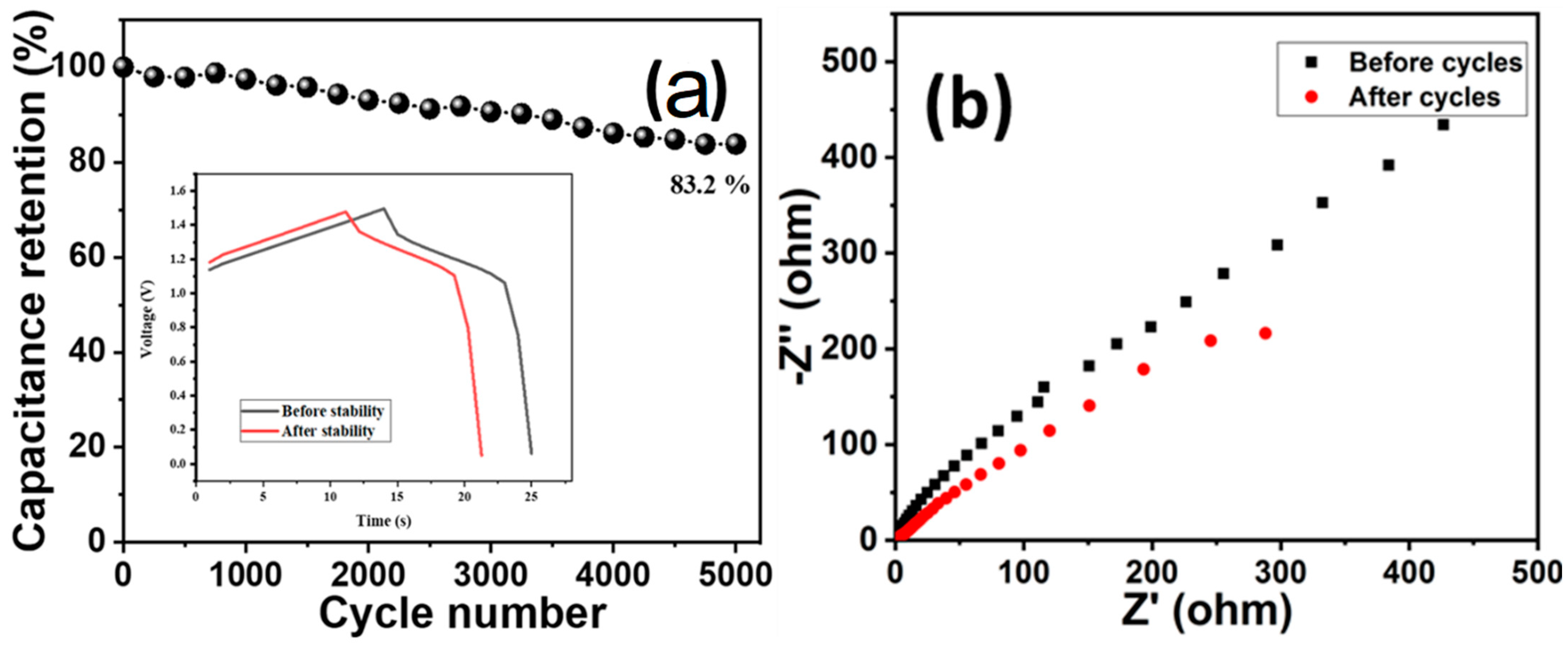

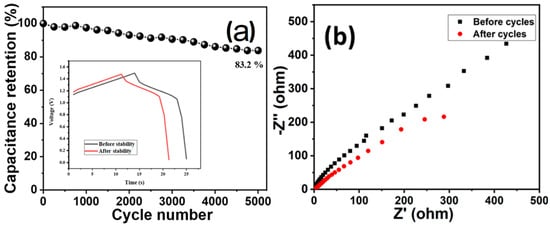

Figure 8. Cyclic stability (a) and EIS (before and after cycle) of asymmetric device (b).
Figure 8. Cyclic stability (a) and EIS (before and after cycle) of asymmetric device (b).
Ijms 24 09685 g008
Ijms 24 09685 g009 550

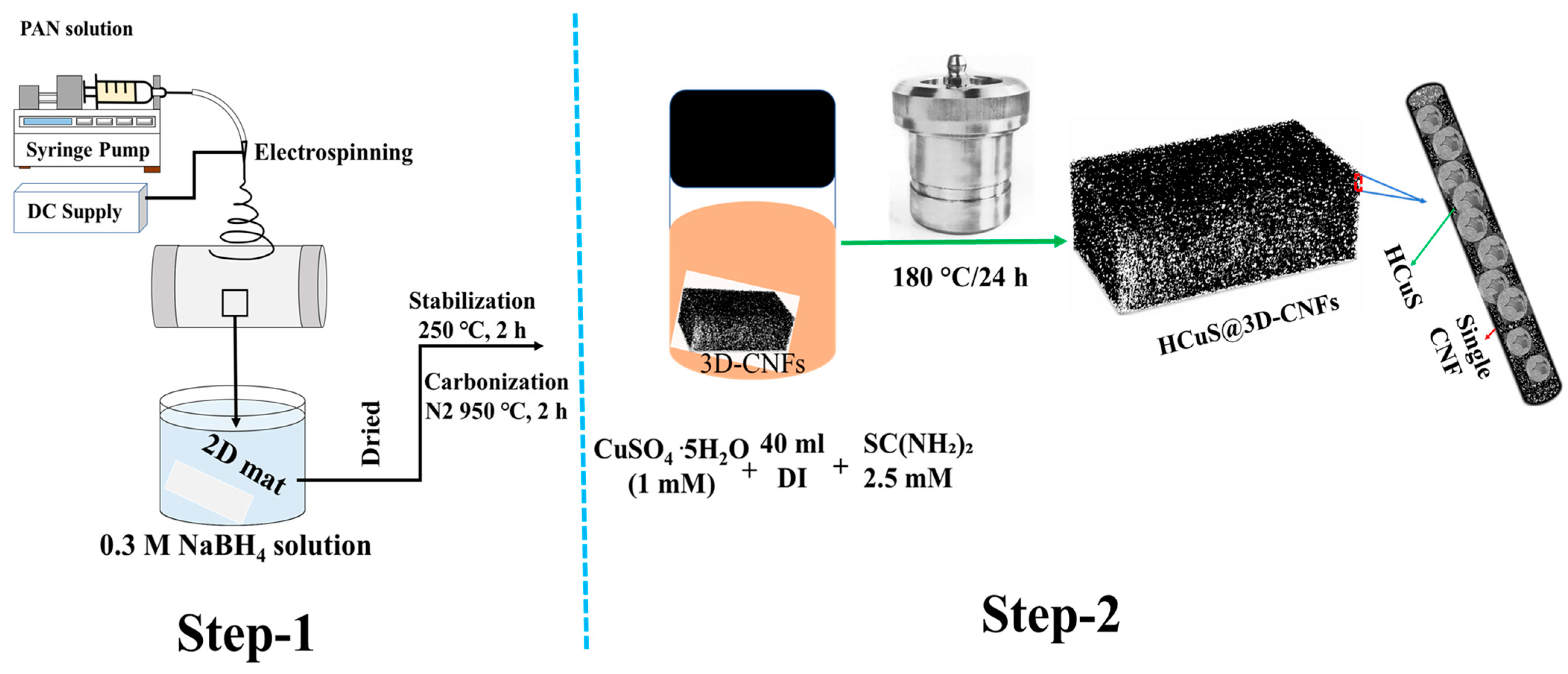

Figure 9. Schematic illustration showing overall synthesis method for HCuS@3D-CNF nanoararchitectonics.
Figure 9. Schematic illustration showing overall synthesis method for HCuS@3D-CNF nanoararchitectonics.
Ijms 24 09685 g009
Table
Table 1. Comparison with the specific capacitance of related material in the literature.
Table 1. Comparison with the specific capacitance of related material in the literature.
Electrode
Materials		Electrolyte
Solution		CapacitanceEnergy
Density/Power Density		StabilityRef.
CMS@GC composite 3 M KOH174 F/g5.5 Wh/Kg, 48 W/Kg78.94% after 2500 cycles[61]
MoS2-Bi2S3@CNT composite2 M KOH1338 F/g at 10 mV/s-60% at 0.5 A/g over 2000 cycles[62]
Cu7S4/C composite1 M H2SO4321.9 F/g at 0.5 A/g-78.1% at 3000 cycles[63]
MoS2/CB-C1 M Na2SO4333.5 F/g at 1 A/g7.6 Wh/Kg81.8% at 7000 cycles[64]
ZnS/G nanocomposite6 M KOH197.1 F/g at 5 mV/s-89.2% after 2000 cycles[65]
Carbon–MoS2–-carbon nanoplates1 M LiSO40.12 F/cm2 at 0.1 A/g-85% after 3000 cycles[66]
MoS2@CNT/RGO1 M H2SO4129 mF/cm2 at 0.1 mA/g-94.7% after 10,000 cycles[67]
MoS2@CNT heterostructure1 M Na2SO4131 mF/cm2 at 5 mV/s-97.6% after 2500 cycles[68]
HCuS@3D-CNF composite2 M KOH4.6 F/cm2 at 2 mA/cm20.15 mWh/cm2~95% at 5000 cyclesThis work
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Shin, M.; Awasthi, G.P.; Sharma, K.P.; Pandey, P.; Park, M.; Ojha, G.P.; Yu, C. Nanoarchitectonics of Three-Dimensional Carbon Nanofiber-Supported Hollow Copper Sulfide Spheres for Asymmetric Supercapacitor Applications. Int. J. Mol. Sci. 2023, 24, 9685. https://doi.org/10.3390/ijms24119685

AMA Style

Shin M, Awasthi GP, Sharma KP, Pandey P, Park M, Ojha GP, Yu C. Nanoarchitectonics of Three-Dimensional Carbon Nanofiber-Supported Hollow Copper Sulfide Spheres for Asymmetric Supercapacitor Applications. International Journal of Molecular Sciences. 2023; 24(11):9685. https://doi.org/10.3390/ijms24119685

Chicago/Turabian Style

Shin, Miyeon, Ganesh Prasad Awasthi, Krishna Prasad Sharma, Puran Pandey, Mira Park, Gunendra Prasad Ojha, and Changho Yu. 2023. "Nanoarchitectonics of Three-Dimensional Carbon Nanofiber-Supported Hollow Copper Sulfide Spheres for Asymmetric Supercapacitor Applications" International Journal of Molecular Sciences 24, no. 11: 9685. https://doi.org/10.3390/ijms24119685

APA Style

Shin, M., Awasthi, G. P., Sharma, K. P., Pandey, P., Park, M., Ojha, G. P., & Yu, C. (2023). Nanoarchitectonics of Three-Dimensional Carbon Nanofiber-Supported Hollow Copper Sulfide Spheres for Asymmetric Supercapacitor Applications. International Journal of Molecular Sciences, 24(11), 9685. https://doi.org/10.3390/ijms24119685

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
