Article

Synthesis and Biological Activity of a New Indenoisoquinoline Copper Derivative as a Topoisomerase I Inhibitor

by
Caroline Molinaro
1,†,
Nathalie Wambang
2,†,
Sylvain Pellegrini
2,
Natacha Henry
2,
Marc F. Lensink
1,
Emmanuelle Germain
3,
Till Bousquet
2,
Jérôme de Ruyck
1,
Katia Cailliau
1,
Lydie Pélinski
2,*,‡ and
Alain Martoriati
1,*,‡
1
Univ. Lille, CNRS, UMR 8576-UGSF-Unité de Glycobiologie Structurale et Fonctionnelle, F-59000 Lille, France
2
Univ. Lille, CNRS, Centrale Lille, Univ. Artois, UMR 8181-UCCS-Unité de Catalyse et Chimie du Solide, F-59000 Lille, France
3
Univ. Lille, Inserm U1003-PHYCEL-Physiologie Cellulaire, F-59000 Lille, France
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
‡
These authors contributed equally to this work.
Int. J. Mol. Sci. 2023, 24(19), 14590; https://doi.org/10.3390/ijms241914590
Submission received: 29 August 2023 / Revised: 21 September 2023 / Accepted: 23 September 2023 / Published: 26 September 2023
(This article belongs to the Special Issue Emerging Topics in Metal Complexes: Pharmacological Activity)
Browse Figures
Versions Notes

Abstract

:
Topoisomerases are interesting targets in cancer chemotherapy. Here, we describe the design and synthesis of a novel copper(II) indenoisoquinoline complex, WN198. The new organometallic compound exhibits a cytotoxic effect on five adenocarcinoma cell lines (MCF-7, MDA-MB-231, HeLa, HT-29, and DU-145) with the lowest IC50 (0.37 ± 0.04 μM) for the triple-negative MDA-MB-231 breast cancer cell line. Below 5 µM, WN198 was ineffective on non-tumorigenic epithelial breast MCF-10A cells and Xenopus oocyte G2/M transition or embryonic development. Moreover, cancer cell lines showed autophagy markers including Beclin-1 accumulation and LC3-II formation. The DNA interaction of this new compound was evaluated and the dose-dependent topoisomerase I activity starting at 1 μM was confirmed using in vitro tests and has intercalation properties into DNA shown by melting curves and fluorescence measurements. Molecular modeling showed that the main interaction occurs with the aromatic ring but copper stabilizes the molecule before binding and so can putatively increase the potency as well. In this way, copper-derived indenoisoquinoline topoisomerase I inhibitor WN198 is a promising antitumorigenic agent for the development of future DNA-damaging treatments.

1. Introduction

Metal-based drugs have been designed and developed for their cytotoxic effects on cancer cells since the discovery of platinum’s antitumor properties [1,2,3,4]. As they adopt a variety of coordination geometries, essential trace metals [5,6] are used for the implementation of metal-based complexed drugs in anticancer chemotherapies. In particular, numerous developed copper complexes have highly efficient antitumor activity [7,8,9] associated with various action mechanisms ranging from chelators [10], ionophores [11], and proteasome inhibitors [12] to inhibition of topoisomerase I and/or topoisomerase II that results in severe DNA damage, cell cycle arrest, and ultimately cancer cell death [13,14,15].
Novel topoisomerase I inhibitors, named indenoisoquinolines [16,17,18,19], were identified to have greater chemical stability compared to camptothecin and its derivatives currently used as a second-line treatment against endocrine-resistant breast cancer. The indenoisoquinoline derivatives indotecan (LMP400) and indimitecan (LMP776) have completed phase I/II clinical trials (Figure 1).
In previous studies, we have shown that copper complex WN197, derived from WN170, could be a new efficient drug to counteract cancer cells at low doses and exerts a specific cytotoxic effect at low concentration (IC50 of 0.5 μM) on three adenocarcinoma cell lines from breast, cervix, and colon but not on non-cancerous breast MCF-10A cells and chemo-resistant pulmonary cancer H69AR cells (Figure 1) [15]. To our knowledge, no studies on the presence of branching on the indenoisoquinoline side chain have been reported. Our interest in the search for anticancer organometallic drugs has been focused on the synthesis of a novel triamine ligand WN191 and its corresponding tridentate Cu(II) complex WN198 (Figure 1). The DNA interaction of this new compound was evaluated and its cytotoxicity was tested on adenocarcinoma cell lines, revealing the lowest IC50 for the triple-negative MDA-MB-231 breast cancer cell line.

2. Results

2.1. Synthesis and Characterization

The synthesis of the ligand WN191 and its corresponding copper complex WN198 are described in Figure 2. Indenoisoquinoline WN191 was first obtained in a four-step reaction. Condensation of the commercially available benzo[d]indeno [1,2-b]pyran-5,11-dione 1 with a primary aminoalcohol was followed by tosylation of the alcohol function to lead to compound 2 in 85% yield. The substitution of the tosyl group by the diprotected triamine and the deprotection of the Boc group led to the indenoisoquinoline derivative WN191 in 88% yield. Their complexation by copper(II) perchlorate in methanol afforded the copper indenosisoquinoline WN198 in 70% yield.
The structure of WN198 was established by single-crystal X-ray analysis. The drawing is displayed in Figure 3. The Cu complex crystallizes in the triclinic space group P1 with two formula units per unit cell. The XRD results show that the Cu(II) complex consists of a mononuclear [Cu(II)L(H2O)(CH3OH)]2− (where L is the indenoisoquinolinetriamine ligand) unit and two (ClO4)−. The five coordinated Cu(II) ions occupy the center of the distorted square base of the pyramid consisting of three nitrogen atoms from the indenoisoquinolinetriamine ligand and one oxygen atom of a water molecule (1.995 Å). One O atom of (CH3)OH completes the pyramidal environment with an axial bond distance of Cu–O = 2.333 (7) Å.

2.2. WN191 and WN198 Display Cytotoxic Activity on Five Adenocarcinoma Cell Lines at Low Doses

Cell viability was assayed on breast cancer cells (MCF-7), triple-negative breast cancer cells (MDA-MB-231), cervix cancer cells (HeLa), colorectal cancer cells (HT-29), and prostate cancer cells (DU-145), Table 1. The IC50 values obtained for WN191 were respectively 0.58 µM, 1.12 µM, 0.80 µM, 0.53 µM, and 1.09 µM. The copper metal significantly enhances the toxicity of the indenoisoquinoline on the triple-negative breast cancer line MDA-MB-231. For WN198, IC50 values were lower by a factor of 3.02 for MDA-MB-231 (0.37 µM), or close to a factor of 1.11 for HeLa (0.72 µM) and 1.04 for DU-145 (1.04 µM), or slightly higher by a factor 1.53 for breast cancer hormone-dependent MCF-7 (0.89 µM) and by a factor of 2 for HT-29 (1.06 µM). All IC50 values for compounds WN191 and WN198 were below the cisplatin values ranging from 2 to 40 µM. Compared to WN170 [15], WN198’s IC50 value was lower by a factor of 2.36 for MDA-MB-231 but not for all the other cell lines.

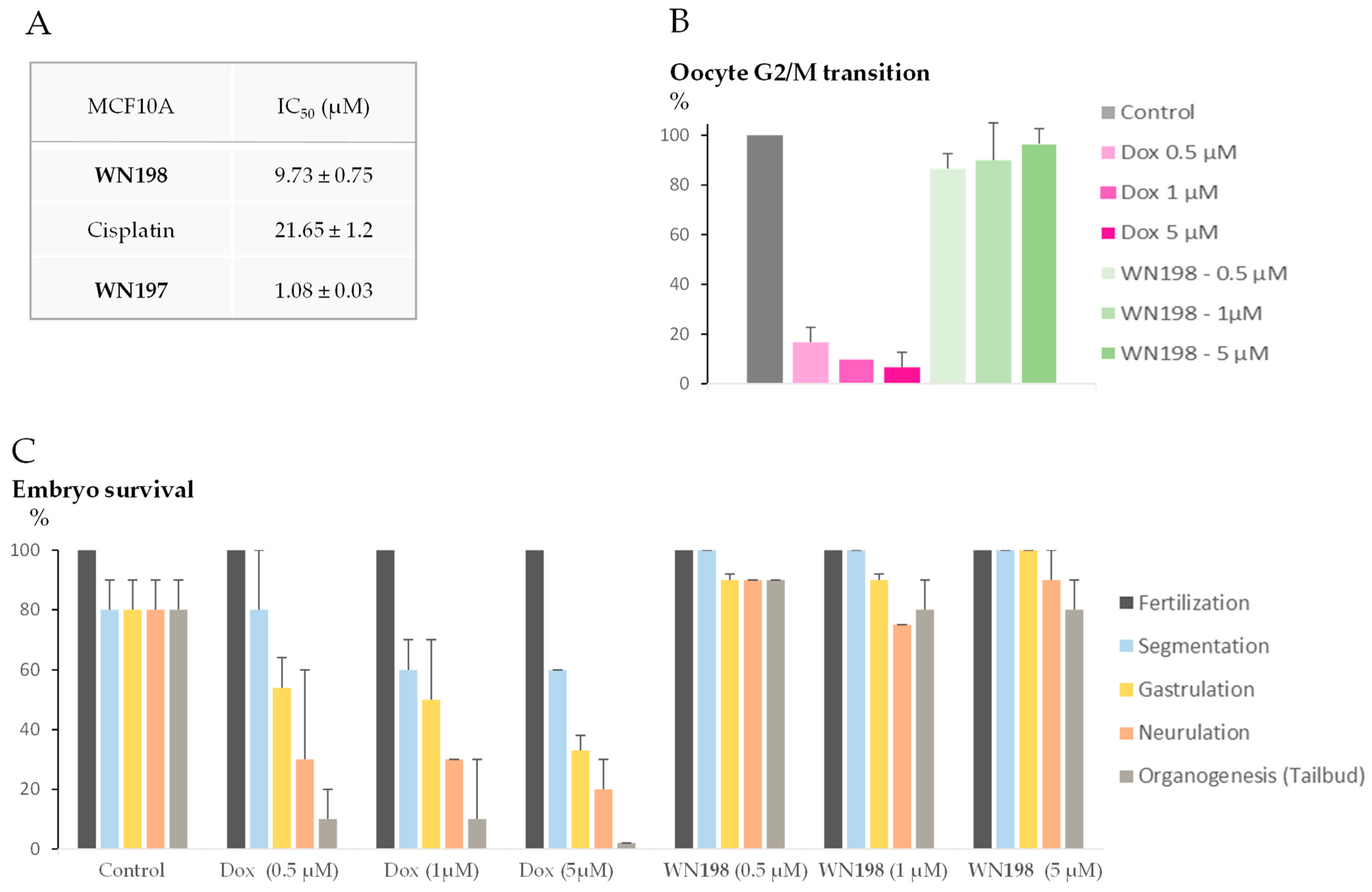

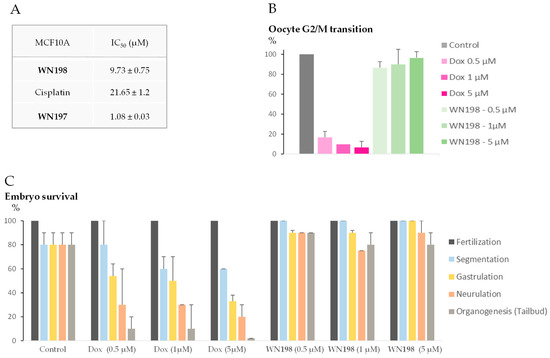

MTS viability assays were performed on the MCF-10A human non-tumorigenic epithelial cell line, most commonly used as a model for normal human breast cells (Figure 4A). The concentration of WN198 required to inhibit 50% of the MCF-10A viability was significantly higher compared to the mean obtained from the other five adenocarcinomas’ IC50. WN198’s IC50 was smaller compared to cisplatin but higher than that of WN197, a copper complex and a topoisomerase inhibitor [15]. Additionally, we tested the ability of WN198 to alter Xenopus oocyte maturation and embryonic development, two useful single and highly organized cell systems to test metals and chemical effects [20,21,22,23]. Xenopus oocytes undergo a G2/M transition, after progesterone stimulation and concomitant microinjection and balneation with WN198 (0.5, 1, and 5 µM). At those doses, oocytes treated with doxorubicin, a topoisomerase II inhibitor, displayed an inhibition of their meiosis progression (Figure 4B). Xenopus embryos could survive WN198 but not doxorubicin treatment. For 1 and 5 µM of doxorubicin, the percentage of surviving embryos was lowered at segmentation (cell division), and only half of the embryos survived gastrulation (involving cell mobility to build a three-layered organized embryo). For all doxorubicin concentrations tested, the percentage of live embryos was drastically lowered at the time of neurulation and organogenesis (Figure 4C).

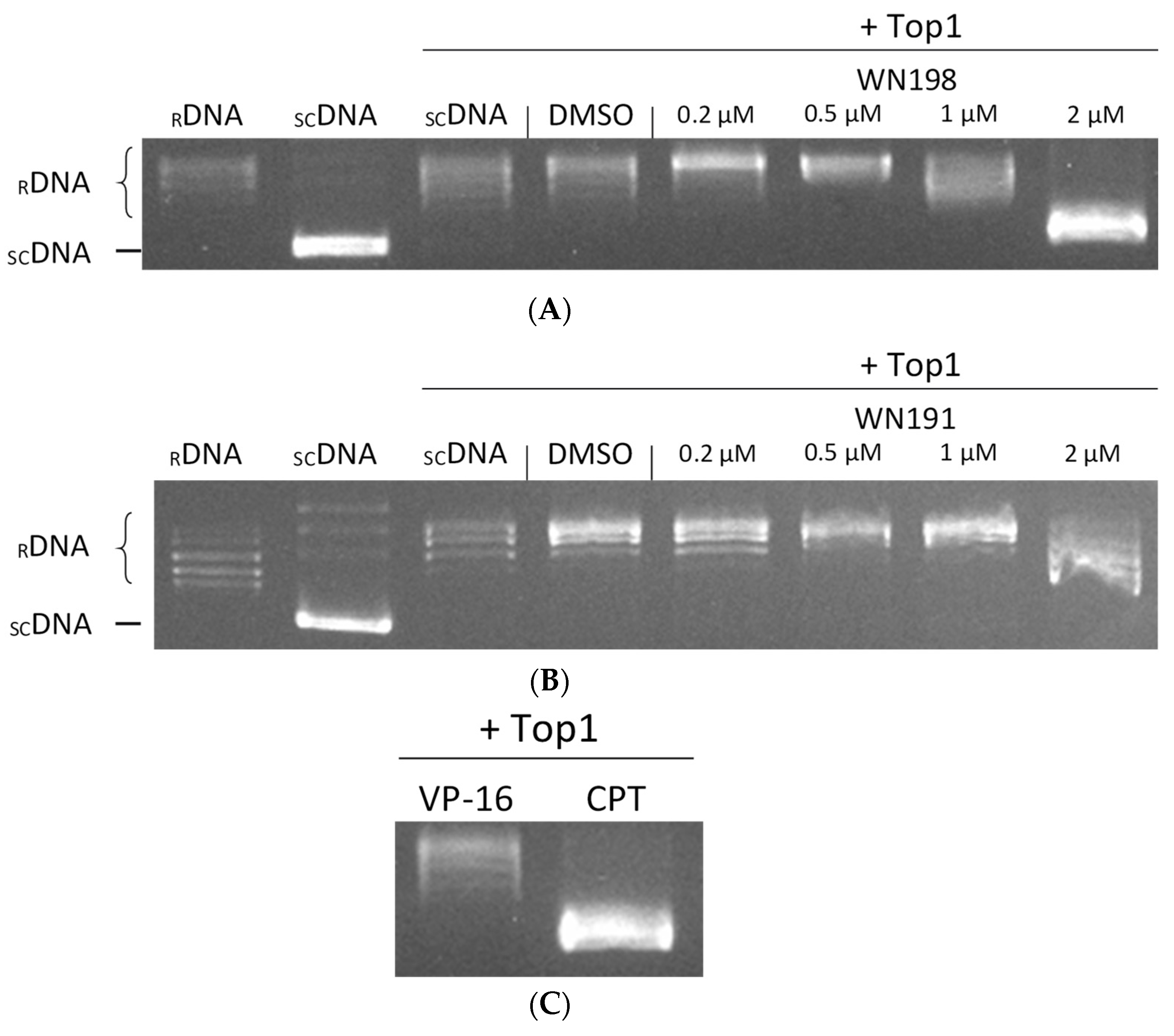

2.3. WN191 and WN198 Are Concentration-Dependent Topoisomerase Inhibitors

To determine the effect of WN191 and Cu(II) complex WN198 on topoisomerase activity, in vitro tests were realized. Topoisomerase I assays rely on the relaxation of supercoiled DNA by an active topoisomerase I. With topoisomerase I, supercoiled DNA shows a relaxed profile (Figure 5). With a well-known topoisomerase I inhibitor, camptothecin (CPT), the DNA relaxation was disturbed and a part of the DNA remained supercoiled. With the addition of 1 and 2 µM of WN198 in the reactional mixture, the quantity of relaxed DNA is decreased, indicating disruption of topoisomerase I activity. WN191 disrupted topoisomerase I activity at 2 µM. DMSO (solvent control) and VP-16 (etoposide, a topoisomerase II inhibitor) have no effect on DNA relaxation induced by topoisomerase I, showing their lack of inhibitory effect on topoisomerase I activity.

2.4. WN198 Intercalates in DNA

Melting curve and fluorescence measurements were performed to confirm the results shown in Table 2 and ascertain WN191 and WN198 intercalation in DNA.
The binding affinities, determined using a fluorescence-quenching assay based on DNA-binding competition between the intercalating drug ethidium bromide and the tested molecules, were used to gain insight into the DNA-binding affinity. The apparent DNA-binding constant Kapp value of the Cu(II) complex (10.791 ± 1.638 107 M−1) is higher compared to the original ligand WN191 value (8.964 ± 0.964 107 M−1). The complexation of indenoisoquinoline ligand by copper allows a stronger interaction with DNA (Table 2). The EtBr displacement is in contrast only 2% different between the two compounds.

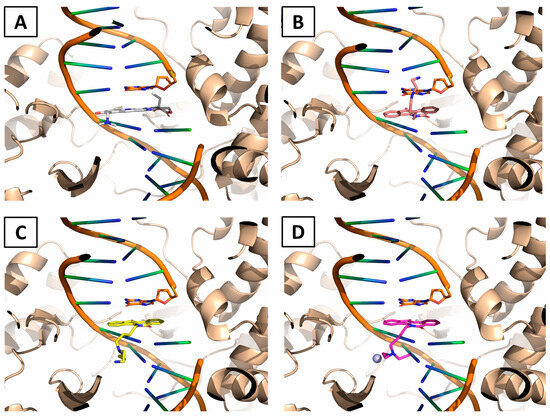

2.5. Modeling of the Interaction between WN170, WN191, and WN198 and Top1

As no experimental structures of complexes were available, we designed an approach to understand how our putative ligands could bind to Top1 and could intercalate DNA. The starting point was the crystal structure of human DNA Top1 in complex with topotecan poison (Figure 6A) (PDB ID: 1K4T, 2.1 Å). Based on the coordinates of the poison, we subsequently modeled the interaction of WN170, WN191, and WN198 by molecular docking. The full procedure of molecular modeling is detailed in Section 4.7.
On one hand, based on these models, the previously described WN170 adopts a similar conformation to the commercial poison topotecan which has an aromatic moiety intercalating the DNA (Figure 6B). The relatively small branched chain of WN170 can easily fit the binding cavity. On the other hand, the complex between WN191 and Top1 is similar to the previous one with the aromatic moiety totally fitting the DNA groove (Figure 6C). Nevertheless, one can observe that the larger branched arm of WN191 had to switch to another position, putatively decreasing with a small impact on the affinity of this molecule. Moreover, WN198 has a similar structure as WN191 with a copper ion chelating a water molecule. This interaction was difficult to model by molecular mechanics as copper ions are not well parametrized in a classical forcefield. One model was proposed (Figure 6D) that can be easily superimposed on the ligand WN191. Although the binding modes of WN191 and WN198 are almost the same, their activities are slightly different, which may be explained by copper ion playing a role in the stabilization of the ligand before the binding to the DNA groove as discussed in Section 3.

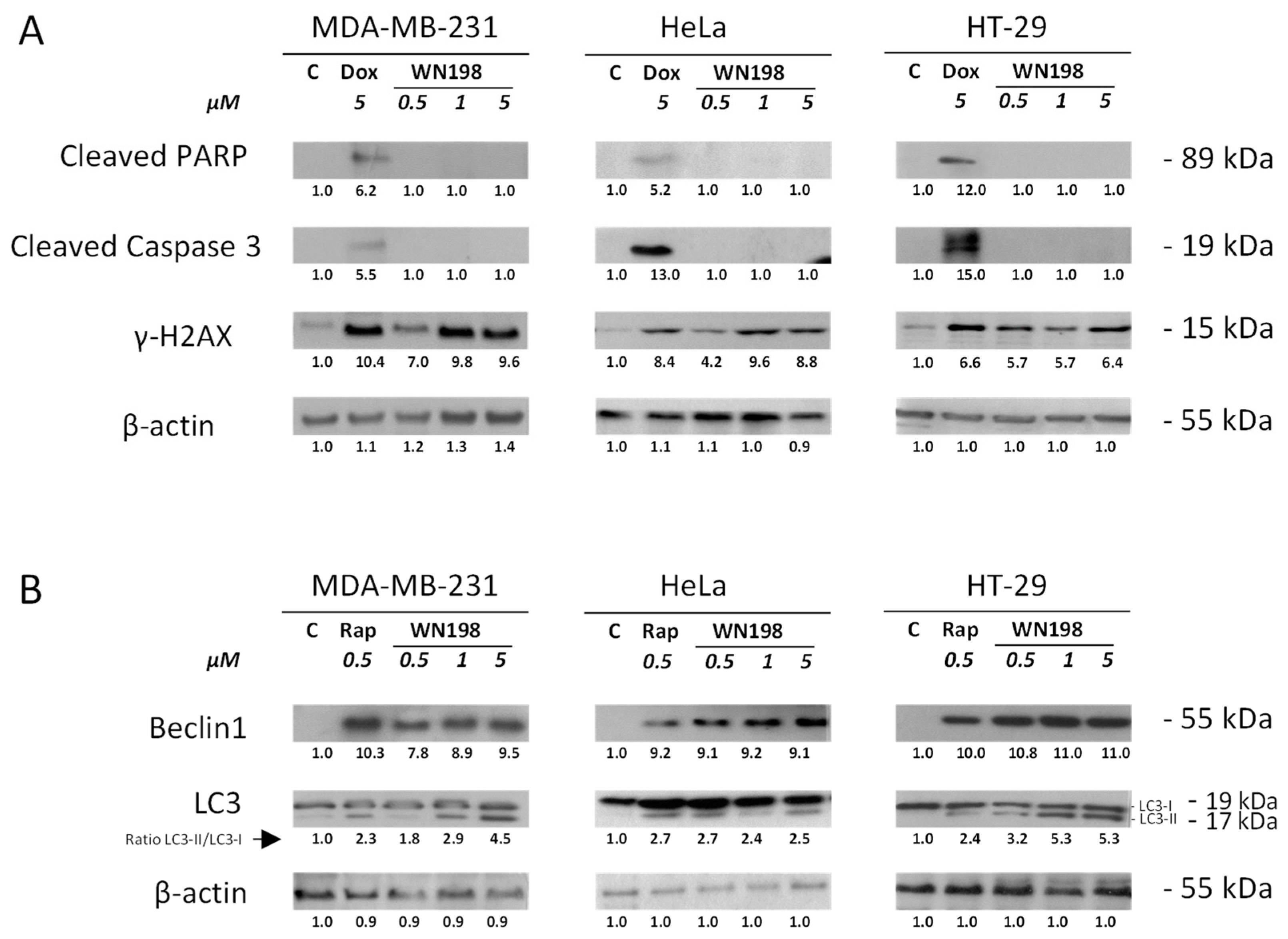

2.6. WN198 Induces Autophagy but Not Apoptosis

Apoptosis can be activated after DNA damage [25,26]. However, the early and late apoptosis markers, respectively, cleaved caspase 3 and cleaved PARP, were not detected after treatments with WN198 at all concentrations tested, in three adenocarcinoma cell lines, MDA-MB-231, HeLa, HT-29, in contrast to doxorubicin treatment (Figure 7A). γH2AX, an indicator of DNA breaks, was detected after treatment with WN198 and doxorubicin, indicating that WN198 and doxorubicin could induce DNA damage. Untreated cells showed lower γH2AX signals. We then determined whether WN198 could induce autophagy. Several autophagy markers [14] were present after 24h of treatment with 0.5, 1, and 5 µM of WN198 and rapamycin, an inhibitor of the mTOR pathway known to trigger autophagy [27]. Beclin-1 was synthesized, and LC3-II (LC3-I in association with phosphatidyl-ethanolamine) was increased while control untreated cells did not show these markers (Figure 7B).

3. Discussion

Topoisomerases are overexpressed in cancer cells which divide rapidly and have a high frequency of M phase in their cell cycle. This overexpression can be exploited by inhibition of topoisomerases by appropriate drugs that generate a high number of DNA breaks leading to cancer cell death [28,29,30]. Cells overexpressing topoisomerases have been shown to better respond to topoisomerase inhibitors [31,32].
Since the discovery of platinum’s anticancer properties, platinum-derived drugs have become a mainstay of cancer therapy [2,33]. Other metal-based drugs have been designed and developed [3,4], like transition metals from the d-block of the periodic table (groups 3 to 12) [1,34,35], as they adopt a wide variety of coordination geometries. Indeed, previous studies have demonstrated organometallic compounds composed of metallic atoms such as copper [9], iron (e.g., ferrocifen/ferroquine [1,36]), ruthenium (e.g., indenoisoquinoline [37] and various complexes [38]), or platinum (e.g., cisplatin [39]), which can be used as efficient anticancer drugs. Among them, copper allows a modification in complexed ligand backbones and better DNA affinity [11,40,41]. Some copper derivatives interact with DNA, enhancing DNA damage and antitumor activity [42]. Other copper complexes inhibit topoisomerase activity and result in DNA damage, cell cycle arrest, autophagy, and death in cancer cells [13,14,15]. Recently, a new class of topoisomerase inhibitors derived from indenoisoquinoline were developed and selected for their capacity to escape efflux transporters implied in cell resistance and for their high stability [16,43]. These indenoisoquinoline derivatives are in phase I/II clinical trials [16,43].
In an attempt to develop new efficient organometallic compounds, a copper(II) indenoisoquinoline complex named WN198 was synthesized with a branched triamine moiety attached to the indenoisoquinoline core. In this compound, the triamine ligand copper(II) was inserted at the end of the four-carbon chain as a linker because it was previously shown this moiety enhances the DNA-binding affinity due to many hydrogen bonds [36,44,45]. The Cu(II) complex structure displays a mononuclear unit of indenoisoquinolinetriamine and two (ClO4)−. At the center of a distorted square with three nitrogen atoms from the indenoisoquinolinetriamine and one oxygen atom from water are five coordinated Cu(II) ions.
In vitro tests reveal that WN198 inhibits topoisomerase I in a dose-dependent manner starting at 1 μM and with optimum efficiency at 2 μM, while the initial compound (WN191) only starts inhibiting topoisomerase I at 2 μM. Furthermore, WN198 could induce DNA breaks detected by a γH2AX signal. Because H2AX phosphorylation correlates with DNA lesions it is used as a marker. When DNA lesions are triggered, the activation of the DNA damage response (DDR) pathway leads to the phosphorylation of histone H2AX on serine 139 (γH2AX) by phosphoinositide 3-kinase-related kinase family members [46,47].
We could further determine that WN198 interacts with DNA with an apparent DNA-binding constant value higher by a factor of 1.2 compared to the original indenoisoquinoline ligand value, showing that the complexation of the ligand with copper allows a slight improvement in the interaction with DNA. A catalytic mode of inhibition could also occur through the intercalation of WN198 into the DNA as demonstrated by the melting curves and the fluorescence measurements. Indenoisoquinolines are composed of a planar skeleton, and the high affinity of the copper(II) complex for DNA could be the result of the π–cation interaction between the atom of Cu(II) coordinated with ligands and the base pairs [48,49]. DNA intercalation of WN198 could impede topoisomerase’s access to the DNA fixation sites as seen for other topoisomerase inhibitors, such as anthracyclines [50,51]. Due to a strong affinity for DNA duplexes, anthracycline compounds prevent topoisomerase binding to DNA [50,51]. Doxorubicin, one of the most effective chemotherapeutic drugs used against solid tumors in the treatment of several cancer types, displays a poison activity at low doses and an intercalating catalytic inhibitory action at high doses. Indenoisoquinoline copper derivative WN197 also efficiently induced MDA-MB-231, HeLa, and HT-29 cell death below 0.5 µM. The planar indenoisoquinoline skeleton of WN197 displays high intercalation into DNA [15]. Low doses of WN197 inhibit topoisomerases while, at higher doses, the compound has DNA intercalation properties. However, WN197 exhibits two complexed ligand backbones around a single Cu(II) atom, compared to a single one in WN198. While some of the topoisomerase I inhibitors developed do not use intercalation [52], and knowing DNA-binding and topoisomerase I poisoning activities can be viewed as separate mechanisms [53], our results nevertheless encourage the synthesis of series of indenoisoquinoline drugs composed of a backbone with a four-carbon side chain around a metallic center to keep topoisomerase inhibition and strong DNA interaction properties.
Based on existing structures, we demonstrate by molecular modeling that our drugs interfere with DNA and thus block the activity. Thanks to the structural approach, we can clearly see that the most important moiety is the aromatic intercalating one.
The viability assays showed that low doses between 0.37 and 1.6 μM could induce cell death in breast, cervix, colon, and prostate cancer cell lines, from five highly prevalent adenocarcinomas. The lowest IC50 values were obtained for cervix and breast triple-negative cancer cell lines at doses below that of the original compound (respectively, by a factor of 1.1 and 3). These IC50 values are under the values determined for many other topoisomerase I inhibitors [9]. Higher doses were necessary to affect the MCF-10A human non-tumorigenic epithelial breast line or Xenopus oocyte G2/M transition and embryonic development. The IC50 of WN198 on MCF-10A cells was higher compared to WN197, respectively, 9.73 and 1.080 µM, which makes WN198 a better candidate to avoid side effects of chemotherapies on non-cancerous cells. The toxicity characteristics of WN198 need further determination with respect to membrane permeability and the determination of cellular uptake.
Copper complexes or topoisomerase inhibitors arrest the cancer cell cycle in different phases and trigger cell death differently by apoptosis or senescence or have bimodal action through both apoptosis and autophagy [54,55,56]. Recently, another copper complex derived from the topoisomerase I inhibitor indenoisoquinoline was shown to arrest the cell cycle in the G2 phase through inhibition of Cdc25C phosphatase necessary to activate MPF (Cdk1/cyclin B) and to trigger cell death by autophagy [9,14,15]. WN198 triggers autophagy, shown by the accumulation of Beclin-1 and the formation of LC3-II, but no apoptosis as cleaved markers such as PARP and caspase 3 were not detected in the cell lines MDA-MB-231, HeLa, and HT-29 for doses of WN198 equal to and above the IC50.
The influence of indenoisoquinoline amine complexations with other metals should be examined in future studies with the knowledge that low minimum and necessary doses of chemotherapeutic compounds could be useful in circumventing normal cell death and limiting cardiotoxicity, a strategy employed for anthracyclines [57,58].

4. Materials and Methods

4.1. Chemistry

All commercial reagents and solvents were used without further purification. Cisplatin was procured from Alfa Aesar (Heysham, UK); DMSO from Sigma-Aldrich (Saint-Quentin-Fallavier, France). Stock solutions were prepared in DMSO. Melting points were determined with a Barnstead Electrothermal (BI 9300) capillary melting point apparatus and are uncorrected. The 1H and 13C NMR spectra were recorded on a Bruker AC300 spectrometer at 300 and 75.5 MHz, respectively, using tetramethylsilane (TMS) as internal standard and DMSO-d6 as solvent. Elemental analyses were performed with a vario MICRO element analyzer. Thin layer chromatography (TLC) was carried out on aluminum-baked Macherey-Nagel silica gel 60. Column chromatography was performed on silica gel (230–400 mesh). The electronic absorption spectra were acquired on a SPECORD® PLUS UV–Vis double-beam spectrophotometer (Analytik Jena GmbH, Jena, Germany)). The molar conductance measurement was carried out using a CDRV 62 Tacussel electronic bridge, employing a calibrated 10−2 M KCl solution and 10−3 M solutions of compounds in DMSO. Purities of all tested compounds were ≥95%, as estimated by HPLC analysis. The high-resolution mass spectrum (HR-MS) was measured by REALACAT, University of Lille on a Synapt G2Si (Waters SAS, Saint-Quentin-en-Yvelines) equipped with an ion mobility cell, recorded in positive ion mode with an electrospray ionization (ESI) source.

4.1.1. Synthesis of WN191

  • 4-(5,11-Dioxo-5,11-dihydro-6H-indeno[1,2-c]isoquinolin-6-yl)butyl-4-methylbenzene sulfonate [59].
4-Aminobutan-1-ol (8 mmol, 0.74 mL) was added to a solution of indenopyranedione 1 (1.0 g, 4.0 mmol) in CHCl3 (40 mL). After stirring at room temperature for 18 h, the reaction mixture was diluted in CHCl3 (100 mL) and subsequently washed with distilled water (2 × 50 mL), HCl 0.1 M (1 × 25 mL), and brine (1 × 50 mL), dried over MgSO4, filtered, and concentrated in vacuo to afford dark-orange needles (1.2 g, 96%). To the crude product in CH2Cl2 (8 mL) was added TsCl (7.8 g, 4.1 mmol). Triethylamine (1.5 mL, 11 mmol) was added and the mixture was stirred at room temperature for 16 h. The resulting mixture was diluted with CH2Cl2 (50 mL) and washed with distilled water (2 × 20 mL) and then brine (20 mL). The organic layer was dried over Na2SO4 and concentrated. Purification by flash column chromatography on silica gel (CH2Cl2/MeOH, 99:1, as eluent) afforded the desired product 2 as a dark-red solid (1.5 g, 85%). Mp: 154 °C. 1H NMR (300 MHz, CDCl3) δ 8.60 (dd, J = 7.2, 0.3 Hz, 1H), 8.26 (dd, J = 6.8, 0.5 Hz, 1H), 7.75 (d, J = 8.3 Hz, 2H), 7.69 (td, J = 6.9, 1.3 Hz, 1H), 7.59 (dd, J = 6.1, 0.6 Hz, 1H), 7.45 (m, 4H), 7.30 (d, J = 7.9 Hz, 2H), 4.48 (t, J = 7.2 Hz, 2H), 4.13 (t, J = 5.6 Hz, 2H), 2.40 (s, 3H), 1.90 (m, 4H). ESI-MS (m/z): found: 474.1382 [M + H]+, calculated: 474.1375 [M + H]+.
  • 6-(4-(Bis(2-aminoethyl)amino)butyl)-5H-indeno[1,2-c]isoquinoline-5,11(6H)-dione WN191
Compound 2 (800 mg, 1.7 mmol) was added to a solution of di-tert-butyl(azanediylbis(ethane-2,1-diyl))dicarbamate (2.6 mg, 8.4 mmol) in acetonitrile (25 mL). The resulting mixture was heated at 80 °C for 16 h. The solvent was evaporated in vacuo. The residue was taken up in CH2Cl2 (50 mL), washed with brine (2 × 25 mL), dried over MgSO4, and concentrated in vacuo. Purification by flash column chromatography on silica gel (CH2Cl2/EtOAc, 7:3, as eluent) afforded the N-protected product as a red solid (663 mg, 65%). Mp: 94 °C. 1H NMR (300 MHz, CDCl3) δ 8.79 (d, J = 7.8 Hz, 1H), 8.35 (d, J = 8.7 Hz, 1H), 7.72 (td, J = 6.9, 1.7 Hz, 1H), 7.64 (d, J = 6.5 Hz, 1H), 7.48–7.38 (m, 4H), 5.37 (m, 2H), 4.52 (t, J = 7.9 Hz, 2H), 3.18 (m, 4H), 2.55 (m, 6H), 1.98–1.18 (m, 2H), 1.70–1.65 (m, 2H), 1.36 (s, 18H). To a solution of protected amine (663 mg, 1.1 mmol) in CHCl3 (5 mL) was slowly added a solution of HCl 5M in 2-propanol (40 mL) at 0 °C. After stirring at room temperature for 18 h, the mixture was neutralized by KOH, extracted with CH2Cl2 (3 × 25 mL), dried over MgSO4, and concentrated in vacuo. Purification by recrystallization (Et2O/EtOH) afforded compound WN191 as an orange solid (394 mg, 88%). Mp: 172 °C. 1H-NMR (300 MHz DMSO-d6) δ 8.41 (d, J = 8.2 Hz, 1H), 8.08 (d, J = 8.2 Hz, 1H), 7.72–7.60 (m, 2H), 7.52–7.35 (m, 4H), 4.34 (t, J = 8.9 Hz, 2H), 2.85 (m, CH2, 4H), 2.45 (m, 6H), 1.74 (q, J = 7.4 Hz, 2H), 1.53 (q, J = 8.9 Hz, 2H). 13C NMR (75 MHz DMSO-d6) δ 192.5, 1623, 156.1, 136.5, 134.8, 134.0, 133.9, 131.9, 131.7, 131.2, 128.0, 126.9, 106.8, 53.5, 53.3, 43.9, 31.5, 29.3, 28.9, 27.3, 26.7, 23.3. ESI-MS (m/z): found: 405.2279 [M + H]+, calculated: 405.2285 [M + H]+.

4.1.2. Synthesis of Cu(II) Complex WN198

To a solution of WN191 (298 mg, 0.74 mmol) in MeOH (8 mL) was slowly added a solution of Cu(ClO4)2.6H2O (273 mg, 0.74 mmol) in MeOH (7 mL). After stirring at room temperature for 24 h, the mixture was filtered and washed with methanol. The powder was recrystallized in a mixture of methanol/ether to give orange crystals (367 mg, 70%). Anal. calc. for C25H34Cl2CuN4O12: C, 41.88; H, 4.78; N, 7.81; found: C, 41.61; H, 4.60; N, 7.90. UV-vis in DMSO-H2O (19/01) 5.10 at 5.0 M, [λmax, nm (ε, M−1 cm−1)]: 659 (200), 460 (2980), 372 (12320), 349 (11920), 327 (11120). 1.21. Λm (Ω−1.cm2.mol−1): 51. IR (cm−1): 3326 (m) νas (NH2), 3269 (m) νs (NH2), 1656 (m) ν (C = O), 1548 (s) ν (C = C), 1077 (s), 622 (m) ν (ClO4−), 562 (s) ν (Cu-N). ESI-MS (m/z): found: 467.1507 [M − (H2O + MeOH)]+, calculated: 467.1508 [M − (H2O + MeOH)]+.
Crystal data, data collection, and structure refinement details are summarized in Table 3.

4.2. Cell Culture

Human cell lines from cervix cancer (HeLa), breast cancer (MCF-7), triple-negative breast cancer (MDA-MB-231), colorectal cancer (HT-29), prostate cancer (DU-145), and a human breast epithelial cell line, arguably the most commonly used normal breast cell model (MCF-10A), were obtained from the American Type Culture Collection (ATCC, Manassas, VA, USA). Cells were cultured at 37 °C in a humid atmosphere containing 5% CO2, in a DMEM culture medium supplemented with 10% fetal bovine serum (Dutscher, Dernolsheim, France), 1% Zell Shield (Dutscher), and 1% non-essential amino acids (Lonza, Basel, Switzerland). MCF-10A cells were maintained in MEBM (Lonza) supplemented with MEGM (Lonza) and 1% Zell Shield.

4.3. Cell Viability Assay

Cell viability was determined using the CellTiter 96® AQueous One Solution Cell Proliferation Assay (MTS test, Promega, Charbonnières-les-Bains, France). Cells were seeded in 96-well plates at a density of 2.103 for 24 h before treatment with 0 to 100 µM of WN198, WN191, WN170, WN197, or cisplatin for 72 h. Cells were incubated for 2 h with 20 µL of CellTiter solution at 37 °C in 5% CO2, and the production of formazan from reduced 3-(4,5-dimethylthiazol-2-yl)-5-(3-carboxymethoxyphenyl)-2-(4-sulfophenyl)-2H-tetrazolium (MTS) was measured at 490 nm (SPECTROstar Nano, BMG LABTECH, Ortenberg, Germany). GraphPad Prism V6.0 software served to calculate IC50. Statistical differences between WN198 and WN191 were ascertained by a Student’s t-test (* p < 0.05, ** p < 0.001, *** p < 0.0005 and **** p < 0.0001).

4.4. Human Topoisomerase I In Vitro Activity

Topoisomerase I activity was determined with in vitro drug screening kits (TopoGEN, Inc., Buena Vista, CO, USA assays) based on the relaxation of supercoiled DNA into relaxed DNA as previously described [15]. Briefly, the assembled reaction mixture was composed of supercoiled pHOT1 DNA (250 ng), 10× TGS buffer (10 mM Tris-HCl pH 7.9, 1 mM EDTA), human topoisomerase I (5 units), the tested compound, and H2O to a final adjusted volume of 20 µL. WN191 and WN198 were tested at concentrations ranging from 0.2 to 2 µM. Camptothecin (10 µM) was used as a positive control (poison inhibitor of topoisomerase I activity), etoposide (100 µM) as negative control (inhibitor of topoisomerase II activity), 1% DMSO alone as vehicle control, and relaxed pHOT1 DNA (100 ng) alone as migration control. All reaction products were submitted to 1% agarose gel electrophoresis with EtBr (0.5 µg/mL) at 100 V for 1 h in TAE buffer (Tris-Acetate-EDTA; pH 8.3).

4.5. Ethidium Bromide Competition Test

Titrations of fluorescence were determined as described [36,45]. EtBr/WN191 or EtBr/WN198 with a molar ratio of 12.6/10 at concentrations ranging from 0.05 to 10 µM was used in a BPE buffer at pH 7.1. The excitation wavelength was 546 nm and the emission was monitored in the range of 560 to 700 nm (SPEX Fluorolog, Horiba-Jobin Yvon). EtBr displacement IC50 values were calculated with a fitting function incorporated into GraphPad Prism V6.0. The apparent binding constants were calculated using the equation Kapp = (1.26 (Kapp(EtBr)/IC50) with Kapp(EtBr) = 107 M−1.

4.6. Molecular Modeling

Receptor structure was the crystal structure of human DNA Top1 in complex with topotecan poison (Figure 4A) (PDB ID: 1K4T, 2.1 Å). All ligands and water molecules were removed except DNA. Simulation of the binding modes of the receptor and the designed compounds was performed using the GOLD docking program [60]. GOLD is based on a genetic algorithm and considered the ligand as flexible, while side chains of most residues were kept rigid. For the search procedure, a sphere of 30 Å was centered on the X, Y, and Z coordinates of the topotecan poison (Origin = 22.7 −9.4 26.9). Twenty conformations were generated for each ligand using default parameters. Then, all the different binding poses were scored with the ChemPLP scoring function. Subsequent energy minimization was performed using the AMBER forcefield. Finally, all the molecular representations were sketched using PyMOL [61].

4.7. Xenopus laevis Oocyte and Embryo Handling

Xenopus laevis females were obtained from the CRB-University of Rennes I, France. They were housed at PHExMAR, University of Lille. Xenopus were maintained in accordance with the EU Directive 2010/63/EU and the French National Guidelines for Use of Animals for Scientific Purposes. The experimental protocols were approved by the “Comité d’Ethique CEEA-75 en Experimentation Animale Nord-Pas de Calais-France” (Xenopus project number: F59-00913).
Females were anesthetized by immersion in a solution of Tricaine (MS222, Sandoz) at 3 g.L−1 for 1 h. The ovaries were surgically removed and placed in ND96 medium (96 mM NaCl, 2 mM KCl, 1.8 mM CaCl2, 1 mM MgCl2, 5 mM HEPES, pH 7.5) at 19 °C. Stage VI oocytes were harvested by using a 1 h collagenase A treatment (1 mg/mL, Boehringer Mannheim) for 45 min with a manual dissociation under a binocular microscope. Microinjections were performed under a binocular microscope with a Nishiryo positive displacement digital micropipette, in the equatorial region of the oocytes, with 60nl of control DMSO 0.1%, doxorubicin, or WN198 at 0.5, 1, and 5 µM. Meiotic resumption was triggered by the addition of progesterone (4 µM) after microinjection and the addition of a corresponding concentration of doxorubicin or WN198 to the external medium (0.5, 1, and 5 µM). The appearance of a white spot, resulting from the migration of the germinal vesicle at the apex of the pigmented hemisphere of the oocyte, indicated the meiosis process or G2/M transition. Oocytes arrested in prophase I progress to metaphase II and arrest [22,23,62].
For spawning, females were stimulated by a dorsal lymph sac injection of human chorionic gonadotropic hormone (900 U). Mature oocytes were obtained by a slight pressure on the animal’s ovaries. Testicles were surgically removed from a male after anesthesia in 5 g.L−1 MS222. In vitro fertilization was performed under gentle agitation in 0.22 µm filtered water with doxorubicin or WN198 at 0.5, 1, and 5 µM or not. Eggs were deganguated with 2% L-cysteine with doxorubicin or WN198 or not for 10 min and rinsed three times. Embryos were kept at 23 °C in daily renewed solution with doxorubicin or WN198 or not. Embryo stages were identified using the Nieuwkoop and Faber table (Nieuwkoop and Faber, 1994) [24]: morula (segmentation, stage 6.5, 3 h 30 min after fertilization), gastrula (stage 10, 9 h after fertilization), neurula (stage 18, 19 h 45 min after fertilization), and tailbud (organogenesis, stage 22, 24 h after fertilization).

4.8. Electrophoresis and Western Blot

First, 7.5 × 105 cells were seeded for 24 h before treatment with 5 µM doxorubicin (a positive control for apoptosis), 0.5 µM rapamycin (a positive control for autophagy), WN198 (0.5, 1, 5 µM), or 0.1% DMSO (solvent control). After 24 h, cells were lysed in RIPA buffer (150 mM EDTA; 150 mM NaCl; 50 mM NaF, 1% Triton X-100; NP40 2%; 0.4% Na-deoxycholate; 0.6% SDS; 50 mM TRIS-HCl pH 4) supplemented with 1% protease cocktail inhibitors (Sigma-Aldrich) and phosphatase inhibitors (Roche SAS by Merck).
After centrifugation for 10 min at 12,000× g, the protein concentration of sample supernatants was determined using a Bradford assay (BioRad, Marnes-la-Coquette, France) at 595 nm (SPECTROstar Nano, BMG LABTECH). After denaturation at 75 °C for 10 min in 2× Laemmli buffer (65.8 mM TRIS-HCl pH 6.8; 26.3% glycerol; 2.1% SDS; 0.01% bromophenol blue; 4% β-mercaptoethanol, BioRad), 15 µg of samples was separated on 4–20% SDS PAGE gels (mini protean TGX, BioRad, Marnes-la-Coquette, France) for 1 h at 200 V in denaturing buffer (0.3% TRIS base; 0.1% SDS; 1.44% glycine). Proteins were wet transferred in 0.32% TRIS; 1.8% glycine; 20% methanol (Sigma-Aldrich, Saint-Quentin-Fallavier, France) onto a nitrocellulose membrane (Amersham Hybond, Dutscher, Bernolsheim, France) for 1 h at 100 V. After saturation with 5% low-fat dry milk in TBS with 0.05% Tween (Sigma-Aldrich), membranes were incubated overnight at 4 °C with primary antibodies: rabbit polyclonal antibodies were against cleaved caspase 3 or Beclin-1 (Cell Signalling Technology (CST, by Ozyme, Saint-Cyr-L’École, France), 1/1000), phosphorylated H2AX (S139, CST, 1/750), LC3 (CST, 1/50); goat polyclonal antibodies against β-actin (SCB, 1/1200); and cocktail antibodies against cleaved PARP (Abcam, Cambridge, UK, cell cycle and apoptosis cocktail, 1/1500). After three TBS-Tween washes of 10 min, membranes were incubated for 1 h with appropriate horseradish peroxidase-labeled secondary antibodies: antirabbit or antimouse (Invitrogen, 1/30,000) or antigoat antibodies (SCB, 1/30,000). After three 10 min TBS-Tween washes, the signals were revealed using a chemiluminescent assay (ECL Select, GE Healthcare, Dutscher, Bernolsheim, France) on hyperfilms (Amersham hyperfilm MP, Dutscher). β-actin was used as a loading control. Signals were quantified with ImageJ (Fiji Software, v1.52i) and normalized to respective loading controls.

5. Conclusions

A new copper(II) complex containing an indenoisoquinoline scaffold was synthesized. The molecular structure of WN198 was confirmed by single-crystal X-ray diffraction analysis. WN198 displays a strong DNA interaction and kept a topoisomerase I inhibitory activity as detected by in vitro tests.
The compound exerts excellent cytotoxic activities against five adenocarcinoma cancer cell lines at a lower concentration compared to other classical topoisomerase drugs used in chemotherapies. It is particularly efficient against MDA-MB-231 (triple-negative breast cancer) cell line proliferation with an IC50 of 0.37 μM. The IC50 on non-cancerous cell line MCF-10A is significantly high compared to other copper complexes as topoisomerase inhibitors and no toxicity was detected below 5 µM for Xenopus oocyte maturation and embryo development.
WN198 appears to be a new efficient drug to counteract cancer cells at low doses. WN198 could benefit patients overexpressing topoisomerases, sensitize cancer cells to DNA-damaging chemotherapies [63], bypass unwanted side effects, or be part of synthetic lethality or synergic strategies.

Author Contributions

Conceptualization, C.M., K.C., L.P. and A.M.; performing experiments, C.M., N.W., N.H., T.B., J.d.R., A.M. and L.P.; writing and editing, C.M., S.P., M.F.L., E.G., J.d.R., K.C., L.P. and A.M. All authors have read and agreed to the published version of the manuscript.

Funding

C.M. is a recipient of a doctoral fellowship from a French ministry. This work was supported by the CNRS, the University of Lille, Chevreul Institute (FR 2638), Ministère de l’Enseignement Supérieur et de la Recherche, Région Hauts de France and by grants from the “Ligue Contre le Cancer, Comités Nord Pas de Calais, Nord et Aisne” (A.M.).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article.

Acknowledgments

We are sincerely indebted to Arlette Lescuyer (UMR-CNRS 8576) for her help.

Conflicts of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

References

  1. Jaouen, G.; Vessières, A.; Top, S. Ferrocifen type anticancer drugs. Chem. Soc. Rev. 2015, 44, 8802–8817. [Google Scholar] [CrossRef] [PubMed]
  2. Dilruba, S.; Kalayda, G.V. Platinum-based drugs: Past, present and future. Cancer Chemother. Pharmacol. 2016, 77, 1103–1124. [Google Scholar] [CrossRef] [PubMed]
  3. Zhang, P.; Sadler, P.J. Advances in the design of organometallic anticancer complexes. J. Organomet. Chem. 2017, 839, 5–14. [Google Scholar] [CrossRef]
  4. Anthony, E.J.; Bolitho, E.M.; Bridgewater, H.E.; Carter, O.W.L.; Donnelly, J.M.; Imberti, C.; Lant, E.C.; Lermyte, F.; Needham, R.J.; Palau, M.; et al. Metallodrugs are unique: Opportunities and challenges of discovery and development. Chem. Sci. 2020, 11, 12888–12917. [Google Scholar] [CrossRef]
  5. Komeda, S.; Casini, A. Next-Generation Anticancer Metallodrugs. Curr. Top. Med. Chem. 2012, 12, 219–235. [Google Scholar] [CrossRef]
  6. Mejía, C.; Ortega-Rosales, S.; Ruiz-Azuara, L. Mechanism of action of anticancer metallodrugs. In Biomedical Applications of Metals; Springer: Cham, Switzerland, 2018; pp. 213–234. [Google Scholar] [CrossRef]
  7. Santini, C.; Pellei, M.; Gandin, V.; Porchia, M.; Tisato, F.; Marzano, C. Advances in copper complexes as anticancer agents. Chem. Rev. 2014, 114, 815–862. [Google Scholar] [CrossRef]
  8. Kellett, A.; Molphy, Z.; McKee, V.; Slator, C. Recent advances in anticancer copper compounds. In Metal-Based Anticancer Agents; Vessieres, I.A., Meier-Menches, S.M., Casini, A., Eds.; Royal Society of Chemistry, RSC Metallobiology: London, UK, 2019; Volume 14, pp. 91–119. [Google Scholar]
  9. Molinaro, C.; Martoriati, A.; Pelinski, L.; Cailliau, K. Copper complexes as anticancer agents targeting topoisomerases i and ii. Cancers 2020, 12, 2863. [Google Scholar] [CrossRef]
  10. Baldari, S.; Di Rocco, G.; Toietta, G. Current biomedical use of copper chelation therapy. Int. J. Mol. Sci. 2020, 21, 1069. [Google Scholar] [CrossRef]
  11. Denoyer, D.; Clatworthy, S.A.S.; Cater, M.A. Copper Complexes in Cancer Therapy; NIH: Bethesda, MD, USA, 2018; Volume 18, ISBN 9783110470734. [Google Scholar]
  12. Zhang, Z.; Wang, H.; Yan, M.; Wang, H.; Zhang, C. Novel copper complexes as potential proteasome inhibitors for cancer treatment (Review). Mol. Med. Rep. 2017, 15, 3–11. [Google Scholar] [CrossRef]
  13. Liang, X.; Wu, Q.; Luan, S.; Yin, Z.; He, C.; Yin, L.; Zou, Y.; Yuan, Z.; Li, L.; Song, X.; et al. A comprehensive review of topoisomerase inhibitors as anticancer agents in the past decade. Eur. J. Med. Chem. 2019, 171, 129–168. [Google Scholar] [CrossRef]
  14. Molinaro, C.; Martoriati, A.; Cailliau, K. Proteins from the DNA Damage Response: Regulation, Dysfunction, and Anticancer Strategies. Cancers 2021, 13, 3819. [Google Scholar] [CrossRef] [PubMed]
  15. Molinaro, C.; Wambang, N.; Bousquet, T.; Vercoutter-Edouart, A.S.; Pélinski, L.; Cailliau, K.M.A. A Novel Copper(II) Indenoisoquinoline Complex Inhibits Topoisomerase I, Induces G2 Phase Arrest, and Autophagy in Three Adenocarcinomas. Front. Oncol. 2022, 12, 837373. [Google Scholar] [CrossRef] [PubMed]
  16. Pommier, Y.; Cushman, M.; Doroshow, J.H. Novel clinical indenoisoquinoline topoisomerase I inhibitors: A twist around the camptothecins. Oncotarget 2018, 9, 37286–37288. [Google Scholar] [CrossRef] [PubMed]
  17. Thomas, A.; Pommier, Y. Targeting topoisomerase I in the era of precision medicine. Clin. Cancer Res. 2019, 25, 6581–6589. [Google Scholar] [CrossRef] [PubMed]
  18. Pommier, Y.; Kiselev, E.; Marchand, C. Interfacial inhibitors. Bioorganic Med. Chem. Lett. 2015, 25, 3961–3965. [Google Scholar] [CrossRef]
  19. Cushman, M. Design and Synthesis of Indenoisoquinolines Targeting Topoisomerase I and Other Biological Macromolecules for Cancer Chemotherapy. J. Med. Chem. 2021, 64, 17572–17600. [Google Scholar] [CrossRef]
  20. Slaby, S.; Hanotel, J.; Marchand, G.; Lescuyer, A.; Bodart, J.; Leprêtre, A.; Lemière, S.; Marin, M. Maturation of Xenopus laevis oocytes under cadmium and lead exposures: Cell biology investigations. Aquat. Toxicol. 2017, 193, 110–115. [Google Scholar] [CrossRef]
  21. Slaby, S.; Lemière, S.; Hanotel, J.; Lescuyer, A.; Demuynck, S.; Bodart, J.F.; Leprêtre, A.; Marin, M. Cadmium but not lead exposure affects Xenopus laevis fertilization and embryo cleavage. Aquat. Toxicol. 2017, 177, 1–7. [Google Scholar] [CrossRef]
  22. Slaby, S.; Marin, M.; Marchand, G.; Lemiere, S. Exposures to chemical contaminants: What can we learn from reproduction and development endpoints in the amphibian toxicology literature? Environ. Pollut. 2019, 248, 478–495. [Google Scholar] [CrossRef]
  23. Marchand, G.; Wambang, N.; Pellegrini, S.; Molinaro, C.; Martoriati, A.; Bousquet, T.; Markey, A.; Lescuyer-Rousseau, A.; Bodart, J.F.; Cailliau, K.; et al. Effects of Ferrocenyl 4-(Imino)-1,4-Dihydro-quinolines on Xenopus laevis Prophase I—Arrested Oocytes: Survival and Hormonal-Induced M-Phase Entry. Int. J. Mol. Sci. 2020, 21, 3049. [Google Scholar] [CrossRef]
  24. Nieuwkoop, P.D.; Faber, J. A Systematical and Chronological Survey of the Development from the Fertilized Egg till the End of Metamorphosis; Faber, P.D.J., Ed.; Nieuwkoop, Garland Publishing Inc.: New York, NY, USA, 1994; ISBN 0-8153-1896-0. [Google Scholar]
  25. Larsen, A.K.; Escargueil, A.E.; Skladanowski, A. From DNA Damage to G2 Arrest: The Many Roles of Topoisomerase II. Prog. Cell Cycle Res. 2003, 5, 295–300. [Google Scholar] [PubMed]
  26. Pommier, Y. Drugging Topoisomerases: Lessons and Challenges. ACS Chem. Biol. 2013, 8, 82–95. [Google Scholar] [CrossRef] [PubMed]
  27. Kim, K.W.; Mutter, R.W.; Cao, C.; Albert, J.M.; Freeman, M.; Hallahan, D.E.; Lu, B. Autophagy for cancer therapy through inhibition of pro-apoptotic proteins and mammalian target of rapamycin signaling. J. Biol. Chem. 2006, 281, 36883–36890. [Google Scholar] [CrossRef]
  28. Heestand, G.M.; Schwaederle, M.; Gatalica, Z.; Arguello, D.; Kurzrock, R. Topoisomerase expression and amplification in solid tumours: Analysis of 24,262 patients. Eur. J. Cancer 2017, 83, 80–87. [Google Scholar] [CrossRef]
  29. Villman, K.; Ståhl, E.; Liljegren, G.; Tidefelt, U.; Karlsson, M.G. Topoisomerase II-α expression in different cell cycle phases in fresh human breast carcinomas. Mod. Pathol. 2002, 15, 486–491. [Google Scholar] [CrossRef]
  30. Lee, Y.C.; Lee, C.H.; Tsai, H.P.; An, H.W.; Lee, C.M.; Wu, J.C.; Chen, C.S.; Huang, S.H.; Hwang, J.; Cheng, K.T.; et al. Targeting of Topoisomerase I for Prognoses and Therapeutics of Camptothecin-Resistant Ovarian Cancer. PLoS ONE 2015, 10, e0132579. [Google Scholar] [CrossRef] [PubMed]
  31. Ali, Y.; Abd Hamid, S. Human topoisomerase II alpha as a prognostic biomarker in cancer chemotherapy. Tumor Biol. 2016, 37, 47–55. [Google Scholar] [CrossRef] [PubMed]
  32. Zhong, W.; Yang, Y.; Zhang, A.; Lin, W.; Liang, G.; Ling, Y.; Zhong, J.; Yong, J.; Liu, Z.; Tian, Z.; et al. Prognostic and predictive value of the combination of TOP2A and HER2 in node-negative tumors 2 cm or smaller (T1N0) breast cancer. Breast Cancer 2020, 27, 1147–1157. [Google Scholar] [CrossRef]
  33. Rosenberg, B.; VanCamp, L.; Trosko, J.E.; Mansour, V.H. Platinum Compounds: A New Class of Potent Antitumour Agents. Nature 1969, 5191, 385–386. [Google Scholar] [CrossRef]
  34. Szczepaniak, A.; Fichna, J. Organometallic Compounds and Metal Complexes in Current and Future Treatments of Inflammatory Bowel Disease and Colorectal Cancer—A Critical Review. Biomolecules 2019, 9, 398. [Google Scholar] [CrossRef]
  35. Ndagi, U.; Mhlongo, N.; Soliman, M.E. Metal Complexes in Cancer Therapy—An Update from Drug Design Perspective. Drug Des. Devel. Ther. 2017, 11, 599–616. [Google Scholar] [CrossRef] [PubMed]
  36. Kondratskyi, A.; Kondratska, K.; Vanden Abeele, F.; Gordienko, D.; Dubois, C.; Toillon, R.A.; Slomianny, C.; Lemière, S.; Delcourt, P.; Dewailly, E.; et al. Ferroquine, the next generation antimalarial drug, has antitumor activity. Sci. Rep. 2017, 7, 15896. [Google Scholar] [CrossRef] [PubMed]
  37. Wambang, N.; Schifano-Faux, N.; Martoriati, A.; Henry, N.; Baldeyrou, B.; Bal-Mahieu, C.; Bousquet, T.; Pellegrini, S.; Meignan, S.; Cailliau, K.; et al. Synthesis, Structure, and Antiproliferative Activity of Ruthenium(II) Arene Complexes of Indenoisoquinoline Derivatives. Organometallics 2016, 35, 2868–2872. [Google Scholar] [CrossRef]
  38. Pragti; Kundu, B.K.; Mukhopadhyay, S. Target based chemotherapeutic advancement of ruthenium complexes. Coord. Chem. Rev. 2021, 448, 214169. [Google Scholar] [CrossRef]
  39. Brown, A.; Kumar, S.; Tchounwou, P.B. Cisplatin-Based Chemotherapy of Human Cancers. J. Cancer Sci. Ther. 2019, 11, 97. [Google Scholar]
  40. Ceramella, J.; Mariconda, A.; Iacopetta, D.; Saturnino, C.; Barbarossa, A.; Caruso, A.; Rosano, C.; Sinicropi, M.S.; Longo, P. From coins to cancer therapy: Gold, silver and copper complexes targeting human topoisomerases. Bioorg. Med. Chem. Lett. 2020, 30, 126905. [Google Scholar] [CrossRef]
  41. Marzano, C.; Pellei, M.; Tisato, F.; Santini, C. Copper Complexes as Anticancer Agents. Anticancer Agents Med. Chem. 2012, 9, 185–211. [Google Scholar] [CrossRef]
  42. Shobha Devi, C.; Thulasiram, B.; Aerva, R.R.; Nagababu, P. Recent Advances in Copper Intercalators as Anticancer Agents. J. Fluoresc. 2018, 28, 1195–1205. [Google Scholar] [CrossRef]
  43. Marzi, L.; Sun, Y.; Huang, S.Y.N.; James, A.; Difilippantonio, S.; Pommier, Y. The indenoisoquinoline LMP517: A novel antitumor agent targeting both TOP1 and TOP2. Mol. Cancer Ther. 2020, 19, 1589–1597. [Google Scholar] [CrossRef]
  44. Beck, D.E.; Agama, K.; Marchand, C.; Chergui, A.; Pommier, Y.; Cushman, M. Synthesis and biological evaluation of new carbohydrate-substituted indenoisoquinoline topoisomerase I inhibitors and improved syntheses of the experimental anticancer agents indotecan (LMP400) and indimitecan (LMP776). J. Med. Chem. 2014, 57, 1495–1512. [Google Scholar] [CrossRef]
  45. Wambang, N.; Schifano-Faux, N.; Aillerie, A.; Baldeyrou, B.; Jacquet, C.; Bal-Mahieu, C.; Bousquet, T.; Pellegrini, S.; Ndifon, P.T.; Meignan, S.; et al. Synthesis and biological activity of ferrocenyl indeno[1,2-c]isoquinolines as topoisomerase II inhibitors. Bioorganic Med. Chem. 2016, 24, 651–660. [Google Scholar] [CrossRef]
  46. Sharma, A.; Singh, K.; Almasan, A. Histone H2AX Phosphorylation: A Marker for DNA Damage. Methods Mol. Biol. 2012, 920, 613–626. [Google Scholar] [CrossRef] [PubMed]
  47. Smith, H.L.; Southgate, H.; Tweddle, D.A.; Curtin, N.J. DNA Damage Checkpoint Kinases in Cancer. Expert. Rev. Mol. Med. 2020, 8, e2. [Google Scholar] [CrossRef] [PubMed]
  48. Deng, J.H.; Luo, J.; Mao, Y.L.; Lai, S.; Gong, Y.N.; Zhong, D.C.; Lu, T.B. Π-π stacking interactions: Non-negligible forces for stabilizing porous supramolecular frameworks. Sci. Adv. 2020, 6, eaax9976. [Google Scholar] [CrossRef] [PubMed]
  49. Thakuria, R.; Nath, N.K.; Saha, B.K. The Nature and Applications of π-π Interactions: A Perspective. Cryst. Growth Des. 2019, 19, 523–528. [Google Scholar] [CrossRef]
  50. Atwal, M.; Swan, R.L.; Rowe, C.; Lee, K.C.; Armstrong, L.; Cowell, I.G.; Austin, C.A.; Lee, D.C. Intercalating TOP2 Poisons Attenuate Topoisomerase Action at Higher Concentrations. Mol. Pharmacol. 2019, 96, 475–484. [Google Scholar] [CrossRef] [PubMed]
  51. Marinello, J.; Delcuratolo, M.; Capranico, G. Anthracyclines as Topoisomerase II Poisons: From Early Studies to New Perspectives. Int. J. Mol. Sci. 2018, 19, 3480. [Google Scholar] [CrossRef]
  52. Bailly, C.; Dassonneville, L.; Colson, P.; Houssier, C.; Fukasawa, K.; Nishimura, S.; Yoshinari, T. Intercalation into DNA is not required for inhibition of topoisomerase I by indolocarbazole antitumor agents. Cancer Res. 1999, 59, 2853–2860. [Google Scholar]
  53. Grossman, S.; Fishwick, C.W.G.; McPhillie, M.J. Developments in Non-Intercalating Bacterial Topoisomerase Inhibitors: Allosteric and ATPase Inhibitors of DNA Gyrase and Topoisomerase IV. Pharmaceuticals 2023, 16, 261. [Google Scholar] [CrossRef]
  54. Hu, J.; Liao, C.; Guo, Y.; Yang, F.; Sang, W.; Zhao, J. Copper (II) complexes inducing apoptosis in cancer cells, and demonstrating DNA and HSA interactions. Polyhedron 2017, 132, 28–38. [Google Scholar] [CrossRef]
  55. Rezaei, A.; Falahati-Pour, S.K.; Mohammadizadeh, F.; Hajizadeh, M.R.; Mirzaei, M.R.; Khoshdel, A.; Fahmidehkar, M.A.; Mahmoodi, M. Effect of a Copper (II) complex on the induction of apoptosis in human hepatocellular carcinoma cells. Asian Pac. J. Cancer Prev. 2018, 19, 2877–2884. [Google Scholar] [CrossRef] [PubMed]
  56. Gul, N.S.; Khan, T.M.; Chen, M.; Huang, K.B.; Hou, C.; Choudhary, M.I.; Liang, H.; Chen, Z.F. New copper complexes inducing bimodal death through apoptosis and autophagy in A549 cancer cells. J. Inorg. Biochem. 2020, 213, 111260. [Google Scholar] [CrossRef] [PubMed]
  57. McGowan, J.V.; Chung, R.; Maulik, A.; Piotrowska, I.; Walker, J.M.; Yellon, D.M. Anthracycline Chemotherapy and Cardiotoxicity. Cardiovasc. Drugs Ther. 2017, 31, 63–75. [Google Scholar] [CrossRef] [PubMed]
  58. Barrett-Lee, P.J.; Dixon, J.M.; Farrell, C.; Jones, A.; Leonard, R.; Murray, N.; Palmieri, C.; Plummer, C.J.; Stanley, A.; Verrill, M.W. Expert opinion on the use of anthracyclines in patients with advanced breast cancer at cardiac risk. Ann. Oncol. 2009, 20, 816–827. [Google Scholar] [CrossRef] [PubMed]
  59. Park, E.-J.; Kondratyuk, T.P.; Morrell, A.; Kiselev, E.; Conda-Sheridan, M.; Cushman, M.; Ahn, S.; Choi, Y.; White, J.J.; van Breemen, R.B.; et al. Induction of retinoid X receptor activity and consequent upregulation of p21WAF1/CIP1 by indenoisoquinolines in MCF7 cells. Cancer Prev. Res. 2011, 4, 592–607. [Google Scholar] [CrossRef]
  60. Jones, G.; Willett, P.; Glen, R.C.; Leach, A.R.; Taylor, R. Development and validation of a genetic algorithm for flexible docking. J. Mol. Biol. 1997, 267, 727–748. [Google Scholar] [CrossRef]
  61. The PyMOL Molecular Graphics System; Version 2.0; Schrödinger, LLC: New York, NY, USA, 2015.
  62. Meneau, F.; Dupré, A.; Jessus, C.; Daldello, E.M. Translational Control of Xenopus Oocyte Meiosis: Toward the Genomic Era. Cells 2020, 9, 1502. [Google Scholar] [CrossRef]
  63. Topatana, W.; Juengpanich, S.; Li, S.; Cao, J.; Hu, J.; Lee, J.; Suliyanto, K.; Ma, D.; Zhang, B.; Chen, M.; et al. Advances in synthetic lethality for cancer therapy: Cellular mechanism and clinical translation. J. Hematol. Oncol. 2020, 13, 118. [Google Scholar] [CrossRef]
Ijms 24 14590 g001
Figure 1. Biologically active indenoisoquinolines.
Figure 1. Biologically active indenoisoquinolines.
Ijms 24 14590 g001
Ijms 24 14590 g002

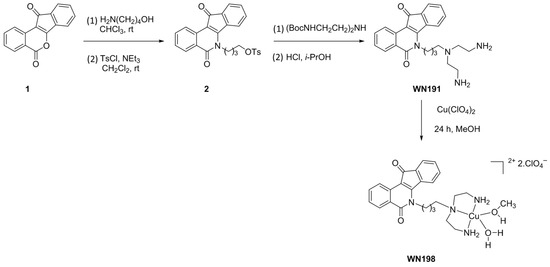

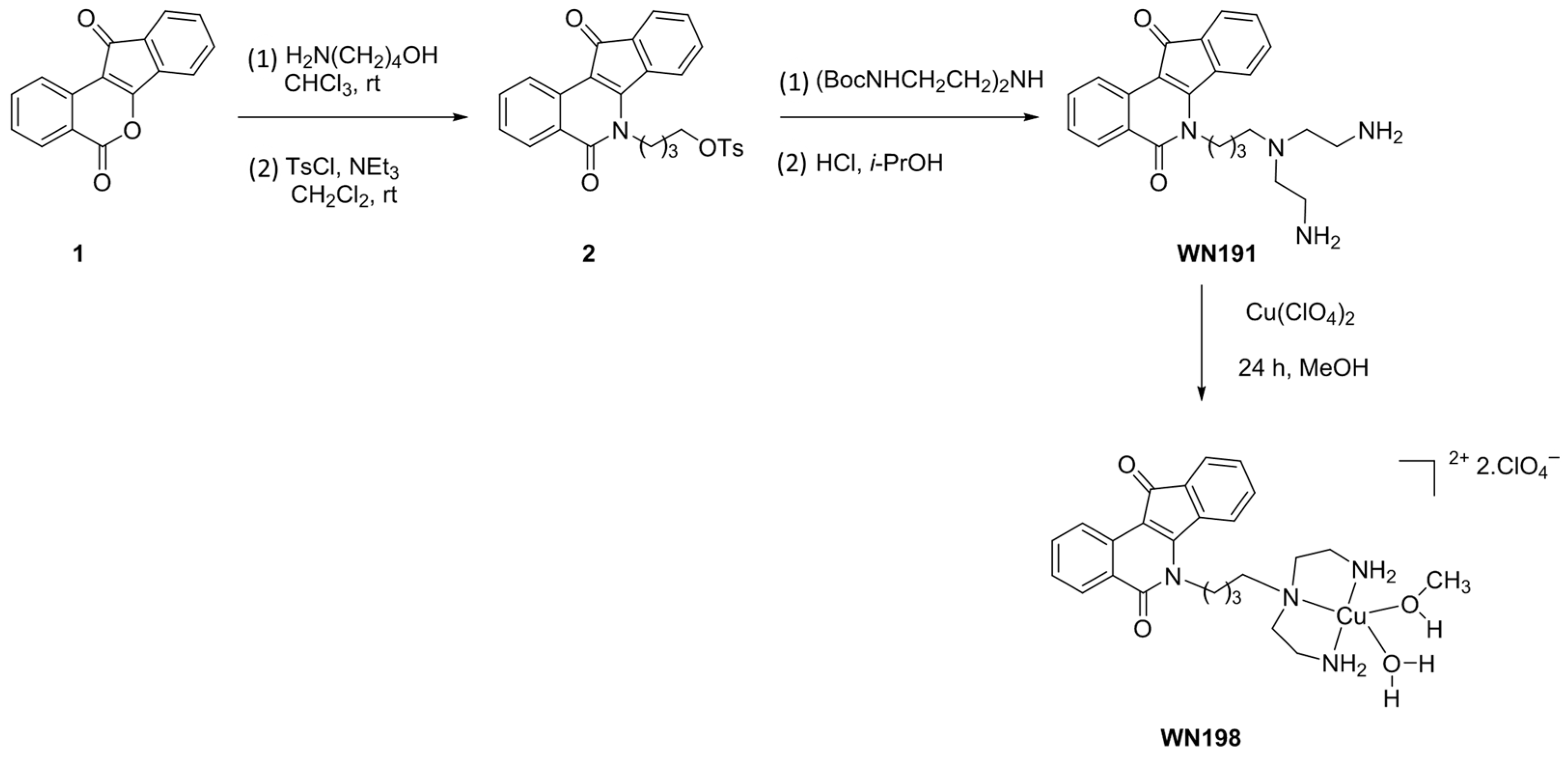

Figure 2. Synthesis of the ligand WN191 and the Cu(II) complex WN198.
Figure 2. Synthesis of the ligand WN191 and the Cu(II) complex WN198.
Ijms 24 14590 g002
Ijms 24 14590 g003

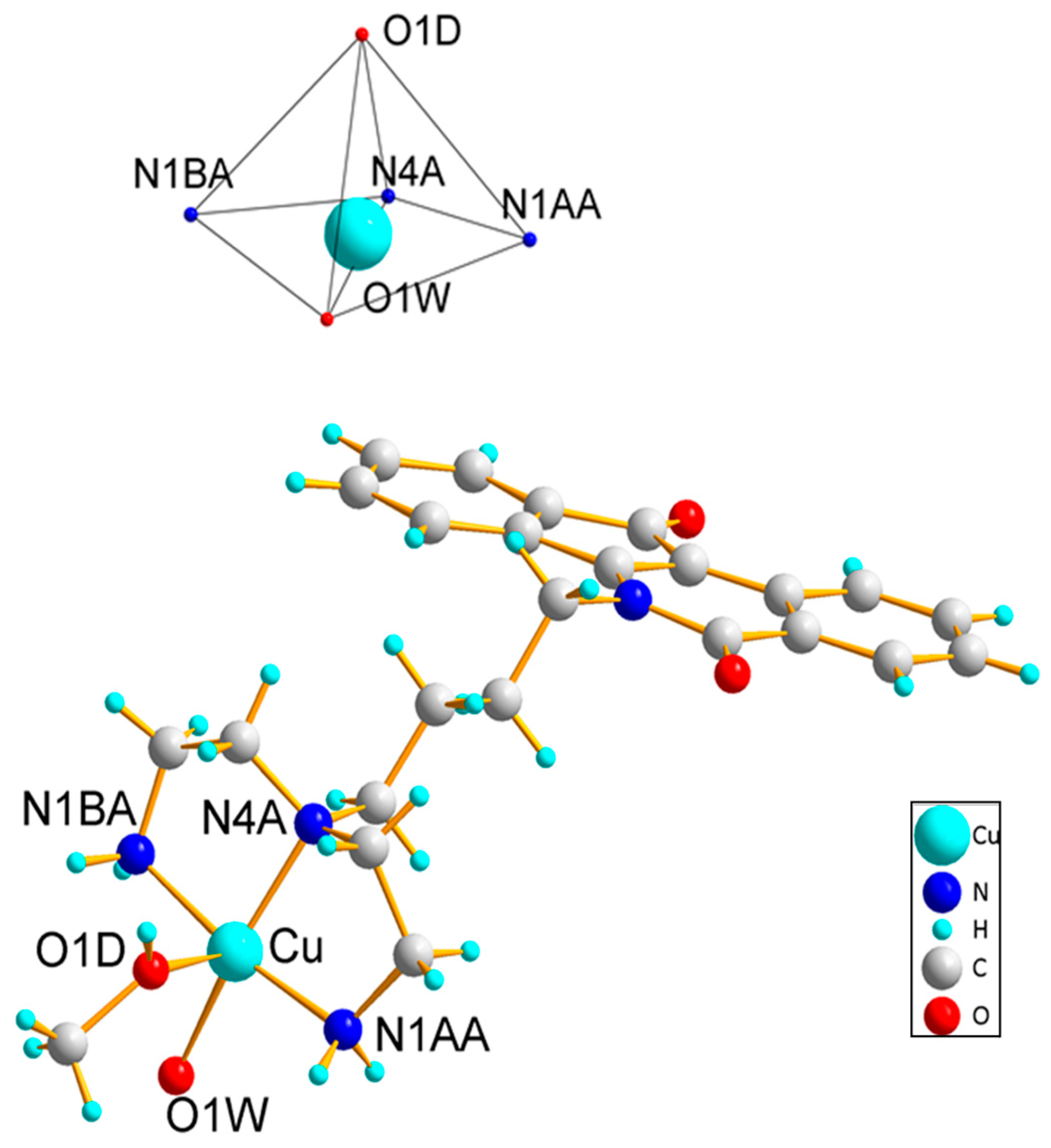

Figure 3. Molecular structure of Cu complex WN198 showing the local geometry around the copper and ligand. Selected bond lengths (Ǻ) and angles (°): Cu-N1BA 1.998(8); Cu-N4A 2.014(6); Cu-N1AA 1.990(7); Cu-O1W 1.980(7); Cu-O1D 2.333(7); N1BA Cu N4A 85.1(3); N1AA Cu N4A 86.2(3); O1W Cu N1AA 94.5(3); O1W Cu N1BA 94.6(3); N1BA Cu O1D 91.2(4); N4A Cu O1D 101.9(3); N1AA Cu O1D 88.1(3); O1W Cu O1D 94.0(3).
Figure 3. Molecular structure of Cu complex WN198 showing the local geometry around the copper and ligand. Selected bond lengths (Ǻ) and angles (°): Cu-N1BA 1.998(8); Cu-N4A 2.014(6); Cu-N1AA 1.990(7); Cu-O1W 1.980(7); Cu-O1D 2.333(7); N1BA Cu N4A 85.1(3); N1AA Cu N4A 86.2(3); O1W Cu N1AA 94.5(3); O1W Cu N1BA 94.6(3); N1BA Cu O1D 91.2(4); N4A Cu O1D 101.9(3); N1AA Cu O1D 88.1(3); O1W Cu O1D 94.0(3).
Ijms 24 14590 g003
Ijms 24 14590 g004
Figure 4. Non-cancerous cell viability under WN198 treatment. (A) MCF-10A IC50 values are expressed as the mean ± SD of three independent experiments. Cisplatin and WN197 were used as control. (B) Xenopus oocyte G2/M transition was scored by the determination of a white spot at the animal pole showing the progression from prophase I to metaphase II (meiosis maturation) 12 h after microinjection and balneation with corresponding drugs (0.5, 1, 5 µM) and external stimulation by progesterone as a natural inducer (4 µM). Experiments were performed on 10 to 20 oocytes from three different females. (C) The viability of Xenopus embryos was followed after incubation with corresponding drugs (0.5, 1, 5 µM). Stages were identified using the Nieuwkoop and Faber table [24]: segmentation, (3 h 30 min after fertilization), gastrulation (9 h after fertilization), neurulation (19 h 45 min after fertilization), tailbud (24 h after fertilization). Experiments were performed on two independent fertilizations and 10 to 40 embryos in each condition.
Figure 4. Non-cancerous cell viability under WN198 treatment. (A) MCF-10A IC50 values are expressed as the mean ± SD of three independent experiments. Cisplatin and WN197 were used as control. (B) Xenopus oocyte G2/M transition was scored by the determination of a white spot at the animal pole showing the progression from prophase I to metaphase II (meiosis maturation) 12 h after microinjection and balneation with corresponding drugs (0.5, 1, 5 µM) and external stimulation by progesterone as a natural inducer (4 µM). Experiments were performed on 10 to 20 oocytes from three different females. (C) The viability of Xenopus embryos was followed after incubation with corresponding drugs (0.5, 1, 5 µM). Stages were identified using the Nieuwkoop and Faber table [24]: segmentation, (3 h 30 min after fertilization), gastrulation (9 h after fertilization), neurulation (19 h 45 min after fertilization), tailbud (24 h after fertilization). Experiments were performed on two independent fertilizations and 10 to 40 embryos in each condition.
Ijms 24 14590 g004
Ijms 24 14590 g005
Figure 5. WN191 and WN198 inhibited human topoisomerase I activity in a dose-dependent manner. Topoisomerase I (Top1) activity is determined by in vitro assays after the addition of either (A) WN198 or (B) WN191 at different concentrations (0.2, 0.5, 1, and 2 µM, lanes 5–8). Relaxed DNA (RDNA, lane 1) or supercoiled DNA (SCDNA, lane 2) is used as migration control. The Top1 activity control allowing the relaxation of SCDNA is in lane 3. DMSO is the solvent control (5%, lane 4). SCDNA is used in all other reactions in the presence of Top1. (C) Etoposide (VP-16, 50 µM; topoisomerase II (Top2) poison, lane 1) is the negative control of Top1 activity inhibition, and camptothecin (CPT, 10 µM; Top1 poison, lane 2) the positive control of Top1 activity inhibition. After topoisomerase reactions, DNA is run in a 1% agarose gel, stained with ethidium bromide (0.5 µg/mL), and visualized under UV light.
Figure 5. WN191 and WN198 inhibited human topoisomerase I activity in a dose-dependent manner. Topoisomerase I (Top1) activity is determined by in vitro assays after the addition of either (A) WN198 or (B) WN191 at different concentrations (0.2, 0.5, 1, and 2 µM, lanes 5–8). Relaxed DNA (RDNA, lane 1) or supercoiled DNA (SCDNA, lane 2) is used as migration control. The Top1 activity control allowing the relaxation of SCDNA is in lane 3. DMSO is the solvent control (5%, lane 4). SCDNA is used in all other reactions in the presence of Top1. (C) Etoposide (VP-16, 50 µM; topoisomerase II (Top2) poison, lane 1) is the negative control of Top1 activity inhibition, and camptothecin (CPT, 10 µM; Top1 poison, lane 2) the positive control of Top1 activity inhibition. After topoisomerase reactions, DNA is run in a 1% agarose gel, stained with ethidium bromide (0.5 µg/mL), and visualized under UV light.
Ijms 24 14590 g005
Ijms 24 14590 g006
Figure 6. Interaction models of the studied ligands and Top1. (A) Crystal structure of the topotecan poison (grey sticks) fitting the DNA groove (orange sticks) of Top1 (brown helices) (PDB ID: 1K4T, 2.1 Å). (B) The binding mode of WN170 (salmon sticks) is similar to topotecan’s binding mode. The main interaction is taking place inside the DNA groove. (C) The interaction model of WN191 (yellow sticks) is slightly different from WN170 as the larger branched arm has to switch down. The main part of the infarction is occurring through the aromatic ring. (D) The binding mode of WN198 (pink sticks with the copper molecule as a blue ball) is similar to the binding mode of WN191.
Figure 6. Interaction models of the studied ligands and Top1. (A) Crystal structure of the topotecan poison (grey sticks) fitting the DNA groove (orange sticks) of Top1 (brown helices) (PDB ID: 1K4T, 2.1 Å). (B) The binding mode of WN170 (salmon sticks) is similar to topotecan’s binding mode. The main interaction is taking place inside the DNA groove. (C) The interaction model of WN191 (yellow sticks) is slightly different from WN170 as the larger branched arm has to switch down. The main part of the infarction is occurring through the aromatic ring. (D) The binding mode of WN198 (pink sticks with the copper molecule as a blue ball) is similar to the binding mode of WN191.
Ijms 24 14590 g006
Ijms 24 14590 g007
Figure 7. WN198-induced autophagy. MDA-MB-231, HeLa, and HT-29 cell lines were treated for 24 h with doxorubicin (Dox, 5 µM), rapamycin (Rap, 0.5 µM), or WN198 (0.5, 1, 5 µM). (A) Western blots were performed with anticleaved caspase 3 and anticleaved PARP antibodies for detection of apoptosis. Anti-γH2AX antibody was used for detection of DNA breaks. (B) Western blot analysis of Beclin-1, and LC3 markers were used for detection of autophagy. LC3-II/LC3-I ratio was determined (arrow). β-actin level was used as a loading control. Relative protein levels were expressed by densitometry using software (Fiji Software, v1.52i).
Figure 7. WN198-induced autophagy. MDA-MB-231, HeLa, and HT-29 cell lines were treated for 24 h with doxorubicin (Dox, 5 µM), rapamycin (Rap, 0.5 µM), or WN198 (0.5, 1, 5 µM). (A) Western blots were performed with anticleaved caspase 3 and anticleaved PARP antibodies for detection of apoptosis. Anti-γH2AX antibody was used for detection of DNA breaks. (B) Western blot analysis of Beclin-1, and LC3 markers were used for detection of autophagy. LC3-II/LC3-I ratio was determined (arrow). β-actin level was used as a loading control. Relative protein levels were expressed by densitometry using software (Fiji Software, v1.52i).
Ijms 24 14590 g007
Table 1. Cell viability IC50 (in μM).
Table 1. Cell viability IC50 (in μM).
MCF-7MDA-MB-231HeLaHT-29DU-145
WN1910.58 ± 0.021.12 ± 0.010.80 ± 0.090.53 ± 0.011.09 ± 0.05
WN1980.89 ± 0.220.37 ± 0.040.72 ± 0.061.06 ± 0.021.04 ± 0.34
WN1700.46 ± 0.170.875 ± 0.010.630 ± 0.090.479 ± 0.070.305 ± 0.04
Cisplatin40.396 ± 11.933.802 ± 1.2719.287 ± 5.32321.313 ± 7.4752.308 ± 0.04
Statistical difference
(WN191/WN198) 		****************
Data are expressed as the mean ± SD of three independent experiments. Statistics were based on the Student’s t-test of the difference between WN191 and WN198. * p < 0.05, *** p < 0.005, and **** p < 0.001. Cisplatin and WN170 were used as positive controls.
Table 2. Melting curves and fluorescence measurements for WN191 and WN198.
Table 2. Melting curves and fluorescence measurements for WN191 and WN198.
CompoundKapp (107 M−1)EtBr Displacement
WN1918.964 ± 0.964 91%
WN19810.791 ± 1.638 89%
Apparent binding constants were measured by fluorescence using [EtBr]/[DNA] = 1.26. Data are the mean of at least three independent experiments.
Table 3. Crystal data and structure refinement for Cu complex WN198.
Table 3. Crystal data and structure refinement for Cu complex WN198.
Empirical Formula C25H34Cl2CuN4O12
Formula weight714.98
Temperature/K296.15
Crystal systemTriclinic
Space groupP-1
a/Å9.0523(12)
b/Å11.6041(14)
c/Å14.3430(19)
α/°89.459(8)
β/°87.775(8)
γ/°87.345(9)
Volume/Å31503.8(3)
Z2
ρcalcg/cm31.579
μ/mm−10.972
F(000)738.0
Crystal size/mm30.213 × 0.177 × 0.034
RadiationMoKα (λ = 0.71073)
2Θ range for data collection/°2.842 to 51.992
Index ranges−11 ≤ h ≤ 12, −15 ≤ k ≤ 15, −19 ≤ l ≤ 19
Reflections collected24167
Independent reflections5754 [Rint = 0.0575, Rsigma = 0.0819]
Data/restraints/parameters5754/3/350
Goodness-of-fit on F21.028
Final R indexes [I ≥ 2σ (I)]R1 = 0.1042, wR2 = 0.2914
Final R indexes [all data]R1 = 0.1547, wR2 = 0.3380
Largest diff. peak/hole/e Å−31.49/−1.39
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Molinaro, C.; Wambang, N.; Pellegrini, S.; Henry, N.; Lensink, M.F.; Germain, E.; Bousquet, T.; de Ruyck, J.; Cailliau, K.; Pélinski, L.; et al. Synthesis and Biological Activity of a New Indenoisoquinoline Copper Derivative as a Topoisomerase I Inhibitor. Int. J. Mol. Sci. 2023, 24, 14590. https://doi.org/10.3390/ijms241914590

AMA Style

Molinaro C, Wambang N, Pellegrini S, Henry N, Lensink MF, Germain E, Bousquet T, de Ruyck J, Cailliau K, Pélinski L, et al. Synthesis and Biological Activity of a New Indenoisoquinoline Copper Derivative as a Topoisomerase I Inhibitor. International Journal of Molecular Sciences. 2023; 24(19):14590. https://doi.org/10.3390/ijms241914590

Chicago/Turabian Style

Molinaro, Caroline, Nathalie Wambang, Sylvain Pellegrini, Natacha Henry, Marc F. Lensink, Emmanuelle Germain, Till Bousquet, Jérôme de Ruyck, Katia Cailliau, Lydie Pélinski, and et al. 2023. "Synthesis and Biological Activity of a New Indenoisoquinoline Copper Derivative as a Topoisomerase I Inhibitor" International Journal of Molecular Sciences 24, no. 19: 14590. https://doi.org/10.3390/ijms241914590

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
