1. Introduction
Autoimmune disorders result from a loss of immune self-tolerance with the development of autoreactive T cells and auto-antibodies [
1]. Current treatments for conditions such as multiple sclerosis and rheumatoid arthritis often involve therapies with broad immunosuppressive effects. However, these can increase the risk of infections and diminish vaccine responsiveness [
2]. A more selective treatment approach is to suppress aberrant self-directed immune responses whilst promoting durable, stable immune tolerance in an antigen-specific manner, leaving general immune effector functions intact [
1]. One method of achieving this is by harnessing dendritic cells (DCs), which are professional antigen presenting cells (APCs) and an essential bridge between the innate and adaptive immune systems. Treating DCs with anti-inflammatory signals can induce them to become tolerogenic, characterised by reduced maturation, downregulation of cell-surface major histocompatibility complex (MHC) and co-stimulatory molecules (CD40, CD80 and CD86), decreased pro-inflammatory and increased anti-inflammatory cytokine production and reduced capacity to activate adaptive immune responses [
3]. Tolerogenic DCs (TolDCs) have been investigated as a therapeutic approach to autoimmune conditions, including multiple sclerosis [
4,
5], rheumatoid arthritis [
6,
7], type 1 diabetes [
8] and Crohn’s disease [
9].
Signalling mediated through the TAM (Tyro3, Axl, Mertk) receptors plays important roles in the immune system, including inhibiting the inflammatory response to pathogens and promoting the clearance of apoptotic cells by APCs. GAS6 is a ligand for all three receptors, whilst PROS can only activate TYRO3 and MERTK [
10,
11]. The TAMs have been explored as potential therapeutic targets in various contexts, including autoimmune disorders and cancer. They are expressed on cells of the immune (including DCs, macrophages, NK cells and B cells), nervous (microglia and astrocytes), reproductive and vascular systems [
12].
Different compounds have been used to generate tolDCs in vitro, including dexamethasone, which upregulates MERTK expression at the mRNA and protein levels [
13]. Dexamethasone exerts its tolerogenic effects through multiple pathways including the regulation of genes involved in DC maturation, complement activation and immune-related chemotaxis [
14,
15]. However, to what extent the diverse tolerogenic effects of dexamethasone are mediated via MERTK is not clearly defined. A previous study found that DCs with dexamethasone-induced MERTK upregulation could suppress human T-cell activation and proliferation. When DCs were treated with a blocking monoclonal antibody against MERTK, and subsequently co-cultured with CD4+ T-cells, T-cell proliferation and IFN-γ production increased [
13]. However, the effects on CD4+ T-cell proliferation are only one of many amongst dexamethasone’s tolerogenic effects.
TAM receptors promote immune tolerance through several mechanisms [
16] that may be potentiated for therapeutic purposes. TAM receptor signalling inhibits the production of pro-inflammatory cytokines, including TNF, IL-6, IL-12 and type I interferons in response to inflammation and Toll-like receptor (TLR) signalling pathways activated by pathogens [
12]. Mice deficient in all three TAM receptors develop autoimmune conditions due to hyperproliferation of B- and T-cells, predicated on the loss of TAM receptors in APCs such as macrophages and DCs [
17].
The TAM receptors also play a crucial role in modifying phagocytic uptake by APCs, serving to limit autoimmunity by clearing apoptotic cell debris that could otherwise serve as a source of autoantigens in a process known as efferocytosis. Efferocytosis is initiated when phosphatidylserine expressed by apoptotic cells is bound by PROS or GAS6, flagging these cells for APC engagement via bridging to one or more of the TAM receptors [
18]. In APCs, the small GTPase recycling regulator Rab17 prevents efferocytosed material from loading onto MHC class II molecules, cell surface presentation and subsequent adaptive immune activation [
19]. Animal studies have also demonstrated the key role of Mertk in efferocytosis and autoimmunity. Mertk-deficient mice have impaired clearance of apoptotic thymocytes by macrophages [
20] and develop lupus-like symptoms [
21]. Mertk-deficient non-obese diabetes mice develop disease earlier and at a higher frequency than their wild-type litter mates due to the failure of apoptotic cells to induce tolerance [
22].
We aimed to interrogate the link between dexamethasone’s tolerogenic effects and MERTK signalling in DCs, as this could lead to strategies to potentiate these effects for therapeutic purposes by targeting MERTK signalling. We used two MERTK inhibitors, UNC2025 and MIPS15692, to block MERTK signalling on DCs. We hypothesised that, if treatment with the MERTK inhibitors could reverse the dexamethasone-induced changes in DC phenotypes, this would provide evidence for a substantive MERTK-mediated effect. Of the tolerogenic properties induced by dexamethasone, we found that only efferocytosis was MERTK mediated. We also provide a potential mechanism by which MERTK-dependent efferocytosis in DCs can contribute to immune tolerance.
3. Discussion
We have shown that dexamethasone significantly upregulates MERTK expression and induces MERTK phosphorylation in moDCs. Dexamethasone treatment also promotes a tolerogenic phenotype characterised by a combined reduction in co-stimulatory molecule expression, moDC maturation, capacity to stimulate proliferation of CD4+ T-cells and pro-inflammatory cytokine secretion, whilst enhancing efferocytosis of myelin debris. MERTK is known to be involved in immune tolerance and by using MERTK inhibitors we demonstrated that the tolerogenic effects of dexamethasone on efferocytosis are mediated via MERTK signalling, and this MERTK-mediated enhancement of efferocytosis could facilitate diversion of apoptotic materials towards recycling endosomes and away from MHC-II presentation. However, other dexamethasone-induced tolerogenic effects, including reducing co-stimulatory molecule expression, DC maturation, pro-inflammatory cytokine production and T-cell proliferation, appear to be MERTK-independent. The influences of dexamethasone upon MERTK expression and promotion of tolerogenic characteristics in moDCs were enduring despite subsequent exposure to a pro-inflammatory stimulus, namely LPS, in the absence of dexamethasone.
Tolerogenic DCs are emerging as a promising therapeutic approach to autoimmune diseases. Dexamethasone is one of several agents that can promote a tolerogenic phenotype in DCs in vitro. Dexamethasone has diverse effects but the mechanisms by which it induces these properties are not clearly defined. One of the unique effects of dexamethasone, compared to other tolerogenic agents such as vitamin D3 and TGF-β, is to upregulate MERTK expression on DCs [
13,
14]. Given the role of MERTK in immunomodulation, we sought to assess to what extent the tolerogenic phenotype induced by dexamethasone is mediated via MERTK signalling, as this could provide insights into how to harness this for therapeutic effect.

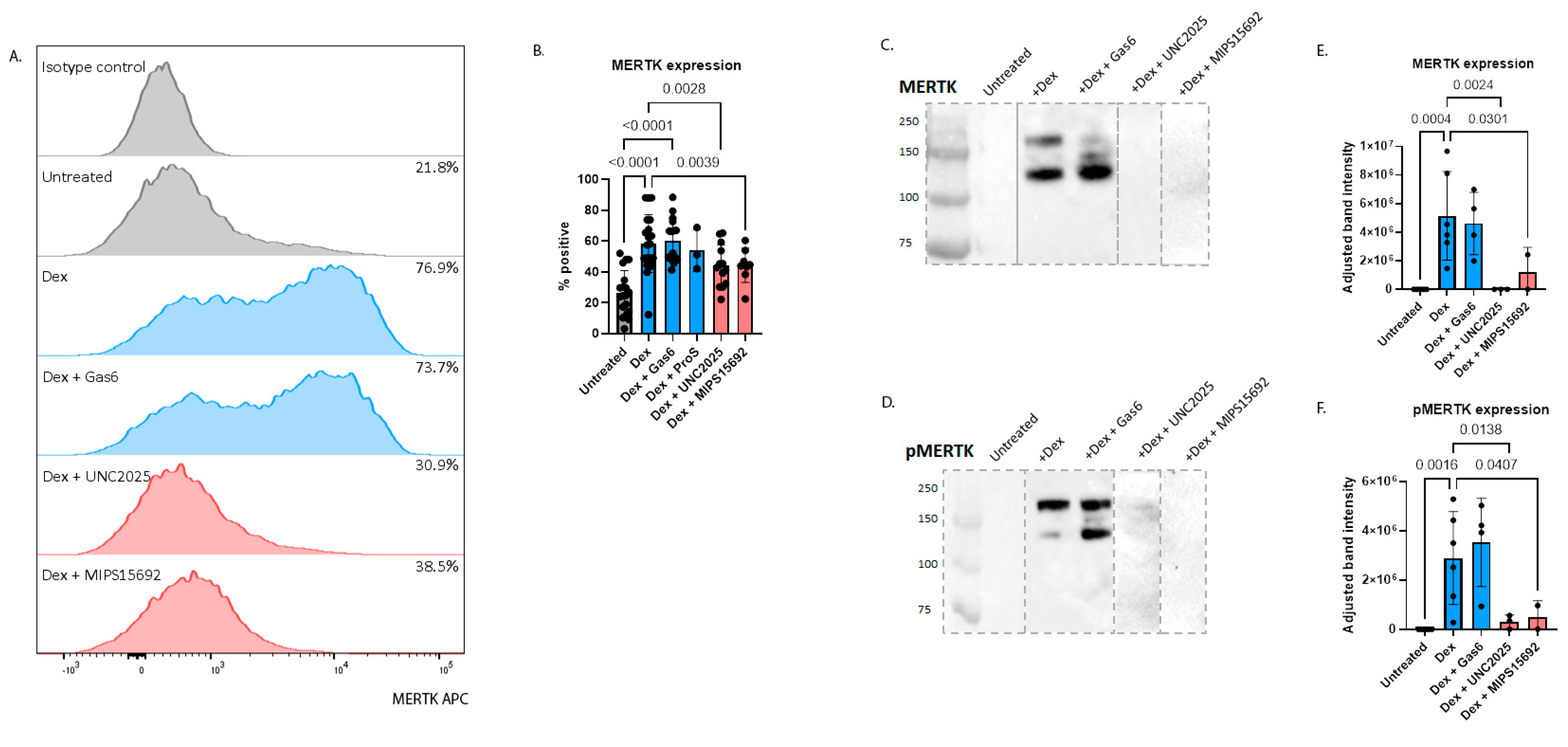

Firstly, we confirmed that the proportion of moDCs expressing MERTK increased by over twofold with dexamethasone treatment, which is consistent with previous studies [
13]. MERTK upregulation was also associated with its phosphorylation, which is required for its activation and downstream actions [
16]. Interestingly, on Western blot, in addition to detecting the expected dominant MERTK and pMERTK species at approximately 110 kDa and 180 kDa, we also identified two fainter bands, one at a higher and the other at a lower molecular weight, seen with dexamethasone treatment either with or without additional GAS6. These likely represent differentially glycosylated forms of MERTK [
28]. The MERTK contains 14 N-linked glycosylation sites in its extracellular domain and several differentially glycosylated forms have been reported ranging from 110 kDa to 205 kDa [
28]. There is evidence from tumour cell types that differentially glycosylated MERTK isoforms are functionally important in the context of MERTK’s role in oncogenesis. A previous study using acute lymphoblastic leukaemia cell lines found that prolonged GAS6 exposure for over 18 h led to preferential expression of a lower molecular weight partially glycosylated form of MERTK compared to control samples where the fully glycosylated form was predominant [
29]. The partial MERTK glycoform was associated with altered downstream ERK signalling and localisation to nuclear compartments rather than the plasma membrane. MERTK also contains a nuclear localisation sequence, suggesting nuclear MERTK could be involved in transcriptional regulation following prolonged ligand stimulation [
30]. MERTK N-glycosylation was also found to be critical for its homodimerisation, stability and tumour-promoting effect in hepatocellular carcinoma [
31]. Whether the glycoforms of MERTK and pMERTK have different functions and localisation in DCs is unclear. We also found that prolonged GAS6 treatment, together with dexamethasone, was associated with a relative increase in the lower molecular weight form, suggestive of reduced glycosylation, although this would have to be verified via the addition of tunicamycin. Of note, a recent study identified MERTK in the nucleus of human monocyte-derived DCs, with translocation induced by the binding of protein S [
32]. The highest nuclear localisation was found in newly differentiated DCs, but dexamethasone treatment led to only a minor increase in nuclear MERTK. Nuclear MERTK was associated with open chromatin and was proposed to act as a transcription factor regulating DC differentiation, though the authors were not able to identify the genomic regions influenced by MERTK.
The mechanisms by which dexamethasone exerts tolerogenic effects has been previously studied by transcriptomic profiling of DCs. Dexamethasone was associated with the downregulation of genes involved in DC maturation and inflammation, including CD80, CD83, CD1c, ACTA2, ACTG1, TMBS10, AP-1 and RAP1GAP, and the upregulation of anti-inflammatory genes, including MERTK and IL-10, involved in expansion of Treg cell populations and tolerance [
14]. These changes in gene expression are in concord with our findings at a protein level with reduced CD80 and CD83 expression on flow cytometry. Another study performed microarray analysis of dexamethasone-treated DCs to identify the mechanisms of tolerance induction [
15]. Overexpressed genes in dexamethasone-treated compared to untreated DCs included those involved in immune-related functions such as complement activation (C1QB and C1QC), immune-related chemotaxis (CCL2, CCL4, CCL18 and CCL26), CD163 and the induction of ERK1/2 signalling. In particular, C1Q has been implicated in tolerogenic processes such as the clearance of self and apoptotic cells by macrophages and DCs, by acting as a bridge between phagocytic cells and apoptotic debris [
33]. C1Q-stimulated DCs also demonstrated reduced expression of CD80, CD83 and CD86, reduced capacity to stimulate T-cell proliferation and the production of pro-inflammatory cytokines [
34], changes that were observed in our dexamethasone-treated DCs.
As MERTK is involved in immune regulation and is upregulated by dexamethasone on DCs, we sought to assess whether MERTK signalling is directly involved in the tolerogenic phenotype induced by dexamethasone by adding either a non-specific (UNC2025) or specific (MIPS15692) MERTK inhibitor to dexamethasone-treated moDCs. UNC2025 is a small-molecule tyrosine kinase inhibitor that potently inhibits MERTK (IC
50 = 2.7 nM) and FLT3 (IC
50 = 3 nM), along with multiple other receptors at higher concentrations. It is selective towards MERTK relative to other TAM receptors including Axl, the next potently inhibited kinase (IC
50 = 122 nM) [
25]. It has been used in previous studies investigating the role of MERTK in myelin phagocytosis by human myeloid cells [
35]. MIPS15692 also has potent activity against MERTK (IC
50 = 4.0 nM) with good selectivity for MERTK over AXL (∼40×) and TYRO3 (∼85–100×), and importantly, does not act on FLT3 [
26]. Both agents abolished MERTK and pMERTK expression in DCs. They could fully reverse the dexamethasone-induced enhancement of myelin debris uptake by moDCs, indicating that this action is mediated via MERTK signalling. This is in keeping with a known role of MERTK in the clearance of apoptotic cell debris via efferocytosis. Phosphatidylserine expressed by apoptotic cells is bound by the TAM ligands, which flag them for TAM receptor-mediated efferocytic uptake by APCs [
18].
The processes by which phagocytic cells such as DCs take up material can determine whether downstream immunogenic or tolerogenic processes are initiated. Phagocytosis of pathogens activates pro-inflammatory responses with antigen degradation and presentation on cell surface MHC-II. Conversely, following efferocytosis of apoptotic cells that would otherwise promote inflammation if left uncleared, the engulfed material is transferred to recycling endosomes, diverting it away from the MHC-II loading compartment, subsequent cell surface presentation and T-cell activation. In a previous study, the GTPase Rab17 was found to be induced in macrophages following efferocytosis and involved in this differential processing [
19]. Rab17 is known to play a key role in regulating the recirculation of material in polarised cells via recycling endosomes, as demonstrated by its colocalization with the recycling endosome markers transferrin receptor and FcLR chimeric receptor [
36]. In a study by Yin et al., Rab17 was recruited to both phagosomes and efferosomes in early stages after engulfment of the target material but persisted only in the latter. The authors proposed that initial Rab17 activation and recruitment was induced by the guanine exchange factor Rabex-5 [
37], though other molecules such as Rab7 may subsequently displace Rabex-5 from phagosomes [
19]. We also found a higher expression of Rab17 in DCs undergoing efferocytosis. Whilst this was the case in all treatment conditions, Rab17 expression was lower in DCs that had been treated with MIPS15692 compared to dexamethasone with or without GAS6, suggesting that MERTK inhibition correlated with reduced recycling of engulfed apoptotic material. Further replication is required to confirm these promising data, which point to modulation of MHC-II antigen presentation of apoptotic material by DCs and subsequent activation of adaptive immune responses as a potential mechanism linking dexamethasone-enhanced efferocytosis and MERTK signalling with its tolerogenic effects.
Previous studies have also linked apoptotic cells with inhibition of DC maturation and activation via the NF-κB pathway, a process found to be dependent on MERTK activation of the PI3K/AKT pathway in a non-obese diabetes mouse model [
38]. The suppression of NF-κB transcription also inhibits secretion of pro-inflammatory cytokines, such as TNF-α, IL-1β, IL-6 and IL-12 [
39,
40]. The effect of apoptotic cells on DCs was found to be GAS6-dependent, and MERTK-deficient mice exhibited increased frequency of activated pancreatic DCs with enhanced T cell stimulatory capacity [
22]. This suggests that MERTK is important for this process in vivo, whereas dexamethasone has similar effects in vitro but via alternative mechanisms.
We found that other tolerogenic effects of dexamethasone, including upon the inhibition of co-stimulatory molecule expression, maturation, pro-inflammatory cytokine production and T-cell proliferation, were not MERTK-mediated. Whilst UNC2025 could partly reverse the dexamethasone-induced inhibition of CD80 and CD86 expression and DC maturation, this effect was not seen when the specific MERTK inhibitor MIPS15692 was added to dexamethasone-treated moDCs. UNC2025 is a potent inhibitor of both MERTK and FLT3. In addition, it inhibits a number of other receptors at higher IC50 levels, including AXL, TRKA, TRKC, QIK, TYRO3, SLK, NuaK1, KIT and Met [
25]. At the concentration of 1 μM used in most of our experiments, it would be expected that both MERTK and FLT3 were completely inhibited whilst the other receptors would also reach greater than 90% inhibition. FLT3 signalling is also required for DC differentiation. The administration of FLT3 ligand to both mice and human subjects resulted in the expansion of circulating DCs in vivo [
41,
42]. Whilst these DCs had low expression of CD40, CD80 and CD83, representing an immature state, CD80, CD83 and CD86 expression could be upregulated following further in vitro culture of Flt3L-mobilised DCs [
43]. Given the discordant impact of non-specific and specific MERTK inhibition using UNC2025 and MIPS15692, respectively, on many of the dexamethasone-induced characteristics, it is tenable that FLT3 rather than MERTK signalling underlie these effects confined to UNC2025.
The addition of the MERTK ligands GAS6 and PROS did not enhance dexamethasone’s tolerogenic effects, further supporting that most of the changes were not MERTK-mediated. Interestingly however, GAS6 also did not enhance the efferocytic capacity of DCs. This may be due to sufficient GAS6 or PROS being present in the culture environment, such that adding exogenous ligand had no further effect. In support of this view, secreted GAS6 and PROS have been detected in serum-free cultures of mice peritoneal macrophages [
44] and GAS6 from mice hepatic stellate cells [
45].
The role of TAM signalling in the interaction between DCs and T cells is clearly complex. In contrast to our findings, a previous study that investigated the role of MERTK in immune tolerance using a neutralising antibody against MERTK rather than a small molecule inhibitor found that blockage of MERTK in DC-T cell cultures increased CD4+ T cell proliferation and IFN-γ production [
13]. This study reported that the activation of MERTK signalling reduced the secretion of IL-2, involved in expansion of T-cell populations, which may underlie MERTK-mediated T-cell suppression [
13]. Whilst we also observed inhibition of T-cell proliferation and reduced IL-2 secretion in dexamethasone-treated moDC/T-cell co-cultures, MERTK inhibition using UNC2025 or MIPS15692 did not reverse this effect, to increase CD4+ T-cell proliferation. Of note, there is also negative feedback from activated T-cells which can express PROS to limit DC activation via TAM signalling at the T cell–DC interface to maintain immune homeostasis. Neutralisation of PROS with an anti-PROS antibody was found to increase CD86 and CD40 expression on DCs [
46]. It is therefore possible that, in certain contexts, inhibiting MERTK may also attenuate the suppressive effect of activated T cell-derived PROS on limiting further DC activation.
Discrepancies in outcomes have also been observed in studies assessing the effects of MERTK inhibition using different methods and models both in vivo and in vitro. A recent study found that phenotypic characteristics which have been traditionally attributed to the loss of MERTK in a widely used MERTK knockout mouse model established by Camenisch et al. cannot be explained by loss of MERTK function alone [
47]. For example, retinal degeneration seen in these mice, which had been previously ascribed to failure of MERTK-mediated phagocytosis of photoreceptor outer segments, is only present when TYRO3 function is also lost and was not seen in independently generated MERTK knockout mice. On the other hand, a study focusing on the type 1 diabetes NOD mouse model, and assessing granzyme B and IFN-γ production as markers of CD8+ and CD4+ T-cell activation following MERTK inhibition with UNC2025 challenge, found incomplete penetrance. Only half of these challenged mice showed an increase in granzyme B expression and disease induction, whilst IFN-γ production was unaffected, indicating there are potentially other mechanisms of immune tolerance compensating for MERTK signalling [
48].
In vitro studies assessing TAM receptor signalling have previously predominantly used either monoclonal antibodies or small molecule inhibitors. However, the former can potentially lead to receptor dimerization and internalisation, and the activation of kinases during internalisation [
49], whilst compensatory upregulation of receptor expression has been observed with small molecule inhibitors targeting AXL [
50]. A recent study demonstrated proof-of-concept of another method for TAM receptor inhibition using targeted protein degraders which could prove useful in mitigating against these confounding effects [
51]. The methodology involved applying heterobifunctional molecules that use the ubiquitin proteasome pathway to target specific proteins for degradation by redirecting E3 ubiquitin ligase activity. The authors report that these molecules are not dependent on sustained target engagement to maintain the desired effect, but rather initiate an event driven process. A selective MERTK degrader reduced bone marrow-derived macrophage MERTK cell surface expression by up to 70%, and MERTK expression remained suppressed below baseline levels for at least 24 h after the removal of the degrader. Treatment also led to decreased efferocytosis of apoptotic Jurkat cells. This highlights the importance of interrogating functions of the TAM receptors using different models and methods and ultimately understanding the complex influence that any given intervention can have upon signalling mechanisms.
In conclusion, dexamethasone induces a number of tolerogenic characteristics in DCs. One of its unique effects compared to other tolerogenic agents is to upregulate the tyrosine kinase receptor MERTK and induce its phosphorylation. With the current interest in MERTK as a therapeutic target in autoimmune diseases, and indeed its use as a marker of tolDCs in human trials [
5,
9], it is important to understand the mechanisms by which MERTK signalling could promote a tolerogenic phenotype in DCs. By using non-specific and specific MERTK inhibitors, we were able to distinguish between MERTK-dependent and independent tolerogenic effects of dexamethasone and to propose a further mechanism by which efferocytosis-mediated immune tolerance is mediated. It is not unexpected that there are redundancies in the pathways underpinning the execution of a critical process such as immune tolerance. Our work provides further clarification of how MERTK activation can contribute to this process and potentially for optimised therapeutic benefit.
4. Materials and Methods
4.1. Peripheral Blood Mononuclear Cell Isolation
Buffy coat samples from the Australian Red Cross (obtained under Material Supply Deed 20-03VIC-02 and 22-04VIC-09) and whole blood samples from healthy controls (ethics approval from Melbourne Health Human Research Ethics Committee project number 2013.111) were used for peripheral blood mononuclear cell (PBMC) isolation. Samples were diluted 1:1 in room temperature phosphate buffered saline (PBS) (without calcium and magnesium) in 50 mL Falcon centrifugation tubes (Fisher Scientific, Waltham, MA, USA) and mixed gently using a serological pipette. Then, 30 mL of diluted samples was carefully added to another centrifugation tube containing 15 mL of room-temperature Ficoll-Paque Plus (GE Healthcare), avoiding mixing and introduction of air bubbles. Tubes containing Ficoll-Paque Plus and the diluted blood mixture were centrifuged at room temperature for 30 min at 700× g with medium acceleration and no brake (Eppendorf Centrifuge 5910R with swinging bucket rotor). The PBMC layer between the PBS/plasma and Ficoll layers was carefully collected and transferred into a new 50 mL centrifugation tube and PBS was added to increase the sample volume to 50 mL to dilute any Ficoll that may have been aspirated. Tubes were centrifuged for 15 min at 480× g with full brake. The supernatant was discarded and cell pellet loosened by tapping the base of the tube. All cell pellets from each individual were pooled into a single centrifugation tube and PBS was added to increase the sample volume to 10 mL. Then, 10 µL was diluted with 90 µL Trypan Blue Solution 0.4% in an Eppendorf microtube (ThermoFisher Scientific, Waltham, MA, USA) for counting, using a Neubauer haemocytometer. After counting, the 10 mL PBMC suspension was completed to 50 mL with PBS and centrifuged for 12 min at 310× g with full brake. The supernatant was discarded and cell pellet containing PBMCs used for subsequent CD14+ monocyte isolation.
4.2. CD14+ Monocyte Isolation
PBMCs were resuspended in 1 µL Fc receptor blocking antibody (130-059-901, Miltenyi Biotec, Bergisch Gladbach, Germany) diluted in 49 µL fluorescence-activated cell sorting (FACS) buffer (2% foetal calf serum, 2 mM EDTA and PBS) per 106 cells for 10 min at 4 °C. FACS buffer was added to increase the sample volume to 5 mL before centrifuging at 300× g for 10 min at 4 °C to form a cell pellet. Cells were incubated with 20 μL CD14 magnetic microbeads (130-050-201, Miltenyi Biotec, Germany) diluted in 80 μL of FACS buffer per 107 cells for 30 min at 4 °C. FACS buffer was added to increase the cell suspension volume to 2 mL before centrifuging at 300× g for 10 min at 4 °C to remove unbound microbeads. Cells were resuspended in 500 μL FACS buffer and loaded into a MACS column pre-rinsed with 500 μL of FACS buffer that was placed in the magnetic field of a MACS Separator (Miltenyi Biotec, Bergisch Gladbach, Germany). A maximum of 2 × 108 cells was used per column. The MACS column was washed three times with 500 μL of FACS buffer, then removed from the separator and placed in a 15 mL collection tube. A further 1 mL of FACS buffer was used to flush out the magnetically labelled CD14+ cells.
4.3. Generation of Monocyte-Derived Dendritic Cells (moDCs)
Mature moDCs were generated as per a previously published protocol [
52]. A total of 1.5 × 10
6 CD14+ monocytes were cultured in 2 mL X VIVO 15 medium (BioWhittaker, Lonza, Belgium) in six-well cell culture plates (Nunc, ThermoFisher Scientific, Waltham, MA, USA). GM-CSF 100 ng/mL (Peprotech, Cranbury, NJ, USA) and IL-4 100 ng/mL (Peprotech, Cranbury, NJ, USA) were added to the culture medium on day 0. After 24 h, maturation cytokines IL-1β 10 ng/mL, IL-6 10 ng/mL, TNF-α 50 ng/mL and PGE2 1 μM (Peprotech, Cranbury, NJ, USA) were added. Cells were harvested at 48 h.
4.4. Tolerogenic Stimuli
Dexamethasone (reconstituted in ethanol) 10
−7 M (Peprotech, Cranbury, NJ, USA) was added, after 24 h of moDC culture, for a further 24 h to moDC cultures to induce a tolerogenic phenotype (
Supplementary Figure S4).
4.5. MERTK Signalling
Recombinant human GAS6 (reconstituted in sterile water), 100 ng/mL (RnD Systems, Minneapolis, MN, USA), human protein S (reconstituted in sterile water), 5 μg/mL (Enzyme Research Laboratories, South Bend, IN, USA), UNC2025 (reconstituted in DMSO), 1 μM (Selleck Chemicals, Houston, TX, USA), MIPS15692 (reconstituted in DMSO), 10 μM and a specific MERTK inhibitor (Monash Institute of Institute of Pharmaceutical Sciences, Monash University, Parkville, Australia) were added to moDC cultures after 24 h of culture at the same time as dexamethasone for a further 24 h to assess effect on MERTK signalling (
Supplementary Figure S4).
4.6. Lipopolysaccharide Treatment
At day 2 after generation of mature moDCs as per
Section 4.3, cells were washed with PBS and fresh media was added containing either lipopolysaccharide, (Sigma, Darmstadt, Germany) 100 ng/mL, or no additional treatment for a further 24 h (
Supplementary Figure S4).
4.7. Flow Cytometry
Phenotyping of primary human monocytes and monocyte-derived DCs was performed using flow cytometry. 1.5 × 10
6 CD14+ monocytes were used for moDC differentiation in six-well cell culture plates (Nunc, ThermoFisher Scientific, Waltham, MA, USA). Differentiated cells were gently detached using PBS (without calcium and magnesium) and centrifuged at 300×
g for 10 min at 4 °C to form a cell pellet. This was resuspended in 1 µL Fc receptor blocking antibody (Miltenyi Biotec, Bergisch Gladbach, Germany) and 49 µL FACS buffer per 10
6 cells for 10 min at 4 °C. Cells were washed with FACS buffer and incubated for 30 min at 4 °C with fluorophore-conjugated antibodies or control isotype antibodies (
Table 1). After incubation, cells were washed with FACS buffer to remove unbound antibodies and resuspended in an appropriate volume of FACS buffer for flow cytometry analysis, which was performed using CytoFlex LX (Beckman Coulter, Pasadena, CA, USA). Live cells were gated based on live–dead staining using 7-amino-actinomycin D (7AAD). Singlets were selected using forward light scatter (FSC) area and height. At least 10
4 cells of interest were recorded and gated based on FSC and side light scatter (SSC) areas. Analysis was performed using FlowJo version 10.7.1.
4.8. Myelin Debris Efferocytosis Assay
Human myelin debris was fluorescently tagged with pHrodo iFL Green STEP Ester (P36012, ThermoFisher Scientific, Waltham, MA, USA). Then, 100 mg/mL aliquot of thawed human myelin was centrifuged at 14,800× g for 10 min at 4 °C. The supernatant was removed, and the pellet incubated in 200 μL 2 mM pHrodo solution in DMSO for 1 h at room temperature, protected from light. The fluorescently tagged myelin was washed with PBS twice, resuspended in PBS to 100 mg/mL and added to moDCs cultured from 1.5 × 106 CD14+ monocytes in six-well cell culture plates (Nunc, ThermoFisher Scientific, Waltham, MA, USA) to achieve a final concentration of 1 mg/mL. Cell cultures were incubated for 1 h at 37 °C to allow phagocytosis of myelin debris. Cells were washed twice in warm PBS to remove excess cells and debris and harvested by mechanical dissociation before proceeding for analysis by flow cytometry.
4.9. Cytokine and Chemokine Analysis
Cytokine concentration quantification in cell culture supernatant (either fresh or stored at −20 °C) was performed using the Human Essential Immune Response Panel LEGENDplex bead-based immunoassay (BioLegend, San Diego, CA, USA) according to manufacturer protocol. Samples were analysed using CytoFlex S (Beckman Coulter, Pasadena, CA, USA) flow cytometer, and data analysis was performed using the LEGENDplex™ Data Analysis Software Suite (Version 2023-02-15).
4.10. CD4+ T Cell Isolation and Proliferation Assay
Isolation of untouched CD4+ T-cells from PBMCs was performed using the CD4+ T Cell Isolation Kit, MACS MS or LS Separator column and QuadroMACS Separator (all Miltenyi Biotec, Bergisch Gladbach, Germany) according to manufacturer protocol.
CellTrace™ Violet (CTV) proliferation kit (ThermoFisher Scientific, Waltham, MA, USA) was used to assess proliferation of magnetically isolated CD4+ T cells according to manufacturer protocol. Isolated cells suspended in PBS at 106 cells/mL were incubated for 20 min at room temperature, protected from light with CellTrace™ stock solution and diluted in DMSO immediately prior to use. Then, 1 µL of CellTrace™ stock solution in DMSO was added per 1 mL of cell suspension in PBS. Culture medium of 5 times the original staining volume was added to the cells and incubated for a further 5 min. Cells were centrifuged at 300× g for 10 min to obtain a cell pellet and resuspended in warmed culture medium. Then, 105 cells were analysed by flow cytometry immediately after staining for unstimulated control and to assess the purity of isolated CD4+ T-cells.
CTV-labelled CD4+ T-cells were co-cultured with moDCs at a ratio of 2:1 (3 × 106 CD4+ T cells added to moDCs differentiated from 1.5 × 106 CD14+ monocytes) for 7 days at 37 °C in 5% CO2. Cells were harvested for FACS analysis with unstained cells used as negative unstained control and unstimulated cells immediately after CTV labelling as positive control. Discrete peaks on the CTV fluorescence histogram were counted as successive generations of CD4+ T-cells.
4.11. Western Blot
We used 5 × 106 CD14+ monocytes for moDC differentiation in 60 mm cell culture dishes (Nunc, ThermoFisher Scientific, Waltham, MA, USA) for Western blot experiments. Cultured cells were harvested by manual aspiration using chilled PBS and lysed in 10 mM Tris pH 8, 150 mM NaCl, 1 mM EDTA pH 8, Igepal 1% and protease/phosphatase inhibitors. Protein determination was performed using the Bradford reagent method. Then, 30 μg total protein was loaded per lane on a 4–12% gel (Invitrogen, Waltham, MA, USA) and run under reducing conditions in MOPS running buffer at 200 V for approximately 30 min. Transfer to PVDF membrane was performed using Bio-Rad Transblot Turbo mini or midi gels (Bio-Rad, Hercules, CA, USA). The membrane was washed in TBST (10 mM Tris pH 8, 150 mM NaCl, 1 mM EDTA pH 8, 0.1% Tween), blocked in 5% milk powder for 15 min at room temperature, then incubated with the primary antibody (MERTK, Abcam, Boston, MA, USA or phospho-MERTK, FabGennix, Frisco, TX, USA) diluted 1:1000 in TBST containing 2% BSA and 0.03% sodium azide overnight at 4 °C. The following day, the membrane was rinsed in TBST followed by incubation with the secondary antibody (HRP-linked anti-rabbit antibody, Cell Signalling Technology, Danvers, MA, USA) and diluted 1:3000 in TBST for 1 h at room temperature. The membrane was washed in TBST before visualising using chemiluminescent substrate. Imaging was performed using the ChemiDoc MP imaging system (Bio-Rad, CA, USA). Densitometry of MERTK and pMERTK bands was quantified relative to ERK expression.
4.12. Apoptotic Jurkat Cells Efferocytosis Assay and Immunofluorescence
4.12.1. Jurkat Cell Culture and Apoptosis Induction
Jurkat cells were cultured in suspension in RPMI 1640 + 10% FBS at 37 °C in 5% CO2, and maintained by passaging 1:5 into fresh, pre-warmed media every 3–5 days. Apoptotic cells were prepared by allowing the Jurkat culture to grow to high density (4–5 days after passaging). Cells were pelleted by centrifuging at 500× g for 5 min, then resuspended in 1 mL of serum-free RPMI 1640 medium containing 1 μM staurosporine (Selleck Chemicals, Houston, TX, USA). Cells were incubated for 16 h at 37 °C in 5% CO2 to induce apoptosis. Apoptosis of cells was confirmed by staining with annexin V and 7-AAD (Biolegend, San Diego, CA, USA), as per the manufacturer’s protocol, and FACS analysis to confirm presence of annexin V-positive cells.
4.12.2. Jurkat Cell Labelling
Cell Tracker Green CMFDA dye (ThermoFisher Scientific, Waltham, MA, USA) was used to fluorescently label apoptotic Jurkat cells. A working dye solution of 10 mM was prepared by dissolving the lyophilised product in DMSO. The working stock was diluted to 5 μM working concentration in serum-free RPMI 1640 medium and warmed to 37 °C. Apoptotic Jurkat cells were pelleted by centrifugation and incubated in the Cell Tracker Green working dye solution for 30 min at 37 °C. Stained cells were centrifuged to remove the working dye solution and resuspended in RPMI 1640 + 10% FBS.
4.12.3. Efferocytosis of Apoptotic Jurkat Cells by moDCs
Apoptotic stained Jurkat cells, prepared as above, were pelleted by centrifuging at 500× g for 5 min and resuspended in RPMI 1640 + 10% FBS and 100 μL per well of moDCs. An apoptotic target/efferocyte ratio of 3:1 was used. The suspension containing 7.5 × 105 apoptotic cells was added dropwise to 2.5 × 105 moDCs cultured on glass coverslips in 24-well tissue culture plates (Nunc, ThermoFisher Scientific, Waltham, MA, USA). The culture plate was centrifuged at 200× g for 1 min to force contact between moDCs and Jurkat cells. The plate was incubated at 37 °C in 5% CO2 for 60 min. Cells were then washed twice with 1 mL of room-temperature PBS to stop efferocytosis and remove non-efferocytosed apoptotic cells.
4.13. Immunocytochemistry
Following efferocytosis, cells were fixed by adding 500 μL per well of 4% PFA for 10 min at room temperature. Cells were washed 3 times with PBS (with calcium and magnesium), 500 μL per well, and blocked with blocking buffer (0.3% Triton, 10% goat serum (Merck KGaA, Darmstadt, Germany) in PBS), 500 μL per well, for 1 h at room temperature. Cells were washed 3 times with PBS (with calcium and magnesium), 500 μL per well, and incubated with anti-MHC-II antibody (sc-53896, Santa Cruz Biotechnology, Dallas, TX, USA) (1:200), 150 μL per well, overnight at 4 °C. Cells were washed 3 times with PBS (with calcium and magnesium), 500 μL per well, and incubated with secondary antibody goat anti-mouse Alexa 647 (115-605-146, Jackson Immunoresearch, West Grove, PA, USA) (1:200), 150 μL per well, for 45 min at room temperature. Cells were washed 3 times with PBS (with calcium and magnesium), 500 μL per well. Cells were then incubated with anti-Rab17 antibody (17501-1-AP, Proteintech, Rosemont, IL, USA) (1:200), 150 μL per well, overnight at 4 °C. Cells were washed 3 times with PBS (with calcium and magnesium), 500 μL per well, and incubated with secondary antibody goat anti-rabbit Alexa 594 (111-585-003, Jackson Immunoresearch, PA, USA) (1:200) and Hoescht (Invitrogen, Waltham, MA, USA) (1:10,000), 150 μL per well, for 45 min at room temperature. Cells were washed 3 times with PBS (with calcium and magnesium), 500 μL per well, and coverslips mounted on slides using a drop of MOWIOL.
4.14. Image Analysis
Stained cells on coverslips were imaged using a Leica SP8 confocal microscope and Leica LAS X software version 5.1.0. Z-stack images of cells were captured with at least 60 cells per condition in three regions. Image analysis and cell counting were performed in ImageJ software version 1.53t. To quantify proportions of cells undergoing efferocytosis in each condition, the number of moDCs (nuclei/blue) bound to apoptotic Jurkat cells (green) was divided by total numbers of cells (nuclei/blue). Proportions of cells undergoing efferocytosis and not undergoing efferocytosis that expressed Rab17, MHC-II or both, respectively, were then quantified.
4.15. Statistical Analysis
Statistical analyses were performed using GraphPad Prism v9 (GraphPad Software, San Diego, CA, USA). The Shapiro–Wilk test for normality was performed. For normally distributed data, t-test or one-way ANOVA were used to compare means between groups followed by Fisher’s Least Significant Difference for pre-selected conditions indicated by comparisons shown in each figure. Where the normality test was not passed, a Kruskal–Wallis test was used to compare means between groups followed by Dunn’s post-hoc test for pre-selected conditions indicated by comparisons shown in each figure. Normally distributed data are expressed as mean ± standard deviation (SD). Non-parametric data are expressed as median ± interquartile range (IQR). A p-value of <0.05 was considered statistically significant.
