Sly-miR398 Participates in Cadmium Stress Acclimation by Regulating Antioxidant System and Cadmium Transport in Tomato (Solanum lycopersicum)

by
Guochao Yan
†,
Yuchen Hua
†,
Han Jin
,
Qingying Huang
,
Guanfeng Zhou
,
Yunmin Xu
,
Yong He
* and
Zhujun Zhu
*
Key Laboratory of Quality and Safety Control for Subtropical Fruit and Vegetable, Ministry of Agriculture and Rural Affairs, Collaborative Innovation Center for Efficient and Green Production of Agriculture in Mountainous Areas of Zhejiang Province, College of Horticulture Science, Zhejiang A&F University, Hangzhou 311300, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Int. J. Mol. Sci. 2023, 24(3), 1953; https://doi.org/10.3390/ijms24031953
Submission received: 21 December 2022 / Revised: 15 January 2023 / Accepted: 16 January 2023 / Published: 19 January 2023
(This article belongs to the Section Molecular Plant Sciences)
Browse Figures
Versions Notes

Abstract

:
Cadmium (Cd) pollution is one of the major threats in agricultural production, and can cause oxidative damage and growth limitation in plants. MicroRNA398 (miR398) is involved in plant resistance to different stresses, and the post-transcriptional regulation of miR398 on CSDs plays a key role. Here, we report that miR398 was down-regulated in tomato in response to Cd stress. Simultaneously, CSD1 and SOD were up-regulated, with CSD2 unchanged, suggesting CSD1 is involved in miR398-induced regulation under Cd stress. In addition, the role of miR398 in Cd tolerance in tomato was evaluated using a transgenic line overexpressing MIR398 (miR398#OE) in which the down-expression of miR398 was disrupted. The results showed that Cd stress induced more significant growth inhibition, oxidative damage, and antioxidant enzymes disorder in miR398#OE than that in wild type (WT). Moreover, higher Cd concentration in the shoot and xylem sap, and net Cd influx rate, were observed in miR398#OE, which could be due to the increased Cd uptake genes (IRT1, IRT2, and NRAMP2) and decreased Cd compartmentalization gene HMA3. Overall, our results indicate that down-regulated miR398 plays a protective role in tomato against Cd stress by modulating the activity of antioxidant enzymes and Cd uptake and translocation.

1. Introduction

Cadmium (Cd) is one of the major metal pollutants in arable soil, and adversely affects plant growth and food safety [1]. With an increase in chemical fertilizer application and sewage irrigation in agricultural practice, the area of arable lands under Cd pollution is growing larger, thereby threatening sustainable agricultural production severely [2,3]. Cd stress causes numerous toxic effects including membrane lipid peroxidation, photosynthesis system destruction, and growth limitation in plants, which is, at least partially, due to Cd-induced accumulation of reactive oxygen species (ROS) [4,5], since the ability of ROS scavenging in plants is disrupted by Cd stress [6,7]. Superoxide dismutase (SOD) plays an important role as the first line of antioxidant defense in plants to convert superoxide anion (O2−) into H2O2, thereby participating in ROS scavenging and stress acclimation in plants [8,9]. Considering the role of SOD in antioxidant defense and Cd-induced oxidative toxicity, it is not surprising that the connection between SOD and Cd stress tolerance has been repeatedly documented in different kinds of plants species including rice [10], wheat [11], and tomato [12,13].
MicroRNAs (miRNAs) play diverse roles in plant development and stress response by regulating gene expression through directing mRNA cleavage and/or inhibiting translation [14]. As a key regulator of SOD in plants, microRNA398 (miR398) can negatively regulate the expression of CSDs (encoding Cu-Zn SOD), thereby modulating the activity of SOD and participating in ROS scavenging [15]. After the first report of miR398 in Arabidopsis [16], miR398 has been identified in different plants including melon [17], grape [18], and tomato [19,20]. Due to the pivotal role of SOD in antioxidant defense under stress conditions, miR398 has been found to participate in the response to kinds of abiotic and biotic stresses in plants including salt stress, drought stress, heat stress, metal stress, and pathogen diseases [21,22,23]. Under metal stress including copper, nickel, and cadmium, miR398 has been shown to be involved in metal stress tolerance in different plant species including Arabidopsis [24,25], alfalfa [26], caster bean [27], and grapevine [28].
However, it should be noted that the expression of miR398 differs among stress types and plant species, which leads to distinct regulation on SOD and antioxidant defense [21]. In Arabidopsis, salt stress, cold stress, and high light reduced the expression of miR398 [16,25,29], while up-regulated expression of miR398 was observed under heat stress [30] and UV-B radiation [31]. In addition, drought stress promoted the expression of miR398 in wheat [32], while it down-regulated the expression of miR398 in rice [33]. Moreover, although both CSD1 and CSD2 are target genes of miR398, the regulative effects of miR398 on these two CSDs to miR398 could be different in miR398-induced modulation of SOD activity in plants under stress conditions. For example, the down-regulated expression of miR398 promoted the expression of both CSD1 and CSD2 under light stress [25], but enhanced the expression of CSD1 but not CSD2 under salt stress [29] in Arabidopsis. However, the response of miR398 to Cd stress and the regulative effects of miR398 on CSDs and SOD under Cd exposure are still largely unknown.
In plants under stressful conditions, the collaboration of different antioxidant enzymes plays the critical role in scavenging excess ROS and maintaining redox homeostasis, while the antioxidant enzymes could affect each other in the sophisticated antioxidant system [34]. Therefore, the regulation effects of miR398 on CSDs and SOD could successively influence the activity of other antioxidant enzymes. For example, in tomato under salt stress, overexpression of MIR398 regulated the activity of APX and CAT in addition to SOD [35]. Lin et al. [36] indicated that miR398-regulated antioxidants were involved in the accumulation of mosaic virus in bamboo, while the results of Li et al. [37] showed that miR398 could regulate the activity of SOD and CAT, thereby modulating ROS production and blast disease resistance in rice. In addition, under the stresses induced by toxic elements (e.g., salt stress, metal stress), membrane peroxidation caused by ROS imbalance would influence the trans-membrane transport of toxic materials [38], implying that miR398-regulated antioxidant defense could affect the uptake and transport of toxic materials such as Cd, although the hypothesis remains untested.
Tomato (Solanum lycopersicum) is an important horticultural crop worldwide. In this study, the response of miR398 to Cd exposure in tomato seedlings was investigated. In addition, a transgenic line of tomato overexpressing MIR398 (miR398#OE) in which the down-regulation miR398 in response to Cd was disrupted was used in this study. Tomato growth parameters, oxidative damage, ROS accumulation, antioxidant enzyme activity, Cd concentration, and expression of genes concerning Cd uptake and translocation were determined and compared in this study. The results showed that the down-expression of miR398 played a protective role against Cd stress in tomato by modulating antioxidant enzymes and Cd uptake and translocation.

2. Results

2.1. Down-Regulated MiR398 Promoted CSD1 and SOD in Response to Cd Toxicity

At the outset, the expression of miR398 in tomato shoot and root was measured at 3 and 6 h after treatment (HAT) of 100 μM Cd(NO3)2. The expression of miR398 was down-regulated in both the shoot and root of tomato under Cd stress (Figure 1A), while the down-regulated expression of miR398 in response to Cd stress was earlier in the root than that in the shoot. In tomato root, the expression of miR398 was significantly reduced by Cd stress at 3 HAT, while the expression of miR398 in the shoot was inhibited under Cd exposure at 6 HAT (Figure 1A).
Along with the down-expression of miR398, the expression of CSD1 and the activity of SOD was promoted in both the shoot and root under Cd stress (Figure 1B,D), while no obvious change in CSD2 expression was observed (Figure 1C). As for reactive oxygen species (ROS) concentration, although no obvious change in O2− content was induced by Cd stress (Figure 1E), the content of H2O2 was significantly increased in both the shoot and root of tomato under Cd exposure (Figure 1F). In accordance with the time-dependent response of miR398 to Cd stress, an earlier increase in CSD1, SOD, and H2O2 was also observed in the root (at 3 HAT) than that in the shoot (at 6 HAT) of tomato under 100 μM Cd treatment (Figure 1).

2.2. Cd Stress Induced More Significant Growth Inhibition and Oxidative Damage in MiR398#OE

Based on the results mentioned above, a transgenic line overexpressing MIR398 (miR398#OE) in which the down-regulation of miR398 was disrupted was used in this study, and growth parameters including shoot height, root length, biomass, and chlorophyll content were determined and compared in wild type (WT, cv. Microtom) and miR398#OE after 9 d of treatment. As shown in Figure 2, no significant difference in growth was found between WT and miR398#OE under control, while Cd stress caused severe growth inhibition in both WT and miR398#OE. However, more significant decline in shoot height, root length, shoot biomass, and chlorophyll content was observed in miR398#OE under Cd treatment in contrast with WT (Figure 2).
To determine oxidative damage induced by Cd stress in tomato, nitroblue tetrazolium (NBT) and diaminobenzidine (DAB) staining was used for superoxide anion (O2−) and H2O2 visualization, and the contents of malonaldehyde (MDA), H2O2, and O2− in tomato shoot and root were measured. Under the control condition, overexpression of MIR398 caused no significant change in MDA, H2O2, and O2− in the shoot, while increased contents of H2O2 and O2− were found in miR398#OE root, with MDA unchanged in comparison with WT (Figure 3). In addition, severe oxidative damage was induced by Cd treatment in both WT and miR398#OE (Figure 3). However, the results of NBT and DAB staining showed that 100 μM Cd stress induced more significant accumulation of O2− and H2O2 in tomato leaf of miR398#OE than that in WT (Figure 3A). Consistently, the contents of MDA, H2O2, and O2− in the shoot were more significantly increased by Cd stress in miR398#OE in contrast with WT (Figure 3). In tomato root, Cd stress induced more significant accumulation of H2O2 in miR398#OE, but no obvious change in MDA and O2− was found between WT and miR398#OE under Cd exposure (Figure 3).

2.3. Overexpression of MIR398 Enhanced Cd-Induced Disorder of Antioxidant Enzymes in Tomato

Under control treatment, overexpression of MIR398 decreased the activity of SOD and APX, with CAT, GPOD, GR, and DHAR unchanged in tomato shoot. In the root, overexpression of MIR398 decreased the activity of SOD, CAT, and GR and increased the activity of APX, with no effect on GPOD and DHAR (Table 1).
As for the effects of Cd stress on antioxidant enzymes, 100 μM Cd induced significant changes in the activity of antioxidant enzymes in both the shoot and root of WT (Table 1). In tomato shoot, Cd stress decreased the activity of SOD, CAT, and APX, and increased the activity of GPOD and DHAR in WT (Table 1). Under Cd exposure, more significant decrease in SOD, CAT, APX, and increase in GPOD was observed in the shoot of miR398#OE in comparison with that in WT (Table 1). However, the aggregative effects of MIR398 overexpression on Cd-induced antioxidant enzyme disorder in tomato shoot was not found in tomato root. Although Cd stress increased the activity of APX, GR, and DHAR and decreased the activity of SOD in the root of WT, no obvious difference in the activity of these enzymes was found between WT and miR398#OE under Cd exposure (Table 1). In addition, Cd stress increased the activity of GPOD in the root of WT with no effect on CAT, while overexpression of MIR398 decreased the activity of CAT and GPOD under Cd stress (Table 1).

2.4. Overexpression of MIR398 Enhanced Cd Uptake and Accumulation in Tomato

The concentrations of Cd in the shoot, root, and xylem sap of WT and miR398#OE were determined in this study (Figure 4). Although no obvious difference in root Cd concentration was observed between WT and miR398#OE, the concentration of Cd in the shoot and xylem sap was significantly higher in miR398#OE than that in WT by 25.3% and 90.5%, respectively (Figure 4).
Following the assay of Cd concentration in tomato, root net Cd influx rate was further measured using the non-invasive scanning ion-selected electrode technique (SIET), and a 5 min of stable Cd flux rate was recorded (Figure 5A). After calculating the net Cd influx rate based on time, the results showed overexpression of MIR398 significantly increased net Cd influx rate by 23.6% (Figure 5B), which was in line with the enhanced Cd accumulation in tomato shoot of miR398#OE (Figure 4).
In addition, the expression of genes concerning Cd uptake (IRT1, IRT2, NRAMP2) and compartmentalization (HMA3) in the root of WT and miR398#OE was evaluated (Figure 6). The results showed that the expression of IRT1, IRT2, and NRAMP2 was significantly up-regulated in miR398#OE root in contrast with that in WT (Figure 6A–C). Furthermore, the expression of HMA3 was significantly down-regulated in the root of miR398#OE in comparison with WT (Figure 6D). The enhanced expression of Cd uptake genes and decreased expression of Cd compartmentalization genes could be responsible for the improved Cd concentration and net Cd influx rate in miR398#OE (Figure 4 and Figure 5).

3. Discussion

MicroRNAs (miRNAs) play key roles in regulating plant growth, development, and stress response [39,40]. As an important member of miRNAs in plants, microRNA398 (miR398) is involved in the acclimation to kinds of biotic and abiotic stresses, while the miR398-CSD module has been shown to play a central role in the regulatory network of miR398 in plants under stressful conditions [25].
In this study, our results showed the expression of miR398 was down-regulated in tomato under Cd exposure (Figure 1A), which is in line with the results in Arabidopsis under Cu stress [25]. Along with the decrease in miR398 expression, an increase in CSD1 expression and SOD activity was observed in both the shoot and root in tomato under Cd stress (Figure 1B,D). However, the expression of CSD2 was not changed by the down-expression of miR398 as CSD1 in tomato under Cd exposure (Figure 1C). In plants, miR398 is able to modulate the activity of SOD by negatively regulating the expression of its target genes including CSD1 and/or CSD2 [21,25], while sequence match analysis showed the match between miR398 and CSD1 was tighter than that between miR398 and CSD2 [35]. In this study, our results indicated that CSD1 but not CSD2 is involved in the miR398-induced regulation of SOD in response to Cd toxicity in tomato. In addition, it should be noted that the down-regulated miR398 and up-regulated CSD1 and SOD were found at 3 h after Cd treatment in the root but at 6 h after treatment of Cd in the shoot (Figure 1). In plants, the toxicity of Cd in plants is mainly based on Cd uptake and accumulation. Therefore, it is not surprising that the root is earlier in suffering from Cd toxicity than the shoot under Cd exposure [41,42], which was also proved by the earlier accumulation of H2O2 in the root (3 h) than the shoot (6 h) in this study. Overall, these results clearly indicate the down-expression of miR398 and its successive regulation on CSD1 and SOD was in response to Cd accumulation and toxicity in tomato.
In plants under stressful conditions, the response of miR398 varies among stress types and plant species [21], implying that the distinct roles of miR398 in stress adaption. Therefore, to investigate the function of miR398 in Cd stress tolerance in tomato, a transgenic line overexpressing MIR398 (miR398#OE) was further used in this study. Consistent with previous reports [43,44], Cd stress induced toxicity symptoms including growth inhibition, chlorophyll degradation, ROS accumulation, and membrane peroxidation in both wild type (WT, cv. Microtom) and miR398#OE. However, compared with WT, Cd stress induced more significant growth inhibition and oxidative damage in miR398#OE (Figure 2 and Figure 3). The results are consistent with that in Arabidopsis under Cu stress and high light stress [25], and in tomato under salt stress [35], which confirmed that the down-regulation of miR398 played a protective role in tomato against Cd stress.
However, it should be noted although Cd stress caused severe oxidative damage in both the shoot and root of tomato, overexpression of MIR398 aggregated Cd-induced oxidative damage in the shoot but not in the root (Figure 3). Therefore, the activity of antioxidant enzymes in the shoot and root of miR398#OE and WT under Cd exposure was measured (Table 1). In the shoot of tomato, Cd stress induced significant decrease in SOD, CAT, and APX, and increase in GPOD and DHAR, while the Cd-induced disorder of antioxidant enzymes was further enhanced by MIR398 overexpression (except DHAR) (Table 1). The results were in line with the enhanced oxidative damage in the shoot of miR398#OE (Figure 3). In the root, although Cd stress caused increase in APX, GPOD, GR, and DHAR, and decrease in SOD in WT, no aggregative effect of MIR398 overexpression on these enzymes and oxidative damage (except H2O2) was found in this study. The regulation of miR398 on SOD under stress has been repeatedly documented in previous research [45]. In line with previous research concerning miR398 and the antioxidant system under biotic and abiotic stresses [35,36,37], our results indicate that, besides SOD, the miR398-CSD1 module could also modulate the activity of other antioxidant enzymes in tomato under Cd stress, which could be based on the systematic cooperation of different kinds of enzymes in plant antioxidant defense [46,47,48].
Given the fact that the toxicity of Cd is based on Cd accumulation in plant tissue, which is mediated by root uptake and translocation of Cd [4], the concentration of Cd in tomato and Cd uptake flux rate was determined in this study. The content of Cd in the shoot and xylem sap was significantly higher in miR398#OE under Cd stress than that in WT, while no significant difference in root Cd concentration between miR398#OE and WT was observed (Figure 4). Moreover, the results of non-invasive scanning ion-selected electrode technique (SIET) showed that the net Cd influx rate was significantly higher in the root of miR398#OE than that in WT (Figure 5). By comparing the activity of antioxidant enzyme and Cd concentration in WT and miR398#OE under Cd toxicity, it can be concluded that the protective regulation effects of miR398 on antioxidant enzymes and Cd concentration were mainly observed in the shoot but not root of tomato. When subject to Cd stress, the shoot is more sensitive to Cd toxicity than the root [43,49]. Considering the important roles of the shoot in plant growth (e.g., photosynthesis), the protective effects of miR398 in the shoot would be more efficient in promoting Cd tolerance in tomato.
In plants, different genes including IRT1, IRT2, and NRAMP2 have been shown to be involved in the process of root Cd uptake [41], while HMA3 is responsible for vacuole compartmentalization, thereby influencing Cd translocation [50]. In this study, our results showed that overexpression of MIR398 increased the expression of IRT1, IRT2, and NRAMP2 (Figure 6A–C), and decreased the expression of HMA3 (Figure 6D), which could be responsible for the enhanced Cd uptake and translocation in miR398#OE under Cd stress in comparison with WT. In the initial hypothesis, we have assumed that miR398 could influence the ability of ROS scavenge in plants under Cd stress, and successively influence affect membrane peroxidation and Cd transport in tomato under Cd exposure. However, overexpression of MIR398 did not enhance Cd-induced oxidative damage in tomato root (Figure 3), implying that the regulation of miR398 on the activity of Cd transport and related genes is independent of membrane peroxidation. The mechanisms behind this still need further investigation.

4. Materials and Methods

4.1. Plant Growth and Treatment Application

Seeds of tomato (Solanum lycopersicum L.) were sterilized with distilled water at 55 °C for 10 min and then germinated on moist filter paper in dark at 28 °C for 2 d. After 20 d of growth on the substrate (Golden No.3, Jinhai, Hangzhou, China), each three uniform tomato seedlings were transplanted to a plastic bottle containing 1.2 L nutrient solution for another 3 d of growth. The nutrient solution (pH 6.2) was renewed each 3 d and contained 5 mM Ca(NO3)2, 5 mM KNO3, 2.5 mM KH2PO4, 2 mM MgSO4, 29.6 μM H3BO3, 10 μM MnSO4, 50 μM Fe-EDTA, 1.0 μM ZnSO4, 0.05 μM H2MoO4, and 0.95 μM CuSO4. The experiment was conducted in a growth chamber with a controlled environment: 70% relative humidity, 16/8 h, and 28/20 °C for light/dark period, respectively. After growth under the condition mentioned above, short- and long-time treatment experiment was conducted.
Experiment I: Tomato seedlings (cv. Microtom) were treated with or without 100 μM Cd(NO3)2 addition for 6 h, the expression of miR398, CSD1, CSD2, the activity of SOD, and the contents of superoxide anion (O2−) and H2O2 in tomato shoot and root were measured.
Experiment II: Tomato seedlings of Microtom (wild type, WT) and transgenic line overexpressing miR398 (miR398#OE) obtained from our previous work [35] were grown under control and 100 μM Cd(NO3)2 addition for 9 d. Then, tomato growth, oxidative damage, antioxidant enzyme activity, Cd concentration, net Cd flux rate, and the expression of genes concerning Cd uptake was evaluated.

4.2. Tomato Growth and Chlorophyll Concentration

Tomato seedlings were harvested with the root and shoot separated, and then fresh weight, shoot height, and root length were measured. For chlorophyll assay, leaf samples were homogenized with alcohol solution (95%, v/v), and the content of chlorophyll was determined by measuring the absorbance of the supernatant at 665, 649, and 470 nm with an UV/Vis spectrophotometer (UV-2600, Shimadzu, Kyoto, Japan) according to Porra et al. [51].

4.3. Oxidative Damage and ROS Accumulation

To evaluate the oxidative damage caused by Cd stress, nitroblue tetrazolium (NBT) and diaminobenzidine (DAB) staining were used for the visualization of superoxide anion (O2−) and H2O2 in tomato shoot samples according to the methods described by Jabs et al. [52] and Vanacker et al. [53], respectively. The contents of malonaldehyde (MDA), O2−, and H2O2 in the shoot and root of tomato under different treatments were measured using the trichloroacetic acid–thiobarbituric acid (TCA–TBA) method [54], hydroxylamine oxidation method [55], and potassium iodide method [56], respectively.

4.4. Antioxidant Enzyme Activity

Fresh tomato samples were homogenized with 1.5 mL phosphate butter (50 mM, pH 7.8) containing 0.2 mM ethylenediamine tetraacetic acid and 2% (w/v) polyvinyl pyrrolidone, and 1 mL supernatant was collected for the detection of soluble protein and antioxidant enzyme activity after centrifugation at 10,000 rpm for 10 min at 4 °C [57]. Superoxide dismutase (SOD) activity was determined with the NBT method and one unit (U) activity of SOD was defined as 50% inhibition of the photochemical reduction of NBT [58]. Catalase (CAT) activity was determined based on the extinction rate of H2O2 according to Cakmak and Maschner [59]. Ascorbate peroxidase (APX) activity was determined by ascorbate oxidation according to Nakano and Asada [60]. Guaiacol peroxidase (GPOD) activity assay was conducted with the method described by Egley et al. [61]. Dehydroascorbate reductase (DHAR) activity was calculated by the formation of ascorbate according to Mano et al. [62]. Glutathione reductase (GR) activity was defined by nicotinamide adenine dinucleotide phosphate oxidation according to Foyer and Halliwell [63].

4.5. Cd Concentration

Tomato shoot and root samples were oven-dried at 80 °C for 96 h, and then digested with 5 mL nitric acid and 1 mL hydrogen peroxide at 180 °C on a thermal digestion system (SH230N, Sineo, Shanghai, China). Xylem sap was collected according to Yan et al. [64] by cutting the stem off 2 cm above the root base. Cd concentrations were analyzed with inductively coupled plasma-mass spectrometry (ICP-MS, NexION 300X, Perkin Elmer, Waltham, MA, USA).

4.6. Net Cd Influx Rate

After 9 d of treatment, root samples (about 1.5 cm) were cut off above the root apex for Cd flux determination using non-invasive scanning ion-selected electrode technique (SIET, BIO-001A, Younger, Amherst, MA, USA) according to Yan et al. [65]. Briefly, root samples were placed in plastic dishes containing test buffer for about 1 h, and the electric potential was measured at about 4 μm above the root surface with a microelectrode for about 15 min. Then, the change in electric potential was converted into Cd flux rate according to Cd standard curves based on 50 and 500 μM Cd(NO3)2 (about 28–32 mv per decade) with Mageflux (Xuyue, China, http://xuyue.net/mageflux, accessed on 6 May 2015). The test buffer (pH = 5.8) contains 0.1 mM KCl, 0.3 mM MES, and 0.1 mM Cd(NO3)2, and the electrode was filled with Cd selected cocktail (about 50 μm) and 100 mM KCl solution (about 1 cm).

4.7. Gene Expression

Total RNA was extracted from frozen tomato samples (approximately 100 mg) using Trizol reagent (Invitrogen, Thermo Fisher, Waltham, MA, USA). After the measurement of A260/280 and A260/230 to check the purity and integrity, miRNA and RNA were converted to cDNA with a miRNA first-strand cDNA synthesis kit (by stem-loop) (Vazyme, Nanjing, China) and HiScript III first-strand cDNA synthesis kit (Vazyme, Nanjing, China), respectively. Quantitative real-time PCR was operated on a quantitative PCR system (qTower3, Analytik jena, Jena, Germany) using chamQ SYBR qPCR master mix (Vazyme, Nanjing, China) following the instruction. The relative expression rate was calculated using the ΔΔCt method. U6 was for miR398, while Actin was used as the internal reference for CSD1, CSD2, IRT1, IRT2, NRAMP2, and HMA3. The sequence of primers used in this study were listed in supplementary Table S1.

4.8. Statistical Analysis

Statistical analysis was performed with Excel software (2019 version, Microsoft, Redmond, WA, USA) and data were compared using one-way or two-way analysis of variance (ANOVA). The significant difference was defined at the 0.05 probability level.

5. Conclusions

In conclusion, our results show the down-regulation of miR398 plays a protective role in tomato against Cd stress through modulating antioxidant system and Cd uptake and translocation, thereby alleviating oxidative damage and promoting plant growth under Cd contamination (Figure 7). The results of this study would expand our knowledge concerning miRNA and metal stress tolerance in plants, which would also provide new insight for breeding and Cd pollution remediation.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms24031953/s1.

Author Contributions

Conceptualization, G.Y., Y.H. (Yong He) and Z.Z.; investigation and formal analysis, G.Y., Y.H. (Yuchen Hua), H.J., Q.H. and G.Z.; writing—original draft preparation, G.Y., Y.H. (Yuchen Hua) and Y.X.; writing—review and editing, Y.H. (Yong He) and Z.Z.; project administration, Z.Z.; funding acquisition, G.Y. and Y.H. (Yong He). All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Natural Science Foundation of Zhejiang Province, grant number LQ22C150006, the National Natural Science Foundation of China, grant number 32202583 and 32072556, and the Research and Development Fund of Zhejiang A&F University, grant number 2021FR037.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available in this manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Ma, J.F.; Shen, R.F.; Shao, J.F. Transport of cadmium from soil to grain in cereal crops: A review. Pedosphere 2021, 31, 3–10. [Google Scholar] [CrossRef]
  2. Zhao, F.; Ma, Y.; Zhu, Y.; Tang, Z.; McGrath, S.P. Soil contamination in China: Current status and mitigation strategies. Environ. Sci. Technol. 2015, 49, 750–759. [Google Scholar] [CrossRef]
  3. Rai, P.K.; Lee, S.S.; Zhang, M.; Tsang, Y.F.; Kim, K.H. Heavy metals in food crops: Health risks, fate, mechanisms, and management. Environ. Int. 2019, 125, 365–385. [Google Scholar] [CrossRef]
  4. Clemens, S.; Palmgren, M.G.; Krämer, U. A long way ahead: Understanding and engineering plant metal accumulation. Trends Plant Sci. 2002, 7, 309–315. [Google Scholar] [CrossRef]
  5. Genchi, G.; Sinicropi, M.S.; Lauria, G.; Carocci, A.; Catalano, A. The effects of cadmium toxicity. Int. J. Environ. Res. Public Health 2020, 17, 3782. [Google Scholar] [CrossRef]
  6. Halliwell, B. Reactive species and antioxidants. Redox biology is a fundamental theme of aerobic life. Plant Physiol. 2006, 141, 312–322. [Google Scholar] [CrossRef] [Green Version]
  7. Hossain, M.S.; Dietz, K. Tuning of redox regulatory mechanisms, reactive oxygen species and redox homeostasis under salinity stress. Front. Plant Sci. 2016, 7. [Google Scholar] [CrossRef] [Green Version]
  8. Alscher, R.G.; Erturk, N.; Heath, L.S. Role of superoxide dismutases (SODs) in controlling oxidative stress in plants. J. Exp. Bot. 2002, 53, 1331–1341. [Google Scholar] [CrossRef]
  9. Scandalios, J.G. Oxygen stress and superoxide dismutases. Plant Physiol. 1993, 101, 7–12. [Google Scholar] [CrossRef] [Green Version]
  10. Srivastava, R.K.; Pandey, P.; Rajpoot, R.; Rani, A.; Dubey, R.S. Cadmium and lead interactive effects on oxidative stress and antioxidative responses in rice seedlings. Protoplasma 2014, 251, 1047–1065. [Google Scholar] [CrossRef]
  11. Guo, J.; Qin, S.; Rengel, Z.; Gao, W.; Nie, Z.; Liu, H.; Li, C.; Zhao, P. Cadmium stress increases antioxidant enzyme activities and decreases endogenous hormone concentrations more in Cd-tolerant than Cd-sensitive wheat varieties. Ecotoxicol. Environ. Saf. 2019, 172, 380–387. [Google Scholar] [CrossRef]
  12. Alyemeni, M.N.; Ahanger, M.A.; Wijaya, L.; Alam, P.; Bhardwaj, R.; Ahmad, P. Selenium mitigates cadmium-induced oxidative stress in tomato (Solanum lycopersicum L.) plants by modulating chlorophyll fluorescence, osmolyte accumulation, and antioxidant system. Protoplasma 2018, 255, 459–469. [Google Scholar] [CrossRef]
  13. Alves, L.R.; Monteiro, C.C.; Carvalho, R.F.; Ribeiro, P.C.; Tezotto, T.; Azevedo, R.A.; Gratao, P.L. Cadmium stress related to root-to-shoot communication depends on ethylene and auxin in tomato plants. Environ. Exp. Bot. 2017, 134, 102–115. [Google Scholar] [CrossRef] [Green Version]
  14. Sunkar, R.; Chinnusamy, V.; Zhu, J.; Zhu, J.K. Small RNAs as big players in plant abiotic stress responses and nutrient deprivation. Trends Plant Sci. 2007, 12, 301–309. [Google Scholar] [CrossRef]
  15. Abdel-Ghany, S.E.; Pilon, M. MicroRNA-mediated systemic down-regulation of copper protein expression in response to low copper availability in Arabidopsis. J. Biol. Chem. 2008, 283, 15932–15945. [Google Scholar] [CrossRef] [Green Version]
  16. Sunkar, R.; Zhu, J.K. Novel and stress-regulated microRNAs and other small RNAs from Arabidopsis. Plant Cell 2004, 16, 2001–2019. [Google Scholar] [CrossRef] [Green Version]
  17. Sanz-Carbonell, A.; Marques, M.C.; Martinez, G.; Gomez, G. Dynamic architecture and regulatory implications of the miRNA network underlying the response to stress in melon. RNA Biol. 2020, 17, 292–308. [Google Scholar] [CrossRef]
  18. Guo, D.L.; Li, Q.; Lv, W.Q.; Zhang, G.H.; Yu, Y.H. MicroRNA profiling analysis of developing berries for ‘Kyoho’ and its early-ripening mutant during berry ripening. BMC Plant Biol. 2018, 18, 285. [Google Scholar] [CrossRef] [Green Version]
  19. Guo, Z.; Kuang, Z.; Wang, Y.; Zhao, Y.; Tao, Y.; Cheng, C.; Yang, J.; Lu, X.; Hao, C.; Wang, T.; et al. PmiREN: A comprehensive encyclopedia of plant miRNAs. Nucleic Acids Res. 2020, 48, D1114–D1121. [Google Scholar] [CrossRef] [Green Version]
  20. Luan, Y.; Wang, W.; Liu, P. Identification and functional analysis of novel and conserved microRNAs in tomato. Mol. Biol. Rep. 2014, 41, 5385–5394. [Google Scholar] [CrossRef]
  21. Li, J.; Song, Q.; Zuo, Z.F.; Liu, L. MicroRNA398: A master regulator of plant development and stress responses. Int. J. Mol. Sci. 2022, 23, 10803. [Google Scholar] [CrossRef] [PubMed]
  22. Zhu, C.; Ding, Y.; Liu, H. MiR398 and plant stress responses. Physiol. Plant. 2011, 143, 1–9. [Google Scholar] [CrossRef] [PubMed]
  23. Perea-Garcia, A.; Andres-Borderia, A.; Huijser, P.; Penarrubia, L. The copper-microRNA pathway is integrated with developmental and environmental stress responses in Arabidopsis thaliana. Int. J. Mol. Sci. 2021, 22, 9547. [Google Scholar] [CrossRef] [PubMed]
  24. Sun, Z.; Shu, L.; Zhang, W.; Wang, Z. Cca-miR398 increases copper sulfate stress sensitivity via the regulation of CSD mRNA transcription levels in transgenic Arabidopsis thaliana. PeerJ 2020, 8, e9105. [Google Scholar] [CrossRef]
  25. Sunkar, R.; Kapoor, A.; Zhu, J.K. Posttranscriptional induction of two Cu/Zn superoxide dismutase genes in Arabidopsis is mediated by downregulation of miR398 and important for oxidative stress tolerance. Plant Cell 2006, 18, 2051–2065. [Google Scholar] [CrossRef] [Green Version]
  26. Gu, Q.; Chen, Z.; Yu, X.; Cui, W.; Pan, J.; Zhao, G.; Xu, S.; Wang, R.; Shen, W. Melatonin confers plant tolerance against cadmium stress via the decrease of cadmium accumulation and reestablishment of microRNA-mediated redox homeostasis. Plant Sci. 2017, 261, 28–37. [Google Scholar] [CrossRef]
  27. Celik, O.; Akdas, E.Y. Tissue-specific transcriptional regulation of seven heavy metal stress-responsive miRNAs and their putative targets in nickel indicator castor bean (R. communis L.) plants. Ecotoxicol. Environ. Saf. 2019, 170, 682–690. [Google Scholar] [CrossRef]
  28. Leng, X.P.; Wang, P.P.; Zhu, X.D.; Li, X.P.; Zheng, T.; Shangguan, L.F.; Fang, J.G. Ectopic expression of CSD1 and CSD2 targeting genes of miR398 in grapevine is associated with oxidative stress tolerance. Funct. Integr. Genom. 2017, 17, 697–710. [Google Scholar] [CrossRef]
  29. Jia, X.; Wang, W.X.; Ren, L.; Chen, Q.J.; Mendu, V.; Willcut, B.; Dinkins, R.; Tang, X.; Tang, G. Differential and dynamic regulation of miR398 in response to ABA and salt stress in Populus tremula and Arabidopsis thaliana. Plant Mol. Biol. 2009, 71, 51–59. [Google Scholar] [CrossRef]
  30. Guan, Q.M.; Lu, X.Y.; Zeng, H.T.; Zhang, Y.Y.; Zhu, J.H. Heat stress induction of miR398 triggers a regulatory loop that is critical for thermotolerance in Arabidopsis. Plant J. 2013, 74, 840–851. [Google Scholar] [CrossRef]
  31. Zhou, X.; Wang, G.; Zhang, W. UV-B responsive microRNA genes in Arabidopsis thaliana. Mol. Syst. Biol. 2007, 3, 103. [Google Scholar] [CrossRef] [PubMed]
  32. Kantar, M.; Lucas, S.J.; Budak, H. miRNA expression patterns of Triticum dicoccoides in response to shock drought stress. Planta 2011, 233, 471–484. [Google Scholar] [CrossRef] [PubMed]
  33. Lu, Y.; Feng, Z.; Bian, L.; Xie, H.; Liang, J. miR398 regulation in rice of the response to abiotic and biotic stresses depends on CSD1 and CSD2 expression. Funct. Plant Biol. 2011, 38, 44–53. [Google Scholar] [CrossRef] [PubMed]
  34. Apel, K.; Hirt, H. Reactive oxygen species: Metabolism, oxidative stress, and signal transduction. Annu. Rev. Plant Biol. 2004, 55, 373–399. [Google Scholar] [CrossRef] [Green Version]
  35. He, Y.; Zhou, J.X.; Hu, Y.F.; Fang, C.Y.; Yu, Y.J.; Yang, J.; Zhu, B.; Ruan, Y.L.; Zhu, Z.J. Overexpression of sly-miR398b increased salt sensitivity likely via regulating antioxidant system and photosynthesis in tomato. Environ. Exp. Bot. 2021, 181, 104273. [Google Scholar] [CrossRef]
  36. Lin, K.Y.; Wu, S.Y.; Hsu, Y.H.; Lin, N.S. MiR398-regulated antioxidants contribute to Bamboo mosaic virus accumulation and symptom manifestation. Plant Physiol. 2022, 188, 593–607. [Google Scholar] [CrossRef] [PubMed]
  37. Li, Y.; Cao, X.L.; Zhu, Y.; Yang, X.M.; Zhang, K.N.; Xiao, Z.Y.; Wang, H.; Zhao, J.H.; Zhang, L.L.; Li, G.B.; et al. Osa-miR398b boosts H2O2 production and rice blast disease-resistance via multiple superoxide dismutases. New Phytol. 2019, 222, 1507–1522. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Li, H.; Luo, N.; Li, Y.W.; Cai, Q.Y.; Li, H.Y.; Mo, C.H.; Wong, M.H. Cadmium in rice: Transport mechanisms, influencing factors, and minimizing measures. Environ. Pollut. 2017, 224, 622–630. [Google Scholar] [CrossRef]
  39. Song, X.; Li, Y.; Cao, X.; Qi, Y. MicroRNAs and their regulatory roles in plant-environment interactions. Annu. Rev. Plant Biol. 2019, 70, 489–525. [Google Scholar] [CrossRef]
  40. Jones-Rhoades, M.W.; Bartel, D.P.; Bartel, B. MicroRNAS and their regulatory roles in plants. Annu. Rev. Plant Biol. 2006, 57, 19–53. [Google Scholar] [CrossRef]
  41. Ismael, M.A.; Elyamine, A.M.; Moussa, M.G.; Cai, M.; Zhao, X.; Hu, C. Cadmium in plants: Uptake, toxicity, and its interactions with selenium fertilizers. Metallomics 2019, 11, 255–277. [Google Scholar] [CrossRef] [PubMed]
  42. Shahid, M.; Dumat, C.; Khalid, S.; Niazi, N.K.; Antunes, P.M.C. Cadmium bioavailability, uptake, toxicity and detoxification in soil-plant system. Rev. Environ. Contam. Toxicol. 2017, 241, 73–137. [Google Scholar] [PubMed]
  43. Clemens, S.; Ma, J.F. Toxic heavy metal and metalloid accumulation in crop plants and foods. Annu. Rev. Plant Biol. 2016, 67, 489–512. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Gallego, S.M.; Pena, L.B.; Barcia, R.A.; Azpilicueta, C.E.; Lannone, M.F.; Rosales, E.P.; Zawoznik, M.S.; Groppa, M.D.; Benavides, M.P. Unravelling cadmium toxicity and tolerance in plants: Insight into regulatory mechanisms. Environ. Exp. Bot. 2012, 83, 33–46. [Google Scholar] [CrossRef]
  45. Ahmad, P.; Jaleel, C.A.; Salem, M.A.; Nabi, G.; Sharma, S. Roles of enzymatic and nonenzymatic antioxidants in plants during abiotic stress. Crit. Rev. Biotechnol. 2010, 30, 161–175. [Google Scholar] [CrossRef]
  46. Noctor, G.; Foyer, C.H. Ascorbate and glutathione: Keeping active oxygen under control. Annu. Rev. Plant Biol. 1998, 49, 249–279. [Google Scholar] [CrossRef] [PubMed]
  47. Hasanuzzaman, M.; Raihan, M.R.H.; Masud, A.A.C.; Rahman, K.; Nowroz, F.; Rahman, M.; Nahar, K.; Fujita, M. Regulation of reactive oxygen species and antioxidant defense in plants under salinity. Int. J. Mol. Sci. 2021, 22, 9326. [Google Scholar] [CrossRef]
  48. Kliebenstein, D.J.; Monde, R.A.; Last, R.L. Superoxide dismutase in Arabidopsis: An eclectic enzyme family with disparate regulation and protein localization. Plant Physiol. 1998, 118, 637–650. [Google Scholar] [CrossRef] [Green Version]
  49. Clemens, S.; Aarts, M.G.M.; Thomine, S.; Verbruggen, N. Plant science: The key to preventing slow cadmium poisoning. Trends Plant Sci. 2013, 18, 92–99. [Google Scholar] [CrossRef]
  50. Ueno, D.; Yamaji, N.; Kono, I.; Huang, C.F.; Ando, T.; Yano, M.; Ma, J.F. Gene limiting cadmium accumulation in rice. Proc. Natl. Acad. Sci. USA 2010, 107, 16500–16505. [Google Scholar] [CrossRef]
  51. Porra, R.J.; Thompson, W.A.; Kriedemann, P.E. Determination of accurate extinction coefficients and simultaneous-equations for assaying chlorophyll-a and chlorophyll-b extracted with 4 different solvents-verification of the concentration of chlorophyll standards by atomic-absorption spectroscopy. Biochim. Biophys. Acta-Bioenerg. 1989, 975, 384–394. [Google Scholar] [CrossRef]
  52. Jabs, T.; Dietrich, R.A.; Dangl, J.L. Initiation of runaway cell death in an Arabidopsis mutant by extracellular superoxide. Science 1996, 273, 1853–1856. [Google Scholar] [CrossRef] [PubMed]
  53. Vanacker, H.; Carver, T.L.; Foyer, C.H. Early H2O2 accumulation in mesophyll cells leads to induction of glutathione during the hyper-sensitive response in the barley-powdery mildew interaction. Plant Physiol. 2000, 123, 1289–1300. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Heath, R.L.; Lester, P. Photoperoxidation in isolated chloroplasts. I. Kinetics and stoichiometry of fatty acid peroxidation. Arch. Biochem. Biophys. 1968, 125, 189–198. [Google Scholar] [CrossRef] [PubMed]
  55. Elstner, E.F.; Heupel, A. Inhibition of nitrite formation from hydroxylammoniumchloride: A simple assay for superoxide dismutase. Anal. Biochem. 1976, 70, 616–620. [Google Scholar] [CrossRef]
  56. Alves, L.R.; Prado, E.R.; de Oliveira, R.; Santos, E.F.; Lemos de Souza, I.; Dos Reis, A.R.; Azevedo, R.A.; Gratao, P.L. Mechanisms of cadmium-stress avoidance by selenium in tomato plants. Ecotoxicology 2020, 29, 594–606. [Google Scholar] [CrossRef]
  57. Yan, G.C.; Fan, X.P.; Peng, M.; Yin, C.; Xiao, Z.X.; Liang, Y.C. Silicon improves rice salinity resistance by alleviating ionic toxicity and osmotic constraint in an organ-specific pattern. Front. Plant Sci. 2020, 11, 260. [Google Scholar] [CrossRef]
  58. Giannopolitis, C.N.; Ries, S.K. Superoxide dismutases: I. Occurrence in higher plants. Plant Physiol. 1977, 59, 309–314. [Google Scholar] [CrossRef]
  59. Cakmak, I.; Marschner, H. Magnesium deficiency and high light intensity enhance activities of superoxide dismutase, ascrobate peroxidase, and glutathione reductase in bean leaves. Plant Physiol. 1992, 98, 1222–1227. [Google Scholar] [CrossRef] [Green Version]
  60. Nakano, Y.; Asada, K. Hydrogen peroxide scanvenged by ascorbated specific peroxidase in spinach chloroplast. Plant Cell Physiol. 1981, 22, 867–880. [Google Scholar]
  61. Egley, G.H.; Paul, R.N.; Vaughn, K.C.; Duke, S.O. Role of peroxidase in the development of water-impermeable seed coats in Sida spinosa L. Planta 1983, 157, 224–232. [Google Scholar] [CrossRef] [PubMed]
  62. Mano, J.; Ohno, C.; Domae, Y.; Asada, K. Chloroplastic ascorbate peroxidase is the primary target of methylviologen-induced photooxidative stress in spinach leaves: Its relevance to monodehydroascorbate radical detected with in vivo ESR. BBA-Bioenergetics 2001, 1504, 275–287. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  63. Foyer, C.H.; Halliwell, B. The presence of glutathione and glutathione reductase in chloroplasts: A proposed role in ascorbic acid metabolism. Planta 1976, 133, 21–25. [Google Scholar] [CrossRef] [PubMed]
  64. Yan, G.C.; Fan, X.P.; Tan, L.; Yin, C.; Li, T.Q.; Liang, Y.C. Root silicon deposition and its resultant reduction of sodium bypass flow is modulated by OsLsi1 and OsLsi2 in rice. Plant Physiol. Biochem. 2021, 158, 219–227. [Google Scholar] [CrossRef] [PubMed]
  65. Yan, G.C.; Fan, X.P.; Zheng, W.N.; Gao, Z.X.; Yin, C.; Li, T.Q.; Liang, Y.C. Silicon alleviates salt stress-induced potassium deficiency by promoting potassium uptake and translocation in rice (Oryza sativa L.). J. Plant Physiol. 2021, 258–259, 153379. [Google Scholar] [CrossRef]
Ijms 24 01953 g001 550
Figure 1. Effects of cadmium stress on miR398 (A), CSD1 (B), CSD2 (C), SOD (D), O2− (E), and H2O2 (F) in tomato shoot and root. Tomato seedlings (25 days old, cv. Microtom) were treated with control (CK) and 100 μM Cd(NO3)2 (Cd) for 3 or 6 h. The data are the mean values + SD of four individual replicates and asterisks indicate significant differences between CK and Cd treatment (p < 0.05). One unit (U) of activity of SOD is defined as 50% inhibition of the photochemical reduction of nitroblue tetrazolium. SOD, superoxide dismutase, Pro, protein.
Figure 1. Effects of cadmium stress on miR398 (A), CSD1 (B), CSD2 (C), SOD (D), O2− (E), and H2O2 (F) in tomato shoot and root. Tomato seedlings (25 days old, cv. Microtom) were treated with control (CK) and 100 μM Cd(NO3)2 (Cd) for 3 or 6 h. The data are the mean values + SD of four individual replicates and asterisks indicate significant differences between CK and Cd treatment (p < 0.05). One unit (U) of activity of SOD is defined as 50% inhibition of the photochemical reduction of nitroblue tetrazolium. SOD, superoxide dismutase, Pro, protein.
Ijms 24 01953 g001
Ijms 24 01953 g002 550

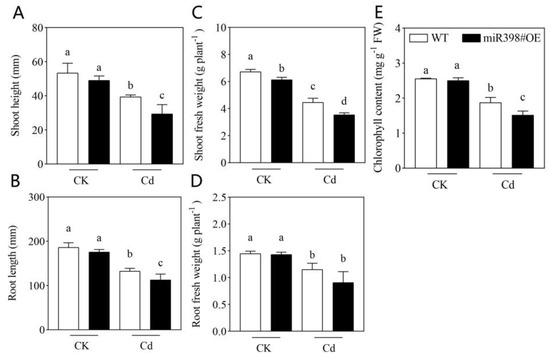

Figure 2. Effects of cadmium stress on tomato growth in wild type (WT) and transgenic line overexpressing MIR398 (miR398#OE). Shoot height (A), root length (B), fresh weight of the shoot (C) and root (D), and chlorophyll content (E). Tomato seedlings (25 d old) of WT and miR398 #OE were grown under control (CK) and 100 μM Cd(NO3)2 (Cd) for 9 d. The data are the mean values + SD of four individual replicates and different letters indicate significant differences (p < 0.05). FW, fresh weight.
Figure 2. Effects of cadmium stress on tomato growth in wild type (WT) and transgenic line overexpressing MIR398 (miR398#OE). Shoot height (A), root length (B), fresh weight of the shoot (C) and root (D), and chlorophyll content (E). Tomato seedlings (25 d old) of WT and miR398 #OE were grown under control (CK) and 100 μM Cd(NO3)2 (Cd) for 9 d. The data are the mean values + SD of four individual replicates and different letters indicate significant differences (p < 0.05). FW, fresh weight.
Ijms 24 01953 g002
Ijms 24 01953 g003 550

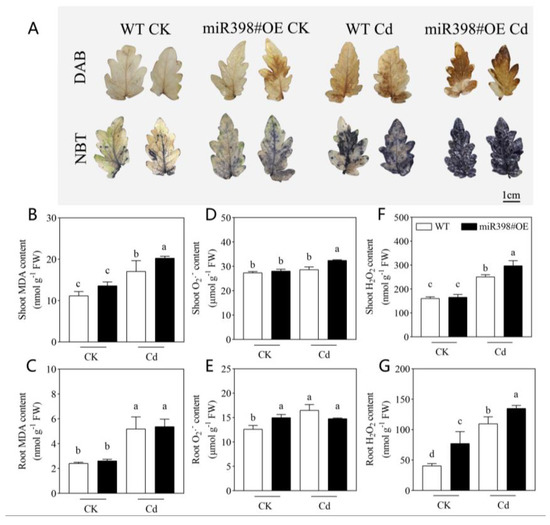

Figure 3. Cadmium stress-induced oxidative damage in wild type (WT) and transgenic line overexpressing MIR398 (miR398#OE). Superoxide anion (O2−) and H2O2 visualization using nitroblue tetrazolium (NBT) and diaminobenzidine (DAB) staining (A), malonaldehyde (MDA) content in the shoot (B) and root (C), O2− content in the shoot (D) and root (E), and H2O2 content in the shoot (F) and root (G). Tomato seedlings (25 d old) of WT and miR398#OE were grown under control (CK) and 100 μM Cd(NO3)2 (Cd) for 9 d. The data are the mean values + SD of four individual replicates and different letters indicate significant differences (p < 0.05). FW, fresh weight.
Figure 3. Cadmium stress-induced oxidative damage in wild type (WT) and transgenic line overexpressing MIR398 (miR398#OE). Superoxide anion (O2−) and H2O2 visualization using nitroblue tetrazolium (NBT) and diaminobenzidine (DAB) staining (A), malonaldehyde (MDA) content in the shoot (B) and root (C), O2− content in the shoot (D) and root (E), and H2O2 content in the shoot (F) and root (G). Tomato seedlings (25 d old) of WT and miR398#OE were grown under control (CK) and 100 μM Cd(NO3)2 (Cd) for 9 d. The data are the mean values + SD of four individual replicates and different letters indicate significant differences (p < 0.05). FW, fresh weight.
Ijms 24 01953 g003
Ijms 24 01953 g004 550

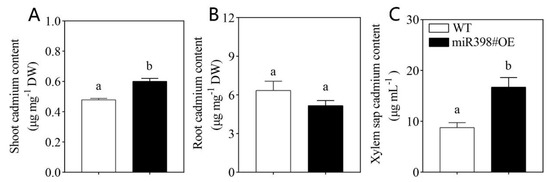

Figure 4. Cadmium contents in the shoot (A), root (B), and xylem sap (C) in wild type (WT) and transgenic line overexpressing MIR398 (miR398#OE) under cadmium stress. Tomato seedlings (25 d old) of WT and miR398#OE were grown 100 μM Cd(NO3)2 for 9 d. The data are the mean values + SD of four individual replicates and different letters indicate significant differences (p < 0.05). DW, dry weight.
Figure 4. Cadmium contents in the shoot (A), root (B), and xylem sap (C) in wild type (WT) and transgenic line overexpressing MIR398 (miR398#OE) under cadmium stress. Tomato seedlings (25 d old) of WT and miR398#OE were grown 100 μM Cd(NO3)2 for 9 d. The data are the mean values + SD of four individual replicates and different letters indicate significant differences (p < 0.05). DW, dry weight.
Ijms 24 01953 g004
Ijms 24 01953 g005 550

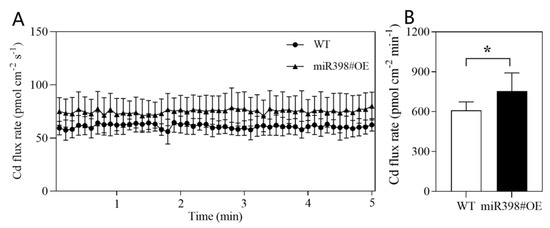

Figure 5. Cadmium flux rate in the root of wild type (WT) and transgenic line overexpressing MIR398 (miR398#OE) under cadmium stress. Stable cadmium flux rate in tomato root in 5 min (A) and average cadmium flux rate based on time (B). Tomato seedlings (25 d old) of WT and miR398#OE were grown under 100 μM Cd(NO3)2 for 9 d. The data are the mean values ± or + SD of seven individual replicates. Asterisk indicates significant difference between WT and miR398#OE (p < 0.05).
Figure 5. Cadmium flux rate in the root of wild type (WT) and transgenic line overexpressing MIR398 (miR398#OE) under cadmium stress. Stable cadmium flux rate in tomato root in 5 min (A) and average cadmium flux rate based on time (B). Tomato seedlings (25 d old) of WT and miR398#OE were grown under 100 μM Cd(NO3)2 for 9 d. The data are the mean values ± or + SD of seven individual replicates. Asterisk indicates significant difference between WT and miR398#OE (p < 0.05).
Ijms 24 01953 g005
Ijms 24 01953 g006 550

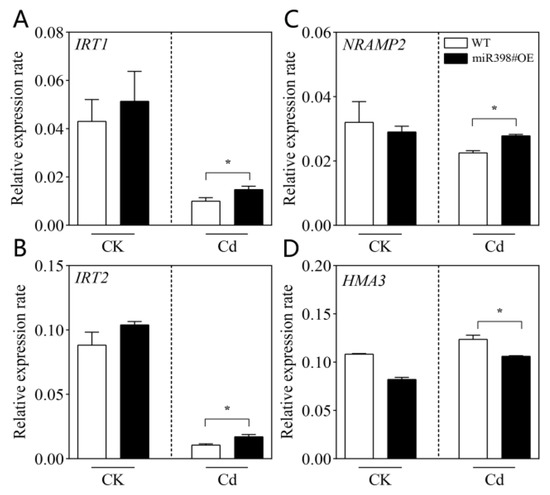

Figure 6. Relative expression rates of IRT1 (A), IRT2 (B), NRAMP2 (C), and HMA3 (D) in the root of wild type (WT) and transgenic line overexpressing MIR398 (miR398#OE) under cadmium stress. Tomato seedlings (25 d old) of WT and miR398#OE were grown under control (CK) and 100 μM Cd(NO3)2 (Cd) for 9 d. The data are the mean values + SD of four individual replicates. Asterisks indicate significant difference between WT and miR398#OE (p < 0.05).
Figure 6. Relative expression rates of IRT1 (A), IRT2 (B), NRAMP2 (C), and HMA3 (D) in the root of wild type (WT) and transgenic line overexpressing MIR398 (miR398#OE) under cadmium stress. Tomato seedlings (25 d old) of WT and miR398#OE were grown under control (CK) and 100 μM Cd(NO3)2 (Cd) for 9 d. The data are the mean values + SD of four individual replicates. Asterisks indicate significant difference between WT and miR398#OE (p < 0.05).
Ijms 24 01953 g006
Ijms 24 01953 g007 550

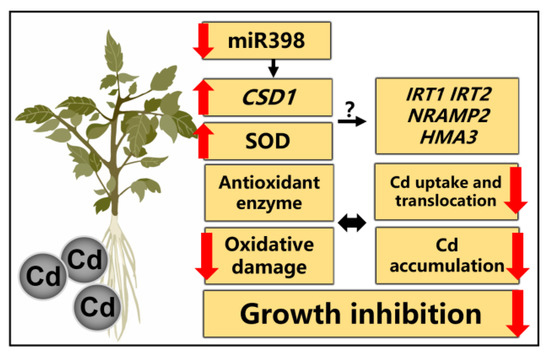

Figure 7. A schematic model of the role of miR398 in Cd stress acclimation in tomato.
Figure 7. A schematic model of the role of miR398 in Cd stress acclimation in tomato.
Ijms 24 01953 g007
Table
Table 1. Effects of cadmium stress on the activities of antioxidant enzymes in tomato shoot and root of wild type (WT) and transgenic line overexpressing MIR398 (miR398#OE).
Table 1. Effects of cadmium stress on the activities of antioxidant enzymes in tomato shoot and root of wild type (WT) and transgenic line overexpressing MIR398 (miR398#OE).
TreatmentSODCATAPXGPODGRDHAR
ShootCKWT16.67 ± 0.02 A27.60 ± 0.03 A2.76 ± 0.12 A30.72 ± 2.96 C2.56 ± 0.53 A71.98 ± 4.28 B
miR398#OE12.98 ± 0.16 B27.56 ± 4.28 A2.14 ± 0.07 B38.12 ± 1.72 C1.83 ± 0.30 AB84.88 ± 3.30 B
CdWT12.23 ± 0.50 B13.86 ± 1.12 B2.04 ± 0.08 B123.02 ± 11.67 B2.05 ± 0.07 AB143.95 ± 13.11 A
miR398#OE10.14 ± 0.87 C3.67 ± 0.49 C1.15 ± 0.06 C159.33 ± 18.75 A1.45 ± 0.22 B145.72 ± 26.01 A
RootCKWT50.36 ± 2.02 a8.22 ± 1.60 a3.82 ± 0.35 c134.57 ± 9.03 c5.66 ± 0.50 a25.71 ± 1.69 b
miR398#OE40.01 ± 3.69 b5.03 ± 0.40 b4.94 ± 0.30 b149.57 ± 6.66 c3.15 ± 0.03 b23.72 ± 1.78 b
CdWT23.04 ± 0.74 c7.27 ± 0.62 a6.73 ± 0.60 a391.12 ± 6.88 a2.99 ± 0.58 b38.19 ± 2.37 a
miR398#OE26.90 ± 2.57 c2.70 ± 0.40 c7.32 ± 0.29 a340.71 ± 4.70 b3.11 ± 0.20 b42.22 ± 0.88 a
Note: Tomato seedlings (25 d old) were grown under control (CK) and 100 μM Cd(NO3)2 (Cd) treatment for 9 d. The data are the mean values ± SD of four individual replicates and different letters show significant differences (p < 0.05). One unit (U) activity of SOD is defined as 50% inhibition of the photochemical reduction of nitroblue tetrazolium. SOD, superoxide dismutase, U mg−1 Pro; CAT, catalase, mM H2O2 mg−1 Pro min−1; APX, ascorbate peroxidase, mM ASA mg−1 Pro min−1; GPOD, guaiacol peroxidase, mM guaiacol mg−1 Pro min−1; GR, glutathione reductase, mM NADPH mg−1 Pro min−1; DHAR, dehydroascorbate reductase, mM DHA mg−1 Pro min−1; Pro, protein; ASA, ascorbate; DHA, dehydroascorbate.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Yan, G.; Hua, Y.; Jin, H.; Huang, Q.; Zhou, G.; Xu, Y.; He, Y.; Zhu, Z. Sly-miR398 Participates in Cadmium Stress Acclimation by Regulating Antioxidant System and Cadmium Transport in Tomato (Solanum lycopersicum). Int. J. Mol. Sci. 2023, 24, 1953. https://doi.org/10.3390/ijms24031953

AMA Style

Yan G, Hua Y, Jin H, Huang Q, Zhou G, Xu Y, He Y, Zhu Z. Sly-miR398 Participates in Cadmium Stress Acclimation by Regulating Antioxidant System and Cadmium Transport in Tomato (Solanum lycopersicum). International Journal of Molecular Sciences. 2023; 24(3):1953. https://doi.org/10.3390/ijms24031953

Chicago/Turabian Style

Yan, Guochao, Yuchen Hua, Han Jin, Qingying Huang, Guanfeng Zhou, Yunmin Xu, Yong He, and Zhujun Zhu. 2023. "Sly-miR398 Participates in Cadmium Stress Acclimation by Regulating Antioxidant System and Cadmium Transport in Tomato (Solanum lycopersicum)" International Journal of Molecular Sciences 24, no. 3: 1953. https://doi.org/10.3390/ijms24031953

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
