Article

An Experimental Anodized and Low-Pressure Oxygen Plasma-Treated Titanium Dental Implant Surface—Preliminary Report

1
Department of Dental Surgery Medical, Faculty of Medicine and Dentistry, University of Wrocław, 50-425 Wrocław, Poland
2
Department of Biostructure and Animal Physiology, Wrocław University of Environmental and Life Sciences, 51-631 Wroclaw, Poland
3
Faculty of Mechanics and Technology, Rzeszow University of Technology, 37-450 Stalowa Wola, Poland
4
Division of Orthodontics, Technical University Dresden, 01307 Dresden, Germany
5
Department of Maxillofacial Surgery, Faculty of Military Medicine, Medical University of Łódź, 90-419 Łódź, Poland
6
NanoPrime, 39-200 Dębica, Poland
7
WEA Techlab, 41-301 Dąbrowa Górnicza, Poland
8
Faculty of Chemistry, Silesian University of Technology, 44-100 Gliwice, Poland
*
Authors to whom correspondence should be addressed.
Int. J. Mol. Sci. 2023, 24(4), 3603; https://doi.org/10.3390/ijms24043603
Submission received: 27 December 2022 / Revised: 6 February 2023 / Accepted: 7 February 2023 / Published: 10 February 2023
(This article belongs to the Special Issue Recent Process Design and Development Strategies for Dental Materials)

Abstract

:
Chemical composition and physical parameters of the implant surface, such as roughness, regulate the cellular response leading to implant bone osseointegration. Possible implant surface modifications include anodization or the plasma electrolytic oxidation (PEO) treatment process that produces a thick and dense oxide coating superior to normal anodic oxidation. Experimental modifications with Plasma Electrolytic Oxidation (PEO) titanium and titanium alloy Ti6Al4V plates and PEO additionally treated with low-pressure oxygen plasma (PEO-S) were used in this study to evaluate their physical and chemical properties. Cytotoxicity of experimental titanium samples as well as cell adhesion to their surface were assessed using normal human dermal fibroblasts (NHDF) or L929 cell line. Moreover, the surface roughness, fractal dimension analysis, and texture analysis were calculated. Samples after surface treatment have substantially improved properties compared to the reference SLA (sandblasted and acid-etched) surface. The surface roughness (Sa) was 0.59–2.38 µm, and none of the tested surfaces had cytotoxic effect on NHDF and L929 cell lines. A greater cell growth of NHDF was observed on the tested PEO and PEO-S samples compared to reference SLA sample titanium.

1. Introduction

Titanium (Ti) and titanium alloys have found their way into dentistry as a material for dental implants. Titanium is biologically inert, able to bond with osteoblasts, and has excellent biocompatibility [1]. Moreover, titanium shows excellent corrosion resistance due to titanium oxide, which forms a passive film on its surface. The titanium oxide (TiO2) film is typically around 3–10 nm, so it can stably stay on the Ti surface [2].
Implant surface chemical composition and physical surface topography parameters such as the roughness of dental implant surfaces have all been linked to biological regulation in cell interactions leading to osseointegration [3].
The physical, chemical, and biological assessment of the implant surface need to be performed before being approved for clinical trials. To compare the surface topography of different implants, appropriate mathematical and physical descriptive methods can be used. A typical physical description of the implant surface topography is described by the Ra, Rz, and Sa. The degree of roughness, marked as Ra (Average roughness), is an average measure of the deviation value of individual surface points in relation to the selected reference plane [4]. Rz is referred to as the maximum vertical roughness, and Sa is a parameter expressing the absolute value of the difference in height of each point compared to the arithmetic mean of the surface [4]. Sa is often used to describe implant surface roughness, and its values between 1 µm and 2 µm appear to be optimal for dental implants, however, the mechanisms behind an optimal bone response to this Sa value remain largely unknown [5]. Among the mathematical methods, a fractal dimension (FD) analysis can be listed together with the texture analysis (TA). FD analysis can be applied in the description of irregular or complex surfaces or shapes. Fractal dimension analysis (FDA) has been reported in surface testing of various dental materials; among them are xenogeneic bone substitutes, lithium disilicate-based crowns, zirconia dental implants, dental restorative composite, or orthodontic wires [6,7,8,9]. Since the fractal architecture concept is particularly interesting in surface and materials science, it also can be adapted to assess the surface of titanium dental implants. Texture analysis is used in dentistry or medicine to analyze images of computed tomography or X-ray [10,11,12,13]
Numerous implant surface modifications have been presented in the literature, most commonly used for dental implant sandblasting and etching with acid (SLA) and nanostructure-modified surfaces [14]. These modifications, by affecting the biological tissue response, undoubtedly affect both the possibility of earlier loading of the implant as well as shortening implant length [15]. Plasma electrolytic oxidation, used in our study, was used to improve the properties of medical implants. Plasma can increase the adhesiveness of the surface, therefore, can modify the surface cell adhesions.
The first aim of the study was to compare the reference SLA titanium surface to the plasma electrolytic oxidated (PEO) and PEO treated with low-pressure oxygen plasma (PEO-S) titanium plates. The second aim was to check if the texture and fractal dimension analysis can be used to evaluate dental implant surfaces with complex geometry.
The research null hypotheses were raised:
  • None of the experimental samples express cytotoxicity.
  • There is no difference between the cell growth and cell adherence of the experimental surface modified with plasma electrolytic oxidation (PEO) titanium plates and PEO treated with low-pressure oxygen plasma (PEO-S) compared to standard SLA surface.
  • There are no correlations between a fractal dimension (FD) and texture analysis (TA), nor between implant surface roughness, Sa, and cell growth.
  • There are no differences between evaluated surfaces in an aspect of FD and TA.

2. Results

The titanium (Ti) and Ti6Al4V alloy have been sandblasted (Al2O3) and then etched to increase surface roughness. As a result of these processes, characteristic craters and pores formed on the surface (Figure 1). After the etching process, all embedded sand grains were removed, and the surface was chemically homogeneous (Figure 1). Only substrate elements (Ti or Ti, Al, and V) and oxygen were detected on the surface. The presence of oxygen is related to the naturally formed oxide layer on titanium and its alloys in the presence of air [16].
The sandblasted and etched samples are subjected to the plasma electrochemical oxidation (PEO) process in a solution containing calcium and phosphorus compounds [17,18]. During this process, the natural oxide layer on the titanium is thickened. There is an electric discharge of the forming oxide layer, and plasma with a temperature of several thousand degrees Celsius is formed in the puncture channels [19]. This melts and then solidifies the oxide layer. At the same time, the components of the electrolyte, calcium, and phosphorus compounds are incorporated into it [20,21]. The surface morphology of the modified samples is typical for the PEO process (Figure 2). The SEM (scanning electron microscope) images show typical pores resulting from discharges. Analysis of the chemical composition of EDX (energy-dispersive X-ray spectrometer) confirmed the incorporation of calcium and phosphorus into the oxide layer, both in titanium and the Ti6Al4V alloy (Ti-PEO and Ti6Al4V-PEO samples; Figure 2 and Table 1). The EDX spectra also show peaks from the gold that was sputtered on the samples before the SEM observations. Calcium and phosphorus incorporated into the oxide layer are present in the phosphate form [22,23]. It can also be seen that more calcium was incorporated into the Ti6Al4V alloy than in the case of titanium. Additional treatment of the samples with oxygen plasma did not change the surface morphology of the samples (Ti-PEO-S and Ti6Al4V-PEO-S samples; Figure 2). However, their chemical composition changed slightly. In the case of modified titanium and alloy in the oxide layer, the oxygen content increased slightly—around 1% (Ti-PEO-S and Ti6Al4V-PEO-S samples; Table 1). This means that titanium and alloy were oxygenated, which may have a positive effect on their biological response [24].

2.1. Surface Roughness Outcomes

Sa average surface height deviation amplitude was highest for the Ti-PEO surface and reached 2.38 µm; the lowest value of Sa 0.59 µm was noted for the Ti6Al4V-PEO-S sample. Surface roughness (Sa) for all the examined surfaces is presented in Table 2.

2.2. Biological Analysis Outcomes

2.2.1. In Vitro Cytotoxicity Assessment

The test was performed according to the protocol described in the standard for the cytotoxicity of medical devices. The study assessed the effect of extracts obtained from biomaterials on the vitality of two cell lines used for this purpose. No toxicity of the tested extracts was found. The results are shown in the graphs (Figure 3). No significant effect on the vitality of the tested cultures was found in the tests performed.
In the MTT assay, the L929 consensus reference line and the normal human dermal fibroblasts (NHDF) line were used. For both lines, cell morphology assessment was performed according to the guidelines described in the standard and the laboratory procedures. The assessment of cell morphology was performed by comparison with the specifications for the lines and control cultures. No cytopathic changes were observed in the cultures.

2.2.2. Co-Culture of Cells with Test Materials

To assess the effect of the tested materials on cells, cell cultures were performed in their presence. During the study, cell growth was assessed in the immediate vicinity of the material and underneath, at the edge of the material. No changes in cell morphology or other effects on the culture were observed. To confirm the results, staining was performed to assess the number of live and dead cells. The number of dead cells in culture was similar for all test materials and controls. How the test was performed for each material is shown in Figure 4.

2.2.3. Cell Attachment

The most important bioassay performed was the evaluation of cell adhesion and growth directly on the test surfaces. Adherent cells can grow on a variety of surfaces, e.g., glass, but most commonly on surfaces made of different plastics. These surfaces are subjected to various modifications that make the surface in the culture dish more hydrophilic for maximum cell adhesion. In the study conducted, the control surface was modified polystyrene (TPP, Trasadingen, Switzerland). The results obtained are presented as number of cells per test surface and the fluorescence value obtained as the average value of the tested surface. The results shown in Figure 5 indicate that the introduced modifications significantly improved cell adhesion to the test surfaces compared to the original Ti and Ti6Al4V surfaces. For the PEO and PEO-S surfaces, a significant increase in cell number and adhesion fusion is observed, which is similar to or significantly better than the surface standardly used for cell culture, providing optimal cell growth conditions. Comparing PEO and PEO-S surfaces, the latter provides better conditions for cell growth.

2.3. Fractal Dimension Analysis

Table 3 presents mean values of fractal dimension in 100 μm × 100 μm scale. The lowest value of FD was seen in Ti6Al4V-PEO (1.782000) and the highest value in Ti6Al4V (1.888920).
Table 4 shows mean values of fractal dimension in 5 μm × 5 μm scale. The lowest value of FD was seen in Ti (1.6931) and the highest value in Ti6Al4V (1.7731).
Table 5 shows Pearson correlation coefficients between FD and Sa and amounts of cells in mm2, medium au. We have revealed almost no linear correlation (r = −0.02) between Sa and amounts of cells in mm2. A very weak negative correlation (r = −0.52/r = −0.56) was revealed between the value of FD (in scale 100 μm × 100 μm) and amounts of cells in mm2, medium au.

2.4. Texture Analysis

An example of the results of investigating the surface structure of dental implants by SEM image texture analysis is shown in Figure 6.
When examining the differential entropy as a measure of the development of the implant surface as seen in the SEM, significant differences were noted between the analyzed surfaces in the 100 µm × 100 µm field of view. Statistically significant differences are presented in Table 6.
In turn, when examining the differential entropy of the implant surface image at higher magnification (i.e., in a 5 µm × 5 µm field of view), the texture feature increased, as presented in Table 7.
The increase of Sa was related (r = 0.41) with an increase in difference entropy of theimplant surface measured in 100 × 100 µm field of view (Table. 8). DifEntrp (5 µm × 5 µm) was positively correlated with the medium Au and cells [mm2] (r = 0.72 and r = 0.68 respectively). On the contrary, a negative correlation was found between DifEntrp (100 µm × 100 µm) and the medium Au and cells [mm2] (r = −0.46 and r = −0.51 respectively). A moderate correlation (r = 0.76) was found between DiffEntrop (100 µm × 100 µm) and FD. No correlation was found between DiffEntrop (5 µm × 5 µm) and FD (r = 0.06). Table 8.
Regarding research hypotheses:
  • The first null hypothesis was accepted. None of the experimental samples expressed cytotoxicity.
  • The second null hypothesis has been rejected. Samples after surface treatment have substantially improved cell growth and cell adherence compared to reference SLA samples.
  • The third null hypothesis has been sustained. We did not reveal a correlation between examined features, except a negative correlation between FD, difference entropy (DifEntrp) (in scale 100 μm × 100 μm), and amount of cells, a positive moderate correlation between DifEntrp and number of cells, and a positive strong correlation between the DifEntrp and FD in scale 100 μm × 100 μm.
  • The fourth null hypothesis has been rejected. Our study revealed statistically significant differences between examined surfaces in the aspect of fractal dimension and texture analysis.

3. Discussion

The properties of the titanium alloy’s surface, including its microtopography and nanoscale modification and chemical composition, as well as strategies and methods for improving biocompatibility to bone tissue, have been contemporarily well investigated [14,25]. Wang et al. [26] have found that titanium disc surfaces treated with low-temperature argon–oxygen plasma are more hydrophilic compared to nontreated surfaces, and the activation with plasma can enhance the attachment, proliferation, and mineralization of osteoblasts on the surfaces. A recent study by Hadzik et al. [27] has shown that the anodization of Ti-6Al-4V alloy and its further low-pressure radiofrequency oxygen plasma treatment is a promising method of implant transgingival parts modification. Cheng et al. [28] have found that, when bioactive oxide film on titanium dental implants is created by the oxygen plasma, bone cells’ differentiation and osseointegration are improved. Such modifications provide effective binding to hard tissue and, therefore, promote osteointegration. Our study has confirmed that none of the tested surfaces here have any cytotoxic effect on HGF cell lines, so they can be safe when used as dental implant surfaces. Results of our study prove that PEO as well as PEO-S that were treated with a low-pressure OP represent promising options of Ti surface modification. We have reported a significant increase in cell number and adhesion fusion specifically for the tested experimental PEO and PEO-S surfaces compared to the SLA reference surface.
In our study, the fibroblast model was selected to assess the cytocompatibility of the experimental samples. The adhesion behavior of fibroblasts is known to differ among materials with varying degrees of surface roughness. Generally, maximum adhesion is observed for more rough surfaces. The reason for that is the physiology of fibroblasts and their filopodial structure that extends further into grooves and microstructures of rough surfaces. However, a strong positive relationship between bacterial adhesion and plaque accumulation rate and surface roughness in the supragingival region has been also reported. Rough surfaces in such an application may lead to possible peri-implant mucositis and periimplantitis development [29,30,31].
Hence, the ideal micro- and nano-scale titanium surface topography for implants should balance the facility for fibroblast adhesion without simultaneously favoring bacterial growth. One of the methods of titanium surface nanotexturing that matches the abovementioned condition of the ideal surface is electrochemical anodization. Due to that process, the hierarchic superstructure of the TiO2 layer in the shape of nanotubes can be synthesized.
It seems that, in the case of the tested experimental surfaces, their cellular response may be related not only to the roughness, which, reaching Sa values from 0.59 to 2.38 nm for various tested surfaces, is within or slightly exceeds the optimal roughness values described in the literature by Wennerberg and Albrektsson, 1–2 µm [5]. Blinova et al. [32] were one of the first to report fibroblast ingrowth both on its surface and inside of it when cultured on a porous titanium implant. They also proved that interactions between the cell and titanium implant are more evident in samples with nonuniform porosity. Moreover, Whiteside et al. [33] reported more specific criteria for biologically advantageous porosity, where surfaces with a greater number of finer pores are favored for cell attachment.
The plasma electrochemical oxidation (PEO) process in a solution containing calcium and phosphorus compounds has to cause the natural oxide layer on the titanium to thicken. EDX study has confirmed the incorporation of calcium and phosphorus into the oxide layer, both in titanium and the Ti6Al4V alloy. Additional treatment of the samples with oxygen plasma did not change the surface morphology of the samples. However, of modified titanium and alloy in the oxide layer, the oxygen content increased slightly—around 1%. The significantly better cell adhesion we achieved compared to reference SLA samples is conditioned by the chemical structure that results from the applied PEO and PEO-S treatment of the implant surfaces.
The fractal dimension analysis (FDA) of the samples has provided a mathematical formalism for describing complex spatial and dynamical structures and describing the entropy potential of the surface. The entropy of the surface generally raises with it complicity and roughness. It has been broadly used in many areas of science, including medicine, dentistry, technology, and materials science [34]. However, the contemporary method is rarely employed to evaluate titanium implant surfaces. In this study, we can observe a negative moderate correlation between FD and amounts of cells in scale 100 µm × 100 µm at a similar level of correlation between difference entropy (DifEntrp) and cell number. This observation has a reflection in FD interpretation. The lower FD’s value is, the more complex of an analyzed surface is present and the higher number of cells we observed. This observation confirmed that FD and DifEntrp in scale 100 µm × 100 µm and DifEntrp in scale 5 µm × 5 µm can be used as surface features in the aspect of cell ability to colonize. Our results show a lack of correlations between Sa and medium Au and cell growth. We revealed a lack of correlation between FD and Sa in contrast to a weak correlation between DifEntrp and Sa in both scales. It is interesting to observe a strong positive correlation between FD and DifEntrp in scale 100 µm × 100 µm in contrast to a weak negative correlation in scale 5 µm × 5 µm. Skośkiewicz-Malinowska et al. [35] reported a positive moderate correlation between the FDA and the number of the fibroblasts when tested on cement surfaces. In our previous study, a weak correlation (r = 0.38) between the number of fibroblasts and the fractal dimension in the 100 µm × 100 µm scale was observed. Meanwhile, in the 5 µm × 5 µm scale, the correlation coefficient was lower, and r = 0.24 [7].

4. Materials and Methods

For the purpose of this study, titanium plates as a sample of different experimental implant surfaces were delivered and tested. The roughness parameters of the surface were measured. Based on the SEM images, fractal dimension analysis and texture analysis was calculated. All the titanium plates were tested for cytotoxicity and, finally, normal human dermal fibroblasts (NHDF) were used to assess the cell culture adhesion to each Ti sample.

4.1. Titanium Plates Preparation and Surface Modification

Titanium plates with standard SLA (sandblasted and acid-etched) were prepared and delivered by NanoPrime company (NanoPrime, Dębica, Poland) from the Titanium Grade 4 (Ti) and Titanium Grade 23 (Ti6Al4V). Ti and Ti6Al4V sandblasted and acid-etched Titanium dental implant samples used in this study were previously used in our study as a reference to compare against the Laser-Induced Periodic Surface Structures (LIPSS) dental implant surfaces in our other study [7]. In this study, new experimental electrolytic-modified implant surfaces were used for Ti-PEO and Ti6Al4V-PEO (plasma electrolytic oxidation) and Ti-PEO-S and Ti6Al4V-PEO-S treated with additional low-pressure radio-frequency oxygen plasma (low-pressure RF OP). The details of the titanium surface samples are presented in Table 9.

4.2. Surface Analysis Surface Topography Ra, Rz, Sa Measurement

The surface roughness (Sa) parameter was measured with the use of a scanning electron microscope SEM (Thermo Fisher Scientific Inc., Waltham, MA, USA), and 15 keV accelerating voltage was applied. The roughness parameters were measured with Phenom 3D Roughness Reconstruction Software (version 1, Thermo Fisher Scientific Inc., Waltham, MA, USA). Each surface was triplicated, and the measurements were done in four places on each sample. The results were averaged, and a standard deviation (SD) was calculated.

4.3. Surface Analysis FDA

We analyzed SEM images under two magnifications: 5000× and 100,000×. Five regions of interest (ROIs) were selected from each image. ROI dimension was 100 μm × 100 μm in case of 5000× magnification and 5 μm × 5 μm for 100,000× magnification. These were applied in the intensity difference fractal dimension counting method to analyze each ROI.
ImageJ version 1.53e (Image Processing and Analysis in Java—Wayne Rasband and contributors, National Institutes of Health, Bethesda, MD, USA, public domain license, https://imagej.nih.gov/ij/, accessed on 1 December 2022) and the FracLac plugin version 2.5 (Charles Sturt University, Bathurs, Australia, public domain license) were applied to do all fractal dimension analyses. The full algorithm of fractal dimension calculation was fully described in our previous study [7].

4.4. Surface Analysis TA

MaZda 4.6 (MaZda ver. 4.6, Technical University of Łodź, Institute of Electronics, Łodź, Poland) was used to check how the features were describing analyzed images [36,37]. Primary 8-bit images were reduced to 6 bits. Regions of interest (ROIs) were normalized (μ ± 3σ) to share the same average (μ) and standard deviation (SD) of optical density within the ROI. Difference entropy (DifEntrp) was selected as a texture feature from the co-occurrence matrix to calculate in the ROI:
D i f E n t r = - i = 1 N g p x y i l o g ( p x y ( i ) )
where Σ is sum, Ng is the number of levels of optical density in the microphotograph, i and j are optical density of pixels 5-pixel distant one from another, p is probability, and log is common logarithm [36,38,39].

4.5. Biological Analyses

4.5.1. Cell Culture

In vitro studies were performed using two models: the Normal Human Dermal Fibroblast (NHDF) cell line (Lonza Group, Basel, Switzerland) and L929 cells, (Sigma-Aldrich, Merck Group, Darmstadt, Germany) (The European Collection of Authenticated Cell Cultures-ECACC). Cells were cultured under standard conditions at 37 °C, 5% CO2, 95% humidity, in a CO2 incubator. Cells were always cultured for a minimum of 2 weeks after thawing before starting a series of experiments. Cell cultures were passaged with trypsin/EDTA solution. Cells were counted using a NucleoCounter® NC-200 automatic cell counter (ChemoMetec A/S, Allerod, Denmark). Cells were cultured in Dulbecco’s modified Eagle medium (DMEM), 10% fetal bovine serum (FBS), penicillin (10,000 U/mL), streptomycin (10 mg/mL), and L-glutamine (200 mM). All culture reagents were purchased from Biological Industries (Biological Industries, Kibbutz Beit-Haemek, Israel).

4.5.2. Preparation of Samples

The test samples were packaged and autoclaved for sterilization. For the in vitro biological cytotoxicity assessment test, liquid extracts of the test materials were prepared according to the provisions of the standard: EN ISO 10993-5: Biological evaluation of medical devices—Part 5: In vitro cytotoxicity testing. Extraction was carried out in sterile, chemically inert, sealed tubes for 24 h at 37 °C in an incubator. Before the experiments involving direct assessment of the interaction of materials with cells, the prepared sections were wetted with serum culture medium. The test material was incubated in the presence of culture medium at a ratio of 1:10. The resulting extract was sterilized by phytoextraction through a 0.22 μm filter.

4.5.3. Evaluation of the Effects on Growth and Vitality of Cell Cultures

The test was performed according to the guidelines of the standard for testing the cytotoxicity of biomaterials. Cells were obtained from culture NHDF. Tests were performed in 96-well plates at 1 × 104 cells/well. Cells were incubated for 24 h (5% CO2, 37 °C, 90% humidity) so that the cells formed a monolayer on the plate surface. Before the experiment, each plate was checked under a phase-contrast microscope to ensure that cell growth was relatively uniform across the test plate. After 24 h of incubation, the medium was removed from above the cells. Then, 100 µL of medium containing the appropriate sample extracts, control, or blank only was added to each well. The test plates were incubated for a further 24 h (5% CO2, 37 °C, 90% humidity). After 24 h of incubation, each plate was viewed under a phase-contrast microscope to assess the growth of control and extract-treated cells. The observed changes in cell morphology may have been due to the cytotoxic effect of the test sample extract. The culture medium was then carefully removed from the plates and 50 µL of 1 mg/mL MTT solution was added to each well. The plates were incubated for a further 2 h in an incubator at 37 °C. After this time, the MTT solution was removed and 100 µL of isopropanol was added to each well. Absorbance was read on a MultiscanGo reader (Thermo Scientific, Waltham, MA, USA) at 570 nm.

4.5.4. Co-Culture of Cells with Materials

In this assay, L929 cells were seeded into 24-well plates alongside previously placed sterile test biomaterials. In this method, the direct interaction between the cells and the test material was checked by assessing the morphology of the cells and the percentage of live and dead cells (Cell Viability Imaging Kit, Green/Red), which was evaluated on a fluorescence microscope EVOS FLoid (Thermo Scientific, Waltham, MA, USA).

4.5.5. Cell Attachment

Cells for the study were obtained according to the methodology described above. Cultures of normal human dermal fibroblasts (NHDF) were used for the study. The cell suspension prepared for the test was counted and suspended in a culture medium. The density of the cell suspension for the adhesion assay was 1 × 106 cells/mL, and 24-well plates were used for the assay. Materials for the test were placed in wells. Cells in the assay were applied to the wetted material using an automatic pipette. After application, the cells were incubated for 2 h (5% CO2, 37 °C, 90% humidity) to allow the cells to adhere to the test materials. After this time, the wells were replenished with serum culture medium in a volume of 1000 µL. The test plates were incubated for a further 72 h (5% CO2, 37 °C, 90% humidity). After the incubation time, cells growing on the test surfaces were stained using the Cell Viability Imaging Kit (Blue/Green). Staining involves adding dye to the culture and incubating for 5 to 30 min. After this time, images were taken using a BioTek Lionheart microscope (Agilent Technologies, Santa Clara, CA, USA) using fluorescence excitation with an led illuminator: ex 377 em 447 and ex 469 em 525. Further analysis was performed using GEN5 dedicated image analysis software (Agilent Technologies, Santa Clara, CA, USA). The fluorescence intensity and the number of cells stained with each dye were analyzed. Cells showing blue fluorescence were counted as alive, and green cells as dead.

4.6. Statistical Analysis

Statistica version 13.3 (StatSoft, Cracow, Poland) was applied to calculate all fractal dimension analysis statistical tests. The statistically significant level was set to 0.05. The normality of distribution was confirmed by the Shapiro–Wilk test. Due to normal distribution, we performed parametric tests. Analysis of variance (ANOVA) and post hoc least significant difference was used to show differences in fractal dimensions between each surface in two scales. The correlation matrix was applied to calculate the Pearson correlation coefficient (r) between the fractal dimension of lesions in two scales and Sa, the number of cells in mm2, medium Au, and Sa vs. amounts of cells in mm2 and medium Au. The following are the ranges of the r value: r greater than or equal to 0.7—strong correlation; r between 0.7 and 0.5—moderate; and r lower than 0.5—weak correlation. Sample size was calculated on the basis of a power of test. In this study, we used a one way ANOVA for five groups. In this case, the 80% of power of test is achieved for N = 50 in each group.
For texture analysis, between-group comparisons were performed with the one way ANOVA or the Kruskal–Wallis test, depending on the presence of normal distribution. Statgraphics Centurion version 18.1.12 (StatPoint Technologies Inc., Warrenton, VA, USA) was used for statistical analyses.

4.7. Study Limitations

A limitation of the study was that a machined titanium sample was not used as a control for the cell culture tests. Furthermore, the wettability and microhardness properties of the modified surfaces should be investigated in the future.

5. Conclusions

The presented study shows that the surface modification by PEO and PEO-S did not affect the sample cytotoxicity. Greater cell growth of HGF cells was observed on PEO and PEO-S samples compared to reference SLA titanium. The number of cells is correlated with the value of fractal dimension and DifEntrp in scale 100 µm × 100 µm. These two parameters can be used to describe the potential of the surface in the aspect of the ability of a cell to grow. A strong positive correlation between fractal dimension value and DifEntrp was found. In the case of our samples, we have not found a correlation between Sa value and cell growth.

Author Contributions

Conceptualization, J.H. and K.J.; methodology, J.H., K.J. and W.S.; software, K.J., W.S., J.H. and M.K.; formal analysis, M.D.; investigation, J.H., T.G. (Tomasz Gębarowski) and W.S.; resources, J.H., A.T., E.S. and A.T.-S.; data curation, J.H. and K.J.; writing—original draft preparation, J.H.; writing—review and editing, J.H., K.J., P.K.-R. and W.S.; supervision, J.H. and W.S.; project administration, J.H.; funding acquisition, M.D. and T.G. (Tomasz Gedrange). All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by the Wrocław Medical University Statutory Grant no. SUBZ.B040.23.048 and University of Łodź grant no. 503/1-138-01/503-51-001-19-00. Samples of the experimental dental implant surfaces were donated by Nano Prime sp z o.o. (Dębica, Poland).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data available on request.

Acknowledgments

Authors would like to thank Anna Trzcionka Szajna and Ernest Szajna for preparing and delivering titanium samples for testing.

Conflicts of Interest

Ernest Szajna represented the WEA Techlab sp. z o.o., ul. Perla 10, 41-301 Dąbrowa Górnicza the manufacturer of the experimental dental implant surfaces. Anna Trzcionka Szajna NanoPrime ltd represented the Nano Prime Sp. z o.o. 39-200 Dębica ul. Metalowców 25. The principal investigator in the study Jakub Hadzik and the other subinvestigators responsible for research and testing samples are not related to WEA Techlab ltd. and NanoPrime ltd. and did not receive from either WEA Techlab ltd. or NanoPrime ltd. any remuneration for carrying out research. The data are in the possession of the authors. Ernest Szajna and Anna Trzcionka-Szajna declare that have not interfered with the sample testing process or the publication this manuscript.

References

  1. Hoque, M.E.; Showva, N.N.; Ahmed, M.; Bin Rashid, A.; Sadique, S.E.; El-Bialy, T.; Xu, H. Titanium and titanium alloys in dentistry: Current trends, recent developments, and future prospects. Heliyon 2022, 8, e11300. [Google Scholar] [CrossRef]
  2. Liu, X.; Chen, S.; Tsoi, J.K.H.; Matinlinna, J.P. Binary titanium alloys as dental implant materials-a review. Regen. Biomater. 2017, 4, 315–323. [Google Scholar] [CrossRef] [PubMed]
  3. Cruz, M.B.; Silva, N.; Marques, J.F.; Mata, A.; Silva, F.S.; Caramês, J. Biomimetic Implant Surfaces and Their Role in Biological Integration—A Concise Review. Biomimetics 2022, 7, 74. [Google Scholar] [CrossRef] [PubMed]
  4. Dohan Ehrenfest, D.M.; Coelho, P.G.; Kang, B.S.; Sul, Y.T.; Albrektsson, T. Classification of osseointegrated implant surfaces: Materials, chemistry and topography. Trends Biotechnol. 2010, 28, 198–206. [Google Scholar] [CrossRef]
  5. Wennerberg, A.; Albrektsson, T. Effects of titanium surface topography on bone integration: A systematic review. Clin. Oral Implants Res. 2009, 20, 172–184. [Google Scholar] [CrossRef]
  6. Jurczyszyn, K.; Kubasiewicz-Ross, P.; Nawrot-Hadzik, I.; Gedrange, T.; Dominiak, M.; Hadzik, J. Fractal dimension analysis a supplementary mathematical method for bone defect regeneration measurement. Ann. Anat. 2018, 219, 83–88. [Google Scholar] [CrossRef]
  7. Hadzik, J.; Kubasiewicz-Ross, P.; Simka, W.; Gębarowski, T.; Barg, E.; Cieśla-Niechwiadowicz, A.; Szajna, A.T.; Szajna, E.; Gedrange, T.; Kozakiewicz, M.; et al. Fractal Dimension and Texture Analysis in the Assessment of Experimental Laser-Induced Periodic Surface Structures (LIPSS) Dental Implant Surface-In Vitro Study Preliminary Report. Materials 2022, 15, 2713. [Google Scholar] [CrossRef]
  8. Grzebieluch, W.; Kowalewski, P.; Grygier, D.; Rutkowska-Gorczyca, M.; Kozakiewicz, M.; Jurczyszyn, K. Printable and machinable dental restorative composites for cad/cam application—Comparison of mechanical properties, fractographic, texture and fractal dimension analysis. Materials 2021, 14, 4919. [Google Scholar] [CrossRef]
  9. Schestatsky, R.; Zucuni, C.P.; Dapieve, K.S.; Burgo, T.A.L.; Spazzin, A.O.; Bacchi, A.; Valandro, L.F.; Pereira, G.K.R. Microstructure, topography, surface roughness, fractal dimension, internal and marginal adaptation of pressed and milled lithium-disilicate monolithic restorations. J. Prosthodont. Res. 2020, 64, 12–19. [Google Scholar] [CrossRef] [PubMed]
  10. Costa, A.L.F.; de Souza Carreira, B.; Fardim, K.A.C.; Nussi, A.D.; da Silva Lima, V.C.; Miguel, M.M.V.; Jardini, M.A.N.; Santamaria, M.P.; de Castro Lopes, S.L.P. Texture analysis of cone beam computed tomography images reveals dental implant stability. Int. J. Oral Maxillofac. Surg. 2021, 50, 1609–1616. [Google Scholar] [CrossRef]
  11. Abdollah, V.; Parent, E.C.; Dolatabadi, S.; Marr, E.; Croutze, R.; Wachowicz, K.; Kawchuk, G. Texture analysis in the classification of T2-weighted magnetic resonance images in persons with and without low back pain. J. Orthop. Res. 2021, 39, 2187–2196. [Google Scholar] [CrossRef]
  12. Kozakiewicz, M.; Wach, T. Exploring the Importance of Corticalization Occurring in Alveolar Bone Surrounding a Dental Implant. J. Clin. Med. 2022, 11, 7189. [Google Scholar] [CrossRef]
  13. Kozakiewicz, M. Measures of Corticalization. J. Clin. Med. 2022, 11, 5463. [Google Scholar] [CrossRef]
  14. Makowiecki, A.; Hadzik, J.; Błaszczyszyn, A.; Gedrange, T.; Dominiak, M. An evaluation of superhydrophilic surfaces of dental implants—A systematic review and meta-analysis. BMC Oral Health 2019, 19, 79. [Google Scholar] [CrossRef]
  15. Hadzik, J.; Kubasiewicz-Ross, P.; Nawrot-Hadzik, I.; Gedrange, T.; Pitułaj, A.; Dominiak, M. Short (6 mm) and regular dental implants in the posterior maxilla–7-years follow-up study. J. Clin. Med. 2021, 10, 940. [Google Scholar] [CrossRef] [PubMed]
  16. De Fenzo, A.; Scherillo, F.; Astarita, A.; Testani, C.; Squillace, A.; Bellucci, F. Influence of hot deformation on the electrochemical behavior of natural oxides of hipped Ti6Al4V. Corros. Sci. 2015, 94, 79–87. [Google Scholar] [CrossRef]
  17. Simka, W.; Pogorielov, M.; Mishchenko, O. Method for Modifying the Surface of Implants Made of Titanium or Titanium. Alloys. Patent PL-240205, 23 June 2019. [Google Scholar]
  18. Kyrylenko, S.; Oleshko, O.; Warchol, F.; Husak, Y.; Basiaga, M.; Kazek-Kesik, A.; Dercz, G.; Pogorielov, M.; Simka, W. A New Solution for an Electrochemical Modification of Titanium Surface. J. Nano-Electron. Phys. 2020, 12, 06038. [Google Scholar] [CrossRef]
  19. Fattah-Alhosseini, A.; Molaei, M.; Babaei, K. The effects of nano- and micro-particles on properties of plasma electrolytic oxidation (PEO) coatings applied on titanium substrates: A review. Surf. Interfaces 2020, 21, 100659. [Google Scholar] [CrossRef]
  20. Jamali, R.; Bordbar-Khiabani, A.; Yarmand, B.; Mozafari, M.; Kolahi, A. Effects of co-incorporated ternary elements on biocorrosion stability, antibacterial efficacy, and cytotoxicity of plasma electrolytic oxidized titanium for implant dentistry. Mater. Chem. Phys. 2022, 276, 125436. [Google Scholar] [CrossRef]
  21. Francisca, F.G.S.; Vitoriano, J.D.O.; Alves-Junior, C. Controlling plasma electrolytic oxidation of titanium using current pulses compatible with the duration of microdischarges. Results Mater. 2022, 15, 100310. [Google Scholar] [CrossRef]
  22. Kyrylenko, S.; Warchoł, F.; Oleshko, O.; Husak, Y.; Kazek-Kęsik, A.; Korniienko, V.; Deineka, V.; Sowa, M.; Maciej, A.; Michalska, J.; et al. Effects of the sources of calcium and phosphorus on the structural and functional properties of ceramic coatings on titanium dental implants produced by plasma electrolytic oxidation. Mater. Sci. Eng. C 2021, 119, 111607. [Google Scholar] [CrossRef]
  23. Michalska, J.; Sowa, M.; Stolarczyk, A.; Warchoł, F.; Nikiforow, K.; Pisarek, M.; Dercz, G.; Pogorielov, M.; Mishchenko, O.; Simka, W. Plasma electrolytic oxidation of Zr-Ti-Nb alloy in phosphate-formate-EDTA electrolyte. Electrochim. Acta 2022, 419, 140375. [Google Scholar] [CrossRef]
  24. Chou, W.C.; Wang, R.C.C.; Huang, C.L.; Lee, T.M. The effect of plasma treatment on the osseointegration of rough titanium implant: A histo-morphometric study in rabbits. J. Dent. Sci. 2018, 13, 267–273. [Google Scholar] [CrossRef]
  25. Liu, Y.; Rath, B.; Tingart, M.; Eschweiler, J. Role of implants surface modification in osseointegration: A systematic review. J. Biomed. Mater. Res. Part A 2020, 108, 470–484. [Google Scholar] [CrossRef]
  26. Wang, L.; Wang, W.; Zhao, H.; Liu, Y.; Liu, J.; Bai, N. Bioactive Effects of Low-Temperature Argon-Oxygen Plasma on a Titanium Implant Surface. ACS Omega 2020, 5, 3996–4003. [Google Scholar] [CrossRef] [PubMed]
  27. Hadzik, J.; Kubasiewicz-Ross, P.; Gębarowski, T.; Waloszczyk, N.; Maciej, A.; Stolarczyk, A.; Gedrange, T.; Dominiak, M.; Szajna, E.; Simka, W. An Experimental Anodized Titanium Surface for Transgingival Dental Implant Elements—Preliminary Report. J. Funct. Biomater. 2023, 14, 34. [Google Scholar] [CrossRef] [PubMed]
  28. Chen, C.S.; Chang, J.H.; Srimaneepong, V.; Wen, J.Y.; Tung, O.H.; Yang, C.H.; Lin, H.C.; Lee, T.H.; Han, Y.; Huang, H.H. Improving the in vitro cell differentiation and in vivo osseointegration of titanium dental implant through oxygen plasma immersion ion implantation treatment. Surf. Coat. Technol. 2020, 399, 126125. [Google Scholar] [CrossRef]
  29. Kubasiewicz-Ross, P.; Fleischer, M.; Pitułaj, A.; Hadzik, J.; Nawrot-Hadzik, I.; Bortkiewicz, O.; Dominiak, M.; Jurczyszyn, K. Evaluation of the three methods of bacterial decontamination on implants with three different surfaces. Adv. Clin. Exp. Med. 2020, 29, 177–182. [Google Scholar] [CrossRef]
  30. Romandini, M.; Lima, C.; Pedrinaci, I.; Araoz, A.; Soldini, M.C.; Sanz, M. Prevalence and risk/protective indicators of peri-implant diseases: A university-representative cross-sectional study. Clin. Oral Implants Res. 2021, 32, 112–122. [Google Scholar] [CrossRef] [PubMed]
  31. Hussain, R.A.; Miloro, M.; Cohen, J.B. An Update on the Treatment of Periimplantitis. Dent. Clin. North Am. 2021, 65, 43–56. [Google Scholar] [CrossRef]
  32. Blinova, M.I.; Yudintzeva, N.M.; Nikolaenko, N.S.; Potokin, I.L.; Raykhtsaum, G.; Pitkin, M.R.; Pinaev, G.P. Cell cultivation on porous titanium implants with various structures. Cell Tissue Biol. 2010, 4, 572–579. [Google Scholar] [CrossRef]
  33. Whiteside, P.; Matykina, E.; Gough, J.E.; Skeldon, P.; Thompson, G.E. In vitro evaluation of cell proliferation and collagen synthesis on titanium following plasma electrolytic oxidation. J. Biomed. Mater. Res. Part A 2010, 94, 38–46. [Google Scholar] [CrossRef]
  34. Kato, C.N.A.O.; Barra, S.G.; Tavares, N.P.K.; Amaral, T.M.P.; Brasileiro, C.B.; Mesquita, R.A.; Abreu, L.G. Use of fractal analysis in dental images: A systematic review. Dentomaxillofacial Radiol. 2020, 49, 20180457. [Google Scholar] [CrossRef] [PubMed]
  35. Skośkiewicz-Malinowska, K.; Mysior, M.; Rusak, A.; Kuropka, P.; Kozakiewicz, M.; Jurczyszyn, K. Application of texture and fractal dimension analysis to evaluate subgingival cement surfaces in terms of biocompatibility. Materials 2021, 14, 5857. [Google Scholar] [CrossRef]
  36. Haralick, R.M.; Dinstein, I.; Shanmugam, K. Textural Features for Image Classification. IEEE Trans. Syst. Man Cybern. 1973, SMC-3, 610–621. [Google Scholar] [CrossRef]
  37. Szczypiński, P.M.; Strzelecki, M.; Materka, A.; Klepaczko, A. MaZda-A software package for image texture analysis. Comput. Methods Programs Biomed. 2009, 94, 66–76. [Google Scholar] [CrossRef] [PubMed]
  38. Trafalski, M.; Kozakiewicz, M.; Jurczyszyn, K. Application of fractal dimension and texture analysis to evaluate the effectiveness of treatment of a venous lake in the oral mucosa using a 980 nm diode laser—A preliminary study. Materials 2021, 14, 4140. [Google Scholar] [CrossRef] [PubMed]
  39. Kołaciński, M.; Kozakiewicz, M.; Materka, A. Textural entropy as a potential feature for quantitative assessment of jaw bone healing process. Arch. Med. Sci. 2015, 11, 78–84. [Google Scholar] [CrossRef] [PubMed]
Figure 1. The SEM (scanning electron microscope) images and EDX (energy-dispersive X-ray spectrometer) spectra of Ti and Ti6Al4V samples after sandblasting and etching.
Figure 1. The SEM (scanning electron microscope) images and EDX (energy-dispersive X-ray spectrometer) spectra of Ti and Ti6Al4V samples after sandblasting and etching.
Ijms 24 03603 g001

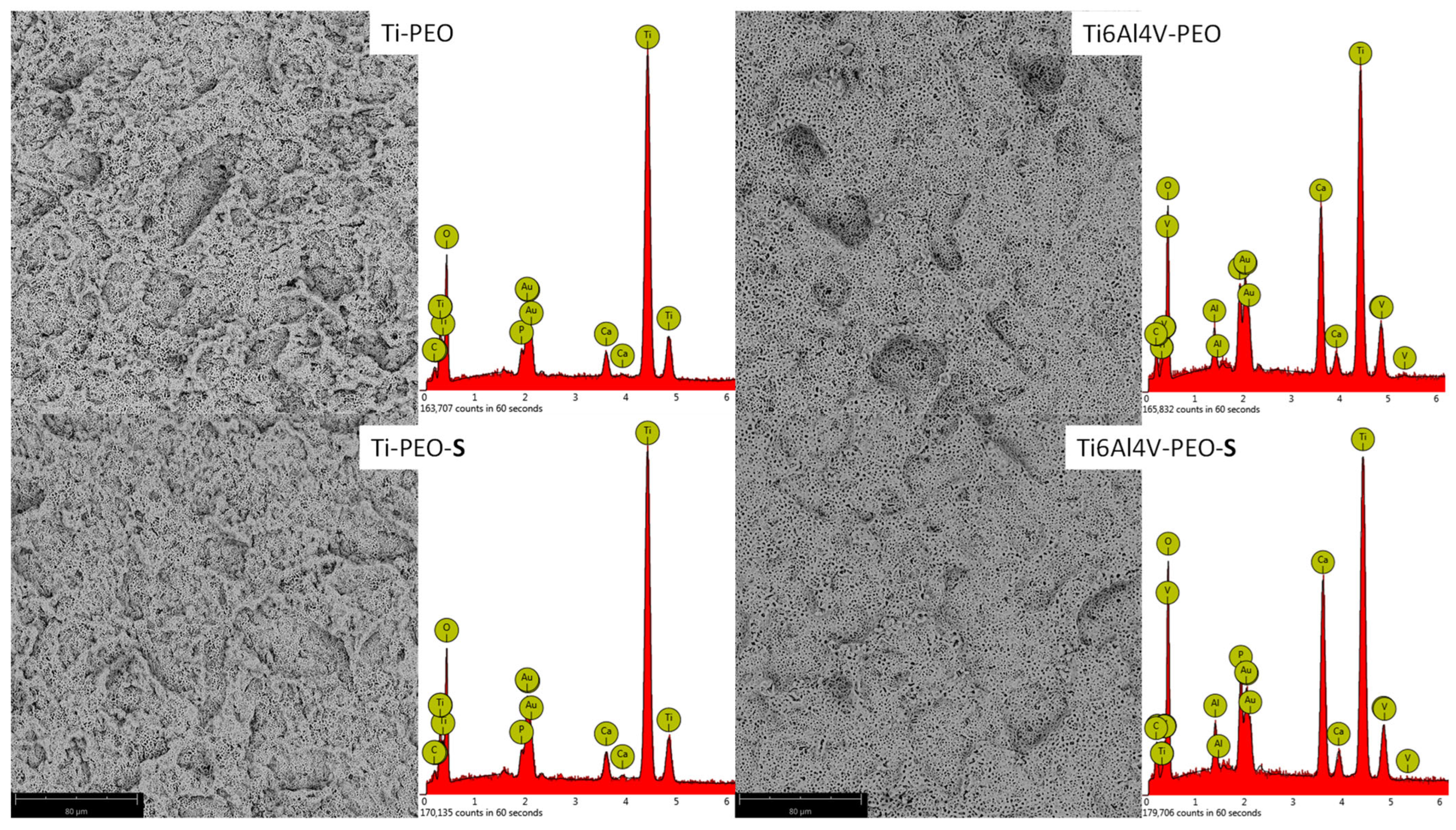

Figure 2. The SEM images of etched Ti and Ti6Al4V samples after the PEO process (Ti-PEO, Ti6Al4V-PEO) and after the PEO process with oxygen plasma treatment (Ti-PEO-S, Ti6Al4V-PEO-S).
Figure 2. The SEM images of etched Ti and Ti6Al4V samples after the PEO process (Ti-PEO, Ti6Al4V-PEO) and after the PEO process with oxygen plasma treatment (Ti-PEO-S, Ti6Al4V-PEO-S).
Ijms 24 03603 g002

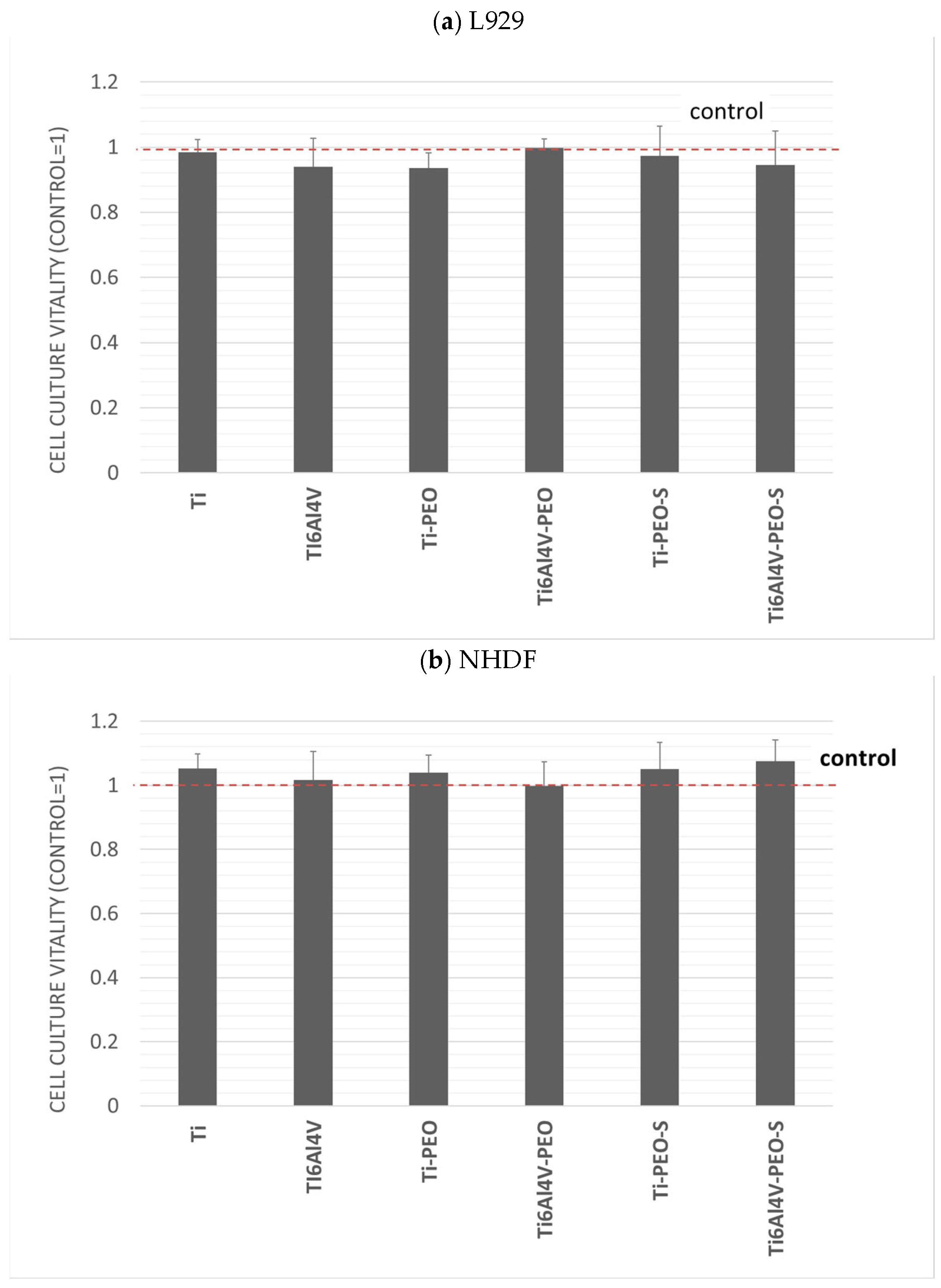

Figure 3. (a) cell culture vitality of the L929, and (b) cell culture vitality of the NHDF. Evaluation of the cytotoxicity of the tested biomaterials. Results are averages from 5 independent experiments, presented as a ratio of the value obtained in the test culture to the control. Red line—control. There was no statistically significant decrease in the viability of the culture compared to the control (p < 0.05).

Figure 3. (a) cell culture vitality of the L929, and (b) cell culture vitality of the NHDF. Evaluation of the cytotoxicity of the tested biomaterials. Results are averages from 5 independent experiments, presented as a ratio of the value obtained in the test culture to the control. Red line—control. There was no statistically significant decrease in the viability of the culture compared to the control (p < 0.05).
Ijms 24 03603 g003
Figure 4. Co-culture of L929 cells and test materials. Live dead (green/red) staining under 20× objective magnification, FLOID microscope. Microphotographs show cells growing close to and directly under the material.
Figure 4. Co-culture of L929 cells and test materials. Live dead (green/red) staining under 20× objective magnification, FLOID microscope. Microphotographs show cells growing close to and directly under the material.
Ijms 24 03603 g004
Figure 5. Adhesion and proliferation of NHDF on test surfaces modified after 72 h: (a) number of cells per mm2 of test surface, (b) mean fluorescence value measured from an area of 1 mm2. * Statistically significant difference (p < 0.05) compared with control.
Figure 5. Adhesion and proliferation of NHDF on test surfaces modified after 72 h: (a) number of cells per mm2 of test surface, (b) mean fluorescence value measured from an area of 1 mm2. * Statistically significant difference (p < 0.05) compared with control.
Ijms 24 03603 g005
Figure 6. Texture analysis by means of calculation of differential entropy in SEM images on two scales. The two columns on the left show SEM images in the large (100 μm × 100 μm) and small field of view (5 μm × 5 μm). The two columns on the right represent intensity maps of the texture feature studied here in the original SEM image. The whiter areas indicate where the differential entropy is higher (i.e., the surface development is greater), while the darker areas indicate where the differential entropy is low (the implant surface image is more homogeneous). The differences between the tested surfaces are statistically significantly different from one another (p < 0.05) in terms of differential entropy (both at low and high magnification).
Figure 6. Texture analysis by means of calculation of differential entropy in SEM images on two scales. The two columns on the left show SEM images in the large (100 μm × 100 μm) and small field of view (5 μm × 5 μm). The two columns on the right represent intensity maps of the texture feature studied here in the original SEM image. The whiter areas indicate where the differential entropy is higher (i.e., the surface development is greater), while the darker areas indicate where the differential entropy is low (the implant surface image is more homogeneous). The differences between the tested surfaces are statistically significantly different from one another (p < 0.05) in terms of differential entropy (both at low and high magnification).
Ijms 24 03603 g006
Table 1. The semi-quantitative EDX analysis of treated samples, composition in percent (%).
Table 1. The semi-quantitative EDX analysis of treated samples, composition in percent (%).
TiAlVO *CaP
Ti-PEO35--6032
Ti6Al4V-PEO232158123
Ti-PEO-S35--6131
Ti6Al4V-PEO-S212161123
* the values must be regarded as only informative.
Table 2. Mean values of surface roughness (Sa) for each examined surface in µm.
Table 2. Mean values of surface roughness (Sa) for each examined surface in µm.
Surface NameSaSD
Ti-PEO2.380.14
Ti6Al4V-PEO1.740.21
Ti-PEO-S0.860.02
Ti6Al4V-PEO-S0.590.02
TI6Al4V0.720.01
Ti 1.420.01
SD—standard deviation.
Table 3. Post hoc ANOVA results (least significant difference) for comparison of fractal dimension for ROI size 100 μm × μm between each examined surface.
Table 3. Post hoc ANOVA results (least significant difference) for comparison of fractal dimension for ROI size 100 μm × μm between each examined surface.
Surface NameFD (ROI = 100 μm × 100 μm)p < 0.05
MeanSD
1Ti-PEO1.8542400.0048392,3,4,5,6
2Ti6Al4V-PEO1.7820000.0073721,3,5,6
3Ti-PEO-S1.8160000.0147391,2,3,5
4Ti6Al4V-PEO-S1.7827400.0116181,3,5,6
5Ti1.8046600.0076301,2,4,6
6Ti6Al4V1.8889200.0083971,2,3,4,5
fractal dimension (FD), standard deviation (SD).
Table 4. Post hoc ANOVA results (least significant difference) for comparison of fractal dimension for ROI size 5 μm × μm between each examined surface.
Table 4. Post hoc ANOVA results (least significant difference) for comparison of fractal dimension for ROI size 5 μm × μm between each examined surface.
SurfaceFD (ROI = 5 μm × 5 μm)p < 0.05
MeanSD
1Ti-PEO1.7753600.0122632,3,4,5
2Ti6Al4V-PEO1.7462800.0199341,3,5,6
3Ti-PEO-S1.7282800.0103141,2,4,5,6
4Ti6Al4V-PEO-S1.7512000.0097271,3,5,6
5Ti1.6930800.0060801,2,3,4,6
6Ti6Al4V1.7731600.0165842,3,4,5
fractal dimension (FD), standard deviation (SD).
Table 5. The values of the Pearson correlation coefficient between the value of fractal dimension calculated in different scale (100 μm × 100 μm and 5 μm × 5μm) and the Sa and number of cells per mm2 and medium Au and differential entropy.
Table 5. The values of the Pearson correlation coefficient between the value of fractal dimension calculated in different scale (100 μm × 100 μm and 5 μm × 5μm) and the Sa and number of cells per mm2 and medium Au and differential entropy.
FeatureVersus (vs.)Featurer
FD (100 μm × 100 μm) vs.Sa0.045
FD (5 μm × 5 μm) vs.Sa0.126
FD (100 μm ×100 μm) vs.cells [mm2]−0.561
FD (5 μm × 5 μm) vs.cells [mm2]0.194
FD (100 μm ×100 μm) vs.medium Au−0.523
FD (5 μm × 5 μm) vs.medium Au0.239
Savs.cells [mm2]−0.028
Savs.medium Au0.084
Pearson correlation coefficient (r), fractal dimension (FD), differential entropy (DifEntrp).
Table 6. Post hoc ANOVA results (least significant difference) for comparison of difference entropy (DifEntrp) for ROI size 100 μm × μm between each examined surface (SD—standard deviation).
Table 6. Post hoc ANOVA results (least significant difference) for comparison of difference entropy (DifEntrp) for ROI size 100 μm × μm between each examined surface (SD—standard deviation).
SurfaceDifEntrpp < 0.05
MeanSD
1Ti-PEO1.29480.00703,4,5,6
2Ti6Al4V-PEO1.28070.01344,5,6
3Ti-PEO-S1.25770.01441,4,6
4Ti6Al4V-PEO-S1.22080.01831,2,3,5,6
5Ti1.25040.00621,2,4,6
6Ti6Al4V1.32520.00551,2,3,4,5
difference entropy (DifEntrp), standard deviation (SD).
Table 7. Post hoc ANOVA results (least significant difference) for comparison of difference entropy for ROI size 5 μm × 5 μm between each examined surface.
Table 7. Post hoc ANOVA results (least significant difference) for comparison of difference entropy for ROI size 5 μm × 5 μm between each examined surface.
SurfaceDifEntrpp < 0.05
MeanSD
1Ti-PEO1.17990.05215,6
2Ti6Al4V-PEO1.23290.28903,5,6
3Ti-PEO-S1.13400.02752
4Ti6Al4V-PEO-S1.17790.03266
5Ti1.11800.07381,2
6Ti6Al4V1.08970.02861,2,4
difference entropy (DifEntrp), standard deviation (SD).
Table 8. The values of the Pearson correlation coefficient (r) between the value of difference entropy (DifEntrp) calculated in different scales (100 μm × 100 μm and 5 μm × 5μm) and the Sa and number of cells per mm2 and medium Au. No statistically significant relations were found.
Table 8. The values of the Pearson correlation coefficient (r) between the value of difference entropy (DifEntrp) calculated in different scales (100 μm × 100 μm and 5 μm × 5μm) and the Sa and number of cells per mm2 and medium Au. No statistically significant relations were found.
Feature vs.Featurer
DifEntrp (100 µm × 100 µm) vs.Sa0.2904
DifEntrp (5 µm × 5 µm) vs.Sa0.4173
DifEntrp (100 µm × 100 µm) vs.FD0.7667
DifEntrp (5 µm × 5 µm) vs.FD0.0606
DifEntrp (100 µm × 100 µm) vs.cells [mm2]−0.5145
DifEntrp (5 µm × 5 µm) vs.cells [mm2]0.6813
DifEntrp (100 µm × 100 µm) vs.medium Au−0.4656
DifEntrp (5 µm × 5 µm) vs.medium Au0.7201
difference entropy (DifEntrp).
Table 9. Preparation of the titanium plates.
Table 9. Preparation of the titanium plates.
NameTitanium GradeMethod of Preparation
TiGrade 4Sandblasted and acid-etched (SLA) Titanium Dental Implant—Al2O3 sandblasting process with a fraction of 30–100 µm. Purified samples were subjected to the etching process (conditions: oxalic acid 100 g L−1, time: 60 min, temperature: boiling). Samples were washed in an ultrasonic cleaner (DEMI water, time: 10 min).
Ti6Al4VGrade 23
Ti-PEOGrade 4SLA surfaces were anodized in a PEO (plasma electrolytic oxidation) regime. Treatment details were presented in previous studies by Simka et al. [17,18]. An electrolyte was composed of Ca and P compounds. Titanium surfaces were oxidized via the PEO process with a high voltage DC power supply, Kikusui PWR400H, (Kikusui Electronics Corporation, Kanagawa, Japan) at 300 V for 5 min. The PEO treatment was realized via DC galvanostatic anodization (anodic current density = 100 mA cm−2) up to limiting voltage. After the process voltage reached the limiting voltage (300 V), the treatment was conducted under a potentiostatic regime. Samples were washed in an ultrasonic cleaner (DEMI water, time: 10 min).
Ti6Al4V-PEOGrade 23
Ti-PEO-SGrade 4After PEO, samples were treated with low-pressure RF OP and placed in a vacuum chamber for 5 min. Frequency: 40 Mhz, power: 500 Watt. During this time, oxygen was pumped into the chamber (1 L/min).
Ti6Al4V-PEO-SGrade 23
