Review

MAPKKKs in Plants: Multidimensional Regulators of Plant Growth and Stress Responses

by
Chen Xie
,
Liu Yang
and
Yingping Gai
*
State Key Laboratory of Crop Biology, College of Life Sciences, Shandong Agricultural University, Tai’an 271018, China
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2023, 24(4), 4117; https://doi.org/10.3390/ijms24044117
Submission received: 21 January 2023 / Revised: 8 February 2023 / Accepted: 10 February 2023 / Published: 18 February 2023
(This article belongs to the Section Molecular Plant Sciences)
Browse Figures
Review Reports Versions Notes

Abstract

:
Mitogen-activated protein kinase kinase kinase (MAPKKK, MAP3K) is located upstream of the mitogen-activated protein kinase (MAPK) cascade pathway and is responsible for receiving and transmitting external signals to the downstream MAPKKs. Although a large number of MAP3K genes play important roles in plant growth and development, and response to abiotic and biotic stresses, only a few members’ functions and cascade signaling pathways have been clarified, and the downstream MAPKKs and MAPKs of most MAP3Ks are still unknown. As more and more signaling pathways are discovered, the function and regulatory mechanism of MAP3K genes will become clearer. In this paper, the MAP3K genes in plants were classified and the members and basic characteristics of each subfamily of MAP3K were briefly described. Moreover, the roles of plant MAP3Ks in regulating plant growth and development and stress (abiotic and biotic) responses are described in detail. In addition, the roles of MAP3Ks involved in plant hormones signal transduction pathway were briefly introduced, and the future research focus was prospected.

1. Introduction

Plants are constantly confronted with complex environmental factors during their growth and development. In order to make living cells respond and adapt to the external environment, so as to achieve the healthy growth of the plant, the changes in the extracellular environment must be transmitted from the outside to the inside of the cell in a specific way, and finally to the nucleus where gene expression changes may occur [1,2]. Plants have evolved a variety of environmental response mechanisms to minimize damage by activating multiple signal transduction pathways. Activation and deactivation of enzymes by phosphorylation/dephosphorylation of kinases and phosphorylases allow rapid and specific signal transduction, as well as amplification of external stimuli [1,3,4,5,6,7]. One particular signal transduction mechanism, the mitogen-activated protein kinase (MAPK) cascade pathway, plays an important role in many plants. The classic MAPK pathway consists of three core members, namely MAPK, MAPK kinase (MAPKK), and MAPKK kinase (MAPKKK, MAP3K). MAP3Ks phosphorylate downstream MAPKKs, which in turn phosphorylates the MAPKs, and transmit the exogenous signal step by step downstream to regulate a variety of biological events [5,8,9,10]. A large number of studies have shown that the MAPK cascade pathway is associated with the essential development process of the plant growth cycle, and it can respond biologically to stimuli when plants are subjected to stress, including biotic stress and abiotic stress, to ensure the survival of plants [8,10,11]. The MAPK cascade signaling pathway in the plant has three main features. The first is efficiency. Stimulating signals can be transmitted downward through the process of MAPK cascade pathway phosphorylation step by step to achieve a signal amplification effect, thus triggering a series of responses in cells [12]. Moreover, the interactions among the three members of the MAPK cascade are specific in different cell activities, including cell division, differentiation, and programmed death, as well as various responses to stress. In addition, each MAPK cascade pathway functions independently, despite there being crosstalk between different pathways [4,12]. Furthermore, the MAPK cascade pathway is relatively conservative in the evolution of eukaryotes from yeast to higher animals. However, compared with a large number of MAPK pathways identified in yeast and animals, far fewer pathways are identified in plants. With the development of forward and reverse genetics, CLUSTERED REGULAR INTERSPACED SHORT PALINDROMIC REPEATS/Cas9 (CRISPR/Cas9) technology, and other technologies, the MAPK cascade pathways in the plant have been further studied in recent years.
As the upstream member of the MAPK cascade pathway, the MAP3K family has the most members and extensive functions. It is an important link in receiving and transmitting signals and deserves more attention [2,4,13]. This review will help the researchers who are interested in MAP3K understand how the MAP3K signal pathway regulates stress signals and development signals, so as to design breeding strategies to improve crop resistance to stress and disease and improve grain yield [3].

2. Classification and Characteristics of Plant MAP3Ks

In 1993, Stafstrom and Duerr found MAPK family proteins MAPK D5 kinase and EXTRALLULAR REGULATED PROTEIN KINASES 1 (ERK1) for the first time in Glycine max and Medicago sativa, respectively [14,15]. Since then, research on the MAPK signaling pathway has been gradually carried out. As the first member of the phosphorylation cascade, MAP3K has more family members than MAPKK and MAPK, and the primary structures and functional domains of the members are quite different. The NICOTIANA TABACUM PROTEIN KINASE 1 (NPK1) gene is the first gene encoding MAP3K isolated from plants [16]. As more and more plant genomes are being sequenced, more and more MAP3K genes have been identified in plants. According to the sequence characteristics of the catalytic domains of MAP3K, it can be further divided into three subfamilies, namely the MAPK ERK KINASE KINASE (MEKK) subfamily, the RAPIDLY ACCELERATED FIBROSARCOMA (Raf) subfamily, and the ZIPPER INTERACTING PROTEIN KINASE (ZIK) subfamily. Table 1 shows the characteristics of catalytic and regulatory domains of the three subfamilies of MAP3K. The catalytic domains of the MEKK subfamily are located in the N-terminal, C-terminal, or intermediate regions, and the conservative amino acid sequence of these regions is G(T/S)PX(F/Y/W)MAPEV. The catalytic domain of the Raf subfamily was located at the C-terminal, and the conservative amino acid sequence of the region was GTPEFMAPE(L/V)Y. As for the ZIK subfamily, most of the catalytic domains are located at the N-terminal, and the conservative amino acid sequence of the region is GTXX(W/Y)MAPE [17]. MAP3K acts as a kinase by recognizing and phosphorylating the S/T-X3-5-S/T sequence in the downstream MAPKK through the above catalytic and regulatory domains. Table 2 shows the classification and number of MAP3Ks in plant species that have been studied. There were 80 AtMAP3Ks found in Arabidopsis thaliana, 12 of which belong to the MEKK subfamily, amongst MEKK1, ARABIDOPSIS NPK1-LIKE PROTEIN KINASE 1/2/3 (ANP1/2/3), and AtMAP3K18 are more concerned [18,19,20]; there were 48 MAP3Ks belonging to Raf subfamily, ENHANCED DISEASE RESISTANCE 1 (EDR1), and CONSTITUTE TRIPLE RESPONSE 1 (CTR1) genes are typical representatives of them [21,22]. In Oryza sativa, there are 22 members of the MEKK subfamily, 43 members of the Raf subfamily, and ten members of the ZIK subfamily. The different classifications of MAP3K imply that the MAP3K family has various functions.

3. The Role of MAP3Ks in Plant Growth and Development

Many studies have shown that MAP3K regulates various physiological and biochemical processes throughout the growth cycle, including cell proliferation and differentiation, germ cell and embryonic development, branch formation and leaf development, root development, and so on [2,34,35,36]. The majority of these MAP3K genes are found in Arabidopsis thaliana, Nicotiana tabacum, Oryza sativa and Solanum chacoense. Mining MAP3K genes that regulate growth and development in other plant species will have a very broad prospect and space.
MEKK-like NPK1 is a member of MAP3K and mainly regulates cell division and differentiation in tobacco, and its A. thaliana homologues are ARABIDOPSIS NPK1-LIKE PROTEIN KINASE 1 (ANP1), ANP2, and ANP3. NPK1 is the first MAP3K gene cloned and identified from plants [37] and is expressed in meristem and immature organs of tobacco and can be activated by tubulin NPK1-ACTIVATING KINESIN 1 (NACK1) in the M phase of the cell cycle. NPK1 regulates the formation of cell plates through NPK1-NQK1-NRK1 MAPK cascade pathways, and plays a key role in the process of cell differentiation and cell wall formation [38,39]. NPK1-silenced plant exhibits reduced cell size and an overall dwarf phenotype. Further, many stomata guard cells of NPK1-silenced plants were binucleate or had no nucleus, and cytokinesis was incomplete [37]. In addition, ANP1, ANP2, and ANP3 can regulate microtubule organization and participate in A. thaliana cytokinesis process by activating ANP1/2/3-MKK6-MPK4 MAPK cascade pathway. In the presence of AtNACK1, MKK6/ANQ was activated by ANP1, and it was weakly activated when AtNACK1 and ANP3 were co-expressed. However, ANP3 cannot activate MKK6/ANQ. Homozygous mkk6/anq2 and mkk6/anq3 plants exhibited severe dwarfism with typical defects in cytokinesis [19,40].
The plant MAP3K subfamily, which regulates the development of germ cells and embryos, has only a few genes, including AtMAP3Kε1, AtMAP3Kε2, Solanum chacoense FERTILIZATION-RELATED KINASE 1 (ScFRK1), and ScFRK2. AtMAP3Kε1 and AtMAP3Kε2 play an important role in pollen development, but they are functionally redundant in A. thaliana. The expressions of MAP3Kε1 and MAP3Kε2 are cell-cycle regulated, and their transcription levels are the highest at the late stages of the cell cycle. In addition, most of the MAP3Kε1 proteins are localized to the plasma membrane of pollen cells. The double mutation of map3kε1/map3kε2 caused severe damage to the cytoplasmic membrane structure and triggered pollen cell death [41]. In S. chacoense, the expression patterns of FRK1 and FRK2 genes show obvious tissue specificity, especially in the fertilized ovule, both of which are involved in embryonic development. In addition, it is reported that the overexpression of FRK2 will lead to a significant reduction in potato yield and delayed seed development [42].
MAP3K, which regulates leaf development and branching, is only found in A. thaliana and O. sativa. Miao et al. suggested that MEKK1 may play a direct role as a DNA binding protein and can bind to the promoter of WRKY DNA-BINDING PROTEIN 53 (WRKY53) gene, thus bypassing the downstream MAPK cascade to regulate the senescence process of A. thaliana leaves. MEKK1 was able to interact with the WRKY53 protein and phosphorylate it, thus increasing the DNA-binding activity of WRKY53 and the transcription of the reporter gene driven by a WRKY53 promoter in vivo [18]. AtMAP3Kδ4, which is a member of Raf subfamily, is crucial to regulating plant growth and shoot branching. The transgenic A. thaliana plants overexpressing MAP3Kδ4 showed earlier bolting and more vigorous growth than wild-type plants [43]. In contrast, the transgenic plants overexpressing MAP3Kδ4 KINASE-NEGATIVE showed a highly branched phenotype; MAP3Kδ4 overexpression had no effect on branch number. MAP3Kδ4 transcripts were found in all tissues of A. thaliana seedlings and upregulated by auxin, suggesting that it functions in an auxin-dependent manner [43]. In addition, as the upstream of AtMAPKK2, the Raf-like gene AtMAP3K17 can regulate the transformation of seedlings from vegetative growth to reproductive growth. Overexpression of AtMAP3K17 will lead to premature bolting and seedling dwarfism [44]. Moreover, a recent study revealed that MAP3K4 (YODA) and HEAT SHOCK PROTEIN 90.1 (HSP90.1) are epistatic, and they may play a linear role in the same developmental pathway regulating plant stomata formation. HSP90 interacts with MAP3K4, affects its cellular polarization, and modulates the phosphorylation of downstream targets, such as MPK6 and SPEECHLESS [45]. In O. sativa, INCREASED LEAF ANGLE 1 (ILA1) encodes a Raf-like MAP3K protein with serine/threonine kinase activity, which is predominantly residential in the nucleus and expressed in the vascular bundles of leaf lamina joints. ILA1 interacts with an unknown protein ILA1 INTERACTING PROTEINS (IIPs) and can phosphorylate IIP4 to regulate the mechanical strength of blade junctions [46].
AtMEKK1 and AtMAP3K4 play important roles in root development. In addition to regulating the senescence process of leaves, MEKK1 can also regulate root development by participating in the glutamate signaling pathway [47]. The mekk1 mutant showed a phenotype of overall dwarf, shorter root hairs, and fewer lateral roots than the wild type of A. thaliana [47]. As the upstream of MAPK6, AtMAP3K4 plays an important role in root development and the regulation of microtubules during mitosis. In the map3k4 mutant, the cell division of the main and lateral root is disordered, resulting in the termination of cytokinesis [48].
Microscopically, MAP3Ks affect cell division and differentiation; macroscopically, they affect the development of tissues, organs, and embryos. In addition to the above direct effects on growth and development, MAP3Ks also affects the circadian rhythm and some metabolic processes of plants, thus indirectly affects growth and development. NO LYSINE 1 (WNK1) is a member of the ZIK subfamily and can phosphorylate ARABIDOPSIS PSEUDO RESPONSE REGULATOR 3 (APRR3), a member of the TIMING OF CAB EXPRESSION 1 (TOC 1), in vitro, which may play an important role in the regulation of A. thaliana circadian rhythm [34,49]. In addition, AtMAP3K20 can directly interact with and phosphorylates AtMPK18 and is involved in the regulation of microtubule function in through such an atypical MAPK cascade pathway. AtMAP3K20 were ubiquitously expressed in many tissues, especially in pollen grains. Under normal growth conditions, compared with wild-type plants, the map3k20 mutants have no obvious defects at any development stage. However, the seedling roots of map3k20 mutants were significantly shorter than wild type plants when treated with oryzalin (microtubule-disrupting agent). Furthermore, map3k20 mutants also showed defects in microtubule organization [50,51]. MAP3K genes in A. thaliana and O. sativa are involved in sugar metabolism and signaling pathways of gibberellin (GA), salicylic acid (SA), ethylene (ET), and jasmonic acid (JA). Sugar can not only provide energy for plant cells, but also as a signal molecule to regulate gene expression and affect multiple development and metabolic processes. A. thaliana SUGAR INSENSITIVE 8 (SIS8) regulates the development of sugar-resistant seedling in by interacting with UDP glucosyltransferase in the nucleus. The sis8 mutant showed the phenotype of high concentration sugar tolerance [52]. MAP3K5 of O. sativa is widely expressed in various tissues and development stages, and regulates the size of cells by regulating the content of endogenous GA content, and affects plant height and yield of O. sativa. Overexpression of OstMAP3K5 caused the increase in GA content, which in turn leads to enlarged cell size, and ultimately leads to an increase in plant height and yield [53]. SA significantly induced the expression of AtRaf43, BnaMAP3K18, and BnaRaf28, and inhibited the expression of BnaZIK2, BnaRaf34, and BnaRaf36 at specific time points in Brassica napus, implying that these genes may be involved in SA signaling pathway [31,54]. AtCTR1 and some MAP3K genes in B. napus are associated with ET signaling pathways. AtCTR1, a member of Raf MAP3K family, can interact with ET receptor ETHYLENE RECEPTORS 1 (ETR1) and block the activation of MAPKK9-MAPK3/MAPK6 pathway, and negatively regulate ET signal transduction by enhancing the degradation of transcription factor ETHYLENE-INSENSITIVE 3 (EIN3) [21]. In B. napus, the expression of BnaZIK8 and BnaRaf29 were induced by ET, while the expression of BnaMAP3K18, BsnaZIK3, and BnaRaf36 was inhibited by ET. In addition, JA can induce the expression of BnaRaf30, but inhibit the expression of BnaZIK3, BnaZIK4, BnaRaf36, and BnaRaf39 [31]. Table 3 and Figure 1 summarize the function of MAP3K in regulating plant growth and development.

4. Role of MAP3Ks in Plant Responses to Abiotic Stresses

Plants will be affected by various abiotic stresses (such as temperature stress, drought stress, high salt stress) during their growth [3,55,56,57,58,59]. Recent studies have shown that various external stresses can activate different plant MAP3K genes, and these genes play roles in stress-resistance through dependent or independent MAPK cascade signaling pathway, most of them are involved in response to drought, osmotic or salt stress, and only a few of them regulate temperature, oxidative or injury stress response.

4.1. MAP3K Regulating Drought and Osmotic Stress Response

Plant MAP3K genes associated with drought and osmotic stress tolerance belong to the Raf or MEKK subfamily. Most of them, including MAP3K ABA AND ABIOTIC STRESS-RESPONSIVE RAF-LIKE KINASE (ARK), Raf6, Raf12, Raf35, Raf43 in A. thaliana, DROUGHT-HYPERSENSITIVE MUTANT 1 (DSM1) in O. sativa, MAP3K40 and Raf19 in Gossypium raimondii, are classed into Raf subfamily. However, up to now, the MAPK cascade signaling pathway involved in the above genes has not been identified. MEKK genes related to drought and osmotic stress tolerance is only reported in A. thaliana and G. raimondii, and they are including AtMAP3K1, AtMAP3K10, AtMAP3K14, AtMAP3K15, AtMAP3K16, AtMAP3K17, AtMAP3K18, AtMAP3K19, and GhMAP3K14. Among them, AtMAP3K17, AtMAP3K18, and GhMAP3K14 have been studied intensively and the complete MAPK cascade signaling pathway they participate in has also been identified.
Osmotic stress can activate ARK and SNF-RELATED SERINE/THREONINE-PROTEIN KINASE 2 (SnRK2) simultaneously, and ARK can interact with SnRK2.6/OPEN STOMATA 1 (OST1) and maintain its activity to trigger physiological reactions, such as stomatal closure, so as to protect plants under drought conditions. In ark mutants, the activity of SnRK2 decreased and the water loss rate of leaves increased [60]. In addition to ARK, there are also some Raf genes in A. thaliana, such as Raf6, Raf12, and Raf35, which are also up-regulated by ABA, indicating that these genes may participate in ABA signal pathway and drought resistance process [61]. Nasar virk et al. suggested that Raf-like gene AtRaf43 is required for tolerance to osmotic stress, and knockout of AtRaf43 attenuated the osmotic stress tolerance, but overexpression of AtRaf43 did not affect the osmotic stress tolerance. In addition, AtRaf43 is involved in ABA response, and knockout of AtRaf43 resulted in increased ABA sensitivity, but overexpression of AtRaf43 had no effect on ABA response [54]. DSM1 is the only Raf gene involved in drought stress tolerance in O. sativa, and drought stress induce the expression of DSM1, which can participate in reactive oxygen species signal pathway by regulating the two peroxidase genes POX22.3 and POX8.1. The expression level of POX22.3 and POX8.1 in dsm1 mutants was significantly lower than that in wild-type plants, resulting in increased ROS damage, which led to the sensitivity of the mutant to drought stress, while overexpression of DSM1 could improve the drought resistance in the seedling stage [62]. In cotton, MAP3K40 can be induced by drought and act as a positive regulator in drought tolerance during seedling germination. MAPKK4 is known to be located downstream of MAP3K40, but the complete MAPK signaling pathway it involved needs to be further studied [63]. In contrast to MAP3K40, Raf19, as a negative regulator, inhibits the expression of ROS related antioxidant genes, resulting in the accumulation of ROS, thereby negatively regulating cotton drought resistance. Furthermore, it was shown that the expression of GhRaf19 was inhibited by PEG and NaCl, and cold (4 °C) and H2O2 induced it expression [64].
In addition to Raf gene, many genes of MEKK subfamily play a key role in regulating plant drought stress tolerance. Some upstream regulators of MAP3K have been found. It was reported that MAP3K18 regulates the drought resistance of A. thaliana through the MAP3K18-MAPKK3-MAPK1/2/7/13/14 cascade pathway, and the MAP3K18 gene knockout mutant is hypersensitive to drought stress, and the overexpression of MAP3K18 can significantly enhance the drought resistance of seedlings. In addition, MAP3K18 also regulated by other factors, the ubiquitin ligases RING DOMAIN LIGASE 1 (RGLG1) and RGLG2 can promote its degradation, and the transcription factor ABSCISIC ACID INSENSITIVE 4 (ABI4) can activate its expression [20,65]. It is also reported that drought stress can induce the accumulation of ABA, and the overexpression of MAP3K18 will make the seedlings sensitive to ABA at the seedling growth stage. In contrast, the MAP3K17 overexpression lines of another MEKK gene in A. thaliana, were insensitive to ABA, and the gene negatively regulated the ABA signaling pathway through a MAP3K17-MAPKK3-MAPK1/2/7/14 cascade pathway [44]. In addition to AtMAP3K17 and AtMAP3K18, other MEKK genes such as AtMAP3K1, AtMAP3K10, AtMAP3K14, AtMAP3K15, AtMAP3K16, and AtMAP3K19 were also up-regulated by ABA. Whether they participate in drought stress tolerance remains to be verified [61]. In cotton, only one MEKK gene MAP3K14 was identified to participate in drought resistance process, and this gene positively regulates drought tolerance through the MAP3K14-MKK11-MPK31 cascade pathway. It was found that the single mutant of these three genes would lead to the reduction of drought tolerance of cotton seedlings [66].

4.2. MAP3K Regulating Salt Stress Response

MAP3K genes regulating salt tolerance were only identified in A. thaliana and G. raimondii, including MEKK1 and MAP3K20 in the MEKK subfamily and AT6 and Raf43 in the Raf subfamily of Arabidopsis, and MAP3K40 and Raf19 in the Raf subfamily of cotton [50,54,67,68].
MAP3K20 was first found to be a regulator of salt stress response in A. thaliana, and it positively regulated salt tolerance through a cascade pathway consisting of MAP3K20, MKK3 and unknown MAPK. The map3k20 mutants were sensitive to high salt and showed higher accumulation of reactive oxygen species under salt stress. In contrast, the MAP3K20 overexpression lines showed tolerance to salt stress [50,51]. In addition, it was reported that the phenotypes of mutants and overexpression lines of the MEKK1 gene were similar to those of MAP3K20. Salt stress can induce the expression of MEKK1, which can activate the expression of salt stress related genes through MEKK1-MKK2-MPK4/MPK6 cascade signaling pathway to positively regulate salt stress tolerance [67]. The AtRaf43 mentioned above not only plays a role in drought stress tolerance, but also is necessary in salt stress tolerance. Knockout of AtRaf43 attenuated the salt tolerance, while the overexpression of AtRaf43 had no effect on salt s tolerance [54]. In addition to the above up-regulated genes induced by salt stress, the AT6 repressed by salt stress was also found in A. thaliana. Gao and Xiang screened a mutant at6 with high resistance to salt stress from the T-DNA insertion mutant library. Under salt stress, the expression of AT6 was down regulated or closed, enabling the stress signal to be turned on and amplified, so that downstream effector genes could be rapidly expressed to cope with the stress [68]. In addition to responding to drought stress, cotton MAP3K40 can also positively regulate salt stress tolerance, and it can be induced by salt stress, and its overexpression can improve plant germination rate under high salt stress [63]. In contrast to MAP3K40, it was reported that Raf19 negatively regulates salt stress tolerance in cotton. Under salt stress, Raf19 inhibits the expression of ROS related antioxidant genes, leading to the accumulation of ROS [64].

4.3. MAP3K Regulating Temperature Stress Response

In plants, only a few genes of Arabidopsis and cotton have been identified as related to temperature stress tolerance, but their mechanisms have only been preliminarily explored. MEKK1 not only acts as a positive regulator in salt stress tolerance, but also regulates cold stress tolerance through MEKK1-MKK2-MPK4/MPK6 cascade pathway in A. thaliana. Compared with wild-type or mkk2 null plants, MKK2-overexpressing plants showed increased freezing tolerance [67]. In addition, AtMAP3K20 and GhMAP3K40 can be induced by low temperature stress, but the molecular mechanism has not been studied. GhRaf19 acts as a positive regulator to improve the ability of cotton to low temperature by activating the expression of ROS related antioxidant genes or enzymes under low temperature [63,64]. Cotton MAP3K65, belonging to Raf subfamily, can be induced by heat stress and various signal molecules (SA, JA and ET). Silence of MAP3K65 can enhance the resistance of cotton to heat stress. In contrast, overexpression of MAP3K65 enhances susceptibility to heat stress [69].

4.4. MAP3K Regulating Other Stress Response

Studies of MAP3K related to other abiotic stresses in plants are few. AtRaf43 is required for oxidative stress tolerance. Knockout of Raf43 could weaken oxidative stress tolerance and increased the level of cellular damage under oxidative stress, but the overexpression of Raf43 did not affect the oxidative stress tolerance of A. thaliana [54]. The research on GhMAP3K40 only proved that the gene can be induced by oxidative stress and injury stress [63]. In Medicago sativa, it was found that the OMTK1 gene which belongs to MEKK subfamily is activated by H2O2 rather than other hormones or stresses. After being activated by H2O2, OMTK1 directly interacts with a MAPK protein MMK3 and phosphorylates it and then forms a protein complex with it in vivo. OMTK1 plays a MAPK scaffolding role and functions in activation of H2O2-induced cell death in plants [70]. Table 4 and Figure 2 summarize the function of MAP3K in plant responses to abiotic stresses.

5. Role of MAP3K in Plant Responses to Biotic Stresses

Plants are not only subjected to various abiotic stresses during their growth and development, but also often threatened by biotic stresses such as pathogen invasion and insect feeding [71,72,73,74]. Studies have shown that plant receptors can recognize the conservative components of pathogen and produce complex immune responses to pathogen infection. The immune responses include cytoplasmic deposition, ROS burst, and activation of MAPKs [75,76,77]. There are many MAP3K genes of plants involved in abiotic stress response, and the reported related genes are mainly concentrated in Arabidopsis and rice. Most of them are involved in bacterial induced immune response, such as Arabidopsis MAP3K3 and rice ILA1. A few MAP3K genes play a regulatory role both in fungal and bacterial tolerance, such as AtMEKK1 and AtEDR1. Some genes have been reported to be involved in the process of virus tolerance, such as tobacco NPK1. Mining MAP3K of other plants involved in immune response will be one of the focuses of future research. In A. thaliana, MEKK1 not only plays a role in plant growth and response to abiotic stress, but also in response to both bacterial and fungal pathogens. Asai et al. identified a complete plant MAPK cascade pathway (MEKK1, MKK4/MKK5, and MPK3/MPK6), which play a role in the downstream of the flagellin receptor FLAGELLIN-SENSING 2 (FLS2), a leucine-rich-repeat (LRR) receptor kinase. This research also proved that the activation of this MAPK cascade confers plant resistance to both bacterial and fungal pathogens, which showed that the signaling events initiated by different pathogens converge into a conserved MAPK cascade. When infected by the virulent bacterial pathogen Pseudomonas syringae, the transformed leaves expressing constitutively active MEKK1 (MEKK1a) displayed enhanced resistance to P. syringae. In addition, it was showed that when MEKK1a was transiently expressed in leaves, the development of soft-rot symptoms caused by the fungal pathogen Botrytis cinerea was also effectively suppressed [72]. Interestingly, another research showed that MEKK1, MKK1/MKK2, and MPK4 form a MAPK cascade pathway and negatively regulate plant immune responses. The autoimmunity phenotypes of mekk1 mutants are caused by the activation of defense responses mediated by SUPPRESSOR OF mkk1 mkk2 1 (SUMM1). SUMM1 encodes the MEKK2, which is directly targeted by MPK4 [78]. In addition, Raf gene AtEDR1 negatively regulates defenses and directly modulates the MKK4/MKK5-MPK3/MPK6 cascade to fine-tune plant immunity. The edr1 mutant plants showed resistance to Golovinomyces cichoracearum or P. syringae pv. Tomato (Pto) DC3000 and the EDR1 over-expressing plants showed enhanced susceptibility to powdery mildew, because there was more spores of G. cichoracearum produced in the plant than wild-type ones. Moreover, it was found that the edr1 mutants have highly activated MPK3/MPK6 kinase activity and higher levels of MPK3/MPK6 proteins than wild type. In addition, it was showed that EDR1 negatively affects MKK4/MKK5 protein levels [22]. A recent study shows that MAP3Kδ-1 (MKD1), a new Raf-like MAP3K isolated from A. thaliana, is required for full immunity against bacterial and fungal infection, and its expression was induced by trichothecenes derived from Fusarium sporotrichioides. MKD1 interacted with MKK1 and MKK5 and phosphorylated them in vitro. The MKD1-MKK1/MKK5-MPK3/MPK6 cascade pathway is involved in the resistance against P. syringae pv. Tomato DC3000 by inhibiting SUMOylation of disease resistant proteins and phosphorylation of a mycotoxin detoxifying enzyme [79].
The MEKK gene MAP3K3/MAP3K5 forms a kinase cascade with MKK4/MKK5 and MPK3/MPK6, and transmits defense signals downstream of various plant receptor kinases in A. thaliana. The loss of MAP3K3/MAP3K5 will reduce the activation of MPK3/MPK6 in response to different pathogen-associated molecular patterns (PAMPs), thus increasing the susceptibility to bacterial pathogens. These results indicate that there are antagonistic interactions between the developmental MAPK cascade pathway (MAP3K4-MKK4/5-MPK3/MPK6) and the immune signaling MAPK cascade pathway (MAP3K3/MAP3K5-MKK4/5-MPK3/MPK6) [80]. In addition to A. thaliana, there are MAP3K genes that regulate the immune process in other plants. EDR1, a homologous gene of AtEDR1 in rice, can be induced by JA, SA, and endothelin, and negatively regulate bacterial resistance by activating ET synthesis pathway. EDR1-suppressing/knockout plants, which developed spontaneous lesions on the leaves, have enhanced resistance to bacterial blight disease caused by Xanthomonas oryzae pv. oryzae (Xoo). This resistance was associated with the accumulation of SA and JA [81]. Similar to EDR1, another Raf gene in rice, ILA1, also negatively regulates immune response. ILA1 mainly phosphorylated the threonine 34 at the N-terminal domain of MAPKK4, which possibly influenced the stability of MAPKK4. In addition, the N-terminal domain of ILA1 is required for its homodimer formation and its phosphorylation capacity. ILA1 can inhibit the downstream MAPKK4-MAPK cascade pathway by phosphorylating the MAPKK4 N-terminal domain, thus endowing rice with resistance to bacterial blight caused by Xoo [82]. Tomato MAP3Kε can activate downstream factors including MEK2, WOUND-INDUCED PROTEIN KINASE (WIPK), and SALICYLIC ACID-INDUCED PROTEIN KINASE (SIPK), thereby positively regulate cell death related to plant immunity and enhances plant immunity. Knock out of MAP3Kε impaired the resistance of tomato to Xanthomonas campestris and P. syringae strains. Similar to MAP3Kε, MAP3Kα also belongs to the MEKK subfamily, it is required for the hypersensitive response and resistance against P. syringae. Both MAP3Kα and MAP3Kε can regulate cell death by activating MEK2-WIPK/SIPK [83,84,85,86]. In cotton, GhMAP3K65 may respond to pathogen infection by SA/JA/ET and ROS signaling pathways. Silencing of GhMAP3K65 enhanced the resistance of cotton to Ralstonia solanacearum. In contrast, overexpression of GhMAP3K65 enhanced the susceptibility to R. solanacearum by inducing the production of pathogen-induced ROS (mainly H2O2) in transgenic Nicotiana benthamiana [69].
Only a few MAP3K genes are involved in the immune process against fungus or viruses. AtRaf36, a Raf-like protein kinase in Arabidopsis, was found to negatively regulate plant resistance to pathogen Phytophthora parasitica by targeting the downstream MKK2 kinase. Loss of Raf36 enhances the resistance to P. parasitica and the resistance mediated by Raf36 might be counteracted by mkk2 mutation [87]. Tobacco NPK1 not only plays a role in the cytokinesis process, but also participates in the response to tobacco mosaic virus (TMV) resistance. Silencing expression of NPK1 interferes with the function of disease-resistance genes N, Bs2, and Rx, but does not affect the resistance mediated by Pto and Cf4. NPK1 plays a role in regulating the resistance responses mediated by N- and Bs2- and may play a role in one or more MAPK cascade pathways, regulating multiple cellular processes [37]. Table 5 and Figure 3 summarize the function of MAP3K in plant responses to biotic stresses.

6. Conclusions and Future Prospective

The MAP3K family is a plant regulator with complex functions. It regulates all stages and aspects of plant growth and development through phosphorylation of downstream MAPKK, and plays an important role in plant biotic and abiotic stress tolerance. We found that MAPK cascades are complex and diverse, which is mainly reflected in that the same MAP3K can form different cascade pathways with different MAPKKs and MAPKs, and different MAP3Ks can form different cascade pathways with the same downstream MAPKKs or MAPKs, and different cascades interact and antagonize each other. In addition, a MAP3K can simultaneously regulate different stress responses or different aspects of growth and development, which is achieved through different cascade pathways. Furthermore, plant MAP3K can also interact with other downstream participants to play different biological functions in a way that does not depend on the MAPK cascade pathway. As this research moves forward, aiming to uncover the novel functions and regulatory mechanisms of MAP3Ks, in addition to those described here will likely be uncovered. Figure 4 shows a comprehensive model depicting the overall interplay of plant MEKKs in regulating key physiological processes with their downstream players.
Mining the key MAP3K genes in plants, especially in crops, and the complete MAPK cascade pathway they participate in will still be the key work in the future. A variety of biological methods such as virus induced gene silencing (VIGS), RNA interference (RNAi), and CAS9 technology have also been gradually applied to the study of MAP3K function and have achieved some encouraging results. Using gene editing technology to knock out or overexpress the key MAP3K in crops, to cultivate crops with better agronomic traits and stronger tolerance to environmental stress is also the focus of future work. In addition, as the upstream of the MAPK cascade pathway, the knockout of MAP3K, which regulates multiple biological activities may lead to a variety of traits in plants, which may be beneficial or harmful, which are worthy of in-depth study in the future. Furthermore, it is also valuable to search for regulatory factors upstream of MAP3K, such as transcription factors, protein kinases, lncRNA, etc., and revealing how these regulatory factors regulate growth and development and stress responses will help to increase our understanding of MAP3K complex functions in plants.

Author Contributions

Y.G. provided the overall concept and framework of the manuscript. Y.G., C.X. and L.Y. researched and identified appropriate articles and wrote the paper. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by the National Natural Science Foundation of China (32171748 and 32172799).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Morris, P.C. MAP kinase signal transduction pathways in plants. New Phytol. 2001, 151, 67–89. [Google Scholar] [CrossRef] [PubMed]
  2. Xu, J.; Zhang, S. Mitogen-activated protein kinase cascades in signaling plant growth and development. Trends Plant Sci. 2015, 20, 56–64. [Google Scholar] [CrossRef] [PubMed]
  3. Zhu, J.K. Abiotic Stress Signaling and Responses in Plants. Cell 2016, 167, 313–324. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Nakagami, H.; Pitzschke, A.; Hirt, H. Emerging MAP kinase pathways in plant stress signalling. Trends Plant Sci. 2005, 10, 339–346. [Google Scholar] [CrossRef] [PubMed]
  5. Dóczi, R.; Okrész, L.; Romero, A.E.; Paccanaro, A.; Bögre, L. Exploring the evolutionary path of plant MAPK networks. Trends Plant Sci. 2012, 17, 518–525. [Google Scholar] [CrossRef]
  6. Hunter, T.; Plowman, G.D. The protein kinases of budding yeast: Six score and more. Trends Biochem. Sci. 1997, 22, 18–22. [Google Scholar] [CrossRef]
  7. Hardie, D.G. Plant Protein Serine/Threonine Kinases: Classification and Functions. Annu. Rev. Plant Physiol. Plant Mol. Biol. 1999, 50, 97–131. [Google Scholar] [CrossRef] [Green Version]
  8. Zhang, M.; Zhang, S. Mitogen-activated protein kinase cascades in plant signaling. J. Integr. Plant Biol. 2022, 64, 301–341. [Google Scholar] [CrossRef]
  9. Danquah, A.; de Zélicourt, A.; Boudsocq, M.; Neubauer, J.; Frei Dit Frey, N.; Leonhardt, N.; Pateyron, S.; Gwinner, F.; Tamby, J.P.; Ortiz-Masia, D.; et al. Identification and characterization of an ABA-activated MAP kinase cascade in Arabidopsis thaliana. Plant J. 2015, 82, 232–244. [Google Scholar] [CrossRef]
  10. de Zelicourt, A.; Colcombet, J.; Hirt, H. The Role of MAPK Modules and ABA during Abiotic Stress Signaling. Trends Plant Sci. 2016, 21, 677–685. [Google Scholar] [CrossRef]
  11. Pitzschke, A.; Schikora, A.; Hirt, H. MAPK cascade signalling networks in plant defence. Curr. Opin. Plant Biol. 2009, 12, 421–426. [Google Scholar] [CrossRef] [PubMed]
  12. Schwartz, M.A.; Madhani, H.D. Principles of MAP kinase signaling specificity in Saccharomyces cerevisiae. Annu. Rev. Genet. 2004, 38, 725–748. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Jonak, C.; Okrész, L.; Bögre, L.; Hirt, H. Complexity, cross talk and integration of plant MAP kinase signalling. Curr. Opin. Plant Biol. 2002, 5, 415–424. [Google Scholar] [CrossRef] [PubMed]
  14. Stafstrom, J.P.; Altschuler, M.; Anderson, D.H. Molecular cloning and expression of a MAP kinase homologue from pea. Plant Mol. Biol. 1993, 22, 83–90. [Google Scholar] [CrossRef]
  15. Duerr, B.; Gawienowski, M.; Ropp, T.; Jacobs, T. MsERK1: A mitogen-activated protein kinase from a flowering plant. Plant Cell 1993, 5, 87–96. [Google Scholar]
  16. Banno, H.; Hirano, K.; Nakamura, T.; Irie, K.; Nomoto, S.; Matsumoto, K.; Machida, Y. NPK1, a tobacco gene that encodes a protein with a domain homologous to yeast BCK1, STE11, and Byr2 protein kinases. Mol. Cell Biol. 1993, 13, 4745–4752. [Google Scholar]
  17. Colcombet, J.; Hirt, H. Arabidopsis MAPKs: A complex signalling network involved in multiple biological processes. Biochem. J. 2008, 413, 217–226. [Google Scholar] [CrossRef]
  18. Miao, Y.; Laun, T.M.; Smykowski, A.; Zentgraf, U. Arabidopsis MEKK1 can take a short cut: It can directly interact with senescence-related WRKY53 transcription factor on the protein level and can bind to its promoter. Plant Mol. Biol. 2007, 65, 63–76. [Google Scholar] [CrossRef]
  19. Takahashi, Y.; Soyano, T.; Kosetsu, K.; Sasabe, M.; Machida, Y. HINKEL kinesin, ANP MAPKKKs and MKK6/ANQ MAPKK, which phosphorylates and activates MPK4 MAPK, constitute a pathway that is required for cytokinesis in Arabidopsis thaliana. Plant Cell Physiol. 2010, 51, 1766–1776. [Google Scholar] [CrossRef] [Green Version]
  20. Yu, J.; Kang, L.; Li, Y.; Wu, C.; Zheng, C.; Liu, P.; Huang, J. RING finger protein RGLG1 and RGLG2 negatively modulate MAPKKK18 mediated drought stress tolerance in Arabidopsis. J. Integr. Plant Biol. 2021, 63, 484–493. [Google Scholar] [CrossRef]
  21. Gao, Z.; Chen, Y.F.; Randlett, M.D.; Zhao, X.C.; Findell, J.L.; Kieber, J.J.; Schaller, G.E. Localization of the Raf-like kinase CTR1 to the endoplasmic reticulum of Arabidopsis through participation in ethylene receptor signaling complexes. J. Biol. Chem. 2003, 278, 34725–34732. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Zhao, C.; Nie, H.; Shen, Q.; Zhang, S.; Lukowitz, W.; Tang, D. EDR1 physically interacts with MKK4/MKK5 and negatively regulates a MAP kinase cascade to modulate plant innate immunity. PLoS Genet. 2014, 10, e1004389. [Google Scholar] [CrossRef] [PubMed]
  23. Sun, M.; Xu, Y.; Huang, J.; Jiang, Z.; Shu, H.; Wang, H.; Zhang, S. Global Identification, Classification, and Expression Analysis of MAPKKK genes: Functional Characterization of MdRaf5 Reveals Evolution and Drought-Responsive Profile in Apple. Sci. Rep. 2017, 7, 13511. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Yin, Z.; Wang, J.; Wang, D.; Fan, W.; Wang, S.; Ye, W. The MAPKKK Gene Family in Gossypium raimondii: Genome-Wide Identification, Classification and Expression Analysis. Int. J. Mol. Sci 2013, 14, 18740–18757. [Google Scholar] [CrossRef] [Green Version]
  25. Zhang, Z.; Jia, L.; Chen, Q.; Qiao, Q.; Huang, X.; Zhang, S. Genome-wide identification of the mitogen-activated protein kinase kinase kinase (MAPKKK) in pear (Pyrus bretschneideri) and their functional analysis in response to black spot. Planta 2022, 257, 5. [Google Scholar] [CrossRef] [PubMed]
  26. Wu, J.; Wang, J.; Pan, C.; Guan, X.; Wang, Y.; Liu, S.; He, Y.; Chen, J.; Chen, L.; Lu, G. Genome-wide identification of MAPKK and MAPKKK gene families in tomato and transcriptional profiling analysis during development and stress response. PLoS ONE 2014, 9, e103032. [Google Scholar] [CrossRef] [PubMed]
  27. Group, M.; Ichimura, K.; Shinozaki, K.; Tena, G.; Sheen, J.; Henry, Y.; Champion, A.; Kreis, M.; Zhang, S.; Hirt, H.; et al. Mitogen-activated protein kinase cascades in plants: A new nomenclature. Trends Plant Sci. 2002, 7, 301–308. [Google Scholar]
  28. Wang, L.; Hu, W.; Tie, W.; Ding, Z.; Ding, X.; Liu, Y.; Yan, Y.; Wu, C.; Peng, M.; Xu, B.; et al. The MAPKKK and MAPKK gene families in banana: Identification, phylogeny and expression during development, ripening and abiotic stress. Sci. Rep. 2017, 7, 1159. [Google Scholar] [CrossRef] [Green Version]
  29. Rao, K.P.; Richa, T.; Kumar, K.; Raghuram, B.; Sinha, A.K. In silico analysis reveals 75 members of mitogen-activated protein kinase kinase kinase gene family in rice. DNA Res. 2010, 17, 139–153. [Google Scholar] [CrossRef] [Green Version]
  30. Sun, W.; Chen, H.; Wang, J.; Sun, H.W.; Yang, S.K.; Sang, Y.L.; Lu, X.B.; Xu, X.H. Expression analysis of genes encoding mitogen-activated protein kinases in maize provides a key link between abiotic stress signaling and plant reproduction. Funct. Integr. Genom. 2015, 15, 107–120. [Google Scholar] [CrossRef]
  31. Sun, Y.; Wang, C.; Yang, B.; Wu, F.; Hao, X.; Liang, W.; Niu, F.; Yan, J.; Zhang, H.; Wang, B.; et al. Identification and functional analysis of mitogen-activated protein kinase kinase kinase (MAPKKK) genes in canola (Brassica napus L.). J. Exp. Bot. 2014, 65, 2171–2188. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Wang, J.; Pan, C.; Wang, Y.; Ye, L.; Wu, J.; Chen, L.; Zou, T.; Lu, G. Genome-wide identification of MAPK, MAPKK, and MAPKKK gene families and transcriptional profiling analysis during development and stress response in cucumber. BMC Genom. 2015, 16, 386. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Liu, Z.; Wang, L.; Xue, C.; Chu, Y.; Gao, W.; Zhao, Y.; Zhao, J.; Liu, M. Genome-wide identification of MAPKKK genes and their responses to phytoplasma infection in Chinese jujube (Ziziphus jujuba Mill.). BMC Genom. 2020, 21, 142. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Nakamichi, N.; Murakami-Kojima, M.; Sato, E.; Kishi, Y.; Yamashino, T.; Mizuno, T. Compilation and characterization of a novel WNK family of protein kinases in Arabiodpsis thaliana with reference to circadian rhythms. Biosci. Biotechnol. Biochem. 2002, 66, 2429–2436. [Google Scholar] [CrossRef] [PubMed]
  35. Bush, S.M.; Krysan, P.J. Mutational evidence that the Arabidopsis MAP kinase MPK6 is involved in anther, inflorescence, and embryo development. J. Exp. Bot. 2007, 58, 2181–2191. [Google Scholar] [CrossRef] [PubMed]
  36. Wang, H.; Liu, Y.; Bruffett, K.; Lee, J.; Hause, G.; Walker, J.C.; Zhang, S. Haplo-insufficiency of MPK3 in MPK6 mutant background uncovers a novel function of these two MAPKs in Arabidopsis ovule development. Plant Cell 2008, 20, 602–613. [Google Scholar] [CrossRef] [Green Version]
  37. Hailing, J.; Michael, J.A.; Douglas, D.; Obi, E.; Shuqun, Z.; Brian, S.; Barbara, B. NPK1, an MEKK1-like Mitogen-Activated Protein Kinase Kinase Kinase, Regulates Innate Immunity and Development in Plants. Dev. Cell 2002, 3, 291–297. [Google Scholar]
  38. Nishihama, R.; Machida, Y. The MAP kinase cascade that includes MAPKKK-related protein kinase NPK1 controls a mitotic proces in plant cells. Results Probl. Cell Differ. 2000, 27, 119–130. [Google Scholar]
  39. Krysan, P.J.; Jester, P.J.; Gottwald, J.R.; Sussman, M.R. An Arabidopsis mitogen-activated protein kinase kinase kinase gene family encodes essential positive regulators of cytokinesis. Plant Cell 2002, 14, 1109–1120. [Google Scholar] [CrossRef] [Green Version]
  40. Sasabe, M.; Machida, Y. Regulation of organization and function of microtubules by the mitogen-activated protein kinase cascade during plant cytokinesis. Cytoskeleton 2012, 69, 913–918. [Google Scholar] [CrossRef]
  41. Chaiwongsar, S.; Otegui, M.S.; Jester, P.J.; Monson, S.S.; Krysan, P.J. The protein kinase genes MAP3K epsilon 1 and MAP3K epsilon 2 are required for pollen viability in Arabidopsis thaliana. Plant J. 2006, 48, 193–205. [Google Scholar] [CrossRef] [PubMed]
  42. Gray-Mitsumune, M.; O’Brien, M.; Bertrand, C.; Tebbji, F.; Nantel, A.; Matton, D.P. Loss of ovule identity induced by overexpression of the fertilization-related kinase 2 (ScFRK2), a MAPKKK from Solanum chacoense. J. Exp. Bot. 2006, 57, 4171–4187. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Sasayama, D.; Matsuoka, D.; Oka, M.; Shitamichi, N.; Furuya, T.; Azuma, T.; Itoh, K.; Nanmori, T. MAP3K delta 4, an Arabidopsis Raf-like MAP3K, regulates plant growth and shoot branching. Plant Biotechnol. Nar. 2011, 28, 463–470. [Google Scholar] [CrossRef] [Green Version]
  44. Matsuoka, D.; Soga, K.; Yasufuku, T.; Nanmori, T. Control of plant growth and development by overexpressing MAP3K17, an ABA-inducible MAP3K, in Arabidopsis. Plant Biotechnol. 2018, 35, 171–176. [Google Scholar] [CrossRef] [Green Version]
  45. Samakovli, D.; Tichá, T.; Vavrdová, T.; Ovečka, M.; Luptovčiak, I.; Zapletalová, V.; Kuchařová, A.; Křenek, P.; Krasylenko, Y.; Margaritopoulou, T.; et al. YODA-HSP90 Module Regulates Phosphorylation-Dependent Inactivation of SPEECHLESS to Control Stomatal Development under Acute Heat Stress in Arabidopsis. Mol. Plant 2020, 13, 612–633. [Google Scholar] [CrossRef]
  46. Ning, J.; Zhang, B.; Wang, N.; Zhou, Y.; Xiong, L. Increased leaf angle1, a Raf-like MAPKKK that interacts with a nuclear protein family, regulates mechanical tissue formation in the Lamina joint of rice. Plant Cell 2011, 23, 4334–4347. [Google Scholar] [CrossRef] [Green Version]
  47. Forde, B.G.; Cutler, S.R.; Zaman, N.; Krysan, P.J. Glutamate signalling via a MEKK1 kinase-dependent pathway induces changes in Arabidopsis root architecture. Plant J. 2013, 75, 1–10. [Google Scholar] [CrossRef] [Green Version]
  48. Samakovli, D.; Zapletalová, V.; Komis, G.; Šamajová, O.; OvečKa, M.; Kuchařová, A.; Šamaj, J. YODA and MPK6 have critical roles in postembryonic root development. New Biotechnol. 2016, 33, S163. [Google Scholar] [CrossRef]
  49. Nakamichi, N.; Matsushika, A.; Yamashino, T.; Mizuno, T. Cell Autonomous Circadian Waves of the APRR1/TOC1 Quintet in an Established Cell Line of Arabidopsis thaliana. Plant Cell Physiol. 2003, 3, 360–365. [Google Scholar] [CrossRef] [Green Version]
  50. Kim, J.M.; Woo, D.H.; Kim, S.H.; Lee, S.Y.; Park, H.Y.; Seok, H.Y.; Chung, W.S.; Moon, Y.H. Arabidopsis MKKK20 is involved in osmotic stress response via regulation of MPK6 activity. Plant Cell Rep. 2012, 31, 217–224. [Google Scholar] [CrossRef]
  51. Benhamman, R.; Bai, F.; Drory, S.B.; Loubert-Hudon, A.; Ellis, B.; Matton, D.P. The Arabidopsis Mitogen-Activated Protein Kinase Kinase Kinase 20 (MKKK20) Acts Upstream of MKK3 and MPK18 in Two Separate Signaling Pathways Involved in Root Microtubule Functions. Front. Plant Sci. 2017, 8, 1352. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  52. Huang, Y.; Li, C.Y.; Qi, Y.; Park, S.; Gibson, S.I. SIS8, a putative mitogen-activated protein kinase kinase kinase, regulates sugar-resistant seedling development in Arabidopsis. Plant J. 2014, 77, 577–588. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  53. Liu, Y.; Zhu, Y.; Xu, X.; Sun, F.; Yang, J.; Cao, L.; Luo, X. OstMAPKKK5, a truncated mitogen-activated protein kinase kinase kinase 5, positively regulates plant height and yield in rice. Crop J. 2019, 7, 707–714. [Google Scholar] [CrossRef]
  54. Virk, N.; Li, D.; Tian, L.; Huang, L.; Hong, Y.; Li, X.; Zhang, Y.; Liu, B.; Zhang, H.; Song, F. Arabidopsis Raf-Like Mitogen-Activated Protein Kinase Kinase Kinase Gene Raf43 is Required for Tolerance to Multiple Abiotic Stresses. PLoS ONE 2015, 10, e0133975. [Google Scholar] [CrossRef]
  55. Chinnusamy, V.; Zhu, J.; Zhu, J.K. Cold stress regulation of gene expression in plants. Trends Plant Sci. 2007, 12, 444–451. [Google Scholar] [CrossRef]
  56. Choi, W.G.; Toyota, M.; Kim, S.H.; Hilleary, R.; Gilroy, S. Salt stress-induced Ca2+ waves are associated with rapid, long-distance root-to-shoot signaling in plants. Proc. Natl. Acad. Sci. USA 2014, 111, 6497–6502. [Google Scholar] [CrossRef] [Green Version]
  57. Endler, A.; Kesten, C.; Schneider, R.; Zhang, Y.; Ivakov, A.; Froehlich, A.; Funke, N.; Persson, S. A Mechanism for Sustained Cellulose Synthesis during Salt Stress. Cell 2015, 162, 1353–1364. [Google Scholar] [CrossRef] [Green Version]
  58. Hou, Q.; Ufer, G.; Bartels, D. Lipid signalling in plant responses to abiotic stress. Plant Cell Environ. 2016, 39, 1029–1048. [Google Scholar] [CrossRef] [Green Version]
  59. Zhu, J.K. Salt and drought stress signal transduction in plants. Annu. Rev. Plant Biol. 2002, 53, 247–273. [Google Scholar] [CrossRef] [Green Version]
  60. Katsuta, S.; Masuda, G.; Bak, H.; Shinozawa, A.; Kamiyama, Y.; Umezawa, T.; Takezawa, D.; Yotsui, I.; Taji, T.; Sakata, Y. Arabidopsis Raf-like kinases act as positive regulators of subclass III SnRK2 in osmostress signaling. Plant J. 2020, 103, 634–644. [Google Scholar] [CrossRef]
  61. Wang, R.S.; Pandey, S.; Li, S.; Gookin, T.E.; Zhao, Z.; Albert, R.; Assmann, S.M. Common and unique elements of the ABA-regulated transcriptome of Arabidopsis guard cells. BMC Genom. 2011, 12, 216. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  62. Ning, J.; Li, X.; Hicks, L.M.; Xiong, L. A Raf-like MAPKKK gene DSM1 mediates drought resistance through reactive oxygen species scavenging in rice. Plant Physiol. 2010, 152, 876–890. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  63. Chen, X.; Wang, J.; Zhu, M.; Jia, H.; Liu, D.; Hao, L.; Guo, X. A cotton Raf-like MAP3K gene, GhMAP3K40, mediates reduced tolerance to biotic and abiotic stress in Nicotiana benthamiana by negatively regulating growth and development. Plant Sci. 2015, 240, 10–24. [Google Scholar] [CrossRef]
  64. Jia, H.; Hao, L.; Guo, X.; Liu, S.; Yan, Y.; Guo, X. A Raf-like MAPKKK gene, GhRaf19, negatively regulates tolerance to drought and salt and positively regulates resistance to cold stress by modulating reactive oxygen species in cotton. Plant Sci. 2016, 252, 267–281. [Google Scholar] [CrossRef] [PubMed]
  65. Mingjian, Z.; Jing, Z.; Jie, S.; Heng, Z.; Didi, Z.; Cecilia, G.; Luis, C.R.; Ling, F.; Zongmin, L.; Jing, Y.; et al. Hydrogen sulfide-linked persulfidation of ABI4 controls ABA responses through the transactivation of MAPKKK18 in Arabidopsis. Mol. Plant 2021, 14, 921–936. [Google Scholar]
  66. Chen, L.; Sun, H.; Wang, F.; Yue, D.; Shen, X.; Sun, W.; Zhang, X.; Yang, X. Genome-wide identification of MAPK cascade genes reveals the GhMAP3K14-GhMKK11-GhMPK31 pathway is involved in the drought response in cotton. Plant Mol. Biol. 2020, 103, 211–223. [Google Scholar] [CrossRef] [PubMed]
  67. Teige, M.; Scheikl, E.; Eulgem, T.; Dóczi, R.; Ichimura, K.; Shinozaki, K.; Dangl, J.L.; Hirt, H. The MKK2 pathway mediates cold and salt stress signaling in Arabidopsis. Mol. Cell 2004, 15, 141–152. [Google Scholar] [CrossRef]
  68. Gao, L.; Xiang, C.B. The genetic locus At1g73660 encodes a putative MAPKKK and negatively regulates salt tolerance in Arabidopsis. Plant Mol. Biol. 2008, 67, 125–134. [Google Scholar] [CrossRef]
  69. Zhai, N.; Jia, H.; Liu, D.; Liu, S.; Ma, M.; Guo, X.; Li, H. GhMAP3K65, a Cotton Raf-Like MAP3K Gene, Enhances Susceptibility to Pathogen Infection and Heat Stress by Negatively Modulating Growth and Development in Transgenic Nicotiana benthamiana. Int. J. Mol. Sci. 2017, 18, 2462. [Google Scholar] [CrossRef] [Green Version]
  70. Nakagami, H.; Kiegerl, S.; Hirt, H. OMTK1, a novel MAPKKK, channels oxidative stress signaling through direct MAPK interaction. J. Biol. Chem. 2004, 279, 26959–26966. [Google Scholar] [CrossRef] [Green Version]
  71. Meindl, T.; Boller, T.; Felix, G. The bacterial elicitor flagellin activates its receptor in tomato cells according to the address-message concept. Plant Cell 2000, 12, 1783–1794. [Google Scholar] [PubMed] [Green Version]
  72. Asai, T.; Tena, G.; Plotnikova, J.; Willmann, M.R.; Chiu, W.L.; Gomez-Gomez, L.; Boller, T.; Ausubel, F.M.; Sheen, J. MAP kinase signalling cascade in Arabidopsis innate immunity. Nature 2002, 415, 977–983. [Google Scholar] [CrossRef] [PubMed]
  73. Dangl, J.L.; Jones, J.D. Plant pathogens and integrated defence responses to infection. Nature 2001, 411, 826–833. [Google Scholar] [CrossRef] [PubMed]
  74. Nürnberger, T.; Scheel, D. Signal transmission in the plant immune response. Trends Plant Sci. 2001, 6, 372–379. [Google Scholar] [CrossRef] [PubMed]
  75. Felix, G.; Duran, J.D.; Volko, S.; Boller, T. Plants have a sensitive perception system for the most conserved domain of bacterial flagellin. Plant J. 1999, 18, 265–276. [Google Scholar] [CrossRef] [PubMed]
  76. Suzuki, N.; Rivero, R.M.; Shulaev, V.; Blumwald, E.; Mittler, R. Abiotic and biotic stress combinations. New Phytol. 2014, 203, 32–43. [Google Scholar] [CrossRef] [PubMed]
  77. Poon, J.S.Y.; Le Fevre, R.E.; Carr, J.P.; Hanke, D.E.; Murphy, A.M. Inositol hexakisphosphate biosynthesis underpins PAMP-triggered immunity to Pseudomonas syringae pv. tomato in Arabidopsis thaliana but is dispensable for establishment of systemic acquired resistance. Mol. Plant Pathol. 2020, 21, 376–387. [Google Scholar] [CrossRef] [Green Version]
  78. Kong, Q.; Qu, N.; Gao, M.; Zhang, Z.; Ding, X.; Yang, F.; Li, Y.; Dong, O.X.; Chen, S.; Li, X.; et al. The MEKK1-MKK1/MKK2-MPK4 kinase cascade negatively regulates immunity mediated by a mitogen-activated protein kinase kinase kinase in Arabidopsis. Plant Cell 2012, 24, 2225–2236. [Google Scholar] [CrossRef] [Green Version]
  79. Asano, T.; Nguyen, T.H.; Yasuda, M.; Sidiq, Y.; Nishimura, K.; Nakashita, H.; Nishiuchi, T. Arabidopsis MAPKKK δ-1 is required for full immunity against bacterial and fungal infection. J. Exp. Bot. 2020, 71, 2085–2097. [Google Scholar] [CrossRef] [Green Version]
  80. Sun, T.; Nitta, Y.; Zhang, Q.; Wu, D.; Tian, H.; Lee, J.S.; Zhang, Y. Antagonistic interactions between two MAP kinase cascades in plant development and immune signaling. EMBO Rep. 2018, 19, e45324. [Google Scholar] [CrossRef]
  81. Shen, X.; Liu, H.; Yuan, B.; Li, X.; Xu, C.; Wang, S. OsEDR1 negatively regulates rice bacterial resistance via activation of ethylene biosynthesis. Plant Cell Environ. 2011, 34, 179–191. [Google Scholar] [CrossRef] [PubMed]
  82. Chen, J.; Wang, L.; Yang, Z.; Liu, H.; Chu, C.; Zhang, Z.; Zhang, Q.; Li, X.; Xiao, J.; Wang, S.; et al. The rice Raf-like MAPKKK OsILA1 confers broad-spectrum resistance to bacterial blight by suppressing the OsMAPKK4-OsMAPK6 cascade. J. Integr. Plant Biol. 2021, 63, 815–1842. [Google Scholar] [CrossRef] [PubMed]
  83. Melech-Bonfil, S.; Sessa, G. Tomato MAPKKKε is a positive regulator of cell-death signaling networks associated with plant immunity. Plant J. 2010, 64, 379–391. [Google Scholar] [CrossRef] [PubMed]
  84. Tajti, J.; Németh, E.; Glatz, G.; Janda, T.; Pál, M. Pattern of changes in salicylic acid-induced protein kinase (SIPK) gene expression and salicylic acid accumulation in wheat under cadmium exposure. Plant Biol. 2019, 21, 1176–1180. [Google Scholar] [CrossRef]
  85. Xu, Y.; Shang, K.; Wang, C.; Yu, Z.; Zhao, X.; Song, Y.; Meng, F.; Zhu, C. WIPK-NtLTP4 pathway confers resistance to Ralstonia solanacearum in tobacco. Plant Cell Rep. 2022, 41, 249–261. [Google Scholar] [CrossRef]
  86. del Pozo, O.; Pedley, K.F.; Martin, G.B. MAPKKKα is a positive regulator of cell death associated with both plant immunity and disease. EMBO J. 2004, 23, 3072–3082. [Google Scholar] [CrossRef] [Green Version]
  87. Li, J.; Deng, F.; Wang, H.; Qiang, X.; Meng, Y.; Shan, W. The Raf-like kinase Raf36 negatively regulates plant resistance against the oomycete pathogen Phytophthora parasitica by targeting MKK2. Mol. Plant Pathol. 2022, 23, 530–542. [Google Scholar] [CrossRef]
Ijms 24 04117 g001 550

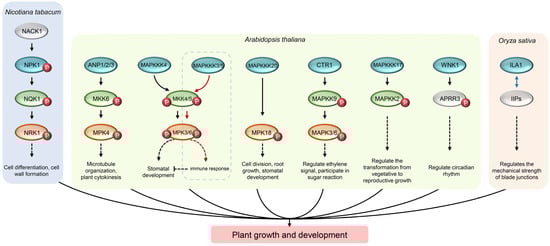

Figure 1. Mechanism of plant MAP3K regulating growth and development. The blue, green, and red ovals represent MAP3K, MAPKK, and MAPK respectively. White ovals represent proteins that do not belong to the MAPK cascade pathway. The red small circle with “P” represents phosphorylation and blue double-headed arrow represents interactions between proteins.
Figure 1. Mechanism of plant MAP3K regulating growth and development. The blue, green, and red ovals represent MAP3K, MAPKK, and MAPK respectively. White ovals represent proteins that do not belong to the MAPK cascade pathway. The red small circle with “P” represents phosphorylation and blue double-headed arrow represents interactions between proteins.
Ijms 24 04117 g001
Ijms 24 04117 g002 550

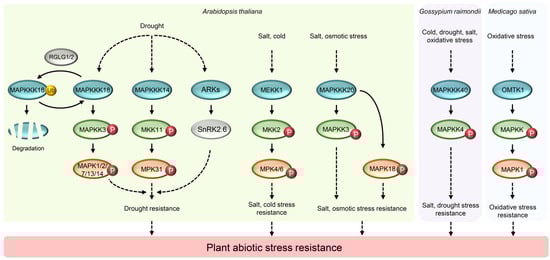

Figure 2. Mechanism of plant MAP3K regulating abiotic stress resistance. The blue, green, and red ovals represent MAP3K, MAPKK, and MAPK respectively. White ovals represent proteins that do not belong to the MAPK cascade pathway. The red small circle with “P” represents phosphorylation and the small yellow circle with “Ub” represents ubiquitination.
Figure 2. Mechanism of plant MAP3K regulating abiotic stress resistance. The blue, green, and red ovals represent MAP3K, MAPKK, and MAPK respectively. White ovals represent proteins that do not belong to the MAPK cascade pathway. The red small circle with “P” represents phosphorylation and the small yellow circle with “Ub” represents ubiquitination.
Ijms 24 04117 g002
Ijms 24 04117 g003 550

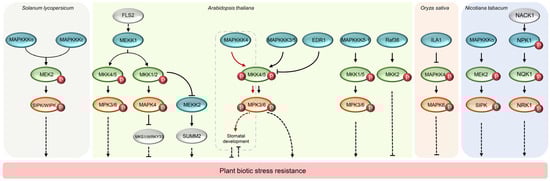

Figure 3. Mechanism of plant MAP3K regulating biotic stress resistance. The blue, green, and red ovals represent MAP3K, MAPKK, and MAPK respectively. White ovals represent proteins that do not belong to the MAPK cascade pathway. The red small circle with “P” represents phosphorylation.
Figure 3. Mechanism of plant MAP3K regulating biotic stress resistance. The blue, green, and red ovals represent MAP3K, MAPKK, and MAPK respectively. White ovals represent proteins that do not belong to the MAPK cascade pathway. The red small circle with “P” represents phosphorylation.
Ijms 24 04117 g003
Ijms 24 04117 g004 550

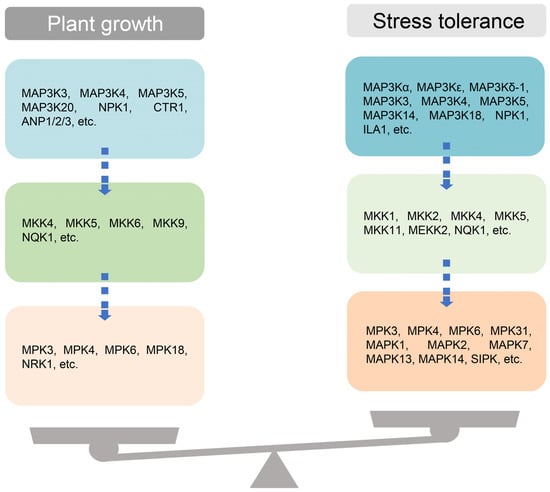

Figure 4. The working model of plant MAP3Ks. Plants form a dynamic balance between plant growth and stress tolerance through a series of MAPK cascade pathways composed of multiple MAP3Ks.
Figure 4. The working model of plant MAP3Ks. Plants form a dynamic balance between plant growth and stress tolerance through a series of MAPK cascade pathways composed of multiple MAP3Ks.
Ijms 24 04117 g004
Table
Table 1. Characteristics of three subfamilies of plant MAP3Ks.
Table 1. Characteristics of three subfamilies of plant MAP3Ks.
SubfamilyCatalytic DomainRegulatory DomainCatalysed Region Sequence
MEKKC-termianl, N-terminal, middleNDG (T/S) PX (F/Y/W) MAPEV
RafC-terminalN-terminalGTPEFMAPE (L/V) Y
ZIKN-terminalC-terminalGTXX (W/Y) MAPE
Abbreviation: ND, not determined.
Table
Table 2. Classification and quantity of plant MAP3Ks.
Table 2. Classification and quantity of plant MAP3Ks.
SpeciesMEKKRafZIKTotalReferences
Apple (Malus domestica)377214123[23]
Cotton (Gossypium raimondii)376512114[24]
Pear (Pyrus bretschneideri)573120108[25]
Tomato (Solanum lycopersicum)33401689[26]
Arabidopsis (Arabidopsis thaliana)12482080[27]
Banana (Musa nana)14481577[28]
Rice (Oryza sativa)22431075[29]
Maize (Zea mays)2637871[30]
Rapeseed (Brassica napus)1839966[31]
Cucumber (Cucumis sativus)18311059[32]
Chinese jujube (Ziziphus jujuba)1541056[33]
Table
Table 3. The MAP3Ks involved in plant growth and development.
Table 3. The MAP3Ks involved in plant growth and development.
SpeciesGeneSubfamilyFunctionPathway
Nicotiana tabacumNPK1MEKKRegulate cell division and differentiation and participate in cell wall formationNPK1-NQK1-NRK1
Arabidopsis thalianaANP1/2/3MEKKRegulate microtubule tissue and cytokinesisANP1/2/3-MKK6-MPK4
Arabidopsis thalianaMEKK1MEKKInvolve in leaf senescence and root developmentND
Arabidopsis thalianaWNK1ZIKRegulate day-night rhythmWNK1-APRR3
Arabidopsis thalianaMAP3Kε1/ε2MEKKRegulate pollen developmentND
Arabidopsis thalianaMAP3Kδ4RafRegulate both plant growth and shoot branchingND
Arabidopsis thalianaMAP3K4MEKKRegulate stomatal developmentMAP3K4-MKK4/5-MPK3/6
Arabidopsis thalianaMAP3K20MEKKAdjust the function of microtubuleMAP3K20-MPK18
Arabidopsis thalianaCTR1RafRegulate ethylene signal and participate in sugar reaction processCTR1-MAPKK9-MAPK3/6
Arabidopsis thalianaMAP3K17RafParticipate in the transformation from vegetative growth to
reproductive growth		MAP3K17-MAPKK2
Arabidopsis thalianaSIS8RafAs an anti-hyperglycemic regulatorND
Oryza sativaILA1RafParticipate in the formation of mechanical organization
at the blade joint		ND
Oryza sativaMAP3K5RafRegulate cell sizeND
Solanum chacoenseFRK1/2MEKKParticipate in embryonic developmentND
Abbreviation: ND, not determined.
Table
Table 4. The MAP3Ks involved in plant abiotic stress.
Table 4. The MAP3Ks involved in plant abiotic stress.
SpeciesGeneSubfamilyStressPathway
Arabidopsis thalianaMAP3K18MEKKDroughtMAP3K18-MAPKK3-MAPK1/2/7/13/14
Arabidopsis thalianaMAP3K17MEKKDroughtMAP3K17-MAPKK3-MAPK1/2/7/14
Arabidopsis thalianaARKRafOsmoticND
Arabidopsis thalianaAT6RafSaltND
Arabidopsis thalianaMEKK1MEKKSalt, coldMEKK1-MKK2-MPK4/6
Arabidopsis thalianaMAP3K20MEKKSalt, cold, osmoticMAP3K20-MAPKK3
Arabidopsis thalianaRaf43RafSalt, drought, oxidative, osmoticND
Medicago sativaOMTK1MEKKOxidativeOMTK1-MMK3
Oryza sativaDSM1RafDrought, saltND
Gossypium raimondiiMAP3K14MEKKDroughtMAP3K14-MKK11-MPK31
Gossypium raimondiiMAP3K40RafCold, salt, drought, oxidative, damage, pathogenMAP3K40-MAPKK4
Gossypium raimondiiMAP3K65RafHeatND
Gossypium raimondiiRaf19RafSalt, drought, coldND
Abbreviation: ND, not determined.
Table
Table 5. The MAP3Ks involved in plant biotic stress.
Table 5. The MAP3Ks involved in plant biotic stress.
SpeciesGeneSubfamilyStressPathway
Arabidopsis thalianaMEKK1MEKKBoth bacterial and fungalMEKK1-MKK4/5-MPK3/6 and
MEKK1-MKK1/2-MAPK4
Arabidopsis thalianaMAP3Kδ-1RafBoth bacterial and fungalMAP3Kδ-1-MKK1/5-MPK3/6
Arabidopsis thalianaEDR1RafBoth bacterial and fungalEDR1-MKK4/5-MPK3/6
Arabidopsis thalianaRaf36RafOnly fungalRaf36-MKK2
Arabidopsis thalianaMAP3K3/5MEKKOnly bacterialMAP3K3/5-MKK4/5-MPK3/6
Solanum lycopersicumMAP3KαMEKKOnly bacterialMAP3Kα-MEK2-SIPK/WIPK
Solanum lycopersicumMAP3KεMEKKOnly bacterialMAP3Kε-MEK2-SIPK/WIPK
Gossypium raimondiiMAP3K65RafOnly bacterialND
Oryza sativaEDR1RafOnly bacterialND
Oryza sativaILA1RafOnly bacterialILA1-MAPKK4-MAPK6
Nicotiana tabacumNPK1MEKKOnly virusesNPK1-NQK1-NRK1
Abbreviation: ND, not determined.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Xie, C.; Yang, L.; Gai, Y. MAPKKKs in Plants: Multidimensional Regulators of Plant Growth and Stress Responses. Int. J. Mol. Sci. 2023, 24, 4117. https://doi.org/10.3390/ijms24044117

AMA Style

Xie C, Yang L, Gai Y. MAPKKKs in Plants: Multidimensional Regulators of Plant Growth and Stress Responses. International Journal of Molecular Sciences. 2023; 24(4):4117. https://doi.org/10.3390/ijms24044117

Chicago/Turabian Style

Xie, Chen, Liu Yang, and Yingping Gai. 2023. "MAPKKKs in Plants: Multidimensional Regulators of Plant Growth and Stress Responses" International Journal of Molecular Sciences 24, no. 4: 4117. https://doi.org/10.3390/ijms24044117

APA Style

Xie, C., Yang, L., & Gai, Y. (2023). MAPKKKs in Plants: Multidimensional Regulators of Plant Growth and Stress Responses. International Journal of Molecular Sciences, 24(4), 4117. https://doi.org/10.3390/ijms24044117

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
