Vapor-Induced Pore-Forming Atmospheric-Plasma-Sprayed Zinc-, Strontium-, and Magnesium-Doped Hydroxyapatite Coatings on Titanium Implants Enhance New Bone Formation—An In Vivo and In Vitro Investigation

by
Hsin-Han Hou
1,2,3,
Bor-Shiunn Lee
1,2,
Yu-Cheng Liu
4,
Yi-Ping Wang
2,
Wei-Ting Kuo
1,2,
I-Hui Chen
5,
Ai-Chia He
1,
Chern-Hsiung Lai
6,
Kuo-Lun Tung
4 and
Yi-Wen Chen
2,3,*
1
Graduate Institute of Oral Biology, School of Dentistry, National Taiwan University, Taipei 10048, Taiwan
2
Department of Dentistry, National Taiwan University Hospital, Taipei 10048, Taiwan
3
Graduate Institute of Clinical Dentistry, School of Dentistry, National Taiwan University, Taipei 10048, Taiwan
4
Department of Chemical Engineering, National Taiwan University, Taipei 10617, Taiwan
5
Division of Periodontology, Department of Dentistry, Kaohsiung Medical University Hospital, Kaohsiung 80756, Taiwan
6
College of Life Science, Kaohsiung Medical University, Kaohsiung 80756, Taiwan
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2023, 24(5), 4933; https://doi.org/10.3390/ijms24054933
Submission received: 6 February 2023 / Revised: 15 February 2023 / Accepted: 24 February 2023 / Published: 3 March 2023
(This article belongs to the Section Materials Science)
Browse Figures
Review Reports Versions Notes

Abstract

:
Objectives: Titanium implants are regarded as a promising treatment modality for replacing missing teeth. Osteointegration and antibacterial properties are both desirable characteristics for titanium dental implants. The aim of this study was to create zinc (Zn)-, strontium (Sr)-, and magnesium (Mg)-multidoped hydroxyapatite (HAp) porous coatings, including HAp, Zn-doped HAp, and Zn-Sr-Mg-doped HAp, on titanium discs and implants using the vapor-induced pore-forming atmospheric plasma spraying (VIPF-APS) technique. Methods: The mRNA and protein levels of osteogenesis-associated genes such as collagen type I alpha 1 chain (COL1A1), decorin (DCN), osteoprotegerin (TNFRSF11B), and osteopontin (SPP1) were examined in human embryonic palatal mesenchymal cells. The antibacterial effects against periodontal bacteria, including Porphyromonas gingivalis and Prevotella nigrescens, were investigated. In addition, a rat animal model was used to evaluate new bone formation via histologic examination and micro-computed tomography (CT). Results: The ZnSrMg-HAp group was the most effective at inducing mRNA and protein expression of TNFRSF11B and SPP1 after 7 days of incubation, and TNFRSF11B and DCN after 11 days of incubation. In addition, both the ZnSrMg-HAp and Zn-HAp groups were effective against P. gingivalis and P. nigrescens. Furthermore, according to both in vitro studies and histologic findings, the ZnSrMg-HAp group exhibited the most prominent osteogenesis and concentrated bone growth along implant threads. Significance: A porous ZnSrMg-HAp coating using VIPF-APS could serve as a novel technique for coating titanium implant surfaces and preventing further bacterial infection.

1. Introduction

Titanium dental implants have revolutionized dentistry and become one of the most common treatment options for replacing missing teeth in partially or fully edentulous patients [1]. Osseointegration is defined as the direct functional and structural connection between living bone and the load-bearing surface of a titanium implant [2]. Osseointegration includes primary stability (mechanical stability) and secondary stability (biological stability). Mechanical stability is determined by the bone density and implant design, whereas biological stability is associated with physiologic bone healing. The cellular and molecular phenomena that occur during osseointegration form a cascade including blot clot formation, angiogenesis, the migration of osteoprogenitor cells, woven bone formation, and bone remodeling [3]. Therefore, the surface treatment of a dental implant may influence bone deposition and determine the implant success at an early stage. Various studies have proposed increasing surface hydrophilicity and attracting osteoprogenitor cells using the advantages of metal ions [4,5,6,7,8]. Treating titanium implant surfaces with calcium phosphate deposition via immersion in simulated body fluid under physiological conditions of temperature (37 °C) and pH (7.4) has been proven to enhance surface hydrophilicity, attract osteoinductive agents, and promote bone healing [9]. Strontium (Sr) has been reported to regulate osteoblast-related gene expression, enhance alkaline phosphatase (ALP) activity, and reduce osteoclast differentiation [5]. Strontium ranelate has been demonstrated to increase runt-related transcription factor 2 (Runx2) expression and matrix mineralization and attenuate bone resorption in an osteopenic mouse model [6]. Zinc (Zn) and magnesium (Mg) are essential elements for increasing alkaline phosphatase activity [7,8] and bone protein synthesis [10], thus promoting bone formation [11].
Peri-implantitis is defined as soft tissue inflammation and progressive bone loss around dental implants and is considered a polymicrobial anaerobic infection associated with biofilms [12,13]. Various clinical regimes for preventing and treating peri-implantitis have been proposed based on its pathophysiology, including mechanical debridement, laser treatment, locally delivered antiseptics, local or systemic antibiotics, and surgical access and regenerative procedures. However, a gold standard protocol for treating peri-implantitis has yet to be established [14]. Metal coatings, such as Ag+, Zn2+, Sr2+, Mg2+, Ca2+, F−1 and Sc+3, and antimicrobial peptides have been reported to inhibit bacterial adhesion and enhance osseointegration [15,16,17,18,19]. Hydroxyapatite (HAp) coatings doped with 1 wt% AgNO3 (AgHA1.0) exhibit the ability to minimize the initial adhesion of Streptococcus aureus and Staphylcoccus epidermidis [20]. Metal ions can prevent the emergence of drug-resistant bacteria resulting from the overuse of antibiotics. Titanium plates coated with a copper-HAp composite via two-stage electrochemical synthesis have demonstrated excellent antibacterial properties against Escherichia coli (Gram-negative) and S. aureus (Gram-positive) [21]. Moreover, Zn has been added to toothpaste and mouth rinses to inhibit calculus deposition and the growth of cariogenic bacteria [22]. Therefore, the development of an implant surface with antimicrobial properties is essential.
Implant coating materials, such as metals (titanium and its alloys, aluminum alloys, cobalt, and zirconium), ceramics (HAp), and polymers (polyurethane and polyethylene), are crucial to maintaining superior mechanical properties, corrosion resistance, and antimicrobial properties [23]. Surface modification treatments, including physical (electron beam evaporation, thermal spraying, pulsed laser deposition, and thermal evaporation) and chemical methods (chemical vapor deposition, electrophoretic deposition, and sol–gel coating), have been widely applied to improve surface properties [23]. HAp is among the most in-demand materials for the modification of surface properties for optimal osseointegration in implantology [24,25,26]. Furthermore, HAp is resistant to X-ray and UV irradiation and does not display visible aging/structural damage [27,28]. Our previous study proved that the vapor-induced pore-forming atmospheric plasma spraying (VIPF-APS) technique could effectively produce a porous HAp coating and contribute to a more bioactive coating for osteoblast proliferation [29]. Sr- and Mg-doped HAp implants were demonstrated to enhance osteoblast proliferation and new bone formation in a beagle dog model [29]. To the best of our knowledge, the effect of Zn-, Sr-, and Mg-multidoped HAp-coated titanium implants on the enhancement of bone formation has yet to be investigated. In addition, Zn-, Sr-, and Mg-multidoped HAp coatings produced using the VIPF-APS technique have never been examined. Therefore, the novelty of this study lies in the use of the VIPF-APS technique to create Zn-, Sr-, and Mg-multidoped HAp porous coatings on titanium discs and implants. The mRNA and protein levels of osteogenesis-associated genes such as collagen type I alpha 1 chain (COL1A1), decorin (DCN), osteoprotegerin (TNFRSF11B), and osteospontin (SPP1) were examined. The antibacterial effects against periodontal bacteria, including Porphyromonas gingivalis and Prevotella nigrescens, were investigated. Moreover, a rat model was used to evaluate osseointegration via histologic examination and micro-computed tomography (micro-CT).

2. Results

2.1. ZnSrMg-HAp Promotes Osteointegration-Associated Gene and Protein Expression in HEPM Cells

The HEPM cells were incubated on titanium discs coated with HAp, Zn-HAp, or ZnSrMg-HAp for 3 (Figure 1A), 7 (Figure 1B), and 11 days (Figure 1C). The purified cellular total RNA was used for a qPCR assay with primer sets of COL1A1, DCN, TNFRSF11B, and SPP1. The mRNA levels of TNFRSF11B and SPP1 significantly increased in the ZnSrMg-HAp group after 7 days of incubation compared with those of the HAp group (Figure 1B). Moreover, the mRNA levels of TNFRSF11B and DCN also significantly increased in the ZnSrMg-HAp group after 11 days of incubation compared with those of the HAp group (Figure 1C). To confirm the protein expression level according to the previous qPCR results, the cellular lysate was used in a Western blot assay. The protein levels of TNFRSF11B and SPP1 significantly increased in the ZnSrMg-HAp group after 7 days of incubation compared with those of the HAp group (Figure 2A,B). Moreover, the protein levels of TNFRSF11B and DCN significantly increased in the ZnSrMg-HAp group after 11 days of incubation compared with those of the HAp group (Figure 2C,D). These results demonstrated that the titanium discs coated with ZnSrMg-HAp prominently increased the expression of osteointegration-associated genes and proteins and suggested that the ZnSrMg-HAp coating promoted osteointegration ability.

2.2. Antibacterial Activity Test of HAp, Zn-HAp, and ZnSrMg-HAp Coatings on Titanium Discs against P. gingivalis and P. nigrescens

The ZnSrMg-HAp group demonstrated superior antibacterial activity against P. gingivalis compared with the Zn-HAp and HAp groups (Figure 3A). The ZnSrMg-HAp and Zn-HAp groups demonstrated prominent antibacterial activity against P. nigrescens. However, no difference was observed between the ZnSrMg-HAp and Zn-HAp groups (Figure 3B). In contrast, the HAp group did not demonstrate an apparent antibacterial effect against P. gingivalis or P. nigrescens.

2.3. Micro-CT Assessment

Micro-CT reconstruction images are shown in Figure 4A. Within the ROI of 0.85 mm and 1.1 mm, the bone coverage rate was significantly higher in the Zn-HAp and ZnSrMg-HAp groups compared to the HAp group at 2 and 4 weeks (Figure 4B,C). BV/TV was also significantly higher in the Zn-HAp and ZnSrMg-HAp groups at 2 and 4 weeks compared to the HAp group (Figure 4D). In contrast, the Zn-HAp and ZnSrMg-HAp groups exhibited significantly lower BMDs at 2 and 4 weeks compared to the HAp group (Figure 4E).

2.4. Histological Findings

Figure 5 shows that the ZnSrMg-HAp group exhibited better osteointegration than the HAp and Zn-HAp groups. At 2 weeks after implantation, the HAp group only achieved integration within the cortical bone area (the first and second threads). A focal discontinuous deposit of the bone on the implant surface was observed down to the interthread area between the third and fourth threads. Similar effects were also discerned in the Zn-HAp group, with a patchy surface bony deposit present down to the region slightly beyond the tip of the fifth thread (the third thread in the cancellous bone). In contrast, continuous bone formation on the implant surface was evident down to the lower slope of the sixth thread in the ZnSrMg-HAp group. The advantage of ZnSrMg-HAp surface processing in terms of osteointegration was more profound 4 weeks after implantation. Continuous and complete bone coverage was identified on all threads in the cancellous bone in the ZnSrMg-HAp group, whereas this feature could only be found down to the fourth and fifth threads in the HAp and Zn-HAp groups, respectively. At higher magnification (100×, thickened bone deposition was more apparent on the implant surface in the ZnSrMg-HAp group than in the HAp and Zn groups.

3. Discussion

This was the first study to use VIPF-APS to prepare porous coatings on dental implant surfaces. In addition, three-element doped HAp was successfully produced using ion doping technology. Compared with multi-element doped HAp prepared using the traditional solid-phase method [30], the coprecipitation method adopted in this study controlled the amount of ion doping more precisely and suppressed the generation of other non-targeted substances resulting from HAp phase transformation or an incomplete oxidative process [31]. Various coating techniques, such as plasma spraying, hydrocoating, two-stage processing, physical vapor deposition, thermally applied coating, and nanoscale technology, have been developed for implant surface modification [32]. Plasma spraying is the most commonly used technique for applying ion coatings on implant surfaces. The physical principles of the novel VIPF-APS technique in this study are based on the penetration of expansive vapors through melted HAp. The porous structure serves as a cavity for the recruitment of undifferentiated mesenchymal cells to the implant surface compared with the dense HAp coatings using traditional APS. Achieving a balance between mechanical strength and adequate pore size for bone ingrowth is critical for implant surface modification. In this study, the pore diameter of the coatings on titanium discs prepared via VIPF-APS was approximately 38 μm [33]. Our previous study demonstrated that the VIPF-APS technique could effectively produce porous HAp coatings that are favorable for higher osteoblast proliferation and alkaline phosphatase activity. The size of interconnecting pores is critical in affecting bone ingrowth. A pore size between 100 and 400 μm has been suggested to be favorable for bone ingrowth [34]. Another study showed that a pore size range of approximately 50 to 400 μm is optimal for fixation strength (17 MPa) [35]. The HAp coatings prepared using the VIPF-APS technique had more than 8% porosity compared to the traditional APS technique [31]. Therefore, we used the advantage of the VIPF-APS technique to produce Zn-, Sr-, and Mg-doped HAp coatings on titanium discs and implants. In addition to the successful preparation of porous HAp coatings on dental implants, this study also succeeded in preparing a three-element doped HAp coating powder for VIPF-APS.
HEPM cells are preosteoblasts that can differentiate into osteoblasts on titanium plates [36]. The growth and differentiation of osteoblasts can be divided into three periods based on the different genes expressed in each period: proliferation, extracellular matrix maturation, and extracellular matrix mineralization. First, collagen 1 and 2 (COL1, 2) are upregulated in the early stages of osteoblast differentiation. Next, SPP1 is required for extracellular matrix maturation. Finally, in the period of extracellular matrix mineralization, Ca2+ binding proteoglycans such as biglycan and DCN are secreted [37]. In addition, DCN has been proven to modulate collagen matrix assembly and mineralization [38] and regulate the cell cycle [39]. Otherwise, TNFRSF11B, a tumor necrosis factor receptor superfamily member, functions as a negative regulator of bone resorption by regulating osteoclast development [40]. Thus, we quantified the mRNA and protein expression of gene markers, including COL1, SPP1, DCN, and TNFRSF11B at different stages of HEPM (3, 7 and 11 days). The results showed that Zn-HAp had significantly higher COL1 and DCN mRNA than the HAp group on the third day. On the 11th day, Zn-HAp and ZnSrMg-HAp had significantly higher DCN and TNFRSF11B activity than HAp. In a previous study, human dental pulp stem cells cultured on Zn-modified titanium plates were proven to enhance the expression of osteoblast-related genes, such as COL1, bone morphogenetic protein 2, ALP, Runx2, osteopontin, and vascular endothelial growth factor A in vitro [41]. Our results were in agreement with previous studies that demonstrated the upregulating ability of Zn in an osteoblast culture (24–72 h) [42,43]. In addition, ZnSrMg-HAp had significantly higher SPP1 and TNFRSF11B activity than the HAp group on the seventh day. In bone-defect mice, the promoter activity of nuclear factor-kappa beta and vascular endothelial growth factor receptor-2 is upregulated by Sr supplementation [44]. Mg supplementation has been proven to upregulate the mRNA of peroxisome proliferator-activated receptor gamma and glucose transporter 1 in peripheral blood mononuclear cells from women with gestational diabetes [4]. The results of this study were in line with the process of bone differentiation and proved that Zn alone or ZnSrMg were effective in improving bone growth and maturation. In other words, ZnSrMg plays a critical role in the process of osteoblast growth and differentiation in vitro.
Antibiotics represent the most effective method for treating peri-implantitis in a clinical setting. However, bacterial resistance could be a concern because of excessive antibiotic usage [45]. To examine the effect of element-doped HAp coatings against periodontal pathogens, we chose P. gingivalis and P. nigrsecens as the target bacteria. Our results showed that the antibacterial activity of the ZnSrMg-HAp group was superior to that of the Zn-HAp group. Previous studies have reported that Zn, Sr, and Mg ions released from HAp coatings enhanced bone mineralization and exhibited antibacterial properties [46,47,48]. The release of mental ions from HAp coatings formed an alkaline environment and was not favorable for bacterial growth. Moreover, the membrane potential difference caused by metal ions may result in electron transfer and generate excessive amounts of reactive oxygen species, which further kills bacteria [49]. An implant surface with antibacterial properties, particularly the inhibition of biofilm formation and bacterial adhesion, is the most promising strategy for preventing or treating peri-implantitis.
Unlike the results regarding protein expression shown in Figure 2, the bone coverage rate in the Zn-HAp group was not significantly different from that of the ZnSrMg-HAp group. The reason might be that animals were sacrificed after at least 2 weeks, which was longer than the examination time for protein expression. The bone growth for osteointegration occurs very early after implant placement. The ZnSrMg-HAp group exhibited a higher bone coverage rate at an ROI of 0.85 mm compared with the Zn-HAp group at both 2 and 4 weeks (Figure 4B). In contrast, the bone coverage rate was higher in the Zn-HAp group than in the ZnSrMg-HAp group at an ROI of 1.1 mm (Figure 4C). However, no significant difference was found for both ROIs. The Sr2+ and Mg2+ ions released from ZnSrMg-HAp could stimulate osteogenesis and new bone formation concentrated along the implant threads. Therefore, the bone coverage rate of the ZnSrMg-HAp group was more prominent at the smaller ROI (0.85 mm). These results were in agreement with the histological findings, which demonstrated that the ZnSrMg-HAp group exhibited more prominent continuous bone coverage on implant threads compared with the HAp and Zn-HAp groups (Figure 5). In addition, the concentrated bone growth on implant threads observed during the histological examination was not composed of cancellous bone. The bone volume fraction (BV/TV) did not differ significantly between the Zn-HAP and ZnSrMg-HAp groups (Figure 4D). The reason for this may be that the BV/TV was examined at an ROI of 1.1 mm and the animals were sacrificed at least 2 weeks after implant placement, as discussed previously. Compared with HAp coatings on titanium implants, the Zn-HAp and ZnSrMg-HAp groups showed significantly less bone mineral density (Figure 4E); these two groups exhibited more newly formed and unmineralized woven bone around the titanium implants, which in turn caused the lower bone mineral density.

4. Materials and Methods

4.1. Preparation of HAp, Zn-Doped HAp, and Zn-Sr-Mg-Doped HAp Coatings on Titanium Implants Using the VIPF-APS Technique

The preparation details of HAp, Zn-doped HAp, and Zn-Sr-Mg-doped HAp powders were described in a previous study [30]. Briefly, HAp coatings doped with different metal ions were prepared and denoted as HAp, Zn-HAp [Zn/(Ca+Zn) = 2.5%], and ZnSrMg-HAp [Zn/(Ca+Zn+Sr+Mg) = 2.5%, Sr/(Ca+Zn+Sr+Mg) = 5%, Mg/(Ca+Zn+Sr+Mg) = 5%]. The molar ratio of Ca(NO3)2/(NH4)2HPO4 was 10:6 for HAp, that of [Ca(NO3)2 + Zn(NO3)2]/(NH4)2HPO4 was 10:6 for Zn-HAp, and that of [Ca(NO3)2 + Sr(NO3)2 + Mg(NO3)2 + Zn(NO3)2]/(NH4)2HPO4 was 10:6 for ZnSrMg-HAp. The synthetic parameters were pH = 10 and a calcination temperature of 800 °C. The VIPF-APS technique was used to deposit HAp, Zn-HAp, and ZnSrMg-HAp on titanium implants (Stryker Leibinger GmbH & Co. KG, Freiberg, Germany) that were made of Ti6Al4V alloy, 5 mm in length and 1.2 mm in diameter (Figure 6). The technique involved water vapor being splashed on the titanium implant. The surfaces of the implant were roughened by sandblasting to Ra = 11.20 μm and then sprayed with a thin layer of HAp coating. After immersion in pure water, a single spray cycle was applied to the implant surface repeatedly until the desired thickness of HAp coating was achieved (30 µm). Finally, a porous surface structure was formed [33].

4.2. Reverse Transcriptase Quantitative Polymerase Chain Reaction

Human embryonic palatal mesenchymal (HEPM) cells (ATCC®CRL-1486TM) were incubated on titanium discs (diameter: 15 mm, thickness: 2 mm, Biomate Swiss GmbH, Zug, Switzerland) coated with HAp, Zn-HAp, or ZnSrMg-HAp for 3, 7, and 11 days. Subsequently, HEPM cells were used with TRIzol reagent (15596026, Invitrogen, Waltham, MA, USA) to extract mRNA. Purified cellular total RNA (100 ng) was used with the Power SYBR™ Green RNA-to-CT™ 1-Step Kit for reverse-transcription reaction. The corresponding cDNA was used in a quantitative polymerase chain reaction (qPCR) assay with Biorad CFX96 (Bio-Rad, Hercules, CA, USA) with primer sets of COL1A1, F: GATTCCCTGGACCTAAAGGTGC, and R: AGCCTCTCCATCTTTGCCAGCA; DCN, F: AGCTGAAGGAATTGCCAGAA, and R: CTCTGCTGATTTTGTTGCCA; TNFRSF11B, F: GAACCCCAGAGCGAAATAC, and R: CGCTGTTTTCACAGAGGTC; SPP1, F: CGAGGTGATAGTGTGGTTTATGG, and R: GCACCATTCAACTCCTCGCTTTC; and GAPDH, F: GTCTCCTCTGACTTCAACAGCG, and R: ACCACCCTGTTGCTGTAGCCAA [50,51].

4.3. Cell Culture, Protein Extraction, and Immunoblot Analysis

HEPM cells were cultured on titanium discs coated with HAp, Zn-HAp, or ZnSrMg-HAp for 7 and 11 days at 37 ℃ in an incubator with 5% CO2 in Dulbecco’s modified Eagle’s medium/F12 (1:1) (1×) (21041-025, Gibco™ - Thermo Fisher Scientific, Waltham, MA, USA) supplemented with 10% fetal bovine serum and 1% antibiotic pen-strep-amphotericin. HEPM cells were lysed using radioimmunoprecipitation assay buffer (W-7849-500, Goal Bio, Taipei, Taiwan) and cellular lysates were centrifuged at 12,000× g rpm for 5 min for supernatant collection. The extracted protein was quantified using a protein assay kit (500-0006, Bio-Rad, Hercules, CA, USA). Equal amounts of protein were separated using 10% sodium dodecyl sulfate-polyacrylamide gel electrophoresis and transferred to Amersham Hybond P 0.45 μm polyvinylidene fluoride (10600023, GE Healthcare, Chicago, IL, USA). After blocking with 5% skimmed milk, the membranes were incubated with various primary antibodies and then incubated with the corresponding secondary antibodies. The protein bands were detected using an Amersham ECL Select Western Blotting Detection Reagent (RPN2235, GE Healthcare, Chicago, IL) and quantified using ImageQuant 5.2 software (Healthcare Bio-Sciences, Pittsburgh, PA, USA). All experiments were repeated in triplicate (n = 3).

4.4. Antibacterial Activity Test

P. gingivalis (ATCC 33277) and P. nigrescens (ATCC 332563) were stored at −80 °C and separately cultured on Brucella blood agar plates (Taiwan Prepared Media, Taipei, Taiwan) at 37 °C for 7 days under standard anaerobic conditions (80% N2, 10% H2, and 10% CO2). A strain of a single colony of these bacteria was then separately cultured in 5 mL of brain heart infusion broth (Neogen, Lansing, MI, USA) with 5 g of yeast extract (Thermo Fisher, Waltham, MA, USA) and an L-cysteine solution (0.5 g/mL) (Sigma-Aldrich, Lyon, France) at 37 °C under anaerobic conditions for 48 h. Subsequently, these bacteria were collected via centrifugation at 3000× g rpm for 10 min. Each resultant bacterial pellet was washed 3 times with sterile phosphate-buffered saline and then adjusted to a concentration of 1.6 × 108 colony-forming units (CFU)/mL before use [52]. The test samples were sterilized using saturated steam at 121 °C for 30 min. The HAp, Zn-HAp and ZnSrMg-HAp titanium discs were placed in P. gingivalis and P. nigrescens broth and incubated at 37 °C under anaerobic conditions for 120 h (n = 4). The bacterial suspension served as the control group. After 120 h, 1 mL was taken from each suspension, pipetted onto anaerobic blood agar, and cultured at 37 °C under standard anaerobic conditions for 120 h to count the CFU.

4.5. Animal Model

Eight-week-old male Sprague Dawley rats (The Jackson Laboratory, BioLASCO Taiwan Co., Ltd., Taipei, Taiwan, 232.11 ± 20.33 g) were used (n = 18, randomly divided into 6 groups in 6 cages) following the guidelines and protocols of the Institutional Animal Care and Use Committee of National Taiwan University (IACUC-20200127). All animals were given free access to water and standard rat food (fat 50 g/kg, protein 226 g/kg, and metabolizable energy 3030 kcal/kg). The environment was maintained at a temperature between 20 °C and 24 °C and relative humidity between 40% and 70%. Moreover, the rats were kept under a 12 h light/dark cycle. All animal experiments complied with the ARRIVE guidelines and were conducted following the National Research Council’s Guide for the Care and Use of Laboratory Animals.

4.6. Implantation

Thirty-six titanium implants were coated with HAp, Zn-HAp, and ZnSrMg-HAp (n = 12). The titanium implants were randomly allocated to 2 experiment durations (2 and 4 weeks, n = 6 each) and placed in the tibia of 18 rats that were anesthetized with 20–40 mg/kg of Zoletil® 50 (Virbac, Carros, France) mixed with 5–10 mg/kg of Rompun® (Bayer, Leverkusen, Germany). Each rat received a 5–6 mm longitudinal skin incision along the tibia. After soft tissue dissection, 2 holes were drilled into the tibia bone using a 1.0 mm electronic drill at low speeds (800–2000 rpm), and 3 types of titanium implants were randomly allocated to be inserted into the holes. The wound was sutured layer by layer, and the stitches were removed after 1 week of healing. In addition, analgesics and antibiotics were provided in the drinking water (0.2 mg/mL of ibuprofen and 0.268 mg/mL of ampicillin in 5% dextrose) to reduce post-surgical pain and infection. All rats were sacrificed after 2 and 4 weeks of implantation. A flowchart of the animal experiment is shown in Figure 7.

4.7. Micro-CT Evaluation

The tibia was harvested and scanned using the high-resolution SKYSCAN 1076 micro-CT apparatus (Skyscan NV, Kontich, Belgium). The bone coverage rate was defined as the percentage of direct bone-to-implant contact on the titanium implants. Two cylinders (0.85 and 1.1 mm in radius, 2.0 mm in length) starting from the first thread of the titanium implant were defined as the region of interest (ROI) [53,54]. For the evaluation of the bone volume fraction (bone volume/total volume, BV/TV) and bone mineral density (BMD), the ROI was defined as a cylinder (1.1 mm in radius and 2.0 mm in length) starting from the first thread of the titanium implant. The micro-CT technician and histological analyzer were blind to the sample groups.

4.8. Histological Examination

After fixation, serial dehydration, and embedding, resin blocks were trimmed to an appropriate size. The implant was sectioned into symmetrical halves using a low-speed saw (Isomet, Buehler Ltd., Lake Bluff, IL, USA) with a wafering diamond blade (6.6 cm × 0.15 mm) [55]. Cutting was performed at a blade speed of 100 to 500 rpm, using tap water as a lubricant, and with a force of 0.3 to 7 N acting on the specimen. The surface of the exposed specimen was polished using 600- or 800-grit silicon carbide paper followed by 4000-grit paper under water lubrication to remove cutting marks and obtain a highly polished surface. Subsequently, specimens were stained with Stevenel’s blue and then counterstained with alizarin red S for histological examination.

4.9. Statistical Analysis

An analysis of variance was used to examine the differences among all the groups, and Tukey’s post hoc test was used for qPCR and Western blotting to identify significant differences between 2 specific groups. A p-value less than 0.05 was considered statistically significant.

5. Conclusions

In conclusion, porous ZnSrMg-HAp was successfully coated on titanium implants using the VIPF-APS technique. The ZnSrMg-HAp group was the most effective at inducing mRNA and protein expression of TNFRSF11B and SPP1 after 7 days of incubation, and TNFRSF11B and DCN after 11 days of incubation. The ZnSrMg-HAp group also demonstrated superior antibacterial activity against P. gingivalis. The animal model suggested that BV/TV was significantly higher in the Zn-HAp and ZnSrMg-HAp groups at 2 and 4 weeks compared to the HAp group. In addition, continuous bone coverage and thickened bone deposition was more apparent on the implant surface in the ZnSrMg-HAp group than in the HAp and Zn groups. However, notably, bone adjacent to the implant surface does not equate to a structural or functional connection between bone and the implant. Both osteointegration and antibacterial properties are essential characteristics for preventing peri-implantitis. Therefore, ZnSrMg-HAp has the potential to be used as a bioactive coating material for implant surfaces and consequently improve the survival rate in clinical use.

Author Contributions

Y.-W.C.: Conceptualization; funding acquisition; supervision; writing—original draft; writing—review and editing. H.-H.H.: Conceptualization; data curation; formal analysis; writing—original draft. B.-S.L.: Conceptualization; data curation; supervision; writing—original draft. Y.-C.L.: Formal analysis; visualization; writing—original draft; writing—review and editing. Y.-P.W.: Data curation; formal analysis; methodology; visualization. W.-T.K.: Data curation; validation. I.-H.C.: Formal analysis; methodology; validation; writing—review and editing. A.-C.H.: Formal analysis; methodology. C.-H.L.: Conceptualization; validation; writing—review and editing. K.-L.T.: Data curation; formal analysis; methodology. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Ministry of Science and Technology of Taiwan (109-2314-B-002-032-MY3, 110-2628-B-002-036) and National Taiwan University Hospital (110-S5072, 111-S0255, 112-S0180, 110-004953). The APC was funded by National Taiwan University Hospital (110-S5072).

Institutional Review Board Statement

The animal study protocol was approved by the Ethics Committee of Institutional Animal Care and Use Committee of National Taiwan University (protocol code: IACUC-20200127; date of approval: 14 September 2020).

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

The authors would like to thank Hung-Wen Huang and Yun Ma from National Laboratory Animal Center for their assistance in micro-CT analysis.

Conflicts of Interest

The authors declare that they have no known competing financial interests or personal relationships that could have influenced the work reported in this paper.

References

  1. Narby, B.; Kronström, M.; Söderfeldt, B.; Palmqvist, S. Changes in attitudes toward desire for implant treatment: A longi-tudinal study of a middle-aged and older Swedish population. Int. J. Prosthodont. 2008, 21, 481–485. [Google Scholar] [PubMed]
  2. Goto, T. Osseointegration and dental implants. Clin. Calcium. 2014, 24, 265–271. [Google Scholar] [PubMed]
  3. Smeets, R.; Stadlinger, B.; Schwarz, F.; Beck-Broichsitter, B.; Jung, O.; Precht, C.; Kloss, F.; Gröbe, A.; Heiland, M.; Ebker, T. Impact of Dental Implant Surface Modifications on Osseointegration. BioMed. Res. Int. 2016, 2016, 6285620. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Jamilian, M.; Samimi, M.; Faraneh, A.E.; Aghadavod, E.; Shahrzad, H.D.; Chamani, M.; Mafi, A.; Asemi, Z. Magnesium supplementation affects gene expression related to insulin and lipid in patients with gestational diabetes. Magnes. Res. 2017, 30, 71–79. [Google Scholar] [CrossRef] [PubMed]
  5. Bonnelye, E.; Chabadel, A.; Saltel, F.; Jurdic, P. Dual effect of strontium ranelate: Stimulation of osteoblast differentiation and inhibition of osteoclast formation and resorption in vitro. Bone 2008, 42, 129–138. [Google Scholar] [CrossRef]
  6. Saidak, Z.; Haÿ, E.; Marty, C.; Barbara, A.; Marie, P.J. Strontium ranelate rebalances bone marrow adipogenesis and osteoblastogenesis in senescent osteopenic mice through NFATc/Maf and Wnt signaling. Aging Cell 2012, 11, 467–474. [Google Scholar] [CrossRef]
  7. Seo, H.-J.; Cho, Y.-E.; Kim, T.; Shin, H.-I.; Kwun, I.-S. Zinc may increase bone formation through stimulating cell proliferation, alkaline phosphatase activity and collagen synthesis in osteoblastic MC3T3-E1 cells. Nutr. Res. Pract. 2010, 4, 356–361. [Google Scholar] [CrossRef] [Green Version]
  8. Liu, C.; Fu, X.; Pan, H.; Wan, P.; Wang, L.; Tan, L.; Wang, K.; Zhao, Y.; Yang, K.; Chu, P.K. Biodegradable Mg-Cu alloys with enhanced osteogenesis, angiogenesis, and long-lasting antibacterial effects. Sci. Rep. 2016, 6, 27374. [Google Scholar] [CrossRef] [Green Version]
  9. Kim, M.H.; Lee, S.-Y.; Kim, S.-K.; Heo, S.-J.; Koak, J.-Y. Effect of Biomimetic Deposition on Anodized Titanium Surfaces. J. Dent. Res. 2011, 90, 711–716. [Google Scholar] [CrossRef]
  10. O’Connor, J.P.; Kanjilal, D.; Teitelbaum, M.; Lin, S.S.; Cottrell, J.A. Zinc as a Therapeutic Agent in Bone Regeneration. Materials 2020, 13, 2211. [Google Scholar] [CrossRef]
  11. Yu, Y.; Jin, G.; Xue, Y.; Wang, D.; Liu, X.; Sun, J. Multifunctions of dual Zn/Mg ion co-implanted titanium on osteogenesis, angiogenesis and bacteria inhibition for dental implants. Acta Biomater. 2017, 49, 590–603. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Sanz, M.; Chapple, I.L.; Working Group 4 of the VIII European Workshop on Periodontology. Clinical research on peri-implant diseases: Consensus report of Working Group 4. J. Clin. Periodontol. 2012, 39, 202–206. [Google Scholar] [CrossRef] [PubMed]
  13. Persson, G.R.; Renvert, S. Cluster of Bacteria Associated with Peri-Implantitis. Clin. Implant Dent Relat. Res. 2014, 16, 783–793. [Google Scholar] [CrossRef] [PubMed]
  14. Faveri, M.; Figueiredo, L.C.; Shibli, J.A.; Pérez-Chaparro, P.J.; Feres, M. Microbiological Diversity of Peri-Implantitis Biofilms. In Biofilm-Based Healthcare-Associated Infections; Springer: Berlin/Heidelberg, Germany, 2014; Volume 830, pp. 85–96. [Google Scholar]
  15. Yin, I.X.; Zhang, J.; Zhao, I.S.; Mei, M.L.; Li, Q.; Chu, C.H. The Antibacterial Mechanism of Silver Nanoparticles and Its Application in Dentistry. Int. J. Nanomed. 2020, 15, 2555–2562. [Google Scholar] [CrossRef] [Green Version]
  16. Li, J.Y.; Zheng, L.W.; Ma, L.; Kwong, D.L.W.; Cheung, L.K.; Pow, E.H.N. Effect of Fluoride-Modified Titanium Surface on Early Adhesion of Irradiated Osteoblasts. BioMed. Res. Int. 2015, 2015, 219752. [Google Scholar] [CrossRef]
  17. Xue, T.; Attarilar, S.; Liu, S.; Liu, J.; Song, X.; Li, L.; Zhao, B.; Tang, Y. Surface Modification Techniques of Titanium and its Alloys to Functionally Optimize Their Biomedical Properties: Thematic Review. Front. Bioeng. Biotechnol. 2020, 8, 603072. [Google Scholar] [CrossRef]
  18. Ribeiro, A.A.; Balestra, R.M.; Rocha, M.N.; Peripolli, S.B.; Andrade, M.C.; Pereira, L.C.; Oliveira, M.V. Dense and porous titanium substrates with a biomimetic calcium phosphate coating. Appl. Surf. Sci. 2013, 265, 250–256. [Google Scholar] [CrossRef] [Green Version]
  19. Park, J.-W.; Kim, Y.-J.; Jang, J.-H. Enhanced osteoblast response to hydrophilic strontium and/or phosphate ions-incorporated titanium oxide surfaces. Clin. Oral Implant. Res. 2010, 21, 398–408. [Google Scholar] [CrossRef]
  20. Chen, W.; Oh, S.; Ong, A.P.; Oh, N.; Liu, Y.; Courtney, H.S.; Appleford, M.; Ong, J.L. Antibacterial and osteogenic properties of silver-containing hydroxyapatite coatings produced using a sol gel process. J. Biomed. Mater. Res. A 2007, 82, 899–906. [Google Scholar] [CrossRef]
  21. Morimoto, T.; Hirata, H.; Eto, S.; Hashimoto, A.; Kii, S.; Kobayashi, T.; Tsukamoto, M.; Yoshihara, T.; Toda, Y.; Mawatari, M. Development of Silver-Containing Hydroxyapatite-Coated Antimicrobial Implants for Orthopaedic and Spinal Surgery. Medicina 2022, 58, 519. [Google Scholar] [CrossRef]
  22. Cummins, D. Zinc citrate/Triclosan: A new anti-plaque system for the control of plaque and the prevention of gingivitis: Short-term clinical and mode of action studies. J. Clin. Periodontol. 1991, 18, 455–461. [Google Scholar] [CrossRef] [PubMed]
  23. Vishwakarma, V.; Kaliaraj, G.S.; Amirtharaj Mosas, K.K. Multifunctional Coatings on Implant Materials—A Systematic Review of the Current Scenario. Coatings 2023, 13, 69. [Google Scholar] [CrossRef]
  24. Yeo, I.S. Reality of dental implant surface modification: A short literature review. Open Biomed. Eng. J. 2014, 8, 114–119. [Google Scholar] [CrossRef]
  25. Yang, C.-C.; Lin, C.-C.; Liao, J.-W.; Yen, S.-K. Vancomycin–chitosan composite deposited on post porous hydroxyapatite coated Ti6Al4V implant for drug controlled release. Mater. Sci. Eng. C Mater. Biol. Appl. 2013, 33, 2203–2212. [Google Scholar] [CrossRef]
  26. Tang, M.; Xu, K.; Shang, H.; Li, X.; He, X.; Ke, L.; Xie, M.; Zhou, Z.; Liu, C.; Du, S.; et al. Biomineralization of bone-like hydroxyapatite to upgrade the mechanical and osteoblastic performances of poly(lactic acid) scaf-folds. Int. J. Biol. Macromol. 2023, 226, 1273–1283. [Google Scholar] [CrossRef] [PubMed]
  27. Bystrova, A.V.; Dekhtyar, Y.D.; Popov, A.I.; Coutinho, J.; Bystrov, V.S. Modified Hydroxyapatite Structure and Properties: Modeling and Synchrotron Data Analysis of Modified Hydroxyapatite Structure. Ferroelectrics 2015, 475, 135–147. [Google Scholar] [CrossRef]
  28. Mo, X.; Zhang, D.; Liu, K.; Zhao, X.; Li, X.; Wang, W. Nano-Hydroxyapatite Composite Scaffolds Loaded with Bioactive Factors and Drugs for Bone Tissue Engineering. Int. J. Mol. Sci. 2023, 24, 1291. [Google Scholar] [CrossRef]
  29. Wang, J.-Y.; Liu, Y.-C.; Lin, G.-S.; Chang, H.-H.; Li, Y.-T.; Yang, Y.-C.; Matsuyama, H.; Lee, B.-S.; Chen, Y.-W.; Tung, K.-L. Flame-sprayed strontium-and magnesium-doped hydroxyapatite on titanium implants for osseointegration enhancement. Surf. Coat. Technol. 2020, 386, 125452. [Google Scholar] [CrossRef]
  30. Abrantes, J.; Kaushal, A.; Pina, S.; Döbelin, N.; Bohner, M.; Ferreira, J. Influence of Mg-doping, calcium pyrophosphate impurities and cooling rate on the allotropic α↔ β-tricalcium phosphate phase transformations. J. Eur. Ceram. Soc. 2016, 36, 817–827. [Google Scholar]
  31. Liu, Y.-C.; Lee, Y.-T.; Huang, T.-C.; Lin, G.-S.; Chen, Y.-W.; Lee, B.-S.; Tung, K.-L. In Vitro Bioactivity and Antibacterial Activity of Strontium-, Magnesium-, and Zinc-Multidoped Hydroxyapatite Porous Coatings Applied via Atmospheric Plasma Spraying. ACS Appl. Bio Mater. 2021, 4, 2523–2533. [Google Scholar] [CrossRef]
  32. Xuereb, M.; Camilleri, J.; Attard, N.J. Systematic review of current dental implant coating materials and novel coating techniques. Int. J. Prosthodont. 2015, 28, 51–59. [Google Scholar] [CrossRef] [Green Version]
  33. Liu, Y.-C.; Lin, G.-S.; Lee, Y.-T.; Huang, T.-C.; Chang, T.-W.; Chen, Y.-W.; Lee, B.-S.; Tung, K.-L. Microstructures and cell reaction of porous hydroxyapatite coatings on titanium discs using a novel vapour-induced pore-forming atmospheric plasma spraying. Surf. Coatings Technol. 2020, 393, 125837. [Google Scholar] [CrossRef]
  34. Okazaki, K.; Lee, W.H.; Kim, D.K.; Kopczyk, R.A. Physical characteristics of Ti-6A1-4V implants fabricated by electro-discharge compaction. J. Biomed. Mater. Res. 1991, 25, 1417–1429. [Google Scholar] [CrossRef] [PubMed]
  35. Bobyn, J.D.; Pilliar, R.M.; Cameron, H.U.; Weatherly, G.C. The optimum pore size for the fixation of porous-surfaced metal implants by the ingrowth of bone. Clin. Orthop. Relat. Res. 1980, 150, 263–270. [Google Scholar] [CrossRef]
  36. Schneider, G.B.; Zaharias, R.; Seabold, D.; Keller, J.; Stanford, C. Differentiation of preosteoblasts is affected by implant surface microtopographies. J. Biomed. Mater. Res. Pt A J. Soc. Biomater. Japanese Soc. Biomater. Aust. Soc. Biomater. Korean Soc. Biomater. 2004, 69, 462–468. [Google Scholar] [CrossRef] [PubMed]
  37. Setzer, B.; Bächle, M.; Metzger, M.C.; Kohal, R.J. The gene-expression and phenotypic response of hFOB 1.19 osteoblasts to surface-modified titanium and zirconia. Biomaterials 2009, 30, 979–990. [Google Scholar] [CrossRef]
  38. Mochida, Y.; Parisuthiman, D.; Pornprasertsuk-Damrongsri, S.; Atsawasuwan, P.; Sricholpech, M.; Boskey, A.L.; Yamauchi, M. Decorin modulates collagen matrix assembly and mineralization. Matrix Biol. 2009, 28, 44–52. [Google Scholar] [CrossRef] [Green Version]
  39. Zhang, W.; Ge, Y.; Cheng, Q.; Zhang, Q.; Fang, L.; Zheng, J. Decorin is a pivotal effector in the extracellular matrix and tumour microenvironment. Oncotarget 2018, 9, 5480–5491. [Google Scholar] [CrossRef] [Green Version]
  40. Cawley, K.M.; Bustamante-Gomez, N.C.; Guha, A.G.; MacLeod, R.S.; Xiong, J.; Gubrij, I.; Liu, Y.; Mulkey, R.; Palmieri, M.; Thostenson, J.D.; et al. Local Production of Osteoprotegerin by Osteoblasts Suppresses Bone Resorption. Cell Rep. 2020, 32, 108052. [Google Scholar] [CrossRef]
  41. Yusa, K.; Yamamoto, O.; Takano, H.; Fukuda, M.; Iino, M. Zinc-modified titanium surface enhances osteoblast differentiation of dental pulp stem cells in vitro. Sci. Rep. 2016, 6, 29462. [Google Scholar] [CrossRef] [Green Version]
  42. Liang, D.; Yang, M.; Guo, B.; Cao, J.; Yang, L.; Guo, X. Zinc upregulates the expression of osteoprotegerin in mouse osteoblasts MC3T3-E1 through PKC/MAPK pathways. Biol. Trace. Elem. Res. 2012, 146, 340–348. [Google Scholar] [CrossRef] [PubMed]
  43. Cho, Y.-E.; Kwun, I.-S. Zinc upregulates bone-specific transcription factor Runx2 expression via BMP-2 signaling and Smad-1 phosphorylation in osteoblasts. J. Nutr. Health. 2018, 51, 23–30. [Google Scholar] [CrossRef] [Green Version]
  44. Tohidnezhad, M.; Kubo, Y.; Lichte, P.; Heigl, T.; Roch, D.; Pour, N.B.; Bergmann, C.; Sönmez, T.T.; Hock, J.V.P.; Fragoulis, A.; et al. Effects of Strontium-Doped β-Tricalcium Scaffold on Longitudinal Nuclear Factor-Kappa Beta and Vascular Endothelial Growth Factor Receptor-2 Promoter Activities during Healing in a Murine Critical-Size Bone Defect Model. Int. J. Mol. Sci. 2020, 21, 3208. [Google Scholar] [CrossRef]
  45. Greenstein, G. Clinical Significance of Bacterial Resistance to Tetracyclines in the Treatment of Periodontal Diseases. J. Periodontol. 1995, 66, 925–932. [Google Scholar] [CrossRef]
  46. Baheiraei, N.; Eyni, H.; Bakhshi, B.; Najafloo, R.; Rabiee, N. Effects of strontium ions with potential antibacterial activity on in vivo bone regeneration. Sci. Rep. 2021, 11, 8745. [Google Scholar] [CrossRef] [PubMed]
  47. Huo, K.; Zhang, X.; Wang, H.; Zhao, L.; Liu, X.; Chu, P.K. Osteogenic activity and antibacterial effects on titanium surfaces modified with Zn-incorporated nanotube arrays. Biomaterials 2013, 34, 3467–3478. [Google Scholar] [CrossRef] [PubMed]
  48. Nguyen, N.T.; Grelling, N.; Wetteland, C.L.; Rosario, R.; Liu, H. Antimicrobial Activities and Mechanisms of Magnesium Oxide Nanoparticles (nMgO) against Pathogenic Bacteria, Yeasts, and Biofilms. Sci. Rep. 2018, 8, 16260. [Google Scholar] [CrossRef] [Green Version]
  49. Jiao, J.; Zhang, S.; Qu, X.; Yue, B. Recent Advances in Research on Antibacterial Metals and Alloys as Implant Materials. Front. Cell. Infect. Microbiol. 2021, 11, 611. [Google Scholar]
  50. Santra, M.; Katakowski, M.; Zhang, R.L.; Zhang, Z.G.; Meng, H.; Jiang, F.; Chopp, M. Protection of adult mouse pro-genitor cells and human glioma cells by de novo decorin expression in an oxygen- and glucose-deprived cell culture model system. J. Cereb. Blood Flow Metab. 2006, 26, 1311–1322. [Google Scholar] [CrossRef] [Green Version]
  51. Makhluf, H.A.; Mueller, S.M.; Mizuno, S.; Glowacki, J. Age-Related Decline in Osteoprotegerin Expression by Human Bone Marrow Cells Cultured in Three-Dimensional Collagen Sponges. Biochem. Biophys. Res. Commun. 2000, 268, 669–672. [Google Scholar] [CrossRef]
  52. Lee, B.-S.; Chen, Y.-J.; Wei, T.-C.; Ma, T.-L.; Chang, C.-C. Comparison of Antibacterial Adhesion When Salivary Pellicle Is Coated on Both Poly(2-hydroxyethyl-methacrylate)- and Polyethylene-glycol-methacrylate-grafted Poly(methyl methacrylate). Int. J. Mol. Sci. 2018, 19, 2764. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  53. Xu, Y.; Meng, H.; Yin, H.; Sun, Z.; Peng, J.; Xu, X.; Guo, Q.; Xu, W.; Yu, X.; Yuan, Z. Quantifying the degradation of degradable implants and bone formation in the femoral condyle using micro-CT 3D reconstruction. Exp. Ther. Med. 2018, 15, 93–102. [Google Scholar] [PubMed]
  54. He, T.; Cao, C.; Xu, Z.; Li, G.; Cao, H.; Liu, X.; Zhang, C.; Dong, Y. A comparison of micro-CT and histomorphometry for evaluation of osseointegration of PEO-coated titanium implants in a rat model. Sci. Rep. 2017, 7, 16270. [Google Scholar] [CrossRef] [Green Version]
  55. Maniatopoulos, C.; Rodriguez, A.; Deporter, D.A.; Melcher, A.H. An improved method for preparing histological sections of metallic implants. Int. J. Oral. Maxillofac. Implant. 1986, 1, 31–37. [Google Scholar]
Ijms 24 04933 g001 550

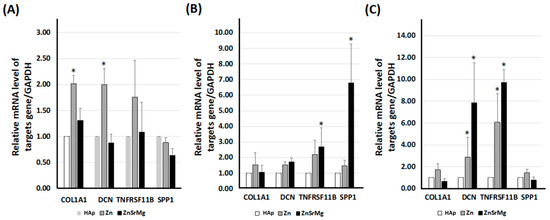

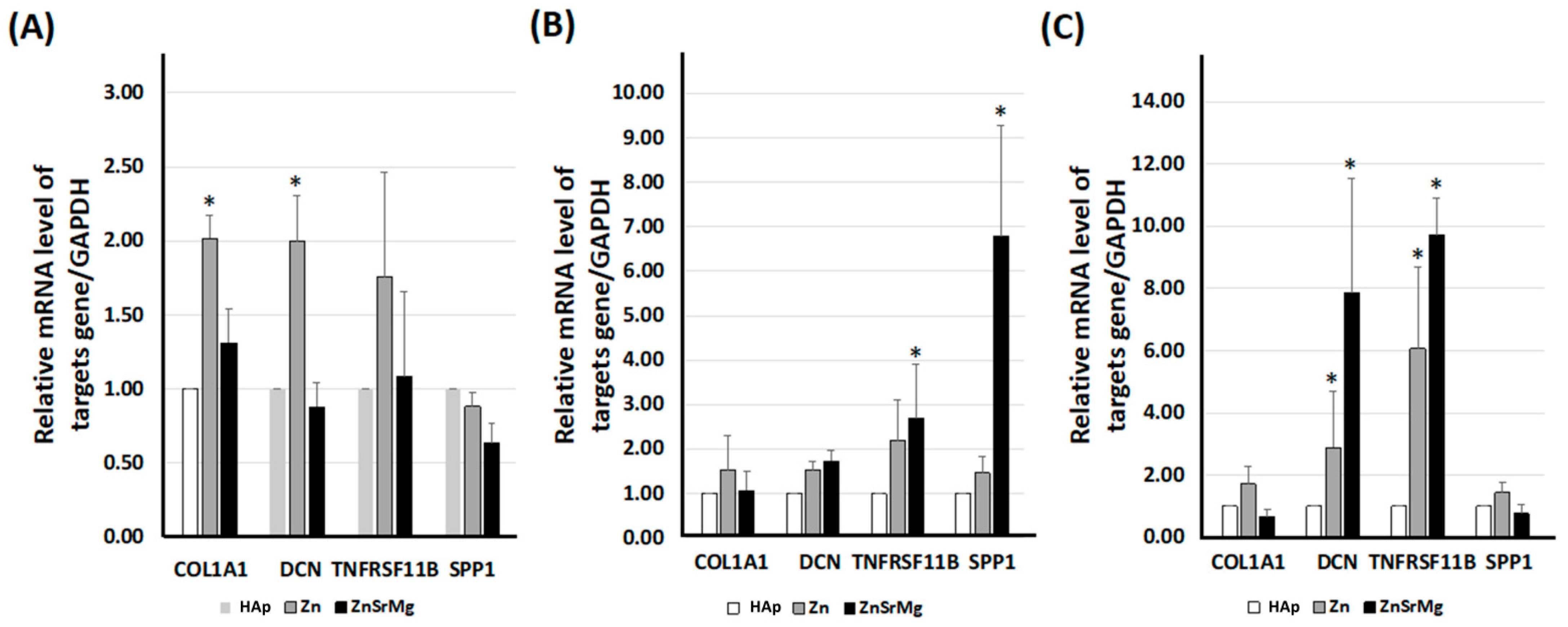

Figure 1. Expression of osteointegration-associated gene expression in HEPM. The HEPM cells were incubated on titanium discs coated with HAp, Zn-HAp, or ZnSrMg-HAp for 3 (A), 7 (B), and 11 days (C). Purified cellular mRNA was applied for a qPCR assay with primer sets of COL1A1, DCN, TNFRSF11B, and SPP1. * p < 0.05 vs. HAp group.
Figure 1. Expression of osteointegration-associated gene expression in HEPM. The HEPM cells were incubated on titanium discs coated with HAp, Zn-HAp, or ZnSrMg-HAp for 3 (A), 7 (B), and 11 days (C). Purified cellular mRNA was applied for a qPCR assay with primer sets of COL1A1, DCN, TNFRSF11B, and SPP1. * p < 0.05 vs. HAp group.
Ijms 24 04933 g001
Ijms 24 04933 g002 550

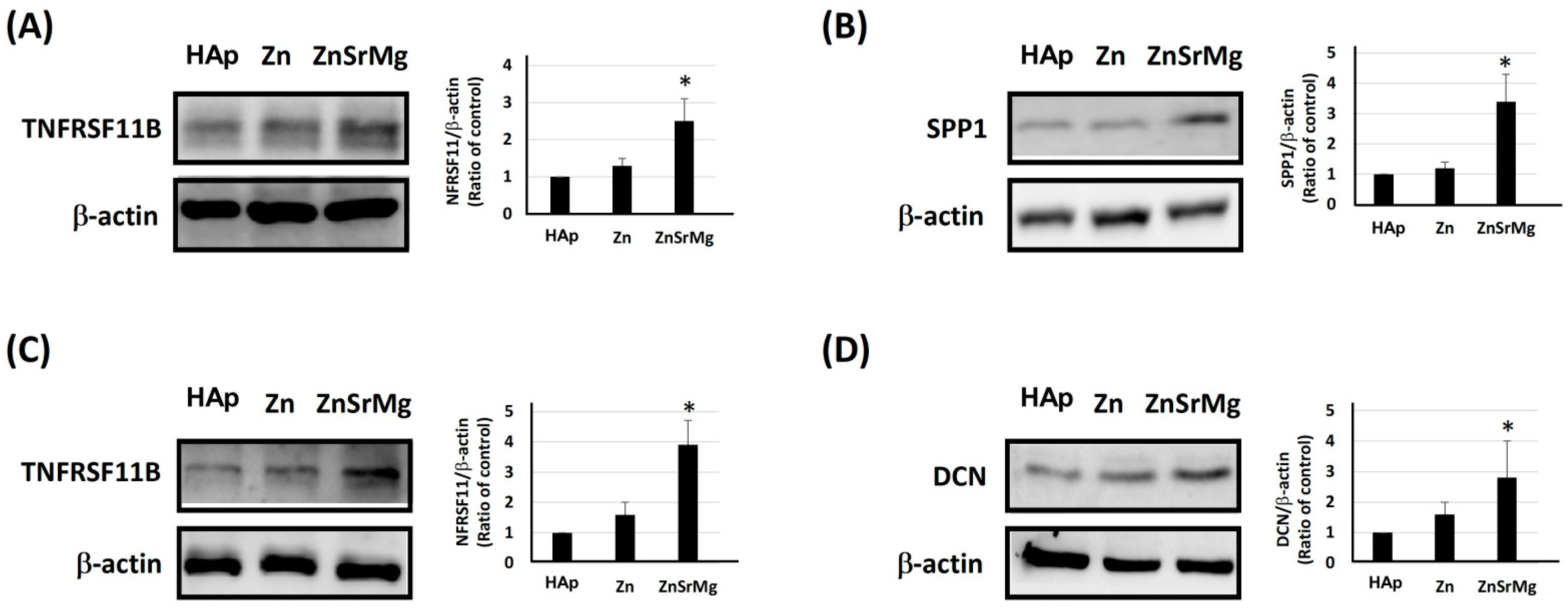

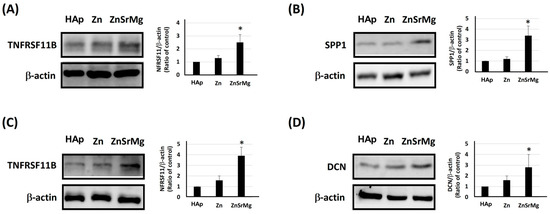

Figure 2. Expression of osteointegration-associated proteins in HEPM. The HEPM cells were incubated on titanium discs coated with HAp, Zn-HAp, or ZnSrMg-HAp for 7 (A,B) and 11 days (C,D). The cellular lysate was used for a Western blot assay with antibodies of TNFRSF11B (A,C), SPP1 (B), DCN (D), and β-actin (A–D). * p < 0.05 vs. HAp group.
Figure 2. Expression of osteointegration-associated proteins in HEPM. The HEPM cells were incubated on titanium discs coated with HAp, Zn-HAp, or ZnSrMg-HAp for 7 (A,B) and 11 days (C,D). The cellular lysate was used for a Western blot assay with antibodies of TNFRSF11B (A,C), SPP1 (B), DCN (D), and β-actin (A–D). * p < 0.05 vs. HAp group.
Ijms 24 04933 g002
Ijms 24 04933 g003 550

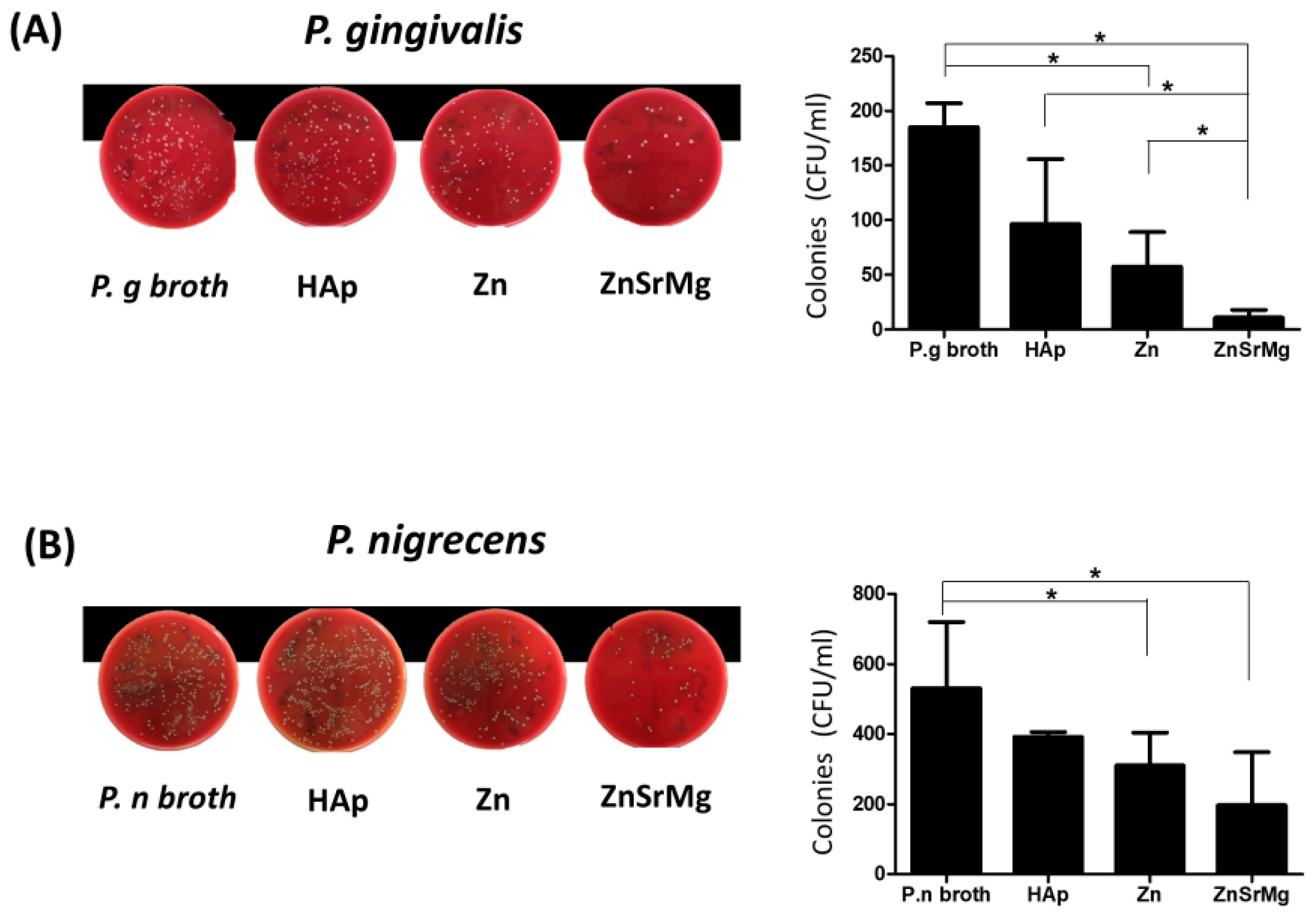

Figure 3. Antibacterial activity against P. gingivalis and P. nigrescens in the HAp, Zn-HAp, and ZnSrMg-HAp groups. (A) The growth of a P. gingivalis colony on Brucella blood agar plates (left). The quantification of P. gingivalis is shown as CFU/mL (right). (B) The growth of a P. nigrescens colony on Brucella blood agar plates (left). The quantification of P. nigrescens is shown as CFU/mL (right). CFU: colony forming unit, * p < 0.05.
Figure 3. Antibacterial activity against P. gingivalis and P. nigrescens in the HAp, Zn-HAp, and ZnSrMg-HAp groups. (A) The growth of a P. gingivalis colony on Brucella blood agar plates (left). The quantification of P. gingivalis is shown as CFU/mL (right). (B) The growth of a P. nigrescens colony on Brucella blood agar plates (left). The quantification of P. nigrescens is shown as CFU/mL (right). CFU: colony forming unit, * p < 0.05.
Ijms 24 04933 g003
Ijms 24 04933 g004 550

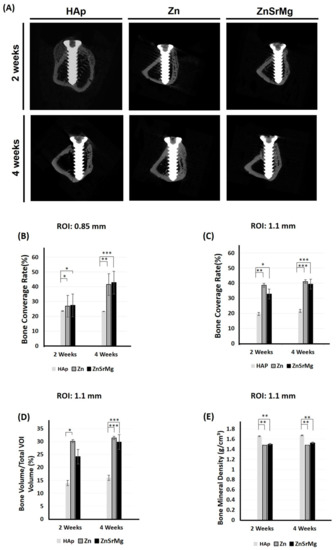

Figure 4. Measurement of new bone formation according to CT imaging. Micro-CT reconstruction images (A). New bone formation in the HAp, Zn-HAp, and ZnSrMg-HAp groups was recorded as bone coverage rate (%) (ROI: 0.85 mm (B); ROI: 1.1 mm (C)), BV/TV (%) (ROI: 1.1 mm (D)), and bone mineral density (g/cm3) (ROI: 1.1 mm (E)) at 2 and 4 weeks. ROI: region of interest, VOI: volume of interest. * p < 0.05, ** p < 0.01, *** p < 0.001.
Figure 4. Measurement of new bone formation according to CT imaging. Micro-CT reconstruction images (A). New bone formation in the HAp, Zn-HAp, and ZnSrMg-HAp groups was recorded as bone coverage rate (%) (ROI: 0.85 mm (B); ROI: 1.1 mm (C)), BV/TV (%) (ROI: 1.1 mm (D)), and bone mineral density (g/cm3) (ROI: 1.1 mm (E)) at 2 and 4 weeks. ROI: region of interest, VOI: volume of interest. * p < 0.05, ** p < 0.01, *** p < 0.001.
Ijms 24 04933 g004
Ijms 24 04933 g005 550
Figure 5. Histological examination of new bone formation using Stevenel’s blue and Alizarin red S. The histological results of the HAp, Zn-HAp, and ZnSrMg-HAp groups were collected at 2 and 4 weeks. (40× magnification). Continuous bone coverage on implant threads was more prominent in the ZnSrMg-HAp group, extending to the sixth thread, compared with the HAp and Zn groups. A pattern of concentrated bone growth could be clearly observed in the ZnSrMg-HAp group. Thickened bone deposition was more apparent on the implant surface in the ZnSrMg-HAp group. Red arrows indicate new bone formation (100× magnification).
Figure 5. Histological examination of new bone formation using Stevenel’s blue and Alizarin red S. The histological results of the HAp, Zn-HAp, and ZnSrMg-HAp groups were collected at 2 and 4 weeks. (40× magnification). Continuous bone coverage on implant threads was more prominent in the ZnSrMg-HAp group, extending to the sixth thread, compared with the HAp and Zn groups. A pattern of concentrated bone growth could be clearly observed in the ZnSrMg-HAp group. Thickened bone deposition was more apparent on the implant surface in the ZnSrMg-HAp group. Red arrows indicate new bone formation (100× magnification).
Ijms 24 04933 g005
Ijms 24 04933 g006 550

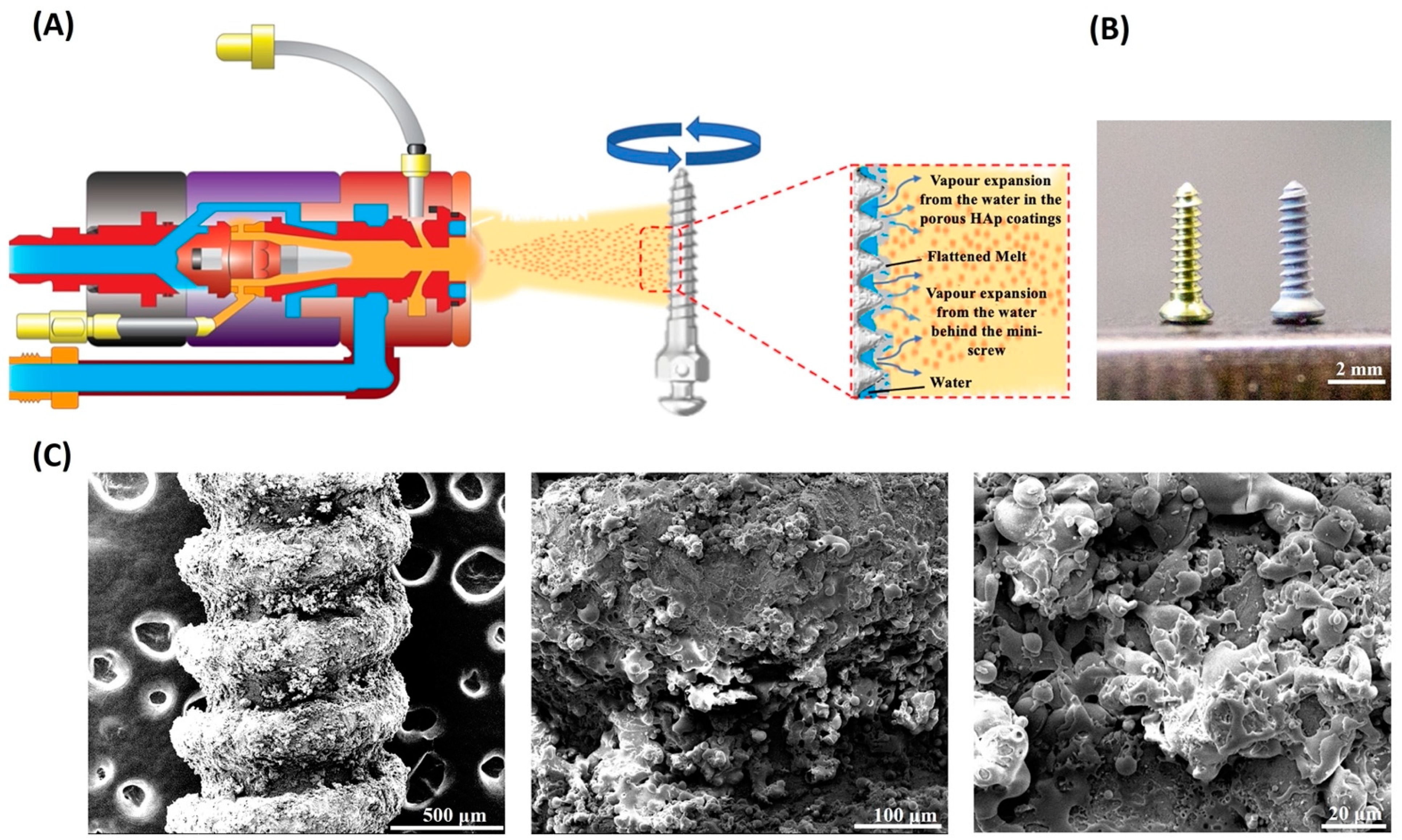

Figure 6. Preparation of HAp, Zn-doped HAp, and Zn-Sr-Mg-doped HAp coatings on titanium implants using the VIPF-APS technique. (A) The titanium implant was roughened and then sprayed with a thin layer of HAp coatings. After immersion in pure water, quick sprays were applied repeatedly, and the desired thickness of HAp coating was produced. (B) Left: titanium implants; right: titanium implants with the porous HAp coating. (C) Scanning electron microscopy images of HAp coatings on implant surfaces at different magnifications. (Magnification: 160×, 600×, 2500×; from left to right) VIPF-APS: vapor-induced pore-forming atmospheric plasma spraying.
Figure 6. Preparation of HAp, Zn-doped HAp, and Zn-Sr-Mg-doped HAp coatings on titanium implants using the VIPF-APS technique. (A) The titanium implant was roughened and then sprayed with a thin layer of HAp coatings. After immersion in pure water, quick sprays were applied repeatedly, and the desired thickness of HAp coating was produced. (B) Left: titanium implants; right: titanium implants with the porous HAp coating. (C) Scanning electron microscopy images of HAp coatings on implant surfaces at different magnifications. (Magnification: 160×, 600×, 2500×; from left to right) VIPF-APS: vapor-induced pore-forming atmospheric plasma spraying.
Ijms 24 04933 g006
Ijms 24 04933 g007 550

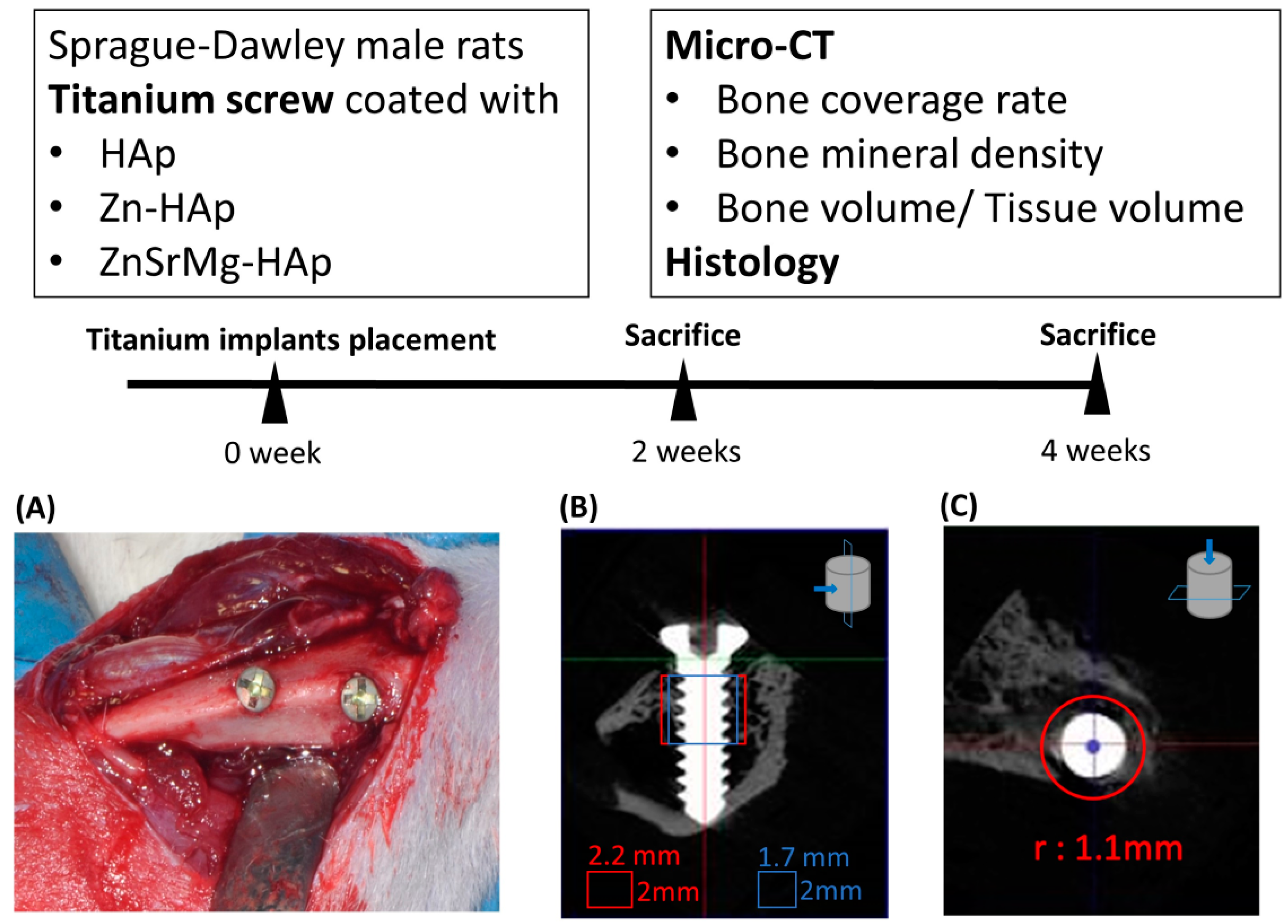

Figure 7. Flowchart of animal study and measurement of new bone formation. (A) Two titanium implants with different HAp coatings were placed in rat tibias. (B) For bone coverage rate, the ROI was set as a cylinder (0.85 and 1.1 mm in diameter and 2.0 mm in height) starting from the implant center. The radius of the titanium implant was 0.6 mm. (C) For BV/TV and bone mineral density, the ROI was defined as a cylinder (1.1 in diameter and 2.0 mm in height) starting from the first thread of the titanium implant. ROI: region of interest; BV/TV: bone volume/total volume.
Figure 7. Flowchart of animal study and measurement of new bone formation. (A) Two titanium implants with different HAp coatings were placed in rat tibias. (B) For bone coverage rate, the ROI was set as a cylinder (0.85 and 1.1 mm in diameter and 2.0 mm in height) starting from the implant center. The radius of the titanium implant was 0.6 mm. (C) For BV/TV and bone mineral density, the ROI was defined as a cylinder (1.1 in diameter and 2.0 mm in height) starting from the first thread of the titanium implant. ROI: region of interest; BV/TV: bone volume/total volume.
Ijms 24 04933 g007
