Peach DELLA Protein PpeDGYLA Is Not Degraded in the Presence of Active GA and Causes Dwarfism When Overexpressed in Poplar and Arabidopsis

by
Yun Chen
,
Mengmeng Zhang
,
Xiaofei Wang
,
Yun Shao
,
Xinyue Hu
,
Jun Cheng
,
Xianbo Zheng
,
Bin Tan
,
Xia Ye
,
Wei Wang
,
Jidong Li
,
Ming Li
,
Langlang Zhang
* and
Jiancan Feng
*
College of Horticulture, Henan Agricultural University, 95 Wenhua Road, Zhengzhou 450002, China
*
Authors to whom correspondence should be addressed.
Int. J. Mol. Sci. 2023, 24(7), 6789; https://doi.org/10.3390/ijms24076789
Submission received: 13 March 2023 / Revised: 29 March 2023 / Accepted: 31 March 2023 / Published: 6 April 2023
(This article belongs to the Special Issue Crop Stress Biology and Molecular Breeding 3.0)
Browse Figures
Versions Notes

Abstract

:
Controlling the tree size of fruit species such as peach can reduce the amount of labor and input needed for orchard management. The phytohormone gibberellin (GA) positively regulates tree size by inducing degradation of the GA signaling repressor DELLA. The N-terminal DELLA domain in this protein is critical for its GA-dependent interaction with the GA receptor GID1 and the resulting degradation of the DELLA protein, which allows for growth-promoting GA signaling. In this study, a DELLA family member, PpeDGYLA, contains a DELLA domain but has amino acid changes in three conserved motifs (DELLA into DGYLA, LEQLE into LERLE, and TVHYNP into AVLYNP). In the absence or presence of GA3, the PpeDGYLA protein did not interact with PpeGID1c and was stable in 35S-PpeDGYLA peach transgenic callus. The overexpression of PpeDGYLA in both polar and Arabidopsis showed an extremely dwarfed phenotype, and these transgenic plants were insensitive to GA3 treatment. PpeDGYLA could interact with PpeARF6-1 and -2, supposed growth-promoting factors. It is suggested that the changes in the DELLA domain of PpeDGYLA may, to some extent, account for the severe dwarf phenotype of poplar and Arabidopsis transgenic plants. In addition, our study showed that the DELLA family contained three clades (DELLA-like, DELLA, and DGLLA). PpeDGYLA clustered into the DGLLA clade and was expressed in all of the analyzed tissues. These results lay the foundation for the further study of the repression of tree size by PpeDGYLA.

1. Introduction

Controlling tree size is critical for reducing the amount of labor and input needed for orchard management [1]. Many fruit growers utilize dwarfing rootstocks to control tree size, which also can reduce the length of the juvenile period, achieve a high production efficiency, and allow for mechanized management [2,3,4]. Otherwise, pruning and spraying growth-regulating agents are usually used for orchard management, especially for peach (Prunus persica), which is vigorous in vegetative growth [5]. These horticultural practices used to constrain tree growth are costly in terms of materials, time, and labor. With the rapid development of genetic engineering, the genetic manipulation of tree size through genetic modification may offer a more efficient method than traditional breeding technologies [1]. Therefore, identifying the genes that control tree size will be helpful for peach breeding in the future.
The diterpenoid hormones gibberellins (GAs) play roles in regulating plant growth and development, such as plant height, leaf expansion, grain size, and seed germination [6,7,8,9]. GA levels are precisely controlled by GA biosynthesis and deactivation, in which GA20ox (GA20-oxidase), GA3ox (GA3-oxidase), and GA2ox (GA2-oxidase) are the main genes encoding the regulatory enzymes [10]. In rice, a defective 20-oxidase (a GA biosynthetic enzyme) generates a semidwarf (sd-1) phenotype arising from a deficiency of active GAs in the elongating stem [11]. Mutations of Atga20ox1 in Arabidopsis thaliana and ZmGA3ox2 (another GA biosynthetic enzyme) in Zea mays both result in a dwarf phenotype [12,13]. A poplar mutant displays extremely short internodes and branch length because of hyper-accumulation of mRNA transcripts for PtaGA2ox1 (a GA catabolic enzyme) and the substantially reduced endogenous GA contents [14].
The GA signaling pathway is mainly comprised of the GA receptor GA-INSENSITIVE DWARF1 (GID1), GA signaling repressors (DELLAs), and the F-box proteins [15,16,17]. The complex of GA-GID1 can enhance the interaction between GID1 and DELLA, and these interactions cause rapid degradation of DELLAs via the 26S proteasome pathway [18]. GA promotes plant growth mainly by inducing the degradation of the DELLA protein, which is well documented to be a growth-inhibiting protein. DELLA functions as a repressor of GA signaling by interacting with growth-promoting transcription factors/regulators. DELLA inhibits hypocotyl elongation in Arabidopsis through physically interacting with phytochrome-interacting factors 3 and -4 (PIF3 and PIF4), and this interaction prevents the expression of PIF3/PIF4 target genes [19,20]. The auxin-response factor ARF6, the brassinosteroid-signaling transcription factor BZR1, and PIF4 interact with each other and cooperatively regulate plant growth. RGA (DELLA) binds directly to them to block their DNA-binding activities, but this DELLA interaction is inactivated by GA [21].
DELLA belongs to a subgroup of the GRAS transcription factors and has a conserved DELLA domain in its N-terminal and a conserved GRAS domain in its C-terminal [22]. The DELLA domain is characterized by three motifs, DELLA, LEQLE, and TVHYNP, which play roles in the GA-dependent interaction with the GA receptor GID1 and the GA-induced degradation of DELLA protein [16,23]. The three motifs involved in the interaction of DELLA and GID1 were analyzed by modeling the structure of the putative complexes between AtGID1a and DELLAs from species of different land plants and by yeast two-hybrid assays [24]. Deletion of the DELLA and TVHYNP motifs in rice abolished the GA-dependent interaction between SLR1 and GID1 and reduced the transcriptional activation of SLR1 [23,25]. In the DELLA motif, a change in the fourth amino acid leucine (L) to histidine (H) led to a gain-of-function phenotype (dwarf) in grapevine [26]. This suggests that some conserved amino acids in these three motifs of the DELLA domain are important for DELLA-GID1 interaction. However, the mechanisms underlying the perception of GA signals by DELLA-like protein in peach have not been reported. To date, two DELLA proteins and one DELLA-like protein have been identified in peach, but the function of DELLA-like remains poorly understood.
Our previous study identified a peach DELLA/-like family member, PpeDGYLA, which has several amino acid changes in the DELLA domain [27]. In this study, we analyzed the structural features and transcription levels of PpeDGYLA in different tissues of peach. The gene function of PpeDGYLA was analyzed by overexpressing it in poplar and Arabidopsis. In addition, the stability of the PpeDGYLA protein was analyzed by overexpressing it in peach calli. Two candidate proteins that interact with PpeDGYLA were identified by Y2H assay. Finally, the evolutionary relationship of PpeDGYLA with the other two peach DELLA proteins was analyzed by constructing a phylogenetic tree.

2. Results

2.1. PpeDGYLA Carries an Altered DELLA Motif of DGYLA

In peach, a DELLA family member (Prupe.7G236100) was found to encode a deduced protein of 537 amino acid residues. Multiple sequence alignment showed that this DELLA family member contained a DELLA domain that showed some differences compared with other DELLA proteins (Figure 1). The DELLA domain is comprised of three conserved motifs (DELLA, LEQLE, and TVHYNP). In this DELLA family member, the three motifs were changed into DGYLA, LERLE, and AVLYNP (Figure 1). Therefore, this member was named PpeDGYLA. Sequence similarity analysis was conducted using three peach DELLA members (PpeDGYLA and PpeDELLA1/-2) and five Arabidopsis DELLA members (RGA, GAI, and RGL1/-2/-3). PpeDGYLA showed a range of 39.94–44.96 % sequence similarity when aligned with the seven DELLA proteins (PpeDELLA1/-2, AtRGA, AtGAI, and AtRGL1/-2/-3), while the seven DELLA proteins had a range of 50.55–73.59 % when aligned with each other (Table 1). This suggests that PpeDGYLA had a relative low sequence similarity with other DELLA proteins.
The theoretical isoelectric point (pI) of PpeDGYLA was 5.58 with a calculated molecular mass of 59.16 kDa. PpeDGYLA was predicted to be an unstable hydrophobic protein based on the instability index (II) and the grand average of hydropathicity (GRAVY) (Table S2), and was comprised of an alpha helix, an extended strand, and a random coil with percentages of 46.00 %, 12.48 %, and 41.53 %, respectively (Table S2 and Figure S1).

2.2. PpeDGYLA Was More Stable than PpeDELLA1 after GA3 Treatment

The DELLA domain mediates the GA-dependent interaction with the GA receptor GID1 and its own GA-induced degradation [16,23]. Multiple sequence alignment showed that several conserved amino acids were changed in the DELLA domain of PpeDGYLA. Therefore, we hypothesized that the GA-dependent interaction with GID1 and the degradation of PpeDGYLA were affected due to the changes in its DELLA domain. Our previous study showed that the GA receptor PpeGID1c could interact with PpeDELLA1 in the presence of active GA, which then induced the degradation of PpeDELLA1 and increased the plant height of peach [5].
In this study, we analyzed the interaction between PpeDGYLA and PpeGID1c and the protein level of PpeDGYLA under GA3 treatment. In the Y2H assay, yeast containing BD-PpeGID1c and AD-PpeDELLA1 could not grow on SD/-THLA+X-α-gal without GA3, but grew normally in the presence of GA3. Switching out the DELLA protein, yeast containing BD-PpeGID1c and AD-PpeDGYLA could not grow in the presence or absence of GA3 (Figure 2A). This suggests that the GA-dependent interaction between PpeGID1c and PpeDGYLA was interrupted.
In peach leaf callus carrying 35S::PpeDELLA1-flag and 35S::PpeDGYLA-flag (Figure 2B), the protein levels of PpeDELLA1-flag and PpeDGYLA-flag were analyzed using Western blot assay. In the absence of GA3, PpeDELLA1-flag and PpeDGYLA-flag were both detected by an anti-flag antibody. In the presence of GA3, the PpeDELLA1-flag protein level decreased significantly, while the protein content of PpeDGYLA-flag showed no change (Figure 2C). These results suggest that PpeDGYLA could not be degraded in the same way as PpeDELLA1 with GA3 treatment.

2.3. PpeDGYLA Overexpression Results in a Severe Dwarf Phenotype in Poplar and Arabidopsis

The high stability of PpeDGYLA in the presence of active GA meant that PpeDGYLA overexpression might have resulted in a more severe dwarf phenotype than when PpeDELLA1 was overexpressed. Because it is very hard to conduct stable transformation of peach, 35S-PpeDGYLA was delivered into poplar, and two transgenic lines highly expressing PpeDGYLA were obtained (Figure 3C). An empty vector (EV) construct was used as the control. The two transgenic lines showed an extremely dwarfed phenotype compared with the control (Figure 3A). The leaves of the two transgenic lines were smaller than the control (Figure 3B). These transgenic plants were transplanted from the WPM medium to soil, and were cultured for another 6 weeks before their height and leaf size were measured (Figure 3D−F). The plant height of the two transgenic lines were 15 % and 4 % of the control, respectively.
In Arabidopsis, 35S-PpeDGYLA T1 generation plants were used to analyze the plant height. Similar results were obtained in these Arabidopsis PpeDGYLA transgenic lines. The hypocotyl length and the plant height of the 25-day-old and 35-day-old plants were photographed and measured (Figure 4). Two Arabidopsis PpeDGYLA transgenic lines (line 2 and 3) showed a dwarfing phenotype, with line #3 having an extremely dwarfed phenotype (Figure 4). Because of the extremely dwarfed phenotype of line #3, it was difficult to obtain the seeds and T1 generation plants were used to analyze the phenotype. These results demonstrate that overexpressing PpeDGYLA severely inhibited the growth of transgenic plants.

2.4. Poplar and Arabidopsis PpeDGYLA-OE Transgenic Plants Were Insensitive to GA3 Treatment

Our results demonstrated that GA3 treatment could not induce the degradation of PpeDGYLA. Therefore, we speculated that poplar and Arabidopsis PpeDGYLA transgenic plants might be insensitive to GA treatment. We examined the effect of bioactive GA (GA3) on plant height in PpeDGYLA-OE poplar and Arabidopsis plants. After treatment with 100 µM GA3 for 7 d, the poplar EV plants were significantly taller than the untreated controls (0 µM GA3), while PpeDGYLA-OE plants showed no obvious change in height (Figure 5A,B). The same results were observed in PpeDGYLA-OE Arabidopsis after treatment with 1 µM GA3 for 3 d. After GA3 treatment, Arabidopsis EV plants had a longer hypocotyl than the control, but PpeDGYLA-OE plants had no obvious change in hypocotyl length (Figure 6A,B). These results suggest that poplar and Arabidopsis PpeDGYLA transgenic plants were insensitive to GA3 treatment.

2.5. PpeDGYLA Interacts with PpeARF6-1/-2

Numerous studies have demonstrated that DELLA proteins repress plant growth mainly by blocking the DNA-binding capacity of growth-promoting factors, such as ARF6, PIFs, and BZR1 [21,28,29]. In this study, we investigated the interactions of PpeDGYLA with PpeARF6, PpePIF8, and PpeBZR1 using Y2H assays. Our previous study showed that PpePIF8 played a positive role in the growth of peach. The homologous genes of ARF6 and BZR1 were identified by constructing phylogenetic trees (Figure S2). Two genes related to ARF6 and two related to BZR1 were identified from the peach genome. The full-length PpeDGYLA protein had a transcriptional activation activity, and PpeDGYLA-GRAS (DG-GRAS) was used for Y2H assays (Figure 7). The results showed that PpeDGYLA-GRAS interacted with PpeARF6-1 and -2 in yeast (Figure 7).

2.6. The Evolutionary Relationship between PpeDGYLA and Other DELLA Members

In this study, our results suggest that PpeDGYLA may be different from the other two peach DELLA family members. Therefore, a phylogenetic tree was constructed using the DELLA members from different land plant taxa, including bryophytes, lycophytes, gymnosperms, and angiosperms. All DELLA members were divided into three types (Figure S3). DELLA members from bryophytes and lycophytes clustered into Type 1 and were named DELLA-Like (DL), while DELLA members from gymnosperms and angiosperms were clustered into Type 2 and 3. Type 2 contained DELLA members that mostly contained a DELLA domain starting with the DELLA (DE) amino acid sequence, while Type 3 contained DELLA members that mostly contain DELLA domains starting with DGLLA (DG). PpeDGYLA was clustered into Type 3.
The types of DELLA proteins in each species were analyzed according to the phylogenetic tree (Table 2). Bryophytes and lycophytes contained just Type 1 DELLA proteins. All of the analyzed gymnosperms and angiosperms contained DELLA members from Type 2. Among the analyzed gymnosperms and angiosperms, there were 12 species that lost the DELLA proteins from Type 3 (Table 2), including the model species Arabidopsis and poplar.

2.7. Transcript Levels of PpeDELLA in Different Tissues

To analyze the tissue-specific expression of PpeDGYLA, eight tissues (different floral organs, leaves, shoot tips, and stems) were collected from peach ‘QMH’. qRT-PCR analysis showed that PpeDGYLA was expressed in all eight tissues (Figure 8). Among these tissues, PpeDGYLA transcript levels were highest in the stems and lowest in mature leaves.
The transcript levels of the three peach DELLA family members were compared using the stem, flower, and fruit transcriptome data in the NCBI database (PRJNA723104). The information for these samples was reported in our previous study [30]. The three peach DELLA members were expressed in these samples, and PpeDGYLA showed a higher transcript level in all of the analyzed samples compared with PpeDELLA1 (Figure S4). This implied, to some extent, that PpeDGYLA plays an indispensable function in the plant growth and development of peach.

3. Discussion

3.1. Amino Acid Changes in the DELLA Domain of PpeDGYLA May to Some Extent Account for the Severe Dwarf Phenotype of Poplar and Arabidopsis Transgenic Plants

GA promotes plant growth by inducing degradation of the DELLA protein. DELLA is a growth repressor that interacts with growth-promoting factors such as PIF proteins, ARF6 and BZR1 [19,20,21,28]. The DELLA protein is comprised of two domains, the DELLA domain and the GRAS domain. The GRAS domain is responsible for the interaction between DELLA and these growth-promoting factors [31,32,33,34]. PpeDGYLA is highly homologous to other DELLA proteins and contains a conserved GRAS domain and several key alterations with the DELLA domain. Our results demonstrate that overexpressing PpeDGYLA in poplar and Arabidopsis resulted in a dwarf phenotype. A similar result was reported in rice, in which overexpressing SLRL1, a member of the Type 3/DGLLA clade, induced a dwarf phenotype [35]. Moreover, PpeDGYLA could interact with the ARF6 orthologous protein PpeARF6-1/-2 through its GRAS domain. These results suggest that PpeDGYLA is similar to DELLA and plays a negative role in plant growth.
Our previous study showed that overexpressing PpeDELLA1/-2 (two peach DELLA genes) just slightly inhibited plant height (semi-dwarf) in Arabidopsis [27]. In this study, our results show that overexpressing PpeDGYLA resulted in a severe dwarf phenotype in both Arabidopsis and poplar. We hypothesized that the amino acid residue differences within the DELLA domain were responsible for the discrepancy in plant height between the PpeDELLA1/-2 and PpeDGYLA transgenic plants. Our results show that the three conserved motifs (DELLA, LEQLE, and TVHYNP) in PpeDGYLA were changed into DGYLA, LERLE, and AVLYNP. Studies have shown that these three motifs help to mediate the GA-dependent interaction with between the GA receptor GID1 and the GA-induced degradation of DELLA [16,23]. In this study, our results show that the PpeDELLA1 protein, but not PpeDGYLA, could interact with PpeGID1c and be degraded after GA3 treatment. Moreover, poplar and Arabidopsis plants ectopically overexpressing PpeDGYLA were insensitive to GA3 treatment. In Arabidopsis, a 17-amino acid deletion within the DELLA domains of GAI and RGA both caused a GA-unresponsive, severe dwarf phenotype [36]. On the contrary, the dwarf phenotype caused by overexpressing a normal RGA gene could be recovered by GA3 treatment [36]. Interestingly, a single amino acid mutation in the DELLA motif of a grape DELLA protein resulted in a dwarfing phenotype [26]. From apple (Malus hupehensis Redh. var. pingyiensis), the overexpression of Mhgai1 (a mutation of a single amino acid in the DELLA, mutated to VELLA) or Mhgai2 (DELLA mutated to DELHA) in tomato exhibited GA-insensitive plants with smaller statures and smaller fruits and seeds [37,38]. Together, these results suggest that changes in the DELLA domain of PpeDGYLA stabilized the protein in the presence of active GA and resulted in a GA-insensitive and severe dwarf phenotype.

3.2. DGLLA Is an Important Clade in the DELLA Family

Evolutionary analysis showed that ancestral DELLA evolved into three types of DELLA: DELLA-1, -2, and -3 [24]. Our results show that the DGLLA clade was identical to DELLA3. The DGLLA clade family was retained in vascular plants (lycophytes, gymnosperm, monocots, and eudicot), except for the bryophytes [39]. In this study, PpeDGYLA, one member of the DGLLA clade, was expressed in all of the analyzed tissues and had a higher expression level than PpeDELLA1 in the stems, fruits, and flowers. Moreover, poplar and Arabidopsis plant overexpression PpeDGYLA showed a GA-insensitive dwarf phenotype, which is different from the dwarfing phenotype caused by the overexpression of genes in the DELLA1 clade [36]. This implies that DGLLA is an important clade in the DELLA family and may be different from the DELLA1/2 clade in the gene function.
It is worth noting that not all species of eudicots and monocots contained the DGLLA clade. Hernández-García et al. [24] demonstrated that DELLA3/DGLLA was absent in tomato. In this study, our results show that DGLLA members were absent in 12 species among the analyzed eudicots and monocots. This seems to mean that DGLLA was dispensable for these species. However, Li et al. [40] reported two DELLA-like proteins (SlGLD1 and -2) that lacked the DELLA domain and only contained the GRAS domain. Overexpressing SlGLD1 in tomato caused a severe dwarf phenotype. In addition, a common characteristic of DGLLA members from the grass family is a lack of DELLA domain [41]. Together, it was speculated that the function of DGLLA could be carried out by some DELLA-like proteins that lack the DELLA domain.
It is regrettable that the specific roles of DGLLA in plant development and growth are not very clear. Our results show that DGLLA is absent in the well-known model plant Arabidopsis and in tomato and poplar. Therefore, there has been no study until now reporting on the phenotype of plants in which DGLLA is knocked out.

3.3. It Is Meaningful to Compare the DELLA Domain between PpeDELLA1/-2 and PpeDGYLA

In an agricultural setting, controlling the tree size at the cultivar level can reduce the amount of labor and input needed for orchard management. Plant growth could be regulated by changing the strength of the interaction between GID1 and SLR1. Eight gid1 mutants with mutations in its coding sequence showed a series of dwarfing phenotypes, with different plant height, in rice [23]. The DELLA domain in the N-terminal portion of the protein was important for the interaction of GID1c and DELLA. The DGLLA member OsSLRL1 had no DELLA domain and resulted in a dwarf phenotype when overexpressed in rice, while overexpressing SLR1-SLRL1 (a fusion protein of the N-terminal portion of SLR1 with SLRL1) resulted in a severe dwarf phenotype of rice [35]. In this study, our results show that several conserved amino acids were changed in the DELLA domain of PpeDGYLA, which abolished the PpeGID1c interacting activity under GA3 treatment. This implied that the change in these conserved amino acids might have accounted for the interruption of the interaction between PpeDGYLA and PpeGID1c.

4. Materials and Methods

4.1. Plant Materials and Growth Conditions

The peach cultivar ‘QiuMiHong’ (QMH) was obtained from the Fruit Tree Germplasm Repository of Henan Agricultural University (Zhengzhou, Henan Province, China). The different tissues collected from ‘QMH’ were used to analyze the transcript levels of PpeDGYLA. Stigma, calyx, filaments, and petal were from flowers at full bloom from 6-year-old ‘QMH’ trees. Young leaves, mature leaves, shoot tips, and stems were collected according to Chen et al. [29].
Arabidopsis thaliana ecotype Columbia-0 (Col-0) plants used for PpeDGYLA transformation were grown in a culture room (22 ± 1 ºC; 16/8 h light/darkness; light intensity: 150 µmol m−2 s−1).
The progeny of Populus deltoides × P. euramericana cv ‘Nanlin895′ was used for PpeDGYLA transformation and cultured in Woody Plant Medium (WPM) under a 16/8 h light/darkness at 23 ± 1 °C.

4.2. Gene Cloning, Sequence Analysis, and Phylogenetic Tree Construction

The total RNA was extracted from leaf samples of ‘QMH’ trees using an RNA isolation kit (Huayueyang Biotech, Beijing, China) according to the manufacturer’s instructions. cDNA was synthesized from RNA using a HiScript III 1st Strand cDNA Synthesis Kit (+gDNA wiper) (Vazyme, Nanjing, China). The coding regions of the PpeDGYLA, PpeDELLLA1, PpeARF6-1/-2, PpePIF8, and PpeBZR1/-2 genes were amplified from the cDNA using specific primers (Table S1). The resulting PCR amplicons were purified and a vector was used for construction.
The physical and chemical properties of the PpeDGYLA protein were predicted using the Expasy protparam tool (https://web.expasy.org/protparam/) (accessed on 3 December 2022). The secondary structure of PpeDGYLA was predicted using PSIPRED (http://bioinf.cs.ucl.ac.uk/psipred/) (accessed on 3 December 2022) and GORIV (http://npsa-pbil.ibcp.fr/cgi-bin/npsa_automat.pl?page=npsa_gor4.html) (accessed on 3 December 2022).
The amino acid sequences of DELLA-like proteins were downloaded from the Arabidopsis database (TAIR) (https://www.arabidopsis.org/index.jsp) (Accessed on 5 December 2022). All of the protein sequences of different species were downloaded from Phytozome 12 (https://phytozome.jgi.doe.gov/pz/portal.html#) (Accessed on 5 December 2022) or the National Center for Biotechnology Information (https://www.ncbi.nlm.nih.gov/) (Accessed on 5 December 2022) for the construction of the phylogenetic tree. Multiple sequence alignment was performed using DNAMAN. The phylogenetic tree was constructed using the neighbor-joining method of MEGA 6.0 with the default parameters and setting as follows: Bootstrap method, 1000 replicates, and the Poisson model.

4.3. Transformation of Poplar and Arabidopsis

The CDS fragment of PpeDGYLA was cloned into the pSAK277 (with 35S promoter) vector to generate a PpeDGYLA-overexpression construct. The recombinant plasmid and empty vector were transformed into wild-type Arabidopsis using the floral dip method [42]. Transgenic Arabidopsis plants were selected and confirmed by qRT-PCR using specific primers of the PpeDGYLA gene. The phenotypic analyses used T1 transgenic plants. The length of hypocotyl and the height of the plants from different PpeDGYLA and SAK277 transgenic lines (EV) were measured and photographed at the age of 7 d, 25 d, and 35 d.
Poplar plants were transformed by infecting leaf discs with Agrobacterium tumefaciens cultures carrying pSAK277-PpeDGYLA [43,44,45]. After co-culturing with Agrobacteria on WPM containing 20 mg/L acetosyringone for 3 d under darkness, the infected leaf discs were transferred onto fresh medium containing 0.5 mg/L kinetin (KT), 0.75 mg/L 2,4-Dichlorophenoxyacetic acid (2,4-D), 400 mg/L cephalosporin, and 50 mg/L kanamycin and 0.7 % (w/v) agar to induce callus. After culturing for about 3 weeks in the dark, the leaf discs with calli were transferred to adventitious-bud-inducing medium containing 0.02 mg/L thidiazuron (TDZ), 400 mg/L cephalosporin, and 50 mg/L kanamycin and 0.7% (w/v) agar. Regenerated shoots were placed in a rooting medium containing 400 mg/L cephalosporin and 50 mg/L kanamycin and 0.7 % (w/v) agar. The rooted plantlets were characterized by qRT-PCR. The positive transgenic plants were acclimatized in pots placed in an artificial climate chamber (NingBo Ledeng Instrument Manufacturing, NingBo, China; 16/8 h light/darkness, 25 ± 1 °C) for 2 weeks and then grown in the culture room (temperature: 25 ± 1 °C; photoperiod: 16/8 h light/darkness). Two transgenic lines (#1, #2) were selected by qRT-PCR for the phenotyping assays. The length of the leaves, the width of the leaves, and the height of the plants from different transgenic lines were measured and photographed at the age of 6 weeks. More than 12 seedlings were used for statistical analysis.

4.4. Hormone Treatment

For the poplar experiment, the positive transgenic and empty vector (EV) plants were transplanted into a growth media (peat: vermiculite: perlite = 3:1:1) and grown in the culture room for 2 weeks. Next, the plants were sprayed with 100 μM GA3 (Solarbio, Beijing, China) or a mock solution three times within 24 h. Seven days after treatment, the phenotype was photographed and the height of the EV and transgenic plants was measured. At least 12 plants were used for every treatment, and the entire experiment was replicated three times.
For the Arabidopsis experiment, PpeDGYLA-overexpressing and EV transgenic Arabidopsis were germinated on MS (Murashige and Skoog, Sigma, Germany) medium for 5 d in an artificial climate chamber (16/8 h light/darkness, 22 ± 1 °C). One group was transferred to new MS medium containing 1 μM GA3, another group was transferred to new MS medium containing mock solution. After 3 d of treatment, the phenotypes were photographed, and the hypocotyl lengths of the EV and transgenic seedlings were measured. At least 18 plants were used for every treatment, and the entire experiment was replicated three times. All data were analyzed by ANOVA, Duncan’s multiple range tests (at p < 0.05), and Student’s t-test using IBM SPSS Statistics 20 (SPSS, Chicago, IL, USA).

4.5. Yeast Two-Hybrid (Y2H) Assays

The coding sequences of PpeGID1c were cloned into pGBKT7, while those of PpeDGYLA and PpeDELLLA1 were fused into pGADT7. Y2H assays were carried out as reported [29]. In brief, three pairs of constructs, namely BD: PpeGID1c+AD:Lam, BD:PpeGID1c+AD:PpeDELLA1, and BD:PpeGID1c+ AD: PpeDGYLA, were co-transformed into Y2HGold. BD-53+AD-T7 and BD-Lam+AD-Lam were used as the positive control and negative control, respectively. Each interaction was tested on SD/-Trp/-His/-Leu/-Ade (−THLA) (Clontech, Mountain View, CA, USA) with X-α-gal medium in the absence and presence of 10 μM GA3.
The full-length coding regions of PpeDGYLA and PpeDGYLA-GRAS (a deletion of 408 bp in the N-terminal) were cloned into pGBKT7, while that of PpeARF6-1/-2, PpePIF8, and PpeBZR1/-2 were fused into pGADT7. Y2H assays were carried out as above. Transformed yeast cells were grown on SD/-Trp/-Leu (−TL) (Clontech, Mountain View, CA, USA) and SD/-Trp/-His/-Leu/-Ade (−THLA) with X-α-gal media. All of the experiments were replicated three times. All of the primers used for cloning in this study are shown in Table S1.

4.6. Analyzing the Stability of PpeDGYLA Protein

The PpeDGYLA sequence was amplified from cDNA of ‘QMH’ and cloned into the pSAK277-flag vector to produce the PpeDGYLA-flag overexpression construct. Shoots from 2-year-old ‘QMH’ peach trees were used for the transformation. The shoots were surface sterilized in 75 % ethanol for 1 min and then in 1% sodium hypochlorite for 10 min, followed by washing with sterile distilled water five or six times. The PpeDGYLA-flag-overexpression (OE) peach callus lines were obtained from these shoots according to Xu et al. [46]. The calli were characterized by qRT-PCR.
For GA3 treatment, the freshly sub-cultured transgenic and control peach calli were cultured on MS agar medium containing 0 µM or 100 µM GA3 for 48 h. For Western blot, the protein of the treated and control peach calli was extracted using the TCA-acetone method [47]. The protein was detected by immunoblot using anti-Flag antibody (Sigma, Germany) at a 1:4000 dilution. Coomassie brilliant blue staining of the Rubisco small subunit (RbcS) protein was used as the loading control. The Western blot assay was performed according to Wang and Cheng [5,48].

5. Conclusions

In this study, we identified a DELLA family member, herein named PpeDGYLA, in peach, containing a non-canonical DELLA domain with three conserved motifs (DGYLA, LERLE, and AVLYNP). The PpeDGYLA protein did not interact with PpeGID1c and was stable in 35S-PpeDGYLA peach transgenic callus in the absence or presence of GA3. The ectopic expression of PpeDGYLA in polar and Arabidopsis both showed an extremely dwarfed phenotype, and these transgenic plants were insensitive to GA3 treatment. Among the three clasdes of the DELLA family (DELLA-Like, DELLA, and DGLLA), PpeDGYLA clustered into the DGLLA clade and was expressed in all of the analyzed tissues. Altogether, these results contribute to our understanding of the function of PpeDGYLA and offer potential ways to modulate tree size of peach.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms24076789/s1.

Author Contributions

Conceptualization, Y.C.; methodology, M.Z. and X.W.; software, Y.S. and X.H.; validation, J.C., X.Z. and Y.C.; formal analysis, Y.C.; investigation, B.T. and X.Y.; resources, W.W., J.L. and M.L.; data curation, Y.C.; writing—original draft preparation, Y.C. and L.Z.; writing—review and editing, Y.C. and J.F.; supervision, L.Z. and J.F.; project administration, L.Z.; funding acquisition, J.F. All authors have read and agreed to the published version of the manuscript.

Funding

The Henan Provincial Key Laboratory of Fruit and Cucurbit Biology and was supported by the Joint Funds of the National Natural Science Foundation of China (U1804114), the Henan Province Outstanding Foreign Scholar Program (GZS2020007), and the Special Fund for Henan Agricultural Research System: HARS-22-09-G1.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

The work was conducted at the Henan Provincial Key Laboratory of Fruit and Cucurbit Biology and was supported by the Joint Funds of the National Natural Science Foundation of China (U1804114), the Henan Province Outstanding Foreign Scholar Program (GZS2020007), and the Special Fund for Henan Agricultural Research System: HARS-22-09-G1.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Hollender, C.A.; Hadiarto, T.; Srinivasan, C.; Scorza, R.; Dardick, C. A brachytic dwarfism trait (dw) in peach trees is caused by a nonsense mutation within the gibberellic acid receptor PpeGID1c. New Phytol. 2015, 210, 227–239. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Atkinson, C.J.; Else, M.A. Understanding how rootstocks dwarf fruit trees. Compact. Fruit Tree 2001, 34, 46–49. Available online: https://www.researchgate.net/publication/285684959 (accessed on 3 December 2022).
  3. Lang, G.; Howell, W. Lethal sensitivity of some new cherry rootstocks to pollen-borne viruses. Acta Hortic. 2001, 557, 151–154. [Google Scholar] [CrossRef]
  4. Smolka, A.; Li, X.-Y.; Heikelt, C.; Welander, M.; Zhu, L.-H. Effects of transgenic rootstocks on growth and development of non-transgenic scion cultivars in apple. Transgenic Res. 2010, 19, 933–948. [Google Scholar] [CrossRef]
  5. Cheng, J.; Zhang, M.; Tan, B.; Jiang, Y.; Zheng, X.; Ye, X.; Guo, Z.; Xiong, T.; Wang, W.; Li, J.; et al. A single nucleotide mutation in GID1c disrupts its interaction with DELLA1 and causes a GA-insensitive dwarf phenotype in peach. Plant Biotechnol. J. 2019, 17, 1723–1735. [Google Scholar] [CrossRef] [Green Version]
  6. Hauvermale, A.L.; Ariizumi, T.; Steber, C.M. Gibberellin Signaling: A Theme and Variations on DELLA Repression. Plant Physiol. 2012, 160, 83–92. [Google Scholar] [CrossRef] [Green Version]
  7. Hirano, K.; Nakajima, M.; Asano, K.; Nishiyama, T.; Sakakibara, H.; Kojima, M.; Katoh, E.; Xiang, H.; Tanahashi, T.; Hasebe, M.; et al. The GID1-Mediated Gibberellin Perception Mechanism Is Conserved in the Lycophyte Selaginella moellendorffii but Not in the Bryophyte Physcomitrella patens. Plant Cell 2007, 19, 3058–3079. [Google Scholar] [CrossRef] [Green Version]
  8. Ikeda, A.; Ueguchi-Tanaka, M.; Sonoda, Y.; Kitano, H.; Koshioka, M.; Futsuhara, Y.; Matsuoka, M.; Yamaguchi, J. slender Rice, a Constitutive Gibberellin Response Mutant, Is Caused by a Null Mutation of the SLR1 Gene, an Ortholog of the Height-Regulating Gene GAI/RGA/RHT/D8. Plant Cell 2001, 13, 999–1010. [Google Scholar] [CrossRef] [Green Version]
  9. Li, N.; Xu, R.; Duan, P.; Li, Y. Control of grain size in rice. Plant Reprod. 2018, 31, 237–251. [Google Scholar] [CrossRef]
  10. Yamaguchi, S.; Ueguchi-Tanaka, M.; Nakajima, M.; Motoyuki, A.; Matsuoka, M.; Richards, D.E.; King, K.E.; Ait-Ali, T.; Harberd, N.P.; Rademacher, W.; et al. Gibberellin Metabolism and its Regulation. Annu. Rev. Plant Biol. 2008, 59, 225–251. [Google Scholar] [CrossRef]
  11. Spielmeyer, W.; Ellis, M.H.; Chandler, P.M. Semidwarf (sd-1), “green revolution” rice, contains a defective gibberellin 20-oxidase gene. Proc. Natl. Acad. Sci. USA 2002, 99, 9043–9048. [Google Scholar] [CrossRef] [Green Version]
  12. Chen, Y.; Hou, M.; Liu, L.; Wu, S.; Shen, Y.; Ishiyama, K.; Kobayashi, M.; McCarty, D.R.; Tan, B.-C. The Maize DWARF1 Encodes a Gibberellin 3-Oxidase and Is Dual Localized to the Nucleus and Cytosol. Plant Physiol. 2014, 166, 2028–2039. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Rieu, I.; Ruiz-Rivero, O.; Fernandez-Garcia, N.; Griffiths, J.; Powers, S.J.; Gong, F.; Linhartova, T.; Eriksson, S.; Nilsson, O.; Thomas, S.G.; et al. The gibberellin biosynthetic genes AtGA20ox1 and AtGA20ox2 act, partially redundantly, to promote growth and development throughout the Arabidopsis life cycle. Plant J. 2008, 53, 488–504. [Google Scholar] [CrossRef] [PubMed]
  14. Busov, V.B.; Meilan, R.; Pearce, D.W.; Ma, C.; Rood, S.B.; Strauss, S.H. Activation Tagging of a Dominant Gibberellin Catabolism Gene (GA 2-oxidase) from Poplar That Regulates Tree Stature. Plant Physiol. 2003, 132, 1283–1291. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Ueguchi-Tanaka, M.; Ashikari, M.; Nakajima, M.; Itoh, H.; Katoh, E.; Kobayashi, M.; Chow, T.-Y.; Hsing, Y.-I.C.; Kitano, H.; Yamaguchi, I.; et al. GIBBERELLIN INSENSITIVE DWARF1 encodes a soluble receptor for gibberellin. Nature 2005, 437, 693–698. [Google Scholar] [CrossRef]
  16. Itoh, H.; Ueguchi-Tanaka, M.; Sato, Y.; Ashikari, M.; Matsuoka, M. The Gibberellin Signaling Pathway Is Regulated by the Appearance and Disappearance of SLENDER RICE1 in Nuclei. Plant Cell 2002, 14, 57–70. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Gomi, K.; Sasaki, A.; Itoh, H.; Ueguchi-Tanaka, M.; Ashikari, M.; Kitano, H.; Matsuoka, M. GID2, an F-box subunit of the SCF E3 complex, specifically interacts with phosphorylated SLR1 protein and regulates the gibberellin-dependent degradation of SLR1 in rice. Plant J. 2004, 37, 626–634. [Google Scholar] [CrossRef]
  18. Sun, T.-P. Gibberellin-GID1-DELLA: A Pivotal Regulatory Module for Plant Growth and Development. Plant Physiol. 2010, 154, 567–570. [Google Scholar] [CrossRef] [Green Version]
  19. De Lucas, M.; Davière, J.-M.; Rodríguez-Falcón, M.; Pontin, M.; Iglesias-Pedraz, J.M.; Lorrain, S.; Fankhauser, C.; Blazquez, M.A.; Titarenko, E.; Prat, S. A molecular framework for light and gibberellin control of cell elongation. Nature 2008, 451, 480–484. [Google Scholar] [CrossRef] [Green Version]
  20. Feng, S.; Martinez, C.; Gusmaroli, G.; Wang, Y.; Zhou, J.; Wang, F.; Chen, L.; Yu, L.; Iglesias-Pedraz, J.M.; Kircher, S.; et al. Coordinated regulation of Arabidopsis thaliana development by light and gibberellins. Nature 2008, 451, 475–479. [Google Scholar] [CrossRef] [Green Version]
  21. Oh, E.; Zhu, J.-Y.; Bai, M.-Y.; Arenhart, R.A.; Sun, Y.; Wang, Z.-Y. Cell elongation is regulated through a central circuit of interacting transcription factors in the Arabidopsis hypocotyl. Elife 2014, 3, e3031. [Google Scholar] [CrossRef] [PubMed]
  22. Vera-Sirera, F.; Gomez, M.D.; Perez-Amador, M.A. DELLA Proteins, a Group of GRAS Transcription Regulators that Mediate Gibberellin Signaling—ScienceDirect. Plant Transcr. Factors 2016, 313–328. [Google Scholar] [CrossRef]
  23. Ueguchi-Tanaka, M.; Nakajima, M.; Katoh, E.; Ohmiya, H.; Asano, K.; Saji, S.; Hongyu, X.; Ashikari, M.; Kitano, H.; Yamaguchi, I.; et al. Molecular Interactions of a Soluble Gibberellin Receptor, GID1, with a Rice DELLA Protein, SLR1, and Gibberellin. Plant Cell 2007, 19, 2140–2155. [Google Scholar] [CrossRef] [Green Version]
  24. Hernández-García, J.; Briones-Moreno, A.; Dumas, R.; Blazquez, M. Origin of Gibberellin-Dependent Transcriptional Regulation by Molecular Exploitation of a Transactivation Domain in DELLA Proteins. Mol. Biol. Evol. 2019, 36, 908–918. [Google Scholar] [CrossRef] [PubMed]
  25. Hirano, K.; Kouketu, E.; Katoh, H.; Aya, K.; Ueguchi-Tanaka, M.; Matsuoka, M. The suppressive function of the rice DELLA protein SLR1 is dependent on its transcriptional activation activity. Plant J. 2012, 71, 443–453. [Google Scholar] [CrossRef]
  26. Boss, P.K.; Thomas, M.R. Association of dwarfism and floral induction with a grape ‘green revolution’ mutation. Nature 2002, 416, 847–850. [Google Scholar] [CrossRef]
  27. Jiang, C.; Gao, F.; Li, T.; Chen, T.; Zheng, X.; Lian, X.; Wang, X.; Zhang, H.; Cheng, J.; Wang, W.; et al. Genome-wide analysis of the GRAS transcription factor gene family in peach (Prunus persica) and ectopic expression of PpeDELLA1 and PpeDELLA2 in Arabidopsis result in dwarf phenotypes. Sci. Hortic. 2022, 298, 111003. [Google Scholar] [CrossRef]
  28. Bai, M.-Y.; Shang, J.-X.; Oh, E.; Fan, M.; Bai, Y.; Zentella, R.; Sun, T.-P.; Wang, Z.-Y. Brassinosteroid, gibberellin and phytochrome impinge on a common transcription module in Arabidopsis. Nat. Cell Biol. 2012, 14, 810–817. [Google Scholar] [CrossRef] [Green Version]
  29. Chen, Y.; Zhang, M.; Wang, Y.; Zheng, X.; Zhang, H.; Zhang, L.; Tan, B.; Ye, X.; Wang, W.; Li, J.; et al. PpPIF8, a DELLA2-interacting protein, regulates peach shoot elongation possibly through auxin signaling. Plant Sci. 2022, 323, 111409. [Google Scholar] [CrossRef]
  30. Zhang, M.; Ma, Y.; Zheng, X.; Bin Tan, B.; Ye, X.; Wang, W.; Zhang, L.; Li, J.; Li, Z.; Cheng, J.; et al. The distribution of bioactive gibberellins along peach annual shoots is closely associated with PpGA20ox and PpGA2ox expression profiles. BMC Genom. 2022, 23, 730. [Google Scholar] [CrossRef]
  31. Bolle, C. The role of GRAS proteins in plant signal transduction and development. Planta 2004, 218, 683–692. [Google Scholar] [CrossRef] [PubMed]
  32. Murase, K.; Hirano, Y.; Sun, T.-P.; Hakoshima, T. Gibberellin-induced DELLA recognition by the gibberellin receptor GID1. Nature 2008, 456, 459–463. [Google Scholar] [CrossRef] [PubMed]
  33. Hirano, K.; Asano, K.; Tsuji, H.; Kawamura, M.; Mori, H.; Kitano, H.; Ueguchi-Tanaka, M.; Matsuoka, M. Characterization of the Molecular Mechanism Underlying Gibberellin Perception Complex Formation in Rice. Plant Cell 2010, 22, 2680–2696. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Hirsch, S.; Oldroyd, G.E. GRAS-domain transcription factors that regulate plant development. Plant Signal. Behav. 2009, 4, 698–700. [Google Scholar] [CrossRef] [Green Version]
  35. Itoh, H.; Shimada, A.; Ueguchi-Tanaka, M.; Kamiya, N.; Hasegawa, Y.; Ashikari, M.; Matsuoka, M. Overexpression of a GRAS protein lacking the DELLA domain confers altered gibberellin responses in rice. Plant J. 2005, 44, 669–679. [Google Scholar] [CrossRef]
  36. Dill, A.; Jung, H.-S.; Sun, T.-P. The DELLA motif is essential for gibberellin-induced degradation of RGA. Proc. Natl. Acad. Sci. USA 2001, 98, 14162–14167. [Google Scholar] [CrossRef] [Green Version]
  37. Wang, S.S.; Liu, Z.Z.; Sun, C.; Shi, Q.H.; Yao, Y.X.; You, C.X.; Hao, Y.J. Functional characterization of the apple MhGAI1 gene through ectopic expression and grafting experiments in tomatoes. J. Plant Physiol. 2012, 169, 303–310. [Google Scholar] [CrossRef]
  38. Wang, S.-S.; Sun, C.; Liu, Z.-Z.; Shi, Q.-H.; Yao, Y.-X.; You, C.-X.; Hao, Y.-J. Ectopic expression of the apple mhgai2 gene brings about GA-insensitive phenotypes in tomatoes. Acta Physiol. Plant. 2012, 34, 2369–2377. [Google Scholar] [CrossRef]
  39. Phokas, A.; Coates, J.C. Evolution of DELLA function and signaling in land plants. Evol. Dev. 2021, 23, 137–154. [Google Scholar] [CrossRef]
  40. Li, J.; Yu, C.; Wu, H.; Luo, Z.; Ouyang, B.; Cui, L.; Zhang, J.; Ye, Z. Knockdown of a JmjC domain-containing gene JMJ524 confers altered gibberellin responses by transcriptional regulation of GRAS protein lacking the DELLA domain genes in tomato. J. Exp. Bot. 2015, 66, 1413–1426. [Google Scholar] [CrossRef] [Green Version]
  41. Van De Velde, K.; Ruelens, P.; Geuten, K.; Rohde, A.; Van Der Straeten, D. Exploiting DELLA Signaling in Cereals. Trends Plant Sci. 2017, 22, 880–893. [Google Scholar] [CrossRef]
  42. Clough, S.J.; Bent, A.F. Floral dip: A simplified method for Agrobacterium-mediated transformation of Arabidopsis thaliana. Plant J. 1998, 16, 735–743. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Jia, Z.; Gou, J.; Sun, Y.; Yuan, L.; Tang, Q.; Yang, X.; Pei, Y.; Luo, K. Enhanced resistance to fungal pathogens in transgenic Populus tomentosa Carr. by overexpression of an nsLTP-like antimicrobial protein gene from motherwort (Leonurus japonicus). Tree Physiol. 2010, 30, 1599–1605. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Sun, Y.; Ren, S.; Ye, S.; Tian, Q.; Luo, K. Identification and Functional Characterization of PtoMYB055 Involved in the Regulation of the Lignin Biosynthesis Pathway in Populus tomentosa. Int. J. Mol. Sci. 2020, 21, 4857. [Google Scholar] [CrossRef]
  45. Tian, Q.; Wang, X.; Li, C.; Lu, W.; Yang, L.; Jiang, Y.; Luo, K. Functional Characterization of the Poplar R2R3-MYB Transcription Factor PtoMYB216 Involved in the Regulation of Lignin Biosynthesis during Wood Formation. PLoS ONE 2013, 8, e76369. [Google Scholar] [CrossRef]
  46. Xu, S.; Lai, E.; Zhao, L.; Cai, Y.; Ogutu, C.; Cherono, S.; Han, Y.; Zheng, B. Development of a fast and efficient root transgenic system for functional genomics and genetic engineering in peach. Sci. Rep. 2020, 10, 2836. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Saravanan, R.S.; Rose, J.K.C. A critical evaluation of sample extraction techniques for enhanced proteomic analysis of recalcitrant plant tissues. Proteomics 2004, 4, 2522–2532. [Google Scholar] [CrossRef]
  48. Wang, N.; Li, Y.; Chen, W.; Yang, H.Z.; Zhang, P.H.; Wu, Y.F. Identification of wheat blue dwarf phytoplasma effectors targeting plant proliferation and defence responses. Plant Pathol. 2017, 67, 603–609. [Google Scholar] [CrossRef]
Ijms 24 06789 g001 550

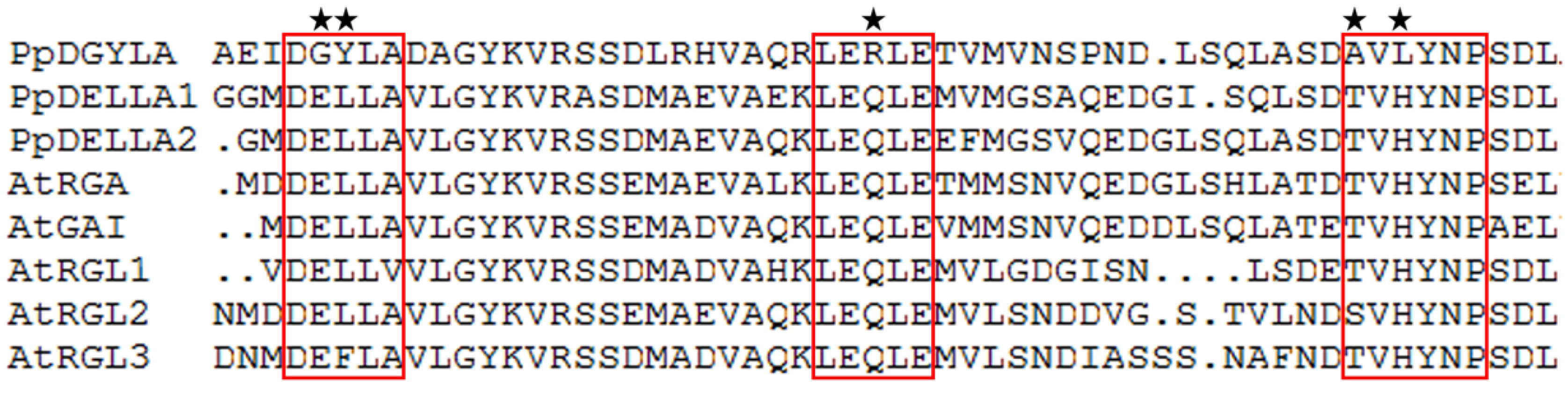

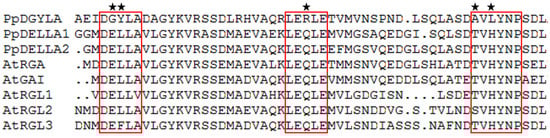

Figure 1. DELLA domains of Arabidopsis and peach DELLA family members. Three conserved motifs (DELLA, LEQLE, and TVHYN) in the DELLA domain are highlighted by red boxes. In PpeDGYLA, the three motifs are changed into DGYLA, LERLE, and AVLYNP and the non-canonical amino acids are indicated with black stars.
Figure 1. DELLA domains of Arabidopsis and peach DELLA family members. Three conserved motifs (DELLA, LEQLE, and TVHYN) in the DELLA domain are highlighted by red boxes. In PpeDGYLA, the three motifs are changed into DGYLA, LERLE, and AVLYNP and the non-canonical amino acids are indicated with black stars.
Ijms 24 06789 g001
Ijms 24 06789 g002 550

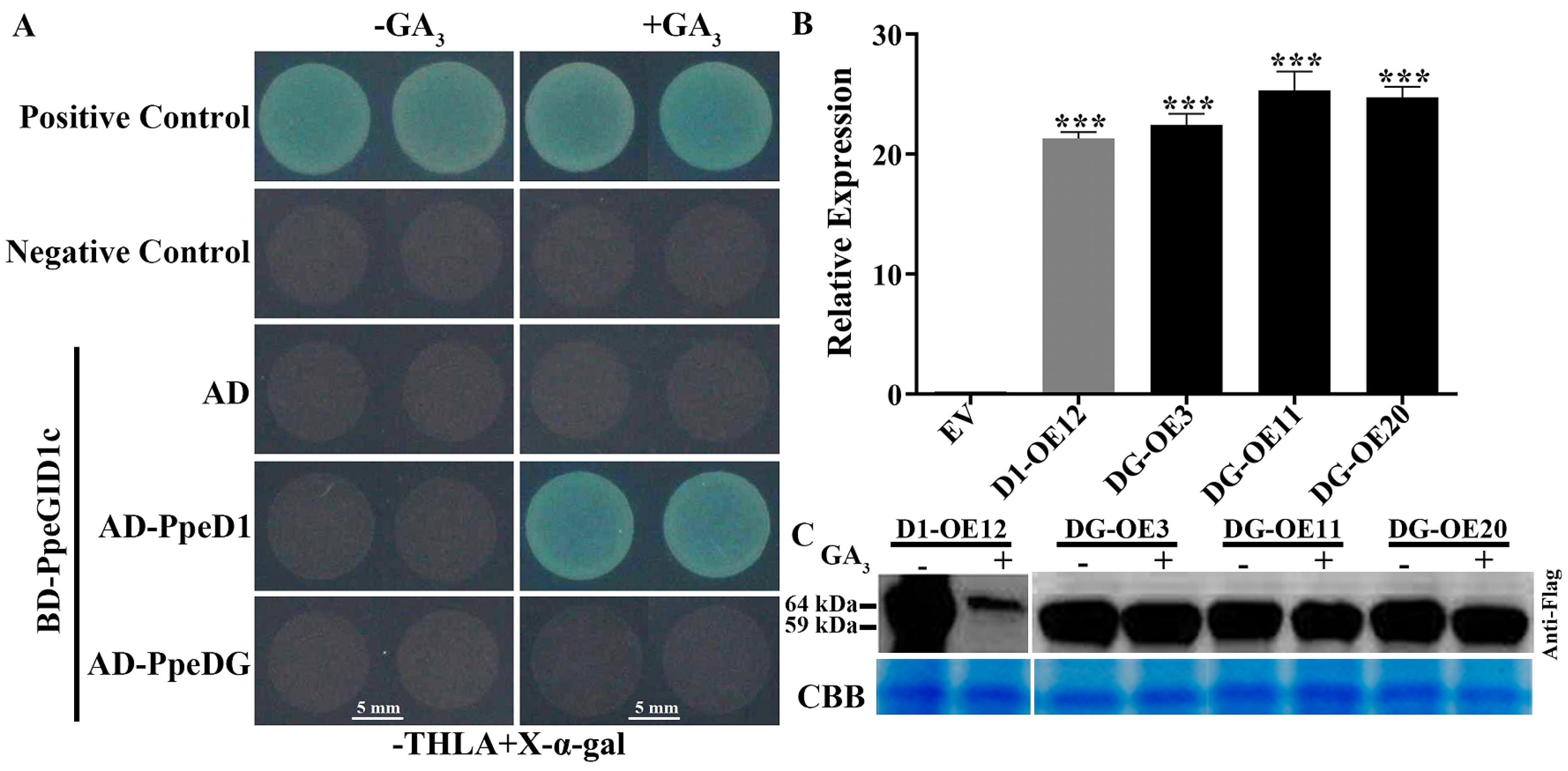

Figure 2. PpeDGYLA was stable in the presence of active GA. (A) Y2H assays with or without supplemental GA3. Transformed yeast cells are grown on SD-Trp/-Leu/-His/-Ade medium containing 20 mg/L X-α-gal. Yeast containing BD-PpeGID1c and AD-PpeDELLA1 (AD-PpeD1) grows normally and turns blue in the presence of GA3, while yeast containing BD-PpeGID1c and AD-PpeDGYLA (AD-PpeDG) does not grow in the presence or absence of GA3. BD-53+AD-T7 and BD-Lam+AD-Lam are used as the positive control and negative control, respectively. The experiment is replicated three times. -GA3, without gibberellin; +GA3, with 10 μM gibberellin. Scale bars = 5 mm (B) 35S-PpeDELLA1-flag and 35S-PpeDGYLA-flag are delivered into the peach leaf callus. qRT-PCR analysis of PpeDELLA1 (D1-OE) and PpeDGYLA (DG-OE) transcript levels in transgenic callus. Three PpeDGYLA lines are obtained. Asterisks denote significant differences compared with EV (***, p < 0.001). (C) Western blots showing the levels of PpeDELLA1 or PpeDGYLA protein in the transgenic callus overexpressing PpeDELLA1-flag or PpeDGYLA-flag after treatment with 100 μM GA3 (+) or mock (−) solution. Coomassie brilliant blue staining the Rubisco small subunit (RbcS) protein is used as a loading control.
Figure 2. PpeDGYLA was stable in the presence of active GA. (A) Y2H assays with or without supplemental GA3. Transformed yeast cells are grown on SD-Trp/-Leu/-His/-Ade medium containing 20 mg/L X-α-gal. Yeast containing BD-PpeGID1c and AD-PpeDELLA1 (AD-PpeD1) grows normally and turns blue in the presence of GA3, while yeast containing BD-PpeGID1c and AD-PpeDGYLA (AD-PpeDG) does not grow in the presence or absence of GA3. BD-53+AD-T7 and BD-Lam+AD-Lam are used as the positive control and negative control, respectively. The experiment is replicated three times. -GA3, without gibberellin; +GA3, with 10 μM gibberellin. Scale bars = 5 mm (B) 35S-PpeDELLA1-flag and 35S-PpeDGYLA-flag are delivered into the peach leaf callus. qRT-PCR analysis of PpeDELLA1 (D1-OE) and PpeDGYLA (DG-OE) transcript levels in transgenic callus. Three PpeDGYLA lines are obtained. Asterisks denote significant differences compared with EV (***, p < 0.001). (C) Western blots showing the levels of PpeDELLA1 or PpeDGYLA protein in the transgenic callus overexpressing PpeDELLA1-flag or PpeDGYLA-flag after treatment with 100 μM GA3 (+) or mock (−) solution. Coomassie brilliant blue staining the Rubisco small subunit (RbcS) protein is used as a loading control.
Ijms 24 06789 g002
Ijms 24 06789 g003 550

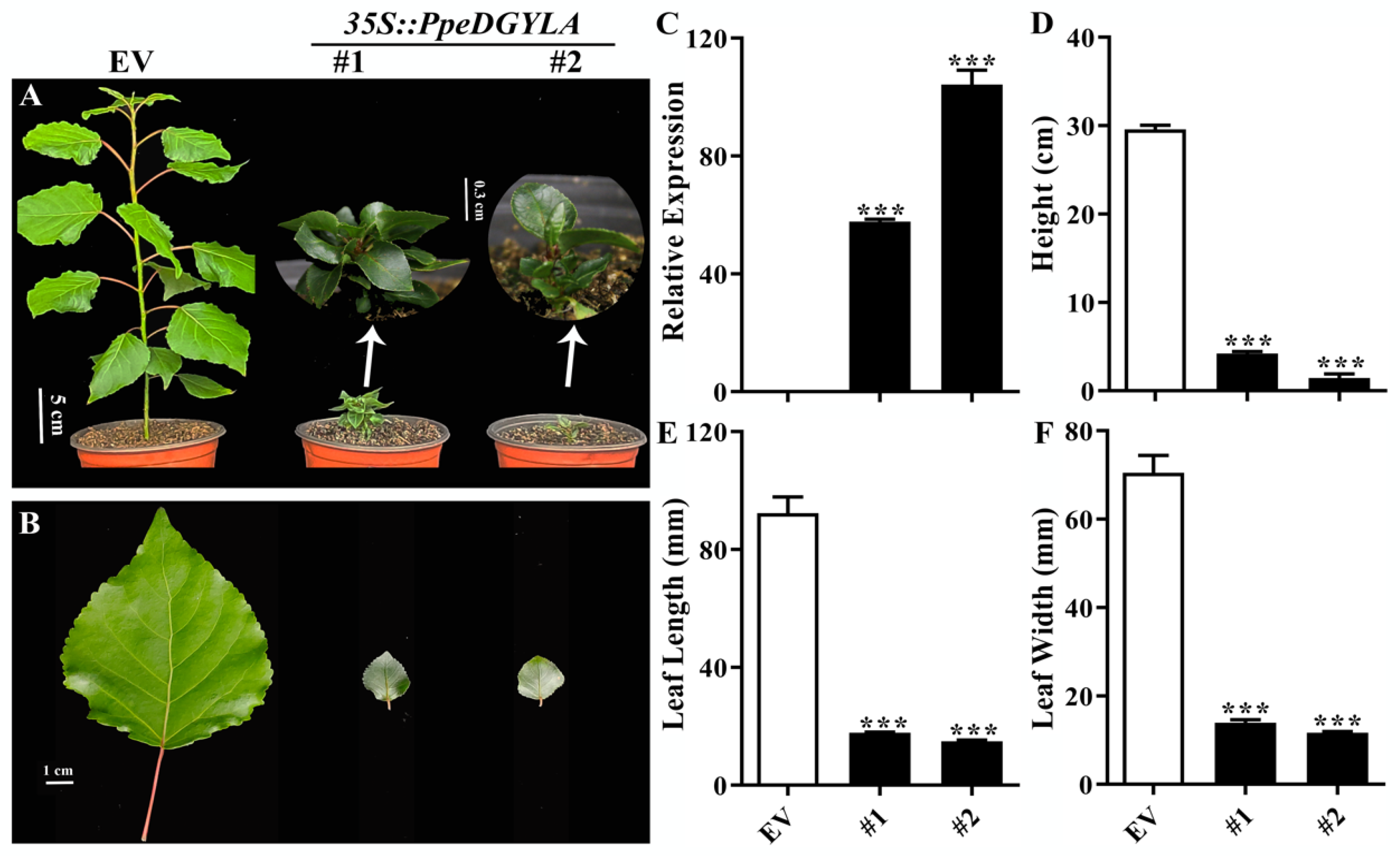

Figure 3. Phenotypes of poplar overexpressing PpeDGYLA. (A) Six-week-old empty vector (EV) and PpeDGYLA-OE transgenic plants cultivated under long-day growth conditions. Scale bars = 5 cm or 0.3 cm for the two insets. (B) Leaves of EV and transgenic plants shown in A. Scale bars = 1 cm. (C) Transcript levels of PpeDGYLA in EV and PpeDGYLA-OE transgenic lines. (D) The height of 6-week-old plants. (E,F) The length and width of the fifth and sixth leaves shown in A. Asterisks denote significant differences (***, p < 0.001). Error bars represent SD of plants in (D–F) (n = 12).
Figure 3. Phenotypes of poplar overexpressing PpeDGYLA. (A) Six-week-old empty vector (EV) and PpeDGYLA-OE transgenic plants cultivated under long-day growth conditions. Scale bars = 5 cm or 0.3 cm for the two insets. (B) Leaves of EV and transgenic plants shown in A. Scale bars = 1 cm. (C) Transcript levels of PpeDGYLA in EV and PpeDGYLA-OE transgenic lines. (D) The height of 6-week-old plants. (E,F) The length and width of the fifth and sixth leaves shown in A. Asterisks denote significant differences (***, p < 0.001). Error bars represent SD of plants in (D–F) (n = 12).
Ijms 24 06789 g003
Ijms 24 06789 g004 550
Figure 4. Phenotypes of Arabidopsis overexpressing PpeDGYLA. (A–C) Phenotypes of 7-d, 25-d and 35-d-old OE and EV plants cultivated under long-day growth conditions. Scale bars = 2 mm/2 cm/4 cm. (D) The expression level of PpeDGYLA in transgenic OE and EV lines. (E) The hypocotyl length of seedlings shown in (A). (F,G) The height of seedlings shown in (B,C), respectively. Asterisks denote significant differences (***, p < 0.001). Error bars represent SD of plants in (E–G) (n = 12).
Figure 4. Phenotypes of Arabidopsis overexpressing PpeDGYLA. (A–C) Phenotypes of 7-d, 25-d and 35-d-old OE and EV plants cultivated under long-day growth conditions. Scale bars = 2 mm/2 cm/4 cm. (D) The expression level of PpeDGYLA in transgenic OE and EV lines. (E) The hypocotyl length of seedlings shown in (A). (F,G) The height of seedlings shown in (B,C), respectively. Asterisks denote significant differences (***, p < 0.001). Error bars represent SD of plants in (E–G) (n = 12).
Ijms 24 06789 g004
Ijms 24 06789 g005 550
Figure 5. Poplar overexpressing PpeDGYLA exhibited a GA-insensitive phenotype. (A) Phenotypes of EV and PpeDGYLA-overexpressing (OE) plants 7 d after treatment with 100 μM GA3 or a mock solution. Scale bars = 30 mm. (B) The height of the EV and OE plants after treatment with 100 μM GA3 or a mock solution. The values are means ± SD (n = 12; ***, p < 0.001).
Figure 5. Poplar overexpressing PpeDGYLA exhibited a GA-insensitive phenotype. (A) Phenotypes of EV and PpeDGYLA-overexpressing (OE) plants 7 d after treatment with 100 μM GA3 or a mock solution. Scale bars = 30 mm. (B) The height of the EV and OE plants after treatment with 100 μM GA3 or a mock solution. The values are means ± SD (n = 12; ***, p < 0.001).
Ijms 24 06789 g005
Ijms 24 06789 g006 550
Figure 6. Arabidopsis overexpressing PpeDGYLA exhibited a GA-insensitive phenotype. (A) Phenotypes of empty vector (EV) and PpeDGYLA-overexpressing (OE) Arabidopsis plants after 3 d of treatment with 1 μM GA3 or a mock solution. Scale bars = 2 mm. (B) The hypocotyl length of the EV and OE transgenic seedlings after being treated with 1 μM GA3 or a mock solution. The values are means ± SD (n = 18; ***, p < 0.001).
Figure 6. Arabidopsis overexpressing PpeDGYLA exhibited a GA-insensitive phenotype. (A) Phenotypes of empty vector (EV) and PpeDGYLA-overexpressing (OE) Arabidopsis plants after 3 d of treatment with 1 μM GA3 or a mock solution. Scale bars = 2 mm. (B) The hypocotyl length of the EV and OE transgenic seedlings after being treated with 1 μM GA3 or a mock solution. The values are means ± SD (n = 18; ***, p < 0.001).
Ijms 24 06789 g006
Ijms 24 06789 g007 550

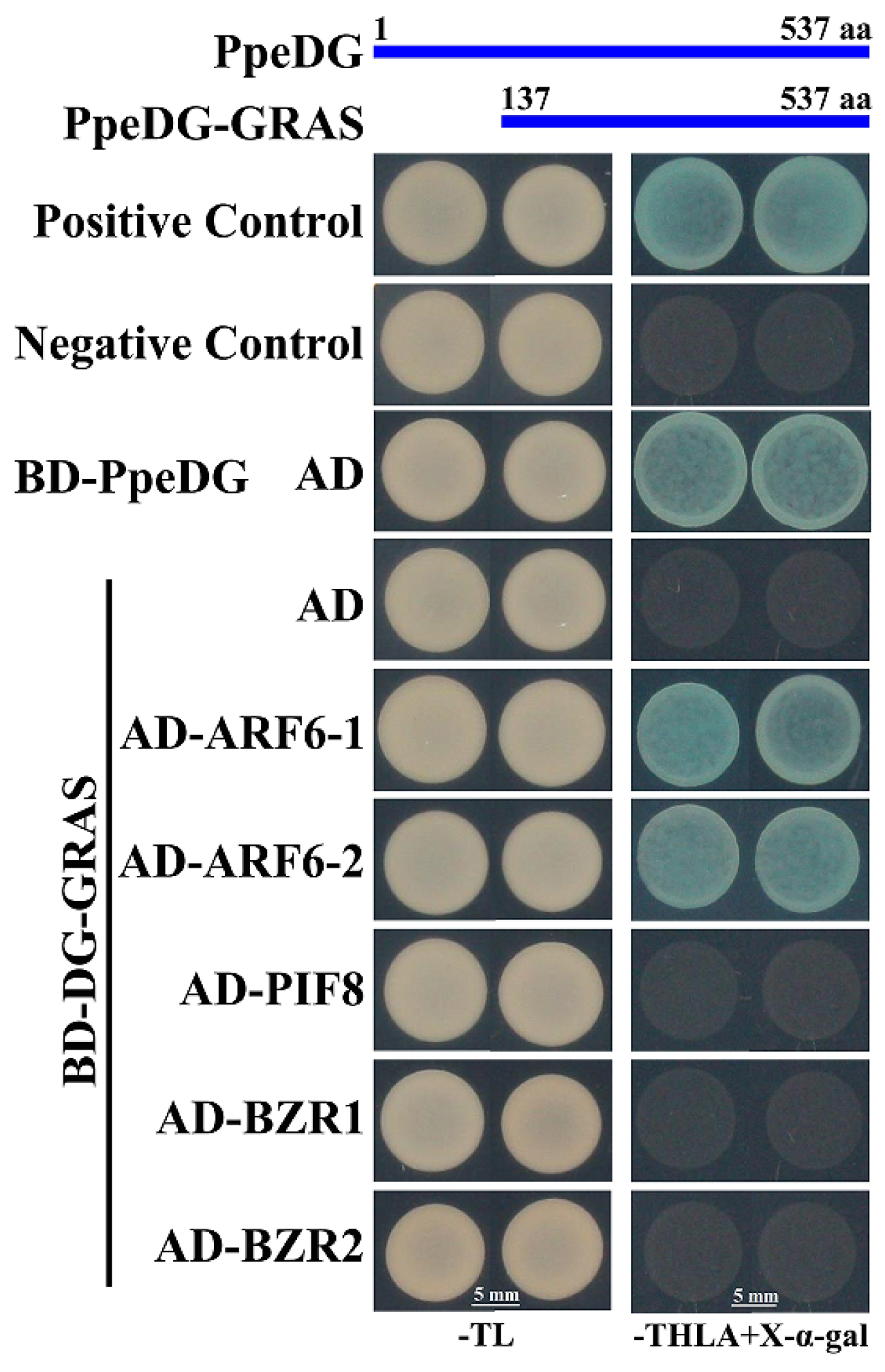

Figure 7. Yeast two-hybrid assays showing the interactions between PpeDGYLA and PpeARF6-1 and -2, PpePIF8, or PpeBZR1 and -2. The combinations of BD-53+AD-T7 and BD-Lam+AD-Lam are used as the positive control and negative control, respectively. Transformed yeast cells are grown on SD-Trp/-Leu (−TL) and SD-Trp/-Leu/-His/-Ade medium (−TLHA) containing 20 mg/L X-α-gal. This experiment is replicated three times. Upper: Diagram of protein structures of PpeDGYLA and its truncation (GRAS) used for the yeast two-hybrid assay.
Figure 7. Yeast two-hybrid assays showing the interactions between PpeDGYLA and PpeARF6-1 and -2, PpePIF8, or PpeBZR1 and -2. The combinations of BD-53+AD-T7 and BD-Lam+AD-Lam are used as the positive control and negative control, respectively. Transformed yeast cells are grown on SD-Trp/-Leu (−TL) and SD-Trp/-Leu/-His/-Ade medium (−TLHA) containing 20 mg/L X-α-gal. This experiment is replicated three times. Upper: Diagram of protein structures of PpeDGYLA and its truncation (GRAS) used for the yeast two-hybrid assay.
Ijms 24 06789 g007
Ijms 24 06789 g008 550

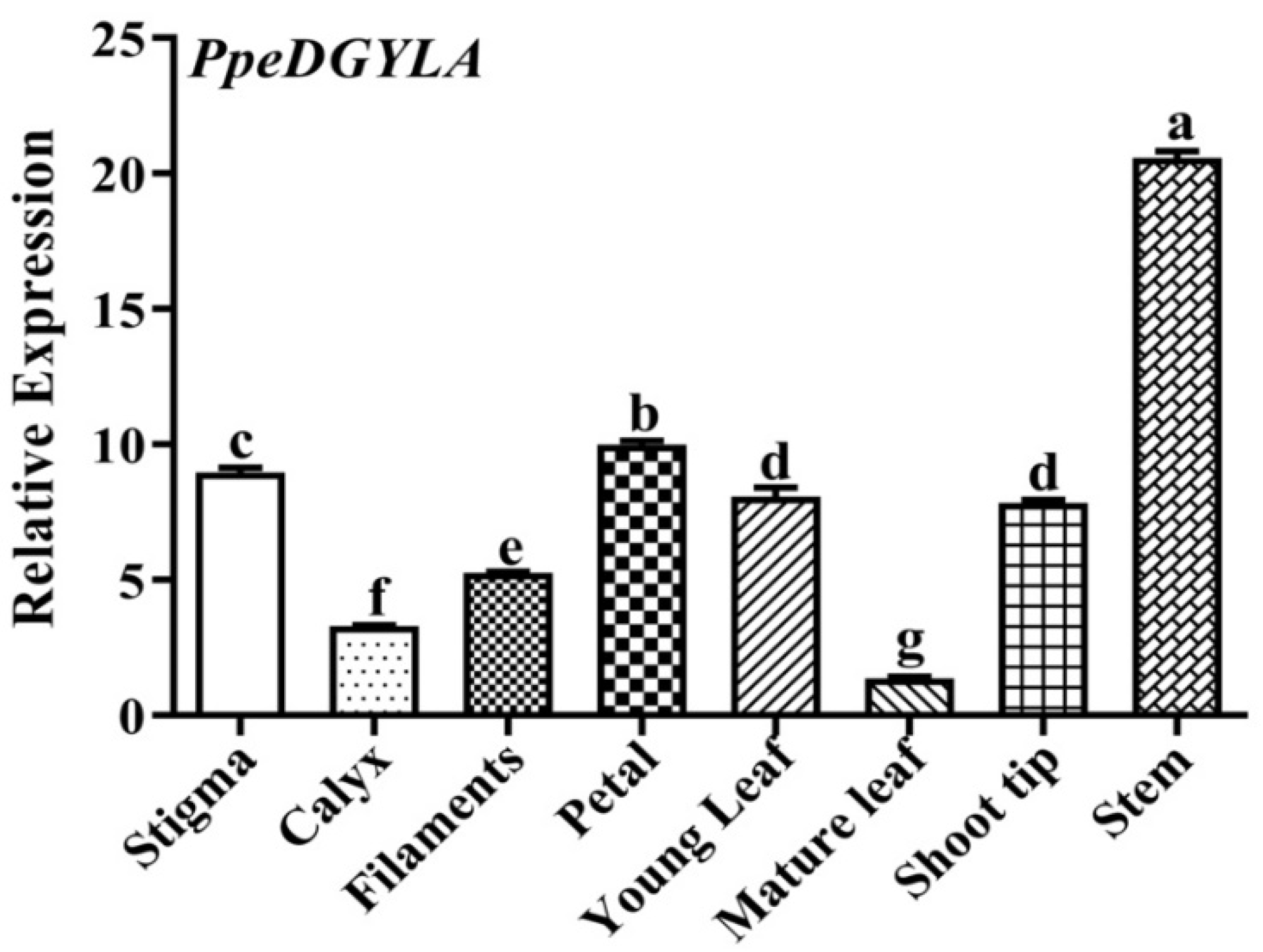

Figure 8. Tissue-specific expression of PpeDGYLA. Eight tissues were collected from 6-year-old trees of the peach cultivar ‘QiuMiHong’ (QMH). The error bars indicate the mean of three independent experiment replicates ± standard deviation (SD). Different letters indicate significant differences (p < 0.05) according to Duncan’s test by ANOVA.
Figure 8. Tissue-specific expression of PpeDGYLA. Eight tissues were collected from 6-year-old trees of the peach cultivar ‘QiuMiHong’ (QMH). The error bars indicate the mean of three independent experiment replicates ± standard deviation (SD). Different letters indicate significant differences (p < 0.05) according to Duncan’s test by ANOVA.
Ijms 24 06789 g008
Table
Table 1. Sequence similarity of DELLA-like amino acid sequences from peach or Arabidopsis.
Table 1. Sequence similarity of DELLA-like amino acid sequences from peach or Arabidopsis.
Identity (%)PpeDGYLAPpeDELLA1PpeDELLA2AtRGAAtGAIAtRGL1AtRGL2AtRGL3
PpeDGYLA--------
PpeDELLA141.82-------
PpeDELLA239.9461.70------
AtRGA42.0958.9961.36-----
AtGAI44.9659.5661.0473.59----
AtRGL143.7758.8251.4255.5458.49---
AtRGL243.0860.2751.1956.1655.0461.27--
AtRGL341.6456.7850.0052.7156.8659.7068.95-
Table
Table 2. Analysis of DELLA (DE), DG, and DL sequences in the DELLA proteins of different species.
Table 2. Analysis of DELLA (DE), DG, and DL sequences in the DELLA proteins of different species.
PhylumSpeciesDLDEDGPhylumSpeciesDLDEDG
BryophyteMarchantia polymorpha+ AngiospermVitis vinifera Genoscope.12X ++
Physcomitrella patens+ Linum usitatissimum v1.0 ++
Sphagnum fallax+ Citrus sinensis v1.1 ++
LycophyteSelaginella moellendorffii+ Carica papaya ASGPBv0.4 ++
GymnospermThuja plicata ++Gossypium raimondii v2.1 ++
AngiospermAmborella trichopoda ++Theobroma cacao v1.1 ++
Ananas comosus +-Cucumis sativus ++
Musa acuminata v1 ++Malus domestica ++
Spirodela polyrhiza v2 ++Pyrus Communis Bartlett +-
Zostera marina v2.2 ++Fragaria vesca v4.0.a2 ++
Brachypodium distachyon ++Prunus persica ++
Oryza sativa v7_JGI ++Glycine max ++
Panicum hallii v2.0 ++Medicago truncatula +-
Setaria italica v2.2 ++Phaseolus vulgaris ++
Sorghum bicolor v3.1.1 ++Trifolium pratense ++
Zea mays Ensembl-18 ++Arabidopsis thaliana +-
Oropetium thomaeum ++Boechera stricta v1.2 +-
Aquilegia coerulea v3.1 ++Eutrema salsugineum v1.0 +-
Amaranthus hypochondriacus ++Capsella grandiflora v1.1 +-
Daucus carota ++Populus trichocarpa v4.0 +-
Mimulus guttatus +-Salix purpurea v1.0 +-
Solanum lycopersicum iTAG2.4 +-Manihot esculenta v6.1 +-
Eucalyptus grandis v2.0 ++Ricinus communis v0.1 ++
Note: The red font in the table is the DELLA (DE), DG, and DL sequences in the peach.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Chen, Y.; Zhang, M.; Wang, X.; Shao, Y.; Hu, X.; Cheng, J.; Zheng, X.; Tan, B.; Ye, X.; Wang, W.; et al. Peach DELLA Protein PpeDGYLA Is Not Degraded in the Presence of Active GA and Causes Dwarfism When Overexpressed in Poplar and Arabidopsis. Int. J. Mol. Sci. 2023, 24, 6789. https://doi.org/10.3390/ijms24076789

AMA Style

Chen Y, Zhang M, Wang X, Shao Y, Hu X, Cheng J, Zheng X, Tan B, Ye X, Wang W, et al. Peach DELLA Protein PpeDGYLA Is Not Degraded in the Presence of Active GA and Causes Dwarfism When Overexpressed in Poplar and Arabidopsis. International Journal of Molecular Sciences. 2023; 24(7):6789. https://doi.org/10.3390/ijms24076789

Chicago/Turabian Style

Chen, Yun, Mengmeng Zhang, Xiaofei Wang, Yun Shao, Xinyue Hu, Jun Cheng, Xianbo Zheng, Bin Tan, Xia Ye, Wei Wang, and et al. 2023. "Peach DELLA Protein PpeDGYLA Is Not Degraded in the Presence of Active GA and Causes Dwarfism When Overexpressed in Poplar and Arabidopsis" International Journal of Molecular Sciences 24, no. 7: 6789. https://doi.org/10.3390/ijms24076789

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
