2. Results
- (A)
Analysis flowchart
One hundred and twenty-two patients with a heterozygous likely pathogenic or pathogenic variant (class 4 or 5, according to ACMG; [
4]) in one of the known albinism genes were included in this study and analyzed by WGS (27 patients) or using our NGS albinism panel (99 patients).
Variants located in the exons and introns of the albinism genes were selected and first filtered according to their frequency in the general population with a threshold fixed at a maximum of 0.1% in the gnomAD database (
https://gnomad.broadinstitute.org/ accessed on 17 June 2024). Various algorithms were used to predict a possible effect of the variants on RNA splicing (see
Section 4).
For 37 variants with a predicted splicing effect, parental segregation was performed whenever possible in order to determine whether this variant was in
cis or in
trans to the first class 4 or 5 variant identified in the patient. This was the case for 29 variants. Fourteen variants were found to be in
trans to the first variant and were subsequently functionally tested by RT-PCR and/or minigene assay, depending on whether the gene under consideration was expressed (
OCA2,
SLC45A2; [
10]) or not in blood cells, and whether blood-derived RNA samples were available or not for the patient.

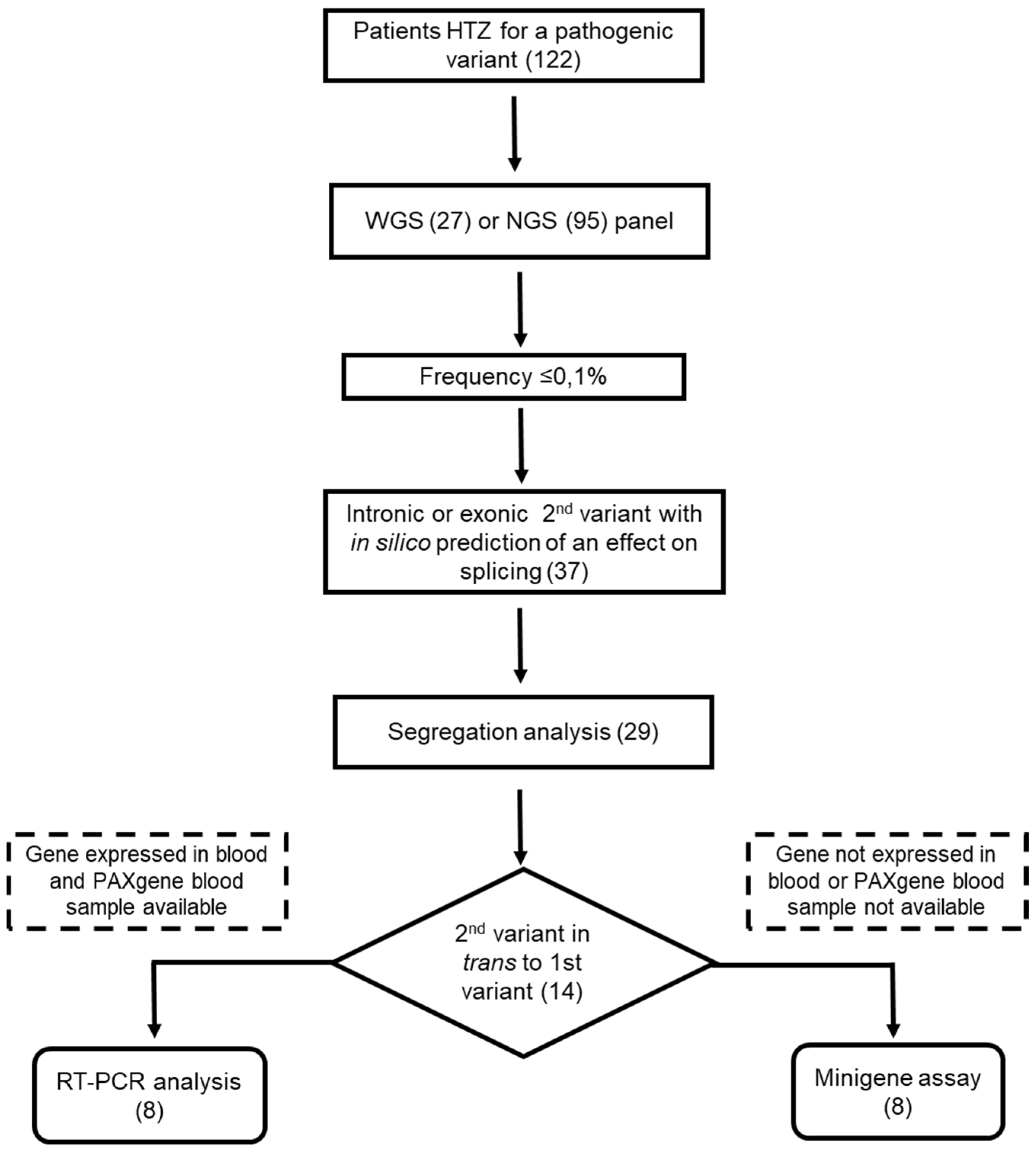

A flowchart of the analytical process is shown in
Figure 1.
- (B)
Functional studies of splice variants
- (1)
OCA2 variants
Patient 1 had a known pathogenic variant NM_000275.3:c.1503+5G>A inherited from his mother. We found a novel variant in intron 23, NM_000275.3:c.2433-22889T>A, inherited from his father, a rare variant in gnomADv3.1.2 (1 HTZ, 0 HMZ), which was not recorded in databases such as the Human Gene Mutation Database (HGMD Professional 2024.1) (
https://www.hgmd.cf.ac.uk/ac/search.php accessed on 17 June 2024) and ClinVar (
https://www.ncbi.nlm.nih.gov/clinvar accessed on 17 June 2024). This variant was predicted by various algorithms (see
Supplementary Table S1) to create a new cryptic splice acceptor site (c.2433-22888) and activate a cryptic splice donor site (c.2433-22728), triggering the inclusion of an intron 23-derived 159 bp pseudoexon, spanning coordinates chr15:g.27778359-27778201 (human hg38 reference, likewise throughout the work presented here), or NM_000275.3:c.2433-22887 to c.2433-22729 (

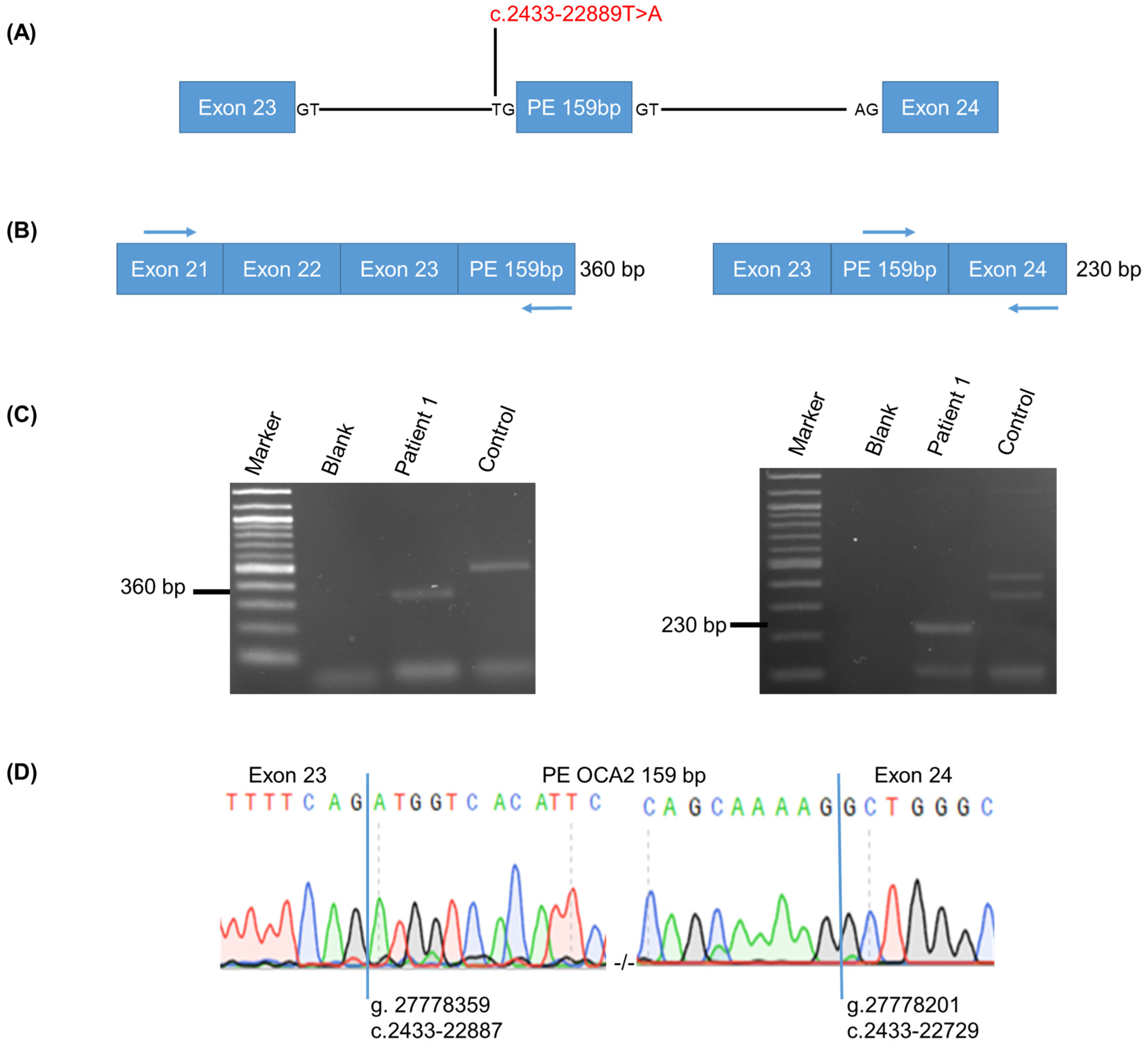

Figure 2A).
RT-PCR was performed on blood-derived RNA with primers designed on one hand in exon 21 and the predicted pseudoexon and, on the other hand, in the predicted pseudoexon and exon 24, which allowed for amplifying 360 bp and 230 bp fragments, respectively (
Figure 2B,C). Sanger sequencing of the two products revealed the expected pseudoexonic sequences and junctions between the pseudoexon and exons 23 and 24 (
Figure 2D). Insertion of the pseudoexon in the aberrant transcript was predicted to introduce a premature termination codon after 16 novel amino acids [NM_000275.3:c.2433-22889T>A; p.(Arg811_Leu812ins*17)] (
Supplementary Figure S1A) and was therefore classified as pathogenic, thus allowing to establish the diagnosis in the patient.
Additional fragments seen in the patient and control RT-PCR were not sequenced and were deemed non-specific products.
Patient 2 had the common exon 7 deletion [
11,
12] inherited from his father and a novel variant in intron 19 NM_000275.3:c.2080-158A>G inherited from his mother. This very rare variant (1 HTZ, 0 HMZ in gnomADv3.1.2) was absent from the Human Genome Mutation Database and ClinVar. It was predicted by various algorithms (SpliceAI-visual and RNAsplicer) (see
Supplementary Table S1) to activate both a potential cryptic splice donor site (c.2080-162) and a cryptic splice acceptor site (c.2080-286), triggering the inclusion of a 123 bp pseudoexon located in intron 19, spanning coordinates chr15:g.27872207-27872085 (hg38) or NM_000275.3:c.2080-285 to c.2080-163. Blood RNA was not available for this patient. A minigene assay (
Figure 3A) was designed by cloning in plasmid pSPL3B [
13] 727 bp fragments (chr15:g.27872508-27871782; NM_000275.3:c.2080-586 to c.2139+81) harboring either the wild type or the variant sequence. Of note, the cloned fragments contained exon 20 in order to include about 300–400 bp of DNA on either side of the variant position in our minigene assays. Following transfection in HeLa cells, RT-PCR was performed using primers derived from vector exons SD6 and SA2 (
Figure 3B).
A 446 bp fragment comprising the expected 123 bp pseudoexon in addition to exon 20 was amplified from cells transfected with the variant version (
Figure 3B,C right panel). Bands obtained with the wild type construct showed the following: the lower 263 bp band corresponded to the empty vector; the middle 323 bp band corresponded to correctly spliced exon 20 (
OCA2 exon 20 flanked by exons SD6 and SA2 of the pSPL3 vector) without a pseudoexon (
Figure 3C left panel); the upper 390 bp band could not be cloned and remained undetermined.
The 123 bp pseudoexon is in phase with the open-reading frame and is predicted to include 41 amino acids in the translated OCA2 protein between those encoded by exons 19 and 20 [c.2080-158A>G; p.(Glu693_Ala694ins41] (
Supplementary Figure S1B).
Since no experimental structure of OCA2 is available, ColabFold [
14] was used to build models of both wild-type and mutant proteins to visualize the structural impact of the 41-amino-acid insertion. The model with the highest confidence score was selected for detailed examination. This model indicates that the insertion affects the helical packing of the C-terminal scaffold and transport domains of the OCA2 protein, as evidenced by lower predicted Local Distance Difference Test (pLDDT) scores in this region compared to the wild-type protein (see
Figure 3D for pLDDT mapped model). Changes in the protein sequence through exon insertion or deletion can produce regions of the protein structure that lack or are in conflict with the evolutionary covariance signal used by AlphaFold2 to guide modeling. Such regions, therefore, might not be well captured by the predictive model, leading to reduced confidence scores in those regions. The regions with lower pLDDT scores suggest that the model is less certain about the precise 3D structure of the protein in those areas. This is because the inserted or deleted sequences might introduce structural variability or disrupt existing structural motifs. In this case, the C-terminal amphipathic helix (helices parallel to the membrane plane) becomes displaced (see
Figure 3E for a schematic comparison between the wild-type and variant proteins). This displacement could disrupt its role as a fulcrum that cradles the transport domain during state transitions [
15]. Although only the C-terminal side transport machinery is disrupted, transport activity could potentially be reduced or inhibited, as both the N-terminal and C-terminal work in tandem to translocate the substrate across the melanosomal membrane.

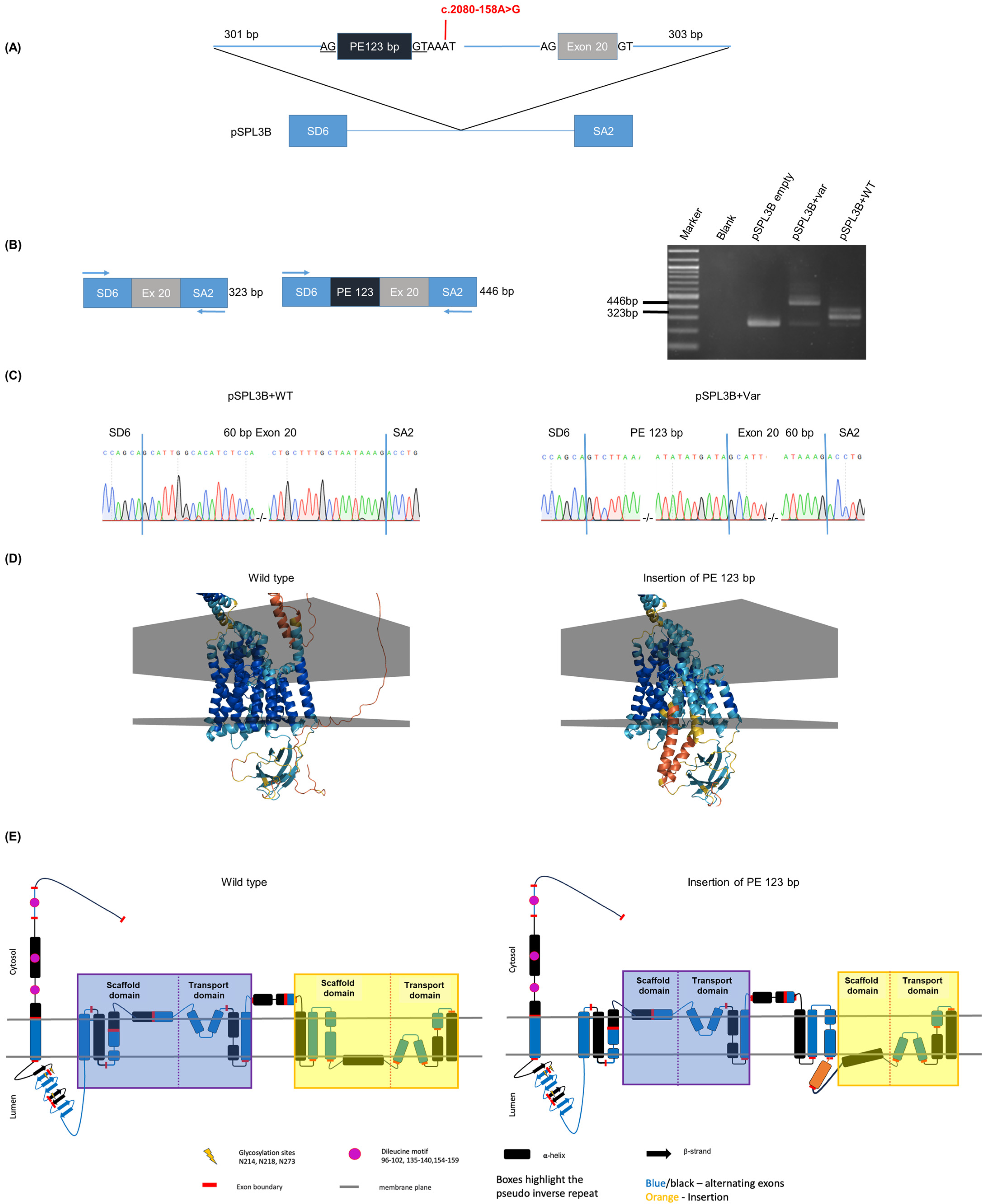

Figure 3.
Minigene assay of patient 2
OCA2 variant c.2080-158A>G. (
A) Schematic representation of the minigene construct in the vector pSPL3B to test variant c.2080-158A>G. A 727 bp long genomic segment encompassing 646 bp of intron 19 including the variant (in red) and putative pseudoexon (PE 123 bp) as well as exon 20 and 81 bp of intron 20 was cloned in the pSPL3B intron between vector exons SD6 and SA2. Consensus splice site AG and GT dinucleotides at the border of the pseudoexon are underlined. (
B) Schematic representations of the 323 bp RT-PCR product expected in the absence of inclusion of the pseudoexon and of the 446 bp product expected if the pseudoexon is included. The agarose gel on the right shows the RT-PCR products obtained with the empty vector with the wild-type (WT) insert and the insert carrying the variant (Var). Size marker is a 1 kb ladder. (
C) Sanger sequencing shows that the WT insert-derived 323 bp RT-PCR product contains only exon 20, and that the variant insert-derived 446 bp RT-PCR product contains exon 20 and the pseudoexon. Vertical blue bars indicate the junctions between exons. (
D) AlphaFold2 [
16] generated OCA2 models. Wild type on the left and variant on the right. Colored by pLDDT (predicted Local Distance Difference Test); blue (high) to red (low)—pLDDT score is a measure of confidence in the predicted structure of a protein. The score ranges from 0 to 100 with higher scores indicating higher confidence in the accuracy of the predicted structure for a particular region of the protein. Gray planes represent membrane boundaries and their positions predicted by the OPM server [
17]. (
E) OCA2 topology: wild type on the left and variant on the right. Wild-type topology adapted from [
15] with minor revisions based on new data.
Figure 3.
Minigene assay of patient 2
OCA2 variant c.2080-158A>G. (
A) Schematic representation of the minigene construct in the vector pSPL3B to test variant c.2080-158A>G. A 727 bp long genomic segment encompassing 646 bp of intron 19 including the variant (in red) and putative pseudoexon (PE 123 bp) as well as exon 20 and 81 bp of intron 20 was cloned in the pSPL3B intron between vector exons SD6 and SA2. Consensus splice site AG and GT dinucleotides at the border of the pseudoexon are underlined. (
B) Schematic representations of the 323 bp RT-PCR product expected in the absence of inclusion of the pseudoexon and of the 446 bp product expected if the pseudoexon is included. The agarose gel on the right shows the RT-PCR products obtained with the empty vector with the wild-type (WT) insert and the insert carrying the variant (Var). Size marker is a 1 kb ladder. (
C) Sanger sequencing shows that the WT insert-derived 323 bp RT-PCR product contains only exon 20, and that the variant insert-derived 446 bp RT-PCR product contains exon 20 and the pseudoexon. Vertical blue bars indicate the junctions between exons. (
D) AlphaFold2 [
16] generated OCA2 models. Wild type on the left and variant on the right. Colored by pLDDT (predicted Local Distance Difference Test); blue (high) to red (low)—pLDDT score is a measure of confidence in the predicted structure of a protein. The score ranges from 0 to 100 with higher scores indicating higher confidence in the accuracy of the predicted structure for a particular region of the protein. Gray planes represent membrane boundaries and their positions predicted by the OPM server [
17]. (
E) OCA2 topology: wild type on the left and variant on the right. Wild-type topology adapted from [
15] with minor revisions based on new data.
![Ijms 25 08657 g003]()
According to ACMG criteria, this variant was classified as likely pathogenic (PM2 PM3 PM4), thus allowing to establish the diagnosis in the patient.
Patient 3 had variants NM_000275.3:c.2339G>A; p.(Gly780Asp) and NM_000275.3:c.1951+1215G>T; p?, which is a very rare variant (2 HTZ, 0 HMZ in gnomADv3.1.2) located in intron 18 of the gene. Bioinformatic predictions using the RNA-Splicer software and SpliceAI-visual (see
Supplementary Table S1) suggested that this variant could activate a cryptic acceptor splice site (c.1951+1219) and a cryptic donor splice site (c.1951+1296), thereby including an intron 18-derived 77 bp pseudoexon (chr15:g.27950564-27950488) with a premature stop codon in the
OCA2 transcript after 17 amino acids. RT-PCR performed with primers located in exons 16 and 23 showed inclusion of the pseudoexon, as previously described by us [
11]. We confirmed this result by a minigene assay in which an 805 bp genomic fragment encompassing the putative pseudoexon was cloned in the pSPL3B vector. The mutated insert led to a 340 bp product that contained the 77 bp pseudoexon (

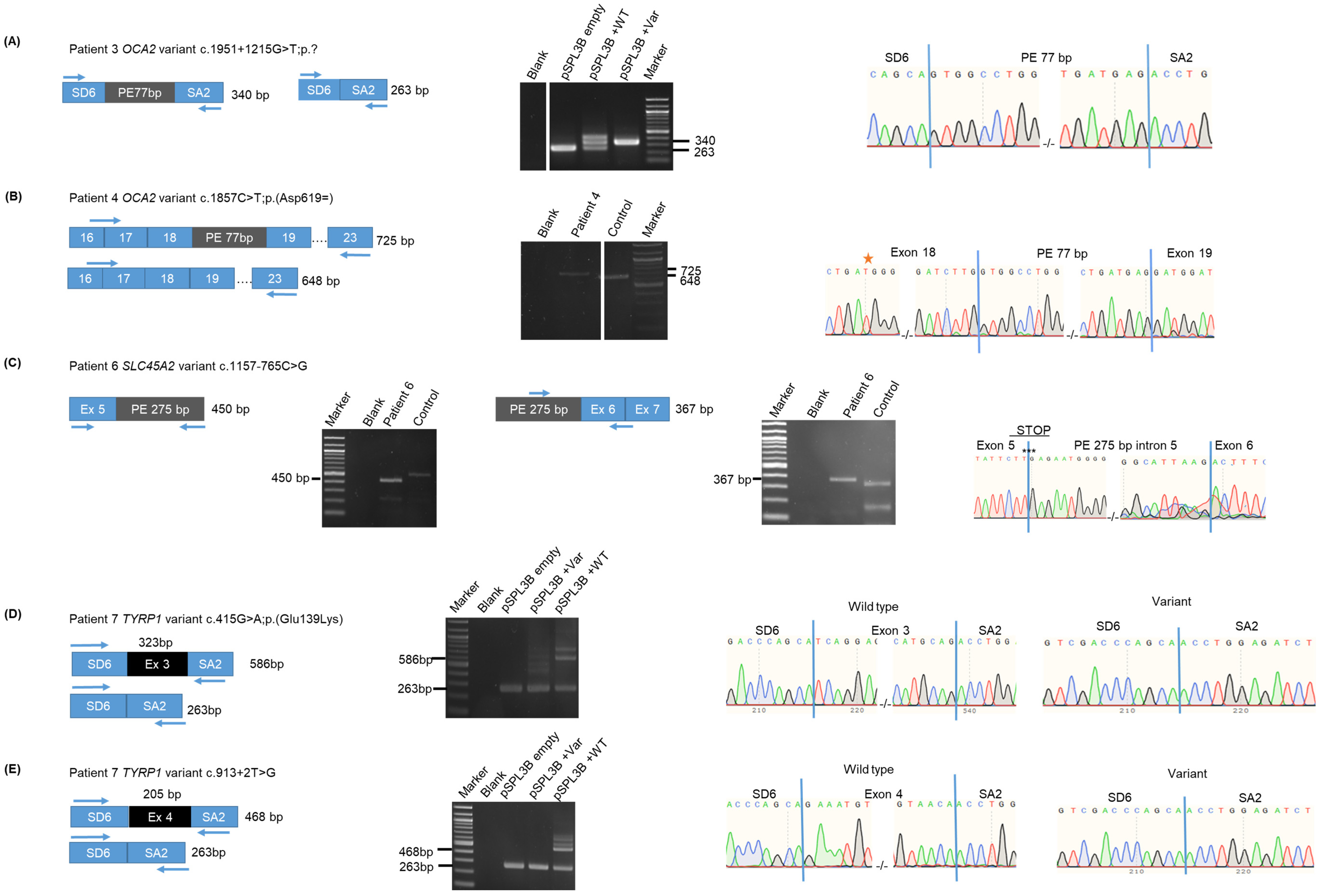

Figure 4A). The wild-type insert assay produced several bands, including the expected empty vector-derived 263 bp RT-PCR product. The 340 bp band containing the 77 bp pseudoexon was also observed, indicating that some leakage may occur, leading to inclusion of this pseudoexon in a proportion of the transcripts, which is a situation that can occur due to the artificial nature of the minigene assay. The upper 400 bp remained of undetermined origin, as its sequence did not blast to any vector or human sequence. Altogether, these functional assays showed that the NM_000275.3:c.1951+1215G>T;p? variant triggered the inclusion of a 77 bp pseudoexon (g.27950564-27950488) in the
OCA2 RNA. Translation of the pseudoexon was predicted to hit a premature stop codon after 17 amino acids, thus producing a truncated P protein [NP_000266.2:p.(Gly651_Trp652ins*18]. This variant was therefore classified as pathogenic (PVS1 PS3 PM2 PM3), allowing to establish the OCA 2 diagnosis in this patient.
Patient 4 had the pathogenic variant NM_000275.3:c.1327G>A; p.(Val443Ile) inherited from his mother and variant NM_000275.3:c.1857C>T; p.(Asp619=) inherited from his father. This rare synonymous variant (247 HTZ, 0 HMZ in gnomAD3.1.2) was predicted by SPiP to impair an exonic splicing regulatory element with 30.67% by the RNAsplicer to decrease both the 5′ splice site (ss) and 3′ ss consensus sites with the same score (0.9956), leading to exon 18 skipping. RT-PCR performed with exon 16- and 23-derived primers did not show the expected band at 616 bp corresponding to exon 18 skipping. Instead, a 725 bp band was observed (
Figure 4B), which upon sequencing displayed the presence of exon 18 with the paternal T variant at position 1857 and inclusion of the same intron 18-derived 77 bp pseudoexon as that observed in Patient 3, although patient 4 does not carry the NM_000275.3:c.1951+1215G>T; p? variant. No RNA sample from the patient’s father was available to confirm this finding. This result suggested that the synonymous variant NM_000275.3:c.1857C>T; p.(Asp619=) did not induce exon 18 skipping. However, RNA expressed from the paternal allele included a pathogenic pseudoexon with a premature stop codon in the aberrant transcript, which allowed establishing the diagnosis. Whether or not NM_000275.3:c.1857C>T;p.(Asp619=) was involved in the mechanism leading to inclusion of the pseudoexon will require the analysis of more patients harboring this variant.
Patient 5 had NM_000275.3:c.1117-17T>C inherited from the unaffected father and NM_000275.3:c.1031T>C; p.(Leu344Pro), which is a class 4 likely pathogenic variant (Richard et al., 2015). The mother was not available for segregation analysis. c.1117-17T>C (1601 HTZ, 2 HMZ in gnomADv3.1.2), located in intron 10, was considered a VUS as no splicing effect was predicted by any of the prediction algorithms used (see
Supplementary Table S1). However, this variant was found in
trans of the pathogenic or likely pathogenic
OCA2 variant c.1031T>C;p.(Leu344Pro) in several patients addressed for albinism diagnosis to our laboratory (unpublished results). We therefore decided to investigate a potential effect of c.1117-17T>C on
OCA2 RNA splicing. RT-PCR performed on RNA extracted from the patient’s blood cells using primers located in exons 9 and 12 showed three bands at 353 bp, 287 bp and 215 bp (

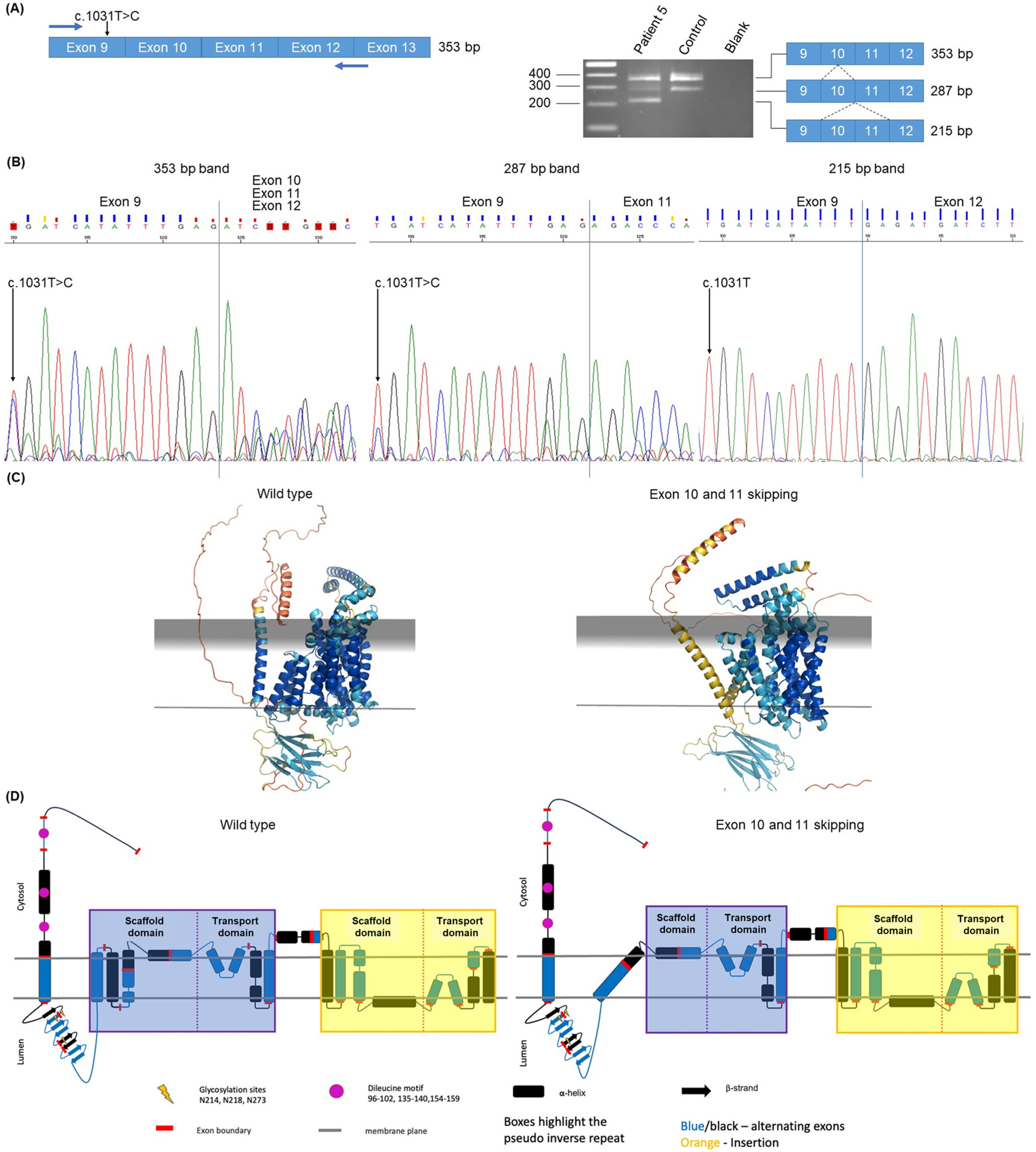

Figure 5A), which were excised from the agarose gel and Sanger sequenced. Sequencing of the 215 bp band showed a mix of three products derived from the paternal allele giving rise to exon 10 and 11 skipping (
Figure 5B): one product with normal exon 10 and 11 splicing that was probably not derived from the paternal allele since it carried the c.1031C allele, one derived from the paternal allele with exon 10 and 11 skipping, and one product with exon 10 skipping.
The exclusion of
OCA2 exons 10 and 11 was predicted by the open-source protein-modeling tool Protter (
http://wlab.ethz.ch/protter/ accessed on 14 September 2023) to remove three transmembrane domains and to disorganize the remaining domains in the OCA2 protein compared to wild type. Models were also built for this variant using the same methods described for patient 2. The modeling indicated that the deletion of exons 10 and 11 impacts the helical packing of the N-terminal side scaffold and transport domains, which can be seen by the lower pLDDT scores in that region (
Figure 5C).
Figure 5D visualizes the topological impact of the deletions on the N-terminal scaffold domain—the rigid structure formed by transmembrane and amphipathic helices at the N-terminal scaffold side has been lost. This disruption of the structural integrity of the scaffold domain could severely affect its role to act as a fulcrum that cradles the transport domain as it transitions from state to state, thus causing a reduction or total abolishment of transporter activity.
These results altogether suggested that c.1117-17T>C; p.(Ile349_Met394del) was likely pathogenic (PS3, PM3, BS3 according to ACMG), thus allowing to establish the OCA2 diagnosis in the patient.
- (2)
SLC45A2 variants
Patient 6 had in
SLC45A2 a pathogenic variant NM_016180.5:c.264del; p.(Gly89Aspfs*24) inherited from her mother and a novel variant NM_016180.5:c.1157-765C>G inherited from her father. This deep intron 5 variant was absent from gnomADv3.1.2 and was not recorded in the Human Gene Mutation Database and ClinVar. It was predicted by RNA Splicer to create a new splice donor site (c.1157-764) that could recruit a cryptic splice acceptor site at position c.1157-1041, thereby defining a 275 bp pseudoexon. Two RT-PCR experiments were performed on blood-derived RNA with primers designed (i) in exon 5 and the predicted pseudoexon and (ii) in the predicted pseudoexon and at the exons 6–7 junction (
Figure 4C). 450 bp and 367 bp fragments were amplified, the Sanger sequencing of which confirmed the presence of the expected pseudoexon between exons 5 and 6. Inclusion of the pseudoexon was predicted to create a STOP codon (TGA) immediately after exon 5. This variant NM_016180.5:c.1157-765C>G; p.(Tyr386*) was therefore classified as pathogenic, allowing to establish the diagnosis of OCA 4 in this patient.
- (3)
TYRP1 variants
Patient 7 had two variants in
TYRP1, NM_000550.3:c.415G>A; p.(Glu139Lys) inherited from his mother and NM_000550.3:c.913+2T>G; p? inherited from his father. The rare (54 HTZ, 0 HMZ in gnomADv3.1.2) missense variant NM_000550.3:c.415G>A; p.(Glu139Lys) was predicted by RNA Splicer to create an alternative splicing acceptor leading to aberrant splicing or total skipping of exon 3. SpliceAI predicted the loss of the 3′ consensus acceptor splice site, and SPiP predicted the alteration of an exonic splicing regulatory element with 47.89% probability. NM_000550.3:c.913+2T>G, p? was predicted to trigger exon 4 skipping. Minigene assays were performed in order to analyze the effect of these two variants on splicing (
Figure 4D,E). Analysis of NM_000550.3:c.415G>A (
Figure 4D) showed various products in the variant vector transfected cells with a major 263 bp band corresponding to exon 3 skipping. Additional fragments comprised one at about 586 bp and two at about 400 and 500 bp in size. We did not manage to sequence these bands. One of the ~400 and ~500 bp bands may correspond to the aberrant splicing of exon 3 predicted by RNA Splicer. The 586 bp product likely corresponded to the normal splicing of exon 3, since the same product obtained with the wild-type vector was shown by Sanger sequencing to include exon 3. The 263 bp band corresponding to exon 3 skipping was also seen with the wild-type vector but with a lesser intensity than with the variant vector. This is unsurprising with the artificial minigene system known to produce unexpected bands (see for illustrative examples [
18,
19,
20]) such as the upper ~750 bp band observed in the same lane. This may alternatively reflect a propensity of exon 3 for skipping in a proportion of transcripts, although this is not documented in Genotype-Tissue Expression (GTEx,
https://gtexportal.org/home/gene/TYRP1#gene-transcript-browser-block, accessed on 17 June 2024).
In total, the NM_000550.3:c.415G>A variant gave rise to abnormal splicing products, with a majority corresponding to exon 3 skipping, and some possibly corresponding to other aberrant splicing events. Only a very low proportion of transcripts, if any, may retain exon 3. The aberrant transcript with exon 3 skipping, would lead, if translated, to a frameshift by changing the valine to glycine at position 129 in exon 2 followed by a premature termination codon after 22 novel amino acids NM_000550.3:c.415G>A; p.(Val129Glyfs23*) (
Supplementary Figure S1C) and was classified as pathogenic. We therefore considered that the pathogenicity of this variant was caused by its effect on splicing rather than its missense effect on the TYRP1 protein.
The second variant observed in patient 7, NM_000550.3:c.913+2T>G, p?, was already classified as pathogenic according to ACMG criteria. We confirmed this by a minigene assay, which unequivocally demonstrated exon 4 skipping (
Figure 4E), since only the 263 bp band was obtained with the variant vector. The aberrant transcript would lead, if translated, to a frameshift followed by a premature stop codon [c.913+2T>G; p.(Glu237Alafs80*)] (
Supplementary Figure S1D).
- (4)
HPS1 variants
Patient 8 was compound heterozygous for a known pathogenic HPS1 variant NM_000195.5:c.972dupC; p.(Met325Hisfs*128) inherited from his mother and a novel VUS NM_000195.5:c.1599-16T>G inherited from his father. The latter variant was absent from gnomADv3.1.2 and was not predicted by any software to alter splicing. Specific platelet electron microscopy showed an absence of dense granules, which was consistent with Hermansky–Pudlak syndrome.
Since
HPS1 is expressed in blood leukocytes, we studied the c.1599-16T>G variant by RT-PCR on blood-derived RNA. This showed normal splicing of exon 17 (

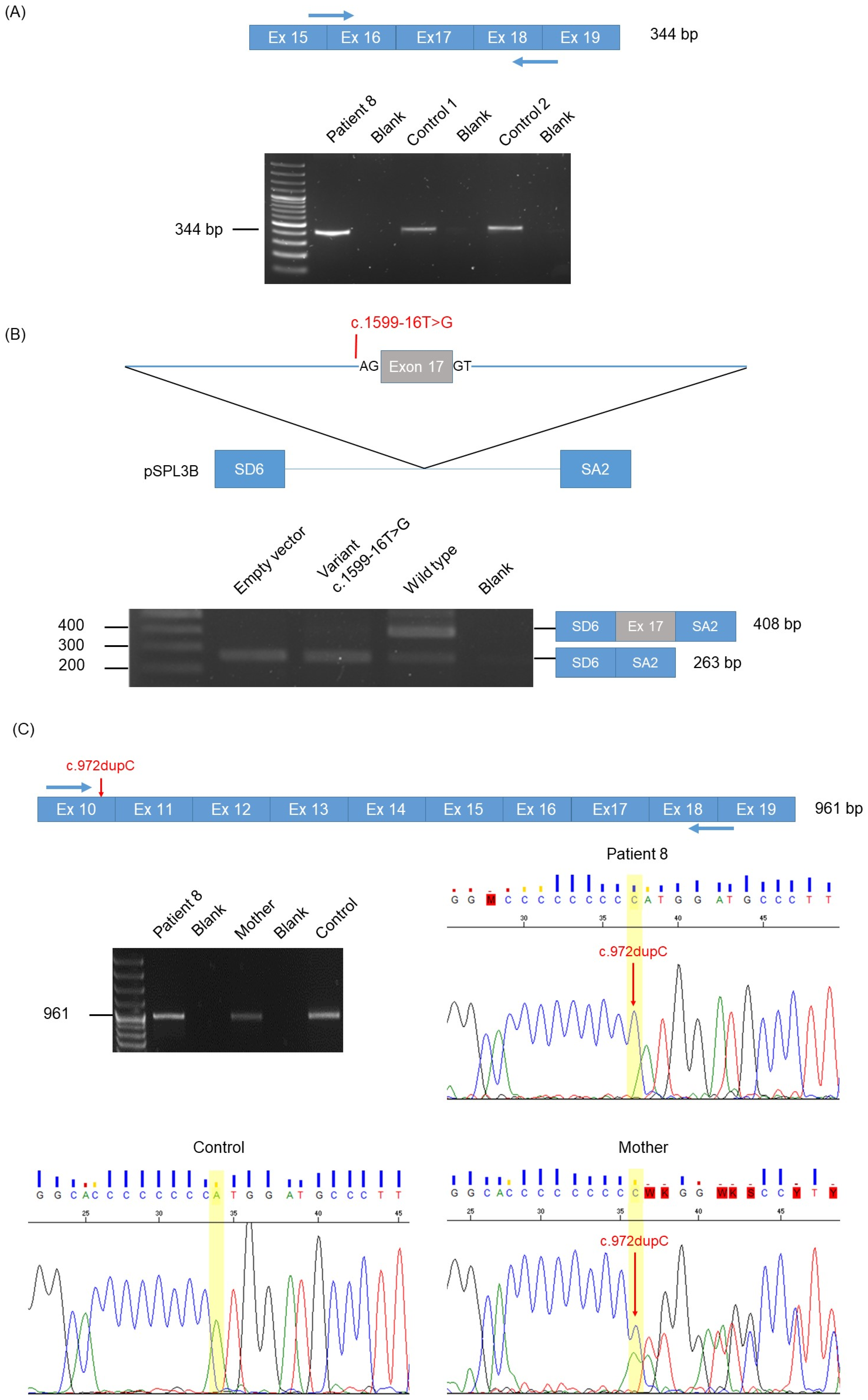

Figure 6A). We decided to further test this variant by a minigene assay, which displayed a single band at 263 bp, thus indicating exon 17 skipping (
Figure 6B). Of note, the wild-type construct showed two bands: one consistent with normal splicing of exon 17 and one with exon 17 skipping, thus indicating that this exon may be prone to alternative splicing. Exon 17 skipping causes a reading frameshift followed by a premature stop codon after 74 amino acids in the aberrant transcript [c.1599-16T>G; p.(Ala170Profs75*)] (
Supplementary Figure S1E).
In order to confirm exon 17 skipping, we designed a second RT-PCR assay with primers located in exon 10 where the c.972dupC; p.(Met325Hisfs*128) lies and at the junction between exons 18 and 19 (
Figure 6C). Gel electrophoresis revealed a unique PCR product at 961 bp also found in the control and the patient’s mother that corresponded to the normal transcript, i.e., including exon 17. Sanger sequencing (i) confirmed the presence of exon 17, and (ii) displayed the c.972dupC variant nucleotide only, thus demonstrating that the c.1599-16T>G variant-derived transcripts, which would not harbor the c.972dupC, were degraded. Altogether, our data demonstrated that c.1599-16T>G; p.(Ala170Profs75*) caused exon 17 skipping, thereafter resulting in the RNA degradation by non-sense-mediated RNA decay.
- (5)
Variants for which no splicing effect was detected.
Patients 9, 10 and 11 presented rare
OCA2 (patients 9 and 11) and
TYR (patient 10) intronic variants in
trans to a first heterozygous variant. In the absence of available blood samples, these were tested by minigene assay. None of them showed an effect of splicing (see
Supplementary Figure S3).
Patient 12 was previously diagnosed with OCA 1 [
11]. Since he had recurrent episodes of epistaxis, a double diagnosis for a syndromic form of the disease was suspected. The patient was found to have two rare synonymous
AP3D1 variants, NM_001261826.3:c.867G>T; p.(Ser289=) in exon 10 (3 HTZ, 0 HMZ in GnomAD3.1.2) and NM_001261826.3:c.3486G>A; p.(Val1162=) in exon 31 (87 HTZ, 0 HMZ in gnomAD3.1.2). Both variants were strongly predicted by SPiP to alter an exonic splicing regulatory element (69.33% and 54% probabilities, respectively), potentially causing exon 10 and exon 31 skipping. These variants were tested by RT-PCR on blood-derived RNA, as the gene is ubiquitously expressed. No evidence of exon skipping was observed for these variants (
Supplementary Figure S3). This allowed us to exclude a diagnosis of HPS 10 in this patient.
3. Discussion
Coding variants represent the vast majority of disease-causing single nucleotide variations. However, numerous non-coding variants located deep into the genes’ introns or in flanking sequences and altering either RNA splicing or gene expression have been documented as pathogenic. Molecular analysis of patients with albinism allows an ~70% diagnostic rate [
3]. About half of the 30% unsolved patients are heterozygous for a likely pathogenic or pathogenic variant in one of the known albinism genes. We therefore investigated the possibility that the missing variant is located in the introns or the flanking regulatory sequences, which remained unexplored so far.
In the present study, we analyzed 122 heterozygous patients with albinism either by whole genome sequencing or by the use of our next-generation sequencing panel that includes the entire sequence of the
TYR,
OCA2,
SLC45A2,
GPR143 and
HPS1 genes (exons, introns, flanking sequences) (see [
11]). Variants with a minor allele frequency ≤ 0.001 were selected.
Among those, 37 variants with a probable effect on RNA splicing predicted by various software were identified in 34 patients: 27 patients had 1 variant, 3 had 2 variants and 4 had 3 variants.
For 14 variants, parental segregation analysis showed that the new variant was in
trans to the pathogenic variant initially found in the patient. These variants were tested by RT-PCR and/or minigene assays to look for an effect on RNA splicing. RT-PCR on blood-derived RNA was performed for genes expressed in that tissue, i.e.,
HPS1 and
AP3D1 (
https://gtexportal.org/home/ accessed on 17 June 2024), as well as
OCA2 and
SLC45A2, which are expressed in blood cells at low levels, but these were sufficient to allow RT-PCR studies [
10]. Minigene assays constitute a valuable alternative when the gene is not expressed in blood cells (e.g.,
TYR,
TYRP1) and skin biopsies are not available and in cases where the gene is expressed in blood cells but adequate samples (PAXgene tubes in our experience) are not available. In this study, six variants were investigated by RT-PCR only, six were investigated by minigene assay only, and two were investigated by both RT-PCR and minigene assay.
Nine variants had a proven effect on splicing, four of which were explored by RT-PCR only, three by minigene only, and two by both RT-PCR and minigene. Five variants were in
OCA2 [NM_000275.3:c.1117-17T>C; p.(Ile349_Met394del) NM_000275.3:c.2080-158A>G; p.(Glu693_Ala694ins41), NM_000275.3:c.2433-22889T>A; p.(Leu812Trpfs17*), NM_000275.3:c.1951+1215G>T; p.(Gly651_Trp652ins*18), NM_000275.3:c.1857C>T; p.(Asp619=)], 2 were in
TYRP1 [NM_000550.3:c.415G>A;p.(Glu139Lys), NM_000550.3:c.913+2T>G, p.(Glu237Alafs80*)], 1 was in
SLC45A2 [NM_016180.5:c.1157-765C>G; p.(Tyr386*)], and 1 in
HPS1 (NM_000195.5:c.1599-16T>G,p.(Ala170Profs75*). Notably, AlphaFold 2 models [
16] proved instrumental in providing detailed molecular explanations for the functional defects introduced by the splicing differences.
One variant was at a consensus splice site, two were close to exon–intron junctions (<20 bp into an intron), and four were located deep into an intron, thus indicating that whole gene sequencing is instrumental in identifying pathogenic variants in albinism genes.
One variant was a synonymous variant (NM_000275.3:c.1857C>T; p.Asp619=) (patient 5), which did not trigger exon 18 skipping as predicted by various software, but was associated with the inclusion of an intron 18-derived pseudoexon. It is unclear (i) if and how this variant is directly involved in the mechanism leading to inclusion of this pseudo-exon, (ii) if it is in cis with another so far undetected variant that causes inclusion of the pseudoexon, or (iii) if the pseudoexon constitutes an alternative splicing event of the OCA2 RNA. Analysis of more patients harboring this variant will be necessary to clarify this.
One missense variant, NM_000550.3:c.415G>A; p.(Glu139Lys), was predicted by various bioinformatics tools to alter the splicing of
TYRP1 exon 3. A minigene assay demonstrated exon 3 skipping. Examples of missense variants whose pathogenic effect is in fact due to altered RNA splicing have already been published [
7].
Minigene assays are performed by essence in a non-physiological context. In particular, the HeLa cells used here do not express the genes under study. We therefore also performed the minigene assay of variant OCA2 NM_000275.3:c.1951+605G>T in MNT1, which is a commonly used melanocyte cell line. The same result as that in HeLa cells was obtained. It will be interesting, however, to compare results obtained with more variants, located in OCA2 or other albinism genes, in these or other cell lines.
The functional tests presented here allowed establishing the diagnosis of albinism in eight patients. In addition, some variants were found in other patients among the 122 analyzed in this study.
OCA2 variant NM_000275.3:c.2433-22889T>A was found in the compound heterozygous state with NM_000275.3:c.1327G>A; p.(Val443Ile) in a patient, the diagnosis of whom was therefore established. Of note, NM_000275.3:c.2433-22889T>A was also compound heterozygous in patient 11 with NM_000275.3:c.1951+605G>T, which did not show any splicing effect in the minigene assay (in both HeLa and MNT1 cells) (see
Supplementary Figure S2). It would have been interesting to investigate this variant further by RT-PCR on blood-derived RNA, but unfortunately, an appropriate sample could not be obtained for patient 11. This variant remains a VUS and the patient is still unsolved, but finding the pathogenic NM_000275.3:c.2433-22889T>A encourages searching for the second pathogenic variant in this gene.
Variant NM_000275.3:c.1951+1215G>T was found in trans to likely pathogenic variant NM_000275.3:c.2339G>A; p.(Gly780Asp) in the brother of patient 3 and in another unrelated patient, thus allowing to establish the diagnosis. Of note, the three patients originate from Mali, in western Subsaharan Africa.
OCA2 variant NM_000275.3:c.1117-17T>C, initially identified in patient 5 was found in another patient from this series in
trans to likely pathogenic variant NM_000275.3:c.1320G>C; p.(Leu440Phe), allowing to establish the diagnosis. Quite strikingly, c.1117-17T>C was also found in four patients from our larger cohort [
21], in whom an
OCA2 pathogenic variant is present. In two of those, segregation analysis showed that c.1117-17T>C was in
trans to the other, thus establishing the diagnosis. For the remaining two patients, the phase remained undetermined because the parents were not available. NM_000275.3:c.1117-17T>C stands out as a recurrent variant in OCA 2 patients.
Altogether, this study allowed us to establish the diagnosis in 12 patients, representing 9.8% (12/122) supplementary diagnosis for formerly unsolved patients. This percentage is higher if one considers only the 34 patients (35.3%; 12/34) in whom variants with an in silico predicted effect on RNA splicing were identified, and it attains 75% if one solely considers the 12/16 patients in whom the candidate variant was found in trans to the first pathogenic variant.
The limitations of the work presented here are mainly technical. Blood cells express the
OCA2 (OCA 2) and
SLC45A2 (OCA 4) genes [
10] as well as the Hermansky–Pudlak and Chediak–Higashi genes at sufficient levels to allow RT-PCR analyses. This seems not to be the case for the other genes, especially those coding for the melanogenic enzymes TYR, TYRP1 and DCT. It would, however, be useful to evaluate the feasibility of RT-PCR assays for all the albinism genes in the future. For the genes not expressed in blood cells, obtaining melanocytes from skin biopsies is the main alternative, but this may be not accepted, in particular for children. Hair bulbs could also be used and are more accessible. In the cases where RT-PCR cannot be performed, minigene assays must be performed. These are somewhat more challenging, although they involve standard molecular biology techniques commonly performed in research laboratories. Transferring these assays to clinical laboratories constitutes the next step forward and requires installing specific setups in these laboratories. Both the RT-PCR and minigene approaches may lead to false negative results, thus reflecting their biological limitations. RT-PCR assays may indeed not allow identifying the abnormally spliced RNA due to non-sense-mediated RNA decay, as shown in patient 8. Minigene gene assays are by essence artificial since only a short genomic segment encompassing the variant is analyzed and transfected in cells that may not normally express the gene under study, as is the case for melanogenic genes in HeLa cells. Although changing to the MNT1 melanocyte cell line gave the same result in our hands, using this cell line may be valuable in some instances. Switching to retinal pigmented cells may also be relevant, since a cell-specific (retinal vs. skin-derived) splice factor may be involved, thus leading to different results in different cell lines.
This study shows that searching for non-coding variants and testing those, as well as exonic ones (synonymous, missense), for an effect on RNA splicing is warranted in order to increase the diagnostic rate in patients with albinism. The work presented here is novel for patients with albinism, as no such systematic approach to analyze splice variants has been reported before. First of all, this study demonstrates that the sequencing of whole genes, as we did here with our current diagnostic panel that contains the entirety of five major albinism genes (TYR, OCA2, SLC45A2, GPR143 and HPS1), is instrumental in identifying deep intronic splice variants in these genes. We suggest this approach should be widely implemented by clinical laboratories and possibly extended to the other albinism genes, although these are less frequently mutated. Whole genome sequencing is an alternate possibility that allows searching for non-coding variants in all known albinism genes as well as in other candidate genes or in genes involved in differential diagnosis to albinism. Whether the sequencing of a panel including entire genes or of the whole genome should be performed is a choice for each laboratory, which is dictated by the type of sequencing equipment the laboratory has access to, by the data storage capability and by the cost of analysis, all remaining at the moment several orders of magnitude higher for whole-genome sequencing than for extended panel sequencing. Secondly our study demonstrated that the systematic functional analysis of variants (essentially intronic, but also intra-exonic for some of them) allowed to determine those having an effect on RNA splicing and the exact nature of this effect (i.e., exon skipping, inclusion of a pseudoexon). These tests have a cost at several levels (laboratory setup including bacterial and cell culture rooms, equipment, reagents and consumables, human resources), which is however counterbalanced by the increased diagnostic rate. This is especially crucial and critical when it comes to diagnosing a syndromic form of the disease.
It would be useful if other laboratories adopted a similar strategy to that described here in order to evaluate its operability in different contexts.
In conclusion, we recommend that entire genes are analyzed in order to be able to search for deep intronic variants altering RNA splicing. Our choice was to concentrate on rare variants for which segregation analysis showed they are in
trans to a first class 4 or 5 variant, thus limiting the number of variants to be tested for each patient. It should be noted, however, that searching for deep intronic variants may prove useful also for the ~15% of patients in whom no variant at all was found by sequencing the exons and exon–intron boundaries [
3], since it is possible that these patients harbor two non-coding pathogenic variants, or in consanguineous cases, one variant in the homozygous state. It is also worth reminding that not only very rare variants (MAF < 0.001) should be considered in rare diseases, since less rare variants may be involved, too. This is exemplified by the most frequent
CFTR pathogenic variant NM_000492.3:c.1521_1523del; p.(Phe508del) in cystic fibrosis (MAF~0.015 in Non-Finnish Europeans) and the
GJB2 variant NM_004004.5:c.35del; p.(Gly12ValfsTer2) in non-syndromic sensorineural deafness (MAF~0.01 in Non-Finnish Europeans).
An alternate and more direct way to analyze the effect of variants on RNA splicing is to perform transcriptome analysis by RNA sequencing. This technique enables seeing all RNA isoforms, physiological and aberrant, of all genes of interest at once, at both the qualitative and quantitative levels. This may constitute a particularly valuable perspective for patients in whom no pathogenic variant at all has been identified at the genomic level. This approach, however, as for RT-PCR analysis, requires access to a tissue in which the gene under consideration is expressed at a sufficient level. A limiting factor is also its cost.
Variants falling in genomic elements annotated as possible regulatory elements by ENCODE (
https://genome.ucsc.edu/cgi-bin/hgTracks?db=hg38, accessed on 17 June 2024) [
22] should be given full consideration, too. Indeed, pathogenic regulatory variants have been identified in several diseases [
21,
23], including albinism (see [
24,
25] for
TYR, and [
26] for
SLC45A2). This opens yet another research avenue.
The search for pathogenic variants should therefore extend to all gene elements (exons, introns, flanking sequences), and functional analysis should be deployed in order to improve the diagnosis rate of patients with albinism.
4. Materials and Methods
- (1)
Patients
Patients were referred for molecular diagnosis of albinism. All patients, or their parents in the case of minors, gave informed consent for genetic analysis. This study was approved by Bordeaux University Hospital (France) (CHUBX 2021/40; ClinicalTrials.gov ID NCT05696912).
- (2)
Albinism NGS panel sequencing
The 20 known albinism genes and the gene for FHONDA were analyzed (TYR, OCA2, TYRP1, SLC45A2, SLC24A5, LRMDA, DCT, GPR143, HPS1-11, LYST, SLC38A8). This included for all genes the exons and intron–exon junctions. The introns and flanking sequences were also analyzed for TYR (OCA1), OCA2 (OCA2), SLC45A2 (OCA4), GPR143 (OA1), and HPS1 (HPS1). Coordinates of all sequences included are defined by comparison with the reference sequence GRCh38 and are available upon request.
Library preparation, capture, enrichment and elution were performed according to the manufacturer’s protocol (SureSelect XT HS Custom; Agilent Technologies). Each sample was sequenced in 75 bp paired-end reads on an Illumina NextSeq550Dx sequencer (Illumina). Alignment on the reference sequence (GRCh38) and variant calling (Single Nucleotide Variants and Copy Number Variants) were performed with Alissa Reporter (Agilent Technologies). Annotation and filtering of the variants were carried out with Alissa Interpret (Agilent Technologies). The sequence of the selected variants was visualized using Alamut Visual Plus (Sophia Genetics). A sample quality data check was performed. Sample identification was performed using the EasySeq™ Human WES WGS Sample Tracking Kit (Nijmegen) according to the manufacturer’s protocol. These identification libraries were then sequenced simultaneously with the Albinism NGS Panel custom libraries. A comparison of the identified SNP was performed with a bioinformatic in-house pipeline to confirm data integrity and validity. Details concerning the analytical method, bioinformatics analysis and versions of the tools and database used are available on request. Segregation analysis of the variants in the parents was performed by Sanger sequencing (BDT v3.1 on ABI3500xL Dx, Thermo Fisher Scientific, Bordeaux, France).
Minor allele frequency (MAF) was defined using the Genome Aggregation Database (gnomADv3.1.2) (
https://gnomad.broadinstitute.org/ accessed on 10 January 2024) with a threshold ≤0.001.
- (3)
Whole genome sequencing
Whole genome sequencing was performed by Integragen (Evry, France). PCR free Libraries are prepared with the NEBNext® Ultra™ II DNA Library Prep Kit according to the supplier’s recommendations. Key stages of the protocol are specific double-strand gDNA quantification, sonication of 300 ng of high molecular weight gDNA) to obtain approximately 400 bp fragments, and ligation of paired-end adaptor oligonucleotides (xGen® TS-LT Adapter Duplexes from IDT) on repaired, A-tailed fragments, which were then purified for direct sequencing without PCR step. Libraries are sequenced on an Illumina NovaSeqX as Paired-End 150 (2 × 150). Image analysis and base calling is performed using Illumina Real-Time Analysis with default parameters. Sequence reads are mapped to the human genome build (hg38) by using the Burrows–Wheeler Aligner (BWA) tool. Variant calling for the identification of SNVs (Single Nucleotide Variations) and small insertions/deletions (up to 20 bp) is performed via the Broad Institute’s GATK Haplotype Caller GVCF tool.
Ensembl’s VEP (Variant Effect Predictor, release VEP 101) program processes variants for further annotation. This tool annotates variants, determines the effect on relevant transcripts and proteins, and predicts the functional consequences of variants. It takes into account data available in the gnomAD, the 1000 Genomes Project and the Kaviar databases. An in-house database filters out sequencing artifacts.
Bioinformatics algorithms for pathogenicity prediction are DANN, FATHMM, MutationTaster, SIFT and Polyphen [
30,
31,
32,
33,
34]. The clinical and pathological significance from the ClinVar database
https://www.ncbi.nlm.nih.gov/clinvar, accessed on 15 December 2023) is added. The quality score, homozygote/heterozygote status, and count of variant allele reads are reported. RegulomeDB (
https://regulomedb.org/regulome-search/ accessed on 15 December 2023) [
35] is used to annotate SNPs in known and predicted regulatory elements in the intergenic regions.
The 96-SNP assay Advanta™ Sample ID Genotyping Panel is used to generate a sample-specific genetic fingerprint in order to confirm the identity between the results delivered and the DNA sample received.
Segregation analysis of the variants in the parents was performed by Sanger sequencing (BDT v3.1 on ABI3500xL Dx, Thermo Fisher Scientific).
- (4)
Primers
Primers were derived using the commonly used software Primer3 version 4.1.0 [
36]. This version contains advanced parameters to specify precise constraints for the primers, such as melting temperature (Tm), amplicons length of the amplicons, GC content, and the presence of secondary structures and of primer dimers. This tool allows for increased primers’ specificity and reduced non-specific amplification, and it is routinely used by us [
10].
- (5)
Sanger sequencing
The variants highlighted by whole genome analysis or targeted diagnostic panel analysis were confirmed by Sanger sequencing with a dual objective of validation and identity vigilance, thus guaranteeing the reliability of the sequencing data. Similarly, RT-PCR products and plasmids used in minigene assays were Sanger sequenced to establish their content and integrity. Sanger sequencing was performed using the Big Dye Terminator v3.1 kit on an ABI3500xL Dx (Thermo Fisher Scientific). Sequences analysis was carried out with the SnapGene Viewer tool (
https://www.snapgene.com/snapgene-viewer, accessed on 10 January 2024). This commonly used sequence visualization tool makes it possible to simulate molecular manipulations such as enzymatic digestions, ligations, PCRs and site-directed mutagenesis. Sequenced alignments were performed using BLAT (
https://genome.ucsc.edu/cgi-bin/hgBlat accessed on 10 January 2024).
- (6)
RT-PCR analysis
Total RNA was isolated from white blood cells, using the PAXgene Blood RNA kit (Qiagen), as indicated in the manufacturer’s protocol. First, 1 µg of total RNA from each sample was reverse-transcribed into cDNA using a cDNA synthesis Kit (Thermo Fisher Scientific). Reverse Transcription-PCR primers were designed (primer3 version 4.1.0;
https://primer3.ut.ee/, accessed on 10 January 2024) based on the MANE transcript of the mRNA under consideration (
HPS1: NM_000195.5;
OCA2: NM_000275.3;
SLC45A2: NM_016180.5;
AP3D1: NM_001261826.3;
TYR: NM_000372.5 and
TYRP1: NM_000550.3). Primers for RT-PCR and PCR conditions are provided in
Supplementary Table S1. PCR products were separated by 2% agarose gel electrophoresis and Sanger sequenced (Eurofins).
- (7)
Minigene assay
Genomic DNA was extracted from peripheral blood leukocytes. Both the wild-type and the variant alleles, flanked by 300–400 bp on each side (details are provided underneath for each variant under consideration), were PCR amplified and cloned in vector pSPL3B by homologous recombination [
13]. PCR products were prepared using the “In-Fusion HD Cloning kit with Cloning Enhancer Treatment” (Takara Bio) and recombined with a Not I linearized pSPL3B vector [
37]. The wild-type and mutant constructs were Sanger sequenced (Eurofins) to check the presence of the corresponding alleles. Implementation of the minigene assay (cell culture, transfection, reverse-transcription PCR) was performed as in [
10]. Details for constructions for each variant are given in
Supplementary Table S1.
- (8)
Protein modelization
Protein model building was performed using ColabFold v1.1.5 [
14] and implementation of AlphaFold2 [
16] on an Ubuntu 20.04.6 workstation AMD Ryzen Threadripper 2990WX 32 Core CPU (3.0 GHz) with 64 GB RAM. GPU acceleration was performed by an ASUS TUF GeForce RTX 3080 OC LHR 12GB GDDR6X Ray-Tracing Graphics Card, 8960 Core, 1815 MHz Boost. The ColabFold ‘template’ search was enabled along with the energy minimization refinement flag (‘amber’) and the GPU relax feature (--use-gpu-relax). The OPM server [
17] was used to position the OCA2 models into the lipid bilayer.
ClinVar Submission
Variants with an effect on splicing were deposited to ClinVar under numbers SCV005049509--SCV005049513 and SCV005049514 and SCV005049515.
