Formation and Structure of Highly Ordered Self-Assembled Monolayers on Au(111) via Vapor Deposition of Dioctyl Diselenides

by
Seulki Han
1,†,
Jin Wook Han
1,†,
Sicheon Seong
1,
Young Ji Son
1,
Riko Kaizu
2,
Glenn Villena Latag
2,
Tomohiro Hayashi
2,* and
Jaegeun Noh
1,3,*
1
Department of Chemistry, Hanyang University, 222 Wangsimni-ro, Seongdong-gu, Seoul 04763, Republic of Korea
2
Department of Materials Science and Engineering, School of Materials and Chemical Technology, Institute of Science Tokyo, Yokohama 226-8502, Japan
3
Research Institute for Convergence of Basic Science, Hanyang University, 222 Wangsimni-ro, Seongdong-gu, Seoul 04763, Republic of Korea
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Int. J. Mol. Sci. 2025, 26(18), 9192; https://doi.org/10.3390/ijms26189192
Submission received: 26 August 2025 / Revised: 10 September 2025 / Accepted: 19 September 2025 / Published: 20 September 2025
(This article belongs to the Section Physical Chemistry and Chemical Physics)
Browse Figures
Versions Notes

Abstract

The formation and growth processes of octaneselenolate (C8Se) self-assembled monolayers (SAMs) on Au(111) from dioctyl diselenides were investigated by scanning tunneling microscopy (STM) as a function of vapor deposition time at 363 K. STM observations revealed unique surface features of the C8Se SAMs on Au(111) prepared at 363 K for 1 h, consisting of various types of narrow, bright molecular rows and broad, bright molecular rows with three-directional orientations. After increasing the deposition time from 1 and 6 h, interestingly, the structural quality of C8Se SAMs is greatly enhanced, showing the formation of tri-directional highly ordered domains with distinct domain boundaries on an entire Au(111) surface. The observed ordered phase can be described by a (2 × 2√7)rect packing structure with an arial density of 28.9 Å2/molecule. C8Se SAMs at 363 K for 24 h consisted of long-range, highly ordered domains and large, disordered domains. The ordered phase can be described by a (√3 × √23)rect packing structure with an arial density of 23.3 Å2/molecule, which is denser than that of C8Se SAMs formed by vapor deposition at 363 K and for 6 h. This study clearly demonstrates that vapor deposition is a highly effective method for preparing highly ordered alkyl selenolate SAMs on Au(111). Furthermore, molecular-scale STM results provide new insights into the formation and growth processes of alkyl selenolate SAMs on Au(111) formed by vapor deposition of dialkyl diselenides at high temperatures.

1. Introduction

Self-assembled monolayers (SAMs) formed by the spontaneous adsorption of chemically active anchoring groups on solid surfaces are highly attractive and versatile molecular assemblies that can allow for easy control of surface and interface properties [1,2,3,4,5,6]. For example, precise control of surface and interface properties can be readily achieved by varying the anchoring groups, molecular backbone (aliphatic/aromatic), and terminal functional groups of the adsorbed molecules [7,8,9,10,11,12,13,14]. Therefore, SAMs have been widely used in many applications, such as biosensors [2,15], biointerface [2,16], batteries [17], thermoelectric devices [18], solar energy devices [19,20], and molecular electronic devices [1,2,21,22]. Organic thiols are the most widely used precursors for fabricating SAMs on gold surfaces because they can readily form ordered monolayers by forming S-Au bonds through chemical reactions between thiol anchoring groups and the gold surface [1,2,3,5,11,14]. In particular, SAMs formed by alkanethiols are a simple and excellent model system for understanding the molecular self-assembly behavior and structures of organic thiols on metal surfaces [2,3]. Scanning tunneling microscopy (STM) studies revealed molecular-scale features of alkanethiolate SAMs on Au(111) showing various structural phases depending on surface coverage [3,6,23,24,25,26,27]. Alkanethiolate SAMs on Au(111) were found to have a p × √3 structure at low surface coverage, whereas they have the (√3 × √3)R30° or c(4 × 2) structure at saturation coverage [3,6,23,24,25,26,27].
On the other hand, one of the problems with using organic thiols is that they can be oxidized in solution to disulfide or other oxidized groups during SAM formation, which leads to undesirable surface and interface properties of the SAMs [28,29]. To address this issue, new alternatives instead of thiols have been proposed that exhibit high chemical stability in solutions, such as organic thiosulfate [30], thioacetates [28,29,31], and thiocyanates [32,33]. However, SAMs formed by these precursors on gold surfaces generally exhibit inferior structural quality compared to SAMs formed by their corresponding thiol analogues. Additionally, SAMs formed by organic molecules containing selenium atoms, which belong to group 16 of the periodic table, such as sulfur atoms, have attracted considerable attention due to their unique physical, chemical and structural properties [4,12,34,35,36,37,38,39,40,41,42,43,44,45]. Theoretical studies have shown that the adsorption energy of the Se-Au bond in SAMs is stronger than that of the S-Au bond [4,34]. The theoretical results can also be supported by the fact that the reductive desorption of aliphatic or aromatic selenolate SAMs on Au electrodes occurs at a higher negative potential than that of thiolate SAMs [35]. Thermal desorption spectroscopy (TDS) measurements revealed that the main thermal desorption peak of CH3Se species in SAMs Au(111) surfaces appeared at 416 K via the cleavage of CH3Se–Au bonds, whereas that of CH3S species appeared at around 366 K via the cleavage of CH3S–Au bonds [36].
Surface structure, work function, and conductance of selenolate SAMs are significantly different from those of thiolate SAMs [37,38,39,40,41,42,43,44,45]. Interestingly, selenolate SAM-based molecular electronic devices were found to be much more stable and have much longer lifetimes than thiolate-based electronic devices, due to the formation of strong Se-Au bonds [37]. Molecular-scale STM studies revealed that the formation and structure of aliphatic and aromatic selenolate SAMs on Au(111) are also significantly different from those of thiolate SAMs with the same molecular backbone [40,41,42,43,44,45]. Aromatic and alicyclic selenolate SAMs on Au(111) have larger ordered domains with a few structural defects compared to the corresponding thiolate SAMs [41,42,43]. Meanwhile, although many STM studies for alkanethiolate SAMs on Au(111) have been reported to understand the molecular-scale surface properties of SAMs depending on the alkyl chain length and experimental conditions [2,3,6,23,24,25,26,27,46,47,48,49], few STM studies for alkaneselenolate SAMs formed from dialkyl diselenides have been reported [44,45]. STM observations revealed that dodecaneselenolate SAMs on Au(111) consist of closely packed local ordered domains exhibiting moiré patterns and linear missing-row domains, which have never been observed in alkanethiolate SAMs [44]. When typical SAM preparation conditions (1 mM concentration, room temperature, and 24 h deposition) were used, closely packed and well-ordered alkanethiolate SAMs exhibiting a c(4 × 2) structure were usually formed, whereas alkaneselenolate SAMs had only disordered phase [45]. On the other hand, loosely packed ordered SAMs with many structural defects were formed when diluted μM solutions and/or very short immersion times of less than 1 h were used [44,45]. It has been demonstrated that the formation and structure of ordered domains in alkanethiolate SAMs are significantly influenced by solvent properties [2,3,26,33,50]. It was also reported that the structural quality of alkaneselenolate SAMs on gold can be largely improved when formed from neat liquid of dialkyl diselenides, whereas less ordered SAMs were obtained when SAMs were formed in solutions, which means that solvent molecules significantly hinder the formation of selenolate SAMs [50]. Furthermore, it has been reported that the structural quality of alkaneselenolate SAMs on gold can be significantly improved when formed from a pure liquid of dialkyl diselenides, whereas less ordered SAMs are obtained when formed from solution [51]. Adsorption of octyl selenocyanates on Au(111) in a 1 mM ethanol solution resulted in poorly ordered SAMs, whereas vapor deposition resulted in the formation of highly ordered octyl selenocyanate SAMs [52]. These results suggest that solvent molecules significantly hinder the formation of selenolate SAMs. Therefore, we believe that vapor deposition technique is very effective in eliminating the negative side effects of solvents on the formation and structure of alkyl selenolate SAMs, as demonstrated in the formation of alkanethiolate or alkyl selenocyanate SAMs [52,53].
In this study, to extend and deepen the understanding of the formation and structure of alkyl selenolate SAMs on Au(111) by vapor deposition of dialkyl diselenides, the surface structure of SAMs of dioctyl diselenide [DODSe, C8Se–SeC8] formed on Au(111) at high temperatures and for various vapor deposition times was investigated using STM. Figure 1 shows the chemical structure of DODSe and the formation of octaneselenolate (C8Se) SAMs by vapor adsorption of DODSe on Au(111). Herein we report the molecular-scale STM results demonstrating the formation of highly ordered C8Se SAMs on Au(111) with a (2 × 2√7)rect packing structure by vapor deposition at 363 K for 6 h. Furthermore, this study clearly demonstrates that vapor deposition is a highly effective method for preparing well-ordered alkyl selenolate SAMs compared to solution deposition.

2. Results and Discussion

2.1. Formation of Short-Range Ordered C8Se SAMs on Au(111) from Vapor Deposition of DODSe at 363 K for 1 h

Spectroscopic measurements revealed that alkanethiolate (RS−, R = alkyl group) or alkaneselenolate (RSe−) SAMs on gold surfaces can be formed via dissociative adsorption of S–S bond cleavage of dialkyl disulfides [2,3,4,36,54] or Se–Se bond cleavage of dialkyl diselenides [24,36,44,55]. Theoretical studies also support experimental results showing that organic selenium molecules react with gold surfaces to form SAMs through the formation of Se-Au bonds [4,34]. Therefore, as demonstrated in previous many studies [2,3,4,44,45], it is reasonable to expect that the adsorption of DODSe (C8Se–SeC8) on Au(111) results in the formation of C8Se SAMs, as shown in Figure 1. Note that our reductive desorption measurements showed that C8Se SAMs were formed through chemical bond formation (Se–Au bond) between DODSe and the Au(111) surface via vapor deposition. Figure 2 shows STM image presenting the unique surface features of C8Se SAMs on Au(111) prepared via vapor deposition at 363 K for 1 h. Interestingly, large-scale STM image (400 nm × 400 nm) shows that several Au(111) terraces are completely covered by heterogeneous rows as a result of the formation of C8Se SAMs. The resulting SAMs consist of various types of narrow, bright rows (e.g., indicated by blue dotted ovals) and wide, bright rows (e.g., indicated by green dotted ovals), which have not been observed in other alkanethiolate or alkaneselenolate SAMs to date. In contrast, uniform rows with identical interrow distances were frequently observed over the entire Au(111) surface during the growth stage of alkanethiolate SAMs [6,23,46] or alkyl selenolate SAMs formed in ethanol solution [45]. The structural details will be discussed in Figure 3. In addition, tri-directional domain orientations with domain angles of 60° or 120° were observed on various Au terraces, as indicated by the white arrows in the STM image of Figure 2. The observed domain orientations closely follow the three-fold symmetry of the Au(111) lattice, suggesting a strong commensurable relationship between the C8Se SAM structure and the Au(111) lattice. Therefore, the formation of the C8Se SAMs is believed to be primarily driven by the chemical interactions between the Se anchoring groups and the Au(111) surface. Similar commensurable SAM structures have also been observed for alkanethiolate SAMs [25,26] alicyclic selenolate SAMs [43], and alkyl selenocyanate SAMs [52]. Previous works have also formalized that the formation of commensurable or incommensurable structures for adlayers on solid substrates can be determined by competitive interactions between molecule–molecule and molecule–substrate [56].
Enlarged STM image (120 nm × 120 nm) in Figure 3 shows that various types of ordered molecular rows for C8Se SAMs on Au(111) formed by vapor deposition at 363 K for 1 h. Figure 3 clearly reveals that the narrow, bright ordered rows in STM image of Figure 2 usually consist of single molecular rows (indicated by blue dotted ovals), whereas the wide, bright ordered rows consist of multiple molecular rows (indicated by green dotted ovals). In particular, the short-range ordered domains, labeled A, were formed after many molecular rows coalesced due to the growth of SAMs. Dark regions between the bright ordered rows were also observed, labeled B. The height difference between the ordered rows and the dark region B was found to be less than 1 Å, which is much smaller than molecular length of C8Se, 14.3 Å [45] or vacancy islands with a depth of 2.5 Å that often appeared from thioate or selenolate SAMs [2,3,4,5,6,7,25,26,33,36,43,52,53]. This result means that the dark region is not bare gold surface or vacancy islands. High-resolution STM image reveals the presence of molecular rows in the dark region indicated by blue arrows (within the white dotted rectangular box). Therefore, it is assumed that the octyl chains in C8Se SAMs in the dark region are more inclined toward the Au(111) surface, suggesting that the surface coverage in the dark region is lower than that in the bright region. This suggestion can be supported by the fact that loosely packed thiolate monolayers show darker imaging contrast than densely packed monolayers in STM observations [23,48,57]. Similar results showing a mixed phase containing dark and bright ordered domains were observed for octyl selenocyanate SAMs on Au(111) formed via vapor deposition 348 K for 6 h [52]. Therefore, the presence of these inhomogeneous surface features of C8Se SAMs formed at 363 K for 1 h strongly suggests that the C8Se SAMs have not yet reached a thermodynamically stable phase, since densely packed thiolate or selenolate SAMs on Au(111) have a very uniform surface showing long-range ordered domains [25,26,43,52]. On the other hand, despite numerous attempts to obtain molecular-level surface structures of C8Se SAMs formed at 363 K for 1 h, observing individual molecules in the molecular rows is extremely difficult. This is likely due to the lack of crystallinity of the C8Se SAMs, which can be supported by the presence of various structural phases as shown in Figure 3.

2.2. Formation of Highly Ordered C8Se SAMs on Au(111) from Vapor Deposition of DODSe at 363 K for 6 h

Fabrication of uniform SAMs with closely packed and long-range ordered phases is very important issue because it can provide highly reproducible physical and chemical properties of SAM-based devices [1,2,3,9,21,58]. Therefore, optimization of SAM fabrication conditions such as deposition method, deposition time and temperature is an important factor in obtaining highly ordered SAMs with a uniform surface [3,5,7,24,42,43,44,45,52]. To understand the effect of deposition time on the formation of C8Se SAMs on Au(111), the deposition time was increased from 1 h to 6 h at 363 K. The STM images in Figure 4 show the surface structures of C8Se SAMs on Au(111) formed at 363 K for 6 h. Molecular-scale STM observations clearly revealed a significant structural change in C8Se SAMs on Au(111) from domains with non-uniform molecular rows (Figure 3) to domains with uniform molecular rows (Figure 4) with increasing deposition time. STM images in Figure 4a,b show the formation of tri-directional well-ordered domains (labeled A) for C8Se SAMs with distinct domain boundaries after a longer deposition of 6 h. This is attributed to the enhanced van der Waals interactions between the octyl chains of the C8Se SAMs and the increased chemical interactions between the Se anchoring groups and the Au(111) surface as the surface coverage increased. After sufficient deposition time, highly ordered SAMs with clear domain boundaries have also been observed in various other thiolate and selenolate SAMs, although the molecular packing structures are different [3,11,25,26,43,52,53]. Meanwhile, the size of the well-ordered domains of C8Se SAMs was observed to be in the range of approximately 30 nm to 60 nm. The dark area indicated by white solid lines in Figure 4b corresponds to vacancy island typically observed in well-ordered thiolate or selenolate SAMs chemically adsorbed on the Au(111) surface [3,4,5,25,26,40,43,44]. Therefore, the presence of vacancy islands in C8Se SAMs provides clear evidence that these SAMs prepared by vapor deposition are formed through chemical interactions between the Se anchoring groups and the Au(111) surface. The detailed formation mechanism of vacancy islands was described in previous literature [25]. STM observations revealed that the vacancy islands were also covered with ordered molecular rows, indicating that the vacancy islands were not bare gold surfaces as demonstrated in other studies [25,43]. On the other hand, some structural defects were also observed such as missing rows (indicated by green arrows) or disordered phases (indicated by green solid lines, labeled C) in the ordered domains (Figure 4b). It should be noted that alkyl selenolate SAMs on Au(111) formed by adsorption of dialkyl diselenides or alkyl selenocyanates from solution have poorly ordered phase or non-uniform complicated structural phases containing densely packed distorted and missing row structures [44,45,52]. In contrast, the present study clearly demonstrated that highly ordered alkyl selenolate SAMs can be prepared by vapor deposition at 363 K by controlling the deposition time.
Figure 5a shows a low-pass filtered, high-resolution STM image (8 nm × 8 nm) of the ordered phase of C8Se SAMs on Au(111) formed at 363 K for 6 h. The ordered phase consists of one dark and two bright molecular rows arranged alternately within the unit cell. Based on the STM observations, the lattice constants of a rectangular unit cell containing three molecules were extracted as follows: a = 5.8 ± 0.2 Å = 2ah and b = 15.5 ± 0.2 Å = 2√7ah, where ah = 2.89 Å corresponds to the interatomic distance of gold atoms. A structural model of the ordered phase for C8Se SAMs on Au(111) was proposed in Figure 5b. The ordered phase can be described by a (2 × 2√7)rect packing structure. In this model, it is proposed that the selenium atoms in the bright molecular rows occupy the bridge sites of the Au(111) lattice, and the selenium atoms in the dark molecular rows occupy the three-fold hollow sites. The occupied volume per adsorbed molecule was calculated to be 28.9 Å2/molecule, which is higher than the 21.6 Å2/molecule of closely packed octanethiol (C8S) SAMs on Au(111) with the commonly observed (√3 × √3)R30° or a c(4 × 2) structure [6,26,47]. This result means that highly ordered C8Se SAMs are 1.34 times more loosely packed than the closely packed alkanethiolate SAMs.

2.3. Coexistence of Long-Range Ordered and Disordered Phases of C8Se SAMs on Au(111) from Vapor Deposition of DODSe at 363 K for 24 h

STM observations in this study revealed that the structural order of C8Se SAMs on Au(111) significantly improved as the deposition time increased from 1 to 6 h. Therefore, understanding the surface properties of C8Se SAMs after long-term deposition is very important from the perspective of obtaining information that can control the structure and properties of C8Se SAMs. STM images in Figure 6 show the formation and surface structures of C8Se SAMs on Au(111) formed after long-term vapor deposition at 363 K for 24 h. Interestingly, C8Se SAMs were composed of long-range, well-ordered domains (labeled A) and a large, disordered phase (labeled C), which are quite different from those observed in C8Se SAMs formed at 363 K for 6 h, as shown in Figure 4. After long-term deposition for 24 h, notable structural changes were observed: (i) the formation of large-sized ordered domains by coalescence of small-sized ordered domains through the Ostwald ripening processes at high temperature [59,60,61] and (ii) the formation of large-sized disordered domains as a result of preferential desorption of C8Se molecules from the SAMs by longer deposition time at a higher temperature of 363 K. This suggestion may be supported by the observation that loosely packed decanethiol SAMs were formed through desorption of adsorbed molecules from closely packed, ordered domains during prolonged deposition in solution at 348 K for 20 h [49]. Our STM studies clearly demonstrated that after prolonged deposition for 24 h, the size of the ordered domains in the C8Se SAMs increased, but so did the disordered phase. Therefore, optimizing the appropriate deposition conditions is crucial for fabricating large-area, well-ordered C8Se SAMs. In particular, it was found that highly ordered C8Se SAMs on Au(111) with high structural quality could be fabricated after deposition at 363 K for 6 h.
The high-resolution STM image (10 nm × 10 nm) in Figure 7a shows a well-ordered phase of C8Se SAMs on Au(111) formed by vapor deposition at 363 K for 24 h. Based on the STM observations, the lattice constants for a rectangular unit cell containing three molecules were deduced as follows: a = 5.0 ± 0.2 Å = √3ah and b = 14.1 ± 0.2 Å = √23ah, where ah = 2.89 Å is the distance between gold atoms. The structural model of this ordered phase of C8Se SAMs on Au(111) is shown in Figure 7b and the ordered phase can be represented by a (√3 × √23)rect packing structure. It can be predicted that the selenium atoms in the SAMs adsorb the bridges and triple-hollow structures of the Au(111) lattice. The occupied volume per adsorbed molecule was calculated to be 23.3 Å2/molecule, which is denser compared to the (2 × 2√7)rect structure of C8Se SAMs with 28.9 Å2/molecule (deposition at 363 K and for 6 h) and very closed to that of 21.6 Å2/molecule for C8S SAMs with a c(4 × 2) superlattice. The surface coverage of the ordered domains of C8Se SAMs was found to increase as the deposition time increased from 6 to 24 h. Therefore, it is reasonable to assume that the main driving force for the structural transitions of C8Se SAMs on Au(111) from the (2 × 2√7)rect to the (√3 × √23)rect structure is the increased surface coverage due to longer deposition for 24 h.

3. Materials and Methods

3.1. Chemicals and Preparation of Au(111) Substrates

DODSe was synthesized by refluxing Na2Se2 and 1-bromooctane in methanol for 3 h according to a previously described method [62]. The product was confirmed by 1H-NMR (400 MHz, CDCl3): 0.866–0.901 (t, 6H), 1.280 (s, 16H), 1.349–1.401 (m, 4H), 1.689–1.762 (m, 4H), 2.894–2.932 (t, 4H). The single-crystal Au(111) substrates for SAM preparation were fabricated by thermal evaporation of gold onto freshly cleaved mica sheets preheated at 623 K in an ultrahigh vacuum condition of approximately 10−5 Pa [52]. STM measurements clearly show that the Au(111) substrates have an intrinsic herringbone structure, which is observed on clean Au(111) surfaces as previously reported [63].

3.2. Preparation of C8Se SAMs from DODSe

C8 Se SAMs were fabricated by placing clean Au(111) substrates in 3 mL V-vials containing 2 μL of pure DODSe liquid as a function of vapor deposition time at 363 K. The V-vials were then tightly sealed with caps and maintained at 363 K for 1, 6, and 24 h, respectively. When placing the Au(111) substrate into the V-vials, care must be taken to avoid direct contact with the pure liquid. The fabricated SAM samples were thoroughly washed with pure ethanol to remove the DODSe molecules physisorbed on the SAM surface, and then dried in a high-purity N2 gas flow.

3.3. STM Measurements

STM measurements were performed using NanoScope E (Veeco, Santa Barbara, CA, USA) using commercially available Pt/Ir (80:20) tips. STM images were acquired using constant current mode in air at RT. For STM observation, a bias voltage (Vb) of 200 to 500 mV and a tunneling current (It)of 0.30 and 0.70 nA were applied between the tip and the sample.

4. Conclusions

The formation and growth processes of C8Se SAMs on Au(111) were investigated by STM as a function of vapor deposition time at 363 K. Interestingly, STM observations revealed unique surface features of C8Se SAMs on Au(111) prepared via vapor deposition at 363 K for 1 h, including various types of narrow, bright rows and wide, bright molecular rows. After increasing deposition time from 1 to 6 h, molecular-scale STM observations clearly revealed a significant structural change in C8Se SAMs showing the formation of tri-directional well-ordered domains with distinct domain boundaries on entire Au(111) surfaces. The ordered phase can be described by a (2 × 2√7)rect packing structure with an average arial density of 28.9 Å2/molecule. After long-term deposition at 363 K for 24 h, C8Se SAMs were composed of long-range, well-ordered domains and large, disordered domains, which are quite different from those observed in C8Se SAMs formed at 363 K for 6 h. The ordered phase can be described by a (√3 × √23)rect packing structure with an average arial density of 23.3 Å2/molecule, which is denser than that of C8Se SAMs formed by vapor deposition at 363 K and for 6 h. In this study, we clearly demonstrated that highly ordered alkyl selenolate SAMs can be prepared by vapor deposition method at 363 K by controlling the deposition time. We believe that our results will be very useful for fabricating SAM-based electronic devices with highly reproducible performance. Moreover, we can provide very useful information for understanding the formation and surface structures of alkyl selenolate SAMs on Au(111) formed via vapor deposition of dialkyl disulfides at high temperatures.

Author Contributions

Conceptualization, S.H. and J.N.; methodology, S.H. and J.W.H.; formal analysis, S.H. and S.S.; investigation, S.H., S.S. and Y.J.S.; Resources, J.W.H., R.K. and G.V.L.; writing—original draft preparation, J.N.; writing—review and editing, J.W.H., T.H. and J.N.; supervision, T.H. and J.N.; project administration, J.N.; funding acquisition, J.N. All authors have read and agreed to the published version of the manuscript.

Funding

This research was conducted with the support of a Hanyang University research fund donated by Kang Dae-chang (DONGJIN ENGINEERING CO., LTD.).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available in this article.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Li, M.; Liu, M.; Qi, F.; Lin, F.R.; Jen, A.K.-Y. Self-Assembled Monolayers for Interfacial Engineering in Solution Processed Thin Film Electronic Devices. Chem. Rev. 2024, 124, 2138–2204. [Google Scholar] [CrossRef]
  2. Love, J.C.; Estroff, L.A.; Kriebel, J.K.; Nuzzo, R.G.; Whitesides, G.M. Self-Assembled Monolayers of Thiolates on Metals as a Form of Nanotechnology. Chem. Rev. 2005, 105, 1103–1170. [Google Scholar] [CrossRef]
  3. Vericat, C.; Vela, M.E.; Benitez, G.; Carro, P.; Salvarezza, R.C. Self-Assembled Monolayers of Thiols and Dithiols on Gold: New Challenges for a Well-known System. Chem. Soc. Rev. 2010, 39, 1805–1834. [Google Scholar] [CrossRef]
  4. Romashov, L.V.; Ananikov, V.P. Self-Assembled Selenium Monolayers: From Nanotechnology to Materials Science and Adaptive Catalysis. Chem. Eur. J. 2013, 19, 17640–17660. [Google Scholar] [CrossRef]
  5. Seong, S.; Kang, H.; Kim, H.; Son, Y.J.; Jang, J.; Maeda, S.; Chikami, S.; Hayashi, T.; Yoon, H.J.; Noh, J. Effects of the Substituent Position on the Structural Order, Work Function Change, and Thermopower of Dichloro-Substituted Benzenethiolate Self-Assembled Monolayers on Au (1 1 1). Appl. Surf. Sci. 2024, 643, 158661. [Google Scholar] [CrossRef]
  6. Wu, H.; Li, G.; Hou, J.; Sotthewes, K. Probing Surface Properties of Organic Molecular Layers by Scanning Tunneling Microscopy. Adv. Colloid Interface Sci. 2023, 318, 102956. [Google Scholar] [CrossRef] [PubMed]
  7. Seo, D.; Han, J.W.; Kim, H.; Kim, Y.O.; Sung, H.S.; Kaizu, R.; Latag, G.V.; Hayashi, T.; Lee, N.-S.; Noh, J. Formation and Surface Structures of Long-Range Ordered Self-Assembled Monolayers of 2-Mercaptopyrazine on Au(111). Int. J. Mol. Sci. 2025, 26, 160. [Google Scholar] [CrossRef] [PubMed]
  8. Ossowski, J.; Nascimbeni, G.; Żaba, T.; Verwüster, E.; Rysz, J.; Terfort, A.; Zharnikov, M.; Zojer, E.; Cyganik, P. Relative Thermal Stability of Thiolate- and Selenolate-Bonded Aromatic Monolayers on the Au(111) Substrate. J. Phys. Chem. C 2017, 121, 28031–28042. [Google Scholar] [CrossRef]
  9. Wróbel, M.; Cegiełka, D.M.; Asyuda, A.; Kozieł, K.; Zharnikov, M.; Cyganik, P. N-heterocyclic Carbenes—The Design Concept for Densely Packed and Thermally Ultra-Stable Aromatic Self-Assembled Monolayers. Nano Today 2023, 53, 102024. [Google Scholar] [CrossRef]
  10. Cyganik, P.; Terfort, A.; Zharnikov, M. Odd-Even Effects in the Structure and Properties of Aryl-Substituted Aliphatic Self-Assembled Monolayers. Nano Res. 2024, 17, 4231–4243. [Google Scholar] [CrossRef]
  11. Noh, J.; Hara, M. Structural Investigation of Cyclohexanethiol Self-Assembled Monolayers on Au(111) by Scanning Tunneling Microscopy. Langmuir 2002, 18, 9111–9115. [Google Scholar] [CrossRef]
  12. Alharbi, A.R.M.; Roman, T.; Alotabi, A.S.; Koper, I.; Andersson, G.G. Probing the Structure and Orientation of Carboxylic Acid-Terminated Self-Assembled Monolayers. Langmuir 2024, 4, 18925–18941, Erratum in Langmuir 2024, 40, 23570. [Google Scholar] [CrossRef]
  13. Liu, Y.; Notz, S.; Lang, H.; Zharnikov, M. Pyrene-Terminated Self-Assembled Monolayers on Au Substrate: Molecular Organization and Charge Transport Properties. J. Phys. Chem. C 2023, 127, 19290–19300. [Google Scholar] [CrossRef]
  14. Azzam, W.; Subaihi, A. Influence of an Alkyl Spacer on the Formation and Structure of 4-Fluorobenzenethiol and 4-Fluorobenzenemethanethiol Self-Assembled Monolayers on Au(111). Surf. Interfaces 2020, 20, 100544. [Google Scholar] [CrossRef]
  15. Raymundo-Pereira, P.A.; de Oliveira Pedro, R.; Carr, O.; Melendez, M.E.; Gobbi, A.L.; de Oliveira Piazzetta, M.H.; Carvalho, A.L.; Reis, R.M.; Miranda, P.B.; Oliveira, O.N., Jr. Influence of the Molecular Orientation and Ionization of Self-Assembled Monolayers in Biosensors: Application to Genosensors of Prostate Cancer Antigen 3. J. Phys. Chem. C 2021, 125, 498–506. [Google Scholar] [CrossRef]
  16. Hasan, A.; Pattanayek, S.K.; Pandey, L.M. Effect of Functional Groups of Self-Assembled Monolayers on Protein Adsorption and Initial Cell Adhesion. ACS Biomater. Sci. Eng. 2018, 4, 3224–3233. [Google Scholar] [CrossRef] [PubMed]
  17. Liu, Y.; Tao, X.; Wang, Y.; Jiang, C.; Ma, C.; Sheng, O.; Lu, G.; Lou, X.W. Self-Assembled Monolayers Direct a LiF-Rich Interphase toward Long-Life Lithium Metal Batteries. Science 2022, 375, 739–745. [Google Scholar] [CrossRef] [PubMed]
  18. Jang, J.; He, P.; Yoon, H.J. Molecular Thermoelectricity in Egain-Based Molecular Junctions. Acc. Chem. Res. 2023, 56, 1613–1622. [Google Scholar] [CrossRef] [PubMed]
  19. Dai, Z.; Yadavalli, S.K.; Chen, M.; Abbaspourtamijani, A.; Qi, Y.; Padture, N.P. Interfacial Toughening with Self-Assembled Monolayers Enhances Perovskite Solar Cell Reliability. Science 2021, 372, 618–622. [Google Scholar] [CrossRef]
  20. Kim, S.Y.; Cho, S.J.; Byeon, S.E.; He, X.; Yoon, H.J. Self-Assembled Monolayers as Interface Engineering Nanomaterials in Perovskite Solar Cells. Adv. Energy Mater. 2020, 10, 2002606. [Google Scholar] [CrossRef]
  21. Casalini, S.; Bortolotti, C.A.; Leonardi, F.; Biscarini, F. Self-Assembled Monolayers in Organic Electronics. Chem. Soc. Rev. 2017, 46, 40–71. [Google Scholar] [CrossRef]
  22. Heimel, G.; Rissner, F.; Zojer, E. Modeling the Electronic Properties of π-Conjugated Self-Assembled Monolayers. Adv. Mater. 2010, 22, 2494–2513. [Google Scholar] [CrossRef] [PubMed]
  23. Poirier, G.E. Coverage-Dependent Phases and Phase Stability of Decanethiol on Au (111). Langmuir 1999, 15, 1167–1175. [Google Scholar] [CrossRef]
  24. Kim, D.H.; Noh, J.; Hara, M.; Lee, H. An Adsorption Process Study on the Self-Assembled Monolayer Formation of Octadecanethiol Chemisorbed on Gold Surface. Bull. Korean Chem. Soc. 2001, 22, 276–280. [Google Scholar]
  25. Yang, G.; Liu, G.-Y. New Insights for Self-Assembled Monolayers of Organothiols on Au(111) Revealed by Scanning Tunneling Microscopy. J. Phys. Chem. B 2003, 107, 8746–8759. [Google Scholar] [CrossRef]
  26. Hel Al Mamun, A.; Hahn, J.R. Effects of Solvent on the Formation of Octanethiol Self-Assembled Monolayers on Au(111) at High Temperatures in a Closed Vessel: A Scanning Tunneling Microscopy and X-Ray Photoelectron Spectroscopy Study. J. Phys. Chem. C 2012, 116, 22441–22448. [Google Scholar] [CrossRef]
  27. Pensa, E.; Azofra, L.M.; Albrecht, T.; Salvarezza, R.C.; Carro, P. Shedding Light on the Interfacial Structure of Low-Coverage Alkanethiol Lattices. J. Phys. Chem. C 2020, 124, 26748–26758. [Google Scholar] [CrossRef]
  28. Cai, L.; Yao, Y.; Yang, J.; Price, D.W.; Tour, J.M. Chemical and Potential-assisted Assembly of Thioacetyl-terminated Oligo-(phenylene ethynylene)s on Gold Surfaces. Chem. Mater. 2002, 14, 2905–2909. [Google Scholar] [CrossRef]
  29. Béthencourt, M.I.; Srisombat, L.; Chinwangso, P.; Lee, T.R. SAMs on Gold Derived from the Direct Adsorption of Alkanethioacetates are Inferior to Those Derived from the Direct Adsorption of Alkanethiols. Langmuir 2009, 25, 1265–1271. [Google Scholar] [CrossRef]
  30. Lee, M.-T.; Hsueh, C.-C.; Freund, M.S.; Ferguson, G. Electrochemical Self-Assembly of Monolayers from Alkylthiosulfates on Gold. Langmuir 2003, 19, 5246–5253. [Google Scholar] [CrossRef]
  31. Yamada, A.; Feng, Q.; Zhou, Q.; Hoskins, A.; Lewis, K.M. Conductance of Junctions with Acetyl-Functionalized Thiols: A First-Principals-Based Analysis. J. Phys. Chem. C 2017, 121, 10298–10304. [Google Scholar] [CrossRef]
  32. Ciszek, J.W.; Tour, J.M. Mechanistic Implications of the Assembly of Organic Thiocyanates on Precious Metals. Chem. Mater. 2005, 17, 5684–5690. [Google Scholar] [CrossRef]
  33. Shen, C.; Buck, M.; Wilton-Ely, J.D.E.T.; Weidner, T.; Zharnikov, M. On the Importnace of Purity for the Formation of Self-Assembled Monolayers from Thiocyanates. Langmuir 2008, 24, 6609–6615. [Google Scholar] [CrossRef] [PubMed]
  34. de la Llave, E.; Scherlis, D.A. Selenium-Based Self-Assembled Monolayers: The Nature of Adsorbate-Surface Interactions. Langmuir 2010, 26, 173–178. [Google Scholar] [CrossRef] [PubMed]
  35. Arisnabarreta, N.; Ruano, G.D.; Lingenfelder, M.; Patrito, E.M.; Cometto, F.P. Comparative Study of the Adsorption of Thiols and Selenols on Au(111) and Au(100). Langmuir 2017, 33, 13733–13739. [Google Scholar] [CrossRef]
  36. Lee, S.Y.; Ito, E.; Kang, H.; Hara, M.; Lee, H.; Noh, J. Surface Structure, Adsorption, and Thermal Desorption Behaviors of Methaneselenolate Monolayers on Au(111) from Dimethyl Diselenides. J. Phys. Chem. C 2014, 118, 8322–8330. [Google Scholar] [CrossRef]
  37. Chen, N.; Li, S.; Zhao, P.; Liu, R.; Xie, Y.; Lin, J.-L.; Nijhuis, C.A.; Xu, B.; Zhang, L.; Xu, H.; et al. Extreme Long-Lifetime Self-Assembled Monolayer for Air-Stable Molecular Junctions. Sci. Adv. 2023, 9, eadh3412. [Google Scholar] [CrossRef]
  38. Monnell, J.D.; Stapleton, J.J.; Drik, S.M.; Reinerth, W.A.; Tour, J.M.; Allara, D.L.; Weiss, P.S. Relative Conductances of Alkaneselenolate and Alkanethiolate Self-Assembled Monolayers on Au{111}. J. Phys. Chem. B 2005, 109, 20343–20349. [Google Scholar] [CrossRef]
  39. Ossowski, J.; Wächter, T.; Silies, L.; Kind, M.; Noworolska, A.; Blobner, F.; Gnatek, D.; Rysz, J.; Bolte, M.; Feulner, P.; et al. Thiolate versus Selenolate: Structure, Stability, and Charge Transfer Properties. ACS Nano 2015, 9, 4508–4526. [Google Scholar] [CrossRef]
  40. Cyganik, P.; Szelagowska-Kunstman, K.; Terfort, A.; Zharnikov, M. Odd-Even Effect in Molecular Packing of Biphenyl-Substituted Alkaneselenolate Self-Assembled Monolayers on Au(111): Scanning Tunneling Microscopy Study. J. Phys. Chem. C 2008, 112, 15466–15473. [Google Scholar] [CrossRef]
  41. Bashir, A.; Käfer, D.; Müller, J.; Wöll, S.; Terfort, A.; Witte, G. Selenium as a Key Element for Highly Ordered Aromatic Self-Assembled Monolayers. Angew. Chem. Int. Ed. 2008, 47, 5250–5252. [Google Scholar] [CrossRef] [PubMed]
  42. Azzam, W.; Al-Rawashdeh, N.A.F.; Al-Refaie, N.; Shekhah, O.; Bashir, A. On the Influence of the Aliphatic Linker on Fabrication of Highly Ordered and Orientated Self-Assembled Monolayers of Aromatic Selenols on Au(111). J. Phys. Chem. C 2014, 118, 4846–4859. [Google Scholar] [CrossRef]
  43. Kang, H.; Jeong, H.; Seong, S.; Han, S.; Son, Y.J.; Tahara, H.; Hayashi, T.; Yoon, H.J.; Noh, J. Formation and Superlattice of Long-Range and Highly Ordered Alicyclic Selenolate Monolayers on Au(111) Studied by Scanning Tunneling Microscopy. Appl. Surf. Sci. 2022, 572, 151454. [Google Scholar] [CrossRef]
  44. Monnell, J.D.; Stapleton, J.J.; Jackiw, J.J.; Dunbar, T.; Reinerth, W.A.; Dirk, S.M.; Tour, J.M.; Allara, D.L.; Weiss, P.S. Ordered Local Domain Structures of Decaneselenolate and Dodecaneselenolate Monolayers on Au{111}. J. Phys. Chem. B 2004, 108, 9834–9841. [Google Scholar] [CrossRef]
  45. Choi, J.; Kang, H.; Ito, E.; Hara, M.; Noh, J. Phase Transition of Octaneselenolate Self-Assembled Monolayers on Au(111) Studied by Scanning Tunneling Microscopy. Bull. Korean Chem. Soc. 2011, 32, 2623–2627. [Google Scholar] [CrossRef][Green Version]
  46. Tsvetanova, M.; Oldenkotte, V.J.S.; Bertolino, M.C.; Gao, Y.; Siekman, M.H.; Huskens, J.; Zandvliet, H.J.W.; Sottewes, K. Nanoscale Work Function Contrast Induced by Decanethiol Self-Assembled Monolayers on Au(111). Langmuir 2020, 36, 12745–12754. [Google Scholar] [CrossRef]
  47. Guo, Q.; Li, F. Self-Assembled Alkanethiol Monolayers on Gold Surfaces: Resolving the Complex Structure at the Interface by STM. Phys. Chem. Chem. Phys. 2014, 16, 19074–19090. [Google Scholar] [CrossRef]
  48. Xiao, X.; Wang, B.; Zhang, C.; Yang, Z.; Loy, M.M.T. Thermal Annealing Effect of Alkanethiol Monolayers on Au(111) in Air. Surf. Sci. 2001, 472, 41–50. [Google Scholar] [CrossRef]
  49. Azzam, W.; Al-Momani, L. A New Striped-Phase of Decanethiol Self-Assembled Monolayers on Au(111) Formed at a High Solution Temperature. Appl. Surf. Sci. 2013, 266, 239–244. [Google Scholar] [CrossRef]
  50. Dai, J.; Li, Z.; Jin, J.; Cheng, J.; Kong, J.; Bi, S. Study on the Solvent Effect on the Quality of Dodecanethiol Self-Assembled Monolayers on Polycrystalline Gold. J. Electroanal. Chem. 2008, 624, 315–322. [Google Scholar] [CrossRef]
  51. Subramanian, S.; Sampath, S. Enhanced Stability of Short- and Long-Chain Diselenide Self-Assembled Monolayers on Gold Probed by Electrochemistry, Spectroscopy, and Microscopy. J. Colloid Interface Sci. 2017, 312, 413–424. [Google Scholar] [CrossRef]
  52. Han, S.; Seong, S.; Son, Y.J.; Yokota, Y.; Hayashi, T.; Hara, M.; Noh, J. Formation and Surface Structures of Highly Ordered Self-Assembled Monolayers of Alkyl Selenocyanates on Au(111) via Ambient-Pressure Vapor Deposition. J. Phys. Chem C 2020, 124, 26730–26740. [Google Scholar] [CrossRef]
  53. Deering, A.L.; Van Lue, S.M.; Kandel, S.A. Ambient-Pressure Vapor Deposition of Octanethiol Self-Assembled Monolayers. Langmuir 2005, 21, 10260–10263. [Google Scholar] [CrossRef] [PubMed]
  54. Schönherr, H.; Ringsdorf, H. Self-Assembled Monolayers of Symmetrical and Mixed Alkyl Fluoroalkyl Disulfides on Gold. 1. Synthesis of Disulfides and Investigation of Monolayer Properties. Langmuir 1996, 12, 3891–3897. [Google Scholar] [CrossRef]
  55. Han, S.W.; Kim, K. Self-Assembled Monolayers of Organoselenium Compounds on Gold: Surface-Enhanced Raman Scattering Study. J. Colloid Interface Sci. 2001, 240, 492–497. [Google Scholar] [CrossRef]
  56. Hooks, D.E.; Fritz, T.; Ward, M.D. Epitaxy and Molecular Organization on Solid Substrates. Adv. Mater. 2001, 13, 227–241. [Google Scholar] [CrossRef]
  57. Qian, Y.; Yang, G.; Yu, J.; Jung, T.A.; Liu, G.-Y. Structures of Annealed Decanethiol Self-Assembled Monolayers on Au(111): An Ultrahigh Vacuum Scanning Tunneling Microscopy Study. Langmuir 2003, 19, 6056–6065. [Google Scholar] [CrossRef]
  58. Wang, L.; Liu, L.; Chen, W.; Feng, Y.; Wee, A.T.S. Configuration-Dependent Interface Charge Transfer at a Molecule−Metal Junction. J. Am. Chem. Soc. 2006, 128, 8003–8007. [Google Scholar] [CrossRef]
  59. Yamada, Y.; Wano, H.; Uosaki, K. Effect of Temperature on Structure of the Self-Assembled Monolayer of Decanethiol on Au(111) Surface. Langmuir 2000, 16, 5523–5525. [Google Scholar] [CrossRef]
  60. Poirier, G.; Tarlov, M.J. Molecular Ordering and Gold Migration Observed in Butanethiol Self-Assembled Monolayers Using Scanning Tunneling Microscopy. J. Phys. Chem. B 1995, 99, 1096–10970. [Google Scholar] [CrossRef]
  61. Guo, Q.; Sun, X.; Palmer, R.E. Structural Dynamics Induced by Self-Assembled Monolayers on Au(111). Phys. Rev. B 2005, 71, 035406. [Google Scholar] [CrossRef]
  62. Gladysz, J.A.; Hornby, J.L.; Garbe, J.E. A Convenient One-Flask Synthesis of Dialkyl Selenides and Diselenides via Lithium Triethylborohydride Reduction of Sex. J. Org. Chem. 1978, 43, 1204–1208. [Google Scholar] [CrossRef]
  63. Kang, H.; Noh, J.; Ganbold, E.-O.; Uuriintuya, D.; Gong, M.S.; Oh, J.J.; Joo, S.-W. Adsorptin Changes of Cyclohexyl Isothiocyanate on Gold Surfaces. J. Colloid Interf. Sci. 2009, 336, 648–653. [Google Scholar] [CrossRef] [PubMed]
Ijms 26 09192 g001

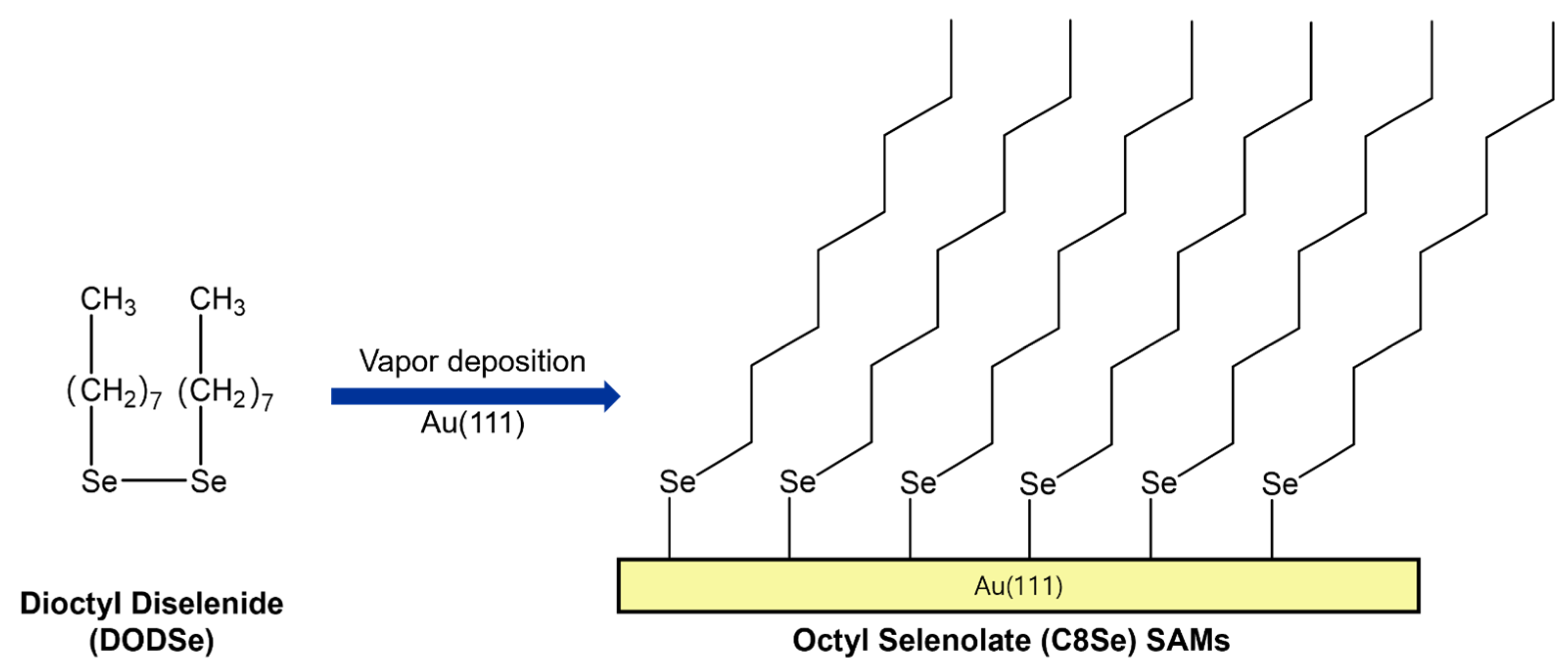

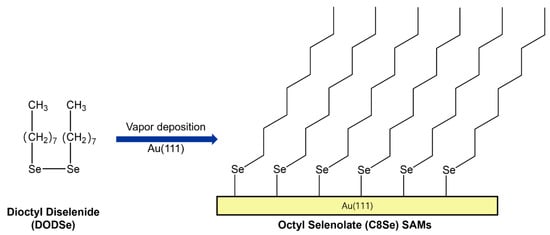

Figure 1. Chemical structure of dioctyl diselenide (DODSe) and the formation of C8 Se SAMs on Au(111) by the adsorption of DODSe molecules from ambient-pressure vapor deposition.
Figure 1. Chemical structure of dioctyl diselenide (DODSe) and the formation of C8 Se SAMs on Au(111) by the adsorption of DODSe molecules from ambient-pressure vapor deposition.
Ijms 26 09192 g001
Ijms 26 09192 g002

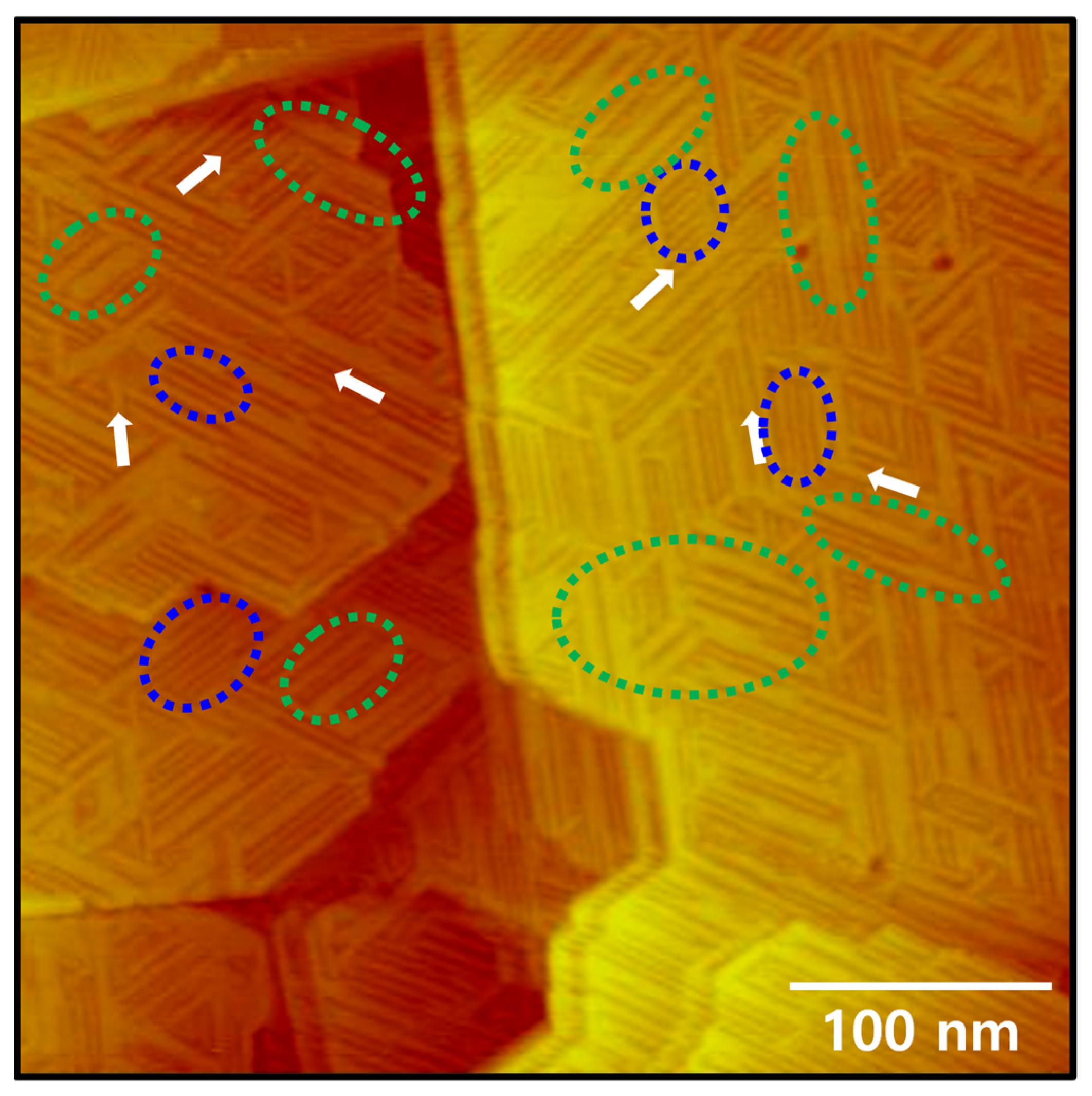

Figure 2. Large-scale STM image (400 nm × 400 nm) showing the unique surface features of C8Se SAMs on Au(111) formed by vapor deposition at 363 K for 1 h. Tri-directional domain orientations are indicated by white arrows. Narrow and wide rows are indicated by blue and green dotted ovals.
Figure 2. Large-scale STM image (400 nm × 400 nm) showing the unique surface features of C8Se SAMs on Au(111) formed by vapor deposition at 363 K for 1 h. Tri-directional domain orientations are indicated by white arrows. Narrow and wide rows are indicated by blue and green dotted ovals.
Ijms 26 09192 g002
Ijms 26 09192 g003

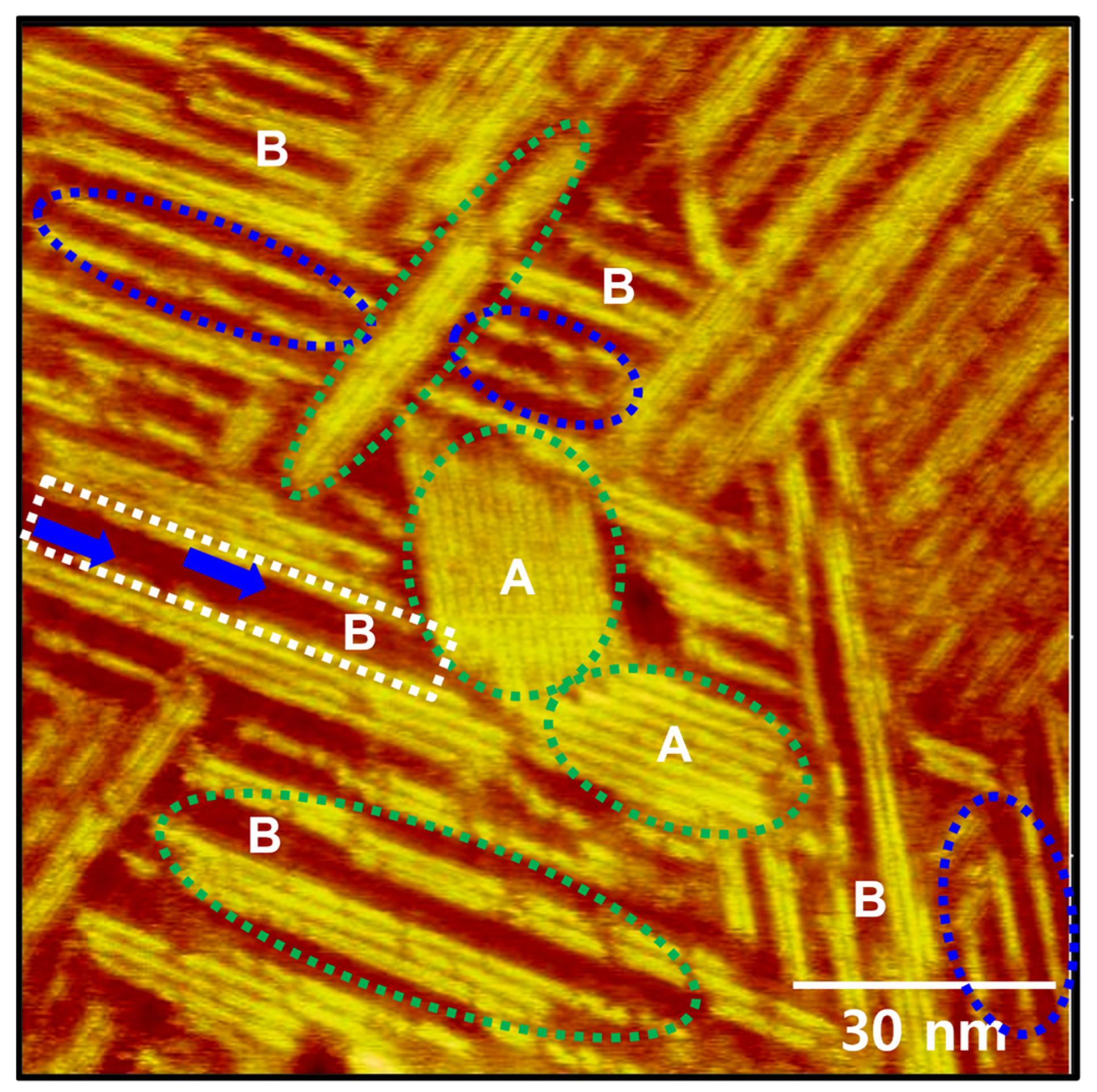

Figure 3. Enlarged STM image (120 nm × 120 nm) showing various molecular rows with tri-directional orientations for C8Se SAMs on Au(111) formed by vapor deposition at 363 K for 1 h. The short-range ordered domains are indicated by A, and the dark areas between the bright ordered rows are indicated by B. Single and multiple molecular rows are indicated by blue and green dotted ovals, respectively. Molecular rows in the dark area are indicated by blue arrows.
Figure 3. Enlarged STM image (120 nm × 120 nm) showing various molecular rows with tri-directional orientations for C8Se SAMs on Au(111) formed by vapor deposition at 363 K for 1 h. The short-range ordered domains are indicated by A, and the dark areas between the bright ordered rows are indicated by B. Single and multiple molecular rows are indicated by blue and green dotted ovals, respectively. Molecular rows in the dark area are indicated by blue arrows.
Ijms 26 09192 g003
Ijms 26 09192 g004

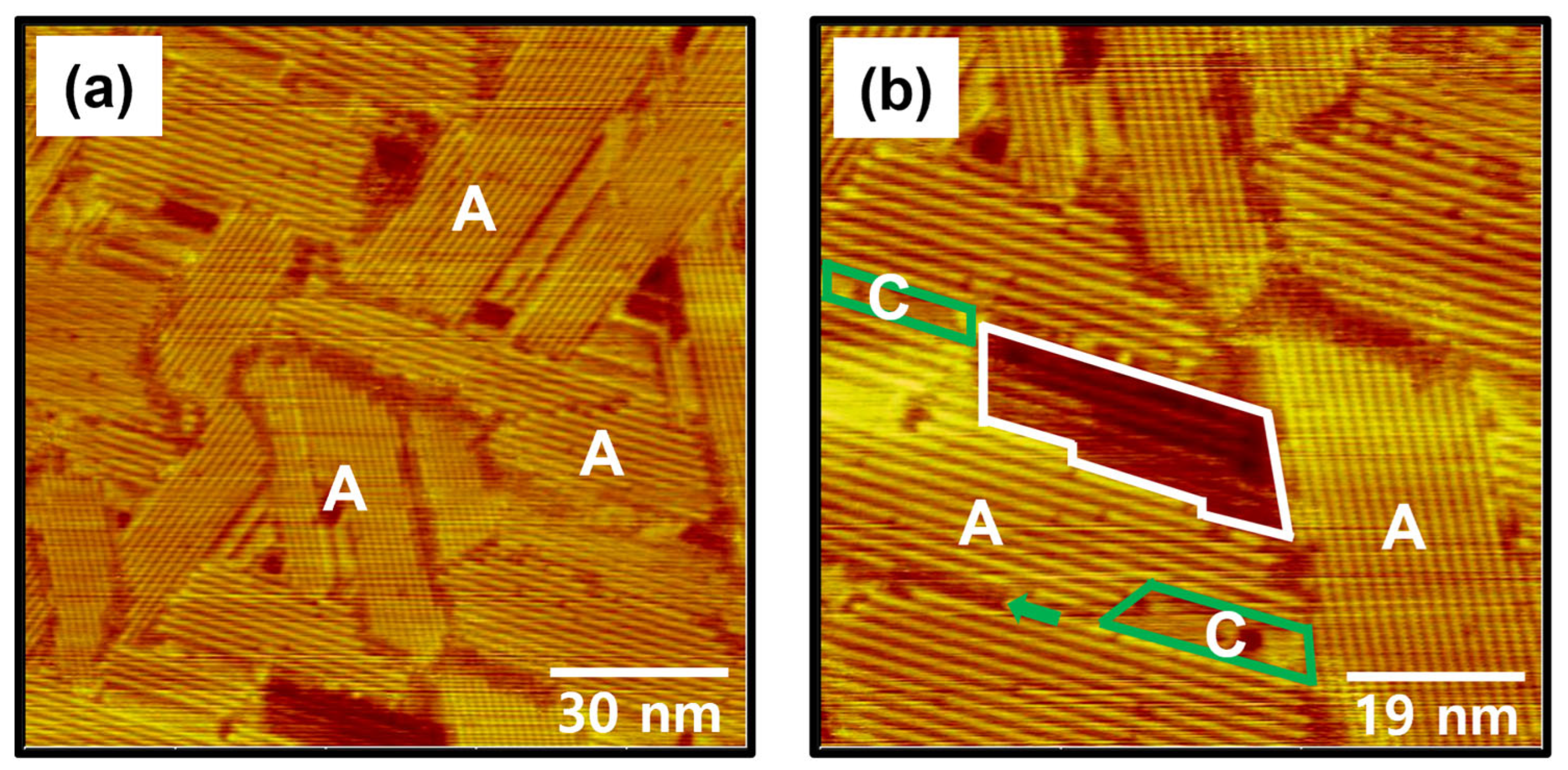

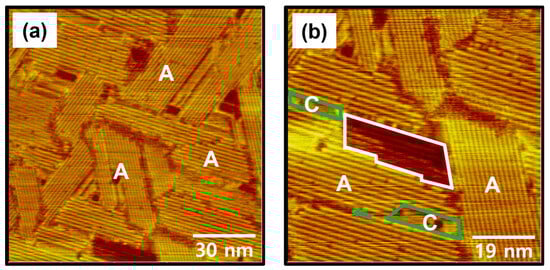

Figure 4. STM images showing well-ordered domains of C8Se SAMs on Au(111) formed by vapor deposition at 363 K for 6 h. The scan sizes of the STM images are (a) 120 nm × 120 nm and (b) 76 nm × 76 nm. Ordered and disordered domains are indicated by A and C (green solid lines). Vacancy islands are indicated by white solid lines.
Figure 4. STM images showing well-ordered domains of C8Se SAMs on Au(111) formed by vapor deposition at 363 K for 6 h. The scan sizes of the STM images are (a) 120 nm × 120 nm and (b) 76 nm × 76 nm. Ordered and disordered domains are indicated by A and C (green solid lines). Vacancy islands are indicated by white solid lines.
Ijms 26 09192 g004
Ijms 26 09192 g005

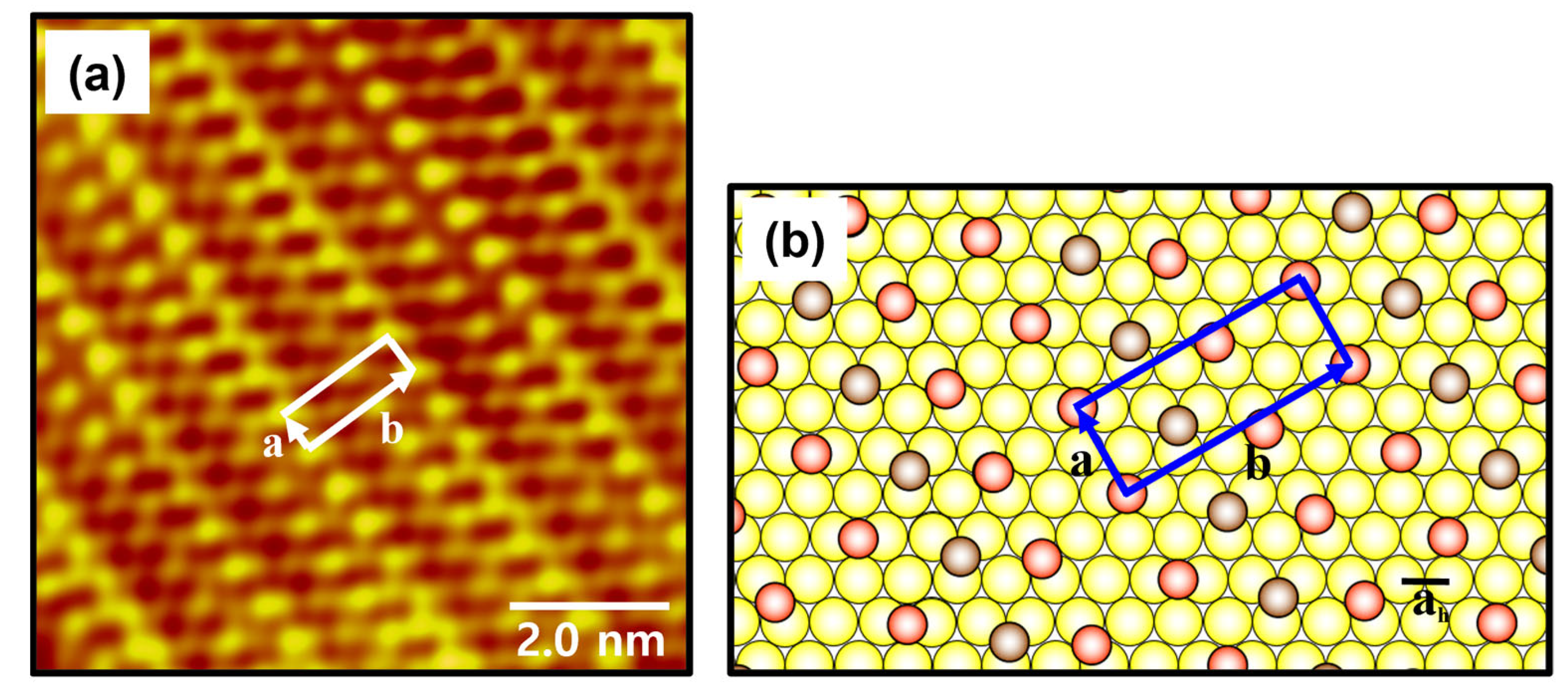

Figure 5. (a) A low-pass filtered high-resolution STM image (8 nm × 8 nm) of C8Se SAMs on Au(111) formed by vapor deposition at 363 K for 6 h. (b) A proposed structural model of C8Se SAMs on Au(111). The red and peanut-colored circles correspond to C8Se molecules, and the yellow circles correspond to Au atoms in the structural model. The unit cell is indicated by a white and blue square, and the unit cell vectors a and b are indicated by white and blue arrows in the STM image and structural model.
Figure 5. (a) A low-pass filtered high-resolution STM image (8 nm × 8 nm) of C8Se SAMs on Au(111) formed by vapor deposition at 363 K for 6 h. (b) A proposed structural model of C8Se SAMs on Au(111). The red and peanut-colored circles correspond to C8Se molecules, and the yellow circles correspond to Au atoms in the structural model. The unit cell is indicated by a white and blue square, and the unit cell vectors a and b are indicated by white and blue arrows in the STM image and structural model.
Ijms 26 09192 g005
Ijms 26 09192 g006

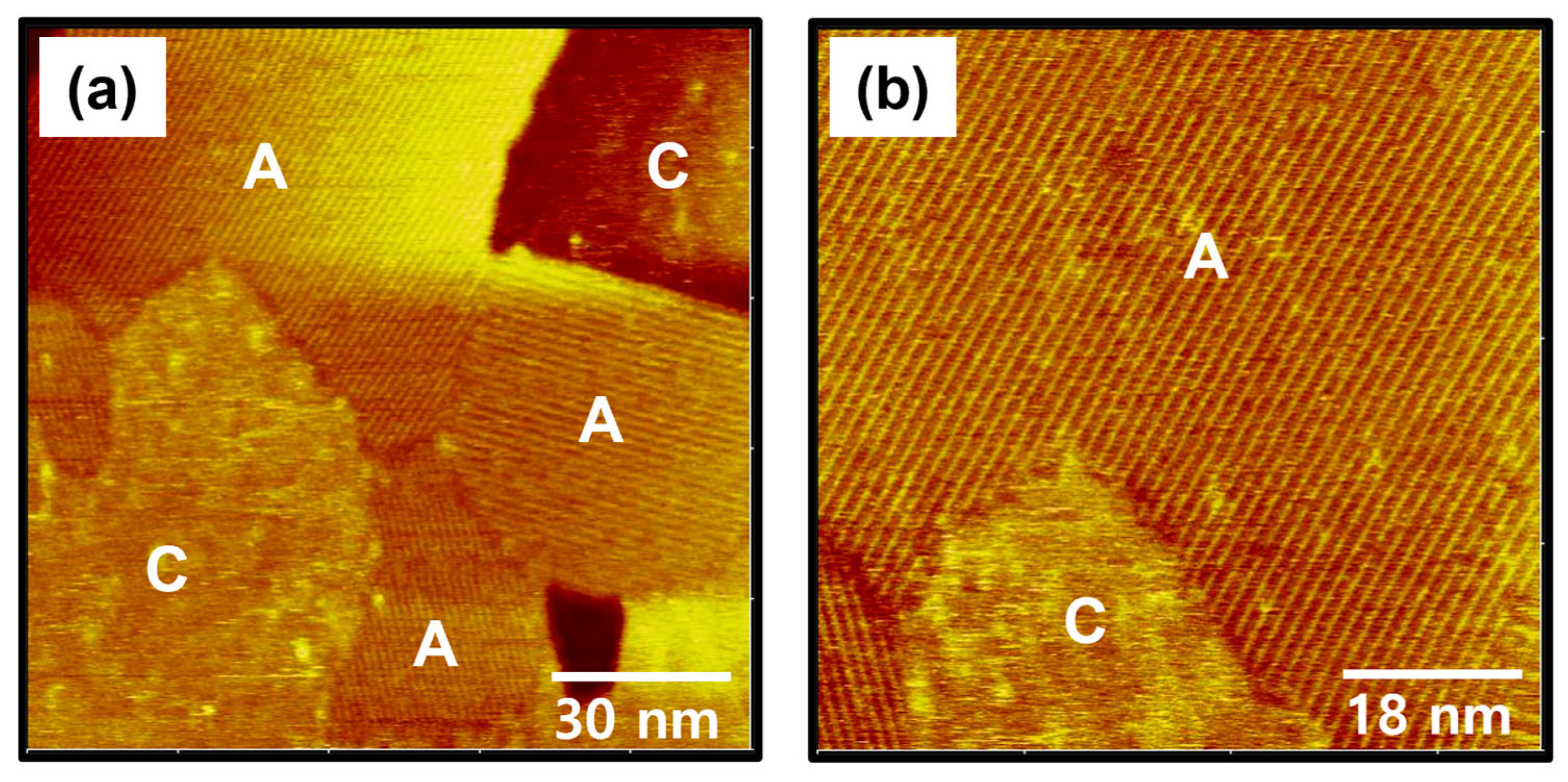

Figure 6. STM images showing the mixed phase of C8Se SAMs on Au(111) formed by vapor deposition at 363 K for 24 h. The scan sizes of the STM images are (a) 120 nm × 120 nm and (b) 72 nm × 72 nm. Ordered and disordered domains are indicated by A and C.
Figure 6. STM images showing the mixed phase of C8Se SAMs on Au(111) formed by vapor deposition at 363 K for 24 h. The scan sizes of the STM images are (a) 120 nm × 120 nm and (b) 72 nm × 72 nm. Ordered and disordered domains are indicated by A and C.
Ijms 26 09192 g006
Ijms 26 09192 g007

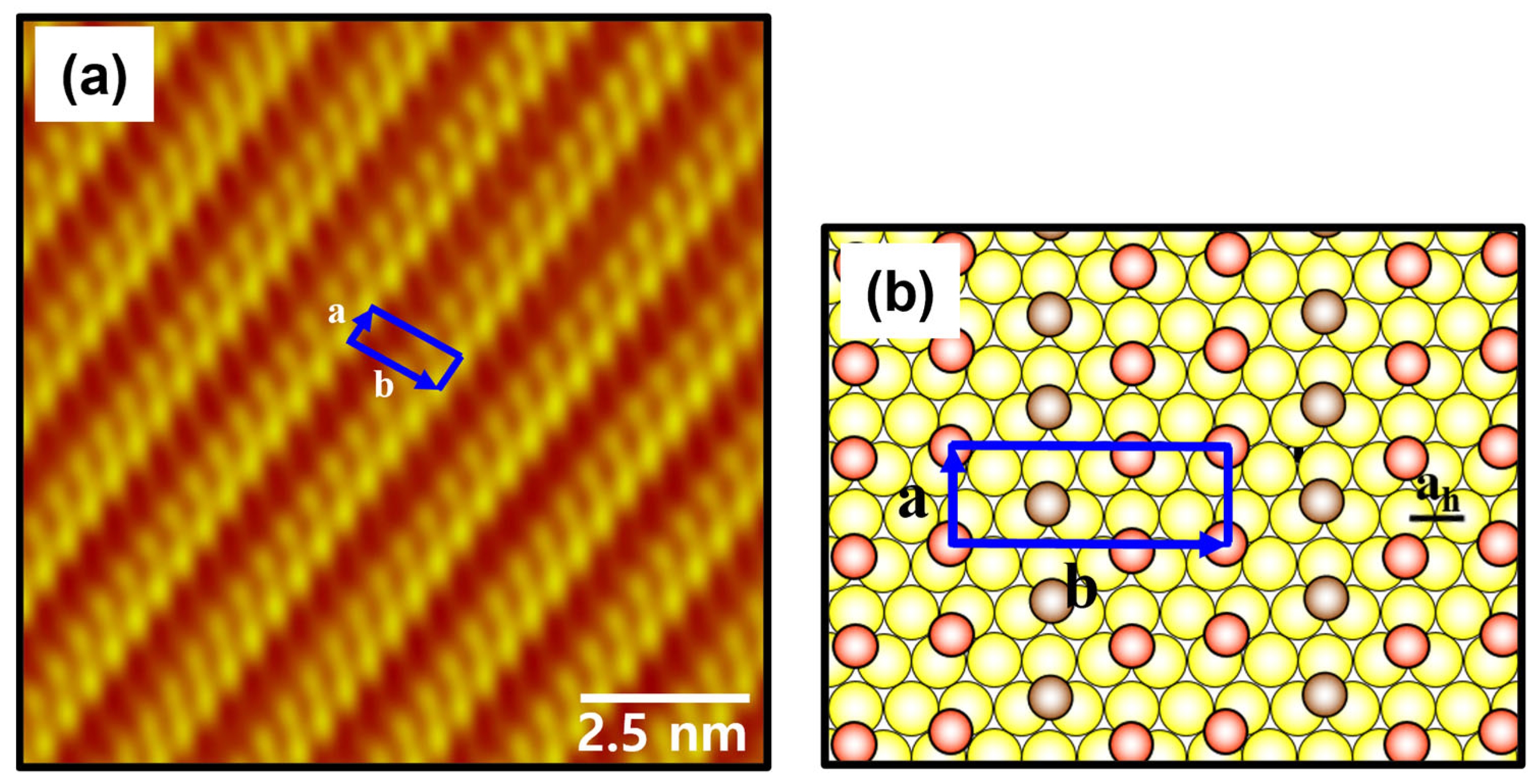

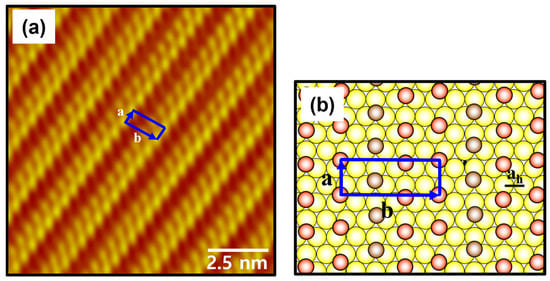

Figure 7. (a) A low-pass filtered high-resolution STM image (10 nm × 10 nm) of C8Se SAMs on Au(111) formed by vapor deposition at 363 K for 24 h. (b) A proposed structural model of C8Se SAMs on Au(111). The red and peanut-colored circles correspond to C8Se molecules, and the yellow circles correspond to Au atoms in the structural model. The unit cell is indicated by a blue square, and the unit cell vectors a and b are indicated in the STM image and structural model.
Figure 7. (a) A low-pass filtered high-resolution STM image (10 nm × 10 nm) of C8Se SAMs on Au(111) formed by vapor deposition at 363 K for 24 h. (b) A proposed structural model of C8Se SAMs on Au(111). The red and peanut-colored circles correspond to C8Se molecules, and the yellow circles correspond to Au atoms in the structural model. The unit cell is indicated by a blue square, and the unit cell vectors a and b are indicated in the STM image and structural model.
Ijms 26 09192 g007
