Histology of the Upper Gastrointestinal Tract, Morphometry and Lymphocyte Subpopulations of the Duodenal Mucosa: Insights from Healthy Individuals

by
Albert Martín-Cardona
1,2,*,
Anna Carrasco
1,2,
Carme Ferrer
3,
Clarisa González-Mínguez
3,
Luis Luizaga-Velasco
3,
Xavier Tarroch
3,
Gerardo Gonzalez-Puglia
1,
Eva Tristán
1,2,
Natalia Berenice Cardozo-Rembado
1,
Natàlia Pallarès
4,
Cristian Tebé
4,
Beatriz Arau
1,2,
Isabel Salvador
1,
Ingrid Fajardo
1,
Raimon Rifà
1,
Laura Ruiz
1,2,
Pablo Ruiz-Ramírez
1,2,
Sònia Fernández-Herrera
1,
Agnès Raga
1,
Montserrat Aceituno
1,2,
Yamile Zabana
1,2,
Carme Loras
1,2,
Mireia Fonolleda
5,
Jordi Roigé
6,
Fernando Fernández-Bañares
1,2,† and
Maria Esteve
1,2,*add Show full author list remove Hide full author list
1
Digestive Diseases Department, Hospital Universitari Mútua Terrassa, University of Barcelona, 08221 Terrassa, Catalonia, Spain
2
Centro de Investigación Biomédica en Red de Enfermedades Hepáticas y Digestivas (CIBERehd), Instituto de Salud Carlos III, 28029 Madrid, Spain
3
Pathology Department, Hospital Universitari Mútua Terrassa, University of Barcelona, 08221 Terrassa, Catalonia, Spain
4
Biostatistics Support and Research Unit, Germans Trias I Pujol Research Institute and Hospital (IGTP), 08916 Badalona, Catalonia, Spain
5
Department of Immunology, Catlab, 08232 Viladecavalls, Catalonia, Spain
6
Department of Genetics, Catlab, 08232 Viladecavalls, Catalonia, Spain
*
Authors to whom correspondence should be addressed.
†
Fernando Fernández-Bañares passed away on 13 June 2023.
Int. J. Mol. Sci. 2025, 26(3), 1349; https://doi.org/10.3390/ijms26031349
Submission received: 15 December 2024 / Revised: 28 January 2025 / Accepted: 4 February 2025 / Published: 5 February 2025
(This article belongs to the Special Issue Trends and Prospects of Flow Cytometry in Cell and Molecular Biology)
Browse Figures
Review Reports Versions Notes

Abstract

:
The upper oesophagogastrointestinal (UEGI) tract histology, intestinal morphometry and lymphocyte subpopulations of healthy people is scarcely known. In research studies of inflammation involving the UEGI tract, there is a lack of adequate healthy controls. Aims: To evaluate the histology of the UEGI tract and the duodenal lymphocyte subpopulations of healthy volunteers and patients with gastroesophageal reflux disease (GERD), the latter to assess if it could replace healthy subjects. Healthy individuals were excluded if they had symptoms, comorbidities, pregnancy, toxics, medications or abnormal blood analysis. Subjects in both groups with abnormal duodenal intraepithelial lymphocyte (IEL) counts were also excluded. A total of 280 subjects were assessed, and 37 were included (23 healthy and 14 with GERD). The GERD group showed a higher IEL count (median [IQR]: 19.5 [17–22]), than healthy group: (15 [12–18]), p = 0.004. Eosinophils, mast cells and intestinal morphometry were similar in both groups. In the lamina propria, CD4+ T cells decreased (p = 0.008), and CD8+ T cells increased (p = 0.014). The total innate lymphoid cells (ILC) and CD3− cells decreased (p = 0.007) in GERD group compared to healthy controls. At the intraepithelial level, NKT cells increased (p = 0.036) and ILC3 decreased (p = 0.049) in the GERD group. This is the first study to comprehensively map the histology, morphometry and duodenal subpopulations of healthy volunteers to help define a “gold standard” of normality. The differences found between both groups suggest that, whenever possible, healthy subjects should be included in research studies. Alternatively, we can consider a well-defined homogenous group with GERD to serve as the control group.

1. Introduction

Clinical and pathological findings identify different diseases. Systematic histological studies of the digestive tract provide a wealth of information; however, in many cases, these pathological findings are nonpathognomonic, and the clinical presentations of different diseases (dyspepsia, anaemia, diarrhoea, etc.) can be indistinguishable. Therefore, additional techniques based on disease-specific pathophysiological findings are necessary for more precise diagnosis.
A good example of a disease-specific immunological marker is the increased percentage of TCRγδ+ cells found in the intraepithelial mucosa of the duodenum of coeliac patients (named the coeliac lymphogram pattern) [1]. This pattern is a very useful tool for diagnosing seronegative coeliac disease or lymphocytic coeliac enteropathy (generally seronegative); additionally, it allows a differential diagnosis with other diseases, such as Crohn’s disease and Helicobacter pylori infection, among others, that may have overlapping symptoms and identical histopathological features at the duodenum. Therefore, lymphocyte subpopulation patterns may guide the aetiology of diseases based on their pathophysiology.
When defining pathologically associated disease patterns, one important issue is the lack of a gold standard of what is considered healthy controls. Most studies evaluating the lower digestive tract mucosa include “healthy control” subjects undergoing colonoscopy for colorectal cancer screening if the colonic mucosa is macroscopically and microscopically normal [2]. In Western countries, there are no mass screening programmes for oesophagogastric cancer due to its relatively low prevalence. Thus, routine endoscopic assessment of the upper gastrointestinal tract with biopsies in patients without digestive symptoms in our environment is lacking. In fact, the limit of normal lymphocyte infiltration in the duodenum for diagnosis of coeliac disease (CD) [3,4,5,6] or the normal value of eosinophils in the oesophagus for oeosinophilic oesophagitis (EoE) [7] was not established until recently. However, even in these cases, the included controls considered “normal” had digestive symptoms [4]. Information regarding the patterns of lymphocyte subpopulations in the intestinal tract of healthy patients is scarce [8]. Additionally, studies included patients with functional digestive disorders, such as irritable bowel syndrome (IBS), as the control group [8]. IBS is characterised by bloating, abdominal pain, and alterations in bowel habits, which can range from constipation to diarrhoea or both [9]. Although IBS is generally characterised by normal intestinal histology, many studies have demonstrated some type of low-grade mucosal inflammation [10], with mast cells playing a role in its pathophysiology [11,12,13,14]. In addition, lymphocyte subpopulation patterns remain unknown [15].
Having a good standard of normality is essential for research studies. This standard should be established in individuals without clinical symptoms or the presence of any disease. Therefore, the aim of this study was to assess the histology (lymphocytes, eosinophils, and mast cells) of the upper digestive tract (oesophagus, stomach, and duodenum), morphometry and lymphocyte subpopulations of the duodenal mucosa in asymptomatic healthy individuals. As a secondary aim, we assessed patients with gastroesophageal reflux disease (GERD) to ascertain whether they had a healthy duodenum that allowed them to serve as a control group for diseases involving this part of the intestinal tract.

2. Results

2.1. Baseline Characteristics of the Study Population

A total of 280 subjects were assessed, and 37 were included: 23 healthy individuals (56.5% female, 24.7 ± 4.2 years) and 14 patients with GERD (57.1% female, 33.3 ± 14.1 years) (Figure 1. Study flowchart). No differences in sex were found, but healthy controls were significantly younger than those in the GERD group (p = 0.022).
The GERD group included a slightly greater percentage of smokers than in the healthy control group, and PPIs was used by more than three-quarters of them. Neither patients with GERD nor healthy controls took any other medication, nor did they consume alcohol. All GERD patients and healthy controls had negative CD serology. In the GERD group, five patients (50%) were DQ2.5+, whereas the healthy controls had low-risk or negative CD genetics. In terms of endoscopic findings, 21% of the GERD patients had reflux oesophagitis. No adverse events occurred during upper gastrointestinal endoscopy. Table 1 describes the baseline characteristics of the healthy individuals group and the GERD group.

2.2. Histological Features (Lymphocytes, Eosinophils and Mast Cells)

Table 2 describes the histological characteristics of the oesophageal, gastric and duodenal mucosa in the healthy and GERD groups. Two cases of eosinophilic oesophagitis were observed in the GERD group, and a similar percentage of mild chronic gastritis was noted in both groups (p = 0.200). No differences were found in eosinophil or mast cell counts in the oesophageal, gastric or duodenal mucosa (p = ns). For the IEL count, no differences were found in the oesophageal and gastric mucosa; however, a significantly greater percentage of duodenal IELs (median [IQR]: 19.5 [17–22]) were found in patients with GERD than in healthy controls (median [IQR]: 15 [12–18]), p = 0.005. However, both groups had normal IEL counts in the duodenum, as established by the inclusion criteria. No parasites were identified on the duodenal surface of healthy controls or patients with GERD.
In Table 3, the histological characteristics of healthy individuals analysed by sex are described. No significant differences were observed in the histological characteristics studied between men and women in healthy individuals, except for the duodenal mast cell count, which was increased in women (p = 0.009). Additionally, no significant differences were found in the histological characteristics when the data were analysed by age separated into two groups by the median value (<25 versus ≥25 years) in healthy individuals.
Figure 2 shows histological images of duodenal lymphocyte, eosinophil, and mast cell counts of healthy individuals.

2.3. Duodenal Morphometry

Despite a greater IEL count in the duodenal mucosa in patients with GERD, no differences were observed between the healthy and GERD groups in terms of villus morphometry (villus height [μm] and crypt depth [μm]) (Table 4 and Figure 3). The architecture and shape of the villi (villus height-to-crypt depth ratio) were preserved in both groups. Figure 4 shows histological images of the duodenal mucosa with measurements of villus height and crypt depth to assess duodenal morphometry.

2.4. Intestinal Lymphocyte Subpopulations

Table 5 shows the intestinal lymphocyte subpopulations in healthy individuals compared with those in the GERD group, separated by the two intestinal compartments, the intraepithelial compartment and lamina propria.
The most remarkable differences between the healthy control group and patients with GERD were found in the lamina propria compartment, with a significant decrease in CD4+ T cells (p = 0.008) and an increase in CD8+ T cells in patients with GERD compared with those in healthy controls (p = 0.014). The total number of innate lymphoid cells (ILC) also decreased in the lamina propria of patients with GERD (p = 0.007), mainly due to a reduction in the number of ILC1 (p = 0.012). At the intraepithelial level, ILC3 significantly decreased (p = 0.049) and natural killer T (NKT) cells increased (p = 0.036) in the GERD group compared to healthy controls.
Two of the subpopulations evaluated were those that conform to the very specific immunological signature related to CD at the intraepithelial level, which has been named the coeliac lymphogram. No differences in the number of TCRγδ+ and CD45+CD3− cells were detected between the healthy and GERD groups. However, differences were noted in CD45+CD3− in the lamina propria, with a decrease in the GERD group (p = 0.007).
Figure 5 shows the distribution of lymphocyte subpopulations (%), for which there was a significant difference in the lamina propria or intraepithelial compartment between groups. Additionally, the two subpopulations of the coeliac lymphogram are represented. The more overlapping curves there are, the fewer differences there are between the healthy and GERD groups. Figure 6 shows intestinal cytometry panels of major intestinal lymphocyte subpopulations in healthy individuals compared to the GERD group.

3. Discussion

This is the first study assessing the morphological findings of the upper gastrointestinal tract and lymphocyte subpopulations by flow cytometry in the duodenal mucosa of strictly asymptomatic healthy individuals. Furthermore, duodenal morphometry was used for a more accurate evaluation [16,17]. The reason for the lack of studies of normal healthy intestines is the difficulty in finding asymptomatic true healthy controls, especially regarding the upper gastrointestinal tract. In fact, after exhaustive evaluation of more than 100 potential healthy controls, we could include only one in every six subjects. Even in this case, four patients had mild antritis. These patients were ultimately included because the duodenal mucosa was macroscopically normal and the number of IELs was below the considered optimal cut-off point of 25 IELs/100 enterocytes.
Patients with pure GERD symptoms could theoretically be good controls, especially for studies assessing the duodenal mucosa. There were no significant differences in mast cell, eosinophil or lymphocyte counts between healthy controls and patients with GERD in the oesophagus and stomach. At the duodenal level, no differences were found in eosinophil or mast cell counts or in duodenal morphometry. The latest ESPGHAN/NASPGHAN guidelines for eosinophilic gastrointestinal disorders suggest normal eosinophil thresholds of 15, 30 and 50 for the oesophagus, stomach and duodenum, respectively [7,18,19,20]. Nevertheless, in the group of healthy individuals from the present study, the mean eosinophil counts were much lower, as they were strictly asymptomatic. Mast cells may play a significant role in the pathophysiology of IBS [11,12,15]. Studies in this field should consider the mast cell count found in our study as a reference of normality.
Incorporating a sex and gender perspective in biomedical research, the histological data were disaggregated and analysed by sex. A significant increase in the duodenal mast cell count was found in women (p = 0.009). This finding is consistent with previous literature, such as the studies by Barbara et al. [21] and Cremon et al. [22], which also identified a significant increase in the number of mast cells in the colonic mucosa, predominantly in women with IBS. Physiologically, mast cells express receptors for oestrogen and progesterone, suggesting that these hormonal mediators could modulate their activity [21,22]. This phenomenon may be related to hormonal fluctuations during the menstrual cycle in women, contributing to a higher mast cell density in the female intestinal mucosa. No significant differences were found in the remaining histological characteristics between males and females.
With respect to duodenal morphometry, no differences were observed between the healthy individuals and the GERD group. We cannot determine whether an increase in sample size would render this difference significant; however, the results obtained are consistent with those previously published by Rostami et al., where no differences in the villus height-to-crypt depth ratio were observed between the two studies [17]. We recommend that studies assessing mucosal structure in the duodenum provide data on villous morphometry.
However, differences were observed in IEL counts, which were greater in the GERD group than in the healthy control group. This finding could be explained by increased acid reflux at the duodenal level or by the use of PPIs. Acid reflux in the duodenum can cause histological lesions in the duodenal bulb and the second portion of the duodenum [23]. Additionally, chronic PPI use may lead to alterations in the gastric microbiota [24] and bacterial overgrowth [25], both of which could result in increased IEL counts in the duodenum [23,26].
The “normal” cut-off for IELs in the duodenum has been a topic of debate in the medical literature [27]. The most important limitation is the lack of a universal definition of what is considered ‘normal’. The interest in having a cut-off was focused mainly on the diagnosis of mild enteropathy due to CD. The first stage of this enteropathy, triggered by gluten ingestion, is characterised by diffuse infiltration of intestinal villi by IELs. Although some other diseases may produce similar histopathological lesions, the magnitude of the increase seemed to be greater in CD than in other pathological conditions. For this reason, and because of the lack of true healthy controls, all studies assessing the “normal” cut-off of IEL were performed by comparing patients with CD with a variety of disease controls. These patients included those with dyspepsia, bloating, diarrhoea, GERD and others. Using these controls, the most agreed-upon cut-off was established with 25 IELs/100 epithelial cells. In our study, we found a median value of 15 IELs/100 epithelial cells in healthy subjects, with a maximum value of 20 IELs/100 epithelial cells. This normal healthy pattern should be considered in studies assessing the immune cell response in diseases other than CD.
Regarding the duodenal subpopulations evaluated, the most important differences between healthy controls and patients with GERD were found in the lamina propria compartment; this consisted of profound differences in the CD4/CD8 balance, with a significant decrease in CD4+ T cells and an increase in CD8+ T cells in patients with GERD compared with those in controls. In addition, there was a decrease in CD45+CD3− and ILC (primarily due to ILC1) subpopulations in patients with GERD. In the intraepithelial compartment, ILC3 had a differential profile in GERD patients compared with that in healthy controls, with a significant reduction in patients with GERD. Moreover, GERD is associated with an increase in cytotoxic NK cells, mainly due to a significant increase in NKT (CD3+CD56+) cells. All these findings, particularly the increase in lamina propria CD8+ T cells and intraepithelial NKT cells, demonstrates a predominant activation of innate immune response in the duodenum of patients with GERD compared to healthy subjects [28]. These differences are likely explained by acid reflux and/or PPI use [24,25]. By contrast, we lack a clear explanation for the reduction in total ILCs and ILC1 in the lamina propria, as well as ILC3 in the intraepithelial compartment, in patients with GERD compared to healthy controls. Certain bacterial overgrowth induced by PPIs or acid-induced inflammation would be expected to have the opposite effect [29,30,31]. In healthy subjects, the relative composition of ILCs aligns with previous descriptions, showing a predominance of ILC1 in the intraepithelial layer of the duodenum and ILC3 in the lamina propria, whereas ILC2 was undetected in both healthy controls and patients with GERD. In fact, under homeostatic conditions, ILC2 primarily resides in adipose tissue, the lungs, and the skin rather than the intestine [29].
Increased intraepithelial TCRγδ+ and decreased NK CD3− cells, known as a coeliac lymphogram, is a characteristic hallmark of the immunological response of CD patients and is very useful for the diagnosis of challenging cases [1]. We did not find differences between healthy controls and patients with GERD regarding these subpopulations. These findings suggest that patients with GERD could be acceptable controls for studies involving the immune response of CD, particularly in the epithelial compartment.
The selection of the two groups assessed in the present study was based on CONSORT [32], STARD [33] and QUADAS-2 [34] recommendations that establish the need for clear inclusion and exclusion criteria defining control populations. In this sense, the groups we included in the present study are homogeneous, representative of the target population, comparable, and selected without bias (except for the inclusion of PPI use in the GERD group). The purpose of defining control groups is to align with the specific objectives of different studies. A control group of healthy individuals is ideal for diagnostic studies, although a well-defined disease control group may also be very useful, depending on what we were studying.
Our study has strengths and limitations. The most important strengths are that we assessed strictly asymptomatic healthy individuals. Although it may not seem so at first glance, this is a significant advantage since all prior studies of the small intestine to date have used symptomatic controls, in whom the target disease being studied was ruled out. The reason for this selection bias, which was repeated until the present project, was the technical difficulty of collecting samples from asymptomatic healthy individuals. By describing the histology of the duodenal, gastric and oesophageal mucosa, as well as the morphometry and lymphocyte subpopulations in strictly asymptomatic healthy individuals, this study will enable diagnostic precision studies and establish normality cut-off points. Additionally, the inclusion of a GERD control group facilitates the validation of findings with greater ease.
The main limitation of our study is the presence of selection bias in the GERD patient group, as these patients present with acid reflux and higher PPI use, which prevents certain lymphocyte populations (CD45+CD3− cells, ILC, CD4+ and CD8+ in the lamina propria and NKT and ILC3 at the intraepithelial level) from being used as a “gold standard” since significant differences were observed between the GERD group and healthy controls. Despite this, we consider the GERD group to be a good control group in certain circumstances, as they showed normality in the remaining parameters and did not exhibit characteristic symptoms (e.g., diarrhoea, pain, or abdominal distension) of other diseases that may cause duodenal abnormalities (such as CD, Crohn’s disease, or IBS). Another limitation is the small sample size due to the technical challenges of including more individuals with very restrictive inclusion/exclusion criteria. However, a review of the literature reveals that studies aiming to characterise the duodenal mucosa of “healthy individuals” included approximately 20 participants. For instance, the classic studies by M. Hayat et al. [5], B. Veress et al. [35] and S. Pellegrino et al. [4] included 20, 18 and 14 “healthy controls”, respectively. Moreover, the majority of subjects in these studies were not asymptomatic, with most of them likely having functional bowel disorders, which was the primary reason for undergoing upper endoscopy. Nonetheless, the interquartile range of the different parameters assessed are narrow, indicating that the selected group is highly homogeneous. Thus, even if the sample size was increased, the results would likely not change.

4. Materials and Methods

4.1. Study Design, Definitions, Patients and Controls

This descriptive cross-sectional study was designed to characterise the normal mucosa of the upper digestive tract (oesophageal, gastric and duodenal) in healthy individuals. The inclusion criteria for the healthy control group were as follows: age >18 years, no comorbidities, provided written informed consent, negative symptom questionnaire (Supplementary Table S1), consuming a Mediterranean diet without restrictions, normal blood analysis (Supplementary Table S2), negative coeliac serology and Helicobacter Pylori tests, negative high-risk genetic testing for CD (only one allele of DQ2.2 or DQ7.5 was accepted separately), normal oesophagogastroduodenoscopy and histologically normal duodenal mucosa (<25 intraepithelial lymphocytes [IELs]) [3,4,5]. The exclusion criteria included age >65 years, body mass index >28, refusal to participate, severe disease (cardiopathy, lung and liver disease, coagulation disorders, neoplasms, etc.), personal or family history of CD and/or inflammatory bowel disease, pregnancy and/or breastfeeding, presence of any current digestive symptoms, potentially contagious diseases (human immunodeficiency virus, hepatitis C virus, hepatitis B virus, tuberculosis, COVID-19, etc.), travel to tropical countries in the previous 6 months, coagulopathy or anticoagulant treatment, use of any medication (including nonsteroidal anti-inflammatory drugs [NSAIDs]) in the previous 4 weeks, restrictive diets (vegetarian, vegan, or gluten-free), positive H. Pylori test, high-risk coeliac genetics (DQ2.5 or DQ8), positive coeliac serology, active smoking, alcohol consumption, abnormal oesophagogastroduodenoscopy or duodenal biopsy showing enteropathy.
Patients with GERD who met similar inclusion criteria were included as controls. However, in this case, proton pump inhibitor (PPI) use, the presence of H. pylori and active smoking were permitted, and upper gastrointestinal endoscopy was performed as part of routine clinical practice.
To account for possible discomfort, inconveniences and complications arising from upper gastrointestinal endoscopy with sedation, all healthy participants received compensation of €150. These subjects were blinded to which characteristics were required for inclusion in the study to avoid inducing negative responses in the questionnaire.
Additionally, to ensure participant safety, an insurance policy was secured from a leading provider in the field of clinical trial and biomedical research insurance for studies involving invasive procedures (Zurich Insurance Group Ltd., Zurich, Switzerland).
Only subjects who had negative responses on the dyspepsia questionnaire (Supplementary Table S1) were included.
Histopathological analysis, intestinal morphometry and flow cytometry were performed in a blinded manner. That means that the pathologists were blinded to the groups and their respective collected samples.
Considering sex and gender perspective, the data were disaggregated and analysed by sex in the results section [36].

4.2. Assessment of Subjects and Endoscopic Sample Collection

Before inclusion in the study, blood tests were performed to confirm the normality of the following parameters: complete blood count; general biochemistry, including renal and liver function and coagulation profile. Subsequently, an endoscopic procedure under sedation was performed with duodenal, gastric and oesophageal biopsies. Biopsy samples were obtained using 2.8 mm biopsy forceps (Radial Jaw 4, Boston Scientific, Marlborough, MA, USA).
For histopathological assessment of the duodenum, four endoscopic biopsies were collected from the second to third portions of the duodenum and two were taken from the duodenal bulb. From the gastric cavity, two endoscopic biopsies were collected from the antrum, and two biopsies were taken from the distal oesophagus.
For IEL assessment by flow cytometry, 14 biopsies were collected from the second portion of the duodenum.

4.3. Histopathological Assessment

In the upper digestive tract (oesophagus, stomach, and duodenum), the following cell types were evaluated: lymphocytes, eosinophils, and mast cells. Pathologists examined 5–10 high-resolution fields (40×) for each relevant section. To count intraepithelial lymphocytes, samples were processed using haematoxylin/eosin (H&E) staining, and the CD3 immunohistochemistry marker, prediluted anti-CD3 (2GV6) rabbit monoclonal antibody, was used (40×). We used the Marsh–Oberhuber classification [37] for the description of the duodenal mucosa.
Eosinophil counts were conducted using H&E staining (40×) and were performed in the duodenal villi (average eosinophil count with one decimal point in five well-oriented contiguous villi per high-power field [HPF]), in the duodenal and gastric lamina propria (number of eosinophils per HPF in well-oriented areas), and at the intraepithelial level in the oesophagus.
For mast cell counting, the immunohistochemistry marker prediluted anti-CD117 (EP10) (C-Kit) monoclonal antibody was used (40×), with counts performed in the duodenal villi (average with one decimal point in five well-oriented contiguous villi), in the duodenal and gastric lamina propria (number of mast cells per HPF in well-oriented areas), and at the intraepithelial level in the oesophagus.
In gastric samples, the presence of H. pylori was investigated using immunohistochemistry marker prediluted anti-H. pylori (SP48) rabbit monoclonal antibody.
The various immunohistochemical analyses mentioned were performed using the VENTANA platform (Roche Diagnostics, Basel, Switzerland).

4.4. Morphometric Assessment

For morphometric analysis, a high-resolution optical microscope at 40× magnification was used. Five well-oriented representative areas were analysed for the direct measurement of villus height and crypt depth, which serve as indicators of duodenal mucosal structure. This analysis was performed on biopsies from the second portion of the duodenum stained with H&E.

4.5. Coeliac Serology and HLA-DQ Genotyping

Serum IgA-tissue transglutaminase 2 antibodies (anti-tTG2) were analysed using a quantitative automated chemiluminescence kit (QUANTA FLASH h-tTG IgA kit; Inova Diagnostics, San Diego, CA, USA) with recombinant human TG2 from baculovirus as the antigen. Values > 20 CU were considered positive. Total serum IgA was measured by an immunoturbidimetry automated assay (Cobas 8000 c 207, Roche Diagnostics, Basel, Switzerland).
Genomic DNA from whole blood was purified using a commercial QIAamp DNA Blood Mini Kit (Qiagen, Düsseldorf, Germany). A commercial method of SSO-PCR to detect CD-associated HLA alleles (HLA-DQA1* and HLA-DQB1* alleles) was used (HISTO SPOT Coeliac Disease Kit, BAG Healthcare, Lich, Germany). DQ genotyping was performed according to previous recommendations [38].

4.6. Intestinal Lymphocyte Isolation and Quantification by Flow Cytometry

The samples for studying lymphocyte subpopulations were collected in a complete culture medium consisting of sterile advanced RPMI supplemented with 2% foetal bovine serum (FBS), 100% antibiotic–antimycotic mixture (10,000 U/mL penicillin, 10,000 µg/mL streptomycin, and 25 µg/mL amphotericin B) to prevent cell culture contamination, and 200 mM 1% L-glutamine for cell culture supplementation; both reagents were obtained from Gibco (Refs. 11570486 and 11500626; Thermo Fisher Scientific Inc., Waltham, MA, USA). Isolation of IELs was achieved by gentle rotation in an orbital shaker at 12 rpm for 90 min in a solution of 1 mM dithiothreitol and 1 mM ethylenediaminetetraacetic acid in 10% FBS Hanks balanced salt solution (HBSS) at room temperature [16]. The remaining tissue after IEL isolation was used for lamina propria lymphocyte (LPL) isolation by overnight incubation in the complete medium (walkout method). Total counts of IELs and LPLs were performed with trypan blue exclusion in a Neubauer chamber. A list of the antibodies used is available in Supplementary Table S3.
The following intraepithelial and LPL subpopulations were evaluated: TCRγδ+, CD3−, double-positive lymphocytes (DP, CD3+CD4+CD8+), double-negative lymphocytes (DN, CD3+CD4−CD8−), natural killer cells (NK, CD3−CD56+), natural killer T cells (NKT, CD3+CD56+), innate lymphoid cells (ILC1, ILC2, and ILC3), Vδ1+ T cells, Vδ2+ T cells, CD8α+CD8β−, and CD8α+CD8β+ cells.
The samples were acquired using an FACSCanto II or LSRFortessa flow cytometer (BD Bioscience, San Jose, CA, USA), and the data were analysed using BD FACSDiva v9.0 software (BD Biosciences, San Jose, CA, USA) and FlowJo v10.10 software (BD Biosciences, Ashland, OR, USA).

4.7. Statistical Analysis

Since this is an exploratory study, based on previous literature [4,5,35] and following a strict selection of potential healthy controls, we decided to include a minimum of 20 subjects of both sexes who fulfilled the inclusion criteria. Subsequently, we sought to include a similar number of cases from the GERD group, balanced by sex.
To compare characteristics between the healthy individuals and GERD groups, categorical variables are presented as the number of cases and percentages, whereas continuous variables are presented as medians and interquartile ranges (IQRs) or means and standard deviations (SDs). Density plots were used to compare the distributions of the subpopulations between healthy individuals and GERD patients. All analyses were conducted with a two-sided significance level of 0.05 using R software version 4.4.1 (https://www.r-project.org/).

5. Conclusions

In summary, this is the first study to describe the duodenal mucosa in healthy individuals and patients with GERD, establishing a “gold standard” of normality in the duodenal mucosa, which is fundamental for research on diseases such as CD, Crohn’s disease or IBS. The differences found between healthy controls and patients with GERD suggest that, whenever possible, healthy subjects should be included in research studies. Alternatively, we can include a well-defined homogenous control group, as it could include patients with GERD instead of a mixture of diseases.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms26031349/s1.

Author Contributions

A.M.-C. and M.E. coordinated the execution of the study. G.G.-P. and A.M.-C. recruited patients and checked the inclusion and exclusion criteria for patient selection. A.M.-C., G.G.-P., B.A., I.S., I.F., R.R., L.R., P.R.-R., S.F.-H., A.R., M.A., Y.Z., C.L. and F.F.-B. recruited patients and performed biopsy collection. C.F., C.G.-M., L.L.-V. and X.T. processed and evaluated the pathological anatomy samples. A.C., N.B.C.-R. and E.T. designed and performed the T-cell flow cytometry assays. C.T., N.P. and A.M.-C. performed the statistical analysis. M.F. conducted the coeliac serology study, and J.R. performed the coeliac genetics study. A.M.-C. and M.E. conceived and designed the study; revised, edited and prepared the figures; and drafted and finalised the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

A. Martín-Cardona is supported by a research grant awarded by Fundació Docència i Recerca Mútua Terrassa (BE0163) and a grant from ‘Societat Catalana de Digestologia’ (‘Iniciació a la Recerca’ grant). This study is funded by the Department of Health of Catalonia: Programme for the Incorporation of Support Staff into Research Groups (Code: SLT028/23/000194). The remaining authors have no grants to declare for this research from any funding agency in the public sector.

Institutional Review Board Statement

The use of the register-based data of patients with suspected CD was approved by the Ethics and Research Committee of the HUMT (Code: EO1939; date: 24 April 2019). The present study protocol was registered at ClinicalTrials.gov (NCT05084807).

Informed Consent Statement

All included patients provided written informed consent to be included in the registry. Researchers guaranteed strict measures for preserving patient confidentiality.

Data Availability Statement

The database underlying this article is available upon reasonable request.

Acknowledgments

This paper is dedicated to the memory of Fernando Fernández-Bañares, who passed away before the paper was accepted for publication. The study team would like to acknowledge the work of the nursing team of Olga Benitez, Mar Pujals, Anna Agustí, Juana Ma Hernández, Esther Montero, Cristina Chaparro, Evelyn Sánchez, Rosa Tomás, Anabel Polo, Maite Roldán, Ivet Mayor, Mar Carrasco, Javi Carrasco, Ingrid Martin, Cristina Perez, Gina Montoya, Belen Medina, Demetria Rodríguez, Miriam Díaz, Irene Pérez, Albert Rafecas and Alba Guiral for their valuable assistance in sample collection. We thank Loli Ureña, Merce Franch, Merce Boada, Melania Carranza, Cristina Lopez, Pilar Julian and Carlota Verdú for their help in the organisation, appointment, and scheduling of the endoscopic procedures. We thank Pilar Arcusa and Marta Martinez for their help in organising and processing the scholarships received for this project.

Conflicts of Interest

A. Martín-Cardona has received financial support for conference attendance, educational activities and research support from AbbVie, Biogen, Faes Farma, Ferring, Jannsen, MSD, Pfizer, Takeda, Dr. Falk Pharma, Lilly and Tillotts. R. Rifà has served as a speaker for Advanz and has received financial support for conference attendance and educational activities from Gilead, AbbVie, Roche, Advanz and Kern Pharma. Y. Zabana has received support for conference attendance, speaker fees, research support and consulting fees from: AbbVie, Adacyte, Alfa-Sigma, Almirall, Amgen, Boehringer Ingelheim, Dr Falk Pharma, FAES Pharma, Fresenius Kabi, Ferring, Galapagos, Janssen, J&J, Kern, Lilly, MSD, Otsuka, Pfizer, Sanofi, Shire, Takeda, Tillots. M. Esteve has received financial support for conference attendance and research support from Abbvie, Biogen, Faes Farma, Ferring, Jannsen, MSD, Pfizer, Takeda and Tillotts. F. Fernández-Bañares has received financial support for conference attendance and research support from AbbVie, Biogen, Faes Farma, Ferring, Jannsen, MSD, Pfizer, Takeda and Tillotts. The remaining authors report no conflicts of interest.

References

  1. Martín-Cardona, A.; Carrasco, A.; Arau, B.; Vidal, J.; Tristán, E.; Ferrer, C.; Gonzalez-Puglia, G.; Pallarès, N.; Tebé, C.; Farrais, S.; et al. Γδ+ T-Cells Is a Useful Biomarker for the Differential Diagnosis between Celiac Disease and Non-Celiac Gluten Sensitivity in Patients under Gluten Free Diet. Nutrients 2024, 16, 2294. [Google Scholar] [CrossRef]
  2. Esteve, M.; Salas, A.; Fernandez-Banares, F.; Lloreta, J.; Marine, M.; Gonzalez, C.I.; Forne, M.; Casalots, J.; Santaolalla, R.; Espinos, J.C.; et al. Intestinal Spirochetosis and Chronic Watery Diarrhea: Clinical and Histological Response to Treatment and Long-Term Follow Up. J. Gastroenterol. Hepatol. 2006, 21, 1326–1333. [Google Scholar] [CrossRef]
  3. Walker, M.M.; Murray, J.A. An Update in the Diagnosis of Coeliac Disease. Histopathology 2010, 59, 166–179. [Google Scholar] [CrossRef]
  4. Pellegrino, S.; Villanacci, V.; Sansotta, N.; Scarfã, R.; Bassotti, G.; Vieni, G.; Princiotta, A.; Sferlazzas, C.; Magazzù, G.; Tuccari, G. Redefining the Intraepithelial Lymphocytes Threshold to Diagnose Gluten Sensitivity in Patients with Architecturally Normal Duodenal Histology. Aliment. Pharmacol. Ther. 2011, 33, 697–706. [Google Scholar] [CrossRef]
  5. Hayat, M.; Cairns, A.; Dixon, M.F.; O’Mahony, S. Quantitation of Intraepithelial Lymphocytes in Human Duodenum: What Is Normal? J. Clin. Pathol. 2002, 55, 393–394. [Google Scholar] [CrossRef] [PubMed]
  6. Al-Toma, A.; Volta, U.; Auricchio, R.; Castillejo, G.; Sanders, D.S.; Cellier, C.; Mulder, C.J.; Lundin, K.E.A. European Society for the Study of Coeliac Disease (ESsCD) Guideline for Coeliac Disease and Other Gluten-related Disorders. United Eur. Gastroenterol. J. 2019, 7, 583–613. [Google Scholar] [CrossRef] [PubMed]
  7. Papadopoulou, A.; Amil-Dias, J.; Auth, M.K.H.; Chehade, M.; Collins, M.H.; Gupta, S.K.; Gutiérrez-Junquera, C.; Orel, R.; Vieira, M.C.; Zevit, N.; et al. Joint ESPGHAN/NASPGHAN Guidelines on Childhood Eosinophilic Gastrointestinal Disorders Beyond Eosinophilic Esophagitis. J. Pediatr. Gastroenterol. Nutr. 2024, 78, 122–152. [Google Scholar] [CrossRef]
  8. Camarero, C.; Leon, F.; Sanchez, L.; Asensio, A.; Roy, G. Age-Related Variation of Intraepithelial Lymphocytes Subsets in Normal Human Duodenal Mucosa. Dig. Dis. Sci. 2007, 52, 685–691. [Google Scholar] [CrossRef] [PubMed]
  9. Drossman, D.A. Functional Gastrointestinal Disorders: History, Pathophysiology, Clinical Features, and Rome IV. Gastroenterology 2016, 150, 1262–1279.e2. [Google Scholar] [CrossRef] [PubMed]
  10. Ionescu, V.A.; Gheorghe, G.; Georgescu, T.F.; Bacalbasa, N.; Gheorghe, F.; Diaconu, C.C. The Latest Data Concerning the Etiology and Pathogenesis of Irritable Bowel Syndrome. J. Clin. Med. 2024, 13, 5124. [Google Scholar] [CrossRef]
  11. Lee, K.N.; Lee, O.Y. The Role of Mast Cells in Irritable Bowel Syndrome. Gastroenterol. Res. Pract. 2016, 2016, 2031480. [Google Scholar] [CrossRef]
  12. Lazaridis, N.; Germanidis, G. Current Insights into the Innate Immune System Dysfunction in Irritable Bowel Syndrome. Ann. Gastroenterol. 2018, 31, 171–187. [Google Scholar] [CrossRef] [PubMed]
  13. Reber, L.L.; Sibilano, R.; Mukai, K.; Galli, S.J. Potential Effector and Immunoregulatory Functions of Mast Cells in Mucosal Immunity. Mucosal Immunol. 2015, 8, 444–463. [Google Scholar] [CrossRef] [PubMed]
  14. Wouters, M.M.; Vicario, M.; Santos, J. The Role of Mast Cells in Functional GI Disorders. Gut 2016, 65, 155–168. [Google Scholar] [CrossRef]
  15. Walker, M.M.; Talley, N.J.; Prabhakar, M.; Pennaneac’H, C.J.; Aro, P.; Ronkainen, J.; Storskrubb, T.; Harmsen, W.S.; Zinsmeister, A.R.; Agreus, L. Duodenal Mastocytosis, Eosinophilia and Intraepithelial Lymphocytosis as Possible Disease Markers in the Irritable Bowel Syndrome and Functional Dyspepsia. Aliment. Pharmacol. Ther. 2009, 29, 765–773. [Google Scholar] [CrossRef]
  16. Fernández-Bañares, F.; Carrasco, A.; Martín, A.; Esteve, M. Systematic Review and Meta-Analysis: Accuracy of Both Gamma Delta+ Intraepithelial Lymphocytes and Coeliac Lymphogram Evaluated by Flow Cytometry for Coeliac Disease Diagnosis. Nutrients 2019, 11, 1992. [Google Scholar] [CrossRef]
  17. Rostami, K.; Ensari, A.; Marsh, M.N.; Srivastava, A.; Villanacci, V.; Carroccio, A.; Asadzadeh Aghdaei, H.; Bai, J.C.; Bassotti, G.; Becheanu, G.; et al. Gluten Induces Subtle Histological Changes in Duodenal Mucosa of Patients with Non-Coeliac Gluten Sensitivity: A Multicentre Study. Nutrients 2022, 14, 2487. [Google Scholar] [CrossRef]
  18. Dellon, E.S.; Gonsalves, N.; Abonia, J.P.; Alexander, J.A.; Arva, N.C.; Atkins, D.; Attwood, S.E.; Auth, M.K.H.; Bailey, D.D.; Biederman, L.; et al. International Consensus Recommendations for Eosinophilic Gastrointestinal Disease Nomenclature. Clin. Gastroenterol. Hepatol. 2022, 20, 2474–2484.e3. [Google Scholar] [CrossRef]
  19. Dhar, A.; Haboubi, H.N.; Attwood, S.E.; Auth, M.K.H.; Dunn, J.M.; Sweis, R.; Morris, D.; Epstein, J.; Novelli, M.R.; Hunter, H.; et al. British Society of Gastroenterology (BSG) and British Society of Paediatric Gastroenterology, Hepatology and Nutrition (BSPGHAN) Joint Consensus Guidelines on the Diagnosis and Management of Eosinophilic Oesophagitis in Children and Adults. Gut 2022, 71, 1459–1487. [Google Scholar] [CrossRef]
  20. Liacouras, C.A.; Furuta, G.T.; Hirano, I.; Atkins, D.; Attwood, S.E.; Bonis, P.A.; Burks, A.W.; Chehade, M.; Collins, M.H.; Dellon, E.S.; et al. Eosinophilic Esophagitis: Updated Consensus Recommendations for Children and Adults. J. Allergy Clin. Immunol. 2011, 128, 3–20.e6. [Google Scholar] [CrossRef] [PubMed]
  21. Barbara, G.; Stanghellini, V.; De Giorgio, R.; Cremon, C.; Cottrell, G.S.; Santini, D.; Pasquinelli, G.; Morselli-Labate, A.M.; Grady, E.F.; Bunnett, N.W.; et al. Activated Mast Cells in Proximity to Colonic Nerves Correlate with Abdominal Pain in Irritable Bowel Syndrome. Gastroenterology 2004, 126, 693–702. [Google Scholar] [CrossRef] [PubMed]
  22. Cremon, C.; Carini, G.; Wang, B.; Vasina, V.; Cogliandro, R.F.; De Giorgio, R.; Stanghellini, V.; Grundy, D.; Tonini, M.; De Ponti, F.; et al. Intestinal Serotonin Release, Sensory Neuron Activation, and Abdominal Pain in Irritable Bowel Syndrome. Am. J. Gastroenterol. 2011, 106, 1290–1298. [Google Scholar] [CrossRef] [PubMed]
  23. Aziz, I.; Peerally, M.F.; Barnes, J.H.; Kandasamy, V.; Whiteley, J.C.; Partridge, D.; Vergani, P.; Cross, S.S.; Green, P.H.; Sanders, D.S. The Clinical and Phenotypical Assessment of Seronegative Villous Atrophy; A Prospective UK Centre Experience Evaluating 200 Adult Cases over a 15-Year Period (2000–2015). Gut 2017, 66, 1563–1572. [Google Scholar] [CrossRef]
  24. Rajilic-Stojanovic, M.; Figueiredo, C.; Smet, A.; Hansen, R.; Kupcinskas, J.; Rokkas, T.; Andersen, L.; Machado, J.C.; Ianiro, G.; Gasbarrini, A.; et al. Systematic Review: Gastric Microbiota in Health and Disease. Aliment. Pharmacol. Ther. 2020, 51, 582–602. [Google Scholar] [CrossRef]
  25. Su, T.; Lai, S.; Lee, A.; He, X.; Chen, S. Meta-Analysis: Proton Pump Inhibitors Moderately Increase the Risk of Small Intestinal Bacterial Overgrowth. J. Gastroenterol. 2018, 53, 27–36. [Google Scholar] [CrossRef]
  26. Fernández-Bañares, F.; Crespo, L.; Núñez, C.; López-Palacios, N.; Tristán, E.; Vivas, S.; Farrais, S.; Arau, B.; Vidal, J.; Roy, G.; et al. Gamma Delta+ Intraepithelial Lymphocytes and Coeliac Lymphogram in a Diagnostic Approach to Coeliac Disease in Patients with Seronegative Villous Atrophy. Aliment. Pharmacol. Ther. 2020, 51, 699–705. [Google Scholar] [CrossRef] [PubMed]
  27. Peña, A.S. What Is the Best Histopathological Classification for Celiac Disease? Does It Matter? Gastroenterol. Hepatol. Bed Bench 2015, 8, 239–243. [Google Scholar] [PubMed]
  28. Fuchs, A.; Colonna, M. Natural Killer (NK) and NK-like Cells at Mucosal Epithelia: Mediators of Anti-Microbial Defense and Maintenance of Tissue Integrity. Eur. J. Microbiol. Immunol. 2011, 1, 257–266. [Google Scholar] [CrossRef]
  29. Ryu, S.; Lim, M.; Kim, J.; Kim, H.Y. Versatile Roles of Innate Lymphoid Cells at the Mucosal Barrier: From Homeostasis to Pathological Inflammation. Exp. Mol. Med. 2023, 55, 1845–1857. [Google Scholar] [CrossRef]
  30. Krämer, B.; Goeser, F.; Lutz, P.; Glässner, A.; Boesecke, C.; Schwarze-Zander, C.; Kaczmarek, D.; Nischalke, H.D.; Branchi, V.; Manekeller, S.; et al. Compartment-Specific Distribution of Human Intestinal Innate Lymphoid Cells Is Altered in HIV Patients under Effective Therapy. PLoS Pathog. 2017, 13, e1006373. [Google Scholar] [CrossRef]
  31. Jiao, Y.; Yan, Z.; Yang, A. The Roles of Innate Lymphoid Cells in the Gastric Mucosal Immunology and Oncogenesis of Gastric Cancer. Int. J. Mol. Sci. 2023, 24, 6652. [Google Scholar] [CrossRef]
  32. Schulz, K.F.; Altman, D.G.; Moher, D. CONSORT 2010 Statement: Updated Guidelines for Reporting Parallel Group Randomised Trials. BMJ 2010, 340, c332. [Google Scholar] [CrossRef] [PubMed]
  33. Bossuyt, P.M.; Reitsma, J.B.; Bruns, D.E.; Gatsonis, C.A.; Glasziou, P.P.; Irwig, L.; Lijmer, J.G.; Moher, D.; Rennie, D.; De Vet, H.C.W.; et al. STARD 2015: An Updated List of Essential Items for Reporting Diagnostic Accuracy Studies. BMJ 2015, 351, h5527. [Google Scholar] [CrossRef] [PubMed]
  34. Whiting, P.F.; Rutjes, A.W.; Westwood, M.E.; Mallett, S.; Deeks, J.J.; Reitsma, J.B.; Leeflang, M.M.; Sterne, J.A.; Bossuyt, P.M. QUADAS-2 Group Bossuyt QUADAS-2: A Revised Tool for the Quality Assessment of Diagnostic Accuracy Studies. Ann. Intern. Med. 2011, 155, 529. [Google Scholar] [CrossRef] [PubMed]
  35. Veress, B.; Franzén, L.; Bodin, L.; Borch, K. Duodenal Intraepithelial Lymphocyte-Count Revisited. Scand. J. Gastroenterol. 2004, 39, 138–144. [Google Scholar] [CrossRef]
  36. Heidari, S.; Babor, T.F.; De Castro, P.; Tort, S.; Curno, M. Sex and Gender Equity in Research: Rationale for the SAGER Guidelines and Recommended Use. Res. Integr. Peer Rev. 2016, 1, 2. [Google Scholar] [CrossRef]
  37. Oberhuber, G.; Granditsch, G.; Vogelsang, H. The Histopathology of Coeliac Disease: Time for a Standardized Report Scheme for Pathologists. Eur. J. Gastroenterol. Hepatol. 1999, 11, 1185–1194. [Google Scholar] [CrossRef] [PubMed]
  38. Brown, N.K.; Guandalini, S.; Semrad, C.; Kupfer, S.S. A Clinician’s Guide to Celiac Disease HLA Genetics. Am. J. Gastroenterol. 2019, 114, 1587–1592. [Google Scholar] [CrossRef] [PubMed]
Ijms 26 01349 g001

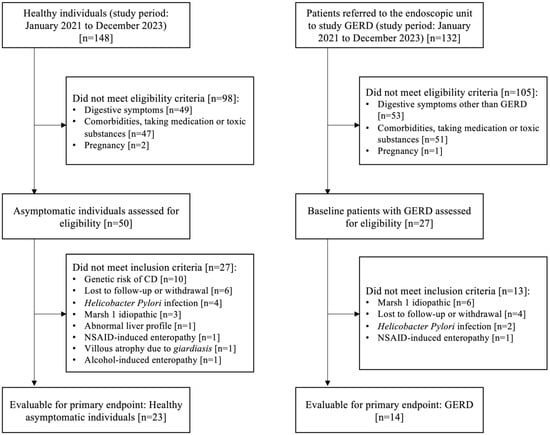

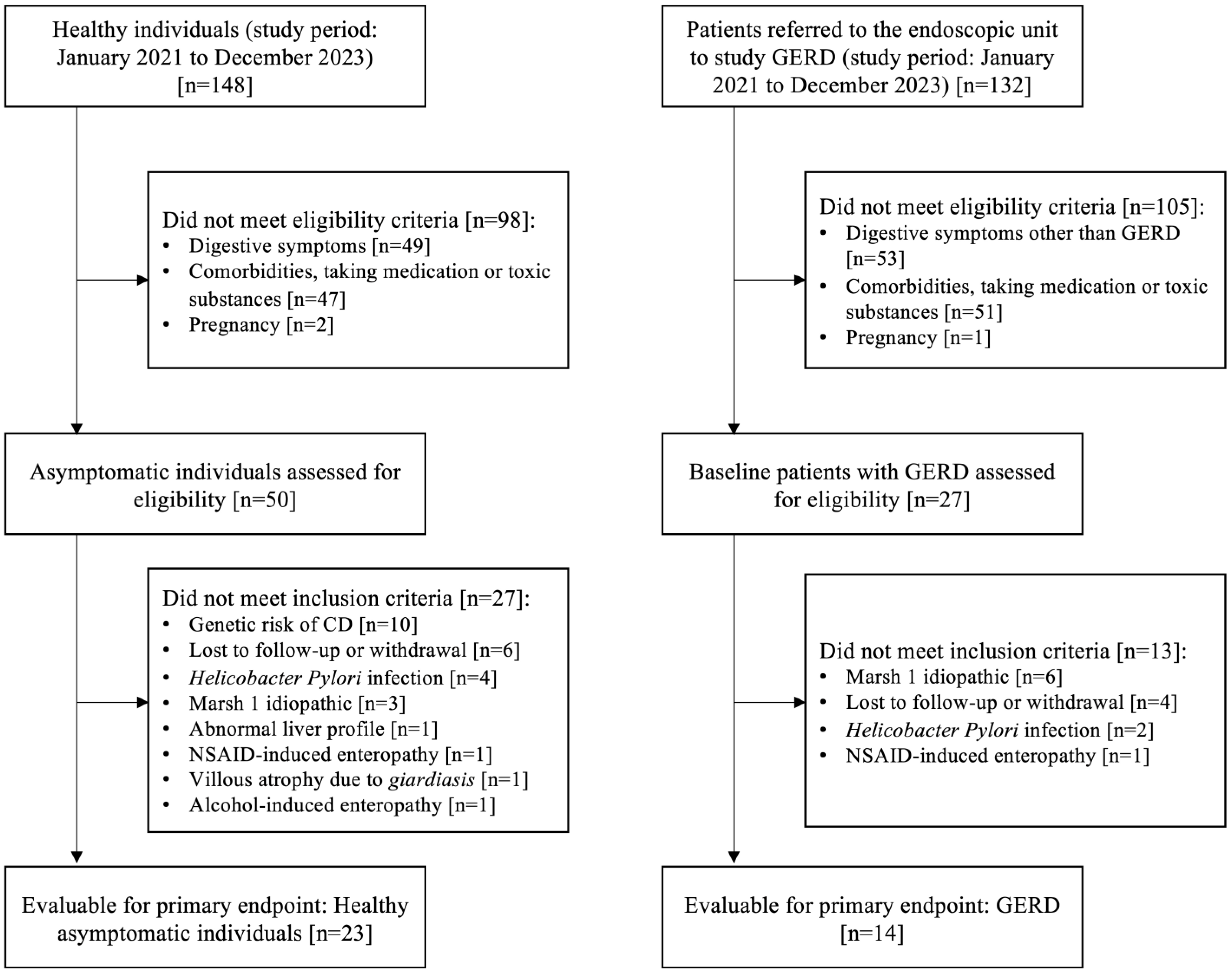

Figure 1. Study flow chart. Abbreviations: GERD: gastroesophageal reflux disease; NSAIDs: nonsteroidal anti-inflammatory drugs.
Figure 1. Study flow chart. Abbreviations: GERD: gastroesophageal reflux disease; NSAIDs: nonsteroidal anti-inflammatory drugs.
Ijms 26 01349 g001
Ijms 26 01349 g002
Figure 2. Histological images of duodenal samples from healthy individuals. (A) Immunohistochemical staining of CD3+ lymphocytes in the duodenal mucosa (Marsh 0). (B) H&E staining showing sparse eosinophils in the duodenal mucosa (Marsh 0). (C) Immunohistochemical staining of C-kit showing sparse mast cells in the duodenal mucosa (Marsh 0). Abbreviations: H&E: haematoxylin and eosin.
Figure 2. Histological images of duodenal samples from healthy individuals. (A) Immunohistochemical staining of CD3+ lymphocytes in the duodenal mucosa (Marsh 0). (B) H&E staining showing sparse eosinophils in the duodenal mucosa (Marsh 0). (C) Immunohistochemical staining of C-kit showing sparse mast cells in the duodenal mucosa (Marsh 0). Abbreviations: H&E: haematoxylin and eosin.
Ijms 26 01349 g002
Ijms 26 01349 g003

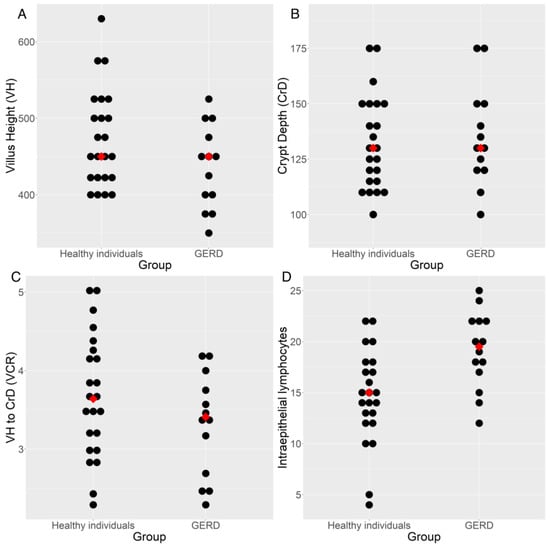

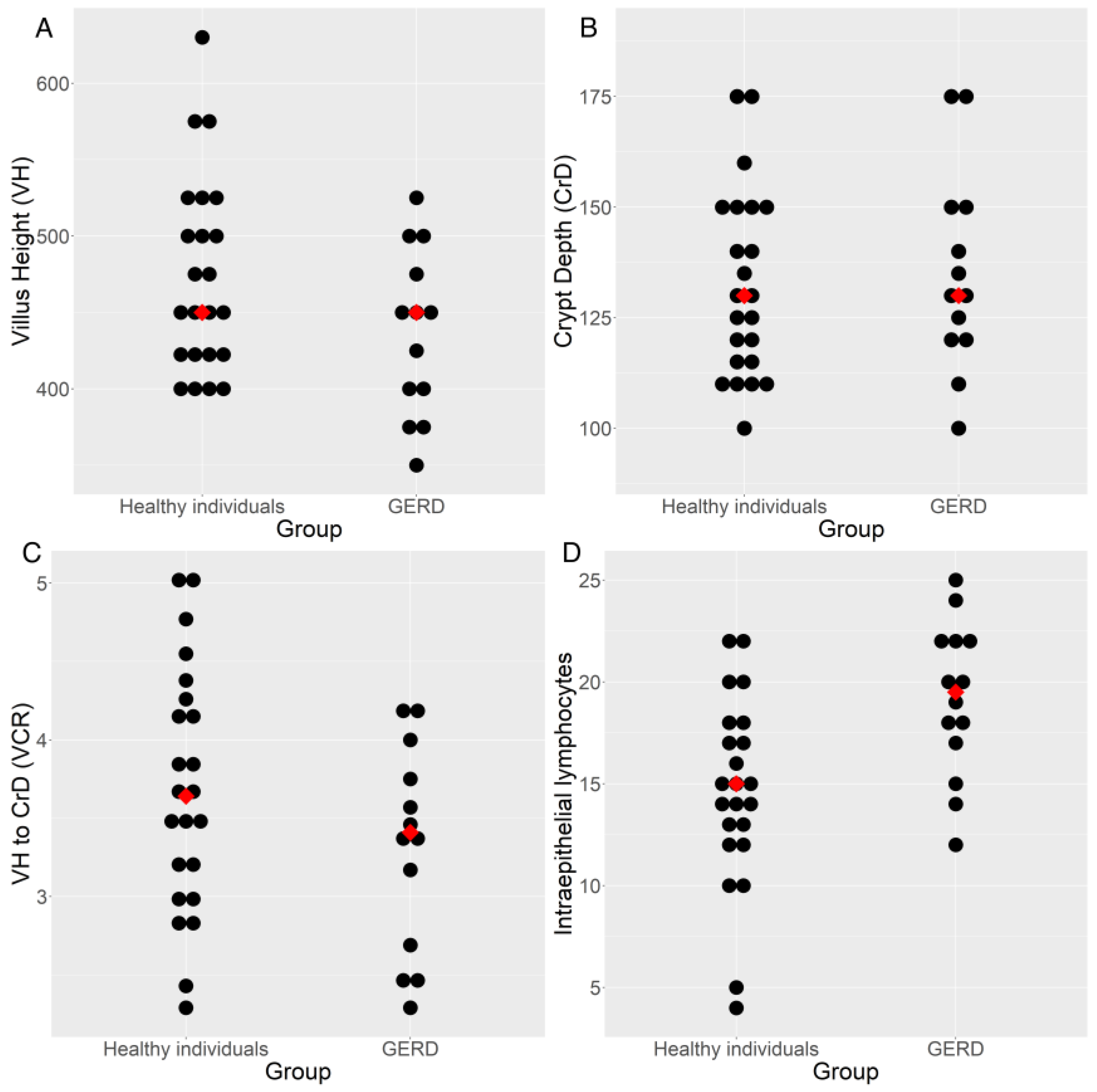

Figure 3. Strip chart of villus height (μm) (A), crypt depth (μm) (B), villus height-to-crypt depth ratio (VCR) (C) and intraepithelial lymphocytes (D) in the villi of healthy individuals compared with those in the gastroesophageal reflux disease (GERD) group. The red dot indicates the median.
Figure 3. Strip chart of villus height (μm) (A), crypt depth (μm) (B), villus height-to-crypt depth ratio (VCR) (C) and intraepithelial lymphocytes (D) in the villi of healthy individuals compared with those in the gastroesophageal reflux disease (GERD) group. The red dot indicates the median.
Ijms 26 01349 g003
Ijms 26 01349 g004
Figure 4. Haematoxylin and eosin staining of duodenal mucosa from healthy individuals (Marsh 0). The architecture of villi and crypts is preserved. The black arrows indicate two examples of villus height measurements (µm), and the orange arrows indicate two measurements of crypt depth (µm) to assess duodenal morphometry.
Figure 4. Haematoxylin and eosin staining of duodenal mucosa from healthy individuals (Marsh 0). The architecture of villi and crypts is preserved. The black arrows indicate two examples of villus height measurements (µm), and the orange arrows indicate two measurements of crypt depth (µm) to assess duodenal morphometry.
Ijms 26 01349 g004
Ijms 26 01349 g005

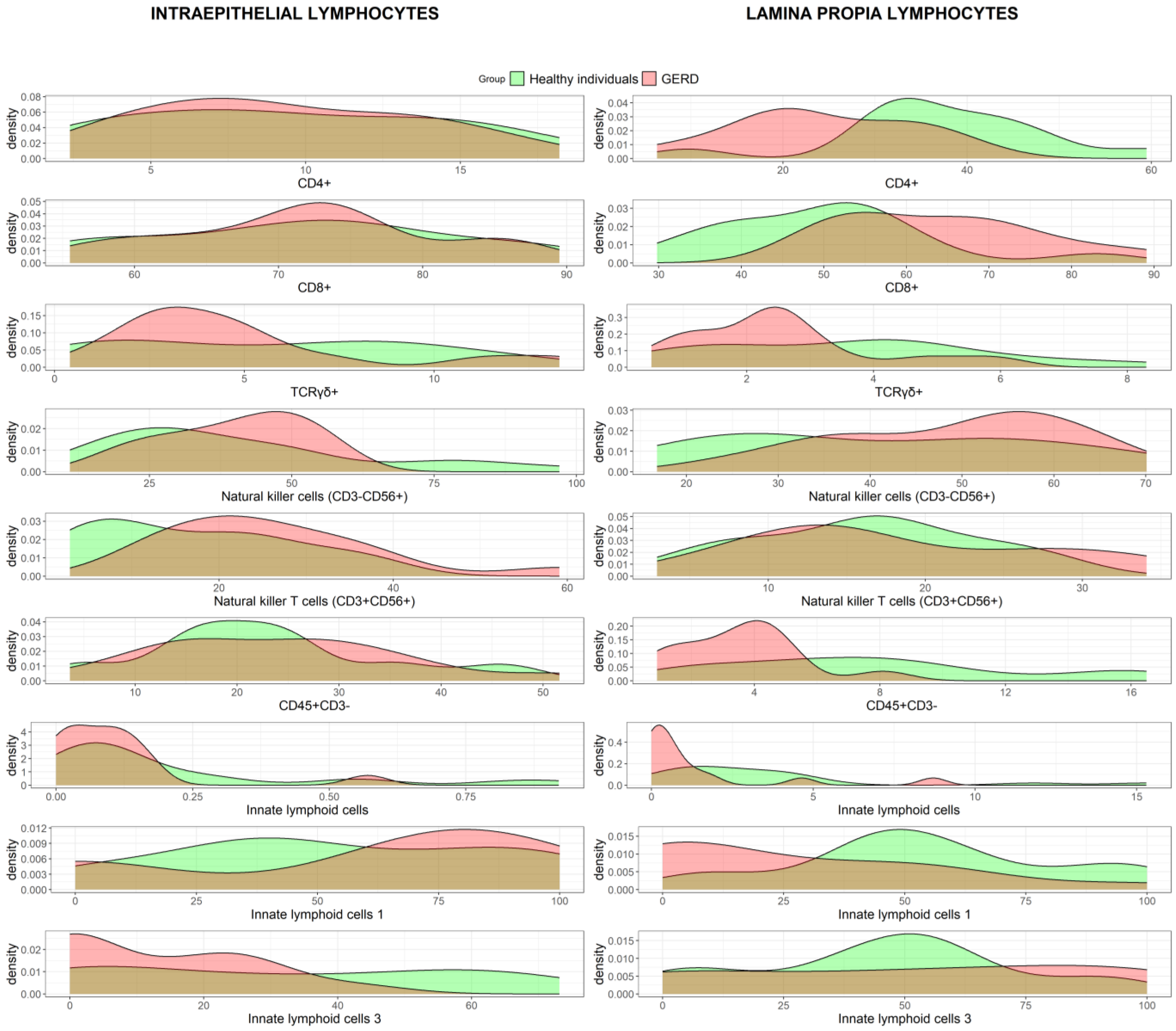

Figure 5. Main intestinal lymphocyte subpopulations in healthy individuals compared to those in the gastroesophageal reflux disease (GERD) group and the overlap between them.
Figure 5. Main intestinal lymphocyte subpopulations in healthy individuals compared to those in the gastroesophageal reflux disease (GERD) group and the overlap between them.
Ijms 26 01349 g005
Ijms 26 01349 g006

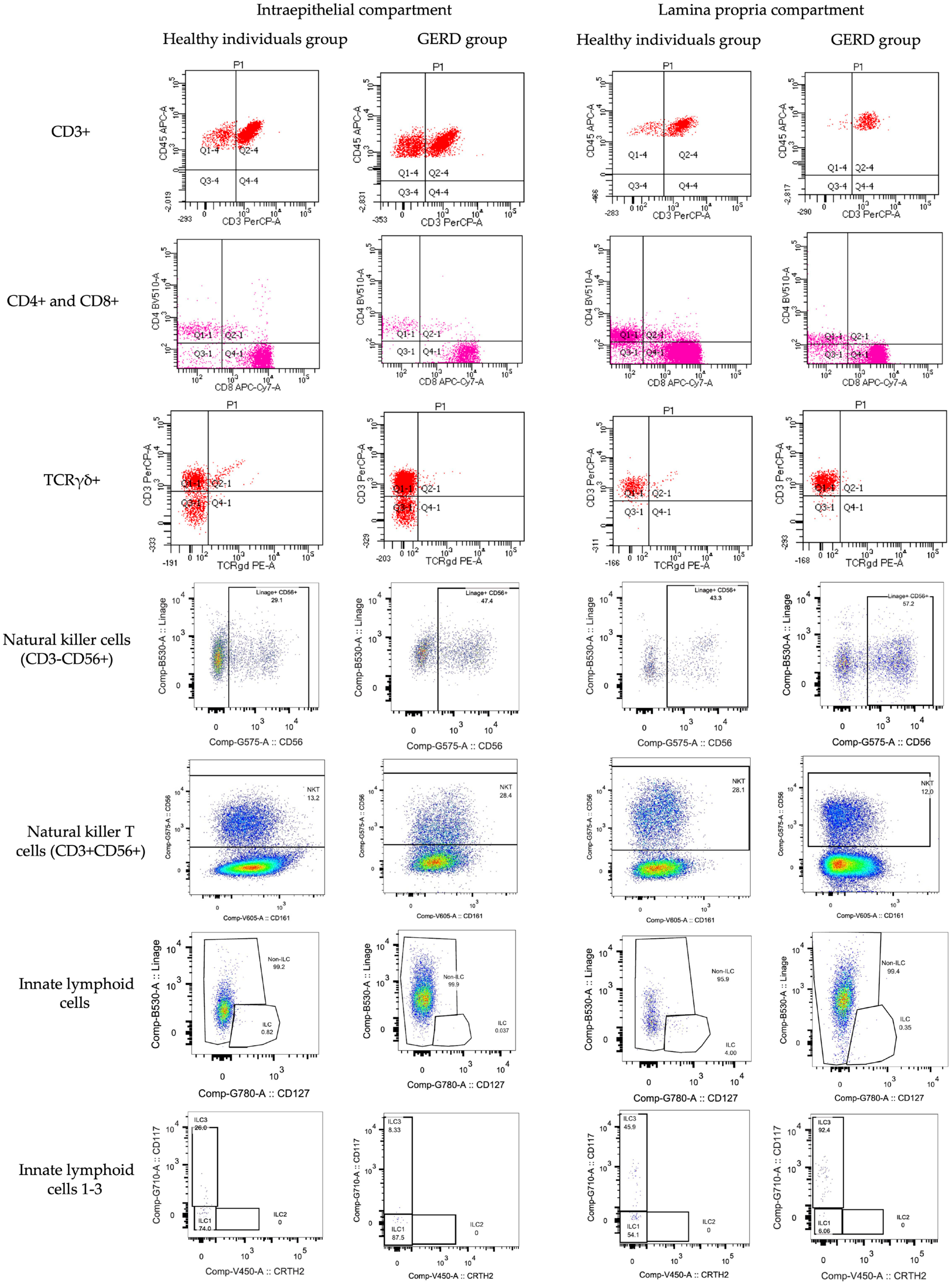

Figure 6. Intestinal cytometry panel of major intestinal lymphocyte subpopulations in healthy individuals compared to the gastroesophageal reflux disease (GERD) group.
Figure 6. Intestinal cytometry panel of major intestinal lymphocyte subpopulations in healthy individuals compared to the gastroesophageal reflux disease (GERD) group.
Ijms 26 01349 g006
Table 1. Baseline characteristics of the healthy control group and the gastroesophageal reflux disease (GERD) group.
Table 1. Baseline characteristics of the healthy control group and the gastroesophageal reflux disease (GERD) group.
VariablesHealthy Group (n = 23)GERD Group (n = 14)
Age (years) a24.00 [21.00; 27.00]31.00 [23.00; 37.00]
Female gender, n (%)13 (56.52%)8 (57.14%)
Toxic Habits or Medication
Nonsmoker, n (%)23 (100.00%)12 (85.71%)
Former smoker, n (%)0 (0.00%)2 (14.29%)
Use of PPIs, n (%)0 (0.00%)11 (78.57%)
HLA-DQ Genotype and Blood Count
HLA-DQ2.5, n (%)0 (0.00%)5 (50.00%)
HLA-DQ8, n (%)0 (0.00%)1 (10.00%)
HLA-DQ2.2, n (%)5 (21.74%)0 (0.00%)
HLA-DQ7.5, n (%)0 (0.00%)2 (20.00%)
HLA-DQ2 and HLA-DQ8-negative, n (%)18 (78.26%)2 (20.00%)
Haemoglobin b14.20 (1.36)14.08 (1.51)
Upper Gastrointestinal Endoscopy Findings
Normal, n (%)19 (82.61%)7 (50.00%)
Antritis, n (%)2 (8.70%)1 (7.14%)
Reflux oesophagitis, n (%)0 (0.00%)3 (21.43%)
Hiatal hernia, n (%)0 (0.00%)2 (14.30%)
Incompetent cardia, n (%)0 (0.00%)1 (7.14)
Gastric diverticulum, n (%)1 (4.35%)0 (0.00%)
Gastric polyp, n (%)1 (4.35%)0 (0.00%)
a Median (interquartile range: 25%; 75%). b Mean +/− SD. Abbreviations: GERD: gastroesophageal reflux disease; PPIs: proton pump inhibitors; SD: standard deviation.
Table 2. Histological characteristics of the healthy and gastroesophageal reflux disease (GERD) groups.
Table 2. Histological characteristics of the healthy and gastroesophageal reflux disease (GERD) groups.
VariablesHealthy Group (n = 23)GERD Group (n = 14)p Value b
Oesophageal Histology
Normal, n (%)19 (82.6%)11 (78.6%)>0.999
Pathological, n (%)Peptic oesophagitis, n (%)1 (4.3%)0 (0.0%)0.200
Idiopathic oesophagitis, n (%)2 (8.7%)0 (0.0%)
Eosinophilic oesophagitis, n (%)0 (0.0%)2 (14.3%)
Oesophageal IEL count a16.50 [7.00; 37.00]13.50 [6.00; 21.00]0.464
Oesophageal EOS count a0.00 [0.00; 0.00]0.00 [0.00; 0.00]>0.999
Oesophageal MC count a1.00 [0.00; 3.00]2.00 [1.00; 8.00]0.187
Gastric Histology
Normal, n (%)19 (82.6%)7 (50.0%)0.063
Pathological, n (%)Mild chronic gastritis, n (%)4 (17.4%)4 (28.6%)0.236
Gastritis due to Helicobacter pylori, n (%)0 (0.0%)3 (21.4%)
Gastric IEL count a8.50 [6.00; 11.00]9.00 [9.00; 13.00]0.098
Gastric EOS count a4.50 [1.00; 8.00]3.00 [1.00; 7.00]0.566
Gastric MC count a30.00 [19.00; 39.00]22.50 [12.00; 29.00]0.132
Duodenal Histology
Duodenal IEL count a15.00 [12.00; 18.00]19.5 [17.00; 22.00]0.005
Duodenal Intraepithelial EOS count a3.00 [2.00; 5.00]3.00 [2.00; 4.00]0.836
Duodenal lamina propria EOS count a14.00 [8.00; 28.00]16.00 [12.00; 19.00]0.863
Duodenal Intraepithelial MC count a3.80 [2.80; 5.60]4.90 [3.20; 5.40]0.424
Duodenal lamina propria MC count a30.00 [23.00; 35.00]31.5 [25.00; 40.00]0.415
Absence of duodenal parasites, n (%)23 (100.00%)14 (100.00%)
a Median (interquartile range: 25%; 75%). b Fisher’s exact test; Pearson’s chi-square test; Wilcoxon rank sum test. Abbreviations: IELs: intraepithelial lymphocytes; EOS: eosinophils; MCs: mast cells; GERD: gastroesophageal reflux disease.
Table 3. Histological characteristics of healthy individuals analysed by sex.
Table 3. Histological characteristics of healthy individuals analysed by sex.
VariablesMale Sex (n = 10)Female Sex (n = 13)p Value b
Oesophageal Histology
Normal, n (%)9 (90.0%)10 (76.92%)0.240
Pathological, n (%)Peptic oesophagitis, n (%)0 (0.0%)1 (7.70%)
Idiopathic oesophagitis, n (%)0 (0.0%)2 (15.38%)
Oesophageal IEL count a14.00 [9.00; 24.00]21.00 [5.00; 42.00]0.789
Oesophageal EOS count a0.00 [0.00; 0.00]0.00 [0.00; 0.00]0.486
Oesophageal MC count a1.00 [1.00; 1.00]1.00 [0.00; 4.00]>0.999
Gastric Histology
Normal, n (%)9 (90.00%)10 (76.92%)0.604
Pathological, n (%)Mild chronic gastritis, n (%)1 (10.00%)3 (23.08%)
Gastric IEL count a8.50 [7.00; 11.00]8.00 [5.50; 12.00]0.715
Gastric EOS count a3.00 [1.00; 7.00]4.50 [2.50; 10.50]0.207
Gastric MC count a25.00 [19.00; 32.00]34.00 [25.00; 39.00]0.321
Duodenal Histology
Duodenal IEL count a15.00 [14.00; 18.00]14.00 [12.00; 17.00]0.686
Duodenal Intraepithelial EOS count a3.00 [1.00; 5.00]4.00 [2.00; 5.00]0.359
Duodenal lamina propria EOS count a12.50 [8.00; 23.0015.00 [11.00; 28.00]0.641
Duodenal Intraepithelial MC count a2.80 [2.60; 3.80]4.80 [3.80; 6.00]0.009
Duodenal lamina propria MC count a27.50 [18.00; 34.00]30.00 [27.00; 35.00]0.319
a Median (interquartile range: 25%; 75%). b Fisher’s exact test; Wilcoxon rank sum test. Abbreviations: IELs: intraepithelial lymphocytes; EOS: eosinophils; MCs: mast cells.
Table 4. Crypt depth (μm), villus height (μm) and villus height-to-crypt depth ratio (VCR) in the villi of healthy individuals compared with those in the gastroesophageal reflux disease (GERD) group.
Table 4. Crypt depth (μm), villus height (μm) and villus height-to-crypt depth ratio (VCR) in the villi of healthy individuals compared with those in the gastroesophageal reflux disease (GERD) group.
VariablesHealthy Group (n = 23)GERD Group (n = 14)p Value b
Villus height (µm) a450.00 [425.00; 525.00]450.00 [400.00; 475.00]0.126
Crypt depth (µm) a130.00 [115.00; 150.00]130.00 [120.00; 150.00]0.691
Villus height to crypt depth ratio a3.64 [3.00; 4.26]3.41 [2.69; 3.75]0.193
a Median (interquartile range: 25%; 75%). b Wilcoxon rank sum test. Abbreviations: IELs: Intraepithelial lymphocytes; GERD: gastroesophageal reflux disease.
Table 5. Intestinal lymphocyte subpopulations in healthy individuals compared with those in individuals with gastroesophageal reflux disease (GERD).
Table 5. Intestinal lymphocyte subpopulations in healthy individuals compared with those in individuals with gastroesophageal reflux disease (GERD).
Variables/GroupsIntraepithelial LymphocytesLamina Propria Lymphocytes
Healthy Individuals Group (n = 23) aGERD Group
(n = 14) a		p Value bHealthy Individuals Group (n = 23) aGERD Group
(n = 14) a		p Value b
CD3+73.80 [62.85; 77.20]73.90 [64.50; 83.60]0.50991.40 [83.00; 93.70]93.40 [88.10; 96.05]0.136
CD4+ c9.11 [5.62; 13.70]8.32 [5.17; 13.10]0.95135.65 [31.10; 42.40]21.50 [19.40; 33.05]0.008
CD8+ c71.85 [64.25; 78.50]72.40 [64.50; 76.50]>0.99951.60 [39.80; 55.20]64.80 [53.25; 71.00]0.014
CD8α+CD8β− d39.40 [31.65; 53.90]54.70 [39.70; 57.90]0.15743.65 [36.40; 69.00]59.10 [46.30; 70.70]0.274
CD8α+CD8β+ d60.60 [46.10; 68.35]45.30 [42.10; 60.30]0.15756.35 [31.00; 63.60]40.90 [29.30; 53.70]0.274
Double Positive (CD4+CD8+) c8.76 [5.85; 11.30]9.85 [7.47; 19.30]0.08710.40 [6.37; 12.40]9.12 [6.32; 10.00]0.354
Double Negative (CD4− CD8−) c9.26 [3.92; 13.95]6.67 [1.99; 9.83]0.1232.42 [1.77; 3.40]2.99 [0.69; 5.00]0.857
TCRγδ+ c5.75 [1.70; 8.63]3.95 [2.60; 5.40]0.7044.00 [1.70; 4.50]2.40 [1.30; 2.60]0.187
Vδ1+T cells e2.81 [1.02; 4.90]1.80 [0.94; 8.45]0.9511.70 [0.55; 3.07]1.32 [0.35; 3.67]0.940
Vδ2+T cells e9.63 [3.67; 19.55]7.42 [4.32; 12.10]0.6111.34 [0.98; 3.07]1.98 [1.13; 3.08]0.462
CD45+CD3− cells21.97 [16.67; 26.40]24.85 [15.20; 30.70]0.8347.80 [5.00; 9.60]3.70 [2.30; 4.50]0.007
Natural killer cells (CD3−CD56+) f32.20 [23.10; 52.00]42.60 [31.00; 49.90]0.47140.00 [26.30; 52.50]53.70 [38.20; 57.20]0.129
Natural killer T cells (CD3+CD56+) c13.90 [6.00; 24.30]24.00 [17.00; 34.50]0.03616.60 [9.94; 21.50]14.95 [12.00; 27.10]0.699
Innate lymphoid cells f0.11 [0.04; 0.25]0.09 [0.03; 0.14]0.3082.40 [0.81; 4.00]0.45 [0.09; 1.32]0.007
Innate lymphoid cells 1 g50.00 [33.30; 85.70]75.00 [0.00; 83.70]0.70553.70 [40.50; 68.80]15.53 [0.00; 50.00]0.012
Innate lymphoid cells 2 g0.00 [0.00; 0.00]0.00 [0.00; 0.00]0.4610.00 [0.00; 0.00]0.00 [0.00; 0.00]
Innate lymphoid cells 3 g26.00 [0.00; 58.30]7.15 [0.00; 25.00]0.04946.30 [31.20; 59.50]53.55 [0.00; 92.40]0.607
a Median (interquartile range: 25%; 75%); b Wilcoxon rank sum test; Wilcoxon rank sum exact test; c of total CD3+; d of total CD8+; e of total TCRγδ+; f of total CD45+CD3− cells; g of total innate lymphoid cells. Abbreviations: CD: cluster of differentiation; GERD: gastroesophageal reflux disease.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Martín-Cardona, A.; Carrasco, A.; Ferrer, C.; González-Mínguez, C.; Luizaga-Velasco, L.; Tarroch, X.; Gonzalez-Puglia, G.; Tristán, E.; Cardozo-Rembado, N.B.; Pallarès, N.; et al. Histology of the Upper Gastrointestinal Tract, Morphometry and Lymphocyte Subpopulations of the Duodenal Mucosa: Insights from Healthy Individuals. Int. J. Mol. Sci. 2025, 26, 1349. https://doi.org/10.3390/ijms26031349

AMA Style

Martín-Cardona A, Carrasco A, Ferrer C, González-Mínguez C, Luizaga-Velasco L, Tarroch X, Gonzalez-Puglia G, Tristán E, Cardozo-Rembado NB, Pallarès N, et al. Histology of the Upper Gastrointestinal Tract, Morphometry and Lymphocyte Subpopulations of the Duodenal Mucosa: Insights from Healthy Individuals. International Journal of Molecular Sciences. 2025; 26(3):1349. https://doi.org/10.3390/ijms26031349

Chicago/Turabian Style

Martín-Cardona, Albert, Anna Carrasco, Carme Ferrer, Clarisa González-Mínguez, Luis Luizaga-Velasco, Xavier Tarroch, Gerardo Gonzalez-Puglia, Eva Tristán, Natalia Berenice Cardozo-Rembado, Natàlia Pallarès, and et al. 2025. "Histology of the Upper Gastrointestinal Tract, Morphometry and Lymphocyte Subpopulations of the Duodenal Mucosa: Insights from Healthy Individuals" International Journal of Molecular Sciences 26, no. 3: 1349. https://doi.org/10.3390/ijms26031349

APA Style

Martín-Cardona, A., Carrasco, A., Ferrer, C., González-Mínguez, C., Luizaga-Velasco, L., Tarroch, X., Gonzalez-Puglia, G., Tristán, E., Cardozo-Rembado, N. B., Pallarès, N., Tebé, C., Arau, B., Salvador, I., Fajardo, I., Rifà, R., Ruiz, L., Ruiz-Ramírez, P., Fernández-Herrera, S., Raga, A., ... Esteve, M. (2025). Histology of the Upper Gastrointestinal Tract, Morphometry and Lymphocyte Subpopulations of the Duodenal Mucosa: Insights from Healthy Individuals. International Journal of Molecular Sciences, 26(3), 1349. https://doi.org/10.3390/ijms26031349

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
