(E)-3-((2-Fluorophenyl)(hydroxy)methylene)imidazo[1,2-a]pyridin-2(3H)-one

Abstract

Treatment of a N-2-pyridyl-β-ketoamide precursor with bromine afforded the first example of the 3-aryl(α-hydroxy)methylenelimidazo[1,2-a]pyridin-2(3H)-one framework. This transformation proceeded through a domino process comprising an initial bromination, cyclization via an intramolecular S_N reaction, and a final keto-enol tautomerism, and allows generation of the fused heterocyclic system and installation of the acyl substituent in a single operation.

1. Introduction

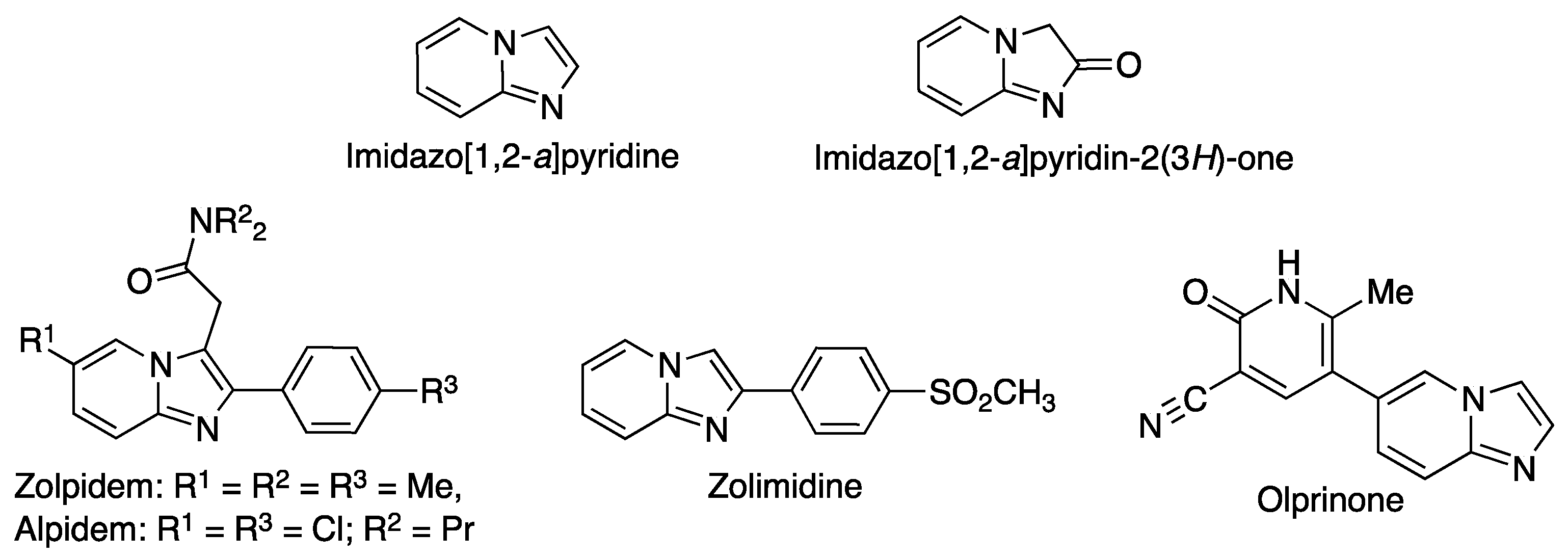

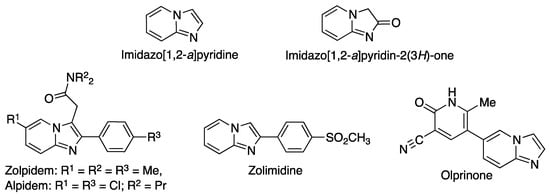

Fused heterocyclic compounds bearing bridgehead nitrogen atoms are very relevant in the construction of diversity-oriented libraries. Imidazo[1,2-a]pyridine is one of these frameworks, and has shown great promise in the treatment of cancer due to the ability of many of its derivatives to inhibit a variety of kinases [1,2]. Moreover, several drugs currently in the market contain an imidazo[1,2-a]pyridine core, including the hypnotic zolpidem [3], the anxyolitic alpidem [4], the gastroprotective drug zolimidine [5], and the cardiotonic olprinone [6] (Figure 1). The importance of this ring system has led to much interest in its synthesis [7] and functionalization [8]. Imidazo[1,2-a]pyridin-2(3H)-one, one of its derivatives, is less well-known but has nevertheless shown some relevant pharmacological activities [9].

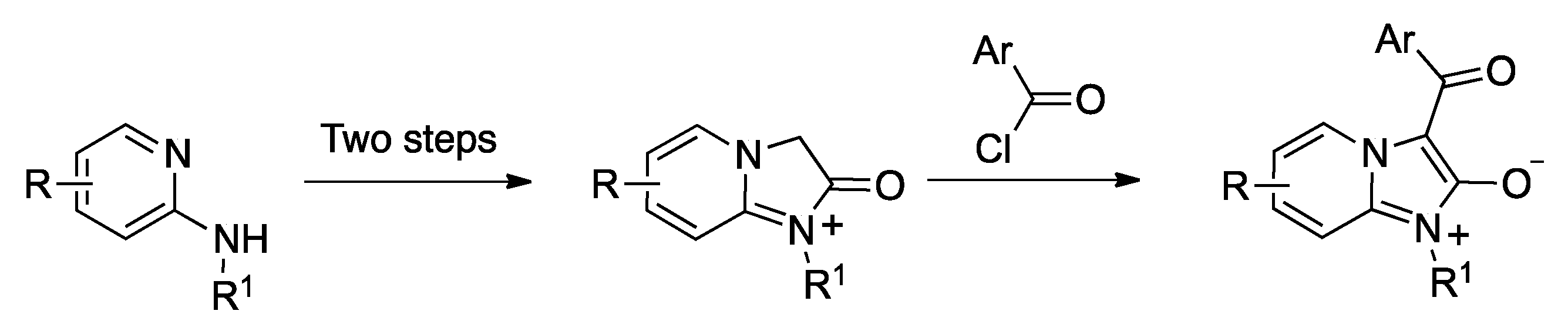

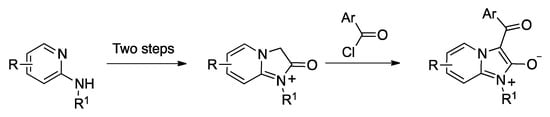

In spite of the potential importance of the imidazo[1,2-a]pyridin-2(3H)-one framework, some of its derivatives have not been accessible to date. In particular, 3-acyl derivatives have been prepared only in one occasion, by acylation of an imidazo[1,2-a]pyridin-1-ium substrate (Scheme 1) [10]. This method yields compounds in mesoionic form, which was suitable for the purpose of the researchers, who aimed at the discovery of mesoionic nicotinic acetylcholine antagonists acting as insecticides [11], but it lacks generality.

In this context, we describe here the synthesis of a representative of the 3-acylimidazo[1,2-a]pyridin-2(3H)-one class of compounds from very simple starting materials and catalysts, using as the key step a domino reaction that generates the fused heterocyclic system and installs the acyl substituent in a single operation.

2. Results and Discussion

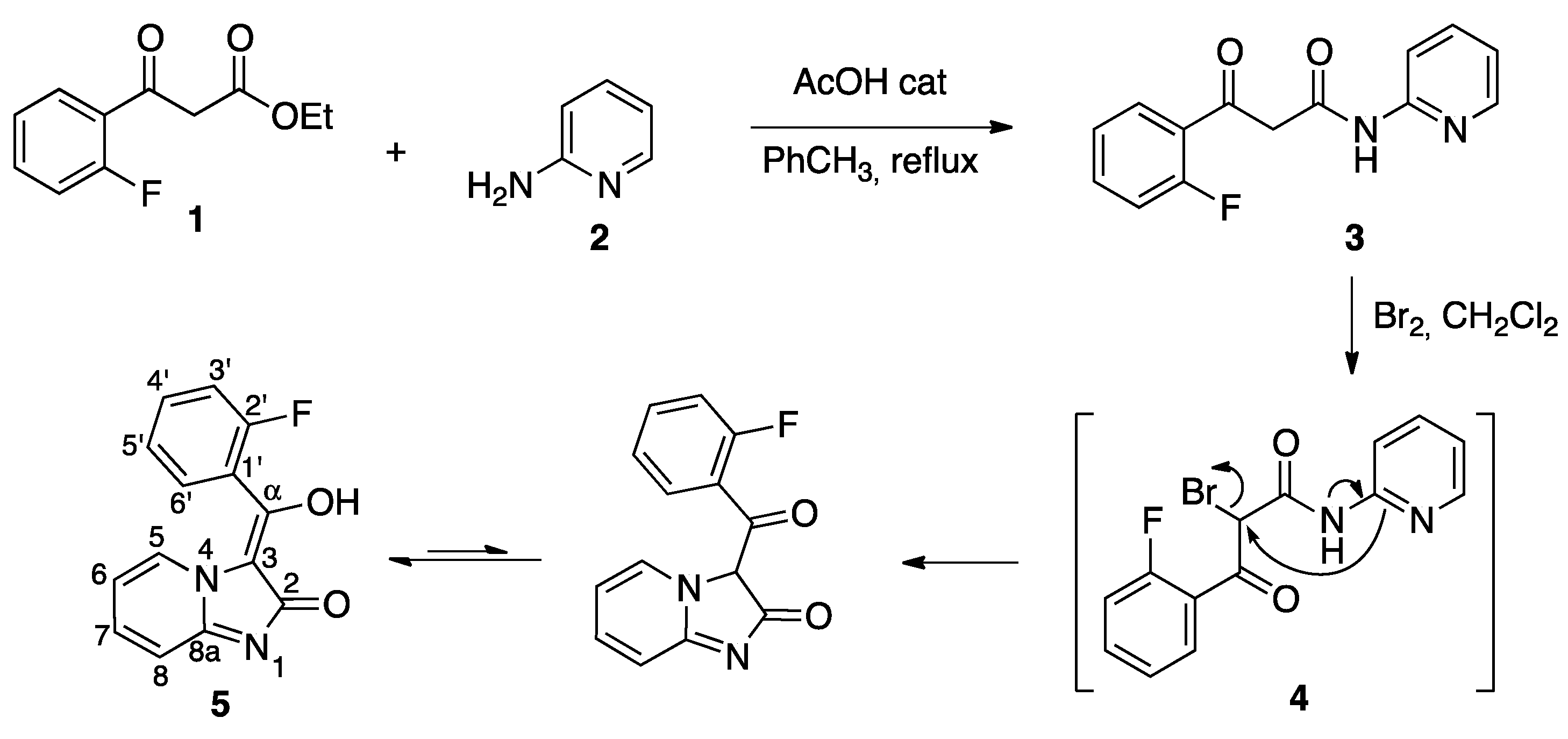

The synthesis of our target compound 5 is summarized in Scheme 2. The starting material 1, a derivative of ethyl 3-oxo-3-phenylpropanoate, was treated with 2-aminopyridine in refluxing toluene containing acetic acid as catalyst to yield the β-ketoamide 3. Its halogenation with bromine in dichloromethane afforded 5 via a domino sequence of reactions that comprised the initial halogenation of 3 at its central carbon, followed by cyclization by intramolecular S_N2 displacement of bromide anion and a final keto-enol tautomerism.

The enol structure of the imidazo[1,2-a]pyridin-2(3H)-one derivative 5 was established by the absence of signals ascribable to a proton neighboring two carbonyls or its corresponding carbon and also to a ketone carbonyl, all of which would be expected from a dicarbonyl structure. On the other hand, an enol proton was observed at 12.28 ppm, and the presence of quaternary carbons at 104.7 (C-3) and 175.3 ppm (C-α), which showed a correlation with H-6′ in the HMBC experiment, also support the enol tautomeric form. The alternative lactim tautomer was discarded because of the absence of a ketone carbonyl at ca. 190 ppm. The presence of a doublet at ca. 9.9 ppm with coupling constant 7 Hz, assigned to H-5, can be ascribed to the influence of the diamagnetic anisotropy cone of the arylmethylene substituent on the H-5 proton, and confirms the (E) configuration of the double bond. The assignment of the ¹H- and ¹³C-NMR data was aided by the ¹⁹F-¹³C couplings, which allowed the unequivocal identification of the fluorophenyl ring carbons and also of the corresponding protons via H-C correlation 2D-NMR experiments (Supplementary Materials). Because H-5 had been assigned as described above, 2D-NMR data also enabled identification of the signals due to the H and C atoms at the 5, 6, 7, 8, and 8a positions. Copies of NMR spectra can be found in the Supporting Information.

3. Materials and Methods

General experimental information. All reagents (Sigma-Aldrich, Madrid, Spain; Fischer Chemical, Madrid, Spain; Alpha Aesar, Kändel, Germany) and solvents (Scharlau, Barcelona, Spain; Fischer Chemical, Madrid, Spain) were of commercial quality and were used as received. Reactions were monitored by thin layer chromatography on aluminum plates coated with silica gel and fluorescent indicator (Merck, Madrid, Spain) acherey-Nagel Xtra SIL G/UV254. Melting points were determined using a Stuart Scientific apparatus, SMP3 Model, and are uncorrected. Infrared spectra were recorded with an Agilent Cary630 FTIR spectrophotometer (Madrid, Spain) working by attenuated total reflection (ATR), with a diamond accessory for solid and liquid samples. NMR spectroscopic data were recorded using a Bruker Avance 250 spectrometer (Rivas-Vaciamadrid, Spain) operating at 250 MHz for ¹H-NMR and 63 MHz for ¹³C-NMR maintained by the NMR facility of Universidad Complutense (CAI de Resonancia Magnética Nuclear, Madrid, Spain); chemical shifts are given in ppm and coupling constants in Hertz. ¹H- and ¹³C-NMR assignments were supported by 2D-NMR experiments and are in agreement with simulations performed with MestreNova and ChemDraw Pro. Elemental analyses were determined by the microanalysis facility of Universidad Complutense (CAI de Microanálisis Elemental, Madrid, Spain), using a Leco 932 combustion microanalyzer.

3-(2-Fluorophenyl)-3-oxo-N-(pyridin-2-yl)propanamide (3). A solution of ethyl 3-(2-fluorophenyl)-3-oxopropanoate (631 mg, 3.0 mmol), 2-aminopyridine (310 mg, 3.3 mmol), and glacial acetic acid (0.3 mL) in toluene (7.5 mL) was heated under reflux with a Dean-Stark trap for 12 h. After completion of the reaction (checked by TLC), the solvent was evaporated under reduced pressure and the crude residue was purified by crystallization from ethyl ether giving 3 as a yellow solid (745 mg, 96%) comprised of a mixture of the β-ketoamide and its tautomeric enol form in a ratio of 1.4:1. MP: 142 °C. ¹H-NMR (250 MHz, DMSO-d₆) δ 14.39 (s, 1H, enol), 10.88 (s, 1H, enol), 10.71 (s, 1H, β-ketoamide), 8.38–8.28 (m, 1H, enol + β-ketoamide), 8.14–8.02 (m, 1H, enol + β-ketoamide), 7.93–7.50 (m, 3H, enol + β-ketoamide), 7.44–7.29 (m, 2H, enol + β-ketoamide), 7.12 (m, 1H, enol + β-ketoamide), 6.27 (s, 1H, enol), 4.16 (s, 2H, β-ketoamide) ppm. ¹³C-NMR (63 MHz, DMSO- d₆) δ 192.13 (C_q), 192.08 (C_q), 171.29 (C_q), 166.18 (C_q), 164.93 (C_q), 163.30 (C_q), 161.91 (C_q), 159.25 (C_q), 157.89 (C_q), 151.87 (C_q), 151.52 (C_q), 148.21 (CH), 148.05 (CH), 138.30 (CH), 135.66 (CH), 135.51 (CH), 132.87 (CH), 132.73 (CH), 130.48 (CH), 130.45 (CH), 128.83 (CH), 128.80 (CH), 124.95 (CH), 124.90 (CH), 124.85 (CH), 124.69 (C_q), 121.79 (C_q), 121.63 (C_q), 119.74 (CH), 119.56 (CH), 117.15 (CH), 116.83 (CH), 116.79 (CH), 116.47 (CH), 114.24 (CH), 113.37 (CH), 95.05 (CH), 94.84 (CH), 51.78 (CH₂), 51.68 (CH₂). ESI-MS: [M]⁺ 258. IR (neat, cm^-1): 3184, 2986, 1629, 16191579, 1536, 1438, 1400, 1307, 1297, 1195, 775. Elemental analysis calcd (%) for C₁₄H₁₁FN₂O₂: C, 65.11; H, 4.29; N, 10.85; found: C, 65.41; H, 4.52; N, 11.02.

(E)-3-((2-Fluorophenyl)(hydroxy)methylene)imidazo[1,2-a]pyridin-2(3H)-one (5). To a solution of compound 3 (258 mg, 1.0 mmol) in CH₂Cl₂ (5 mL) was added dropwise a solution of Br₂ (160 mg, 1.0 mmol) in CH₂Cl₂ (3 mL) at 0 °C. The reaction mixture was warmed to room temperature and stirred further for an additional 90 min. Then the mixture was washed with a saturated solution of NaHCO₃ and the organic layer was evaporated under reduced pressure giving a solid crude that was recrystallized from Et₂O to give compound 5 as a pale yellow solid (231 mg; 91%). MP: 167–168 °C. ¹H-NMR (250 MHz, DMSO-d₆) δ 12.28 (s, 1H, OH), 9.92 (d, J = 7.0 Hz, 1H, H-5), 7.79 (t, J = 8.0 Hz, 1H, H-7), 7.49–7.28 (m, 4H, H-6,8,4′,6′), 7.25–7.10 (m, 2H, H-3´,5) ppm. ¹³C NMR (63 MHz, DMSO-d₆) δ 175.35 (C_q, C-α), 159.10 (d, J = 246.0 Hz, C_q, C-2′), 158.92 (C_q, C-3), 137.75 (C_q, C-9), 134.11 (CH, C-7), 130.90 (d, J = 8.2 Hz, CH, C-4′), 129.70 (d, J = 4.0 Hz, CH, C-6′), 129.26 (d, J = 17.1 Hz, C_q, C-1′), 129.05 (CH, C-7), 124.01 (d, J = 3.2 Hz, CH, C-5′), 116.41 (CH, C-6), 115.33 (d, J = 21.9 Hz, CH, C-3′), 108.21 (CH, C-8), 104.73 (C_q, C-3) ppm. ESI-MS: [M]⁺ 256. IR (neat, cm^-1): 3015, 2969, 2841, 1699, 1686, 1610, 1569, 1438, 1307, 1257, 1212, 1139, 752. Elemental analysis calcd (%) for: C₁₄H₉FN₂O₂: C, 65.62; H, 3.54; N, 10.93; found: C, 65.81; H, 3.82; N, 11.20.

4. Conclusions

A N-2-pyridyl-β-ketoamide was shown to be a suitable precursor to the hitherto unknown 3-arylmethyleneimidazo[1,2-a]pyridin-2(3H)-one framework via a domino process comprising bromination, intramolecular nucleophilic substitution, and keto-enol tautomerism stages.
