Benzo[d][1,2,3]oxadithiole 2-Oxide

Abstract

A simplified synthesis of the title compound is reported and its ¹H and ¹³C NMR data are fully assigned including determination of H–H and C–H coupling constants. Its X-ray structure has been determined for the first time. NMR data are also presented for the oxygen analogue.

1. Introduction

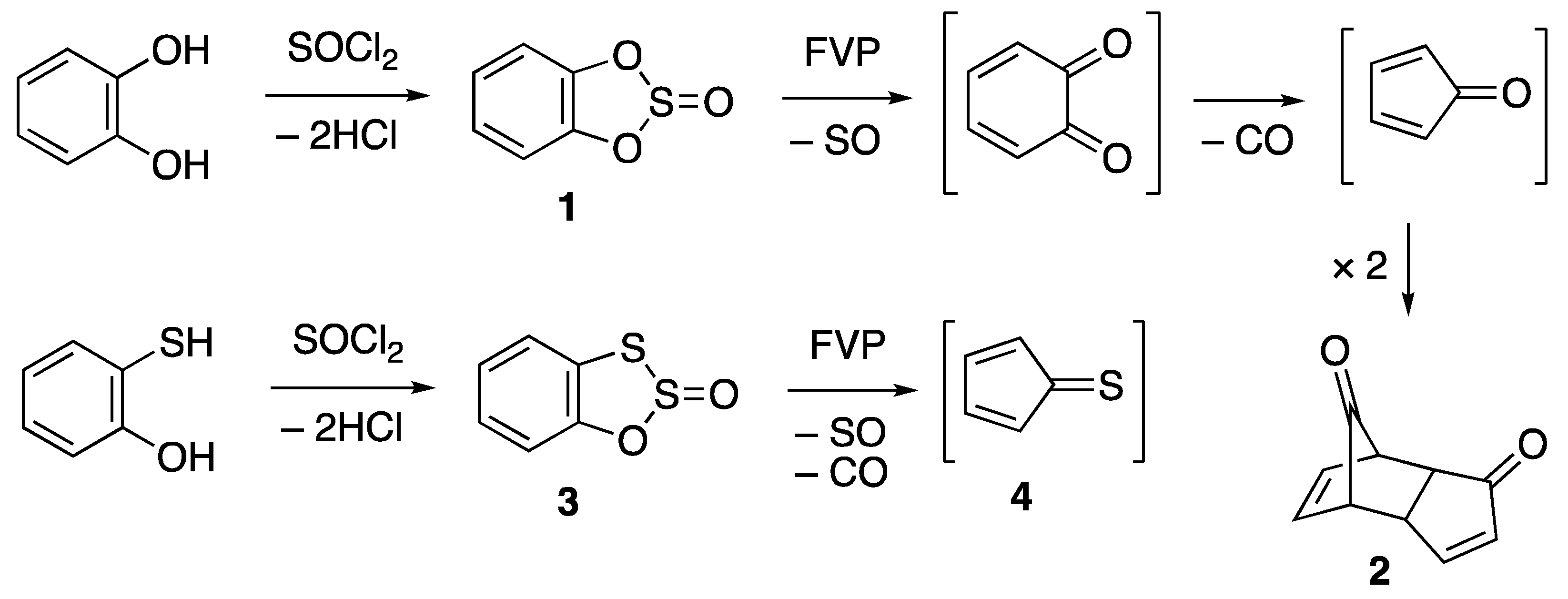

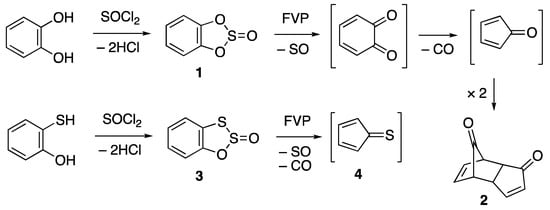

The simple compound benzo[d][1,3,2]dioxathiole 2-oxide or “catechol sulfite” 1 was first reported in 1894 [1]. It shows a rather interesting pattern of reactivity upon pyrolysis (Scheme 1), undergoing sequential loss of sulfur monoxide and carbon monoxide to generate cyclopentadienone, isolated as its stable Diels–Alder dimer 2 [2], and this reaction has been developed into a convenient undergraduate laboratory experiment to illustrate the use of flash vacuum pyrolysis (FVP) [3]. The corresponding sulfur analogue benzo[d][1,2,3]oxadithiole 2-oxide 3 has only been mentioned in a single paper [4], where its gas phase pyrolysis was used to generate cyclopentadienethione 4, detected by photoelectron spectroscopy, but no stable product was isolated in this case.

The extent of previous characterisation of the fundamental compounds 1 and 3 by NMR is rather limited, with just a single chemical shift reported for both 1 [5] and 3 [4] in the ¹H NMR spectra and, while ¹³C NMR chemical shifts are listed for 3 [4] without assignment, we are not aware of any published ¹³C NMR data for 1.

In the context of renewed studies on the FVP behaviour of 3, we have reinvestigated these compounds, and in this paper, we report a full NMR study of 1 and 3 as well as the X-ray structure determination of 3.

2. Results

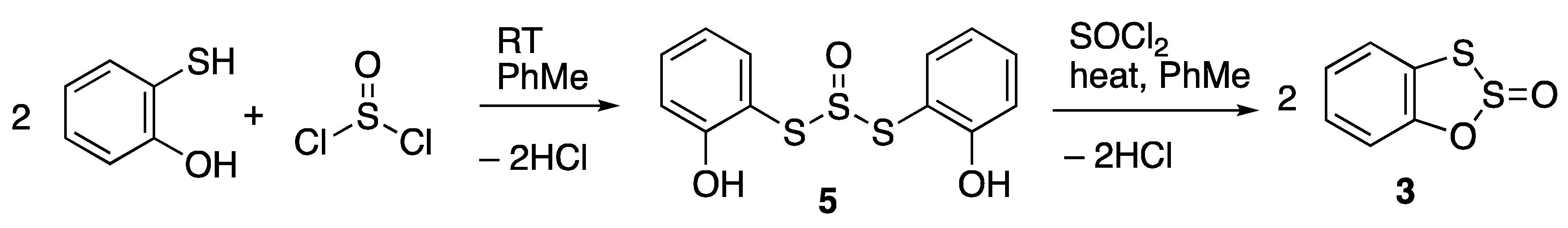

Although the original preparation of 1 involved simply heating catechol with thionyl chloride in benzene solution [1], more recent reports have involved addition of pyridine and use of the highly toxic carbon disulfide as solvent [2], and this was the method used in the preparation of 3 [4], with the additional use of carbon tetrachloride. As we already reported for 1, simply heating catechol and thionyl chloride in toluene until the evolution of HCl ceased offered a much safer alternative [3], and the application of the same method to the synthesis of 3 proved to be quite satisfactory. The reaction took an interesting course, however. Upon the addition of one equivalent of thionyl chloride to a toluene solution of 2-mercaptophenol (2-hydroxythiophenol) at room temperature, a vigorous exothermic reaction occurred with evolution of HCl, and a white solid was deposited. We interpret this as an attack of the more nucleophilic thiophenol function on thionyl chloride to give the dithiosulfite 5 (Scheme 2). Upon heating under reflux, the solid dissolved and a comproportionation reaction took place with the second equivalent of thionyl chloride to afford compound 3 in good yield.

Although simple evaporation of the reaction solution gave product 3 in reasonable purity, it was not amenable to chromatographic purification owing to the ready hydrolysis on silica, and Kugelrohr distillation was accompanied by a significant degree of thermal decomposition with the evolution of sulfur dioxide and formation of an involatile polymeric resin. The distilled material was pure 3, obtained as a yellow liquid which crystallised upon cooling.

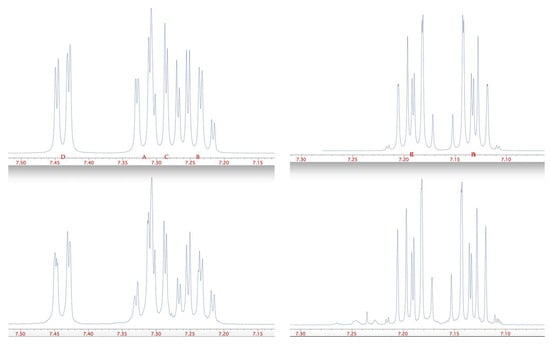

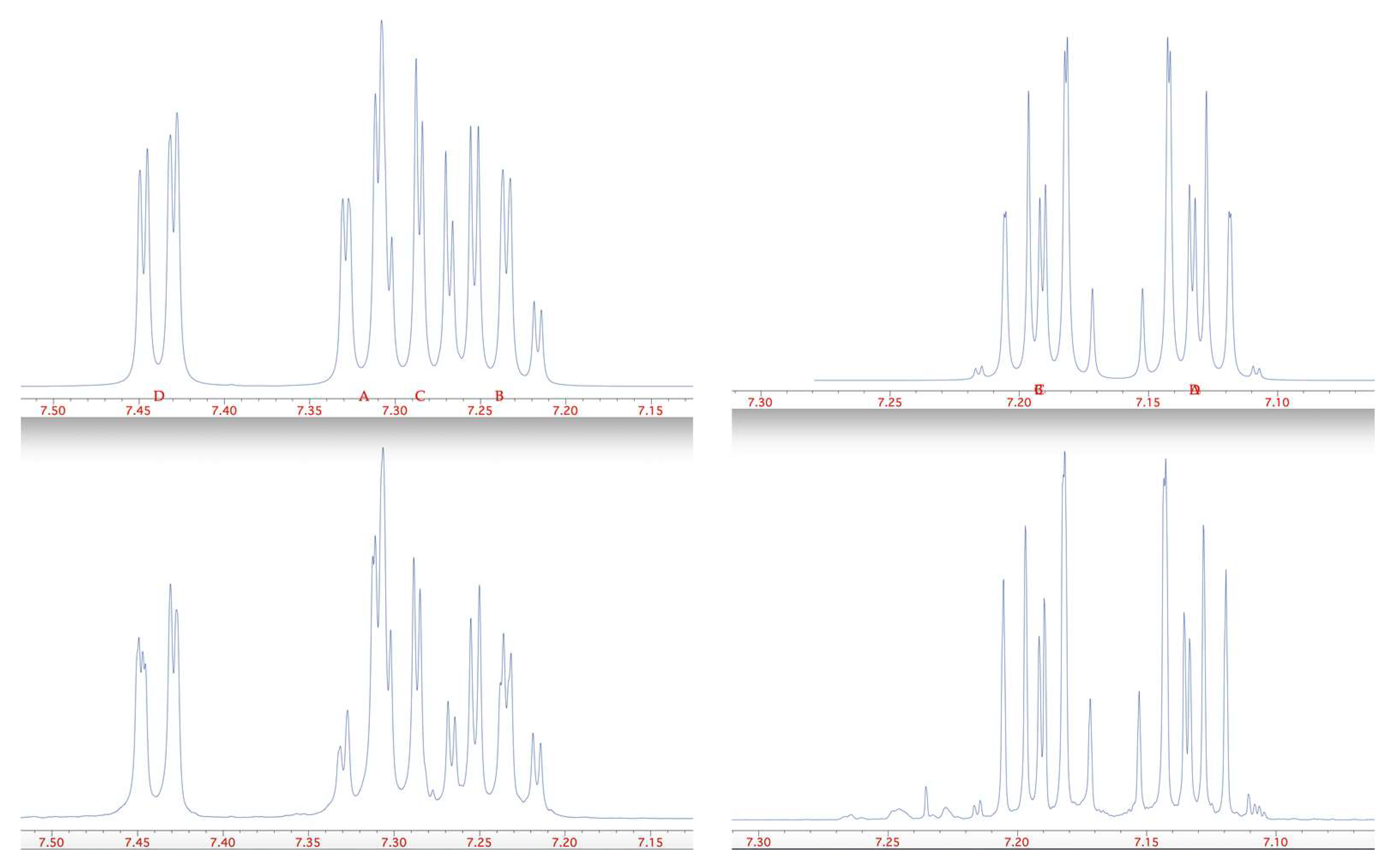

The ¹H NMR spectrum of 3, described in the literature simply as δ 7.37 (m) [4], showed an interesting and complex pattern (Figure 1). However, this was successfully simulated using the chemical shift values given in

Table 1. ¹H and ¹³C chemical shifts (ppm) and C–H coupling constants (Hz) for 3 and 1.

Position	3					1
	δC	δH	1JCH	2JCH	3JCH	δC	δH	1JCH	2JCH
3a	121.6	–	–	–	–	142.7	–	–	–
4	115.0	7.318	165	8.0	–	124.4	7.132	163	7.6
5	125.5	7.238	162	7.2	–	112.4	7.192	165	–
6	127.2	7.285	163	8.9	–	112.4	7.192	165	–
7	123.4	7.438	164	8.1	3.4	124.4	7.132	163	7.6
7a	153.9	–	–	–	–	142.7	–	–	–

and the coupling constants in

Table 2. ¹H–¹H coupling constants (Hz) in 3 and 1.

Compound	3JH4–H5	4JH4–H6	5JH4–H7	3JH5–H6	4JH5–H7	3JH6–H7
3	8.0	1.2	0.4	7.2	1.6	7.2
1	7.9	1.5	0.4	7.9	1.5	7.9

(Figure 1). The more symmetrical but still complex pattern in the ¹H NMR spectrum of 1, described in the only literature report [5] as δ 7.14 (AA′BB′), was likewise simulated (Figure 1) with values given in Table 1 and Table 2.

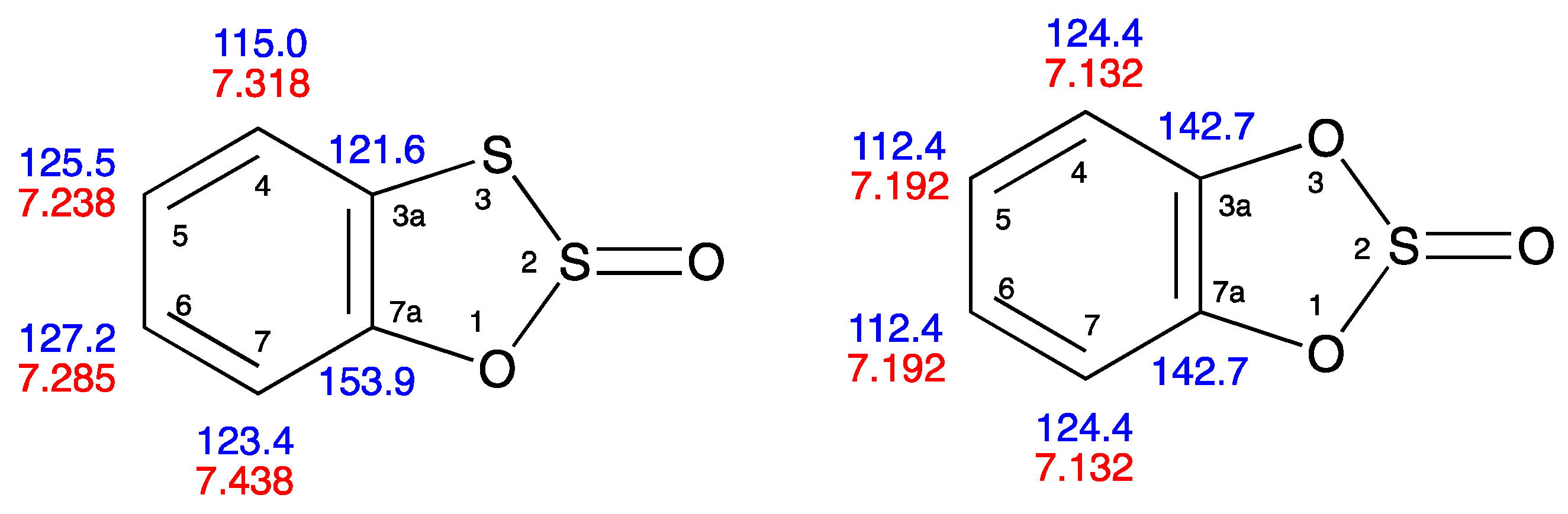

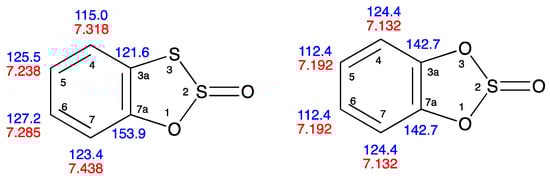

In order to achieve a full NMR assignment for compound 3, and for comparison 1, a range of additional spectra were obtained including DEPTQ ¹³C, HSQC, and HMBC (see Supplementary Materials). The HSQC data allowed the association of H and C shifts as shown in Table 1, but the HMBC results were key to arriving at an unambiguous assignment. Thus, for 3, the high carbon chemical shift of 153.9 ppm was clearly C–O, and this correlated on HMBC with the proton signal at 7.438 ppm, which was also correlated with the carbon at 127.2 ppm, while the carbon signal at 115.0 ppm was correlated on HMBC with the proton signal at 7.238. Similarly, for 1, the quaternary carbon signal at 142.7 ppm was correlated to the proton signal at 7.132 ppm which was also correlated to the carbon at 112.4, while the 124.4 carbon signal was linked by HMBC to the proton signal at 7.192. Combining this information with the coupling information derived from the proton spectra (Table 2) led to the unambiguous assignment of all the signals as summarised in Figure 2.

Finally, in the NMR study, we obtained non-proton decoupled ¹³C NMR spectra of 3 and 1 from which the values of ¹J_C–H were readily determined, together with ²J_C–H and even ³J_C–H in some cases, and these values are also listed in Table 1. The values of ¹J_C–H, which have some relation to the state of hybridisation at the carbon atom involved, are consistent with those reported for other ortho-disubstituted benzene derivatives [6].

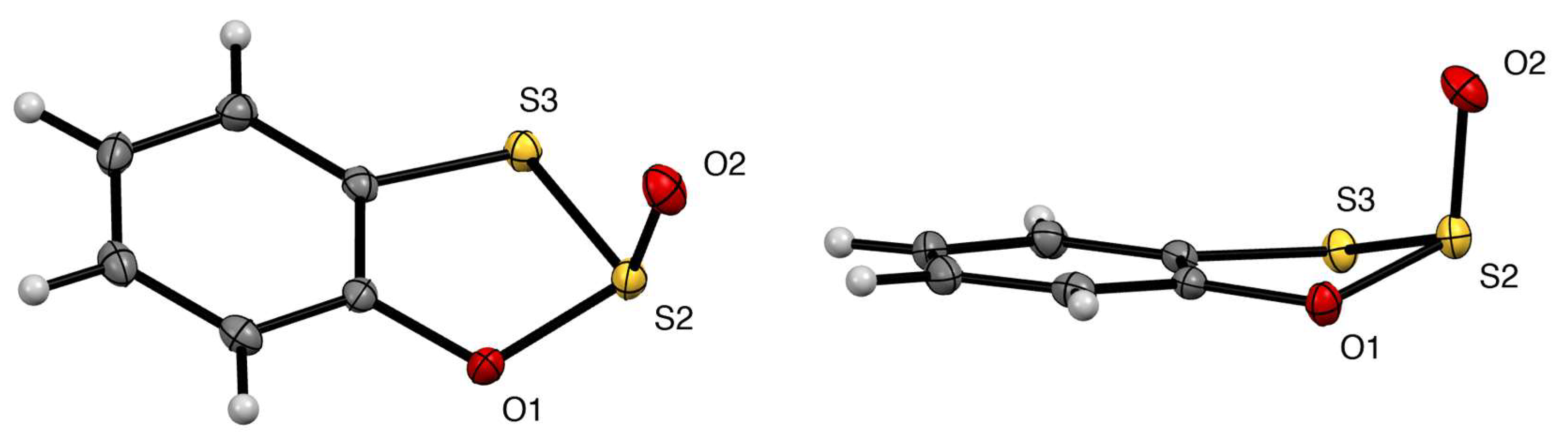

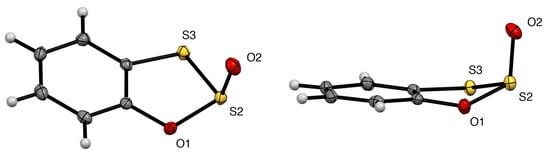

Since compound 3 formed suitable crystals after distillation, we have been able to determine its structure by X-ray diffraction (Figure 3). The molecular structure has a planar benzene ring but the heterocyclic ring takes up an envelope conformation with the plane defined by O(1), S(2), and S(3) at an angle of 25.76(6)° to that defined by O(1), C(7a), C(3a), and S(3). Most surprisingly, the S=O oxygen adopts an “axial” position with the lone pair of S(2) in the equatorial position. As far as we are aware, this is the first structure of a 1,2,3-oxadithiole 2-oxide and indeed any 1,2,3-oxadithiole ring system.

The structure of the oxygen analogue, catechol sulfite 1, has, however, been determined in the gas phase by electron diffraction [7] and the structural parameters for the two compounds are compared in

Table 3. Ring dimensions for 3, 1 [7], and 6 [8,9] (Å, °).

Compound	3	1 [7]	6 [8]	6 [9]
O(1)–S(2)	1.6524(9)	1.670(4)	1.591	1.6047(14)
S(2)–S/O(3)	2.1426(4)	1.670(4)	1.609	1.6093(15)
S(2)=O	1.4549(10	1.423(6)	1.392, 1.380	1.4150(15), 1.4131(14)
S/O(3)–C(3a)	1.7565(13)	1.401(9)	1.404	1.401(2)
C(3a)–C(7a)	1.3879(18)	1.391(20)	1.363	1.378(3)
C(7a)–O(1)	1.3931(15)	1.401(9)	1.393	1.408(2)
C(7a)–O(1)–S(2)	116.09(8)	109.6(4)	108.63	108.47(12)
O(1)–S(2)–S/O(3)	93.01(3)	92.9(3)	96.97	97.19(7)
S(2)–S/O(3)–C(3a)	91.66(4)	109.6(4)	108.76	108.63(12)
S/O(3)–C(3a)–C(7a)	114.74(10)	111.6(4)	110.75	111.61(15)
C(3a)–C(7a)–(O1)	116.79(11)	111.6(4)	112.58	111.53(15)
Flap angle *	25.76	19.8(18)	14.22	15.09

* Defined as angle between planes defined by O(1)–C(7a)–C(3a)–S/O(3) and O(1)–S(2)–S/O(3).

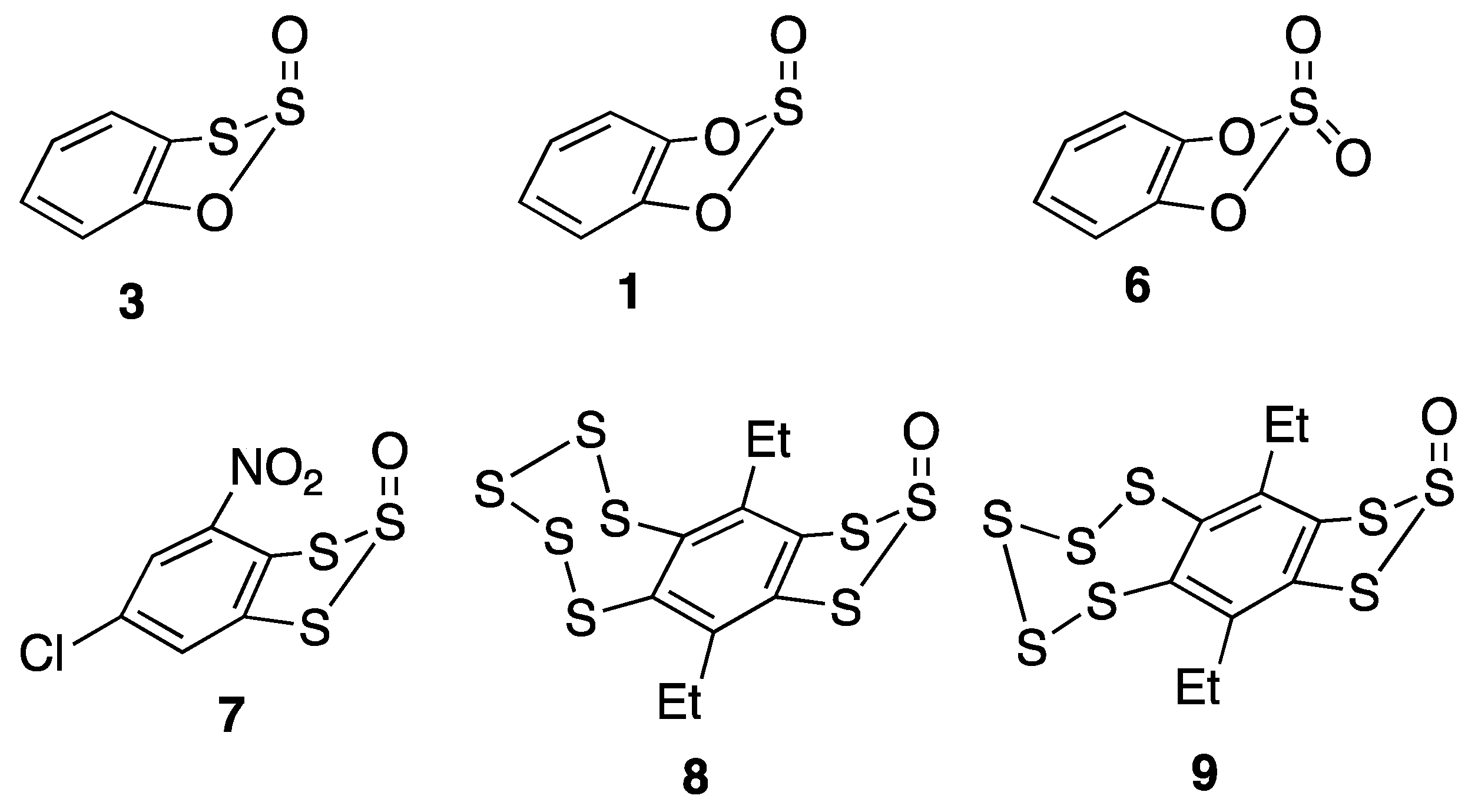

. Interestingly, the structure of 1 also features the “axial” S-oxide oxygen and a similar envelope conformation in the heterocyclic ring (Figure 4), although the flap angle in the case of 1 is significantly lower at 19.8(18)°. The other differences between 1 and 3 are rather predictable with a much lower internal ring angle and longer bonds to the ring S(3) as compared to ring O(3). The similar compound catechol sulfate 6 has been characterised twice by X-ray diffraction [8,9], and its structural parameters are also included in Table 3 for comparison. Again, in both structures, there is an envelope conformation with a lower flap angle of 14–15°.

It is also interesting to note that the three crystallographically characterised 1,2,3-benzotrithiole 2-oxides, the chloro nitro compound 7 [10], and the two isomeric pentathiepine compounds 8 and 9 [11,12] all show the same envelope conformation in the trithiole ring with oxygen axial.

In summary, we have been able to fully assign the ¹H and ¹³C NMR spectra for compound 3, and for comparison 1, for the first time. The X-ray structure of 3, the first for a 1,2,3-oxadithiole, shows an envelope conformation of the heterocyclic ring with the 2-oxygen atom in an axial position, consistent with the structure of the oxygen analogue 1 previously determined by gas-phase electron diffraction.

3. Experimental

3.1. General Experimental Details

Melting points were recorded on a Reichert hot-stage microscope (Reichert, Vienna, Austria) and are uncorrected. NMR spectra were obtained using a Bruker AV300 instrument (Bruker, Billerica, MA, USA). Spectra were run with internal Me₄Si as the reference and chemical shifts are reported in ppm to high frequency of the reference. NMR spectra were processed and simulations produced using iNMR reader, version 6.3.3 (Mestrelab Research, Santiago de Compostela, Spain). Compound 1 was prepared as previously described [3].

3.2. Synthesis of Benzo[d][1,2,3]oxadithiole 2-Oxide 3

A solution of 2-mercaptophenol (5.0 g, 40 mmol) in toluene (50 mL) was stirred at RT, while thionyl chloride (3.0 mL, 4.89 g, 41 mmol) was added dropwise. After a few minutes, an exothermic reaction occurred with evolution of HCl gas and formation of a white solid. The mixture was heated under reflux for 3 h resulting in dissolution of the solid and further evolution of HCl. Evaporation gave the crude product (6.42 g) as a yellow liquid which was purified by Kugelrohr distillation (15 Torr, oven temp. 150–180 °C) to give the product (3.54 g, 51%) as a yellow liquid which crystallised on cooling to give 3 as yellow crystals, mp 44–46 °C (lit. [4] 46.5 °C). For NMR data, see Figure 1 and Figure 2 and Table 1 and Table 2. IR data for compound 3 were already reported [4].

3.3. X-ray Structure Determination of 3

X-ray diffraction data were collected at 100 K using a Rigaku FR-X Ultrahigh Brilliance Microfocus RA generator/confocal optics with XtaLAB P200 diffractometer [Mo Kα radiation (λ = 0.71073 Å), Tokyo, Japan]. Data were collected (using a calculated strategy) and processed (including correction for Lorentz, polarization, and absorption) using CrysAlisPro [13]. The structure was solved by dual-space methods (SHELXT) [14] and refined by full-matrix least-squares against F² (SHELXL-2019/3) [15]. Non-hydrogen atoms were refined anisotropically, and hydrogen atoms were refined using a riding model. All calculations were performed using the Olex2 interface [16].

Crystal data for C₆H₄O₂S₂, M = 172.21 g mol⁻¹, colourless prism, crystal dimensions 0.16 × 0.12 × 0.06 mm, monoclinic, space group P2₁/n (No. 14), a = 6.13102(15), b = 10.3500(3), c = 10.7854(3) Å, β = 100.979(2)°, V = 671.87(3) ų, Z = 4, D_calc = 1.702 g cm⁻³, T = 100 K, Goodness of fit on F² 1.082, 14199 reflections measured, 1661 unique (R_int = 0.0416), which were used in all calculations. The final R₁ [I > 2σ(I)] was 0.0252 and wR₂ (all data) was 0.0655. Data have been deposited at the Cambridge Crystallographic Data Centre as CCDC 2340013. The data can be obtained free of charge from the Cambridge Crystallographic Data Centre via http://www.ccdc.cam.ac.uk/getstructures.
