Transcriptome Comparison of Secondary Metabolite Biosynthesis Genes Expressed in Cultured and Lichenized Conditions of Cladonia rangiferina

by
Natalia Sveshnikova
* and
Michele D. Piercey-Normore
School of Science and the Environment, Grenfell Campus, Grenfell Campus, Memorial University of Newfoundland, Corner Brook, NL A2H 5G4, Canada
*
Author to whom correspondence should be addressed.
Diversity 2021, 13(11), 529; https://doi.org/10.3390/d13110529
Submission received: 29 September 2021 / Revised: 18 October 2021 / Accepted: 21 October 2021 / Published: 24 October 2021
(This article belongs to the Special Issue Diversity of Lichens—Morphology, Anatomy, Physiology, Secondary Chemistry, Distribution and Their Use: Recent Aspects of Evergreen Topics)
Browse Figures
Versions Notes

Abstract

:
Lichen secondary metabolites are natural products of high medicinal and industrial value, which are produced by the fungal symbiont (mycobiont) of lichens in response to environmental changes. It has been shown that the cultured mycobiont is capable of secondary metabolite production, specifically polyketides, and polyketide production is affected by the presence or absence of the algal or cyanobacterial symbiont (photobiont). Identification of polyketide synthases encoding genes is, in turn, key for understanding the regulation of secondary metabolite synthesis. Using a previously established method of resynthesis for Cladonia rangiferina as well as the sequenced and assembled genome of that species, we compared transcriptomes of C. rangiferina cultured alone and resynthesized with the photobiont (Asterochloris glomerata) to reveal transcriptionally active genes in secondary metabolic gene clusters, as well some of the neighbouring genes, induced by the presence of the photobiont and events of lichenization. The results identify potential candidates for PKS genes in C. rangiferina, identify potential neighbouring genes in the PKS cluster, and offer insights into further research. The study provides preliminary insights into the activity of several identified biosynthetic gene clusters (BGC) as well as interactions of genes within those clusters.

1. Introduction

There are over 1000 lichen secondary metabolites identified to date [1]. Their potential for pharmaceutical and biotechnology uses lies in bioactive properties such as antibacterial and antifungal activity, or industrially relevant features such as hydrophobicity and metal chelation [2,3,4,5,6]. There is, therefore, a growing need for known and yet to be discovered secondary metabolites. However, knowledge of their regulation in lichens has been a slow process. Although modern improved culture methods increased progress in biotechnology using axenic lichen fungi (mycobionts) [7], the use of engineered biosynthesis in an easily cultivated universal host, carrying gene clusters of corresponding synthases, seems to be a more viable solution [8]. Thus, the identification of genes involved in secondary metabolite synthesis, and discerning conditions required for their activation, has become an important part of the discovery and exploration of new bioactive compounds.
The conventional approach to identifying gene function is to begin with the product that must be identified and characterised, and then the gene(s) responsible for its production must be revealed [9]. Evolutionary and comparative genomics, combined with reverse genetics and gene knockout techniques remain to be powerful tools allowing for the identification and characterization of genes involved in biosynthetic pathways [10,11,12,13]. However, modern genome mining technologies and a growing amount of DNA sequence data have allowed the opposite approach: the function of newly identified genes and gene clusters can be predicted based on characteristics of already investigated genes and their products [14]. This genome mining method led to the discovery of many biosynthetic pathways for which no actual product has been characterized until now [15,16,17].
The vast majority of the secondary metabolites in lichens are produced by three types of synthases—large multienzyme protein complexes: terpene synthases (TPS) producing terpenes, nonribosomal peptide synthetases (NRPS) producing small peptides, and polyketide synthases (PKS), producing polyketides [18,19,20]. Polyketide synthases may be further characterized according to their sequences, primary structures, and catalytic mechanisms into more specialized subgroups [21]. Lichen-forming fungi are known to have type I polyketide synthases; however, recent assays revealed the presence of type III-like PKS in some lichen mycobionts, though the role is unclear [22]. Genes involved in the biosynthesis of secondary metabolites are usually organized in separate clusters for fungi, often under the control of a single regulator, and not all of them are expressed under standard laboratory conditions [19,23]. Activation of these genes in nature depends on different environmental and physiological factors [18,24].
Although lichen polyketides, terpenes and small peptides, are known to be produced by the mycobiont alone [25], their synthesis requires carbon, which in nature is provided by the photosynthetic partner, algae or cyanobacteria (photobiont) [26]. Some lichen-fungi that associate with cyanobacteria can fix nitrogen playing roles in nutrient acquisition or pollution tolerance within the environment [27,28], but these lichens are less frequently cultured and tend to produce fewer polyketides. Co-culturing of the lichen-forming fungus with its green algal photobiont has been shown to allow secondary metabolite biosynthesis to occur [7]. One study showed that the aposymbiotic cultures of the mycobiont growing on the media supplemented with carbon sources, produced polyketides [29]. To identify which genes are activated by lichenization, we compared transcriptomes of C. rangiferina cultured alone, C. rangiferina at later stages of resynthesis (as identified by Athukorala, [30]) with the photobiont (Asterochloris glomerata), and the natural lichen thallus of C. rangiferina.
Profiles were screened for the presence and expression of predicted secondary metabolite biosynthesis gene clusters, generated by the latest version of antiSMASH analysing software (open access) [31] from previously sequenced and assembled (URGP 2014) genome of Cladonia rangiferina. The study provides preliminary insights into the activity of several identified biosynthetic gene clusters (BGC) as well as the interaction and mutual influence of genes within those clusters. Further research can be focused on the specific BGC (and neighbouring) genes, contributing to the research of probable gene transfer and engineered biosynthesis of secondary metabolites in an artificial host.
Objectives:
The goal of the research was the identification of genes involved in polyketide synthesis in Cladonia rangiferina, through expression patterns affected by the events of lichenization, with the more specific objectives being:
(a)
To identify which, if any, secondary metabolite BGC genes are affected by lichenization processes.
(b)
To identify additional genes responsible for PKS activation outside the BGC core.
(c)
To evaluate the importance of the lichenization processes for potential use as a triggering mechanism of secondary metabolite production.

2. Materials and Methods

2.1. Co-Inoculation and Resynthesis

Resynthesis was performed according to the previously established protocol for lichenization in C. rangiferina [30]. Two axenic cultures were obtained from a lab culture collection, Cladonia rangiferina and Asterochloris glomerata, which were subcultured three months before resynthesis on 1.5% malt yeast extract agar (MY) (malt extract; 20 g, yeast extract; 2 g, agar; 15 g in 1 L distilled water) and Bold’s Basal Medium (BBM, liquid) [32,33] respectively.
The identity of each of the cultured symbionts was confirmed by sequencing of internal transcribed spacer 1 and 2 (ITS 1 and 2) region of the nuclear ribosomal RNA gene performed with primers 1780-F (5’-CTGCGGAAGGATCATTAATGAG-3’) [34] for the mycobiont and 1780A (5’-CTGCGGAAGGATCATTGATTC-3’) [34] for the photobiont, with ITS4 (3’-TCCTCCGCTTATTGATATGC-5’) [35] as a 3′ primer for both symbionts. The resulting sequences showed 100% similarity to the sequences KY119381 (fungus) and MT036563 (alga), respectively.
One month prior to co-inoculation, fungal colonies were gently ground with a sterile mortar and pestle and inoculated into 100 mL of liquid MY medium (20 g malt extract and 2 g yeast extract in 1 L of distilled water). Liquid cultures were maintained at 20 °C with continuous shaking at 150 r/min.
After one month incubation, 50 mL of fungal culture was centrifuged at 8000 rpm for 10 min, drained, ground with a mortar and pestle under sterile conditions, and resuspended in 50 mL of 99:1 medium (1 mL of MY added to 99 mL of BBM; [36]) to obtain a homogeneous suspension. One hundred millilitres of lichen algal culture was centrifuged, at 8000 rpm for 10 min, drained, and the algal cell pellet was resuspended in 50 mL of the same 99:1 medium (1 mL of MY added to 99 mL of BBM; [36]) to obtain a concentrated suspension. The resulting suspensions were used for co-inoculation: 500 μL of the prepared C. rangiferina suspension was inoculated onto nitrocellulose filters (25 mm diameter, 0.22 μm, MilliporeSigma, Canada GSWP02500) in the Petri plates containing 99:1 agar medium and allowed to dry for 1 h under sterile conditions. After 1 h the same nitrocellulose filter papers containing C. rangiferina were inoculated with 500 μL of A. glomerata and dried for 1 h under sterile conditions.
Two large Petri plates with five filters each were prepared for every culture, resulting in 10 replicates of the alga alone, fungus alone (on the nutrient-poor medium and optimal nutrient-rich medium), and fungus combined with the alga (co-culture). The 40-day old cultures were pooled together for the total RNA extraction.
The natural thallus of C. rangiferina used in comparison experiments was collected from Birchy Bay, Newfoundland (N49° 190 15.300; W56° 410 07.0200; 126.2 masl). Dry thallus was rehydrated for about 6 h under the same incubation conditions as the cultures prior to RNA extraction [37].

2.2. RNA Extraction, RNA Sequencing and Transcript Analysis

Total RNA was extracted using the RNeasy kit (Qiagen, Germantown, MD, Canada, according to the manufacturer’s instructions (resulting in 35 µL of total RNA (RIN > 6.5) with a concentration between 90–200 ng/µL). The cDNA library construction and RNAseq were done through services offered by McGill University and Genome Quebec Innovation Centre (http://www.gqinnovationcenter.com/index.aspx?l=e) using Illumina HiSeq 4000 System (Illumina, Inc., San Diego, CA, USA).
The sequencing reads were mapped to the C. rangiferina genome (unpublished) by alignment program HISAT2 v. 2.2.1 (The Center for Computational Biology at Johns Hopkins University, Baltimore, MD, USA) [38]. Genome annotation was performed using gene finder tool GlimmerHMM v. 3.0.4. (The Center for Computational Biology at Johns Hopkins University, Baltimore, MD, USA) [39], a gene finder based on a Generalized Hidden Markov Model [40] trained on the genome of Cladonia grayi [41], and the perl toolkit AGAT v. 0.5.1 (BeeBiome-consortium, Alcediag, Montpellier, France) [42]. After the file conversion with samtools v.1.9 (HTSlib, GitHub) (http://www.htslib.org/) and extraction of gene sequences with BEDTools v.2.29.2 (HTSlib, GitHub) [43], transcripts were assembled and their abundances estimated with StringTie v.2.1.3 (The Center for Computational Biology at Johns Hopkins University, Baltimore, MD, USA) [44].
The differential expression analysis was performed using Bioconductor software package edgeR (Storey Lab, Princeton University, Princeton, NJ, USA) [45]. A gene was classified as differentially expressed if the expression change exceeded two-fold (Log2 2-FC) at an FDR of 0.05.
Using GlimmerHMM (The Center for Computational Biology at Johns Hopkins University, Baltimore, MD, USA) [39], the number of protein coding genes was predicted. The sequenced reads for all four samples were mapped to the C. rangiferina mycobiont genome with over 90% overall alignment rate for each sample.

2.3. Secondary Metabolite Gene Clusters Determination and Analysis

The web-based prediction tool “antibiotics and secondary metabolites analysis shell” (antiSMASH)–a tool designed to identify secondary metabolite ‘biosynthetic gene clusters’ (BGCs) in genomes of plants, bacteria and fungi [31] (v.5, the latest version on the day of research) was used to reveal secondary metabolite gene clusters within the C. rangiferina genome. The potential gene clusters (or “regions”) were searched against the database of highly conserved enzyme HMM profiles (core-enzymes), which are indicative of a specific BGC type, and after that individual protoclusters encoded in the region were determined according to pre-defined cluster rules. The regions that make up a core later were extended by its neighbourhood, which constitutes genes encoded up-stream and down-stream of the core, that may affect core gene transcription.
The list of all differentially expressed genes (DEG) was compared to predicted gene clusters and the resulting genes were analysed using R statistical packages for graphical representation.

3. Results and Discussion

Two long-term axenic cultures from the laboratory culture collection—Cladonia rangiferina and Asterochloris glomerata—were used to investigate transcriptome changes during the process of resynthesis. The chosen experimental conditions included control: the non-symbiotic fungus C. rangiferina growing on the diluted nutrient-poor medium (Fdl), and two experimental treatments: the non-symbiotic fungus C. rangiferina growing on the nutrient-rich malt yeast extract (Fopt)—a medium known as optimal for growth of a variety of fungi [46], and a co-culture of C. rangiferina fungus mixed with alga A. glomerata growing on the diluted medium (FA). Natural thallus (NT) of C. rangiferina collected in Central Newfoundland was used for comparison (Figure 1).
A similar experiment with a photobiont, A. glomerata, was conducted: the non-symbiotic alga (A) versus a co-culture of C. rangiferina mixed with A. glomerata (FA), with the natural thallus (NT) of C. rangiferina used for comparison.
Using a previously established protocol for C. rangiferina lichenization [30] we chose the 40-day incubation for sampling as the point when the stable expression of a few known PKS genes could be observed [29].

3.1. RNA Sequencing and Transcriptome Analysis

In order to obtain the necessary amount of RNA for an efficient next-generation sequencing (Illumina Hiseq (Illumina, Inc., San Diego, CA, USA) paired-end reads, 100 bp), all replicates for each culture respectively were pooled together. Pooling samples together (biological averaging) is a method that was used in microarray research for years [47,48], and was later adopted for the RNA sequencing optimization [49,50], supported by modern methods of computation of differential expression between two experimental conditions (the NOISeq package for R, [51,52]). Applying this strategy resulted in a sufficient amount of RNA that provided an average of ~50 million 100-bp reads for each sample.
The number of predicted genes (28,715 for the mycobiont and 26,162 for the photobiont), as well as the numbers of protein coding genes (10,140 and 8431, respectively) and differentially expressed genes during lichenization (Figure 2a,b, Additional file S2, Supplementary Materials), were in agreement with previous observations [41,53,54,55,56].
Pairwise differential expression analysis of read counts in the experimental conditions (FA, Fopt, NT for mycobiont; and FA, NT for photobiont) relative to the non-symbiotic monocultures (Fdl and A respectively) was combined with GO/InterPro annotation using Blast2Go software to identify genes and cell processes affected by the events of lichenization.

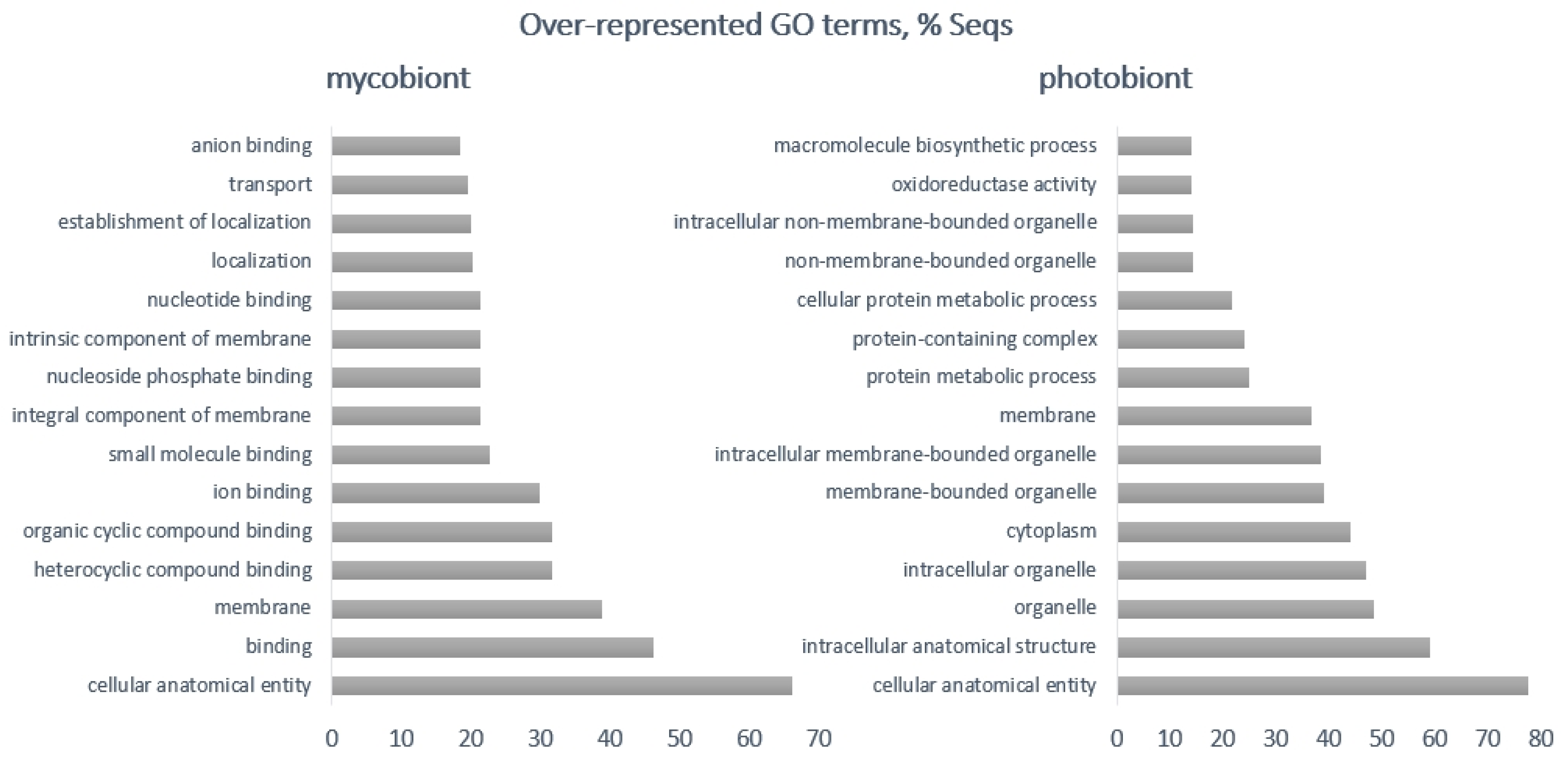

Figure 3 presents the fifteen most active up- and down-regulated processes for every GO category in the co-culture for both partners.
Despite the long history of lichenology, lichen-forming fungal and algal genome databases are lacking in entries, but other fungal and algal databases are available for comparison (Figure 3, Table 1). As expected (and was previously reported for different co-cultures [41,56]) both the mycobiont and photobiont demonstrated downregulation of the expression of the numerous genes in comparison to the mono-cultures (Figure 2a,b). Interestingly enough, in the case of the mycobiont, the same effect was observed for the monoculture, growing on the optimal nutrient-rich media (Fopt, growing on malt yeast extract), indicating that the genes and processes in question may be related to the carbohydrate intake.
Table 1 shows the annotated genes for the top 50 differentially expressed genes in this study. The photobiont genes include upregulated photosynthetic proteins (MSTRG.2269, MSTRG.3363) and those participating in amino acid transportation (MSTRG.1890), which may have been expected during lichen formation and was observed for other lichen species [56], while far fewer annotated down-regulated genes include hydrolases and proteins involved in transcription regulation.
In the case of the mycobiont, the most downregulated cluster (genes MSTRG.2157—MSTRG.9202, Figure 2c) includes FAD-dependent oxidoreductases and proteins involved in processes related to membrane transportation, which is common for the production of degrading compounds by saprobic organisms and it forms part of fungal metabolic processes [57]. It can be speculated, that a monoculture of fungus, lacking any other source of carbohydrate, might be forced to rely on those processes to extract nutrients from nutrient deficient media. However, when other nutrient sources are available such as a photobiont producing carbohydrates or carbohydrates easily absorbed from the media, the need for those proteins is lessened.
Among the up-regulated genes of the mycobiont, the most common was found to be p450 (MSTRG.9191, MSTRG.3591, MSTRG.3588), which is known to catalyze monooxygenation reactions in primary and secondary metabolism [58]. Expression of p450 genes was observed in previous studies on polyketide synthases [59]. Even though the entire transcriptome analysis was not the goal of this research, the presence of polyketide synthase (MSTRG.960, region 17.1, Figure 4a) among the most differentially expressed genes was notable, supporting a possible influence of lichenization processes on secondary metabolite enzymes.

3.2. PKS Transcription Analysis

Version v.5 of the antiSMASH software identified 33 potential biosynthetic gene clusters (BGCs, or “regions”) within the genome of Cladonia rangiferina: 22 Type I PKS, one Type III PKS, three terpene-synthases, and seven NRPS (Additional file S1, Supplementary Materials). However, two of them, region 1.1 (core gene MSTRG.3413) and region 39.1 (core gene MSTRG.8594), were not found in the transcriptome of C. rangiferina (neither mono-culture, co-culture, or the wild type), and one, region 54.1 (core gene MSTRG.7390), was not expressed in co-culture (while both mono-cultures and the natural lichen thallus showed some level of expression). All three belong to the T1PKS family. The reason for the lack of their expression could be investigated in future research, but in the present study, they had to be excluded from further analysis.

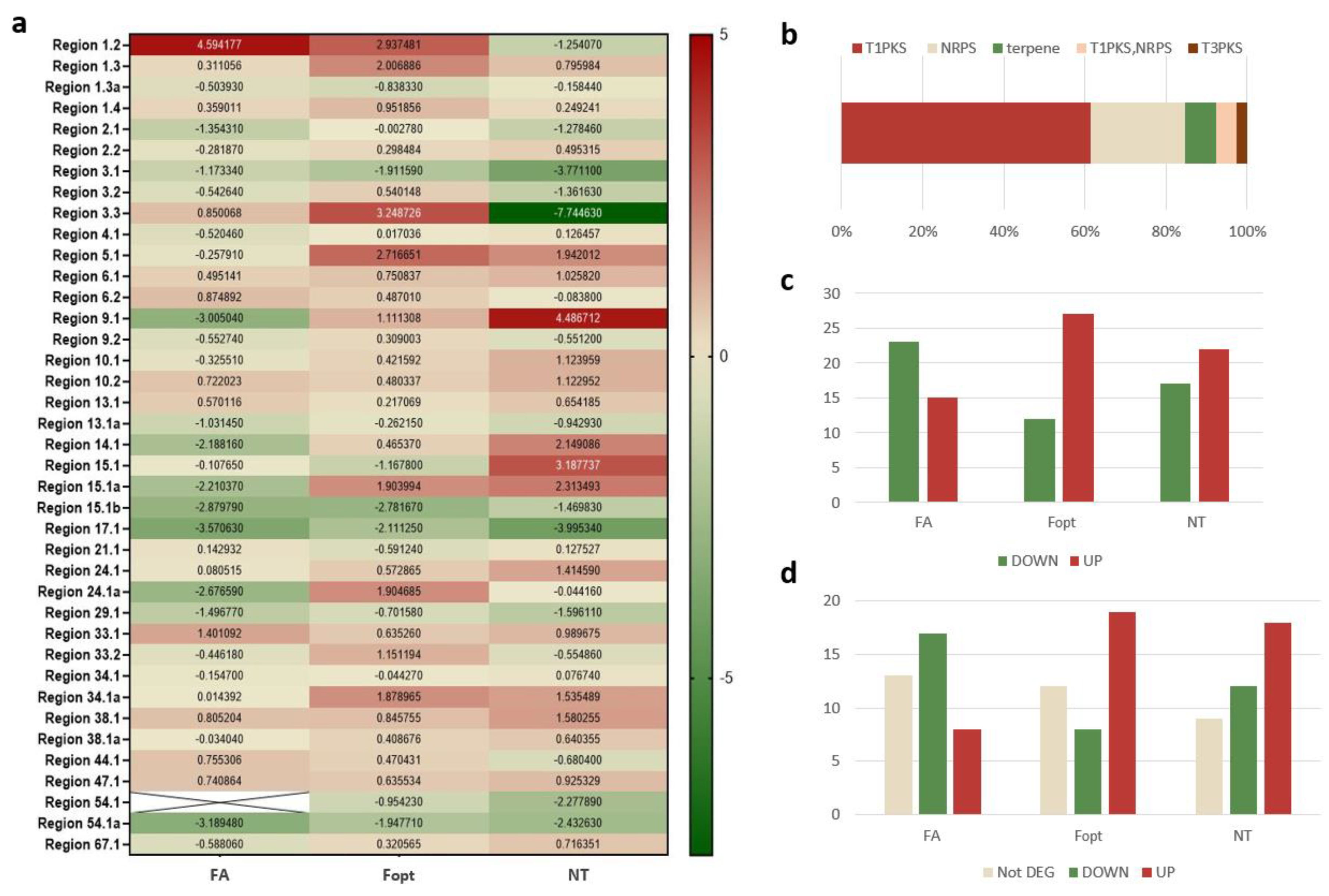

Figure 4a shows the expression of the core biosynthetic genes in the remaining 30 BGCs for all three conditions: mono-culture, co-culture and natural lichen thallus of C. rangiferina.
Although the high probability threshold excludes some genes from the list of DEGs, the log2-ratio of the two conditions was used as an indicator of the direction of expression (up- or down-regulated) (Figure 4a,c). Results clearly indicate that events of lichenization required down-regulation of a number of biosynthetic genes, whether strict DEG selection was applied (Figure 4d, FA) or not (Figure 4c, FA), while the survival of a monoculture in the optimal medium (Fopt) or the functioning of the natural thallus (NT) both required higher expression levels of biosynthetic genes.
The difference was found to be even more prominent after further separation of biosynthetic genes into two groups, those with the same direction of expression regulation (up or down) across all three conditions (co-culture, monoculture in optimal medium, and the natural lichen thallus) and those that demonstrate some difference in regulation. The first group was an unlikely candidate for the genes affecting lichenization processes (due to the similar expression pattern in the monoculture). Thus, regions 3.1, 6.1, 15.1b, 17.1, 29.1, 33.1, 38.1, 47.1, 54.1a were excluded from further investigation (along with regions 1.3, 1.3a, 1.4, 2.1, 10.2, 13.1, 13.1a, 24.1 and 34.1a, that, with relaxed rules for DEG selection, showed the same tendency in expression across different conditions).
The exclusion of these regions left only 21 regions as potential candidates with 10 of them being differentially expressed and mostly down-regulated in the co-culture (Figure 5b).
One exception (region 1.2) was found to be highly upregulated in both mono- and co-culture (Fopt and FA), while down-regulated in the natural lichen thallus (NT). This may indicate that the secondary metabolite gene is responsible for fungal metabolism, rather than lichenization processes and could be excluded from further investigation.
The cluster analysis (Figure 5) of nine remaining BGCs separated them into two distinct groups: strongly expressed (or repressed) regions 9.1, 14.1, 15.1a (with the less prominent 24.1a) and weaker differentially expressed regions 4.1, 3.2, 9.2, 33.2 and 67.1. While all of them are up-regulated in the monoculture and down-regulated in the co-culture, they show different expression patterns in the natural lichen thallus. There can be a number of explanations for the difference. For example, the requirements of establishing algal–fungal interaction in the co-culture could be different from those for sustaining the natural lichen thallus. Alternatively, the re-hydration process could affect the expression profile of the natural lichen thallus. However, at least four regions in the transcriptome of the natural lichen (3.2, 9.2, 24.1a and 33.2) demonstrated an expression pattern similar to the one found in the co-culture.

3.3. Functional Analysis of the Selected Core Biosynthetic Genes

Table 2 and Figure 6 provide a summary of the findings for each antiSMASH predicted biosynthetic genes in the C. rangiferina genome potentially affected by lichenization. To our knowledge, none of them have been described for C. rangiferina, and except for general class prediction, little is known about most of them. Therefore, for a meaningful characterisation the most similar proteins identified among the top BLAST search results were used for comparison.
The analysed genes in biosynthetic clusters can be separated into two groups: those in which expression is up-regulated in the natural lichen thallus (NT), similar to mono-culture grown on an optimal substrate (Fopt), and those that are down-regulated in the natural lichen thallus, similar to the co-culture (FA). Analysis of GO terms associated with the genes (Figure 6) revealed that the GO terms were not unique to each group (Figure 6b), supporting the previous observations of existing overlap in function of fungal gene clusters [60,61].
Only two out of nine genes could be annotated with the Kyoto Encyclopedia of Genes and Genomes (KEGG) and assigned a functional metabolic pathway to the predicted gene cluster: region 9.2 (down-regulated) and region 14.1 (up-regulated). Both of them were found in a specialised fatty acid biosynthesis pathway, while region 9.2 alone was also found in general metabolic pathways like biotin metabolism, thiamine metabolism and purine metabolism. Since secondary metabolite pathways also include genes encoding tailoring enzymes, transcription factors, and transporters, similar to those in general metabolic pathways [62], the two regions above could conceivably be part of secondary metabolite pathways.
The group of five secondary metabolite gene clusters whose up-regulation was observed both in the natural thallus of C. rangiferina and the mycobiont growing on the optimal nutrient-rich medium may be obtained from axenic lichen fungi without lichenization. Their similarity with already established genes makes them promising candidates for the biotechnological industry. Region 15.1a is recognised as a putative squalene/phytoene synthase (Cladonia uncialis), and triterpene squalene is known as a natural compound with a number of uses in pharmaceutical, nutraceutical, and personal care industries [63]. Region 14.1 is putatively a type I PKS (Cladonia uncialis), and shows similarity with conidial yellow pigment biosynthesis polyketide synthase (Xylona heveae), which is a secondary metabolite affecting conidiation, cell wall integrity, and stress tolerance of fungal cells [64]. Regions 9.1 and 4.1 are recognised as acetyl-CoA synthetase-like proteins (Phialocephala scopiformis and Rhizodiscina lignyota respectively), which form part of numerous primary and secondary metabolic pathways, participating in the formation and regulation of natural products like nonribosomal peptides, polyketides, phenylpropanoids, lipopeptides, and terpenes [65,66]. In addition, there is a similarity between region 4.1 and microperfuranone synthase (Colletotrichum orbiculare) producing furanone derivative compounds, which are quorum-sensing inhibitors with potential as novel therapeutics [67,68]. Lastly, region 67.1 is a hybrid PKS-NRPS enzyme that shows similarity with beta-ketoacyl synthase (Macrophomina phaseolina), an enzyme involved in fatty acid synthesis by processing malonyl-CoA as a carbon source. However, the sequence of the region also resembles some synthases directly producing secondary metabolites like lovastatin nonaketide synthase (Arthroderma uncinatum) or gramicidin synthase (Cucurbitaria berberidis), that are of interest in the pharmaceutical industry [69,70].
The role that these genes and their products play in the metabolism of the natural lichen thallus of C. rangiferina remains to be discovered. However, the fact that they are downregulated in the co-culture might suggest a negative influence on cell recognition and interaction processes. There is also a possibility that the production of secondary metabolites from those genes is highly resource demanding and requires a stable influx of carbohydrates, which cannot be provided at the early stages of interactions between the fungus and alga before the thallus is formed.

3.4. Expression of Neighbouring Genes in Biosynthetic Gene Clusters

Several categories of neighbouring genes for the predicted BGC were identified by antiSMASH in accordance with smCOG annotation (clusters of orthologous groups, [71]). These include additional biosynthetic genes, transport-related genes, regulatory genes, and “other genes” which are not known to be directly involved in secondary metabolite production. The genes from each group were found upstream and downstream of the core of each predicted BGC thought to be affected by events of lichenization. However, only five genes in all nine clusters demonstrated the expected expression pattern that correlated (positively or negatively) with the expression of the cluster’s core. Table 3 shows the list of these genes and their predicted function, while Figure 7 shows the correlation between the expression of predicted cores and corresponding additional proteins. For most of the pairs, the correlation is positive, and a few exceptions (like regions 3.2 or 4.1) could be condition-dependent.
As with the core clusters, none of these proteins in Table 3 were previously characterised for C. rangiferina. Therefore, their function was deduced by domain characteristics and similarity with proteins from non-lichenized fungi. Three of those regions (regions 3.2, 14.1, 33.2) were recognised as additional biosynthetic genes, and two regions (4.1 and 15.1) were similar to “other genes”, two hydrolases, one SDR protein, a synthetase, and a helicase.
The expression of hydrolases could be expected during lichenization processes for the establishment of the symbiotic interface [56]. The alpha/beta hydrolase from region 3.2 shows high similarity with epoxide hydrolase from Glonium stellatum and is up-regulated in both the co-culture and the natural lichen thallus (negatively correlating with expression of the core genes of the cluster). The second hydrolase (region 33.2), also belonging to the alpha/beta hydrolases family, is down-regulated (similar expression pattern as the cluster core). This region 33.2 shows similarity with thioesterase (found in Trichophyton interdigitale), which is an enzyme catalyzing the production of fatty acids and CoA, and thus could be involved in the production of a secondary metabolite. Considering the fact that similar genes are predicted to be part of the PKS and NRPS clusters in different fungi, they may represent NRPS-PKS hybrids of C. rangiferina.
Another predicted protein was found to be short-chain dehydrogenases/reductases in the region 14.1 (Table 3). The short-chain dehydrogenases/reductases (SDR) constitute one of the largest enzyme superfamilies involved in the metabolism of a large variety of compounds and contribute to essential functions of every known organism [72]. The fact that the expression of SDR in the cluster 14.1 positively correlates with the expression of corresponding core gene might indicate its involvement in the production of a secondary metabolite.
Finally, both predicted proteins found in regions 4.1 and 15.1 (Table 3) seem to be the unlikely candidates for the signal/regulation genes of biosynthetic gene clusters. The tRNA-synthetases and RNA helicases play important roles in RNA metabolism, often associated with antivirus and stress responses [73,74,75]. As stress response is also considered as the major function of the secondary metabolite, that can explain the close proximity of both types of genes on the chromosome.
Without further research, it would be too early to speculate on the relationship between neighbouring proteins and secondary metabolite synthases, and whether they represent a necessary part of the full biosynthetic gene cluster. However, their position and coordinated expression patterns with core enzymes suggest there may be possible relationships.

4. Conclusions

Lichen secondary metabolite production depends on the photobiont partner and is expected to be affected by the processes of lichenization. We analysed the transcriptome of the co-culture of the lichen-forming fungus of Cladonia rangiferina and its photobiont partner—Asterochloris glomerata in comparison with the monoculture(s) and the natural lichen thallus to determine which, if any, of the predicted biosynthetic gene clusters were affected by lichenization. Thirty out of 33 predicted biosynthetic gene clusters within the genome of Cladonia rangiferina were found to be expressed in the mono-culture of the mycobiont as well as in the natural lichen thallus. Nine of them were shown to be actively regulated during the lichenization process that includes core enzymes (five type I polyketide synthases, three nonribosomal peptide synthases, and one terpene synthase) and five additional genes potentially involved in lichen secondary metabolite production.
The function of these genes is unknown; however, all nine affected secondary metabolite synthases were found to be down-regulated during the events of lichenization, suggesting possible inhibitory roles in the early stages of lichen formation.
Although the role of the five additional neighbouring genes, with expression patterns that correlate with expression of the core genes in clusters, remains to be discovered, they show similarity with known genes of other fungal species, involved in the production of secondary metabolites. This knowledge can help to determine the function of the biosynthetic gene clusters containing those genes, as well as the role of the core genes of these clusters.
Overall, the study provides a research basis for further investigation of the secondary metabolite biosynthesis of lichens in general and C. rangiferina in particular, as well as the possibility of engineered biosynthesis of secondary metabolites in an artificial host.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/d13110529/s1, Additional file S1: antiSMASH analysis of the genome of Cladonia rangiferina, Additional file S2: the list of differentially expressed genes (DEGs) with indicated expression level and their sequences, Figure S1: Experimental conditions, changes over time, Figure S2: Heatmap demonstrating transcription levels of the core and neighbouring genes in BGCs for all three conditions: FA, Fopt and NT.

Author Contributions

Conceptualization, N.S. and M.D.P.-N.; methodology, N.S.; validation, N.S. and M.D.P.-N.; formal analysis, N.S.; investigation, N.S.; data curation, N.S.; writing—original draft preparation, N.S.; writing—review and editing, M.D.P.-N.; project administration, M.D.P.-N.; funding acquisition, M.D.P.-N. All authors have read and agreed to the published version of the manuscript.

Funding

National Sciences and Engineering Research Council of Canada (NSERC).

Institutional Review Board Statement

Not applicable.

Data Availability Statement

Geentic sequences of the genes discussed in this paper are available as a supplement to this paper.

Acknowledgments

A National Sciences and Engineering Research Council of Canada (NSERC) grant awarded to MPN is gratefully acknowledged. This research was enabled in part by support provided by ACENET (https://ace-net.ca/) and Compute Canada (https://www.computecanada.ca).

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.
