Spatiotemporal Changes in the Watershed Ecosystem Services Supply and Demand Relationships in the Eastern Margin of the Qinghai-Tibetan Plateau

by
Yuehua Zhu
,
Yixu Wang
,
Zongdong Hou
,
Jing Shi
and
Jie Gong
*
Key Laboratory of Western China’s Environmental Systems (Ministry of Education), College of Earth and Environmental Sciences, Lanzhou University, Lanzhou 730000, China
*
Author to whom correspondence should be addressed.
Diversity 2023, 15(4), 551; https://doi.org/10.3390/d15040551
Submission received: 3 March 2023 / Revised: 3 April 2023 / Accepted: 11 April 2023 / Published: 13 April 2023
(This article belongs to the Special Issue Climate Change and Human Activities Impact on Qinghai-Tibetan Plateau)
Browse Figures
Review Reports Versions Notes

Abstract

:
Clarifying the spatiotemporal changes in the supply and demand relationship of ecosystem services (ESs) is essential for optimizing ESs management. However, several studies have reported the ESs supply and demand risk in complex mountainous areas. In this study, we quantitatively analyzed the spatiotemporal variation in ESs supply, demand, and their trade-off and synergy, including water yield, soil conservation, and food provision in the Bailongjiang watershed (BLJW) in western China. The results showed that the total supply and demand of water-yield and soil-conservation services rose with a surplus from 2002 to 2018, except for food provision. A high value characterizes the water-yield and soil-conservation supply in the south, but there are low values in the east BLJW. The spatial distribution of water and food supply–demand featured a high demand in the subareas with population aggregation. Soil-conservation demand is high in the northwest and south of Wudu. The dominant spatial matching type of supply and demand in water yield was a high supply with a low demand. Soil conservation was associated with a low supply and low demand, and food provision with a high supply and increased demand. A synergy existed between water yield and soil conservation. Trade-offs existed between water yield, food provision, and soil conservation. The spatial distribution of trade-off intensity showed distinctive patterns. The supply–demand ratio of WY and SC decreased with the increasing trade-off intensity. This study comprehensively considers ES and supply–demand conflicts, thus providing a new perspective and approach for enhancing ecosystem services and high-quality regional development.

1. Introduction

Ecosystem services (ESs, hereafter) refer to the benefits that humans obtain directly or indirectly from the ecosystem to satisfy and maintain all the necessities of survival and development [1,2]. As a link between the natural and social–economic systems, the changes in ESs are closely related to human well-being. The linkage and interaction are mainly reflected by the relationship between ESs supply and demand [3]. ESs supply refers to the ability the ecosystem produces for humans [4,5], and ESs demand refers to the sum of ESs products humans consume and use [6]. The natural ecological and social systems are always mixed as a coupled system in which ecosystem structures and processes cannot form ESs without human beings as beneficiaries [7]. Thus, study on ESs supply or demand will inevitably benefit the effective management of ESs, prevent ESs degradation, maintain sustainable supply, and improve human well-being [8]. Currently, the research content on ESs is bursting, a new comprehensive framework of “ESs supply—ESs flow—ESs demand—human well-being improvement” is being formed and improved gradually [9], and the ESs supply and demand have become one of the new highlights. Earlier research on the ESs supply and demand focused more on the ecological carrying capacity and monetary evaluation of ESs [10,11,12], followed by the quantitative human consumption of natural resources, such as the quantification of ESs supply and demand [13,14]. With the continuous enrichment of research content, the study topics have been further expanded to include quantity and space matching [15,16,17], the balance evaluation of different scales [18], trade-off/synergy relationships [19,20], flow path [21,22,23], influence mechanisms [24,25], and the ecological management of ESs supply and demand [26,27], etc.
Exploring the quantitative relationship, and spatial match/mismatch between ESs supply and demand can help us to comprehensively and effectively understand the spatial allocation of natural resources [28,29,30]. Current research methods which are used to quantify the ESs supply and demand mainly include the value assessment, participation, and ecological model methods [31]. The value assessment method primarily uses the ESs value per unit or monetary valuation (e.g., market value and cost avoidance) to estimate the ESs supply and demand value based on the method proposed by Costanza et al. [32], which has been used worldwide at the national and continental levels with an intuitive expression. However, the accuracy is insufficient regarding local differences within the study area [33,34,35]. The participation method uses the expert evaluation matrix and questionnaire to evaluate ESs supply and demand, which is more suitable for capturing ES demand but is highly subjective and susceptible to the personal factors of experts and respondents, uses high investigation costs, and mainly applies to the small and medium scales [36,37,38,39]. Different ESs models have been proposed and used widely based on various ecological theories. Most of the ecological models concerning the ESs are mainly focused on the supply or demand side and lack matching assessment methods/models (e.g., the social values for ecosystem services (SolVES) and the integrated valuation of ecosystem services and trade-offs (InVEST) model) [19,40,41]. Models such as ARIES (artificial intelligence for ES) can estimate the ESs supply and demand, but it is difficult to obtain some local parameters, which impedes the widespread use of the model [42]. Therefore, it is essential to build corresponding models to match the calculation methods and consistency dimensions to further explore the supply and demand relationship. The relationships between ESs refer to the interaction and interrelation between different ESs, including trade-offs, synergies, and no-effects [43,44]. In order to reduce the contradiction between the trade-offs of ESs supply or demand and to balance the relationships between ESs supply and demand, it is vital to understand the characteristics of the ESs relationships at different times and spaces to promote the sustainable management of natural capital and ESs [45,46,47]. Current methods of ESs supply–demand relationship quantification mainly include spatial mapping to directly map or overlay the ESs supply and demand [48,49,50], quantitative analysis of the supply–demand relationship based on statistical methods [51,52,53], and simulation analysis of different scenarios [54,55]. The comprehensive utilization of multiple ESs with complementary advantages will help in better understanding the ESs supply and demand relationship.
The Bailongjiang watershed (BLJW, hereafter) in the eastern margin of the Qinghai-Tibetan Plateau has critical ecological functions of water and soil conservation [56]. Preliminary investigations show that the BLJW urgently needs to improve food production and soil and water protection [57,58]. Thus, the research prioritizes water-yield, soil-conservation, and food-provision services as the crucial ESs in the BLJW. Certain relevant studies have shown that the mismatch between ESs supply and demand is a potential cause of ecosystem degradation [59,60,61]. A comprehensive analysis of the ESs supply, demand, and their relationships is vital for decision-makers to identify the potential risk areas that need priority attention due to the supply shortage [62,63,64]. There are many studies on the ESs supply trade-offs or the mismatch between ESs supply and demand. However, the comprehensive studies on both are still mainly focused on the theoretical framework, lacking practical case studies [65,66]. Research shows that there is also an inherent relationship between ESs supply–demand dynamics and trade-offs [67]. For example, the enhancement of an ES supply is at the cost of reducing another ES in the trade-off relationship, which may lead to an increase in the contradiction between the ES supply and demand. Accordingly, the human need may reduce the supply of other ESs and affect the trade-off relationship. Thus, analyzing the coupling of ESs supply–demand dynamics and trade-off characteristics will intensify the ESs theory and provide solutions to alleviate the conflicts between ESs supply and demand.
The aim of this study is to reveal the spatiotemporal changes of ESs and their supply and demand relationship for countermeasures and suggestions to enhance ESs and ecological management. Specifically, the research aims include: (i) to analyze the spatiotemporal variation in water yield, soil conservation, food provision, and their supply and demand; (ii) to reveal the quantitative and spatial matching relationship between ESs supply and demand, as well as the trade-offs and synergies between ESs; (iii) to explore the internal relationship between the supply and demand relationships of ESs and the ESs trade-off/synergy, and the influencing factors; and (iv) to put forward suggestions on ecosystem management to improve ESs and alleviate the supply and demand conflict of ESs in the BLJW.

2. Study Area and Methods

2.1. Study Area

The Bailongjiang watershed (BLJW) (32°36′–34°24′ N, 103°00′–106°30′ E), with a total area of approximately 18,400 km2, is located in the transitional ecotone from the Qinghai-Tibetan Plateau to the western Qinling Mountains and the Loess Plateau (Figure 1). The elevation in the BLJW is high in the northwest and low in the southeast (568–4860 m). The geomorphic types are mainly plateau mountains, river valleys, and loess hills with complex topographical and geological conditions [68]. The average yearly temperature is 6–15 °C, and the average precipitation is 500–900 mm, both showing a decreasing trend from southeast to northwest [69,70]. Significant spatial differences exist in human activities and economic development in the BLJW. The upstream areas mainly engage in forestry and animal husbandry, while the downstream areas are primarily engaged in agriculture. The most densely settled regions are concentrated in the downstream areas of the Minjiang, the eastern part of the Zhouqu-Wudu section of the Bailongjiang, and the banks of the Baishuijiang. As of 2018, the total population of the whole watershed is about 1.2 million, of which the Wudu account for about 48%. Due to the intensive human activities and complex natural environment, the fragile ecology is one of the high-incidence places experiencing frequent geo-disasters such as debris flow and landslides in China. Therefore, coordinating the supply and demand of ESs is vital for ecological protection and human welfare.

2.2. Research Framework

The primary purpose of this study is to propose an analysis framework for integrating the ESs supply and demand relationships and the ESs trade-offs and synergies, to understand the supply and demand spatial distribution and dynamic relationship of key ESs in the BLJW on the eastern edge of the Qinghai Tibet Plateau, and to propose countermeasures and suggestions to achieve the balanced spatial allocation of ecological and environmental resources (Figure 2).

2.3. Data Sources and Processing

The data source of this study refers to the existing research around the BLJW [56,58,68]. The remote-sensing image data were obtained from the United States Geological Survey “https://glovis.usgs.gov/ (accessed on 21 August 2020)” with a resolution of 30 m in August 2002, 2010, and 2018, respectively. The preprocessing method mainly included radiometric correction, geometric correction, band fusion, image mosaic, and cropping. The land-use data were obtained from Landsat TM images via ENVI preprocessing and manual visual interpretation, combined with Google Earth and field validation, with an estimated accuracy of over 86%. According to the LUCC classification standard and the actual situation of the BLJW, the land use in the study area was divided into six categories: farmland, forestland, grassland, water area (lakes, rivers, reservoirs, etc.), built-up land (residential, industrial and mining land, towns, etc.), and unexploited land (bare rock, barren beach, sandy land, mountain snow, etc.). The DEM data with a 30-m resolution were obtained from ASTER GDEM data “http://www.gscloud.cn (accessed on 24 September 2021)”. The NDVI dataset was obtained from MODIS13Q1 products “https://ladsweb.modaps.eosdis.nasa.gov/ (accessed on 29 July 2020)” with a spatial resolution of 250 m and a temporal resolution of 16 days. Using the ArcGIS spatial analysis module for annual maximum analysis, splicing, clipping, and resampling, 30-m NDVI data of the BLJW from 2002 to 2018 were obtained. The meteorological data of temperature, precipitation, and solar radiation were derived from the daily data during 2000–2020 of the 17 meteorological stations “http://data.cma.cn (accessed on 9 June 2021)” in and surrounding the BLJW. ANUSPLIN was used for the spatial interpolation of meteorological data, and the spatial resolution was set at 30 m × 30 m. The soil data used in this study were clipped and rasterized from the 1:1 million soil-type data of China “http://www.resdc.cn/ (accessed on 13 March 2021)” and the second soil census data of Gansu Province. The soil data were verified by relevant literature in the China Soil Database “http://vdb3.soil.csdb.cn/ (accessed on 6 August 2021)”, field sampling, and experimental analysis. The socio-economic statistics data were obtained from Gansu Province and county statistical yearbooks, water conservancy statistical yearbooks, and relevant government work reports “http://tjj.gansu.gov.cn/ (accessed on 22 October 2022)”.

2.4. Quantification of ESs Supply and Demand

Based on the typical natural conditions and socio-economic characteristics of the BLJW, we selected water yield (WY), soil conservation (SC), and food provision (FP) to reveal the spatiotemporal changes of the ESs and their supply and demand relationships.

2.4.1. Water Yield

The simplified water-yield model in InVEST was used to estimate the water supply (WS) [71]. The water demand (WD) was defined as the summed quantities of domestic water, industrial water, and farmland-irrigation water by the water-quota method [72]. The expressions are as follows:
W S x = 1 − A E T x P x × P x
W D x = D p e r w a t e r × P x p o p
where WSx is the water-yield supply (mm); Px is the average annual precipitation (mm); AETx is the actual yearly evapotranspiration (mm); and the detailed model parameters are from previous research results [68,73,74]. WDx is the water-yield demand (m3); Dperwater is the water demand per capita (m3); Pxpop is the population density (per km2) [75]; x is a random pixel.

2.4.2. Soil Conservation

The soil-conservation supply and demand (SS and SD) are estimated based on the revised universal-soil-loss equation by using the sediment delivery ratio module in InVEST [58,71,76]. The expressions are as follows:
S S x = R K L S x − U S L E x + S E D R x
S D x = U S L E x = R x × K x × L S x × C x × P x
where SSx is the soil-conservation supply; RKLSx is the potential erosion of soil; SEDRx is the sediment retention; USLEx is the actual erosion of soil; SDx is the soil-conservation demand; Rx, Kx, LSx, Cx, and Px are precipitation erosivity factor, soil-erodibility factor, slope-length gradient factor, vegetation-coverage factor, and support-practice factor, respectively. The model parameters refer to previous studies [56].

2.4.3. Food Provision

There is a significant linear relationship between farmland NDVI and food production [76]. Therefore, the cultivation-area NDVI is used to calculate the food supply (FS). The various kinds of food are converted into energy values to avoid dimensional differences between different foods, according to the China Food Composition 2004 (Volume 2). The food demand (FD) is estimated according to the per capita food demand multiplied by the population [19,77]. The expressions are as follows:
F S x = N D V I x , j N D V I s u m j × c s u m j
F D = P p o p × c a v g
where FSx is the food supply (KJ); NDVIx,j is the NDVI of the corresponding land type j on grid x; NDVIsumj is the sum of NDVI on land j; csumj is the total output of land type j (KJ); FD is the food demand (KJ); Ppop is the population density (per km2); cavg is the per capita food demand (KJ).

2.5. Relationship between ESs Supply and Demand

This study used the ecological supply–demand ratio (ESDR) to depict the quantitative relationship between ESs supply and demand [78,79]. A positive value of ESDR indicates a surplus in ESs, a zero value indicates a balance between supply and demand, and a negative value indicates a deficit in ESs. The bivariate Moran’s I indicator was used to depict the spatial-matching relationship of ESs supply and demand [80]. Based on the Z-test (p < 0.05), the local indicators of spatial association (LISA) map was used to reflect five types of spatial-clustering relationships: not significant, high–high (high supply–high demand), low–low (low supply–low demand), high–low (high supply–low demand), and low–high (low supply–high demand). The expressions are as follows:
E S D R = E S S − E S D E S S max + E S D max / 2
L I S A i = 1 n x i − x ¯ ∑ i x i − x ¯ 2 ∑ j w i j x i − x ¯
where ESS and ESD are ESs supply and demand, respectively; ESSmax and ESDmax are the maximum values of supply and demand of the selected service; xi is the attribute value of the spatial unit i; x ¯ is the mean attribute value; n is the total number of spatial units; wij is the spatial weight matrix between the spatial units i and j.

2.6. ESs Supply and Demand Trade-Off and Synergy

This study used correlation analysis to reveal the trade-off and synergistic relationship between the supply and demand sides of ESs. When the correlation value is positive and passes the significance test, it indicates that the ESs pair is a synergetic relationship; when the correlation value is negative and passes the significance test, it suggests that the service pair is a trade-off relationship; if the significance test is not passed, the relationship is not apparent. In order to further validate and quantify the relationships among ESs and spatial visualization, the root mean standard deviation (RMSD) [81,82,83] was applied to reveal the trade-off and synergy degree among the three ESs. The expression is as follows:
R M S D = 1 n − 1 × ∑ i = 1 n ( E S s t − E S s t ¯ ) 2
where RMSD is the trade-off intensity; ESst is the standardized value of the selected ES; E S s t ¯ is the mean value of the n ESs; n indicates the number of ESs. The essence of the RMSD is to calculate the distance between the coordinate points of the two ecosystem services after standardization and the 1:1 line.

3. Results and Analysis

3.1. Spatial Distribution of the ESs Supply and Demand

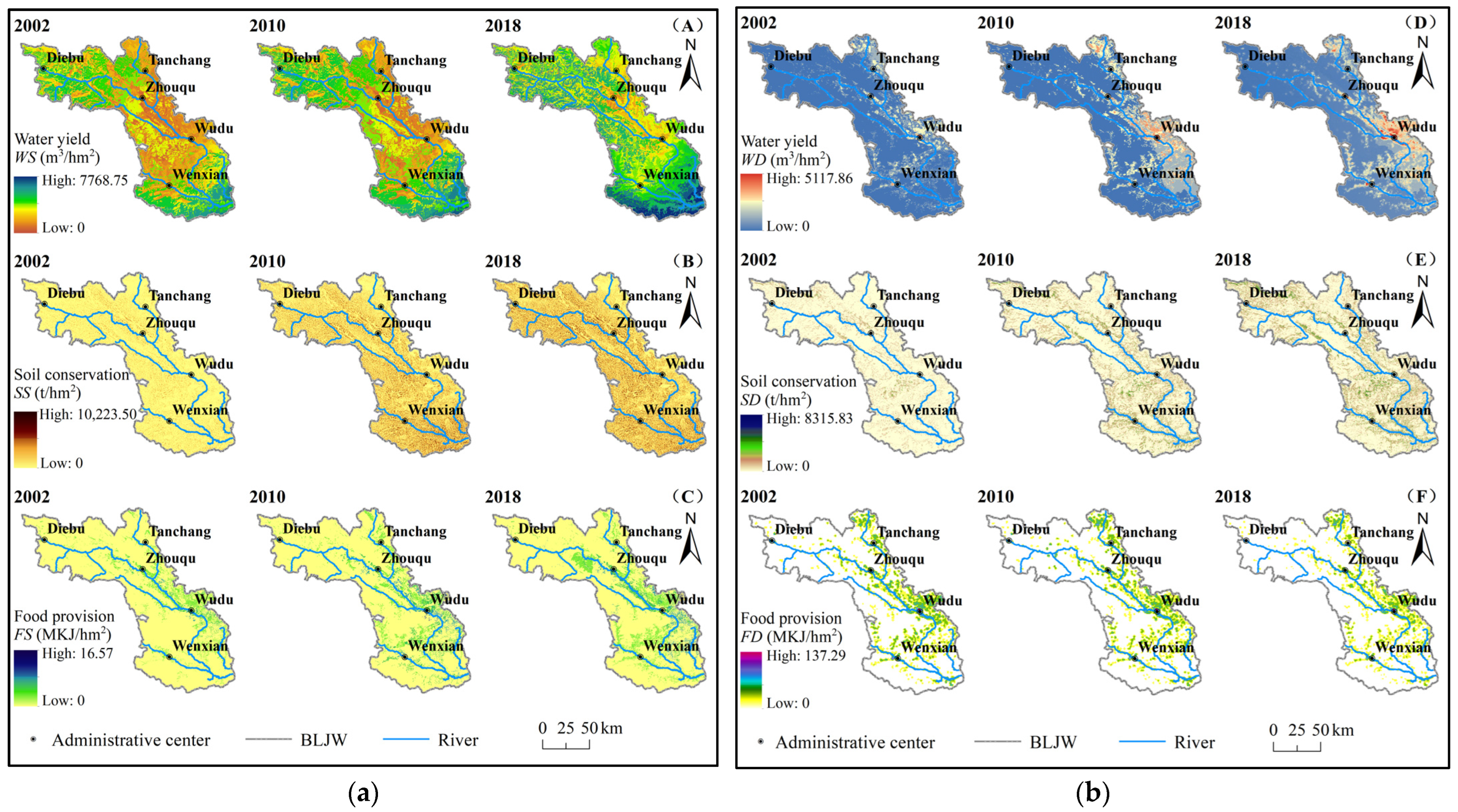

Except for the food-provision demand, the total ESs supply and demand increased from 2002 to 2018 in the BLJW (Table 1). A distinctive pattern of the spatial distribution of ESs supply and demand was observed (Figure 3). The high-value areas of water-yield supply were mainly in south Wenxian and southeast Wudu (water-yield supply is above 5000 m3/hm2) with a high vegetation coverage and annual precipitation. The median-value areas of the water supply were mainly distributed in the northwest BLJW, with a high altitude, low temperature, and high evaporation, while the low-value areas were distributed in the densely populated area in the north and the adjacent regions of the Bailongjiang, such as the Tanchang-Zhouqu-Wudu section of the BLJW (Figure 3A). Due to the population concentration and developed industry, the water-yield demand was concentrated in the residential and industrial areas around Wudu and near the river-bank corridors. The low-value water-demand areas were distributed in the forest, mountain, rocky, and unexploited lands with a sparse population in the BLJW (Figure 3D). From 2002 to 2018, the water supply in the BLJW increased from 3304.55 m3/hm2 to 4419.92 m3/hm2, and the water demand increased from 117.91 m3/hm2 to 276.03 m3/hm2 (Table 1). The water demand in Wudu increased significantly and the total water supply far exceeded the total demand. The soil-conservation supply and demand in the BLJW were generally low. As the region contains complex topographical and geological conditions, the distribution of high-value supply and demand areas of soil conservation was fragmented (Figure 3B,E). The northwest of the BLJW has a high slope and high potential soil erosion. The southeast of the BLJW has a high potential precipitation erosion. Due to the high forest coverage in the northwest and southeast BLJW, the actual soil-conservation supply amount is relatively high. High demand for soil conservation is mainly concentrated in the subareas with reasonable soil-conservation measures. From 2002 to 2018, soil-conservation supply increased from 192.10 t/hm2 to 520.58 t/hm2, and soil-conservation demand increased from 27.12 t/hm2 to 69.63 t/hm2. Despite the substantial quantitative difference between soil-conservation supply and demand amounts, the ESDR was merely 0.05, and supply and demand were balanced (Table 1). The high-value areas of food supply are mainly located in the agricultural areas with good land resources in Zhouqu, Wudu, and Wenxian. Most of the BLJW belongs to low-value subareas because of the fragmentation of the mountainous terrain. The spatial distribution of food-provision demand is closely related to the distribution of population density. The population of the BLJW is concentrated in the eastern parts (Figure 3C,F). The food supply nearly doubled from 2002 to 2018, while the demand decreased. According to the food-demand data in the statistical yearbook of each county in the watershed, the demand of residents for high-energy food (wheat, etc.) decreased. In contrast, the demand for low-energy food (vegetables, etc.) increased, and the total food-energy demand decreased by 23.86%. The total food supply was low in 2002 and 2010 and oversupplied in 2018, but the average ESDR of the BLJW was less than zero (Table 1).

3.2. Match and Mismatch between ESs Supply and Demand

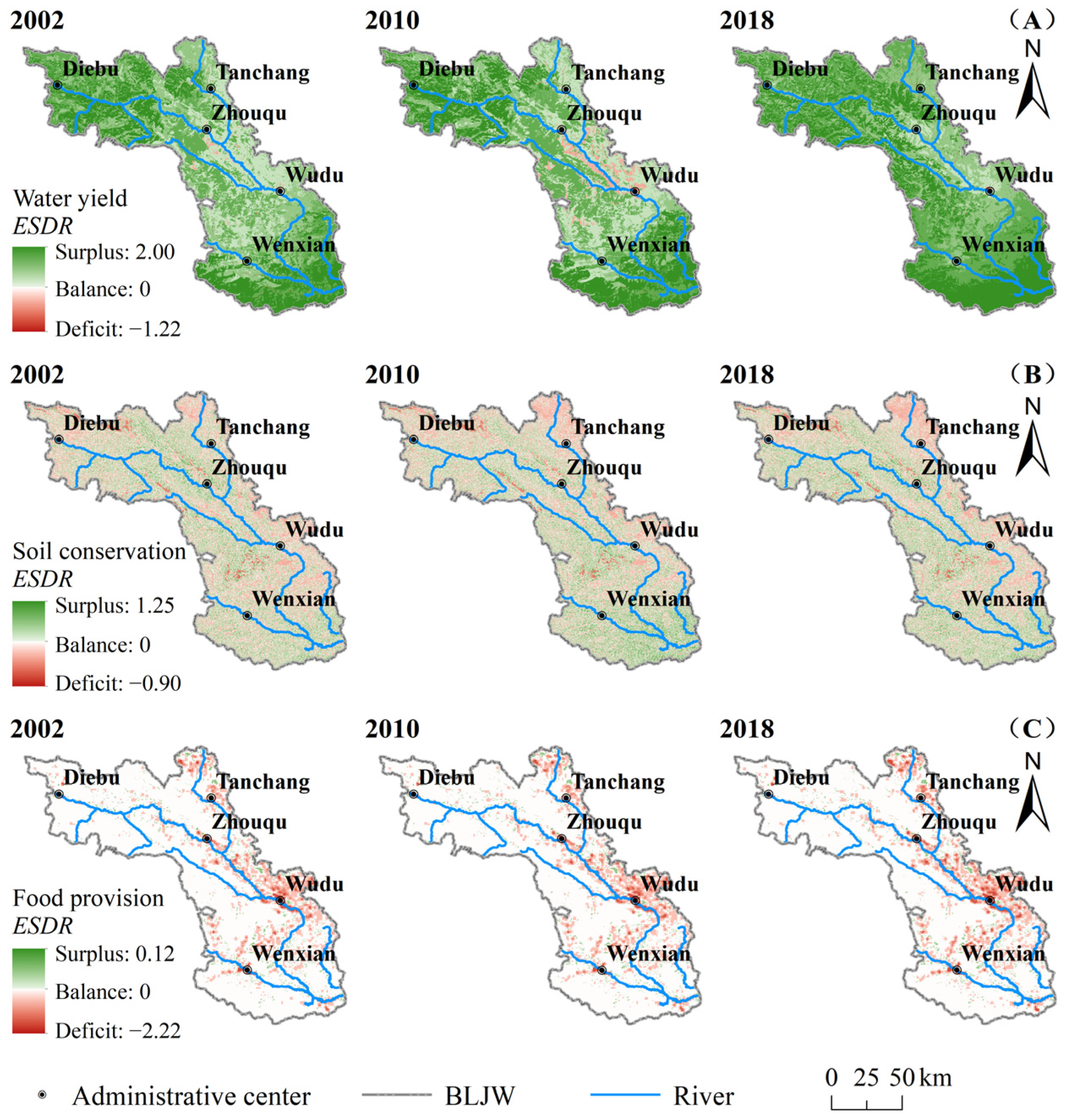

The ESDR of water yield was high in the northwest and southeast, low in the middle parts of the BLJW, and a water-yield deficit was found in the Zhouqu-Wudu section of the BLJW. The main reason is that the precipitation distribution of the BLJW is higher in the northwest and southeast and lower in the middle, which leads to the low water-yield supply in the middle parts. At the same time, a larger population resides in the central and eastern BLJW, with high water demand. The water-yield supply and demand primarily belong to the high supply with low demand (northwest of the BLJW) and low supply with high demand clusters (east of the BLJW) (Figure 4A), with a decreasing trend (18.12%, 14.42%, 13.28%, and 14.01%, 12.86%, 11.49%, respectively). The high-supply high-demand clusters increased significantly (1.52%, 3.27%, and 4.53%, respectively), primarily in southern Wudu. The low-supply low-demand clusters were mainly in the north of Diebu, and the area proportion decreased first and then increased (11.59%, 8.95%, and 12.95%, respectively) (Figure 5A). The spatial-match patterns of soil supply and demand in the BLJW showed less variation from 2002 to 2018. The ESDR of soil conservation was high in the south and west of the BLJW, with a surplus situation, while the low-value areas were scattered, mainly in the north of Diebu, the northern part of Tanchang, eastern Wudu, and the north of Wenxian. The ESDR pattern of soil conservation was mainly affected by factors such as precipitation, vegetation cover, terrain, and soil type. The deficit areas were primarily distributed in the lithoid mountainous regions in the northwest, cultivated land, and its surroundings (Figure 4B). As to the spatial-matching type of the supply and demand, the dominant type of soil conservation was low supply with low demand, with an increasing trend (11.10%, 12.32%, and 12.46%, respectively), mainly concentrated in the northwest of Tanchang, the subareas between Gongba River and Bailongjiang, and the eastern parts of the Zhouqu-Wudu sections of the Bailongjiang (Figure 5B). The spatial patterns of food-provision ESDR varied less from 2002 to 2018, and the deficit was evident in the eastern BLJW, while the surplus subareas were scattered. Food provision maintains a balance between supply and demand in the western BLJW, and the shortage of food supplies was concentrated in the densely populated settlements (Figure 4C). As to the spatial-matching type of supply and demand, the dominant type of food provision was high supply with high demand (8.78%, 7.88%, and 7.97%, respectively), mainly distributed in the eastern parts of the Tanchang-Zhouqu-Wudu section of the BLJW and northern Wenxian, with better agricultural conditions and dense populations (Figure 5C).

3.3. ESs Trade-Off and Synergy

Spearman’s correlation analysis determined the correlation between the two variables. In order to better reveal the ESs tradeoffs and synergies, after a series of grid size tests by the Fishnets method, a 5-km grid was selected to obtain the mean ESs with the most significant correlation. SPSS was used for correlation analysis. The relationship between water yield (WY) and soil conservation (SC) (WY-SC, hereafter) in the BLJW was one of synergy (0.291 **, 0.463 **, and 0.379 **) (Table 2). The trade-off intensity of WY-SC was higher in the southeast and northwestern BLJW and lower in the middle of the BLJW, with an increasing trend from 2002 to 2018, especially in the middle parts of the BLJW. We analyzed the trade-off benefits bias at the township scale to reveal the trade-off relationship. The soil-conservation function is more advantageous in most areas of the BLJW in the WY-SC trade-off relationship, and the water yield was more dominant in the northwest, southeast, and northeast. The relationship between water yield and food provision (WY-FP, hereafter) and that of soil conservation and food provision (SC-FP, hereafter) were both trade-offs (−0.396 **, −0.351 **, and −0.293 **; −0.261 **, −0.129 **, and −0.180 **, respectively). The spatial and temporal performance of the WY-FP trade-off intensity was similar to that of the WY-SC. Most areas of the BLJW are mainly biased toward the water-yield benefits. The food-provision function areas are concentrated in the eastern parts of the Zhouqu-Wudu section of Bailongjiang. The trade-off intensity of SC-FP was low, with an average value of 0.03, and the soil-conservation capacity was better in most areas of the BLJW. The trade-off intensity of SC-FP was higher in the west and south of the BLJW, while it is lower in the northeast and the northwest BLJW and in the Wudu-Wenxian section of Bailongjiang. Regarding the trade-off relationships between SC-FP, the subregions biased toward the food-provision benefits were primarily located in the eastern part of the Zhouqu-Wudu section of Bailongjiang, indicating that the middle and east of the BLJW were the main subregions for agricultural production and food provision (Figure 6).

3.4. The Relationship between the Trade-Off Intensity and the Supply–Demand Ratio of the Watershed ESs

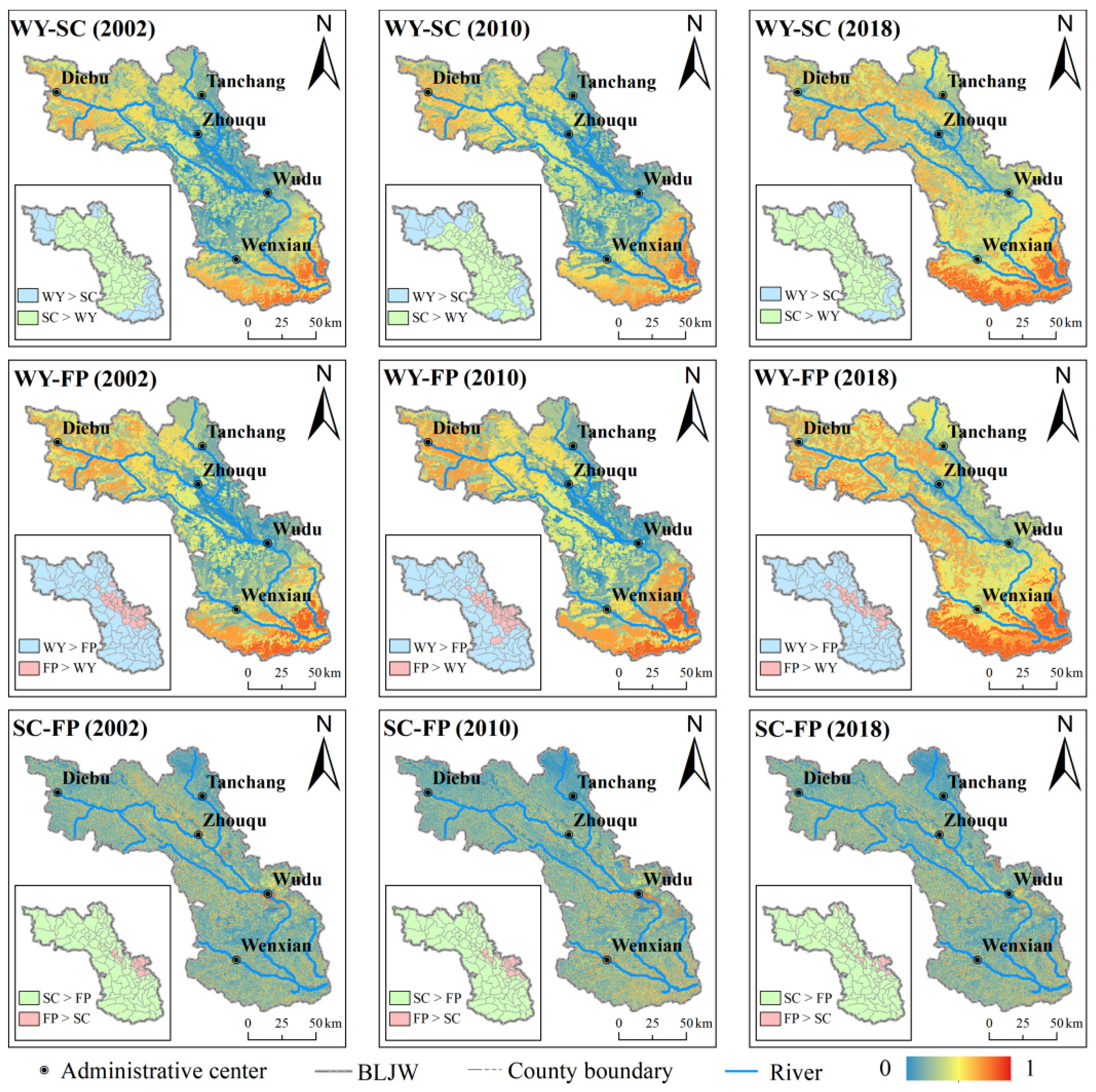

There is a synergistic relationship between the WY-SC and a trade-off relationship between WY-FP and SC-FP in the BLJW. A trade-off is more critical than synergy in balancing the allocation of natural resources. Therefore, we chose WY-FP and SC-FP to analyze the relationship between the trade-off intensity and supply–demand ratio of ESs using the quantile regression method of the SPSS. Quantile regression does not require a normal distribution and enables the study of relationships between the independent variable and different conditional quantiles of the dependent variable [84,85]. According to Table 3, we analyzed the relationship between the trade-off intensity (RMSD) and different quantiles of the ESDR under different scenarios in the trade-off relationship of WY-FP and SC-FP. The scenarios are as follows: water yield increases while food provision decreases (WY is more advantageous, hereafter AreaWY>FP), food provision increases while water yield decreases (FP is more beneficial, hereafter AreaFP>WY), soil conservation increases while food provision decreases (SC is more advantageous, hereafter as AreaSC>FP), and food provision increases while soil conservation decreases (FP is more beneficial, hereafter AreaFP>SC).
The correlation coefficient between the RMSD and ESDR of WY and SC (ESDRWY and ESDRSC, hereafter) is negative. The ESDRWY and ESDRSC decreased gradually with the increase in RMSD. The relationship between the RMSD of WY-FP and SC-FP and the ESDR of food provision (ESDRFP, hereafter) is insignificant (Table 3). In the AreaWY>FP, the ESDRWY has a more robust negative correlation response to the RMSD of WY-FP when the ESDRWY is high. The ESDRWY has a more robust positive correlation response to the RMSD of WY-FP when the ESDRWY is small (large contradiction between water-yield supply and demand). Thus, increasing the RMSD of WY-FP is conducive to alleviating the contradiction between water-yield supply and demand. In the AreaFP>WY, the negative response is insignificant when the ESDRWY is small, which indicates that when the contradiction between water-yield supply and demand reaches a high level, the conflict between local water and food supply is no longer critical. Adjusting the WY-FP trade-off relationship is no longer essential to improve the contradiction between water-yield supply and demand. As to the AreaSC>FP, the negative response of ESDRSC to the RMSD of SC-FP is more robust when the ESDRSC is relatively small (large contradiction between soil-conservation supply and demand). Therefore, reducing the RMSD of SC-FP is conducive to alleviating the contradiction between soil-conservation supply and demand. In the AreaFP>SC, the correlation coefficient between the RMSD values of SC-FP and ESDRSC failed to pass the significance test, and no relationship was apparent.

4. Discussion

4.1. Implications of ESs Supply and Demand Relationships

Considering the comprehensive natural conditions of the BLJW and the related studies [58,68,74,86], we analyzed the effects of the main influencing factors on the ESs supply and demand, such as land-use proportion, temperature, precipitation, altitude, slope, vegetation coverage, economic density, and population density (Table 4). Under the scenarios of AreaWY>FP and AreaSC>FP, socio-economic factors such as economic density, population density, the proportion of cultivated land, and the proportion of construction land can have a positive impact on the supply–demand relationships of water yield and soil conservation, which indicates that appropriate human activities could improve the water-yield and soil-conservation ESDRs in the subareas with less human impact. Both scenarios are located in areas with fewer farming activities, and the correlation between food supply and demand and various effects factors is low. In the AreaFP>WY scenario, the ESDRWY is mainly negatively related to the cultivated area. The contradiction between water-yield supply and demand is more serious when there is a large farmland proportion. The correlation between the food supply–demand relationship and various effect factors is weak. In the AreaFP>SC scenario, the ESDRFP positively correlates with the temperature, precipitation, economy density, population density, and farmland proportion. The contradiction between the supply and demand of soil conservation has little correlation with various effect factors, indicating that the soil-conservation situation is affected by cultivation activities, which makes the supply and demand situation more complicated. In addition, it was found that the dominant influencing factors between the ESs supply–demand relationship and the trade-off intensity have overlaps, among which land use is the main common factor and the internal reason for their correlation. Forestland and grassland account for the most significant proportion in the scenarios of AreaWY>FP and AreaSC>FP (46.90% and 36.62%, 46.22%, and 36.36%, respectively). Farmland and construction land account for the most significant proportion in the scenarios of AreaFP>WY and AreaFP>SC (44.19% and 2.04%, 46.80%, and 3.03%, respectively). The proportion of farmland and construction land significantly affects the supply–demand ratio and trade-off intensity, but the impact direction was inconsistent. Therefore, it is necessary to strengthen the effective use of land resources to improve the ESs function of the BLJW and reduce the ESs supply–demand risks [87].

4.2. Governance Suggestions Based on ESs Supply and Demand Changes

Referring to various effect factors and the relationship between the trade-off intensity and the supply–demand situation, it is more conducive to putting forward relevant suggestions to improve the ESs function and reduce the ESs supply and demand risk. The eastern parts of the BLJW have a high intensity of land use, mainly belonging to cultivated land and population gathering subareas, and various ESs are prone to be in short supply. Both the AreaFP>WY and AreaFP>SC scenarios are concentrated in the east of the Zhouqu-Wudu section of the Bailongjiang. For areas where the water-yield supply is in a deficit, the water demand mainly depends on water transfer from other places. The slope cropland, wasteland, deforestation, and degraded grassland should be effectively managed, as well as strengthening the construction and application of flood control and storage and drainage projects [58]. The subareas of soil-conservation and food-provision supply deficit have many overlaps. There is a trade-off relationship between soil conservation and food production, so choosing according to the actual local condition is necessary [56]. Agricultural land management should be conducted according to the quality classification of cultivated land in the province. It is inappropriate to increase grain output by blindly expanding cultivated land. The food-supply deficit will reduce via low-efficiency farmland and agricultural technology. The southern BLJW has a humid climate with abundant precipitation and high vegetation coverage, an important water-source protection area with a high water-yield supply. The western BLJW has more forestland with low human disturbance and many nature reserves, which are essential ecological functional areas for soil conservation. Most of the food production is from animal husbandry with lower populations. The above subareas are all under the scenarios of AreaWY>FP and AreaSC>FP, more efforts should be paid to comprehensively protect the forests and grasslands, strengthen the ecological management of natural reserves, and properly develop the environmental tourism-based economy [58,68,86,88].

4.3. Limitations and Prospects

This paper analyzed the spatial–temporal variation in the ESs supply and demand, trade-off/synergy relationship, and spatial-matching characteristics from 2002 to 2018 in the BLJW. This study made a unified comparison between the ESs supply and demand by localizing the model parameters. Thus, it can better verify the results by combining the complex socio-ecological conditions in the BLJW. However, due to the complexity of the ESs formation mechanism and limitations of the models and data, further integration of various evaluation indicators and techniques remains to be carried out for future improvement. Due to the actual situation of the BLJW, this study analyzed the balance between water-yield, soil-conservation, and food-provision supply and demand. In the future, the evaluation of other ESs should be considered. Moreover, the accuracy and comprehensiveness of the assessment data should be improved to further study the dynamic relationship. The systematic understanding of the spatiotemporal scale effect of the supply and demand relationship of ESs has a guiding role [89]. More attention should be paid to long-term statistical analysis at the county and township scales for ecological management. It is necessary to adjust the relationship between the ESs supply and demand to increase the supply of multiple ESs and to improve ESs supply and demand. We must identify the formation mechanism of the interaction between different types of ESs or simultaneous influencing factor associations [25]. In addition, the influencing factors of the intrinsic relationship between trade-off intensity and supply–demand ratio are relatively complex. This study analyzed the effect factors on the ESs supply and demand; the interaction and correlation mechanisms between ESs still need to be deepened. Although this study has proposed suggestions for watershed ESs management based on the ESs supply–demand trade-off and synergy, the practicability of management suggestions needs to be further improved due to the management difficulty of different administrative divisions. We can gradually establish a governance mechanism of ESs supply and demand by zoning and grading by comparing the types and intensity differences of trade-offs and synergies between different ESs supply and demand. We must coordinate the supply and demand of different kinds of ESs in various regions, alleviate the imbalance between ESs supply and demand, and maximize the benefits of various ecosystem services.

5. Conclusions

In this study, based on a quantitative analysis of ESs supply and demand changes from 2002 to 2018 in the BLJW, a comprehensive research framework of ESs assessment was developed by coupling the ESs trade-offs and supply–demand dynamics. ESs supply and demand characteristics in the BLJW are spatially heterogeneous. The differences in the spatial structure of ESs supply make their corresponding ecological functions different, which are closely related to the local natural conditions. From 2002 to 2018, the water-yield, soil-conservation, and food-provision supply showed an increasing trend (increased by 33.75%, 102.65%, and 94.65%, respectively). The spatial characteristics of water and food demand are closely related to population density. From 2002 to 2018, the water and soil conservation demand increased by 133.33% and 148.78%, while food demand decreased by 23.86%. As to the spatial characteristics of the supply and demand match type, there was an apparent surplus in water yield, the soil conservation was mainly balanced, and the food provision showed a deficit along the eastern part of the BLJW. The relationship between water yield and soil conservation was synergetic, while the water yield–food provision and soil conservation–food provision showed trade-offs. Coupled ESs supply–demand and tradeoff showed that with the increase in trade-off intensity, the ESDR of water yield and soil conservation showed a downtrend, while the change in the food-provision ESDR was not significant. The composition of land use was significantly different for different trade-off benefit areas. Based on the coupling analysis of ESs supply–demand and trade-off relationships, corresponding land-use management suggestions were put forward with a combination of local ecological and social-economic characteristics.

Author Contributions

Conceptualization, Y.Z. and J.G.; methodology, Y.Z. and Y.W.; validation, Y.Z. and Y.W.; formal analysis, Y.Z. and J.S.; writing—original draft preparation, Y.Z.; writing—review and editing, Z.H. and J.G.; visualization, Y.Z., Y.W. and J.S.; supervision, J.G.; funding acquisition, J.G. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Second Tibetan Plateau Scientific Expedition and Research (Grant No. 2019QZKK0603) and the National Natural Science Foundation of China (Grant No. 42171090).

Institutional Review Board Statement

Not applicable.

Data Availability Statement

Data are available from the authors upon reasonable request, as the data are required for further use.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Daily, G.C.; Polasky, S.; Goldstein, J.; Kareiva, P.M.; Mooney, H.A.; Pejchar, L.; Ricketts, T.H.; Salzman, J.; Shallenbergeret, R. Ecosystem services in decision making: Time to deliver. Front. Ecol. Environ. 2009, 7, 21–28. [Google Scholar] [CrossRef] [Green Version]
  2. MA (Millennium Ecosystem Assessment). Ecosystems and Human Wellbeing: Synthesis; Island Press: Washington, DC, USA, 2005; pp. 136–139. [Google Scholar]
  3. Nassl, M.; Löffler, J. Ecosystem services in coupled social-ecological systems: Closing the cycle of service provision and societal feedback. Ambio 2015, 44, 737–749. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Burkhard, B.; Kroll, F.; Nedkov, S.; Müller, F. Mapping ecosystem service supply, demand and budgets. Ecol. Indic. 2012, 21, 17–29. [Google Scholar] [CrossRef]
  5. Crossman, N.D.; Burkhard, B.; Nedkov, S.; Willemen, L.; Petz, K.; Palomo, I.; Drakou, E.G.; Martín-Lopez, B.; McPhearson, T.; Boyanova, K.; et al. A blueprint for mapping and modelling ecosystem services. Ecosyst. Serv. 2013, 4, 4–14. [Google Scholar] [CrossRef]
  6. Bastian, O.; Syrbe, R.U.; Rosenberg, M.; Rahe, D.; Grunewald, K. The five pillar EPPS framework for quantifying, mapping and managing ecosystem services. Ecosyst. Serv. 2013, 4, 15–24. [Google Scholar] [CrossRef]
  7. Groot, R.S.; Alkemade, R.; Braat, L.; Hein, L.; Willemen, L. Challenges in integrating the concept of ecosystem services and values in landscape planning, management and decision making. Ecol. Complex. 2010, 7, 260–272. [Google Scholar] [CrossRef]
  8. Chen, J.Y.; Jiang, B.; Bai, Y.; Xu, X.B.; Alatalo, J.M. Quantifying ecosystem services supply and demand shortfalls and mismatches for management optimisation. Sci. Total Environ. 2019, 650, 1426–1439. [Google Scholar] [CrossRef]
  9. Guo, C.Q.; Xu, X.B.; Shu, Q. A review on the assessment methods of supply and demand of ecosystem services. Chin. J. Ecol. 2020, 39, 2086–2096. (In Chinese) [Google Scholar]
  10. Rees, W.E. Ecological Footprints and Appropriated Carrying Capacity: What Urban Economics Leaves Out. Environ. Urban. 1992, 4, 121–130. [Google Scholar] [CrossRef]
  11. Costanza, R.; d’Arge, R.; de Groot, R.; Farber, S.; Belt, M.V.D. The value of the world’s ecosystem services and natural capital. Nature 1997, 387, 253–260. [Google Scholar] [CrossRef]
  12. Turner, R.K.; Paavola, J.; Cooper, P.; Farber, S.; Jessamy, V.; Georgiouet, S. Valuing nature: Lessons learned and future research directions. Ecol. Econ. 2003, 46, 493–510. [Google Scholar] [CrossRef] [Green Version]
  13. Schulp, C.J.E.; Lautenbach, S.; Verburg, P.H. Quantifying and mapping ecosystem services: Demand and supply of pollination in the European Union. Ecol. Indic. 2014, 36, 131–141. [Google Scholar] [CrossRef]
  14. Wolff, S.; Schulp, C.J.E.; Kastner, T.; Verburg, P.H. Quantifying spatial variation in ecosystem services demand: A global mapping approach. Ecol. Econ. 2017, 136, 14–29. [Google Scholar] [CrossRef]
  15. Tao, Y.; Wang, H.N.; Ou, W.X.; Guo, J. A land-cover-based approach to assessing ecosystem services supply and demand dynamics in the rapidly urbanizing Yangtze River Delta region. Land Use Policy 2018, 72, 250–258. [Google Scholar] [CrossRef]
  16. Meng, S.T.; Huang, Q.X.; Zhang, L.; He, C.Y.; Inostroza, L.; Bai, Y.S.; Yin, D. Matches and mismatches between the supply of and demand for cultural ecosystem services in rapidly urbanizing watersheds: A case study in the Guanting Reservoir basin, China. Ecosyst. Serv. 2020, 45, 101156. [Google Scholar] [CrossRef]
  17. Yu, H.J.; Xie, W.; Sun, L.; Wang, Y.T. Identifying the regional disparities of ecosystem services from a supply-demand perspective. Resour. Conserv. Recycl. 2021, 169, 105557. [Google Scholar] [CrossRef]
  18. Roces-Díaz, J.V.; Vayreda, J.; Banqué-Casanovas, M.; Díaz-Varela, E.; Bonet, J.A.; Brotons, L.; de-Miguel, S.; Herrando, S.; Martínez-Vilalta, J. The spatial level of analysis affects the patterns of forest ecosystem services supply and their relationships. Sci. Total Environ. 2018, 626, 1270–1283. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  19. Xiang, H.X.; Zhang, J.; Mao, D.H.; Wang, Z.M.; Qiu, Z.Q.; Yan, H.Q. Identifying spatial similarities and mismatches between supply and demand of ecosystem services for sustainable Northeast China. Ecol. Indic. 2022, 134, 108501. [Google Scholar] [CrossRef]
  20. Mashizi, A.K.; Sharafatmandrad, M. Investigating tradeoffs between supply, use and demand of ecosystem services and their effective drivers for sustainable environmental management. J. Environ. Manag. 2021, 289, 112534. [Google Scholar] [CrossRef]
  21. Vrebos, D.; Staes, J.; Vandenbroucke, T.; D’Haeyer, T.; Johnston, R.; Muhumuza, M.; Kasabeke, C.; Meire, P. Mapping ecosystem service flows with land cover scoring maps for data-scarce regions. Ecosyst. Serv. 2015, 13, 28–40. [Google Scholar] [CrossRef]
  22. Shi, Y.H.; Shi, D.H.; Zhou, L.L.; Fang, R.B. Identification of ecosystem services supply and demand areas and simulation of ecosystem service flows in Shanghai. Ecol. Indic. 2020, 115, 106418. [Google Scholar] [CrossRef]
  23. Zhai, T.L.; Zhang, D.; Zhao, C.C. How to optimize ecological compensation to alleviate environmental injustice in different cities in the Yellow River Basin? A case of integrating ecosystem service supply, demand and flow. Sustain. Cities Soc. 2021, 75, 103341. [Google Scholar] [CrossRef]
  24. Xia, F.; Yang, Y.X.; Zhang, S.Q.; Yang, Y.X.; Li, D.H.; Sun, W.; Xie, Y.J. Influencing factors of the supply-demand relationships of carbon sequestration and grain provision in China: Does land use matter the most? Sci. Total Environ. 2022, 832, 154979. [Google Scholar] [CrossRef] [PubMed]
  25. Hegetschweiler, K.T.; Vries, S.D.; Arnberger, A.; Bell, S.; Brennan, M.; Siter, N.; Olafsson, A.S.; Voigt, A. Linking demand and supply factors in identifying cultural ecosystem services of urban green infrastructures: A review of European studies. Urban For. Urban Green. 2017, 21, 48–59. [Google Scholar] [CrossRef] [Green Version]
  26. Zhang, Y.L.; Zhao, Z.Y.; Fu, B.J.; Ma, R.M.; Yang, Y.Y.; Lü, Y.H.; Wu, X. Identifying ecological security patterns based on the supply, demand and sensitivity of ecosystem service: A case study in the Yellow River Basin, China. J. Environ. Manag. 2022, 315, 115158. [Google Scholar] [CrossRef] [PubMed]
  27. Xu, Z.H.; Peng, J.; Dong, J.Q.; Liu, Y.X.; Liu, Q.Y.; Lyu, D.; Qiao, R.L.; Zhang, Z.M. Spatial correlation between the changes of ecosystem service supply and demand: An ecological zoning approach. Landsc. Urban Plan. 2022, 217, 104258. [Google Scholar] [CrossRef]
  28. Baró, F.; Palomo, I.; Zulian, G.; Vizcaino, P.; Gómez-Baggethun, E. Mapping ecosystem service capacity, flow and demand for landscape and urban planning: A case study in the Barcelona metropolitan region. Land Use Policy 2016, 57, 405–417. [Google Scholar] [CrossRef] [Green Version]
  29. Mehring, M.; Ott, E.; Hummel, D. Ecosystem services supply and demand assessment: Why social-ecological dynamics matter. Ecosyst. Serv. 2018, 30, 124–125. [Google Scholar] [CrossRef]
  30. Quintas-Soriano, C.; García-Llorente, M.; Norstrm, A.; Meacham, M.; Castro, A.J. Integrating supply and demand in ecosystem service bundles characterization across Mediterranean transformed landscapes. Landsc. Ecol. 2019, 1, 1–15. [Google Scholar] [CrossRef]
  31. Wei, H.J.; Fan, W.G.; Wang, X.C.; Lu, N.C.; Dong, X.B.; Zhao, Y.N.; Ya, X.J.; Zhao, Y.F. Integrating supply and social demand in ecosystem services assessment: A review. Ecosyst. Serv. 2017, 25, 15–27. [Google Scholar] [CrossRef]
  32. Costanza, R.; De Groot, R.; Sutton, P.; van der Ploeg, S.; Anderson, S.J.; Kubiszewski, I.; Farber, S.; Turner, R.K. Changes in the global value of ecosystem services. Glob. Environ. Change 2014, 26, 152–158. [Google Scholar] [CrossRef]
  33. Kang, Y.; Cheng, C.X.; Liu, X.H.; Zhang, F.; Li, Z.H.; Lu, S.Q. An ecosystem services value assessment of land-use change in Chengdu: Based on a modification of scarcity factor. Phys. Chem. Earth 2019, 110, 157–167. [Google Scholar] [CrossRef]
  34. Morri, E.; Pruscini, F.; Scolozzi, R.; Santolini, R. A forest ecosystem services evaluation at the river basin scale: Supply and demand between coastal areas and upstream lands. Ecol. Indic. 2014, 37, 210–219. [Google Scholar] [CrossRef]
  35. Castillo-Eguskitza, N.; Martín-López, B.; Onaindia, M. A comprehensive assessment of ecosystem services: Integrating supply, demand and interest in the Urdaibai Biosphere Reserve. Ecol. Indic. 2018, 93, 1176–1189. [Google Scholar] [CrossRef]
  36. Hainz-Renetzeder, C.; Schneidergruber, A.; Kuttner, M.; Wrbka, T. Assessing the potential supply of landscape services to support ecological restoration of degraded landscapes: A case study in the Austrian-Hungarian trans-boundary region of Lake Neusiedl. Ecol. Model. 2015, 295, 196–206. [Google Scholar] [CrossRef]
  37. Wu, X.; Liu, S.L.; Zhao, S.; Hou, X.Y.; Xu, J.W.; Dong, S.K.; Liu, G.H. Quantification and driving force analysis of ecosystem services supply, demand and balance in China. Sci. Total Environ. 2019, 652, 1375–1386. [Google Scholar] [CrossRef]
  38. Tratalos, J.A.; Haines-Young, R.; Potschin, M.; Fish, R.; Church, A. Cultural ecosystem services in the UK: Lessons on designing indicators to inform management and policy. Ecol. Indic. 2016, 61, 63–73. [Google Scholar] [CrossRef] [Green Version]
  39. Cao, T.G.; Yi, Y.J.; Liu, H.X.; Xu, Q.; Yang, Z.F. The relationship between ecosystem service supply and demand in plain areas undergoing urbanization: A case study of China’s Baiyangdian Basin. J. Environ. Manag. 2021, 289, 112492. [Google Scholar] [CrossRef]
  40. Wang, J.; Zhai, T.L.; Lin, Y.F.; Kong, X.S.; He, T. Spatial imbalance and changes in supply and demand of ecosystem services in China. Sci. Total Environ. 2019, 657, 781–791. [Google Scholar] [CrossRef]
  41. Zhao, Q.Q.; Li, J.; Liu, J.Y.; Cuan, Y.D.; Zhang, C. Integrating supply and demand in cultural ecosystem services assessment: A case study of Cuihua Mountain. Environ. Sci. Pollut. Res. 2019, 26, 6065–6076. [Google Scholar] [CrossRef]
  42. Martínez-López, J.; Bagstad, K.J.; Balbi, S.; Magrach, A.; Voigt, B.; Athanasiadis, I.; Pascual, M.; Willcock, S.; Villa, F. Towards globally customizable ecosystem service models. Sci. Total Environ. 2018, 650, 2325–2336. [Google Scholar] [CrossRef] [PubMed]
  43. Bennett, E.M.; Peterson, G.D.; Gordon, L.J. Understanding relationships among multiple ecosystem services. Ecol. Lett. 2009, 12, 1394–1404. [Google Scholar] [CrossRef] [PubMed]
  44. Rodriguez, J.P.; Beard, T.D.; Bennett, E.M.; Cumming, G.S.; Cork, S.J.; Agard, J.; Dobson, A.P.; Peterson, G.D. Trade-offs across space, time, and ecosystem services. Ecol. Soc. 2006, 11, 28–41. [Google Scholar] [CrossRef] [Green Version]
  45. Maud, A.M.; Lamarque, P.; Martín-López, B.; Crouzat, E.; Gos, P.; Byczek, C.; Lavorel, S. An interdisciplinary methodological guide for quantifying associations between ecosystem services. Glob. Environ. Change 2014, 28, 298–308. [Google Scholar]
  46. Zheng, H.; Wang, L.J.; Wu, T. Coordinating ecosystem service trade-offs to achieve win–win outcomes: A review of the approaches. J. Environ. Sci. 2019, 82, 103–112. [Google Scholar] [CrossRef]
  47. Stosch, K.C.; Quilliam, R.S.; Bunnefeld, N.; Oliver, D.M. Quantifying stakeholder understanding of an ecosystem service trade-off. Sci. Total Environ. 2019, 651, 2524–2534. [Google Scholar] [CrossRef] [PubMed]
  48. Holting, L.; Beckmann, M.; Volk, M.; Cord, A.F. Multifunctionality assessments: More than assessing multiple ecosystem functions and services? A quantitative literature review. Ecol. Indic. 2019, 103, 226–235. [Google Scholar] [CrossRef]
  49. Dittrich, A.; Seppelt, R.; Vaclavik, T.; Corder, A.F. Integrating ecosystem service bundles and socio-environmental conditions: A national scale analysis from Germany. Ecosyst. Serv. 2017, 28, 273–282. [Google Scholar] [CrossRef]
  50. Wei, W.; Nan, S.X.; Xie, B.B.; Liu, C.F.; Zhou, J.J.; Liu, C.Y. The spatial-temporal changes of supply-demand of ecosystem services and ecological compensation: A case study of Hexi Corridor, Northwest China. Ecol. Eng. 2023, 187, 106861. [Google Scholar] [CrossRef]
  51. Vallet, A.; Locatelli, B.; Levrel, H.; Wunder, S.; Seppelt, R.; Scholes, R.J.; Oszwald, J. Relationships between ecosystem services: Comparing methods for assessing tradeoffs and synergies. Ecol. Econ. 2018, 150, 96–106. [Google Scholar] [CrossRef]
  52. Gong, J.R.; Shi, J.Y.; Zhu, C.C.; Li, X.B.; Zhang, Z.H.; Zhang, W.Y.; Li, Y.; Hu, Y.X. Accounting for land use in an analysis of the spatial and temporal characteristics of ecosystem services supply and demand in a desert steppe of Inner Mongolia, China. Ecol. Indic. 2022, 144, 109567. [Google Scholar] [CrossRef]
  53. Yuan, Y.; Bai, Z.K.; Zhang, J.J.; Huang, Y.H. Investigating the trade-offs between the supply and demand for ecosystem services for regional spatial management. J. Environ. Manag. 2023, 325, 116591. [Google Scholar] [CrossRef] [PubMed]
  54. Sun, X.; Crittenden, J.C.; Li, F.; Lu, Z.M.; Dou, X.L. Urban expansion simulation and the spatiotemporal changes of ecosystem services, a case study in Atlanta Metropolitan area, USA. Sci. Total Environ. 2018, 622–623, 974–987. [Google Scholar] [CrossRef] [PubMed]
  55. Cortinovis, C.; Geneletti, D. A performance-based planning approach integrating supply and demand of urban ecosystem services. Landsc. Urban Plan. 2020, 201, 103842. [Google Scholar] [CrossRef]
  56. Xu, C.X.; Gong, J.; Yan, L.L.; Gao, B.L.; Li, Y. Spatiotemporal changes of supply and demand risk of soil conservation services in Bailongjiang watershed, Gansu Province. Chin. J. Ecol. 2021, 40, 1397–1408. (In Chinese) [Google Scholar]
  57. Yang, Q.; Wang, G.F.; Yang, X.D.; Ding, W.C.; Gao, Y.L. Analysis on disaster-inducing conditions and development characteristics of Debris Flows in Zhouqu of Bailong River. Urban Geol. 2022, 17, 43–49. (In Chinese) [Google Scholar]
  58. Gong, J.; Jin, T.T.; Liu, D.Q.; Zhu, Y.H.; Yan, L.L. Are ecosystem service bundles useful for mountainous landscape function zoning and management? A case study of Bailongjiang watershed in western China. Ecol. Indic. 2022, 134, 108495. [Google Scholar] [CrossRef]
  59. Guan, Q.C.; Hao, J.M.; Ren, G.P.; Li, M.; Chen, A.Q.; Duan, W.K.; Chen, H. Ecological indexes for the analysis of the spatial–temporal characteristics of ecosystem service supply and demand: A case study of the major grain-producing regions in Quzhou, China. Ecol. Indic. 2020, 108, 105748. [Google Scholar] [CrossRef]
  60. Boesing, A.L.; Prist, P.R.; Barreto, J.; Hohlenwerger, C.; Marson, M.; Rhodes, J.R.; Romanini, E.; Tambosi, L.R.; Vidal, M.; Metzger, J.P. Ecosystem services at risk: Integrating spatiotemporal dynamics of supply and demand to promote long-term provision. One Earth 2020, 3, 704–713. [Google Scholar] [CrossRef]
  61. Sun, Y.X.; Liu, S.L.; Dong, Y.H.; An, Y.; Shi, F.N.; Dong, S.K.; Liu, G.H. Spatiotemporal evolution scenarios and the coupling analysis of ecosystem services with land use change in China. Sci. Total Environ. 2019, 681, 211–225. [Google Scholar] [CrossRef]
  62. Wei, Y.P.; Wu, S.L.; Jiang, C.; Feng, X. Managing supply and demand of ecosystem services in dryland catchments. Curr. Opin. Environ. Sustain. 2020, 48, 10–16. [Google Scholar] [CrossRef]
  63. Li, Z.Y.; Li, S.P.; Cao, Y.G.; Wang, S.F.; Liu, S.H.; Zhang, Z.J. Supply and demand of ecosystem services: Primary connotation and practical application. J. Agric. Resour. Environ. 2022, 39, 456–466. (In Chinese) [Google Scholar]
  64. Wu, J.; Guo, X.; Zhu, Q.; Guo, J.X.; Han, Y.; Zhong, L.; Liu, S.Y. Threshold effects and supply-demand ratios should be considered in the mechanisms driving ecosystem services. Ecol. Indic. 2022, 142, 109281. [Google Scholar] [CrossRef]
  65. Feng, Q.; Zhao, W.E.; Duan, B.L.; Hu, X.P.; Cherubini, F. Coupling trade-offs and supply-demand of ecosystem services (ES): A new opportunity for ES management. Geogr. Sustain. 2021, 2, 275–280. [Google Scholar] [CrossRef]
  66. Li, B.; Chen, N.; Wang, Y.; Wang, W. Spatiotemporal quantification of the trade-offs and synergies among ecosystem services based on grid-cells: A case study of Guanzhong Basin, NW China. Ecol. Indic. 2018, 94, 246–253. [Google Scholar] [CrossRef]
  67. Wang, L.J.; Zheng, H.; Wen, Z.; Liu, L.; Robinson, B.E.; Li, R.; Li, C.; Kong, L. Ecosystem service synergies/trade-offs informing the supply-demand match of ecosystem services: Framework and application. Ecosyst. Serv. 2019, 37, 100939. [Google Scholar] [CrossRef]
  68. Xie, Y.C.; Gong, J.; Zhang, S.X.; Ma, X.C.; Hu, B.Q. Spatiotemporal Changes of Landscape Biodiversity Based on InVEST Model and Remote Sensing Technology in the Bailong River Watershed. Sci. Geogr. Sin. 2018, 38, 979–986. (In Chinese) [Google Scholar]
  69. Bai, S.B.; Wang, J.; Zhang, Z.G.; Cheng, C. Combined landslide susceptibility mapping after Wenchuan earthquake at the Zhouqu segment in the Bailongjiang Basin, China. Catena 2012, 99, 18–25. [Google Scholar] [CrossRef]
  70. He, J.M.; Yan, X.Y.; Li, X.Q. Precipitation characteristics in flood season from 2015 to 2018 in Bailong River Basin cross Gansu Province. J. Shaanxi Meteorol. 2021, 3, 29–35. (In Chinese) [Google Scholar]
  71. Sharp, R.; Douglass, J.; Wolny, S.; Arkema, K.; Bernhardt, J.; Bierbower, W.; Chaumont, N.; Denu, D.; Fisher, D.; Glowinski, K.; et al. InVEST 3.8.9. post1+ug.G48b9aa8 User’s Guide; The Natural Capital Project of Stanford University: Stanford, CA, USA; University of Minnesota: Minneapolis, MN, USA; The Nature Conservancy: Arlington County, VA, USA; World Wildlife Fund: Gland, Switzerland, 2020. [Google Scholar]
  72. González-García, A.; Palomo, I.; González, J.A.; López, C.A.; Montes, C. Quantifying spatial supply-demand mismatches in ecosystem services provides insights for land-use planning. Land Use Policy 2020, 94, 104493. [Google Scholar] [CrossRef]
  73. Kareiva, P.; Tallis, H.; Ricketts, T.H.; Daily, G.C.; Polasky, S. Natural Capital: Theory and Practice of Mapping Ecosystem Services; Oxford University Press: Oxford, UK, 2011. [Google Scholar]
  74. Liu, D.Q.; Cao, E.J.; Zhang, J.X.; Gong, J.; Yan, L.L. Spatiotemporal pattern of water conservation and its influencing factors in Bailongjiang Watershed of Gansu. J. Nat. Resour. 2020, 35, 1728–1743. (In Chinese) [Google Scholar]
  75. Sun, Y.P.; Chen, W.; Zhang, S.P.; Xu, Q. Population spatialization research based on settlements density and its application in Jiuzhaigou, Sichuan Ms7.0 earthquake. China Earthq. Eng. J. 2018, 40, 174–179. (In Chinese) [Google Scholar]
  76. Liu, L.C.; Liu, C.F.; Wang, C.; Li, P.J. Supply and demand matching of ecosystem services in loess hilly region: A case study of Lanzhou. Acta Geogr. Sin. 2019, 74, 1921–1937. (In Chinese) [Google Scholar]
  77. Zhao, X.Q.; Shi, X.Q.; Li, Y.H.; Li, Y.M.; Huang, P. Spatiotemporal pattern and functional zoning of ecosystem services in the karst mountainous areas of southeastern Yunnan. Acta Geogr. Sin. 2022, 77, 736–756. (In Chinese) [Google Scholar]
  78. Ketema, H.; Wei, W.; Legesse, A.; Wolde, Z.; Endalamaw, T. Quantifying ecosystem service supply-demand relationship and its link with smallholder farmers’ well-being in contrasting agroecological zones of the East African Rift. Glob. Ecol. Conserv. 2021, 31, e01829. [Google Scholar] [CrossRef]
  79. Li, J.H.; Jiang, H.W.; Bai, Y.; Alatalo, J.M.; Li, X.; Jiang, H.W.; Liu, G.; Xu, J. Indicators for spatial–temporal comparisons of ecosystem service status between regions: A case study of the Taihu River Basin, China. Ecol. Indic. 2016, 60, 1008–1016. [Google Scholar] [CrossRef]
  80. Zhai, T.L.; Wang, J.; Jin, Z.F.; Qi, Y.; Fang, Y.; Liu, J.J. Did improvements of ecosystem services supply-demand imbalance change environmental spatial injustices? Ecol. Indic. 2020, 111, 106068. [Google Scholar] [CrossRef]
  81. Bradford, J.B.; D’Amato, A.W. Recognizing trade-offs in multi-objective land management. Front. Ecol. Environ. 2012, 10, 210–216. [Google Scholar] [CrossRef] [Green Version]
  82. Feng, Q.; Zhao, W.W.; Hu, X.P.; Liu, Y.; Daryanto, S.; Cherubini, F. Trading-off ecosystem services for better ecological restoration: A case study in the Loess Plateau of China. J. Clean. Prod. 2020, 257, 120469. [Google Scholar] [CrossRef]
  83. Liang, J.; Li, S.; Li, X.D.; Li, X.; Liu, Q.; Meng, Q.F.; Lin, A.Q.; Li, J.J. Trade-off analyses and optimization of water-related ecosystem services (WRESs) based on land use change in a typical agricultural watershed, southern China. J. Clean. Prod. 2021, 279, 123851. [Google Scholar] [CrossRef]
  84. Binder, M.; Coad, A. From average joe’s happiness to miserable jane and cheerful john: Using quantile regressions to analyze the full subjective well-being distribution. J. Econ. Behav. Organ. 2011, 79, 275–290. [Google Scholar] [CrossRef]
  85. Meng, L.; Wang, K.; Maity, A.; Staicu, A.M. Inference in functional linear quantile regression. J. Multivar. Anal. 2022, 190, 104985. [Google Scholar]
  86. Gong, J.; Zhao, C.X.; Xie, Y.C.; Gao, Y.J. Ecological risk assessment and its management of Bailongjiang watershed, southern Gansu based on landscape pattern. Chin. J. Appl. Ecol. 2014, 25, 2041–2048. (In Chinese) [Google Scholar]
  87. Yee, S.H.; Paulukonis, E.; Simmons, C.; Russell, M.; Fulford, R.; Harwell, L.; Smith, L.M. Projecting effects of land use change on human well-being through changes in ecosystem services. Ecol. Model. 2021, 440, 109358. [Google Scholar] [CrossRef]
  88. Liu, D.Q.; Zhang, J.X.; Gong, J.; Cao, E.J. Ecological function zoning in Bailongjiang Watershed of Gansu based on production—Living—Ecological function clusters. Chin. J. Ecol. 2019, 38, 1258–1266. (In Chinese) [Google Scholar]
  89. Zhou, L.L.; Zhang, H.Z.; Bi, G.H.; Su, K.C.; Wang, L.; Chen, H.J.; Yang, Q.Y. Multiscale perspective research on the evolution characteristics of the ecosystem services supply-demand relationship in the Chongqing section of the three gorges reservoir area. Ecol. Indic. 2022, 142, 109227. [Google Scholar] [CrossRef]
Diversity 15 00551 g001 550

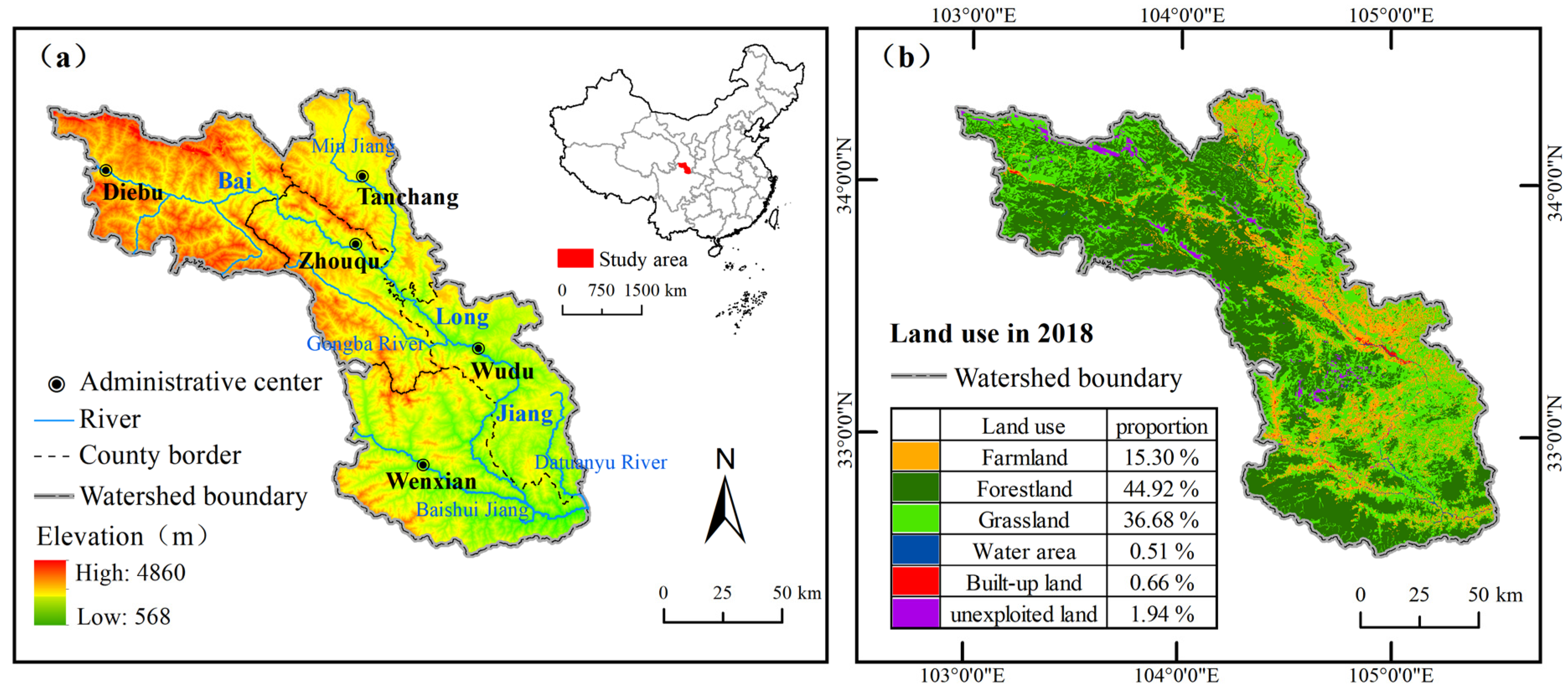

Figure 1. The position (a) and land use (b) of study area.
Figure 1. The position (a) and land use (b) of study area.
Diversity 15 00551 g001
Diversity 15 00551 g002 550
Figure 2. The overall research framework of this study.
Figure 2. The overall research framework of this study.
Diversity 15 00551 g002
Diversity 15 00551 g003 550
Figure 3. Spatial distributions of the ESs supply (a) and demand (b) in the BLJW from 2002 to 2018. Note: series (A) shows the water supply from 2002 to 2018, series (B) shows the soil-conservation supply from 2002 to 2018, series (C) shows the food supply from 2002 to 2018, series (D) shows the water demand from 2002 to 2018, series (E) shows the soil-conservation demand from 2002 to 2018, series (F) shows the food demand from 2002 to 2018.
Figure 3. Spatial distributions of the ESs supply (a) and demand (b) in the BLJW from 2002 to 2018. Note: series (A) shows the water supply from 2002 to 2018, series (B) shows the soil-conservation supply from 2002 to 2018, series (C) shows the food supply from 2002 to 2018, series (D) shows the water demand from 2002 to 2018, series (E) shows the soil-conservation demand from 2002 to 2018, series (F) shows the food demand from 2002 to 2018.
Diversity 15 00551 g003
Diversity 15 00551 g004 550
Figure 4. Spatial pattern of the supply–demand ratio of the ESs in the BLJW from 2002 to 2018. Note: series (A) shows the ESDR of water yield from 2002 to 2018, series (B) shows the ESDR of soil conservation from 2002 to 2018, series (C) shows the ESDR of food provision from 2002 to 2018.
Figure 4. Spatial pattern of the supply–demand ratio of the ESs in the BLJW from 2002 to 2018. Note: series (A) shows the ESDR of water yield from 2002 to 2018, series (B) shows the ESDR of soil conservation from 2002 to 2018, series (C) shows the ESDR of food provision from 2002 to 2018.
Diversity 15 00551 g004
Diversity 15 00551 g005 550
Figure 5. Cluster maps for the ESs supply–demand in the BLJW from 2002 to 2018. Note: H–H: high supply–high demand clustering, L–L: low supply–low demand clustering, H–L: high supply–low demand clustering, L–H: low supply–high demand clustering, and N-S: not significant relationship. Series (A) shows the cluster of water yield supply and demand from 2002 to 2018, series (B) shows the cluster of soil conservation supply and demand from 2002 to 2018, series (C) shows the cluster of food provision supply and demand from 2002 to 2018.
Figure 5. Cluster maps for the ESs supply–demand in the BLJW from 2002 to 2018. Note: H–H: high supply–high demand clustering, L–L: low supply–low demand clustering, H–L: high supply–low demand clustering, L–H: low supply–high demand clustering, and N-S: not significant relationship. Series (A) shows the cluster of water yield supply and demand from 2002 to 2018, series (B) shows the cluster of soil conservation supply and demand from 2002 to 2018, series (C) shows the cluster of food provision supply and demand from 2002 to 2018.
Diversity 15 00551 g005
Diversity 15 00551 g006 550
Figure 6. Map of the ESs trade-off intensity in the BLJW from 2002 to 2018.
Figure 6. Map of the ESs trade-off intensity in the BLJW from 2002 to 2018.
Diversity 15 00551 g006
Table
Table 1. ESs supply and demand in the BLJW from 2002 to 2018.
Table 1. ESs supply and demand in the BLJW from 2002 to 2018.
ESsESs SupplyESs DemandESDR
200220102018200220102018200220102018
Water yield
(×109 m3)		6.036.498.070.210.410.490.910.901.07
Soil conservation
(×108 t)		4.537.739.180.410.851.020.050.050.05
Food provision
(×106 MKJ)		2.434.104.734.154.003.16−0.03−0.03−0.04
Table
Table 2. Correlation coefficients between ES pairs in the BLJW in Gansu from 2002 to 2018.
Table 2. Correlation coefficients between ES pairs in the BLJW in Gansu from 2002 to 2018.
YearIndexWY-SCWY-FPFP-SC
2002RMSD range[0–0.707][0–0.707][0–0.686]
RMSD mean0.3020.3260.035
Correlation coefficients0.291 **−0.396 **−0.261 **
2010RMSD range[0–0.705][0–0.707][0–0.703]
RMSD mean0.3080.3290.033
Correlation coefficients0.463 **−0.351 **−0.129 **
2018RMSD range[0–0.707][0–0.707][0–0.707]
RMSD mean0.3660.3910.036
Correlation coefficients0.379 **−0.293 **−0.180 **
Note: ** means p < 0.01.
Table
Table 3. Quantile regression between the trade-offs intensities and supply–demand ratio.
Table 3. Quantile regression between the trade-offs intensities and supply–demand ratio.
ESDR QuantilesAreaWY>FPAreaFP>WYAreaSC>FPAreaFP>SC
ESDRWYESDRFPESDRWYESDRFPESDRSCESDRFPESDRSCESDRFP
10%0.329 **0.042−1.894−0.351−0.768 **0.340−0.3290.469
30%−0.0280.102 **−2.685 **−0.098−0.626 **0.621 *−0.2380.112
50%−0.277 **0.056 **−2.375 **−0.025−0.415 **0.371 **−0.0730.001
70%−0.434 **0.005−1.885 **0.000−0.286 **0.0490.1660.000
90%−1.051 **0.000−1.444 **0.000−0.326 **0.003−0.2320.001
Note: * means 0.01 < p < 0.05; ** means p ≤ 0.01.
Table
Table 4. Effects of factors on trade-offs and supply–demand ratio.
Table 4. Effects of factors on trade-offs and supply–demand ratio.
Social-Ecological FactorsAreaWY>FPAreaFP>WYAreaSC>FPAreaFP>SC
WYFPRMSDWYFPRMSDSCFPRMSDSCFPRMSD
Temperature0.077 *0.0370.260 **0.1620.0170.184−0.071*0.0170.264 **0.2110.523 **0.307
Precipitation−0.120 **0.0210.575 **−0.238−0.0280.364 **−0.130 **0.0170.258 **0.0050.434 **0.371 **
Elevation−0.094 *−0.041−0.187 **−0.188−0.020−0.1360.068−0.014−0.237 **−0.206−0.0170.068
Slope−0.0380.0830.413 **−0.060−0.002−0.269 **−0.254 **0.0370.697 **0.2260.4200.354 *
NDVI0.0310.113 **0.532 **−0.0740.0130.005−0.210 **−0.0160.528 **0.010−0.1510.274
Economic
density		0.083 *−0.0050.184 **0.082−0.0550.369 **0.072 *0.0550.172 **−0.0280.650 **0.510 **
Population
density		0.106 **−0.049−0.192 **0.006−0.084−0.1260.150 **−0.009−0.149 **0.0500.471 **0.341 *
Farmland
Proportion		0.103 **−0.051−0.215 **0.212 *0.005−0.229 *0.140 *−0.037−0.156 **−0.0550.360 *0.066
Forestland
Proportion		−0.0390.126 **0.339 **−0.044−0.061−0.186−0.194 **0.0390.419 **0.0070.2180.255
Grassland
Proportion		0.085 *−0.074 *−0.215 **−0.1730.0230.321 **0.061−0.015−0.0650.1950.3090.278
Water area
Proportion		0.092 *−0.006−0.076 *0.1770.049−0.269 **−0.0070.007−0.0400.0860.1410.022
Construction land Proportion0.143 **0.037−0.153 **0.032−0.184−0.0330.085 *−0.013−0.126 **0.1040.2140.018
Unused land
Proportion		−0.042−0.062−0.111 **−0.199 *−0.087−0.081−0.002−0.036−0.0500.1420.054−0.079
Note: * means 0.01 < p < 0.05; ** means p ≤ 0.01.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Zhu, Y.; Wang, Y.; Hou, Z.; Shi, J.; Gong, J. Spatiotemporal Changes in the Watershed Ecosystem Services Supply and Demand Relationships in the Eastern Margin of the Qinghai-Tibetan Plateau. Diversity 2023, 15, 551. https://doi.org/10.3390/d15040551

AMA Style

Zhu Y, Wang Y, Hou Z, Shi J, Gong J. Spatiotemporal Changes in the Watershed Ecosystem Services Supply and Demand Relationships in the Eastern Margin of the Qinghai-Tibetan Plateau. Diversity. 2023; 15(4):551. https://doi.org/10.3390/d15040551

Chicago/Turabian Style

Zhu, Yuehua, Yixu Wang, Zongdong Hou, Jing Shi, and Jie Gong. 2023. "Spatiotemporal Changes in the Watershed Ecosystem Services Supply and Demand Relationships in the Eastern Margin of the Qinghai-Tibetan Plateau" Diversity 15, no. 4: 551. https://doi.org/10.3390/d15040551

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
