Article

Temperature Dependency Model in Pressure Measurement for the Motion-Capturing Pressure-Sensitive Paint Method

Department of Aerospace and Mechanical Engineering, University of Notre Dame, Notre Dame, IN 46556, USA
*
Author to whom correspondence should be addressed.
Sensors 2023, 23(24), 9714; https://doi.org/10.3390/s23249714
Submission received: 16 September 2023 / Revised: 9 November 2023 / Accepted: 28 November 2023 / Published: 8 December 2023
(This article belongs to the Special Issue Optical Sensors for Flow Diagnostics II)

Abstract

:
Pressure-sensitive paint (PSP) has received significant attention for capturing surface pressure in recent years. One major source of uncertainty in PSP measurements, temperature dependency, stems from the fundamental photophysical process that allows PSP to extract pressure information. The motion-capturing PSP method, which involves two luminophores, is introduced as a method to reduce the measurement uncertainty due to temperature dependency. A theoretical model for the pressure uncertainty due to temperature dependency is proposed and demonstrated using a static pressure measurement with an applied temperature gradient. The experimental validation of the proposed model shows that the motion-capturing PSP method reduces the temperature dependency by 37.7% compared to the conventional PSP method. The proposed model also proves that a PSP with zero temperature dependency is theoretically possible.

1. Introduction

Surface pressure measurement is a fundamental component in experimental fluid dynamics studies. Traditional measurement techniques using piezoelectric pressure sensors are well established and have been used extensively for decades. However, such sensors acquire pressure information at a single point, which is insufficient for comprehensive study of a flow field. Pressure-sensitive paint (PSP) has received significant attention as a nonintrusive method for surface pressure measurements [1,2,3,4,5,6,7,8,9,10,11,12,13,14]. The luminescent intensity of PSP is sensitive to the partial pressure of oxygen in a test gas due to a photophysical process called oxygen quenching [15]. Due to nonradiative processes during the relaxation of an excited luminescent molecule [16], PSP is also sensitive to temperature, which adds uncertainty to the pressure measurement. This uncertainty is called the temperature dependency. Because the luminescent intensity of PSP changes with temperature as well as with pressure, an image-acquisition device cannot distinguish the change in the intensity as being due to one or the other, which causes uncertainty in the pressure measurement. PSP measurements are conducted for subsonic, supersonic, and/or hypersonic regimes. In the high-speed flow regimes, there are higher pressure changes so that it is more feasible. However, the subsonic regime becomes more challenging since there is a small pressure change, the measurement of which is easily contaminated by the temperature dependency. In the subsonic regime, the pressure changes typically up to 20 kPa, and the temperature variation on the PSP surface is within the ± 5 ° C range [17]. Even under a several ° C temperature change, the temperature uncertainty is significant [17,18]. Liu et al. introduced a model describing factors that influence temperature dependency in the intensity-based PSP method [19]. To reduce the temperature dependency, several approaches have been taken. One of them is a separate surface temperature measurement using IR imaging or a temperature-sensitive paint (TSP) [1,17,20,21,22,23,24]. Assuming that the temperature distribution measured by the separate temperature measurement is identical to the one during the PSP measurement, the temperature dependency of the PSP measurement is compensated based on the temperature distribution. Because of the assumption of the identical temperature distribution, this temperature correction method cannot be used for transient measurements. A second approach uses combined PSP and TSP to correct the temperature dependency [25,26,27]. This measurement requires two image acquisitions for PSP and TSP, which are usually performed by using two cameras. This method can be applied to transient measurements, but the temperature correction procedures can be complex due to the need for additional image processing for the TSP and/or complicated image registration. A third approach involves using specific luminophores in PSP to limit the temperature dependency. Pyrene-based PSP, for example, has been studied as a PSP candidate that does not require an additional temperature measurement. It has a particular wavelength region within its emission spectrum that is pressure sensitive but temperature independent [28,29]. By acquiring the PSP image for this wavelength region, a temperature-independent image from the pyrene-based PSP can be captured. However, due to the limited spectral output range, the signal-to-noise ratio tends to be low. Additionally, it can be difficult to isolate only a particular wavelength of light in various experimental measurements.

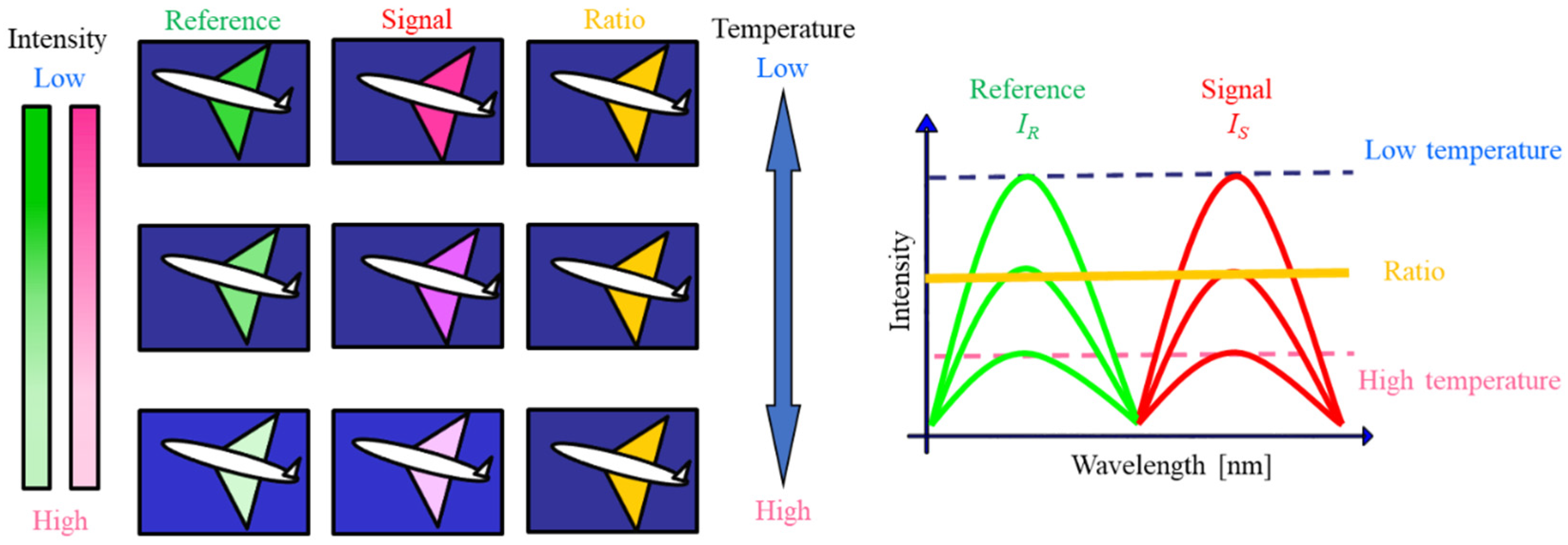

Sakaue et al. introduced the motion-capturing PSP method, which allows for moving, fluttering, and free-flight measurements [30,31,32,33]. It involves two luminophores: one that is sensitive to pressure (signal) and another that is insensitive to pressure (reference). The emissions from the signal and reference luminophores are captured by means of a color camera. The motion-capturing PSP method, therefore, only requires a color camera, which reduces the complexity of image processing. The spectra of a two-color PSP can be found in Appendix F. By taking the ratio of the signal and reference images, the pressure distribution can be extracted. If these luminophores have the same behavior with respect to changes in temperature, it is hypothesized that the temperature dependency of the ratio image will be cancelled or reduced (Figure 1).
The reduction in temperature dependency given by the motion-capturing PSP method is investigated herein via both theoretical and experimental approaches. A linear model of the temperature dependency for the motion-capturing PSP method is proposed based on the Taylor series. The linear modeling approach was chosen by considering the following. The temperature range in the subsonic regime is typically small enough to assume linearity. An interpretable model is desired to understand the temperature dependency from the PSP characteristic point of view. The model can be extended if it is applied to a larger temperature range by including higher-order terms, and its accuracy can be improved. However, the model then becomes too complicated to be interpreted. The proposed model is validated via temperature calibration and luminescent imaging. The model relates the pressure uncertainty due to temperature with respect to the pressure sensitivity and the temperature dependency, which are the key factors in pressure and temperature calibrations.

2. Background

The pressure and temperature ranges were chosen such that a linear relationship holds in the pressure and temperature calibrations. There are two luminophores involved in the motion-capturing PSP method. Each luminophore emits light with a given luminescent intensity. This luminescent intensity is captured using the intensity method [34]. The relationship between the intensity, I , and pressure, P , is given as
I q , r e f I q = A q + B q P P r e f ,     q = R , S
The subscript q can be either S or R , indicating the signal or reference luminophore, respectively. The subscript r e f denotes a quantity under the reference conditions. A and B are calibration coefficients determined by the pressure calibration. The calibration coefficients based on the intensity method of signal and reference luminophores have the relationship shown in Equation (2) because the Stern–Volmer equation is equal to unity under the reference conditions.
A q + B q = 1   ( 0 A q ,   B q 1 )
The intensity ratio is described as a linear function of the temperature, T , for a given temperature range:
I q I q , r e f = c 0 q + c 1 q T T r e f
where c 0 and c 1 are calibration coefficients determined by the temperature calibration. Equation (3) is valid for the considered temperature range in this paper. Under the reference conditions, the above equations are equal to unity, and so the same restrictions for the calibration coefficients as in Equation (2) apply.
c 0 q + c 1 q = 1
For the motion-capturing PSP method, the signal and reference intensities are ratioed [32]. The following relationship between the intensity ratio, I R / I S , and the pressure ratio, P / P r e f , is used in pressure measurements:
1 α I R I S = A M + B M P P r e f
where α is a constant based on the intensity ratio under the reference conditions: α = I R , r e f / I S , r e f . The subscript M denotes the motion-capturing PSP method. Equation (5) is equal to unity under the reference conditions.
A M + B M = 1   0 A M ,   B M 1
In temperature measurements, the following relationship is used to determine the temperature ratio, T / T r e f , from the intensity ratio, I S / I R :
α I S I R = c 0 M + c 1 M T T r e f
Equation (7) is equal to unity under the reference conditions.
c 0 M + c 1 M = 1
As Equation (3) is valid for the considered temperature range, Equation (7) is also valid for the range.

3. Temperature Dependency Model in Pressure Measurement

In pressure measurement using a PSP, the pressure sensitivity, σ , converts the luminescent intensity of a PSP to a pressure value. The value of σ can be defined as the slope of the pressure calibration under the reference conditions. Similarly, the temperature dependency of a PSP, δ , can be defined as the slope of the temperature calibration under the reference conditions. By taking the derivatives of Equations (1), (3), (5) and (7), σ and δ for the motion-capturing PSP method and the intensity method of signal and reference luminophores are given as follows:
σ q = 𝜕 𝜕 P I q , r e f I q = B q P r e f
σ M = 𝜕 𝜕 P 1 α I S I R   = B M P r e f
δ q = 𝜕 𝜕 T I q I q , r e f   = c 1 q T r e f
δ M = 𝜕 𝜕 T α I S I R = c 1 M T r e f
In general, δ q is a negative value due to the nonradiation process of a luminophore [32].
The pressure calibration for the motion-capturing PSP method given in Equation (5) can also be described as a ratio of Equation (1) for the signal and reference luminophores:
1 α I R I S = I R I R , r e f I S , r e f I S = A S + B S · P / P r e f A R + B R · P / P r e f
Using a Taylor series expansion under the reference conditions, Equation (13) can be described as a linear relationship with higher-order terms. When B R = 0 , Equation (13) becomes linear. Assuming that B R 1 , by neglecting the higher-order terms and using unity equations, the following form can be obtained:
1 α I R I S = A S A R + 1 + B S B R P P r e f = A M + B M P P r e f
A detailed derivation can be found in Appendix A. Equation (14) describes the relationship between the coefficients for the motion-capturing PSP method and the intensity method. If pressure-independent I R is assumed, an equation identical to that discussed in [31] is obtained.
B M = B S B R
From Equation (15), it can be seen that σ M is the difference between σ S and σ R .
σ M = σ S σ R
Ideally, the intensity method for the reference luminophore is independent of pressure. In this case, σ R = 0 and so σ M = σ S .
For the motion-capturing PSP method, the temperature calibration can also be described as a ratio of Equation (3) for the signal and reference luminophores:
I S I S , r e f I R , r e f I R = α I S I R = c 0 S + c 1 S · T / T r e f c 0 R + c 1 R · T / T r e f
Similarly, Taylor series expansion under the reference conditions is used to linearize Equation (17). By neglecting the higher-order terms and using the unity equations, the following relationships can be found.
α I S I R = c 0 S c 0 R + 1 + c 1 S c 1 R T T r e f = c 0 M + c 1 M T T r e f
c 1 M = c 1 S c 1 R
δ M = δ S δ R
A detailed derivation can be found in Appendix B. Equation (20) indicates that δ M is the difference between δ S and δ R . If δ S and δ R are the same, the motion-capturing PSP method has zero temperature dependency.
By solving Equation (5) for the measured pressure, P , it can be described in terms of the reference pressure, calibration coefficients, and intensities.
P = P r e f B M 1 α I R I S A M
Taylor series expansion under the reference conditions is used to linearize Equation (21). Since a PSP is both pressure and temperature sensitive, it is necessary to take partial derivatives with respect to each quantity:
P = P r e f + 𝜕 𝜕 T P r e f B M 1 α I R I S A M r e f T + 𝜕 𝜕 P P r e f B M 1 α I R I S A M r e f Δ P + H . O . T .
where T is temperature change and P is pressure change. By neglecting the higher-order terms and evaluating derivatives under the reference conditions, the expression for the measured pressure in terms of T and P is derived as follows. Detailed derivations are given in Appendix C.
P = P r e f δ M σ M T + P
Here, the temperature uncertainty factor is defined as the ratio of the temperature dependency and the pressure sensitivity:
ζ M = δ M σ M
The pressure uncertainty due to temperature, P u , M , is now defined as
P u , M = ζ M T
P = P r e f + P u , M + P
Equation (23) states that the measured pressure, P , is the sum of the reference pressure and the actual pressure change if there is no temperature change during a PSP measurement. If T is nonzero during the PSP measurement, the second term in Equation (23) needs to be considered, which is the pressure uncertainty due to the temperature. Equations (25) and (26) indicate that a high pressure sensitivity and a low temperature dependency yield a low temperature uncertainty factor, which results in a lower pressure uncertainty. As described in Equation (20), the temperature dependency of the motion-capturing PSP method is zero when the temperature dependencies of the intensity method for the signal and reference luminophores are equal.
For the intensity method, only a signal luminophore is used. It gives the intensity method of the reference luminophore as c 1 R = 0 . This reduces Equations (24) to (26) as follows.
ζ S = δ S σ S
P = P r e f + P u , M + P u , S = ζ S T
P = P r e f + P u , S + P
The pressure uncertainty due to temperature is given in the same form as in Equation (25). The difference between the motion-capturing PSP and the intensity methods comes from the value of the pressure sensitivity and the temperature dependency to give the temperature uncertainty factor. The proposed model applies to other formulations of two-color PSPs as long as the nonlinearity of the two luminophores with respect to pressure and temperature is negligible.

Model Analysis

The value of σ is between 0 and 1, whereas δ can be a positive or negative value [28]. Based on these restrictions on σ and δ , five different cases can be considered (Table 1). For an ideal case (case 1), where the signal and reference luminophores have the same temperature dependency, δ M = δ S δ R = 0 . In this case, the temperature dependency of the motion-capturing PSP method, δ M , is zero. The pressure uncertainty due to temperature, ζ M , is also zero. In general, the temperature dependencies of luminophores are negative (case 2) [34]. With the condition δ R < 2 δ S , this case results in a reduction in the temperature dependency for the motion-capturing PSP method. Cases 3, 4, and 5 are nonstandard for experimental measurements because most PSP luminophores exhibit negative temperature dependencies. However, if the temperature dependency of each luminophore is opposite in sign, as for cases 3 and 4, this results in an increase in temperature dependency. The temperature dependency of the motion-capturing PSP method, however, can be reduced if the intensity method for both luminophores has a positive temperature dependence (case 5). As for case 2, case 5 also needs to satisfy the condition δ R < 2 δ S in order to reduce the temperature dependency.
As an illustrative description, Figure 2 shows the pressure uncertainty due to temperature for the five different cases based on Equations (26) and (29). Pressure sensitivities and temperature dependencies were chosen based on the experimental validation discussed in Section 4. The pressure sensitivities of the signal and reference luminophores obtained via the intensity method were σ S = 0.570 and σ R = 0.083 %/kPa for all cases. The temperature dependencies of the signal and reference luminophores obtained via the intensity method were δ S = 0.730 and δ R = 0.340 , also shown in Figure 2. As discussed, cases 3, 4, and 5 are impractical in general. For case 2, the motion-capturing PSP method shows lower pressure uncertainty due to temperature compared to that from the intensity method. For the ideal case 1, the pressure uncertainty due to temperature for the motion-capturing PSP method is zero.

4. Experimental Validation

For a two-color PSP, two luminophores were chosen: tris(4,7-diphenyl-1,10-phenanthroline) ruthenium (II) dichloride complex (Alfa Aesar) as a pressure-sensitive luminophore and fluorescein (Tokyo Chemical Industry) as a pressure-insensitive luminophore. A luminescent solution was prepared by dissolving the pressure-sensitive and -insensitive luminophores in dichloromethane with concentrations of 0.3 mM and 0.5 mM, respectively. Polymer (RTV rubber, KE-42, Shin-Etsu Silicone) and ceramic (Silica gel, Sigma-Aldrich) were then added into the luminescent solution. The polymer content was 40 w%. An ultrasonic bath was used to dissolve the polymer for 10 min. The two-color PC-PSP was then coated over an aluminum block with seven thermocouples for temperature monitoring. An a priori pressure calibration was performed to determine the pressure sensitivities σ M , σ S , and σ R , which were 0.493 ± 0.007, 0.570 ± 0.005, and 0.083 ± 0.004%/kPa, respectively. The method for obtaining the pressure sensitives is described in Appendix D. Error propagation of the fitting uncertainty and repeatability was used to estimate the pressure calibration uncertainty. Figure 3 shows a schematic of the validation setup. An aluminum block coated with the two-color PSP was placed between a Peltier heater and a cooler. A purple LED (Thorlabs inc. SOLIS-405C) excited the two-color PSP at 405 nm. A scientific color camera (NAC image technology HX-7s) captured luminescent intensities from the two-color PSP as red and green images. The signal intensity was acquired as a red image, and the reference intensity was acquired as a green image. The camera’s spectral sensitivities have an overlap region between the green and red channels. Light in this region is accounted as both channels, which is called “crosstalk”. This effect was calibrated by the pressure and temperature calibrations. An optical high-pass filter (470 nm) was placed in front of the camera to eliminate the excitation light. By using the Peltier heater and the cooler, a linear temperature distribution of approximately ± 4 in range was created with a reference temperature at 23.66 ± 0.02 . The temperature at the thermocouple locations was monitored using a data logger (HIOKI LR8431-20). The temperature profiles obtained during the experimental validation can be found in Appendix E.
Since the atmospheric pressure was constant during the validation test, the intensity change was only dependent on the temperature. Using the intensity ratio at the thermocouple locations, the in situ temperature calibration was obtained (Figure 4). The values of δ M , δ S , and δ R obtained during the validation test were 0.397 ± 0.012, 0.731 ± 0.004, and 0.340 ± 0.004%/ ° C , respectively. The error propagation of the fitting uncertainty was used to estimate the temperature calibration uncertainty.

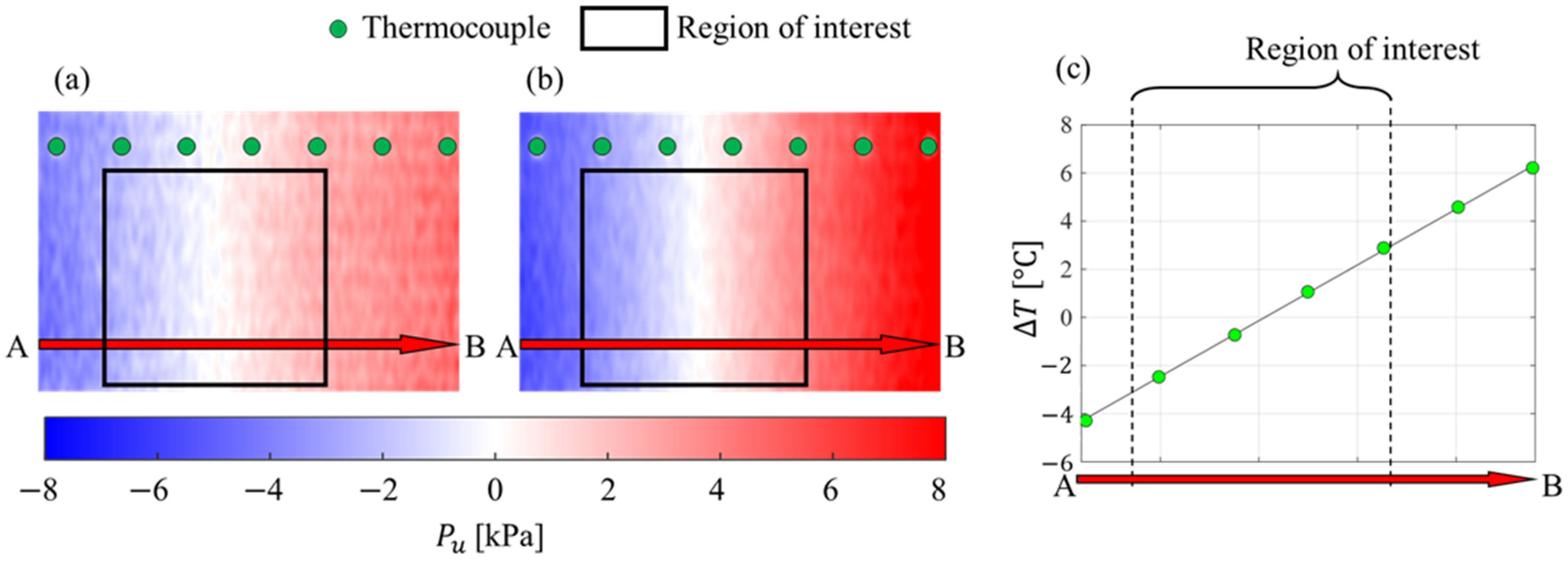

Figure 5 shows the pressure uncertainty over the PSP surface given by (a) the motion-capturing PSP method and (b) the intensity method. The temperature profile along the line A–B is shown in Figure 5c and is linear, as expected from the experimental setup. Pressure uncertainties also exhibited a linear gradient in the horizontal direction and a constant pressure uncertainty distribution in the vertical direction. It can be seen that the magnitude of the pressure uncertainty was reduced by applying the motion-capturing PSP method. To quantify the reduction in the uncertainty, the pressure uncertainty model given in Equations (26) and (29) was compared to the measured pressure uncertainty profiles (Figure 6). The pressure uncertainty model and its uncertainty are shown as dashed lines and colored areas, respectively. The uncertainties of the model were estimated from the temperature measurement and PSP calibration errors. The measured pressure uncertainty agreed with the proposed model and was within the model’s uncertainty.

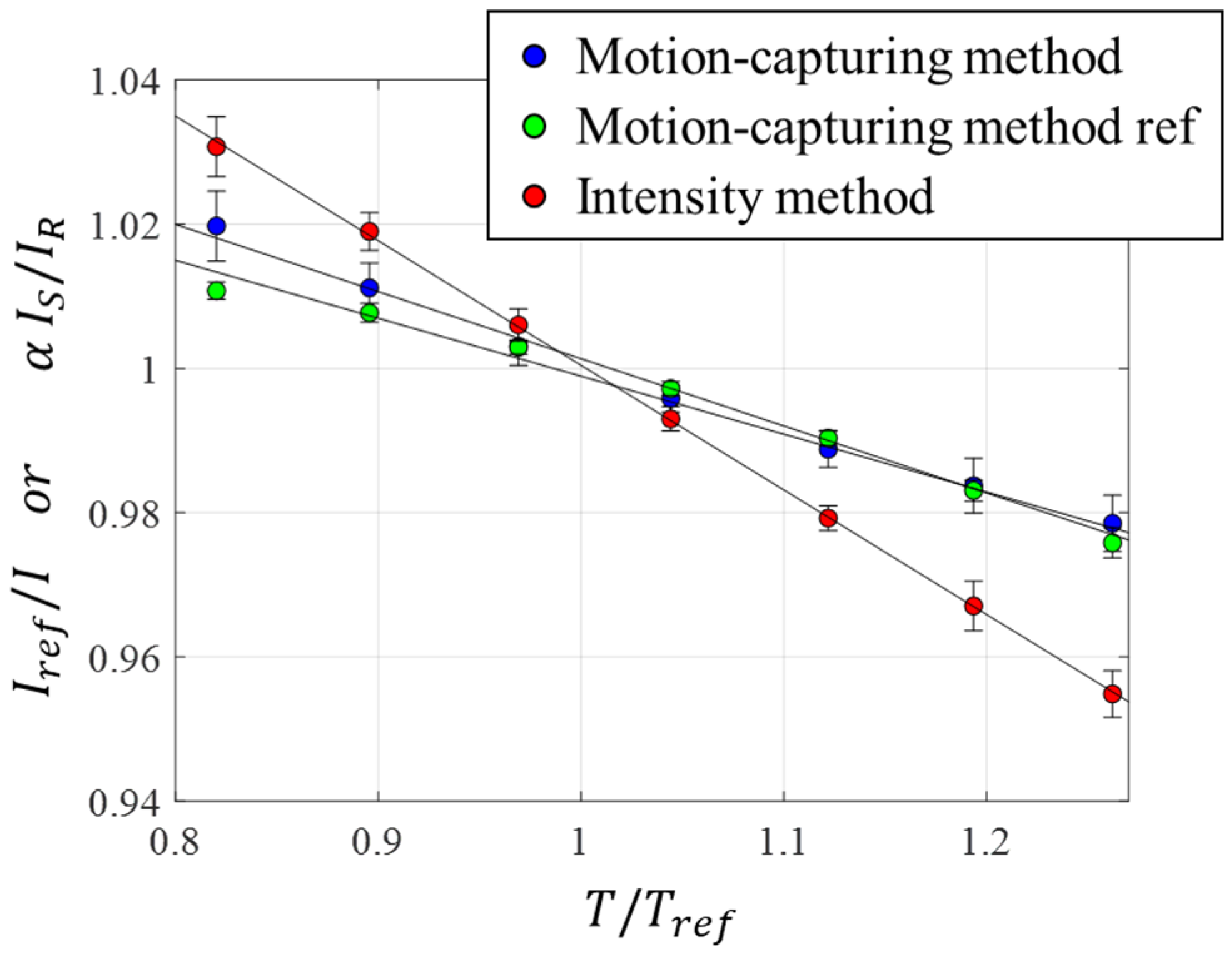

Table 2 summarizes the calibration coefficients. The pressure sensitivity and temperature dependency of the motion-capturing PSP method based on Equations (16) and (20) were 0.487 ± 0.007%/kPa and 0.391 ± 0.017%/ ° C , which agreed with the calibration results. Based on these coefficients, uncertainty factors were listed using Equations (24) and (27). The intensity method for the signal luminophore resulted in a higher pressure sensitivity and temperature dependency, as compared with those obtained via the motion-capturing PSP method. The motion-capturing PSP method showed lower pressure sensitivity and temperature dependency. The motion-capturing PSP method showed, however, a lower uncertainty factor than did the intensity method for the signal luminophore. The motion-capturing PSP method reduced the uncertainty factor by 37.7 ± 2.7%, as compared to the intensity method.

5. Conclusions

Pressure-sensitive paint (PSP) has been utilized to capture surface pressure in recent years. Due to the nature of the photophysical processes inherent to the functionality of PSP, a temperature dependency exists that introduces a major measurement uncertainty for pressure measurements. To model the pressure uncertainty due to temperature, the intensity method and motion-capturing PSP method were investigated using theoretical and experimental approaches. The proposed model relates the pressure uncertainty due to temperature with respect to pressure sensitivity and temperature dependency. The model was validated based on experimental results from pressure and temperature calibrations and from the validation experiment. The model showed that 1. the temperature dependency of the motion-capturing PSP method is the difference between the temperature dependencies of the signal and reference luminophores; 2. the motion-capturing PSP method can reduce pressure uncertainty due to temperature, as compared to the intensity method; and 3. the measurement error due to the temperature dependency is described by σ M , δ M , and Δ T . The model can also be used to select the two luminophores for the motion-capturing PSP method to achieve zero temperature dependency. From the validation experiment, the temperature uncertainty factor of the motion-capturing PSP method was reduced by 37.7 ± 2.7%, as compared to that of the intensity method.

Author Contributions

Conceptualization, D.K. and H.S.; methodology, D.K.; validation, D.K. and H.S.; formal analysis, D.K.; data curation, D.K.; writing—original draft preparation, D.K. and H.S.; writing—review and editing, D.K. and H.S. supervision, H.S.; funding acquisition, H.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the ONR Grant Award: N00014-22-1-2003.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data available on request.

Acknowledgments

The authors would like to acknowledge valuable technical discussions with Joseph Gonzales at the University of Notre Dame and Yasuhiro Egami at Aichi Institute of Technology.

Conflicts of Interest

The authors declare no conflict of interest.

Nomenclature

I [count]Luminescent intensity
α [-]Luminescent intensity ratio under the reference condition
A [-]Pressure calibration coefficient intercept
B [-]Pressure calibration coefficient slope
σ [%/kPa]Pressure sensitivity
c 0 [-]Temperature calibration coefficient intercept
c 1 [-]Temperature calibration coefficient slope
δ [%/ ]Temperature dependency
P [Pa]Pressure
Δ P [Pa]Actual pressure change
P u [Pa]Pressure uncertainty due to temperature
T [ ]Temperature
Δ T [ ]Temperature change
Subscripts/Superscripts
r e f Reference condition
M Motion-capturing PSP method
S Signal luminophore
R Reference luminophore

Appendix A. Derivation of the Stern–Volmer Equation for the Motion-Capturing PSP Method

For the motion-capturing PSP method, the Stern–Volmer equation can also be described as a ratio of the Stern–Volmer equations for the intensity method for the signal and reference luminophores:
I R I R , r e f I S , r e f I S = 1 α I R I S = A S + B S · P / P r e f A R + B R · P / P r e f
To obtain a linear relationship, a Taylor series expansion under the reference conditions can be used. If the higher-order terms are neglected, the following form can be obtained:
1 α I R I S = 1 + d d P 1 α I R I S r e f P P r e f
Then, the derivative with respect to pressure is
d d P 1 α I R I S = B S A R + B R · P / P r e f 1 P r e f A S + B S · P / P r e f B R A R + B R · P / P r e f 2 1 P r e f
By evaluating the derivative under the reference conditions and using the unity equations, we obtain
A R + B R · P / P r e f = 1
A S + B S · P / P r e f = 1
d d P 1 α I R I S r e f = B S B R 1 P r e f
By substituting Equation (A6) into (A2), we obtain
1 α I R I S = 1 + B S B R   P P r e f P r e f = 1 + B S B R P P r e f 1 = 1 B S + B R + B S B R P P r e f
By using the unity equations, we obtain
1 α I R I S = A S A R + 1 + B S B R P P r e f = A + B P P r e f

Appendix B. Derivation of the Temperature Relation for the Motion-Capturing PSP Method

For the motion-capturing PSP method, the temperature calibration can also be described as a ratio of the temperature relations for the signal and reference luminophores:
I S I S , r e f I R , r e f I R = α I S I R = c 0 S + c 1 S · T / T r e f c 0 R + c 1 R · T / T r e f
Taylor series expansion under the reference conditions is used to linearize Equation (A9). By neglecting the higher-order terms, we obtain
α I S I R = 1 + d d T α I S I R r e f T T r e f
Then, the derivative with respect to temperature is
d d T α I S I R = c 1 S c 0 R + c 1 R · T / T r e f · 1 T r e f c 0 S + c 1 S · T / T r e f c R 1 c 0 R + c 1 R · T / T r e f 2 · 1 T r e f
By evaluating the derivative under the reference conditions and using the unity equations, we obtain
d d T α I S I R r e f = c 1 S c 1 R · 1 T r e f
α I S I R = 1 + c 1 S c 1 R T T r e f T r e f
α I S I R = c 0 S c 0 R + 1 + c 1 S c 1 R T T r e f = c 0 + c 1 T T r e f

Appendix C. Pressure Uncertainty Model Derivation

By using Taylor series expansion under the reference conditions, the measured pressure, P , is described. Since a PSP is both pressure and temperature sensitive, it is necessary to take partial derivatives with respect to each quantity:
P   =   P r e f + 𝜕 𝜕 T P r e f B M 1 α I R I S A M r e f T + 𝜕 𝜕 P P r e f B M 1 α I R I S A M r e f Δ P + H . O . T .
where T is temperature change and P is pressure change.
The partial derivative with respect to temperature can be described using P r e f and calibration coefficients:
𝜕 𝜕 T P r e f B M 1 α I R I S A M r e f = 1 α I R I S A M r e f 𝜕 𝜕 T P r e f B M r e f + P r e f B M r e f   𝜕 𝜕 T 1 α I R I S A M r e f
Assuming a small change in temperature, A M and B M are independent of temperature.
𝜕 𝜕 T P r e f B M 1 α I R I S A M r e f = P r e f B M 𝜕 𝜕 T 1 α I R I S r e f
The partial derivative of the intensity ratio with respect to temperature is
𝜕 𝜕 T 1 α I R I S r e f = 1 α 1 I S , r e f 𝜕 I R 𝜕 T r e f + I R , r e f 𝜕 𝜕 T 1 I S r e f
Since α = I R , r e f / I S , r e f ,
𝜕 𝜕 T 1 α I R I S r e f = I S , r e f I R , r e f 1 I S , r e f 𝜕 I R 𝜕 T r e f + I R , r e f 𝜕 𝜕 T 1 I S r e f = 1 I R , r e f 𝜕 I R 𝜕 T r e f + I S , r e f 𝜕 𝜕 T 1 I S r e f
The second term is
I S , r e f 𝜕 𝜕 T 1 I S r e f = I S , r e f 1 I S , r e f 2 𝜕 I S 𝜕 T r e f = 1 I S , r e f 𝜕 I S 𝜕 T r e f
By substituting into Equation (A19), we obtain
𝜕 𝜕 T 1 α I R I S r e f = 1 I R , r e f 𝜕 I R 𝜕 T r e f 1 I S , r e f 𝜕 I S 𝜕 T r e f
Since 𝜕 I R / 𝜕 T r e f = c 1 R I R , r e f / T r e f and 𝜕 I S / 𝜕 T r e f = c 1 S I S , r e f / T r e f ,
𝜕 𝜕 T 1 α I R I S r e f = c 1 R T r e f c 1 S T r e f = c 1 S c 1 R T r e f
Using c 1 M = c 1 S c 1 R ,
𝜕 𝜕 T 1 α I R I S r e f = c 1 M T r e f
Equation (A17) then becomes
𝜕 𝜕 T P r e f B M 1 α I R I S A M r e f = P r e f B M c 1 M T r e f
For the partial derivatives with respect to pressure evaluated under the reference conditions,
𝜕 𝜕 P P r e f B M 1 α I R I S A M r e f = P r e f B M 1 α 𝜕 𝜕 P I R I S r e f
By applying the product rule to the derivative, we then obtain
𝜕 𝜕 P I R I S r e f = I R , r e f 𝜕 𝜕 P 1 I S r e f + 1 I S , r e f 𝜕 I R 𝜕 P r e f
From the Stern–Volmer equation for the reference luminophore, the reference intensity is described as a function of pressure as follows.
I R = I R , r e f A R + B R P P r e f 1
Taking the derivative with respect to pressure, we obtain
𝜕 I R 𝜕 P = I R , r e f A R + B R P P r e f 2 B R P r e f
By evaluating this under the reference conditions and using the unity condition, we obtain
𝜕 I R 𝜕 P r e f = I R , r e f A R + B R 2 B R P r e f = I R , r e f B R P r e f
From the Stern–Volmer equation for the signal luminophore, the signal intensity is described as a function of pressure as follows.
1 I S = 1 I S , r e f A S + B S P P r e f
Taking the derivative with respect to pressure at the reference pressure, we obtain
𝜕 𝜕 P 1 I S r e f = 1 I S , r e f B S P r e f
Using Equations (A26), (A29) and (A31), we obtain
𝜕 𝜕 P I R I S r e f = I R , r e f I S , r e f B S P r e f I R , r e f I S , r e f B R P r e f = I R , r e f I S , r e f 1 P r e f B S B R
Since α = I R , r e f / I S , r e f and B M = B S B R ,
𝜕 𝜕 P I R I S r e f = α B M P r e f
Substituting Equation (A32) into Equation (A25), we then obtain
𝜕 𝜕 P P r e f B M 1 α I R I S A M r e f = P r e f B M 1 α α B M P r e f = 1
Using Equations (A15), (A24) and (A34), neglecting the higher-order terms, the measured pressure is then described by
P = P r e f c 1 M T r e f P r e f B M T + P = P r e f δ M σ M T + P

Appendix D. Pressure Calibration

The a priori pressure calibration setup is schematically shown in Figure A1. The two-color PSP-coated aluminum block was placed in a pressure-controlled chamber. The pressure inside the chamber was controlled using a pressure controller (GE Druck PACE 6000). The same scientific color camera, excitation light, and optical filter used in the experimental validation test were used here. The static pressure was varied from 80 to 100 kPa at approximately 5 kPa intervals. At each calibration point, 45 images were acquired and averaged to minimize shot noise. The reference pressure and temperature were 98.9 kPa and 22.3 , respectively. The pressure calibration was repeated six times to estimate the calibration uncertainty. The σ M , σ S , and σ R values were 0.493 ± 0.007, 0.570 ± 0.005, and 0.083 ± 0.004%/kPa, respectively. The Stern–Volmer plot is shown in Figure A2.
Figure A1. Pressure calibration setup.
Figure A1. Pressure calibration setup.
Sensors 23 09714 g0a1
Figure A2. Stern–Volmer plot.
Figure A2. Stern–Volmer plot.
Sensors 23 09714 g0a2

Appendix E. Thermocouple Temperature Profiles during the Experimental Validation Test

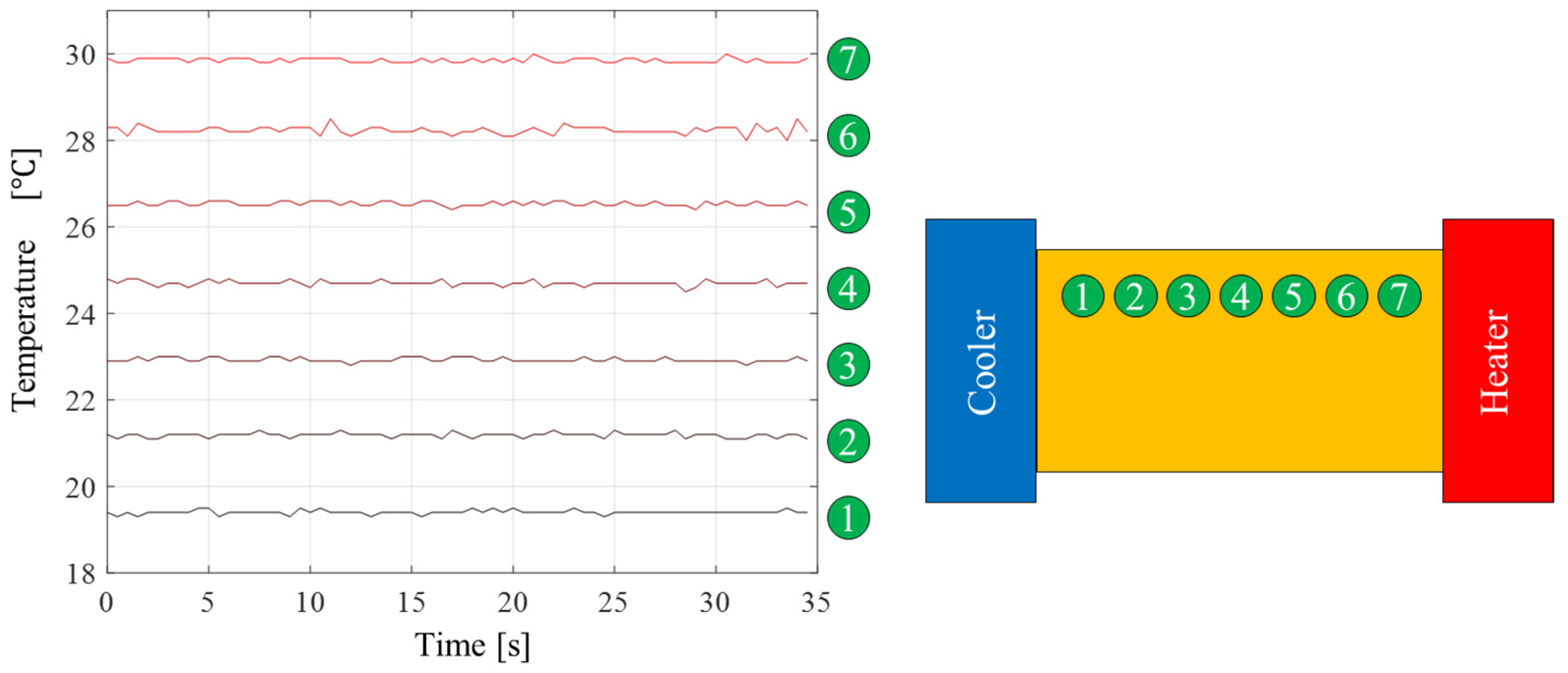

Figure A3 shows the thermocouple temperature profiles. Each profile shows a stable and evenly distributed temperature, such that a linear temperature distribution was achieved.
Figure A3. Thermocouple temperature profiles.
Figure A3. Thermocouple temperature profiles.
Sensors 23 09714 g0a3

Appendix F. Two-Color PSP Spectra

Figure A4 shows the spectra of the two-color PSP used in this paper. The peak at 510 nm is from the reference luminophore. The other peak at 615 nm is from the signal luminophore. These emission outputs must be separable with optical filters on a color camera. The separability of the two emission outputs and the selection of the color camera are critical for the development of the motion-capturing PSP method measurement system.
Figure A4. Spectra of the two-color PSP varying with pressure.
Figure A4. Spectra of the two-color PSP varying with pressure.
Sensors 23 09714 g0a4

References

  1. Pastuhoff, M.; Tillmark, N.; Alfredsson, P.H. Measuring Surface Pressure on Rotating Compressor Blades Using Pressure Sensitive Paint. Sensors 2016, 16, 344. [Google Scholar] [CrossRef]
  2. Lemarechal, J.; Dimond, B.D.; Barth, H.P.; Hilfer, M.; Klein, C. Miniaturization and Model-Integration of the Optical Measurement System for Temperature-Sensitive Paint Investigations. Sensors 2023, 23, 7075. [Google Scholar] [CrossRef] [PubMed]
  3. Bitter, M.; Hilfer, M.; Schubert, T.; Klein, C.; Niehuis, R. An Ultra-Fast TSP on a CNT Heating Layer for Unsteady Temperature and Heat Flux Measurements in Subsonic Flows. Sensors 2022, 22, 657. [Google Scholar] [CrossRef] [PubMed]
  4. Lo, K.H.; Kontis, K. Static and Wind-on Performance of Polymer-Based Pressure-Sensitive Paints Using Platinum and Ruthenium as the Luminophore. Sensors 2016, 16, 595. [Google Scholar] [CrossRef] [PubMed]
  5. Idris, A.C.; Saad, M.R.; Zare-Behtash, H.; Kontis, K. Luminescent Measurement Systems for the Investigation of a Scramjet Inlet-Isolator. Sensors 2014, 14, 6606–6632. [Google Scholar] [CrossRef] [PubMed]
  6. Costantini, M.; Henne, U.; Klein, C.; Miozzi, M. Skin-Friction-Based Identification of the Critical Lines in a Transonic, High Reynolds Number Flow via Temperature-Sensitive Paint. Sensors 2021, 21, 5106. [Google Scholar] [CrossRef]
  7. Sugioka, Y.; Koike, S.; Nakakita, K.; Numata, D.; Nonomura, T.; Asai, K. Experimental Analysis of Transonic Buffet on a 3D Swept Wing Using Fast-Response Pressure-Sensitive Paint. Exp. Fluids 2018, 59, 108. [Google Scholar] [CrossRef]
  8. Sugioka, Y.; Numata, D.; Asai, K.; Koike, S.; Nakakita, K.; Nakajima, T. Polymer/Ceramic Pressure-Sensitive Paint with Reduced Roughness for Unsteady Measurement in Transonic Flow. AIAA J. 2018, 56, 2145–2156. [Google Scholar] [CrossRef]
  9. Gößling, J.; Ahlefeldt, T.; Hilfer, M. Experimental Validation of Unsteady Pressure-Sensitive Paint for Acoustic Applications. Exp. Therm. Fluid Sci. 2020, 112, 109915. [Google Scholar] [CrossRef]
  10. Asai, K.; Amao, Y.; Iijima, Y.; Nishide, H. Novel Pressure-Sensitive Paint for Cryogenic and Unsteady Wind-Tunnel Testing. J. Thermophys. Heat Transf. 2002, 16, 19–22. [Google Scholar] [CrossRef]
  11. Moon, K.-J.; Mori, H.; Furukawa, M. Simultaneous Measurement Method of Pressure and Temperature Using Dual-Layer PSP/TSP with Lifetime-Based Method. Meas. Sci. Technol. 2018, 29, 125301. [Google Scholar] [CrossRef]
  12. Konrath, R.; Klein, C.; Schröder, A. PSP and PIV Investigations on the VFE-2 Configuration in Sub- and Transonic Flow. Aerosp. Sci. Technol. 2013, 24, 22–31. [Google Scholar] [CrossRef]
  13. Meng, L.; Li, H.; Xie, G.; Tao, Z.; Zhou, Z. Film Cooling Performance on Pressure Side of Turbine Blade with Different Number of Hole Rows under Rotating State. Aerosp. Sci. Technol. 2022, 126, 107569. [Google Scholar] [CrossRef]
  14. Dong, Z.; Li, Y.; Jiao, L.; Zhang, W.; Liu, Y.; Peng, D. Pressure-Sensitive Paint Integrated with Digital Image Correlation for Instantaneous Measurement on Rotating Blades. Aerosp. Sci. Technol. 2022, 126, 107667. [Google Scholar] [CrossRef]
  15. Berlman, I.B. Handbook of Fluorescence Spectra of Aromatic Molecules, 2nd ed.; Academic Press: New York, NY, USA, 1971. [Google Scholar]
  16. Lakowicz, J.R. Principles of Fluorescence Spectroscopy; Springer: Boston, MA, USA, 2006; pp. 1–5. [Google Scholar] [CrossRef]
  17. Kurita, M.; Nakakita, K.; Mitsuo, K.; Watanabe, S. Temperature Correction of Pressure-Sensitive Paint for Industrial Wind Tunnel Testing. J. Aircr. 2006, 43, 1499–1505. [Google Scholar] [CrossRef]
  18. Mitsuo, K.; Asai, K.; Hayasaka, M.; Kameda, M. Temperature Correction of PSP Measurement Using Dual-Luminophor Coating. J. Vis. 2003, 6, 213–223. [Google Scholar] [CrossRef]
  19. Liu, T.; Guille, M.; Sullivan, J.P. Accuracy of Pressure-Sensitive Paint. AIAA J. 2001, 39, 103–112. [Google Scholar] [CrossRef]
  20. Juliano, T.J.; Disotell, K.J.; Gregory, J.W.; Crafton, J. Motion-Deblurred, Fast-Response Pressure-Sensitive Paint on a Rotor in Forward Flight. Meas. Sci. Technol. 2012, 23, 045303. [Google Scholar] [CrossRef]
  21. Sugioka, Y.; Nakakita, K.; Koike, S.; Nakajima, T.; Nonomura, T.; Asai, K. Characteristic Unsteady Pressure Field on a Civil Aircraft Wing Related to the Onset of Transonic Buffet. Exp. Fluids 2021, 62, 20. [Google Scholar] [CrossRef]
  22. Peng, D.; Jiao, L.; Sun, Z.; Gu, Y.; Liu, Y. Simultaneous PSP and TSP Measurements of Transient Flow in a Long-Duration Hypersonic Tunnel. Exp. Fluids 2016, 57, 188. [Google Scholar] [CrossRef]
  23. Jiao, L.; Liu, X.; Shi, Z.; Zhang, W.; Liang, L.; Chen, X.; Zhao, Q.; Peng, D.; Liu, Y. A Two-Dimensional Temperature Correction Method for Pressure-Sensitive Paint Measurement on Helicopter Rotor Blades. Exp. Fluids 2020, 61, 104. [Google Scholar] [CrossRef]
  24. Huang, C.Y.; Lin, Y.F.; Huang, Y.X.; Chung, K.M. Pressure-Sensitive Paint Measurements with Temperature Correction on the Wing of AGARD-B under Transonic Flow Conditions. Meas. Sci. Technol. 2021, 32, 094001. [Google Scholar] [CrossRef]
  25. Abdeh, H.; Barigozzi, G. A Parametric Investigation of Vane Pressure Side Cutback Film Cooling by Dual Luminophor PSP. Int. J. Heat Fluid Flow 2018, 69, 106–116. [Google Scholar] [CrossRef]
  26. Peng, D.; Liu, Y. A Grid-Pattern PSP/TSP System for Simultaneous Pressure and Temperature Measurements. Sens. Actuators B Chem. 2016, 222, 141–150. [Google Scholar] [CrossRef]
  27. Khalil, G.E.; Costin, C.; Crafton, J.; Jones, G.; Grenoble, S.; Gouterman, M.; Callis, J.B.; Dalton, L.R. Dual-Luminophor Pressure-Sensitive Paint. Sens. Actuators B Chem. 2003, 97, 13–21. [Google Scholar] [CrossRef]
  28. Sakaue, H.; Kuriki, T.; Miyazaki, T. A Temperature-Cancellation Method of Pressure-Sensitive Paint on Porous Anodic Alumina Using 1-Pyrenesulfonic Acid. J. Lumin. 2012, 132, 256–260. [Google Scholar] [CrossRef]
  29. Gonzales, J.; Suzuki, K.; Sakaue, H. Temporally and Spatially Resolved Pressure and Temperature Maps in Hypersonic Flow. Int. J. Heat Mass Transf. 2020, 156, 119782. [Google Scholar] [CrossRef]
  30. Hayashi, T.; Houpt, A.W.; Leonov, S.B.; Sakaue, H. Motion-Capturing Pressure-Sensitive Paint Method under Transient Illumination by Plasma Source. J. Phys. D Appl. Phys. 2019, 52, 324005. [Google Scholar] [CrossRef]
  31. Kurihara, D.; Saitoh, K.; Sakaue, H. Uncertainty Analysis of Motion-Capturing Pressure-Sensitive Paint Method Based on Unsteady Surface-Pressure Measurement on Fluttering Airfoil. Aerosp. Sci. Technol. 2020, 103, 105878. [Google Scholar] [CrossRef]
  32. Sakaue, H.; Miyamoto, K.; Miyazaki, T. A Motion-Capturing Pressure-Sensitive Paint Method. J. Appl. Phys. 2013, 113, 084901. [Google Scholar] [CrossRef]
  33. Kurihara, D.; Gonzales, J.P.; Claucherty, S.L.; Kiritani, H.; Fujita, K.; Jemcov, A.; Nagai, H.; Sakaue, H. Sub-Millimeter Resolution Pressure Measurement on Free Flight Model at Mach 1.5 Using Novel Non-Intrusive Optical Technique. Exp. Therm. Fluid Sci. 2021, 120, 110243. [Google Scholar] [CrossRef]
  34. Liu, T.; Sullivan, J.P. Pressure and Temperature Sensitive Paints; Springer: Berlin/Heidelberg, Germany, 2005; ISBN 3540222413. [Google Scholar]
Figure 1. Conceptual description of the temperature dependency for the motion-capturing PSP method.
Figure 1. Conceptual description of the temperature dependency for the motion-capturing PSP method.
Sensors 23 09714 g001
Figure 2. Illustrative example of pressure uncertainty due to temperature for considered cases.
Figure 2. Illustrative example of pressure uncertainty due to temperature for considered cases.
Sensors 23 09714 g002
Figure 3. Schematic of the experimental validation setup.
Figure 3. Schematic of the experimental validation setup.
Sensors 23 09714 g003
Figure 4. In situ temperature calibration.
Figure 4. In situ temperature calibration.
Sensors 23 09714 g004
Figure 5. Pressure uncertainty due to temperature distribution based on (a) the motion-capturing PSP method and (b) the intensity method, and (c) the temperature profile along the line A–B.
Figure 5. Pressure uncertainty due to temperature distribution based on (a) the motion-capturing PSP method and (b) the intensity method, and (c) the temperature profile along the line A–B.
Sensors 23 09714 g005
Figure 6. Pressure uncertainty profiles due to temperature based on the motion-capturing PSP method in blue and the intensity method in red. Dashed lines show the model prediction. The blue and red areas are model uncertainties.
Figure 6. Pressure uncertainty profiles due to temperature based on the motion-capturing PSP method in blue and the intensity method in red. Dashed lines show the model prediction. The blue and red areas are model uncertainties.
Sensors 23 09714 g006
Table 1. Five different cases of the uncertainty factor in Equations (24) and (27).
Table 1. Five different cases of the uncertainty factor in Equations (24) and (27).
case 1 δ R = δ S ζ S > ζ M = 0 P u , S < P u , M = 0
case 2 δ R 0 , δ S < 0 ζ S ζ M P u , S P u , M
case 3 δ R 0 , δ S > 0 ζ S ζ M P u , S P u , M
case 4 δ R 0 , δ S < 0 ζ S ζ M P u , S P u , M
case 5 δ R 0 , δ S > 0 ζ S ζ M P u , S P u , M
Table 2. Pressure and temperature calibration coefficients.
Table 2. Pressure and temperature calibration coefficients.
Pressure Sensitivity [%/kPa]Temperature Dependency [%/ ° C ]Uncertainty Factor [kPa/ ° C ]
σ M 0.493 ± 0.007 δ M 0.397 ± 0.012 ζ M 0.799 ± 0.031
σ S 0.570 ± 0.005 δ S 0.731 ± 0.004 ζ S 1.282 ± 0.023
σ R 0.083 ± 0.004 δ R 0.340 ± 0.004
σ S σ R 0.487 ± 0.007 δ S δ R 0.391 ± 0.012
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Kurihara, D.; Sakaue, H. Temperature Dependency Model in Pressure Measurement for the Motion-Capturing Pressure-Sensitive Paint Method. Sensors 2023, 23, 9714. https://doi.org/10.3390/s23249714

AMA Style

Kurihara D, Sakaue H. Temperature Dependency Model in Pressure Measurement for the Motion-Capturing Pressure-Sensitive Paint Method. Sensors. 2023; 23(24):9714. https://doi.org/10.3390/s23249714

Chicago/Turabian Style

Kurihara, Daiki, and Hirotaka Sakaue. 2023. "Temperature Dependency Model in Pressure Measurement for the Motion-Capturing Pressure-Sensitive Paint Method" Sensors 23, no. 24: 9714. https://doi.org/10.3390/s23249714

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
