Human Multi-Activities Classification Using mmWave Radar: Feature Fusion in Time-Domain and PCANet
Abstract
:1. Introduction
- (1)
- The introduction of an original method for classifying fourteen types of human daily activities, leveraging statistical offset measures, range profiles, time–frequency analyses, and azimuth–range–time data.
- (2)
- Pioneering the use of the CNN-BiLSTM framework for fusing 3D range–azimuth–time information.
- (3)
- Recommendation of the Margenau–Hill Spectrogram (MHS) for optimal feature quality and minimal feature count, which has been validated by analysis of four time–frequency methods.
2. Related Work
3. Methodology
3.1. Radar Formula
3.2. Feature Source
3.2.1. Offset Parameters
Algorithm 1 Offsets() |
Input: Elevation, Azimuth Output: Offset Parameters · |

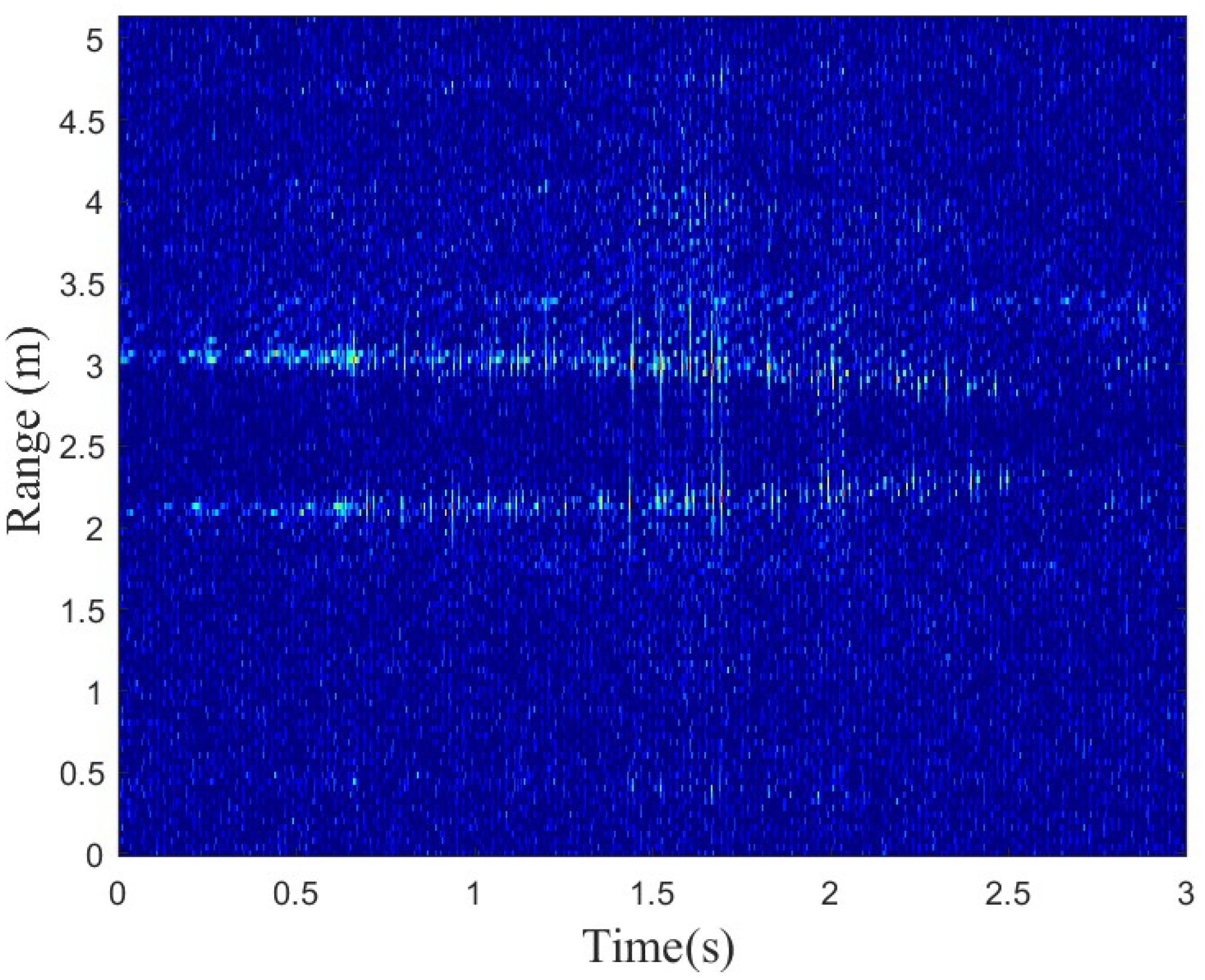

3.2.2. Range Profiles

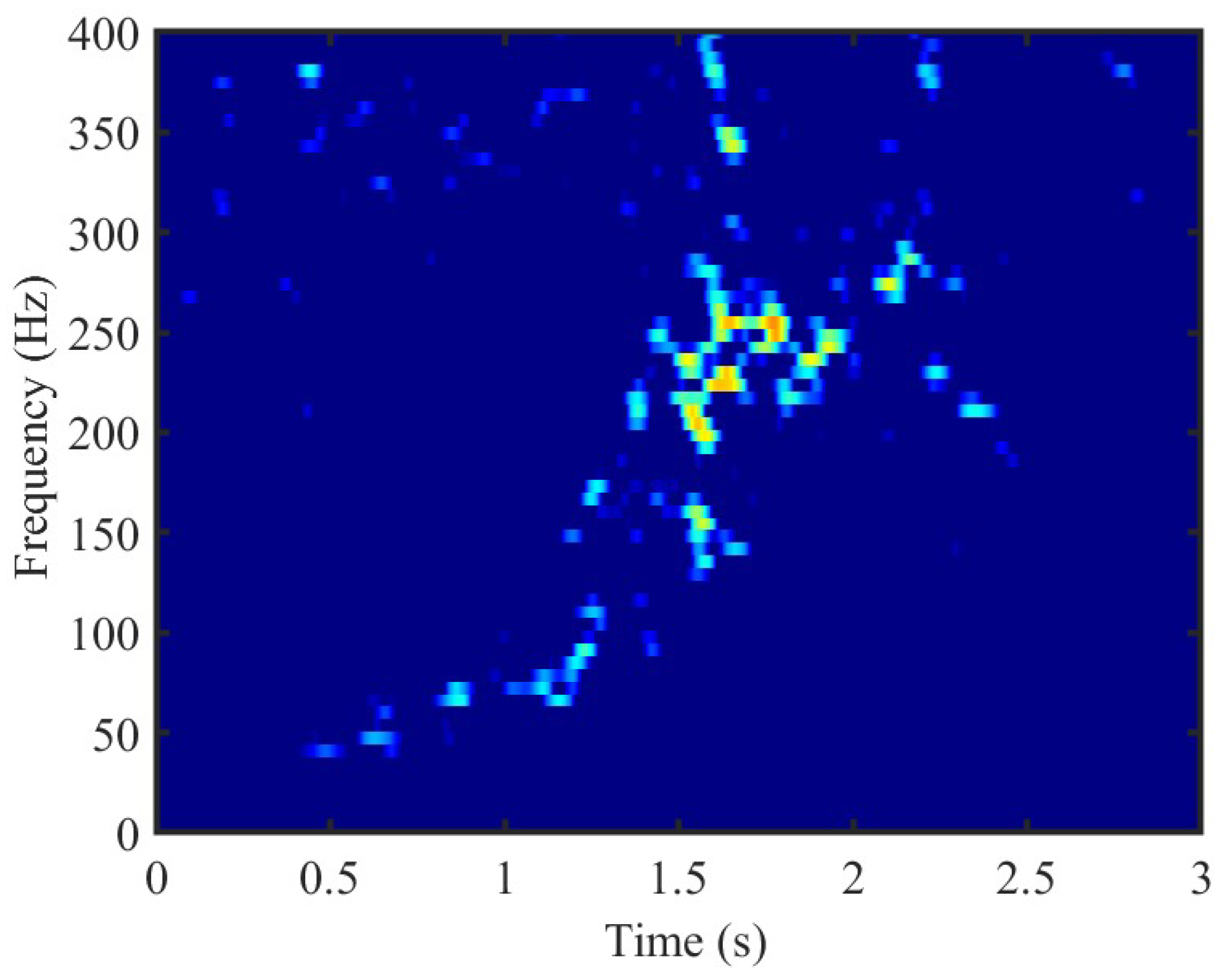

3.2.3. Time-Frequency

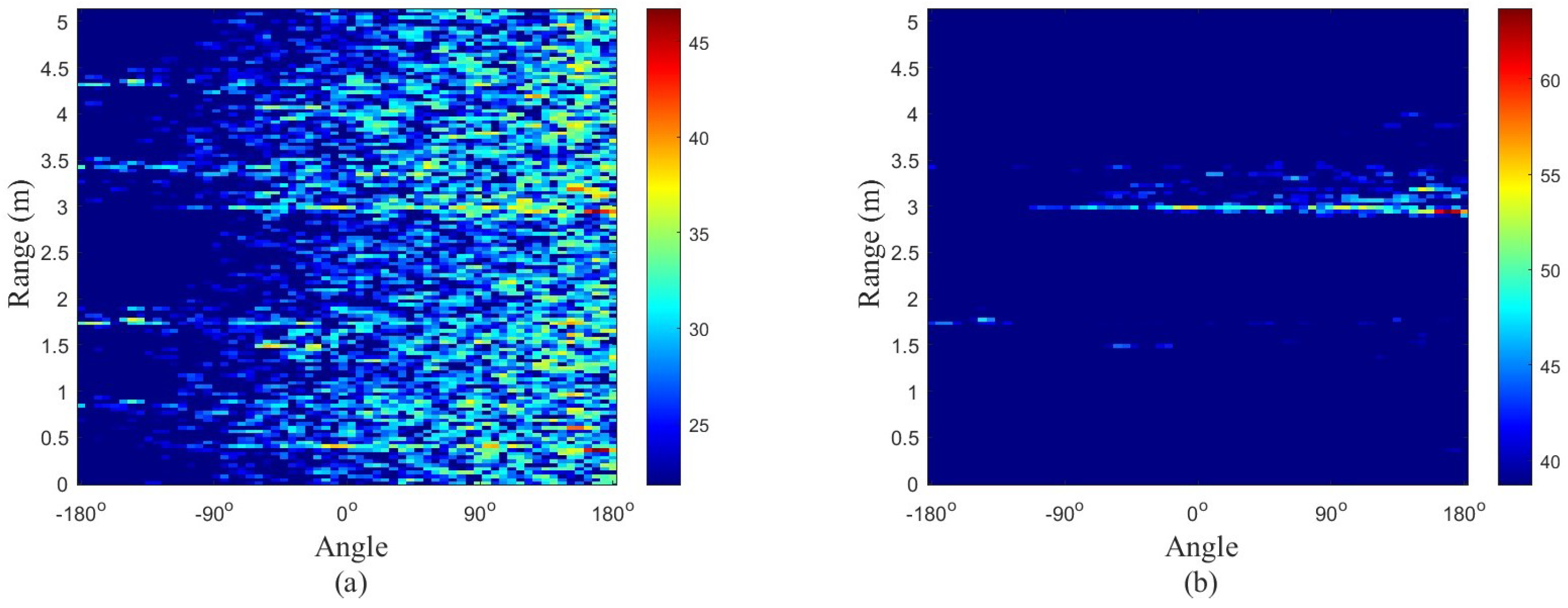

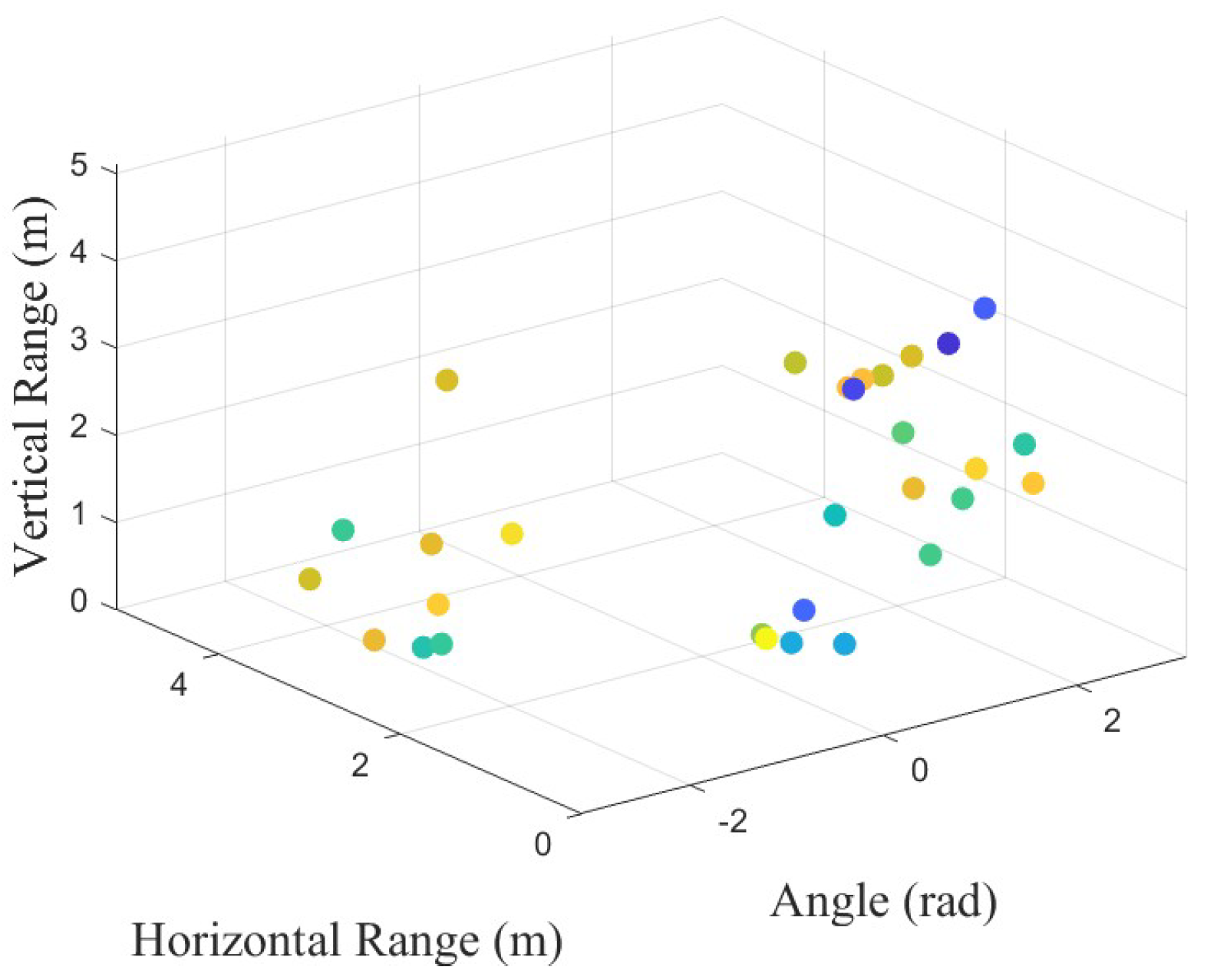

3.2.4. Range–Azimuth–Time

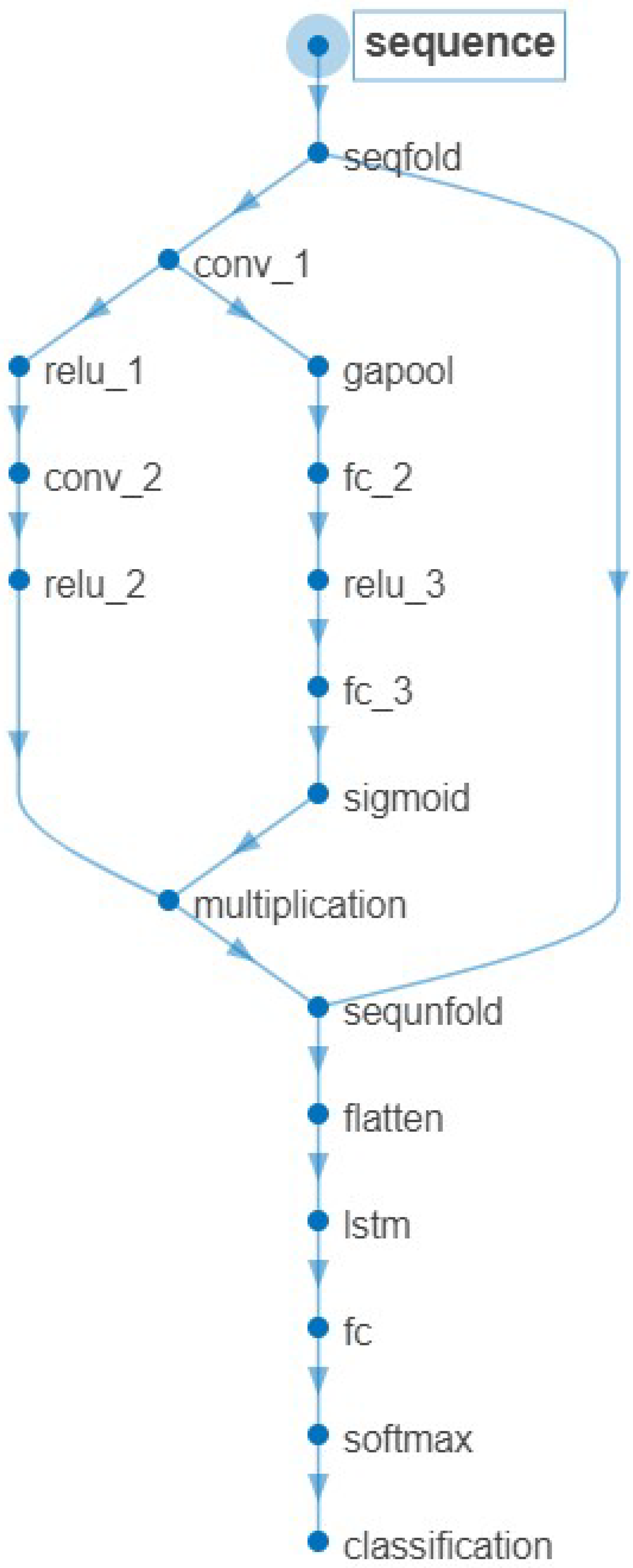

3.3. CNN-BiLSTM
Algorithm 2 CNN-BiLSTM() |
Input: FusionInput, KFoldNum Output: Fusion Feature Create CNN-BiLSTM Layers. Set CNN-BiLSTM Options. ; for do ; ; ; ; ; for do ; ; ; ; ; ; ; end for ; ; ; end for for do ; ; for do ; end for for do ; end for ; end for ; |

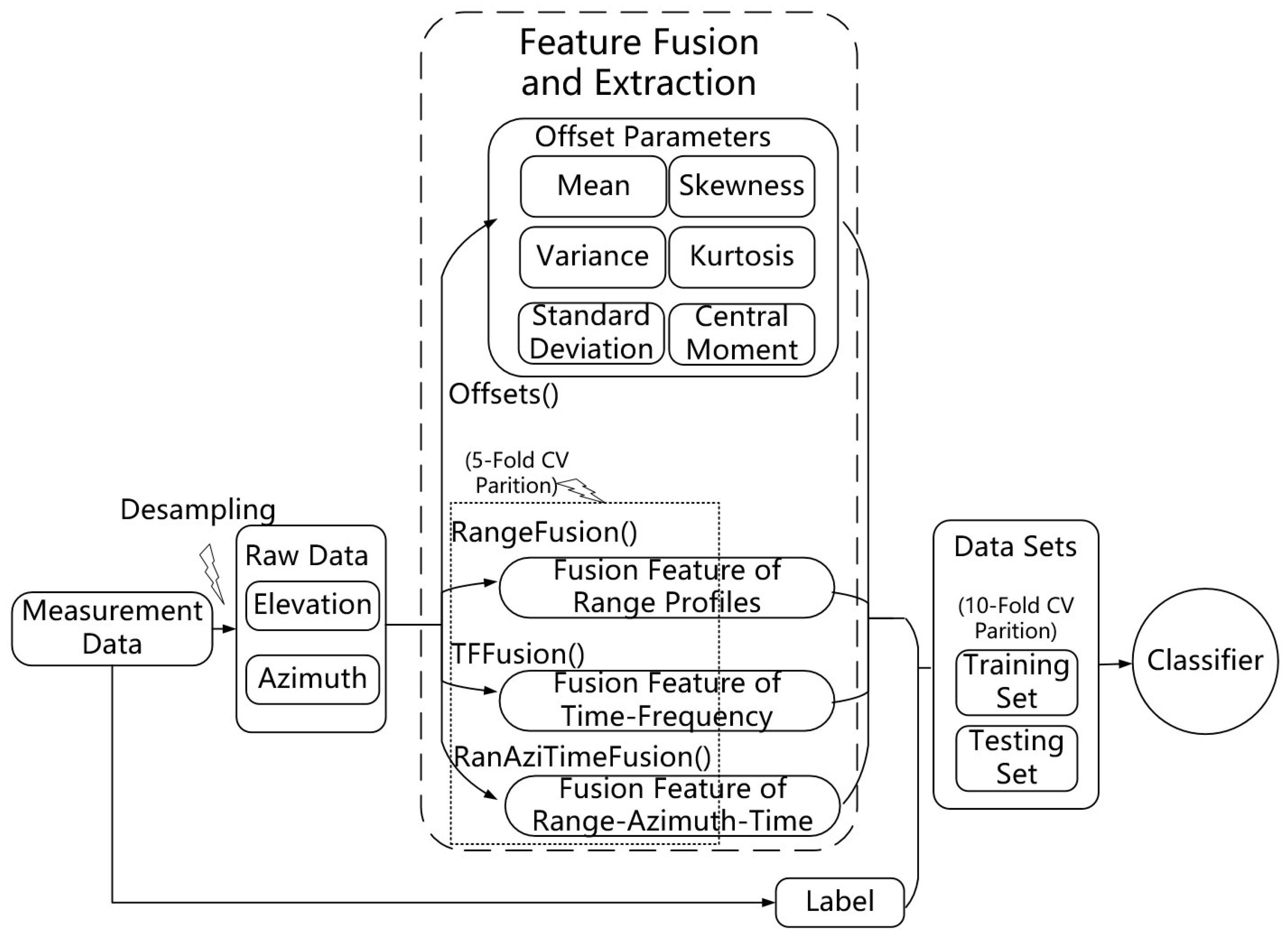

3.4. Method Framework
Algorithm 3 RangeFusion() |
Input: Elevation, Azimuth and Label of Sample Data, KFoldNum Output: Fusion Feature of Range Profiles of Samples Calculate Range Profiles of Elevation and Azimuth respectively. Calculate PCANet of Range Profiles of Samples via SVD. for do ; ; ; end for ; |
Algorithm 4 TFFusion() |
Input: Elevation, Azimuth and Label of Sample Data, KFoldNum, Frebin, TFWin Output: Fusion Feature of TF image of Samples ; ; Calculate PCANet of Range Profiles of Samples via SVD. for do ; ; ; end for ; |
Algorithm 5 RanAziTimeFusion() |
Input: Elevation, Azimuth and Label of Sample Data, KFoldNum Output: Fusion Feature of Range–Azimuth–Time Calculate Range–Azimuth–Time of Elevation and Azimuth, respectively. Calculate the PCANet of Range–Azimuth–Time. %PCAofRAT() for to do end for for to do end for |
4. Experimental Results and Analysis
4.1. Experiment Setup and Data Collection
4.2. Implement Details

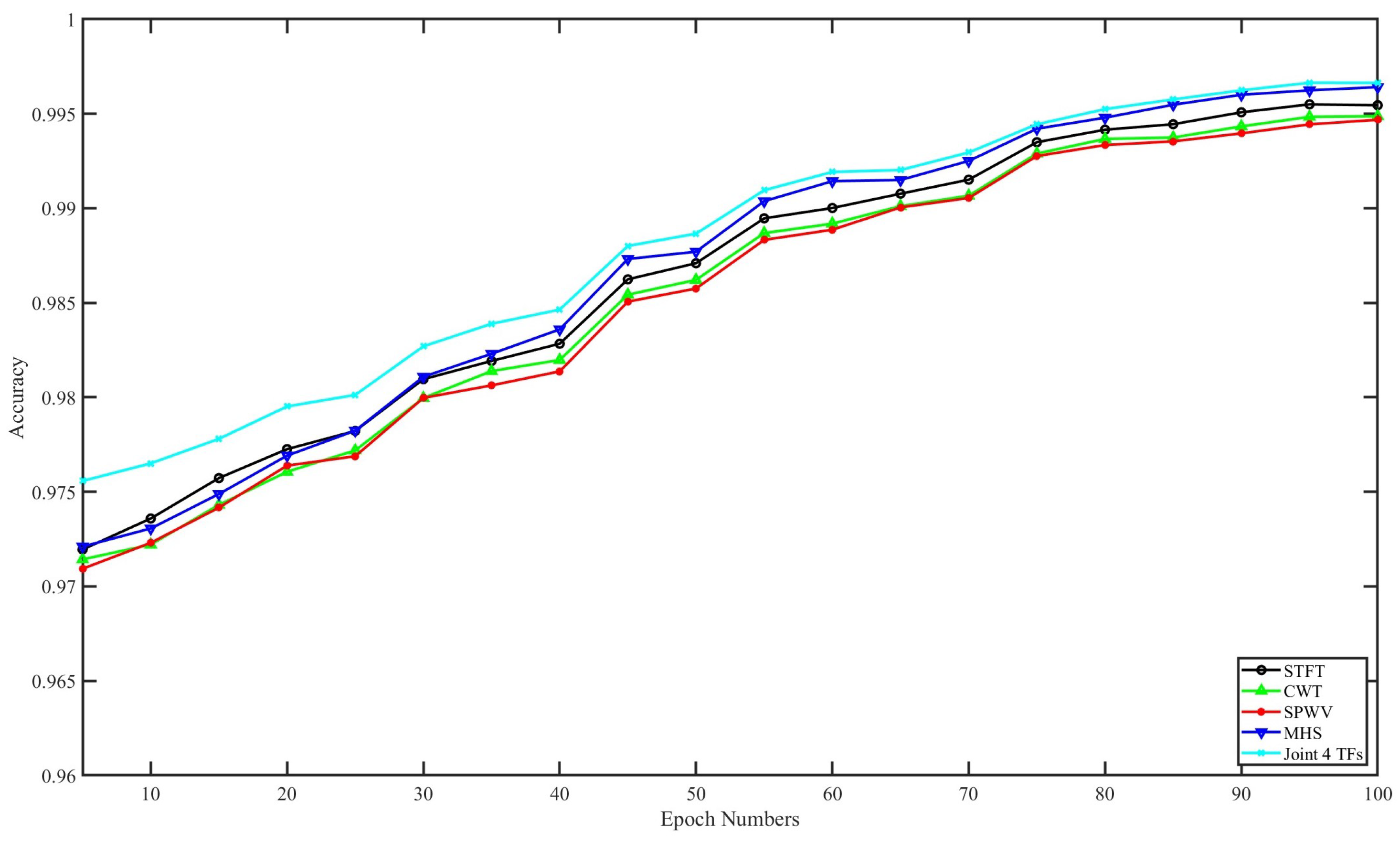

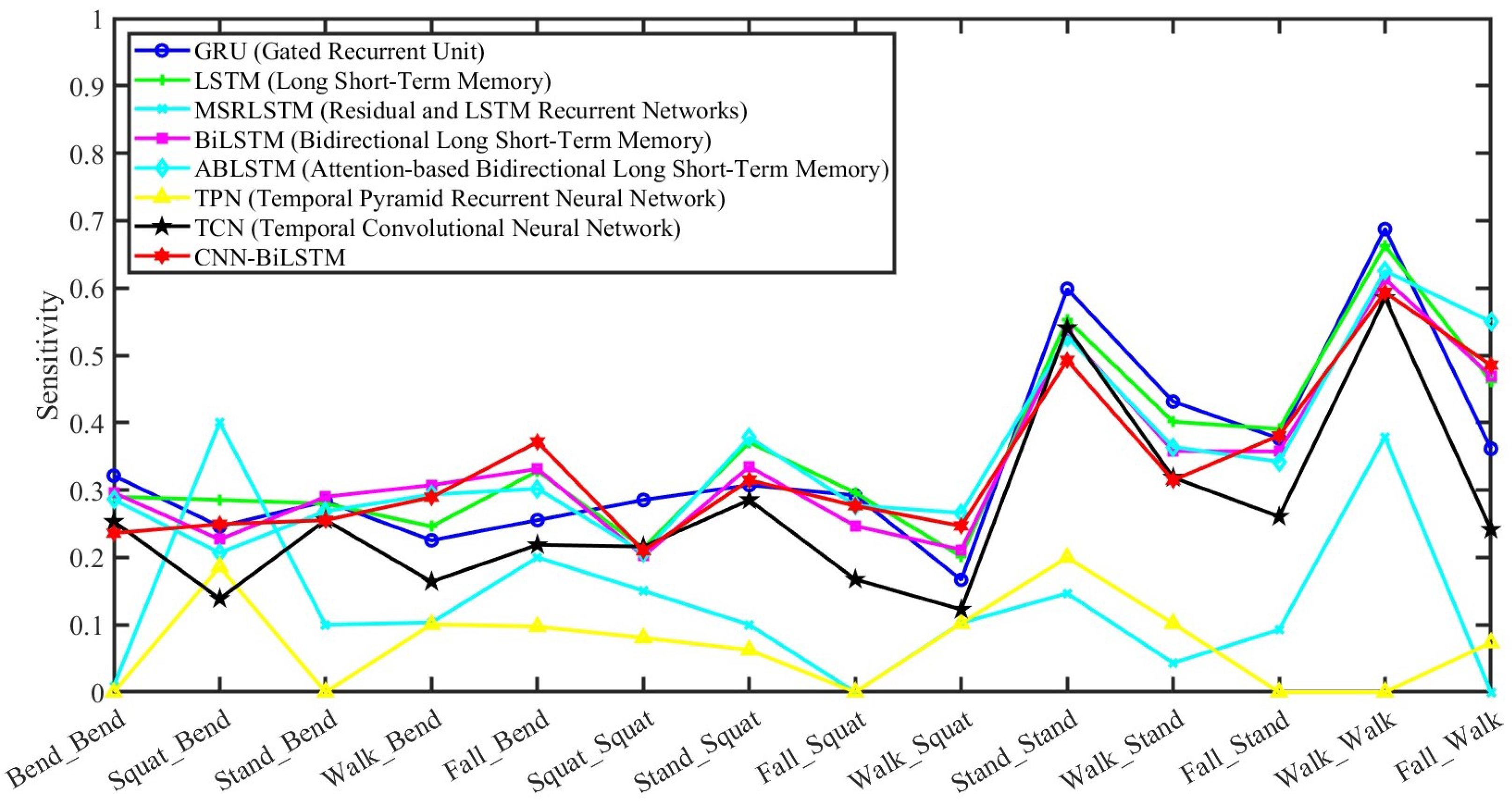

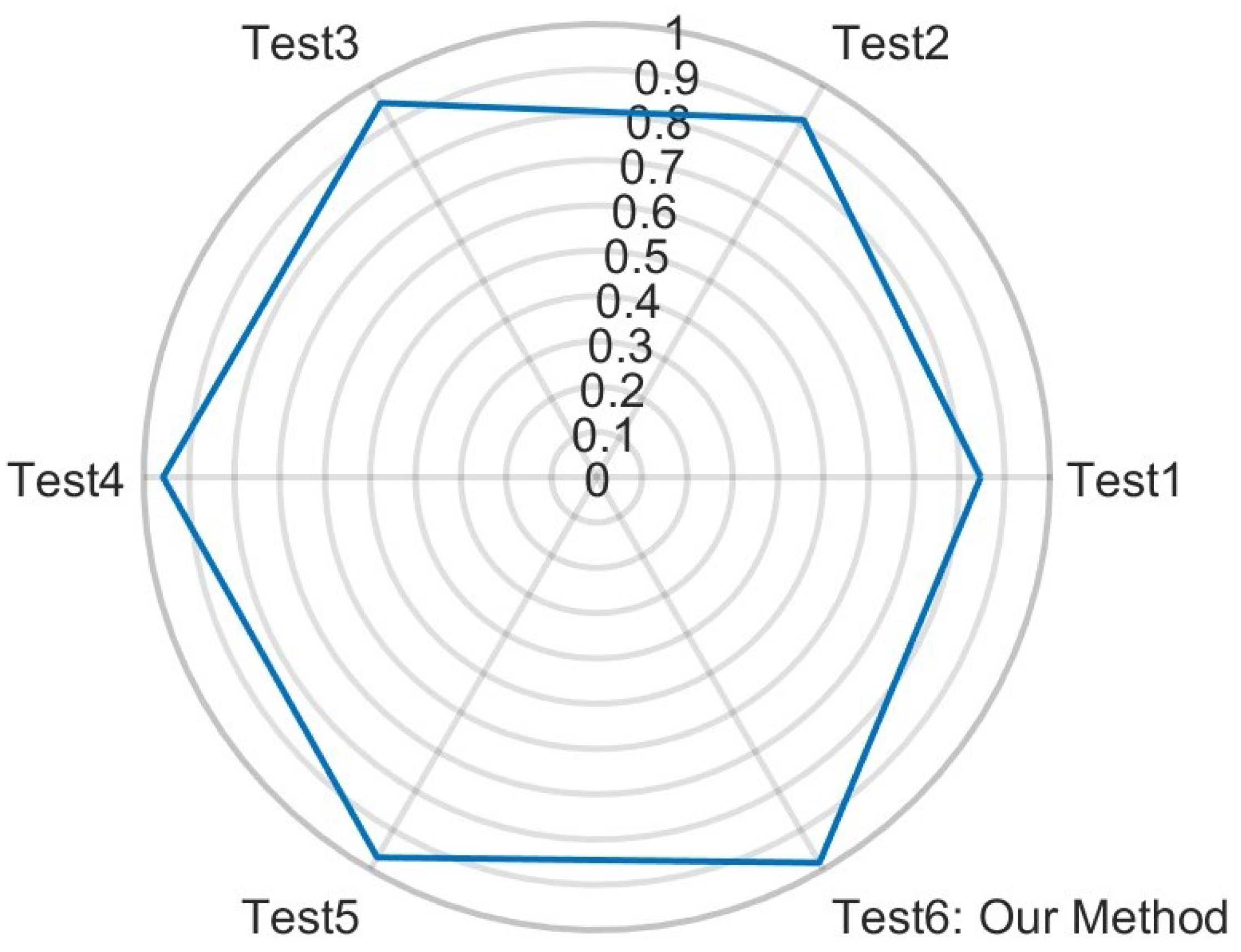

4.3. Performance Analysis
5. Conclusions and Future Works
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
Abbreviations
ABLSTM | Attention-based Bidirectional Long Short-term Memory |
BiLSTM | Bidirectional Long Short-term Memory |
CPI | Coherent Processing Interval |
CNN | Convolutional Neural Network |
CNN-BiLSTM | Convolutional Neural Network with Bidirectional Long Short-term Memory |
CW | Choi–Williams |
DQDA | Diagonal Quadratic Discriminant Analysis |
FFT | Fast Fourier Transform |
FoV | Radar Field of View |
GANs | Generative Adversarial Networks |
GRU | Gated Recurrent Unit |
LSTM | Long Short-term Memory |
MHS | Margenau–Hill Spectrogram |
mmWave | Millimeter Wave |
MSRLSTMs | Residual and Long Short-term Memory Recurrent Networks |
NB | Naïve Bayes |
PCA | Principal Component Analysis |
PCANet | Principal Component Analysis Network |
PQDA | Pseudo Quadratic Discriminant Analysis |
RF | Random Forest |
RNN | Recurrent Neural Network |
SNR | Signal-to-Noise Ratio |
STFT | Short-Time Fourier Transform |
SVD | Singular Value Decomposition |
SVM | Support Vector Machine |
TCN | Temporal Convolutional Neural Network |
TF | Time–Frequency |
TPN | Temporal Pyramid Recurrent Neural Network |
