Study on Temperature Response of Rubberized Concrete Pavement Based on Fiber Bragg Grating Testing Technology
Abstract
:1. Introduction
2. Objectives and Scope
3. Materials and Experiment Procedure
3.1. Materials
3.2. Pavement Structure

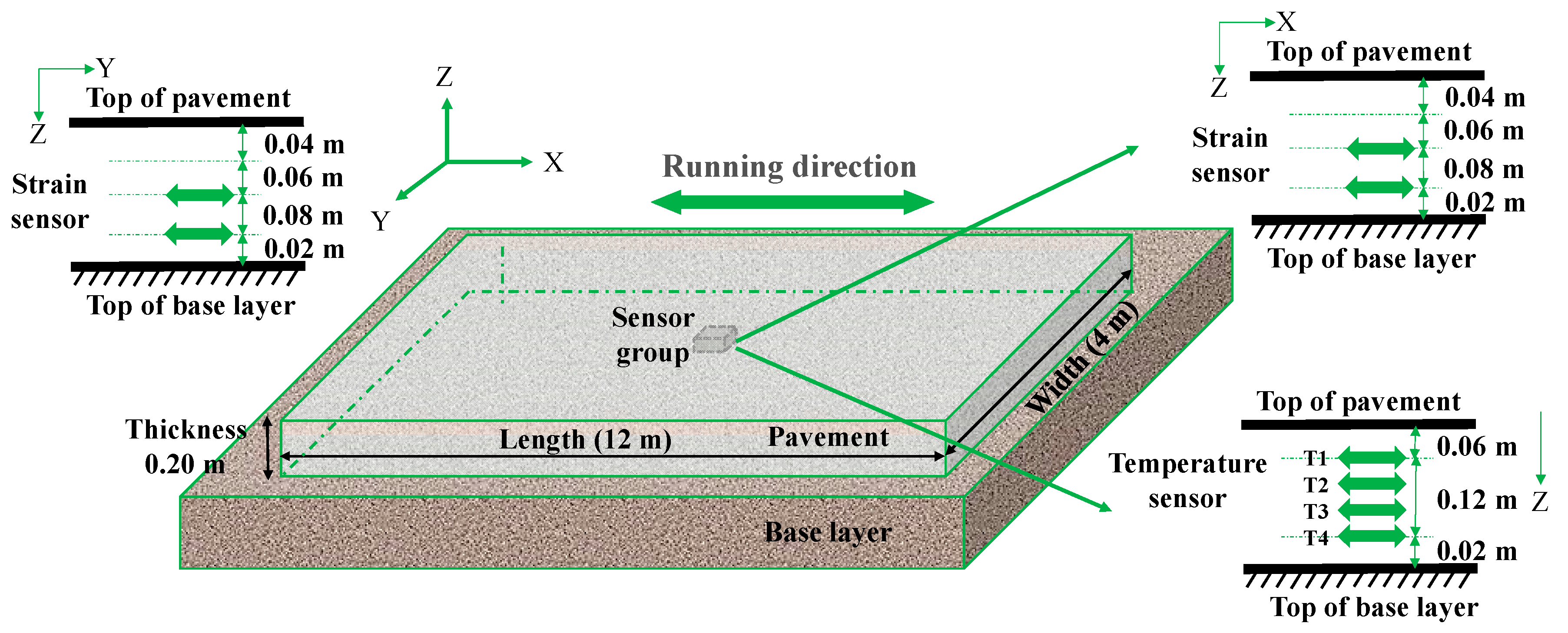

3.3. Sensor Parameters and Layout Scheme
3.4. Experiment Procedure
4. Results and Discussion
4.1. Temperature Field

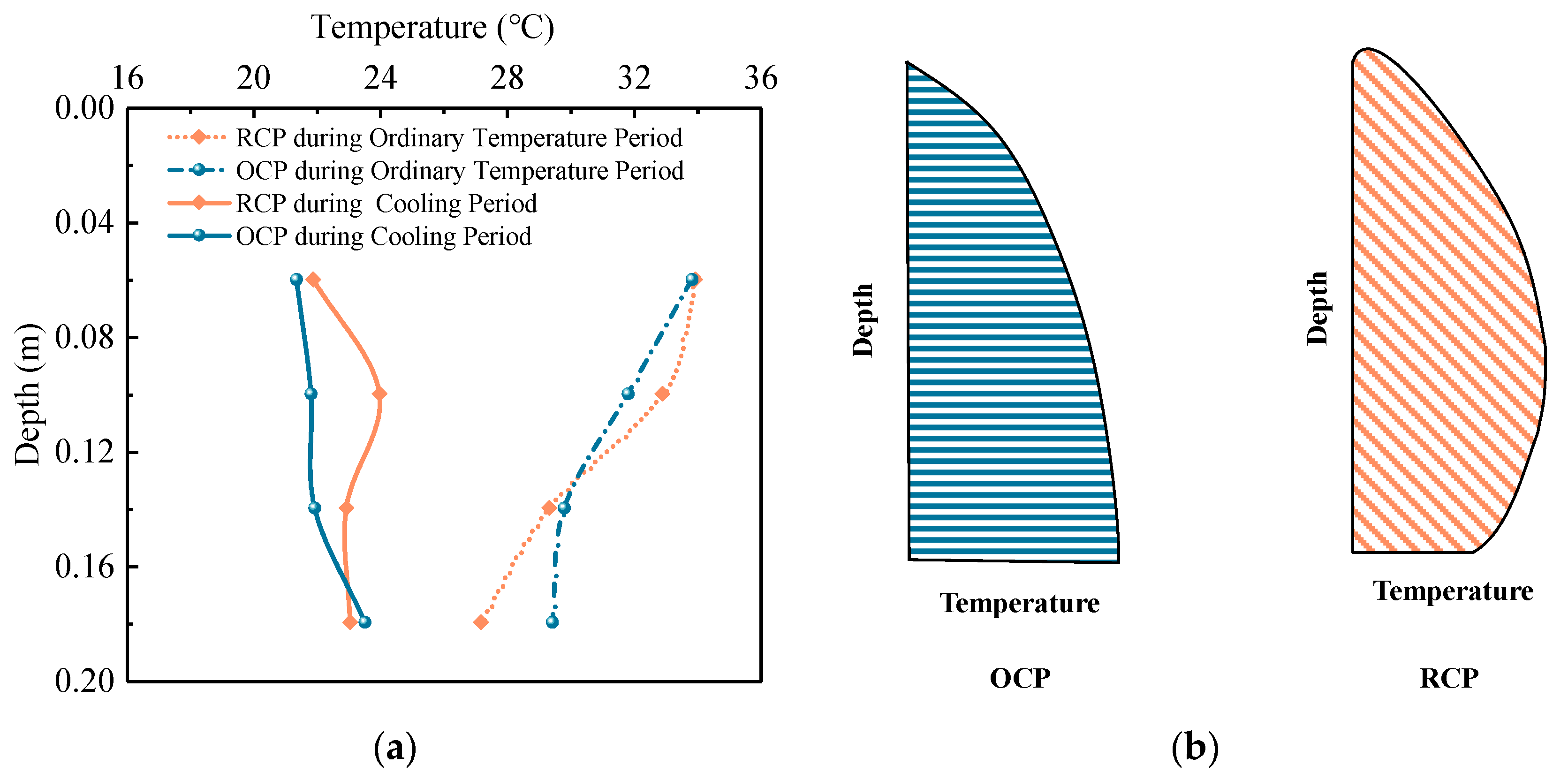

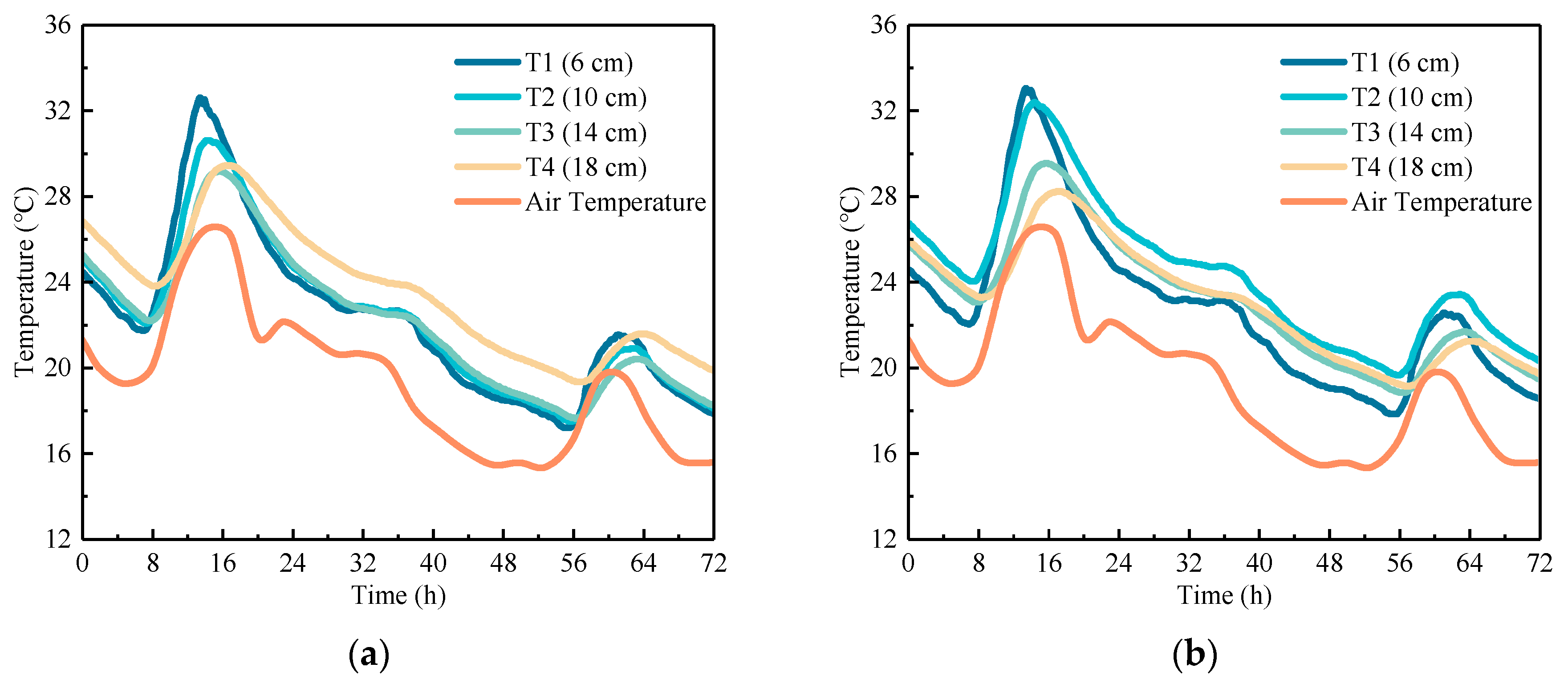

4.1.1. Temperature Distribution
4.1.2. Temperature Gradient

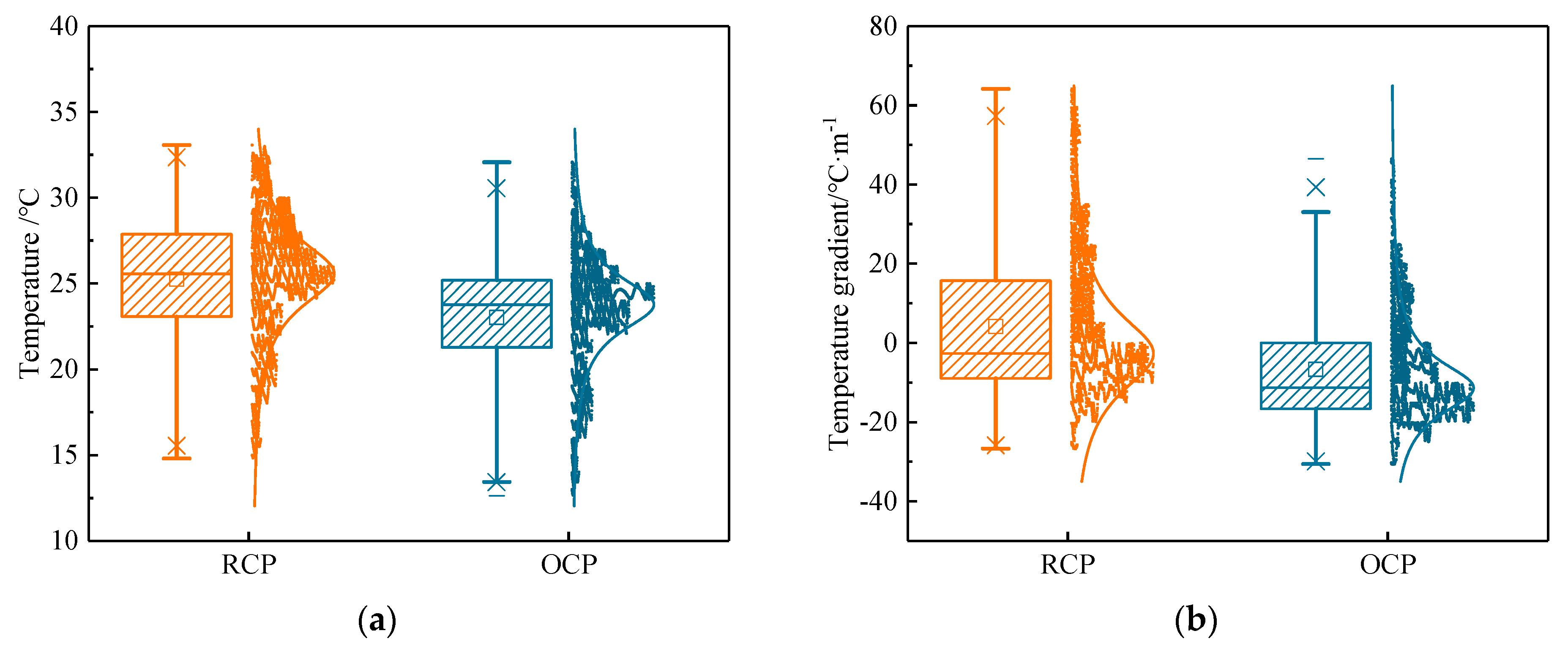

4.1.3. Statistical Distribution of Temperature Field
4.2. Temperature Strain and Effect
4.2.1. Temperature Strain
4.2.2. Temperature–Strain Effect
- (1)
- Temperature Expansion–contraction Effect
- (2)

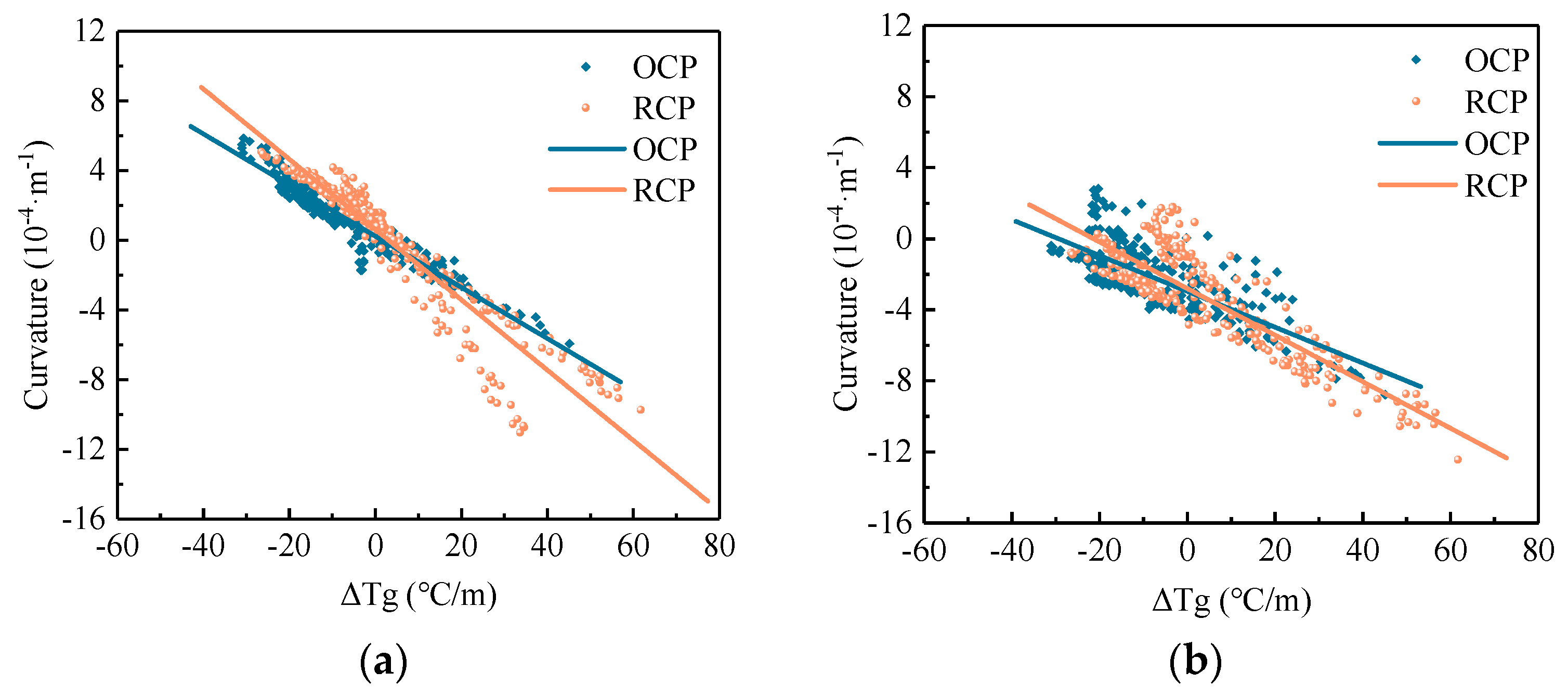

- Temperature Curling Effect

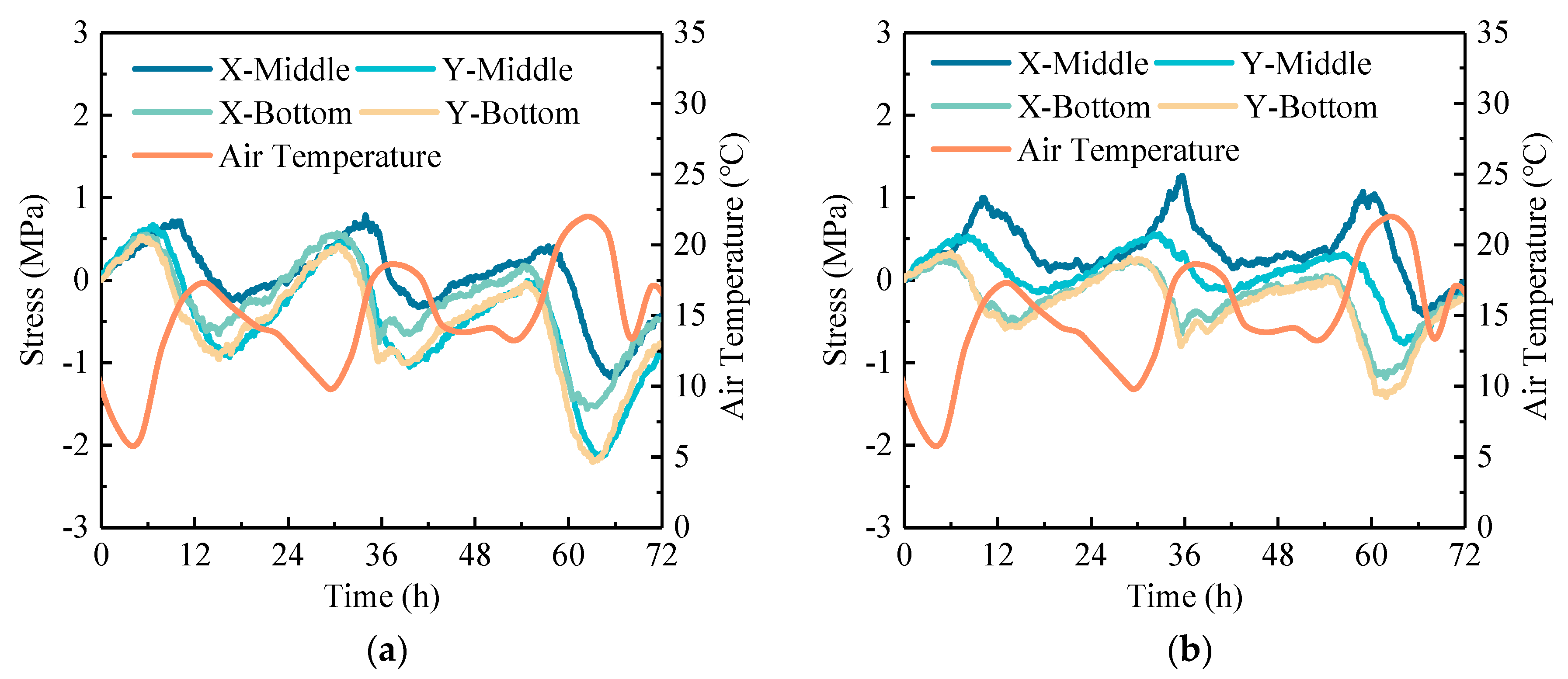

4.3. Temperature Stress
5. Conclusions
- (1)
- The daily temperature variation curve of the concrete pavement exhibits significant asymmetry, with the heating phase accounting for only one-third. The addition of rubber particles alters the temperature distribution of concrete pavement. Particularly during the cooling stage, RCP shows a significant “spindle-shaped” characteristic, where the temperature at the middle is higher than those at the top and bottom of the RCP. The positive temperature gradient of RCP is greater than that of OCP, its negative temperature gradient is smaller than that of OCP, and its median temperature gradient is 8.6 °C/m lower than that of OCP. Additionally, the proportions of negative temperature gradients of RCP and OCP are 56.88% and 66.85%, respectively.
- (2)
- The daily strain range at the middle of concrete pavement is greater than that at the bottom, and the addition of rubber particles will increase this phenomenon. Meanwhile, the addition of rubber aggregates makes the temperature–strain hysteresis effect more pronounced, makes the temperature–strain change along the x-axis large, and increases the curling curvature of concrete pavement slab. When the temperature rises by 10 °C, the x-axis strain of RCP is 1.11 times that of OCP. When the temperature gradient increases by 10 °C/m, the curvature change of RCP is about 1.3 times greater than that of OCP.
- (3)
- The addition of rubber particles reduces the daily stress range at the bottom of the concrete pavement, enabling RCP to bear greater temperature loads. Along the x-axis of the pavement, the daily stress range of RCP is 0.73 times that of OCP; along the y-axis of the pavement, the daily stress range of RCP is 0.64 times that of OCP.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Yuan, J.; Li, W.; Li, Y.; Ma, L.; Zhang, J. Fatigue models for airfield concrete pavement: Literature review and discussion. Materials 2021, 14, 6579. [Google Scholar] [CrossRef]
- Zhang, J.; Zhang, G.; Wang, Y.; Yuan, J. Mechanical behavior of doweled joints in concrete pavements: A review. J. Transp. Eng. Part B Pavements 2022, 148, 03122002. [Google Scholar] [CrossRef]
- Yao, A.; Ding, H.; Zhang, X.; Hu, Z.; Hao, R.; Yang, T. Optimum design and performance of porous concrete for heavy-load traffic pavement in cold and heavy rainfall region of NE China. Adv. Mater. Sci. Eng. 2018, 2018, 7082897. [Google Scholar] [CrossRef]
- Nam, B.H. In-situ super accelerated pavement test for the fatigue evaluation of in-service airfield rigid pavement-A case study at Mecham Airport. Constr. Build. Mater. 2022, 353, 129115. [Google Scholar] [CrossRef]
- Suparp, S.; Ali, N.; Al Zand, A.W.; Chaiyasarn, K.; Rashid, M.U.; Yooprasertchai, E.; Hussain, Q.; Joyklad, P. Axial load enhancement of lightweight aggregate concrete (LAC) using environmentally sustainable composites. Buildings 2022, 12, 851. [Google Scholar] [CrossRef]
- Wei, Y.; Gao, X.; Wang, F.; Zhong, Y. Nonlinear strain distribution in a field-instrumented concrete pavement slab in response to environmental effects. Road Mater. Pavement Des. 2019, 20, 367–380. [Google Scholar] [CrossRef]
- Zhao, H.; Ma, L.; Zhang, J. Effects of temperature variations on the deflections of airfield jointed plain concrete pavements. Int. J. Transp. Sci. Technol. 2018, 7, 179–188. [Google Scholar] [CrossRef]
- Nantasai, B.; Nassiri, S. Winter temperature prediction for near-surface depth of pervious concrete pavement. Int. J. Pavement Eng. 2019, 20, 820–829. [Google Scholar] [CrossRef]
- Liang, R.Y.; Niu, Y.Z. Temperature and curling stress in concrete pavements: Analytical solutions. J. Transp. Eng. 1998, 124, 91–100. [Google Scholar] [CrossRef]
- Zhang, G.; Zhang, J.; Yuan, J.; Ye, S. Horizontal distribution of temperature effect in rubberized concrete pavement: A case study. Buildings 2023, 13, 686. [Google Scholar] [CrossRef]
- Quan, L.; Tian, B.; Chen, L. Experimental investigation of built-in curling evolution in full scale concrete pavement. J. Highw. Transp. Res. Dev. 2017, 34, 1–8. [Google Scholar]
- Liao, W.; Zhuang, Y.; Zeng, C.; Deng, W.; Huang, J.; Ma, H. Fiber optic sensors enabled monitoring of thermal curling of concrete pavement slab: Temperature, strain and inclination. Measurement 2020, 165, 108203. [Google Scholar] [CrossRef]
- Guo, S.; Dai, Q.; Si, R.; Sun, X.; Lu, C. Evaluation of properties and performance of rubber-modified concrete for recycling of waste scrap tire. J. Clean. Prod. 2017, 148, 681–689. [Google Scholar] [CrossRef]
- Roychand, R.; Gravina, R.J.; Zhuge, Y.; Ma, X.; Youssf, O.; Mills, J.E. A comprehensive review on the mechanical properties of waste tire rubber concrete. Constr. Build. Mater. 2020, 237, 117651. [Google Scholar] [CrossRef]
- Mubaraki, M.; Abd-Elhady, A.; Sallam, H. Mixed mode fracture toughness of recycled tire rubber-filled concrete for airfield rigid pavements. Int. J. Pavement Res. Technol. 2013, 6, 8–14. [Google Scholar]
- Fiore, A.; Marano, G.C.; Marti, C.; Molfetta, M. On the fresh/hardened properties of cement composites incorporating rubber particles from recycled tires. Adv. Civ. Eng. 2014, 2014, 876158. [Google Scholar] [CrossRef]
- Zhu, H.; Jiao, X.; Li, J.; Liao, M.; Tang, B. Analysis and calculation of ratio of length to thickness of crumb rubber concrete airport pavement slab. J. Shijiazhuang Tiedao Univ. (Nat. Sci. Ed.) 2019, 32, 44–50. [Google Scholar]
- Zhang, G.; Yuan, J.; Zhang, J.; Xu, W. Variation characteristics of temperature field of rubber concrete pavement. J. Chang’an Univ. (Nat. Sci. Ed.) 2023, 43, 16–25. [Google Scholar]
- Sukontasukkul, P. Use of crumb rubber to improve thermal and sound properties of pre-cast concrete panel. Constr. Build. Mater. 2009, 23, 1084–1092. [Google Scholar] [CrossRef]
- Ocholi, A.; Ejeh, S.P.; Yinka, S.M. An investigation into the thermal performance of rubber-concrete. Acad. J. Interdiscip. Stud. 2014, 3, 29–38. [Google Scholar]
- Chen, J.; Wang, H.; Xie, P. Pavement temperature prediction: Theoretical models and critical affecting factors. Appl. Therm. Eng. 2019, 158, 113755. [Google Scholar] [CrossRef]
- Xue, G.; Sun, L.; Pei, Z. Analysis of structural mechanics response of rubber concrete pavement under temperature gradient. J. Inn. Mong. Univ. Sci. Technol. 2019, 38, 380–388. [Google Scholar]
- Ferretti, E. Waste tire rubberized concrete plates for airport pavements: Stress and strain profiles in time and space domains. Comput. Mater. Contin. 2012, 27, 231–273. [Google Scholar]
- Rao, S.; Roesler, J.R. Characterizing effective built-in curling from concrete pavement field measurements. J. Transp. Eng. 2005, 131, 320–327. [Google Scholar] [CrossRef]
- Oh, H.J.; Cho, Y.K.; Seo, Y.; Kim, S.M. Experimental analysis of curling behavior of continuously reinforced concrete pavement. Constr. Build. Mater. 2016, 128, 57–66. [Google Scholar] [CrossRef]
- Wang, J.; Han, Y.; Cao, Z.; Xu, X.; Zhang, J.; Xiao, F. Applications of optical fiber sensor in pavement Engineering: A review. Constr. Build. Mater. 2023, 400, 132713. [Google Scholar] [CrossRef]
- Zhou, Z.; Liu, W.; Huang, Y.; Wang, H.; He, J.; Huang, M.; Ou, J. Optical fiber Bragg grating sensor assembly for 3D strain monitoring and its case study in highway pavement. Mech. Syst. Signal Process. 2012, 28, 36–49. [Google Scholar] [CrossRef]
- Kashaganova, G.; Kozbakova, A.; Kartbayev, T.; Balbayev, G.; Togzhanova, K.; Alimseitova, Z.; Orazaliyeva, S. Research of a fiber sensor based on fiber Bragg grating for road surface monitoring. Electronics 2023, 12, 2491. [Google Scholar] [CrossRef]
- JTG 3420-2020; Testing Methods of Cement and Concrete for Highway Engineering. China Ministry of Transport: Beijing, China, 2020.
- Janssen, D.J.; Snyder, M.B. Temperature-moment concept for evaluating pavement temperature data. J. Infrastruct. Syst. 2000, 6, 81–83. [Google Scholar] [CrossRef]
- Ling, J.; Liu, H.; Shi, R.; Yang, F.; Tang, L. Effect of diurnal temperature variations on airport cement pavement. J. Tongji Univ. (Nat. Sci.) 2022, 50, 1171–1179. [Google Scholar]
- Asbahan, R.E.; Vandenbossche, J.M. Effects of temperature and moisture gradients on slab deformation for jointed plain concrete pavements. J. Transp. Eng. 2011, 137, 563–570. [Google Scholar] [CrossRef]
- Tian, B.; Quan, L.; Niu, K. Structural experiment and theoretical analysis of thermal curling in JPCP with different base types. China J. Highw. Transp. 2014, 27, 17–26. [Google Scholar]
- Xu, J.; Hong, J.; Wan, Y.; Liu, J. Influence of rubber on thermal performance of concrete. Concrete 2009, 9, 92–94. [Google Scholar]
Properties | Specification |
---|---|
Rubber powder size (mesh) | 30–60 |
Organic matter (%) | 67.21 |
Inorganic content (%) | 32.79 |
Contact angle (°) | 0 |
Type | Cement | Water | Rubber Powder | Sand | Aggregate (5–10 mm) | Aggregate (10–19 mm) | Aggregate (19–37.5 mm) | Water-Reducing Agent |
---|---|---|---|---|---|---|---|---|
Rubberized cement concrete | 405 | 162 | 110 | 358 | 410 | 410 | 546 | 5.7 |
Ordinary cement concrete | 405 | 162 | -- | 616 | 410 | 410 | 546 | 5.7 |
Test Items | Test Value | Standard Method (Specification) | |
---|---|---|---|
Rubberized Cement Concrete | Ordinary Cement Concrete | ||
Flexural-tensile strength (MPa) | 5.0 | 6.1 | JTG 3420-2020 [29] |
Compressive strength (MPa) | 36.5 | 47.9 | JTG 3420-2020 [29] |
Elasticity modulus (MPa) | 36,700 | 44,000 | JTG 3420-2020 [29] |
Parameter Type | Temperature Sensor | Strain Sensor |
---|---|---|
Measuring range | −40–200 °C | −1500 × 10−6–1000 × 10−6 |
Distinguishability | 0.1%F.S | 0.1%F.S |
Reflectivity | ≥90% | ≥90% |
Operating wavelength range * | 1510–1590 nm | 1510–1590 nm |
Properties | Specification |
---|---|
Wavelength resolution | 1 pm |
Wavelength accuracy | ±1 pm |
Sampling frequency | 1−100 Hz |
Dynamic range | 50 dB |
Wavelength range | 1510–1590 nm |
Axis Type | OCP | RCP | ||||
---|---|---|---|---|---|---|
Slope | Intercept | R2 | Slope | Intercept | R2 | |
x-axis | 9.29 | 11.44 | 0.85 | 10.29 | 5.93 | 0.84 |
y-axis | 7.47 | 28.03 | 0.94 | 7.70 | 27.37 | 0.95 |
Axis Type | OCP | RCP | ||||
---|---|---|---|---|---|---|
Slope | Intercept | R2 | Slope | Intercept | R2 | |
x-axis | −1.47 × 10−5 | 2.26 × 10−5 | 0.93 | −2.02 × 10−5 | 6.23 × 10−5 | 0.90 |
y-axis | −1.01 × 10−5 | −2.99 × 10−4 | 0.57 | −1.31 × 10−5 | −2.83 × 10−4 | 0.74 |
