Quantification of the Uncertainty in Ultrasonic Wave Speed in Concrete: Application to Temperature Monitoring with Embedded Transducers
Abstract
:1. Introduction
2. Materials and Methods

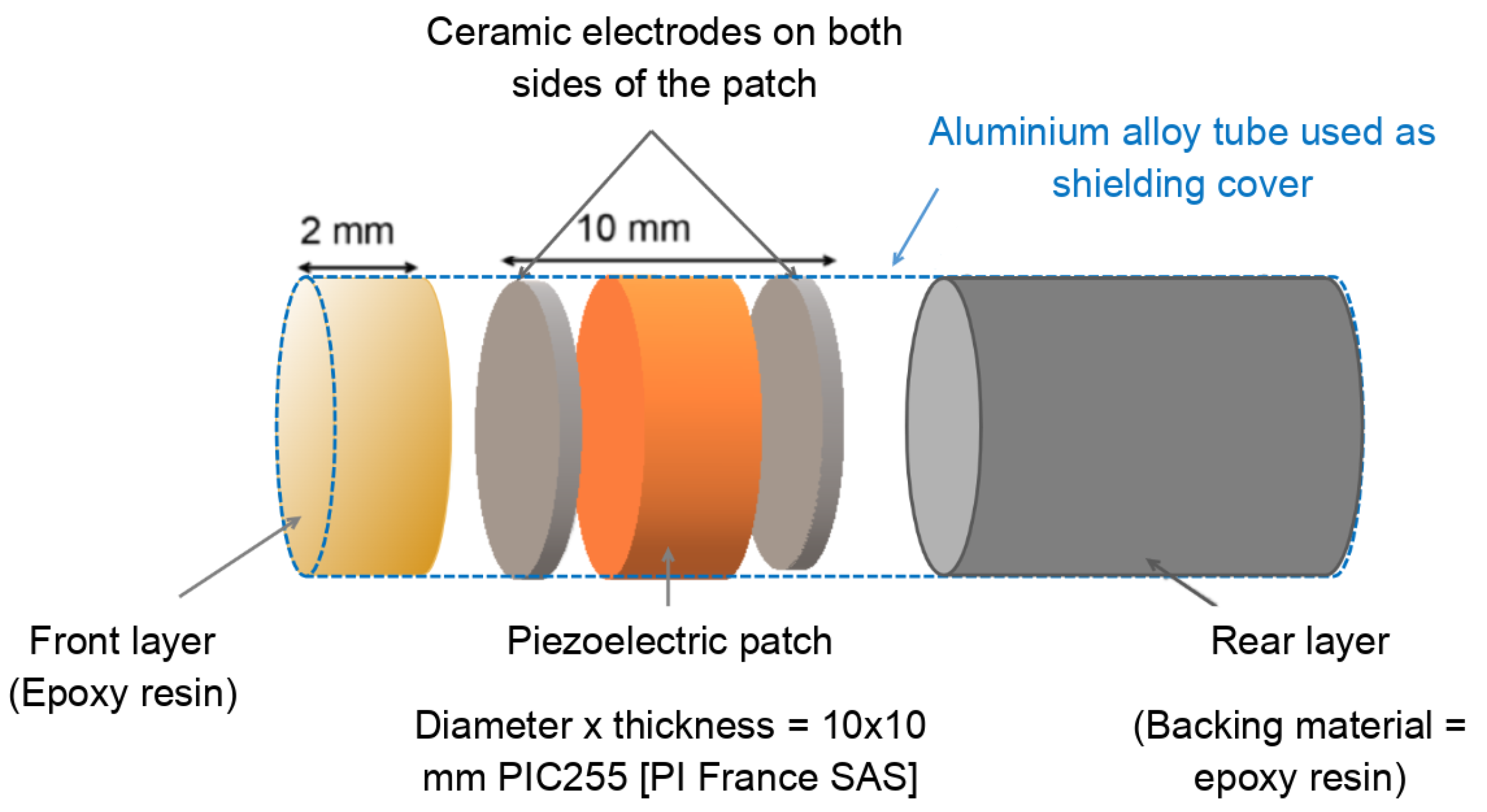

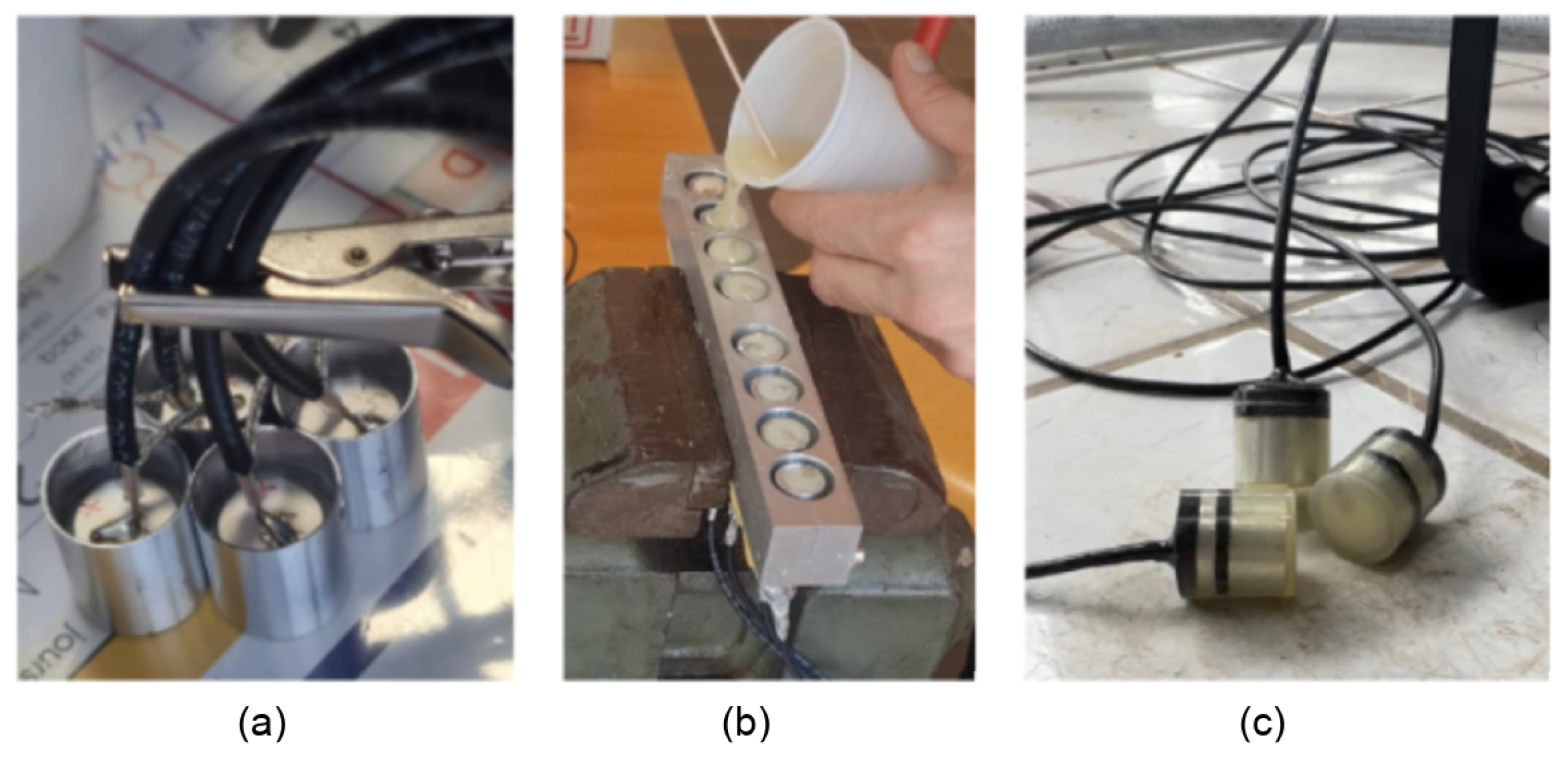

2.1. Fabrication of an Ultrasonic Transducer to Be Embedded in Concrete

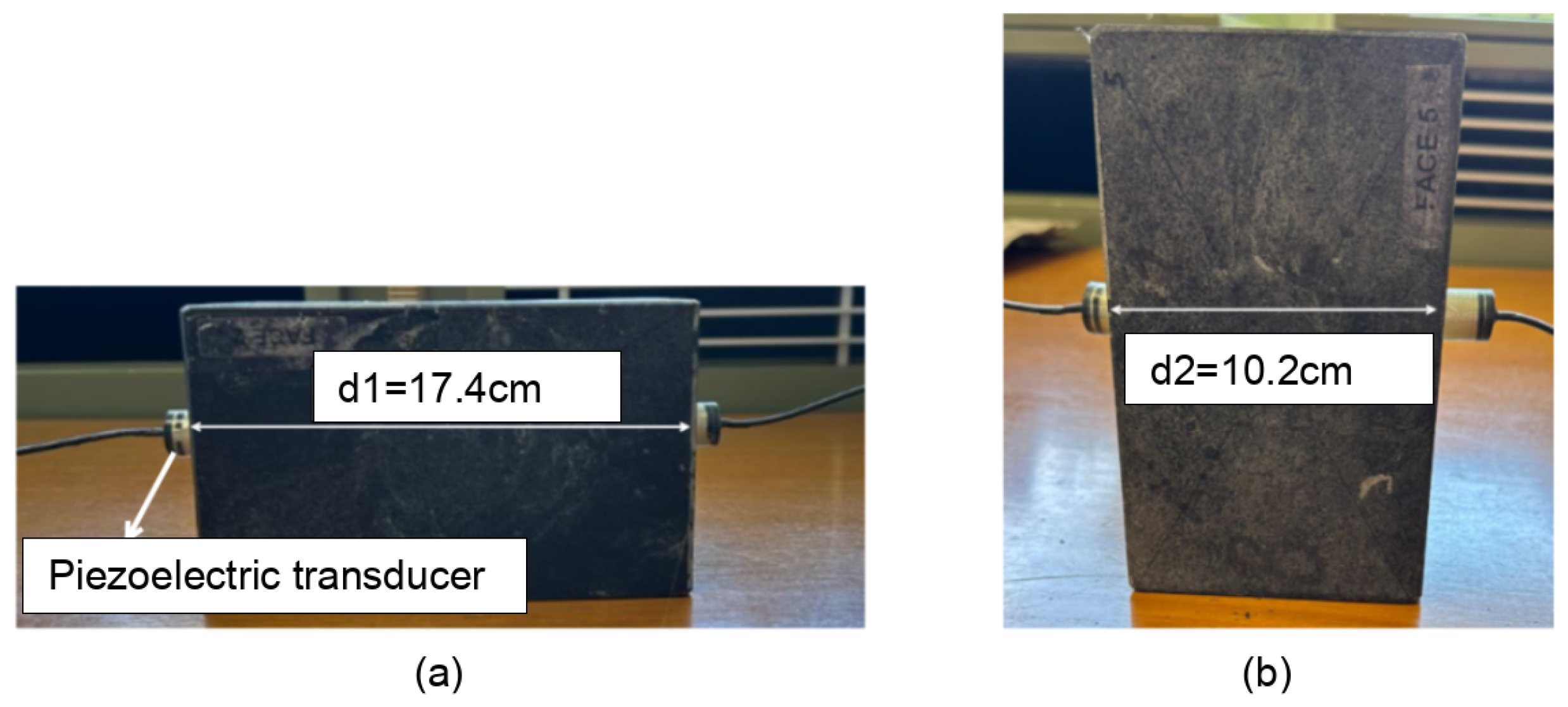

2.2. Validation and Calibration of Piezoelectric Transducers

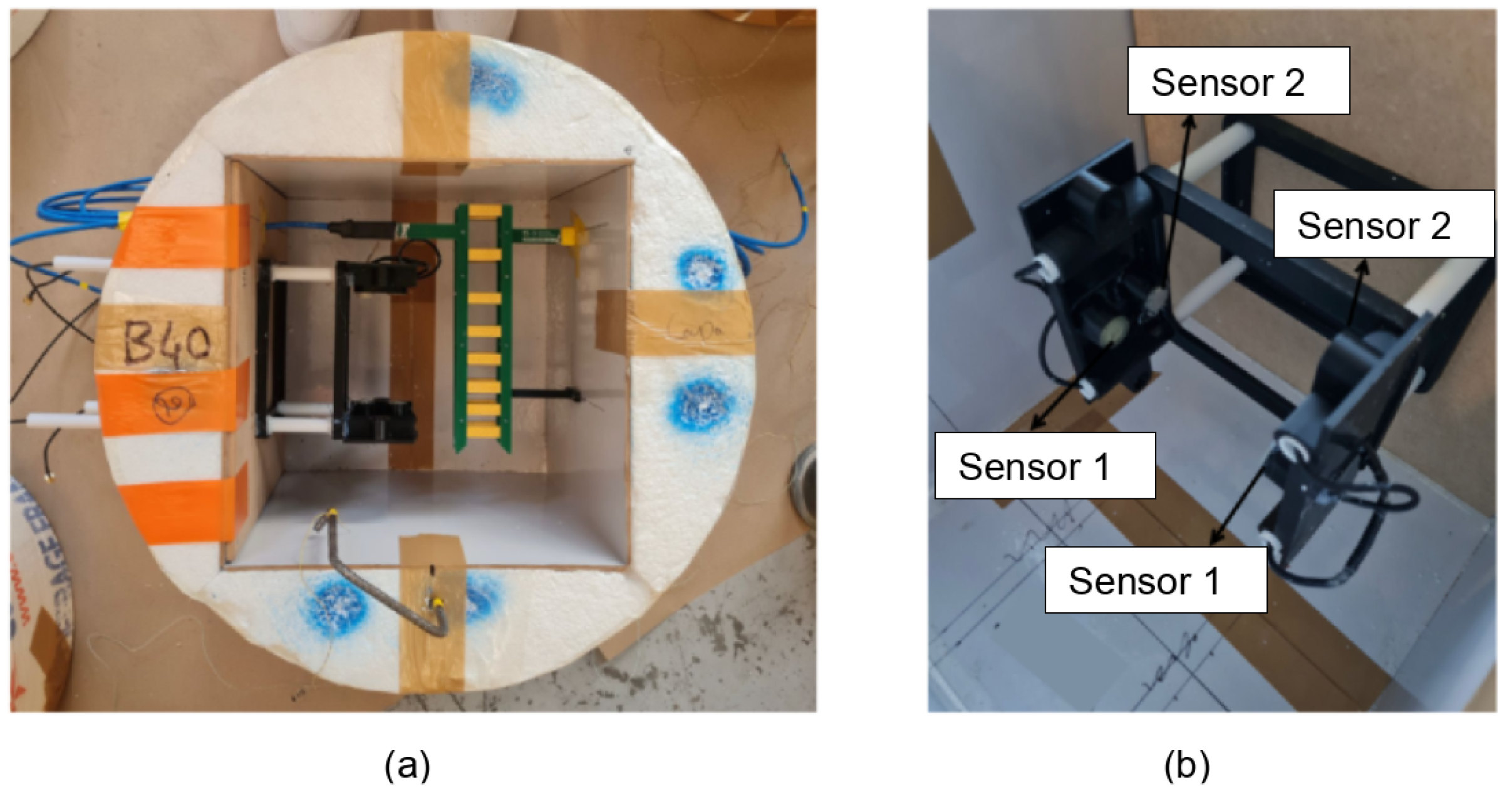

2.3. Concrete Specimens with Embedded Transducers

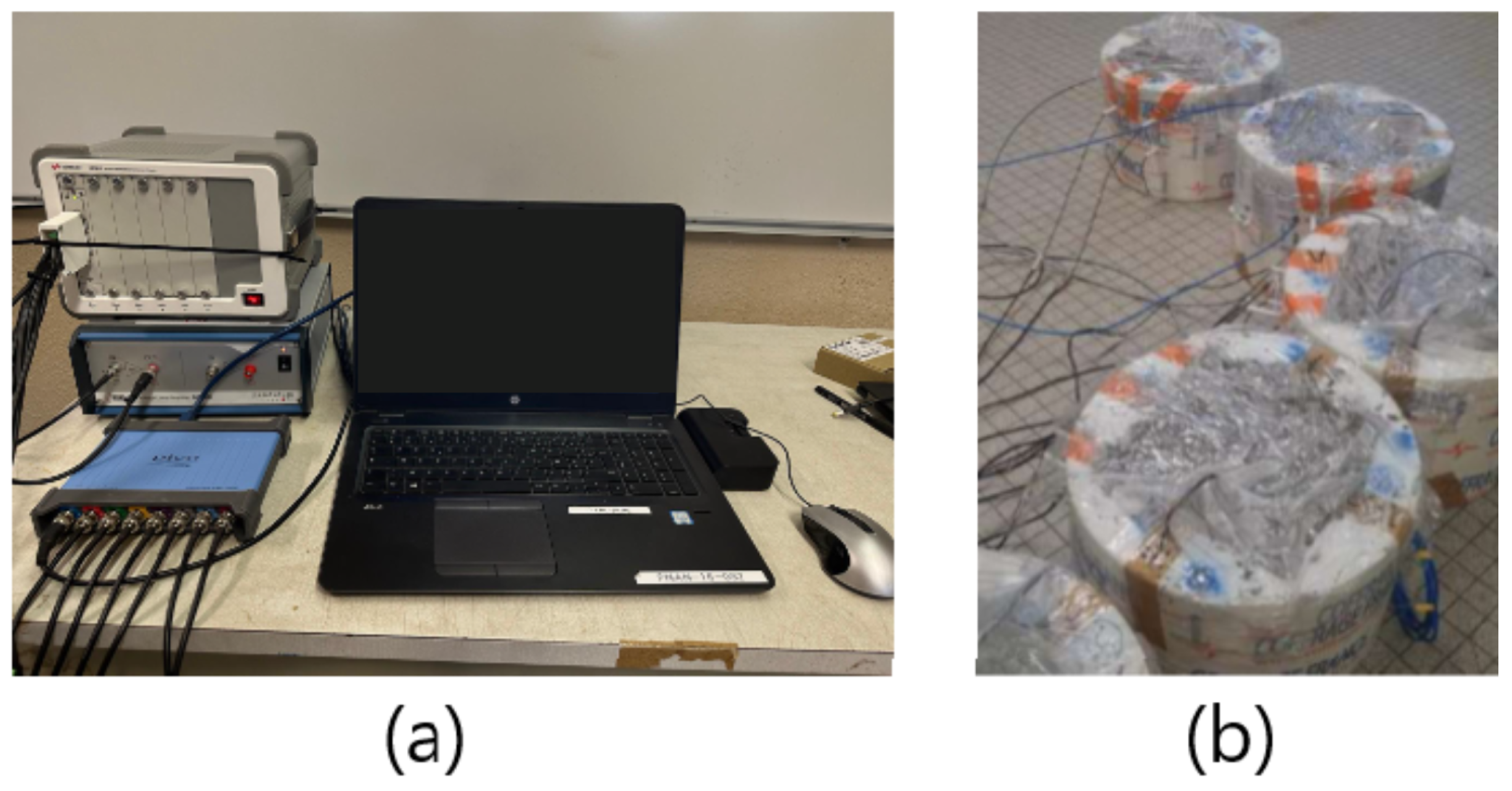

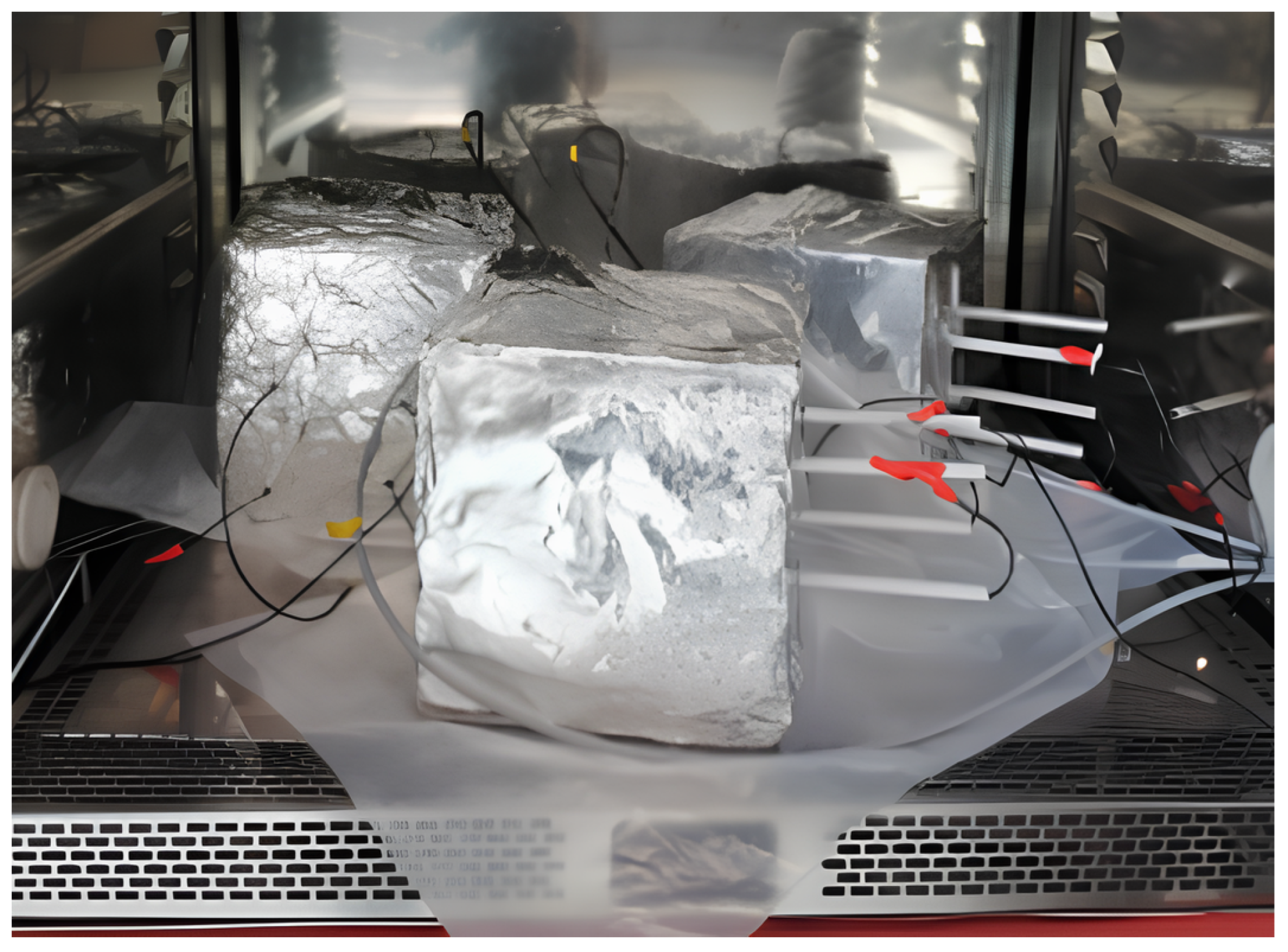

2.4. Conditioning Temperature and Monitoring System

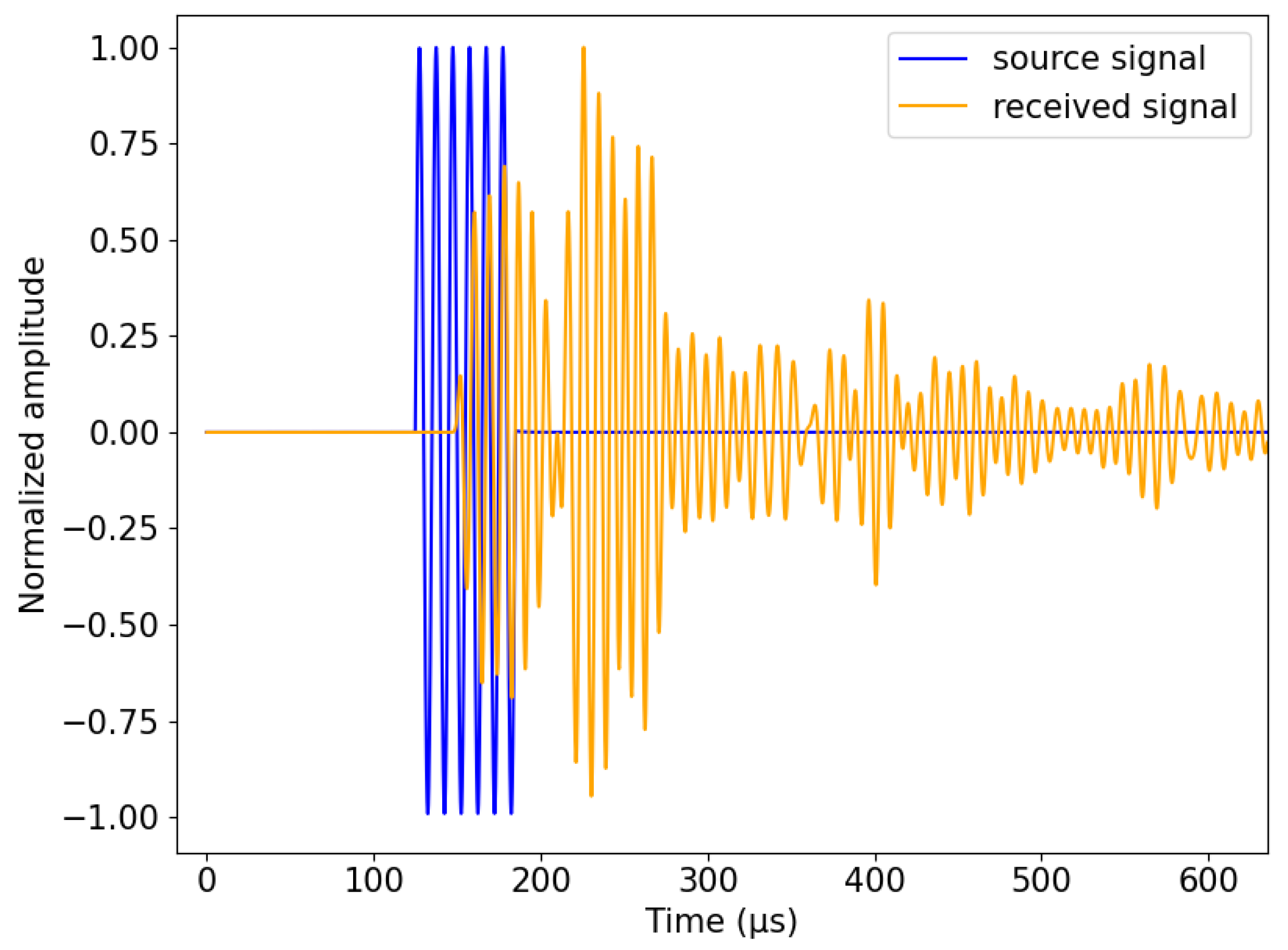

2.5. Signal Processing for Travel Time Estimation

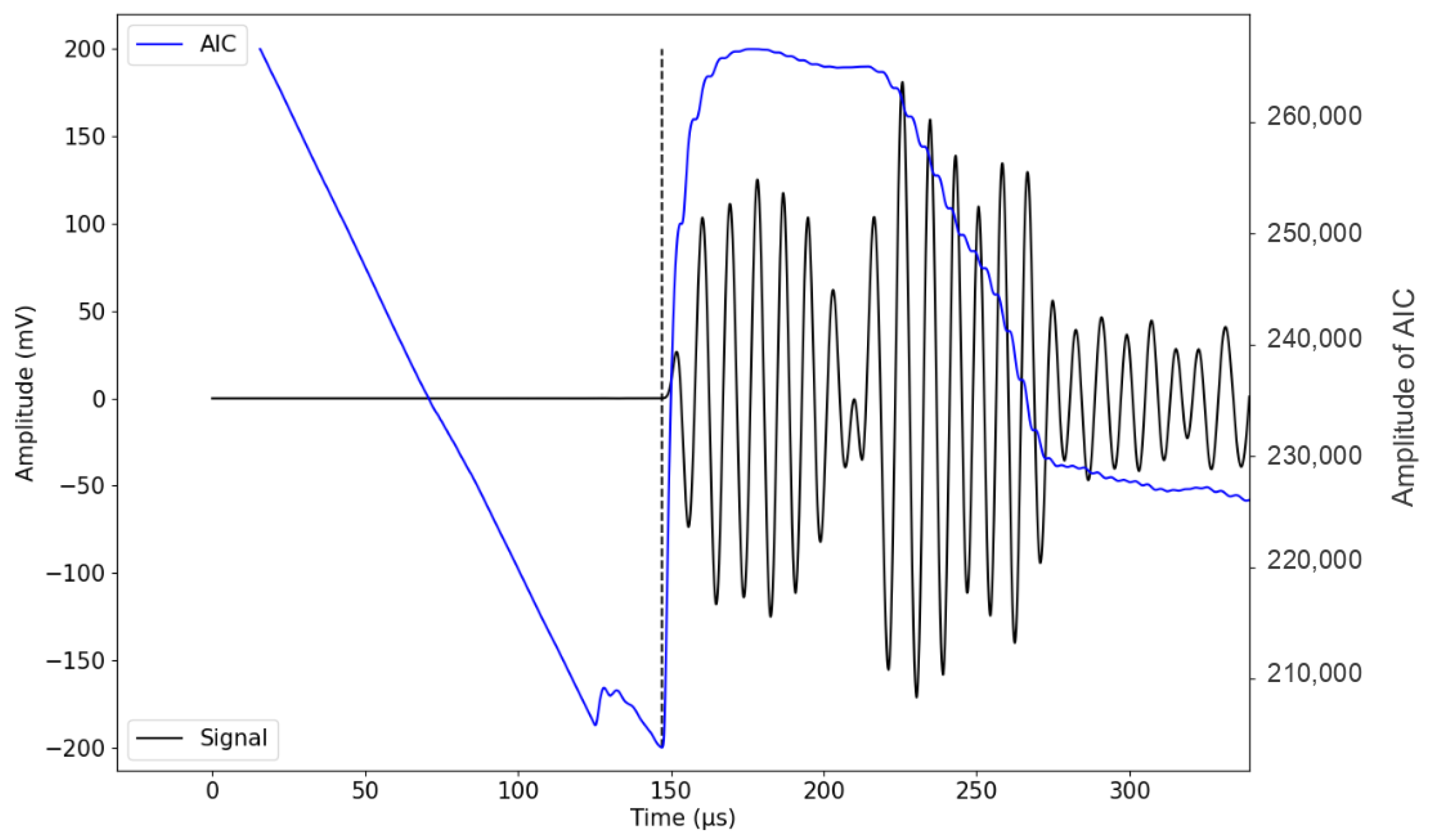

2.5.1. Determination of Onset Time

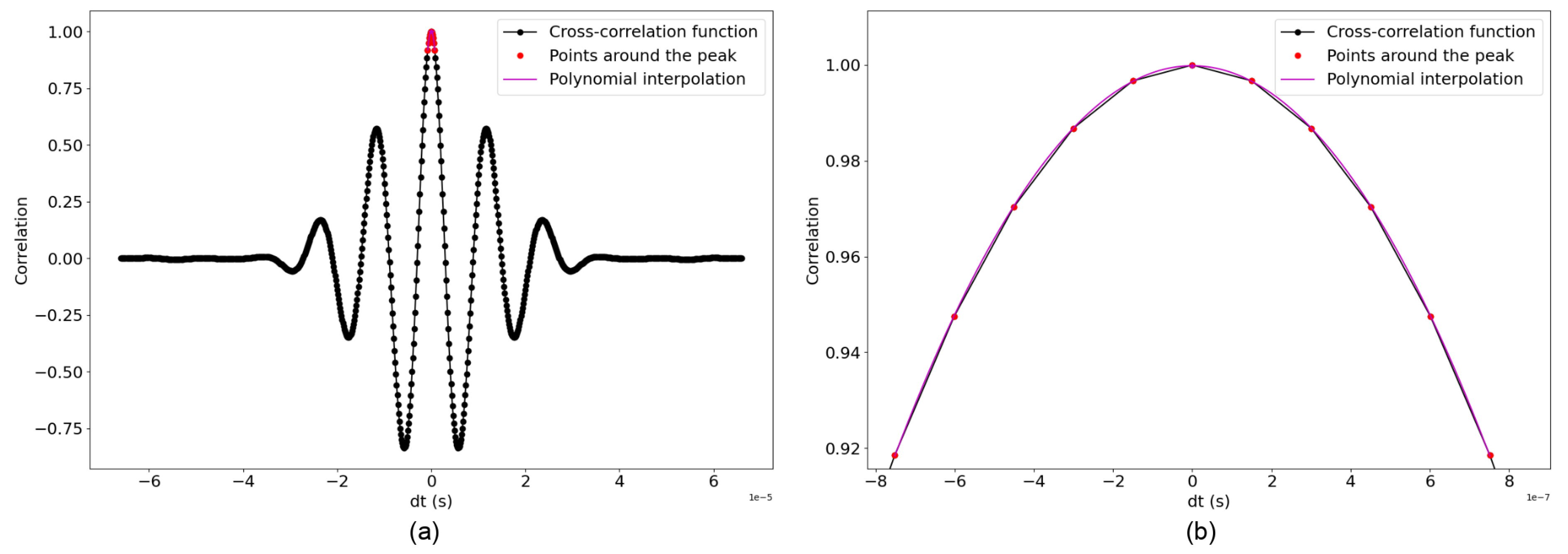

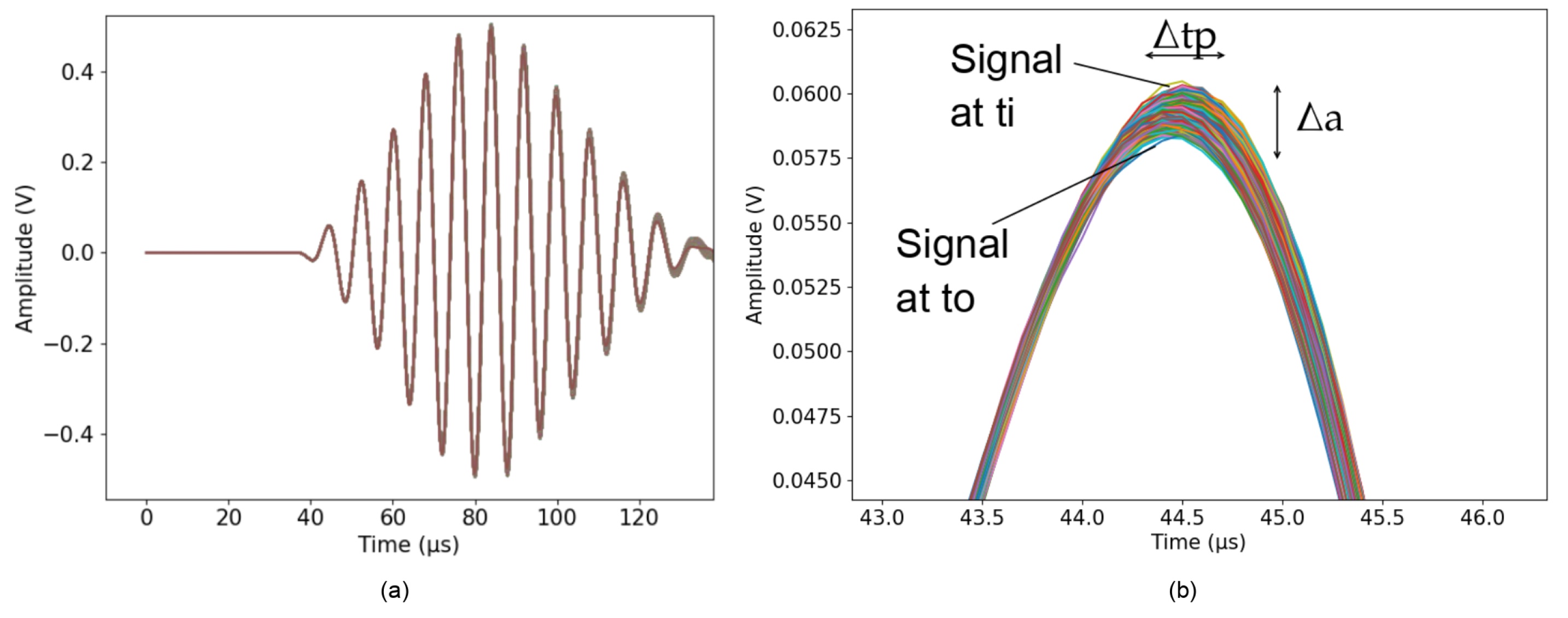

2.5.2. Determining the Relative Variation of Onset Time Using Cross-Correlation

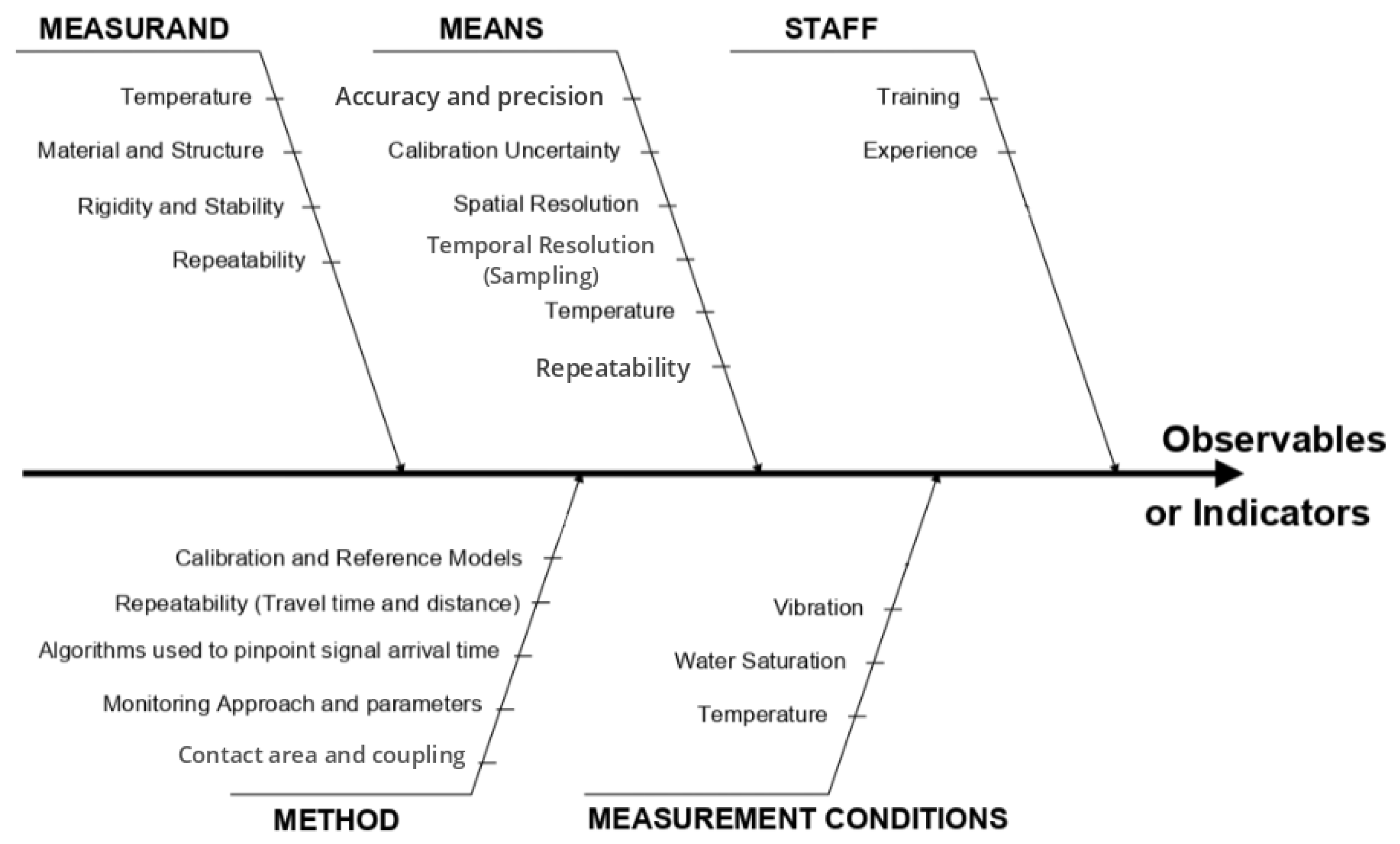

2.6. Measures and Uncertainties

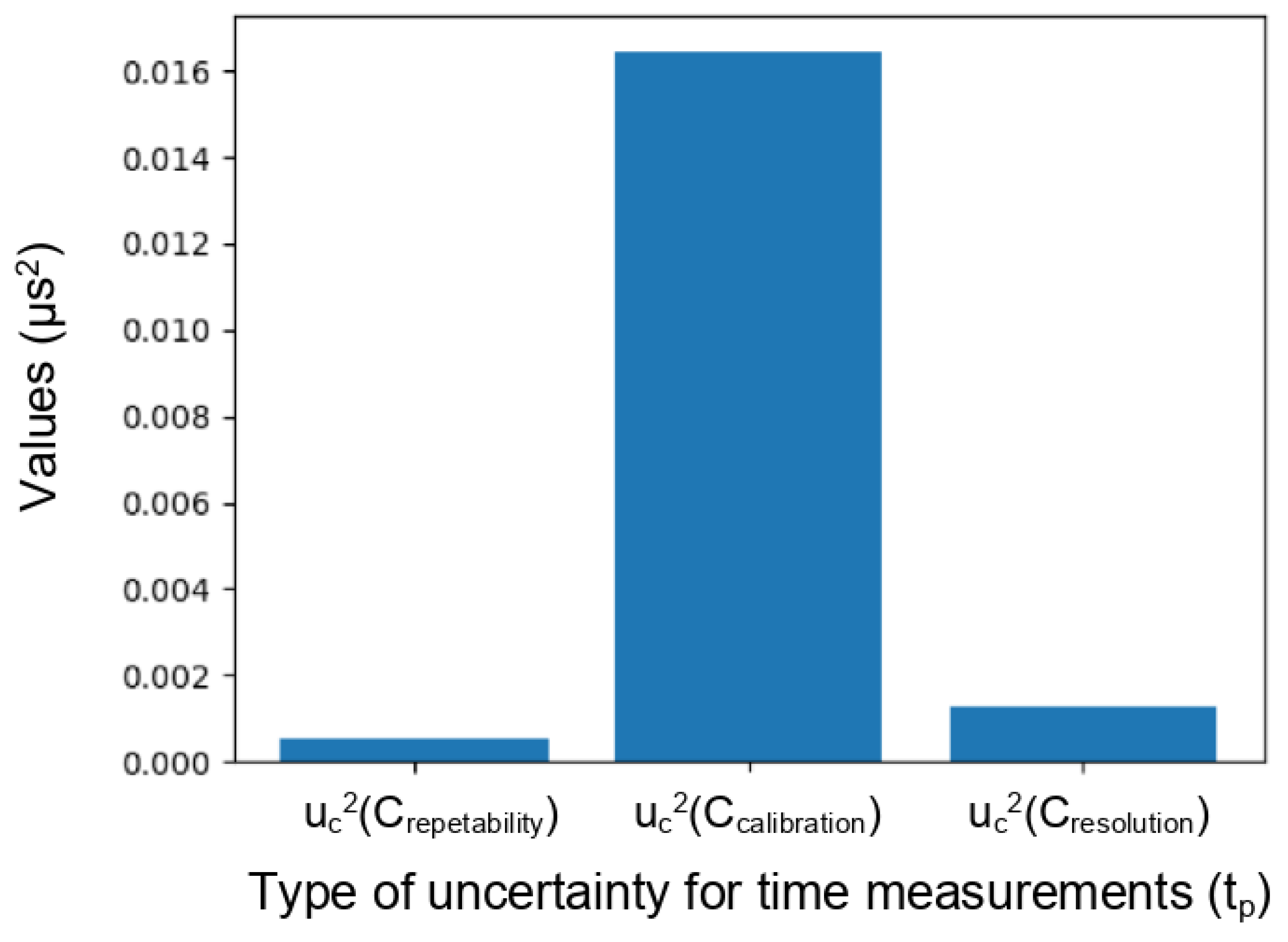

2.6.1. Uncertainty in Time
2.6.2. Uncertainty in Distance
2.6.3. Uncertainty in Absolute Velocity
2.6.4. Uncertainty in Relative Velocity
3. Results

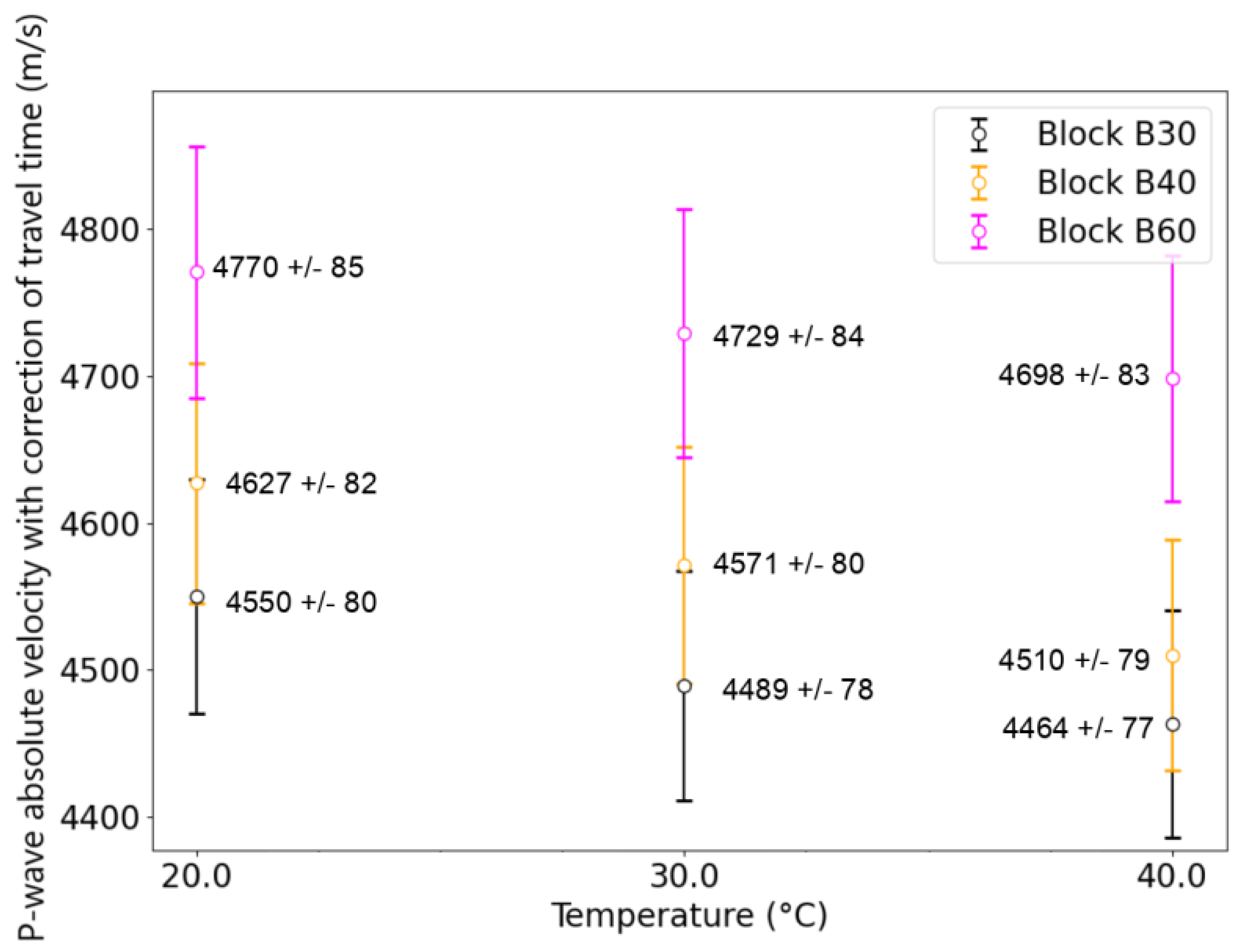

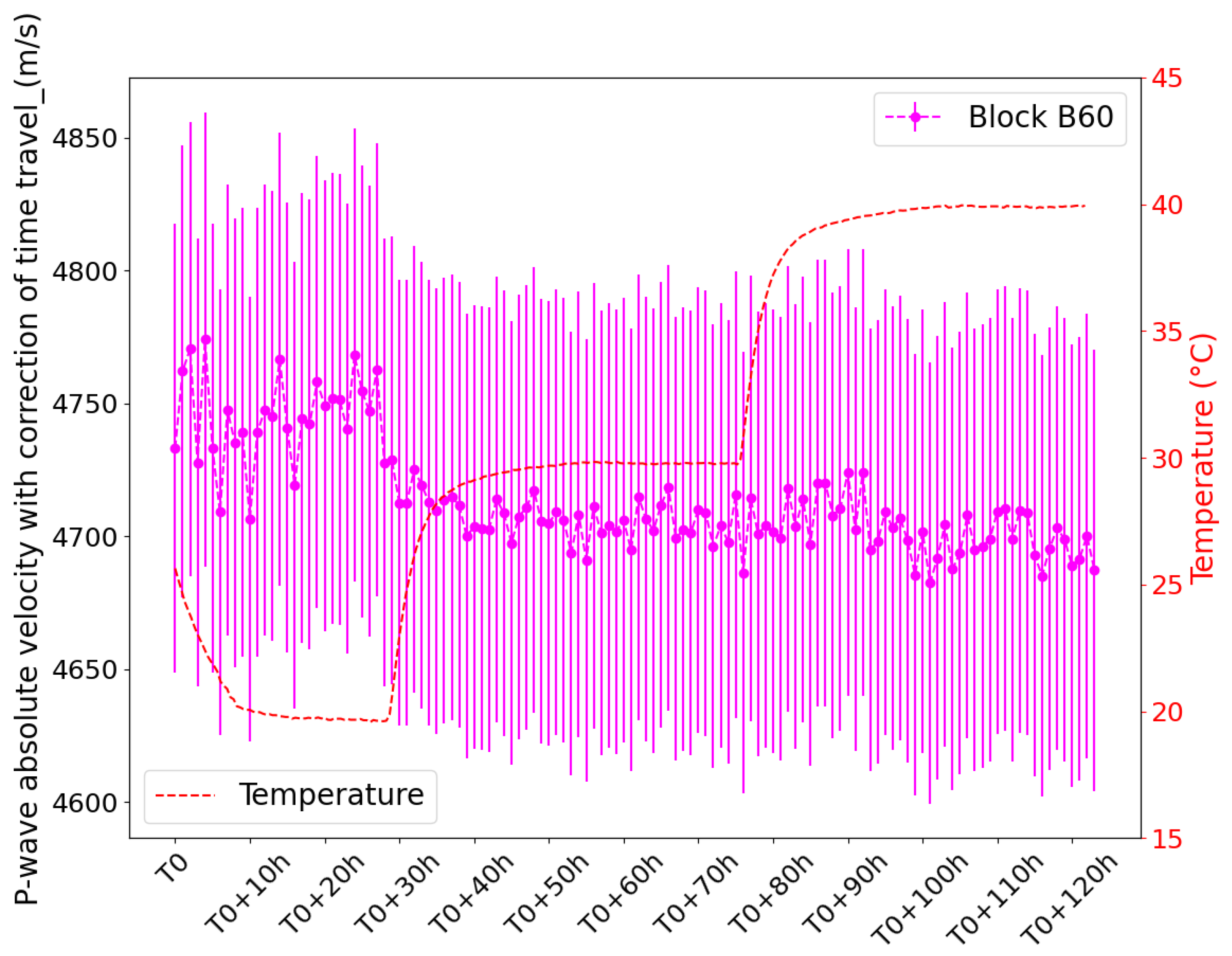

3.1. Influence of Temperature on the Absolute Vp Value

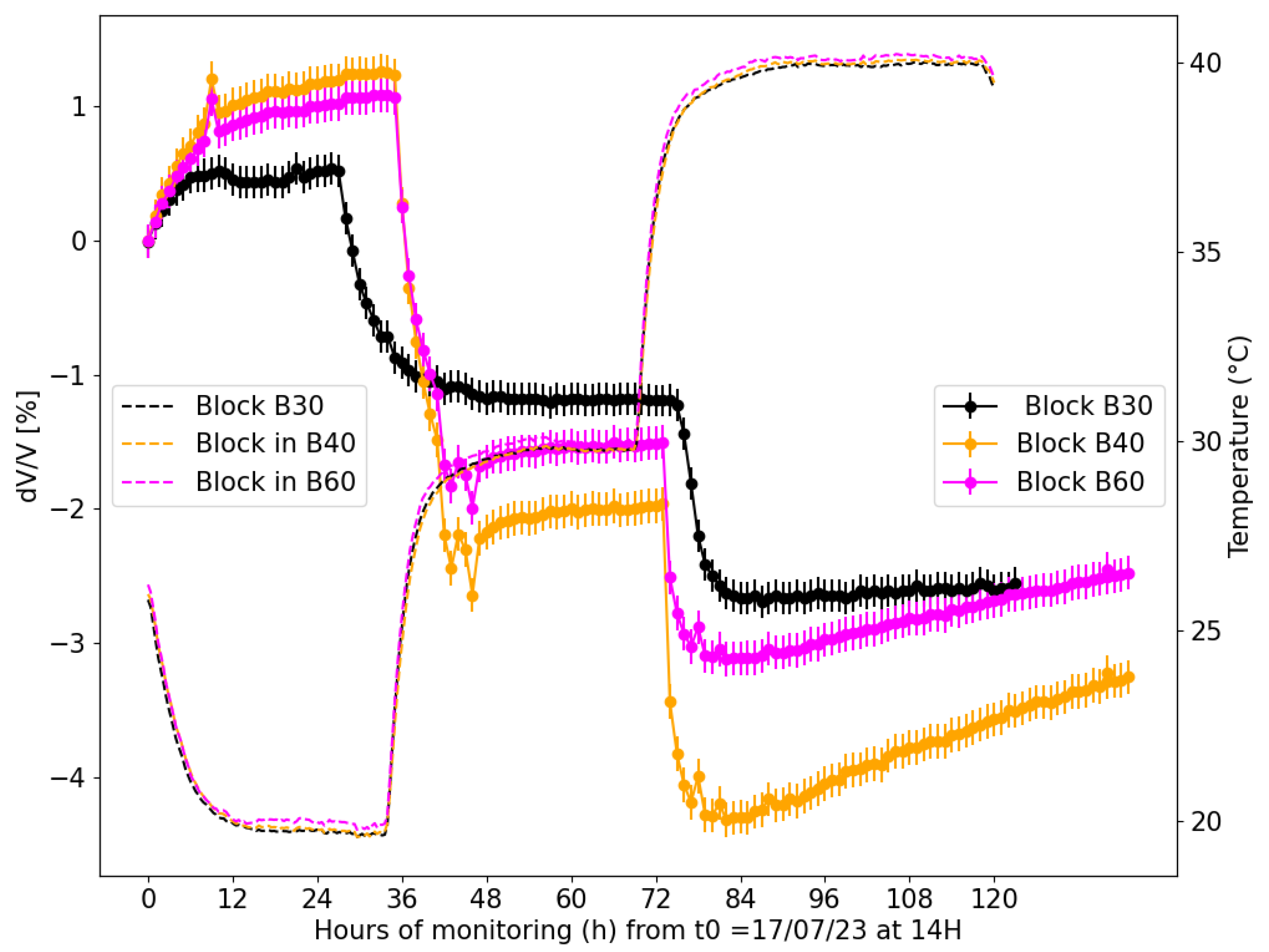

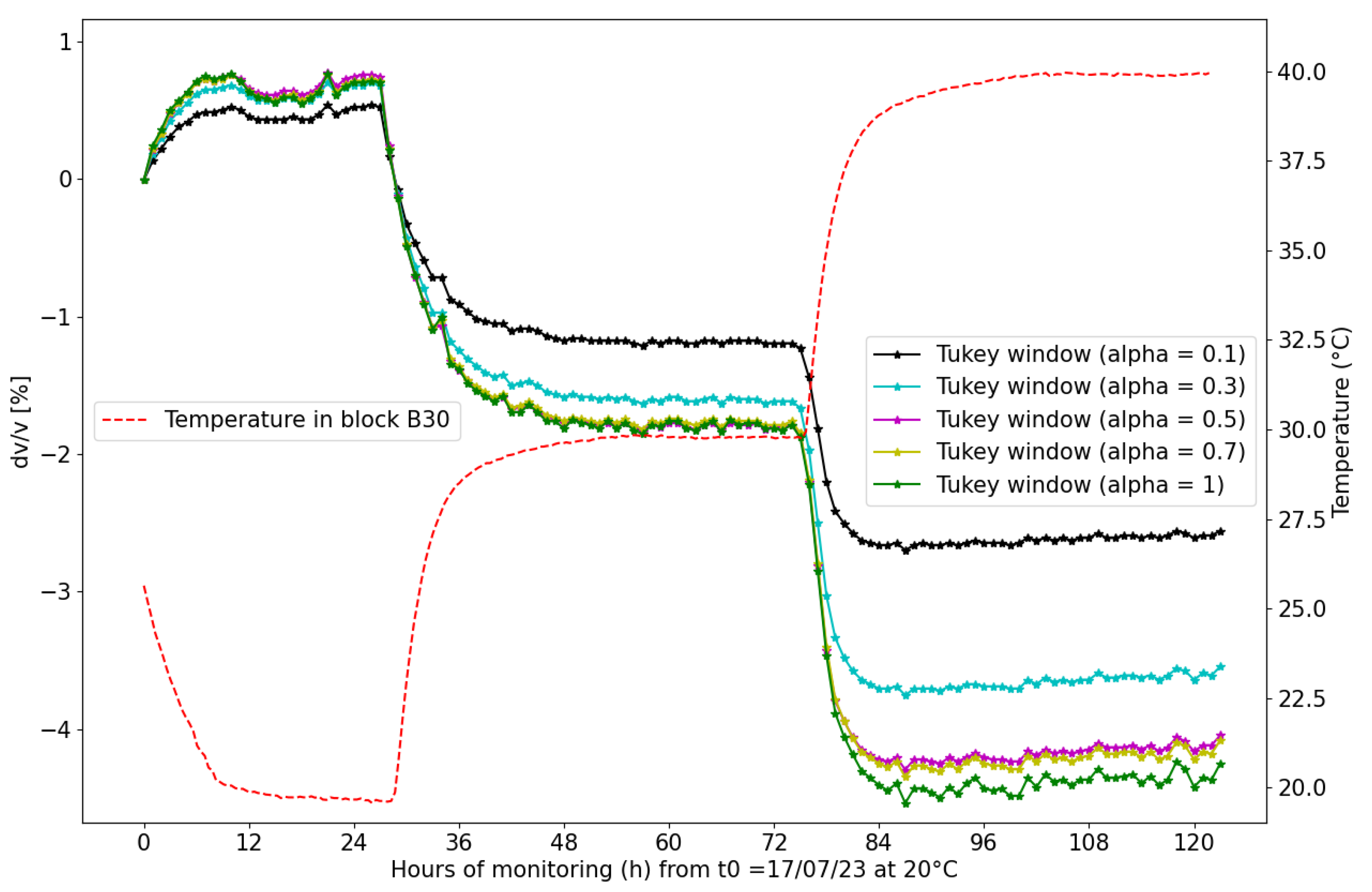

3.2. Influence of Temperature on the Relative Wave Velocity Change
4. Discussion
5. Conclusions
Author Contributions
Funding
Data Availability Statement
Conflicts of Interest
References
