Morphological Changes, Antibacterial Activity, and Cytotoxicity Characterization of Hydrothermally Synthesized Metal Ions-Incorporated Nanoapatites for Biomedical Application

by
Ssu-Meng Huang
1,
Shih-Ming Liu
1,
Wen-Cheng Chen
1,2,3,*,
Chia-Ling Ko
3,
Chi-Jen Shih
2,4 and
Jian-Chih Chen
1,5,6
1
Advanced Medical Devices and Composites Laboratory, Department of Fiber and Composite Materials, Feng Chia University, Taichung City 402, Taiwan
2
Department of Fragrance and Cosmetic Science, College of Pharmacy, Kaohsiung Medical University, Kaohsiung 807, Taiwan
3
School of Dentistry, College of Dental Medicine, Kaohsiung Medical University, Kaohsiung 807, Taiwan
4
Department of Medical Research, Kaohsiung Medical University Hospital, Kaohsiung 807, Taiwan
5
Department of Orthopedics, College of Medicine, Kaohsiung Medical University, Kaohsiung 807, Taiwan
6
Department of Orthopedics, Kaohsiung Medical University Hospital, Kaohsiung 807, Taiwan
*
Author to whom correspondence should be addressed.
Pharmaceuticals 2022, 15(7), 885; https://doi.org/10.3390/ph15070885
Submission received: 15 June 2022 / Revised: 4 July 2022 / Accepted: 7 July 2022 / Published: 18 July 2022
(This article belongs to the Special Issue Synthesis of Metal Nanoparticles and Their Pharmaceutical Applications)
Browse Figures
Review Reports Versions Notes

Abstract

:
The objective of this study was to prepare hydroxyapatite (HA) with potential antibacterial activity against gram-negative and gram-positive bacteria by incorporating different atomic ratios of Cu2+ (0.1–1.0%), Mg2+ (1.0–7.0%), and Zn2+ (1.0–7.0%) to theoretically replace Ca2+ ions during the hydrothermal synthesis of grown precipitated HA nanorods. This study highlights the role of comparing different metal ions on synthetic nanoapatite in regulating the antibacterial properties and toxicity. The comparisons between infrared spectra and between diffractograms have confirmed that metal ions do not affect the formation of HA phases. The results show that after doped Cu2+, Mg2+, and Zn2+ ions replace Ca2+, the ionic radius is almost the same, but significantly smaller than that of the original Ca2+ ions, and the substitution effect causes the lattice distance to change, resulting in crystal structure distortion and reducing crystallinity. The reduction in the length of the nanopatites after the incorporation of Cu2+, Mg2+, and Zn2+ ions confirmed that the metal ions were mainly substituted during the growth of the rod-shape nanoapatite Ca2+ distributed along the longitudinal site. The antibacterial results show that nanoapatite containing Cu2+ (0.1%), Mg2+ (3%), and Zn2+ (5–7%) has obvious and higher antibacterial activity against gram-positive bacteria Staphylococcus aureus within 2 days. The antibacterial effect against the gram-negative bacillus Escherichia coli is not as pronounced as against Staphylococcus aureus. The antibacterial effect of Cu2+ substituted Ca2+ with an atomic ratio of 0.1~1.0% is even better than that of Mg2+- and Zn2+- doped with 1~7% groups. In terms of cytotoxicity, nanoapatites with Cu2+ (~0.2%) exhibit cytotoxicity, whereas Mg2+- (1–5%) and Zn2+- (~1%) doped nanoapatites are biocompatible at low concentrations but become cytotoxic as ionic concentration increases. The results show that the hydrothermally synthesized nanoapatite combined with Cu2+ (0.2%), Mg2+ (3%), and Zn2+ (3%) exhibits low toxicity and high antibacterial activity, which provides a good prospect for bypassing antibiotics for future biomedical applications.

Graphical Abstract

1. Introduction

Antibiotics are the most common drugs currently used to fight bacterial infections to prevent the emergence of biofilms. However, several types of bacteria can develop antibiotic resistance due to a combinatorial drive of bacteria exposed to antibiotics [1]. The current treatment of bacterial biofilms is complex, expensive and inefficient, leading to an urgent need for effective alternative methods [2,3]. One promising solution is functional dry powders, which are attractive and offer several advantages over other formulations. For example, when dry powder is used, therapeutic doses can be delivered to more targeted locations, usually at the site of infection [4]. Hydroxyapatite (HA), a member of the apatite family that can be synthesized at the nanoscale using chemical precursors, is a known biocompatible material that is widely used for replacement and regeneration of bone materials. HA is commonly used as dry powder with the molecular formula Ca10(PO4)6(OH)2 and is a calcium phosphate-based bioceramic [5]. Apatite has excellent biocompatibility and osteoconductivity, similar to inorganic compounds in human bones and teeth [6]. Therefore, it is often used as a bone graft substitute in biomedical clinics [7]. Different forms of apatite with different sizes and shapes (e.g., flakes, spheres, needles, and rods) have been fabricated using wet and dry synthesis strategies [8,9,10,11,12,13,14,15,16,17,18,19,20,21,22]. HA can be synthesized by a precipitation method [8,9], sol-gel method [10,11], hydrothermal method [8,9,10] and microwave-assisted synthesis method [15,16], or it can be directly extracted from biological resources [17,18,19]. Reactions during hydrothermal wet precipitation can be effectively controlled by adjusting the reaction medium, pH value, and concentration at different temperatures, amounts of pressure, and reaction times [23,24,25]. The reaction conditions are relatively mild, and the advantage is that the stoichiometric ratio, structural morphology, uniformity, and apatite size can be controlled.
Although apatite offers benefits as a biomaterial implant, it can affect the proliferation rate of osteoblasts and the expression of cytokine genes [26,27]. However, pure apatite dry powder lacks an antibacterial mechanism. When an infection occurs after surgery, pathogenic bacteria rapidly aggregate to form a biofilm, which strengthens the bacteria’s defense against the host and produces drug resistance. Appropriate antibiotic prophylaxis reduces the risk of postoperative wound infection, but antibiotics are becoming increasingly ineffective as resistance spreads globally [27]. As a result, treating infections and preventing deaths becomes challenging. This study attempted to use metal ions in preparing antibacterial nanoapatites to address problems caused by drug-resistant “super bacteria” [27,28].
A nanoapatite crystal has a hexagonal structure with two distinct charged sites (positively charged Ca longitudinal and negatively charged P transverse sites). Normally added positively charged metal ions enter the lattice to displace Ca2+ sites, but some bind to negatively charged P sites [28,29,30]. Nanoapatites prepared by the co-precipitation of metal ions with Ca2+ can target bacterial cells; they penetrate and damage the cell membrane, promote protein alkylation, and cause oxidative stress, thus resulting in genetic material damage and death [31]. Adding appropriate amounts of metal ions (e.g., Cu2+, Mg2+, Zn2+, Ag+, Sr2+, Li+, and Si4+) to the HA lattice does not affect the structural configuration and biocompatibility and can effectively change the lattice, crystallinity, solubility, bacteriostatic, and angiogenesis of nanoapatites [32,33,34,35,36,37]. Cu2+, Mg2+, and Zn2+ metal ions with nearly the same anion radius were investigated as targets for the hydrothermal synthesis of doped nanoapatites. The metal ion Cu2+ is an essential trace element for the human body and exerts an antibacterial effect while promoting bone formation, inhibiting osteoporosis, and promoting human endothelial cell proliferation [38,39,40]. Approximately 60% of Mg2+ in the human body is stored in the bones, and Mg2+ regulates osteoblast or osteoclast activities [41]. Thus, Mg2+ deficiency can cause skeletal growth arrest and osteopenia. Mg2+ induces endothelial cells to produce nitric oxide, leading to migration and growth and thereby accelerating the formation of new blood vessels [41,42,43]; Zn2+ increases the activities of osteoblasts, activates bone formation, promotes the synthesis of collagen, and inhibits the bone resorption of osteoclasts [44,45,46].
Here, we proposed the co-precipitation of Cu2+, Mg2+, and Zn2+ with Ca2+ for the preparation of nanoapatites with antibacterial properties through hydrothermal wet synthesis and compared their antibacterial properties and biocompatibility. The composition, phase identification, morphological changes, antibacterial activity and cytotoxicity of synthesized nanoapatite doped with Cu2+, Mg2+, and Zn2+ ions were investigated.

2. Results and Discussion

2.1. FT-IR Spectroscopic Analysis

The characteristic apatite absorption bands are shown in Figure 1. Each group showed the librational vibration (νL) and asymmetric stretching absorption (ν3) of hydroxyl (OH−) groups observed at wavenumbers of 632 and 3568 cm−1, respectively. The apatite PO43– absorption bands at wavenumbers 563 and 603 cm−1 were observed and attributed to the bending vibration of O−P−O (triply degenerate δ4 bending in PO43−). The symmetric stretching band (ν1 mode in PO43−) at 964 cm−1 and asymmetric stretching bands (ν3 mode in PO43−) at 1034 and 1097 cm−1 were detected [47,48,49,50]. In addition, the NH4+ functional group was found at 1385 cm−1, and the C–H symmetrical and asymmetric stretching vibration bands were observed at 2854 and 2924 cm−1, respectively, which were attributed to the diammonium hydrogen phosphate ((NH4)2HPO4) and residual functional groups of sodium citrate (Na3C6H5O7). The C=O stretching vibration bands of CO2 were observed at 1448 and 1635 cm−1 [51].

2.2. XRD Analysis

To elucidate the phase structure and crystallinity produced by the hydrothermal reaction, the XRD patterns of nanoapatites with different Cu2+, Mg2+, and Zn2+ ion doping levels are illustrated in Figure 2 The patterns were compared with those in the JCPDS database. The diffraction planes (002), (211), (112), and (300) were the main characteristic peaks of HA (JCPD 73−0294, JCPD 74−0565, and JCPD 74−0566). No other characteristic compounds of the diffraction planes containing Cu, Mg, and Zn were detected. The measured increase in the full width at half maximum (FHMW) of most planes observed in Table 1 reflects a decrease in crystallinity as doping metal ions increased in the nanoapatites. This decrease was attributed to the uneven replacement of the apatite bonding sites of Ca2+ (1.14 Å) by Cu2+ (0.87 Å), Mg2+ (0.86 Å), and Zn2+ (0.88 Å) ions, resulting in lattice distortion in nanoapatite crystalline structures [52,53,54].

2.3. TEM Analysis

Figure 3 shows the TEM images and SAED analysis results of the original nanoapatite rod and nanoapatite rods doped with different ions (Cu2+, Mg2+, or Zn2+). Each group was in the form of rod-shaped nanoapatites. In SAED analysis, the diffraction patterns of the characterized (002), (211), and (112) planes and the lattice distances in HRTEM were observed, and HA was observed to correspond to 0.34 and 0.28 nm of the (002) and (300) planes, respectively. This result was verified with the XRD patterns. The doped and undoped rod-shaped nanoapatites had average lengths of 31–49 nm, average widths of 6–12 nm, and average aspect length-to-width ratios of 2–5. No significant differences in the plane ratios between length (002) and width (300) in the lattice calculated from the FWHM value of the XRD pattern were found, but the plane ratio values of Cu2+, Mg2+, and Zn2+ were greater than the value of the Ca2+-only control group (Table 2). Except in 0.1Cu−nHA, 1Mg−nHA, and 1Zn−nHA groups with low amounts of doped ions, the lengths of the rod-shaped nanoapatites decreased with increasing amounts of doped ions (p < 0.05).
According to Shannon’s ionic radii in a previous study [55], which reported the difference in coordination number and high and low spin states of ions, Ca2+ (1.14 Å) at the longitudinal sites of a nanoapatite were mainly replaced by Cu2+ (0.87 Å), Mg2+ (0.86 Å), and Zn2+ (0.88 Å) with small ionic radii. The average transverse width of 3Mg−nHA (6.80 ± 1.74 nm) was smaller than that of nHA (10.44 ± 2.38 nm; p < 0.05) and more elongated, but the average width of 7Zn−nHA (12.05 ± 2.62 nm) was larger than that of nHA (p < 0.05), making it short and wide.

2.4. Antibacterial Activity

The results of the quantitative analysis of the antibacterial effect of nanoapatite hydrothermally synthesized with different concentrations of Cu2+, Mg2+, and Zn2+ ions on S. aureus are shown in Figure 4. In the hydrothermal synthesis of nanoapatites, the test groups with Cu2+, Mg2+, and Zn2+ ions exhibited better bacteriostatic ability than the control nHA group without metal ion addition, especially on day 1 (p < 0.05). As for the individual antibacterial strength of each ionic group, the antibacterial ability of the 0.1Cu−nHA group at a low concentration was comparable to that of 1Cu−nHA at a high concentration until day 3 in terms of strength (Figure 4a). As shown in Figure 4b, the slender nanoapatite of the 3Mg−nHA group showed a higher inhibitory effect in the group containing Mg2+. As for the group with Zn2+, as the Zn2+ ionic addition amount increased, the bacteriostatic ability was enhanced (Figure 4c).
Figure 5 shows the quantitative analysis results for the antibacterial effects of the tested nanoapatite groups synthesized with Cu2+, Mg2+, and Zn2+ ions on E. coli for 1–4 days, and the concentrations of the groups were compared with the concentration of the control nHA group. Each test group had an antibacterial effect on E. coli on the first day of the analysis. Regarding the antibacterial effect of each ion, although the Cu2+ ability of 0.3Cu−nHA and 1Cu−nHA groups against E. coli increased with Cu2+ concentration, the antibacterial ability of 0.1Cu−nHA with a lower concentration of Cu2+ was maintained for 2 days (Figure 5a). The test groups of 1Mg−nHA and 3Mg−nHA exhibited antibacterial ability against E. coli in 2 days of testing (Figure 5b). Except in the 7Zn−nHA group, the antibacterial ability of Zn2+ was still statistically significant (p < 0.05) compared with that in the nHA control group on day 2 (Figure 5b), but the difference in antibacterial effect was small. The bacteriostatic ability of the test group with Cu2+, Mg2+, and Zn2+ ions for S. aureus was better than that for E. coli.
The cell wall structure of E. coli is more complex than that of S. aureus [56], and thus Cu2+, Mg2+, and Zn2+ ions can barely disrupt the cell wall of E. coli and hardly exert a bacteriostatic effect [57,58]. In addition, nanoapatites with low concentrations of Cu2+ ions exhibited better bacteriostatic effects than those with Mg2+ and Zn2+ [59]. The particle size of Cu2+, Mg2+ and Zn2+ ions (~0.86–0.88 Å) is much smaller than that of Ca2+ (1.14 Å), which causes the possibility of free entry and exit of bacterial cells, destroys cell wall synthesis, and reduces the protective effect of bacteria. For example, literature suggests that Cu2+ ions can bind to thiol bonds in the cytoplasm, disrupting bacterial metabolism and differentiation [60]. Hence, the combined effects of the aspect ratios and surface charges of nanoapatites on the bacteriostatic ability of bacteria should be considered.

2.5. Cytotoxicity

Figure 6 shows the quantitative and qualitative analysis results of cytotoxicity in L929 cells incubated with nanoapatites with different metal ions for 1 day. Extracts that result in a reduction of control activity below 70% are considered cytotoxic as described in the standard ISO 10993-5 [61]. Figure 6a shows that the cell viability of HDPE was the same as that in the control nHA group, indicating that the groups were effective during the sterilization process. Meanwhile, the control nHA group without Cu2+, Mg2+, and Zn2+ showed no toxicity. The nanoapatite groups with Cu2+ showed cytotoxicity, whereas nanoapatites with Mg2+ and Zn2+ and the 7Mg−nHA, 3Zn−nHA, 5Zn−nHA, and 7Zn−nHA groups still showed cytotoxicity [62]. The cell morphology in Figure 6b was qualitatively analyzed, and the results of each group showed the same trend as the quantitative analysis results of cytotoxicity.
The preparation of metal ion-incorporated nanoapatites with facile synthetic techniques is a significant topic. These nanoapatites inhibit drug resistance and biofilm formation, especially during open wound repair. Functional nanoapatites with anitbacterial ability are clinically useful in preventing the proliferation of bacteria with resistance genes and biofilm-producing bacteria, such as S. aureus resistant to asmethicillin and vancomycin, in implants and related in vitro and in vivo medical devices [31]. The World Health Organization has highlighted the importance of these bacteria, listing them as strains that require the most in-depth microbial research. It mentions all key groups that pose a particular threat to hospitals, nursing homes, and patients in need of medical equipment and can cause serious and often fatal infections, such as bloodstream infections and pneumonia. Nanoparticles exhibit broad antimicrobial activity against gram-positive bacteria (Enterococcus, Staphylococcus, and Streptococcus) and gram-negative bacteria (E. coli and Pseudomonas). However, our study and some other studies have shown that nanoapatites are more active against gram-positive bacteria than against gram-negative bacteria (Figure 4 and Figure 5). This difference may be related to the difference in cell wall structure between the bacterial types [56,57,58].
Arul et al. [63] used a microwave strategy to rapidly synthesize Mg2+-incorporated apatite nanorods. They found that the incorporation of Mg2+ ions did not alter the apatite phase, but significantly reduced the crystallinity and particle size by 48% and 32%. Their results were consistent with the results obtained from the 3Mg-nHA test group (Figure 3, second image of middle row and Table 2), which exhibited biocompatibility and antibacterial activity (Figure 4b and Figure 5b). In the agglomerated apatite shown in the TEM (Figure 3, images in the middle row), the crystallinity and particle sizes of the nanoapatites decreased with increasing Mg2+ concentration.
Shanmugam and Gopal [39] demonstrated that a small amount of copper ions can induce high activity or antibacterial activity in living cells, HA can be replaced by Cu2+ ions (Ca10−xCux(PO4)6(OH)2 (x = 0.05–2.0), and the antibacterial ratio against S. aureus is 0.2. Their results were confirmed in the present study (Figure 4a and Figure 5a), although their Cu2+-substituted nanoapatite was synthesized by precipitation and sintering at 700 °C.
Zn2+ ion substitution in nanoapatites has been a subject of particular interest because it is present in all biological tissues and plays diverse roles in many biological functions [64]. Bones and teeth contain large amounts of Zn2+, and its absorption or release is strongly mediated by bone depots. Tang et al. found that Zn2+ is substituted in the apatite structure to form an apatite-like phase and then forms an amorphous structure with parascholzite (CaZn2(PO4)2 ∙2H2O), which is the most favorable condition for the occurrence of Zn2+ in tetrahedral coordination and Ca2 sites with obvious local structure distortion. In the coordination of Ca1 and P sites with Zn, all higher shells move to longer and shorter distances and lead to elongated crystallites. These results contradict our results in Figure 3, images in the bottom row. Therefore, the fitting to Zn2+ at the Ca2 site leads to the overall shrinkage of the local structure, most of the higher shells move toward Zn, and thus the high degree of Zn2+ incorporation resulted in the shorter morphology of the nanoapatite (Table 2).
Nanoapatite constitutes the major inorganic components of bones and teeth and can thus improve mechanical properties combined with nanotopographic features that mimic natural bone nanostructures. In this study, we discovered nanoapatite with metal ions, which can be functionalized because of its biocompatibility and effects that inhibit bacterial action. Therefore, the synthesized apatite exhibited antibacterial activity when co-precipitated with Cu2+, Mg2+, and Zn2+, especially in the 0.2Cu−nHA nanoapatite, which showed the highest antibacterial activity and best compatibility in the Cu-incorporated group (Figure 4, Figure 5 and Figure 6), although still exhibiting cytotoxicity under ISO10993-5 test conditions. The Mg2+ group had the best biocompatibility. The antibacterial effect of nanoapatite incorporated with Zn2+ was poor and showed cytotoxicity at high Zn2+ concentrations [59]. Most of the summarized differences in the antimicrobial properties of Zn2+ can be attributed to the concentrations studied. Therefore, the relative suggestion of the antimicrobial effect of Cu2+ over Mg2+ and Zn2+ in this study is also concentration-dependent and takes into account the biocompatibility. Another possibility that is different from other literature is that the nanoapatite dry powder does not release metal ions but interacts with the bacterial cell surface, thereby changing the cell permeability, or forming an impermeable layer around the cell, preventing essential solutes from entering the cell.

3. Materials and Methods

3.1. Raw Materials

The materials used in this study were calcium nitrate (Ca(NO3)2 ∙4H2O, purity > 98.0%, KATAYAMA CHEMICAL Co., Ltd., Osaka, Japan), diammonium phosphate ((NH4)2HPO4, purity > 98.0%, HSE PURE CHEMICALS, Ahmedabad, India), sodium citrate (Na3C6H5O7, purity > 99.0%, PANREAC, Barcelona, Spain), copper (II) nitrate (Cu(NO3)2 ∙3H2O, purity > 99.0%, PANREAC, Barcelona, Spain), magnesium nitrate (Mg(NO3)2 ∙6H2O, purity > 98.0%, PANREAC, Barcelona, Spain), zinc nitrate (Zn(NO3)2 ∙6H2O, purity > 98.0%, PANREAC, Barcelona, Spain), acetic acid (CH3COOH, purity > 99.0%, PANREAC, Barcelona, Spain), and sodium hydroxide (NaOH, purity > 99.0%, SHIMAKYU CHEMICAL Co., Ltd., Osaka, Japan).

3.2. Preparation of Nano-Hydroxyapatite with Metal Ions (Cu2+, Mg2+, and Zn2+)

The hydrothermal synthesis of nanoapatite (nHA), Cu2+, Mg2+ and Zn2+ ion-doped nanoapatite followed the previously reported research procedure [65]. The concentrations of Cu2+, Mg2+, and Zn2+ ions were set at molar levels different from the total molar content of metal cations, as shown in Table 3. Briefly, the prepared cation solutions with different ratios of Ca(NO3)2 ∙4H2O and different amounts of Cu2+, Mg2+, and Zn2+ ions (as indicated in Table 3) were dissolved and mixed into 90 mL of double-distilled water (ddH2O). The pH of the resulting solution was adjusted to 7. Then, 0.713 g of (NH4)2HPO4 and 2.647 g of Na3C6H5O7 were stirred with 70 mL of ddH2O for 30 min to form an anion solution. The aforementioned two cation and anion solutions were mixed and stirred for an additional 30 min. The nanoapatites were synthesized through hydrothermal synthetic reaction at 180 °C and 220 psi (l b/in2) for 12 h. After the reaction, the nanoapatites were washed three times with ethanol and ddH2O at 3000 rpm for 5 min each time and then dried at 60 °C for 12 h. The yield of the resulting precipitate in this study was about 30% (w/w).

3.3. Characterization of Nanoapatites through Fourier Transform Infrared (FTIR) Spectroscopy, X-ray Diffraction (XRD) Analysis, and Transmission Electron Microscopy (TEM) Morphological Measurements

The functional groups of the nanoapatites were analyzed using a Fourier transform infrared (FTIR) spectroscopy (Nicolet 6700, Thermo Fisher Scientific, Waltham, MA, USA) to confirm the structural composition [66].
The crystalline phases, crystallinity, and preferred orientation changes in the nanoapatites were investigated through X-ray diffraction (XRD) pattern analysis. Diffraction analysis was performed using an X-ray diffractometer (D2 Phaser, Bruker, Billerica, MA, USA), and the diffraction conditions were as follows: Kα diffraction using a Ni-filtered Cu target at a voltage of 30 kV, current of 20 mA, and scan speed of 2°/min. The scanning range of 2θ was 20–60°, and the phases were identified by comparing the diffraction patterns with the patterns in the Joint Committee on Powder Diffraction Standards (JCPDS).
The sample was mixed with 99.8% alcohol (Avantor, Inc., Radnor, PA, USA) and dispersed uniformly with an ultrasonic oscillator (DC400H, DELTA ULTRASONIC Co., Ltd., New Taipei, Taiwan). The dispersion solution was dropped onto a copper mesh (TED PELLA, INC., Redding, CA, USA). The morphology of HA was analyzed using transmission electron microscopy (TEM; JEM-2100F, JEOL, Tokyo, Japan) at 200 kV and bright-field images. The microstructure of HA was observed using a selected area electron diffraction (SAED) system with an aperture size of 160 nm, and the crystal structure was analyzed through high-resolution transmission electron microscopy (HRTEM). Digital Micrograph (Gatan) software was used to measure the diffraction plane distance (d). Image-J program (software version 1.53e) was used to analyze the TEM images of each group of samples and calculate the lengths, diameters, and aspect ratios of the nanoapatites.

3.4. Antibacterial Abilities

Staphylococcus aureus (ATCC No. 25923) and Escherichia coli (ATCC No. 10798) were cultured in Luria–Bertani broth [67,68,69]. The bacterial suspension was diluted to achieve an optical density at 595 nm (OD595) of 0.2 (equivalent to ~1.0 × 107 cells/mL on average) and this value was confirmed with an enzyme-linked immunosorbent assay (ELISA) reader (EZ Read-400, Biochrom, Holliston, MA, USA). The bacterial suspensions of S. aureus and E. coli were subsequently diluted to achieve an OD595 value of 0.2. For quantitative antibacterial testing, 0.03 g of a sample was immersed in 2 mL of bacterial suspension and incubated at 37 °C for 1–4 days. Approximately 100 µL of the bacterial solution was collected from each group, and its OD595 value was obtained with the ELISA reader (n = 3).

3.5. In Vitro Cytotoxicity Tests

The L929 cell line from newborn mouse fibroblasts was provided by the National Institute of Health in Taiwan and used for the cytotoxicity tests. The testing procedures were conducted by ISO 10993-5:2009. L929 cells were grown with media in an incubator at 37 °C and 5% CO2 and subcultured when the cell concentration was between 0.8 × 106 and 1.0 × 106 cells/mL. The medium used was a minimal essential medium alpha medium (Gibco, Thermo Fisher Scientific Inc., Waltham, MA, USA) containing 10% horse serum and was changed every 2 days of culture.
The samples prepared for cell culture were sterilized by autoclaving at 121 °C and 1.05 kg/cm2 (15–20 psi; TOMIN, TM-328, Taipei, Taiwan). The extraction solution was prepared by placing the sterilized nanoapatites, a negative control group of high-density polyethylene (HDPE) and a positive control group of 15 vol.% dimethyl sulfoxide (DMSO; Sigma-Aldrich, St Louis, MO, USA) in the culture medium. Owing to the hydrophilicity of the nanoapatites [70], the extraction weight ratio (g/mL) of the sample to the medium was set at 1:5, and the samples were placed in a 37 °C incubator for 24 h, and the extracted medium was transferred for cytotoxicity testing.
For the quantitative cytotoxicity test, 100 μL of suspension with an L929 cell concentration of 1 × 104 cells was transferred to a 96-well microliter plate and cultured at 37 °C for 24 h in an incubator. The medium was removed, and then 100 μL of the sample extract was added. L929 cells were incubated in a 37 °C incubator for 24 h and then mixed with 50 μL of a XTT cell proliferation assay kit (Biological Industries, Kibbutz Beit Haemek, Israel) for a 4 h extension reaction before treatment with another ELISA reader (SPECTROstar Nano, BMG LABTECH, Offenburg, Germany). The measured OD490 absorbance was proportional to cell viability.
In the qualitative cytotoxicity test, the preparation of the extracts and the culture medium of the control group were the same as those in the quantitative test. Approximately 1000 μL of cell suspension was collected, and L929 cells were transplanted into a 48-well microliter plate at a cell concentration of 1 × 105 cells/well. The original medium was cultured in an incubator at 37 °C and 5% CO2 for 1 day, and then the medium was removed. Sample extract (100 μL) was added and cultured for 24 h, and cell morphology was observed under an inverted microscope (IVM-3AFL, SAGE VISION Co., Ltd., New Taipei City, Taiwan).

3.6. Statistical Analysis

Analysis of variance (ANOVA) was performed using IBM SPSS Statistics version 20 (SPSS Inc., Chicago, IL, USA) for the measurement of average longitudinal length, transverse width, length-to-width aspect ratio and antibacterial activity. ANOVA was used in determining whether differences among the means of multiple groups were significant. The estimates of two different variables were used in comparing the differences.

4. Conclusions

In summary, almost all nanoapatites with metal ions (Cu2+, Mg2+, and Zn2+) exhibited initial antibacterial activity, the magnitude of which was Cu2+, Mg2+, and Zn2+ in descending order. After the addition of metal ions, the main characteristic peaks were slightly shifted due to the smaller size of the HA crystal structure. In particular, the length shrinkage of the nanorods. Cu2+, Mg2+, and Zn2+ replaced Ca2+, resulting in changes in the lattice structure, deformation of the crystal structure, and a decrease in crystallinity. In this formulation, Cu2+, Mg2+, and Zn2+ ions replaced Ca2+ in the apatite mainly at the longitudinal positions of the nanorods. Antibacterial test results showed that adding Cu2+ ions with an atomic ratio of 0.1% was more effective than doping Mg2+ (3%) and Zn2+ (5–7%) ions, although they both showed gram-positive antibacterial activity. Nanoapatite with all Cu2+ ion concentrations was toxic, but 0.2% Cu2+ showed relatively little cytotoxicity in the group. After adding Mg2+ ions to the nanoapatite, only the 7% Mg2+ group with the highest doping amount showed slight cytotoxicity and was the test group with the highest biocompatibility. For Zn2+ ionic groups that exhibit moderate cytotoxicity, doping at 1% of the Zn2+ groups is expected to be biocompatible, while 3% of the Zn2+ groups have little cytotoxicity. Therefore, in terms of biocompatibility and antibacterial synergistic function of nanoapatite, the best group is 3% Mg2+-doped nanorods. Future studies should consider expanding the testing range; for example, if the 0.2% Cu2+ doped nanorods with the strongest antibacterial activity in this study were incorporated into other biocompatible medical devices, it might reduce cytotoxicity but maintain bacteriostatic properties.

Author Contributions

Conceptualization, W.-C.C.; Data curation, S.-M.H., S.-M.L. and W.-C.C.; Formal analysis, S.-M.H., C.-L.K. and W.-C.C.; Funding acquisition, W.-C.C.; Investigation, S.-M.H., S.-M.L., C.-L.K., C.-J.S., J.-C.C. and W.-C.C.; Methodology, C.-L.K., C.-J.S., J.-C.C. and W.-C.C.; Project administration, W.-C.C.; Resources, W.-C.C.; Software, S.-M.H., S.-M.L. and C.-L.K.; Supervision, W.-C.C.; Validation, W.-C.C.; Visualization, W.-C.C.; Writing—original draft, S.-M.H., S.-M.L. and W.-C.C.; Writing—review & editing, S.-M.H. and W.-C.C. All authors have read and agreed to the published version of the manuscript.

Funding

This research was major supported by the Ministry of Science and Technology, Taiwan grant numbers MOST [109-2221-E-035-43, 109-2622-E-035-014-CC2, 110-2221-E-035-013-].

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data is contained within the article.

Acknowledgments

The authors acknowledge and appreciate the Precision Instrument Support Center of Feng Chia University, which provided the fabrication and measurement facilities. The assistance of the participants in this research is also acknowledged.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Høiby, N.; Bjarnsholt, T.; Givskov, M.; Molin, S.; Ciofu, O. Antibiotic resistance of bacterial biofilms. Int. J. Antimicrob. Agents 2010, 35, 322–332. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Wilson, D.N.; Hauryliuk, V.; Atkinson, G.C.; O’Neill, A.J. Target protection as a key antibiotic resistance mechanism. Nat. Rev. Microbiol. 2020, 18, 637–648. [Google Scholar] [CrossRef] [PubMed]
  3. Baldelli, A.; Etayash, H.; Oguzlu, H.; Mandal, R.; Jiang, F.; Hancock, R.E.W.; Pratap-Singh, A. Antimicrobial properties of spray-dried cellulose nanocrystals and metal oxide-based nanoparticles-in-microspheres. Chem. Eng. J. Adv. 2022, 10, 100273. [Google Scholar] [CrossRef]
  4. Langer, R. Drugs on target. Science 2001, 293, 58–59. [Google Scholar] [CrossRef]
  5. Daryan, S.H.; Javadpour, J.; Khavandi, A.; Erfan, M. Morphological evolution on the surface of hydrothermally synthesized hydroxyapatite microspheres in the presence of EDTMP. Ceram. Int. 2018, 44, 19743–19750. [Google Scholar] [CrossRef]
  6. Yu, H.-P.; Zhu, Y.-J.; Lu, B.-Q. Highly efficient and environmentally friendly microwave-assisted hydrothermal rapid synthesis of ultralong hydroxyapatite nanowires. Ceram. Int. 2018, 44, 12352–12356. [Google Scholar] [CrossRef]
  7. Zhong, Z.; Wu, X.; Wang, Y.; Li, M.; Li, Y.; Liu, X.; Zhang, X.; Lan, Z.; Wang, J.; Du, Y.; et al. Zn/Sr dual ions-collagen co-assembly hydroxyapatite enhances bone regeneration through procedural osteo-immunomodulation and osteogenesis. Bioact. Mater. 2021, 10, 195–206. [Google Scholar] [CrossRef]
  8. Palierse, E.; Hélary, C.; Krafft, J.-M.; Génois, I.; Masse, S.; Laurent, G.; Alvarez Echazu, M.I.; Selmane, M.; Casale, S.; Valentin, L.; et al. Baicalein-modified hydroxyapatite nanoparticles and coatings with antibacterial and antioxidant properties. Mater. Sci. Eng. C 2021, 118, 111537. [Google Scholar] [CrossRef]
  9. Vargas-Becerril, N.; Sánchez-Téllez, D.A.; Zarazúa-Villalobos, L.; González-García, D.M.; Álvarez-Pérez, M.A.; de León-Escobedo, C.; Téllez-Jurado, L. Structure of biomimetic apatite grown on hydroxyapatite (HA). Ceram. Int. 2020, 46, 28806–28813. [Google Scholar] [CrossRef]
  10. Jang, J.-H.; Oh, B.; Lee, E.-J. Crystalline hydroxyapatite/graphene oxide complex by low-temperature sol-gel synthesis and its characterization. Ceram. Int. 2021, 47, 27677–27684. [Google Scholar] [CrossRef]
  11. Liu, W.-C.; Wang, H.-Y.; Chen, L.-C.; Huang, S.-W.; Wu, C.; Chung, R.-J. Hydroxyapatite/tricalcium silicate composites cement derived from novel two-step sol-gel process with good biocompatibility and applications as bone cement and potential coating materials. Ceram. Int. 2019, 45, 5668–5679. [Google Scholar] [CrossRef]
  12. Sadetskaya, A.V.; Bobrysheva, N.P.; Osmolowsky, M.G.; Osmolovskaya, O.M.; Voznesenskiy, M.A. Correlative experimental and theoretical characterization of transition metal doped hydroxyapatite nanoparticles fabricated by hydrothermal method. Mater. Charact. 2021, 173, 110911. [Google Scholar] [CrossRef]
  13. Nosrati, H.; Mamoory, R.S.; Le, D.Q.S.; Bünger, C.E.; Emameh, R.Z.; Dabir, F. Gas injection approach for synthesis of hydroxyapatite nanorods via hydrothermal method. Mater. Charact. 2020, 159, 110071. [Google Scholar] [CrossRef]
  14. Zhang, C.; Uchikoshi, T.; Liu, L.; Kikuchi, M.; Ichinose, I. Nest-like microstructured biocompatible membrane fabricated by hydrothermally-synthesized hydroxyapatite (HAp) whiskers. J. Eur. Ceram. Soc. 2020, 40, 513–520. [Google Scholar] [CrossRef]
  15. Panda, S.; Biswas, C.K.; Paul, S. A comprehensive review on the preparation and application of calcium hydroxyapatite: A special focus on atomic doping methods for bone tissue engineering. Ceram. Int. 2021, 47, 28122–28144. [Google Scholar] [CrossRef]
  16. Jiang, J.; Long, Y.; Hu, X.; Hu, J.; Zhu, M.; Zhou, S. A facile microwave-assisted synthesis of mesoporous hydroxyapatite as an efficient adsorbent for Pb2+ adsorption. J. Solid State Chem. 2020, 289, 121491. [Google Scholar] [CrossRef]
  17. Gomez-Vazquez, O.M.; Correa-Piña, B.A.; Zubieta-Otero, L.F.; Castillo-Paz, A.M.; Londoño-Restrepo, S.M.; Rodriguez-García, M.E. Synthesis and characterization of bioinspired nano-hydroxyapatite by wet chemical precipitation. Ceram. Int. 2021, 47, 32775–32785. [Google Scholar] [CrossRef]
  18. Modolon, H.B.; Inocente, J.; Bernardin, A.M.; Klegues Montedo, O.R.; Arcaro, S. Nanostructured biological hydroxyapatite from Tilapia bone: A pathway to control crystallite size and crystallinity. Ceram. Int. 2021, 47, 27685–27693. [Google Scholar] [CrossRef]
  19. Sharifianjazi, F.; Esmaeilkhanian, A.; Moradi, M.; Pakseresht, A.; Asl, M.S.; Karimi-Maleh, H.; Jang, H.W.; Shokouhimehr, M.; Varma, R.S. Biocompatibility and mechanical properties of pigeon bone waste extracted natural nano-hydroxyapatite for bone tissue engineering. Mater. Sci. Eng. B 2021, 264, 114950. [Google Scholar] [CrossRef]
  20. Szcześ, A.; Hołysz, L.; Chibowski, E. Synthesis of hydroxyapatite for biomedical applications. Adv. Colloid Interface Sci. 2017, 249, 321–330. [Google Scholar] [CrossRef]
  21. Zhao, X.-Y.; Zhu, Y.-J.; Zhao, J.; Lu, B.-Q.; Chen, F.; Qi, C.; Wu, J. Hydroxyapatite nanosheet-assembled microspheres: Hemoglobin-templated synthesis and adsorption for heavy metal ions. J. Colloid Interface Sci. 2014, 416, 11–18. [Google Scholar] [CrossRef] [PubMed]
  22. Arun Prakash, V.C.; Venda, I.; Thamizharasi, V.; Sathya, E. A new attempt on synthesis of spherical nano hydroxyapatite powders prepared by dimethyl sulfoxide—poly vinyl alcohol assisted microemulsion method. Mater. Chem. Phys. 2021, 259, 124097. [Google Scholar] [CrossRef]
  23. Alinda Shaly, A.; Hannah Priya, G.; Mary Linet, J. An outlook on the mechanical attributes and load curve analysis of hydrothermally acquired hydroxyapatite bioceramic nanoparticles. Phys. B Condens. Matter. 2020, 590, 412223. [Google Scholar] [CrossRef]
  24. Lo, Y.-S.; Chang, C.-C.; Lin, P.-C.; Lin, S.-P.; Wang, C.-L. Direct growth of structurally controllable hydroxyapatite coating on Ti-6Al-4V through a rapid hydrothermal synthesis. Appl. Surf. Sci. 2021, 556, 149672. [Google Scholar] [CrossRef]
  25. Chesley, M.; Kennard, R.; Roozbahani, S.; Kim, S.M.; Kukk, K.; Mason, M. One-step hydrothermal synthesis with in situ milling of biologically relevant hydroxyapatite. Mater. Sci. Eng. C 2020, 113, 110962. [Google Scholar] [CrossRef] [PubMed]
  26. Martínez-Gracida, N.O.; Esparza-González, S.C.; Castillo-Martínez, N.A.; Serrano-Medina, A.; Olivas-Armendariz, I.; Campos-Múzquiz, L.G.; Múzquiz-Ramos, E.M. Synergism in novel silver-copper/hydroxyapatite composites for increased antibacterial activity and biocompatibility. Ceram. Int. 2020, 46, 20215–20225. [Google Scholar] [CrossRef]
  27. Tao, B.; Lin, C.; Guo, A.; Yu, Y.; Qin, X.; Li, K.; Tian, H.; Yi, W.; Lei, D.; Chen, L. Fabrication of copper ions-substituted hydroxyapatite/polydopamine nanocomposites with high antibacterial and angiogenesis effects for promoting infected wound healing. J. Ind. Eng. Chem. 2021, 104, 345–355. [Google Scholar] [CrossRef]
  28. Ressler, A.; Žužić, A.; Ivanišević, I.; Kamboj, N.; Ivanković, H. Ionic substituted hydroxyapatite for bone regeneration applications: A review. Open Ceram. 2021, 6, 100122. [Google Scholar] [CrossRef]
  29. Liu, T.; Jin, M.; Zhang, Y.; Weng, W.; Wang, T.; Yang, H.; Zhou, L. K+/Sr2+/Na+ triple-doped hydroxyapatites/GelMA composite hydrogel scaffold for the repair of bone defects. Ceram. Int. 2021, 47, 30929–30937. [Google Scholar] [CrossRef]
  30. Carrera, K.; Huerta, V.; Orozco, V.; Matutes, J.; Fernández, P.; Graeve, O.A.; Herrera, M. Formation of vacancy point-defects in hydroxyapatite nanobelts by selective incorporation of Fe3+ ions in Ca(II) sites. A CL and XPS study. Mater. Sci. Eng. B 2021, 271, 115308. [Google Scholar] [CrossRef]
  31. Paluch, E.; Sobierajska, P.; Okińczyc, P.; Widelski, J.; Duda-Madej, A.; Krzyżanowska, B.; Krzyżek, P.; Ogórek, R.; Szperlik, J.; Chmielowiec, J.; et al. Nanoapatites doped and co-doped with noble metal ions as modern antibiofilm materials for biomedical applications against drug-resistant clinical strains of Enterococcus faecalis VRE and Staphylococcus aureus MRSA. Int. J. Mol. Sci. 2022, 23, 1533. [Google Scholar] [CrossRef] [PubMed]
  32. Mohd Yusoff, M.F.; Abu Kasim, N.H.; Himratul-Aznita, W.H.; Saidin, S.; Genasan, K.; Kamarul, T.; Radzi, Z. Physicochemical, antibacterial and biocompatibility assessments of silver incorporated nano-hydroxyapatite synthesized using a novel microwave-assisted wet precipitation technique. Mater. Charact. 2021, 178, 111169. [Google Scholar] [CrossRef]
  33. Li, G.; Huang, J.; Wei, J.; Liu, C.; Zuo, Y.; Li, J.; Li, Y. Fabrication of strontium and simvastatin loaded hydroxyapatite microspheres by one-step approach. Mater. Lett. 2021, 300, 130234. [Google Scholar] [CrossRef]
  34. Khvostov, M.V.; Borisova, M.S.; Bulina, N.V.; Makarova, S.V.; Dumchenko, N.B.; Tolstikova, T.G.; Lyakhov, N.Z. The influence of zinc and silicate ions on biological properties of hydroxyapatite synthesized by a mechanochemical method. Ceram. Int. 2021, 47, 9495–9503. [Google Scholar] [CrossRef]
  35. Bensalem, A.; Kucukosman, O.K.; Raszkiewicz, J.; Topkaya, F. Synthesis, characterization, bactericidal activity, and mechanical properties of hydroxyapatite nano powders impregnated with silver and zinc oxide nanoparticles (Ag-ZnO-Hap). Ceram. Int. 2021, 47, 21319–21324. [Google Scholar] [CrossRef]
  36. Czechowska, J. Self-assembling, hybrid hydroxyapatite-methylcellulose granules, modified with nano-silver. Mater. Lett. 2021, 300, 130156. [Google Scholar] [CrossRef]
  37. Szurkowska, K.; Kolmas, J. Hydroxyapatites enriched in silicon—Bioceramic materials for biomedical and pharmaceutical applications. Prog. Nat. Sci. 2017, 27, 401–409. [Google Scholar] [CrossRef]
  38. Ai, F.; Chen, L.; Yan, J.; Yang, K.; Li, S.; Duan, H.; Cao, C.; Li, W.; Zhou, K. Hydroxyapatite scaffolds containing copper for bone tissue engineering. J. Sol-Gel Sci. Technol. 2020, 95, 168–179. [Google Scholar] [CrossRef]
  39. Shanmugam, S.; Gopal, B. Copper substituted hydroxyapatite and fluorapatite: Synthesis, characterization and antimicrobial properties. Ceram. Int. 2014, 40, 15655–15662. [Google Scholar] [CrossRef]
  40. Zhang, X.; Yu, Y.; Jiang, D.; Jiao, Y.; Wu, Y.; Peng, Z.; Zhou, J.; Wu, J.; Dong, Z. Synthesis and characterization of a bi-functional hydroxyapatite/Cu-doped TiO2 composite coating. Ceram. Int. 2019, 45, 6693–6701. [Google Scholar] [CrossRef]
  41. Correa-Piña, B.A.; Gomez-Vazquez, O.M.; Londoño-Restrepo, S.M.; Zubieta-Otero, L.F.; Millan-Malo, B.M.; Rodriguez-García, M.E. Synthesis and characterization of nano-hydroxyapatite added with magnesium obtained by wet chemical precipitation. Prog. Nat. Sci. 2021, 31, 575–582. [Google Scholar] [CrossRef]
  42. Kulanthaivel, S.; Mishra, U.; Agarwal, T.; Giri, S.; Pal, K.; Pramanik, K.; Banerjee, I. Improving the osteogenic and angiogenic properties of synthetic hydroxyapatite by dual doping of bivalent cobalt and magnesium ion. Ceram. Int. 2015, 41, 11323–11333. [Google Scholar] [CrossRef]
  43. Dittler, M.L.; Unalan, I.; Grünewald, A.; Beltrán, A.M.; Grillo, C.A.; Destch, R.; Gonzalez, M.C.; Boccaccini, A.R. Bioactive glass (45S5)-based 3D scaffolds coated with magnesium and zinc-loaded hydroxyapatite nanoparticles for tissue engineering applications. Colloids Surf. B Biointerfaces 2019, 182, 110346. [Google Scholar] [CrossRef]
  44. Furko, M.; Horváth, Z.E.; Sulyok, A.; Kis, V.K.; Balázsi, K.; Mihály, J.; Balázsi, C. Preparation and morphological investigation on bioactive ion-modified carbonated hydroxyapatite-biopolymer composite ceramics as coatings for orthopaedic implants. Ceram. Int. 2021, 48, 760–768. [Google Scholar] [CrossRef]
  45. Mardziah, C.M.; Ramesh, S.; Tan, C.Y.; Chandran, H.; Sidhu, A.; Krishnasamy, S.; Purbolaksono, J. Zinc-substituted hydroxyapatite produced from calcium precursor derived from eggshells. Ceram. Int. 2021, 47, 33010–33019. [Google Scholar] [CrossRef]
  46. Maleki-Ghaleh, H.; Hossein Siadati, M.; Fallah, A.; Zarrabi, A.; Afghah, F.; Koc, B.; Dalir Abdolahinia, E.; Omidi, Y.; Barar, J.; Akbari-Fakhrabadi, A.; et al. Effect of zinc-doped hydroxyapatite/graphene nanocomposite on the physicochemical properties and osteogenesis differentiation of 3D-printed polycaprolactone scaffolds for bone tissue engineering. Chem. Eng. J. 2021, 426, 131321. [Google Scholar] [CrossRef]
  47. Lin, D.-J.; Lin, H.-L.; Haung, S.-M.; Liu, S.-M.; Chen, W.-C. Effect of pH on the In Vitro Biocompatibility of Surfactant-Assisted Synthesis and Hydrothermal Precipitation of Rod-Shaped Nano-Hydroxyapatite. Polymers 2021, 13, 2994. [Google Scholar] [CrossRef]
  48. Chen, W.-C.; Cheng, I.-T.; Chang, K.-C.; Haung, S.-M.; Chen, J.-C.; Shih, C.-J. Heparin as a biomimetic template on nanoapatite rods with tunable aspect ratio: Synthesis and biocompatibility. J. Aust. Ceram. Soc. 2021, 57, 825–834. [Google Scholar] [CrossRef]
  49. Chen, J.; Liu, J.; Deng, H.; Yao, S.; Wang, Y. Regulatory synthesis and characterization of hydroxyapatite nanocrystals by a microwave-assisted hydrothermal method. Ceram. Int. 2020, 46, 2185–2193. [Google Scholar] [CrossRef]
  50. Bhattacharjee, A.; Gupta, A.; Verma, M.; Murugan, P.A.; Sengupta, P.; Matheshwaran, S.; Manna, I.; Balani, K. Site-specific antibacterial efficacy and cyto/hemo-compatibility of zinc substituted hydroxyapatite. Ceram. Int. 2019, 45, 12225–12233. [Google Scholar] [CrossRef]
  51. Haung, S.-M.; Chen, J.-C.; Chang, K.-C.; Ko, C.-L.; Lin, D.-J.; Chen, W.-C. Synthesis of nanorod apatites with templates at critical micelle concentrations and in vitro evaluation of cytotoxicity and antimicrobial activity. J. Asian Ceram. Soc. 2021, 9, 995–1006. [Google Scholar] [CrossRef]
  52. Mardziah, C.M.; Ramesh, S.; Abdul Wahid, M.F.; Chandran, H.; Sidhu, A.; Krishnasamy, S.; Purbolaksono, J. Effect of zinc ions on the structural characteristics of hydroxyapatite bioceramics. Ceram. Int. 2020, 46, 13945–13952. [Google Scholar] [CrossRef]
  53. Bulina, N.V.; Vinokurova, O.B.; Eremina, N.V.; Prosanov, I.Y.; Khusnutdinov, V.R.; Chaikina, M.V. Features of solid-phase mechanochemical synthesis of hydroxyapatite doped by copper and zinc ions. J. Solid State Chem. 2021, 296, 121973. [Google Scholar] [CrossRef]
  54. Stipniece, L.; Wilson, S.; Curran, J.M.; Chen, R.; Salma-Ancane, K.; Sharma, P.K.; Meenan, B.J.; Boyd, A.R. Strontium substituted hydroxyapatite promotes direct primary human osteoblast maturation. Ceram. Int. 2021, 47, 3368–3379. [Google Scholar] [CrossRef]
  55. Shannon, R.D. Revised effective ionic radii and systematic studies of interatomic distances in halides and chalcogenides. Acta Crystallogr. Sect. A 1976, 32, 751–767. [Google Scholar] [CrossRef]
  56. Sergi, R.; Bellucci, D.; Candidato, R.T.; Lusvarghi, L.; Bolelli, G.; Pawlowski, L.; Candiani, G.; Altomare, L.; De Nardo, L.; Cannillo, V. Bioactive Zn-doped hydroxyapatite coatings and their antibacterial efficacy against Escherichia coli and Staphylococcus aureus. Surf. Coat. Technol. 2018, 352, 84–91. [Google Scholar] [CrossRef]
  57. George, A.; Raj, D.M.A.; Raj, A.D.; Irudayaraj, A.A.; Arumugam, J.; Senthil kumar, M.; Prabu, H.J.; Sundaram, S.J.; Al-Dhabi, N.A.; Arasu, M.V.; et al. Temperature effect on CuO nanoparticles: Antimicrobial activity towards bacterial strains. Surf. Interfaces 2020, 21, 100761. [Google Scholar] [CrossRef]
  58. Jose, S.; Senthilkumar, M.; Elayaraja, K.; Haris, M.; George, A.; Raj, A.D.; Sundaram, S.J.; Bashir, A.K.H.; Maaza, M.; Kaviyarasu, K. Preparation and characterization of Fe doped n-hydroxyapatite for biomedical application. Surf. Interfaces 2021, 25, 101185. [Google Scholar] [CrossRef]
  59. El-Sherif, A.A.; Eldebss, T.M.A. Synthesis, spectral characterization, solution equilibria, in vitro antibacterial and cytotoxic activities of Cu(II), Ni(II), Mn(II), Co(II) and Zn(II) complexes with Schiff base derived from 5-bromosalicylaldehyde and 2-aminomethylthiophene. Spectrochim. Acta A Mol. Biomol. Spectrosc. 2011, 79, 1803–1814. [Google Scholar] [CrossRef]
  60. Lv, Y.; Chen, Y.; Zheng, Y.; Li, Q.; Lei, T.; Yin, P. Evaluation of the antibacterial properties and in-vitro cell compatibilities of doped copper oxide/hydroxyapatite composites. Colloids Surf. B Biointerfaces 2022, 209, 112194. [Google Scholar] [CrossRef]
  61. Iso, I. 10993–5: 2009; Biological evaluation of medical devices—part 5: Tests for in vitro cytotoxicity. International Organization for Standardization: Geneva, Switzerland, 2009.
  62. Sivaraj, D.; Vijayalakshmi, K.; Ganeshkumar, A.; Rajaram, R. Tailoring Cu substituted hydroxyapatite/functionalized multiwalled carbon nanotube composite coating on 316L SS implant for enhanced corrosion resistance, antibacterial and bioactive properties. Int. J. Pharm. 2020, 590, 119946. [Google Scholar] [CrossRef] [PubMed]
  63. Arul, K.T.; Kolanthai, E.; Manikandan, E.; Bhalerao, G.M.; Chandra, V.S.; Ramya, J.R.; Mudali, U.K.; Nair, K.G.M.; Kalkura, S.N. Green synthesis of magnesium ion incorporated nanocrystalline hydroxyapatite and their mechanical, dielectric and photoluminescence properties. Mater. Res. Bull. 2015, 67, 55–62. [Google Scholar] [CrossRef]
  64. Tang, Y.; Chappell, H.F.; Dove, M.T.; Reeder, R.J.; Lee, Y.J. Zinc incorporation into hydroxylapatite. Biomaterials 2009, 30, 2864–2872. [Google Scholar] [CrossRef]
  65. Radovanović, Ž.; Jokić, B.; Veljović, D.; Dimitrijević, S.; Kojić, V.; Petrović, R.; Janaćković, D. Antimicrobial activity and biocompatibility of Ag+- and Cu2+-doped biphasic hydroxyapatite/α-tricalcium phosphate obtained from hydrothermally synthesized Ag+- and Cu2+-doped hydroxyapatite. Appl. Surf. Sci. 2014, 307, 513–519. [Google Scholar] [CrossRef]
  66. Yao, F.; Xie, W.; Yang, M.; Zhang, H.; Gu, H.; Du, A.; Naik, N.; Young, D.P.; Lin, J.; Guo, Z. Interfacial polymerized copolymers of aniline and phenylenediamine with tunable magnetoresistance and negative permittivity. Mater. Today Phys. 2021, 21, 100502. [Google Scholar] [CrossRef]
  67. Dar, U.A.; Salunke-Gawali, S.; Shinde, D.; Bh, S.; Satpute, S. Thermal and Spectral Studies of Transition Metal Complexes of 2-Bromo-3-Hydroxynaphthalene-1, 4-Dione: Evaluation of Antibacterial Activity Against Six Bacterial Strains. Eng. Sci. 2021, 15, 105–115. [Google Scholar] [CrossRef]
  68. Panthi, G.; Ranjit, R.; Khadka, S.; Gyawali, K.R.; Kim, H.-Y.; Park, M. Characterization and antibacterial activity of rice grain-shaped ZnS nanoparticles immobilized inside the polymer electrospun nanofibers. Adv. Compos. Hybrid Mater. 2020, 3, 8–15. [Google Scholar] [CrossRef]
  69. Singh, M.; Bajaj, N.K.; Bhardwaj, A.; Singh, P.; Kumar, P.; Sharma, J. Study of photocatalytic and antibacterial activities of graphene oxide nanosheets. Adv. Compos. Hybrid Mater. 2018, 1, 759–765. [Google Scholar] [CrossRef]
  70. Kumar, S.; Gautam, C.; Chauhan, B.S.; Srikrishna, S.; Yadav, R.S.; Rai, S.B. Enhanced mechanical properties and hydrophilic behavior of magnesium oxide added hydroxyapatite nanocomposite: A bone substitute material for load bearing applications. Ceram. Int. 2020, 46, 16235–16248. [Google Scholar] [CrossRef]
Pharmaceuticals 15 00885 g001 550

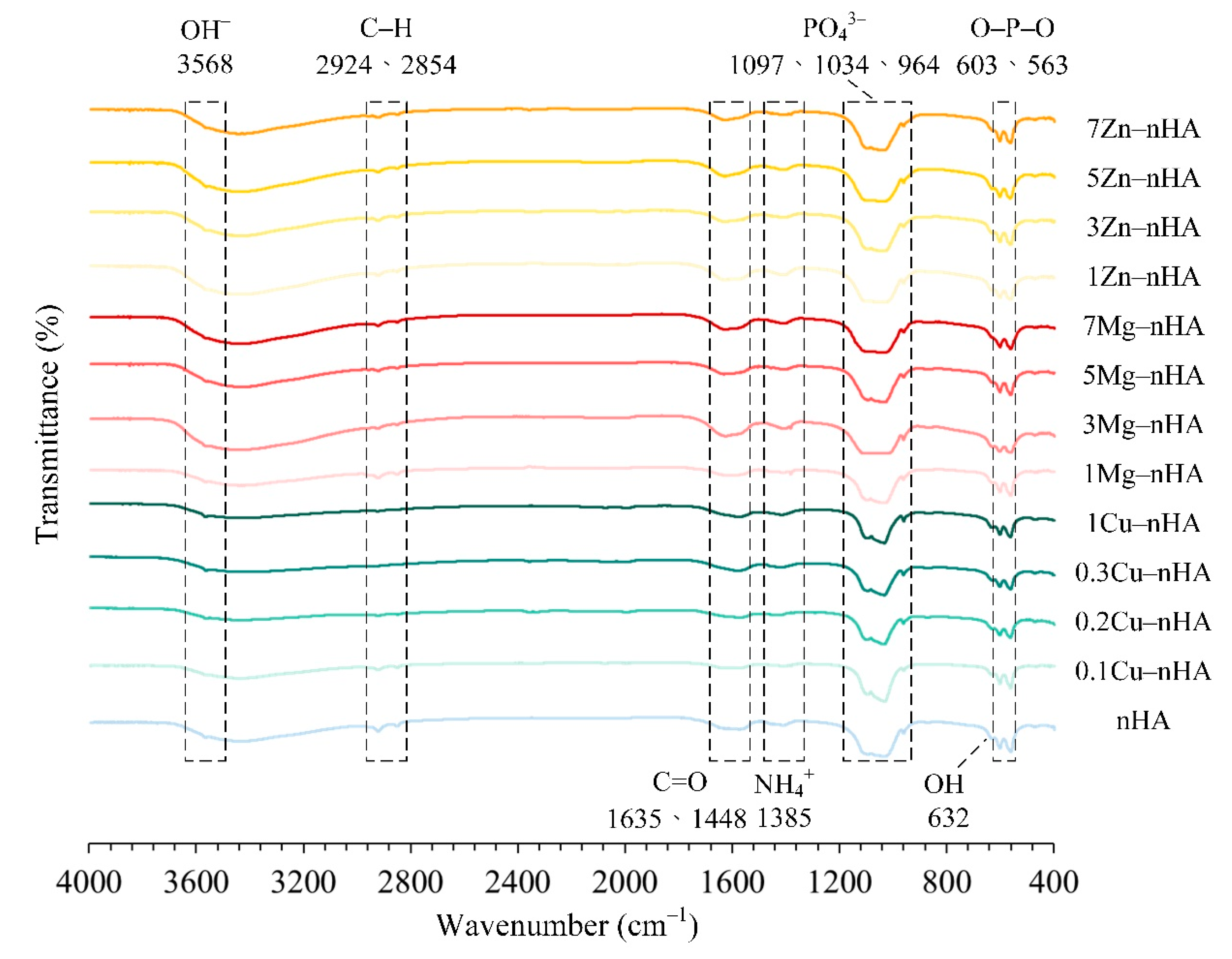

Figure 1. Fourier transform infrared spectra of rod-shaped nanoapatites synthesized with and without Cu2+, Mg2+, and Zn2+ at different ion concentrations.
Figure 1. Fourier transform infrared spectra of rod-shaped nanoapatites synthesized with and without Cu2+, Mg2+, and Zn2+ at different ion concentrations.
Pharmaceuticals 15 00885 g001
Pharmaceuticals 15 00885 g002 550

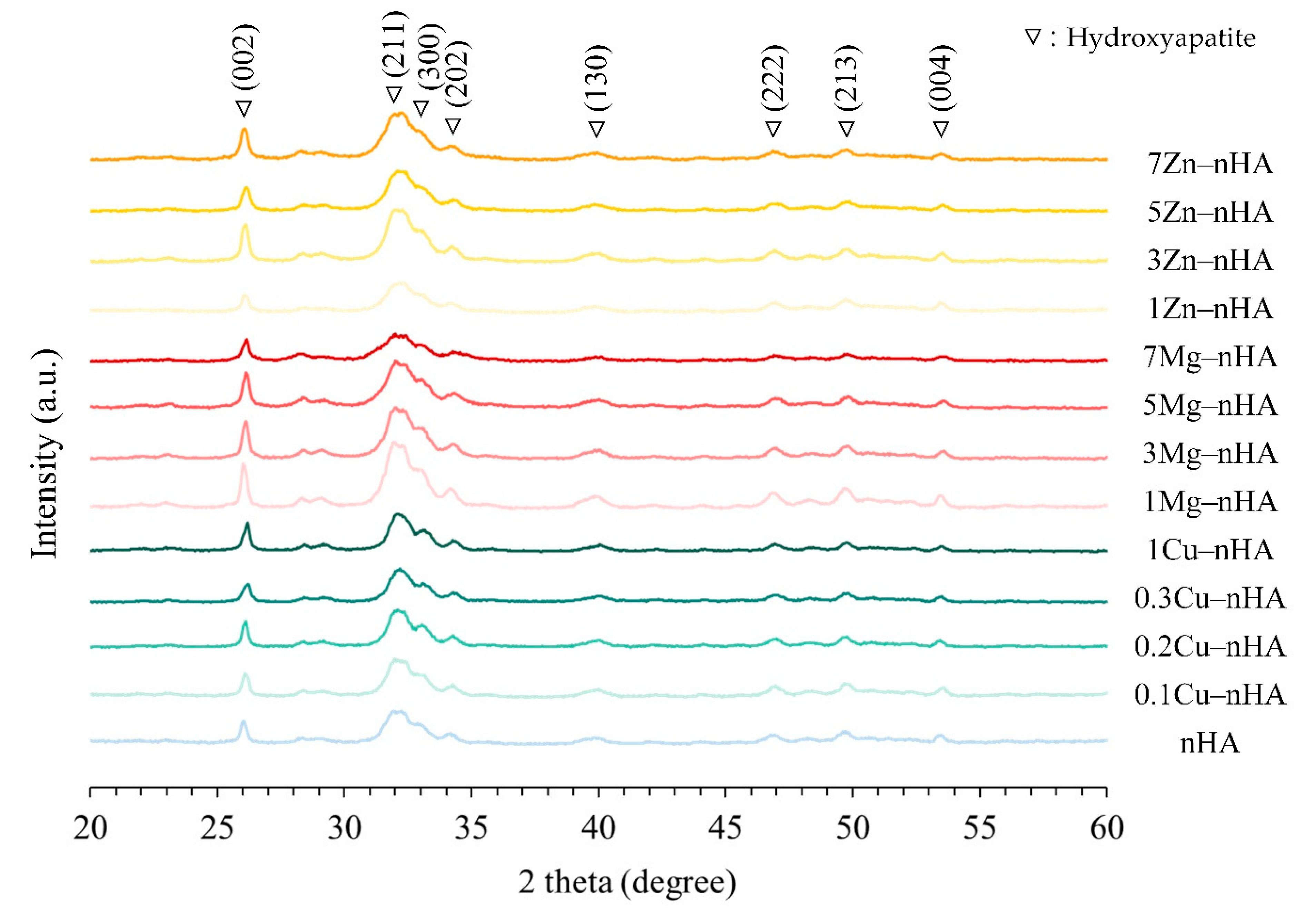

Figure 2. X-ray diffraction patterns of the rod-shaped nanoapatites synthesized with and without Cu2+, Mg2+, and Zn2+ at different ion concentrations.
Figure 2. X-ray diffraction patterns of the rod-shaped nanoapatites synthesized with and without Cu2+, Mg2+, and Zn2+ at different ion concentrations.
Pharmaceuticals 15 00885 g002
Pharmaceuticals 15 00885 g003 550
Figure 3. High-resolution transmission electron microscopy images, lattice images of the (002) facet of apatite were identified, and selected area electron diffraction analysis of rod-shape nanoapatites hydrothermal synthesized with different ionic co-precipitation concentrations in the absence (top left) and presence of Cu2+ (top row), Mg2+ (middle row), and Zn2+ (bottom row).
Figure 3. High-resolution transmission electron microscopy images, lattice images of the (002) facet of apatite were identified, and selected area electron diffraction analysis of rod-shape nanoapatites hydrothermal synthesized with different ionic co-precipitation concentrations in the absence (top left) and presence of Cu2+ (top row), Mg2+ (middle row), and Zn2+ (bottom row).
Pharmaceuticals 15 00885 g003
Pharmaceuticals 15 00885 g004 550

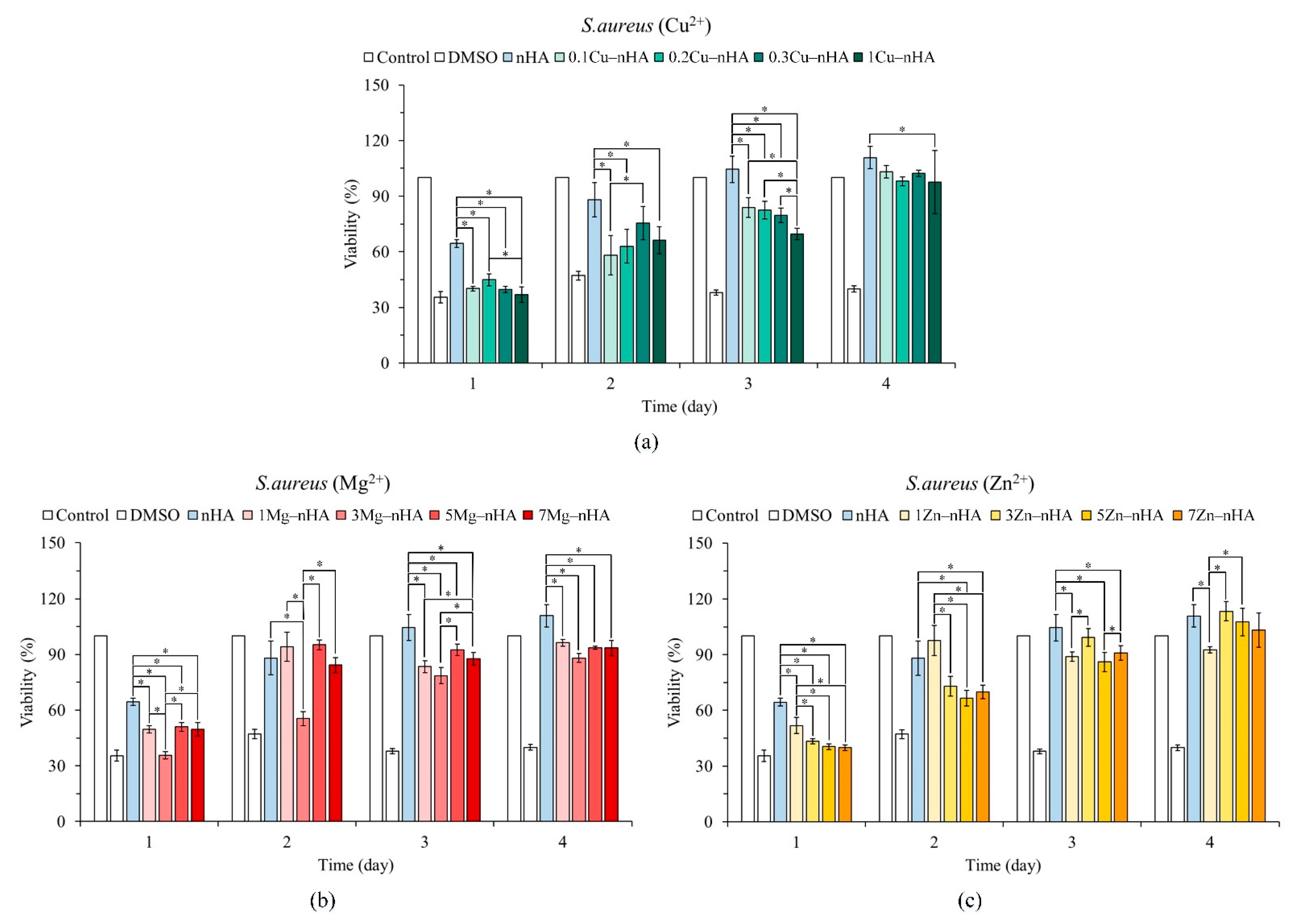

Figure 4. Relative quantitative antibacterial ability against gram-positive S. aureus in the presence of different ionic concentrations of Cu2+ (a), Mg2+ (b), and Zn2+ (c), the rod-shaped nanoapatites with different ion concentrations (n = 3; * indicates significantly different p < 0.05).
Figure 4. Relative quantitative antibacterial ability against gram-positive S. aureus in the presence of different ionic concentrations of Cu2+ (a), Mg2+ (b), and Zn2+ (c), the rod-shaped nanoapatites with different ion concentrations (n = 3; * indicates significantly different p < 0.05).
Pharmaceuticals 15 00885 g004
Pharmaceuticals 15 00885 g005 550

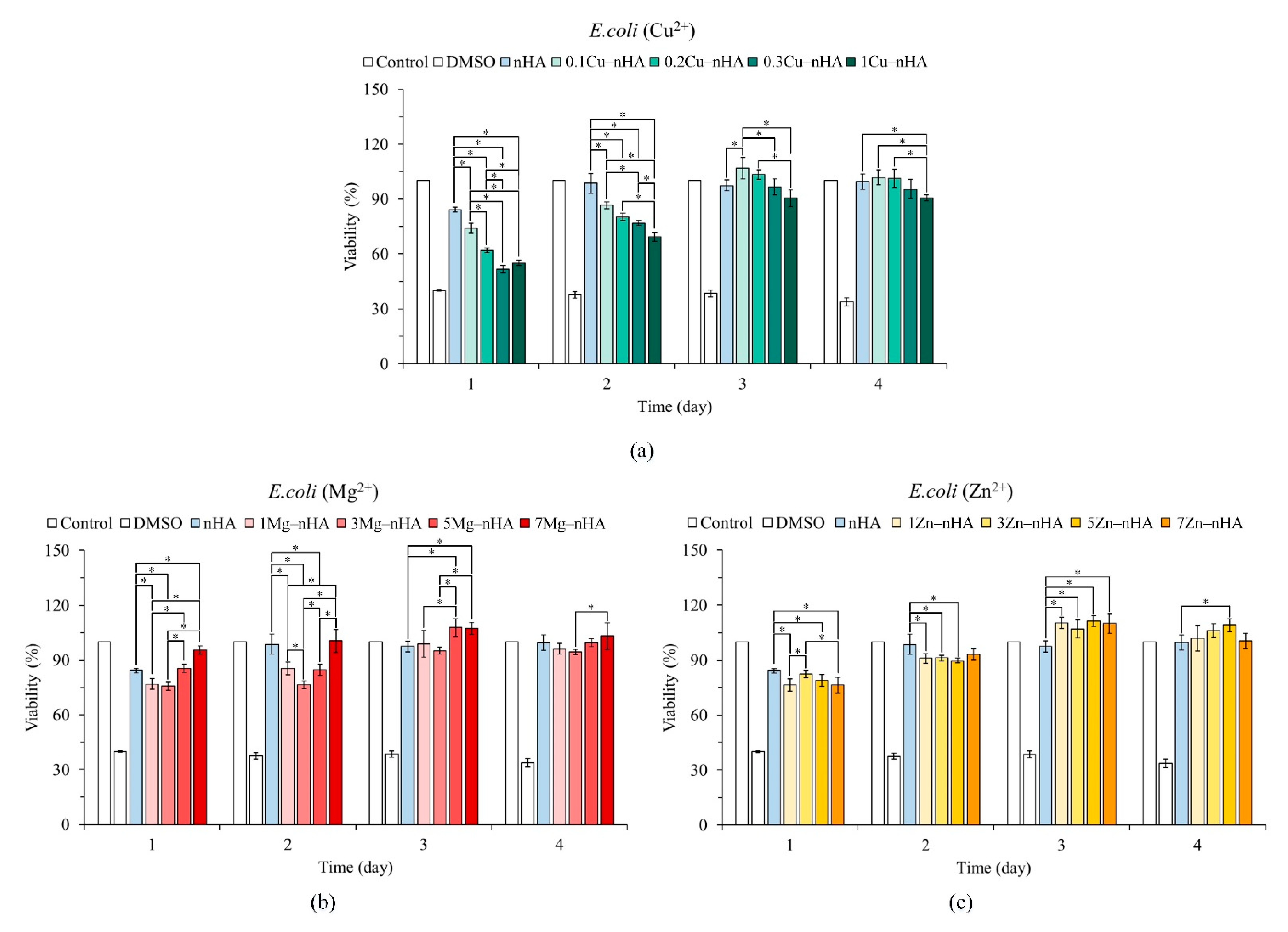

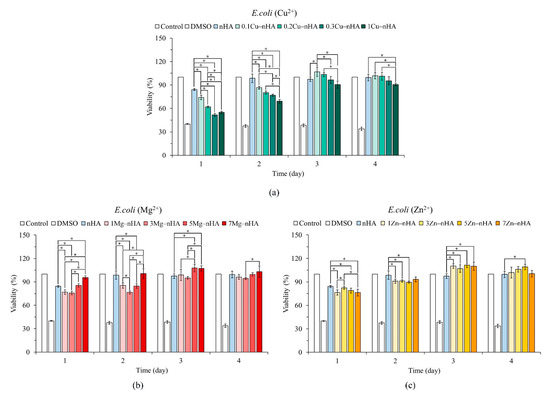

Figure 5. Relative quantitative antibacterial ability against gram-negative E. coli in the presence of different ionic concentrations of Cu2+ (a), Mg2+ (b), and Zn2+ (c), the rod-shaped nanoapatites with different ion concentrations (n = 3; * p < 0.05).
Figure 5. Relative quantitative antibacterial ability against gram-negative E. coli in the presence of different ionic concentrations of Cu2+ (a), Mg2+ (b), and Zn2+ (c), the rod-shaped nanoapatites with different ion concentrations (n = 3; * p < 0.05).
Pharmaceuticals 15 00885 g005
Pharmaceuticals 15 00885 g006 550

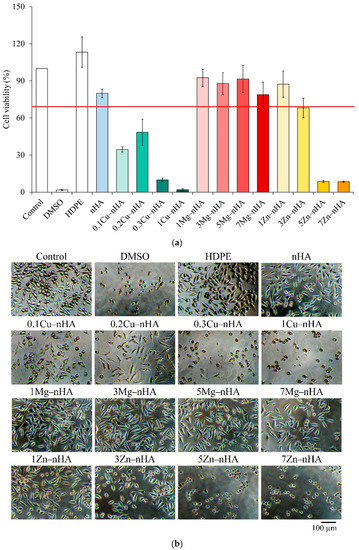

Figure 6. (a) Quantitative results of cytotoxicity (n = 6) after culturing L929 cells with nanoapatite doped with different metallic ions for 1 day; (b) qualitative analysis of cytotoxicity.
Figure 6. (a) Quantitative results of cytotoxicity (n = 6) after culturing L929 cells with nanoapatite doped with different metallic ions for 1 day; (b) qualitative analysis of cytotoxicity.
Pharmaceuticals 15 00885 g006
Table
Table 1. Calculation of full width at half maximum values from X-ray diffraction patterns of rod-shaped nanoapatites synthesized with different concentrations of Cu2+, Mg2+, and Zn2+ ions.
Table 1. Calculation of full width at half maximum values from X-ray diffraction patterns of rod-shaped nanoapatites synthesized with different concentrations of Cu2+, Mg2+, and Zn2+ ions.
Samples(002)(211)(300)(202)(130)(222)(213)(004)
nHA/control0.3191.0740.4290.3680.7920.5470.4310.340
0.1Cu−nHA0.3211.0480.3360.4000.8260.5350.4430.345
0.2Cu−nHA0.3040.8340.5220.3840.7240.5330.4240.333
0.3Cu−nHA0.3780.8610.4640.3470.6960.5770.4250.378
1Cu−nHA0.3240.8180.5380.3670.7050.5270.3900.351
1Mg−nHA0.3181.0420.3620.2970.8120.5420.4350.332
3Mg−nHA0.3220.9240.4850.3870.8280.5290.4300.342
5Mg−nHA0.3450.9560.4420.4420.8270.5180.4100.384
7Mg−nHA0.3560.8550.5790.5970.7770.5970.4340.477
1Zn−nHA0.3490.9340.3370.3370.8510.5340.5170.393
3Zn−nHA0.3381.0530.3500.2690.8360.5490.4640.332
5Zn−nHA0.3741.0820.3340.3610.8660.6210.5100.361
7Zn−nHA0.3691.1280.3180.4010.8840.5620.4720.395
Table
Table 2. Average longitudinal length, transverse width, length-to-width aspect ratio (n = 50) of rod-shaped nanoapatites and plane ratio of (002) to (300) FWHM values after doping in different Cu2+, Mg2+, and Zn2+ ionic reaction concentrations.
Table 2. Average longitudinal length, transverse width, length-to-width aspect ratio (n = 50) of rod-shaped nanoapatites and plane ratio of (002) to (300) FWHM values after doping in different Cu2+, Mg2+, and Zn2+ ionic reaction concentrations.
SamplesLongitudinal Length (nm)Transverse Width (nm)Length-to-Width
Aspect Ratio		Plane Ratio of (002) to (300) FWHM Values
nHA/control48.76 ± 10.5010.44 ± 2.384.85 ± 1.390.74
0.1Cu−nHA47.07 ± 7.3311.80 ± 2.674.15 ± 0.970.96
0.2Cu−nHA42.65 ± 10.8710.99 ± 2.173.92 ± 0.810.58
0.3Cu−nHA42.73 ± 10.7410.38 ± 2.824.43 ± 1.720.81
1Cu−nHA41.66 ± 9.7511.91 ± 2.773.58 ± 0.82 *0.60
1Mg−nHA46.16 ± 9.23 *10.32 ± 2.154.62 ± 1.190.88
3Mg−nHA37.03 ± 7.606.80 ± 1.74 *5.69 ± 1.52 *0.66
5Mg−nHA36.48 ± 8.499.62 ± 2.463.94 ± 1.060.78
7Mg−nHA34.99 ± 9.659.06 ± 1.953.96 ± 1.120.61
1Zn−nHA45.69 ± 8.54 *12.15 ± 2.623.91 ± 1.041.04
3Zn−nHA39.37 ± 8.33 *10.04 ± 2.34 *4.09 ± 1.180.97
5Zn−nHA31.92 ± 5.219.30 ± 2.14 *3.57 ± 0.861.12
7Zn−nHA30.53 ± 4.8012.05 ± 2.622.62 ± 0.58 *1.16
* p < 0.05.
Table
Table 3. Nomenclature of nanoapatite groups with metal ions at varying content during hydrothermal synthesis.
Table 3. Nomenclature of nanoapatite groups with metal ions at varying content during hydrothermal synthesis.
Abbreviated NamesCa(NO3)2•4H2O (mmol)Contents of Metal Ion in Morality[M/(Ca + M)] × 100% a(NH4)2HPO4 (mmol)(Ca + M)/P
(Atomic Ratio)
nHA/control9.000−−5.4001.670
Cu(NO3)2•3H2O (mmol)
0.1Cu–nHA8.9910.0090.15.4001.670
0.2Cu−nHA8.9820.0180.25.4001.670
0.3Cu−nHA8.9730.0270.35.4001.670
1Cu−nHA8.9100.0901.05.4001.670
Mg(NO3)2•6H2O (mmol)
1Mg−nHA8.9100.0901.05.4001.670
3Mg−nHA8.7300.2703.05.4001.670
5Mg−nHA8.5500.4505.05.4001.670
7Mg−nHA8.3700.6307.05.4001.670
Zn(NO3)2 •6H2O (mmol)
1Zn−nHA8.9100.0901.05.4001.670
3Zn−nHA8.7300.2703.05.4001.670
5Zn−nHA8.5500.4505.05.4001.670
7Zn−nHA8.3700.6307.05.4001.670
a M: Cu2+, Mg2+, and Zn2+ ions.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Huang, S.-M.; Liu, S.-M.; Chen, W.-C.; Ko, C.-L.; Shih, C.-J.; Chen, J.-C. Morphological Changes, Antibacterial Activity, and Cytotoxicity Characterization of Hydrothermally Synthesized Metal Ions-Incorporated Nanoapatites for Biomedical Application. Pharmaceuticals 2022, 15, 885. https://doi.org/10.3390/ph15070885

AMA Style

Huang S-M, Liu S-M, Chen W-C, Ko C-L, Shih C-J, Chen J-C. Morphological Changes, Antibacterial Activity, and Cytotoxicity Characterization of Hydrothermally Synthesized Metal Ions-Incorporated Nanoapatites for Biomedical Application. Pharmaceuticals. 2022; 15(7):885. https://doi.org/10.3390/ph15070885

Chicago/Turabian Style

Huang, Ssu-Meng, Shih-Ming Liu, Wen-Cheng Chen, Chia-Ling Ko, Chi-Jen Shih, and Jian-Chih Chen. 2022. "Morphological Changes, Antibacterial Activity, and Cytotoxicity Characterization of Hydrothermally Synthesized Metal Ions-Incorporated Nanoapatites for Biomedical Application" Pharmaceuticals 15, no. 7: 885. https://doi.org/10.3390/ph15070885

APA Style

Huang, S. -M., Liu, S. -M., Chen, W. -C., Ko, C. -L., Shih, C. -J., & Chen, J. -C. (2022). Morphological Changes, Antibacterial Activity, and Cytotoxicity Characterization of Hydrothermally Synthesized Metal Ions-Incorporated Nanoapatites for Biomedical Application. Pharmaceuticals, 15(7), 885. https://doi.org/10.3390/ph15070885

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
