Review

Endogenous Lipid Carriers—Bench-to-Bedside Roadblocks in Production and Drug Loading of Exosomes

by
Terjahna Richards
,
Himaxi Patel
,
Ketan Patel
and
Frank Schanne
*
College of Pharmacy & Health Sciences, St. John’s University, Queens, NY 11439, USA
*
Author to whom correspondence should be addressed.
Pharmaceuticals 2023, 16(3), 421; https://doi.org/10.3390/ph16030421
Submission received: 3 February 2023 / Revised: 4 March 2023 / Accepted: 7 March 2023 / Published: 10 March 2023
(This article belongs to the Special Issue Current Insights on Lipid-Based Nanosystems 2023)
Browse Figures
Versions Notes

Abstract

:
Exosomes are cell-derived, nano-sized extracellular vesicles comprising a lipid bilayer membrane that encapsulates several biological components, such as nucleic acids, lipids, and proteins. The role of exosomes in cell–cell communication and cargo transport has made them promising candidates in drug delivery for an array of diseases. Despite several research and review papers describing the salient features of exosomes as nanocarriers for drug delivery, there are no FDA-approved commercial therapeutics based on exosomes. Several fundamental challenges, such as the large-scale production and reproducibility of batches, have hindered the bench-to-bedside translation of exosomes. In fact, compatibility and poor drug loading sabotage the possibility of delivering several drug molecules. This review provides an overview of the challenges and summarizes the potential solutions/approaches to facilitate the clinical development of exosomal nanocarriers.

Graphical Abstract

1. Introduction

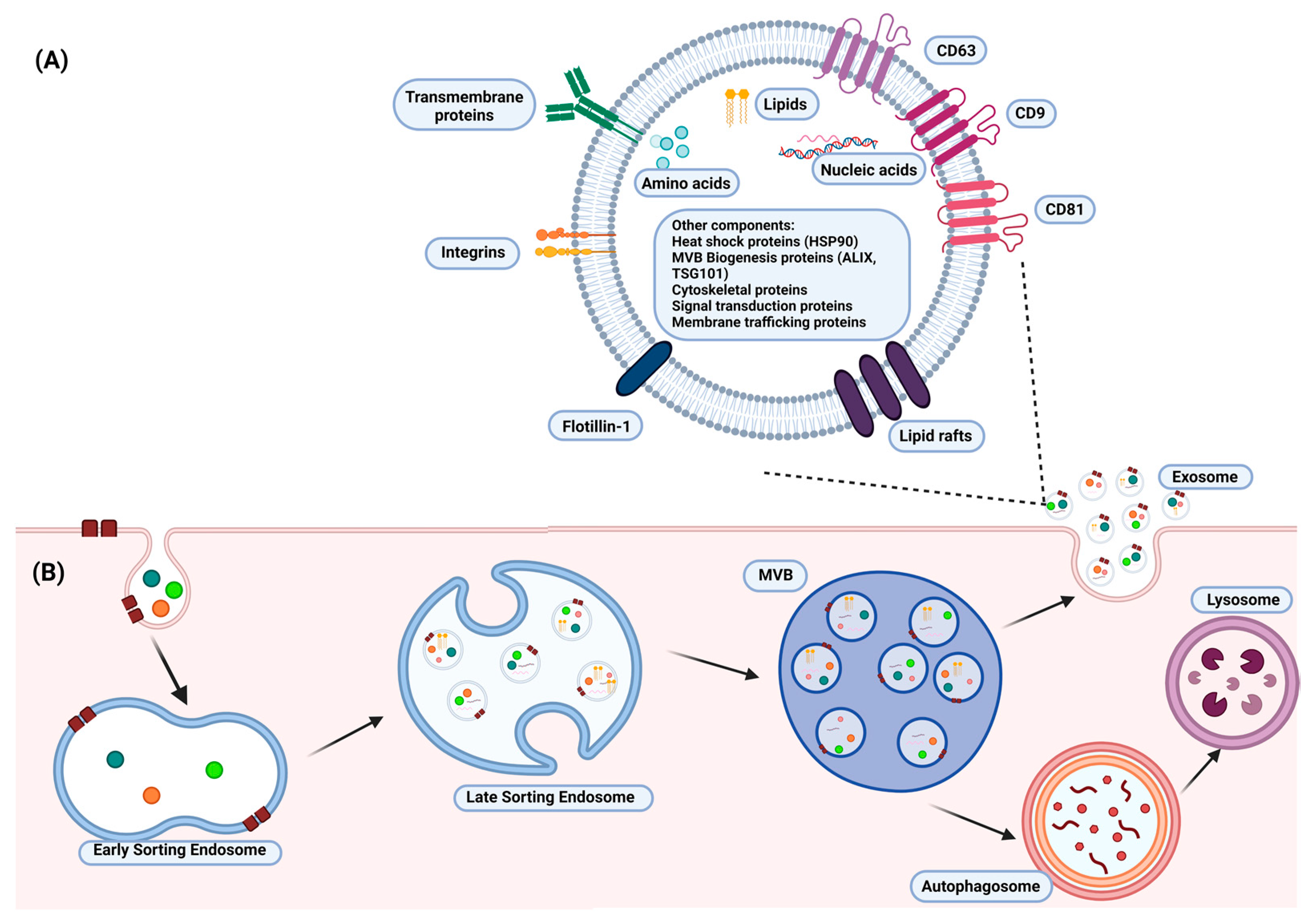

Exosomes, a subclass of extracellular vesicles, are lipid bilayer vesicles with an average diameter of 100 nm that are secreted by all cell types. Exosomes consist of a multitude of extracellular and intracellular bioactive compounds, which play a crucial role in cellular communication and cargo transport [1,2]. Extracellular components include tetraspanins (CD9, CD81, CD63), lipid rafts, flotillin-1, integrins, and transmembrane proteins (Figure 1A). This is in contrast with intracellular components, which include lipids, nucleic acids, and various proteins, such as cytoskeleton proteins and heat shock proteins (Figure 1A). Exosomes are produced from a specific bilayer organelle called a multivesicular body (MVB) (Figure 1B). The formation of the MVB includes several phases: (1) inward budding of the cell membrane, (2) formation of the early-sorting endosome (ESE), (3) formation of the late-sorting endosome (LSE), where exosome precursors called intraluminal vesicles (ILVs) are germinating, and (4) transformation of the LSE to a mature MVB (Figure 1B) [1,2]. Exosome biogenesis is also associated with specific sorting mechanisms, such as the endosomal sorting complex responsible for transport (ESCRT), which assists in cargo sequestration and ILV budding. The diversity shown in exosome development and characteristics aids in their isolation from other extracellular vesicles.
Exosomes possess favorable pharmacokinetic properties, biocompatibility, and tissue-targeting abilities due to their phospholipid bilayer structure and various bioactive components, such as mRNAs, microRNAs, cytokines, chemokines, and immunomodulatory compounds. Moreover, exosomes have the ability to suppress inflammation, regulate cell proliferation, and deliver biotherapeutics [3,4,5,6]. Nevertheless, the feasibility of exosomes as therapeutic agents remains limited, which may be attributed to low exosome production and poor drug loading. However, in recent years, there has been an increase in research devoted to overcoming the limitations of exosome-based therapies. The incorporation of alternative exosome sources, upstream strategies, and downstream strategies have been used to improve the yield of exosomes. Additionally, adjustments have been made to several commonly used drug-loading techniques, and new procedures have been developed to improve the drug loading of exosomes. This review summarizes the challenges and provides potential solutions for exosome production and drug loading to facilitate the clinical development of exosome nanocarriers.

2. Exosomal Drug Delivery: Challenges

2.1. Exosome Production and Isolation

Although exosomes have been shown to possess invaluable qualities for use in nanomedicine, their low production rate in unaltered cell cultures remains a key challenge, preventing bench-to-bedside use. In addition to the low production of exosomes, large variability in their size also exists, resulting in a lack of reproducibility in batches [1,7,8]. Consequently, the need remains to develop techniques that increase exosome production, maintain constant morphology, and limit any negative impact on cell cultures. It is worth mentioning that attention should be given to the shelf-life, stability, and storage of exosomes in their use as therapeutics.
Exosome isolation methods are important to increase the yield of exosomes. The currently available techniques for exosome isolation are based on their chemical, physical, and immunoaffinity assays and adapted from previous methods used for the isolation of viruses and other vesicles. Ultracentrifugation, the gold standard for exosome isolation, is one of the most applied techniques. However, its low recovery rate, low purity, and time-consuming process are not ideal for the implementation of exosomes in nanomedicine. Other commonly used techniques include polymer-based precipitation, ultrafiltration, size-exclusion chromatography, immunoaffinity chromatography, and microfluidics (Table 1). It is worth noting that the method of exosome isolation used may affect the yield and characteristics such as the size, structure, and biofunction of exosomes [3,9]. Thus, modifications to current methods and the development of new procedures are required to increase the yield and purity of exosomes.
Preservation is important for maintaining the biological functions of exosomes and ensuring the ease of their transportation and clinical use [2,25]. Currently, there are various techniques used to improve the storage, shelf-life, and stability of exosomes. These include freeze-drying, spray-drying, and cryopreservation [2]. Freeze-drying, which is divided into three stages—pre-freezing, sublimation drying, and analytical drying, leads to the cooling of liquid components, followed by freezing. Exosomes that are stored using this method maintain their original activity but are exposed to membrane damage. Spray-drying involves the use of atomization pressure and hot air for the storage of exosomes, which may affect the stability of these extracellular vesicles. Cryopreservation, which is conducted at −80 °C, is the most commonly used method [2]. It enables the short-term storage of exosomes through the reduction of biochemical activity so that functional stability can be maintained. Furthermore, several studies have suggested that the addition of cryoprotectants, such as trehalose or DMSO, is mildly protective in maintaining exosome ability [2,26]. Despite these benefits, cryopreservation is associated with membrane destabilization and protein degradation, which may affect the therapeutic function of exosomes. In addition, the storage of exosomes for four days at −80 °C has been noted to affect their morphology, and at 28 days, their biological activity starts to be affected [2,27,28]. Therefore, further analysis of the storage, stability, and shelf-life of exosomes is of utmost importance.

2.2. Exosome Drug Loading

In addition to low production and reproducibility, another key challenge in the use of exosomes in nanomedicine is poor drug loading. Exosomes have shown favorable biocompatibility and therapeutic targeting abilities, thus making them valuable as a potential drug delivery tool. However, several factors, such as the exosome size, the pharmacokinetics of the drug, and the drug size, may hinder the efficiency of drug loading and require more specialized techniques [6,8,29,30]. For example, an exosome of a larger size may be loaded with a drug more easily than one with a smaller size. Moreover, a lipid-soluble drug may be loaded more quickly than a water-soluble drug. The exosomal structure, coupled with a therapeutic drug, requires careful consideration in the drug-loading process. Thus, new and improved procedures should be developed to enhance the effectiveness of exosome drug loading.

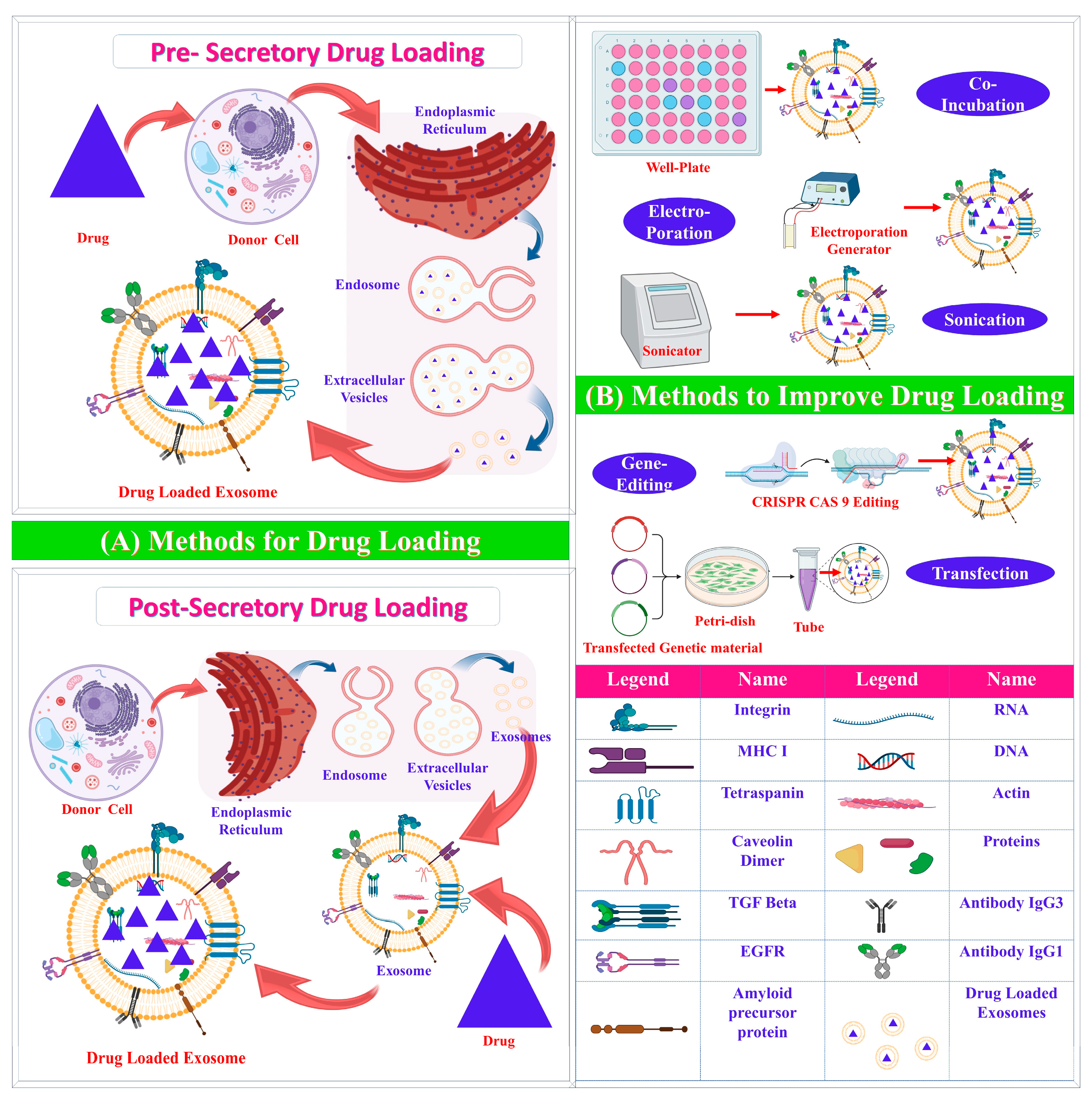

Drug-loading techniques can be categorized based on the time of implementation—pre-secretory or post-secretory [2]. Pre-secretory drug loading involves the loading of drugs before the development of the exosome, whereas post-secretory refers to drug loading after exosome development. Most drug-loading techniques are post-secretory and include sonication, electroporation, passive incubation, and the freeze–thaw cycle (Table 2).
The advantages and disadvantages of each drug-loading technique (Table 2) depend on the experimental settings, type of drug, and source of exosomes. Passive incubation, for example, is a simple technique that involves the incubation of purified exosomes with drugs to allow for incorporation into the exosome membrane [36,38,45]. For example, the small molecule doxorubicin was passively loaded into exosomes by Wei et al. for osteosarcoma treatment [46]. Passive incubation is primarily used due to its excellent performance in the incorporation of hydrophobic compounds, such as curcumin [38]. Hydrophobic compounds can interact with the lipid bilayer of the exosome more effectively than hydrophilic compounds, and thus, can be incorporated into the exosome. The loading of hydrophilic compounds can be enhanced with the addition of the mild surfactant saponin, which, according to studies, induces transient membrane destabilization and can be used for the loading of large compounds (>200 kDa) [3,43]. However, the use of saponins may also affect biomolecules, and thus, requires purification before clinical use. Mechanical methods, such as sonication, nanoporation, and electroporation have been shown to successfully load small molecules and macromolecules into exosomes [8,30,47,48]. Research conducted by C Liu et al., for example, incorporated one of the mechanical techniques, i.e., microfluidic sonication, to effectively load PLGA into exosomes isolated from a human lung carcinoma cell line (A549) [33]. In addition, a study by Rodriguez-Morales et al. used electroporation to effectively produce insulin-loaded exosomes for the treatment of diabetes mellitus [35]. It is worth noting that these post-secretory drug-loading techniques may affect the proteins and nucleic acid drugs that are incorporated into the exosome and the structure of the exosome. The complexity of some of these methods, such as nanoporation, may render large-scale use in a clinical setting difficult. Consequently, there is a great need for effective drug-loading techniques that can be implemented on a large-scale in nanomedicine.

3. Exosomal Drug Delivery: Solutions

3.1. Exosome Production and Isolation

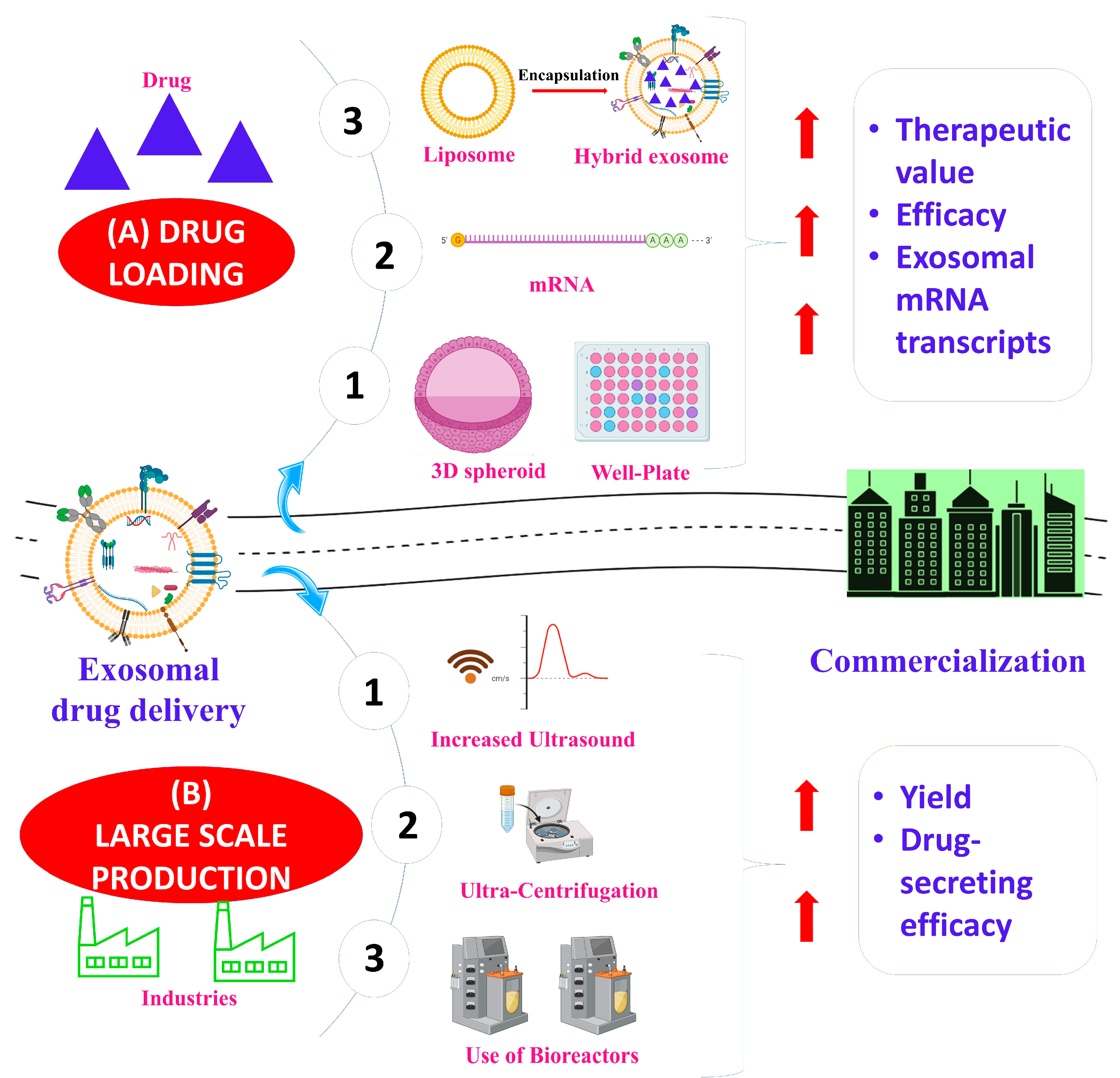

For the use of exosomes in a clinical setting, large-scale production is required. Research has identified the important areas that should be considered in addressing this issue. These include the selection of exosome sources and modifications (upstream and/or downstream) (Figure 2).

3.1.1. Source Selection

Exosomes can be produced from human and non-human sources. Human sources involve exosome production and isolation from the cells and fluids of the body. For example, stem cells have been shown to increase exosome production and provide larger-sized extracellular vesicles—a characteristic important for effective drug loading [49,50,51]. Research by Haraszti et. al. noted that human umbilical cord stem cells produce approximately four-fold larger-sized exosomes than bone marrow mesenchymal stem cells [52]. Other cell types need to be studied to evaluate exosome production and the therapeutic ability of these extracellular vesicles. This may prove to be beneficial in increasing exosome yield and improving reproducibility across batches.
The non-human sources, which arose from the increasing demand for exosome-based therapeutics, include prokaryotes (Gram-positive bacteria and Gram-negative bacteria) [53,54,55], bovine milk [38,56], parasitic helminths [57], plants [58], and protists [59,60]. Compared to human sources, these types of exosome sources are versatile, and hence, more easily altered in upstream and downstream modifications than the human sources. Their versatility is beneficial to the large-scale production and use of exosomes in vaccines, therapeutics, and drug delivery. For example, the vesicles of the Gram-negative Neisseria meningitidis were approved for use in vaccines [61]. However, a critical setback is that these exosomes can be immunogenic or allergenic depending on the administration route, dosage, and dose frequency. Furthermore, several studies have noted that the variability in the upstream and downstream modifications used to generate these exosomes introduces experimental bias, which consequently, affects the immunological outcomes [54,55]. In general, it can be stated that the source from which exosomes are derived may affect their production and properties, which may cause variable therapeutic outcomes in production. As a result, careful consideration should be taken in selecting the appropriate source.

3.1.2. Upstream Modifications

Exosome production can be influenced by modifications to the cell culture conditions. This may include appropriate cell selection and changes to the culture medium, the environmental parameters, and the method of cultivation. However, the alteration of cell culture conditions may affect the structure of exosomes and the productivity of the cultured cells.

Soluble Factors

The addition of soluble factors to the cell culture medium can be used to increase exosome production (Table 3). Bioactive cytokines, such as lipopolysaccharide (LPS) [62], N-methyldopamine [63], norepinephrine [63], serotonin [64], adiponectin [65], adenosine triphosphate (ATP) [66], Wnt3a [67], calcium (Ca2+) ionophores [64], and plant ceramide [68] have been used in research to increase exosome production (Table 3). Furthermore, the upregulation of NadB, syndecan 4, and six-transmembrane epithelial antigen of prostate 3 (STEAP3) has increased the exosomes produced in cell cultures [7,69,70]. Research has shown that the genetic overexpressions of tetraspanin CD9 and hypoxia-induced factor 1α (HIFα) have increased exosome production by 2.4- and 2.2-fold, respectively [71,72,73]. However, the property and therapeutic efficacy of exosomes may be affected by the use of soluble factors. As a result, there is hesitancy in the use of soluble factors to preserve the cell culture environment.

Chemical and Physical Stimulation

Alterations to the cell culture environment may cause cellular adaptation and consequently lead to changes in the characteristics of cells, thus resulting in increased exosome production. On this basis, chemical or physical damage-mimetic micro-environments have been created to increase exosome production and subsequent therapeutic functions (Table 3).
Chemical stimulations, such as hypoxia, have been shown to produce exosomes with enhanced therapeutic effects [71,72,74,75]. Serum deprivation, another example of chemical stimulation, exhibits variable effects on exosome production. Moreover, studies have revealed that the ability of serum deprivation to increase exosome production depends on the cellular origin [76,90]. Physical simulation involving flow and stretching factors, such as bioreactors, can increase exosome production. Studies involving the use of bioreactors have shown elevated exosome production by up to 37-fold [77,78]. Ambattu et al. employed another technique, where cells were stimulated with high-frequency ultrasound, resulting in an 8-10-fold increase in exosome production [79]. It is worth noting that the use of chemical and physical stimulations may affect the cellular characteristics.

3D Culture

The mode of cultivation, such as 3D culture, can be used to expand the cell culture area, and exosome production can be increased by continually applying a shear force to the enlarged area (Table 3). Methods of 3D culture include the hanging drop in a 3D spheroid culture and the microcarrier-based suspension culture. The efficiency of the hanging-drop technique plateaued after a 2–3-fold increase [80]. The microcarrier-based suspension culture, an extensively used suitable method for 3D culture, showed increased exosome production of approximately 20-fold [81,82,83]. Additionally, in combination with a tangential flow filtration system, exosome production was further increased by 140-fold [52]. Recently, Patel et. al. cultured cells on a 3D-printed hollow fibrillar scaffold with a complementary perfusion system and reported a 100-fold increase in exosome production [84]. However, later experiments conducted by Patel et al. demonstrated that the structure and components of exosomes were substantially affected. It was noted that the extracellular components were significantly decreased, and the complex process of the 3D printing scaffold required special training. In another study, Burns et. al. developed a low-shear technique for 3D cell cultivation that was reported to maintain cell viability, purity, and phenotype [85]. Notably, in 3D cell cultivation, the conditions of the cell culture and the shear force applied requires careful evaluation to limit the effects on cell viability and phenotype.

Biomaterials

Biomaterials could improve exosome productivity and their therapeutic ability by creating a special microenvironment for cellular interaction. Biomaterials used in cell culture include nitric oxide-releasing polymer [86], lithium-incorporated bioactive glass ceramic [87], iron oxide-coated polylactic-co-glycolic acid (PLGA) nanoparticles [88], and bioglass [89] (Table 3). Kojima et al. showed that the application of exosomal transfer into cells (EXOtic) devices for cell culture significantly increased exosome production and their therapeutic capability [69]. The EXOtic devices also enhanced the specific mRNA packaging and the delivery of the mRNA into the cytosol of the target cells, thus facilitating efficient cellular communication. The combination of biomaterials with cultivation technologies could also be used to further enhance exosome production.

3.1.3. Downstream Modifications

To address the challenges associated with exosome isolation, new methods have been developed to improve exosome purity and achieve a greater yield. A one-step sucrose cushion ultracentrifugation was developed to improve the yield and purity of exosomes from the established ultracentrifugation. This procedure involves the addition of 30% sucrose solution followed by cell culture media, without mixing the layers [91]. Gupta et al. reported that the exosome cup-shaped morphology was greater than differential ultracentrifugation, thus demonstrating reduced size variability [91]. Modifications have also been made to other exosome isolation techniques, such as magnetic bead-based isolation and immunoaffinity chromatography. Smith et al. created a simple, size-based nanoscale deterministic lateral displacement array of microfluidic channels to collect exosomes, demonstrating ~50% recovery [92]. In a study by Z et al. an ExoSD microfluidic chip with an immunocapture-based method was developed to achieve exosome isolation [93]. The microfluidic chips reported >80% exosome recovery and >83% purity [93]. Heath et al. developed a cost-effective, high-throughput isolation technique called anion exchange chromatography to increase exosome yield [94]. Using higher flow rates and step elution, the authors utilized the net negative charge of exosomes to obtain 2.4x1011 exosomes, a quantity that was reported to be greater than that obtained using ultracentrifugation and tangential flow filtration [94].
Research into improving exosome isolation has also regarded the use of aptamer-based separation techniques [95,96]. Aptamers are single-stranded oligonucleotides that form distinct structures which bind to targets such as the extracellular components of exosomes (tetraspanins, transmembrane proteins). Zhang et al. developed a DNA aptamer-based magnetic isolation process to efficiently increase the yield of exosomes [97]. The process involved the addition of a biotin-labeled CD63 component to media and the subsequent separation of the labelled exosomes with streptavidin magnetic beads [97]. Another study by Song et al. also involved the use of a CD63-targeting aptamer for magnetic bead-based exosome immunoaffinity isolation [95]. Jiawei et al. developed a magnetic bead-based isolation technique in which tetraspanin markers (CD63, CD9, CD81) are combined with metal oxides for exosome isolation [24]. In addition, Zhang et al. discovered a novel three-step procedure involving PEG precipitation followed by iohexol gradient centrifugation and size exclusion chromatography for exosome enrichment and recovery [15]. Zhang et al. reported that the procedure produced high purity and yield of exosomes, resulting in 71% recovery and almost complete elimination of other lipoproteins [15]. Importantly, the modified or newly developed procedures for downstream modifications may assist in the large-scale use of exosomes as a drug delivery vehicle in a clinical setting.

3.2. Exosome Drug Loading

The clinical translation of exosomes requires reproducible and technologically accessible methods to load these extracellular vesicles with the desired drug (Figure 3). Several techniques have been modified or newly developed to assist in effective exosome drug loading, as discussed below.

3.2.1. Pre-Secretory Drug Loading

Pre-secretory drug loading can be performed in two ways: (1) the incubation of a parent cell with the drug or (2) gene editing [98]. In incubation, the drug is directly mixed with the cell culture medium. The drug is internalized into the cells and subsequently loaded into exosomes via endogenous mechanisms. This technique is more effective in hydrophobic drugs due to their ability to interact with the exosome membrane. Research has shown that drugs such as methotrexate, doxorubicin, cisplatin, and paclitaxel have been successfully taken up by parent cells and loaded into exosomes for therapeutic treatment in different cancers [8,47,99]. Additionally, Zhang et al. demonstrated the transfection of parent cells with a siRNA-targeting tyrosine kinase c-Met in the treatment of gastric cancer [100]. The exosomes extracted, which were enriched with anti-c-Met siRNA, resulted in a significant decrease in tumor growth in mouse xenograft models, thus reversing the resistance of gastric cancer cells in vitro to cisplatin. Pre-secretory drug loading can also be accomplished through gene editing by adding plasmids to parent cells to produce exosomes enriched with nucleic acids or proteins. A study done by Yuan et al. demonstrated effective loading of the potent anti-cancer tumor necrosis factor-related apoptosis-induced ligand (TRAIL), a molecule known for its poor pharmaceutics, in mesenchymal stem cell-derived exosomes [30,101]. In addition, O’Brien et al. showed that miR-134 loaded exosomes were able to successfully reduce cellular invasion and migration and had improved sensitivity to anti-Hsp90 drugs [102,103]. Recently, a study by Yang et al. revealed that gene editing, coupled with nanoporation, successfully loaded a phosphatase and TENsin homolog deleted on chromosome 10 (PTEN) mRNA [104]. According to Yang et al., when loaded into exosomes, PTEN mRNA, a common tumor suppressor gene, produced a 50-fold increase in exosomes and a 1000-fold increase in exosomal mRNA transcripts compared to other drug-loading methods [104]. The authors further pointed out that large quantities of PTEN mRNA-containing exosomes were produced, and following systemic injection, displayed an increased survival rate in PTEN-deficient glioma mouse models [104]. Importantly, a novel pre-secretory drug-loading technique was developed by Nawaz et al. using lipid nanoparticles [105]. The authors delivered a therapeutic agent, VEGF-A mRNA, via lipid nanoparticles and studied the uptake kinetics and transport of the exogenous nanoparticles [105]. The results showed that the lipid nanoparticles altered the exosomes as functional extensions to distribute the therapeutic agent among cells [105]. Additionally, the exosomes themselves increased the production of the therapeutic component and other pro-angiogenesis agents for the treatment of inflammatory cardiac conditions [105]. Of note, the cell type used affected the functionality of the exosomes, whereby cardiac progenitor cells resulted in the lowest production of inflammatory agents [105]. The pre-secretory drug-loading method and the cell type used are important factors to consider for effective drug loading and the subsequent use of exosomes in a clinical setting.

3.2.2. Post-Secretory Drug Loading

Post-secretory drug-loading methods generally work in two ways: (1) the passive incubation of the drug with the exosomes to allow the drug to attach to the exosome lipid bilayer membrane, or (2) the use of mechanical or chemical techniques to momentarily weaken the integrity of the exosome membrane to allow for the diffusion of the drug into the extracellular vesicles. With the increased interest in the use of exosomes as drug delivery tools, new approaches for post-secretory drug loading have been considered over the last few years. Wang et al. developed an acoustofluidic device, which is a combination of fluid mechanics and acoustics, to perform both exosome drug loading and encapsulation with silica nanoparticles [39,106,107,108]. In this single-step process, drug loading significantly improved with a reported 70% efficacy [39].
Methods based on liposome–exosome fusion have also recently been proposed [109,110]. Additionally, Li et al. successfully incubated and merged the cargo of exosomes with liposomes containing fusogenic lipids, providing an alternative approach to the efficient loading of larger molecules [110]. Liposome–exosome hybrids allow for the incorporation of drugs without compromising the exosome membrane. It combines the advantages of the liposomes (ease of drug loading) with that of the exosomes (biocompatibility and targeting abilities) for effective drug loading and delivery. In another study, Yim et al. established a unique optogenetic exosome system via optically reversible protein–protein interactions (EXPLORs) [48]. The effective loading of cargo proteins into the exosomes was demonstrated using a reversible protein–protein interaction module controlled by blue light via the exosome endogenous biogenesis pathway [48]. It was noted that the protein-loaded EXPLORs delivered to the cytosols of target cells resulted in a significant increase in the intracellular levels of cargo proteins and their functions in vitro and in vivo [48]. Osteikoetxea et al. developed a new method for the successful loading of the clustered regularly interspaced short palindromic repeats (CRISPR/Cas9) into exosomes through the reversible heterodimerization of Cas9 fusions with exosome-specific components, such as tetraspanins [111].
New drug-loading methods have also considered the use of ubiquitination tags as a sorting sequence to facilitate effective drug loading [112]. An engineered ubiquitin tag was developed, and its fusion with proteins, such as enhanced green fluorescent protein, led to the loading of proteins into the exosome [112]. Another method involving a short ubiquitin tag with specific binding to the L-domain motif of Ndfip1 resulted in the efficient loading of proteins into exosomes [32]. The use of a non-functional mutant Nef protein facilitated the sorting of proteins into exosomes through its association with the exosomal lipid–raft microdomains [112]. In addition, Sutaria et al. developed a mechanism for the effective loading of miR-199a into exosomes via the trans-activating response element sequence, trans-activator of transcription, and Lamp2a (a component responsible for the loading of proteins into exosomes) [113]. In one study, HuR, an RNA-binding protein, was fused to the tetraspanin CD9 to be localized in the exosomal lumen to facilitate the loading of miR-155 into the exosome [114]. These alternative drug-loading methods, coupled with exosome isolation methods, may assist in the large-scale use of exosomes in a clinical setting.

3.3. Targeted Exosome Delivery

In addition to effective drug loading, the development of targeted exosomes that are capable of high specificity and prolonged therapeutic function is of importance, as the ability of exosomes to administer the therapeutics to specific organs/tissues would reduce the possibility of undesired cellular interactions. Moreover, the administration of targeted exosomes would result in prolonged systemic circulation through the evasion of the mononuclear phagocyte system, which would aid in improving the therapeutic value of exosomes in nanomedicine. As such, a study incorporated various techniques to develop effective targeted exosomes and protection from the mononuclear phagocyte system [30]. The most common approach involves the grafting of hydrophilic polymers, such as polyethylene glycol (PEG), onto the exosome lipid bilayer membrane. The contact between exosomes and opsonin is impeded by these hydrophilic polymers, thus leading to prolonged systemic circulation. To circumvent this, Antes et al. engineered a protective ‘cloaking’ platform for modified exosomes to reduce their clearance by the phagocyte system [115]. However, despite its simplicity, cloaking must be done on each exosome, and as such, can be time-consuming.
Another approach to the development of targeted exosomes involves the modification of the glycan composition of the surface of exosomes, which plays an important role in uptake and cellular recognition [116]. Royo et al. reported that changes made to the sialic residues from glycoproteins produced targeted exosomes for specific organs [117]. Guo et al. developed targeted exosomes for bone tissue by the insertion of Golgi glycoprotein 1 into the exosome membrane [118]. The glycoprotein carried Wnt agonist 1, which reportedly reduced bone loss, accelerated fracture healing in colitis, and increased bone formation in mice [118]. Moreover, the presence of negatively charged phospholipids on exosomes increased their clearance through macrophages. Accordingly, research involving the blocking of the phospholipids has resulted in the prolonged circulation of exosomes.
Other approaches to improve the targeting ability of exosomes include the alterations of integrins and the use of aptamers [4]. The different integrins located on the surface of exosomes affect their pharmacokinetics and can be used to increase the accumulation of exosomes in tissues. Rana et al. were able to increase the selective uptake of exosomes in pancreatic cells by combining the protein Tspan with the extracellular exosome component integrin α4 [119]. In addition to their use in exosome isolation, aptamers have also been shown to improve the targeting ability of exosomes. Research by Zou et al. developed aptamer-functionalized exosomes for cell-type-specific delivery of therapeutics [120]. The recognition capability of aptamers and the transport functions of exosomes were combined to effectively deliver molecular therapeutics or fluorophores to target tumor cells [120].
The incorporation of targeted exosomes with various drug-loading methods can increase the therapeutic value and efficacy of exosomes as a drug delivery tool. Liang et al. targeted colon cells specifically by fusing Her-2 to the N-terminus of Lamp2 on exosomes [121]. Following the alteration of the exosome membrane, two therapeutics—5-fluorouracil (electroporation) and miRNA-21 inhibitor (incubation)—were incorporated into the exosomes [121]. The authors noted that the method enhanced cellular uptake via the EGFR receptor-mediated endocytosis in colon cancer cells and successfully suppressed the tumor [121]. A study by Xu et al. demonstrated the specificity of kartogenin-loaded-targeted exosomes to the synovial fluid-derived mesenchymal stem cells by the addition of a specific mesenchymal stem cell-binding peptide (E7) to the exosome surface. The peptide was bound to Lamp2b, found on the surface of exosomes, and promoted mesenchymal stem cell chondrogenic differentiation and cartilage repair [122]. In a study by Jia et al., exosomes were loaded with superparamagnetic iron oxide nanoparticles and curcumin, followed by the conjugation of the exosome membrane with neuropilin-1-targeted peptides using click chemistry [123]. Through imaging and therapeutic analysis, Jia et al. reported the successful production of glioma-targeting exosomes [123]. Targeted exosomes in combination with drug-loading mechanisms are invaluable to the effective use of these extracellular vesicles as a drug delivery tool in the therapeutic treatment of various diseases in a large-scale clinical environment.

4. Conclusions

Exosomes are nanosized lipid-based extracellular vesicles that play an important role in cellular communication and cargo transport. The immunomodulatory, pharmacokinetic, and biocompatibility ability of exosomes have rendered these extracellular vesicles invaluable as a therapeutic approach for countless diseases. Studies involving the implementation of exosome-based therapies in the treatment of various diseases have shown great promise. However, the use of exosome-based therapies in clinical settings is hindered by several challenges that require attention. One of the most significant challenges is exosome production and isolation. Importantly, exosome drug loading has proven difficult, as its effectiveness depends on the type of drug to be loaded and the source of the exosome. However, as the interest in exosomes as potential therapeutic agents grows, new mechanisms and modifications have been made to improve exosome isolation and drug loading for their possible use in nanomedicine.

Author Contributions

Conceptualization, T.R. and K.P.; writing—original draft preparation, T.R.; writing—review and editing, T.R., H.P., K.P. and F.S.; visualization, T.R. and H.P.; supervision, K.P. and F.S.; funding acquisition, K.P. and F.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data sharing not applicable.

Acknowledgments

Publication of this article was supported by the College of Pharmacy and Health Sciences, St. John’s University, New York, United States.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

CRISPR/CAS9 Clustered regularly interspaced short palindromic repeats-associated protein 9
ESCRTEndosomal sorting complex required for transport
ESEEarly-sorting endosome
EXOSDExosome separation and detection
EXOticExosomal transfer into cells
EXPLORExosome system via optically reversible protein–protein interactions
HIFαHypoxia-induced factor α
HURHuman antigen R
ILVIntraluminal vesicle
LPSLipopolysaccharide
LSELate-sorting endosome
MVBMultivesicular body
NDFIP1Nedd4 family interacting protein 1
NEFNegative regulatory factor
PEGPolyethylene glycol
PLGAPoly(lactic-co-glycolic acid)
PTENPhosphatase and TENsin homolog deleted on chromosome 10
STEAP3Six-transmembrane epithelial antigen of prostate 3
TRAILTumor necrosis factor-related apoptosis-induced ligand
