Azobenzenesulfonamide Carbonic Anhydrase Inhibitors as New Weapons to Fight Helicobacter pylori: Synthesis, Bioactivity Evaluation, In Vivo Toxicity, and Computational Studies

by
Letizia Giampietro
1,*,†,
Beatrice Marinacci
1,2,†,
Alice Della Valle
1,
Ilaria D’Agostino
3,
Aldo Lauro
4,
Mattia Mori
4,
Simone Carradori
1,
Alessandra Ammazzalorso
1,
Barbara De Filippis
1,
Cristina Maccallini
1,
Andrea Angeli
5,
Clemente Capasso
6,
Santolo Francati
7,
Adriano Mollica
1,
Rossella Grande
1,8 and
Claudiu T. Supuran
5
1
Department of Pharmacy, “G. d’Annunzio” University of Chieti-Pescara, 66100 Chieti, Italy
2
Department of Innovative Technologies in Medicine & Dentistry, “G. d’Annunzio” University of Chieti-Pescara, 66100 Chieti, Italy
3
Department of Pharmacy, University of Pisa, Via Bonanno 6, 56126 Pisa, Italy
4
Department of Biotechnology, Chemistry and Pharmacy, University of Siena, Via Aldo Moro 2, 53100 Siena, Italy
5
Neurofarba Department, University of Florence, Sesto Fiorentino, 50019 Florence, Italy
6
Department of Biology, Agriculture and Food Sciences, National Research Council (CNR), Institute of Biosciences and Bioresources, 80131 Naples, Italy
7
Department of Agricultural and Food Sciences (DISTAL), University of Bologna, 40126 Bologna, Italy
8
Center for Advanced Studies and Technology, “G. d’Annunzio” University of Chieti-Pescara, 66100 Chieti, Italy
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Pharmaceuticals 2024, 17(8), 1027; https://doi.org/10.3390/ph17081027
Submission received: 1 July 2024 / Revised: 30 July 2024 / Accepted: 3 August 2024 / Published: 5 August 2024
(This article belongs to the Special Issue Enzyme Inhibitors: Potential Therapeutic Approaches)
Browse Figures
Versions Notes

Abstract

:
Research into novel anti-Helicobacter pylori agents represents an important approach for the identification of new treatments for chronic gastritis and peptic ulcers, which are associated with a high risk of developing gastric carcinoma. In this respect, two series of azobenzenesulfonamides were designed, synthesized, and tested against a large panel of human and bacterial CAs to evaluate their inhibitory activity. In addition, computational studies of the novel primary benzenesulfonamides (4a–j) were performed to predict the putative binding mode to both HpCAs. Then, the antimicrobial activity versus H. pylori of the two series was also studied. The best-in-class compounds were found to be 4c and 4e among the primary azobenzenesulfonamides and 5c and 5f belonging to the secondary azobenzenesulfonamides series, showing themselves to exert a promising anti-H. pylori activity, with MIC values of 4–8 μg/mL and MBCs between 4 and 16 μg/mL. Moreover, the evaluation of their toxicity on a G. mellonella larva in vivo model indicated a safe profile for 4c,e and 5c,f. The collected results warrant considering these azobenzenesulfonamides as an interesting starting point for the development of a new class of anti-H. pylori agents.

1. Introduction

Counteracting Helicobacter pylori infection is crucial for Public Health worldwide [1,2]. This gastroduodenal pathogen is associated with chronic gastritis and peptic ulcers, as well as a higher risk for people affected with developing gastric carcinoma [3,4,5]. However, the human stomach is not the only H. pylori ecological niche: pieces of evidence show that this bacterium can be detected in both human saliva and the esophagus, suggesting different potential means of transmission [6,7]. Also, the increasing resistance and tolerance of the bacterium to the most commonly used antimicrobial are of particular concern [8,9]. The former is associated with genetic variability, whereas the latter is supported by two main phenotypic modifications which are the switch from spiral to coccoid morphology, extracellular vesicles secretion, and biofilm formation [10,11,12]. In 2017, the World Health Organization included H. pylori in the high-priority category of drug-resistant bacteria, encouraging research in this field and the development of new antimicrobials. Considering this critical issue, the identification of novel targets among bacterial proteins or enzymes is highly recommended, representing a promising strategy [13,14]. Previously, we demonstrated that targeting H. pylori Carbonic Anhydrases (HpCAs) may represent a good option for the treatment of infections sustained by the pathogen’s drug-resistant strains. These enzymes are involved in the adaptation of the microorganism to the acidic environment of the stomach, affecting its ability to survive and colonize tissues [15]. Further studies also highlighted the ability of CA inhibitors to prevent H. pylori biofilm formation from interfering with the release and extracellular (e)DNA content of outer membrane vesicles (OMVs) [16,17].
Sulfonamide-based compounds have shown different biological activities such as aromatase inhibition [18] and anticonvulsant, anticancer, antibacterial [19], antiviral, antimalarial, antifungal, and antidepressant effects [20,21]. In particular, aromatic primary sulfonamide derivatives are known to exert strong CA inhibitory effects, especially because the sulfonamide moiety acts as a zinc-binding group (ZBG) and the aromatic group promotes the interactions with residues close to the active site of the different CA isoforms [22,23]. In the last years, CA inhibitor (CAI) research has referred to the discovery of isoform-selective sulfonamide inhibitors using ring and tail approaches. In the first method, the ring connected to the ZBG is modulated, changing its chemical nature, whereas the tail approach consists of constructing a specific moiety on the ZBG ring in order to allow specific interactions with the amino acids far away from the active site, providing for isoform selectivity. An example is given by SLC-0111 (Figure 1A), a selective human (h) CA IX/XII inhibitor that is in clinical trials for the treatment of metastatic solid tumors or as an adjuvant in pancreatic ductal carcinoma.

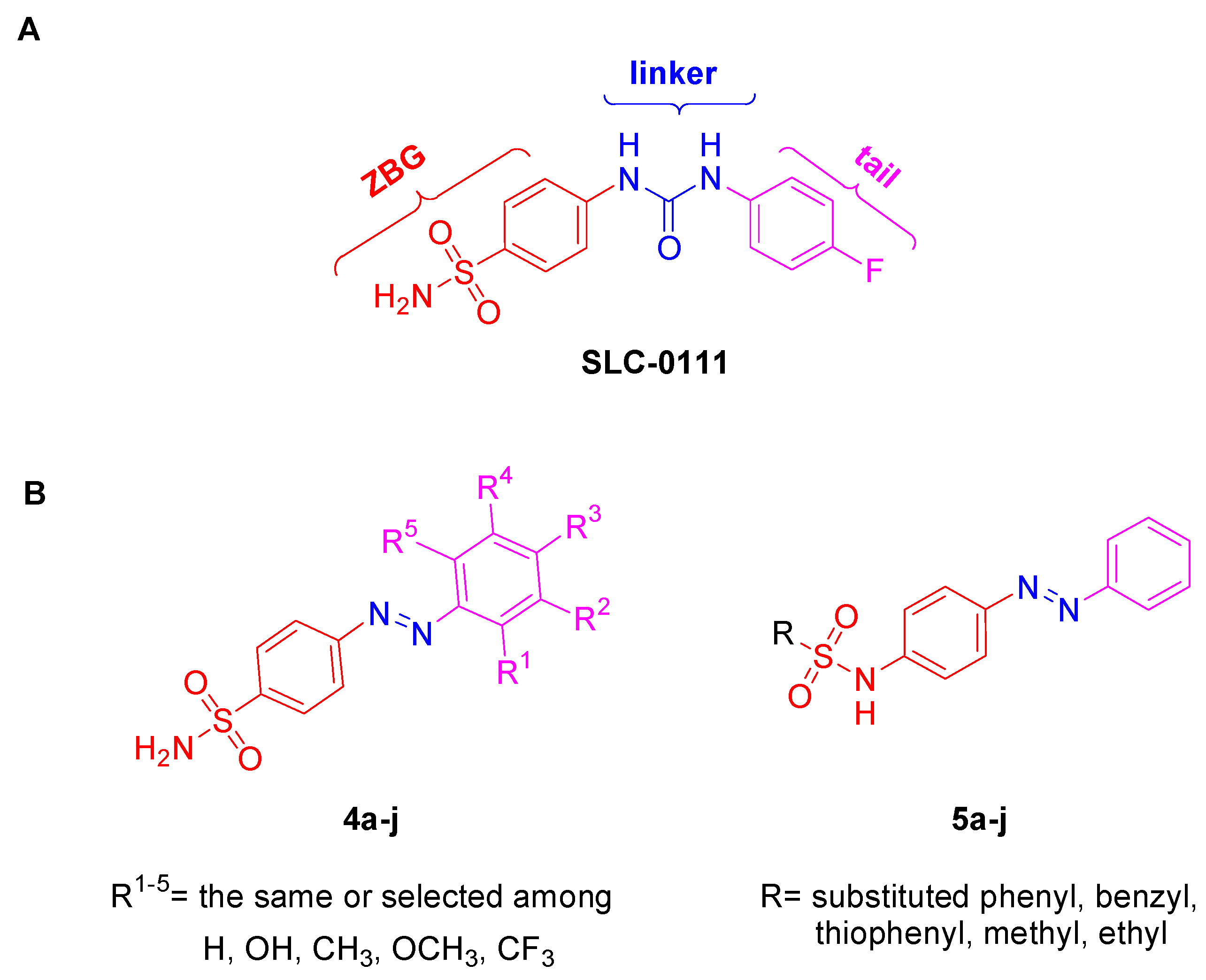

Based on the above-mentioned findings and keeping in mind the importance of this enzyme in biomedical applications [24], the goal of this work was the synthesis of new CAIs, with the aim of understanding how the chemical modification of the structure of classical CAIs could influence the selectivity and the anti-H. pylori effect of these compounds. In particular, we synthesized new azobenzenesulfonamides by using at first the tail approach, obtaining a series of compounds replacing the ureidic group between the ZBG and the tail, with an azo linker often used in medicinal chemistry as bioisosteres of the double carbon bond of the stilbene moiety [25,26]. In these compounds, the tail was systematically changed, introducing substituents with different electronic effects and steric hindrance, in different positions of the aromatic ring (4a–j, Figure 1B). In order to better comprehend the role of the para-diazenylphenyl tail, we also took into consideration a previously synthesized series of secondary reversed azobenzenesulfonamides (5a–j, Figure 1B), in which the sulfonamide moiety was functionalized with different aromatic, heteroaromatic, or alkyl chains [18].
In the present study, the target molecules were evaluated against a panel of human and bacterial CAs to evaluate their inhibitory activity and isoform/family selectivity, using acetazolamide (AAZ) (Table 1), a well-known CA inhibitor, as a reference drug. Moreover, computational studies of the new primary azobenzenesulfonamides (4a–j) were performed to predict the putative binding mode on both HpCAs. Finally, the antimicrobial activity versus H. pylori of the two series and the in vivo toxicity versus Galleria mellonella of the most promising compounds were also assessed.

2. Results and Discussion

2.1. Chemistry

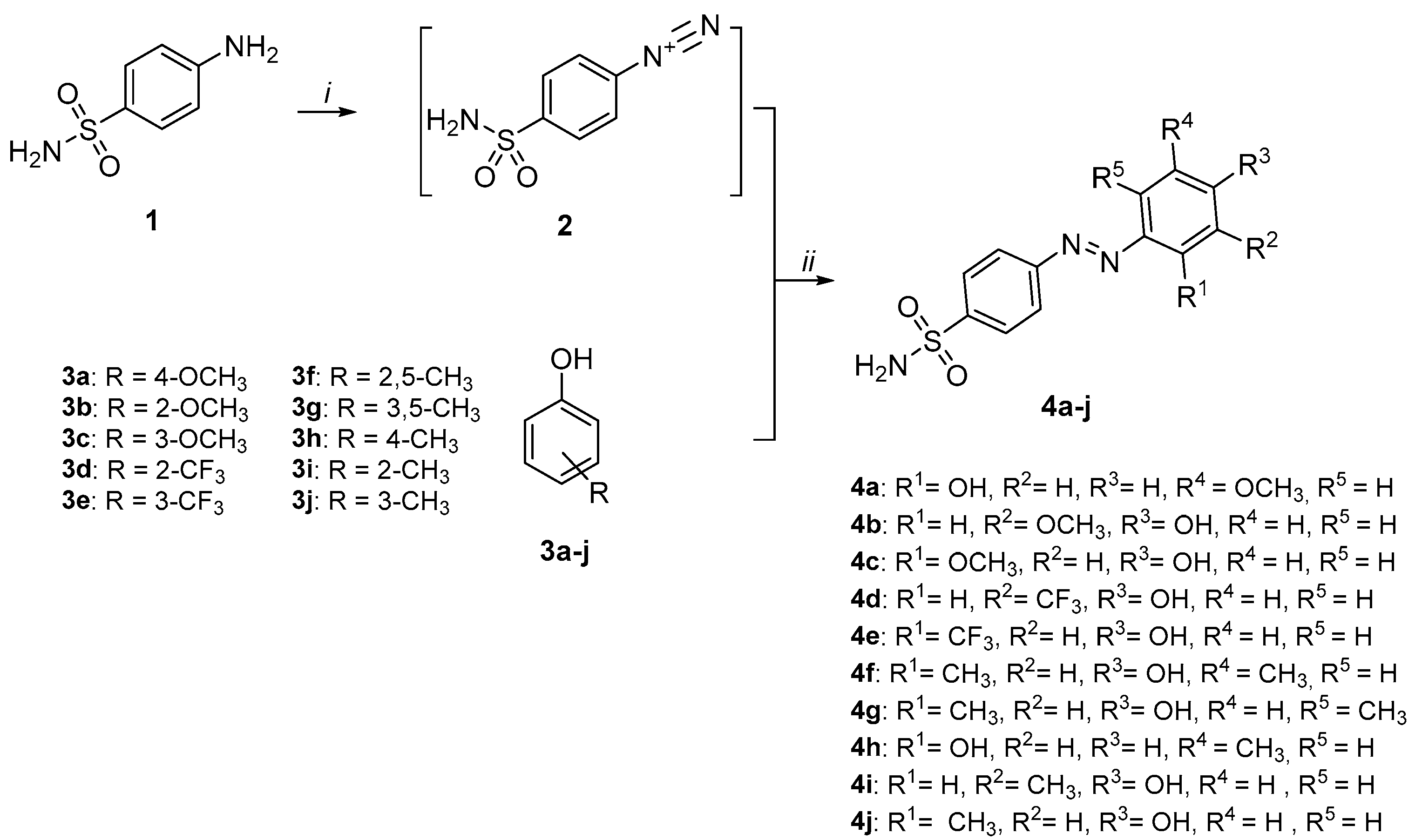

The synthetic strategy for the synthesis of the primary azobenzenesulfonamides is reported in Scheme 1. 4-Aminobenzenesulfonamide 1 was converted into diazonium salt 2 through sodium nitrite and hydrochloric acid at 0–5 °C and then, the suitable phenol 3a–j was added in a basic environment to give azoderivatives 4a–j (Scheme 1) [27].
To better understand the role of the para-diazenylphenyl tail in the in vitro inhibitory assays, we also considered a previously synthesized series of secondary reversed azobenzenesulfonamides (5a–j, Table 2) functionalized at the para position with the same chemical fragments [18].

2.2. Inhibitory Activity towards a Panel of Carbonic Anhydrases and Structure–Activity Relationships

Compounds 4a–j and 5a–j were tested on a large panel of human and bacterial isoenzymes belonging to different CA families, evaluating their inhibitory activity through the CO2 hydration activity assay by means of the stopped-flow technique, and the inhibitory constants (KIs) are reported in Table 1 and Table 2, respectively. In particular, we tested the hypoxic tumor-associated hCAs IX and XII, and bacterial isoforms involved in several infectious diseases, such as those caused by H. pylori (HpαCA and HpβCA), Porphyromonas gingivalis (PgiβCA and PgiγCA), Escherichia coli (EcoβCA), Pseudomonas aeruginosa (PsCA3, belonging to the β-class), Mammaliicoccus (Staphylococcus) sciuri (MscCA, belonging to the β-class), and Streptococcus mutans (SmuCA, belonging to the β-class). The inhibition of human physiologically relevant isoforms I and II was also investigated in order to assess the compounds’ selectivity. Our main aim was to rationalize the structural requirements of sulfonamide-containing compounds useful for targeting HpCAs, in order to gain a larger knowledge for further optimization studies focusing on isoform selectivity. In fact, although the tested human and bacterial isoforms present a low degree of sequence similarity, they catalyze the same reaction and contain the catalytically active zinc ion in the active site. Thus, a comparison of the data obtained from different members of this large superfamily has a high relevance in the field. By observing Table 1 and Table 2, interesting structure–activity relationship (SAR) considerations can be inferred.
Collectively, all the primary sulfonamides 4a–j were found to inhibit human CAs in the nanomolar range, while a more selective inhibitory trend could be noticed when observing data on bacterial isoenzymes (Table 1). As regards the inhibitory activity towards human CAs, among the hydroxyanisoles 4a–c, the presence of a hydroxy (-OH) function in the ortho position (4a) seems to address the selectivity towards hCA XII over the other human isoforms, with a KI value of 9.5 nM, while when it is in the para position (4b and 4c) a more potent inhibition of hCA II, with KI values of 3.3 and 5.4 nM, respectively, is highlighted. The presence and the position of a trifluoromethyl substitution on the phenol ring significantly affect the selectivity, with 4d showing a preference for hCA II and 4e for hCAs I and II, inhibiting these isoenzymes at low nanomolar concentrations (KIs = 4.8 and 5.4–4.2 nM, respectively). The same trend is observed for dimethyl phenols 4f and 4g. In these cases, they showed a preference for hCAs I and II, with KI values of 5.7 (hCA I) and 1.9 nM (hCA II) for 4f and KIs equal to 4.9 and 3.7 nM on hCAs I and II, respectively, for 4g. The cresols 4h–j display a different inhibitory profile. In fact, while 4h and 4i show a notable potency in inhibiting hCA XII (KIs = 9.6 and 7.5 nM, respectively), even if in a non-selective manner, compound 4j is less potent against this isoform, exerting a medium nanomolar inhibition (KIs = 84.1 nM). Conversely, 4h, 4i, and 4j show a good inhibition of hCA II, with KI values of 6.6, 3.4, and 4.7 nM, respectively. The formers, compounds 4i and 4j, show a notable inhibition also against hCA I, with KI values of 4.4 and 5.3 nM, respectively. By analyzing these data, it is possible to assume that, for derivatives 4a–c, the position of the substituent notably influences the selectivity, whereas this behavior is not maintained in compounds 4a–j, where a good inhibition of both hCAs I and II was noticed, except for compounds 4d, 4h, and 4i. The trifluoromethyl substitution in the ortho position on the phenol ring (4d) provided a higher selectivity for hCA II, whereas the methyl substitution in para (4h) and ortho (4i) on the phenol ring also corresponded to a good inhibition against hCA XII.
The other half part of Table 1 reports KI values on bacterial CAs that belong to different classes (α, β, or γ). All the compounds turned out to be more potent against the two CAs expressed by H. pylori over the other bacterial isoenzymes, thereby showing an isoform preference or selectivity.
The data on P. gingivalis CAs (PgiβCA and PgiγCA) show a high nanomolar/low micromolar inhibition for primary sulfonamides 4a–j (Table 1). In particular, analyzing enzymatic assay results on the β isoform, in the hydroxyanisoles 4a–c series, the presence of two (4f,g) or one (4h–j) methyl substituents weakens the inhibitory potency, reporting KI values in the range of 3.6–5.7 µM. A different trend is recorded on the γ-CA: the methoxy group in ortho to the phenolic function (4b) maintains the inhibitory activity in the high nanomolar range, while the presence of the trifluoromethyl substitutent in the same position in 4d causes a remarkable inhibition of the enzyme, with a low nanomolar KI (=94.7 nM) which is 3.5-fold lower than that reported for the isomer 4e; no interesting activity profile emerges for the mono- or di-methylphenol derivatives 4f–j, all showing high nanomolar KIs, with 4i reaching a low micromolar activity (KI = 6.3 µM).
As anticipated, the inhibitory activities on HpCAs are very interesting and put the spotlight on this bacterium for further investigation (Table 1). In fact, observing the KIs values for HpαCA, we can notice a similar activity for 4a and 4c (KIs = 65.8 and 70.9 nM, respectively) and a slightly worsened one for 4b (KI = 120 nM). Also, the trifluoromethyl group decreases the KI to 39.0 nM when the substituent is in ortho with respect to the phenolic function in 4d; in contrast, the methyl group is better tolerated in the substitution pattern of 4f and 4j (KIs = 69.4 and 72.2 nM, respectively) compared to the others (4g–i, KIs = 130–142 nM). It is possible to notice that the substitution with trifluoromethyl in the ortho position to the OH group gives the best KI value for HpαCA. However, the SARs are quite different for HpβCA, with 4c and 4d reaching the very low KI values of 17.1 and 19.4 nM, respectively, also lower than the reference compound AAZ (KI = 40 nM). In these compounds, the introduction of a methoxy (4c) and a trifluoromethyl (4d) group in the meta and ortho positions leads to the best activity. Conversely, the other patterns of methoxy (4a,b), trifluoromethyl (4e), and methyl (4f–j) substitutions can still record interesting inhibitory profiles, even if less potent in the case of methylphenols 4h–j (KIs = 119–138 nM).
KIs on E. coli CA from the β-class range from low nanomolar to low micromolar concentrations, with the lowest values shown by 4b, 4c, and 4e (KI = 95.3–96.3 nM), sharing the common feature of bearing the phenolic group in para to the azo function (Table 1). Otherwise, the presence of a methyl substituent in ortho or para to the phenolic function does not seem to be tolerated, conferring to compounds 4i,j the lowest potency at a micromolar level (KIs = 2.1 and 3.0 µM, respectively).
Moreover, these primary sulfonamides are able to inhibit PsCA3 from the β-class at low–high nanomolar concentrations (Table 1). Analyzing data for each group of isomers, there are differences between KI values of about 3-fold for 4a–c, 2-fold for compounds 4d,e, and about 5-fold for 4f,g. Two compounds emerge for their KI values: the methylphenols 4i and 4j, being two isomers with more than a 10-fold difference in potency (KIs = 114 and 1845 nM, respectively). In particular, the presence of the methyl function in meta to the phenol, peculiar to 4j, seems to be better tolerated if the substitution pattern also involves a second methylation in the meta (4g, KI = 897 nM) or in the ortho (4f, KI = 191 nM) position.
The inhibition of another β-CA, MsCA, occurs at micromolar concentrations and no relevant SARs can be performed since the range is very narrow for all the compounds (KIs = 5.3–7.7 µM), with the exception for lower values recorded by hydroxyanisoles 4a and 4b (KIs = 2.9 and 2.8 µM, respectively).
In the end, β-CA from S. mutans is assumed to be highly responsive to the small chemical modifications of the compounds, being inhibited with a KI value of 82.1 nM by methylphenol 4h, which increases 2.5/6-fold in the case of isomerization (4i,j) or the addition of another methyl substituent on the phenol ring (4f,g).
The second set of derivatives (secondary benzenesulfonamides 5a–j), previously published for other purposes, were added only to extrapolate more robust SARs in the context of sulfonamide-containing CA inhibitors and to explore a possible repositioning as antibacterial agents. Indeed, sulfonamides are usually potent CA inhibitors but endowed with quite low selectivity, even if the tail approach seems to be effective in modulating the compound’s preference for a specific isoform or class of isoenzymes. The secondary azobenzenesulfonamides 5a–j, as expected, show a lower inhibitory potency compared to the primary ones 4a–j, reporting KIs ranging from medium-high nanomolar to high micromolar values (Table 2).
Observing data on human CAs, we can notice that only two compounds, 5c and 5i, are active on hCA II, even if at high concentrations (KIs = 24.7 and 97.0 µM, respectively), while different trends of inhibition can be found on hCAs I, IX, and XII. In particular, focusing the attention on hCA I, the unsubstituted phenyl ring of 5a causes the best activity in the series (KI = 209 nM), while the introduction of cyano and nitro substituents dramatically worsen the inhibitory data (KIs = 359 and 6749 nM for 5b and 5d, respectively). Double substitution patterns on the phenyl ring (5c,e,f) are also detrimental and increase the KI values to the high nanomolar range (KIs = 853–908 nM). Thienyl 5g and benzyl 5h do not improve the inhibitory data, while switching from the methyl substituent of 5i to the ethyl one of 5j, a great increase in potency (6.4-fold) can be observed. Surprisingly, cyano and nitro substitutions in 5b and 5d, respectively, improve the activity towards hCAs IX and XII. However, the introduction of a chlorine atom on the cyanophenyl ring in 5c leads to an increase in KI values for both the isoenzymes, while the methyl substitution on the nitrophenyl ring in compound 5e worsens the inhibitory activity compared to nitrophenyl derivative 5d but still maintains a higher potency compared to the unsubstituted phenyl 5a. Instead, micromolar inhibition of hCAs IX and XII is recorded for thienyl 5g, benzyl 5h, and ethyl 5j, while different results are reported for methyl compound 5i, which represents the best in class of the series against hCA IX (KI = 599 nM) and no worthy results of interest against hCA XII in terms of potency (KI = 2.2 µM).
Also for this series, the second half of Table 2 reports KIs on bacterial CAs. Compounds 5a–j prove to be inactive in inhibiting both the isoenzymes of P. gingivalis (PgCAs), with the exception of just one compound, the cyanophenyl 5b, which shows a high micromolar inhibition of PgiβCA (KI = 71.4 µM). Interesting activities on HpαCA emerge by observing the data in Table 2. In particular, the substitution of the phenyl ring always improves the inhibitory activity; in these cases, the KI value passes from 460 nM for 5a to 70–77 nM for 5b–d, with the exception of compound 5e (KI = 604 nM). However, the KI values are very close to each other and do not allow the performance of robust SARs. In this case, thienyl 5g is the most potent compound of the series (KI = 55.8 nM), although the other compounds are low nanomolar inhibitors of HpαCA. This good efficiency, especially of compounds 5a–d and 5f–j, is an interesting result considering their selectivity against the human CAs. Obtaining CAIs with selectivity against bacterial over human enzymes could be fundamental to avoid side effects.
Otherwise, micromolar activities are detected on EcoβCA (Table 2), and any kind of modification with respect to the phenyl ring of 5a causes a dramatic decrease in the inhibitory potency. PsCA3 proves to be slightly inhibited by secondary azobenzenesulfonamides 5a–j, and the KI value of 5a (KI = 9.2 µM) is nearly decreased 2-fold by introducing the cyano substituent (5b, KI = 5.7 µM) and increased 10-fold by the nitro function (5d, KI = 90 µM). The disubstitution patterns of 5c,e,f are not tolerated, as for 5g and 5h. Among the compounds bearing alkyl substituents, methyl 5i shows a comparable activity to 5a, whereas ethyl 5j significantly lowers the potency (KI = 69 µM). The relevant results are reported for MscCA: compounds 5a–j exert a micromolar inhibition of such isoenzymes, with only the cyano derivative 5b and the nitrotolyl compound 5e reporting KIs in the low micromolar range (KI = 6.9 and 8.5 µM, respectively), being the only derivatives worthy of note.

2.3. Computational Studies of Primary Azobenzenesulfonamides 4a–j on Both HpCAs

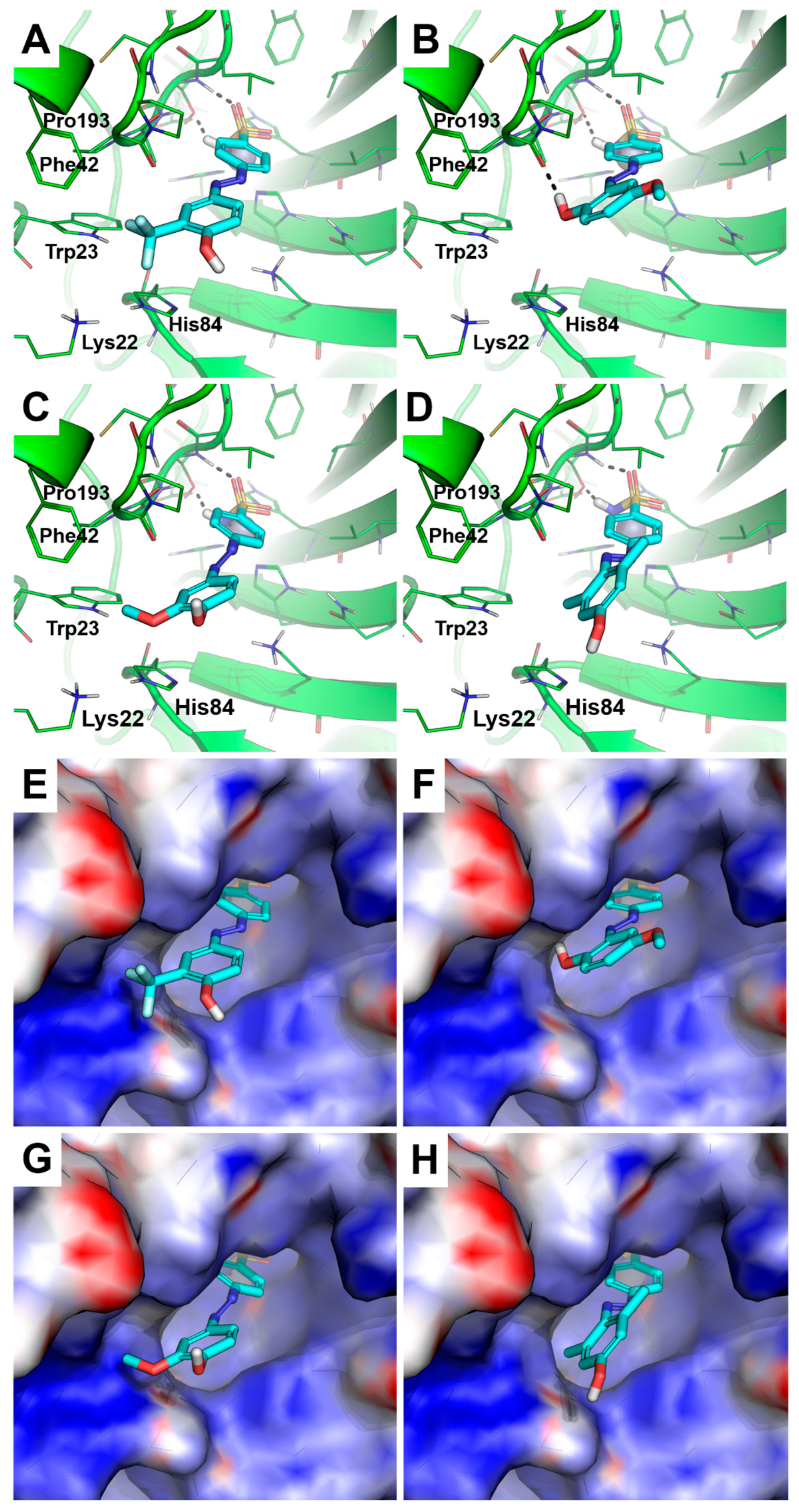

In order to study the possible binding mode of the ten new inhibitors 4a–j against the two isoforms HpαCA and HpβCA and to provide structural support to a SAR analysis, molecular modeling studies were carried out. These two isoenzymes were the most inhibited among the several isoforms tested in this work (Table 1). While the crystallographic structure of HpαCA is available in the Protein Data Bank (PDB ID: 4XFW) [28], HpβCA’s structure has not been solved yet, and the generation of a homology model was required for the structure-based study described herein. Given the absence of structural details on the binding mode of 4a–j (or close analogues of them) within the two HpCA isoforms, 4a–j were docked by a non-covalent approach, using the deprotonated form of the sulfonamide zinc-binding group, with the aim to avoid, the imposition of conformational restraints and to mimic the well-known binding mode of sulphonamides to the catalytic Zn(II) ion of CAs. An analysis of the docking results on both HpCA isoforms gave insights into the SAR, and it was conducted by considering the molecules as composed of two portions: (i) a sulfonamide head and (ii) an aromatic tail. Docking against the HpαCA showed the head portion of 4a–j binding to the catalytic Zn(II) ion. Besides Zn(II) coordination, the sulfonamide moiety establishes the canonical H-bond interactions with Thr191 (the residue numbering is in agreement with the crystallographic structure). The phenyl ring linked to the sulfonamide moiety occupies a position that is highly comparable with the available structural data (i.e., the crystallographic structure of HpαCA in complex with AAZ) [28]. The tail portion interacts in the variable region of the HpαCA within a cleft composed of Lys22, Trp23, Phe42, His84, Ala192, Pro193, and Pro194. Notably, the binding mode and orientation of the tail portion provide useful hints for a SAR analysis. Indeed, 4d is one of the most potent inhibitors of both HpCA isoforms (KI values = 39.0 nM and 19.4 nM against HpαCA and HpβCA, respectively). In HpαCA, the phenol tail is oriented towards the entrance of the catalytic site, and the trifluoromethyl group is docked in close proximity to the Lys22, His84, and Trp23 side chains (Figure 2A), which form a surface region endowed with a high density of positive charge (Figure 2E). The -OH group is exposed to the solvent.
Based on the docking simulations, the interaction between a polar moiety of the inhibitor and the positively charged cleft is conceived as an important feature for the strong inhibition of HpαCA. In fact, 4a is a potent HpαCA inhibitor (KI = 65.8 nM) that binds in a similar manner to 4d, orienting its tail within this positively charged cleft (Figure 2B,F). Specifically, the phenolic -OH group is accommodated within the cleft, where it establishes an H-bond with the backbone of Pro193, suggesting that electrostatic complementarity between the target and the ligand is a key pharmacophoric requirement for strong inhibition.
Based on this hypothesis, the lack of interaction with the positively charged surface formed by Lys22, Trp23, and His84 is expected to weaken the inhibitory activity. Indeed, the 4a isomer 4b (KI = 120nM) is not able to orient the phenolic group in the positively charged cleft due to the different positioning of the substituents in the aromatic ring (Figure 2C,G) and it does not interact with the Pro193 backbone. The predicted binding mode of 4g, i.e., one of the weakest inhibitors of HpαCA of the 4a–j series (KI = 142 nM), further corroborates this structural hypothesis, showing that the phenol ring is prevented from approaching the positively charged cleft due to steric hindrance of the ortho-methyl groups (Figure 2D,H).
Similar conclusions were drawn from an analysis of docking poses against HpβCA, as the head portion binds similarly in all compounds, whereas changes in the orientation of the tail moieties were observed. Besides binding to the catalytic Zn(II) ion, the head of the compounds establishes H-bond interactions with Gln252 and Tyr280, as observed in the crystallographic structure of AAZ in complex with the homologue β-CA from Coccomyxa sp. [29] (residue numbering is in agreement with the sequence of HpβCA). The phenyl ring linked to the sulfonamide moiety occupies a position that is highly comparable with the available structural data and forms a π-stacking interaction with the side chain of Tyr307.

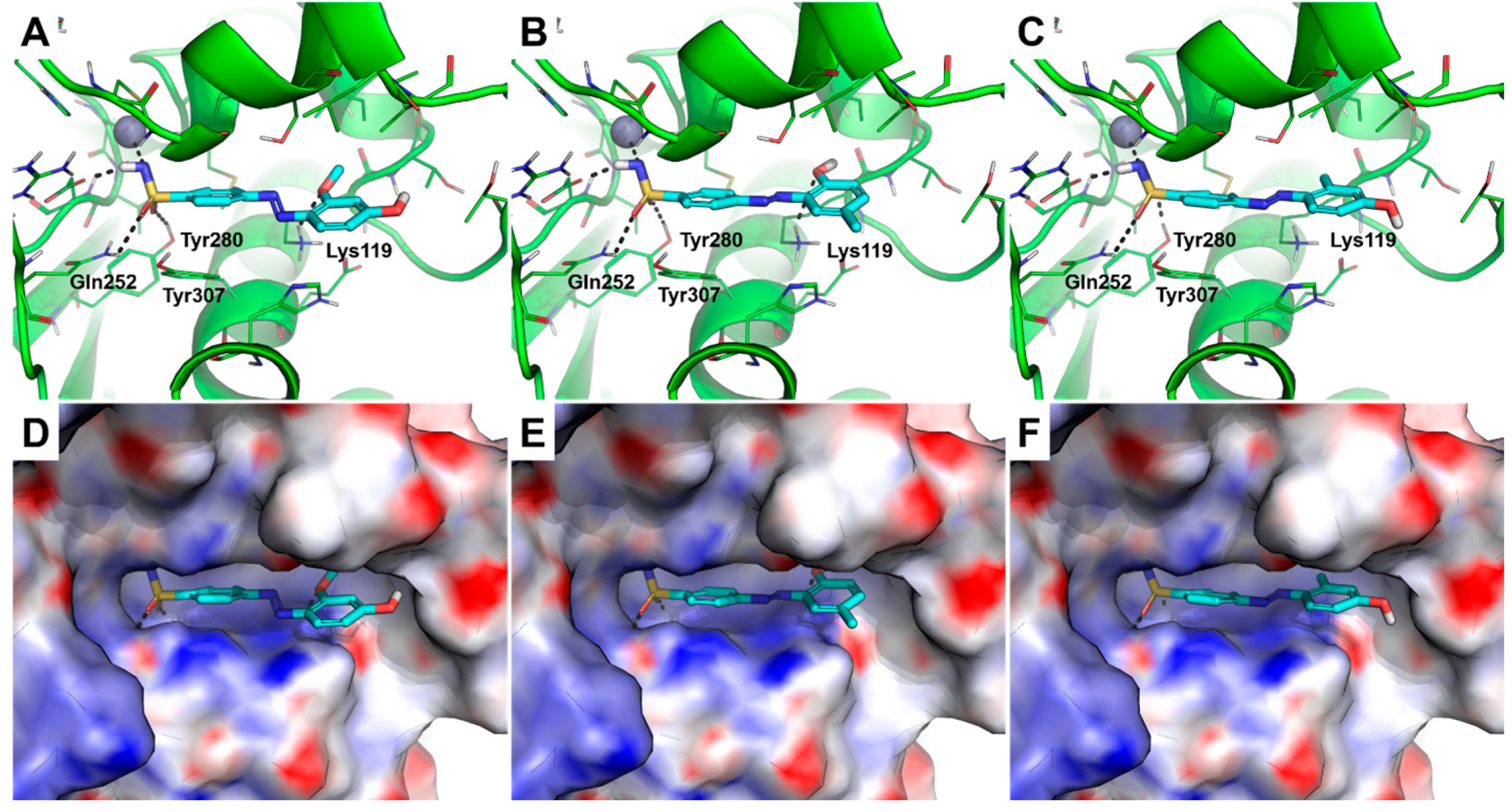

The strongest HpβCA inhibitor is 4c (KI = 17.1 nM), whose methoxyl group from the tail portion interacts with Lys119 through an H-bond. The phenolic group is projected towards the solvent area (Figure 3A,D).
Based on the molecular docking simulations, we hypothesized that the interaction with the Lys119 side chain and the exposure of a polar group to the solvent might be important features for potent HpβCA inhibition. In fact, two of the compounds that do not satisfy these structural requirements (i.e., 4h and 4j, KI values of 127 and 138 nM, respectively) are among the weakest inhibitors of HpβCA of this series. In the case of 4h, the phenolic -OH group interacts with Lys119 through an H-bond, but the molecule exposes a lipophilic methyl group to the solvent (Figure 3B,E), whereas 4j fails to interact with Lys119 (Figure 3C,F).
Overall, the molecular modeling suggested that 4a–j are able to bind in a highly similar manner to the α- and β-isoforms of the HpCA enzyme, at least in their head portion. Notably, subtle differences in the orientation of the tail portion within the variable regions of the enzyme nicely correlate with the experimental data and SARs, highlighting key interactions for the strong inhibition of HpαCA and HpβCA. The docking results are further corroborated by the remarkable correlation between the docking scores and experimental inhibition data (i.e., −logKI values, Table S1). We did not perform the same molecular docking studies on series 5a–j, because they were not tested against HpβCA. These structural hints could be easily translated to an additional series of primary sulfonamide-based HpCA inhibitors, driving the design of further derivatives equipped with alternative ZBGs.

2.4. Antimicrobial Activity versus H. pylori ATCC 43504

To further demonstrate the antimicrobial potential of these two series, all the compounds reported in Table 1 and Table 2 were tested in vitro against the reference strain H. pylori ATCC 43504 [30], and the Minimal Inhibitory (MIC) and Minimal Bactericidal (MBC) concentrations are reported in Table 3. This bacterium was selected based on the inhibitory potency evidenced by the two series of azobenzenesulfonamides against the HpCAs.
The lowest MIC value of 4 μg/mL was detected for two secondary azobenzenesulfonamides, 5c and 5f, while derivatives 4d and 5h showed the lowest antibacterial activity (MIC = 64 μg/mL). All the tested compounds proved to exert a bactericidal effect, showing an MBC/MIC ratio in the range of 1–2, and a strong impact of the substituents on the antibacterial effect was noticed. The best-in-class compounds were found to be 4c and 4e among the primary azobenzenesulfonamides 4a–j, and 5c and 5f in the secondary azobenzenesulfonamide series (5a–j), showing themselves to exert a promising anti-H. pylori activity, with MIC values of 4–8 μg/mL and MBC values between 4 and 16 μg/mL. Compounds 5a–j generally exhibited higher KI values for bacterial CA compared to compounds 4a–j. Particularly, in the cases of 5c and 5f, it was observed that the KI values for bacterial CAs were higher than those of 4c and 4e. However, upon reviewing the results in Table 3, the MIC and MBC outcomes for 5c and 5f appear similar or even higher, thus suggesting different pharmacokinetic properties evidenced in the cell-based assays. This is also important, to avoid side effects involving interaction with human off-target CAs. The compounds of series 4 are potent inhibitors of HPCAs but they display a limited isoform selectivity over human ones, whereas the compounds of series 5 maintained a strong inhibition of bacterial CAs but were endowed with a minor interaction with the human isoforms. As expected, the MIC and MBC values of amoxicillin, used as the reference drug, are lower than the tested compounds, because CA is not essential in H. pylori but can hamper the bacterial performance, while amoxicillin targets an essential enzyme in the bacteria.

2.5. In Vivo Toxicity versus Galleria mellonella

Based on their antibacterial activity profile and aiming at forecasting a putative safety in vivo, 4c,e and 5c,f were selected for the evaluation of their acute and sub-acute toxicity on the G. mellonella in vivo model. In recent years, the use of G. mellonella (the greater wax moth) as an animal model, to study both bacterial infections and drug toxicity, has increased because of its simple usage, the possibility of performing large-scale studies, and the absence of ethical committee approval [32,33]. Despite the lack of an adaptive immune system, G. mellonella larvae have an innate system that shares similarities with that of mammals, allowing their use in preclinical studies [34,35]. G. mellonella is cultured and utilized worldwide in research laboratories as a model species for different entomological studies [36], as well as an alternative infection model to study diseases of humans and livestock [37,38]. One of the reasons for its wide use is that it can be reared in continuous colonies easily on a variety of diets. The larvae used in the present study were nurtured at the laboratory of entomology of the Department of Agricultural and Food Sciences of the University of Bologna, on a diet composed of milk powder, white and whole-wheat flour, maize flour, honey, bee wax, brewer’s yeast, and glycerin.

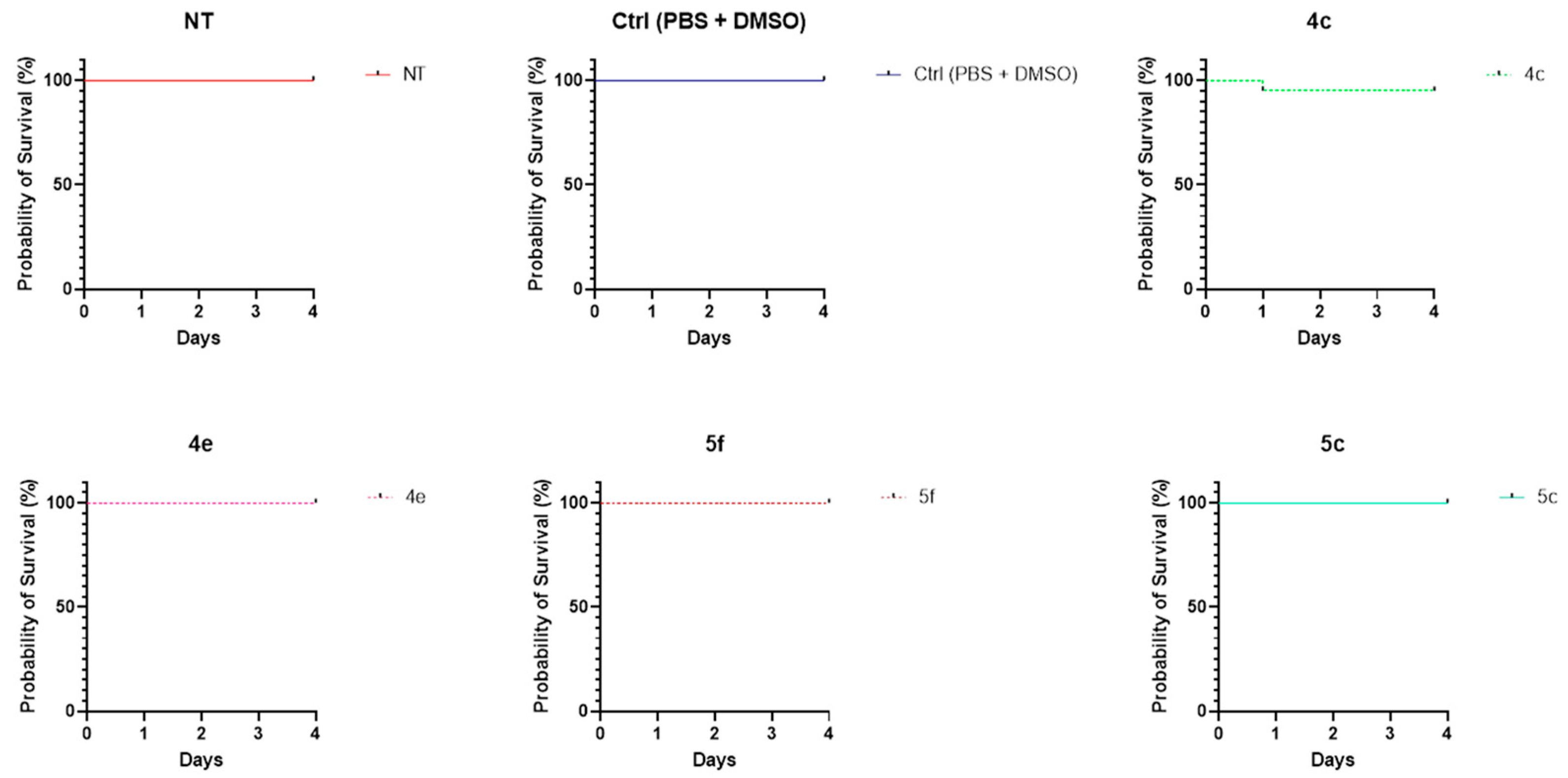

G. mellonella sixth-instar larvae were injected with the tested compounds (at 10 × MIC values) or with vehicle control—Dulbecco’s Phosphate Buffer Saline (DPBS) and dimethylsulfoxide (DMSO). Only one larva died after 1 day of treatment with 4c, showing similar survival rates as controls. As shown in Figure 4, there is no statistically significant difference between 4c and controls, while for the other groups, the survival curves overlap with that of controls. These outcomes indicate no toxicity of 4c,e and 5c,f in G. mellonella larvae at the tested concentrations.

3. Conclusions

A new series of primary phenyldiazenyl sulfonamides and a previously published series of secondary azobenzene sulfonamides were evaluated as CA inhibitors by using a panel of human and bacterial CAs. All the primary sulfonamides 4a–j were found to inhibit human CAs in the nanomolar range, while a more selective inhibitory trend could be noticed in data on bacterial isoenzymes. Furthermore, the secondary azobenzene sulfonamides 5a–j showed a lower inhibitory potency compared to the primary ones. Considering that targeting HpCAs could be a good opportunity for the treatment of infections sustained by drug-resistant strains and that CA inhibitors are able to prevent H. pylori biofilm formation, these two series of azobenzene sulfonamides were also tested versus a reference strain of H. pylori. In particular, compounds 4c,e and 5c,f showed a promising anti-H. pylori activity, with MIC values of 4–8 μg/mL and MBC values between 4 and 16 μg/mL. These four compounds were also evaluated in vivo on the G. mellonella larva model and the results indicated no toxicity for 4c,e and 5c,f at the tested concentrations. Computational studies were also performed to predict the possible binding mode on both HpCAs of some azobenzenesulfonamides. The obtained results allowed the consideration of 4c,e and 5c,f as interesting starting points for the development of a new class of anti-Helicobacter pylori agents, taking into account the structural requirements suggested by in silico studies and the pharmacokinetic properties that can modulate cell-based antimicrobial activity [40]. Thus, new sulfonamide-containing antimicrobials could be the starting point to designing HpCA inhibitors with a high potency with respect to CA inhibitors presenting other moieties.

4. Materials and Methods

4.1. Chemistry, Synthesis, and Characterization of the New Azocompounds 4a–j

A Varian instrument was utilized to record NMR spectra at 300 MHz using tetramethylsilane as an internal reference, and chemical shifts (δ) are reported in ppm. The splitting patterns are designated as s, singlet; d, doublet; t, triplet; q, quartet; dd, double doublet; m, multiplet; b, broad. Elemental analyses were carried out using a PerkinElmer 240 B microanalyzer and were found to be within ±0.4% of the theoretical values for C, H, and N for all compounds. The purity of all compounds was over 98%. All commercial and cell culture reagents, media, and reference compounds were obtained from Merk (Milan, Italy). Chemical reactions were monitored by thin-layer chromatography (TLC) on F254 silica gel 60 TLC plates. Flash chromatography was performed on silica gel 60 (Merck, Milan, Italy).

4.1.1. General Procedure for Synthesis of Compounds 4a–j

To a solution of sulfanilamide 1 (1 eq.) in HCl (1.5 mL, 6N) at 0 °C, we slowly added NaNO2 (1.5 eq.) in water at 0 °C to obtain the corresponding diazonium salt. After 1 h at 0 °C, this solution was mixed slowly to a proper phenol 3a–j (1 eq.) dissolved in NaOH (2 mL, 4N) at 0 °C, letting it react for 4 h. After completion of the reaction, the pH was reduced at 2, adding 3N HCl. The formed precipitate was filtered under vacuum to obtain the desired products 4a–j, used without further purification.

(E)-4-((2-hydroxy-5-methoxyphenyl)diazenyl)benzenesulfonamide 4a

Brow solid, yield: 49%. 1H NMR (CD3OD) δ 3.83 (s, 3H, OCH3), 6.96–7.09 (dd, 2H, CHarom), 7.40 (d, 1H, CHarom), 8.07 (s, 4H, CHarom); 13C NMR (CD3OD) δ 54.9, 109.0, 118.6, 122.4, 122.6, 127.1, 137.7, 145.2, 148.7, 153.2, 153.3. Anal. calcd for C13H13N3O4S: C 50.81, H 4.26, N 13.67. Found C 50.98, H 4.25, N 13.65.

(E)-4-((4-hydroxy-3-methoxyphenyl)diazenyl)benzenesulfonamide 4b

Orange solid, yield: 75%. 1H NMR (CD3OD) δ 3.94 (s, 3H, OCH3), 6.96 (d, 1H, CHarom), 7.55–7.60 (m, 2H, CHarom), 7.94–8.05 (dd, 4H, CHarom); 13C NMR (CD3OD) δ 54.9, 101.8, 110.0, 114.7, 122.2, 126.9, 146.1, 148.4, 153.5, 155.9, 160.0. Anal. calcd for C13H13N3O4S: C 50.81, H 4.26, N 13.67. Found C 50.85, H 4.27, N 13.68.

(E)-4-((4-hydroxy-2-methoxyphenyl)diazenyl)benzenesulfonamide 4c

Orange solid, yield: 88%. 1H NMR (CD3OD) δ 3.97 (s, 3H, OCH3), 6.43–6.46 (m, 1H, CHarom), 6.59 (s, 1H, CHarom), 7.69 (d, 1H, CHarom), 7.92–8.02 (dd, 4H, CHarom); 13C NMR (CD3OD) δ 55.2, 99.4, 108.2, 110.0, 116.1, 121.4, 122.1, 126.8, 127.1, 143.8, 160.0. Anal. calcd for C13H13N3O4S: C 50.81, H 4.26, N 13.67. Found C 50.99, H 4.27, N 13.69.

(E)-4-((4-hydroxy-3-(trifluoromethyl)phenyl)diazenyl)benzenesulfonamide 4d

Orange solid, yield: 49%. 1H NMR (CD3OD) δ 7.11 (d, 1H, CHarom), 7.94–8.09 (m, 5H, CHarom), 8.16 (d, 1H, CHarom); 13C NMR (CD3OD) δ 117.1, 122.1, 122.4, 122.6, 126.7, 126.9, 127.8, 144.7, 145.0, 154.2, 159.4. Anal. calcd for C13H10F3N3O3S: C 45.22, H 2.92, N 12.17. Found C 45.21, H 2.91, N 12.16.

(E)-4-((4-hydroxy-2-(trifluoromethyl)phenyl)diazenyl)benzenesulfonamide 4e

Orange solid, yield: 53%. 1H NMR (CD3OD) δ 7.07 (dd, 1H, CHarom), 7.23 (d, 1H, CHarom), 7.89–7.93 (m, 1H, CHarom), 7.97–8.07 (dd, 4H, CHarom); 13C NMR (CD3OD) δ 113.0, 117.7, 119.1, 122.7, 122.8, 126.9, 130.9, 141.5, 145.1, 154.4, 162.3. Anal. calcd for C13H10F3N3O3S: C 45.22, H 2.92, N 12.17. Found C 45.23, H 2.93, N 12.18.

(E)-4-((4-hydroxy-2,5-dimethylphenyl)diazenyl)benzenesulfonamide 4f

Orange solid, yield: 81%. 1H NMR (CD3OD) δ 2.17 (s, 3H, CH3), 2.62 (s, 3H, CH3), 6.72 (s, 1H, CHarom), 7.56 (s, 1H, CHarom), 7.89–8.03 (dd, 4H, CHarom); 13C NMR (CD3OD) δ 14.5, 15.9, 115.8, 117.5, 122.2, 123.3, 126.8, 139.8, 143.7, 143.9, 154.9, 160.1. Anal. calcd for C14H15N3O3S: C 55.07, H 4.95, N 13.76. Found 55.05, H 4.96, N 13.75.

(E)-4-((4-hydroxy-2,6-dimethylphenyl)diazenyl)benzenesulfonamide 4g

Orange solid, yield: 79%. 1H NMR (CD3OD) δ 2.50 (s, 6H, aromCH3, aromCH3), 6.59 (s, 2H, CHarom), 7.89 (d, 2H, CHarom), 8.02 (d, 2H, CHarom); 13C NMR (CD3OD) δ 19.7, 115.8, 121.9, 126.9, 136.7, 142.8, 144.1, 155.2, 159.3. Anal. calcd for C14H15N3O3S: C 55.07, H 4.95, N 13.76. Found 55.10, H 4.94, N 13.77.

(E)-4-((2-hydroxy-5-methylphenyl)diazenyl)benzenesulfonamide 4h

Orange solid, yield: 47%. 1H NMR (Acetone) δ 2.38 (s, 3H, CH3), 6.81 (s, 2H, NH2), 6.96 (d, 1H, CHarom), 7.32 (d, 1H, CHarom), 7.79 (s, 1H, CHarom), 8.08–8.16 (dd, 4H, CHarom), 11.85 (s, 1H, OH); 13C NMR (Acetone) δ 19.3, 117.9, 122.6, 127.4, 129.5, 130.7, 135.5, 137.4, 145.9, 151.2, 152.8. Anal. calcd for C13H13N3O3S: C 53.60, H 4.50, N 14.42. Found 53.48, H 4.51, N 14.45.

(E)-4-((4-hydroxy-3-methylphenyl)diazenyl)benzenesulfonamide 4i

Yellow solid, yield: 79%. 1H NMR (CD3OD) δ 2.27 (s, 3H, CH3), 4.65 (s, 2H, NH2), 6.89 (d, 1H, CHarom), 7.68–7.75 (m, 2H, CHarom), 7.93 (d, 2H, CHarom), 8.02 (d, 2H, CHarom); 13C NMR (CD3OD) δ 14.9, 114.3, 122.2, 123.5, 125.1, 125.4, 126.9, 144.2, 145.9, 154.6, 160.0. Anal. calcd for C13H13N3O3S: C 53.60, H 4.50, N 14.42. Found 53.51, H 4.49, N 14.43.

(E)-4-((4-hydroxy-2-methylphenyl)diazenyl)benzenesulfonamide 4j

Red solid, yield: 81%. 1H NMR (CD3OD) δ 2.67 (s, 3H, CH3), 6.68 (d, 1H, CHarom), 6.77 (s, 1H, CHarom), 7.68 (d, 1H, CHarom), 7.92–7.95 (m, 2H, CHarom), 8.02 (d, 2H, CHarom); 13C NMR (CD3OD) δ 16.4, 110.0, 113.6, 116.7, 116.8, 122.3, 126.9, 142.2, 144.0, 154.9, 161.6. Anal. calcd for C13H13N3O3S: C 53.60, H 4.50, N 14.42. Found 53.59, H 4.49, N 14.44.

4.2. Carbonic Anhydrases Inhibition Assay

An Applied Photophysics stopped-flow instrument was used to evaluate the ability of the test compounds to inhibit CA-catalyzed CO2 hydration [41]. An amount of 0.2 mM Phenol red was chosen as an indicator (absorbance maximum = 557 nm), with 20 mM HEPES (pH 7.4 for α- and γ-CAs, 8.4 for β-CAs) as a buffer, and 20 mM Na2SO4 (to maintain a constant ionic strength), following the initial rates of the CA-catalyzed CO2 hydration reaction for a period of 10–100 s. The CO2 concentrations ranged from 1.7 to 17 mM for the determination of the kinetic parameters and inhibition constants. Enzyme concentrations spanned from 5 to 12 nM. Stock solutions of the inhibitor (0.1 mM) were prepared in distilled–deionized water, and dilutions up to 0.01 nM were prepared with the assay buffer. Inhibitor and enzyme solutions were preincubated for 15 min at r.t. for the formation of the E–I complex. The inhibition constants were obtained by non-linear least-squares methods using PRISM 3 and the Cheng–Prusoff equation and represent the mean from at least three different determinations. Apart from human CAs I and II purchased from Merck, all the bacterial CAs were recombinant and obtained in-house [42].

4.3. Molecular Modeling

Ligands were sketched in 2D with Picto software (version 4.4.0.4. OpenEye Scientific Software, Santa Fe, NM, USA) [43] and converted into 3D structures with the OMEGA2 program (version 3.1.0.3. OpenEye Scientific Software, Santa Fe, NM, USA) [44]. Ionization of molecules was carried out by QUACPAC (version 2.0.0.3. OpenEye Scientific Software, Santa Fe, NM, USA) [45] for a pH of 7.4, whereas the sulfonamide group was considered as deprotonated. It is worth mentioning that compounds bearing a phenolic group were docked either in a protonated or non-protonated form (phenolate ions), with no differences in the binding mode. For the sake of clarity, the neutral phenolic form is shown in the figures.
Ligand energy minimization was performed with SZYBKI (version 1.10.0.3. OpenEye Scientific Software, Santa Fe, NM, USA) [46].
The homology model of HpβCA was generated using the Prime software (version 5.5) [47] included in the Maestro suite (version 11.9.011) [48], using the HpβCA sequence (UniProt ID: Q9ZN54, strain J99) as the target sequence and the crystallographic structure of the βCA from the Coccomyxa sp. (PDB ID: 3UCJ) [29] as a structural template. The AAZ molecule that coordinates the catalytic Zn(II) ion in the structural template was kept in place during the homology modeling, to guarantee the generation of an enzyme structure with the catalytic site in the open/inhibited form. Energy minimization of the HpβCA homology model was carried out with Amber18 [49]. The ff14SB force field was used for the protein, while GAFF was used for AAZ. The catalytic Zn(II) ion was assigned an arbitrary charge of +1 according to previous works [50], and its coordination was parametrized with a non-bonded approach. The rough homology model was solvated in a box of TIP3P-type water molecules buffering 8 Å from the macromolecules, while Na+ ions were added to achieve charge neutrality. The solvent was first energy-minimized for 500 steps using the steepest descent algorithm (SD), followed by 1500 steps with the conjugate gradient algorithm (CG) while keeping the solute frozen. Then, the solvated solute was energy-minimized for 1000 steps with the SD and a subsequent 6500 steps with the CG.
The crystallographic structure of the HpαCA, coded by PDB ID 4XFW [29], and the energy-minimized homology model of HpβCA, were used as rigid receptors in molecular docking simulations performed with the GOLD program (version 2020-1) [51]. The catalytic Zn(II) ion was selected as the center of the binding site, having an amplitude of 10 Å. The metal ion was treated as a tetracoordinate heteroatom. For each ligand, 10 runs of the Genetic Algorithm (GA) were performed. The CHEMPLP scoring function with default parameters was used, while the GA search efficiency was increased up to 200%.

4.4. Antibacterial Susceptibility Testing

H. pylori ATCC 43504 was cultured on a Columbia Agar base (Becton Dickinson and Company, Franklin Lakes, NJ, USA) supplemented with 10% horse serum (Merck, St. Louis, MO, USA) and 0.25% yeast extract (Oxoid Ltd., Hampshire, UK), incubated at 37 °C for 72 h in a microaerophilic atmosphere (CampyGen, Thermo Fisher Scientific, Milan, Italy). Colonies were collected and transferred into 10 mL of Brain Heart Infusion broth (BHI, Oxoid Ltd., Hampshire, UK) supplemented with 5% (v/v) of fetal bovine serum (FBS, Merck, Milan, Italy) and incubated overnight at 37 °C, at 125 rpm under microaerophilic conditions. After 18 h of incubation, the broth culture was diluted to obtain a bacterial suspension of 106 CFU/mL. MICs were determined by three different assays: the broth micro-dilution method, the alamarBlue assay, and the CFU count.
The broth micro-dilution method was performed according to the Clinical & Laboratory Standards Institute guidelines [52]. Each compound was resuspended in DMSO, and serial two-fold dilutions were performed directly in 96-well plates to obtain a concentration range of 0.0625–128 µg/mL (the final percentage of DMSO was 0.57%). To obtain a final concentration of 105 CFU/mL, 10 µL of the sample, containing 106 CFU/mL, was added to each well, in which 90 µL of the tested compound had been previously placed. The controls consisted of (I) H. pylori broth culture in BHI plus 5% FBS; (II) H. pylori broth culture in BHI plus 5% FBS added with 0.57% DMSO; (III) only BHI plus 5% FBS; (IV) only BHI plus 5% FBS added with 0.57% DMSO. Three independent experiments were performed in triplicate. Amoxicillin, one of the clinically used drugs, was compared as a positive control. The plates were incubated at 37 °C for 72 h under microaerophilic conditions.
The alamarBlue assay (AB; Thermo Fisher Scientific, Waltham, MA, USA) was conducted as previously described [17]. The results were further confirmed by the CFU count, which was carried out from the wells stained with alamarBlue. Briefly, 100 µL from each well was resuspended in 900 µL of DPBS (Merck, St. Louis, MO, USA), and serial dilutions were then performed in DPBS, plated on agar, and incubated at 37 °C under microaerophilic conditions for 3–5 days. The MBC was defined as the lowest concentration of the compound that kills 99.9% of the test bacteria and was determined by CFU counts based on the spreading of 100 µL, taken from the wells after the MIC of the treated samples and controls on the selected agar.

4.5. Evaluation of In Vivo Toxicity on Galleria mellonella Model

G. mellonella larvae were stored in the dark at 20 °C. Larvae weighing 200–250 mg were used for the experiment. Three experimental groups consisting of (I) larvae treated with the chosen compound; (II) untreated larvae (not injected); and (III) larvae injected with PBS added with the same percentage of DMSO obtained in the treated group were evaluated. Each experimental group counted 10 larvae, and each larva was injected into the third left proleg using a Hamilton syringe (Hamilton, Reno, NV, USA). A total volume of 10 μL of the sample was administered to each animal. In particular, concentrations equal to the MIC of the administered compounds were increased 10-fold (10 × MIC) [53], suggesting that one should consider in the G. mellonella in vivo model a dilution factor corresponding to 10. Each compound was diluted in PBS, starting from their DMSO stock solutions. Finally, the larvae were housed in Petri dishes at 37 °C and monitored daily for 4 days to score mortality (the larvae were considered dead when they were unresponsive to touch and were unable to correct themselves when rolled onto their back) [54]. Two independent experiments were performed.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ph17081027/s1. Table S1: Docking scores of compounds 4a–j to HpαCA and HpβCA isoforms. 1H and 13C spectra of final compounds 4a–j.

Author Contributions

Conceptualization, L.G., S.C. and R.G.; methodology, B.M. and A.L.; validation, A.M., S.F. and C.T.S.; formal analysis, M.M., A.A. (Andrea Angeli) and A.L.; investigation, L.G., B.M., A.D.V. and I.D.; resources, L.G., I.D., R.G., S.C. and C.T.S.; writing—original draft preparation, A.D.V., I.D., S.C., L.G. and B.M.; writing—review and editing, L.G. and S.C.; visualization, A.A. (Alessandra Ammazzalorso), B.D.F. and C.M.; supervision, L.G., C.T.S. and R.G.; project administration, L.G., C.T.S., R.G. and S.C.; funding acquisition, L.G., S.C., C.T.S., C.C., R.G. and M.M. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by FAR funds (Italian Ministry for Instruction, University and Research) assigned to L.G. and by a grant from the Italian Ministry of University (Grant Number FISR2019_04819 BacCAD) to S.C., C.T.S. and C.C. MM wishes to acknowledge the partial funding by EU’s Next Generation EU-MUR PNRR Extended Partnership initiative on Emerging Infectious Diseases (project no. PE00000007, INF-ACT). This article is based upon work from COST Action EURESTOP, CA21145, supported by COST (European Cooperation in Science and Technology) to S.C., R.G., M.M. and I.D.A. MM wishes to thank the OpenEye Free Academic Licensing Program for providing a free academic license for molecular modeling and chemoinformatics software.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding authors.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Deane, C.; Kelly, O.; O’morain, C. Current and Future Perspectives on the Management of Helicobacter pylori: A Narrative Review. Antibiotics 2024, 13, 541. [Google Scholar] [CrossRef] [PubMed]
  2. Matsumoto, S.; Sugimoto, M.; Fukuzawa, M.; Uesugi, N.; Iwata, E.; Kagawa, Y.; Madarame, A.; Koyama, Y.; Morise, T.; Uchida, K.; et al. Risk of map-like redness development after eradication therapy for Helicobacter pylori infection. Helicobacter 2024, 29, e13046. [Google Scholar] [CrossRef] [PubMed]
  3. Sgamato, C.; Rocco, A.; Compare, D.; Priadko, K.; Romano, M.; Nardone, G. Exploring the Link between Helicobacter pylori, Gastric Microbiota and Gastric Cancer. Antibiotics 2024, 13, 484. [Google Scholar] [CrossRef]
  4. Jafarzadeh, A.; Jafarzadeh, Z.; Nemati, M.; Yoshimura, A. The Interplay Between Helicobacter pylori and Suppressors of Cytokine Signaling (SOCS) Molecules in the Development of Gastric Cancer and Induction of Immune Response. Helicobacter 2024, 29, e13105. [Google Scholar] [CrossRef] [PubMed]
  5. Salama, N.R.; Hartung, M.L.; Müller, A. Life in the human stomach: Persistence strategies of the bacterial pathogen Helicobacter pylori. Nat. Rev. Microbiol. 2013, 11, 385–399. [Google Scholar] [CrossRef]
  6. Ye, J.; Feng, T.; Su, L.; Li, J.; Gong, Y.; Ma, X. Interactions between Helicobacter pylori infection and host metabolic homeostasis: A comprehensive review. Helicobacter 2023, 28, e13030. [Google Scholar] [CrossRef] [PubMed]
  7. Umar, Z.; Tang, J.-W.; Marshall, B.J.; Tay, A.C.Y.; Wang, L. Rapid diagnosis and precision treatment of Helicobacter pylori infection in clinical settings. Crit. Rev. Microbiol. 2024, 24, 1–30. [Google Scholar] [CrossRef]
  8. Huang, T.-T.; Cao, Y.-X.; Cao, L. Novel therapeutic regimens against Helicobacter pylori: An updated systematic review. Front. Microbiol. 2024, 15, 1418129. [Google Scholar] [CrossRef]
  9. Luzko, I.; Nyssen, O.P.; Moreira, L.; Gisbert, J.P. Safety profile of Helicobacter pylori eradication treatments: Literature review and updated data of the European Registry on Helicobacter pylori management (Hp-EuReg). Expert Opin. Drug Saf. 2024, 23, 553–564. [Google Scholar] [CrossRef]
  10. Cheng, T.; Boneca, I.G. The shapeshifting Helicobacter pylori: From a corkscrew to a ball. Mol. Microbiol. 2024, 121, 260–274. [Google Scholar] [CrossRef]
  11. Gladyshev, N.; Taame, M.; Ibiliev, A.; Grukhin, Y.; Kravtsov, V. Colonization by Various Morphological Forms of Helicobacter pylori in the Gingival Sulcus and Antrum of the Stomach. Recent Adv. Anti-Infective Drug Discov. 2022, 17, 199–211. [Google Scholar] [CrossRef] [PubMed]
  12. Sedarat, Z.; Taylor-Robinson, A.W. Helicobacter pylori Outer Membrane Proteins and Virulence Factors: Potential Targets for Novel Therapies and Vaccines. Pathogens 2024, 13, 392. [Google Scholar] [CrossRef] [PubMed]
  13. Kaur, R.; Guevara, C.L. Addressing Challenges in Standardizing Helicobacter pylori Treatment Protocols: Importance and Review. Cureus 2024, 16, e59394. [Google Scholar] [CrossRef] [PubMed]
  14. Ansari, S.; Yamaoka, Y. Helicobacter pylori Infection, Its Laboratory Diagnosis, and Antimicrobial Resistance: A Perspective of Clinical Relevance. Clin. Microbiol. Rev. 2022, 35, e0025821. [Google Scholar] [CrossRef] [PubMed]
  15. Supuran, C.T.; Capasso, C. Antibacterial carbonic anhydrase inhibitors: An update on the recent literature. Expert Opin. Ther. Patents 2020, 30, 963–982. [Google Scholar] [CrossRef] [PubMed]
  16. Puca, V.; Turacchio, G.; Marinacci, B.; Supuran, C.T.; Capasso, C.; Di Giovanni, P.; D’agostino, I.; Carradori, S.; Grande, R. Antimicrobial and Antibiofilm Activities of Carvacrol, Amoxicillin and Salicylhydroxamic Acid Alone and in Combination vs. Helicobacter pylori: Towards a New Multi-Targeted Therapy. Int. J. Mol. Sci. 2023, 24, 4455. [Google Scholar] [CrossRef] [PubMed]
  17. Grande, R.; Carradori, S.; Puca, V.; Vitale, I.; Angeli, A.; Nocentini, A.; Bonardi, A.; Gratteri, P.; Lanuti, P.; Bologna, G.; et al. Selective Inhibition of Helicobacter pylori Carbonic Anhydrases by Carvacrol and Thymol Could Impair Biofilm Production and the Release of Outer Membrane Vesicles. Int. J. Mol. Sci. 2021, 22, 11583. [Google Scholar] [CrossRef] [PubMed]
  18. Giampietro, L.; Gallorini, M.; Gambacorta, N.; Ammazzalorso, A.; De Filippis, B.; Della Valle, A.; Fantacuzzi, M.; Maccallini, C.; Mollica, A.; Cataldi, A.; et al. Synthesis, structure-activity relationships and molecular docking studies of phenyldiazenyl sulfonamides as aromatase inhibitors. Eur. J. Med. Chem. 2021, 224, 113737. [Google Scholar] [CrossRef] [PubMed]
  19. Kaur, H.; Narasimhan, B. Antimicrobial Activity of Diazenyl Derivatives: An Update. Curr. Top. Med. Chem. 2018, 18, 3–21. [Google Scholar] [CrossRef]
  20. Apaydın, S.; Török, M. Sulfonamide derivatives as multi-target agents for complex diseases. Bioorganic Med. Chem. Lett. 2019, 29, 2042–2050. [Google Scholar] [CrossRef]
  21. Tahir, T.; Ashfaq, M.; Saleem, M.; Rafiq, M.; Shahzad, M.I.; Kotwica-Mojzych, K.; Mojzych, M. Pyridine Scaffolds, Phenols and Derivatives of Azo Moiety: Current Therapeutic Perspectives. Molecules 2021, 26, 4872. [Google Scholar] [CrossRef] [PubMed]
  22. Xiao-Qun, Z.; Xian-Li, M.; Ariffin, N.S. The potential of carbonic anhydrase enzymes as a novel target for anti-cancer treatment. Eur. J. Pharmacol. 2024, 976, 176677. [Google Scholar] [CrossRef]
  23. Supuran, C.T. An overview of novel antimicrobial carbonic anhydrase inhibitors. Expert Opin. Ther. Targets 2023, 27, 897–910. [Google Scholar] [CrossRef] [PubMed]
  24. Chen, Z.; Zhao, Y.; Liu, Y. Advanced Strategies of Enzyme Activity Regulation for Biomedical Applications. ChemBioChem 2022, 23, e202200358. [Google Scholar] [CrossRef]
  25. Lizard, G.; Latruffe, N.; Vervandier-Fasseur, D. Aza- and Azo-Stilbenes: Bio-Isosteric Analogs of Resveratrol. Molecules 2020, 25, 605. [Google Scholar] [CrossRef]
  26. Giampietro, L.; Laghezza, A.; Cerchia, C.; Florio, R.; Recinella, L.; Capone, F.; Ammazzalorso, A.; Bruno, I.; De Filippis, B.; Fantacuzzi, M.; et al. Novel Phenyldiazenyl Fibrate Analogues as PPAR α/γ/δ Pan-Agonists for the Amelioration of Metabolic Syndrome. ACS Med. Chem. Lett. 2019, 10, 545–551. [Google Scholar] [CrossRef] [PubMed]
  27. Merino, E. Synthesis of azobenzenes: The coloured pieces of molecular materials. Chem. Soc. Rev. 2011, 40, 3835–3853. [Google Scholar] [CrossRef]
  28. Compostella, M.E.; Berto, P.; Vallese, F.; Zanotti, G. Structure of α-carbonic anhydrase from the human pathogen Helicobacter pylori. Acta Crystallogr. F Struct. Biol. Commun. 2015, 71 Pt 8, 1005–1011. [Google Scholar] [CrossRef] [PubMed]
  29. Huang, S.; Hainzl, T.; Grundström, C.; Forsman, C.; Samuelsson, G.; Sauer-Eriksson, A.E. Structural studies of β-carbonic anhydrase from the green alga Coccomyxa: Inhibitor complexes with anions and acetazolamide. PLoS ONE 2011, 6, e28458. [Google Scholar] [CrossRef]
  30. Aspinall, G.O.; Monteiro, M.A.; Pang, H.; Walsh, E.J.; Moran, A.P. Lipopolysaccharide of the Helicobacter pylori type strain NCTC 11637 (ATCC 43504): Structure of the O antigen chain and core oligosaccharide regions. Biochemistry 1996, 35, 2489–2497. [Google Scholar] [CrossRef]
  31. Hossain, T.J. Methods for screening and evaluation of antimicrobial activity: A review of protocols, advantages, and limitations. Eur. J. Microbiol. Immunol. 2024, 14, 97–115. [Google Scholar] [CrossRef] [PubMed]
  32. Tsai, C.J.-Y.; Loh, J.M.S.; Proft, T. Galleria mellonella infection models for the study of bacterial diseases and for antimicrobial drug testing. Virulence 2016, 7, 214–229. [Google Scholar] [CrossRef] [PubMed]
  33. Freires, I.A.; Morelo, D.F.C.; Soares, L.F.F.; Costa, I.S.; de Araújo, L.P.; Breseghello, I.; Abdalla, H.B.; Lazarini, J.G.; Rosalen, P.L.; Pigossi, S.C.; et al. Progress and promise of alternative animal and non-animal methods in biomedical research. Arch. Toxicol. 2023, 97, 2329–2342. [Google Scholar] [CrossRef]
  34. Ménard, G.; Rouillon, A.; Cattoir, V.; Donnio, P.-Y. Galleria mellonella as a Suitable Model of Bacterial Infection: Past, Present and Future. Front. Cell. Infect. Microbiol. 2021, 11, 782733. [Google Scholar] [CrossRef]
  35. Serrano, I.; Verdial, C.; Tavares, L.; Oliveira, M. The Virtuous Galleria mellonella Model for Scientific Experimentation. Antibiotics 2023, 12, 505. [Google Scholar] [CrossRef]
  36. Dindo, M.L.; Modesto, M.; Rossi, C.; Di Vito, M.; Burgio, G.; Barbanti, L.; Mattarelli, P. Monarda fistulosa hydrolate as antimicrobial agent in artificial media for the in vitro rearing of the tachinid parasitoid Exorista larvarum. Èntomol. Exp. Appl. 2021, 169, 79–89. [Google Scholar] [CrossRef]
  37. Giannouli, M.; Palatucci, A.T.; Rubino, V.; Ruggiero, G.; Romano, M.; Triassi, M.; Ricci, V.; Zarrilli, R. Use of larvae of the wax moth Galleria mellonella as an in vivo model to study the virulence of Helicobacter pylori. BMC Microbiol. 2014, 14, 228. [Google Scholar] [CrossRef]
  38. Champion, O.L.; Wagley, S.; Titball, R.W. Galleria mellonella as a model host for microbiological and toxin research. Virulence 2016, 7, 840–845. [Google Scholar] [CrossRef] [PubMed]
  39. Gomes, A.P.; Costa, B.; Marques, R.; Nunes, V.; Coelho, C. Kaplan-Meier Survival Analysis: Practical Insights for Clinicians. Acta Medica Port. 2024, 37, 280–285. [Google Scholar] [CrossRef]
  40. Carryn, S.; Chanteux, H.; Seral, C.; Mingeot-Leclercq, M.-P.; Van Bambeke, F.; Tulkens, P.M. Intracellular pharmacodynamics of antibiotics. Infect. Dis. Clin. N. Am. 2003, 17, 615–634. [Google Scholar] [CrossRef]
  41. Khalifah, R.G. The carbon dioxide hydration activity of carbonic anhydrase. I. Stop-flow kinetic studies on the native human isoenzymes B and C. J. Biol. Chem. 1971, 246, 2561–2573. [Google Scholar] [CrossRef] [PubMed]
  42. D’agostino, I.; Mathew, G.E.; Angelini, P.; Venanzoni, R.; Flores, G.A.; Angeli, A.; Carradori, S.; Marinacci, B.; Menghini, L.; Abdelgawad, M.A.; et al. Biological investigation of N-methyl thiosemicarbazones as antimicrobial agents and bacterial carbonic anhydrases inhibitors. J. Enzym. Inhib. Med. Chem. 2022, 37, 986–993. [Google Scholar] [CrossRef] [PubMed]
  43. OpenEye Toolkits, 2020.2.2; OpenEye Scientific Software: Santa Fe, NM, USA. Available online: http://www.eyesopen.com(accessed on 15 February 2024).
  44. OMEGA, 3.1.0.3; OpenEye Scientific Software: Santa Fe, NM, USA. Available online: http://www.eyesopen.com(accessed on 15 February 2024).
  45. Quacpac, 2.0.0.3; OpenEye Scientific Software: Santa Fe, NM, USA. Available online: http://www.eyesopen.com(accessed on 15 February 2024).
  46. Szybki, 1.10.0.3; OpenEye Scientific Software: Santa Fe, NM, USA. Available online: http://www.eyesopen.com(accessed on 15 February 2024).
  47. Schrödinger Release 2021-1; Prime, Schrödinger, LLC: New York, NY, USA, 2021.
  48. Schrödinger Release 2021-1; Maestro, Schrödinger, LLC: New York, NY, USA, 2021.
  49. Lee, T.-S.; Allen, B.K.; Giese, T.J.; Guo, Z.; Li, P.; Lin, C.; McGee, T.D.; Pearlman, D.A.; Radak, B.K.; Tao, Y.; et al. Alchemical Binding Free Energy Calculations in AMBER20: Advances and Best Practices for Drug Discovery. J. Chem. Inf. Model. 2020, 60, 5595–5623. [Google Scholar] [CrossRef] [PubMed]
  50. Cau, Y.; Mori, M.; Supuran, C.T.; Botta, M. Mycobacterial carbonic anhydrase inhibition with phenolic acids and esters: Kinetic and computational investigations. Org. Biomol. Chem. 2016, 14, 8322–8330. [Google Scholar] [CrossRef] [PubMed]
  51. Jones, G.; Willett, P.; Glen, R.C.; Leach, A.R.; Taylor, R. Development and validation of a genetic algorithm for flexible docking. J. Mol. Biol. 1997, 267, 727–748. [Google Scholar] [CrossRef] [PubMed]
  52. Clinical and Laboratory Standard Institute [CLSI]. Performance Standards for Antimicrobial Susceptibility Testing; Seventeenth Informational Supplement M100–S17 27; Clinical and Laboratory Standard Institute: Wayne, PA, USA, 2007. [Google Scholar]
  53. Kaul, L.; Abdo, A.I.; Coenye, T.; Krom, B.P.; Hoogenkamp, M.A.; Zannettino, A.C.W.; Süss, R.; Richter, K. The combination of diethyldithiocarbamate and copper ions is active against Staphylococcus aureus and Staphylococcus epidermidis biofilms in vitro and in vivo. Front. Microbiol. 2022, 13, 999893. [Google Scholar] [CrossRef]
  54. Torres, M.; Diaz-Ortiz, J.; Davis, M.G.; Schwartz, J.R.; Celis Ramírez, A.M. Galleria mellonella as a superficial model for Malassezia globosa and its treatment. Access Microbiol. 2024, 6, 000745.v3. [Google Scholar] [CrossRef]
Pharmaceuticals 17 01027 g001
Figure 1. (A) Molecular structure of SLC-0111; (B) general structures of compounds belonging to primary azobenzenesulfonamide (4a–j) and reversed secondary azobenzenesulfonamide (5a–j) series. Specific substitution patterns are reported in Scheme 1, Table 1 and Table 2.
Figure 1. (A) Molecular structure of SLC-0111; (B) general structures of compounds belonging to primary azobenzenesulfonamide (4a–j) and reversed secondary azobenzenesulfonamide (5a–j) series. Specific substitution patterns are reported in Scheme 1, Table 1 and Table 2.
Pharmaceuticals 17 01027 g001
Pharmaceuticals 17 01027 sch001
Scheme 1. Synthesis of primary azobenzenesulfonamides 4a–j. Reagents and conditions: (i) NaNO2, 6N HCl, 0–5 °C, 1 h; (ii) 4N NaOH, 0–5 °C 4 h.
Scheme 1. Synthesis of primary azobenzenesulfonamides 4a–j. Reagents and conditions: (i) NaNO2, 6N HCl, 0–5 °C, 1 h; (ii) 4N NaOH, 0–5 °C 4 h.
Pharmaceuticals 17 01027 sch001
Pharmaceuticals 17 01027 g002
Figure 2. Predicted binding mode of compounds 4d (A), 4a (B), 4b (C), and 4g (D). The crystallographic structure of HpαCA, coded by PDB ID 4XFW, is shown as the green cartoon and lines in panels (A–D), while the protein surface is colored according to the electrostatic surface potential in panels (E–H) (blue = positive charge, red = negative charge, white = uncharged lipophilic regions). Residues within 4 Å from the ligands are shown as green lines. Those of 4d,a,b,g are shown as cyan sticks; non-polar hydrogen atoms are omitted. The catalytic Zn(II) ion is shown as a gray sphere. Polar interactions between the inhibitors and HpαCA are highlighted by black dashed lines.
Figure 2. Predicted binding mode of compounds 4d (A), 4a (B), 4b (C), and 4g (D). The crystallographic structure of HpαCA, coded by PDB ID 4XFW, is shown as the green cartoon and lines in panels (A–D), while the protein surface is colored according to the electrostatic surface potential in panels (E–H) (blue = positive charge, red = negative charge, white = uncharged lipophilic regions). Residues within 4 Å from the ligands are shown as green lines. Those of 4d,a,b,g are shown as cyan sticks; non-polar hydrogen atoms are omitted. The catalytic Zn(II) ion is shown as a gray sphere. Polar interactions between the inhibitors and HpαCA are highlighted by black dashed lines.
Pharmaceuticals 17 01027 g002
Pharmaceuticals 17 01027 g003
Figure 3. Predicted binding mode of compounds 4c (A), 4h (B), 4j (C). The energy-minimized homology model of HpβCA is shown as a green cartoon and lines in panels (A–C), while the protein surface is colored according to the electrostatic surface potential in panels (D–F) (blue = positive charge, red = negative charge, white = uncharged lipophilic regions). Residues within 4 Å from the ligands are shown as green lines. Those of 4c,h,j are shown as cyan sticks; non-polar hydrogen atoms are omitted. The catalytic Zn(II) ion is shown as a gray sphere. Polar interactions between inhibitors and HpβCA are highlighted by black dashed lines.
Figure 3. Predicted binding mode of compounds 4c (A), 4h (B), 4j (C). The energy-minimized homology model of HpβCA is shown as a green cartoon and lines in panels (A–C), while the protein surface is colored according to the electrostatic surface potential in panels (D–F) (blue = positive charge, red = negative charge, white = uncharged lipophilic regions). Residues within 4 Å from the ligands are shown as green lines. Those of 4c,h,j are shown as cyan sticks; non-polar hydrogen atoms are omitted. The catalytic Zn(II) ion is shown as a gray sphere. Polar interactions between inhibitors and HpβCA are highlighted by black dashed lines.
Pharmaceuticals 17 01027 g003
Pharmaceuticals 17 01027 g004
Figure 4. Effect of 4c (80 μg/mL), 4e (80 μg/mL), 5c (40 μg/mL), and 5f (40 μg/mL) on probability of G. mellonella survival (Kaplan–Meier survival curve [39]). NT is non-treated, Ctrl is control, only vehicle (PBS + DMSO).
Figure 4. Effect of 4c (80 μg/mL), 4e (80 μg/mL), 5c (40 μg/mL), and 5f (40 μg/mL) on probability of G. mellonella survival (Kaplan–Meier survival curve [39]). NT is non-treated, Ctrl is control, only vehicle (PBS + DMSO).
Pharmaceuticals 17 01027 g004
Table 1. Inhibition data of primary azobenzenesulfonamides 4a–j and reference compound AAZ on panel of human and bacterial CAs.
Table 1. Inhibition data of primary azobenzenesulfonamides 4a–j and reference compound AAZ on panel of human and bacterial CAs.
CPDKI (nM) *
Pharmaceuticals 17 01027 i001Human IsoformsBacterial Isoforms
hCA IhCA IIhCA IXhCA XIIPgi βCAPgi γCAHp αCAHp βCAEco βCAPs CA3Msc CASmu CA
NAr
4aPharmaceuticals 17 01027 i0024524.12019.5803343865.874.14002282931503
4bPharmaceuticals 17 01027 i00334.83.383121.8192183712049.795.87022811649
4cPharmaceuticals 17 01027 i00484.95.454534.73628200470.917.196.32217764289
4dPharmaceuticals 17 01027 i00520.14.818240.2316794.73919.47382226423444
4ePharmaceuticals 17 01027 i0065.44.219154.189934789.268.895.34955720213
4fPharmaceuticals 17 01027 i0075.71.997.156.7376047269.470.68671915694215
4gPharmaceuticals 17 01027 i0084.93.717163.9366893914274.35508797282500
4hPharmaceuticals 17 01027 i00968.46.61849.63850772130127360980531682.1
4iPharmaceuticals 17 01027 i0104.43.41817.52071632614011921151147468368
4jPharmaceuticals 17 01027 i0115.34.721384.1577891472.2138304418456316296
AAZ
Pharmaceuticals 17 01027 i012		25012.125.85.721432421.44022775.9628344
* Mean from three different assays by a stopped-flow technique (errors were in the range of ±5–10% of the reported values). AAZ was used as a reference control. Pgi: Porphyromonas gingivalis; Hp: Helicobacter pylori; Eco: Escherichia coli; Ps: Pseudomonas aeruginosa; Msc: Mammaliiccous (Staphylococcus) sciuri; Smu: Streptococcus mutans.
Table 2. Inhibition data of secondary azobenzenesulfonamides 5a–j and reference compound AAZ on panel of human and bacterial CAs.
Table 2. Inhibition data of secondary azobenzenesulfonamides 5a–j and reference compound AAZ on panel of human and bacterial CAs.
CPDKI (nM)
Pharmaceuticals 17 01027 i013Human IsoformsBacterial Isoforms
hCA IhCA IIhCA IXhCA XIIPgi
βCA		Pgi
γCA		Hp
αCA		Eco
βCA		Ps
CA3		Msc CA
Ar
5aPharmaceuticals 17 01027 i014209n.a.3977955n.a.n.a.4606949928422,845
5bPharmaceuticals 17 01027 i015359n.a.61476071,449n.a.75.673,36157606962
5cPharmaceuticals 17 01027 i01690824,67991961750n.a.n.a.77.69206n.a.54,752
5dPharmaceuticals 17 01027 i0176749n.a.601215n.a.n.a.70.9908190178n.a.
5ePharmaceuticals 17 01027 i018853n.a.792847n.a.n.a.60458,996n.a.8595
5fPharmaceuticals 17 01027 i019905n.a.5739894n.a.n.a.71.377,702n.a.n.a.
5gPharmaceuticals 17 01027 i020905n.a.40434117n.a.n.a.55.859,165n.a.28,418
5hPharmaceuticals 17 01027 i0215531n.a.44952254n.a.n.a.7988,538n.a.7515
5iPharmaceuticals 17 01027 i0225990970,3245992240n.a.n.a.89.869519284n.a.
5jPharmaceuticals 17 01027 i023931n.a.70753335n.a.n.a.68.4n.a.69,82928,728
AAZ25012.125.85.721432421.422775.9344
Mean from 3 different assays by a stopped-flow technique (errors were in the range of ±5–10% of the reported values). AAZ was used as a reference control. n.a. = not active at the highest concentration tested (100 µM).
Table 3. MIC and MBC values of the tested compounds (4a–j and 5a–j) and amoxicillin as the reference drug (μg/mL) against H. pylori ATCC 43504.
Table 3. MIC and MBC values of the tested compounds (4a–j and 5a–j) and amoxicillin as the reference drug (μg/mL) against H. pylori ATCC 43504.
CPDMIC * (μg/mL)MBC * (μg/mL)
4a832
4b3232
4c816
4d64128
4e816
4f3232
4g1632
4h3264
4i3264
4j1632
5a1632
5b3264
5c48
5d1664
5e816
5f44
5g1616
5h64128
5i1632
5j1616
Amoxicillin0.0640.064
* MIC values are reported as the means of three independent experiments via the broth micro-dilution method, the alamarBlue assay, and the colony-forming unit (CFU) count, while MBC values are via the CFU count [31]. Amoxicillin was used as a reference antibiotic in these assays.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Giampietro, L.; Marinacci, B.; Della Valle, A.; D’Agostino, I.; Lauro, A.; Mori, M.; Carradori, S.; Ammazzalorso, A.; De Filippis, B.; Maccallini, C.; et al. Azobenzenesulfonamide Carbonic Anhydrase Inhibitors as New Weapons to Fight Helicobacter pylori: Synthesis, Bioactivity Evaluation, In Vivo Toxicity, and Computational Studies. Pharmaceuticals 2024, 17, 1027. https://doi.org/10.3390/ph17081027

AMA Style

Giampietro L, Marinacci B, Della Valle A, D’Agostino I, Lauro A, Mori M, Carradori S, Ammazzalorso A, De Filippis B, Maccallini C, et al. Azobenzenesulfonamide Carbonic Anhydrase Inhibitors as New Weapons to Fight Helicobacter pylori: Synthesis, Bioactivity Evaluation, In Vivo Toxicity, and Computational Studies. Pharmaceuticals. 2024; 17(8):1027. https://doi.org/10.3390/ph17081027

Chicago/Turabian Style

Giampietro, Letizia, Beatrice Marinacci, Alice Della Valle, Ilaria D’Agostino, Aldo Lauro, Mattia Mori, Simone Carradori, Alessandra Ammazzalorso, Barbara De Filippis, Cristina Maccallini, and et al. 2024. "Azobenzenesulfonamide Carbonic Anhydrase Inhibitors as New Weapons to Fight Helicobacter pylori: Synthesis, Bioactivity Evaluation, In Vivo Toxicity, and Computational Studies" Pharmaceuticals 17, no. 8: 1027. https://doi.org/10.3390/ph17081027

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
