Article

Odontogenic Differentiation-Induced Tooth Regeneration by Psoralea corylifolia L.

by
Hye-Ock Jang
1,2,†,
Tea-Young Ahn
1,†,
Ji-Min Ju
1,3,
Soo-Kyung Bae
1,2,
Hyung-Ryong Kim
4,* and
Da-Sol Kim
2,5,*
1
Department of Dental Pharmacology, School of Dentistry, Pusan National University, Yangsan 50612, Korea
2
Dental and Life Science Institute, School of Dentistry, Pusan National University, Yangsan 50612, Korea
3
Education and Research Team for Life Science on Dentistry, Pusan National University, Yangsan 50612, Korea
4
Department of Pharmacology, College of Dentistry, Jeonbuk National University, Jeonju 54896, Korea
5
Department of Dermatology, Pusan National University Yangsan Hospital, Yangsan 50612, Korea
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Curr. Issues Mol. Biol. 2022, 44(5), 2300-2308; https://doi.org/10.3390/cimb44050156
Submission received: 15 March 2022 / Revised: 13 May 2022 / Accepted: 18 May 2022 / Published: 19 May 2022
(This article belongs to the Special Issue Advances of Molecular Sciences in Dental Diseases Detection and Treatment)
Browse Figures
Versions Notes

Abstract

:
Psoralea corylifolia L. (P. corylifolia) has been used as an oriental phytomedicine to treat coldness of hands and feet in bone marrow injury. Hydroxyapatite is usually used for tooth regeneration. In this study, the role of P. corylifolia and bakuchiol, a compound originated from P. corylifolia as differentiation-inducing substances for tooth regeneration, was determined by monitoring odontogenic differentiation in human dental pulp stem cells (hDPSCs). We confirmed that P. corylifolia extracts and bakuchiol increased the odontogenic differentiation of hDPSCs. In addition, the expression of the odontogenic differentiation marker genes alkaline phosphatase (APL), Runt-related transcription factor 2 (RUNX-2), osteocalcin (OC), and dentin matrix acidic phosphoprotein-1 (DMP-1) was proved by real-time polymerase chain reaction, and protein expression of dentin matrix acidic phosphoprotein-1 (DMP-1) and dentin sialophosphoprotein (DSPP) was proved by western blotting. Further, by confirming the increase in small mothers against decapentaplegia (SMAD) 1/5/8 phosphorylation, the SMAD signaling pathway was found to increase the differentiation of odontoblasts. This study confirmed that P. corylifolia L. extracts and bakuchiol alone promote odontogenic differentiation in hDPSCs. These results suggest that bakuchiol from P. corylifolia is responsible for odontogenic differentiation, and they encourage future in vivo studies on dentin regeneration.

1. Introduction

Regeneration of a functional and natural tooth is an essential therapeutic strategy for the replacement of a diseased or damaged tooth. Since autogenous tooth regeneration and then replacement is safer than the influx of foreign substances, research on the preservation of autologous teeth is more important than that on tooth replacement with foreign substances. Since the advent of the 2017 tooth regeneration study by the PT Sharpe group [1], using glycogen synthase kinase 3 beta (GSK-3b) inhibitor, various studies on inducing self-tooth regeneration have been conducted.
Stem cells have several features, such as self-renewal and differentiating into multiple mature cell types [2,3,4,5,6,7,8], and there is a small population of these cells that exists in every organ [9]. Mesenchymal stem cells (MSCs) have several specific features; they can form a colony from one cell and are multi-potent, but not totipotent. Therefore, MSCs can differentiate into osteocytes, adipocytes, and cartilage tissues. There are many well-known markers for MSCs, including CD73, CD90, CD105, c-kit, CD14, CD11b, CD34, CD45, CD19, CD79, and human leukocyte antigen (HLA)-DR negative [9,10].
Cells with these characteristics are also found in the oral cavity. Dental stem cells are tissue specific; various types of MSCs are observed depending on their position in the oral cavity. For example, dental pulp stem cells (DPSCs) can be derived from the inner tooth pulp of adult molars, and periodontal ligament stem cells can be derived from the periodontal ligament [10,11,12,13,14]. Although there are many kinds of dental stem cells, in this study, we selected human dental pulp stem cells (hDPSCs) owing to their high oral population.
P. corylifolia is an important medicinal plant long known for its clinical applications such as tonifying the kidney yang, controlling nocturnal emissions during diuresis, warming the spleen to stop diarrhea, and helping in inspiration to relieve asthma. The seeds of P. corylifolia have been used as an ancient Hindu remedy for vitiligo [15]. Chopra et al. reviewed a detailed survey of the literature on its botany, phytochemistry and ethnopharmacology along with special emphasis given on pharmacological activities of plant P. corylifolea [16].
Many studies have investigated the relationship between human MSCs from various organs and tissues [8,17,18,19,20]. In particular, Shuyu E et al. suggested that P. corylifolia is involved in mitogen-activated protein kinase pathways [21]. According to the research results related to bone regeneration in P. corylifolia, psoralen, psoralidin, etc., promote bone regeneration in bone marrow-derived cells and are reported as candidates for the treatment of osteoporosis [22,23]. Earlier, Li et al. investigated the role of P. corylifolia in odontogenic differentiation of hDPSCs, and the results showed that P. corylifolia increased odontogenic differentiation [24].
Recently, bakuchiol and ameroterpene phenol of plant origin, promising a new agent as a complement, enhance the effectiveness of the currently marketed available anti-acne formulations. In addition, it also possesses an excellent safety profile and proves to be non-irritant, non-sensitized and, therefore, can be used throughout the day [25,26]. Psoralen and bakuchiol ameliorated bone resorption via inhibition of AKT and AP-1 pathways activation in vitro [26]. Lee et al. suggested that bakuchiol enhances myogenic differentiation through p38MAPK and MyoD activation, and can be developed into a potential agent to improve muscular regeneration [27]. In addition, based on Zhang’s review, we selected bakuchiol, a compound isolated from P. corylifolia, for further evaluation.
Estrogen replacement therapy is utilized as a major regime for the treatment of osteoporosis at present, but long term use of estrogen may cause uterine hyperplasia and hypertension leading to a high risk of endometrial cancer and breast cancer [28]. Bisphosphonates are used to suppress osteoclastic activity and to treat osteoporosis, but induced osteonecrosis of the jaw is increasing [29]. There is an urgent need for research that can induce bone or tooth regeneration without the side effects described above.
In this study, we investigated the role of P. corylifolia and bakuchiol in the regulation of DPSC proliferation and differentiation, and attempted to optimize the odontogenic differentiation of hDPSCs.

2. Materials and Methods

2.1. Plant Material

The dry seeds of P. corylifolia were purchased from KMD medicinal herbs Co. (Ulsan, Korea). Their origin is Yunnan (China), dried with ventilation at ambient temperature, and stored at 4 °C until use.

2.2. Herbal Extraction

For the preparation of P. corylifolia extracts, 2 L of 99.8% methanol was added to 200 g of the sample and the bottle was shaken once a day for 8 days. After obtaining the crude extract, the solution was filtered using a 185-mm filter paper. The solution was further concentrated under reduced pressure in an aqueous bath. The concentrated solution was lyophilized using a freeze dryer (Labconco, Kansas, MO, USA). The extraction yield of P. corylifolia was 14.15%. This powder was stored at −20 °C. P. corylifolia extracts were dissolved in dimethyl sulfoxide (DMSO) for in vitro studies.

2.3. Chemicals and Reagents

Cell counting kit-8 (CCK-8, CCK-3000) from Dongin Biotech (Seoul, Korea), bakuchiol (CFN-99047) from ChemFaces (Wuhan, China), and ascorbic acid (A-4544), β-glycero-2-phosphate (G-9891) and dexamethasone (D-2915) from Sigma-Aldrich (St. Louis, MO, USA) were purchased. For odontogenic differentiation, dexamethasone, β-glycerol 2-phosphate and ascorbic acid were added to Minimum Essential Medium-α supplemented with 10% fetal bovine serum (FBS, Gibco, Grand Island, NY, USA) to obtain final concentrations of 0.1, 10 and 50 μM, respectively.

2.4. Cell Culture

hDPSCs were purchased from Lonza (PT-5025, Basel, Switzerland). The cells were isolated from human tooth pulp, with three different primary cells being obtained from three different individuals. The cells were characterized by flow cytometry using the CD105+, CD166+, CD29+, CD90+, CD73+, CD133-, CD34- and CD45- surface antigens. The cells were maintained in StemMACS Media XF containing 1X anti-anti at 37 °C in a 5% CO2 incubator.

2.5. Cell Proliferation Assay

The in vitro proliferation of hDPSCs was determined using CCK-8 assay. The hDPSCs were seeded into 48-well culture plates (30048, SPL, Gyeonggi-do, Korea) at a density of 1 × 104 cells/well and cultured in StemMACS MSC expansion Media XF (130-101-375, Miltenyi Biote, Bergisch Gladbach, Germany) containing 1X anti-anti (L0010-020, Biowest, Nuaillé, France), and P. corylifolia extracts.
The cells were cultured for 4 days at 37 °C in a 5% CO2 incubator. Following this, CCK-8 solution was added and the cells were incubated at 37 °C in a 5% CO2 incubator for 2 h. Absorbance was measured using an ELX800 spectrophotometer (BioTek, Winooski, VT, USA) at 450 nm. Each experiment was performed in triplicate.

2.6. Odontogenic Differentiation

Odontogenic differentiation was induced by culturing cells for 7–21 days in the odontogenic medium described in Section 2.3. Calcification of the extracellular matrix was estimated using 2% Alizarin Red S (ARS) solution (pH 4.3, A-5533, Sigma-Aldrich) for 15 min. To obtain quantitative data, 200 μL of 10% (w/v) cetylpyridinium chloride (CPC, C-0732, Sigma-Aldrich) and 10 mM sodium phosphate solution (pH 7.0) were added to the dishes containing the staining solution. The absorbance of the extracted dye was measured at a wavelength of 570 nm.

2.7. Real-Time Polymerase Chain Reaction Analysis

Total RNA was isolated using TRIzol reagent (17061, iNtRON Biotechnology Inc., Seongnam, Korea) according to the manufacturer’s instructions and reverse-transcribed into complementary (cDNA) using a First Strand cDNA Synthesis Kit (K-2041, Bioneer, Daejeon, Korea). The primer sequences used are shown in Table 1. Quantitative reverse transcriptase polymerase chain reaction (PCR) was performed using TOPreal™ qPCR 2X PreMIX (RT-500M, SYBR Green with low ROX, Daejeon, Korea) on an ABI 7500 instrument (Applied Biosystems, Foster City, CA, USA). Data analysis was performed using the ∆∆Ct method, and the experiments were repeated three times.

2.8. Statistical Analysis

The results are expressed as the mean ± standard error of the mean (SEM) values for more than three independent experiments. Statistical significance was determined between the treatment groups and the positive and negative controls. The p-value was calculated using Student’s t-test. Each experiment was repeated at least three times to yield comparable results. Values of * p < 0.05, ** p < 0.02 and *** p < 0.01 were considered significant.

3. Results

3.1. Effect of P. corylifolia Extracts on Cell Viability and Odontogenic Differentiation in hDPSCs

To evaluate the effect of P. corylifolia extracts on hDPSC odontogenic differentiation, we treated the hDPSCs with P. corylifolia extracts during cell proliferation and odontogenic differentiation. We then tested the cellular physiology and the influence on diverse cell types. However, its influence on the differentiation of hDPSCs was inconclusive. The cell proliferation assay showed that cell proliferation was not found to be adversely affected during hDPSC proliferation (Figure 1A).
The results showed that P. corylifolia accelerated odontogenic differentiation about three times faster than general differentiation; the transcription of odontoblast-specific genes and proteins was performed to prove the differentiation.
The degree of odontogenic differentiation was measured by ARS staining, and the intensity of staining was quantified using 10% CPC solution (Figure 1B). Figure 1C shows the optical microscopy images at 100× magnification. Thereby, we hypothesized that, during odontoblast differentiation of hDPSCs, P. corylifolia extracts upregulate odontogenic differentiation.
As mentioned previously, in the presence of P. corylifolia extracts, hDPSCs display accelerated odontogenic differentiation. To evaluate whether odontogenic differentiation was indeed upregulated under our experimental conditions, the expression of odontogenic differentiation markers was measured using real-time PCR. For real-time PCR, hDPSCs were differentiated and RNA was harvested on day 7 of differentiation after treatment with P. corylifolia extracts. cDNA (2 μg) was synthesized from the extracted RNA. ALP, RUNX-2, OC, and DMP-1 were the odontogenic differentiation markers assessed. hDPSCs exposed to P. corylifolia extracts for 7 days displayed upregulation of the odontogenic differentiation markers compared to the control (Figure 2A–D). Additionally, Western blot analysis was performed to evaluate DMP-1 and DSPP protein expression; the P. corylifolia extract-treated group showed increased DMP-1 and DSPP protein expression (Figure 2E). Several studies have reported that SMAD signaling is a crucial signaling pathway in osteogenic and odontogenic differentiation [30,31,32]. To confirm the cell signaling, SMAD phosphorylation was evaluated. The results showed that P. corylifolia extracts increased the odontogenic differentiation of hDPSCs via SMAD signaling (Figure 2F).

3.2. Effect of Bakuchiol on Cell Viability and Odontogenic Differentiation in hDPSCs

To evaluate the effects of bakuchiol, concentrations of 50, 100 and 200 µM were used for CCK-8 assay and odontogenic differentiation. The cell viability decreased by only 10%, except at 500 μM. The ratio was less than 20% at 250 μM. Since we wanted to choose no cell-toxicity bakuchiol concentrations, this experiment used bakuchiol concentrations of 50, 100 and 200 μM, which were reasonable. The hDPSCs were treated for 10 days with bakuchiol to induce odontogenic differentiation, and the differentiation ability was determined by ARS staining. The degree of differentiation quantified using a 10% CPC solution of each concentration is shown in a micrograph (Figure 3A–C). The results indicated that bakuchiol is a mono compound form P. corylifolia that can induce odontogenic differentiation.
The expression of differentiation markers was observed after treatment with bakuchiol during odontogenic differentiation induction. Compared to that in the control groups, the expression of ALP, RUNX-2, OC, and DMP-1 and levels of the differentiation marker proteins DMP-1 and DSPP increased in the bakuchiol-treated groups (Figure 4).

4. Discussion

P. corylifolia belongs to the legume family; the dried mature fruits of P. corylifolia have been widely used for their pharmacological actions in conditions such as skin diseases (leukoderma), osteoporosis [28], liver disease [33], antimicrobial activity [34], and various cancers [35,36,37,38]. In addition, it has been confirmed that bone marrow stromal cells promote osteoblast differentiation [33,39]. Based on the diversity of osteoporosis inhibition studies, we examined the induction of odontogenic differentiation by P. corylifolia extract in hDPSCs.
Bakuchiol, a high-content meroterpinoid of P. corylifolia, was reported with anti-bactericidal [40], anti-inflammatory [41], and estrogenic activities in vitro [42]. Wei et al. suggested that bakuchiol exhibited a stronger effect to enhance osteoblasts differentiation than the other components [41]. Bakuchiol has a special structure, which also has a prenyl group. The active components of P. corylifolia that promote bone formation, and PPARγ and hydrocarbon receptor were verified as targets of P. corylifolia in MC3T3-E1 cells [43]. Various studies have shown that the preservation of natural teeth is related to the extension of the human lifespan, and the placement of implants to replace the role of teeth after extraction can be considered to be revolutionary [44,45]. The odontoblast differentiation of DPSCs has been studied earlier [46]. In this study, we confirmed that P. corylifolia extracts promote the odontogenic differentiation of hDPSCs. The efficacy of P. corylifolia extracts has not yet been reported, and the discovery of a natural product that promotes odontogenic differentiation of hDPSCs is encouraging. In addition, a patent (10-2021-0088822) has been obtained based on these experimental results. As a result, it was confirmed that expression of odontogenic differentiation markers increased during differentiation in a concentration-dependent manner. Based on the results of this experiment, it is expected that it will be possible to develop a new type of pharmaceutical aid that can preserve natural teeth. In summary, P. corylifolia promoted odontogenic differentiation. Bakuchiol was identified as the compound in P. corylifolia responsible for this effect. These can have potential applications in tooth regeneration.

5. Conclusions

In conclusion, this research is the first suggestion that P. corylifolia and bakuchiol which is a mono-compound of P. corylifolia., are effective compound accelerate odontoblast differentiation. Up-regulated odontoblast differentiation markers genes and proteins expression and SMAD phosphorylation support our purpose.

Author Contributions

Conceptualization, H.-R.K., H.-O.J., T.-Y.A. and D.-S.K.; methodology, H.-O.J., T.-Y.A. and D.-S.K.; validation, H.-O.J., T.-Y.A. and D.-S.K.; formal analysis, H.-O.J., T.-Y.A. and D.-S.K.; investigation, H.-O.J., T.-Y.A. and D.-S.K.; resources, H.-O.J., T.-Y.A., J.-M.J., S.-K.B. and D.-S.K.; data curation, H.-R.K., H.-O.J., T.-Y.A. and D.-S.K.; writing—original draft preparation, H.-O.J., T.-Y.A., H.-O.J., T.-Y.A. and D.-S.K.; writing—review and editing, H.-R.K., H.-O.J., T.-Y.A., H.-O.J., T.-Y.A., D.-S.K. and D.-S.K.; visualization, H.-O.J., T.-Y.A. and D.-S.K.; funding acquisition, J.-M.J., S.-K.B., H.-O.J., T.-Y.A. and D.-S.K. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Bio&Medical Technology Development Program (NRF-2017M3A9E4047243) funded by the Ministry of Science, ICT and Future Planning, Republic of Korea. Basic Science Research Program through the National Research Foundation of Korea (NRF) funded by the Ministry of Education (NRF-2019R1A6A3A01095696) and Technology development Program (S2949200) funded by the Ministry of SMEs and Startups (MSS, Korea).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

P. corylifoliaPsoralea Corylifolia Linn
hDPSCshuman dental pulp stem cells
GSK-3βglycogen synthase kinase 3 beta
MSCsMesenchymal stem cells
HLAhuman leukocyte antigen
DMSODimethyl sulfoxide
CCK-8Cell counting kit-8
ARSAlizarin Red S
CPCCetylpyridinium chloride
PCRpolymerase chain reactin
SEMstandard error of the mean
SMADsmall mothers against decapentaplegia

References

  1. Neves, V.C.; Babb, R.; Chandrasekaran, D.; Sharpe, P.T. Promotion of natural tooth repair by small molecule GSK3 antagonists. Sci. Rep. 2017, 7, 39654. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Tapia, N.; Arauzo-Bravo, M.J.; Ko, K.; Scholer, H.R. Concise review: Challenging the pluripotency of human testis-derived ESC-like cells. Stem Cells 2011, 29, 1165–1169. [Google Scholar] [CrossRef] [PubMed]
  3. Blinka, S.; Rao, S. Nanog Expression in Embryonic Stem Cells—An Ideal Model System to Dissect Enhancer Function. Bioessays 2017, 39, 1700086. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Costa, M.; Sourris, K.; Lim, S.M.; Yu, Q.C.; Hirst, C.E.; Parkington, H.C.; Jokubaitis, V.J.; Dear, A.E.; Liu, H.B.; Micallef, S.J.; et al. Derivation of endothelial cells from human embryonic stem cells in fully defined medium enables identification of lysophosphatidic acid and platelet activating factor as regulators of eNOS localization. Stem Cell Res. 2013, 10, 103–117. [Google Scholar] [CrossRef] [Green Version]
  5. Furukawa, J.I.; Okada, K.; Shinohara, Y. Glycomics of human embryonic stem cells and human induced pluripotent stem cells. Glycoconj. J. 2017, 34, 807–815. [Google Scholar] [CrossRef]
  6. Liu, C.; Peng, G.; Jing, N. TGF-beta signaling pathway in early mouse development and embryonic stem cells. Acta Biochim. Biophys. Sin. 2018, 50, 68–73. [Google Scholar] [CrossRef] [Green Version]
  7. Papatsenko, D.; Waghray, A.; Lemischka, I.R. Feedback control of pluripotency in embryonic stem cells: Signaling, transcription and epigenetics. Stem Cell Res. 2018, 29, 180–188. [Google Scholar] [CrossRef]
  8. Tang, N.; Zhao, Y.; Feng, R.; Liu, Y.; Wang, S.; Wei, W.; Ding, Q.; An, M.S.; Wen, J.; Li, L. Lysophosphatidic acid accelerates lung fibrosis by inducing differentiation of mesenchymal stem cells into myofibroblasts. J. Cell. Mol. Med. 2014, 18, 156–169. [Google Scholar] [CrossRef]
  9. Patel, J.; Shafiee, A.; Wang, W.; Fisk, N.M.; Khosrotehrani, K. Novel isolation strategy to deliver pure fetal-origin and maternal-origin mesenchymal stem cell (MSC) populations from human term placenta. Placenta 2014, 35, 969–971. [Google Scholar] [CrossRef]
  10. Pisciotta, A.; Carnevale, G.; Meloni, S.; Riccio, M.; De Biasi, S.; Gibellini, L.; Ferrari, A.; Bruzzesi, G.; De Pol, A. Human dental pulp stem cells (hDPSCs): Isolation, enrichment and comparative differentiation of two sub-populations. BMC Dev. Biol. 2015, 15, 14. [Google Scholar] [CrossRef] [Green Version]
  11. Phung, S.; Lee, C.; Hong, C.; Song, M.; Yi, J.K.; Stevenson, R.G.; Kang, M.K.; Shin, K.H.; Park, N.H.; Kim, R.H. Effects of Bioactive Compounds on Odontogenic Differentiation and Mineralization. J. Dent. Res. 2017, 96, 107–115. [Google Scholar] [CrossRef] [PubMed]
  12. Raoof, M.; Yaghoobi, M.M.; Derakhshani, A.; Kamal-Abadi, A.M.; Ebrahimi, B.; Abbasnejad, M.; Shokouhinejad, N. A modified efficient method for dental pulp stem cell isolation. Dent. Res. J. 2014, 11, 244–250. [Google Scholar]
  13. Rink, B.E.; Kuhl, J.; Esteves, C.L.; French, H.M.; Watson, E.; Aurich, C.; Donadeu, F.X. Reproductive stage and sex steroid hormone levels influence the expression of mesenchymal stromal cell (MSC) markers in the equine endometrium. Theriogenology 2018, 116, 34–40. [Google Scholar] [CrossRef] [PubMed]
  14. L Ramos, T.; Sanchez-Abarca, L.I.; Muntion, S.; Preciado, S.; Puig, N.; Lopez-Ruano, G.; Hernandez-Hernandez, A.; Redondo, A.; Ortega, R.; Rodriguez, C.; et al. MSC surface markers (CD44, CD73, and CD90) can identify human MSC-derived extracellular vesicles by conventional flow cytometry. Cell Commun. Signal. 2016, 14, 2. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Abu Tahir, M.; Pramod, K.; Ansari, S.H.; Ali, J. Current remedies for vitiligo. Autoimmun. Rev. 2010, 9, 516–520. [Google Scholar] [CrossRef]
  16. Chopra, B.; Dhingra, A.K.; Dhar, K.L. Psoralea corylifolia L. (Buguchi)—Folklore to modern evidence: Review. Fitoterapia 2013, 90, 44–56. [Google Scholar] [CrossRef]
  17. Badri, L.; Lama, V.N. Lysophosphatidic acid induces migration of human lung-resident mesenchymal stem cells through the beta-catenin pathway. Stem Cells 2012, 30, 2010–2019. [Google Scholar] [CrossRef] [Green Version]
  18. Chen, J.; Baydoun, A.R.; Xu, R.; Deng, L.; Liu, X.; Zhu, W.; Shi, L.; Cong, X.; Hu, S.; Chen, X. Lysophosphatidic acid protects mesenchymal stem cells against hypoxia and serum deprivation-induced apoptosis. Stem Cells 2008, 26, 135–145. [Google Scholar] [CrossRef]
  19. Liu, X.; Hou, J.; Shi, L.; Chen, J.; Sang, J.; Hu, S.; Cong, X.; Chen, X. Lysophosphatidic acid protects mesenchymal stem cells against ischemia-induced apoptosis in vivo. Stem Cells Dev. 2009, 18, 947–954. [Google Scholar] [CrossRef]
  20. Wang, X.Y.; Fan, X.S.; Cai, L.; Liu, S.; Cong, X.F.; Chen, X. Lysophosphatidic acid rescues bone mesenchymal stem cells from hydrogen peroxide-induced apoptosis. Apoptosis 2015, 20, 273–284. [Google Scholar] [CrossRef]
  21. Shuyu, E.; Lai, Y.J.; Tsukahara, R.; Chen, C.S.; Fujiwara, Y.; Yue, J.; Yu, J.H.; Guo, H.; Kihara, A.; Tigyi, G.; et al. Lysophosphatidic acid 2 receptor-mediated supramolecular complex formation regulates its antiapoptotic effect. J. Biol. Chem. 2009, 284, 14558–14571. [Google Scholar] [CrossRef] [Green Version]
  22. Huang, Y.; Liao, L.; Su, H.; Chen, X.; Jiang, T.; Liu, J.; Hou, Q. Psoralen accelerates osteogenic differentiation of human bone marrow mesenchymal stem cells by activating the TGF-beta/Smad3 pathway. Exp. Ther. Med. 2021, 22, 940. [Google Scholar] [CrossRef] [PubMed]
  23. Cao, H.J.; Li, C.R.; Wang, L.Y.; Ziadlou, R.; Grad, S.; Zhang, Y.; Cheng, Y.; Lai, Y.X.; Yao, X.S.; Alini, M.; et al. Effect and mechanism of psoralidin on promoting osteogenesis and inhibiting adipogenesis. Phytomedicine 2019, 61, 152860. [Google Scholar] [CrossRef] [PubMed]
  24. Li, Z.J.; Abulizi, A.; Zhao, G.L.; Wang, T.; Zhou, F.; Jiang, Z.Z.; Aibai, S.; Zhang, L.Y. Bakuchiol Contributes to the Hepatotoxicity of Psoralea corylifolia in Rats. Phytother. Res. 2017, 31, 1265–1272. [Google Scholar] [CrossRef]
  25. Chaudhuri, R.K.; Marchio, F. Bakuchiol in the management of acne-affected skin. Cosmet. Toilet. 2011, 126, 502. [Google Scholar]
  26. Chai, L.; Zhou, K.; Wang, S.; Zhang, H.; Fan, N.; Li, J.; Tan, X.; Hu, L.; Fan, X. Psoralen and Bakuchiol Ameliorate M-CSF Plus RANKL-Induced Osteoclast Differentiation and Bone Resorption Via Inhibition of AKT and AP-1 Pathways in Vitro. Cell. Physiol. Biochem. 2018, 48, 2123–2133. [Google Scholar] [CrossRef]
  27. Lee, S.J.; Yoo, M.; Go, G.Y.; Kim, D.H.; Choi, H.; Leem, Y.E.; Kim, Y.K.; Seo, D.W.; Ryu, J.H.; Kang, J.S.; et al. Bakuchiol augments MyoD activation leading to enhanced myoblast differentiation. Chem. Biol. Interact. 2016, 248, 60–67. [Google Scholar] [CrossRef]
  28. Weng, Z.B.; Gao, Q.Q.; Wang, F.; Zhao, G.H.; Yin, F.Z.; Cai, B.C.; Chen, Z.P.; Li, W.D. Positive skeletal effect of two ingredients of Psoralea corylifolia L. on estrogen deficiency-induced osteoporosis and the possible mechanisms of action. Mol. Cell. Endocrinol. 2015, 417, 103–113. [Google Scholar] [CrossRef]
  29. Assael, L.A. Oral bisphosphonates as a cause of bisphosphonate-related osteonecrosis of the jaws: Clinical findings, assessment of risks, and preventive strategies. J. Oral Maxillofac. Surg. 2009, 67, 35–43. [Google Scholar] [CrossRef]
  30. Feng, J.; Jing, J.; Li, J.; Zhao, H.; Punj, V.; Zhang, T.; Xu, J.; Chai, Y. BMP signaling orchestrates a transcriptional network to control the fate of mesenchymal stem cells in mice. Development 2017, 144, 2560–2569. [Google Scholar] [CrossRef] [Green Version]
  31. Liu, Z.; Lin, Y.; Fang, X.; Yang, J.; Chen, Z. Epigallocatechin-3-Gallate Promotes Osteo-/Odontogenic Differentiation of Stem Cells from the Apical Papilla through Activating the BMP-Smad Signaling Pathway. Molecules 2021, 26, 1580. [Google Scholar] [CrossRef] [PubMed]
  32. Malik, Z.; Alexiou, M.; Hallgrimsson, B.; Economides, A.N.; Luder, H.U.; Graf, D. Bone Morphogenetic Protein 2 Coordinates Early Tooth Mineralization. J. Dent. Res. 2018, 97, 835–843. [Google Scholar] [CrossRef] [PubMed]
  33. Hong, Y.; Choi, S.I.; Hong, E.; Kim, G.H. Psoralea corylifolia L. extract ameliorates nonalcoholic fatty liver disease in free-fatty-acid-incubated HEPG2 cells and in high-fat diet-fed mice. J. Food Sci. 2020, 85, 2216–2226. [Google Scholar] [CrossRef] [PubMed]
  34. Luo, X.M.; Xie, C.J.; Wang, D.; Wei, Y.M.; Cai, J.; Cheng, S.S.; Yang, X.; Sui, A. Psc-AFP from Psoralea corylifolia L. overexpressed in Pichia pastoris increases antimicrobial activity and enhances disease resistance of transgenic tobacco. Appl. Microbiol. Biotechnol. 2017, 101, 1073–1084. [Google Scholar] [CrossRef] [PubMed]
  35. Yin, Z.; Zhang, W.; Zhang, J.; Liu, H.; Guo, Q.; Chen, L.; Wang, J.; Kang, W. Two Novel Polysaccharides in Psoralea corylifolia L. and anti-A549 Lung Cancer Cells Activity In Vitro. Molecules 2019, 24, 3733. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Szliszka, E.; Czuba, Z.P.; Sedek, L.; Paradysz, A.; Krol, W. Enhanced TRAIL-mediated apoptosis in prostate cancer cells by the bioactive compounds neobavaisoflavone and psoralidin isolated from Psoralea corylifolia. Pharmacol. Rep. 2011, 63, 139–148. [Google Scholar] [CrossRef]
  37. Lin, C.H.; Funayama, S.; Peng, S.F.; Kuo, C.L.; Chung, J.G. The ethanol extraction of prepared Psoralea corylifolia induces apoptosis and autophagy and alteres genes expression assayed by cDNA microarray in human prostate cancer PC-3 cells. Environ. Toxicol. 2018, 33, 770–788. [Google Scholar] [CrossRef]
  38. Li, Y.; Qin, X.; Li, P.; Zhang, H.; Lin, T.; Miao, Z.; Ma, S. Isobavachalcone isolated from Psoralea corylifolia inhibits cell proliferation and induces apoptosis via inhibiting the AKT/GSK-3beta/beta-catenin pathway in colorectal cancer cells. Drug Des. Dev. Ther. 2019, 13, 1449–1460. [Google Scholar] [CrossRef] [Green Version]
  39. Cai, X.Y.; Zhang, Z.J.; Xiong, J.L.; Yang, M.; Wang, Z.T. Experimental and molecular docking studies of estrogen-like and anti-osteoporosis activity of compounds in Fructus Psoraleae. J. Ethnopharmacol. 2021, 276, 114044. [Google Scholar] [CrossRef]
  40. Katsura, H.; Tsukiyama, R.I.; Suzuki, A.; Kobayashi, M. In vitro antimicrobial activities of bakuchiol against oral microorganisms. Antimicrob. Agents Chemother. 2001, 45, 3009–3013. [Google Scholar] [CrossRef] [Green Version]
  41. Li, W.D.; Yan, C.P.; Wu, Y.; Weng, Z.B.; Yin, F.Z.; Yang, G.M.; Cai, B.C.; Chen, Z.P. Osteoblasts proliferation and differentiation stimulating activities of the main components of Fructus Psoraleae corylifoliae. Phytomedicine 2014, 21, 400–405. [Google Scholar] [CrossRef] [PubMed]
  42. Lim, S.H.; Ha, T.Y.; Ahn, J.; Kim, S. Estrogenic activities of Psoralea corylifolia L. seed extracts and main constituents. Phytomedicine 2011, 18, 425–430. [Google Scholar] [CrossRef] [PubMed]
  43. Ge, L.; Cheng, K.; Han, J. A Network Pharmacology Approach for Uncovering the Osteogenic Mechanisms of Psoralea corylifolia Linn. Evid. Based Complement. Alternat. Med. 2019, 2019, 2160175. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Cho, M.-J. The relationship between dementia and the number of remaining tooth of the elderly women on senior center. J. Digit. Converg. 2016, 14, 279–286. [Google Scholar] [CrossRef] [Green Version]
  45. Choi, S.-S.; So, M.-S. Dental Caries of Factors the Oral Health Behaviors and Dental Health Services Utilization in the Middle-School Student’s-focusing on middle school student’s in Daegu. J. Korean Soc. Sch. Community Health Educ. 2011, 12, 35–44. [Google Scholar]
  46. Couble, M.-L.; Farges, J.-C.; Bleicher, F.; Perrat-Mabillon, B.; Boudeulle, M.; Magloire, H. Odontoblast differentiation of human dental pulp cells in explant cultures. Calcif. Tissue Int. 2000, 66, 129–138. [Google Scholar] [CrossRef]
Cimb 44 00156 g001 550

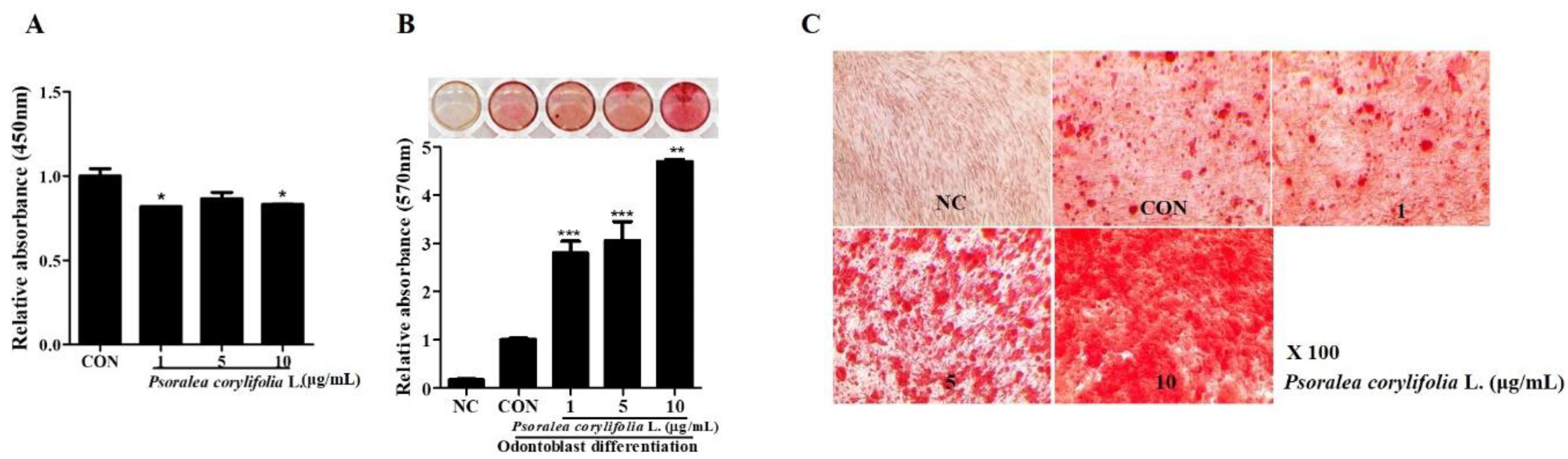

Figure 1. Effect of P. corylifolia extracts on proliferation and odontogenic differentiation in hDPSCs (A) Cell proliferation was measured at 4 days using the CCK-8 assay. When treated with 1, 5 and 10 μg/mL of P. corylifolia extracts, cell proliferation was comparable with the control group. All data are presented as the mean ± SEM. * p < 0.05. (B) Alizarin red S (ARS) staining was performed on the 10th day of odontogenic differentiation of hDPSCs exposed to P. corylifolia. All data are presented as the mean ± SEM (n = 3). ** p < 0.02, *** p < 0.01. (C) Scanned images of plate wells are presented above the quantitation graph of ARS staining. The values obtained for P. corylifolia extract-treated group were compared with those of the positive control. (C) 100× microscopic images of hDPSCs treated with 1, 5 and 10 μg/mL of P. corylifolia extracts. SEM, standard error of mean; NC, negative control; CON, positive control; hDPSCs, human dental pulp stem cells.
Figure 1. Effect of P. corylifolia extracts on proliferation and odontogenic differentiation in hDPSCs (A) Cell proliferation was measured at 4 days using the CCK-8 assay. When treated with 1, 5 and 10 μg/mL of P. corylifolia extracts, cell proliferation was comparable with the control group. All data are presented as the mean ± SEM. * p < 0.05. (B) Alizarin red S (ARS) staining was performed on the 10th day of odontogenic differentiation of hDPSCs exposed to P. corylifolia. All data are presented as the mean ± SEM (n = 3). ** p < 0.02, *** p < 0.01. (C) Scanned images of plate wells are presented above the quantitation graph of ARS staining. The values obtained for P. corylifolia extract-treated group were compared with those of the positive control. (C) 100× microscopic images of hDPSCs treated with 1, 5 and 10 μg/mL of P. corylifolia extracts. SEM, standard error of mean; NC, negative control; CON, positive control; hDPSCs, human dental pulp stem cells.
Cimb 44 00156 g001
Cimb 44 00156 g002 550

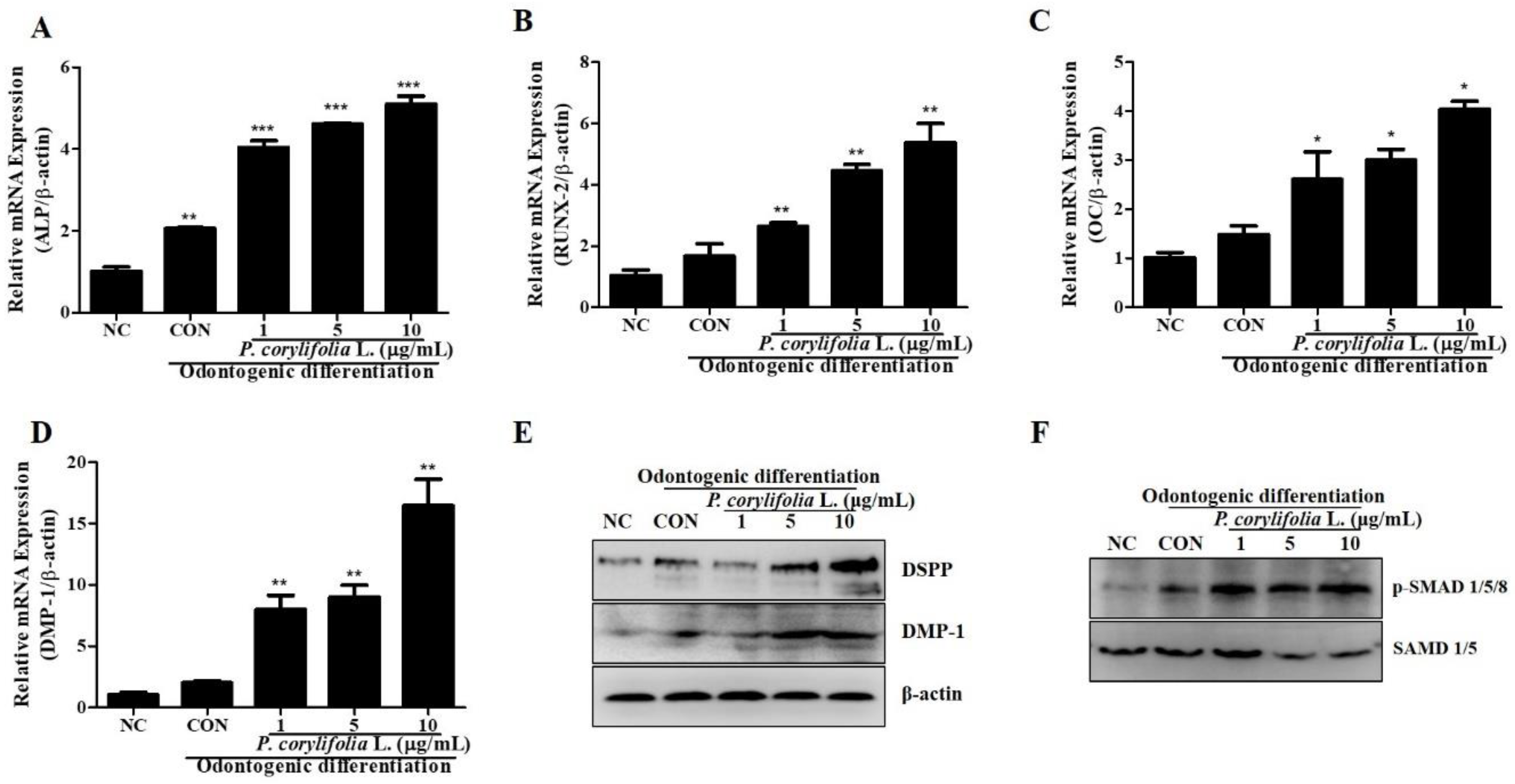

Figure 2. Real-time PCR and western blot analysis during odontogenic differentiation in hDPSCs. (A–D) Odontogenic differentiation marker gene (APL, RUNX-2, OC, and DMP-1) expression in hDPSCs treated with 1, 5 and 10 μg/mL of P. corylifolia extracts. (E) Western blot analysis for the expression of odontogenic differentiation protein markers DMP-1 and DSPP expression. (F) Western blot analysis to determine the effect of P. corylifolia extracts on SMAD 1/5/8 phosphorylation. All data are presented as the mean ± SEM (n = 3). * p < 0.05, ** p < 0.02, *** p < 0.01. SEM, standard error of mean; NC, negative control; CON, positive control; hDPSCs, human dental pulp stem cells; PCR, polymerase chain reaction.
Figure 2. Real-time PCR and western blot analysis during odontogenic differentiation in hDPSCs. (A–D) Odontogenic differentiation marker gene (APL, RUNX-2, OC, and DMP-1) expression in hDPSCs treated with 1, 5 and 10 μg/mL of P. corylifolia extracts. (E) Western blot analysis for the expression of odontogenic differentiation protein markers DMP-1 and DSPP expression. (F) Western blot analysis to determine the effect of P. corylifolia extracts on SMAD 1/5/8 phosphorylation. All data are presented as the mean ± SEM (n = 3). * p < 0.05, ** p < 0.02, *** p < 0.01. SEM, standard error of mean; NC, negative control; CON, positive control; hDPSCs, human dental pulp stem cells; PCR, polymerase chain reaction.
Cimb 44 00156 g002
Cimb 44 00156 g003 550
Figure 3. The effect of bakuchiol on proliferation and odontogenic differentiation in hDPSCs. (A) Cell proliferation was measured at 4 days using the CCK-8 assay. When treated with 50, 100 and 200 μM of bakuchiol, cell proliferation was comparable to the control group. *** p < 0.01. (B) Alizarin red S (ARS) staining was performed on the 10th day of odontogenic differentiation of hDPSCs treated with bakuchiol. (C) Scanned images of plate wells are presented above the quantitation graph of ARS staining. All data are presented as the mean ± SEM (n = 3). ** p < 0.02, *** p < 0.01. (C) 100× microscope images of hDPSCs treated with 50, 100 and 200 μM of bakuchiol. SEM, standard error of mean; NC, negative control; CON, positive control; hDPSCs, human dental pulp stem cells.
Figure 3. The effect of bakuchiol on proliferation and odontogenic differentiation in hDPSCs. (A) Cell proliferation was measured at 4 days using the CCK-8 assay. When treated with 50, 100 and 200 μM of bakuchiol, cell proliferation was comparable to the control group. *** p < 0.01. (B) Alizarin red S (ARS) staining was performed on the 10th day of odontogenic differentiation of hDPSCs treated with bakuchiol. (C) Scanned images of plate wells are presented above the quantitation graph of ARS staining. All data are presented as the mean ± SEM (n = 3). ** p < 0.02, *** p < 0.01. (C) 100× microscope images of hDPSCs treated with 50, 100 and 200 μM of bakuchiol. SEM, standard error of mean; NC, negative control; CON, positive control; hDPSCs, human dental pulp stem cells.
Cimb 44 00156 g003
Cimb 44 00156 g004 550

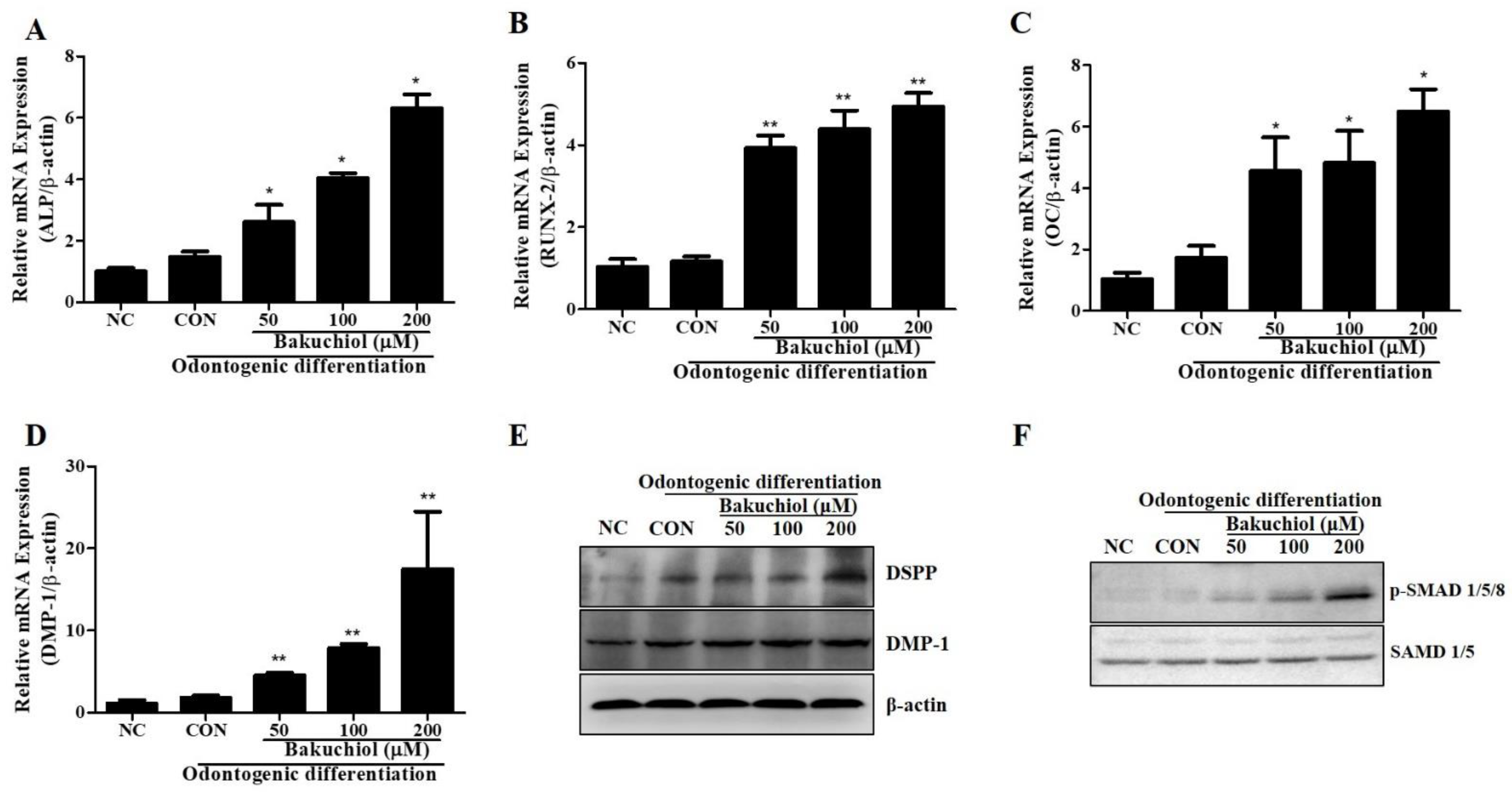

Figure 4. Real-time PCR analysis during odontogenic differentiation in hDPSCs. (A–D) Odontogenic differentiation marker gene expression was evaluated using real-time PCR. Expression of APL, RUNX-2, OC, and DMP-1 in hDPSCs treated with 50, 100 and 200 μM of bakuchiol. (E) Western blot analysis for the expression of odontogenic differentiation protein markers DMP-1 and DSPP. (F) Western blot analysis to determine the effect of bakuchiol on SMAD 1/5/8 phosphorylation cell signaling pathway during odontogenic differentiation. All data are presented as the mean ± SEM (n = 3). * p < 0.05, ** p < 0.02 SEM, standard error of mean; NC, negative control; CON, positive control; hDPSCs, human dental pulp stem cells; PCR, polymerase chain reaction.
Figure 4. Real-time PCR analysis during odontogenic differentiation in hDPSCs. (A–D) Odontogenic differentiation marker gene expression was evaluated using real-time PCR. Expression of APL, RUNX-2, OC, and DMP-1 in hDPSCs treated with 50, 100 and 200 μM of bakuchiol. (E) Western blot analysis for the expression of odontogenic differentiation protein markers DMP-1 and DSPP. (F) Western blot analysis to determine the effect of bakuchiol on SMAD 1/5/8 phosphorylation cell signaling pathway during odontogenic differentiation. All data are presented as the mean ± SEM (n = 3). * p < 0.05, ** p < 0.02 SEM, standard error of mean; NC, negative control; CON, positive control; hDPSCs, human dental pulp stem cells; PCR, polymerase chain reaction.
Cimb 44 00156 g004
Table
Table 1. Real-time PCR primer sequences.
Table 1. Real-time PCR primer sequences.
NameSequences (5′ → 3′)
ALPFGACCTCCTCGGAAGACACTC
RTGAAGGGCTTCTTGTCTGTG
RUNX-2FGGTTAATCTCCGCAGGTCACT
RCACTGTGCTGAAGAGGCTGTT
OCFGCAGCGAGGTAGTGAAGAGAC
RAGCAGAGCGACACCCTAGA
DMP-1FCAAGACAGTGCCCAAGATAC
RTTCCCTCATCGTCCAACT
β-actinFGGCACCCAGCACAATGAAG
RTGCGGTGGACGATGGAGG
PCR, polymerase chain reaction.
