Article

Analysis of Codon Usage Bias in the Plastid Genome of Diplandrorchis sinica (Orchidaceae)

1
College of Bioscience and Biotechnology, Shenyang Agricultural University, Shenyang 110866, China
2
College of Forestry, Shenyang Agricultural University, Shenyang 110866, China
*
Author to whom correspondence should be addressed.
Curr. Issues Mol. Biol. 2024, 46(9), 9807-9820; https://doi.org/10.3390/cimb46090582
Submission received: 1 August 2024 / Revised: 24 August 2024 / Accepted: 1 September 2024 / Published: 3 September 2024
(This article belongs to the Special Issue Mitochondrial Genome 2024)

Abstract

:
In order to understand the bias and main affecting factors of codon usage in the plastid genome of Diplandrorchis sinica, which is a rare and endangered plant species in the Orchidaceae family, the complete plastid genome sequence of D. sinica was downloaded from the GenBank database and 20 protein-coding sequences that met the analysis requirements were finally selected. The GC content, length of the amino acid (Laa), relative synonymous codon usage (RSCU), and effective number of codon (ENC) of each gene and codon were calculated using the CodonW and EMBOSS online programs. Neutral plot analysis, ENC-plot analysis, PR2-plot analysis, and correspondence analysis were performed using Origin Pro 2024 software, and correlation analysis between various indicators was performed using SPSS 23.0 software. The results showed that the third base of the codon in the plastid genome of D. sinica was rich in A and T, with a GC3 content of 27%, which was lower than that of GC1 (45%) and GC2 (39%). The ENC value ranged from 35 to 57, with an average of 47. The codon usage bias was relatively low, and there was a significant positive correlation between ENC and GC3. There were a total of 32 codons with RSCU values greater than 1, of which 30 ended with either A or U. There were a total of nine optimal codons identified, namely, UCU, UCC, UCA, GCA, UUG, AUA, CGU, CGA, and GGU. This study indicated that the dominant factor affecting codon usage bias in the plastid genome of D. sinica was natural selection pressure, while the impact of base mutations was limited. The codon usage patterns were not closely related to gene types, and the distribution of photosynthetic system genes and ribosomal protein-coding gene loci was relatively scattered, indicating significant differences in the usage patterns of these gene codons. In addition, the codon usage patterns may not be related to whether the plant is a photosynthetic autotrophic or heterotrophic nutritional type. The results of this study could provide scientific references for the genomic evolution and phylogenetic research of plant species in the family Orchidaceae.

1. Introduction

Diplandrorchis sinica S. C. Chen is a relatively primitive relit herbaceous plant in the Orchidaceae family, named for its two fertile stamens located in the ventral and dorsalis direction of the tip of the stamen column. D. sinica is a small saprophytic plant with a height of only about 10 cm. The plant does not have any green leaves throughout its life and therefore cannot perform photosynthesis. Its roots are clusters of fleshy fibrous roots with upright, unbranched stems, terminal racemes, and pale green or greenish-white flowers [1]. The growth cycle of the plant is extremely short, only about 20 days, and the environmental requirements for its development and growth is high. This species was named and published by Chen S. C. in 1979 [1], who was a Chinese expert in orchid classification taxonomy, and is now accepted as a synonym of Neottia gaudissartii Hand.-Mazz. [2]. The type specimen was collected from Laotudingzi National Nature Reserve, Huanren County, Liaoning Province, and was once considered to be an endemic orchid in Liaoning Province and therefore received key protection [3]. At the same time, due to its extremely narrow distribution range and small population size, this species was also included in the first batch of China’s Rare and Endangered Protected Plants List [4], classified as critically endangered and receiving widespread attention from domestic and foreign scholars [5]. However, there have been no reports on the phylogeny, development, reproduction mode, and germplasm resource protection of this species so far due to the limitations of the species resources.
The plastid is a unique type of organelle in plants that are closely related to carbohydrate synthesis and storage, and it is also a semi-autonomous organelle with an independent genome that has autonomous replication, transcription, and translation functions [6]. The size, structure, GC content, functional gene composition, and gene arrangement order of the plastid genome are usually highly conserved. In most green plants, the plastid genome ranges from 140 to 160 kb in size, containing approximately 113 protein-coding genes and consisting of four parts forming a circular double-stranded structure [7]. However, there are still about 450 fungal heterotrophic plant species in nature which have no green leaves and rely entirely on mycorrhizal fungi to obtain all the organic matter they need [8]. It is generally believed that fungal heterotrophy is a unique survival strategy evolved by plants to adapt to the low-light living environments [9]. Studies have found that the plastid genomes of such plants are usually small, and due to the lack of photosynthetic capacity, the gene sequences related to photosynthesis in the plastids will gradually be lost or pseudogenized, and this degradation process is staged and irreversible [10,11,12]. Fungal heterotrophic plants are usually very sensitive to their living environment and are currently in an endangered stage that requires protection. Their unique survival skills have also attracted the attention of evolutionary biology and ecology researchers.
Codons are the basic units that transmit genetic information in organisms, serving as bridges and bonds between proteins and nucleic acids. The codons in living organisms are all triplet codons, meaning that each codon is composed of three consecutive bases, and the 64 codons encode a total of 20 basic amino acids and three termination codons. Among them, methionine and tryptophan are encoded by a unique codon, while the remaining amino acids are encoded by two to six different codons that can code for the same amino acid, which are called synonymous codons. In the genome of living organisms, certain synonymous codons may occur frequently, known as optimized codons, while certain codons appear less frequently or not at all, known as non-optimized codons, a phenomenon known as codon usage bias [13]. The phenomenon of codon usage bias is widely present in biological species and is the result of adaptation and selection in the long-term evolutionary history of species. Generally, due to the influence of natural selection pressure, the codon usage pattern exhibits species specificity [14,15]. Similarly, species with closer phylogenetic relationships or similar growth environments may have similar codon usage patterns [16]. Therefore, codon usage bias can reflect the environmental adaptation and molecular evolution of species to some extent [17]. Theoretical studies have predicted and experiments have shown that codon usage bias could lead to a higher efficiency of translation, and the usage of optimal codons can increase the rate of translation and hence affect the fitness of an organism [18,19]. Therefore, it also has certain prospects for genetic engineering applications, with preferred codons replacing unpreferred ones when conducting genetic engineering research [20,21].
In our previous work, we have sequenced, assembled, annotated, and analyzed the plasmid genome of D. sinica, submitted it to the GenBank database, and obtained the accession number MZ014629.1. On this basis, this study intends to use bioinformatics methods to further analyze the usage bias of the genome codons in the plastid genome of D. sinica, aiming to provide a reference for the study of the plastid evolution of D. sinica species.

2. Materials and Methods

2.1. Acquisition of Sequence Data

The complete plasmid genome sequence of the D. sinica species was downloaded from the NCBI database, with a GenBank accession number of MZ014629.1. The sequence has a length of 109,435 bp, and a total of 55 protein-coding genes were identified. After removing duplicate gene sequences and sequences smaller than 300 bp, 20 protein-coding gene sequences were obtained that meet the requirements of subsequent bioinformatics analysis. The flowchart for the data acquisition and analysis of codon usage bias in the plastid genome of D. sinica is shown in Figure 1.

2.2. Calculation of Codon-Related Parameters

codonW 1.4 (https://galaxy.pasteur.fr/, accessed on 2 September 2024) was used to calculate the relative synonymous codon usage (RSCU), amino acid length (Laa), and effective number of codons (ENC) for each gene. ENC and RSCU can be used to measure the usage bias of synonymous codons. The ENC values range from 20 to 61, with larger values indicating weaker bias in codon usage and smaller values indicating stronger bias [22]. Generally, 45 is used as the critical point to distinguish codon bias. The RSCU is the ratio between the actual usage frequency and the theoretical usage frequency (1/number of codons coding for that amino acid) of a specific codon. When the RSCU < 1, it indicates that the actual usage frequency of the codon is lower than the theoretical use frequency. Meanwhile, when the RSCU > 1, it indicates that the actual usage frequency of the codon is higher than the theoretical usage frequency, and when the RSCU = 1, it indicates that there is no bias for the use of the codon [23].
Additionally, the contents of the third nucleotide T, C, A, and G in each gene codon were calculated and recorded as T3, C3, A3, and G3, respectively. The EMBOSS online program (http://www.bioinformatics.nl/emboss-explorer/, accessed on 2 September 2024) was used to calculate the overall GC content of each gene and recorded it as GCall. Furthermore, the GC contents at the first, second, and third positions of the codon in each gene were calculated and recorded as GC1, GC2, and GC3, respectively. Meanwhile, the average values of GC1 and GC2 for each gene codon were calculated and recorded as GC12, and the correlations between various parameters of these codons were analyzed.

2.3. Neutral Plot Analysis

Neutral plot analysis can be used to determine the factors that affect the codon usage bias. Using GC3 as the x-axis and GC12 as the y-axis for each gene, a scatter plot was drawn and linear regression was performed. The closer the scatter point is to the diagonal, the closer the values of GC12 and GC3 are, and the smaller the difference in the base composition of codons, indicating that codon usage bias is more influenced by mutations. On the contrary, there is a greater influence of selection pressure. The closer the regression coefficient is to 1, the higher the correlation between GC12 and GC3, and vice versa. The correlation analysis between GC12 and GC3 can be used to determine the main influencing factors of codon bias. If GC12 and GC3 are significantly correlated, it indicates that the base composition of GC12 and GC3 is similar, that is, mutation is the main influencing factor of codon usage bias. On the contrary, it indicates that there is a significant difference in the base composition between GC12 and GC3, indicating that natural selection is the main influencing factor of their codon usage bias [24].

2.4. ENC-Plot Analysis

ENC-plot analysis mainly uses image visualization methods to determine the influence of synonymous mutation on codon usage bias. The GC3 of each gene was taken as the x-axis and the ENC value was taken as the y-axis, and a scatter plot was drawn. Meanwhile, according to the formula ENC = 2 + GC3 + 29/[GC32 + (1 − GC3)2], the theoretical values of ENC for each gene were calculated, and standard curves were plotted. If the scatter point is close to the standard curve, it indicates that codon usage bias is mainly affected by mutations, and if the scatter point is far from the standard curve, it is mainly affected by the selection pressure [25].

2.5. PR2-Plot Analysis

PR2-plot bias analysis can reflect the base composition of the third nucleotide in the codon. With G3/(G3 + C3) as the x-axis and A3/(A3 + T3) as the y-axis for each gene, a scatter plot was drawn. The center point in the figure represents the codon composition state under unbiased conditions, that is, A = T, G = C, while the distance and direction of each scatter point from the center point indicate the degree and direction of bias of the gene [26,27].

2.6. Optimal Codon Analysis

The optimal codon is determined based on the ENC value and RSCU value. The ENC values of all genes were sorted from small to large, and 10% from each end were selected to construct high and low bias libraries. The ΔRSCU values ≥ 0.08 in the library were defined as high-frequency codons, and the ΔRSCU values ≥ 0.08 and RSCU values ≥ 1 were defined as optimal codons [28].

2.7. Correspondence Analysis

Correspondence analysis can directly reflect the degree of similarity in codon usage bias between different genes. Based on the RSCU value of each codon, all genes were distributed in a multidimensional vector space, where the contribution rate of the first vector axis was the largest, and the contribution rate of the other axes decreased sequentially. A scatter plot was drawn, with the first vector axis as the horizontal axis and the second vector axis as the vertical axis, and the similarity degree of codon usage bias between different genes was determined based on the distance between them [29].

2.8. Statistical Analysis

The experimental data were analyzed and mapped using Origin Pro 2024 software. Data analysis was conducted using Pearson correlation analysis in SPSS 23.0 [30] to determine the correlation between various parameters of the codons.

3. Results

3.1. Composition Characteristics of Codons

A total of 20 genes in the plastid genome of D. sinica were selected for codon usage bias analysis after screening, with a total length of 22,151 bp, accounting for 20.24% of the total length of the plastid genome of D. sinica. The amino acid sequences encoded by these genes range in length from 100 to 2250, with an average length of 368. According to the statistical analysis of the codon composition characteristics of these genes, the average GC content was 37%. Among them, the contents of GC1, GC2, and GC3 were 45%, 39%, and 27%, respectively, with GC1 being greater than GC2 and greater than GC3, indicating that there are significant differences in the composition of bases at different positions, and they tend to end with A and T bases. The ENC values of each gene ranged from 35 to 57, with an average of 47. There were 13 genes with ENC values greater than 45, indicating a relatively weak usage bias in the plastid genome of D. sinica species (Table 1).
Correlation analysis was conducted on various parameter indicators of gene codons (Figure 2), and the results showed that the correlation between GC1 and GC2 was extremely significant, but the correlation between GC3 and GC1, GC2, and GC12 was not significant, which indicated that the base compositions of the first and second positions of the gene codon of the encoding gene of the D. sinica plastid were relatively similar, while the base composition of the third position was relatively random and differed from the base compositions of the first and second positions. There was a significant correlation between GC and GC1 and GC2 and GC12, respectively, but no significant correlation between GC and GC3, indicating that the GC content was mainly determined by the first two bases. ENC was only significantly positively correlated with GC3, indicating that the base composition of the third position of the codon had a greater influence on the codon usage bias. The higher the GC content of the third position, the greater the ENC value and the weaker the codon usage bias. There was no significant correlation between ENC and Laa, indicating that codon usage bias was independent of the length of the coding gene sequence.
The results of the RSCU analysis (Figure 3) showed that among the 62 codons of the 18 amino acids, excluding methionine (Met) and tryptophan (Trp), there were a total of 32 codons with RSCU values greater than 1, including 14 codons ending in A, 16 ending in U, 1 ending in G, and 1 ending in C. The results showed that the plastid genome of D. sinica tended to use synonymous codons ending in A and U, while codons with RSCU values less than 1 mostly end in C or G.

3.2. Neutral Plot Analysis

The results of the neutral plot analysis (Figure 4) showed that the value of GC12 ranged from 0.30 and 0.54, and the value of GC3 ranged from 0.22 and 0.37. All gene loci were located above the diagonal of the midline, indicating significant differences in the base composition of the first, second, and third positions of the codon. The regression coefficient between GC12 and GC3 is −0.4024, with an absolute value far less than 1, indicating a very low degree of correlation between the two. Based on the correlation results between GC12 and GC3 in Table 2, it is indicated that the codon usage bias in the plastid genome of D. sinica is mainly affected by natural selection pressure.

3.3. ENC-Plot Analysis

The results of the ENC-plot analysis (Figure 5) showed that most of the gene loci fall below the standard curve but not on the standard curve, that is, there were differences between the actual ENC values and expected ENC values of most genes. This suggested that the selection pressure on the bias of codon usage in the plastid genome of D. sinica was greater than that of natural mutations.

3.4. PR2-Plot Analysis

The results of the PR2-plot analysis (Figure 6) showed that the distribution of gene loci in the four quadrants was not uniform, with more gene loci distributed in the upper right part of the PR2 plot, while the distribution of gene loci in the other three quadrants was relatively lesser, indicating a significant bias in the frequency of base usage at the third position of the codon, with A > T and G > C.

3.5. Optimal Codon Analysis

The RSCU and ΔRSCU values of each codon for high- and low-expression genes in the plastid genome of D. sinica were calculated, and a total of 23 codons were identified as high-expression codons, with ΔRSCU ≥ 0.08 as the standard. Among them, five codons ended in A, three codons ended in U, six codons ended in C, and eight codons ended in G (Table 2). Combined with the relative synonymous codon usage in the plastid genome of D. sinica (Figure 3), nine optimal codons were identified in the final analysis, namely, UCU, UCC, UCA, GCA, UUG, AUA, CGU, CGA, and GGU, of which four ended in A, three ended in U, one ended in G, and one ended in C (Table 2).

3.6. Correspondence Analysis

The results of the correspondence analysis showed that the RSCU of each gene codon in the plastid genome of D. sinica could be distributed in a 44-axis vector space, with the contribution rate of the first vector axis, second vector axis, third vector axis, and fourth vector axis being 12.63%, 11.06%, 8.43%, and 7.56%, respectively, and the cumulative difference contribution rate of the first four axes being 39.68%. Using the first and the second vector axes as horizontal and vertical axes, a scatter plot of each gene was plotted (Figure 7). It was found that the distribution of photosynthetic system genes and ribosomal protein-coding gene loci was relatively scattered, indicating that the usage patterns of these gene codons differed significantly.

4. Discussion

The degeneracy of codons can reduce harmful mutations and plays an important role in species stability. However, at the same time, organisms often form specific codon usage patterns during their long historical evolution process, namely, codon usage bias, which is of great significance for studying species evolution [28,31,32]. There are many indicators that can reflect the codon usage bias, such as RSCU, ENC, CAI (codon adaptation index), CBI (codon bias index), and FOP (frequency of optimal codons) [33], and research has shown that neutral plot analysis, ENC-plot analysis, PR2-plot analysis, and correspondence analysis could comprehensively reflect the codon usage bias of plastid and mitochondrial genomes, as well as the effects of natural selection and base mutations on codon usage bias [27,34]. In this study, we reported for the first time the bias for codon usage in the plastid genome of D. sinica, which is a rare and endangered orchid species. The results could provide evidence for the study of plastid evolution in saprophytic orchid species.
Because synonymous codon changes mainly occur at the third base of the codon, GC3 values are often used as the primary basis for measuring codon usage bias [35]. In this study, it was found that the base composition of the third position of the plastid encoding gene of D. sinica had a high degree of randomness, and the use frequency of A and T was higher than that of C and G, indicating a bias. This was consistent with the research results of plastid encoding genes of many green higher plant species, suggesting that the codon bias of higher plant plastid genomes ending in A and T is a relatively conservative characteristic [36,37,38]. It is speculated that this characteristic may not be related to whether the plant is a photosynthetic autotrophic or heterotrophic nutritional type. However, the use frequency of A was higher than that of T, and the use frequency of G was higher than that of C. This usage pattern is relatively rare in angiosperms [39] and is also different from the research results of T > A and G > C in plants of Hemiptelea davidii [40], Asteraceae [41] and 26 species of Cymbidium plants in the Orchidaceae family [42]. The results indicated that the codon usage bias of plant plastid genomes may be related to species, with significant differences between different species. At present, research on the codon usage bias of plastid genomes was mostly focused on photosynthetic autotrophic plant groups, while there were relatively few reports on the plastid genomes of saprophytic plants. Therefore, more evidence is needed to determine whether the usage pattern of plastid genome codons is related to the nutritional types of plant species.
It is generally believed that base mutations and natural selection are the main influencing factors of codon usage bias, and if there is a significant correlation between GC3 and GC1 or GC2 values, it indicates that codon usage bias is mainly affected by base mutations; otherwise, it is mainly dominated by natural selection [43]. Based on the results of correlation analysis, neutral plot analysis, and ENC-plot analysis, it can be seen that the use of codons in the plastid genome of D. sinica had a bias and was greatly affected by natural selection pressure, while being less affected by base mutations. This was consistent with the findings of Cypripedium calceolus [44] and 26 species of Juglandaceae [45]. However, the research results of different orchids were not the same. For example, the production of codon usage bias in the plastid genome of Phalaenopsis genus was affected by both base mutations and natural selection [46], while the formation of codon usage bias in the plastid genome of Oncidium flexuosum [37] and Liparis bootanensis [47] was more complex and may be the result of multiple factors working together. Therefore, although the phenomenon of biased codon usage in plant plastid genes is common, the dominant factors affecting its usage bias vary among different species, which may be related to the different evolutionary histories of each species.
In the process of protein translation, codons need to recognize each other, with tRNA carrying the corresponding anticodon in order to transfer free amino acid residues to the polypeptide chain, and the codons with the highest content of corresponding tRNA are called optimal codons [18]. The optimal codons can accelerate the translation speed by reducing the matching time with the corresponding tRNA [21,48]. Synonymous codons are used at different frequencies and therefore tend to form a large number of optimal codons [49]. In this study, nine optimal codons of the plastid genome of D. sinica were obtained, of which seven ended in A or T, consistent with the reported pattern of the optimal codons of the plastid genomes in most higher plants and algae being A or T and indicating that the evolution of plant plastid genomes is relatively conservative. The use of codons can affect the stability of mRNA and the efficiency of gene expression; therefore, codon optimization is crucial for molecular breeding work [50]. In future research, it may be considered to use optimal codons to improve the expression efficiency of genes of D. sinica, thereby guiding the biodiversity conservation of rare and endangered orchid germplasm resources.
Current research shows that codon usage preference can finely regulate gene expression at multiple levels. However, due to the relatively complex causes of codon usage bias, the current understanding of it is not yet deep, and many aspects still need to be further studied. In this study, the results of the correspondence analysis showed that codon usage patterns of different types of genes in the plastid genome of D. sinica were different. Different photosynthetic system genes and genes encoding ribosomal proteins exhibited different codon usage patterns, indicating significant differences in codon usage patterns among different genes. At present, the specific causes of this phenomenon and its biological significance for gene expression are not clear, and more molecular mechanisms research is needed.

Author Contributions

Conceptualization, X.C. and Y.X.; methodology, S.X.; software, S.X. and Y.Z. (Yingze Zhou); validation, X.C.; formal analysis, S.X. and Y.Z. (Yudi Zhao); investigation, B.Q.; resources, L.Z.; writing—original draft preparation, Y.Z. (Yudi Zhao); writing—review and editing, X.C.; supervision, Y.X.; funding acquisition, X.C. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China, grant number 31670378, and the China Agriculture Research System of MOF and MARA, grant number CARS-23-B17.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The original contributions presented in the study are included in the article; further inquiries can be directed to the corresponding author.

Acknowledgments

The authors wish to thank the anonymous reviewers, who have helped to improve the paper. In addition, thanks are also extended to Rui Ding, who majored in College of Land and Environment, Shenyang Agricultural University, for teaching the usage of bioinformatics analysis software.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Chen, S.C. On Diplandrorchis, a very primitive and phylogenetically significant new genus of Orchidaceae. Acta Phytotaxon. Sin. 1979, 17, 1–6. (In Chinese) [Google Scholar]
  2. WFO Plant List. Available online: https://wfoplantlist.org/taxon/wfo-0000250533-2024-06?matched_id=wfo-0000943900&page=1 (accessed on 2 September 2024).
  3. He, Y.; Liu, Q.; Wang, Y. Diplandrorchis Sinica, a newly recorded rare and endangered species of orchidaceae from Loess Plateau, China. Acta Bot. Boreal. 2015, 35, 1485–1487. (In Chinese) [Google Scholar]
  4. Zhang, L.J.; Shen, H.L.; Cui, J.G.; Zhou, Q.; Ju, W.P.; Li, H.Y.; Chen, S.C. Diplandrorchis sinica, the rare or endangered species. Liaoning For. Sci. Technol. 2008, 6, 28+51. (In Chinese) [Google Scholar]
  5. The IUCN Red List of Threatened Species. Available online: https://www.iucnredlist.org/species/46668/11074433 (accessed on 2 September 2024).
  6. Sato, N. Origin and Evolution of Plastids: Genomic View on the Unification and Diversity of Plastids; Springer: Berlin/Heidelberg, Germany, 2007; Volume 23, pp. 77–102. [Google Scholar]
  7. Daniell, H.; Lin, C.S.; Yu, M.; Chang, W.J. Chloroplast genomes: Diversity, evolution, and applications in genetic engineering. Genome Biol. 2016, 17, 134. [Google Scholar] [CrossRef] [PubMed]
  8. Merckx, V.; Freudenstein, J.V. Evolution of mycoheterotrophy in plants: A phylogenetic perspective. New Phytol. 2010, 185, 605–609. [Google Scholar] [CrossRef] [PubMed]
  9. Sun, Y.; Li, B.; Guo, S.X. Research progress of saprophytic orchids. Guihaia 2017, 37, 191–203. (In Chinese) [Google Scholar]
  10. Logacheva, M.D.; Schelkunov, M.I.; Penin, A.A. Sequencing and analysis of plastid genome in mycoheterotrophic orchid Neottia nidus-avis. Genome Biol Evol. 2011, 3, 296–1303. [Google Scholar] [CrossRef] [PubMed]
  11. Barrett, C.F.; Davis, J.I. The plastid genome of the mycoheterotrophic Corallorhiza striata (Orhidaceae) is in the relatively early stages of degradation. Am. J. Bot. 2012, 99, 1513–1523. [Google Scholar] [CrossRef]
  12. Schelkunov, M.I.; Shtratnikova, V.Y.; Nuraliev, M.S.; Selosse, M.A.; Penin, A.A.; Logacheva, M.D. Exploring the limits for reduction of plastid genomes: A case study of the mycoheterotrophic orchids Epipogium aphyllum and Epipogium roseum. Genome Biol. Evol. 2015, 7, 1179–1191. [Google Scholar] [CrossRef]
  13. Kurland, C.G. Codon bias and gene expression. FEBS Lett. 1991, 285, 165–169. [Google Scholar] [CrossRef]
  14. Guan, D.L.; Ma, L.B.; Khan, M.S.; Zhang, X.X.; Xu, S.Q.; Xie, J.Y. Analysis of codon usage patterns in Hirudinaria manillensis reveals a preference for GC-ending codons caused by dominant selection constraints. BMC Genom. 2018, 19, 542. [Google Scholar] [CrossRef] [PubMed]
  15. Romero, H.; Zavala, A.; Musto, H. Codon usage in Chlamydia trachomatis is the result of stand-specific mutational biases and a complex pattern of selective forces. Nucleic. Acids. Res. 2000, 28, 2084–2090. [Google Scholar] [CrossRef] [PubMed]
  16. Hia, F.; Yang, S.F.; Shichino, Y.; Yoshinaga, M.; Murakawa, Y.; Vandenbon, A.; Fukao, A.; Fujiwara, T.; Landthaler, M.; Natsume, T.; et al. Codon bias confers stability to human mRNAs. EMBO Rep. 2019, 20, e48220. [Google Scholar] [CrossRef] [PubMed]
  17. Li, F.; Xie, X.; Huang, R.; Tian, E.; Li, C.; Chao, Z. Chloroplast genome sequencing based on genome skimming for identification of Eriobotryae Folium. BMC Biotechnol. 2021, 21, 69. [Google Scholar] [CrossRef]
  18. Hanson, G.; Coller, J. Codon optimality, bias and usage in translation and mRNA decay. Nat. Rev. Mol. Cell. Bio. 2018, 19, 20–30. [Google Scholar] [CrossRef]
  19. Erben, E.D.; Clayton, C. Codon usage in Trypanosomatids: The bias of expression. Trends. Parasitol. 2018, 34, 635–637. [Google Scholar] [CrossRef]
  20. Carlini, D.B.; Stephan, W. In vivo introduction of unpreferred synonymous codons into the Drosophila Adh gene results in reduced levels of ADH protein. Genetics 2003, 163, 239–243. [Google Scholar] [CrossRef]
  21. Dey, S. Benefits of being biased! J. Genet. 2004, 83, 113–115. [Google Scholar] [CrossRef] [PubMed]
  22. Wu, Y.Q.; Li, Z.Y.; Zhao, D.Q.; Tao, J. Comparative analysis of flower-meristem-identity gene APETALA2 (AP2) codon in different plant species. J. Integr. Agr. 2018, 17, 867–877. [Google Scholar] [CrossRef]
  23. Zhou, M.; Long, W.; Li, X. Analysis of synonymous codon usage in chloroplast genome of Populus alba. J. For. Res. 2008, 19, 293–297. [Google Scholar] [CrossRef]
  24. Jia, X.; Liu, S.Y.; Zheng, H.; Li, B.; Qi, Q.; Wei, L.; Zhao, T.Y.; He, J.; Sun, J.C. Non-uniqueness of factors constraint on the codon usage in Bombyx mori. BMC Genom. 2015, 16, 356. [Google Scholar] [CrossRef]
  25. Yang, G.F.; Su, K.L.; Zhao, Y.R.; Sun, J.; Song, Z.B. Analysis of codon usage in the chloroplast genome of Medicago Truncatula. Acta Prataculturae Sin. 2015, 24, 171–179. [Google Scholar]
  26. Sueoka, N. Translation-coupled violation of parity rule 2 in human genes is not the cause of heterogeneity of the DNA G+C content of third codon position. Gene 1999, 238, 53–58. [Google Scholar] [CrossRef]
  27. Sueoka, N. Near homogeneity of PR2-bias fingerprints in the human genome and their implications in phylogenetic analyses. J. Mol. Evol. 2001, 53, 469–476. [Google Scholar] [CrossRef] [PubMed]
  28. Zhang, W.J.; Zhou, J.; Li, Z.F.; Wang, L.; Gu, X.; Zhong, Y. Comparative analysis of codon usage patterns among mitochondrion, chloroplast and nuclear genes in Triticum aestivum L. J. Integr. Plant Biol. 2007, 49, 246–254. [Google Scholar] [CrossRef]
  29. Wang, Z.; Xu, B.; Li, B.; Zhou, Q.; Wang, G.; Jiang, X.; Wang, C.; Xu, Z. Comparative analysis of codon usage patterns in chloroplast genomes of six Euphorbiaceae species. PeerJ 2020, 8, e8251. [Google Scholar] [CrossRef] [PubMed]
  30. Verma, J.P. Data Analysis in Management with SPSS Software; Springer: New Delhi, India, 2013; pp. 103–128. [Google Scholar]
  31. Li, J.; Li, H.; Zhi, J.; Shen, C.; Yang, X.; Xu, J. Codon usage of expansin genes in Populus trichocarpa. Curr. Bioinform. 2017, 12, 452–461. [Google Scholar] [CrossRef]
  32. Kirchhoff, H. Chloroplast ultrastructure in plants. New Phytol. 2019, 223, 565–574. [Google Scholar] [CrossRef] [PubMed]
  33. Parvathy, S.T.; Udayasuriyan, V.; Bhadana, V. Codon usage bias. Mol. Biol. Rep. 2022, 49, 539–565. [Google Scholar] [CrossRef]
  34. Zhang, Y.; Shen, Z.; Meng, X.; Zhang, L.; Liu, Z.; Liu, M.; Zhang, F.; Zhao, J. Codon usage patterns across seven Rosales species. BMC Plant. Biol. 2022, 22, 65. [Google Scholar] [CrossRef]
  35. Ingvarsson, P.K. Gene expression and protein length influence codon usage and rates of sequence evolution in Populus tremula. Mol. Biol. Evol. 2007, 24, 836–844. [Google Scholar] [CrossRef]
  36. Campbell, W.; Gowri, G. Codon usage in higher Plants, green Algae, and Cyanobacteria. Plant Physiol. 1990, 92, 1–11. [Google Scholar] [CrossRef] [PubMed]
  37. Xu, C.; Cai, X.; Chen, Q.; Zhou, H.; Cai, Y.; Ben, A. Factors affecting synonymous codon usage bias in chloroplast genome of Oncidium Gower Ramsey. Evol. Bioinform. 2011, 7, EBO-S8092. [Google Scholar] [CrossRef] [PubMed]
  38. Zhang, P.; Xu, W.; Lu, X.; Wang, L. Analysis of codon usage bias of chloroplast genomes in Gynostemma species. Physiol. Mol. Biol. Plants 2021, 27, 2727–2737. [Google Scholar] [CrossRef] [PubMed]
  39. Qin, Z.; Zheng, Y.J.; Gui, L.J.; Xie, G.A.; Wu, Y.F. Codon usage bias analysis of chloroplast genome of camphora tree (Cinnamomum camphora). Guihaia 2018, 38, 1346–1355. (In Chinese) [Google Scholar]
  40. Liu, H.; Lu, Y.; Lan, B.; Xu, J. Codon usage by chloroplast gene is bias in Hemiptelea davidii. J. Genet. 2020, 99, 8. [Google Scholar] [CrossRef]
  41. Nie, X.; Deng, P.; Feng, K.; Liu, P.; Du, X.; You, F.M.; Song, W. Comparative analysis of codon usage patterns in chloroplast genomes of the Asteraceae family. Plant Mol. Biol. Rep. 2014, 32, 828–840. [Google Scholar] [CrossRef]
  42. Rao, A.; Chen, Z.; Wu, D.; Wang, Y.; Hou, N. Codon usage bias in the chloroplast genomes of Cymbidium species in Guizhou, China. S. Afr. J. Bot. 2024, 164, 429–437. [Google Scholar] [CrossRef]
  43. Suzuki, Y. Statistical methods for detecting natural selection from genomic data. Genes Genet. Syst. 2010, 85, 359–376. [Google Scholar] [CrossRef]
  44. Ding, R.; Hu, B.; Zong, X.Y.; Han, C.; Zhang, L.J.; Chen, X.H. Analysis of codon usage in the chloroplast genome of Cypripedium calceolus. For. Res. 2021, 34, 177–185. (In Chinese) [Google Scholar]
  45. Zeng, Y.; Shen, L.; Chen, S.; Qu, S.; Hou, N. Codon usage profiling of chloroplast genome in Juglandaceae. Forests 2023, 14, 378. [Google Scholar] [CrossRef]
  46. Xu, C.; Ben, A.L.; Cai, X.N. Analysis of synonymous codon usage in chloroplast genome of Phalaenopsis aphrodite subsp. Formosana. Mol. Plant Breed. 2010, 8, 945–950. (In Chinese) [Google Scholar]
  47. Liu, J.F. Codon usage bias of chloroplast genome in Liparis bootanensis. Fujian J. Agric. Sci. 2021, 36, 629–635. (In Chinese) [Google Scholar]
  48. Iriarte, A.; Lamolle, G.; Musto, H. Codon usage bias: An endless tale. J. Mol. Evol. 2021, 89, 589–593. [Google Scholar] [CrossRef]
  49. Hershberg, R.; Petrov, D. Selection on codon bias. Annu. Rev. Genet. 2008, 42, 87–99. [Google Scholar] [CrossRef]
  50. Brule, C.E.; Grayhack, E.J. Synonymous codons: Choose wisely for expression. Trends Genet. 2017, 33, 283–297. [Google Scholar] [CrossRef]

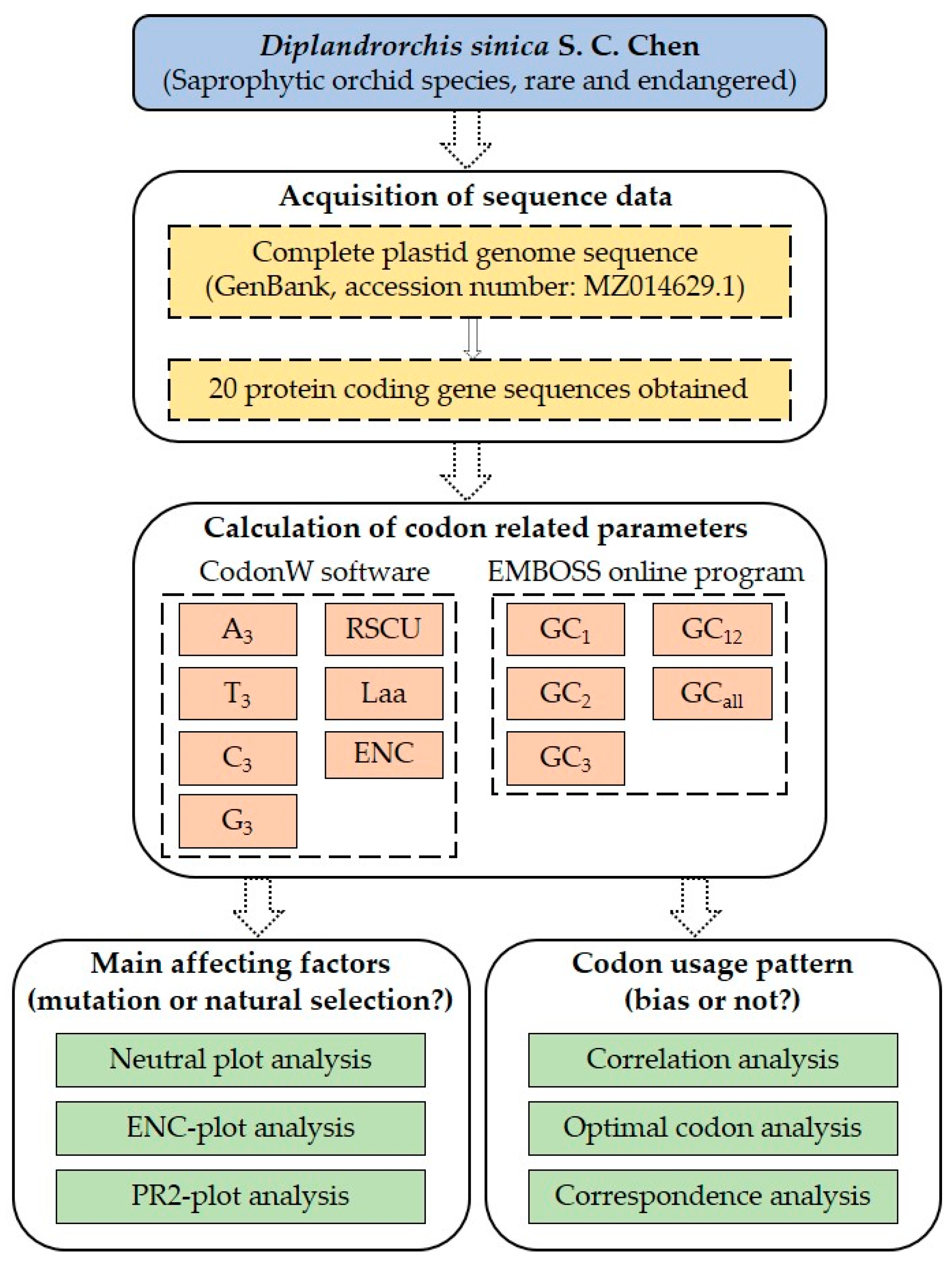

Figure 1. Flowchart for data acquisition and analysis of codon usage bias in the plastid genome of Diplandrorchis sinica.
Figure 1. Flowchart for data acquisition and analysis of codon usage bias in the plastid genome of Diplandrorchis sinica.
Cimb 46 00582 g001

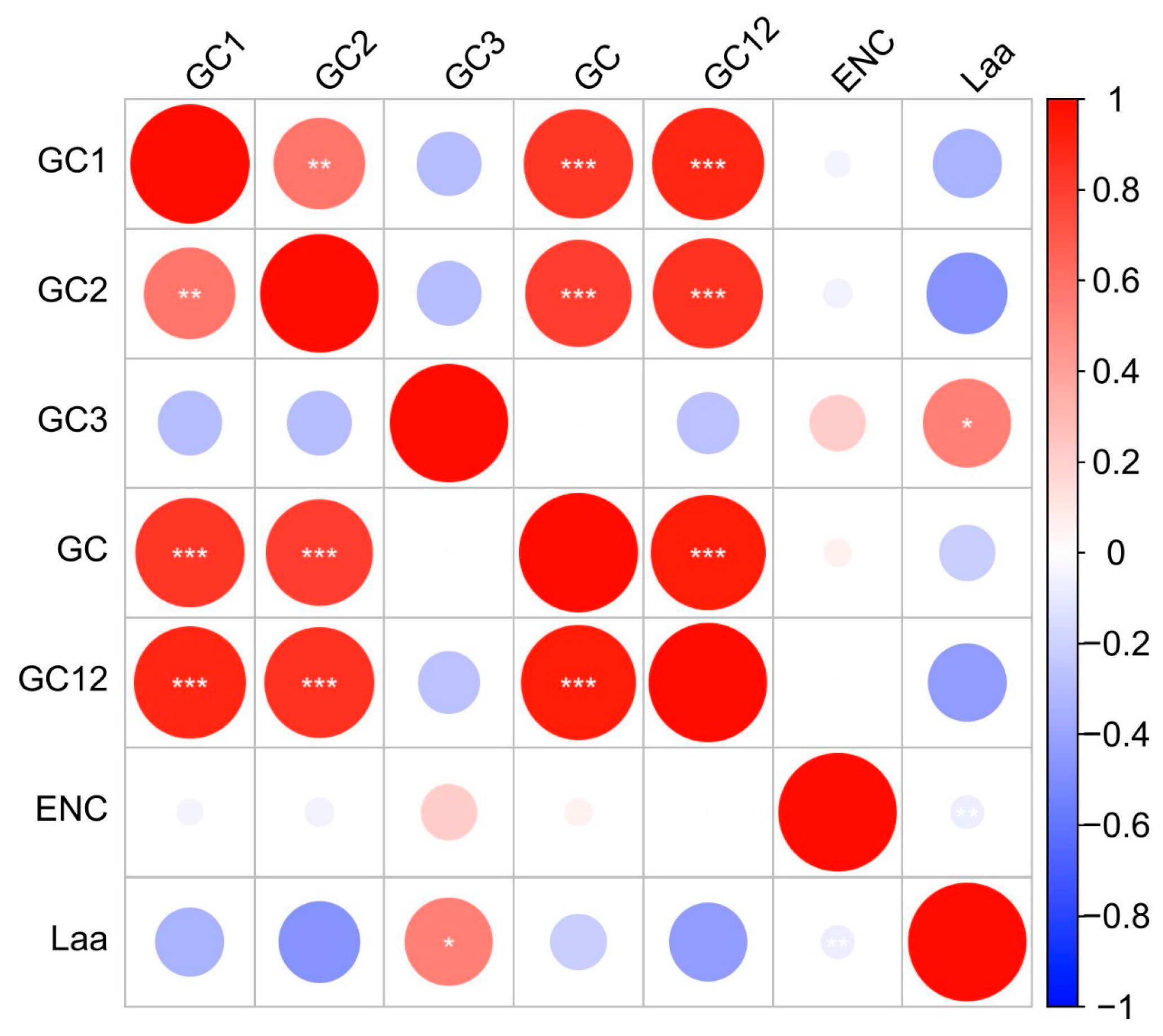

Figure 2. Correlation analysis between the indexes of codon usage in the plastid genome of Diplandrorchis sinica. Notes: “*” indicates a significant correlation at the p < 0.05 level, “**” indicates a significant correlation at the p < 0.01 level, “***” indicates a significant correlation at the p < 0.001 level.
Figure 2. Correlation analysis between the indexes of codon usage in the plastid genome of Diplandrorchis sinica. Notes: “*” indicates a significant correlation at the p < 0.05 level, “**” indicates a significant correlation at the p < 0.01 level, “***” indicates a significant correlation at the p < 0.001 level.
Cimb 46 00582 g002
Figure 3. Relative synonymous codon usage (RSCU) analysis of genes in the plastid genome of Diplandrorchis sinica. Note: “*” stands for the termination codon.
Figure 3. Relative synonymous codon usage (RSCU) analysis of genes in the plastid genome of Diplandrorchis sinica. Note: “*” stands for the termination codon.
Cimb 46 00582 g003
Figure 4. Analysis of neutrality plot.
Figure 4. Analysis of neutrality plot.
Cimb 46 00582 g004

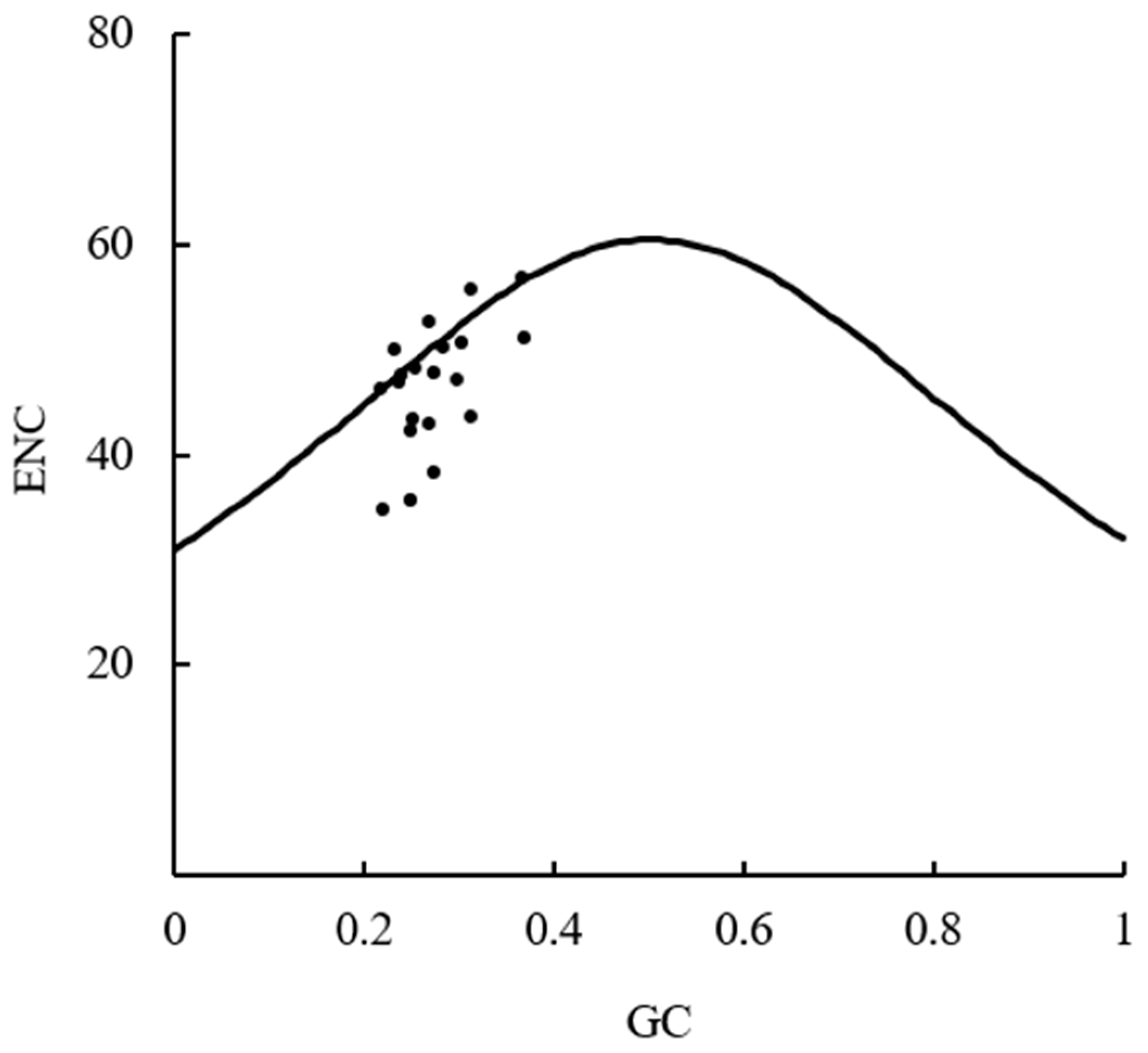

Figure 5. Analysis of ENC-plot.
Figure 5. Analysis of ENC-plot.
Cimb 46 00582 g005

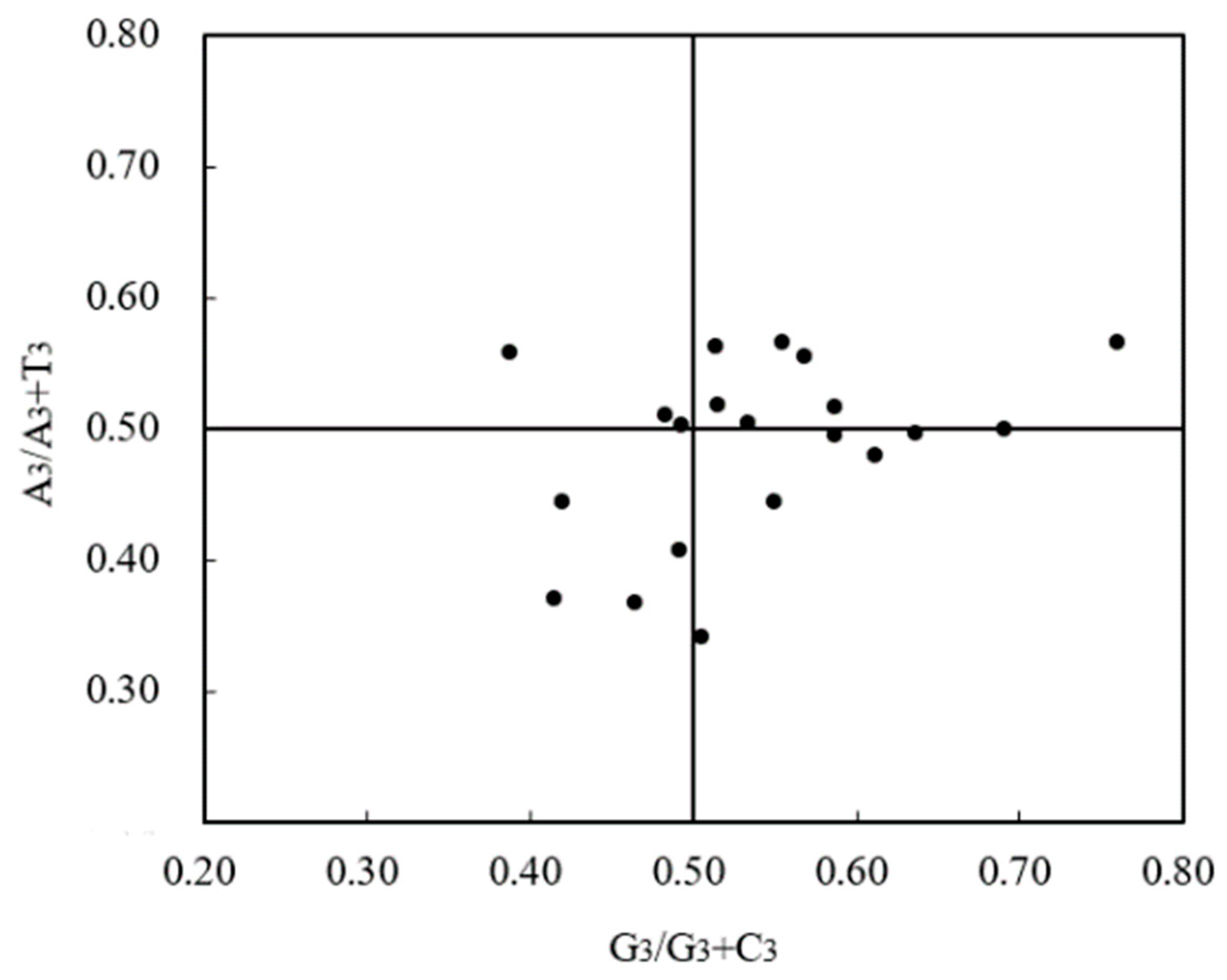

Figure 6. Analysis of PR2-plot.
Figure 6. Analysis of PR2-plot.
Cimb 46 00582 g006

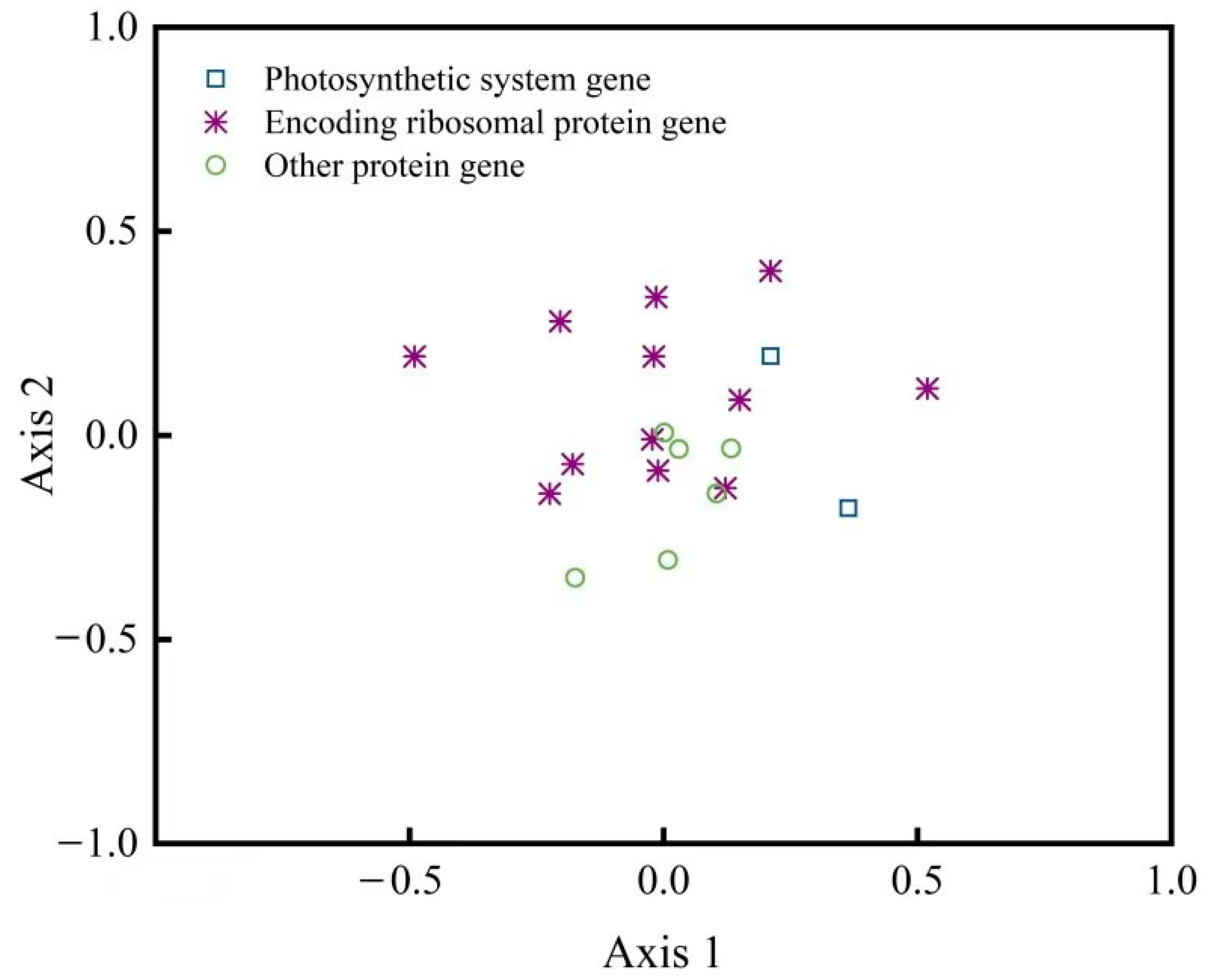

Figure 7. Corresponding analysis based on RSCU.
Figure 7. Corresponding analysis based on RSCU.
Cimb 46 00582 g007
Table 1. The main parameters of codons for 20 protein-coding gene sequences in the plastid genome of Diplandrorchis sinica.
Table 1. The main parameters of codons for 20 protein-coding gene sequences in the plastid genome of Diplandrorchis sinica.
GenesGC1GC2GC3GCallGC12ENCLaa
accD0.380.340.250.320.3642497
clpP0.590.370.310.420.4856195
ndhB0.380.350.310.350.3644237
ndhG0.320.290.300.300.3051135
psaB0.400.430.370.400.4257237
rbcL0.490.430.300.410.4647177
rpl140.510.370.240.370.4447122
rpl160.480.520.270.420.5038135
rpl200.370.370.270.340.3753133
rpl220.460.350.230.350.4050124
rps110.530.530.220.420.5346138
rps120.520.480.250.420.5044123
rps140.430.480.250.380.4536100
rps20.410.390.270.360.4043287
rps30.450.350.250.350.4048221
rps40.470.360.280.370.4150204
rps70.540.460.240.410.5048155
rps80.410.380.220.340.3935131
ycf10.360.270.270.300.32481763
ycf20.420.350.370.380.38512250
Average0.450.390.270.370.4247368
Table 2. The optimal codons in the plastid genome of Diplandrorchis sinica.
Table 2. The optimal codons in the plastid genome of Diplandrorchis sinica.
Amino AcidCodonHigh Expressed GeneLow Expressed GeneΔRSCU
NumberRSCUNumberRSCU
S (Ser)UCU  ##1151.76291.450.31
UCC  ###821.26130.650.61
UCA  #841.29231.150.14
UCG #300.4640.20.26
AGU600.92442.2−1.28
AGC200.3170.35−0.04
P (Pro)CCU591.48211.91−0.43
CCC320.8190.82−0.01
CCA501.26141.27−0.01
CCG ##180.45000.45
A (Ala)GCU421.5282.15−0.65
GCC180.6490.69−0.05
GCA  ###381.36110.850.51
GCG #140.540.310.19
L (Leu)UUA1181.55301.530.02
UUG  #1001.31231.170.14
CUU941.23311.58−0.35
CUC340.4590.46−0.01
CUA690.91190.97−0.06
CUG #420.5560.310.24
I (Ile)AUU1631.29621.54−0.25
AUC760.6290.72−0.12
AUA  ##1411.11300.740.37
V (Val)GUU671.61271.540.07
GUC ##260.6350.290.34
GUA461.11321.83−0.72
GUG ##270.6560.340.31
N (Asn)AAU2161.51451.61−0.10
AAC #710.49110.390.10
K (Lys)AAA2881.42351.52−0.10
AAG #1170.58110.480.10
Y (Tyr)UAU1251.54411.55−0.01
UAC370.46120.450.01
H (His)CAU821.53201.74−0.21
CAC #250.4730.260.21
Q (Gln)CAA1411.54291.490.05
CAG420.46100.51−0.05
T (Thr)ACU671.39221.49−0.10
ACC320.66120.81−0.15
ACA651.35211.42−0.07
ACG ##290.640.270.33
C (Cys)UGU391.34161.6−0.26
UGC #190.6640.40.26
F (Phe)UUU1721.2541.3−0.10
UUC #1140.8290.70.10
R (Arg)CGU  #450.9360.750.18
CGC180.3740.5−0.13
CGA  ##641.32810.32
CGG260.5440.50.04
AGA1072.21182.25−0.04
AGG300.6281−0.38
* (TER)UGA #21.2001.20
UAA21.242.4−1.20
UAG10.610.60
G (Gly)GGU  #430.99150.880.11
GGC150.34120.71−0.37
GGA761.75331.94−0.19
GGG ##400.9280.470.45
D (Asp)GAU1931.65451.7−0.05
GAC410.3580.30.05
E (Glu)GAA2031.41491.48−0.07
GAG840.59170.520.07
Notes: the underlined codon indicates the genomic RSCU>1, “#” indicates ΔRSCU ≥ 0.08, “##” indicates ΔRSCU > 0.3, “###” indicates ΔRSCU > 0.5, the bold codons are the optimal codons, and “*” stands for the termination codon.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Chen, X.; Zhao, Y.; Xu, S.; Zhou, Y.; Zhang, L.; Qu, B.; Xu, Y. Analysis of Codon Usage Bias in the Plastid Genome of Diplandrorchis sinica (Orchidaceae). Curr. Issues Mol. Biol. 2024, 46, 9807-9820. https://doi.org/10.3390/cimb46090582

AMA Style

Chen X, Zhao Y, Xu S, Zhou Y, Zhang L, Qu B, Xu Y. Analysis of Codon Usage Bias in the Plastid Genome of Diplandrorchis sinica (Orchidaceae). Current Issues in Molecular Biology. 2024; 46(9):9807-9820. https://doi.org/10.3390/cimb46090582

Chicago/Turabian Style

Chen, Xuhui, Yudi Zhao, Shenghua Xu, Yingze Zhou, Lijie Zhang, Bo Qu, and Yufeng Xu. 2024. "Analysis of Codon Usage Bias in the Plastid Genome of Diplandrorchis sinica (Orchidaceae)" Current Issues in Molecular Biology 46, no. 9: 9807-9820. https://doi.org/10.3390/cimb46090582

Article Metrics

Back to TopTop
