An Upfront Two-Stent Strategy for True Coronary Bifurcation Lesions with A Large Side Branch in Acute Coronary Syndrome: A Two-Year Follow-Up Study
Abstract
:1. Introduction
2. Methods

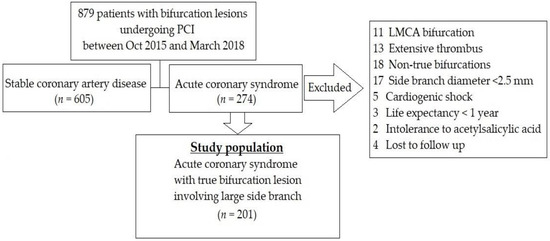

2.1. Patient Population
2.2. Procedures
2.3. Bifurcation Stenting Techniques
2.4. Quantitative Coronary Angiography
2.5. Clinical Follow-Up
2.6. Statistical Analysis
3. Results
4. Discussion
Limitations
5. Conclusions
Author Contributions
Funding
Conflicts of Interest
References
- Lassen, J.F.; Holm, N.R.; Banning, A.; Burzotta, F.; Lefèvre, T.; Chieffo, A.; Hildick-Smith, D.; Louvard, Y.; Stankovic, G. Percutaneous coronary intervention for coronary bifurcation disease: 11th consensus document from the European Bifurcation Club. EuroIntervention 2016, 12, 38–46. [Google Scholar] [CrossRef]
- Myler, R.K.; Shaw, R.E.; Stertzer, S.H.; Hecht, H.S.; Ryan, C.; Rosenblum, J.; Cumberland, D.C.; Murphy, M.C.; Hansell, H.N.; Hidalgo, B. Lesion morphology and coronary angioplasty: Current experience and analysis. J. Am. Coll. Cardiol. 1992, 19, 1641–1652. [Google Scholar] [CrossRef] [Green Version]
- Alcock, R.; Yong, A.; Ng, A.; Chow, V.; Cheruvu, C.; Aliprandi-Costa, B.; Lowe, H.; Kritharides, L.; Brieger, D. Acute coronary syndrome and stable coronary artery disease: Are they so different? Long-term outcomes in a contemporary PCI cohort. Int. J. Cardiol. 2013, 167, 1343–1346. [Google Scholar] [CrossRef]
- Medina, A.; Suárez de Lezo, J.; Pan, M. A new classification of coronary bifurcation lesions. Rev. Esp. Cardiol. Engl. Ed. 2006, 59, 183. [Google Scholar] [CrossRef] [Green Version]
- Neumann, F.-J.; Sousa-Uva, M.; Ahlsson, A.; Alfonso, F.; Banning, A.P.; Benedetto, U.; Byrne, R.A.; Collet, J.-P.; Falk, V.; Head, S.J. 2018 ESC/EACTS guidelines on myocardial revascularization. Eur. Heart J. 2019, 40, 87–165. [Google Scholar] [CrossRef] [PubMed]
- Chen, S.; Zhang, J.; Ye, F.; Chen, Y.; Patel, T.; Kawajiri, K.; Lee, M.; Kwan, T.; Mintz, G.; Tan, H. Study comparing the double kissing (DK) crush with classical crush for the treatment of coronary bifurcation lesions: The DKCRUSH-1 bifurcation study with drug-eluting stents. Eur. J. Clin. Investig. 2008, 38, 361–371. [Google Scholar] [CrossRef] [PubMed]
- Chen, S.-L.; Santoso, T.; Zhang, J.-J.; Ye, F.; Xu, Y.-W.; Fu, Q.; Kan, J.; Zhang, F.-F.; Zhou, Y.; Xie, D.-J. Clinical outcome of double kissing crush versus provisional stenting of coronary artery bifurcation lesions: The 5-year follow-up results from a randomized and multicenter DKCRUSH-II study (Randomized Study on Double Kissing Crush Technique Versus Provisional Stenting Technique for Coronary Artery Bifurcation Lesions). Circ. Cardiovasc. Interv. 2017, 10, e004497. [Google Scholar] [PubMed]
- Cutlip, D.E.; Windecker, S.; Mehran, R.; Boam, A.; Cohen, D.J.; van Es, G.-A.; Gabriel Steg, P.; Morel, M.; Mauri, L.; Vranckx, P. Clinical end points in coronary stent trials: A case for standardized definitions. Circulation 2007, 115, 2344–2351. [Google Scholar] [CrossRef] [Green Version]
- Behan, M.W.; Holm, N.R.; de Belder, A.J.; Cockburn, J.; Erglis, A.; Curzen, N.P.; Niemelä, M.; Oldroyd, K.G.; Kervinen, K.; Kumsars, I. Coronary bifurcation lesions treated with simple or complex stenting: 5-year survival from patient-level pooled analysis of the Nordic Bifurcation Study and the British Bifurcation Coronary Study. Eur. Heart J. 2016, 37, 1923–1928. [Google Scholar] [CrossRef]
- Gwon, H.-C.; Choi, S.-H.; Song, Y.B.; Hahn, J.-Y.; Jeong, M.-H.; Seong, I.-W.; Kim, H.-S.; Rha, S.W.; Yang, J.-Y.; Yoon, J.H.; et al. Long-term clinical results and predictors of adverse outcomes after drug-eluting stent implantation for bifurcation lesions in a real-world practice: The COBIS (Coronary Bifurcation Stenting) registry. Circ. J. Off. J. Jpn. Circ. Soc. 2010, 74, 2322–2328. [Google Scholar]
- Hildick-Smith, D.; de Belder, A.J.; Cooter, N.; Curzen, N.P.; Clayton, T.C.; Oldroyd, K.G.; Bennett, L.; Holmberg, S.; Cotton, J.M.; Glennon, P.E.; et al. Randomized trial of simple versus complex drug-eluting stenting for bifurcation lesions: The British Bifurcation Coronary Study: Old, new, and evolving strategies. Circulation 2010, 121, 1235–1243. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Çaylı, M.; Şeker, T.; Gür, M.; Elbasan, Z.; Şahin, D.Y.; Elbey, M.A.; Çil, H. A Novel-Modified Provisional Bifurcation Stenting Technique: Jailed Semi-Inflated Balloon Technique. J. Intervent. Cardiol. 2015, 28, 420–429. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Zhang, W.; Ji, F.; Yu, X.; Wang, X. Long-term treatment effect and adverse events of a modified jailed-balloon technique for side branch protection in patients with coronary bifurcation lesions. BMC Cardiovasc. Disord. 2019, 19, 12. [Google Scholar] [CrossRef] [PubMed]
- Iwasaki, K. Myocardial ischemia is a key factor in the management of stable coronary artery disease. World J. Cardiol. 2014, 6, 130. [Google Scholar] [CrossRef]
- Hakim, D.; Chatterjee, A.; Alli, O.; Turner, J.; Sattar, A.; Foin, N.; Leesar, M.A. Role of proximal optimization technique guided by intravascular ultrasound on stent expansion, stent symmetry index, and side-branch hemodynamics in patients with coronary bifurcation lesions. Circ. Cardiovasc. Interv. 2017, 10, e005535. [Google Scholar] [CrossRef]
- Zhang, D.; He, Y.; Yan, R.; Yin, D.; Feng, L.; Xu, B.; Yang, Y.; Zhu, C.; Dou, K. A novel technique for coronary bifurcation intervention: Double rewire crush technique and its clinical outcomes after 2 years of follow-up. Catheter. Cardiovasc. Interv. 2019, 93, 851–858. [Google Scholar] [CrossRef]
- Hildick-Smith, D.; Behan, M.W.; Lassen, J.F.; Chieffo, A.; Lefèvre, T.; Stankovic, G.; Burzotta, F.; Pan, M.; Ferenc, M.; Bennett, L. The EBC TWO Study (European Bifurcation Coronary TWO) A Randomized Comparison of Provisional T-Stenting Versus a Systematic 2 Stent Culotte Strategy in Large Caliber True Bifurcations. Circ. Cardiovasc. Interv. 2016, 9, e003643. [Google Scholar] [CrossRef]
- Kumsars, P.I. Two-year results in the Nordic-Baltic bifurcation study IV. Available online: https://www.tctmd.com/slide/two-year-results-nordic-baltic-bifurcation-study-iv (accessed on 24 January 2020).
- Chen, X.; Li, X.; Zhang, J.-J.; Han, Y.; Kan, J.; Chen, L.; Qiu, C.; Santoso, T.; Paiboon, C.; Kwan, T.W. 3-Year outcomes of the DKCRUSH-V trial comparing DK crush with provisional stenting for left main bifurcation lesions. JACC Cardiovasc. Interv. 2019, 12, 1927–1937. [Google Scholar] [CrossRef]
- Kwan, T.W.; Gujja, K.; Liou, M.C.; Huang, Y.; Wong, S.; Coppola, J.; Chen, S. Bifurcation stenting in patients with ST-Segment elevation myocardial infarction: An analysis from dkcrush II randomized study. Catheter. Cardiovasc. Interv. 2013, 82, E133–E137. [Google Scholar] [CrossRef]
- Choi, K.H.; Song, Y.B.; Jeong, J.-O.; Park, T.K.; Lee, J.M.; Yang, J.H.; Hahn, J.-Y.; Choi, S.-H.; Choi, J.-H.; Lee, S.H. Treatment strategy for STEMI with bifurcation culprit lesion undergoing primary PCI: The COBIS II Registry. Rev. Esp. Cardiol. Engl. Ed. 2018, 71, 811–819. [Google Scholar] [CrossRef]
- Zimarino, M.; Briguori, C.; Amat-Santos, I.J.; Radico, F.; Barbato, E.; Chieffo, A.; Cirillo, P.; Costa, R.A.; Erglis, A.; Gamra, H. Mid-term outcomes after percutaneous interventions in coronary bifurcations. Int. J. Cardiol. 2019, 283, 78–83. [Google Scholar] [CrossRef] [PubMed]
- Sgueglia, G.A.; Chevalier, B. Kissing balloon inflation in percutaneous coronary interventions. JACC Cardiovasc. Interv. 2012, 5, 803–811. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Hoye, A. The proximal optimisation technique for intervention of coronary bifurcations. Interv. Cardiol. Rev. 2017, 12, 110. [Google Scholar] [CrossRef] [Green Version]
- Borovac, J.A.; D’Amario, D.; Vergallo, R.; Porto, I.; Bisignani, A.; Galli, M.; Annibali, G.; Montone, R.A.; Leone, A.M.; Niccoli, G.; et al. Neoatherosclerosis after drug-eluting stent: A novel clinical and therapeutic challenge. Eur. Heart. J. Cardiovasc. Pharmacother. 2019, 5, 105–116. [Google Scholar] [CrossRef] [PubMed]
- Finet, G.; Derimay, F.; Motreff, P.; Guerin, P.; Pilet, P.; Ohayon, J.; Darremont, O.; Rioufol, G. Comparative analysis of sequential proximal optimizing technique versus kissing balloon inflation technique in provisional bifurcation stenting: Fractal coronary bifurcation bench test. JACC Cardiovasc. Interv. 2015, 8, 1308–1317. [Google Scholar] [CrossRef] [Green Version]
- Chen, S.-L.; Xu, B.; Han, Y.-L.; Sheiban, I.; Zhang, J.-J.; Ye, F.; Kwan, T.W.; Paiboon, C.; Zhou, Y.-J.; Lv, S.-Z. Clinical outcome after DK crush versus culotte stenting of distal left main bifurcation lesions: The 3-year follow-up results of the DKCRUSH-III study. JACC Cardiovasc. Interv. 2015, 8, 1335–1342. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Navarese, E.P.; Kowalewski, M.; Kandzari, D.; Lansky, A.; Górny, B.; Kołtowski, Ł.; Waksman, R.; Berti, S.; Musumeci, G.; Limbruno, U. First-generation versus second-generation drug-eluting stents in current clinical practice: Updated evidence from a comprehensive meta-analysis of randomised clinical trials comprising 31 379 patients. Open Heart 2014, 1, e000064. [Google Scholar] [CrossRef]
- Cho, Y.; Koo, B.-K.; Song, Y.B.; Hahn, J.-Y.; Choi, S.-H.; Gwon, H.-C.; Rha, S.W.; Yu, C.W.; Park, J.-S.; Bae, J.-H. Comparison of the first-and second-generation limus-eluting stents for bifurcation lesions from a Korean multicenter registry. Circ. J. 2015, 79, 544–552. [Google Scholar] [CrossRef] [Green Version]
- Iqbal, J.; Serruys, P.W.; Silber, S.; Kelbaek, H.; Richardt, G.; Morel, M.-A.; Negoita, M.; Buszman, P.E.; Windecker, S. Comparison of zotarolimus-and everolimus-eluting coronary stents: Final 5-year report of the RESOLUTE all-comers trial. Circ. Cardiovasc. Interv. 2015, 8, e002230. [Google Scholar] [CrossRef] [Green Version]
- Wallentin, L.; Becker, R.C.; Budaj, A.; Cannon, C.P.; Emanuelsson, H.; Held, C.; Horrow, J.; Husted, S.; James, S.; Katus, H. Ticagrelor versus clopidogrel in patients with acute coronary syndromes. N. Engl. J. Med. 2009, 361, 1045–1057. [Google Scholar] [CrossRef]
- Zheng, W.; Li, Y.; Tian, J.; Li, L.; Xie, L.; Mao, Q.; Tong, W.; Zhou, D.; Azzalini, L.; Zhao, X. Effects of Ticagrelor versus Clopidogrel in Patients with Coronary Bifurcation Lesions Undergoing Percutaneous Coronary Intervention. BioMed Res. Int. 2019, 2019. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Variables | |
---|---|
Age (years), mean ± SD | 62 ± 10 |
Sex (female) n, (%) | 76 (37.8) |
Hypertension n, (%) | 111 (55.2) |
Diabetes mellitus n, (%) | 50 (24.9) |
Hypercholesterolemia n, (%) | 90 (44.8) |
Family history n, (%) | 59 (29.4) |
Smoking status n, (%) | 47 (23.4) |
Ejection fraction, (%) | 51 ± 8 |
Prior percutaneous coronary intervention n, (%) | 25 (12.4) |
Prior coronary surgery n, (%) | 9 (4.5) |
Chronic kidney disease n, (%) | 11 (5.5) |
Clinical presentation n, (%) | |
Unstable angina pectoris n, (%) | 63 (31.3) |
Non-ST-elevation myocardial infarction n, (%) | 93 (46.3) |
ST-elevation myocardial infarction n, (%) | 45 (22.4) |
Variables | |
---|---|
Lesion location, n (%) | |
LAD-Diagonal | 119 (59.2) |
LCx-OM | 39 (19.4) |
RPDA-RPLA | 43 (21.4) |
Medina classification, n (%) | |
1,1,1 | 143 (71.1) |
1,0,1 | 26 (12.9) |
0,1,1 | 32 (15.9) |
Bifurcation angle, n (%) | |
<70° | 179 (89) |
≥70° | 22 (11) |
Pre-PCI coronary TIMI-3 flow, n (%) | |
Main branch | 159 (79) |
Side branch | 173 (86) |
Two-stent techniques, n (%) | |
Mini-crush | 125 (62.2) |
Culotte | 44 (21.9) |
V-stenting | 32 (15.9) |
Transradial approach, n (%) | 75 (37.3) |
Glycoprotein 2b/3a inhibitors, n (%) | 23 (11.4) |
The number of stents used per patient | 2.25 ± 0.5 |
Lesion and stent lenghts, (mm) | |
Main branch lesion lenght | 22.6 ± 5.7 |
Main branch stent lenght | 26.4 ± 6.5 |
Side branch lesion lenght | 11.2 ± 4.0 |
Side branch stent lenght | 15.0 ± 4.3 |
Stent types, n (%) | |
Everolimus eluting stent | 143 (71.1) |
Zotarolimus eluting stent | 34 (16.9) |
Sirolimus eluting stent | 24 (11.9) |
Antiplatelet therapy, n (%) | |
Clopidogrel | 48 (23.9) |
Ticagrelor | 153 (76.1) |
Intravascular ultrasonography use, n (%) | 83 (41) |
Procedural features, n (%) | |
Predilation in main branch | 135 (67) |
Predilation in side branch | 69 (34) |
Angiographic success | 189 (94) |
Procedural success | 188 (93.5) |
Unsatisfactory final kissing balloon inflation | 10 (5) |
Procedure time (min), mean ± SD | 73 ± 22 |
Follow-up (years), median (IQR) | 2.1 (1.7–2.5) |
Variables | n (%) |
---|---|
(A) MACE rates in hospital | 3 (1.5) |
(1) Non-fatal myocardial infarction | 0 (0.0) |
(2) Cardiac death | 3 (1.5) |
(3) Target lesion revascularization | 0 (0.0) |
(B) Cumulative MACE rates at 2 years | 34 (16.9) |
(1) Non-fatal myocardial infarction | 3 (1.5) |
(2) Cardiac death | 7 (3.5) |
(3) Target lesion revascularization | 27 (13.4) |
(3a) Percutaneous coronary intervention | 16 (8.0) |
(3b) Coronary artery bypass grafting | 11 (5.5) |
Pre-Procedure | Post-Procedure | p-Value | |
---|---|---|---|
Proximal main branch | |||
Reference vessel diameter (mm) | 3.10 ± 0.38 | 3.11 ± 0.38 | 0.071 |
Minimum lumen diameter (mm) | 0.67 ± 0.32 | 2.97 ± 0.36 | <0.001 |
Diameter stenosis, % | 78 ± 9.7 | 4.4 ± 3.3 | <0.001 |
Distal main branch | |||
Reference vessel diameter (mm) | 2.91 ± 0.34 | 2.92 ± 0.33 | 0.160 |
Minimum lumen diameter (mm) | 0.61 ± 0.23 | 2.77 ± 0.36 | <0.001 |
Diameter stenosis, % | 79 ± 7.2 | 5.5 ± 2.3 | <0.001 |
Side branch | |||
Reference vessel diameter (mm) | 2.7 ± 0.22 | 2.7 ± 0.22 | 0.575 |
Minimum lumen diameter (mm) | 0.69 ± 0.24 | 2.53 ± 0.26 | <0.001 |
Diameter stenosis, % | 74 ± 8.6 | 5.7 ± 5.6 | <0.001 |
Variables | Univariate Analysis | Multivariate Analysis | ||||
---|---|---|---|---|---|---|
OR | 95% CI | p-Value | OR | 95% CI | p-Value | |
Clinical parameters | ||||||
Age (mean, years) | 1.06 | 1.02–1.09 | 0.004 | 1.04 | 0.99-1.10 | 0.095 |
Sex (female) | 1.57 | 0.70–3.49 | 0.270 | |||
Hypertension | 1.38 | 0.65–2.94 | 0.401 | |||
Diabetes mellitus | 2.18 | 0.99–4.75 | 0.048 | 2.35 | 0.75-7.30 | 0.139 |
1.85 * | −0.057–2.03 | 0.166 | ||||
Hypercholesterolemia | 1.11 | 0.52–2.34 | 0.769 | |||
Ejection fraction | 0.94 | 0.89–0.99 | 0.019 | 0.96 | 0.91–1.02 | 0.228 |
Chronic kidney disease | 0.98 | 0.91–3.67 | 0.881 | |||
Unstable angina | 1.24 | 0.57–2.69 | 0.586 | |||
NSTEMI | 0.90 | 0.43–1.89 | 0.783 | |||
STEMI | 0.88 | 0.35–2.18 | 0.782 | |||
Clopidogrel (vs ticagrelor) | 11.8 | 5.15–27.36 | <0.001 | 5.48 | 1.68–17.94 | 0.005 |
2.19 * | 0.41–2.51 | 0.007 | ||||
Anatomic, angiographic and procedural parameters | ||||||
LAD-Diagonal | 0.55 | 0.26–1.16 | 0.117 | |||
LCx-OM | 1.98 | 0.85–4.59 | 0.110 | |||
RPDA-RPLA | 1.16 | 0.48–2.78 | 0.739 | |||
Medina (1,1,1) | 2.69 | 0.98–7.35 | 0.046 | 2.72 | 0.72–10.26 | 0.140 |
1.41 * | −0.33–2.11 | 0.158 | ||||
Medina (1,0,1) | 0.60 | 0.17–2.14 | 0.437 | |||
Medina (0,1,1) | 0.28 | 0.06–1.25 | 0.097 | |||
Mini-Crush | 1.56 | 0.70–3.49 | 0.270 | |||
Culotte | 0.91 | 0.36–2.25 | 0.840 | |||
V-stenting | 0.46 | 0.13–1.61 | 0.224 | |||
The number of stents | 3.02 | 1.61–5.66 | 0.001 | 1.72 | 0.57–5.20 | 0.333 |
ZES (vs everolimus) | 1.34 | 0.53–3.40 | 0.532 | |||
SES (vs everolimus) | 17.67 | 6.64–47.01 | <0.001 | 5.02 | 1.34–18.81 | 0.017 |
1.86 * | 0.31–2.64 | 0.014 | ||||
MB stent length | 1.10 | 1.04–1.17 | 0.001 | 1.19 | 0.71–2.01 | 0.499 |
MB proximal-MLD (bp) | 2.23 | 0.72–6.92 | 0.163 | |||
MB distal-MLD (bp) | 1.32 | 0.27–6.29 | 0.728 | |||
MB proximal-MLD (ap) | 1.61 | 0.61–4.24 | 0.333 | |||
MB distal-MLD (ap) | 1.40 | 0.54–5.31 | 0.107 | |||
Side branch lesion length | 1.07 | 0.97–1.17 | 0.164 | |||
Side branch stent length | 1.06 | 0.98–1.16 | 0.148 | |||
Side branch MLD (bp) | 2.00 | 0.46–8.70 | 0.356 | |||
Side branch MLD (ap) | 3.06 | 0.81–11.63 | 0.100 | |||
Procedure time | 1.02 | 1.00–1.04 | 0.019 | 1.02 | 0.99–1.04 | 0.175 |
Unsatisfactory final kissing | 5.59 | 1.52–20.52 | 0.010 | 4.77 | 0.86–26.45 | 0.074 |
1.71 * | −0.21–3.02 | 0.087 |
