Accuracy of the Tibial Component Alignment by Extramedullary System Using Simple Radiographic References in Total Knee Arthroplasty

by
Jin-Ho Cho
,
Jun Young Choi
and
Sung-Sahn Lee
*
Department of Orthopedic Surgery, Ilsan Paik Hospital, Inje University School of Medicine, Goyang-si 10380, Korea
*
Author to whom correspondence should be addressed.
Medicina 2022, 58(9), 1212; https://doi.org/10.3390/medicina58091212
Submission received: 9 August 2022 / Revised: 26 August 2022 / Accepted: 1 September 2022 / Published: 2 September 2022
(This article belongs to the Special Issue Advances in Knee Surgery)
Browse Figures
Versions Notes

Abstract

:
Background and Objectives: The tibial component alignment is an important issue for the longevity of total knee arthroplasty (TKA). The purpose of our study was to investigate the usefulness of proximal tibial references determined by pre-operative radiography and intraoperative C-arm-guided hip and ankle center marking for the extramedullary guided tibial cut in mild (<10°) and severe (≥10°) varus knee TKA. Materials and Methods: A total of 150 consecutive patients (220 cases) who underwent total knee arthroplasty who were recruited from July 2011 to April 2017 were reviewed retrospectively. Before surgery, the proximal tibial reference point and medio-lateral cut thickness difference were identified. Then, hip and ankle centers were checked using a C-arm intensifier intraoperatively. The hip–knee–ankle (HKA) alignment and medial proximal tibial angle (MPTA) were assessed pre-operatively and post-operatively. More than 3° varus or valgus of HKA alignment or tibial component angle was defined as an outlier. Results: Mean follow-up duration was 26.9 months. Among 220 cases, 111 cases are classified as mild varus group and 109 cases are classified as severe varus group. The HKA alignment is significantly improved (p < 0.001). The average tibial component angle after surgery is 90.1°. A total of 21 cases (9.5%) and 3 cases (1.4%) are classified as outliers of HKA alignment and MPTA, respectively. Among MPTA outliers, one case is in the mild varus group and two cases are in the in severe varus group (p = 0.62). Conclusion: Measurement of proximal tibial radiographic references and checking the C-arm-guided intraoperative hip and ankle center could be helpful to obtain the favorable coronal position of the tibial component in the extramedullary guided tibial cut.

1. Introduction

Kinematic alignment was recently investigated as an alternative to mechanically aligned total knee arthroplasty (TKA) [1]. Several studies demonstrate that kinematically aligned TKA shows similar or better clinical outcomes due to less disruption of the native soft tissue envelope [2,3]. As a similar theoretical background, some studies show that slight under-corrected TKA results in better clinical outcomes than neutrally aligned TKA [4]. However, many studies suggest that post-operative coronal alignment is associated with implant survival; in particular, tibial component varus position is strongly correlated to implant loosening [5,6,7].
To enhance post-operative alignment, the computer navigation instruments or patient-specific implants (PSI) can be used [8,9,10]. However, these devices are not always available and have additional costs, therefore, many surgeons perform conventional jig-based TKA—intramedullary guided distal femoral cut and extramedullary guided proximal tibia cut. Various anatomical landmarks (extensor hallucis longus, dorsal pedis artery, intermalleolar point, anterior tibial border, intercondylar eminence) are used as a reference for extramedullary alignment to enhance tibial component coronal alignment [11,12,13]. Thippana et al. [14] reported that using the line that connects the proximal tibial reference point defined by pre-operative radiography and ankle center was helpful to set the extramedullary guide. In addition to this landmark, we thought pre-determined proximal tibial medio-lateral (ML) cut thickness difference by radiograph (Figure 1) and the intraoperative C-arm-intensifier-guided hip and ankle center marking method are helpful to enhance tibial component position.
The purpose of this study was (1) to investigate the usefulness of proximal tibial references determined by pre-operative radiography and intraoperative C-arm-guided hip and ankle center marking, and (2) to compare radiographic measurements between the patients with pre-operative mild varus (<10°) and severe varus (≥10°) deformity. It was hypothesized that favorable coronal alignment of the tibial component might be shown by this method, regardless of the severity of pre-operative varus deformity.

2. Materials and Methods

2.1. Patients

This study is a retrospectively designed study. From July 2011 to April 2017, the patients who underwent primary TKA surgery with the same method for degenerative osteoarthritis with varus deformity were reviewed. The exclusion criteria were as follows: patients who (1) followed up for less than 1 year, (2) had undergone other previous bony procedure, such as osteotomy, and (3) diagnosed systemic arthritis such as rheumatoid arthritis. The enrolled patients were divided into mild varus group (<10°) and severe varus group (≥10°). based on pre-operative hip–knee–ankle (HKA) alignment as the definition of previous studies [15,16]. Written informed consents were obtained from all patients before enrolling them in the study. This study was approved by the IRB of the authors’ affiliated institutions (ISPAIK 2019-02-014 at 20 February 2019).

2.2. Radiographic and Clinical Assessment

We analyzed the HKA alignment taken from the pre-operative and 1 year follow-up low extremity whole radiography [17,18]. As in previous studies, more than 3° varus or valgus of HKA alignment was defined as an outlier [4,19]. The medial proximal tibial angle (MPTA) is the medial angle of intersection between the anatomical axis of the tibia and the horizontal axis of the proximal tibia (pre-operative measurement) or tibial component (post-operative measurement). Refs. [20,21] are same as HKA alignment, more than 3° varus or valgus of tibial component angle was defined as an outlier [4,19]. The tibial slope was also measured as previously described [22,23] (Figure 2).
All radiographs were measured using Marosis software (INFINITT Healthcare, Seoul, Korea). The radiographs were evaluated by two independent orthopedic surgeons specializing in knee arthroplasty, who did not participate in the current study, to verify inter-observer reliability. The intra-observer reliability was checked by having the observers repeat the same measurements 6 weeks later. Intraclass correlation coefficients (ICCs) were used for intra-observer and inter-observer reliabilities.
The clinical parameters of pre-operation and last follow-up were evaluated by the following clinical scores: Hospital for Special Surgery (HSS) score [24] and Western Ontario Mac-Master University (WOMAC) Index [25,26]. In addition, the operative time and incision size were analyzed.

2.3. Pre-Operative Planning

Pre-operative tibial anteroposterior (AP) view was used to verify the proximal tibial reference point. The proximal tibial reference point is determined as the meeting point between the tibial anatomical axis and the proximal tibial joint line. Of the enrolled cases, all proximal tibial reference points existed between the center of intercondylar eminence and the lateral tibial spine. These points were classified as 3 zones—the center of intercondylar eminence, lateral tibial spine, and in-between (Figure 3).
The perpendicular line to the tibial anatomical axis was drawn from the edge of medial tibial condyle. The ML cut thickness difference of proximal tibia was measured (Figure 1).

2.4. Intraoperative Planning

After induction of anesthesia to the patients, the ankle center and hip center should be assessed under a C-arm intensifier to apply the pre-operative planning before draping. A long rod (High tibia osteotomy alignment rod, DePuy Synthes, Raynham, MA, USA) was used to confirm the hip center and ankle center. The patient was placed in a metal pelvic stabilizer with the mobile peg, so that the measured position did not change during surgery [27]. The hip center was marked with a mobile peg, and the end of the long rod was marked in the patient’s ankle using a marking pen (Figure 4).

2.5. Operative Procedure

All surgeries were performed by the senior author. In all cases, posterior, stabilized TKA implant was used (LEGION, Smith & Nephew, London, UK). Skin incision and medial parapatellar arthrotomy were performed. Both cruciate ligaments were removed from their femoral and tibial attachment sites and osteophytes were removed. Then, the intramedullary guided femoral cut was performed.
Extramedullary guided tibia cut was performed using pre- and intra-operatively checked references. The cartilages of lateral tibial condyle were removed. Extramedullary tibial cutting apparatus was installed using the proximal tibial reference point and marked ankle center. After that, we checked the ML thickness difference was similar between radiographic and intraoperative measurements using a cut thickness gauge.
After tibial cut and trial component insertion, marked ankle center and hip center should be connected by flexible cable (we used the cable-connecting electrocautery device) to check the tibial component coronal position and lower limb alignment. A proximal tibial cut was re-performed if the tibial component position was not perpendicular to cable (Figure 5).
After the surgery, full weight-bearing was allowed. Then, after the removal of drains, a range of motion exercises and quadriceps strengthening exercises were started.

2.6. Statistical Analyses

The intraclass correlation coefficient was used to quantify both inter-observer and intra-observer reliabilities for radiographic assessment. A descriptive analysis was performed for all the variables, including calculation of the mean and standard deviation. Data normality was tested using a Kolmogorov–Smirnov test. The paired T-test was used to compare between the pre-operative and post-operative parameters. The Student’s T-test for continuous variables and chi-square tests for categorical variables were used to compare the parameters between mild varus group and severe varus group.
Statistical analyses were performed using SPSS software, version 18 (IBM Corp., Armonk, NY, USA). Statistical significance was determined as a p-value less than 0.05 for all analyses.

3. Results

A total 266 consecutive patients who underwent primary TKA surgery with the same method for degenerative osteoarthritis with varus deformity were reviewed. Among them, 80 patients were excluded who were followed up for less than 1 year. A total of 26 patients were excluded who previously underwent high tibial osteotomy or surgery for fracture. Ten patients who were diagnosed with rheumatoid arthritis were excluded. Finally, 150 patients (220 cases) were enrolled in the present study (Table 1). Among 220 cases, 111 cases are classified as mild varus group (<10°) and 109 cases are classified as severe varus group (≥10°).
Mean follow-up duration was 26.9 months. Inter-observer and intra-observer ICCs show good agreement regarding radiographic measurement reliability (>0.80). The HKA alignment is significantly decreased (p < 0.001). The average tibial component angle after surgery is 90.1°. A total of 21 cases (9.5%) and 3 cases (1.4%) are classified as an outlier of HKA alignment and tibial component angle, respectively. The average tibial slope before surgery is 9.3° and after surgery is 3.2° (p < 0.001). The average incision size is 12.3 cm and the average operative time is 75.1 min. The post-operative clinical outcomes including HSS score and WOMAC index are significantly improved compared to pre-operative values (p < 0.05) (Table 2).
The severe varus group shows significantly more post-operative HKA alignment outliers than the mild varus group (mild varus group—6 cases (5.4%), severe varus group—15 cases (13.8%), p = 0.04, Table 3). The pre-operative MPTA is significantly greater in the mild varus group (p < 0.001). However, the post-operative MPTA outliers did not show statistical significance (mild varus group—one case (0.9%), severe varus group—two cases (1.5%), p = 0.62).

4. Discussion

The principal finding of our study is that a favorable coronal position of the tibial component could be obtained by using preplanned proximal tibial radiographic references and intraoperative synchronizing. The severe varus group shows similar outliers of tibial component coronal position, but significantly more outliers of HKA alignment compared to the mild varus group.
Computer navigation instruments or patient-specific instruments (PSI) are helpful in post-operative limb and implant alignment [8,9]. Cheng et al. investigated the efficacy of computer-navigation-assisted surgery by meta-analysis of 41 randomized controlled trials [8]. They report that malalignment of >3° from neutral alignment in the HKA alignment occurs in fewer patients in the computer-navigation-assisted group than in the conventional group (12.2% vs. 28.3%, respectively). Schotanus et al. conduced a meta-analysis of comparison between PSI-assisted and conventional TKA [9]. They demonstrate that MRI-based PSIs show a 19% decline in outliers compared to conventional TKAs. However, these devices are not always available and have additional cost, therefore, many surgeons perform conventional jig-based TKA. Both extramedullary and intramedullary guided cut can be used, and show similar results [28,29]. However, the intramedullary system shows less accuracy in patients with tibial bowing or post-traumatic deformities [30]. The installation of extramedullary tibia cutting instruments depends on anatomical landmarks, which include intercondylar eminence, center of tibial plateau, posterior cruciate ligament, and tibial tuberosity for the proximal side, and anterior tibialis tendon, extensor hallucis longus, dorsal pedis, and intermalleolar center for the distal side [11,12,13,31]. These landmarks may not be palpable, and the surgeon’s experience is important to obtain an accurate tibial component position. We suggest that additional radiographic references (proximal tibial reference point, ML cut thickness difference) and intraoperative hip and ankle center marking by C-arm intensifier could enhance the tibial component coronal position. These additional references and center markings provide an accurate location of the extramedullary instrument and allow a second chance to check limb and component alignment after trial insertion. It is well-known that high-grade pre-operative varus deformity is associated with residual post-operative varus alignment [32]. In the current study, the severe varus group shows more HKA alignment outliers than the mild varus group, which is concurrent with previous studies. However, MPTA outliers are not significantly different between both groups. Previous studies suggest that the increasing severity of pre-operative varus deformity is associated with complex bone cuts to restore a neutral mechanical alignment [1,33]. According to our findings, we think our methods aid in obtaining tibial component neutral alignment, regardless of the severity of pre-operative varus deformity.
Proximal tibial reference points of all cases exist between the center of intercondylar eminence and the lateral tibial spine in the current study. Kim et al. [34] suggest that lateral intercondylar spine rather than the center of intercondylar eminence should be used as a reference for the proximal tibial side in extramedullary guided tibial cut, in order to obtain a neutral component position. We agreed that routine use of the center of intercondylar eminence as a proximal reference point has a chance to highlight the varus position of the tibial component. However, we think an individualized proximal tibial reference point is better than routine use of lateral intercondylar spine. A further comparative study is needed to find the most reliable reference point of the proximal tibia.
This study has several limitations. First, it was not a comparative study with other methods. Second, the follow-up period was relatively short, and further studies are needed to evaluate implant survival. Third, there is not enough discussion on femur cutting with emphasis on increasing the accuracy of tibia cutting. Forth, we only focused on correcting coronal malalignment, and we need to discuss the correction technique for the sagittal plane as well. Fifth, in addition to the bone cutting, the collateral ligament and soft tissue were involved in the gap-balancing, but there was not sufficient information regarding this.

5. Conclusions

The measurement of proximal tibial radiographic references and checking C-arm-guided intraoperative hip and ankle centers could be helpful in obtaining a favorable coronal position of the tibial component for the extramedullary guided tibial cut in TKA.

Author Contributions

Conceptualization, J.-H.C. and S.-S.L.; methodology, J.-H.C. and S.-S.L.; validation, J.-H.C. and J.Y.C.; formal analysis, J.Y.C. and S.-S.L.; investigation, J.Y.C. and S.-S.L.; data curation, J.Y.C. and S.-S.L.; writing—original draft preparation, J.-H.C. and S.-S.L.; writing—review and editing, J.-H.C. and S.-S.L.; visualization, J.-H.C. and J.Y.C.; supervision, J.-H.C. and S.-S.L.; project administration, J.-H.C. and S.-S.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

The protocol used to evaluate radiographic findings and intraoperative navigation data was approved by our institution’s investigational review board. (ISPAIK 2019-02-014 at 20 February 2019).

Informed Consent Statement

Informed consent was obtained from all individual participants included in the study.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Lee, Y.S.; Howell, S.M.; Won, Y.Y.; Lee, O.S.; Lee, S.H.; Vahedi, H.; Teo, S.H. Kinematic alignment is a possible alternative to mechanical alignment in total knee arthroplasty. Knee Surg. Sports Traumatol. Arthrosc. 2017, 25, 3467–3479. [Google Scholar] [CrossRef] [PubMed]
  2. Yoon, J.R.; Han, S.B.; Jee, M.K.; Shin, Y.S. Comparison of kinematic and mechanical alignment techniques in primary total knee arthroplasty: A meta-analysis. Medicine 2017, 96, e8157. [Google Scholar] [CrossRef] [PubMed]
  3. Young, S.W.; Walker, M.L.; Bayan, A.; Briant-Evans, T.; Pavlou, P.; Farrington, B. The Chitranjan, S. Ranawat Award: No Difference in 2-year Functional Outcomes Using Kinematic versus Mechanical Alignment in TKA: A Randomized Controlled Clinical Trial. Clin. Orthop. Relat. Res. 2017, 475, 9–20. [Google Scholar] [CrossRef] [PubMed]
  4. Vanlommel, L.; Vanlommel, J.; Claes, S.; Bellemans, J. Slight undercorrection following total knee arthroplasty results in superior clinical outcomes in varus knees. Knee Surg. Sports Traumatol. Arthrosc. 2013, 21, 2325–2330. [Google Scholar] [CrossRef] [PubMed]
  5. Ritter, M.A.; Davis, K.E.; Meding, J.B.; Pierson, J.L.; Berend, M.E.; Malinzak, R.A. The effect of alignment and BMI on failure of total knee replacement. J. Bone Joint Surg. Am. 2011, 93, 1588–1596. [Google Scholar] [CrossRef]
  6. Liu, H.X.; Shang, P.; Ying, X.Z.; Zhang, Y. Shorter survival rate in varus-aligned knees after total knee arthroplasty. Knee Surg. Sports Traumatol. Arthrosc. 2016, 24, 2663–2671. [Google Scholar] [CrossRef]
  7. Li, Z.; Esposito, C.I.; Koch, C.N.; Lee, Y.Y.; Padgett, D.E.; Wright, T.M. Polyethylene Damage Increases with Varus Implant Alignment in Posterior-stabilized and Constrained Condylar Knee Arthroplasty. Clin. Orthop. Relat. Res. 2017, 475, 2981–2991. [Google Scholar] [CrossRef]
  8. Cheng, T.; Zhao, S.; Peng, X.; Zhang, X. Does computer-assisted surgery improve postoperative leg alignment and implant positioning following total knee arthroplasty? A meta-analysis of randomized controlled trials? Knee Surg. Sports Traumatol. Arthrosc. 2012, 20, 1307–1322. [Google Scholar] [CrossRef]
  9. Schotanus, M.G.M.; Thijs, E.; Heijmans, M.; Vos, R.; Kort, N.P. Favourable alignment outcomes with MRI-based patient-specific instruments in total knee arthroplasty. Knee Surg. Sports Traumatol. Arthrosc. 2018, 26, 2659–2668. [Google Scholar] [CrossRef]
  10. Kim, K.; Kim, J.; Lee, D.; Lim, S.; Eom, J. The Accuracy of Alignment Determined by Patient-Specific Instrumentation System in Total Knee Arthroplasty. Knee Surg. Relat. Res. 2019, 31, 19–24. [Google Scholar] [CrossRef]
  11. Akagi, M.; Oh, M.; Nonaka, T.; Tsujimoto, H.; Asano, T.; Hamanishi, C. An anteroposterior axis of the tibia for total knee arthroplasty. Clin. Orthop. Relat. Res. 2004, 420, 213–219. [Google Scholar] [CrossRef] [PubMed]
  12. Reed, M.R.; Bliss, W.; Sher, J.L.; Emmerson, K.P.; Jones, S.M.; Partington, P.F. Extramedullary or intramedullary tibial alignment guides: A randomised, prospective trial of radiological alignment. J. Bone Joint Surg. Br. 2002, 84, 858–860. [Google Scholar] [CrossRef] [PubMed]
  13. Cinotti, G.; Sessa, P.; D’Arino, A.; Ripani, F.R.; Giannicola, G. Improving tibial component alignment in total knee arthroplasty. Knee Surg. Sports Traumatol. Arthrosc. 2015, 23, 3563–3570. [Google Scholar] [CrossRef]
  14. Thippana, R.K.; Kumar, M.N. Lateralization of Tibial Plateau Reference Point Improves Accuracy of Tibial Resection in Total Knee Arthroplasty in Patients with Proximal Tibia Vara. Clin. Orthop. Surg. 2017, 9, 458–464. [Google Scholar] [CrossRef] [PubMed]
  15. Puliero, B.; Favreau, H.; Eichler, D.; Adam, P.; Bonnomet, F.; Ehlinger, M. Total knee arthroplasty in patients with varus deformities greater than ten degrees: Survival analysis at a mean ten year follow-up. Int. Orthop. 2019, 43, 333–341. [Google Scholar] [CrossRef]
  16. Rahm, S.; Camenzind, R.S.; Hingsammer, A.; Lenz, C.; Bauer, D.E.; Farshad, M.; Fucentese, S.F. Postoperative alignment of TKA in patients with severe preoperative varus or valgus deformity: Is there a difference between surgical techniques? BMC Musculoskelet. Disord. 2017, 18, 272. [Google Scholar] [CrossRef]
  17. Thienpont, E.; Parvizi, J. A New Classification for the Varus Knee. J. Arthroplast. 2016, 31, 2156–2160. [Google Scholar] [CrossRef]
  18. Kang, B.Y.; Lee, D.K.; Kim, H.S.; Wang, J.H. How to achieve an optimal alignment in medial opening wedge high tibial osteotomy? Knee Surg. Relat. Res. 2022, 34, 3. [Google Scholar] [CrossRef]
  19. Lee, S.S.; Kwon, K.B.; Lee, Y.I.; Moon, Y.W. Navigation-Assisted Total Knee Arthroplasty for a Valgus Knee Improves Limb and Femoral Component Alignment. Orthopedics 2019, 42, e253–e259. [Google Scholar] [CrossRef]
  20. Piovan, G.; Farinelli, L.; Screpis, D.; Iacono, V.; Povegliano, L.; Bonomo, M.; Auregli, L.; Zorzi, C. Distal femoral osteotomy versus lateral unicompartmental arthroplasty for isolated lateral tibiofemoral osteoarthritis with intra-articular and extra-articular deformity: A propensity score-matched analysis. Knee Surg. Relat. Res. 2022, 34, 34. [Google Scholar] [CrossRef]
  21. Makiev, K.G.; Vasios, I.S.; Georgoulas, P.; Tilkeridis, K.; Drosos, G.; Ververidis, A. Clinical significance and management of meniscal extrusion in different knee pathologies: A comprehensive review of the literature and treatment algorithm. Knee Surg. Relat. Res. 2022, 34, 35. [Google Scholar] [CrossRef] [PubMed]
  22. Lee, H.W.; Park, C.H.; Bae, D.K.; Song, S.J. How much preoperative flexion contracture is a predictor for residual flexion contracture after total knee arthroplasty in hemophilic arthropathy and rheumatoid arthritis? Knee Surg. Relat. Res. 2022, 34, 20. [Google Scholar] [CrossRef]
  23. Lee, J.M.; Ha, C.; Jung, K.; Choi, W. Clinical Results after Design Modification of Lospa Total Knee Arthroplasty System: Comparison between Posterior-Stabilized (PS) and PS Plus Types. Clin. Orthop. Surg. 2022, 14, 236–243. [Google Scholar] [CrossRef]
  24. Insall, J.N.; Ranawat, C.S.; Aglietti, P.; Shine, J. A comparison of four models of total knee-replacement prostheses. J. Bone Joint Surg. Am. 1976, 58, 754–765. [Google Scholar] [CrossRef] [PubMed]
  25. Stucki, G.; Meier, D.; Stucki, S.; Michel, B.A.; Tyndall, A.G.; Dick, W.; Theiler, R. Evaluation of a German version of WOMAC (Western Ontario and McMaster Universities) Arthrosis Index. Z Rheumatol. 1996, 55, 40–49. [Google Scholar]
  26. Maniar, R.N.; Bhatnagar, N.; Bidwai, R.; Dhiman, A.; Chanda, D.; Sanghavi, N. Comparison of Patellofemoral Outcomes between Attune and PFC Sigma Designs: A Prospective Matched-Pair Analysis. Clin. Orthop. Surg. 2022, 14, 96–104. [Google Scholar] [CrossRef]
  27. Seo, J.G.; Moon, Y.W.; Park, S.H.; Kang, H.M.; Kim, S.M. How precise is the identification of the center of the femoral head during total knee arthroplasty? Acta Orthop. 2012, 83, 53–58. [Google Scholar] [CrossRef] [PubMed]
  28. Dennis, D.A.; Channer, M.; Susman, M.H.; Stringer, E.A. Intramedullary versus extramedullary tibial alignment systems in total knee arthroplasty. J. Arthroplast. 1993, 8, 43–47. [Google Scholar] [CrossRef]
  29. Teter, K.E.; Bregman, D.; Colwell, C.W., Jr. Accuracy of intramedullary versus extramedullary tibial alignment cutting systems in total knee arthroplasty. Clin. Orthop. Relat. Res. 1995, 321, 106–110. [Google Scholar] [CrossRef]
  30. Ko, P.S.; Tio, M.K.; Ban, C.M.; Mak, Y.K.; Ip, F.K.; Lam, J.J. Radiologic analysis of the tibial intramedullary canal in Chinese varus knees: Implications in total knee arthroplasty. J. Arthroplast. 2001, 16, 212–215. [Google Scholar] [CrossRef]
  31. Nishikawa, K.; Mizu-uchi, H.; Okazaki, K.; Matsuda, S.; Tashiro, Y.; Iwamoto, Y. Accuracy of Proximal Tibial Bone Cut Using Anterior Border of Tibia as Bony Landmark in Total Knee Arthroplasty. J. Arthroplast. 2015, 30, 2121–2124. [Google Scholar] [CrossRef] [PubMed]
  32. Oh, S.M.; Bin, S.I.; Kim, J.Y.; Lee, B.S.; Kim, J.M. Impact of preoperative varus deformity on postoperative mechanical alignment and long-term results of “mechanical” aligned total knee arthroplasty. Orthop. Traumatol. Surg. Res. 2019, 105, 1061–1066. [Google Scholar] [CrossRef] [PubMed]
  33. Ahn, J.H.; Back, Y.W. Comparative Study of Two Techniques for Ligament Balancing in Total Knee Arthroplasty for Severe Varus Knee: Medial Soft Tissue Release vs. Bony Resection of Proximal Medial Tibia. Knee Surg. Relat. Res. 2013, 25, 13–18. [Google Scholar] [CrossRef] [PubMed]
  34. Kim, S.M.; Kim, K.W.; Cha, S.M.; Han, K.Y. Proximal tibial resection in varus-deformed tibiae during total knee arthroplasty: An in vitro study using sawbone model. Int. Orthop. 2015, 39, 429–434. [Google Scholar] [CrossRef]
Medicina 58 01212 g001 550

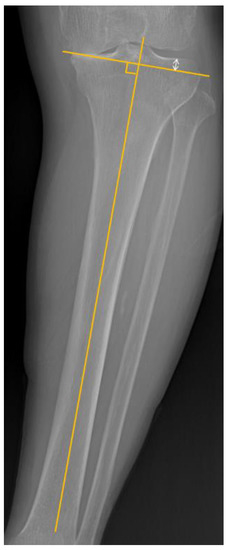

Figure 1. Proximal tibial medio-lateral (ML) cut thickness difference. The lines were drawn (1) along the anatomical axis of the tibia and (2) perpendicular to first line (starting from medial condylar edge). The white arrow line indicates proximal tibial ‘ML cut thickness difference’.
Figure 1. Proximal tibial medio-lateral (ML) cut thickness difference. The lines were drawn (1) along the anatomical axis of the tibia and (2) perpendicular to first line (starting from medial condylar edge). The white arrow line indicates proximal tibial ‘ML cut thickness difference’.
Medicina 58 01212 g001
Medicina 58 01212 g002 550

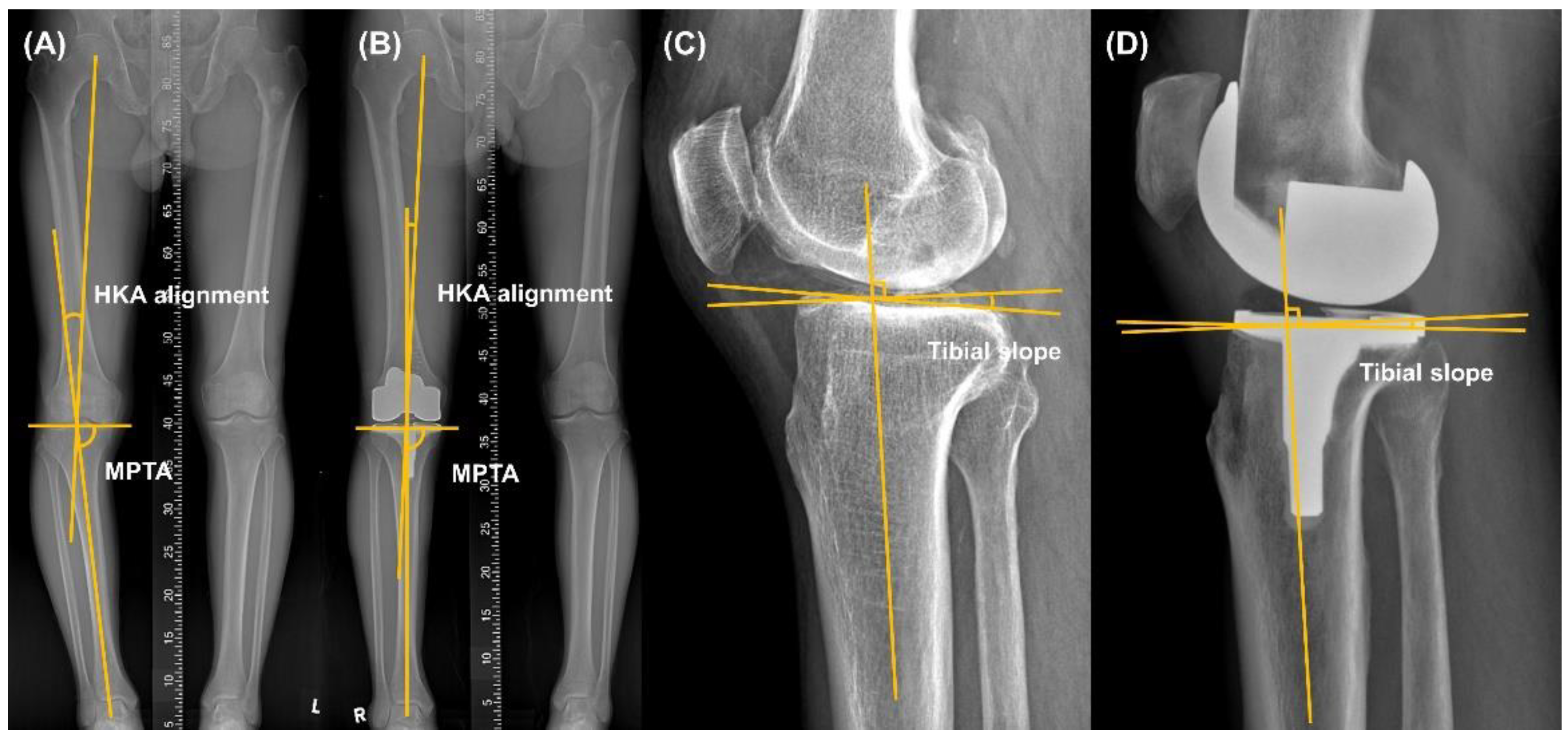

Figure 2. Measurement of the pre- and post-operative hip–knee–ankle (HKA) alignment, medial proximal tibial angle (MPTA, (A,B)) and tibial slope (C,D).
Figure 2. Measurement of the pre- and post-operative hip–knee–ankle (HKA) alignment, medial proximal tibial angle (MPTA, (A,B)) and tibial slope (C,D).
Medicina 58 01212 g002
Medicina 58 01212 g003 550

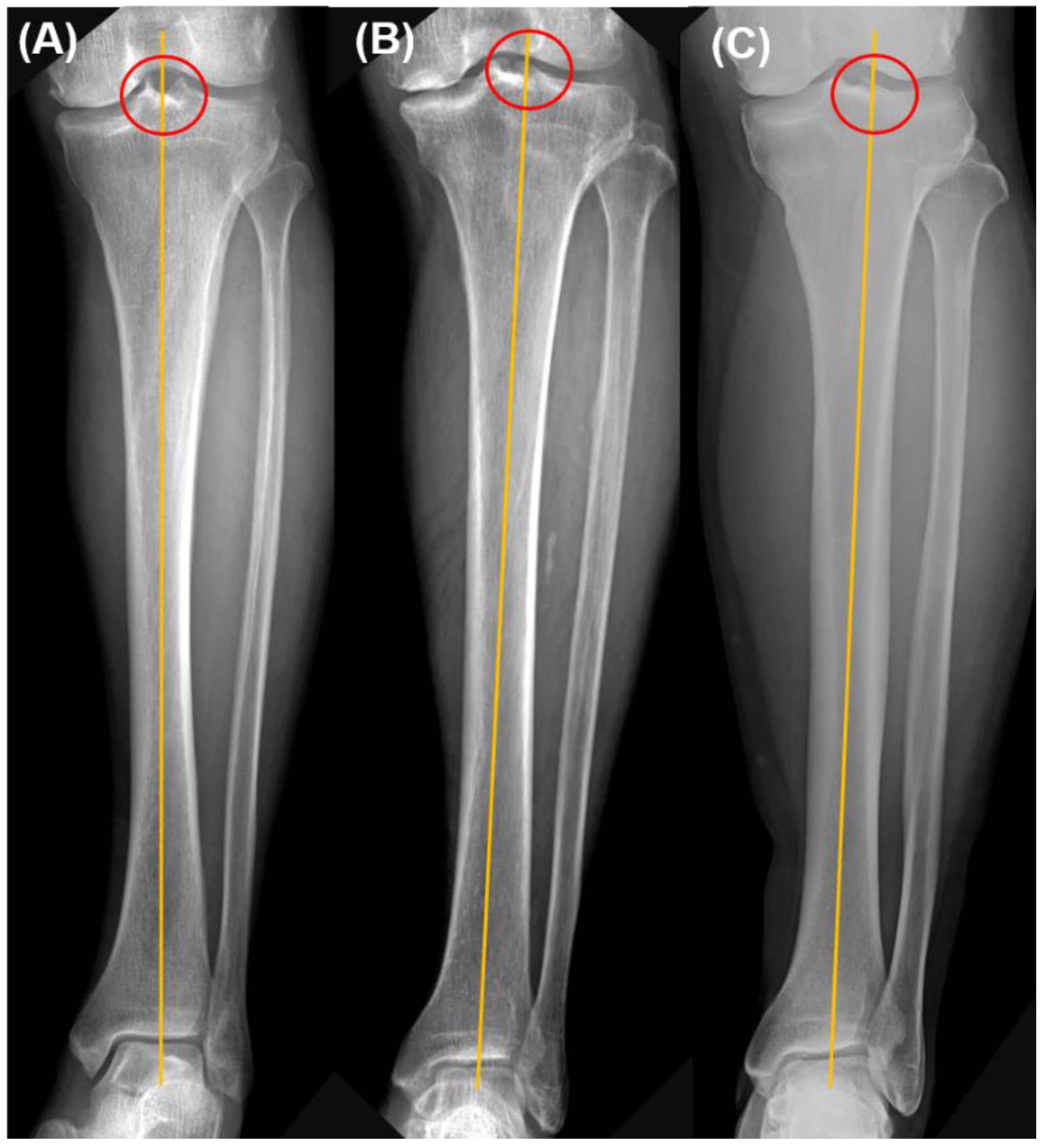

Figure 3. Proximal tibial reference point. These points were classified as 3 zones—(A) the center of intercondylar eminence, (B) in-between, and (C) lateral tibial spine.
Figure 3. Proximal tibial reference point. These points were classified as 3 zones—(A) the center of intercondylar eminence, (B) in-between, and (C) lateral tibial spine.
Medicina 58 01212 g003
Medicina 58 01212 g004 550

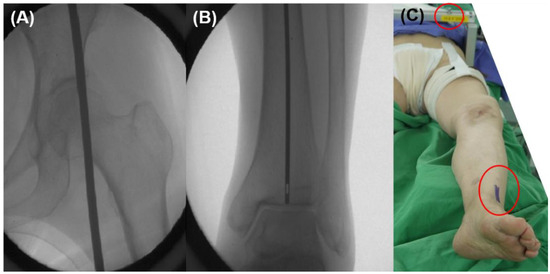

Figure 4. Marking hip and ankle centers. (A,B) Check hip and ankle centers using a metal rod under C-arm intensifier. (C) A hip center was marked using mobile peg in a pelvic stabilizer and an ankle center was marked with a marking pen.
Figure 4. Marking hip and ankle centers. (A,B) Check hip and ankle centers using a metal rod under C-arm intensifier. (C) A hip center was marked using mobile peg in a pelvic stabilizer and an ankle center was marked with a marking pen.
Medicina 58 01212 g004
Medicina 58 01212 g005 550

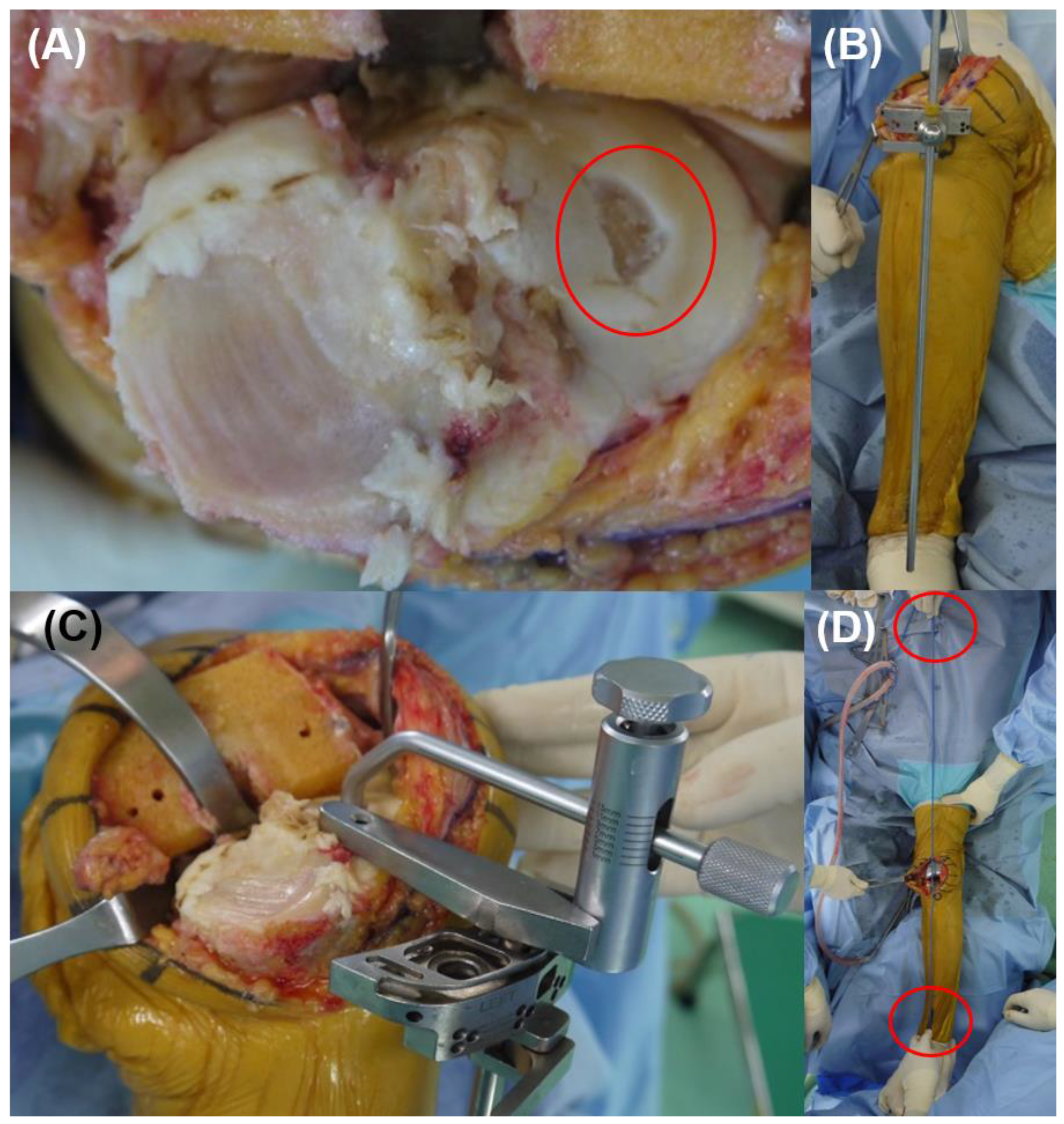

Figure 5. Operative procedure. (A) Gentle peeling of cartilage of the lateral condyle for precise intraoperative measurement. (B,C) Application of tibial cutting apparatus according to the ‘proximal tibial reference point’, ‘ankle center’, and pre-operatively measured medio-lateral cut thickness difference. (D) Check the limb and component coronal alignment using cable method.
