Predictive Factors of Wound Healing and Limb Salvage After Successful Below-the-Knee Endovascular Angioplasty in Patients with Diabetic Foot Ulcer: A Retrospective Study
1
Department of Surgery, Uijeongbu Eulji University Hospital, Uijeongbu 11759, Republic of Korea
2
Department of Surgery, Chungbuk National University Hospital, Chungju 28644, Republic of Korea
*
Author to whom correspondence should be addressed.
Medicina 2025, 61(2), 277; https://doi.org/10.3390/medicina61020277
Submission received: 21 December 2024
/
Revised: 12 January 2025
/
Accepted: 4 February 2025
/
Published: 6 February 2025
(This article belongs to the Section Surgery)
Abstract
:Background and Objectives: The primary objective of this study was to determine the predictive factors of limb salvage and wound healing in patients presenting with diabetic foot ulcers (DFUs) following successful below-the-knee endovascular angioplasty. Materials and Methods: Between January 2014 and January 2019, we retrospectively analyzed the wound healing and limb salvage rates of 85 patients (88 limbs) who underwent infra-popliteal endovascular treatment (EVT) for DFUs. Numerous variables were explored, including age, sex, comorbidities, and the scores from three DFU grading systems (Wagner grade, University of Texas (UT) grade and stage, and Wound, Ischemia, and foot Infection (WIfI) stage). Univariate and multivariate Cox proportional hazards analyses were conducted to determine the associations between adverse events and these variables. Results: During follow-up, 44 wounds healed completely, 47 limb amputations (major, 25; minor, 22) were required, and 17 limbs needed reintervention for wound healing. Nine patients who received treatment died of cardiovascular and cerebrovascular diseases, pneumonia, and other causes. At 1, 3, 6, 9, and 12 months, total wound healing rates were 4.6%, 16.9%, 27.5%, 34.5%, and 64.5%, respectively. At 6 months, 1 year, 2 years, and 5 years, amputation-free survival rates were 77.6%, 72.4%, 63.3%, and 63.3%, respectively. In multivariate Cox analyses, the UT grade and stage were associated with increased wound non-healing, while the UT grade and Wagner grade were associated with increased major lower-extremity amputation rates. Importantly, the UT grade was the only simultaneous risk factor predicting both wound healing and limb salvage. Conclusions: Despite successful below-the-knee angioplasty, a significant proportion of patients experienced wound non-healing and major amputation. The UT grade may serve as a predictor for both wound healing and limb salvage outcomes.
1. Introduction
According to a recent study, the prevalence of diabetes is 6.4% worldwide, and it is estimated that 10–15% of patients have a limb amputated every 20 s due to DFUs [1,2]. Globally, Type 2 DM is the most common form of diabetes, and its prevalence has risen dramatically over the past few decades. In Korea specifically, recent studies have shown that Type 2 DM increased from approximately 5% in 1988 to 15.3% by 2022, whereas Type 1 DM remains relatively rare (around 0.017–0.021%) [3,4]. As diabetic foot ulcers are more common in patients with Type 2 DM than Type 1 DM [2], understanding the predictors of limb salvage and wound healing has become increasingly important. EVT for DFU patients is widely performed because of its technical success rate of up to 90% and clinical success rates of around 70%, and in some cases, there are slightly higher rates of limb salvage and amputation-free survival compared to bypass surgery [5,6]. However, despite successful revascularization, many cases of failure to rescue the extremities have been reported. This suggests that the clinical success of bypass surgery or angioplasty is not solely dependent on the patency of the procedure, and that additional predictors—such as DFU classification (e.g., Wagner scale, UT grade and stage, WIfI stage) or pedal arch revascularization status (Type 1: both dorsalis pedis and plantar arteries patent; Type 2A: only dorsalis pedis artery patent; Type 2B: only plantar artery patent; Type 3: both dorsalis pedis and plantar arteries occluded)—can affect DFU outcomes [7,8,9,10]. The Rutherford classification, a representative indicator of ischemic wound evaluation, has traditionally been heavily used, but it relies strongly on measurements like ankle pressure and treadmill tests, which may insufficiently capture the complexity of diabetic foot wounds [11].
Hence, research on objective and comprehensive predictors of delayed wound healing and lower-extremity salvage in DFU patients is needed. Several indicators have been proposed [10,11,12,13] to predict delayed wound healing and lower-extremity salvage rates in these patients. Notably, the WIfI stage and UT grade/stage are objective systems that classify wound conditions into four stages according to ischemia and infection status, showing promise in predicting the delayed wound healing rate or limb salvage rate. However, only a small number of studies have evaluated how both of these factors influence wound healing and limb salvage in patients who undergo below-the-knee (BTK) angioplasty, leaving their full clinical utility uncertain.
2. Materials and Methods
2.1. Ethical Approval
This study was approved by the Institutional Review Board (IRB) of Eulji University Uijeongbu Hospital, Korea (IRB No.: UEMC 2022-05-006-001), and informed consent was not applicable because this is a retrospective study
2.2. Definition
On duplex sonography, stenosis was defined when the peak systolic velocity (PSV) was twice or more that of a normal lesion. Ulcer wound healing was defined as complete re-epithelialization within 1 year. For lower-extremity amputation, amputation above the ankle was defined as major amputation, while amputation below the ankle was defined as minor amputation. Limb salvage was defined as the avoidance of major amputation. Successful EVT was defined as at least one patent runoff vessel.
2.2.1. University of Texas (UT) Classification
The University of Texas (UT) classification system, introduced by Armstrong, Lavery, and Harkless in 1996, assesses ulcers based on depth, infection, and ischemia (four grades [0–3] × four stages [A–D]). (Table S1: Wound classification).
2.2.2. Wagner Classification
The Wagner classification system, introduced by Wagner Jr. in 1981 [14], focuses on ulcer depth and the presence of osteomyelitis or gangrene (five grades [0–5]).
2.2.3. WIfI Classification
The WIfI (Wound, Ischemia, and foot Infection) classification system, introduced by Mills et al. in 2014 [11], assesses ulcers based on wound, ischemia, and foot infection, providing a comprehensive view of the ulcer’s condition. (Table S2: WIFI amputation risk stage. Table S3: WIF amputation benefit stage).
2.3. Study Design and Population
From January 2014 to January 2019, the medical records of 85 patients (88 limbs) who underwent successful BTK EVT for Rutherford stages 5 and 6 DFUs at the Bundang Seoul University Hospital Department of Surgery were retrospectively reviewed. DFU was diagnosed by combining photographic evidence of the ulcer, preoperative studies (e.g., duplex sonography, ankle-brachial index [ABI], toe-brachial index [TBI]), blood test results, computed tomography of the lower extremities, and surgical findings such as angiographic results. Several risk factors known to affect diabetic foot outcomes (including DFU classification and pedal arch revascularization types 1, 2, and 3) were investigated. We excluded patients who had arterial stenosis or occlusion above the knee (femoral and iliac arteries), as well as those who underwent major amputation or bypass surgery at the same time. To minimize variability, we only enrolled patients who underwent successful EVT, the most frequently performed treatment in DFU patients, and excluded those who received bypass surgery.
2.4. Data Collection
We investigated DFU classification systems (Wagner grade, UT grade and stage, WIfI amputation risk stage, and WIfI intervention benefit stage). We also assessed factors such as ABI, toe pressure, transcutaneous oximetry, white blood cell (WBC) count, and C-reactive protein (CRP) to gauge the extent of ulcer infiltration, infection, and ischemic severity. The pedal arch was classified into three types according to revascularization status [10]. The revascularized vessel was further categorized as direct revascularization (DR) or indirect revascularization (IR) depending on whether the treated vessel directly supplied blood to the ulcer site [15,16,17].
2.5. Follow-Up
After the procedure, outpatient visits were conducted at intervals of 1, 3, and 6 months, then at 1 and 2 years. At each visit, ABI and TBI were measured, and ulcer status was confirmed through photographs.
2.6. Statistical Analysis
Age, sex, comorbidities, and ulcer characteristics were analyzed as potential risk factors for wound healing and major amputation (Table 1). Continuous variables are reported as mean ± SD and were compared using paired t-tests. Statistical significance was set at p < 0.05. Categorical variables were expressed as frequencies (%) and compared with the chi-squared test or Fisher’s exact test. Cox regression (univariate and multivariate) analyses were performed using SPSS Statistics 26 (IBM Corp, New York, NY, USA). The univariate Cox proportional hazards model was used to analyze variables (including DFU classification) in relation to major amputation and wound healing. All variables with p < 0.05 in the univariate analysis were included in the multivariate stepwise Cox analysis. Clinical outcomes, such as wound healing, limb salvage, reintervention-free survival, and mortality, were assessed by the Kaplan–Meier method. Subgroup analyses were performed using log-rank tests.
3. Results
No stenting was performed in this study population. Balloon angioplasty (plain balloon only) was performed in all patients, and aspirin or dual antiplatelet therapy was prescribed continuously post-procedure.
3.1. Clinical Characteristics
The clinical characteristics are summarized in Table 1. Patients were stratified according to wound healing status or lower-limb amputation. In total, 85 patients (88 limbs) were included. The mean age was 74.53 ± 17.81 years, and 62 patients (70%) were men. The mean body mass index (BMI) was 22.07 ± 0.43 kg/m2, the mean serum albumin level was 3.24 ± 0.60 g/dL, the mean glycated hemoglobin level was 7.25 ± 0.14%, the mean WBC count was 8493 ± 298/mL, the mean CRP was 3.03 ± 0.44 mg/dL, and the mean creatinine was 3.718 ± 0.14 mg/dL. Notable comorbidities included hypertension (70%), end-stage renal disease (ESRD) on dialysis (36.4%), coronary artery disease (47.7%), and cerebrovascular disease (21%). Aspirin was taken by 65% of patients, and insulin and cilostazol were each taken by 35%.
Ambulation status (33 [75%] vs. 21 [47.7%], p = 0.009) and ESRD on dialysis (11 [25%] vs. 21 [47.7%], p = 0.0027) differed significantly between the healing and non-healing groups. In the major amputation group, ESRD on dialysis was significantly more frequent (14 [56%] vs. 18 [28.6%], p = 0.01) compared with the limb salvage group. Although not statistically significant, CRP was higher in the major amputation group than in the limb salvage group (3.84 vs. 2.71 mg/dL, p = 0.061); conversely, the toe pressure was higher in the limb salvage group (33.45 mmHg) than in the major amputation group (19.25 mmHg) (p = 0.061). The difference in CRP may be related to a higher rate of infection in the major amputation group, while the higher ABI in that group could be attributable to advanced calcification in the lower-extremity arteries.
3.2. Ulcer Characteristics
Table 2 shows the ulcer characteristics. Of the 88 limbs, 44 wounds healed. The ulcer location was the toe (51 limbs, 58%), forefoot (29 limbs, 33%), heel (4 limbs, 4.5%), or leg/ankle (4 limbs, 4.5%). The ulcer type was an isolated ulcer in 35 limbs (40%), isolated gangrene in 22 limbs (25%), or a combination of ulcer and gangrene in 31 limbs (35%). A total of 61 limbs (70%) had DR, and 27 (30%) had IR. Pedal arch types were as follows: Type 1 (10 limbs, 11.4%), Type 2 (42 limbs, 47%), and Type 3 (36 limbs, 40%). According to the Wagner classification, 25 limbs (28.4%) were grade 1, 11 (12.5%) grade 2, 21 (23.9%) grade 3, 20 (22.7%) grade 4, and 11 (12.5%) grade 5. UT stages were A (14 limbs, 15.9%), B (7 limbs, 8%), C (33 limbs, 37.5%), and D (34 limbs, 38.6%). UT grades were 1 (35 limbs, 39.8%), 2 (45 limbs, 51.1%), and 3 (8 limbs, 9.1%). The WIfI amputation risk stages were stage 1 in 21 limbs (23.9%), stage 2 in 14 (15.9%), stage 3 in 25 (28.4%), and stage 4 in 28 (31.8%). The WIfI intervention benefit stages were stage 1 in 46 limbs (52.3%), stage 2 in 2 limbs (2.3%), stage 3 in 8 limbs (9.1%), and stage 4 in 32 limbs (36.4%). As shown in Table 2 limb salvage rates differed significantly by classification system. In the amputation group, most wounds presented with a high stage or high grade. Among the three DFU classifications, UT grade showed the most consistent association with both delayed wound healing and major amputation.
3.3. Risk Factor Analysis for Delayed Wound Healing and Limb Salvage Rate
Univariate and multivariate Cox proportional hazard analyses for wound healing and limb salvage are presented in Table 3. In the univariate Cox analysis, ambulatory status, preoperative toe pressure, UT grade and stage, Wagner grade, and the WIfI IB stage were significantly associated with wound healing. Stepwise multivariate Cox analysis identified the UT grade and stage as independent predictors of wound healing—meaning that the UT grade (wound depth) and stage (ischemic degree) critically affect wound healing.
In the major amputation group, non-ambulation, ESRD on dialysis, serum albumin level, toe pressure, BMI, Wagner grade, UT grade and stage, and the WIfI AR stage were significant risk factors. In stepwise multivariate Cox analysis, the UT grade and Wagner grade remained as independent predictors of major amputation. In multivariate analysis, the UT grade was the only factor that significantly predicted both wound healing and major amputation.
During follow-up, 44 wounds healed completely, 47 limbs underwent amputation (major, 25; minor, 22), and 17 limbs required reintervention for wound healing. Nine patients died from various causes (cardiovascular or cerebrovascular diseases, pneumonia, etc.). The reintervention-free survival rates at 6 months, 1 year, 2 years, and 5 years were 89.4%, 77.4%, 75.2%, and 68.4%, respectively. The amputation-free survival rates at 6 months, 1 year, 2 years, and 5 years were 71.7%, 63.7%, 57.7%, and 53.6%, respectively. The limb salvage rates were 77.6%, 72.4%, 63.3%, and 63.3%, respectively. Wound healing rates at 1, 3, 6, 9, and 12 months were 4.6%, 16.9%, 27.5%, 34.5%, and 64.5%, respectively (Figure 1). According to Kaplan–Meier survival analyses, risk factors affecting wound healing included UT grade 2 and UT stages B and C, while UT grades 2 and 3 affected major amputation (Figure 2; p < 0.05, log-rank test).
4. Discussion
In this study, the overall amputation rate was 43.4% in DFU patients after successful BTK percutaneous angioplasty, and the limb salvage rates at 6 months, 1 year, 2 years, and 5 years were 77.6%, 72.4%, 63.3%, and 63.3%, respectively. Compared with a previous study reporting that 2.7–30% of bypass-surgery patients required major amputation [18,19], or the study by Won et al. [20] (in which DFU patients had a 47% amputation rate with only 5% major amputations), our major amputation rate appears high. One reason may be that many patients in this cohort had advanced infection and ischemia before receiving proper management, possibly because they were initially evaluated by orthopedic or plastic surgery and were already being considered for amputation.
Previous literature has identified ESRD on dialysis and infectious wounds as important factors for limb salvage [6], but relatively few studies have focused on limb salvage predictors after BTK EVT in Korea [12,13]. A recent study found that hemodialysis is also an independent predictor of lower-limb salvage after BTK EVT, similar to bypass surgery [21]. Other risk factors for limb amputation include older age, male sex, stroke, ischemic heart disease with hypertension, nephropathy, longer diabetes duration, and sensory neuropathy [22,23]. In our current study, the DFU classification—particularly the UT grade—emerged as the only significant risk factor in both the amputation and wound healing groups.
In clinical practice, incomplete wound healing after EVT does not necessarily lead to major amputation. Thus, major amputation alone may not capture the entire scope of DFU outcomes. Wound healing can also be a key factor influencing patient quality of life. While some studies have analyzed limb amputation or wound healing separately, few have examined both outcomes simultaneously in DFU patients undergoing EVT. In our study, we employed the University of Texas (UT), Wagner, and WIFI wound classification systems to evaluate diabetic foot ulcers. When compared, all three systems showed positive trends with increased amputation rates. However, the UT system, which includes stages, proved to be a superior predictor of outcomes. A study published in Diabetes Care (2001) supports this finding, concluding that increasing stages in the UT system, regardless of grade, are associated with a higher risk of amputation and prolonged healing time [14]. The Wagner classification system primarily categorizes wounds based on depth, with each stage providing specific criteria regarding the appearance and condition of the wound. Conversely, the University of Texas (UT) classification system includes infection and necrosis status, offering a more comprehensive reflection of the complexity and urgency of treatment. While the Wagner system intuitively divides the severity of wounds, the UT system captures critical details necessary for treatment, including infection and necrosis status. Both systems are essential for treating diabetic foot ulcers, but the UT system can be considered more detailed and practical in guiding treatment decisions. This paper explains that the two wound classification systems evaluate diabetic foot ulcers based on different criteria and play a crucial role in therapeutic approaches. The systems are complementary and should be selected according to the wound characteristics and treatment needs. ‘Penetrating to tendon or capsule (UT grade II) and to bone or joint (UT grade III) present a complex set of issues—including compromised vascular supply, elevated risk of infection, and a chronic inflammatory environment—which collectively delay wound healing and increase the risk of amputation’. As wounds become deeper, blood flow is restricted, leading to reduced tissue oxygenation, and the risk of infection (e.g., osteomyelitis) rises when bone or joint structures are involved. In addition, chronic inflammation impairs tissue regeneration and complicates mechanical offloading, further delaying wound improvement. Therefore, procedures such as revascularization, infection control, debridement of necrotic tissue, offloading, and advanced regenerative therapies must be integrated, ideally through a multidisciplinary approach to optimize outcomes. Consequently, higher UT grades indicate greater wound depth and more complex complications, making early detection and aggressive intervention critical for improving wound healing rates and reducing the risk of amputation. Indeed, if both the wound depth and ischemic status are assessed via the UT grade and stage, more accurate predictions of wound healing and major amputation may be achieved.
This study has several limitations. First, it was retrospective and included a relatively small number of patients, because (1) many patients were excluded to focus on a single treatment method, and (2) long-term treatment is challenging, leading to loss to follow-up. Second, our study is a retrospective analysis based on chart reviews and treatment imaging results. Due to the limitations inherent in chart reviews, we were unable to accurately categorize the type and duration of diabetes mellitus (DM). Specifically, data on HbA1c levels, the duration of diabetes, and the type of diabetes were not consistently available in the charts reviewed. This limitation makes it challenging to provide a detailed breakdown. Additionally, the exact date of the first diagnosis of diabetes is not specified, and HbA1c measurements, which could have served as a reference point, were not routinely conducted prior to treatment. As a result, it is difficult to accurately reflect these metrics in our statistics. Consequently, we are unable to provide precise figures for the numbers of Type 1 (T1D) and Type 2 (T2D) diabetes cases or their respective durations in the tables. Additionally, as a retrospective chart review study analyzing surgical treatment and visual wound assessments, many charts were missing information regarding medications or antibiotics used during treatment, which prevented us from including these data in the study. Additionally, in the case of diabetic foot ulcers, the characteristics can vary greatly among patients, making it challenging to establish uniform classification criteria. Thus, the first priority should be to create clear and standardized criteria for classification. Additionally, further research should include a detailed investigation of the type and duration of diabetes, the medications being taken, associated complications, and blood test results reflecting the severity of diabetes. This would provide a more comprehensive understanding of the factors that exacerbate diabetic foot ulcers.
Finally, by extending the study duration, we could recruit a larger patient cohort and expand the timeframe over which treatment outcomes are assessed. This would allow for more robust data collection and analysis, ultimately leading to more effective treatment protocols and better management strategies for patients with diabetic foot ulcers.
5. Conclusions
The UT grade, which objectively reflects the severity of diabetic foot ulcers, can predict wound healing and limb salvage in patients undergoing BTK EVT. Despite successful below-the-knee angioplasty, a significant proportion of patients still experience non-healing wounds and major amputation. Identifying high-risk patients using the UT classification could guide more timely and targeted interventions, potentially improving long-term outcomes.
Supplementary Materials
The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/medicina61020277/s1, Table S1: Wound classification; Table S2: WIFI amputation risk stage; Table S3: WIF amputation benefit stage.
Author Contributions
Conceptualization, C.S.S.; Writing—original draft preparation, C.S.S.; Writing—review & editing, K.C.Y. All authors have read and agreed to the published version of the manuscript.
Funding
This research received no external funding.
Institutional Review Board Statement
The study was conducted in accordance with the Declaration of Helsinki, and approved by the Institutional Review Board of Uijeongbu Eulji Medical Center, Eulji University (approval number: 022-05-006-001; and date: 21 July 2022).
Informed Consent Statement
Patient consent was waived because this is a retrospective study that does not involve the disclosure of patient information. Additionally, no specific patients will receive drug administration, blood sampling, or any other invasive procedures as part of the study.
Data Availability Statement
Data available in a publicly accessible repository. The original data presented in the study are openly available in this article.
Acknowledgments
The authors thank ** Lee (Department of Vascular Surgery, Bundang Seoul National University School of Medicine) for his technical assistance with this study.
Conflicts of Interest
The authors declare no conflict of interest.
References
- Armstrong, D.G.; Boulton, A.J.; Bus, S.A. Diabetic foot ulcers and their recurrence. N. Engl. J. Med. 2017, 376, 2367–2375. [Google Scholar] [CrossRef] [PubMed]
- Zhang, P.; Lu, J.; Jing, Y.; Tang, S.; Zhu, D.; Bi, Y. Global epidemiology of diabetic foot ulceration: A systematic review and meta-analysis (dagger). Ann. Med. 2017, 49, 106–116. [Google Scholar] [CrossRef] [PubMed]
- Song, S.O.; Song, Y.D.; Nam, J.Y.; Park, K.H.; Yoon, J.H.; Son, K.M.; Ko, Y.; Lim, D.-H. Epidemiology of Type 1 Diabetes Mellitus in Korea through an Investigation of the National Registration Project of Type 1 Diabetes for the Reimbursement of Glucometer Strips with Additional Analyses Using Claims Data. Diabetes Metab. J. 2016, 40, 35–45. [Google Scholar] [CrossRef]
- Jang, W.; Kim, S.; Son, Y.; Kim, S.; Kim, H.J.; Jo, H.; Park, J.; Lee, K.; Lee, H.; A Tully, M.; et al. Prevalence, Awareness, Treatment, and Control of Type 2 Diabetes in South Korea (1998 to 2022): Nationwide Cross-Sectional Study. JMIR Public Health Surveill. 2024, 10, e59571. [Google Scholar] [CrossRef] [PubMed]
- Machin, M.; Younan, H.C.; Gueroult, A.M.; Onida, S.; Shalhoub, J.; Davies, A.H. Systematic review of inframalleolar endovascular interventions and rates of limb salvage, wound healing, restenosis, rest pain, reintervention and complications. Vascular 2022, 30, 105–114. [Google Scholar] [CrossRef]
- Soderstrom, M.I.; Arvela, E.M.; Korhonen, M.; Halmesmaki, K.H.; Alback, A.N.; Biancari, F.; Lepäntalo, M.J.; Venermo, M.A. Infrapopliteal percutaneous transluminal angioplasty versus bypass surgery as first-line strategies in critical leg ischemia: A propensity score analysis. Ann. Surg. 2010, 252, 765–773. [Google Scholar] [CrossRef] [PubMed]
- Hicks, C.W.; Canner, J.K.; Mathioudakis, N.; Sherman, R.; Malas, M.B.; Black, J.H., 3rd; Abularrage, C.J. The Society for Vascular Surgery Wound, Ischemia, and foot Infection (WIfI) classification independently predicts wound healing in diabetic foot ulcers. J. Vasc. Surg. 2018, 68, 1096–1103. [Google Scholar] [CrossRef]
- Tokuda, T.; Hirano, K.; Sakamoto, Y.; Mori, S.; Kobayashi, N.; Araki, M.; Yamawaki, M.; Ito, Y. Use of the Wound, Ischemia, foot Infection classification system in hemodialysis patients after endovascular treatment for critical limb ischemia. J. Vasc. Surg. 2018, 67, 1762–1768. [Google Scholar] [CrossRef] [PubMed]
- Cerqueira, L.O.; Duarte, E.G.; Barros, A.L.S.; Cerqueira, J.R.; De Araújo, W.J.B. WIfI classification: The Society for Vascular Surgery lower extremity threatened limb classification system, a literature review. J. Vasc. Bras. 2020, 19, e20190070. [Google Scholar] [CrossRef]
- Kawarada, O.; Fujihara, M.; Higashimori, A.; Yokoi, Y.; Honda, Y.; Fitzgerald, P.J. Predictors of adverse clinical outcomes after successful infrapopliteal intervention. Catheter. Cardiovasc. Interv. 2012, 80, 861–871. [Google Scholar] [CrossRef] [PubMed]
- Mills, J.L., Sr.; Conte, M.S.; Armstrong, D.G.; Pomposelli, F.B.; Schanzer, A.; Sidawy, A.N.; Andros, G. The Society for Vascular Surgery Lower Extremity Threatened Limb Classification System: Risk stratification based on wound, ischemia, and foot infection (WIfI). J. Vasc. Surg. 2014, 59, 220–234.e221-222. [Google Scholar] [CrossRef]
- Das, S.K.; Yuan, Y.F.; Li, M.Q. Predictors of delayed wound healing after successful isolated below-the-knee endovascular intervention in patients with ischemic foot ulcers. J. Vasc. Surg. 2018, 67, 1181–1190. [Google Scholar] [CrossRef] [PubMed]
- Jeon, B.J.; Choi, H.J.; Kang, J.S.; Tak, M.S.; Park, E.S. Comparison of five systems of classification of diabetic foot ulcers and predictive factors for amputation. Int. Wound J. 2017, 14, 537–545. [Google Scholar] [CrossRef]
- Oyibo, S.O.; Jude, E.B.; Tarawneh, I.; Nguyen, H.C.; Harkless, L.B.; Boulton, A.J.M. A Comparison of Two Diabetic Foot Ulcer Classification Systems: The Wagner and the University of Texas wound classification systems. Diabetes Care 2001, 24, 84–88. [Google Scholar] [CrossRef] [PubMed]
- Chae, K.J.; Shin, J.Y. Is angiosome-targeted angioplasty effective for limb salvage and wound healing in diabetic foot?: A meta-analysis. PLoS ONE 2016, 11, e0159523. [Google Scholar] [CrossRef]
- Khor, B.Y.; Price, P. The comparative efficacy of angiosome-directed and indirect revascularisation strategies to aid healing of chronic foot wounds in patients with co-morbid diabetes mellitus and critical limb ischaemia: A literature review. J. Foot Ankle Res. 2017, 10, 26. [Google Scholar] [CrossRef]
- Da Cruz Renó, L.; Renó, A.a.C.L. The Angiosome Concept and Endovascular Techniques for Limb Salvage; IntechOpen: London, UK, 2024. [Google Scholar]
- Veraldi, G.F.; Mezzetto, L.; Macrì, M.; Criscenti, P.; Corvasce, A.; Poli, R. Comparison of Endovascular Versus Bypass Surgery in Femoropopliteal TASC II D Lesions: A Single-Center Study. Ann. Vasc. Surg. 2018, 47, 179–187. [Google Scholar] [CrossRef] [PubMed]
- Vossen, R.J.; Vahl, A.C.; Fokkema, T.M.; Leijdekkers, V.J.; Van Swijndregt, A.D.M.; Balm, R. Endovascular therapy versus femoropopliteal bypass surgery for medium-length TASC II B and C lesions of the superficial femoral artery: An observational propensity-matched analysis. Vascular 2019, 27, 542–552. [Google Scholar] [CrossRef]
- Won, K.B.; Chang, H.J.; Hong, S.J.; Ko, Y.G.; Hong, M.K.; Jang, Y.; Choi, D. Prognostic usefulness of metabolic syndrome compared with diabetes in Korean patients with critical lower limb ischemia treated with percutaneous transluminal angioplasty. Yonsei Med. J. 2014, 55, 46–52. [Google Scholar] [CrossRef]
- Morisaki, K.; Guntani, A.; Matsuda, D.; Kinoshita, G.; Kawanami, S.; Yoshino, S.; Inoue, K.; Honma, K.; Yamaoka, T.; Mii, S.; et al. Comparison of limb outcomes between bypass surgery and endovascular therapy in dialysis-dependent and -independent patients with chronic limb-threatening ischemia. J. Vasc. Surg. 2024, 79, 316–322.e312. [Google Scholar] [CrossRef]
- Lin, C.; Liu, J.; Sun, H. Risk factors for lower extremity amputation in patients with diabetic foot ulcers: A meta-analysis. PLoS ONE 2020, 15, e0239236. [Google Scholar] [CrossRef] [PubMed]
- Rodrigues, B.T.; Vangaveti, V.N.; Malabu, U.H. Prevalence and Risk Factors for Diabetic Lower Limb Amputation: A Clinic-Based Case Control Study. J. Diabetes Res. 2016, 2016, 5941957. [Google Scholar] [CrossRef]

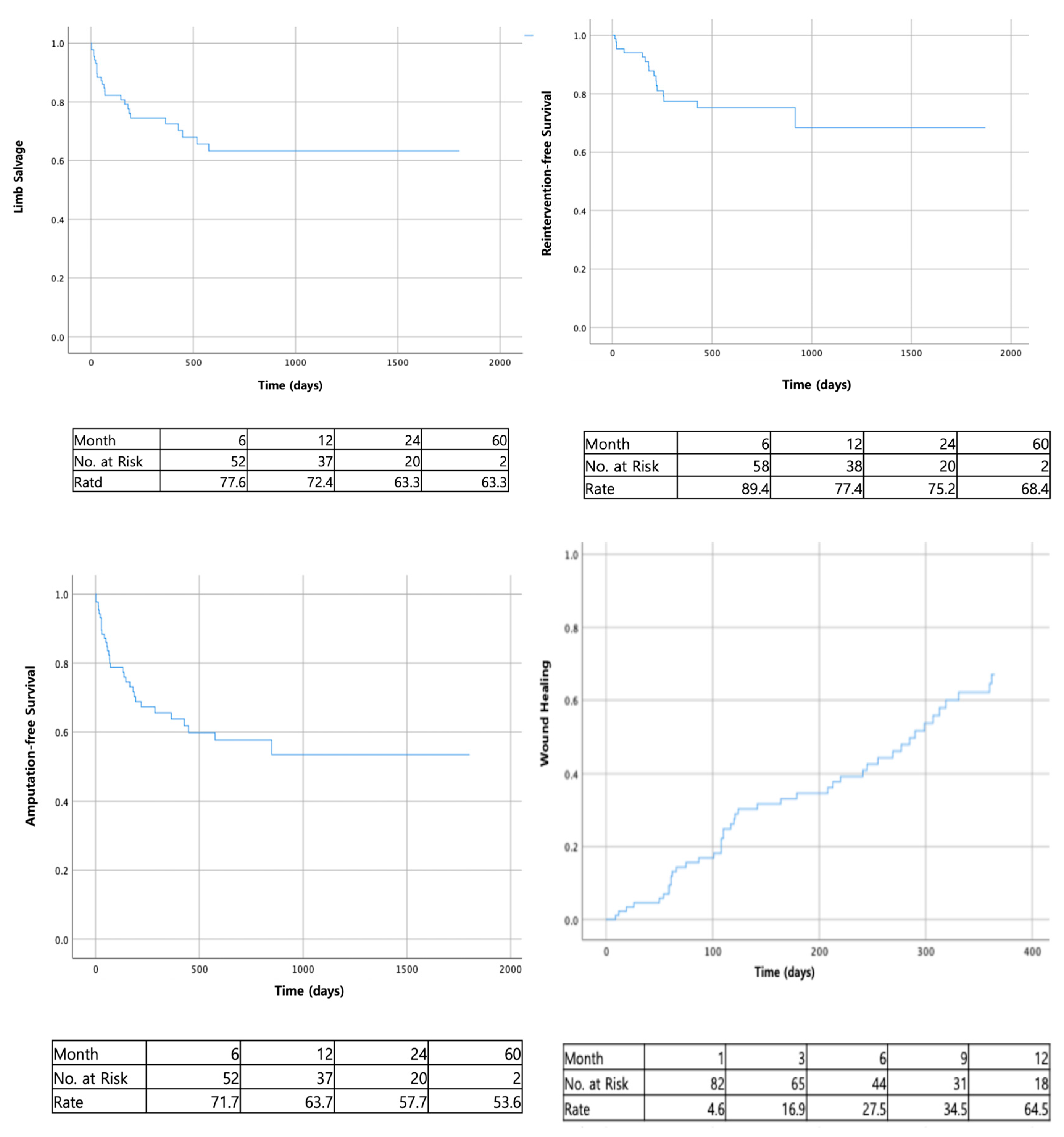

Figure 1.
Kaplan–Meier life-table analysis of clinical outcomes after successful EVT.

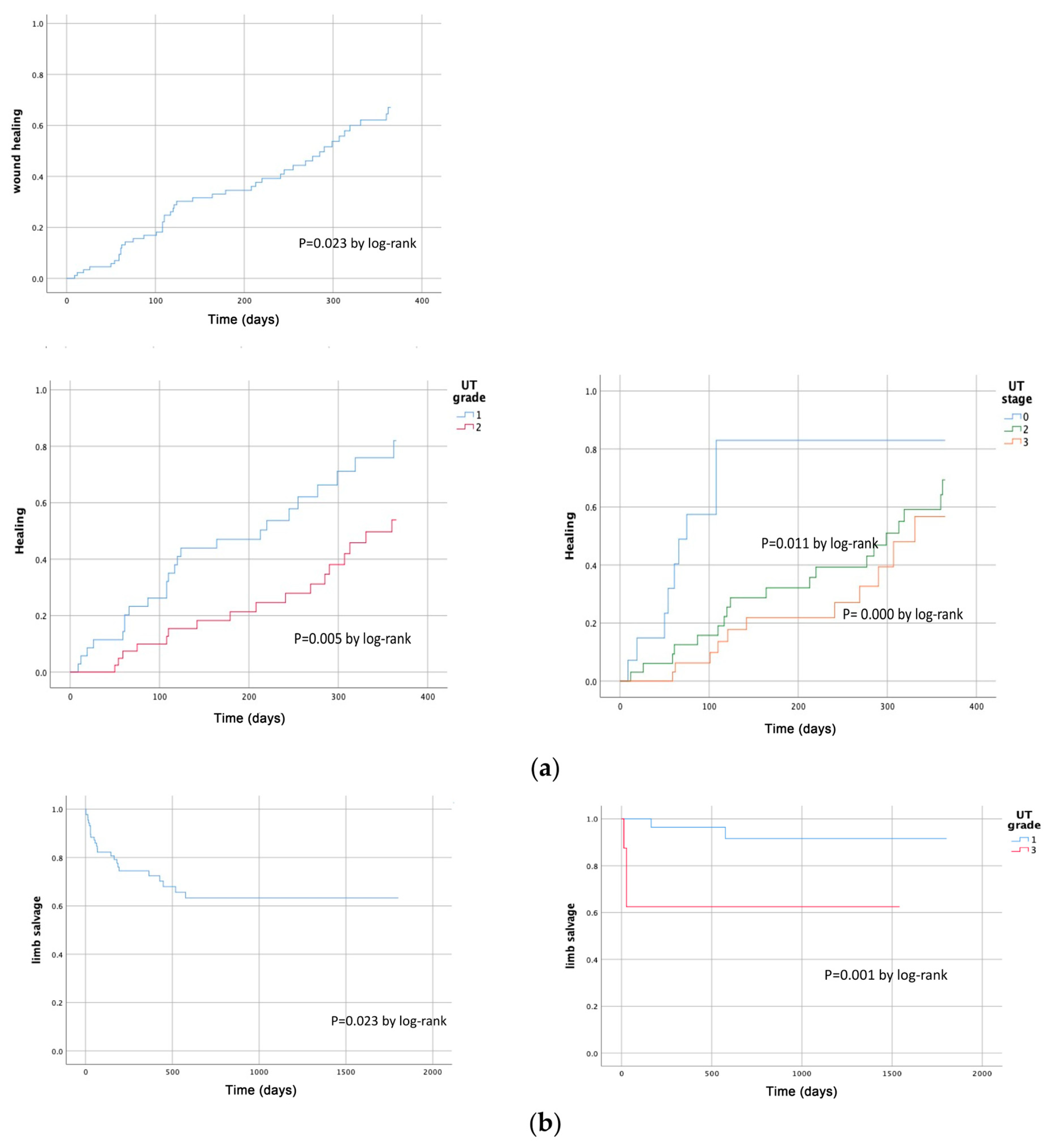

Figure 2.
Kaplan–Meier life-table analysis of wound healing rates (a) and limb salvage rate (b) after EVT stratified by multiple variables(UT grade and stage, p < 0.05).
Figure 2.
Kaplan–Meier life-table analysis of wound healing rates (a) and limb salvage rate (b) after EVT stratified by multiple variables(UT grade and stage, p < 0.05).
Table 1.
Patients’ demographics per group (healed vs. non-healed, (a), and amputation vs. non-amputation, (b)).
Table 1.
Patients’ demographics per group (healed vs. non-healed, (a), and amputation vs. non-amputation, (b)).
| (a) | ||||
| Variables | Healed (n = 44) | Non-Healed (n = 44) | Total (n = 88) | p-Value |
| Age (years) | 74.659 | 74.409 | 74.53 ± 1.94 | 0.215 |
| Male, n (%) | 34 (77.3%) | 28 (63.6%) | 62 (70%) | 0.161 |
| BMI | 22.73 | 21.41 | 22.07 ± 0.43 | 0.129 |
| HbA1c | 7.17 | 7.33 | 7.25 ± 0.18 | 0.070 |
| Hb | 10.81 | 10.32 | 10.56 ± 0.18 | 0.907 |
| WBC | 8472 | 8515 | 8493 ± 298 | 0.756 |
| CRP | 3.08 | 2.99 | 3.03 ± 0.46 | 0.805 |
| Creatine | 2.55 | 4.78 | 3.67 ± 0.71 | 0.100 |
| Albumin | 3.39 | 3.10 | 3.24 ± 0.06 | 0.239 |
| ABI | 0.645 | |||
| >0.8 | 25 (62.5%) | 21 (58.3%) | 46 (60.5%) | |
| 0.6~0.79 | 6 (15%) | 5 (13.9%) | 11 (14.5%) | |
| 0.4~0.59 | 7 (17.5%) | 5 (13.9%) | 12 (15.8%) | |
| <0.4 | 7 (9.2%) | 5 (13.9%) | 7 (9.2%) | |
| TP | 0.324 | |||
| >60 | 6 (15.8%) | 3 (7.5%) | 9 (11.5%) | |
| 40~59 | 10 (26.3%) | 7 (17.5%) | 17 (21.8%) | |
| 30~39 | 6 (15.8%) | 5 (12.5%) | 11 (14.1%) | |
| <30 | 16 (42.1%) | 25 (32.5%) | 41 (52.6%) | |
| TCPO2 | 0.511 | |||
| >40 | 11 (28.2%) | 12 (30%) | 23 (29.1%) | |
| 30~39 | 7 (17.9%) | 11 (27.5%) | 18 (22.8%) | |
| <30 | 21 (53.8%) | 17 (42.5%) | 38 (48.1%) | |
| HTN | 35 (79.5%) | 35 (79.5%) | 70 (79.5%) | 1.0 |
| CAD | 19 (43.2%) | 23 (52.3%) | 42 (47.7%) | 0.522 |
| CVD | 8 (18.2%) | 11 (25%) | 19 (21.6%) | 0.605 |
| ESRD on dialysis | 11 (25%) | 21 (47.7%) | 32 (36.4%) | 0.027 |
| Dyslipidemia | 10 (22.7%) | 8 (18.2%) | 18 (20.5%) | 0.597 |
| Smoking | 14 (31.8%) | 12 (27.3%) | 26 (29.5%) | 0.640 |
| Ambulation | 33 (75%) | 21 (47.7%) | 54 (61.4%) | 0.009 |
| Aspirin | 26 (59.1%) | 32 (72.7%) | 58 (65.9%) | 0.177 |
| Cilostazol | 14 (31.8%) | 17 (38.6%) | 31 (35.2%) | 0.503 |
| (b) | ||||
| Variables | Amputation (n = 25) | Non-Amputation (n = 63) | Total (n = 88) | p-Value |
| Age (years) | 73.8 | 74.82 | 74.53 ± 1.17 | 0.549 |
| Male, n (%) | 17 (68%) | 45 (71.4%) | 62 (70%) | 0.751 |
| BMI | 20.34 | 22.75 | 22 ± 0.43 | 0.155 |
| HbA1c | 7.14 | 7.30 | 7.25 ± 0.14 | 0.661 |
| Hb | 10.11 | 10.75 | 10.56 ± 0.18 | 0.134 |
| WBC | 8792 | 8374 | 8493 ± 298 | 0.608 |
| CRP | 3.88 | 2.69 | 3.03 ± 0.44 | 0.061 |
| Creatine | 3.97 | 3.54 | 3.68 ± 0.71 | 0.407 |
| Albumin | 3.00 | 3.34 | 3.24 ± 0.06 | 0.174 |
| ABI | 0.621 | |||
| >0.8 | 16 (69.6%) | 30 (56.6%) | 46 (60.5%) | |
| 0.6~0.79 | 2 (8.7%) | 9 (17%) | 11 (14.5%) | |
| 0.4~0.59 | 4 (17.4%) | 8 (15.1%) | 12 (15.8%) | |
| <0.4 | 1 (4.3%) | 6 (11.3%) | 7 (9.2%) | |
| TP | 0.80 | |||
| >60 | 1 (4.2%) | 8 (14.8%) | 9 (11.5%) | |
| 40~59 | 2 (8.3%) | 15 (27.8%) | 17 (21.8%) | |
| 30~39 | 4 (16.7%) | 7 (13%) | 11 (14.1%) | |
| <30 | 17 (70.8%) | 24 (44.4%) | 41 (52.6%) | |
| TCPO2 | 0.498 | |||
| >40 | 7 (30.4%) | 16 (28.6%) | 23 (29.1%) | |
| 30~39 | 7 (30.4%) | 11 (30.4%) | 18 (22.8%) | |
| <30 | 9 (39.1%) | 29 (51.8%) | 38 (48.1%) | |
| HTN | 18 (72%) | 52 (82.5%) | 70 (79.5%) | 0.269 |
| CAD | 12 (48%) | 30 (47.6%) | 42 (47.7%) | 0.974 |
| CVD | 8 (32%) | 11 (17.5%) | 19 (21.6%) | 0.135 |
| ESRD on dialysis | 14 (56%) | 18 (28.6%) | 32 (36.4%) | 0.016 |
| Dyslipidemia | 4 (16%) | 14 (22.2%) | 18 (20.5%) | 0.514 |
| Smoking | 9 (36%) | 17 (27%) | 26 (29.5%) | 0.403 |
| Ambulation | 12 (48%) | 42 (66.7%) | 54 (61.4%) | 0.105 |
| Insulin | 10 (40%) | 21 (33.3%) | 31 (35.2%) | 0.555 |
| Aspirin | 17 (68%) | 41 (65.1%) | 58 (65.9%) | 0.794 |
| Cilostazol | 11 (44%) | 20 (31.7%) | 31 (35.2%) | 0.278 |
(BMI: Body Mass Index, WBC: white blood cell, CRP: C-Reactive Protein, ABI: Ankle brachial Index, TP: Toe Pressure, TCPO2: Transcutaneous Oxygen Pressure, HTN: Hypertension, CAD: Coronary Artery Disease, CVD: CerebroVascular disease, ESRD: End Stage of Renal Disease).
Table 2.
Baseline lesion characteristics before angioplasty per group (healed vs. non-healed, (a), and amputation vs. non-amputation, (b)).
Table 2.
Baseline lesion characteristics before angioplasty per group (healed vs. non-healed, (a), and amputation vs. non-amputation, (b)).
| (a) | ||||
| Variables | Healed (n = 44) | Non-Healed (n = 44) | Total (n = 88) | p-Value |
| Wound location | 0.309 | |||
| Toe | 27 (61.4%) | 24 (54.5%) | 51 (58%) | |
| Dorsal or plantar | 15 (34.1%) | 14 (31.8%) | 29 (33%) | |
| Ankle | 2 (4.5%) | 2 (4.5%) | 4 (4.5%) | |
| Heel | 0 | 4 (9.1%) | 4 (4.5%) | |
| Wound type | 0.146 | |||
| Ulcer | 22 (50%) | 13 (29.5%) | 35 (39.8%) | |
| Gangrene | 9 (20.5%) | 13 (29.5%) | 22 (25%) | |
| Combined | 13 (29.5%) | 18 (40.9%) | 31 (35.2%) | |
| Vascularization | 0.106 | |||
| DR | 34 (77.3%) | 27 (61.4%) | 61 (69.3%) | |
| IR | 10 (22.7%) | 17 (38.6%) | 27 (30.7%) | |
| Pedal arch classification | 0.360 | |||
| Classification 1 | 7 (15.9%) | 3 (6.8%) | 10 (11.4%) | |
| Classification 2 | 21 (47.7%) | 21 (47.7%) | 42 (47.7%) | |
| Classification 3 | 16 (36.4%) | 20 (45.5%) | 36 (40.9%) | |
| Wagner | 0.084 | |||
| Wagner 1 | 17 (38.6%) | 8 (18.2%) | 25 (28.4%) | |
| Wagner 2 | 6 (13.6%) | 5 (11.4%) | 11 (12.5%) | |
| Wagner 3 | 9 (20.5%) | 12 (27.3%) | 21 (23.9%) | |
| Wagner 4 | 10 (22.7%) | 10 (22.7%) | 20 (22.7%) | |
| Wagner 5 | 2 (4.5%) | 9 (20.5%) | 11 (12.5%) | |
| UT grade | 0.017 | |||
| Grade 1 | 24 (54.5%) | 11 (25%) | 35 (39.85%) | |
| Grade 2 | 17 (38.6%) | 28 (63.6%) | 45 (51.1%) | |
| Grade 3 | 3 (6.85%) | 5 (11.4%) | 8 (9.1%) | |
| UT stage | 0.055 | |||
| Stage A | 10 (22.7%) | 4 (9.1%) | 14 (15.9%) | |
| Stage B | 4 (9.1%) | 3 (6.8%) | 7 (8%) | |
| Stage C | 19 (43.2%) | 14 (31.8%) | 33 (37.5%) | |
| Stage D | 11 (25%) | 23 (52.3%) | 34 (38.6%) | |
| WIFI AR | 0.101 | |||
| Stage 1 | 14 (31.8%) | 7 (15.9%) | 21 (23.9%) | |
| Stage 2 | 8 (15.9%) | 6 (13.6%) | 14 (15.9%) | |
| Stage 3 | 13 (29.5%) | 12 (27.3%) | 25 (28.4%) | |
| Stage 4 | 9 (20.5%) | 19 (43.2%) | 28 (31.8%) | |
| WIFI IB | 0.356 | |||
| Stage 1 | 25 (56.8%) | 21 (47.7%) | 46 (52.3%) | |
| Stage 2 | 2 (4.5%) | 0 | 2 (4.5%) | |
| Stage 3 | 4 (9.1%) | 4 (9.1%) | 8 (9.1%) | |
| Stage 4 | 13 (29.5%) | 19 (43.2%) | 32 (36.4%) | |
| (b) | ||||
| Variables | Major Amputation (n = 25) | Non-Amputation (n = 63) | Total (n = 88) | p-Value |
| Wound location | 0.788 | |||
| Toe | 16 (64%) | 35 (55.6%) | 51 (58%) | |
| Dorsal or plantar | 8 (32%) | 21 (33.3%) | 29 (33%) | |
| Ankle | 1 (4%) | 3 (4.8%) | 4 (4.5%) | |
| Heel | 0 | 4 (6.3%) | 4 (4.5%) | |
| Wound type | 0.140 | |||
| Ulcer | 6 (24%) | 29 (46%) | 35 (39.8%) | |
| Gangrene | 7 (28%) | 15 (23.8%) | 22 (25%) | |
| Combined | 12 (48%) | 19 (30.2%) | 31 (35.2%) | |
| Vascularization | 0.088 | |||
| DR | 14 (56%) | 47 (74.6%) | 61 (69.3%) | |
| IR | 11 (44%) | 16 (25.4%) | 27 (30.7%) | |
| Pedal arch classification | 0.907 | |||
| Classification 1 | 3 (12%) | 7 (11.1%) | 10 (11.4%) | |
| Classification 2 | 11 (44%) | 31 (49.2%) | 42 (47.7%) | |
| Classification 3 | 11 (44%) | 25 (39.7%) | 36 (40.9%) | |
| Wagner | 0.010 | |||
| Wagner 1 | 2 (8%) | 23 (36.5%) | 25 (28.4%) | |
| Wagner 2 | 3 (12%) | 8 (12.7%) | 11 (12.5%) | |
| Wagner 3 | 5 (20%) | 16 (25.4%) | 21 (23.9%) | |
| Wagner 4 | 11 (44%) | 9 (14.3%) | 20 (22.7%) | |
| Wagner 5 | 4 (16%) | 7 (11.1%) | 11 (12.5% | |
| UT grade | 0.001 | |||
| Grade 1 | 2 (8%) | 33 (52.4%) | 35 (39.8%) | |
| Grade 2 | 20 (80%) | 25 (39.7%) | 45 (51.1%) | |
| Grade 3 | 3 (12%) | 5 (7.9%) | 8 (9.1%) | |
| UT stage | 0.004 | |||
| Stage A | 1 (4%) | 13 (20.6%) | 14 (15.9%) | |
| Stage B | 1 (4%) | 6 (9.5%) | 7 (8%) | |
| Stage C | 6 (24%) | 27 (42.9%) | 33 (37.5%) | |
| Stage D | 17 (68%) | 17 (27%) | 34 (38.6%) | |
| WIFI AR | 0.025 | |||
| Stage 1 | 1 (4%) | 20 (31.7%) | 21 (23.9%) | |
| Stage 2 | 3 (12%) | 11 (17.5%) | 14 (15.9%) | |
| Stage 3 | 10 (40%) | 15 (23.8%) | 25 (28.4%) | |
| Stage 4 | 11 (44%) | 17 (27%) | 28 (31.8%) | |
| WIFI IB | 0.683 | |||
| Stage 1 | 15 (60%) | 31 (49.2%) | 46 (52.3%) | |
| Stage 2 | 0 | 2 (3.2%) | 2 ( (2.3%) | |
| Stage 3 | 1 (4%) | 7 (11.1%) | 8 (9.1%) | |
| Stage 4 | 9 (36%) | 23 (36.5%) | 32 (36.4%) | |
Table 3.
Predictors of major amputation and wound healing in the univariate and multivariate Cox proportional hazard analysis.
Table 3.
Predictors of major amputation and wound healing in the univariate and multivariate Cox proportional hazard analysis.
| Variable | Wound Healing | Amputation | ||||
|---|---|---|---|---|---|---|
| Multivariate Analysis | Univariate Analysis | Multivariate Analysis | ||||
| p-Value | Hazard Ratio | p-Value | p-Value | Hazard Ratio | p-Value | |
| Age | 0.921 | 0.349 | ||||
| Male | 0.264 | 0.633 | ||||
| HTN | 0.727 | 0.343 | ||||
| DM | 0.941 | 0.777 | ||||
| CVD | 0.767 | 0.075 | ||||
| CAD | 0.786 | 0.797 | ||||
| Dyslipidemia | 0.133 | 0.586 | ||||
| ESRD on dialysis | 0.053 | 0.264 | 0.007 | 0.220 | ||
| Ambulation | 0.017 | 0.270 | 0.032 | 0.436 | ||
| Smoking | 0.540 | 0.498 | ||||
| Cilostazol | 0.724 | 0.438 | ||||
| Albumin | 0.091 | 0.018 | 0.256 | |||
| CRP | 0.459 | 0.060 | 0.908 | |||
| ABI | 0.858 | 0.130 | ||||
| Toe pressure | 0.031 | 0.471 | 0.040 | 0.438 | ||
| TCPO2 | 0.065 | 0.918 | ||||
| Hb | 0.847 | 0.546 | 0.098 | |||
| BMI | 0.206 | 0.006 | 0.158 | |||
| Wound location | 0.721 | 0.749 | ||||
| Wagner | 0.047 | 0.410 | 0.003 | 0.070 | ||
| UT grade (ref.1) | 0.016 | 0.004 | 0.000 | 0.007 | ||
| 2 | 0.192 (0.069~0.534) | 0.002 | 25.72 (3.41~193.88) | 0.002 | ||
| 3 | 0.442 (0.085~2.297) | 0.332 | 23.81 (2.34~232.50) | 0.006 | ||
| UT stage (ref. A) | 0.003 | 0.003 | 0.000 | 0.464 | ||
| B | 0.141 (0.028~0.698) | 0.016 | ||||
| C | 0.179 (0.069~0.464) | 0.000 | ||||
| D | 0.422 (0.139~1.283) | 0.128 | ||||
| WIFI AR stage | 0.149 | 0.023 | 0.282 | |||
| WIFI IB stage | 0.050 | 0.694 | 0.567 | |||
| Vascularization | 0.342 | 0.129 | ||||
| Pedal arch class | 0.145 | 0.986 | ||||
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content. |
© 2025 by the authors. Published by MDPI on behalf of the Lithuanian University of Health Sciences. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
MDPI and ACS Style
Shin, C.S.; Yoo, K.C. Predictive Factors of Wound Healing and Limb Salvage After Successful Below-the-Knee Endovascular Angioplasty in Patients with Diabetic Foot Ulcer: A Retrospective Study. Medicina 2025, 61, 277. https://doi.org/10.3390/medicina61020277
AMA Style
Shin CS, Yoo KC. Predictive Factors of Wound Healing and Limb Salvage After Successful Below-the-Knee Endovascular Angioplasty in Patients with Diabetic Foot Ulcer: A Retrospective Study. Medicina. 2025; 61(2):277. https://doi.org/10.3390/medicina61020277
Chicago/Turabian StyleShin, Chang Sik, and Kwon Cheol Yoo. 2025. "Predictive Factors of Wound Healing and Limb Salvage After Successful Below-the-Knee Endovascular Angioplasty in Patients with Diabetic Foot Ulcer: A Retrospective Study" Medicina 61, no. 2: 277. https://doi.org/10.3390/medicina61020277
APA StyleShin, C. S., & Yoo, K. C. (2025). Predictive Factors of Wound Healing and Limb Salvage After Successful Below-the-Knee Endovascular Angioplasty in Patients with Diabetic Foot Ulcer: A Retrospective Study. Medicina, 61(2), 277. https://doi.org/10.3390/medicina61020277
