Article

Evaluation of Anatomical Measurements of the Bulbus Oculi by Optical Biometry in the Eastern Region of Türkiye

by
Methiye Batur
1,2,*,
Veysi Yıldız
3,
Muhammed Batur
4,
Erbil Seven
3 and
Serek Tekin
3
1
Department of Anatomy, Health Sciences Institute, Ataturk University, 25030 Erzurum, Turkey
2
Department of Anatomy, Medical Faculty, Yuzuncu Yıl University, 65090 Van, Turkey
3
Department of Ophthalmology, Medical Faculty, Yuzuncu Yıl University, 65090 Van, Turkey
4
Urartu Eye Center, 65080 Van, Turkey
*
Author to whom correspondence should be addressed.
Medicina 2025, 61(4), 692; https://doi.org/10.3390/medicina61040692
Submission received: 8 February 2025 / Revised: 2 April 2025 / Accepted: 7 April 2025 / Published: 10 April 2025
(This article belongs to the Collection Advances in Cornea, Cataract, and Refractive Surgery)

Abstract

:
Background and Objectives: The objective was to assess ocular biometric measurements in relation to age and gender among patients scheduled for cataract surgery, utilizing an optical biometry device. Materials and Methods: The optical biometric parameters evaluated included axial length (AL), central corneal thickness (CCT), anterior chamber depth (AD), lens thickness (LT), horizontal corneal diameter (WTW), and keratometry values in the flat (K1) and steep (K2) meridians. Astigmatism (AST) was also measured as the difference between these keratometry values. Results: A total of 14,183 optical biometric measurements were included in the study. The average age of the participants was determined to be 56 (3–110) years. The average AL was 23.57 ± 1.45 mm, the average AD was 2.76 ± 0.42 mm, the average CCT was 518.13 ± 37.81 μm, the average WTW distance was 11.88 ± 0.59 mm, and the average LT was 4.19 ± 0.51 mm. The keratometry measurements were recorded as K1 = 43.39 ± 1.96 diopters (D), K2 = 44.51 ± 2.31 D, and AST = 1.12 ± 1.15 D. The average values for male eyes in terms of the AL, AD, WTW, and LT measurements were significantly higher than those for female eyes (p = 0.001). The average K1 and K2 values were flatter in males than in females, while the AST value was found to be higher in females (p = 0.001). As age progressed, the mean AL decreased, the CCT decreased, the AD narrowed, the WTW distance decreased, the LT increased, and the keratometric values K1, K2, and AST decreased until the age of 60, after which they increased again. Conclusions: Research indicates that the measurements of the bulbus oculi are generally larger in males than in females. Furthermore, each of the optical biometric measurements is interrelated. Over time, these measurements may change.

1. Introduction

Widely accepted knowledge exists in the medical literature regarding eye anatomy and the measurements of eye structures. However, recent advancements in the diagnosis and medical–surgical treatments of eye diseases have increased the need for more detailed and accurate data on eye measurements. Recent innovations in surgical techniques and intraocular lens designs have significantly improved the postoperative refractive outcomes of modern cataract surgery, increasing patients’ expectations for good vision without glasses. This outcome depends on the accurate prediction of the implanted intraocular lens (IOL) power, which primarily relies on preoperative biometric data [1]. Myopia, which is rapidly increasing and predicted to become an epidemic in the coming years, is closely related to the biometric measurements of the eye. Studies have examined the prevalence of myopia in populations across different continents, revealing a higher number of myopic eyes in Asian populations [2]. Studies on the relationship between diabetic retinopathy and ocular biometry have highlighted the importance of further biometric studies to elucidate the impact of high myopia and ocular biometry on the protective mechanisms of the eye [3].
Biometry involves the measurement of numerous parameters, the most important of which are axial length (AL), central corneal thickness (CCT), anterior chamber depth, lens thickness (LT), corneal diameter, and corneal curvature (keratometry). AL refers to the anterior–posterior diameter of the eye, measured at the center of the cornea. Keratometry represents the horizontal and vertical curvatures of the cornea. Variations in keratometry values across corneal meridians indicate the presence of corneal astigmatism.
A-scan ultrasound biometry, used to measure the axial length of the eye, was first introduced in 1956. This measurement is performed using an ultrasound probe placed at the center of the cornea. It measures the distance between the cornea and the inner limiting membrane of the retina. This method also provides anterior chamber depth and LT values, along with AL. However, a significant disadvantage of this method is the potential for anterior chamber shallowing due to inadvertent pressure on the cornea. This can lead to shorter eye measurements and higher estimations of intraocular lens power. Other disadvantages of A-scan ultrasound biometry include its low resolution, resulting in an AL measurement accuracy of approximately 100–200 μm. An error of 100 μm can result in a corresponding postoperative refractive error of 0.25 D. Inconsistent measurements can also occur due to retinal thickness inconsistencies in the central retina and off-axis measurements [4].
Optical biometry devices, introduced in 1999 (IOL Master, Carl Zeiss Meditec AG, Jena, Germany), are now widely available. One commonly used optical biometry device, the Lenstar LS900 (Haag-Streit AG, Koeniz, Switzerland), uses a non-contact measurement technique with an 820 nm wavelength laser diode infrared light. Optical biometry measures the distance from the cornea to the retinal pigment epithelium, which explains the inconsistencies in AL values obtained with ultrasound biometry. Optical biometry, with its higher resolution, offers several advantages over ultrasound biometry. Guidance for optical biometry is easier because the patient stabilizes the laser beam, whereas the orientation of the scan often requires an estimate for ultrasound measurements. Optical biometry simultaneously provides multiple parameters, including AL, CCT, anterior chamber depth, LT, keratometry values, corneal diameter, and astigmatism. Other advantages of optical biometry include its independence from the examiner, ease of application, and lack of infection risk. Currently considered the gold standard in ocular biometry, optical biometry has led to the development of more precise biometric systems [4].
Knowledge of the normal variations in ocular anatomy is essential for understanding the pathogenesis, diagnosis, and optimal management of ocular diseases. Ocular biometric parameters are known to vary with ethnicity. Therefore, studies have been conducted worldwide to define the ocular biometric characteristics of different populations [3,5,6]. According to our research, no large-sample studies have been published regarding biometric values for Türkiye. The aim of our study, which included a substantial sample size, was to evaluate ocular biometric measurements based on age and gender.

2. Material and Method

This retrospective study was conducted after obtaining approval from the Van Yüzüncü Yıl University Local Ethics Committee (Date: 20 September 2024, Number: 2024/10-09) and in accordance with the principles of the Declaration of Helsinki. Optical biometric measurements of both eyes of patients diagnosed with cataracts in one or both eyes between April 2016 and May 2024 were taken at the Van Yüzüncü Yıl University Department of Ophthalmology. Eyes that had undergone any eye surgery before, were pseudophakic or aphakic, had cataracts that were too advanced to be measured by optical biometry, or that had corneal pathology or vitreous–retinal pathology were not included in this study. Eyes for which the axial length or lens thickness could not be measured were also not included in this study.
The patients’ age, gender, and optical biometric measurements of the right and left eyes were recorded separately. Among the optical biometry parameters (Figure 1), the AL, corneal center thickness (CCT), anterior chamber depth (humor aqueous depth; AD, distance between corneal endothelium and lens anterior capsule), LT, three to nine o’clock horizontal corneal diameter (WTW, white-to-white), anterior chamber depth (ACD, distance between corneal epithelium and lens anterior capsule), and flat (K1) and steep (K2) keratometry values in the meridian, along with the astigmatism (AST) value, which is the difference between these keratometry values, were recorded.

2.1. Optical Biometry Measurement (Lenstar LS900, Haag-Streit AG, Koeniz, Switzerland)

Patients who underwent a comprehensive ophthalmological examination, including visual acuity, anterior and posterior segment examination, and intraocular pressure measurement, and were diagnosed with cataracts in at least one eye, were included in optical biometry imaging. The optical biometric measurements were performed by experienced technicians in a dimly lit room. After ensuring that the patient focused on the fixation light of the biometry device, they were asked to close and open their eyes. An average of three separate optical biometric measurements was taken. Repeat measurements were performed for patients with low measurement quality.

2.2. Statistical Analysis

Descriptive statistics for the features emphasized are presented as the mean, standard deviation, standard error, confidence interval, and minimum and maximum values. In comparisons made between genders and between eyes (right eye OD, left eye OS) for these features, an independent group t-test was used. To determine the relationships among the features, correlation coefficients were calculated separately within the groups. The chi-square test was used to determine the relationships among the categorical variables. Statistical significance (significance level) was determined as 5% in the calculations and the SPSS (ver: 25) statistical package program was used for the calculations.

3. Results

The majority of the patients were from the eastern part of Türkiye, specifically Van Province and its five neighboring provinces: Ağrı, Bitlis, Hakkari, Muş, and Siirt. Optical biometric measurements were performed on 22,770 eyes on the specified dates. Considering the aforementioned exclusion criteria, a total of 14,183 eyes from 8409 patients were studied. Of these patients, 5774 (68.66%) were bilateral eyes, 1097 (13.05%) were right eyes only, and 1538 (18.29%) were left eyes only. The cases were grouped according to age ranges: 19 years and under, 20–39, 40–59, 60–79, and 80 years and older. The distribution of gender and right/left eye data across these age groups is presented in Table 1 and Figure 2.
The optical biometry parameter measurements were found to vary across age groups. As age increased, the AL value decreased (except in the 19 years and under group), the CCT thinned, the AD narrowed, the WTW decreased, the LT thickened, and the K1, K2, and AST decreased toward age 60, and then increased again (Table 2, Figure 3).
Of the eyes included in the study, 7928 (55.9%) belonged to men and 6255 (44.1%) to women. The average values for the AL, AD, WTW, ACD, and LT measurements were found to be higher in male eyes than female eyes, with a statistically significant difference. The average K1, K2, and AST values were statistically lower in males than females (Table 3).
In the evaluation of the right and left eye ocular parameter averages, statistically significant differences were found in the AL and CCT measurements. Details of the measured parameters are presented in Table 4.
In the correlation analysis of optical biometric measurements, no correlation was found between WTW and CCT, or between K1 and age, AD, ACD, and LT. All other parameters showed either negative or positive correlations with each other (Table 5).

4. Discussion

This study constitutes the largest and most representative study conducted on ocular biometric parameters in Türkiye. Although this study covered patients who underwent optical biometry due to cataracts, it can also be considered as providing normal ocular anatomical data for the reasons described below. First, optical biometric devices, including the Lenstar LS900 (Haag-Streit AG, Switzerland) device, are capable of taking measurements in situations with a level of lens clearance that can pass light. However, measurements cannot be taken in patients with advanced cataracts or corneal opacities [4]. Second, some patients have cataracts in one eye but not in the other. Third, in this study, cases where LT or AL could not be measured due to the opacity of the ocular tissues due to advanced cataracts or insufficient light were excluded. Finally, patients who had undergone surgery affecting the anatomy of the eye, including pseudophakic patients, were also excluded from this study. Additionally, the large number of cases belonging to each age group is important from the perspective of anatomical data. The values of ocular optical biometry differ according to age, gender, and ethnicity. Most extensive studies on optical biometrics involve cases with an average age of over 60 (Table 6). In our study, the average age was 56, with cases ranging from three to 110 years of age, and was calculated separately in groups of 20-year increments. Our study, which included detailed data for each age group, addressed a significant gap in the presentation of anatomical normative values of the eye.
The AL measurement was found to be consistent with the literature (Table 6). Two Chinese studies reported higher AL values than other studies [8,9]. Huang et al. found that cataract patients had a significantly higher prevalence of severe axial myopia, defined as AL > 26.5 mm, compared to the normal population, with a rate of 13.66%.
The mean CCT value in the study was 518.13 μm, which is generally lower than the values reported in the literature (Table 6). The CCT value was 517.5 μm [15] in the Japanese population, and 504.2 μm [16] in the healthy Congolese population. These values suggest that CCT may be a genetically determined trait. However, no genes have been identified as contributing to the normal CCT variation seen in the general population [17].
Examining the pattern of changes that occur with age can help us understand the nature of these changes and take appropriate measures when necessary. The eye structure undergoes physiological and pathological changes that can be difficult to distinguish with age. As age progresses, the decrease in the corneal diameter and the resulting narrowing of the anterior chamber may lead to changes in the corneal architecture as a result of compression of the tissues at the angle. The corneal curvature is reported to become steeper with age, which may be due to some physiological changes that change the elasticity of the cornea and cause it to become steeper [18]. A significant decrease in the CCT has also been reported with age. Mashige et al. has suggested that the decrease in keratocyte density with age is responsible for the decrease in CCT values [18]. Some researchers have reported that changes in corneal curvature and power are associated with the process of emmetropization from childhood, and that these changes lead to the steepening of corneal curvature and astigmatism in older adults [19,20]. We observed that all biometric parameters changed with age. As age progresses, AL values decrease (except for the 19 years and under age group), the CCT becomes thinner, the AD narrows, the WTW decreases, the LT thickens, and the K1, K2, and AST decrease toward the age of 60 and then increase again. Jamali et al. reported that nearly all biometric parameters, including the AL, ACD, LT, WTW distance, and AST, are associated with age-related changes. In this context, they found that younger participants exhibited a greater AL, deeper ACD, thinner LT, and larger WTW than older participants. Furthermore, they reported that the average values of most biometric parameters varied between gender subgroups [21]. These findings underscore the importance of considering patient age and gender when interpreting biometric data for ocular diseases and interventions.
In the evaluation of the average ages of males and females, statistically significant differences were identified. However, these minimal differences are not clinically significant enough to impact the results. The biometric measurements of male eyes are statistically larger than female eyes. Accordingly, the keratometry values in female eyes are steeper and the average astigmatism value is higher. However, no significant difference was found between male and female eyes in terms of the average CCT value we determined. In contrast to our study, Nomura et al. reported that the average CCT value was 518.3 µm in males and 511.1 µm in females in their study using a specular microscope [22]. Shimmyo et al. reported that the average CCT value of male corneas (553.98 µm) was significantly thicker than female corneas (547.72 µm) (p < 0.001) [23]. However, these differences are not clinically significant. Popov et al. reported differences of 0.44 mm in the AL, 3.11 µm in the CCT, 0.12 mm in the WTW, 0.12 mm in the LT, 0.11 mm in the ACD, 0.62 D in the KM, and 0.01 D in the AST between male eyes and female eyes [14]. These differences are generally consistent with our results. However, in our study, the LT difference was found to be 0.02 mm greater in males than in females. The AL, ACD, and keratometry values are generally used for intraocular lens measurement formulas in cataract surgery. These values have been further examined in optical biometric measurements in the literature, and differences in optical biometric measurements between the genders have been reported in line with our study [5,7,11]. Iyamu and Osuobeni found that among healthy Nigerians, men had significantly larger horizontal corneal diameters than women. They concluded that this finding could be explained by the fact that men generally have longer and, therefore, larger eyes than women [24].
In the evaluation of the right and left eye ocular parameter averages, statistically significant differences were found in the AL and CCT measurements. However, these differences are not clinically significant. In one study, no significant difference was found between the right (551.16 µm) and left eyes (552.55 µm) for the mean CCT [23]. Conversely, Foster et al. found a significant difference (p < 0.001) between the right eye (495 µm) and left eye (514 µm) for the mean CCT value [25]. Although there are variations depending on other measurements of the eye, each millimeter difference in AL corresponds to approximately 3 diopters in the intraocular lens measurement [4]. Artificial intraocular lenses are available in different diopters at 0.5 diopter intervals for patients scheduled for cataract surgery. Therefore, AL differences of approximately 0.167 mm and above are considered clinically significant. In this study, the mean AL difference between the right and left eyes was found to be 0.07 mm. In addition to AL measurement, keratometry measurement is also effective in determining the intraocular lens power. In the keratometry values we obtained, no statistically or clinically significant difference was detected between the right and left eyes. Therefore, in eyes with advanced cataracts or in which intraocular lens measurement cannot be performed for other reasons, other eye measurements can be used to give an idea about the use of intraocular lenses.
We found no correlation between the WTW and CCT. Furthermore, the K1 value was not affected by age, but the AD, ACD, and LT, and all other measurements were correlated with each other and age. Naturally, a positive correlation is expected between the AL, WTW and AD. In our study, the AL showed a negative correlation with the LT. In one previous study, a higher LT was found to be associated with a shorter AL [26]. Meng et al. reported that with the extension of the AL, the LT first slightly increased to a maximum of 4.75 ± 0.45 mm in the 20.01–22 mm AL group, then gradually decreased to a minimum of 4.33 ± 0.45 mm in the 26.01–28 mm AL group, and finally increased again and reached a peak when the AL was greater than 35 mm. They noted that AL elongation is associated with myopia and that moderately myopic eyes tend to have thinner lenses than emmetropic eyes [8]. The thinning of the lens in myopic eyes may indicate an attempt to control the overall refractive state of the lens toward emmetropia or may be a result of an attempt to obtain a clear image on the retina [27].
Negative correlations between the CCT and the AL, AD, LT, K1, K2, and AST were observed. Contrary to the findings of Popov et al., which showed no relationship between the AL and CCT, it was observed that the CCT decreased as the AL increased [14]. Similarly, a study show that the CCT decreased in myopic eyes [28]. Another study suggested that a thicker lens is associated with a thicker cornea [8]. However, a negative correlation between the CCT and LT was observed.
The relationship between increasing age and LT is consistent with previous a study supporting an age-related increase in thickness due to the continuous production of new lens fibers in the equatorial region of the lens [26]. In this context, a strong negative correlation between the LT and AD was observed. With the progression of cataracts, the lens tends to thicken bilaterally, which may result in a shallower anterior chamber [26].
In terms of the relationship between CCT and K1 and K2, it was reported that eyes with thicker corneas are flatter and eyes with thinner corneas are steeper [23]. Our study showed that eyeballs with larger AL were associated with flatter corneal curvature, thinner CCT, and profound AD findings. This relationship is consistent with the literature [29]. However, it has also been reported that the CCT is not associated with refractive error, keratometry, AD/ACD, or AL. The CCT has been defined as an independent factor with no relationship to other ocular parameters [29]. These discrepancies can be explained by different methodologies. Although collagen is the main component of the sclera and cornea, differences were observed in glycosaminoglycan and elastin content, hydration, and the predominant collagen type [30]. The CCT may not be affected by the scleral thinning that occurs during globe elongation.
Thanks to optical biometry devices, eye measurements now provide more detailed and accurate data. These devices are continuously evolving, thereby enhancing our understanding of eye diseases. The cross-sectional imaging capabilities of optical imaging techniques enable emerging applications, such as optoretinography, which facilitates the acquisition of both structural and functional information about the eye [31,32].
The most important limitations of our study are that it is retrospective, individuals with and without cataracts cannot be distinguished due to the lack of detailed ophthalmological examination findings, and follow-up data are unavailable due to it being a cross-sectional study. Another limitation of this study is the change in population biometrics over the years; as individuals grow taller, their ocular parameters may also change.

5. Conclusions

This study presents ocular biometric parameters with the largest number of cases in Türkiye. No clinically significant difference was found between the right and left eyes. Male eyes were determined to be larger than female eyes in terms of the AL, AD, WTW, and LT, and the cornea was flatter and astigmatism lower. The optical biometric measurements were observed to be generally related to each other and changed with age. These data may be useful in explaining the anatomical relationships of the eye. By clarifying the risk factors of diseases related to ocular measurements, this research may help in planning more appropriate approaches against such diseases.

Author Contributions

Conceptualization, M.B. (Methiye Batur); data curation, M.B. (Methiye Batur), V.Y., M.B. (Muhammed Batur), E.S. and S.T.; formal analysis, M.B. (Muhammed Batur); investigation, M.B. (Methiye Batur) and V.Y.; methodology, M.B. (Methiye Batur) and M.B. (Muhammed Batur); project administration, M.B. (Muhammed Batur); resources, M.B. (Methiye Batur), V.Y., M.B. (Muhammed Batur) and S.T.; supervision, M.B. (Methiye Batur), V.Y. and M.B. (Muhammed Batur); validation, M.B. (Methiye Batur); visualization, M.B. (Muhammed Batur); writing—original draft, M.B. (Methiye Batur); review and editing, M.B. (Methiye Batur), V.Y. and M.B. (Muhammed Batur) All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

This study was conducted according to the guidelines of the Declaration of Helsinki and approved by the Van Yuzuncu Yil University Ethics Committee (date: 20 September 2024; number: 2024/10-09).

Informed Consent Statement

A waiver of informed consent was granted due to the retrospective design.

Data Availability Statement

The raw data supporting the conclusions of this article will be made available by the authors upon request.

Conflicts of Interest

The authors declare that they have no affiliations with or involvement in any organization or entity with any financial interest in the subject matter or materials discussed in this manuscript.

References

  1. Hoffmann, P.C.; Hütz, W.W. Analysis of biometry and prevalence data for corneal astigmatism in 23 239 eyes. J. Cataract. Refract. Surg. 2010, 36, 1479–1485. [Google Scholar] [CrossRef]
  2. Sherwin, J.C.; Mackey, D.A. Update on the epidemiology and genetics of myopic refractive error. Expert Rev. Ophthalmol. 2013, 8, 63–87. [Google Scholar] [CrossRef]
  3. He, M.; Chen, H.; Wang, W. Refractive errors, ocular biometry, and diabetic retinopathy: A comprehensive review. Curr. Eye Res. 2020, 46, 151–158. [Google Scholar] [CrossRef] [PubMed]
  4. Nenning, M.; Hirnschall, N.; Findl OBiometry OAramberri, J.; Hoffer, K.J.; Olsen, T.; Savini, G.; Shammas, H.J. (Eds.) Intraocular Lens Calculations. Essentials in Ophthalmology; Springer: Cham, Switzerland, 2024; pp. 177–196. [Google Scholar]
  5. Hernández-López, I.; Estradé-Fernández, S.; Cárdenas-Díaz, T.; Batista-Leyva, A.J. Biometry, refractive errors, and the results of cataract surgery: A large sample study. J. Ophthalmol. 2021, 2021, 9918763. [Google Scholar] [CrossRef] [PubMed]
  6. Gaurisankar, Z.S.; van Rijn, G.A.; Lima, J.E.E.; Ilgenfritz, A.P.; Cheng, Y.; Haasnoot, G.W.; Luyten, G.P.; Beenakker, J.W.M. Correlations between ocular biometrics and refractive error: A systematic review and meta-analysis. Acta Ophthalmol. 2019, 97, 735–743. [Google Scholar] [CrossRef] [PubMed]
  7. Ferreira, T.B.; Hoffer, K.J.; Ribeiro, F.; Ribeiro, P.; O’Neill, J.G. Ocular biometric measurements in cataract surgery candidates in Portugal. PLoS ONE 2017, 12, e0184837. [Google Scholar] [CrossRef]
  8. Meng, J.; Wei, L.; He, W.; Qi, J.; Lu, Y.; Zhu, X. Lens thickness and associated ocular biometric factors among cataract patients in Shanghai. Eye Vis. 2021, 8, 22. [Google Scholar] [CrossRef]
  9. Huang, Q.; Huang, Y.; Luo, Q.; Fan, W. Ocular biometric characteristics of cataract patients in western China. BMC Ophthalmol. 2018, 18, 99. [Google Scholar] [CrossRef]
  10. Lim, L.S.; Saw, S.M.; Jeganathan, V.S.E.; Tay, W.T.; Aung, T.; Tong, L.; Mitchell, P.; Wong, T.Y. Distribution and determinants of ocular biometric parameters in an Asian population: The Singapore Malay Eye Study. Investig. Ophthalmol. Vis. Sci. 2010, 51, 103–109. [Google Scholar] [CrossRef]
  11. Fotedar, R.; Wang, J.J.; Burlutsky, G.; Morgan, I.G.; Rose, K.; Wong, T.Y.; Mitchell, P. Distribution of axial length and ocular biometry measured using partial coherence laser interferometry (IOLMaster) in an older white population. Ophthalmology 2010, 117, 417–423. [Google Scholar] [CrossRef]
  12. Lee, K.E.; Klein, B.K.; Klein, R.; Quandt, Z.; Wong, T.Y. Age, Stature, and Education Associations with Ocular Dimensions in an Older White Population. Arch. Ophthalmol. 2009, 127, 88–93. [Google Scholar] [CrossRef] [PubMed]
  13. Tamaoki, A.; Kojima, T.; Hasegawa, A.; Yamamoto, M.; Kaga, T.; Tanaka, K.; Ichikawa, K. Clinical evaluation of a new swept-source optical coherence biometer that uses individual refractive indices to measure axial length in cataract patients. Ophthalmic. Res. 2019, 62, 11–23. [Google Scholar] [CrossRef]
  14. Popov, I.; Waczulikova, I.; Stefanickova, J.; Valaskova, J.; Tomcikova, D.; Shiwani, H.A.; Delev, D.; Rodrigo, L.; Saxena, S.; Kruzliak, P.; et al. Analysis of biometric parameters of 2340 eyes measured with optical biometer Lenstar LS900 in a Caucasian population. Eur. J. Ophthalmol. 2022, 32, 213–220. [Google Scholar] [CrossRef]
  15. Suzuki, S.; Suzuki, Y.; Iwase, A.; Araie, M. Corneal thickness in an ophthalmologically normal Japanese population. Ophthalmology 2005, 112, 1327–1336. [Google Scholar] [CrossRef] [PubMed]
  16. Kelekele, J.T.K.; Kayembe, D.L.; Mwanza, J.C. Profile of central corneal thickness and corneal endothelial cell morpho-density in healthy Congolese eyes. BMC Ophthalmol. 2021, 21, 185. [Google Scholar] [CrossRef] [PubMed]
  17. Dimasi, D.P.; Burdon, K.P.; Craig, J.E. The genetics of central corneal thickness. Br. J. Ophthalmol. 2010, 94, 971–976. [Google Scholar] [CrossRef]
  18. Mashige, K.P. A review of corneal diameter, curvature, and thickness values and influencing factors. Afr. Vis. Eye Health 2013, 72, 185–194. [Google Scholar] [CrossRef]
  19. Read, S.A.; Collins, M.J.; Carney, L.G. A review of astigmatism and its possible genesis. Clin. Exp. Optom. 2007, 90, 5–19. [Google Scholar] [CrossRef]
  20. Fotouhi, A.; Hashemi, H.; Yekta, A.A.; Mohammad, K.; Khoob, M.K. Characteristics of astigmatism in a population of schoolchildren, Dezful, Iran. Optom. Vis. Sci. 2011, 88, 1054–1059. [Google Scholar] [CrossRef]
  21. Jamali, A.; Naghdi, T.; Abardeh, M.H.; Jamalzehi, M.; Khalajzadeh, M.; Kamangar, M.; Tehranchi, N.; Nabovati, P. Ocular biometry characteristics in cataract surgery candidates: A cross-sectional study. Med. Hypothesis Discov. Innov. Ophthalmol. 2021, 10, 11–17. [Google Scholar] [CrossRef]
  22. Nomura, H.; Ando, F.; Niino, N.; Shimokata, H.; Miyake, Y. The relationship between age and intraocular pressure in a Japanese population: The influence of central corneal thickness. Curr. Eye Res. 2002, 24, 81–85. [Google Scholar] [CrossRef] [PubMed]
  23. Shimmyo, M.; Ross, A.J.; Moy, A.J.; Mostafavi, B. Intraocular pressure, Goldmann applanation tension, cornea thickness, and corneal curvature in Caucasians, Asians, Hispanics, and African Americans. Am. J. Ophthalmol. 2003, 136, 603–611. [Google Scholar] [CrossRef] [PubMed]
  24. Iyamu, E.; Osuobeni, E. Age, gender, corneal diameter, corneal curvature and central corneal thickness in Nigerians with normal intraocular pressure. J. Optom. 2012, 5, 87–97. [Google Scholar] [CrossRef]
  25. Foster, P.J.; Baasanhu, J.; Alsbirk, P.H.; Munkhbayar, D.; Uranchimeg, D.; Johnson, G.J. Central corneal thickness and intraocular pressure in a Mongolian population. Ophthalmology 1998, 105, 969–973. [Google Scholar] [CrossRef]
  26. Jonas, J.B.; Nangia, V.; Gupta, R.; Sinha, A.; Bhate, K. Lens thickness and associated factors. Clin. Exp. Ophthalmol. 2012, 40, 583–590. [Google Scholar] [CrossRef]
  27. Muralidharan, G.; Martínez-Enríquez, E.; Birkenfeld, J.; Velasco-Ocana, M.; Pérez-Merino, P.; Marcos, S. Morphological changes of the human crystalline lens in myopia. Biomed. Opt. Express 2019, 10, 6084–6095. [Google Scholar] [CrossRef]
  28. Ying, J.; Wang, Q.; Belin, M.W.; Wan, T.; Lin, S.; Feng, Y.; Gao, R.; Huang, J. Corneal elevation in a large number of myopic Chinese patients. Cont. Lens. Anterior. Eye 2016, 39, 185–190. [Google Scholar] [CrossRef] [PubMed]
  29. Chen, M.J.; Liu, Y.T.; Tsai, C.C.; Chen, Y.C.; Chou, C.K.; Lee, S.M. Relationship between central corneal thickness, refractive error, corneal curvature, anterior chamber depth, and axial length. J. Chin. Med. Assoc. 2009, 72, 133–137. [Google Scholar] [CrossRef]
  30. McBrien, N.A.; Gentle, A. Role of the sclera in the development and pathological complications of myopia. Prog. Retin. Eye Res. 2003, 22, 307–338. [Google Scholar] [CrossRef]
  31. Pijewska, E.; Zhang, P.; Meina, M.; Meleppat, R.K.; Szkulmowski, M.; Zawadzki, R.J. Extraction of phase-based optoretinograms (ORG) from serial B-scans acquired over tens of seconds by mouse retinal raster scanning OCT system. Biomed. Opt. Express 2021, 12, 7849–7871. [Google Scholar] [CrossRef]
  32. Kolokoltsev, O.; Gómez-Arista, I.; Treviño-Palacios, C.G.; Qureshi, N.; Mejia-Uriarte, E.V. Swept source OCT beyond the coherence length limit. IEEE J. Sel. Top. Quantum Electron. 2016, 22, 222–227. [Google Scholar] [CrossRef]

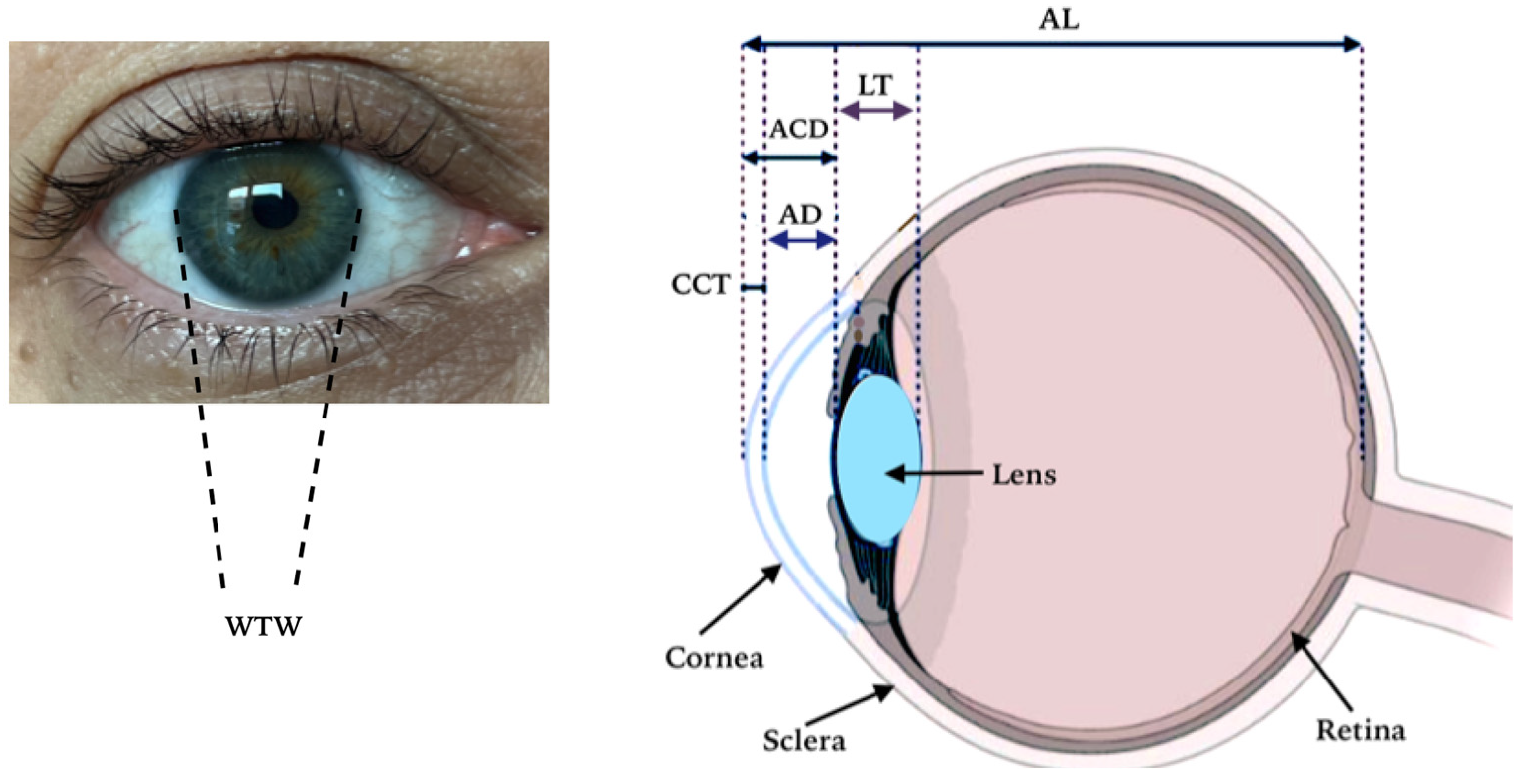

Figure 1. Optical biometry parameters. AL: axial length, CCT: central corneal thickness, AD: humor aqueous depth (between the corneal endothelium and anterior crystalline lens surface), WTW: white-to-white (horizontal corneal diameter), ACD: anterior camera depth (between the corneal epithelium and anterior crystalline lens surface), LT: lens thickness.
Figure 1. Optical biometry parameters. AL: axial length, CCT: central corneal thickness, AD: humor aqueous depth (between the corneal endothelium and anterior crystalline lens surface), WTW: white-to-white (horizontal corneal diameter), ACD: anterior camera depth (between the corneal epithelium and anterior crystalline lens surface), LT: lens thickness.
Medicina 61 00692 g001

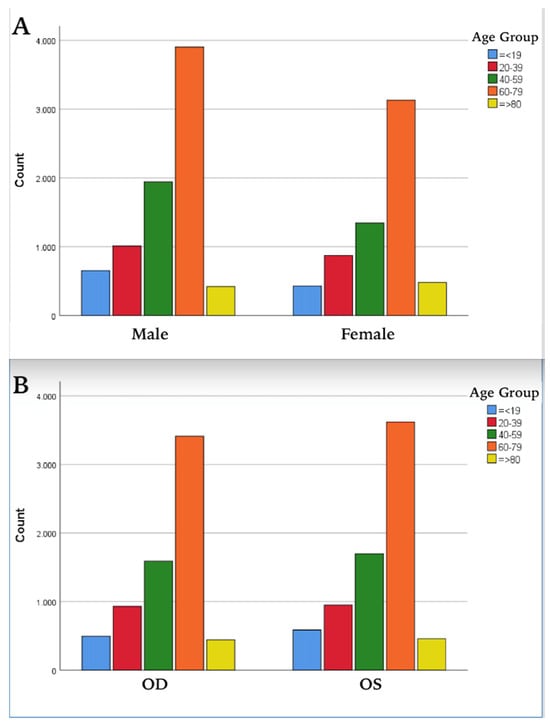

Figure 2. Distribution of subjects by age group, (A) gender (p = 0.001), and (B) right–left eye (p = 0.362). OD: right eye; OS: left eye.
Figure 2. Distribution of subjects by age group, (A) gender (p = 0.001), and (B) right–left eye (p = 0.362). OD: right eye; OS: left eye.
Medicina 61 00692 g002

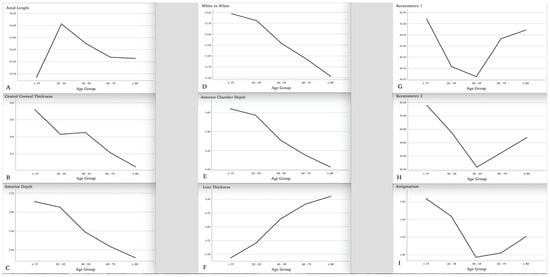

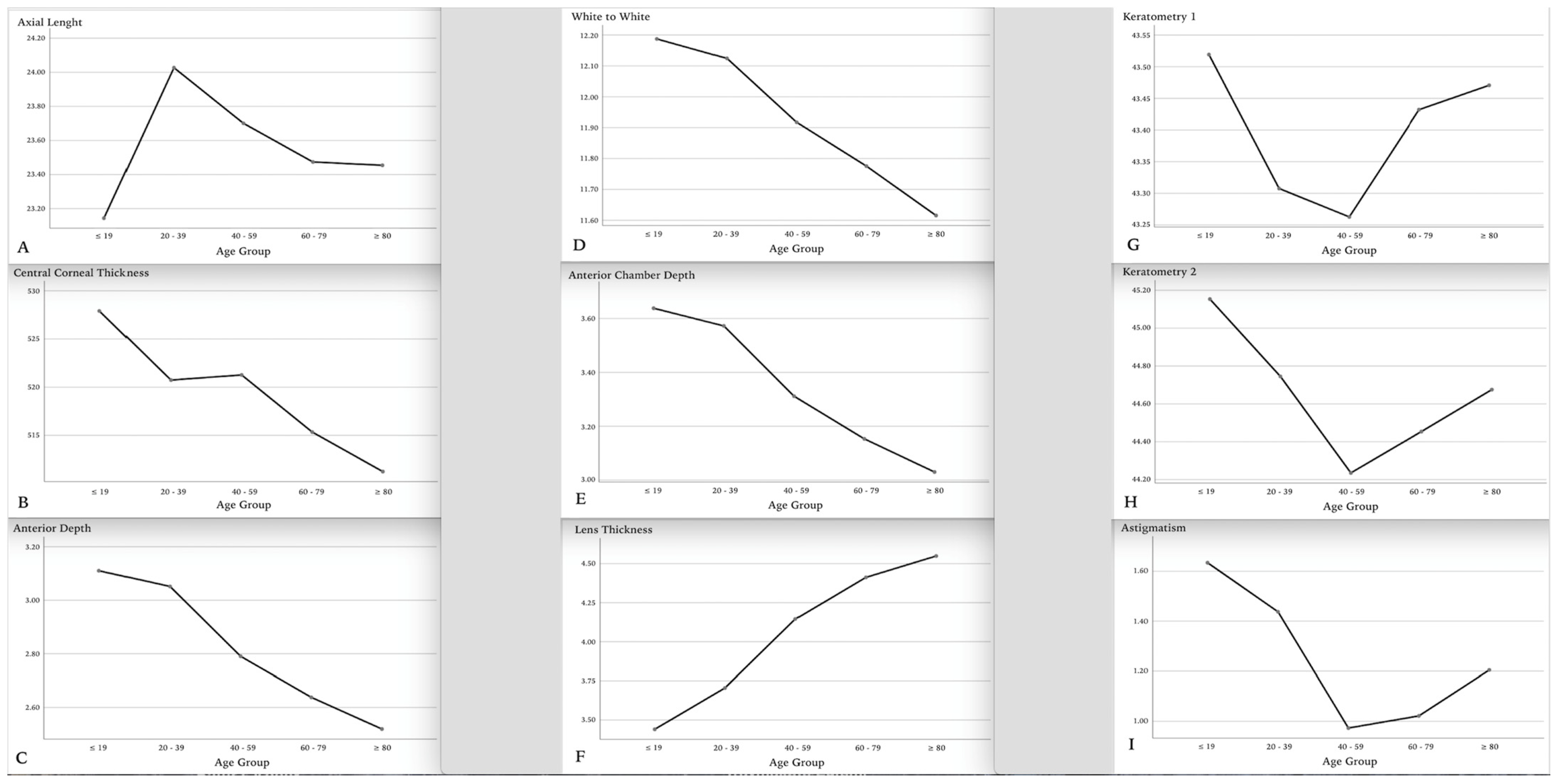

Figure 3. Optical biometric measurements by age group ((AI), p = 0.001).
Figure 3. Optical biometric measurements by age group ((AI), p = 0.001).
Medicina 61 00692 g003
Table 1. Distribution of subjects by age group, gender, and right–left eye.
Table 1. Distribution of subjects by age group, gender, and right–left eye.
Age Group (Year)Total
≤1920–3940–5960–79≥80
Gender
n (%)
Male652 (8.2%)1009 (12.7%)1943 (24.5%)3903 (49.2%)421 (5.3%)7928 (100.0%)
Female428 (6.8%)873 (14.0%)1345 (21.5%)3129 (50.0%)480 (7.7%)6255 (100.0%)
Eye
n (%)
OD494 (7.2%)931 (13.5%)1591 (23.2%)3413 (49.7%)442 (6.4%)6871 (100.0%)
OS586 (8.0%)951 (13.0%)1697 (23.2%)3619 (49.5%)459 (6.3%)7312 (100.0%)
Total 1080 (7.6%)1882 (13.3%)3288 (23.2%)7032 (49.6%)901 (6.4%)14,183 (100.0%)
OD: right eye; OS: left eye.
Table 2. Optical biometric measurements by age group (the differences between age groups that present different letters are statistically significant; p < 0.05).
Table 2. Optical biometric measurements by age group (the differences between age groups that present different letters are statistically significant; p < 0.05).
Mean ± Std. Dev.95% Confidence IntervalMin.Max.p
LowerUpper
AL
(mm)
≤1923.14 ± 1.33 d23.0623.2219.3031.560.001
20–3924.03 ± 1.79 a23.9524.1118.6331.99
40–5923.70 ± 1.66 b23.6423.7618.0931.97
60–7923.47 ± 1.24 c23.4423.5018.7133.47
≥8023.45 ± 1.17 c23.3823.5320.4331.37
Total23.57 ± 1.4523.5523.618.0933.47
CCT
(μm)
≤19527.91 ± 46.94 a525.1530.713467010.001
20–39520.74 ± 42.90 b518.8522.68304735
40–59521.27 ± 34.12 b520.1522.44362652
60–79515.34 ± 36.09 c514.5516.19347735
≥80511.24 ± 36.60 d508.85513.64408695
Total518.13 ± 37.81517.51518.75304735
AD
(mm)
≤193.11 ± 0.36 a3.093.131.775.460.001
20–393.05 ± 0.36 b3.043.071.555.00
40–592.79 ± 0.37 c2.782.801.554.74
60–792.64 ± 0.39 d2.632.651.515.28
≥802.52 ± 0.40 e2.492.551.564.85
Total2.76 ± 0.422.752.761.515.46
WTW
(mm)
≤1912.19 ± 0.57 a12.1512.228.0515.610.001
20–3912.12 ± 0.48 b12.1012.159.6114.04
40–5911.92 ± 0.52 c11.911.948.8915.26
60–7911.78 ± 0.58 d11.7611.797.1214.50
≥8011.62 ± 0.78 e11.5611.677.7514.78
Total11.88 ± 0.5911.8711.897.1215.61
ACD
(mm)
≤193.64 ± 0.35 a3.623.662.295.920.001
20–393.57 ± 0.35 b3.563.592.125.57
40–593.31 ± 0.37 c3.33.322.095.23
60–793.15 ± 0.39 d3.143.161.965.72
≥803.03 ± 0.40 e3.013.062.085.36
Total3.27 ± 0.423.273.281.965.92
LT
(mm)
≤193.44± 0.30 e3.423.462.515.880.001
20–393.70 ± 0.34 d3.693.722.575.81
40–594.15 ± 0.40 c4.134.162.666.38
60–794.41 ± 0.40 b4.404.422.506.14
≥804.55 ± 0.42 a4.524.582.716.45
Total4.19 ± 0.514.184.22.506.45
K1
(D)
≤1943.52 ± 2.55 a43.3743.6735.6965.710.001
20–3943.31 ± 2.67 c43.1943.4333.3972.02
40–5943.26 ± 1.81 c43.2043.3331.0755.60
60–7943.43 ± 1.71 b43.3943.4732.4659.17
≥8043.47 ± 1.76 a43.3543.5936.7248.44
Total43.39 ± 1.9643.3543.4231.0772.02
K2
(D)
≤1945.15 ± 3.51 a44.9445.3637.0277.250.001
20–3944.75 ± 3.51 b44.5944.9033.7779.27
40–5944.24 ± 1.97 d44.1744.3032.8765.18
60–7944.45 ± 1.80 c44.4144.536.9966.60
≥8044.68 ± 1.78 b44.5644.7938.0855.06
Total44.51 ± 2.3144.4744.5532.8779.27
AST
(D)
≤191.63 ± 1.68 a1.531.73012.180.001
20–391.44 ± 1.53 b1.371.51012.87
40–590.97 ± 0.93 d0.941.01010.35
60–791.02 ± 0.98 d1.01.04014.36
≥801.20 ± 1.06 c1.131.2808.65
Total1.12 ± 1.151.111.14014.36
AL: axial length, CCT: central corneal thickness, AD: humor aqueous depth (between the corneal endothelium and anterior crystalline lens surface), WTW: white-to-white (horizontal corneal diameter), ACD: anterior camera depth (between the corneal epithelium and anterior crystalline lens surface), LT: lens thickness, K1: flat keratometry, K2: steep keratometry, AST: astigmatism, D: diopters.
Table 3. Optical biometric measurements by gender (female and male).
Table 3. Optical biometric measurements by gender (female and male).
Mean ± Std. Dev.95% Confidence IntervalMin.Max.p
LowerUpper
Age
(Year)
Male55.76 ± 20.0655.3156.203960.001
Female57.07 ± 20.1756.5757.573110
AL
(mm)
Male23.71 ± 1.2623.6823.7318.6333.470.001
Female23.40 ± 1.6423.3623.4418.0931.99
CCT
(μm)
Male517.95 ± 38.02517.11518.793047350.522
Female518.36 ± 37.52517.43519.29347735
AD
(mm)
Male2.81 ± 0.412.802.821.535.460.001
Female2.69 ± 0.422.682.701.515.08
WTW
(mm)
Male11.94 ± 0.6011.9211.957.1215.610.001
Female11.80 ± 0.5611.7911.817.6214.72
ACD
(mm)
Male3.33 ± 0.413.323.331.965.920.001
Female3.21 ± 0.423.203.222.005.62
LT
(mm)
Male4.20 ± 0.524.194.212.506.450.001
Female4.18 ± 0.494.164.192.516.01
K1
(D)
Male43.04 ± 1.9443.0043.0831.0772.020.001
Female43.82 ± 1.9043.7743.8732.2361.30
K2
(D)
Male44.13 ± 2.2944.0844.1832.8779.270.001
Female44.99 ± 2.2544.9345.0533.7769.92
AST
(D)
Male1.09 ± 1.131.071.120.0012.730.001
Female1.17 ± 1.181.141.200.0014.36
AL: axial length, CCT: central corneal thickness, AD: humor aqueous depth (between the corneal endothelium and anterior crystalline lens surface), WTW: white-to-white (horizontal corneal diameter), ACD: anterior camera depth (between the corneal epithelium and anterior crystalline lens surface), LT: lens thickness, K1: flat keratometry, K2: steep keratometry, AST: astigmatism, D: diopters.
Table 4. Optical biometric measurements for the right and left eyes.
Table 4. Optical biometric measurements for the right and left eyes.
Mean ± Std. Dev.95% Confidence IntervalMinMax.p
LowerUpper
Age
(Year)
OD56.41 ± 19.9155.9456.8831100.651
OS56.26 ± 20.3255.7956.73396
Total56.33 ± 20.1256.0056.673110
AL
(mm)
OD23.61 ± 1.4623.5823.6518.6333.470.003
OS23.54 ± 1.4423.5023.5718.0933.12
Total23.57 ± 1.4523.5523.5818.0933.47
CCT
(μm)
OD517.42 ± 37.59516.53518.313047110.030
OS518.79 ± 37.99517.92519.67346735
Total518.13 ± 37.81517.51518.75304735
AD
(mm)
OD2.76 ± 0.422.752.77061.515.280.262
OS2.75 ± 0.422.742.76231.525.46
Total2.76 ± 0.422.752.76351.515.46
WTW
(mm)
OD11.87 ± 0.5811.8611.897.7314.780.598
OS11.88 ± 0.5911.8611.897.1215.61
Total11.88 ± 0.5911.8711.897.1215.61
ACD
(mm)
OD3.29 ± 0.423.273.291.995.720.346
OS3.27 ± 0.423.263.281.965.92
Total3.27 ± 0.423.273.281.965.92
LT
(mm)
OD4.18 ± 0.514.174.192.516.450.057
OS4.20 ± 0.514.194.212.506.36
Total4.19 ± 0.514.184.202.506.45
K1
(D)
OD43.38 ± 1.9643.3343.4231.0772.020.584
OS43.39 ± 1.9643.3543.4432.4665.71
Total43.39 ± 1.9643.3543.4231.0772.02
K2
(D)
OD44.49 ± 2.3244.4344.5432.8779.270.230
OS44.53 ± 2.3144.4844.5933.7577.25
Total44.51 ± 2.3144.4744.5532.8779.27
AST
(D)
OD1.11 ± 1.171.081.140.014.360.139
OS1.14 ± 1.131.111.160.012.87
Total1.12 ± 1.151.101.140.014.36
OD: right eye, OS: left eye, AL: axial length, CCT: central corneal thickness, AD: humor aqueous depth (between the corneal endothelium and anterior crystalline lens surface), WTW: white-to-white (horizontal corneal diameter), ACD: anterior camera depth (between the corneal epithelium and anterior crystalline lens surface), LT: lens thickness, K1: flat keratometry, K2: steep keratometry, AST: astigmatism, D: diopters.
Table 5. Correlation distribution of optical biometric measurements (**: p < 0.01).
Table 5. Correlation distribution of optical biometric measurements (**: p < 0.01).
Correlations
AgeALCCTADWTWACDLTK1K2AST
Ager1
p
ALr0.033 **1
p0.0001
CCTr0.116 **0.036 **1
p0.00010.0001
ADr0.434 **0.332 **0.087 **1
p0.00010.00010.0001
WTWr0.275 **0.214 **0.0100.368 **1
p0.00010.00010.2500.0001
ACDr0.446 **0.330 **0.0020.996 **0.370 **1
p0.00010.00010.7950.00010.0001
LTr0.654 **0.130 **0.030 **0.609 **0.187 **0.614 **1
p0.00010.00010.00010.00010.00010.0001
K1r0.0010.321 **−0.200 **0.0140.272 **0.0030.0151
p0.8960.00010.00010.0900.00010.6820.075
K2r0.070 **0.232 **−0.251 **0.077 **0.239 **0.054 **0.057 **0.868 **1
p0.00010.00010.00010.00010.00010.00010.00010.0001
ASTr0.142 **0.082 **0.163 **0.129 **0.0160.115 **0.140 **0.039 **0.530 **1
p0.00010.00010.00010.00010.0670.00010.00010.00010.0001
AL: axial length, CCT: central corneal thickness, AD: humor aqueous depth (between the corneal endothelium and anterior crystalline lens surface), WTW: white-to-white (horizontal corneal diameter), ACD: anterior camera depth (between the corneal epithelium and anterior crystalline lens surface), LT: lens thickness, K1: flat keratometry, K2: steep keratometry, AST: astigmatism.
Table 6. Values of optical biometric measurements of the eye from studies conducted across different geographic regions and ethnic backgrounds.
Table 6. Values of optical biometric measurements of the eye from studies conducted across different geographic regions and ethnic backgrounds.
StudyCountryMeasurement MethodAge
(Year)
AL
(mm)
CCT
(μm)
AD
(mm)
WTW
(mm)
ACD
(mm)
LT
(mm)
K1
(D)
K2
(D)
K
(D)
AST
(D)
Our studyTürkiyeLenstar56.41
(3–110)
23.57518.132.7611.883.274.1943.3944.51 1.12
Hernández-López et al., 2021 [5]CubaIOL Master68.723.52---3.024.5543.4744.6144.041.22
Ferreira et al., 2017 [7]PortugalLenstar69
(44–99)
23.87--12.023.254.32--43.911.08
Meng et al., 2021 [8]ChinaIOL Master62.5
(18–101)
24.715502.5211.7-4.51--43.89-
Huang et al., 2018 [9]ChinaIOL Master(50–98)24.32---3.08---44.231.0
Lim et al., 2010 [10]SingaporeIOL Master57.3
(40–80)
23.55---3.10---44.12-
Fotedar et al., 2010 [11]AustraliaIOL Master(59–85+)23.44--12.063.24-43.38-43.42-
Lee et al., 2009 [12]USAIOL Master71.9
(58–100)
23.69---3.11---43.83-
Tamaoki et al., 2019 [13]JapanIOL Master71.9524.09550--3.094.62--44.48-
Popov et al., 2022 [14]SlovakyaLenstar70.35
(19–96)
23.33551-11.963.084.57--44.030.91
AL: axial length, CCT: central corneal thickness, AD: humor aqueous depth (between the corneal endothelium and anterior crystalline lens surface), WTW: white-to-white (horizontal corneal diameter), ACD: anterior camera depth (between the corneal epithelium and anterior crystalline lens surface), LT: lens thickness, K1: flat keratometry, K2: steep keratometry, K: mean keratometry, AST: astigmatism.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Batur, M.; Yıldız, V.; Batur, M.; Seven, E.; Tekin, S. Evaluation of Anatomical Measurements of the Bulbus Oculi by Optical Biometry in the Eastern Region of Türkiye. Medicina 2025, 61, 692. https://doi.org/10.3390/medicina61040692

AMA Style

Batur M, Yıldız V, Batur M, Seven E, Tekin S. Evaluation of Anatomical Measurements of the Bulbus Oculi by Optical Biometry in the Eastern Region of Türkiye. Medicina. 2025; 61(4):692. https://doi.org/10.3390/medicina61040692

Chicago/Turabian Style

Batur, Methiye, Veysi Yıldız, Muhammed Batur, Erbil Seven, and Serek Tekin. 2025. "Evaluation of Anatomical Measurements of the Bulbus Oculi by Optical Biometry in the Eastern Region of Türkiye" Medicina 61, no. 4: 692. https://doi.org/10.3390/medicina61040692

APA Style

Batur, M., Yıldız, V., Batur, M., Seven, E., & Tekin, S. (2025). Evaluation of Anatomical Measurements of the Bulbus Oculi by Optical Biometry in the Eastern Region of Türkiye. Medicina, 61(4), 692. https://doi.org/10.3390/medicina61040692

Article Metrics

Back to TopTop
