Leptogorgins A–C, Humulane Sesquiterpenoids from the Vietnamese Gorgonian Leptogorgia sp.

Abstract

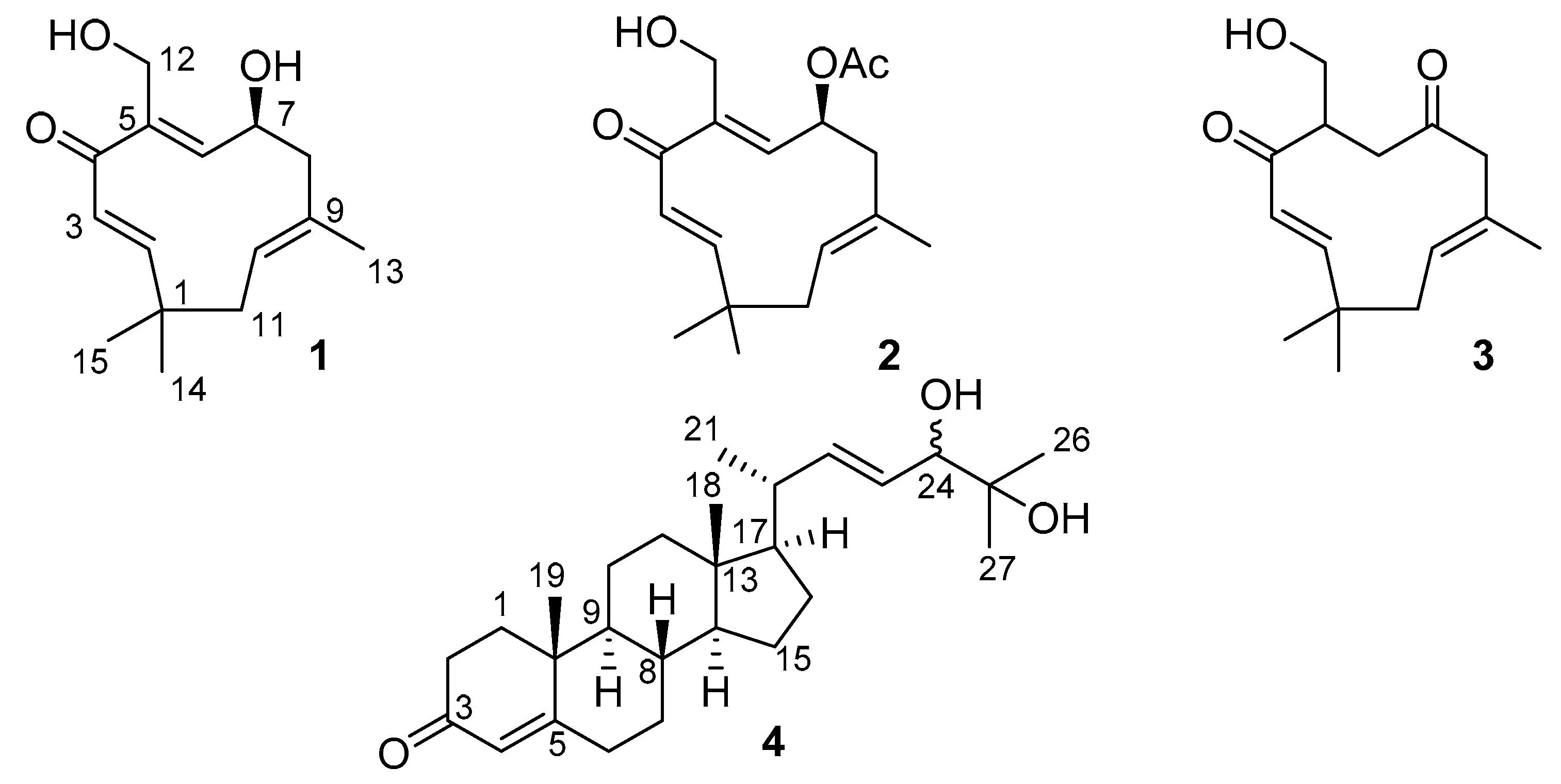

Leptogorgins A–C (1–3), new humulane sesquiterpenoids, and leptogorgoid A (4), a new dihydroxyketosteroid, were isolated from the gorgonian Leptogorgia sp. collected from the South China Sea. The structures were established using MS and NMR data. The absolute configuration of 1 was confirmed by a modification of Mosher’s method. Configurations of double bonds followed from NMR data, including NOE correlations. This is the first report of humulane-type sesquiterpenoids from marine invertebrates. Sesquiterpenoids leptogorgins A (1) and B (2) exhibited a moderate cytotoxicity and some selectivity against human drug-resistant prostate cancer cells 22Rv1.

1. Introduction

Marine gorgonian corals have been reported to be a rich source of isoprenoids with unprecedented chemical structures and biological activities [1]. Species of the genus Leptogorgia (Gorgoniidae) have been shown to produce cembranoids [2,3,4,5,6,7], polyoxygenated steroids [8,9,10,11,12], alkaloids [13], fatty acids [14], homarine [15], thyroxine, and vitamin D [16]. To date, different humulane-type sesquiterpenoids have been found in plants [17,18,19], liverworts [20], and fungi [21,22,23]. However, until recently they were not found in marine invertebrates, including gorgonians. Interestingly, two new norhumulene were isolated from the soft coral Sinularia hirta [24]. In addition, one more norhumulene was found in a formazan soft coral Sinularia gibberosa [25]. Humulanes from the peeled stems of Syringa pinnatifida inhibit NO production in LPS-induced RAW264.7 macrophage cells and decrease the TNF-α and IL-6 levels in RAW264.7 cells [26]. Additionally, plant cytochrome P450 was reported to catalyse the conversion of α-humulene into 8-hydroxy-α-humulene [27].

For some humulenes, an antitumor activity was reported. Thus, zurumbone (2,6,9-humulatriene-8-one), as an active component of the Zingiber aromaticum extract, was shown to be active in human cancer HT-29, CaCO-2, and NCF-7 cell lines. Remarkably, it was more active than curcumin, which was used as a reference compound [28]. Herein, we report the structures and biological activities of three new humulane sesquiterpenoids, leptogorgins A–C (1–3), and a new steroid, leptogorgoid A (4), from the gorgonian Leptogorgia sp. (Figure 1).

2. Results and Discussion

The EtOH extract of the gorgonian Leptogorgia sp. (registration number O38-011) was concentrated and partitioned between aqueous EtOH and n-hexane. The EtOH-soluble materials were separated by silica gel flash chromatography, followed by Sephadex LH-20 column chromatography and normal and reversed-phase HPLC to give leptogorgins A–C (1–3, 2.5, 0.8, and 1.0 mg, respectively) and leptogorgoid A (4, 0.6 mg).

Compound 1 was isolated as a colourless oil. The HRESIMS of 1 showed an [M + Na]⁺ ion peak at m/z 273.1459 and an [M − H]⁻ ion peak at m/z 249.1498, which indicated a molecular formula of C₁₅H₂₂O₃. The ¹³C NMR spectrum displayed 15 signals, which could be assigned to a sesquiterpene substructure. Analysis of the ¹H, ¹³C, and HSQC NMR spectra (

Table 1. ¹H (700 MHz) and ¹³C (175 MHz) NMR spectroscopic data for 1, 2 and 3 in CDCl₃.

Position	1		2		3
	δC	δH mult (J in Hz)	δC	δH mult (J in Hz)	δC	δH mult (J in Hz)
1	38.0 C	-	38.1 C	-	40.4 * C	-
2	164.8 CH	6.32, d (16.3)	162.8 CH	6.24, d (16.3)	152.7 CH	6.29, d (16.1)
3	128.1 CH	5.97, d (16.3)	128.1 CH	6.07, d (16.3)	128.4 CH	5.76, d (16.1)
4	200.8 C	-	199.4 C	-	204.3 C	-
5	143.0 C	-	145.2 C		48.6 CH	3.38, m
6	133.8 CH	5.75, d (10.6)	129.5 C	5.70, dt (10.6; 1.3)	41.2 CH2	2.43, dd (16.9; 2.9)
						2.73, dd (16.9; 9.7)
7	71.7 CH	4.21 td (10.6; 5.4)	72.9 CH	5.28, td (10.6; 5.1)	204.3 C
8	45.3 CH2	1.96, m	42.7 CH2	2.03, m	54.1 CH2	3.00, d (12.4)
		2.68, dd (12.2; 5.4)		2.69, dd (12.5; 5.1)		3.15, d (12.4)
9	132.4 C	-	128.1 C	-	127.8 C	-
10	125.9 CH	5.22, brd (12.5)	127.1 C	5.32, m	129.0 CH	5.37, ddd (10.5; 5.7, 1.2)
11	40.7 CH2	1.95, m	40.7	1.97, m	40.2 * CH2	2.00, m
		2.40, t (12.5)		2.39, t (12.6)		2.07, m
12	64.7 CH2	4.25, d (13.3)	64.8 CH2	4.26, dd (13.2; 4.6)	63.0 CH2	3.78, m
		4.38, d (13.3)		4.40, dd (13.2; 6.3)		3.89, m
13	20.1 CH3	1.72, s	20.0 CH3	1.73, s	19.0 CH3	1.64, s
14	24.0 CH3	1.18, s	23.9 CH3	1.21, s	28.8 CH3	1.21, s
15	29.1 CH3	1.13, s	29.2 CH3	1.13, s	24.3 CH3	1.09, s
COCH3			169.7 C	-
COCH3			21.2 CH3	1.98, s

* Signals may be interchangeable.

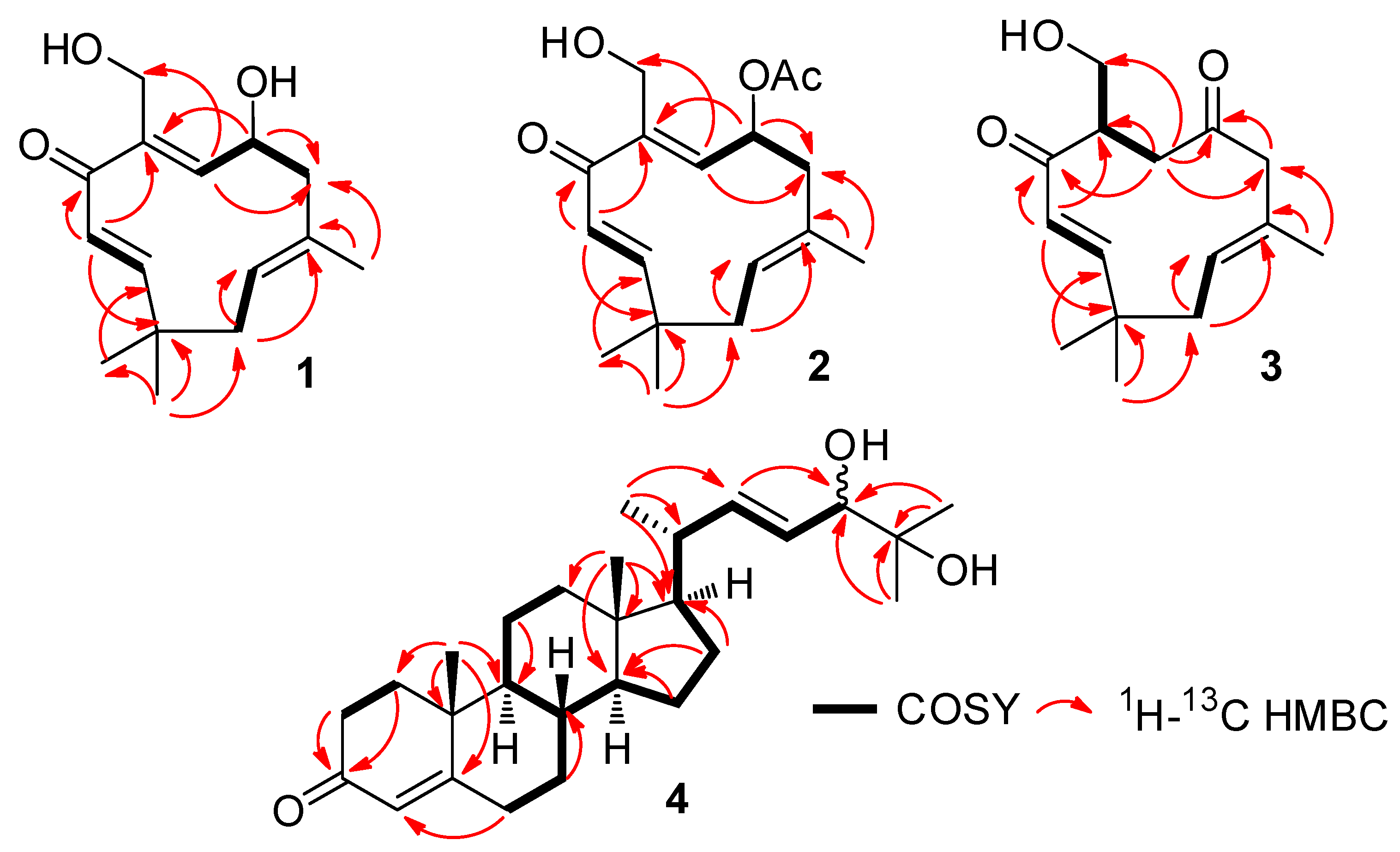

) revealed signals indicative of one ketocarbonyl (δ_C 200.8, C-4), one oxymethine (δ_H 4.21/δ_C 71.7, C-7), one oxymethylene (δ_H 4.25; 4.38/δ_C 64.7, C-12), four methines (δ_H 6.32/δ_C 164.8, C-2; δ_H 5.97/δ_C 128.1, C-3; δ_H 5.75/δ_C 133.8, C-6, and δ_H 5.22/δ_C 125.9, C-10), two quaternary (δ_C 143.0, C-5; δ_C 132.4, C-9) olefinic carbons, and two methylene groups (δ_H 1.96 and 2.68/δ_C 45.3, C-8; δ_H 1.95 and 2.40/δ_C 40.7, C-11), as well as one quaternary carbon (δ_C 38.0, C-1), one corresponding vinylic methyl (δ_H 1.72/δ_C 20.1, CH₃-13) and two methyl singlets (δ_H 1.18/δ_C 24.0, CH₃-14; δ_H 1.13/δ_C 29.1, CH₃-15). The ¹H-¹H COSY spectrum enabled three structural fragments to be established: CH=CH-, -CH-CH-CH₂-, and -CH-CH₂-, which could be connected by observing the correlations in the HMBC experiment (Figure 2). Thus, HMBC correlations from H-3 to C-1, C-4, and C-5, from H-6 to C-12 and C-8, from H-7 to C-5 and C-8, from H-8 to C-7, C-9, C-10, and C-13, from H-11 to C-10, C-9, and C-1, and from CH₃-14 and CH₃-15 to C-1, C-2, and C-11 established the planar structure of 1 (Figure 2).

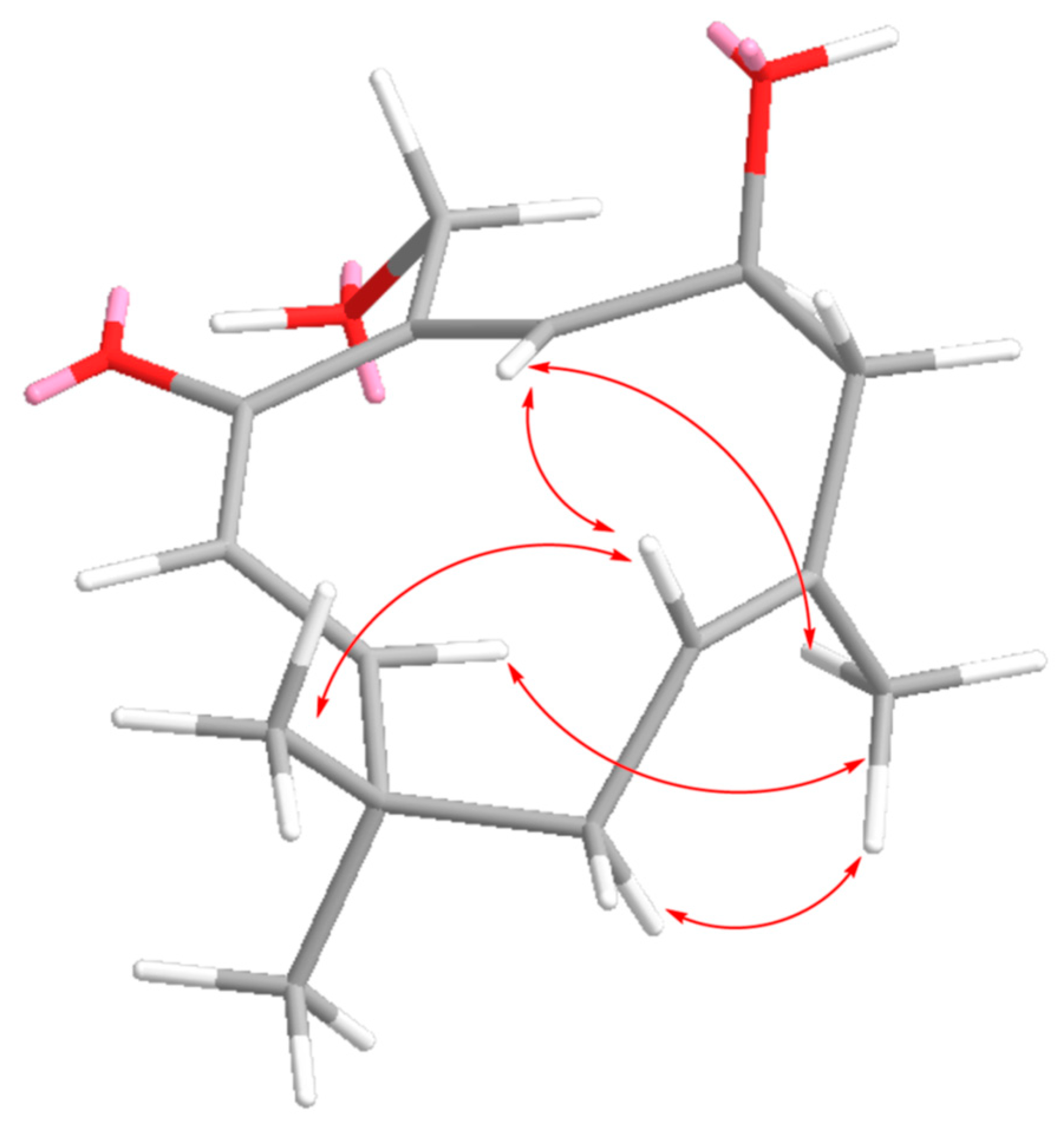

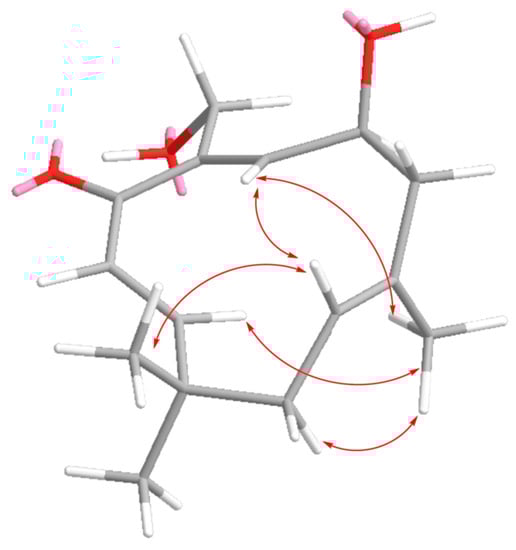

The geometry of the Δ^2,3 double bond was further determined to be E by considering the coupling constant (J = 16.3 Hz) displayed in its ¹H NMR spectrum. The NOE correlations of CH₃-13 to H-2, H-6, and CH₂-11, as well as H-10 with H-6 and H-6 with H-2 (Figure 3), suggested that the Δ⁵⁽⁶⁾ and Δ⁹⁽¹⁰⁾ double bonds in 1 were E configured.

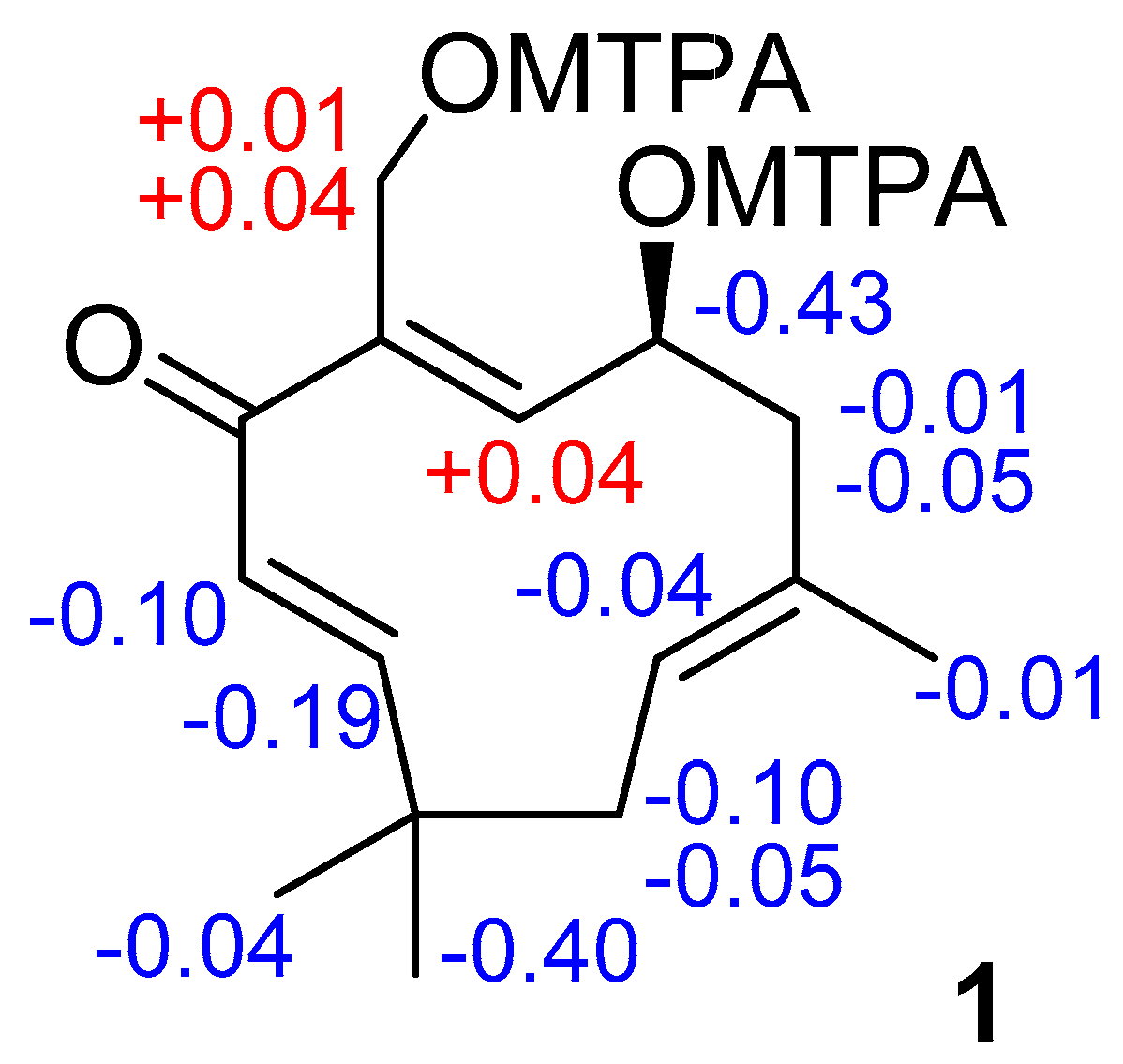

A modified Mosher ester analysis was obtained, and the negative Δδ^SR (δ^S − δ^R) values of Ha-8, (Δδ_H −0.01), Hb-8, (Δδ_H −0.05) and CH₃-13 (Δδ_H −0.01), and positive Δδ^SR values of H-6 (Δδ_H +0.04) Ha-12 (Δδ_H +0.01), and Hb-12 (Δδ_H +0.04) (Figure 4) revealed the 7S configuration [25]. Thus, the structure of 1 was determined as 4-oxohumula-2E,5E,9E-trien-7S,12-diol, as shown in Figure 1, and named leptogorgin A (1).

Compound 2 was obtained as a colourless oil. The HRESIMS of 2 showed an [M + Na]⁺ ion peak at m/z 315.1567 and an [M − H]⁻ ion peak at m/z 291.1602, which indicated a molecular formula of C₁₇H₂₄O₄. The ¹H and ¹³C NMR spectra of 2 (Table 1) were similar to those of 1, suggesting that this compound possessed the same humulane skeleton. The key differences were in δ_H for H-7 and δ_C for carbon 7 in the spectrum of 2 (δ_H 5.28/δ_C 72.9). The corresponding signals were shifted downfield, compared to those of 1 (δ_H 4.21/δ_C 71.7). This characteristic difference and HRESIMS data were caused by the hydroxy group in 1 being displaced by an acetoxyl group in 2. The HMBC spectra of 2 demonstrated the expected key correlations. The ECD spectrum of compound 2 was compared with the ECD spectrum of leptogorgin A (1), in which the corresponding absolute configuration was established by modification of Mosher’s method. Both ECD spectra displayed similar Cotton effects (see Figure S27), allowing us to establish the same 7S configuration for compound 2. From these data, compound 2 was determined to be 4-oxohumula-2E,5E,9E-trien-7S-acetate,12-ol, as shown in Figure 1, and named leptogorgin B (2).

Compound 3 was isolated as a colourless oil. The HRESIMS of 1 showed an [M + Na]⁺ ion peak at m/z 273.1459 and an [M − H]⁻ ion peak at m/z 249.1496, which indicated a molecular formula of C₁₅H₂₂O₃. The ¹H and ¹³C NMR spectra (Table 1) of 3 were similar to those of 1 and 2, suggesting that this compound also possessed the same humulane skeleton. Key differences concerned δ_H for protons 6, 7, and 8 and δ_C for carbons 4, 5, 6, 7, and 8 in the spectrum of 3, which were different compared to those of 1 and 2. This characteristic difference was caused by an absence of the hydroxy group, as in 1, or acetyl, as in 2 at position 7, being displaced by a ketogroup in 3, as well as by the absence of the 5,6 double bound in 3. The location of the ketogroup was further determined to be at C-7 by COSY, HSQC, and HMBC experiments. Thus, compound 3 was determined to be 4,7-dioxohumula-2E,9E-dien-12-ol, as shown in Figure 1, and named leptogorgin C (3).

Compound 4 was isolated as a colourless powder. The HRESIMS of 4 showed an [M + Na]⁺ ion peak at m/z 437.3026 and an [M − H]⁻ ion peak at m/z 413.3061, which indicated a molecular formula of C₂₇H₄₂O₃. The data of 1D- and 2D-NMR spectra of 1 (

Table 2. ¹H (700 MHz) and ¹³C (175 MHz) NMR spectroscopic data for 4 in CDCl_3.

Position	δC	δH mult (J in Hz)	Position	δC	δH mult (J in Hz)
1	35.7 CH2	1.70, m	16	28.5 CH2	1.29, m
		2.03, m			1.70, m
2	34.0 CH2	2.34, m	17	55.6 CH	1.19, m
		2.42, m
3	199.5	-	18	12.2 CH3	0.74, s
4	123.8 CH	5.72 s	19	17.4 CH3	1.19, s
5	171.4C	-	20	39.8 CH	2.14, m
6	32.9 CH2	2.27, ddd (14.7; 4.1; 2.4)	21	20.3 CH3	1.04, d (6.6)
		2.40, m
7	32.0 CH2	1.02, m	22	140.8 CH	5.61, dd (8.6; 15.3)
		1.84, m
8	35.7 CH	1.53, m	23	126.0 CH	5.43, dd (7.3; 15.3)
9	53.8 CH	0.94, m	24	79.7 CH	3.84, d (7.3)
10	38.6 C	-	25	72.8 C	-
11	21.0 CH2	1.44, ddd (13.6; 17.1; 4.2)	26	23.8 CH3	1.15, s
		1.54, m
12	39.5 CH2	1.20, m	27	26.4 CH3	1.20, s
		2.01, m
13	42.5 C	-
14	55.8 CH	1.04, m
15	24.2 CH2	1.11, m
		1.60, m

) indicated that this compound belonged to steroids. Its spectra contained five methyl groups, including two angular methyl groups in the steroid nucleus (δ_H 0.74/δ_C 12.2, δ_H 1.19/δ_C 17.4) and three methyl groups of the side chain (δ_H 1.04/δ_C 20.3, δ_H 1.15/δ_C 23.8, and δ_H 1.20/δ_C 26.4), eight methylene groups, six methine groups, including one oxygenated methine (δ_H 3.85/δ_C 79.7), two quaternary sp³ carbons (δ_C 38.6, δ_C 42.5), one quaternary sp³ oxygenated carbon (δ_C 72.8), one trisubstituted double bond (δ_H 5.72/δ_C 123.8 and 171.4), one disubstituted double bond (δ_H 5.61/δ_C 140.8 and δ_H 5.43/δ_C 126.0), and one conjugated with double bond ketone carbonyl (δ_C 199.5). The geometry of the 22,23 double bond was further determined to be E by considering the coupling constant (J = 15.3 Hz) displayed in its ¹H NMR spectrum. The HMBC spectra of 4 demonstrated the expected key correlations. From these data, compound 4 was determined to be 3-oxocholesta-4E,22E-diene-24,25 dienol, as shown in Figure 1, and named leptogorgoid A (4).

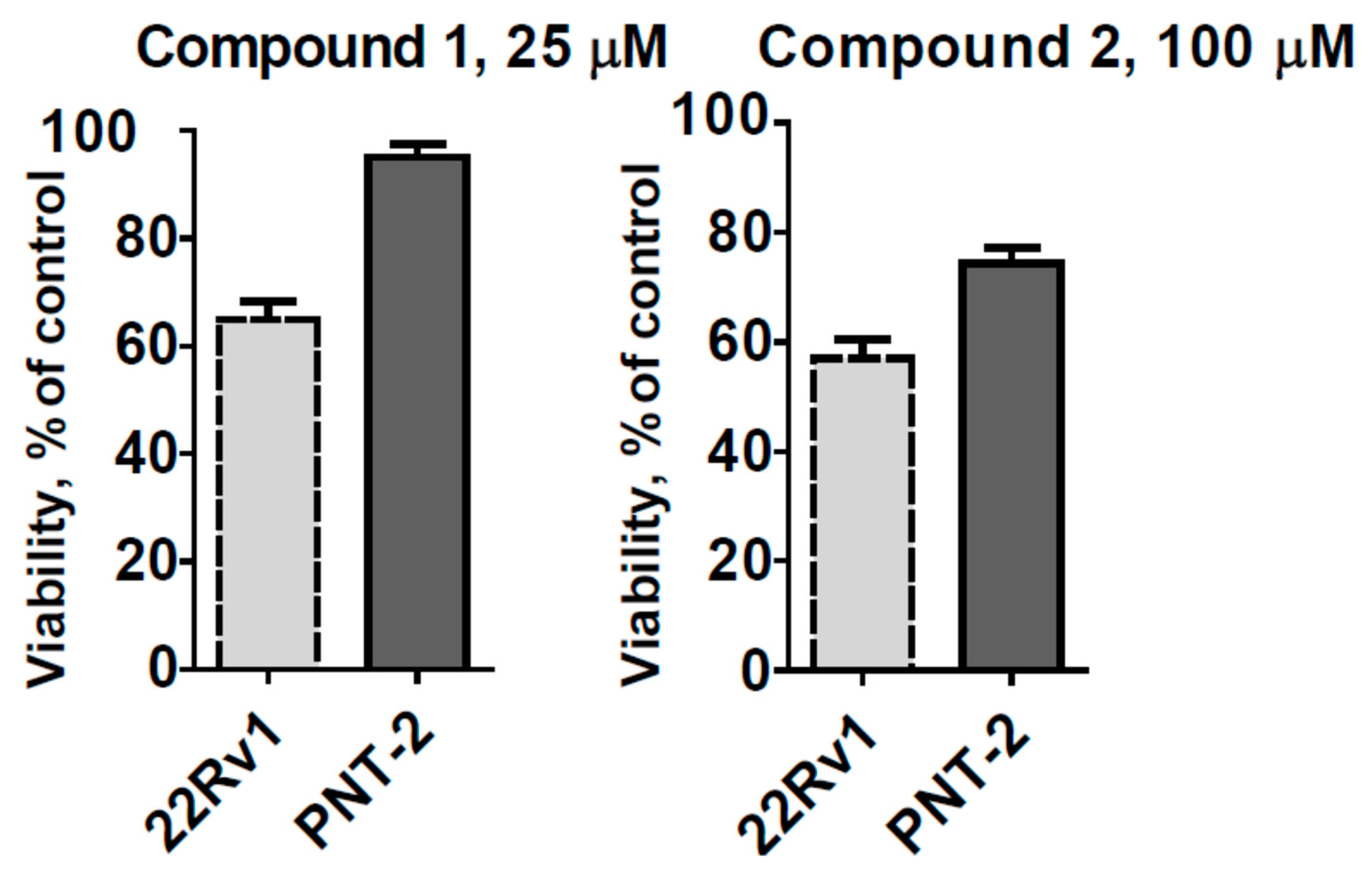

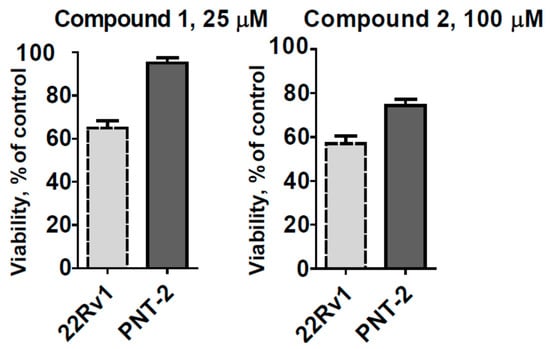

Next, we investigated the effects of the leptogorgins A (1) and B (2) on the viability of 22Rv1 cells (human drug-resistant prostate cancer cells) as well as on PNT2 cells (human prostate non-cancer cells). MTT assay revealed 1 to exhibit a moderate cytotoxicity to both cell lines (IC₅₀ = 31.0 µM and 35.8 µM, respectively), whereas 2 had IC₅₀ > 100 µM. Doxorubicine was used as a positive control and exhibited in 22Rv1 and PNT2 cells IC₅₀ of 0.084 µM and 1.12 µM, respectively. Interestingly, both compounds were more active in human cancer 22Rv1 cells, in comparison with PNT2 cells (Figure 5). Additionally, we examined the ability of these compounds to inhibit the colony formation of 22Rv1 prostate cancer cells; however, no significant inhibitory activity was observed under the treatment with cytotoxic or non-cytotoxic concentrations of the compounds up to a concentration of 100 µM (data not shown). The isolated compounds may be considered as prototypes for future anticancer agents capable of selective inhibition of human drug-resistant prostate cancer cells. Note that we could not isolate enough leptogorgins C (3) and leptogorgoid A (4) to investigate the biological activity of these compounds.

3. Materials and Methods

3.1. General Procedures

Optical rotation was measured using a PerkinElmer 343 polarimeter. UV spectra were recorded on a Shimadzu UV-1601 PC spectrophotometer. ECD spectra were recorded with an Applied Photophysics Chirascan plus spectropolarimeter. IR spectroscopic data were measured using an IR spectrometer Equinox 55 (Bruker, Ettlingen, Germany) in CHCl₃. The ¹H and ¹³C NMR spectra were recorded on a Bruker Avance III-700 spectrometer (Bruker, Ettlingen, Germany) at 700 and 175 MHz, respectively, with Me₄Si as an internal standard. ESI mass spectra (including HRESIMS) were obtained on a Bruker maXis Impact II Q-TOF mass spectrometer (Bruker Daltonics, Bremen, Germany) by direct infusion in MeOH. Low-pressure column liquid chromatography was performed using silica gel (Sigma-Aldrich Co., St. Louis, MO, USA) and Sephadex LH-20 (Sigma, Chemical Co., St. Louis, MO, USA) columns. HPLC was performed using a Shimadzu Instrument equipped with the differential refractometer RID-10A, a YMC-Pack ODS-A (250 × 10 mm) column (YM Co., Ltd., Kyoto, Japan), and a silica gel column (SUPELCOSIL^TM, 250 × 10 mm, 5 µm) (Sigma-Aldrich Co., USA). TLC was performed on silica gel plates (5–17 µm, Sorbfil, Russia).

3.2. Animal Material

The gorgonian Leptogorgia sp. (registration number PIBOC O38-011) was collected by dredging during the 38th scientific cruise of R/V “Academic Oparin”, May 2010, South China sea (09°08′2″ N; 109°01′7″ E, depth 134 m), in Vietnamese waters. A voucher specimen of 038-011 sample is stored in the Marine invertebrate collection of the G.B. Elyakov Pacific Institute of Bioorganic Chemistry FEB RAS (Vladivostok, Russia).

3.3. Extraction and Isolation

The EtOH extract of the gorgonian (dry weight 170 g) was concentrated and partitioned between n-hexane and aqueous EtOH. The EtOH-soluble material was subjected to column chromatography on a silica gel column using CHCl₃-EtOH (stepwise gradient, 1:0 1:1). Fractions eluted with CHCl₃:EtOH (20:1) were concentrated and residue (171.3 mg) was subjected to column chromatography on a LH-20 column using CHCl₃:EtOH, 2:1 to yield two fractions: F1 (46.6 mg) and F2 (61.4 mg). Preparative HPLC of the fraction F1 (SUPELCOSIL, n-hexane:EtOAc, 1:1) gave pure leptogorgin A (1, 2.5 mg, 0.002% based on dry weight of gorgonian). Preparative HPLC of the fraction F2 (YMC-Parck ODS-A, EtOH:H₂O, 3:2) gave three sub-fractions: F2-1 (2.5 mg), F2-2 (6.4 mg), and F2-3 (8.0 mg). Preparative HPLC of the fraction F2-1 (SUPELCOSIL, n-hexane:EtOAc, 2:3) gave pure leptogorgin C (3, 1.0 mg, 0.001% based on dry weight of gorgonian). Preparative HPLC of the fraction F2-2 (SUPELCOSIL, n-hexane:EtOAc, 1:1) gave pure leptogorgin B (2, 0.8 mg, 0.001% based on dry weight of gorgonian). Preparative HPLC of the fraction F2-3 (SUPELCOSIL, n-hexane:EtOAc, 1:1) gave pure leptogorgoid A (4, 0.6 mg, 0.0006% based on dry weight of gorgonian).

3.4. Compound Characterization Data

Leptogorgin A (1): colourless oil; ${\left[\alpha \right]}_{\mathrm{D}}^{22}$ +38.7 (c 0.2, CHCl₃); UV (EtOH) λ_max (log ε) 195 (4.05), 229 (3.75) nm; ECD (c 1 × 10⁻³ M, EtOH) λ_max (Δε) 194 (7.56), 228 (9.41), 274 (−3.52), 333 (1.30) nm; IR (CHCl₃): ν_max 3604, 2964, 2928, 2860, 1723, 1641, 1458, 1387, 1365, 1261, 1243, 1104, 1012 cm⁻¹; ¹H and ¹³C NMR data (CDCl₃), Table 1; HRESIMS m/z 273.1459 [M + Na]⁺ (calcd for C₁₅H₂₂O₃Na, 273.1461); HRESIMS m/z 249.1498 [M − H]⁻ (calcd for C₁₅H₂₁O₃ 249.1496).

Leptogorgin B (2): colourless oil; ${\left[\alpha \right]}_{\mathrm{D}}^{22}$ +16 (c 0.1, CHCl₃); UV (EtOH) λ_max (log ε) 196 (3.23), 229 (3.07) nm; ECD (c 3 × 10⁻³ M, EtOH) λ_max (Δε) 197 (2.90), 226 (1.41), 254 (−1.06), 336 (0.43) nm; ¹H and ¹³C NMR data (CDCl₃) Table 1; HRESIMS m/z 315.1571 [M + Na]⁺ (calcd for C₁₇H₂₄O₄Na, 315.1567); HRESIMS m/z 291.1602 [M − H]⁻ (calcd for C₁₇H₂₃O₄ 291.1602).

Leptogorgin C (3): colourless oil; ¹H and ¹³C NMR data (CDCl₃) Table 1; HRESIMS m/z 273.1463 [M + Na]⁺ (calcd for C₁₅H₂₂O₃Na, 273.1461); HRESIMS m/z 249.1496 [M − H]⁻ (calcd for C₁₅H₂₁O₃ 249.1496).

Leptogorgoid A (4): colourless powder; ${\left[\alpha \right]}_{\mathrm{D}}^{22}$ +33 (c 0.05, CHCl₃); ¹H and ¹³C NMR data (CDCl₃) Table 1. HRESIMS m/z 437.3021 [M + Na]⁺ (calcd for C₂₇H₄₂O₃Na, 437.3026); HRESIMS m/z 413.3060 [M − H]⁻ (calcd for C₂₇H₄₁0₃ 413.3061).

MTPA esterification of1. To a part of 1 (0.6 mg) in dry C₅H₅N (1 µL), R-(−)-α-metoxy-α-trifluoromethylphenylacetyl chloride (10 µL) was added. The mixture was stirred on one hour at room temperature.and evaporated in vacuo to give (S)-MTPA diester 1a. By the same procedure, (R)-MTPA diester 1b was prepared.

(S)-MTPA diester (1a): Select ¹H NMR data (CDCl₃) see Table S1. HRESIMS m/z 707.25 [M + Na]⁺ (calcd for C₃₅H₃₈F₆O₇Na, 707.25).

(R)-MTPA diester (1b): Select ¹H NMR data (CDCl₃) see Table S1. HRESIMS m/z 707.25 [M + Na]⁺ (calcd for C₃₅H₃₈F₆O₇Na, 707.25).

3.5. Bioactivity Assay

3.5.1. Reagents

The MTT reagent (Thiazolyl blue tetrazolium bromide) was purchased from Sigma (Taufkirchen, Germany).

3.5.2. Cell Lines and Culture Conditions

The human prostate cancer cells 22Rv1 and human prostate non-cancer cells PNT2 were purchased from ATCC. Cell lines were cultured according to the manufacturer’s instructions in 10% FBS/RPMI media (Invitrogen, Carlsbad, CA, USA) and handled as described in [29].

3.5.3. In Vitro MTT-Based Drug Sensitivity Assay

The in vitro cytotoxic activities of the isolated substances were evaluated by MTT assays. The assays were performed as described previously [30]. In brief, cells were seeded in 96-well plates (6 × 10³ cells/well), incubated overnight, and treated with the tested compounds for 72 h. Next, 10 μL/well of MTT reagent was added and the plates were incubated for 2 h. The media were aspirated and the plates were dried. The formed formazan crystals were dissolved in DMSO and the cell viability was measured using an Infinite F200PRO reader (TECAN, Männedorf, Switzerland). Results were calculated by the GraphPad Prism software v. 7.05 (GraphPad Prism software Inc., La Jolla, CA, USA) and are represented as the IC₅₀ of the compounds against the control cells treated with the solvent alone.

3.5.4. Colony Formation Assay

Colony formation assay was performed as described before, with slight modifications [30]. Cells were treated with the drug for 48 h; then, cells were trypsinized and the number of alive cells was counted with the trypan blue exclusion assay as described before [31]. One hundred viable cells were plated into each well of 6-well plates in complete drug-free media (3 mL/well) and were incubated for 14 days. Then, the media were aspirated, surviving colonies were fixed with 100% MeOH, followed by washing with PBS and air-drying at RT. Next, cells were incubated with Giemsa staining solution for 25 min at RT, the staining solution was aspirated, and the wells were rinsed with dH₂O and air-dried. The number of cell colonies was counted with the naked eye.

4. Conclusions

In summary, ¹H NMR-guided chemical investigation led to the isolation of three new humulane-type sesquiterpenoids and one new steroid. The structures of the new compounds were elucidated via analyses of their MS, NMR, and ECD spectroscopic data, as well as using the Mosher’s esters analysis. These molecules represent the new humulenes possessing an oxygenation pattern which was significantly different from those found in plants, liverworts, and fungi. Leptogorgin A (1) exhibits a moderate cytotoxicity to human prostate cancer 22Rv1 cells.
