New Carboxamides and a New Polyketide from the Sponge-Derived Fungus Arthrinium sp. SCSIO 41421

1
CAS Key Laboratory of Tropical Marine Bio-Resources and Ecology, Guangdong Key Laboratory of Marine Materia Medica, South China Sea Institute of Oceanology, Chinese Academy of Sciences, Guangzhou 510301, China
2
University of Chinese Academy of Sciences, Beijing 100049, China
3
Southern Marine Science and Engineering Guangdong Laboratory (Guangzhou), Guangzhou 511458, China
4
Institute of Marine Drugs, Guangxi University of Chinese Medicine, Nanning 530200, China
5
Wuya College of Innovation, Shenyang Pharmaceutical University, Shenyang 110016, China
*
Author to whom correspondence should be addressed.
Mar. Drugs 2022, 20(8), 475; https://doi.org/10.3390/md20080475
Submission received: 15 July 2022 / Revised: 22 July 2022 / Accepted: 23 July 2022 / Published: 25 July 2022
(This article belongs to the Special Issue Bioactive Compounds from the Deep-Sea-Derived Microorganisms)

Abstract

:
New carboxamides, (±)-vochysiamide C (1) and (+)-vochysiamide B (2), and a new polyketide, 4S,3aS,9aR-3a,9a-deoxy-3a hydroxy-1-dehydroxyarthrinone (3), were isolated and identified from the sponge-derived fungus Arthrinium sp. SCSIO 41421, together with other fifteen known natural products (418). Their structures including absolute configurations were determined by detailed NMR, MS spectroscopic analyses, calculated electronic circular dichroism (ECD), as well as quantum-chemical NMR calculations. Preliminary bioactivity screening and molecular docking analysis revealed that several natural products exhibited obvious enzyme inhibitory activities against acetylcholinesterase (AChE), such as 2,3,6,8-tetrahydroxy-1-methylxanthone (4) with an inhibitory rate 86% at 50 μg/mL.

1. Introduction

Marine sponge derived fungi featured with easy culture and efficient productivity have been proven to be a prolific source of structurally diverse and novelty secondary metabolites [1]. Plenty of new secondary metabolites of sponge-derived fungi have been discovered with striking bioactive properties such as antifungal [2], antiviral [3], antioxidant [4], and cytotoxic [5] properties; meanwhile, their structures are diverse including polyketones, terpenes, and alkaloids [6,7].
Arthrinium sp. distributing in both terrestrial and marine habitats and comprising more than 32 species [8] produce a vast array of secondary metabolites, especially for xanthones, peptides, and terpenes [9], which showed a variety of activities covering antibacterial [9], cytotoxic [10], and antitumoral [11] activities.
In our research on bioactive natural products from marine sponge-derived fungi, two new carboxamides, (±)-vochysiamide C (1) and (+)-vochysiamide B (2), and one new polyketide, 4S,3aS,9aR-3a,9a-deoxy-3a hydroxy-1-dehydroxyarthrinone (3), were isolated and identified from the sponge-derived fungus Arthrinium sp. SCSIO 41421, together with fifteen known natural products (418) (Figure 1). Herein, we performed fermentation, purification, identification, and bioassay of 118.

2. Results and Discussion

Compound 1 was obtained as a colourless oil, and had the molecular formula C10H15NO4 (four degrees of unsaturation) as determined by its HRESIMS data, which showed a protonated ion peak at m/z 214.1077 ([M + H]+). The 1H and 13C NMR data (Table 1) showed one aromatic/olefinic methine (δC/H 124.9/6.53, C-3), two methyls (δC/H 20.6/1.15, C-11; 20.6/1.15, C-12), two methylenes (δC/H 58.3/3.56, C-8; 58.3/3.56, C-9), two methines (δC/H 25.1/2.71, C-10; 56.0/3.99, C-7), two carbonyls (δC 171.4, C-2; δC 171.2, C-5), and one hydroxy (δH 4.79). Based on the detailed analysis of its HMBC spectrum (Figure 2), which exhibited correlations from H-3 to C-4 and C-2, from H-8 to C-7, from H-9 to C-7, and from H-10 to C11, C12, C-3, C-4, and C-5, a ring containing carboxamide was deduced. The configuration of 3 was established as Z through NOESY correlations observed between the isopropyl group and H-3 (Figure 2). Although 1 has one stereogenic carbon (C-7), its optical rotation was close to zero and the inapparent Cotton effect in the electronic circular dichroism (ECD) spectra suggested that 1 was not enantiomerically pure. Unfortunately, with many attempts for various chiral columns and mobile phase systems, 1 could not be successfully separated and was named as a racemic (±)-vochysiamide C.
Compound 2 was obtained as a white solid and was determined to have the molecular formula C11H17NO4 from the HRESIMS data, a protonated ion peak at m/z 228.1233 ([M + H]+). Analysis of the 1H and 13C NMR data (Table 1) of 2 with those of 1 displayed almost superimposable structural relationships. The remarkable distinction was the replacement of a hydrogen at C-9 in 1 with a methyl (δC/H 20.9/1.19, C-10) in 2. The observed HMBC (Figure 2) correlations from H-10 to C-7 and from H-8 to C-9 further verified this deduction. The configuration of 3 was the same as that assigned for 1 based on the NOESY correlations (Figure 2). Moreover, H-7/H-9 were established to adopt the opposite orientation due to the NOESY correlation between H-7/H-10.
Compound 2 possessed similar NMR data as vochysiamide B [12], with its absolute configuration undetermined. Its optical rotation was close to zero, manifesting that it was not enantiomerically pure. We tried to separate 2 and obtained an enantiomerically pure compound. Then, we attempted to assign the absolute configuration by NMR calculations performed with DP4+ analysis [13]. The NMR chemical shifts based on the atomic orbital (GIAO) method were predicted for four diastereomers of 2 (7R*,9R*-2, 7R*,9S*-2, 7S*,9R*-2, 7S*,9S*-2) and NMR calculations performed with DP4+ analysis for those four possible isomers were applied. The results indicated that 7S*,9S*-2 was the most likely candidate structure, with a 72.77% DP4+ probability (Figure S25 and Table S1). If we consider the NOESY correlation between H-7/H-10, two diastereomers of 2 (7R*,9R*-2, 7S*,9S*-2) were predicted through NMR calculations. 7S*,9S*-2 also was the most likely candidate structure, with a 99.88% DP4+ probability (Figure S26 and Table S2). Based on these expositional descriptions, we determined the relative configuration of 2 as 7S,9S. Consequently, ECD calculations were performed using the time-dependent density functional theory (TDDFT) methodology at the B3LYP/6-311G* level to the absolute configuration of 2. The high similarity between the calculated ECD curve of 7S,9S-2 and its experimental curve (Figure 3) unambiguously confirmed the absolute configuration of 2 as 7S,9S. The optical rotation value of 7S,9S-2 is +12.38, so it is named as (+)-vochysiamide B.
Compound 3 was obtained as a brown powder, and had the molecular formula C13H13O6 (7 degrees of unsaturation) as determined by HRESIMS data, which showed a deprotonated ion peak at m/z 265.0720 ([M − H]). The 1H NMR data (Table 1) along with the 13C NMR data displayed two aromatic/olefinic methines (δC/H 105.0/6.73, C-5; 99.2/6.41, C-7), one methyl (δC/H 55.8/3.84,C-10), two methylenes (δC/H 74.8/3.68, 3.54, C-3; 70.7/4.20, 4.12, C-1), one methine (δC/H 71.0/4.95, C-4), one carbonyl (δC 201.5, C-9), and three hydroxyls (δH 12.77, 6.13, 5.20). Moreover, OH-4 (δH 6.13) and OH-3a (δH 5.61) were identified by the HMBC correlations (Figure 2) from H-4 to C-3a and C-4a, from OH-4 to C-4, C-3a, and C-4a, and from OH-3a to C-3 and C-9a. The HMBC correlations from H-5 to C-7 and C-8a, as well as from H-7 to C-8a, also further verified the consistency of the structure. So, 3 was confirmed with the same plane structure with 3a,9a-deoxy-3a hydroxy-1-dehydroxyarthrinone, with its absolute configuration unconfirmed in the reference [14].
We tried to assign the absolute configuration by combining 2D NMR data and NMR calculations performed with DP4+ analysis. Subsequently, the relative configurations of C-4, C-3a, and C-9a in 3 were confirmed by comprehensive analysis of the NOESY spectrum (Figure 2). The NOESY cross-peaks of OH-4 and OH-3a suggested reasonable cis conformations (4R*,3aR* or 4S*,3aS*). Thus, the NMR chemical shifts based on the GIAO method were predicted for four diastereomers of 3 (4R*,3aR*,9aR*-3, 4R*,3aR*,9aS*-3, 4S*,3aS*,9aR*-3, 4S*,3aS*,9aS*-3) and NMR calculations performed with DP4+ analysis for those four possible isomers were applied. The results showed that 4S*, aS*,9aR*-3 was the most likely candidate structure, with a 99.24% DP4+ probability (Figure S27 and Table S3). Based on these expositional descriptions, the relative configuration of 3 could be identified as 4S,3aS,9aR. Accordingly, the experimental ECD curves of 3 showed nice agreement with the calculated ECD curve for 4S,3aS,9aR-3 (Figure 3). Thus, compound 3 was identified as 4S,3aS,9aR-3a,9a-deoxy-3a hydroxy-1-dehydroxyarthrinone (3).
The other fifteen compounds (Figure 1) were elucidated as 2, 3, 6, 8-tetrahydroxy-1-methylxanthone (4) [15], (+)-griseofulvin (5) [16], (R)-(-)-5-hydroxymethylmellein (6) [17], bungein A (7) [18], 3-ethylpyrazine-2,5-dipropanoic acid (8) [19], (S)-4-hydroxy-2,3-dimethyl-4-pentyl-γ-lactone (9) [20], (R)-2-hydroxy-3-phenylpropanoic acid (10) [21], 1-phenylbutane-2,3-diol (11) [22], p-hydroxybenzaldehyde (12) [23], 4-methoxyphenylacetic acid (13) [24], 4-hydroxyacetophenone (14) [25], 4-hydroxy phenethyl acetate (15) [26], methyl 2-hydroxy-3-(4’-hydroxy)-phenyl propionate (16) [27], protocatechoic acid (17) [28], and apocynin (18) [29] by comparing their NMR and MS data with those reported in the literature.
All the isolated compounds were assessed for their enzyme inhibitory activities against acetylcholinesterase (AChE). Compounds 3, 4, 6, 8, 11, and 15 exhibited obvious inhibition against AChE with an inhibitory rate more than 80% at 50 μg/mL, comparative to the positive control tacrine with an inhibitory rate 83.7% at 50 μg/mL (Table 2). Among them, 2,3,6,8-tetrahydroxy-1-methylxanthone (4) showed the strongest activity relatively, with an inhibitory rate 86% at 50 μg/mL. Subsequently, molecular docking analysis was conducted to investigate the binding modes between active compounds and AChE. Compounds 212, 15, and 17 appeared to interact with AChE protein (PDB ID: 4EY7) perfectly with the docking scores from −6.213 to −9.383 (Table 2) (the positive ligand E20 with the docking score −12.482, and tacrine with the docking score −9.965). As shown in Figure 4, phenolic hydroxy groups of 4 (the docking score −9.383) formed four hydrogen bonds with the active site residues GLU 202, TYR 133, GLY 120, and ASP 74. Additionally, the aromatic ring of 4 formed a π-π stacking interaction with TRP 86.
All compounds were also assessed for their antibacterial activities against five pathogenic bacteria, Staphylococcus aureus (ATCC 29213), Enterococcus faecalis (ATCC 29212), Klebsiella pneumoniae (ATCC 13883), Escherichia coli (ATCC 25922), and methicillin-resistant Staphylococcus aureus (MRSA). Nevertheless, no compounds displayed obvious antibacterial activities.

3. Materials and Methods

3.1. General Experimental Procedures

Optical rotations were measured on a PerkinElmer MPC 500 (Waltham, MA, USA) polarimeter. UV and ECD spectra were recorded on a Chirascan circular dichroism spectrometer (Applied Photophysics, Leatherhead Surrey, UK). IR spectra were performed on an IR Affinity-1 spectrometer (Shimadzu, Kyoto, Japan). The NMR spectra were obtained on a Bruker Avance spectrometer (Bruker, Billerica, MA, USA) operating at 500 and 700 MHz for 1H NMR and 125 and 175 MHz for 13C NMR, using tetramethylsilane as an internal standard. HRESIMS spectra were collected on a Bruker miXis TOF-QII mass spectrometer (Bruker, Billerica, MA, USA). TLC and column chromatography (CC) were performed on plates precoated with silica gel GF254 (10–40 μm) and over silica gel (200–300 mesh) (Qingdao Marine Chemical Factory, Qingdao, China) and Sephadex LH-20 (Amersham Biosciences, Uppsala, Sweden), respectively. All solvents employed were of analytical grade (Tianjin Fuyu Chemical and Industry Factory, Tianjin, China). Semipreparative HPLC was carried out using an ODS column (YMC-pack ODS-A, YMC Co., Ltd., 10 × 250 mm, 5 μm, 2.5 mL/min). The artificial sea salt was a commercial product (Guangzhou Haili Aquarium Technology Company, Guangzhou, China).

3.2. Fungal Strain

The Arthrinium sp. SCSIO 41421 was isolated from a spongia sample collected from Weizhou Island, Guangxi, China, in October 2020. The strain was stored on Muller Hinton broth (MB) agar (malt extract 15 g, artificial sea salt 24 g, and agar 18 g) slants at 4 °C, and a voucher specimen was deposited in the CAS Key Laboratory of Tropical Marine Bioresources and Ecology, South China Sea Institute of Oceanology, Chinese Academy of Sciences, Guangzhou, China. It was identified as Arthrinium sp. by analysis of its ITS region of the rDNA as described in the Supporting Information (GenBank database accession no. OP022423).

3.3. Fermentation, Extraction and Isolation

The strain was cultured on MB agar plates at 25 °C for 7 days. The seed medium (malt extract 15 g, artificial sea salt 24 g in 1.0 L of tap distilled H2O, pH 7.4–7.8) in 1000 mL Erlenmeyer flasks (300 mL per flask) was inoculated with strain SCSIO 41421 and incubated at 25 °C for 3 days on a rotating shaker (180 rpm). Then, seed medium was inoculated into a 1000 mL × 80 Erlenmeyer flasks containing solid rice medium (200 g of rice, 6 g artificial sea salt, and 250 mL tap distilled H2O in each flask). After cultivation at 25 °C for 30 days, each culture broth was extracted with an equal volume of ethyl acetate three times and broken with an ultrasonic treatment apparatus for 10 min. The organic extract was then concentrated under vacuum to afford the crude extract (62.8 g).
The ethyl acetate extract was subjected to silica gel vacuum liquid chromatography using a step gradient elution of petroleum ether (PE)-ethyl acetate (EA) (v:v 2:8, 3:7, 4:6, 5:5, 6:4, 8:2, 0:1), EA: methyl alcohol (MeOH) (v:v 100:1, 50:1, 20:1, 0:1), to yield thirteen fractions (Frs.1~13) according to TLC profiles. Fr.4 was separated by semipreparative HPLC (35% MeCN/H2O, 2.5 mL/min, 210 nm) to provide 12 (34.2 mg, tR 20 min) and 14 (2.1 mg, tR 42 min). Compounds 13 (1.7 mg, tR 20 min) and 15 (9.0 mg, tR 35 min) were further obtained from Fr.4 by semipreparative HPLC (30% MeCN/H2O, 2.5 mL/min, 210 nm; 2% MeCN/H2O, 2.5 mL/min, 210 nm), respectively. Fr.4 also was purified by semipreparative HPLC (21% MeCN/H2O, 2.5 mL/min, 210 nm) to offer 18 (12.3 mg, tR 12 min) and 9 (4.5 mg, tR 15 min). Meanwhile, Fr.5 was divided into six subfractions (Frs.5-1~5-6) by ODS silica gel eluting with MeOH/H2O (10–100%). Then, Frs.5-3 was directly separated by semipreparative HPLC (48% MeOH/H2O, 2.5 mL/min, 210 nm) to yield 10 (3.2 mg, tR 22 min). Frs.5-4 was directly separated by semipreparative HPLC (19% MeOH/H2O, 2.5 mL/min, 210 nm) to produce 6 (6.6 mg, tR 26 min) and 11 (10.2 mg, tR 40 min). Compounds 17 (4.6 mg, tR 15 min, 28% MeOH/H2O, 2.5 mL/min, 210 nm), 7 (23.9 mg, tR 17 min, 30% MeOH/H2O, 2.5 mL/min, 210 nm), and 2 (4.3 mg, tR 30 min, 30% MeOH/H2O, 2.5 mL/min, 210 nm) were obtained from Fr.7 by ODS silica gel eluting with MeOH/H2O (10–100%). Fr.8 was divided into eight subfractions (Frs.5-1~5-8) by ODS silica gel eluting with MeOH/H2O (10–100%). Then, Frs.8-2 was directly separated by semipreparative HPLC (15% MeCN/H2O, 2.5 mL/min, 210 nm) to yield 1 (1.6 mg, tR 31 min) and 16 (1.7 mg, tR 32 min). Frs.8-6 was directly separated by semipreparative HPLC (68% MeOH/H2O, 2.5 mL/min, 210 nm) to yield 8 (6.1 mg, tR 14 min). Compounds 5 (22.8 mg, tR 12 min, 55% MeCN/H2O, 2.5 mL/min, 210 nm), 8 (2.5 mg, tR 18 min, 20% MeCN/H2O, 2.5 mL/min, 210 nm), and 3 (4.7 mg, tR 32 min, 20% MeCN/H2O, 2.5 mL/min, 210 nm) were obtained from Fr.9 by ODS silica gel eluting with MeOH/H2O (10–100%).
(±)-vochysiamide C (1): colourless oil; α D 25   0.0 (c 0.1, MeOH); UV (MeOH) λmax (log ε): 223 (3.94), 278 (1.71) nm; IR (film) νmax 2968, 2363, 1701, 1636, 1398, 1018, 1013, 698, 528 cm−1; 1H and 13C NMR (Table 1). HRESIMS m/z 214.1077 [M + H]+ (calcd for C10H16NO4, 214.1074).
(+)-vochysiamide B (2): brown oil; α D 25   12.38 (c 0.1, MeOH); UV (MeOH) λmax (log ε): 211 (3.01), 222 (3.12) nm; ECD (0.3 mg/mL, MeOH) λmaxε): 209 (+0.12), 221 (−1.20), 228 (+0.93); IR (film) νmax 3347, 2943, 2835, 1701, 1659, 1449, 1429, 1117, 1020, 668, 573 cm−1; 1H and 13C NMR (Table 1). HRESIMS m/z 228.1233 [M + H]+ (calcd for C11H18NO4, 228.1230).
4S,3aS,9aR-3a,9a-deoxy-3a hydroxy-1-dehydroxyarthrinone (3): brown oil; α D 25   −26.40 (c 0.1, MeOH); UV (MeOH) λmax (log ε): 215 (3.09), 252 (2.22), 286 (2.94), 320 (2.61) nm; ECD (0.3 mg/mL, MeOH) λmaxε): 212 (+19.10), 240 (−4.98), 252 (−0.63), 285 (−13.39), 308 (+5.97); IR (film) νmax 2968, 2363, 1701, 1636, 1398, 1501, 1051, 1012, 669, 525 cm−1; 1H and 13C NMR (Table 1). HRESIMS m/z 265.0720 [M – H] (calcd for C13H13O6, 265.0718).

3.4. Measurement of AChE Inhibition Activity

AChE inhibitory activities of 118 were assessed according to the spectrophotometric method with slight modification. Tacrine was used as a positive control with the IC50 value of 0.068 μM [30].

3.5. Antibacterial Activity Assay

The antibacterial activity was assessed using K-B disc agar diffusion method. Compounds 118 were tested for their antibacterial activities against five pathogenic bacteria, Staphylococcus aureus (ATCC 29213), Enterococcus faecalis (ATCC 29212), Klebsiella pneumoniae (ATCC 13883), Escherichia coli (ATCC 25922), and Methicillin-resistant Staphylococcus aureus (MRSA). Ampicillin and gentamicin were used as a positive control for gram-positive and gram-negative bacteria, respectively [31].

3.6. Molecular Docking

The Schrödinger 2017-1 suite (Schrödinger Inc., New York, NY, USA) was employed to perform the docking analysis. The crystal structure of AChE (PDB code: 4EY7) [32] obtained from the Protein Data Bank was used as a starting model with all of the waters and the N-linked glycosylated saccharides removed, and was constructed following the Protein Prepare Wizard workflow in Maestro 11-1. The prepared ligands were then flexibly docked into the receptor using the induced-fit module with the default parameters. The figures were generated using PyMol molecular graphics software (Schrödinger 2017-1, Schrödinger Inc., New York, NY, USA).

3.7. NMR Computational Methods

In general, conformational analyses were carried out via random searching in Spartan’14 software and Gaussian 09 software using the MMFF94 force field with an energy cutoff of 2.5 kcal/mol for compounds 2 and 3. The generated conformers were reoptimized using DFT method at the B3LYP/6-31G (d, p) level by the Gaussian 09 program. Subsequently, NMR shielding constants in PCM chloroform or DMSO were computed using the atomic orbital (GIAO) method at the B3LYP/6-31G (d, p) level in Gaussian 09. Boltzmann weights in chloroform or DMSO were computed through Molclus [33]. Shielding constants were used to perform DP4+ probability analysis [13].

3.8. ECD Computational Methods

The Molecular Merck force field (MMFF) and density functional theory (DFT)/TDDFT calculations of 2 and 3 were performed with the Spartan’14 and Gaussian 09 software, respectively, using default grids and convergence criteria. A MMFF conformational search generated low energy conformers with a Boltzmann population of over 5%, which were subjected to geometry optimization using the DFT method at the B3LYP/6-311G* level in MeOH using the IEFPCM model. The overall theoretical calculation of the ECD was conducted in MeOH using TDDFT at the B3LYP/6-311G* level for the stable conformers of 2 and 3. The ECD spectra of the different conformers were generated using the Multiwfn [34] with a half-bandwidth of 0.2–0.4 eV, according to the Boltzmann-calculated contribution of each conformer after the UV correction.

4. Conclusions

New carboxamides, (±)-vochysiamide C (1) and (+)-vochysiamide B (2), and a new polyketide, 4S,3aS,9aR-3a,9a-deoxy-3a hydroxy-1-dehydroxyarthrinone (3), were isolated and identified from the sponge-derived fungus Arthrinium sp. SCSIO 41421, together with other fifteen known natural products (418). Their planar structures and absolute configurations were elucidated by detailed spectroscopic analysis and compared with the literature data. Several compounds exhibited obvious inhibitory activity against AchE, such as 2,3,6,8-tetrahydroxy-1-methylxanthone (4) with an inhibitory rate 86% at 50 μg/mL. These results would expand the bioactive natural products of sponge-derived fungus.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/md20080475/s1, The ITS gene sequence data of Arthrinium sp. SCSIO 41421. Figures S1–S24: NMR, HRESIMS, UV and CD spectra of 13; Figures S25–S27: Linear correlation plots of calculated-experimental 13C NMR chemical shift values with DP4+ analyses for potential configurations of 2 and 3; Tables S1–S3: DP4+ analysis of experimental and calculated NMR chemical shifts of the isomers of 2 and 3. The physicochemical data of compounds 118.

Author Contributions

Data curation, J.S., Y.C. and Y.Y.; Funding acquisition, Y.L. and X.Z.; Investigation, J.S. and J.X.; Project administration, Y.L. and X.Z.; Resources, X.L. and B.Y.; Writing original draft, J.S.; Writing-review & editing, X.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Guangdong Local Innovation Team Program (2019BT02Y262), National Natural Science Foundation of China (U20A20101, 81973235), K.C. Wong Education Foundation (GJTD-2020-12), Guangzhou Science and Technology Project (202102080478), Guangdong Basic and Applied Basic Research Foundation (2021B1515120046, 2020A1515010997, 2019B151502042), and Liao Ning Revitalization Talents Program (XLYC1802037).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

The authors gratefully acknowledge the assistance of Xiao, Zheng, Sun, and Zhang in the analytical facility center of the SCSIO for recording spectroscopic data.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zhang, B.; Zhang, T.; Xu, J.; Lu, J.; Qiu, P.; Wang, T.; Ding, L. Marine sponge-associated fungi as potential novel bioactive natural product sources for drug discovery. Mini Rev. Med. Chem. 2020, 20, 1966–2010. [Google Scholar] [CrossRef] [PubMed]
  2. Jansen, N.; Ohlendorf, B.; Erhard, A.; Bruhn, T.; Bringmann, G.; Imhoff, J.F.; Helicusin, E. isochromophilone X and isochromophilone XI: New chloroazaphilones produced by the fungus Bartalinia robillardoides strain LF550. Mar. Drugs 2013, 11, 800–816. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Kong, F.; Zhao, C.; Hao, J.; Wang, C.; Wang, W.; Huang, X.; Zhu, W. New α-glucosidase inhibitors from a marine sponge-derived fungus, Aspergillus sp. OUCMDZ-1583. RSC Adv. 2015, 5, 68852–68863. [Google Scholar] [CrossRef]
  4. Zhao, Y.; Liu, D.; Proksch, P.; Yu, S.; Lin, W. Isocoumarin derivatives from the sponge-associated fungus Peyronellaea glomerata with antioxidant activities. Chem. Biodivers. 2016, 13, 1186–1193. [Google Scholar] [CrossRef]
  5. Kuppers, L.; Ebrahim, W.; El-Neketi, M.; Ozkaya, F.C.; Mandi, A.; Kurtan, T.; Orfali, R.S.; Muller, W.E.G.; Hartmann, R.; Lin, W.; et al. Lactones from the sponge-derived fungus Talaromyces rugulosus. Mar. Drugs 2017, 15, 359. [Google Scholar] [CrossRef] [Green Version]
  6. Guo, T.T.; Song, M.M.; Han, W.R.; Zhu, J.H.; Liu, Q.C.; Wang, J.F. New N-methyl-4-quinolone alkaloid and citrinin dimer derivatives from the sponge-derived fungus Penicillium sp. SCSIO 41303. Phytochem. Lett. 2021, 46, 29–35. [Google Scholar] [CrossRef]
  7. Liu, Y.; Ding, L.; He, J.; Zhang, Z.; Deng, Y.; He, S.; Yan, X. A new antibacterial chromone from a marine sponge-associated fungus Aspergillus sp. LS57. Fitoterapia 2021, 154, 105004. [Google Scholar] [CrossRef]
  8. Elissawy, M.; Ebada, S.S.; Ashour, M.L.; Özkaya, F.C.; Ebrahim, W.; Singab, A.B.; Proksch, P. Spiroarthrinols A and B, two novel meroterpenoids isolated from the sponge-derived fungus Arthrinium sp. Phytochem. Lett. 2017, 20, 246–251. [Google Scholar] [CrossRef]
  9. Shu, Y.; Wang, J.P.; Li, B.X.; Gan, J.L.; Ding, H.; Liu, R.; Cai, L.; Ding, Z.T. Bioactive cytochalasans from the fungus Arthrinium arundinis DJ-13. Phytochemistry 2022, 194, 113009. [Google Scholar] [CrossRef]
  10. Sharma, R.; Kulkarni, G.; Sonawane, M.S.; Shouche, Y.S. A new endophytic species of Arthrinium (Apiosporaceae) from Jatropha podagrica. Mycoscience 2014, 55, 118–123. [Google Scholar] [CrossRef]
  11. Ebada, S.S.; Schulz, B.; Wray, V.; Totzke, F.; Kubbutat, M.H.; Muller, W.E.; Hamacher, A.; Kassack, M.U.; Lin, W.; Proksch, P. Arthrinins A-D: Novel diterpenoids and further constituents from the sponge derived fungus Arthrinium sp. Bioorg. Med. Chem. 2011, 19, 4644–4651. [Google Scholar] [CrossRef] [PubMed]
  12. Noriler, S.A.; Savi, D.C.; Ponomareva, L.V.; Rodrigues, R.; Rohr, J.; Thorson, J.S.; Glienke, C.; Shaaban, K.A. Vochysiamides A and B: Two new bioactive carboxamides produced by the new species Diaporthe vochysiae. Fitoterapia 2019, 138, 104273. [Google Scholar] [CrossRef] [PubMed]
  13. Grimblat, N.; Zanardi, M.M.; Sarotti, A.M. Beyond DP4: An improved probability for the stereochemical assignment of isomeric compounds using quantum chemical calculations of NMR shifts. J. Org. Chem. 2015, 80, 12526. [Google Scholar] [CrossRef]
  14. Whyte, A.C.; Gloer, K.B.; Gloer, J.B.; Korster, B.; Malloch, D. New antifungal metabolites from the coprophilous fungus Cercophora sordarioides. Can. J. Chem. 1997, 75, 768–772. [Google Scholar] [CrossRef]
  15. Wang, C.F.; Guan, F.F.; Du, S.Y.; Wei, M.Y.; Wang, C.Y.; Shao, C.L. Two polyhydroxy xanthones and their antiviral activity from gorgonian coral-derived fungus Arthrinium sp. Chin. J. Mar. Drugs 2016, 35, 31–35. [Google Scholar]
  16. Liu, S.Z.; Zhao, W.M. Chemical constituents of medicinal fungus Shiraia bambusicola. Chin. Tradit. Herbal Drugs 2010, 41, 1239–1242. [Google Scholar]
  17. Kongprapan, T.; Xu, X.; Rukachaisirikul, V.; Phongpaichit, S.; Sakayaroj, J.; Chen, J.; Shen, X. Cytosporone derivatives from the endophytic fungus Phomopsis sp. PSU-H188. Phytochem. Lett. 2017, 22, 219–223. [Google Scholar] [CrossRef]
  18. Yang, H.; Wang, J.; Mei, S.X.; Sun, H.D. A new peroxide compound from Clerodendrum bungee. Acta Bot. Yunnanica 2000, 22, 234–236. [Google Scholar]
  19. Suzuki, T.; Yasuhara, N.; Ueda, T. Reaction of acetaldehyde with 5-aminolevulinic acid via dihydropyrazine derivative. Chem. Pharm. Bul. 2015, 63, 126–129. [Google Scholar] [CrossRef] [Green Version]
  20. Shi, H.; Yu, S.; Liu, D.; Ofwegen, L.V.; Proksch, P.; Lin, W. Sinularones A-I, new cyclopentenone and butenolide derivatives from a marine soft coral Sinularia sp. and their antifouling activity. Mar. Drugs 2012, 10, 1331–1344. [Google Scholar] [CrossRef] [Green Version]
  21. Wang, Y.Y.; Luo, D.Q.; Shuai, B.Z.; Yang, X.L. Secondary metabolites of endophytic fungus Pestalotiopsis Zonata from guava leaves. Chin. Tradit. Patent Med. 2011, 33, 857–859. [Google Scholar]
  22. Chen, X.Y.; Zhong, W.M.; Zeng, Q.; Wang, F.Z. A preliminary study on the chemical diversity of the deep-sea derived fungus Acrostalagmus luteoalbus SCSIO F457 based on OSMAC strategy. Chin. J. Mar. Drugs 2020, 39, 7–15. [Google Scholar]
  23. Li, H.X.; Deng, T.Z.; Chen, Y.; Feng, H.J.; Yang, G.Z. Isolation and identification of phenolic constituents from Juncus effusus. Acta Pharm. Aceutica Sin. 2007, 42, 174–178. [Google Scholar]
  24. Li, X.J.; Gao, J.M.; Chen, H.; Zhang, A.L.; Tang, M. Toxins from a symbiotic fungus, Leptographium qinlingensis associated with Dendroctonus armandi and their in vitro toxicities to Pinus armandi seedlings. Eur. J. Plant. Pathol. 2012, 134, 239–247. [Google Scholar] [CrossRef]
  25. Li, J.; Kadota, S.; Kawata, Y.; Hattori, M.; Xu, G.J.; Namba, T. Constituents of the roots of Cynanchum bungei DECNE. Isolation and structures of four new glucosides, Bungeiside-A, -B, -C, and -D. Chem. Pharm. Bull. 1992, 40, 3133–3137. [Google Scholar] [CrossRef] [Green Version]
  26. Guan, Y.Q.; Cao, M.M.; Liu, Y.; Song, X.M.; Luo, D.Q. Effect of secondary metabolites of endophytic fungus Pestalotiopsis adusta on HeLa cells. Chin. Tradit. Patent Med. 2014, 36, 325–329. [Google Scholar]
  27. Firdous, S.; Khan, K.; Zikr-Ur-Rehman, S.; Ail, Z.; Soomro, S.; Ahmad, V.U.; Rasheed, M.; Mesaik, M.A.; Faizi, S. Isolation of phytochemicals from Cordia rothii (Boraginaceae) and evaluation of their immunomodulatory properties. Nat. Prod. Rep. 2014, 8, 51–55. [Google Scholar]
  28. Nechepurenko, I.V.; Polovinka, M.P.; Komarova, N.I.; Korchagina, D.V.; Salakhutdinov, N.F.; Nechepurenko, S.B. Low molecular weight phenolic compounds from Hedysarum theinum roots. Chem. Nat. Compd. 2008, 44, 31–34. [Google Scholar] [CrossRef]
  29. Li, Y.J.; He, X.; Liu, Z.B.; Huang, Y.; Lan, Y.Y.; Wang, A.M.; Wang, Y.L. Chemical constituents of flowers of Polygonum orientale. Lishizhen Med. Mater. Med. Res. 2010, 34, 2613–2615. [Google Scholar]
  30. Dai, Y.; Li, K.L.; She, J.L.; Zeng, Y.B.; Wang, H.; Liao, S.R.; Lin, X.P.; Yang, B.; Wang, J.F.; Tao, H.M.; et al. Lipopeptide epimers and a phthalide glycerol ether with AChE inhibitory activities from the marine-derived fungus Cochliobolus Lunatus SCSIO41401. Mar. Drugs 2020, 18, 547. [Google Scholar] [CrossRef]
  31. Cai, J.; Chen, C.M.; Tan, Y.H.; Chen, W.H.; Luo, X.W.; Luo, L.X.; Yang, B.; Liu, Y.H.; Zhou, X.F. Bioactive polyketide and diketopiperazine derivatives from the mangrove-sediment-derived fungus Aspergillus sp. SCSIO41407. Molecules 2021, 26, 4851. [Google Scholar] [CrossRef] [PubMed]
  32. Cheung, J.; Rudolph, M.J.; Burshteyn, F.; Cassidy, M.S.; Gary, E.N.; Love, J.; Franklin, M.C.; Height, J.J. Structures of human acetylcholinesterase in complex with pharmacologically important ligands. J. Med. Chem. 2012, 55, 10282–10286. [Google Scholar] [CrossRef] [PubMed]
  33. Lu, T. Molclus Program, Version 1.9.9.9. Available online: http://www.keinsci.com/research/molclus.html (accessed on 1 March 2022).
  34. Lu, T.; Chen, F.W. Multiwfn: A Multifunctional Wavefunction Analyzer. J. Comput. Chem. 2012, 33, 580–592. [Google Scholar] [CrossRef] [PubMed]

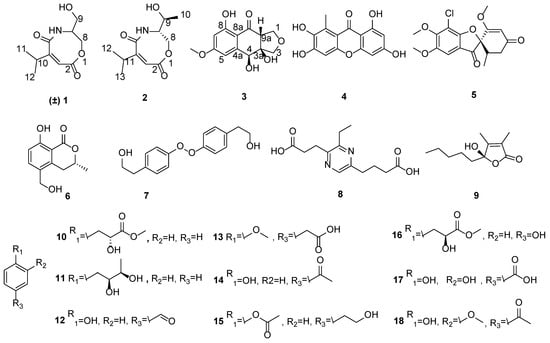

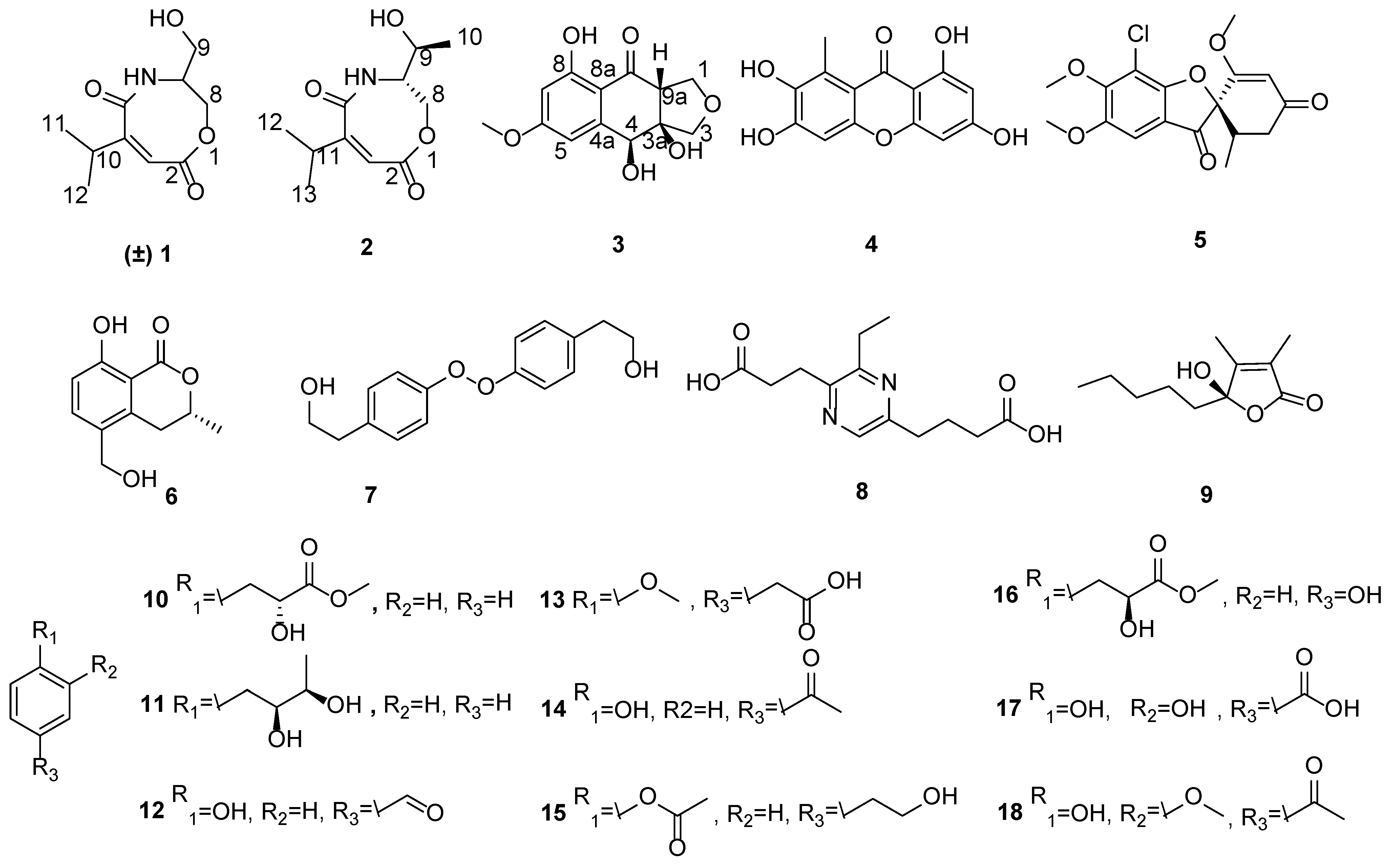

Figure 1. The structures of 118.
Figure 1. The structures of 118.
Marinedrugs 20 00475 g001

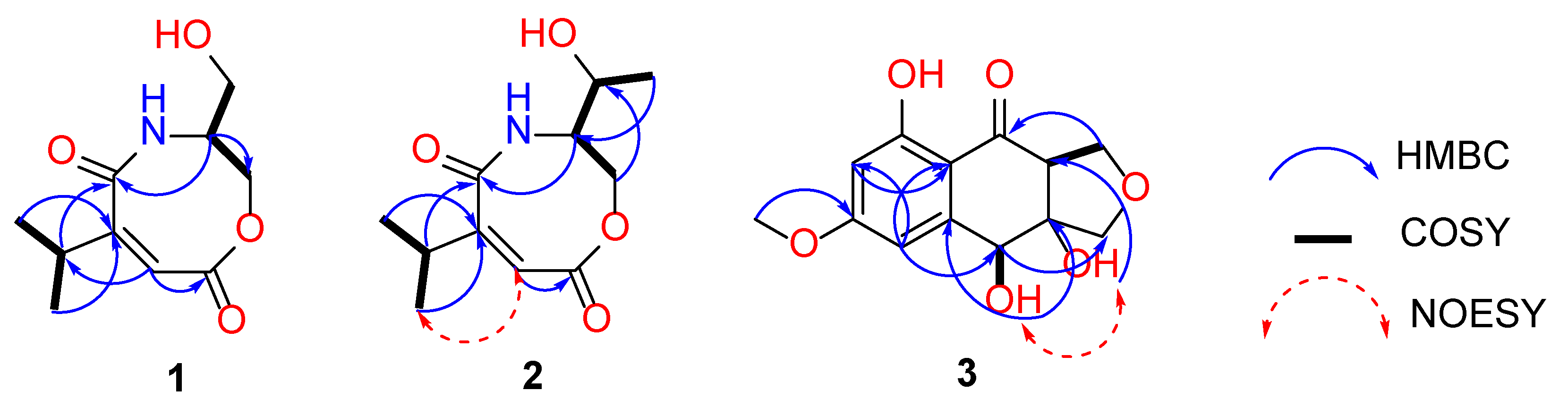

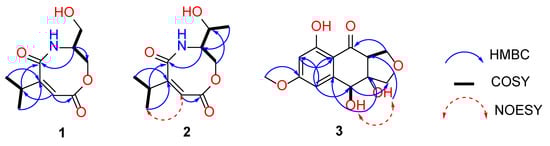

Figure 2. Key COSY, HMBC, and NOESY correlations of 13.
Figure 2. Key COSY, HMBC, and NOESY correlations of 13.
Marinedrugs 20 00475 g002

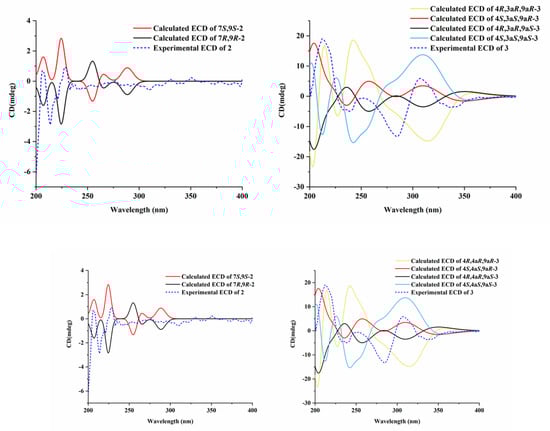

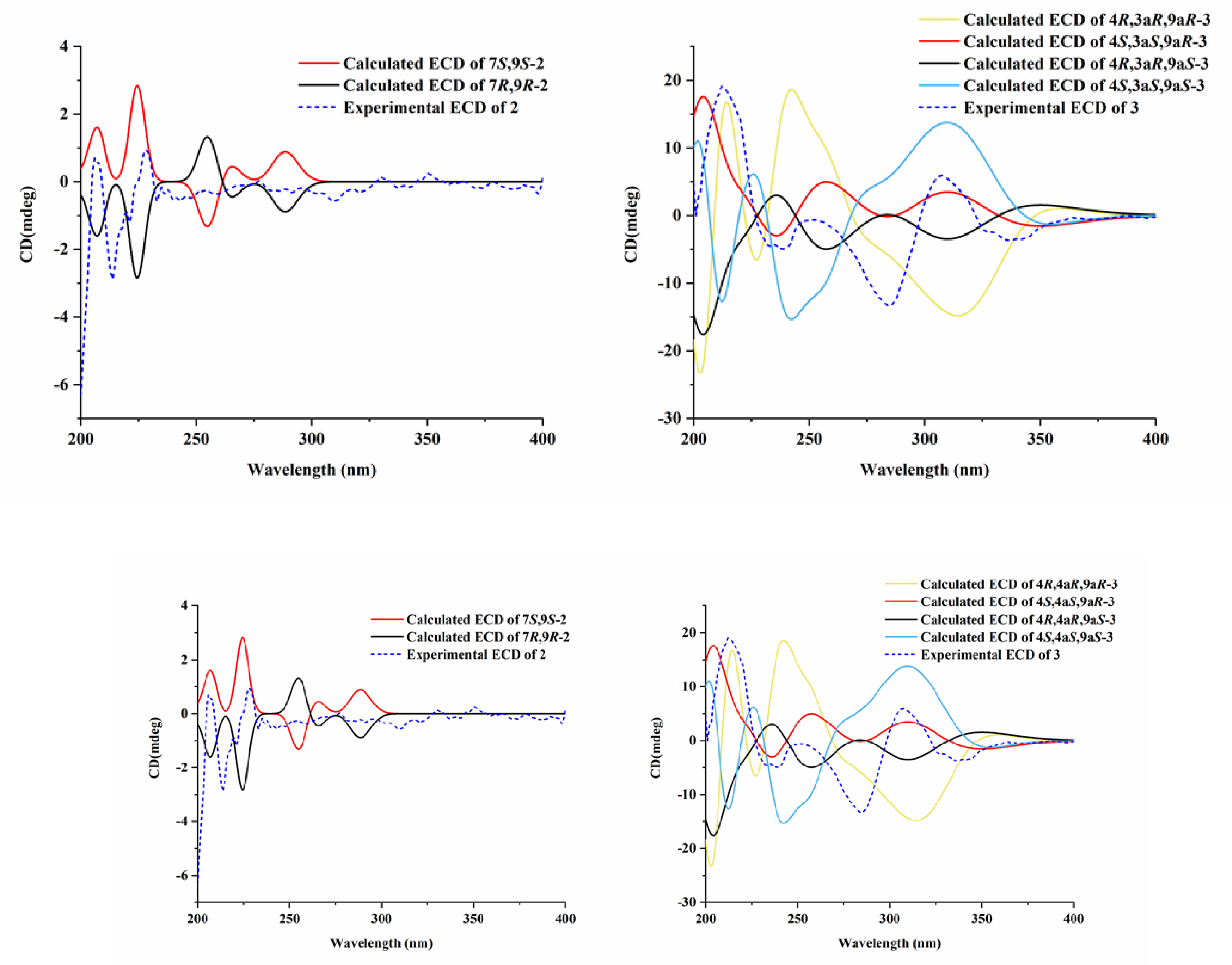

Figure 3. Calculated and experimental ECD spectra of 2 (left) and 3 (right).
Figure 3. Calculated and experimental ECD spectra of 2 (left) and 3 (right).
Marinedrugs 20 00475 g003

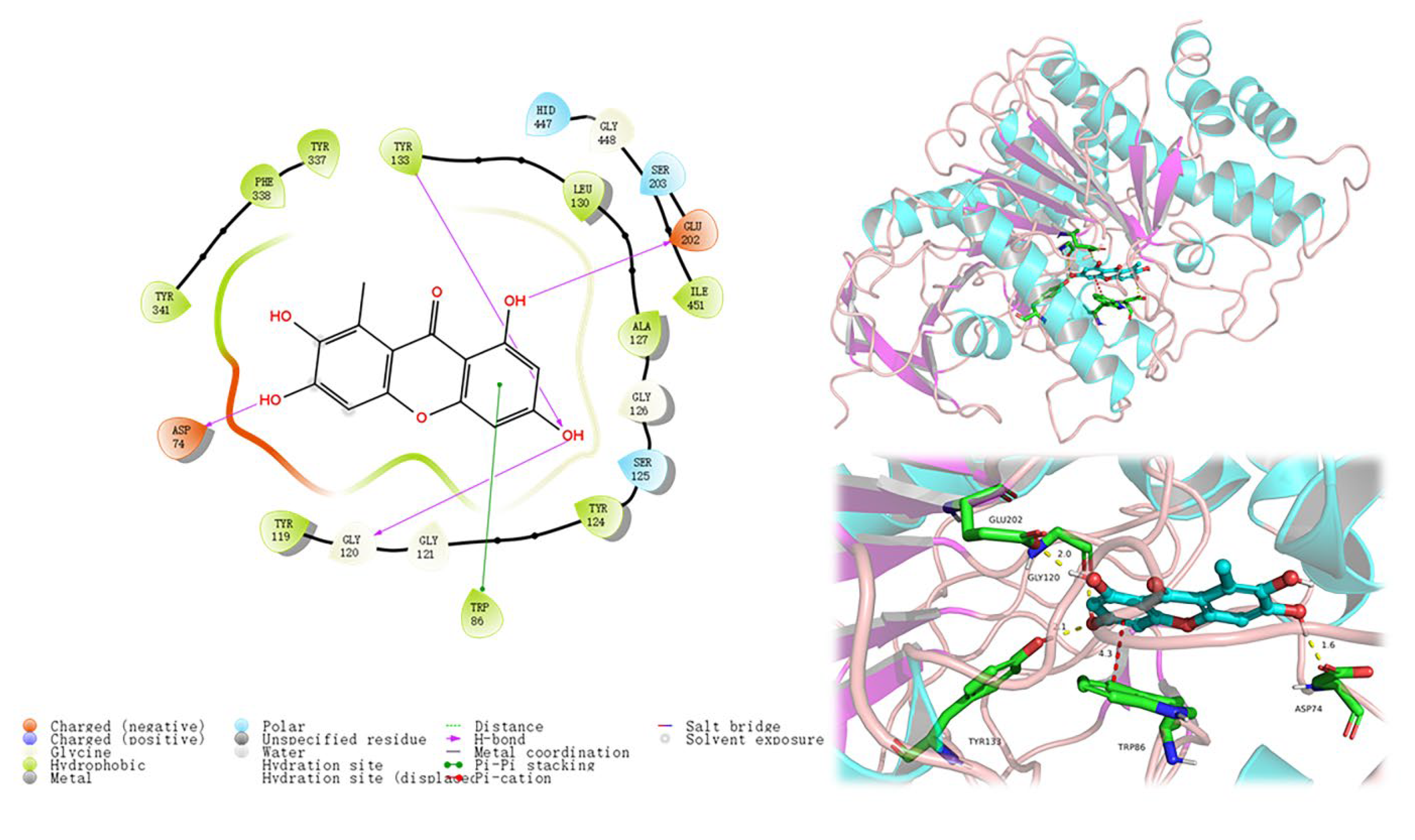

Figure 4. 2D and 3D models of 4 with AChE (4EY7) predicted by in silico molecular docking.
Figure 4. 2D and 3D models of 4 with AChE (4EY7) predicted by in silico molecular docking.
Marinedrugs 20 00475 g004
Table 1. 1H and 13C NMR spectroscopic data of 13.
Table 1. 1H and 13C NMR spectroscopic data of 13.
Pos1 (in DMSO-d6) a2 (in CDCl3) b3 (in DMSO-d6) b
δC, TypeδH (J in Hz)δC, TypeδH (J in Hz)δC, TypeδH (J in Hz)
1 70.7, CH24.20 (dd, 8.0, 1.5)
4.12 (dd, 8.0, 5.8)
2171.4, C 172.4, C
3124.9, CH6.53 (d, 1.6)125.0, CH6.30 (d, 1.6)74.8, CH23.68 (d, 9.7)
3.54 (d, 9.7)
3a 147.9, C
4154.4, C 156.2, C 71.0, CH4.95 (s)
4a 81.0, C
5171.2, C 172.6, C 105.0, CH6.73 (dd, 2.5, 1.3)
6 166.8, C
756.0, CH3.99 (tt, 8.7, 5.8)58.7, CH4.07 (m)99.2, CH6.41 (d, 2.5)
858.3, CH23.56 (dt, 11.3, 5.8)62.5, CH23.97 (dd, 12.1, 6.2)
3.91 (dd, 12.1, 4.3)
164.4, C
8a 108.9, C
958.3, CH23.63 (m)67.3, CH4.24 (m)201.5, C
9a 57.3, CH3.04 (dd, 5.8, 1.5)
1025.1, CH2.71 (m)20.9, CH31.19 (d, 6.4)55.8, CH33.84 (s)
1120.6, CH31.15 (d, 6.8)26.1, CH32.85 (m)
1220.6, CH31.15 (d, 6.8)20.9, CH31.24 (d, 6.9)
13 20.9, CH31.24 (d, 6.9)
OH 4.79 (t, 5.8) 12.77 (s, OH-8)
OH 6.13 (s, OH-4)
OH 5.61 (s, OH-3a)
a: 1H in 700 MHz and 13C in 175 MHz; b: 1H in 500 MHz and 13C in 125 MHz.
Table 2. Inhibition rates of AChE and molecular docking scores of active compounds with AChE.
Table 2. Inhibition rates of AChE and molecular docking scores of active compounds with AChE.
CompoundsInhibition Rates of AchEDocking ScoreGlide Gscore
279.38%−7.126−7.126
384.22%−7.041−7.046
486.00%−9.383−9.518
578.36%−7.097−7.097
681.52%−6.729−6.800
771.34%−5.645−5.645
881.59%−6.880−6.880
975.89%−6.574−6.577
1065.78%−6.260−6.260
1180.53%−5.624−5.624
1268.91%−6.492−6.581
1581.32%−6.398−6.398
1758.37%−6.213−6.213
Others<50%//
