Detection and Quantification of Tire Particles in Sediments Using a Combination of Simultaneous Thermal Analysis, Fourier Transform Infra-Red, and Parallel Factor Analysis
Abstract
:1. Introduction
2. Materials and Methods
2.1. Tire Granules
2.2. Formulated Sediment
2.3. Sample Preparation
2.4. Experimental Flow and Procedure
2.5. Data and the PARAFAC Model
2.6. Rubber Material Identification
2.7. Quantity Estimation
3. Results
3.1. Sample Weight Loss in Simultaneous Thermal Analysis (STA)

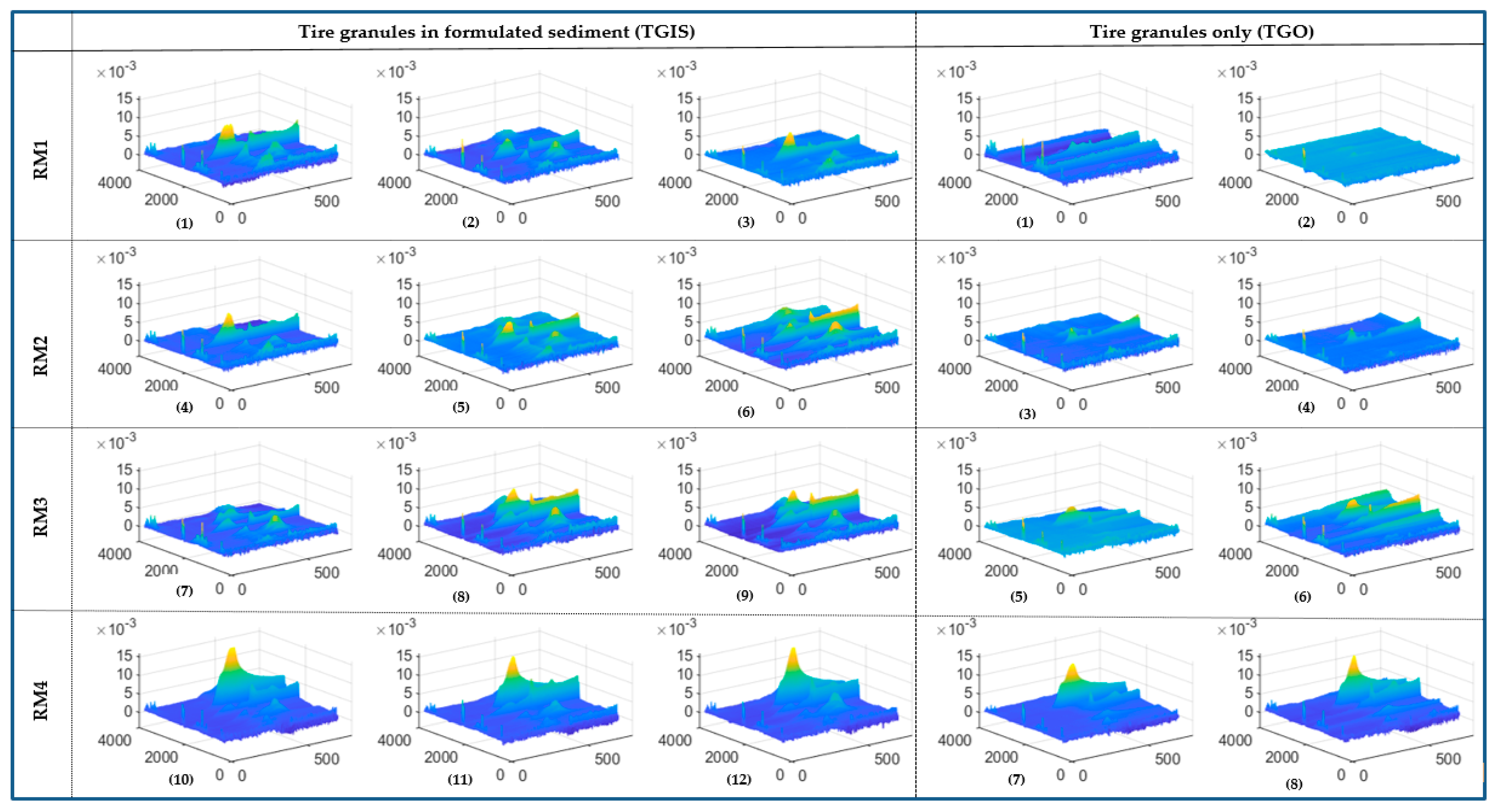

3.2. Landscape Surfaces of FTIR Data

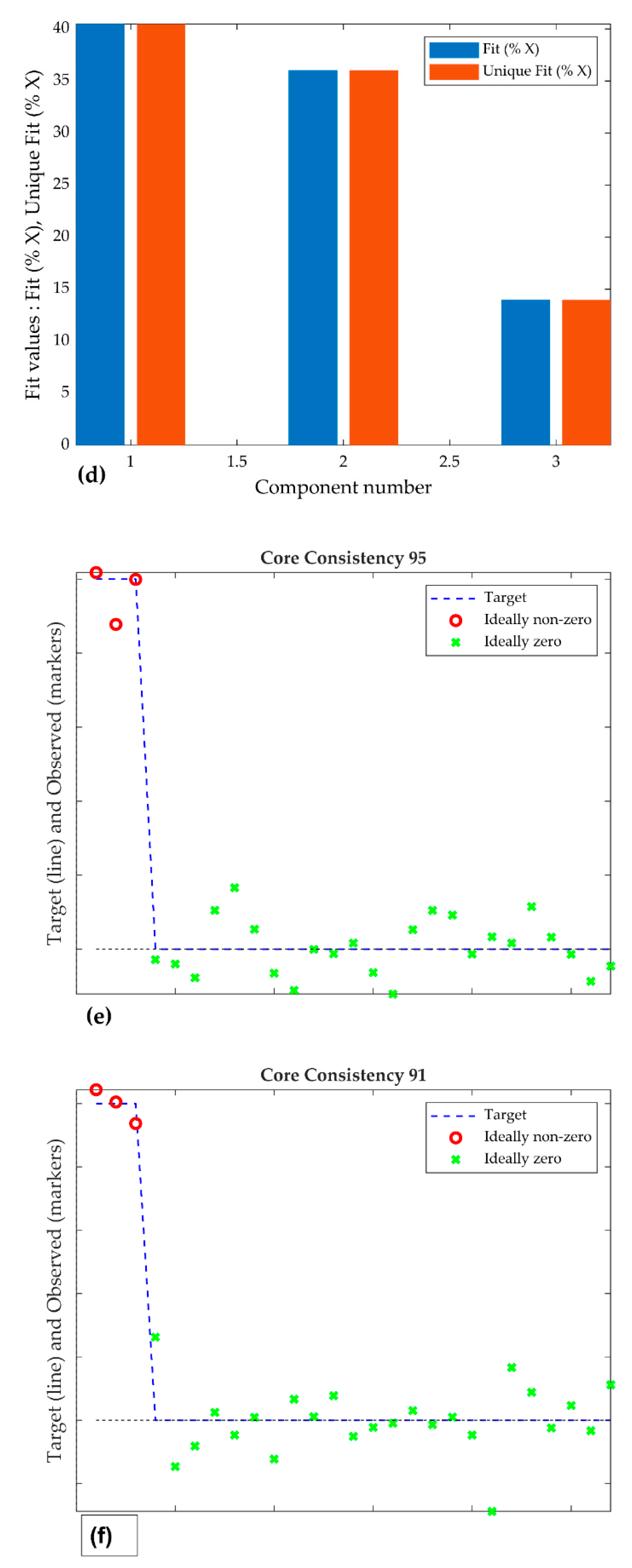

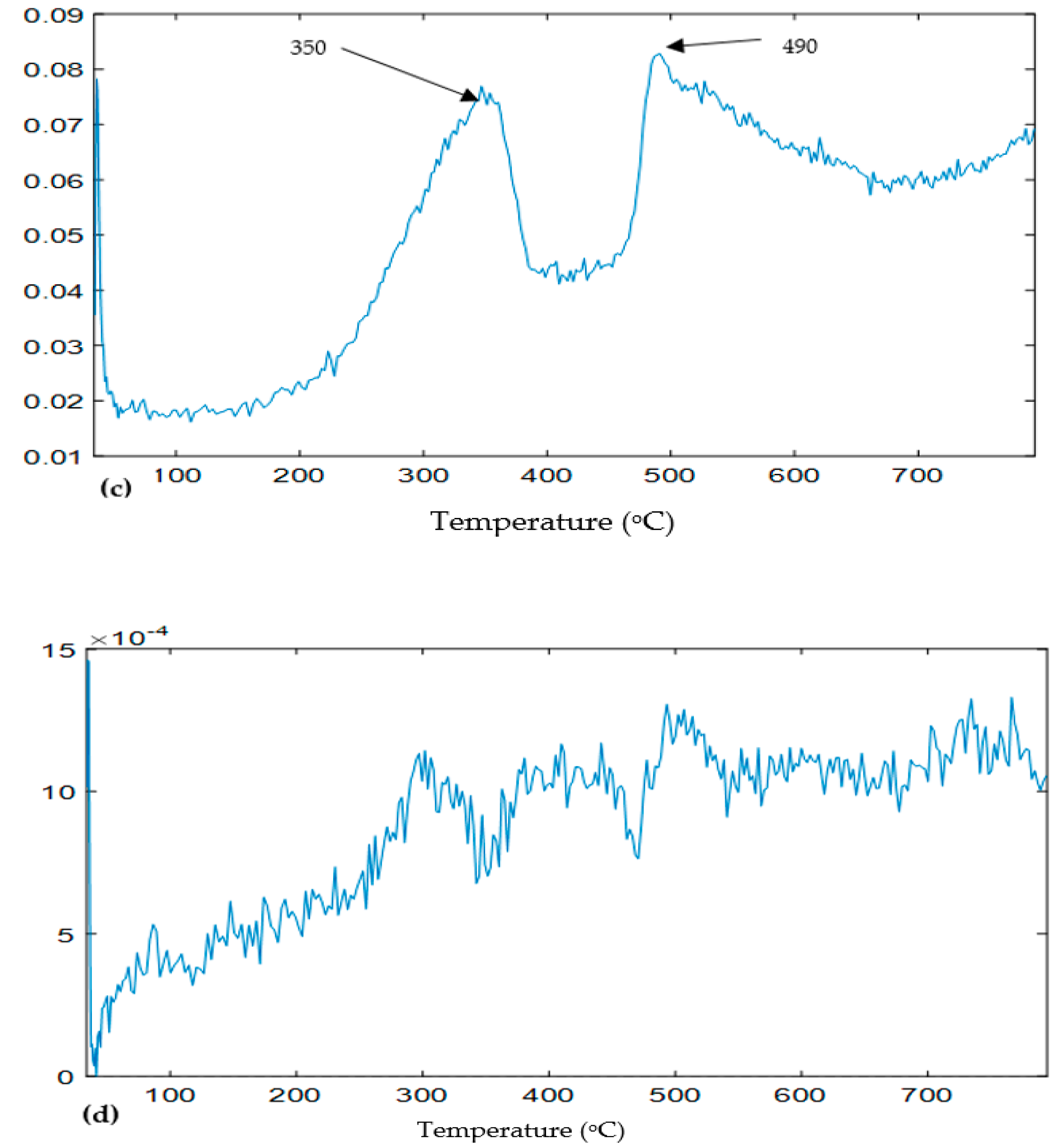

3.3. The PARAFAC Model and Results
4. Discussion
4.1. Decomposition of Overlying Components
4.2. Identification of Components
4.3. Estimation of Quantity of Components
5. Conclusions
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
