Article

Combining Data from Multiple Sources to Evaluate Spatial Variations in the Economic Costs of PM2.5-Related Health Conditions in the Beijing–Tianjin–Hebei Region

Institute of Urban Meteorology, China Meteorological Administration, Beijing 100089, China
*
Author to whom correspondence should be addressed.
Int. J. Environ. Res. Public Health 2019, 16(20), 3994; https://doi.org/10.3390/ijerph16203994
Submission received: 11 September 2019 / Revised: 15 October 2019 / Accepted: 16 October 2019 / Published: 18 October 2019

Abstract

:
Fine particulate matter, known as PM2.5, is closely related to a range of adverse health outcomes and ultimately imposes a high economic cost on the society. While we know that the costs associated with PM2.5-related health outcomes are not uniform geographically, a few researchers have considered the geographical variations in these costs because of a lack of high-resolution data for PM2.5 and population density. Satellite remote sensing provides highly precise, high-resolution data about how PM2.5 and population density vary spatially, which can be used to support detailed health-related assessments. In this study, we used high-resolution PM2.5 concentration and population density based on remote sensing data to assess the effects of PM2.5 on human health and the related economic costs in the Beijing–Tianjin–Hebei (BTH) region in 2016 using exposure-response functions and the relationship between health and economic costs. The results showed that the PM2.5-related economic costs were unevenly distributed and as with the population density, the costs were mainly concentrated in urban areas. In 2016, the economic costs of PM2.5-related health endpoints amounted to 4.47% of the total gross domestic product in the BTH region. Of the health endpoints, the cost incurred by premature deaths accounted for more than 80% of the total economic costs associated with PM2.5. The results of this study provide new and detailed information that could be used to support the implementation of national and regional policies to reduce air pollution.

1. Introduction

Air pollution has significant impacts on health. The World Health Organization (WHO) estimated that, worldwide, three million people died prematurely because of air pollution in 2012 [1]. As a major air pollutant, fine particulate matter with an aerodynamic diameter of ≤2.5 µm, known as PM2.5 [2,3], remains suspended in the air for a long time. With a small particle size and large surface area, it is very active and carries various poisonous substances into the body, mainly through the respiratory tract, and penetrates deep into the tracheobronchial and alveolar regions [4,5]. Exposure to PM2.5 is associated with various health conditions such as respiratory diseases [6], cardiovascular diseases [7,8], lung cancer [9,10,11], nervous system diseases [12], and congenital heart defects [13]. These negative effects on health inevitably increase the economic costs of health, which then increase the burden on economic development [14]. Therefore, it is important to assess how air pollution impacts on society and economic development and ascertain the health-related economic costs of PM2.5.
To date, researchers have estimated the economic cost of health impacts caused by PM2.5 in several cities and countries worldwide [15,16,17]. The economic loss caused by PM2.5 was estimated to account for 4.7% of the GDP in the Beijing–Tianjin–Hebei (BTH) area of China in 2009 [18]. The health-related economic losses due to PM2.5 pollution in Beijing were between USD 0.76 and 1.04 billion in 2014 and between USD 0.68 and 0.99 billion in 2015 [19]. The economic loss attributable to PM2.5-related conditions in the Yangtze River Delta of China was USD 3.5 billion in 2010 [20], while, from 2014 to 2016, an average of 1% of the total gross domestic product (GDP) of 190 Chinese cities was given over to air pollution-related health issues [21]. An assessment of the health burden undertaken in Hong Kong indicated that, each year, an average of 2918 premature mortalities were attributable to PM2.5 exposure (95% CI: 1288, 4279) from 2001 to 2016 [22]. The preterm births caused by PM2.5 produced external costs of USD 4.33 billion in the USA in 2010 [16]. In Skopje, the capital of Macedonia, the social cost of predicted premature mortalities caused by air pollution in 2012 was estimated to be between USD 631.67 and 1629.05 million [23].
Most of these studies, by quantitatively assessing the economic costs of specific cities and regions, have shown that the economic costs of PM2.5-related health impacts are considerable. Studies have also examined the spatial distribution of economic losses from PM2.5-related health impacts. For example, in Beijing, the external costs were higher in the central and southern areas than in the northern districts [24]. The number of deaths attributable to PM2.5 in Taiwan was the highest in the southwest, in New Taipei and Kaohsiung [25]. Another study reported that the levels of premature mortality were high in the central and eastern parts of China, and were the highest in Northern China and the Yangtze River Delta region [26]. Yang et al. (2018) assessed the spatial and temporal patterns of economic losses for the period from 2014 to 2016 in 190 Chinese cities [21].
Although these studies have estimated the spatial distribution of the economic loss at either the district or national scale, they have assumed that both the exposed population and the PM2.5 concentrations were evenly distributed in the studied cities or districts, mainly because of the limited availability of high-resolution PM2.5 concentration and population data [21,24,26]. However, if the variations within cities or districts are ignored, any assessment cannot reflect the true situation. Measurements from stationary ambient monitoring sites have been used as surrogates of personal exposure to PM2.5, but these sites are limited and are often sparsely and unevenly distributed, which means that it is difficult to collect data continuously over a wide geographical area. Thus, accurate spatial assessments of the economic costs associated with PM2.5 pollution require accurate, high-resolution, spatially-resolved predictions of PM2.5 exposure and population density.
Remotely sensed data from satellites may provide a cost-effective method for predicting PM2.5 concentrations and for example, satellite-derived aerosol optical depth (AOD) data can be used in areas where there are very few or no monitoring stations [27,28]. In early 2014, the moderate-resolution imaging spectroradiometer (MODIS) team released the Collection 6 AOD products that have a spatial resolution of 3 km, which is considered to be reasonably high [29]. These 3-km AOD products make it possible to reduce PM2.5 exposure errors and estimate the spatial distribution of PM2.5 concentrations at a high resolution [30,31]. The nighttime lights time-series (NLT) image products of the Defense Meteorological Satellite Program’s Operational Linescan System (DMSP/OLS) also offer good opportunities for detecting the population distribution because they are closely related to human activities [32]. Numerous studies have used NLT products to obtain accurate and detailed information of population distribution at different scales [33,34]. These products can provide high-resolution, accurate information about the spatial distribution of PM2.5 concentrations and population density that can be used to assess the economic costs of PM2.5-related health impacts.
Rapid economic development in China has caused severe environmental pollution, including air pollution [35]. While the BTH region is the most important political, economic, and cultural center of northern China, it is also one of the most polluted clusters of cities in China. In 2022, the Winter Olympics will be held in Beijing and Zhangjiakou, Hebei province. With this event approaching, policies need to be developed to effectively control air pollution. There is therefore an urgent need for high-resolution studies related to PM2.5, particularly about how the costs of health impacts linked with PM2.5 vary spatially. In this study, the spatial distribution of PM2.5 concentrations was predicted from MODIS 3-km AOD and the spatial distribution of the population density in the BTH region was modeled from the DMSP/OLS NTL data. Then, the spatial variations in the health-related economic costs of PM2.5 in the BTH region were assessed quantitatively by using the spatially highly resolved remote sensing data, the exposure-response function, and the health economic-loss relationship adjusted to the BTH region. The results provide new information that can be used to formulate effective measures to reduce the economic burden associated with air pollution and, at the same time, offer effective technological support for large-scale social activities such as the Winter Olympic Games.

2. Materials and Methods

2.1. Fine Particulate Matter (PM2.5) Data

To date, a variety of empirical models [36,37] and advanced models [28,30,38] have been developed to estimate PM2.5 concentrations from satellite-derived AOD products for different parts of the world. In this study, we estimated the PM2.5 concentrations of the BTH region in 2016 at a 3-km resolution using multiple remote sensing images and the linear mixed-effects (LME) model [31,39]. The LME model can be used to account for daily variations in the AOD–PM2.5 relationship. Daily variations in the relationship between additional meteorological variables and PM2.5 were not considered in our model because they led to overfitting of the model [31]. The model structure was expressed as:
PM s , t = ( b 0 + b 0 , t ) + ( b 1 + b 1 , t ) × AOD s , t + b 2 × PBLH s , t + b 3 × RH s , t + b 4 × WS s , t + b 5 × PS s , t + ε   ,
where PMs,t (μg/m3) is the averaged observed PM2.5 concentration at a grid cell s on day t; b0 and b0,t are the fixed and day-specific random intercepts, respectively; bi (i = 1, 2, ……) represents the fixed slopes for the predictors; b1,t is the random slope for AOD for each day; AODs,t refers to the MODIS AOD value (unitless) at grid cell s on day t; and PBLHs,t, RHs,t, WSs,t, and PSs,t are the meteorological parameters at grid cell s on day t. The meteorological parameters included the planetary boundary layer height (PBLH, m), relative humility (RH, %), wind speed (WS, m/s), and surface pressure (PS, hPa).
The data used in the model included hourly PM2.5 concentrations from ground monitoring sites (Figure 1) and the MODIS 3-km AOD and assimilated meteorological data. We obtained PM2.5 data for the BTH region for 2016 from China’s Air Quality Online Monitoring and Analysis Platform [40] and the Beijing Municipal Environmental Monitoring Center [41]. We also obtained MODIS Collection 6 Level 2 aerosol products with a spatial resolution of 3 km for 2016 [42]. The data from the 3-km AOD products agreed well with the ground-based data from six Aerosol Robotic Network (AERONET) sites in China [43]. In this study, Aqua (overpass at ~13:30 LocalTime) and Terra (overpass at ~10:30 LocalTime) MODIS AOD data at 550 nm were first combined and averaged to improve the spatial coverage [31]. The 2016 meteorological data were obtained from the Goddard Earth Observing System Data Assimilation Forward Processing (GEOS-5 FP) system. The NASA Global Modeling and ASSimilation Office (GMAO) GEOS-5 FP products, available since April 2012, is the latest version of the GEOS-5 meteorological data, and has a spatial resolution of 0.25° (latitude) × 0.3125° (longitude) in a nested grid that covers China [44]. The hourly PM2.5 concentrations and the GEOS-5 FP data from 10:00 to 14:00 local time were averaged as the daytime PM2.5 concentrations and meteorological parameters to match the overpass times of the MODIS Terra and Aqua satellites. All data were reprojected using the Albers Equal Area Conic Projection and were resampled to a spatial resolution of 3 km. The data were clipped to match the administrative boundary of the study area. Finally, all the variables for 2016 were matched by grid cell and date for model fitting.
We used the coefficient of determination (R2) to indicate the degree of agreement between the predicted and observed PM2.5 concentrations. We also applied a 10-fold cross-validation (CV) method to check for potential model overfitting [45] and used R2 as an indicator of the agreement.

2.2. The Spatial Distribution of the Population Density

In this study, the spatial distribution of population density was determined with the spatial lag regression model (SLM) based on DMSP/OLS NTL and land cover data. Traditional regression models assume that the observation is mutually independent, which is not valid because of the spatial structure of the data [46]. The SLM method estimates the spatial dependency in regression analysis and provides information about the spatial relationships among the parameters involved in the model [47]. The population density model is expressed as:
P O P i = ρ ω P O P i + u D N i + i = 1 n ( a k L i k ) + μ ,
where POPi denotes the initial population of the ith pixel; DNi denotes the digital number (DN) of the DMSP/OLS NTL image; Lik denotes the kth land class area of the ith pixel; ρ is the regression coefficient of the spatial lag variable ωPOPi; u and ak are the regression coefficients of DNi and Lik, respectively; ω denotes the spatial weight matrix; and µ denotes the vector of error terms that are independent, but not necessarily identically distributed.
Because there were errors associated with the polynomial regression function, there were discrepancies between the initial population estimate and the census data. A proportionality coefficient was built to reduce the errors [48,49,50], as follows:
k = Census/POP,
where k is the proportionality coefficient of the BTH region, Census is all the census data for the BTH region, and POP is the modeled initial total population of the BTH region. The modeled initial population of all the pixels was multiplied by the proportionality coefficient, and the spatialized population of each pixel was obtained, as follows:
EstPOPi = k ∗ POPi,
where EstPOPi is the spatialized population of the ith pixel. As in a previous study [51], the mean relative error (MRE) was adopted to evaluate the overall accuracy of the population density estimates as follows:
γ j = | P O P j ¯ P O P j | P O P j × 100 % ,
MRE = j = 1 n | γ j | / n ,
where γj is relative error of the jth county, P O P j ¯ is the estimated population of the jth county, POPj is the census data of the jth county, and n is the number of counties.
The data sources included three aspects, namely, DMSP/OLS stable NTL data, MODIS land use data, and county-level data from the 6th Census (Figure 2). Because the data from the 6th Census were collected in 2010, we also used NTL data and land use data from 2010. The DMSP/OLS stable NTL data (1-km resolution) values represent the average of all light intensity values observed on cloud-free days during a calendar year from temporally stable sources such as cities, towns, villages, industrial sites, and persistent gas flares [52]; ephemeral events (e.g., fires) were discarded. The DN values of the stable NTL data ranged from 1 to 63 and the background and noise were identified and replaced with values of zero [53]. For land cover, we used the MODIS MCD12Q1 products with a 500-m spatial resolution and the International Geosphere Biosphere Program (IGBP) global vegetation classification scheme. We adopted the IGBP scheme as it is the primary land cover classification scheme used in data from the Land Processes Distribution Active Archive Center of the United States Geological Survey (USGS) [54]. The land cover types of the MCD12Q1 products were amalgamated into five land cover classes, namely, urban land (built-up), forest, grass, water, and bare land (soil) [55,56]. The DMSP/OLS stable NTL data and MCD12Q1 from 2010 were reprojected to the Albers Conical Equal Area projection and were then co-registered and resampled to a pixel size of 1 km.
Highly accurate population density data of 2010 with a spatial resolution of 1 km were then produced. The population density distribution in 2016 was produced using the annual population growth rate of the cities from 2010 [57,58].

2.3. PM2.5 Health Risk Assessment

We compared various studies published in China and elsewhere in recent years that reported the health impacts caused by exposure to PM2.5 [18,24,59,60,61,62,63,64] and established the exposure-response correlation between PM2.5 pollution and health effects in the BTH region. We estimated the PM2.5 health impacts in this study from mortality data, hospital admission rates for respiratory and cardiovascular diseases, outpatient visits to internal medicine and pediatric practitioners, and co-occurrences of chronic bronchitis, acute bronchitis, and asthma.
Disease and death in the population are probabilistic events that correspond to the Poisson distribution. The linear exposure-response functions (Equations (7) and (8)) were used [65,66]:
E 0 i = E i e x p [ β i ( C C 0 ) ] ,
H I i j = P o p j × ( E i E 0 i ) = P o p j × E i × { 1 1 / e x p [ β i × ( C C 0 ) ] } ,
where βi is the exposure-response coefficient of health endpoint i, C is the ambient concentration of PM2.5 (μg/m3), C0 is the threshold level at which no health effects are yet assumed (μg/m3), Ei is the actual morbidity or mortality of the health endpoint i under pollution level C, E0i is the morbidity or mortality of a certain health endpoint i at the threshold concentration level, HIij refers to the health impact i in city j under pollution level C, and Popj is the exposed population (person) in city j. In this study, considering the potential of results in China, we used a baseline concentration (C0) of 35 μg/m3, the threshold suggested by China’s Environmental Protection Ministry [18,24,67,68].
The concentration-response coefficients for short-term mortality and morbidity are based on the previously published values listed in Table 1. To maximize the regional accuracy, we prioritized studies carried out in China when developing the exposure-response parameters. The mortality, respiratory hospital admission, and cardiovascular hospital admission parameters mainly refer to the meta-analysis results from Xie et al. (2009) [63] and Aunan and Pan (2004) [61]. The outpatient visits to pediatrics and internal medicine data are from the research about association of air pollution with hospital outpatient visits in Beijing [59]. The data of acute bronchitis, chronic bronchitis, and asthma attack are from the relevant domestic research. Table 2 shows the mortality and morbidity for the health endpoints in the BTH region, making reference mainly to the statistical and research results in the BTH region or across the nation. This information was used to calculate the patient and excess death numbers at health effect endpoints caused by PM2.5.

2.4. Quantitative Estimation of the Economic Costs

In this study, the value of a statistical life (VOSL) and the cost of illness (COI) methods were used to estimate the external costs, based on the health impacts. The VOSL is the value of a small change in the risk associated with the death of an unnamed member of a large group [73]. The VOSL represents society’s collective willingness to pay (WTP) [74] for a small reduction in the annual mortality risk of death [75]. In this study, the VOSL method was applied to assess the economic losses in the context of excess deaths and chronic diseases caused by PM2.5 [65]. We used data from a contingent valuation (CV) method conducted in Chongqing [65,70,75,76], where the VOSL of a local resident was about USD 34,458 and could increase by USD 14,434 for an annual income increase of USD 144.58. The VOSL of residents in the BTH region in 2016 was calculated as follows:
VOSL j = VOSL C q × ( I j I C q ) e ,
where VOSLj and VOSLCq are the VOSL of the city j and Chongqing, respectively; Ij and ICq are the personal income of the city j and Chongqing in 2016, respectively; and e is the elastic coefficient of WTP, which was assumed to be 1.0 in this study. The cost of chronic bronchitis was estimated as 0.055 of the VOSL, as suggested by Hammitt and Zhou (2006) [77].
The COI method calculates the cost of a disease from the costs of medical treatment and hospitalization, and productivity loss [78]. Based on the health effects calculated above, the associated economic costs were obtained using the following equation:
EC i j = HI i j × Cos t i j ,
where ECij is the economic loss from health impact i in city j and Costij is its economic cost per case. The values used for the economic costs per case of different health impacts and the literature on which the estimates were based are provided in Table 3. The exchange rate in 2016 was 6.6423 CNY to 1 USD [79].

3. Results

3.1. Spatial Variations in PM2.5 and Population Density

For model fitting, the overall value of R2 between the predicted and observed PM2.5 concentrations was 0.7495, and the Root Mean Squard Error (RMSE) and Maximum Permissible Error (MPE) were 20.91 μg/m3 and 14.55, respectively. The CV of the R2 value of the model was 0.7077, which was 0.04 less than that for the model fitting results. The CV of the RMSE value for the model was about 1 μg/m3 higher than the model fitting results, which suggests that the model was not substantially overfitted.
The spatial distribution of PM2.5 and the mean distributions of PM2.5 for 2016 for two seasons across the BTH region are shown in Figure 3. Because there were limited satellite data for winter (January, February, and December), the data were grouped into two seasons, namely, warm for the period from 15 April to 14 October and cold for the period from 15 October to 14 April. The blank areas in Tianjin in Figure 3 reflect that there is no predicted PM2.5 due to the lack of satellite AOD data. Spatially, there was a southeast-to-northwest gradient in the predicted concentrations of PM2.5. The concentrations were high in Beijing and in the south of Hebei province, and were low in the north of Hebei province. There were distinct seasonal variations in PM2.5 in the BTH region, and, apart from Beijing, the concentrations were the highest in the cold season and the lowest in the warm season. The abnormal seasonal variation in Beijing areas is due to the lack of satellite AOD. Both Terra and Aqua AOD data are not available in some days in cold season, especially in the urban center areas of Beijing. The predicted PM2.5 concentrations in the warm season and the cold season ranged from 8 to 190 μg/m3, and from 2 to 300 μg/m3, respectively. This seasonal variation reflects both the meteorological conditions and local emission sources.
The MRE calculated for the validation population result was about 34.62%, which proved that the estimates of the population density were relatively high. The simulated population density is presented in Figure 4. The BTH region is one of the most densely populated regions in China, with population densities exceeding 500 people/km2. The population densities were very obviously higher in the urban areas (generally exceeded 1000 people/km2) than in the rural areas (generally less than 250 people/km2).

3.2. Health Effects Linked to PM2.5

The health impacts calculated from a baseline concentration of 35 μg/m3 are shown in Table 4. Our results suggest that a PM2.5 pollution event of this magnitude would result in 89,005 acute deaths from all causes in the BTH region, with 15,934 deaths in Beijing, 11,004 deaths in Tianjin, and 62,067 deaths in Hebei. Of the health endpoints, the number of cases of outpatient visits to internal medicine was the highest in Beijing and Tianjin, followed by acute bronchitis and outpatient visits to pediatrics. For Hebei, the number of cases of acute bronchitis was the highest of all health endpoints, followed by outpatient visits to internal medicine and pediatrics. These effects probably reflect both the PM2.5 pollution and population distribution. While the mean PM2.5 concentrations of the three regions were similar (about 70 µg/m3), the number of cases for each health impact was much greater in Hebei than in Beijing and Tianjin, because the total population of Hebei (about 7.47 million) was much larger than the population of either Beijing (about 2.173 million) or Tianjin (about 1.562 million). Generally, as the PM2.5 pollution and population increased, the health effects in the BTH region also increased.
The spatial distribution of the calculated health impacts of PM2.5 in the BTH region are shown in Figure 5. The blank areas of the figure represent the areas where the PM2.5 concentration is lower than 35 μg/m3 and there are no health impacts. From the figure, we can see there was considerable spatial heterogeneity, and that more residents were affected by the PM2.5 pollution in central Beijing, Tianjin, and the southern districts of Hebei. The health impacts were also directly proportional to the population size. In the cold season, PM2.5 pollution was high to the northwest of Zhangjiakou and Chengde in the Hebei province (Figure 3), but the health impacts in these districts were smaller than those in central Beijing because of the differences in population distribution across these districts (Figure 4). The spatial patterns of health impacts in different seasons, based on the same population density (shown in Figure 5a–c), were similar to the patterns in the PM2.5 concentrations (Figure 3).

3.3. Economic Costs of PM2.5

The economic costs calculated for all health endpoints and all-cause mortality for a baseline PM2.5 concentration of 35 μg/m3 are shown in Table 5. Of the three areas, the external costs of PM2.5 were the highest in Hebei and lowest in Tianjin, where it was around 23% of the cost in Hebei. Economic losses due to all-cause mortality accounted for about 81% of the total external costs of PM2.5 pollution. Chronic bronchitis accounted for most of the cost of morbidity health impacts.
The ratio of the economic cost to GDP (Ecal/GDP) describes the economic burden of the health impacts linked to PM2.5 pollution and thus, it is an important parameter for formulating effective policies to maintain sustainable economic development [76]. The current economic development means that the values of Ecal/GDP are relatively high for this study. The economic cost of the health effects related to PM2.5 pollution in Beijing was 15.16 billion USD, around 3.9% of the GDP, while the economic costs of the health effects of PM2.5 pollution were 2.5% and 6% of the GDP in Tianjin and Hebei, respectively. These results suggest that the economic cost of health impacts related to PM2.5 has increased the economic burden in the BTH region.
The spatial distribution of the total economic cost associated with PM2.5 in 2016 and changes in the spatial distribution over the seasons are presented in Figure 6. The blank areas of the figure represent the areas where there was no economic cost linked to PM2.5. The blank areas in Tianjin in Figure 6b reflect the lack of PM2.5 data for cold season, which we have not discussed. The economic losses reflected the population density (Figure 4) and were concentrated in the urban areas and limited in the suburbs. The urban areas of Beijing, Tianjin, Shijiazhuang, Baoding, Xingtai, and Handan had high health-related economic losses because of PM2.5. The ranking was similar in different seasons and highly impacted areas were concentrated in the south of the BTH region, while the lower-ranked areas were mainly concentrated in the northern part of the BTH region. In the north of Hebei province, there was no economic cost in the warm season and the economic costs were low in the cold season (blank areas in Figure 6). In Chengde and Qinhuangdao in the southeast, the economic costs because of PM2.5 were lower in the cold season than in the warm season. The seasonal variation in the spatial distribution of the economic costs associated with PM2.5 mainly reflects the seasonal variations in PM2.5. In general, PM2.5 pollution and population distribution together account for the variable economic costs, and as the PM2.5 and population density increased, the economic costs also increased.

4. Discussion

We assessed the spatial variation in the economic costs of PM2.5-related health impacts in 2016 in the BTH region. Overall, the annual economic cost of these illnesses in the BTH region is high, especially in the central and southern areas of Beijing, and in the urban areas of Tianjin, Shijiazhuang, and Baoding. The high costs in these areas reflect pollution emissions, meteorological conditions, and population density. The areas with the most difference between the cold season and warm season were concentrated in Zhangjiakou, Chengde, and the southern parts of Hebei. The variability in the spatial distribution between the seasons reflects the seasonal variations in the PM2.5 concentrations.
The results of this study show that more than 2.3 million people suffered from health impacts related to PM2.5. These health impacts resulted in more than 15,000 premature deaths, representing about 0.07% of the 21.73 million residents in Beijing in 2016. In Tianjin, 1.6 million people suffered health impacts and 11,000 or 0.07% of the 15.62 million residents died prematurely. In Hebei, 7.8 million people suffered health impacts and 62,000 or 0.08% of the 74.70 million residents died prematurely. The most common health endpoints were outpatient visits to internal medicine and acute bronchitis. These results are generally consistent with those of previous studies; for example, Xie et al. (2011) reported that about 0.08% of the total population in the Pearl River Delta region in China died prematurely from PM2.5-related illnesses [80], while Apte et al. (2015) from their assessment of the health impacts of PM2.5 on people of all ages in China found that premature deaths accounted for 0.09% of the total population in 2013 [81].
We calculated that the total external costs of PM2.5-related health impacts in Beijing, Tianjin, and Hebei were 15.16, 6.8, and 29 billion USD, which was equivalent to around 3.9%, 2.5%, and 6% of the GDP of these regions in 2016, respectively. These findings are similar to those from other studies. For example, Lv and Li (2016) reported that the economic losses from health impacts as a result of PM2.5 pollution accounted for 2.16% (VSL) of the regional GDP in the BTH region in 2013 [67], while other researchers reported that the economic costs of PM2.5 pollution accounted for 4.98% and 3.79% of Beijing’s GDP in 2008 and 2012, respectively [66]. These estimates of the economic losses may vary depending on the PM2.5 concentration levels, baseline levels, health impact assessment models, exposure-response coefficients, and the choice of health endpoints.
We used high-resolution population data and satellite-derived PM2.5 data to explore the spatial distribution of economic costs from PM2.5-related health impacts. Because of the limited availability of high-resolution PM2.5 and population data, previous studies only estimated the economic costs at the district scale. However, the population density and PM2.5 concentrations vary considerably within cities and districts. Our study, therefore, is significant because we estimated the district-level and within-district economic costs related to air pollution in the BTH region. Our results build on those obtained from previous studies and provide more detailed information for policymakers about areas that should be given priority when developing strategies to control and prevent air pollution in this era of increased environmental protection in China.
However, there are some limitations in this analysis. First, it is difficult to consider all the possible health endpoints related to PM2.5 and obtain the associated data and information [24]. Furthermore, the biological evidence for some health impacts is still not certain [82]. Hence, we did not include some important potential PM2.5 health impacts such as diabetes and mental and behavioral disorders, which could impact on a person’s ability to work or engage in routine daily activities, and could represent significant additional health and economic burdens on social services. Second, in our study, Aqua and Terra MODIS AOD data were combined to improve spatial coverage, but neither Terra nor Aqua AOD data are available for some days because of cloud contamination, especially in the cold season. The predicted PM2.5 concentrations are affected by the missing values of the satellite AOD data, which require more accurate PM2.5 spatial distributions in the study area. Third, the population density data also has its limitations. Although the estimates of the population density in 2010 were relatively high, the usage of annual population growth rate of the cities from 2010 to 2016 to produce the population density distribution in 2016 may introduce some errors, which may affect the results. Fourth, we used a baseline PM2.5 concentration of 35 μg/m3, as suggested by the Chinese Environmental Protection Ministry, and considered a sensitive parameter for both health impacts and estimating external costs [24]. In future studies, the WHO-recommended baseline of 10 μg/m3 could also be used to estimate the external costs and the results calculated from both the baseline concentrations could be compared.
Despite these limitations, the results from this study can still be used to show the levels of air pollution and the district-level and within-district spatial variations of economic losses from PM2.5-related health impacts in the BTH region. However, to curb the health-related economic costs related to PM2.5, the PM2.5 concentrations need to be reduced further.

5. Conclusions

We combined simulated high-resolution population density data and satellite-derived PM2.5 concentration data and developed maps of the spatial distributions of economic losses related to multiple health impacts caused by PM2.5 pollution in 2016 in the BTH region. The results showed that the PM2.5-related economic losses of health impacts in the BTH region were enormous, and were close to 4.47% of the BTH’s regional GDP in 2016. We also found that the economic costs were unevenly distributed and as observed for population density, the costs were concentrated in urban areas and low in the suburbs. The losses were the greatest in Beijing, Tianjin, and cities in the southern Hebei province such as Shijiazhuang, Baoding, Xingtai, and Handan, and reflect the spatial distribution of the PM2.5 pollution. Priority should be given to controlling the PM2.5 pollution in these central and southern areas. There are some limitations associated with the economic losses estimated in this study because of data and research limitations. For instance, we did not include all PM2.5-related health impacts in the assessment and we used a static population exposure model in the study. These limitations should be addressed in future studies. Regardless of these limitations, the results from this study can still be used to enhance our fundamental understanding of the effects of PM2.5 pollution on our health and economy. This study highlights important information that can be used to reduce the health risks and economic burdens associated with PM2.5. It should also be useful for policymakers and should support the design of new policies to prevent and control air pollution.

Author Contributions

Methodology, X.Z.; Writing—Original Draft preparation, X.Z.; Writing—Review and Editing, X.Z., H.H.; supervision, H.H.

Funding

This research was funded by the Beijing Natural Science Foundation (Grant No. 8171002 and 8174066).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. World Health Organization (WHO). Ambient Air Pollution: A Global Assessment of Exposure and Burden of Disease; WHO: Geneva, Switzerland, 2016. [Google Scholar]
  2. Woodruff, T.J.; Parker, J.D.; Schoendorf, K.C. Fine particulate matter (PM2.5) air pollution and selected causes of postneonatal infant mortality in California. Environ. Health Perspect. 2006, 114, 786–790. [Google Scholar] [CrossRef] [PubMed]
  3. Li, S.; Liu, G.; Zheng, M.; Liu, W.; Wang, M.; Xiao, K.; Li, C.; Wang, Y. Comparison of the contributions of polychlorinated dibenzo-p-dioxins and dibenzofurans and other unintentionally produced persistent organic pollutants to the total toxic equivalents in air of steel plant areas. Chemosphere 2015, 126, 73–77. [Google Scholar] [CrossRef] [PubMed]
  4. Dominici, F.; Peng, R.D.; Bell, M.L.; Pham, L.; Mcdermott, A.; Zeger, S.L.; Samet, J.M. Fine particulate air pollution and hospital admission for cardiovascular and respiratory diseases. JAMA 2006, 295, 1127–1134. [Google Scholar] [CrossRef] [PubMed]
  5. Cao, C.; Jiang, W.; Wang, B.; Fang, J.; Lang, J.; Tian, G.; Jiang, J.; Zhu, T.F. Inhalable microorganisms in Beijing’s PM2.5 and PM10 pollutants during a severe smog event. Environ. Sci. Technol. 2014, 48, 1499–1507. [Google Scholar] [CrossRef] [PubMed]
  6. Mo, Z.; Fu, Q.; Zhang, L.; Lyu, D.; Mao, G.; Wu, L.; Xu, P.; Wang, Z.; Pan, X.; Chen, Z. Acute effects of air pollution on respiratory disease mortalities and outpatients in Southeastern China. Sci. Rep. 2018, 8, 3461. [Google Scholar] [CrossRef]
  7. Dockery, D.W.; Stone, P.H. Cardiovascular risks from fine particulate air pollution. N. Engl. J. Med. 2007, 356, 511. [Google Scholar] [CrossRef]
  8. Dabass, A.; Talbott, E.O.; Venkat, A.; Rager, J.; Marsh, G.M.; Sharma, R.K.; Holguin, F. Association of exposure to particulate matter (PM2.5) air pollution and biomarkers of cardiovascular disease risk in adult NHANES participants (2001–2008). Int. J. Hyg. Environ. Health 2016, 219, 301–310. [Google Scholar] [CrossRef]
  9. Badyda, A.J.; Grellier, J.; Dąbrowiecki, P. Ambient PM2.5 exposure and mortality due to lung cancer and cardiopulmonary diseases in Polish cities. In Respiratory Treatment and Prevention; Springer: Cham, Switzerland, 2016; pp. 9–17. [Google Scholar]
  10. Shu, Y.; Zhu, L.; Yuan, F.; Kong, X.; Huang, T.; Cai, Y.D. Analysis of the relationship between PM2.5 and lung cancer based on protein-protein interactions. Comb. Chem. High Throughput Screen. 2016, 19, 100–108. [Google Scholar] [CrossRef]
  11. Huang, F.; Pan, B.; Wu, J.; Chen, E.; Chen, L. Relationship between exposure to PM2.5 and lung cancer incidence and mortality: A meta-analysis. Oncotarget 2017, 8, 43322–43331. [Google Scholar] [CrossRef]
  12. van Winkle, L.S.; Bein, K.; Anderson, D.; Pinkerton, K.E.; Tablin, F.; Wilson, D.; Wexler, A.S. Biological dose response to PM2.5: Effect of particle extraction method on platelet and lung responses. Toxicol. Sci. 2015, 143, 349–359. [Google Scholar] [CrossRef]
  13. Zhang, B.; Liang, S.; Zhao, J.; Qian, Z.; Bassig, B.A.; Yang, R.; Zhang, Y.; Hu, K.; Xu, S.; Zheng, T. Maternal exposure to air pollutant PM2.5 and PM10 during pregnancy and risk of congenital heart defects. J. Expo. Sci. Environ. Epidemiol. 2016, 26, 422–427. [Google Scholar] [CrossRef] [PubMed]
  14. Kjellström, T.; Holmer, I.; Bruno, L. Workplace heat stress, health and productivity. Child Abus. Negl. 2009, 35, 647–654. [Google Scholar]
  15. Meisner, C.; Gjorgjev, D.; Tozija, F. Estimating health impacts and economic costs of air pollution in the Republic of Macedonia. South East. Eur. J Public Health 2015, 4. [Google Scholar] [CrossRef]
  16. Trasande, L.; Malecha, P.; Attina, T.M. Particulate matter exposure and preterm birth: Estimates of U.S. attributable burden and economic costs. Environ. Health Perspect. 2016, 124, 1913–1918. [Google Scholar] [CrossRef]
  17. Xie, Y.; Dai, H.; Dong, H.; Hanaoka, T.; Masui, T. Economic impacts from PM2.5 pollution-related health effects in China: A provincial-level analysis. Environ. Sci. Technol. 2016, 50, 4836–4843. [Google Scholar] [CrossRef] [PubMed]
  18. Huang, D.; Zhang, S. Health benefit evaluation for PM2.5 pollution control in Beijing-Tianjin-Hebei region of China. China Environ. Sci. 2013, 33, 166–174. (In Chinese) [Google Scholar]
  19. Li, L.; Lei, Y.; Wu, S.; Chen, J.; Yan, D. The health economic loss of fine particulate matter (PM2.5) in Beijing. J. Clean. Prod. 2017, 161, 1153–1161. [Google Scholar] [CrossRef]
  20. Wang, J.; Wang, S.; Voorhees, A.S.; Zhao, B.; Jang, C.; Jiang, J.; Fu, J.S.; Ding, D.; Zhu, Y.; Hao, J. Assessment of short-term PM2.5-related mortality due to different emission sources in the Yangtze River Delta, China. Atmos. Environ. 2015, 123, 440–448. [Google Scholar] [CrossRef]
  21. Yang, Y.; Luo, L.; Song, C.; Yin, H.; Yang, J. Spatiotemporal assessment of PM2.5-related economic losses from health impacts during 2014–2016 in China. Int. J. Environ. Res. Public Health 2018, 15, 1278. [Google Scholar] [CrossRef]
  22. Liao, Z.; Sun, J.; Liu, J.; Guo, S.; Fan, S. Long-term trends in ambient particulate matter, chemical composition, and associated health risk and mortality burden in Hong Kong (1995–2016). Air Qual. Atmos. Health 2018, 11, 773–783. [Google Scholar] [CrossRef]
  23. Martinez, G.; Spadaro, J.; Chapizanis, D.; Kendrovski, V.; Kochubovski, M.; Mudu, P. Health impacts and economic costs of air pollution in the metropolitan area of Skopje. Int. J. Environ. Res. Public Health 2018, 15, 626. [Google Scholar] [CrossRef] [PubMed]
  24. Yin, H.; Pizzol, M.; Xu, L. External costs of PM2.5 pollution in Beijing, China: Uncertainty analysis of multiple health impacts and costs. Environ. Pollut. 2017, 226, 356–369. [Google Scholar] [CrossRef] [PubMed]
  25. Lo, W.-C.; Shie, R.-H.; Chan, C.-C.; Lin, H.-H. Burden of disease attributable to ambient fine particulate matter exposure in Taiwan. J. Formos. Med. Assoc. 2017, 116, 32–40. [Google Scholar] [CrossRef] [PubMed]
  26. Liu, J.; Han, Y.; Tang, X.; Zhu, J.; Zhu, T. Estimating adult mortality attributable to PM2.5 exposure in China with assimilated PM2.5 concentrations based on a ground monitoring network. Sci. Total Environ. 2016, 568, 1253–1262. [Google Scholar] [CrossRef]
  27. Hoff, R.M.; Christopher, S.A. Remote sensing of particulate pollution from space: Have we reached the promised land? J. Air Waste Manag. Assoc. 2009, 59, 645–675. [Google Scholar] [CrossRef]
  28. Hu, X.; Waller, L.A.; Al-Hamdan, M.Z.; Crosson, W.L.; Estes, M.G., Jr.; Estes, S.M.; Quattrochi, D.A.; Sarnat, J.A.; Liu, Y. Estimating ground-level PM2.5 concentrations in the southeastern U.S. using geographically weighted regression. Environ. Res. 2013, 121, 1–10. [Google Scholar] [CrossRef]
  29. Remer, L.; Mattoo, S.; Levy, R.; Munchak, L. MODIS 3 km aerosol product: Algorithm and global perspective. Atmos. Meas. Tech. Discuss. 2013, 6, 69–112. [Google Scholar] [CrossRef]
  30. You, W.; Zang, Z.; Zhang, L.; Li, Y.; Pan, X.; Wang, W. National-scale estimates of ground-level PM2.5 concentration in China using geographically weighted regression based on 3 km resolution MODIS AOD. Remote Sens. 2016, 8, 184. [Google Scholar] [CrossRef]
  31. Zhang, X.; Hu, H. Improving satellite-driven PM2.5 models with VIIRS nighttime light data in the Beijing–Tianjin–Hebei region, China. Remote Sens. 2017, 9, 908. [Google Scholar] [CrossRef]
  32. Sutton, P.; Roberts, D.; Elvidge, C.; Meij, H. A comparison of nighttime satellite imagery and population density for the continental United States. Photogramm. Eng. Remote Sens. 1997, 63, 1303–1313. [Google Scholar]
  33. Lo, C.P. Modeling the population of China using DMSP operational linescan system nighttime data. Photogramm. Eng. Remote Sens. 2001, 67, 1037–1048. [Google Scholar]
  34. Zeng, C.; Zhou, Y.; Wang, S.; Yan, F.; Zhao, Q. Population spatialization in China based on night-time imagery and land use data. Int. J. Remote Sens. 2011, 32, 9599–9620. [Google Scholar] [CrossRef]
  35. Kan, H.; Chen, R.; Tong, S. Ambient air pollution, climate change, and population health in China. Environ. Int. 2012, 42, 10–19. [Google Scholar] [CrossRef] [PubMed]
  36. van Donkelaar, A.; Martin, R.V.; Park, R.J. Estimating ground-level PM2.5 using aerosol optical depth determined from satellite remote sensing. J. Geophys. Res. Atmos. 2006, 111. [Google Scholar] [CrossRef]
  37. van Donkelaar, A.; Martin, R.V.; Brauer, M.; Kahn, R.; Levy, R.; Verduzco, C.; Villeneuve, P.J. Global estimates of ambient fine particulate matter concentrations from satellite-based aerosol optical depth: Development and application. Environ. Health Perspect. 2010, 118, 847–855. [Google Scholar] [CrossRef] [PubMed]
  38. Ma, Z.; Hu, X.; Sayer, A.M.; Levy, R.; Zhang, Q.; Xue, Y.; Tong, S.; Bi, J.; Huang, L.; Liu, Y. Satellite-based spatiotemporal trends in PM2.5 concentrations: China, 2004–2013. Environ. Health Perspect. 2016, 124, 184–192. [Google Scholar] [CrossRef]
  39. Lee, H.J.; Liu, Y.; Coull, B.A.; Schwartz, J.; Koutrakis, P. A novel calibration approach of MODIS AOD data to predict PM2.5 concentrations. Atmos. Chem. Phys. 2011, 11, 9769–9795. [Google Scholar] [CrossRef]
  40. China’s Air Quality Online Monitoring and Analysis Platform. Available online: http:// www.aqistudy.cn/ (accessed on 18 October 2019).
  41. Beijing Municipal Environmental Monitoring Center. Available online: http://zx.bjmemc.com.cn/ (accessed on 18 October 2019).
  42. The Level-1 and Atmosphere Archive & Distribution System (LAADS) Distributed Active Archive Center (DAAC). Available online: https://ladsweb.nascom.nasa.gov/data/search.html (accessed on 18 October 2019).
  43. He, Q.; Zhang, M.; Huang, B. Spatio-temporal variation and impact factors analysis of satellite-based aerosol optical depth over China from 2002 to 2015. Atmos. Environ. 2016, 129, 79–90. [Google Scholar] [CrossRef]
  44. Lucchesi, R. File Specification for GEOS-5 FP-IT (Forward Processing for Instrument Teams); NASA Goddard Space Flight Center: Greenbelt, MD, USA, 2013.
  45. Kohavi, R. A study of cross-validation and bootstrap for accuracy estimation and model selection. In Proceedings of the 14th International joint Conference on Artificial Intelligence, Montreal, QC, Canada, 20–25 August 1995; Volume 2, pp. 1137–1143. [Google Scholar]
  46. Anselin, L.; Syabri, I.; Kho, Y. GeoDa: An introduction to spatial data analysis. Geogr. Anal. 2006, 38, 5–22. [Google Scholar] [CrossRef]
  47. Chi, G.; Zhu, J. Spatial regression models for demographic analysis. Popul. Res. Policy Rev. 2008, 27, 17–42. [Google Scholar] [CrossRef]
  48. Zhuo, L.; Ichinose, T.; Zheng, J.; Chen, J.; Shi, P.J.; Li, X. Modelling the population density of China at the pixel level based on DMSP/OLS non-radiance-calibrated night-time light images. Int. J. Remote Sens. 2009, 30, 1003–1018. [Google Scholar] [CrossRef]
  49. Tan, M.; Li, X.; Li, S.; Xin, L.; Wang, X.; Li, Q.; Li, W.; Li, Y.; Xiang, W. Modeling population density based on nighttime light images and land use data in China. Appl. Geogr. 2018, 90, 239–247. [Google Scholar] [CrossRef]
  50. Yu, S.; Zhang, Z.; Fang, L. Monitoring population evolution in China using time-series DMSP/OLS nightlight imagery. Remote Sens. 2018, 10, 194. [Google Scholar] [CrossRef]
  51. Harvey, J.T. Estimating census district populations from satellite imagery: Some approaches and limitations. Int. J. Remote Sens. 2002, 23, 2071–2095. [Google Scholar] [CrossRef]
  52. Elvidge, C.D.; Imhoff, M.L.; Baugh, K.E.; Hobson, V.R.; Nelson, I.; Safran, J.; Dietz, J.B.; Tuttle, B.T. Night-time lights of the world: 1994–1995. ISPRS J. Photogramm. 2001, 56, 81–99. [Google Scholar] [CrossRef]
  53. Elvidge, C.D.; Baugh, K.E.; Dietz, J.B.; Bland, T.; Sutton, P.C.; Kroehl, H.W. Radiance calibration of DMSP-OLS low-light imaging data of human settlements. Remote Sens. Environ. 1999, 68, 77–88. [Google Scholar] [CrossRef]
  54. The Land Processes Distribution Active Archive Center of the United States Geological Survey. Available online: https://lpdaac.usgs.gov/dataset_discovery/modis/modis_products_table/mcd12q1 (accessed on 18 October 2019).
  55. Hou, Y.; Wang, S.; Nan, Z. Rule-based land cover classification method for the Heihe River Basin. Acta Geogr. Sin. 2011, 66, 549–561. (In Chinese) [Google Scholar]
  56. Ren, Z.; Zhu, H.; Liu, X. Spatio-temporal differentiation of land covers on annual scale and its response to climate and topography in arid and semi-arid region. Trans. Chin. Soc. Agric. Eng. 2012, 28, 205–214. (In Chinese) [Google Scholar]
  57. National Bureau of Statistics (NBS). China Statistical Yearbook; China Statistics Press: Beijing, China, 2011. (In Chinese) [Google Scholar]
  58. National Bureau of Statistics (NBS). China Statistical Yearbook; China Statistics Press: Beijing, China, 2017. (In Chinese) [Google Scholar]
  59. Xu, X.; Dockery, D.W.; Christiani, D.C.; Li, B.; Huang, H. Association of air pollution with hospital outpatient visits in Beijing. Arch. Environ. Health 1995, 50, 214–220. [Google Scholar] [CrossRef]
  60. Wong, C.M.; Atkinson, R.W.; Anderson, H.R.; Hedley, A.J.; Ma, S.; Chau, P.Y.; Lam, T.H. A tale of two cities: Effects of air pollution on hospital admissions in Hong Kong and London compared. Environ. Health Perspect. 2002, 110, 67–77. [Google Scholar] [CrossRef]
  61. Aunan, K.; Pan, X.C. Exposure-response functions for health effects of ambient air pollution applicable for China—A meta-analysis. Sci. Total Environ. 2004, 329, 3–16. [Google Scholar] [CrossRef] [PubMed]
  62. Ko, F.W.; Tam, W.; Wong, T.W.; Lai, C.K.; Wong, G.W.; Leung, T.F.; Ng, S.S.; Hui, D.S. Effects of air pollution on asthma hospitalization rates in different age groups in Hong Kong. Clin. Exp. Allergy 2007, 37, 1312–1319. [Google Scholar] [CrossRef] [PubMed]
  63. Xie, P.; Liu, X.; Liu, Z.; Li, T.; Bai, Y. Exposure-response functions for health effects of ambient particulate matter pollution applicable for China. China Environ. Sci. 2009, 29, 1034–1040. (In Chinese) [Google Scholar]
  64. Liu, X.; Xie, P.; Liu, Z.; Li, T.; Zhong, L.; Xiang, Y. Economic assessment of acute health impact due to inhalable particulate air pollution in the Pearl River Delta. Acta Sci. Nat. Univ. Pekin. 2010, 46, 829–834. (In Chinese) [Google Scholar]
  65. Zhang, M.; Yu, S.; Cai, X. A health-based assessment of particulate air pollution in urban areas of Beijing in 2000–2004. Sci. Total Environ. 2007, 376, 100–108. [Google Scholar] [CrossRef] [PubMed]
  66. Hou, Q.; An, X.; Yan, T.; Sun, Z. Assessment of resident’s exposure level and health economic costs of PM10 in Beijing from 2008 to 2012. Sci. Total Environ. 2016, 563–564, 557–565. [Google Scholar] [CrossRef] [PubMed]
  67. Lv, L.; Li, H. Health economic evaluation of PM10 and PM2.5 pollution in Beijing-Tianjin-Hebei region of China. Acta Sci. Nat. Univ. Nankaiensis 2016, 1, 69–77. (In Chinese) [Google Scholar]
  68. China’s Environmental Protection Ministry. National Ambient Air Quality Standards (GB3095-2012); China Environmental Science Publisher: Beijing, China, 2012. (In Chinese) [Google Scholar]
  69. Jin, L.B.; Qin, Y.; Xu, Z. Relationship between air pollution and acute and chronic respiratory diseases in Benxi. J. Environ. Health 2000, 17, 268–270. (In Chinese) [Google Scholar]
  70. Chen, B.; Hong, C.; Kan, H. Exposures and health outcomes from outdoor air pollutants in China. Toxicology 2004, 198, 291–300. [Google Scholar] [CrossRef]
  71. National Health Commission of the People’s Republic of China. China Statistical Yearbook of Public Health; Peking Union Medical College: Beijing, China, 2017. (In Chinese) [Google Scholar]
  72. Xie, Y.; Chen, J.; Li, W. An assessment of PM2.5 related health risks and impaired values of Beijing residents in a consecutive high-level exposure during heavy haze days. Environ. Sci. 2014, 35, 1–8. (In Chinese) [Google Scholar]
  73. Hammitt, J.K. Valuing mortality risk:  Theory and practice. Environ. Sci. Technol. 2000, 34, 1396–1400. [Google Scholar] [CrossRef]
  74. Johnson, T.M.; Liu, F.; Newfarmer, R.S. Clear Water Blue Skies: China’s Environment in the New Century; The World Bank: Washington, DC, USA, 1997. [Google Scholar]
  75. Wang, H.; Mullahy, J. Willingness to pay for reducing fatal risk by improving air quality: A contingent valuation study in Chongqing, China. Sci. Total Environ. 2006, 367, 50–57. [Google Scholar] [CrossRef] [PubMed]
  76. Du, Y.; Li, T. Assessment of health-based economic costs linked to fine particulate (PM2.5) pollution: A case study of haze during January 2013 in Beijing, China. Air Qual. Atmos. Health 2016, 9, 439–445. [Google Scholar] [CrossRef]
  77. Hammitt, J.K.; Zhou, Y. The economic value of air-pollution-related health risks in China: A contingent valuation study. Environ. Resour. Econ. 2006, 33, 399–423. [Google Scholar] [CrossRef]
  78. Quah, E.; Boon, T.L. The economic cost of particulate air pollution on health in Singapore. J. Asian Econ. 2004, 14, 73–90. [Google Scholar] [CrossRef]
  79. China Foreign Exchange Trade System 2016. History Average Exchange Rate of RMB. Available online: http://www.chinamoney.com.cn/ (accessed on 18 October 2019).
  80. Xie, P.; Liu, X.; Liu, Z.; Li, T.; Zhong, L.; Xiang, Y. Human health impact of exposure to airborne particulate matter in Pearl River Delta, China. Water Air Soil Pollut. 2011, 215, 349–363. [Google Scholar] [CrossRef]
  81. Apte, J.S.; Marshall, J.D.; Cohen, A.J.; Brauer, M. Addressing global mortality from ambient PM2.5. Environ. Sci. Technol. 2015, 49, 8057–8066. [Google Scholar] [CrossRef]
  82. Liang, R.; Zhang, B.; Zhao, X.; Ruan, Y.; Lian, H.; Fan, Z. Effect of exposure to PM2.5 on blood pressure: A systematic review and meta-analysis. J. Hypertens. 2014, 32, 2130–2140. [Google Scholar] [CrossRef]
Figure 1. Study area and locations of PM2.5 monitoring stations.
Figure 1. Study area and locations of PM2.5 monitoring stations.
Ijerph 16 03994 g001

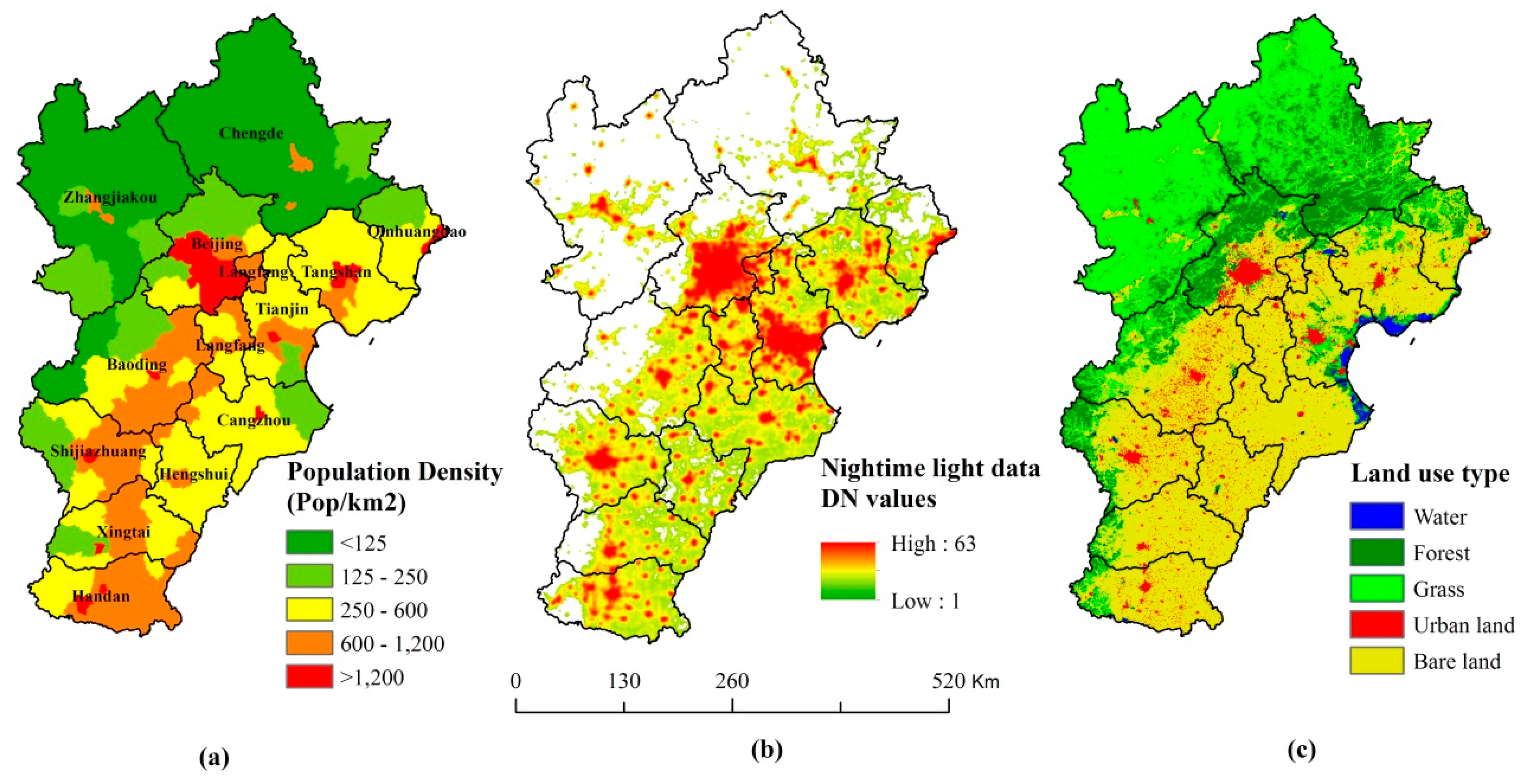

Figure 2. (a) Census data, (b) DMSP/OLS NTL, and (c) land use data of the study area in 2010.
Figure 2. (a) Census data, (b) DMSP/OLS NTL, and (c) land use data of the study area in 2010.
Ijerph 16 03994 g002
Figure 3. Spatial distributions of the (a) annual mean PM2.5 concentration, (b) cold season mean PM2.5 concentration, and (c) warm season mean PM2.5 concentration.
Figure 3. Spatial distributions of the (a) annual mean PM2.5 concentration, (b) cold season mean PM2.5 concentration, and (c) warm season mean PM2.5 concentration.
Ijerph 16 03994 g003
Figure 4. The population density across the BTH region in 2016.
Figure 4. The population density across the BTH region in 2016.
Ijerph 16 03994 g004
Figure 5. Spatial distribution of the health impacts associated with PM2.5 in (a) 2016, and during the (b) cold season and (c) warm season of 2016 (unit cases).
Figure 5. Spatial distribution of the health impacts associated with PM2.5 in (a) 2016, and during the (b) cold season and (c) warm season of 2016 (unit cases).
Ijerph 16 03994 g005

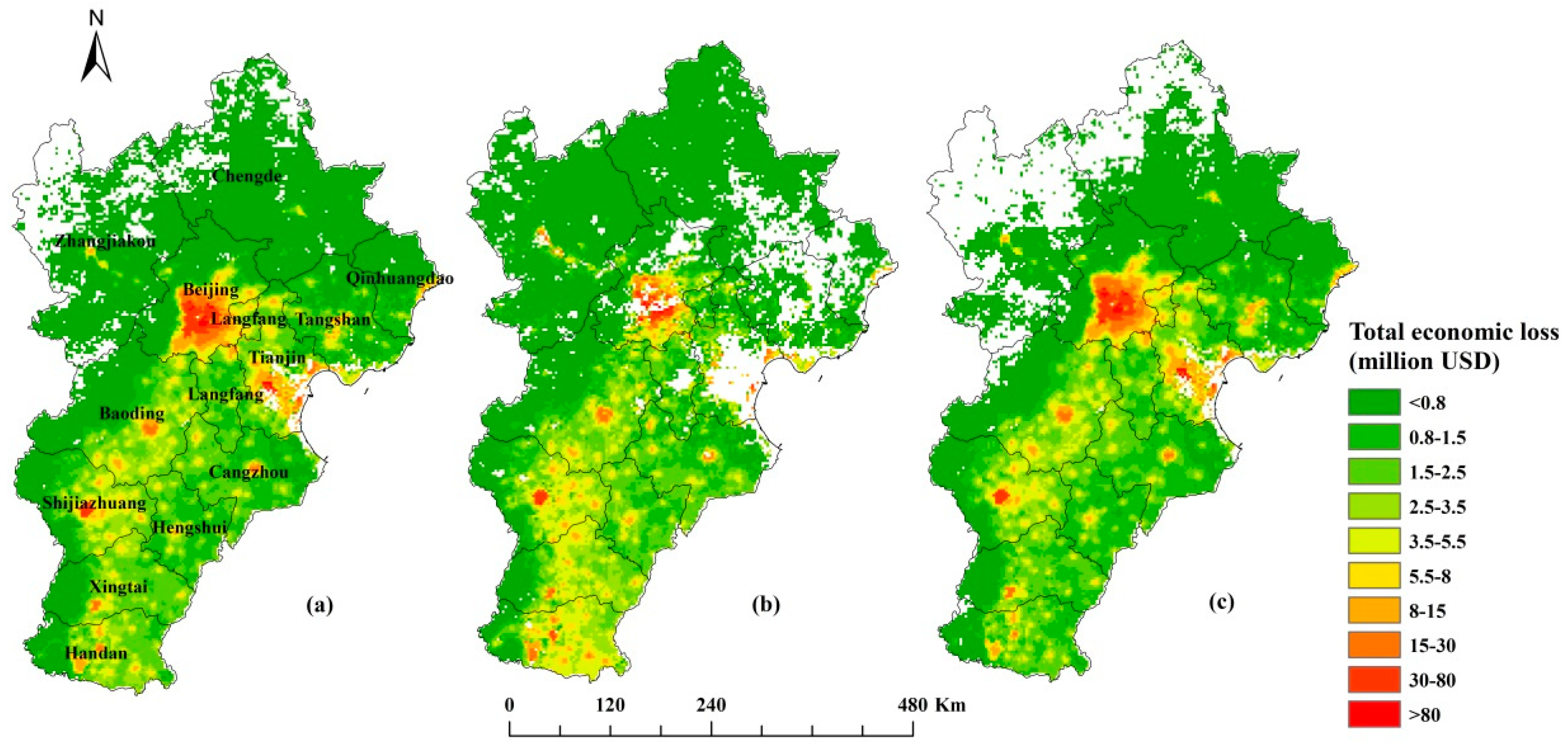

Figure 6. Spatial distribution of the total economic costs associated with PM2.5 in (a) 2016, and in (b) the cold season and (c) the warm season in 2016.
Figure 6. Spatial distribution of the total economic costs associated with PM2.5 in (a) 2016, and in (b) the cold season and (c) the warm season in 2016.
Ijerph 16 03994 g006
Table 1. PM2.5 exposure-response coefficients for the chosen health endpoints.
Table 1. PM2.5 exposure-response coefficients for the chosen health endpoints.
Health ImpactExposure-Response Coefficients 95% CIReference
All-cause mortality0.0040 (0.0019, 0.0062)[63]
Respiratory hospital admission0.0109 (0, 0.0221)[60,61,63] [60,61,63]
Cardiovascular hospital admission0.0068 (0.0043, 0.0093)[60,61,63]
Outpatient visits to pediatrics0.0056 (0.0020, 0.09)[59]
Outpatient visits to internal medicine0.0049 (0.0027, 0.07)[59]
Acute bronchitis0.0790 (0.027, 0.13)[69]
Chronic bronchitis0.01009 (0.00366, 0.01559)[18]
Asthma attack0.02100 (0.0145, 0.03)[70]
Table 2. Mortality and morbidity at the health endpoints used in the analysis (95% CI).
Table 2. Mortality and morbidity at the health endpoints used in the analysis (95% CI).
Health ImpactEBeijingETianjinEHebeiReference
All-cause mortality5.20‰5.54‰6.36‰[58]
Respiratory hospital admission2.03%1.47%2.11%[71]
Cardiovascular hospital admission1.57%1.14%1.64%[71]
Outpatient visits to pediatrics77.00‰52.58‰96.10‰[71]
Outpatient visits to internal medicine22.20%31.70%21.80%[71]
Acute bronchitis3.80%3.80%3.80%[18,72]
Chronic bronchitis0.69%3.80%3.80%[18,72]
Asthma attack0.94%0.94%0.94%[18,72]
Table 3. Economic costs per case of different health effects (USD).
Table 3. Economic costs per case of different health effects (USD).
Health ImpactECBeijingECTianjinECHebeiMethodReferences
All-cause mortality775,333.85502,461.50383,481.63VOSL[58]
Respiratory hospital admission1096.171096.171096.17COI[71]
Cardiovascular hospital admission2595.542595.542595.54COI[71]
Outpatient visits to pediatrics69.2845.0632.35COI [71]
Outpatient visits to internal medicine69.2845.0632.35COI[71]
Acute bronchitis376.39304.86211.21COI[18,67]
Chronic bronchitis42,643.3627,635.3821,091.49VOSL[77]
Asthma attack277.06224.41155.39COI[67]
Table 4. Estimates of the cases (and 95% CI) attributable to PM2.5 pollution (C0 = 35 μg/m3) (Unit: Thousand cases).
Table 4. Estimates of the cases (and 95% CI) attributable to PM2.5 pollution (C0 = 35 μg/m3) (Unit: Thousand cases).
Health ImpactBeijingTianjinHebei
All-cause mortality15.934 (7.871, 23.718)11.004 (5.413, 16.447)62.067 (30.566, 92.676)
Respiratory hospital admission149.415 (0, 250.340)70.832 (0, 120.835)500.378 (0, 849.737)
Cardiovascular hospital admission77.810 (51.511, 101.725)36.617 (24.128, 48.089)259.152 (170.962, 339.954)
Outpatient visits to pediatrics320.725 (122.453, 484.648)142.390 (53.991, 216.506)1277.715 (485.322, 1939.757)
Outpatient visits to internal medicine819.571 (470.404, 1126.711)759.872 (434.312, 1048.723)2,566.449 (1468.419, 3538.570)
Acute bronchitis784.711 (529.764, 819.832)553.107 (356.541, 586.417)2659.836 (1735.294, 2808.604)
Chronic bronchitis48.028 (19.580, 67.412)31.481 (12.684, 44.600)154.244 (62.332, 218.013)
Asthma attack112.297 (86.531, 138.935)74.929 (57.147, 93.883)365.481 (279.469, 456.461)
Table 5. Average total economic cost (billion USD) as a proportion of the BTH’s average GDP.
Table 5. Average total economic cost (billion USD) as a proportion of the BTH’s average GDP.
Health ImpactEconomic Cost (95%CI)
BeijingTianjinHeibei
All-cause mortality12.35 (6.10, 18.39)5.53 (2.72, 8.26)23.80 (11.72, 35.54)
Respiratory hospital admission0.16 (0, 0.27)0.08 (0, 0.13)0.55 (0, 0.93)
Cardiovascular hospital admission0.20 (0.13, 0.26)0.10 (0.06, 0.12)0.67 (0.44, 0.88)
Outpatient visits to pediatrics0.02 (0.01, 0.03)0.01 (0.002, 0.01)0.04 (0.02, 0.06)
Outpatient visits to internal medicine0.06 (0.03, 0.08)0.03 (0.02, 0.05)0.08 (0.05, 0.11)
Acute bronchitis0.30 (0.20, 0.31)0.17 (0.11, 0.18)0.56 (0.37, 0.59)
Chronic bronchitis2.04 (0.83, 2.87)0.86 (0.35, 1.23)3.25 (1.31, 4.60)
Asthma attack0.03 (0.02, 0.04)0.02 (0.01, 0.02)0.05 (0.04, 0.07)
Total loss15.16 (7.34, 22.26)6.80 (3.28, 10.01)29.00 (13.95, 42.79)
GDP386.45269.26482.81
Total loss/GDP3.90%2.52%6.00%

Share and Cite

MDPI and ACS Style

Zhang, X.; Hu, H. Combining Data from Multiple Sources to Evaluate Spatial Variations in the Economic Costs of PM2.5-Related Health Conditions in the Beijing–Tianjin–Hebei Region. Int. J. Environ. Res. Public Health 2019, 16, 3994. https://doi.org/10.3390/ijerph16203994

AMA Style

Zhang X, Hu H. Combining Data from Multiple Sources to Evaluate Spatial Variations in the Economic Costs of PM2.5-Related Health Conditions in the Beijing–Tianjin–Hebei Region. International Journal of Environmental Research and Public Health. 2019; 16(20):3994. https://doi.org/10.3390/ijerph16203994

Chicago/Turabian Style

Zhang, Xiya, and Haibo Hu. 2019. "Combining Data from Multiple Sources to Evaluate Spatial Variations in the Economic Costs of PM2.5-Related Health Conditions in the Beijing–Tianjin–Hebei Region" International Journal of Environmental Research and Public Health 16, no. 20: 3994. https://doi.org/10.3390/ijerph16203994

APA Style

Zhang, X., & Hu, H. (2019). Combining Data from Multiple Sources to Evaluate Spatial Variations in the Economic Costs of PM2.5-Related Health Conditions in the Beijing–Tianjin–Hebei Region. International Journal of Environmental Research and Public Health, 16(20), 3994. https://doi.org/10.3390/ijerph16203994

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
