Emergency Management of Medical Wastewater in Hospitals Specializing in Infectious Diseases: A Case Study of Huoshenshan Hospital, Wuhan, China
Abstract
:1. Introduction
2. Methods and Data Resource
3. Results and Discussion

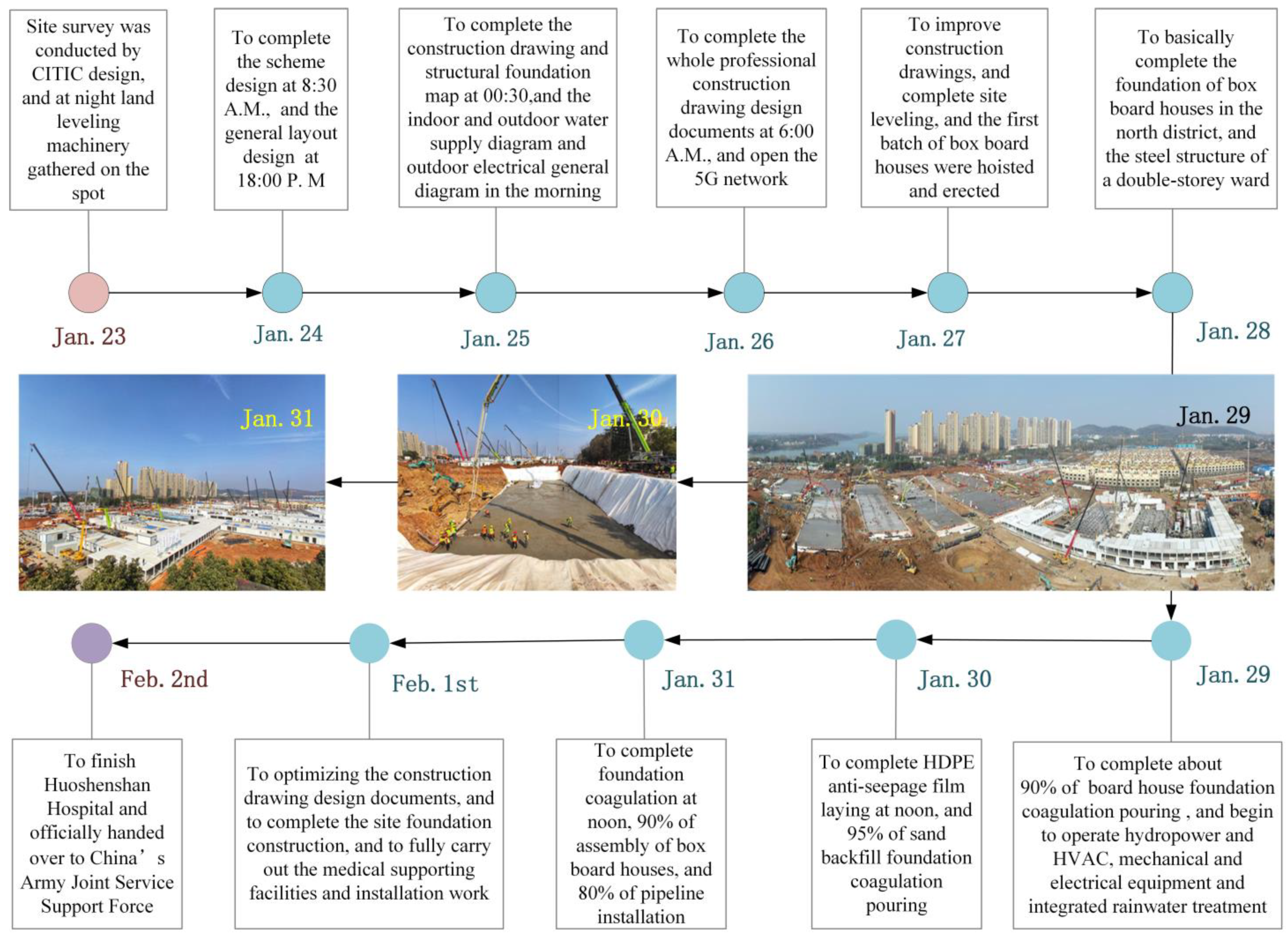

3.1. Construction Progress of the Huoshenshan Hospital
3.2. Development of Relevant Regulations and Policies

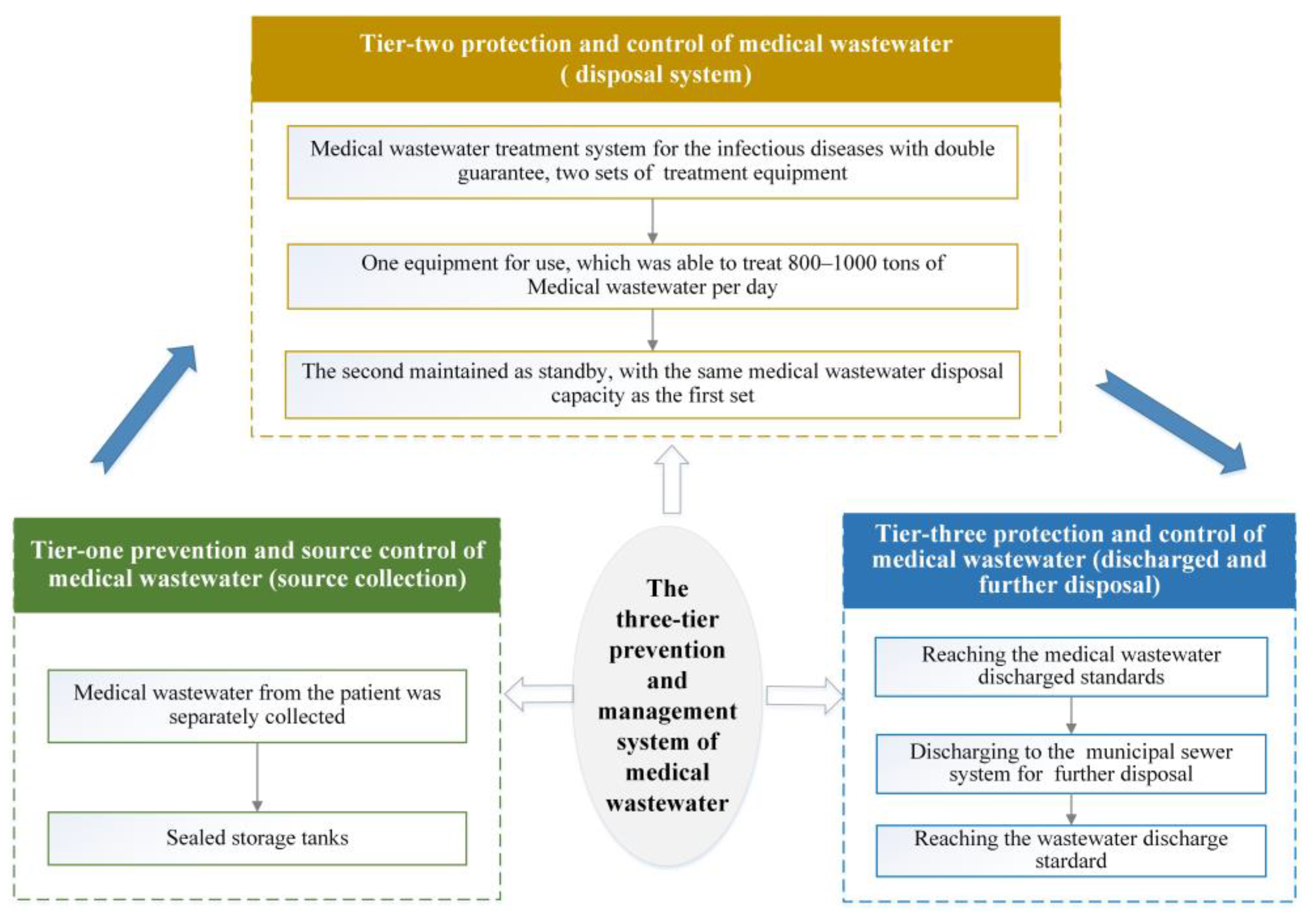

3.3. Three-Tier Prevention and Control System
3.3.1. Tier-One Prevention and Source Control (Source Collection)

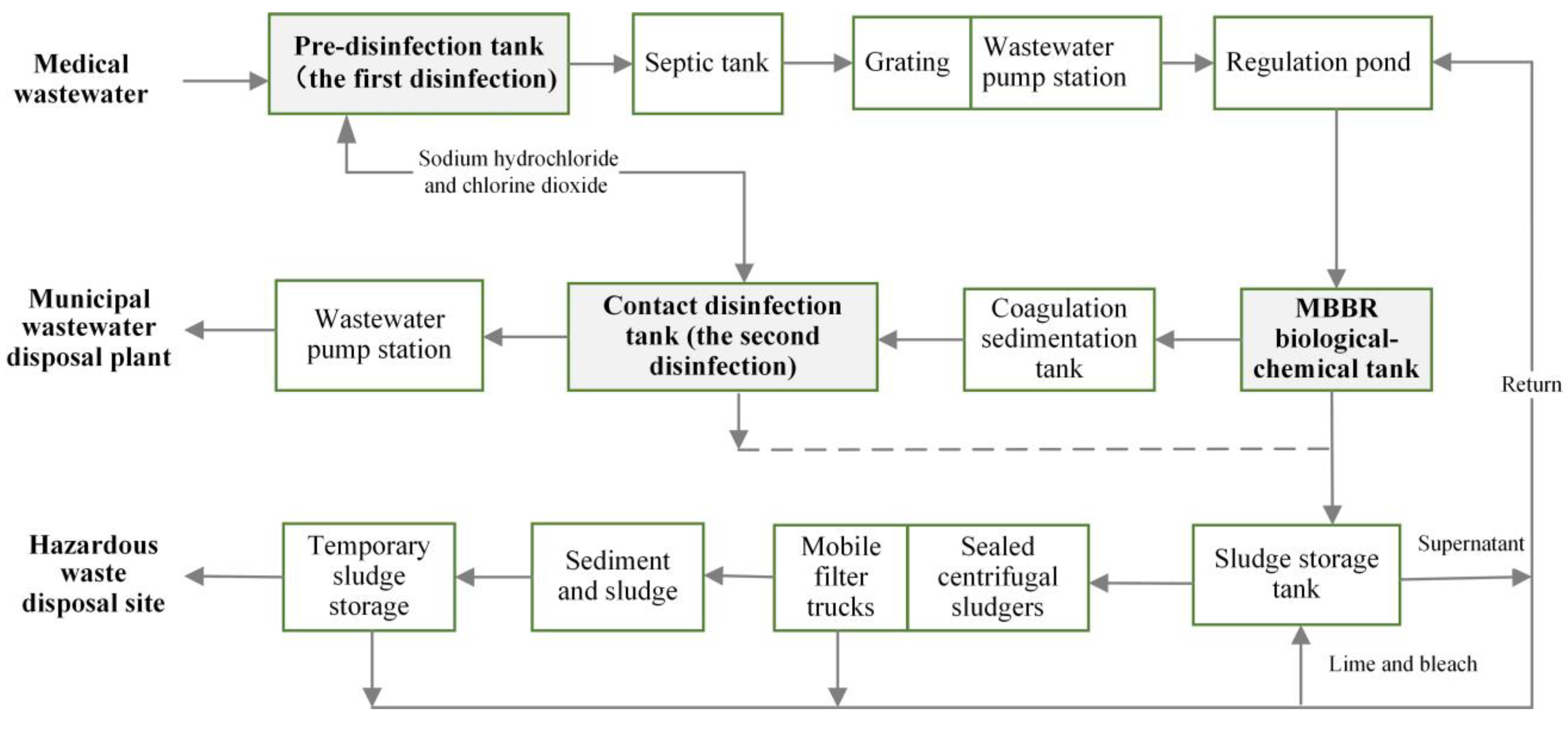

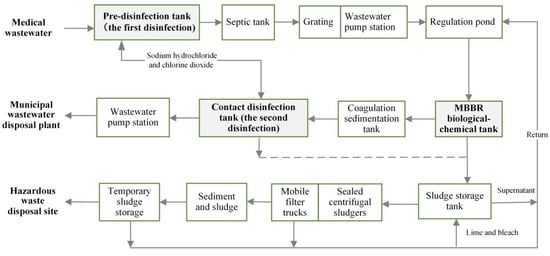

3.3.2. Tier-Two Protection and Control (Disposal System)
3.3.3. Tier-Three Protection and Control (Discharge and Further Disposal of Wastewater)

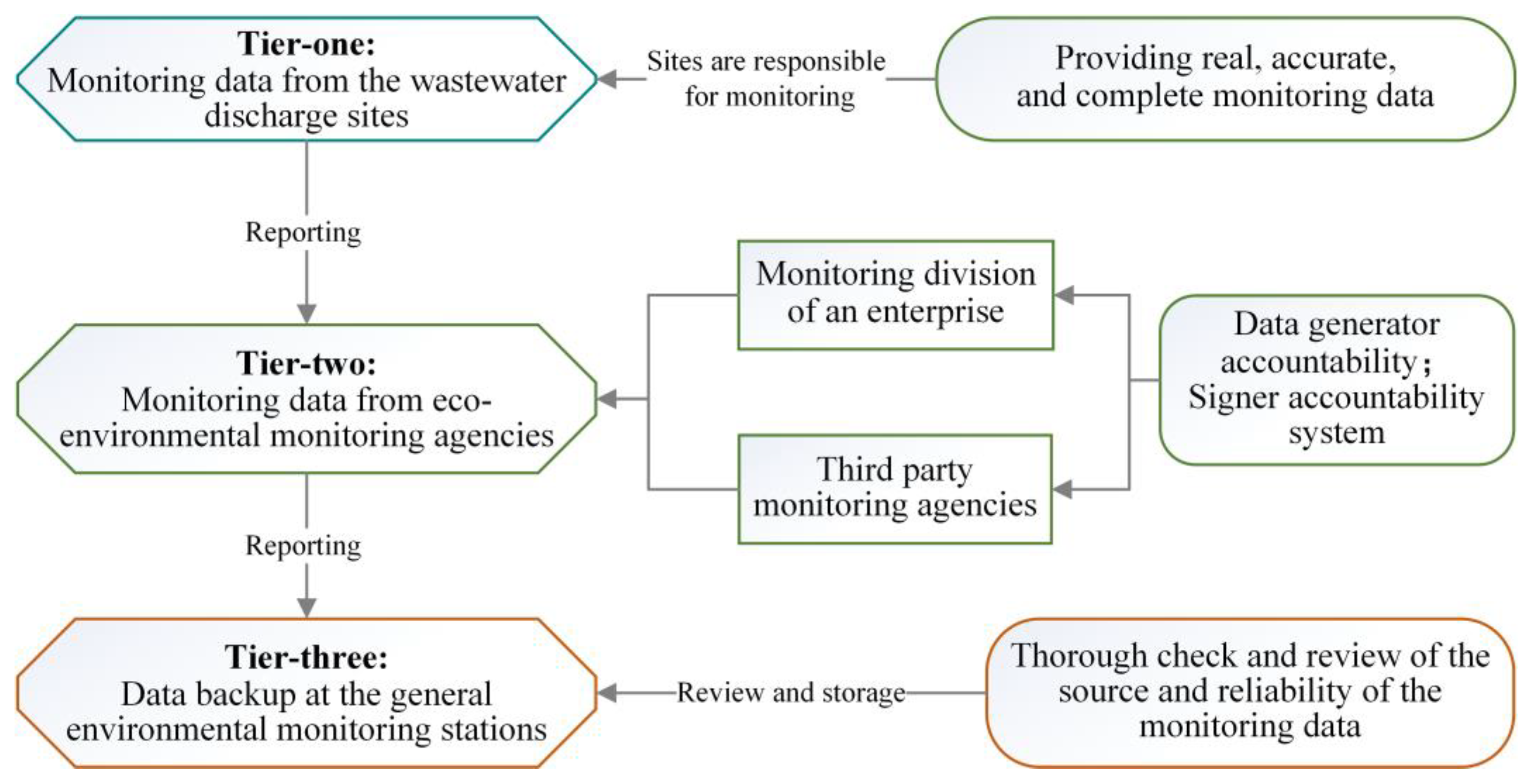

3.4. Measures for the Management of Environmental Monitoring
3.5. Importance of Environmental Governance
3.5.1. Information Disclosure and Public Participation

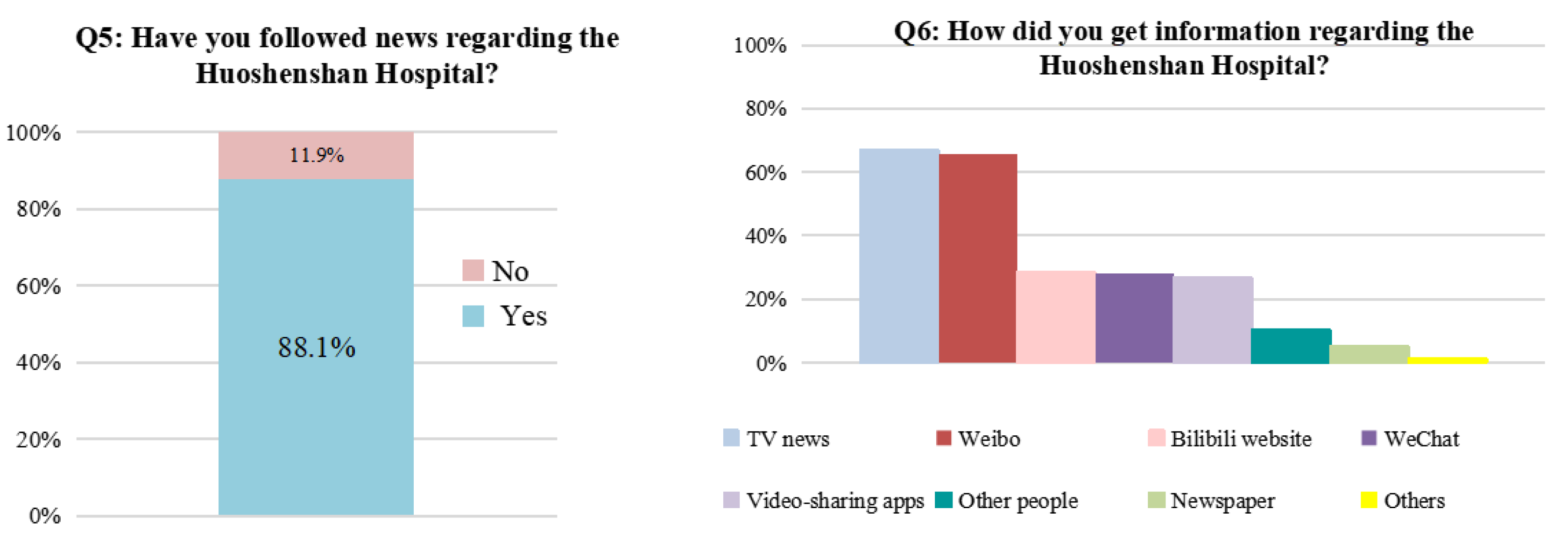

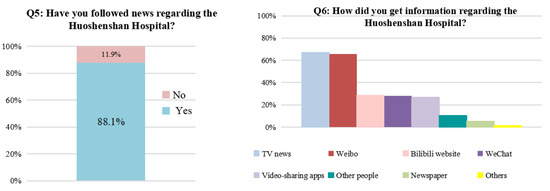

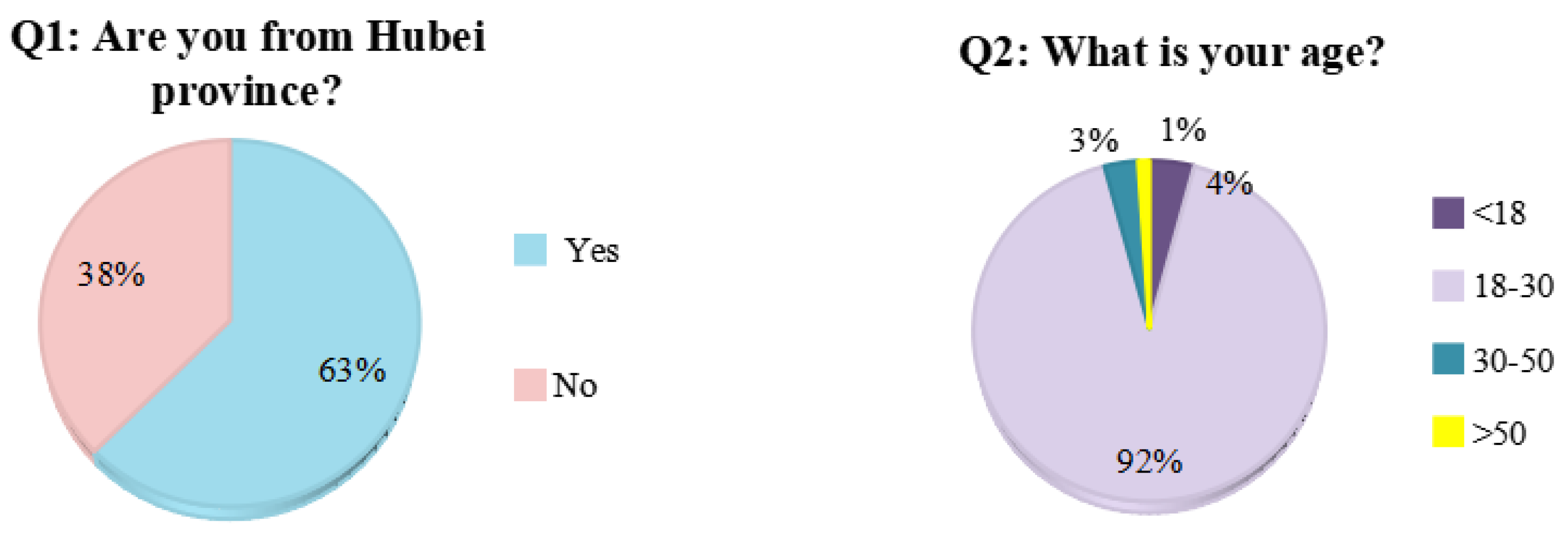

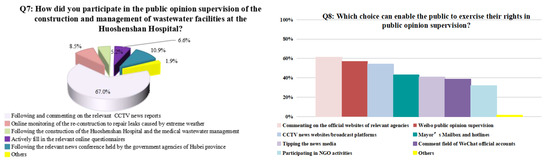

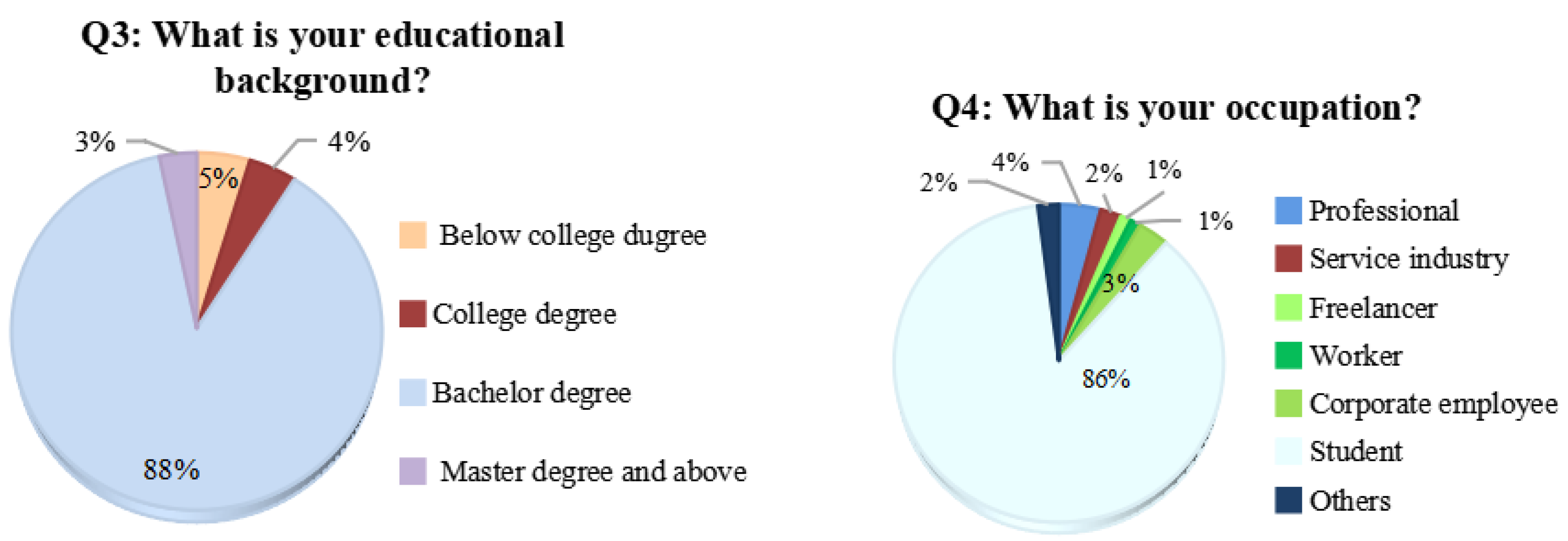

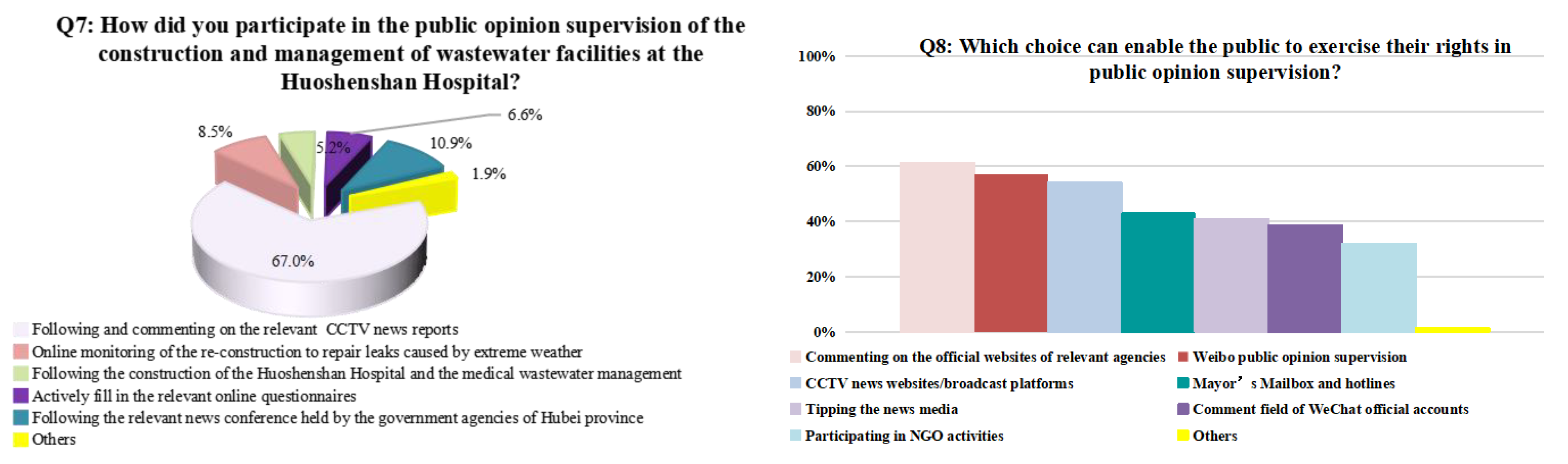

3.5.2. Survey on Public Participation within the Development and Operation of the Huoshenshan Hospital
3.5.3. Comparison with Developed Countries
4. Limitation and Further Study
5. Conclusions
- (1)
- The successful and rapid construction of a modern emergency hospital with modern information technology, including 5G, AI, and IoT, occurred concurrently with the construction of effective wastewater management equipment, including an underground HDPE film layer for the isolation of source’s wastewater.
- (2)
- The three-tier protection and control system was implemented for the emergency treatment of wastewater. The system was implemented by classification and collection of the medical wastewater from the ward, implementation of hospital wastewater treatment facilities, and municipal sewer system. Tier one focused on the prevention of pollution prevention at the source; tier two concentrated on the disinfection of the wastewater and the biological and chemical treatment of organic pollutants, to ensure that discharged wastewater met the water quality standards.
- (3)
- The management of monitoring aimed to ensure effective operation of monitoring equipment, standardization of monitoring process, and the provision of timely, reliable, verifiable, and recordable monitoring data. The three-tier accountability system within the data monitoring process guaranteed accuracy of monitoring data and also promoted the construction and development of big data platforms.
- (4)
- Medical Wastewater prevention and control technologies and measures were effectively implemented through the emergency legislative guarantee for the collection, monitoring, treatment, and discharge of the medical wastewater, as well as the modern information techniques.
- (5)
- The results of the questionnaire survey confirmed that the most of the population follow updates on the Huoshenshan Hospital through online tools, such as TV news, Weibo, WeChat, and video-sharing apps for mobile users. The public participated in online reviews and surveys of medical wastewater treatment facilities and management issues. Disclosure of environmental information should be strengthened, and public participation in industry-specific legislation should be improved, to promote the supervision of the management and control of medical wastewater through public opinion.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Achak, M.; Bakri, S.A.; Chhiti, Y.; Alaoui, F.E.M. SARS-CoV-2 in hospital wastewater during outbreak of COVID-19: A review on detection, survival and disinfection technologies. Sci. Total Environ. 2021, 761, 143192. [Google Scholar] [CrossRef]
- Delisle, J. SARS, Greater China, and the Pathologies of Globalization and Transition. Orbis 2003, 47, 587–604. [Google Scholar] [CrossRef]
- Bandala, E.R.; Kruger, B.R.; Cesarino, I.; Leao, A.L.; Wijesiri, B.; Goonetilleke, A. Impacts of COVID-19 pandemic on the wastewater pathway into surface water: A review. Sci Total Environ. 2021, 774, 145586. [Google Scholar] [CrossRef]
- Wang, J.; Shen, J.; Ye, D.; Yan, X.; Zhang, Y.J.; Yang, W.J.; Li, X.W.; Wang, J.Q.; Zhang, L.B.; Pan, L.J. Disinfection technology of hospital wastes and wastewater: Suggestions for disinfection strategy during coronavirus Disease 2019 (COVID-19) pandemic in China. Environ. Pollut. 2020, 262, 114665. [Google Scholar] [CrossRef]
- Basturka, I.; Varank, G.; Murat-Hocaoglu, S.; Yazici-Guvencb, S.; Oktem-Olguna, E.E.; Canli, O. The Scientific and Technolo Department of Environ Characterization and Treatment of Medical Laboratory Wastewater by Ozonation: Optimization of Toxicity Removal by Central Composite Design. Ozone Sci. Eng. 2020, 43, 1794794. [Google Scholar]
- Zhao, L.; Atoni, E.; Nyaruaba, R.; Du, Y.; Zhang, H.Y.; Donde, O.; Huang, D.D.; Xiao, S.Q.; Ren, N.J.; Ma, T.; et al. Environmental surveillance of SARS-CoV-2 RNA in wastewater systems and related environments in Wuhan: April to May of 2020. J. Environ. Sci. 2022, 112, 115–120. [Google Scholar] [CrossRef] [PubMed]
- Kataki, S.; Chatterjee, S.; Vairale, M.G.; Sharma, S.; Dwivedi, S.K. Concerns and strategies for wastewater treatment during COVID-19 pandemic to stop plausible transmission. Resour. Conserv. Recycl. 2021, 164, 105156. [Google Scholar] [CrossRef] [PubMed]
- Yan, S.; Zhang, X.L.; Tyaqi, R.D.; Drogui, P. Current Developments in Biotechnology and Bioengineering. In Environmental and Health Impact of Hospital Wastewater: 16—Guidelines for Hospital Wastewater Discharge, 1st ed.; Elsevier: Amsterdam, The Netherlands, 2020; pp. 571–597. [Google Scholar] [CrossRef]
- MEEPRC. Discharge Standard of Water Pollutants for Medical Organization. Ministry of Ecology and Environment of the People’s Republic of China (MEEPRC). 2006. Available online: https://www.mee.gov.cn/ywgz/fgbz/bz/bzwb/shjbh/swrwpfbz/200601/t20060101_69193.htm (accessed on 1 January 2020).
- Technical Specifications for Hospital Sewage Treatment. Ministry of Ecology and Environment of the People’s Republic of China (MEEPRC). 2013. Available online: https://www.mee.gov.cn/ywgz/fgbz/bz/bzwb/other/hjbhgc/201304/t20130403_250334.shtml (accessed on 1 July 2020).
- GXCDPC. General Rules for Disinfection of Sites of Epidemic Origin. Guangxi Center for Disease Prevention and Control (GXCDPC). 2016. Available online: http://www.gxcdc.com/ywzd/2016/0126/8222.html (accessed on 26 January 2020).
- Sun, N.; Wu, S.Z.; Hou, G.G. Implementation Status, Barriers and Suggestions on National Construction Planning of Medical Waste Dis-Posal Facilities. J. Environ. Sci. 2007, 20, 158–163. [Google Scholar]
- Xiao, Y.X. ″Houshenshan Hospital″—Which Was Built in 10 Days. Xinhua News. 2020. Available online: http://www.xinhuanet.com/politics/2020-02/03/c_1125523730.htm (accessed on 3 February 2020).
- Huang, Y.H. A Full Decryption of Medical Wastewater on Leishenshan Hospital and Huoshenshan Hospital. Beijing: China Environmental News. 2020. Available online: https://news.china.com/zw/news/13000776/20200204/37763381_all.html (accessed on 4 February 2020).
- MEEPRC. Emergency Monitoring Program in Response to COVID-19 Outbreak. Ministry of Ecology and Environment of the People’s Republic of China (MEEPRC). 2020. Available online: https://www.mee.gov.cn/xxgk2018/xxgk/xxgk15/202001/t20200131_761095.html (accessed on 31 January 2020).
- MEEPRC. Notice on the Regulations of Medical Wastewater and Municipal Wastewater from the COVID-19 Outbreak. Ministry of Ecology and Environment of the People’s Republic of China (MEEPRC). 2020. Available online: https://www.mee.gov.cn/xxgk2018/xxgk/xxgk06/202002/t20200201_761163.html (accessed on 1 February 2020).
- MEEPRC. Notice on Monitoring Medical Sewage and Urban Sewage in Cases of Pneumonia in Novel Coronavirus Cases. Ministry of Ecology and Environment of the People’s Republic of China (MEEPRC). 2020. Available online: http://www.gov.cn/zhengce/zhengceku/2020-02/02/content_5473898.htm (accessed on 1 February 2020).
- MEEPRC. The Ministry of Ecology and Environment Shall Hold Ministerial Meetings. Ministry of Ecology and Envi-ronment of the People’s Republic of China (MEEPRC). 2020. Available online: https://www.mee.gov.cn/xxgk2018/xxgk/xxgk15/202002/t20200218_764298.html (accessed on 17 February 2020).
- Wang, Q.T. How to Deal with the Medical Sewage from Huoshenshan Mountain Hospital? Beijing: China Environmental News. 2020. Available online: https://www.cenews.com.cn/newpos/xf/202002/t20200211_927741.html (accessed on 11 February 2020).
- Li, Y. Wuhan Achieves Full Disposal of Medical Waste, Wastewater. Beijing: China News. 2020. Available online: http://www.ecns.cn/news/society/2020-03-30/detail-ifzuwwmz9244892.shtml (accessed on 30 March 2020).
- Li, C.Z.; Zhang, F.; Liu, B. Discussion on biochemical treatment process design of sewage treatment of Huoshenshan COVID-19 infec-tious disease hospital. Water Wastewater Eng. 2020, 46, 25–31. (In Chinese) [Google Scholar]
- Ma, Q. Two Mountains Hospitals (Huoshenshan Hospital & Leishenshan Hospital) Won the National Innovation Award as the International Leader of Key Technologies in Fast Building Medical Hospital of. Wuhan: Chutian Metropolis Daily. 2020. Available online: http://www.ctdsb.net/html/2020/0611/hubei313631.html (accessed on 11 June 2020).
- Yan, L. Huoshenshan Hospital Designers Receive Foreign Inquiries for Experience. Global Times. 2020. Available online: http://www.ecns.cn/news/society/2020-03-27/detail-ifzuwwmz9243374.shtml (accessed on 27 March 2020).
- Xia, H. Wuhan Disinfects Drainage, Sewage Disposal Facilities. Beijing: Xinhua News. 2020. Available online: http://www.xinhuanet.com/english/2020-02/20/c_138801836.htm (accessed on 20 February 2020).
- Mustafa, A.A.; Saeb, A.C.; Paola, V. Hospital Wastewater Treatments Adopted in Asia, Africa, and Australia. Hosp. Wastewaters 2017, 171–188. [Google Scholar] [CrossRef]
- Verlicchi, P.; Aukidy, M.A.; Zambello, E. What have we learned from worldwide experiences on the management and treatment of hospital effluent?—An overview and a discussion on perspectives. Sci. Total Environ. 2015, 514, 467–491. [Google Scholar] [CrossRef] [PubMed]
- MEEPRC. Record of the Regular Press Conference of the MEEPRC in May. Beijing: Ministry of Ecology and Environment of the People’s Republic of China (MEEPRC). 2020. Available online: http://www.gov.cn/xinwen/2020-03/11/content_5489980.htm (accessed on 11 March 2020).
- Xiao, Y.J. Construction of Huoshenshan Hospital Underway in Wuhan. Beijing: Xinhua News. 2020. Available online: http://www.xinhuanet.com/english/2020-01/29/c_138740524.htm# (accessed on 29 January 2020).
- MEEPRC. Notice on Issuing Technical Guidelines for Hospital Sewage Treatment. Ministry of Ecology and Environment of the People’s Republic of China (MEEPRC). 2003. Available online: https://www.mee.gov.cn/gkml/zj/wj/200910/t20091022_172241.htm (accessed on 22 October 2020).
- Gormley, M.; Aspray, T.; Kelly, D.A. COVID-19: Mitigating transmission via wastewater plumbing systems. Lancet Global Health 2020, 8, 643. [Google Scholar] [CrossRef] [Green Version]
- Li, C.Z.; Zhang, F.; Yu, Y.G.; Li, W.W. Discussion on the safety design of Huoshenshan hospital drainage system. Water Wastewater Eng. 2020, 46, 10–15. (In Chinese) [Google Scholar] [CrossRef]
- Hansen, K.M.S.; Spiliotopoulou, A.; Chhetri, R.K.; Casas, M.E.; Bester, K.; Andersen, H.R. Ozonation for source treatment of pharmaceuticals in hospital wastewater—Ozone lifetime and required ozone dose. Chem. Eng. J. 2016, 290, 507–514. [Google Scholar] [CrossRef] [Green Version]
- Peng, G.P.; Huang, W.H.; Liu, J.; Chen, A.M.; Chen, J.; Zhang, W.; Huang, L.; Hong, Y.; Li, C.Z.; Zhu, H.J. Sewage Treatment Project Design of Wuhan Huoshenshan and Leishenshan Hospitals. China Water Wastewater 2021, 37, 42–48. (In Chinese) [Google Scholar]
- Lu, Y. Huoshenshan Hospital and Leishenshan Mount Hospital were Officially Closed. Beijing: China News Network. 2020. Available online: https://www.chinanews.com/sh/2020/04-15/9158058.shtml (accessed on 15 April 2020).
- Xu, H.B. Wuhan Huoshenshan Hospital and Leishenshan Hospital Were Officially Closed Drainage Pipeline Has Been Basically Completed. Beijing: Xinhua News. 2020. Available online: http://m.xinhuanet.com/hb/2020-01/30/c_1125512893.htm (accessed on 30 January 2020).
- Xiong, H.S.; Wan, N.B.; Zhang, B. Municipal sewage treatment plants operation management in COVID-19 pneumonia epidemic period. Water Wastewater Eng. 2020, 46, 40–43. (In Chinese) [Google Scholar]
- Wuhan Municipal Bureau of Ecological Environment. Everyone in the War against the “Epidemic”—To Guard the Ecological and Environmental Protection Defense Line against the Spread of the Virus. Wuhan: Wuhan Municipal Bureau of Ecological Environment. 2020. Available online: http://hbj.wuhan.gov.cn/hjxw/202004/t20200416_1019431.html (accessed on 5 March 2020).
- Zeng, L.; He, G.S.; Wang, Y.; Chen, C.; Wang, J.H.; Chang, C. Design and Operation Management of Wastewater Treatment Station of COVID-19 Specialized Hospital in Wuhan Sewage Treatment Project Design of Wuhan Huoshenshan and Leishenshan Hospitals. Water Purif. Technol. 2020, 39, 1–7. (In Chinese) [Google Scholar]
- Wu, J.N.; Xu, M.M.; Zhang, P. The impacts of governmental performance assessment policy and citizen participation on improving environmental performance across Chinese provinces. J. Clean Prod. 2018, 184, 227–238. [Google Scholar] [CrossRef]
- Li, S.Y.; Liu, Z.X.; Li, Y.L. Temporal and spatial evolution of online public sentiment on emergencies. Inf. Process. Manag. 2020, 57, 102177. [Google Scholar] [CrossRef]
- Beijing Youth Daily. To Release the Information on Epidemic in a Timely and Accurate Manner so as to Enhance Public Trust. Beijing Youth Daily, Beijing. 2020. Available online: http://epaper.ynet.com/html/2020-01/27/content_347863.htm?div=-1 (accessed on 27 January 2020).
- Ma, Y.J. Xinhua Headlines: Quiet and busy—Lunar New Year’s Eve in Wuhan, Center of Coronavirus Fight. Beijing: Xinhua News. 2020. Available online: http://www.xinhuanet.com/english/2020-01/25/c_138733435.htm (accessed on 25 January 2020).
- Zhang, W.J. Under the epidemic situation, why does slow live broadcast become “hot style”—Take the Huoshenshan Hospital as an example of slow live broadcast. Young J. 2020, 14, 8–9. [Google Scholar]
- Zhi, Y.J. To Watch the Live Broadcast on the Chinese Fast—Finishing the Hospital in 10 Days, This Won the Plaudits from Foreign Media and Overseas Netizens. Beijing: CCTV International Online. 2020. Available online: http://news.cnr.cn/native/gd/20200205/t20200205_524961842.shtml (accessed on 5 February 2020).
- Li, Y.S.; Zhang, X.J.; Yao, T.T.; Sake, A.; Liu, X.; Peng, N. The developing trends and driving factors of environmental information disclosure in China. J. Environ. Manag. 2021, 288, 112386. [Google Scholar] [CrossRef] [PubMed]
- Liu, H.T. Current Situation, Characteristics and Promotion of Public Participation and Social Supervision on Foreign Environmental Protection Legislation. J. Environ. Sci. Manag. 2014, 39, 25–28. [Google Scholar] [CrossRef]
- Yao, X.Y.; He, J.; Bao, C.K. Public participation modes in China’s environmental impact assessment process: An analytical framework based on participation extent and conflict level. Environ. Impact Assess Rev. 2020, 84, 106400. [Google Scholar] [CrossRef]
Laws, Regulations, and Standards | Issuing Authority | Time of Issuance | Relevant Provisions of Wastewater Management/Reference |
---|---|---|---|
Technical Guideline for Hospital Wastewater Treatment (Environment Development (2003) No. 197) | Ministry of Ecology and Environment | 1 December 2013 | Separate medical wastewater from non-medical wastewater by using separate different piping systems; required mandatory septic tanks and secondary treatment in hospitals treating infectious diseases; required pre-disinfection [29] |
Standards for the Discharge of Water Pollutants from Medical Organizations (The Standards, GB 18466-2005) | Ministry of Ecology and Environment | 17 May 2005 | Specify the pollutant discharge limits for wastewater produced by hospitals treating infectious diseases [9] |
Engineering and Technical Specifications for Hospital Wastewater Treatment Engineering (The Specifications, HJ 2029-2013) | Ministry of Ecology and Environment | 29 March 2013 | Specify the wastewater treatment process and disinfection measures for medical wastewater produced by hospitals treating infectious diseases [10] |
General Rules for Disinfection of Sites of Epidemic Origin (GB 19193-2015) | General Administration of Quality Supervision, Inspection and Quarantine | 12 June 2015 | Specify the requirements, principles, and effects of disinfection of sites of epidemic origin [11] |
Emergency Monitoring Program in response to COVID-19 Outbreak (The Monitoring Program) | Ministry of Ecology and Environment | 31 January 2020 | Specify the measures for emergency monitoring of characteristic pollutants for pandemic prevention and control, such as residual chlorine and biological toxicity [15] |
Notice on the Regulations of Medical Wastewater and Municipal Wastewater from the COVID-19 Outbreak (The Notice) | Ministry of Ecology and Environment | 31 January 2020 | Specify the classification and collection, monitoring, treatment, and discharge requirements for medical wastewater at the site of the outbreak [16] |
Technical Program for Emergency Treatment of Medical Wastewater Contaminated with Novel Coronavirus (Trial)” (The Technical Program) | Ministry of Ecology and Environment | 1 February 2020 | Strengthen the classification and management of wastewater and enhance disinfection and sterilization to meet the discharge standards and ultimately prevent the spread of viruses [17] |
Ecological Environmental Monitoring Regulations (Draft) (The Monitoring Draft) | Ministry of Ecology and Environment | 17 February 2020 | Identify the responsible monitoring parties, and monitoring data and strengthen monitoring, reporting, and reviewing [18] |
No | Item | Standard Value | Design Influent & Effluent Quality of Medical Wastewater | Actual Effluent Quality of Medical Wastewater | |
---|---|---|---|---|---|
Influent Quality | Effluent Quality | ||||
1 | Number of fecal coliforms | ≤100 MPN.L−1 | ≤3.0 × 108 MPN.L−1 | ≤5000 MPN.L−1 | ≤100 |
2 | Intestinal bacteria | ND | --- | --- | --- |
3 | Tubercule bacilli | ND | --- | --- | |
4 | pH value | 6–9 | 6–9 | 6–9 | 7.9 ± 0.7 |
5 | COD | ≤60 mg L−1 | ≤350 mg L−1 | ≤250 mg L−1 | 40.66 ± 5.23 |
6 | BOD | ≤20 mg L−1 | ≤150 mg L−1 | ≤100 mg L−1 | --- |
7 | SS | ≤20 mg L−1 | ≤120 mg L−1 | ≤60 mg L−1 | --- |
8 | ANH3-N | ≤15 mg L−1 | ≤30 mg L−1 | --- | 1.53 ± 0.38 |
9 | The total residual chlorine | 6.5~10 mg L−1 | --- | --- | 6.5~10 mg L−1 |
10 | Animal and vegetable oil | ≤5 mg L−1 | ≤50 mg L−1 | ≤20 mg L−1 | --- |
11 | SARS-CoV-2 | ND | --- | ND | --- |
Name | Issuing Authority | Issuing Date | Remarks |
---|---|---|---|
Emergency Regulations for Public Health Emergencies | State Council | 29 May 2003 | To establish a system of prompt notification and timely information release |
Measures for Environmental Information Disclosure (Trial) | State Environmental Protection Administration | 8 February 2007 | To promote and specify the obligations of environmental protection agencies and enterprises to disclose environmental information and protect the rights and interests of citizens, legal persons, and other organizations to obtain environmental information |
Management Measures for Information Disclosure of Medical and Health Service Organizations (Trial) | Ministry of Health | 3 June 2010 | To disclose information on medical and health service organizations in conformance with the laws and to improve the transparency of the medical and health service work |
Notice of the Ministry of Environmental Protection on Strengthening the Information Disclosure on Supervision of Environmental Pollution Sources | Ministry of Ecology and Environment | 12 July 2013 | To protect the rights and interests of citizens, legal persons, and other organizations to obtain information of environmental pollution sources using legal means and to issue guidance on public participation in environmental protection |
Self-monitoring and Information Disclosure Measures for Key Enterprises under State Monitoring (Trial) | Ministry of Environmental Protection | 30 July 2013 | To specify self-monitoring and information disclosure for enterprises, urge enterprises to intentionally fulfill their legal obligations and social responsibilities, and to promote public participation |
The Environmental Protection Law | Standing Committee of the National People’s Congress | 24 April 2014 | Enterprises and organizations shall disclose environmental information regarding environmental monitoring and public emergencies in accordance with the law; the public is entitled to the right to supervise environmental protection issues |
Measures for Environmental Information Disclosure by Enterprises and Organizations | Ministry of Environmental Protection 19 December 2014 | 19 December 2014 | Enterprises and organizations shall accurately disclose environmental information in accordance with the law; public participation, supervision, and management to be promoted |
Measures for Public Participation in Environmental Protection | Ministry of Environmental Protection | 13 July 2015 | To protect the rights of citizens, legal persons, and other organizations in obtaining environmental information, as well as participating in and supervising environmental protection issues; develop avenues for public participation and promote the legal and orderly development of public participation in environmental protection |
